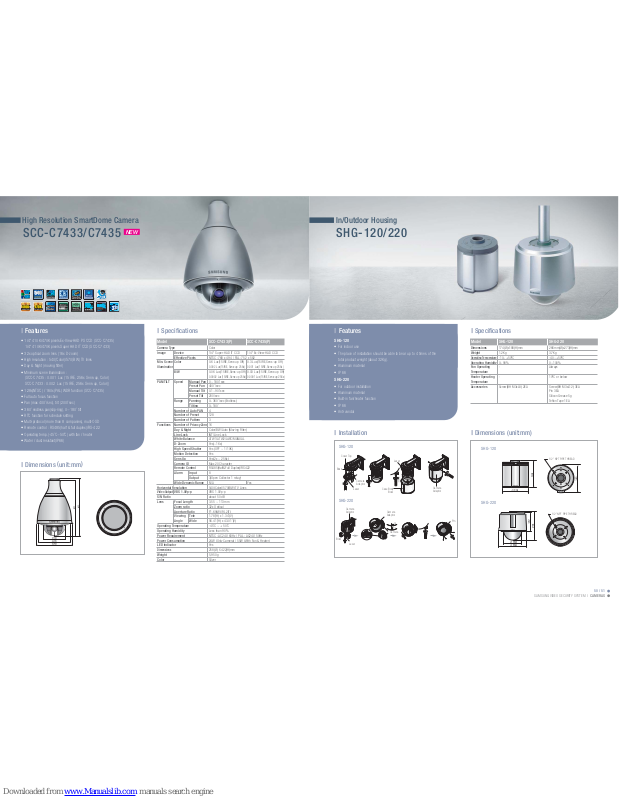

Samsung SHG-222, SCC-C7433, SADT-100WM, SADT-101WM, SADT-102WM Specification Sheet

50 / 51

SAMSUNG VIDEO SECURITY SYSTEM I CAMERAS

|

Dimensions (unit:mm

)

SHG-120/220

In/Outdoor Housing

|

Specifications

SHG-120

• For indoor use

• The place of installation should be able to bear up to 4 times of the
total product weight (about 32Kg).

• Aluminum material

• IP 66

SHG-220

• For outdoor installation

• Aluminum material

• Built-in fan/heater function

• IP 66

• Anti-vandal

|

Features

|

Installation

SHG-120

SHG-220

Cover Top

Boss

Boss

Camera
Adaptor

Lever

Lever

Lever

Case Body

Boss

Camera
Adaptor

Camera
Adaptor

Camera
Adaptor

Camera

Pin

SHG-120

SHG-220

1/2” NPT PiPE THREAD

1/2” NPT PiPE THREAD

Dimensions 174(Ø)x188(H)mm 266mm(Ø)x273(H)mm
Weight 1.2Kg 3.7Kg
Operating Temperature

-10~+50ºC -40~+50ºC

Operating Humidity

0~90% 0~100%

Fan Operating - Always
Temperature
Heater Operating - 10ºC or below
Temperature
Accessories Screw(BH M3xL8) 2EA Screw(BH M3xL12) 3EA

Pin 3EA
Silicon Grease 5g
Teflon Tape 1EA

Model SHG-120 SHG-220

|

Dimensions (unit:mm

)

Camera Type
Image Device

Effective Pixels
Min. Scene Color
Illumination

B/W

PAN/TILT Speed Manual Pan

Preset Pan
Manual Tilt
Preset Tilt

Range Panning

Tilting
Number of Auto PAN
Number of Preset
Number of Pattern

Functions Number of PrivacyZone

Day & Night
Line Lock
White Balance
D-Zoom
High Speed Shutter
Motion Detection
Sens Up
Camera ID
Remote Control
Alarm Input

Output
Wide Dynamic Range

Horizontal Resolution
VideoOutput

VBS 1.0Vp-p

S/N Ratio
Lens Focal Length

Zoom ratio
Aperture Ratio
Viewing Tele
Angle Wide

Operating Temperature
Operating Humidity
Power Requirement
Power Consumption
LED Indicator
Dimensions
Weight
Color

Color
1/4" Super-HAD IT CCD 1/4" Ex-View-HAD CCD
NTSC: 768 x 494 / PAL: 752 x 582

0.6 Lux(15IRE,Sens-up Off) 0.3 Lux(15IRE,Sens-up Off)

0.002 Lux(15IRE, Sens-up 256x) 0.001 Lux(15IRE, Sens-up 256x)

0.06 Lux(15IRE,Sens-up Off) 0.03 Lux(15IRE,Sens-up Off)

0.0002 Lux(15IRE,Sens-up 256x) 0.0001 Lux(15IRE,Sens-up 256x)
0 ~180˚/sec
400˚/sec

0.1~90˚/sec
200/sec
0~360˚/sec (Endless)
0~180˚
4
128
3
16
Color/BW/Auto (Moving Filter)
INT/Line Lock
ATW1/ATW2/AWC/MANUAL
Yes(~16x)
Yes (OFF ~ 1/10K)
Yes
Yes(2x ~ 256x)
Max 20 Character
RS485(Half&Full Duplex)/RS422
8
3(Open Collector 1 relay)
N/A Yes
540(Color)/570(BW) TV Lines
VBS 1.0Vp-p
about 50 dB

3.55 ~ 113mm
32x Optical
F1.69(W)/F4.2(T)

1.78˚(H) x 1.34˚(V)

56.41˚(H) x 43.01˚(V)

-45˚C ~ + 50˚C
Less than 90%
NTSC : AC24V,60Hz / PAL : AC24V,50Hz
24W (Only Camera) / 55W (With Fan & Heater)
Yes
258(Ø) X 422(H)mm
5,950g
Silver

Model SCC-C7433(P) SCC-C7435(P)

SCC-C7433/C7435

High Resolution SmartDome Camera

|

Specifications

• 1/4" 410K/470K pixels Ex-View HAD PS CCD (SCC-C7435)
1/4" 410K/470K pixels Super HAD IT CCD (SCC-C7433)

• 32x optical zoom lens (16x D-zoom)

• High resolution : 540(Color)/570(BW) TV lines

• Day & Night (moving filter)

• Minimum scene illumination :
(SCC-C7435 : 0.001 Lux (15 IRE, 256x Sens-up,Color)
SCC-C7433 : 0.002 Lux (15 IRE, 256x Sens-up,Color))

• 128x(NTSC) / 160x(PAL) WDR function (SCC-C7435)

• Full auto focus function

• Pan (max 400˚/sec), tilt (200˚/sec)

• 360˚ endless pan(slip-ring), 0~180˚ tilt

• RTC function for schedule setting

• Multi-protocol (more than 8 companies), multi-OSD

• Remote control : RS485(half & full duplex)/RS-422

• Operating temp.(-45˚C~50˚C) with fan / heater

• Water / dust resistant(IP66)

|

Features

NEW

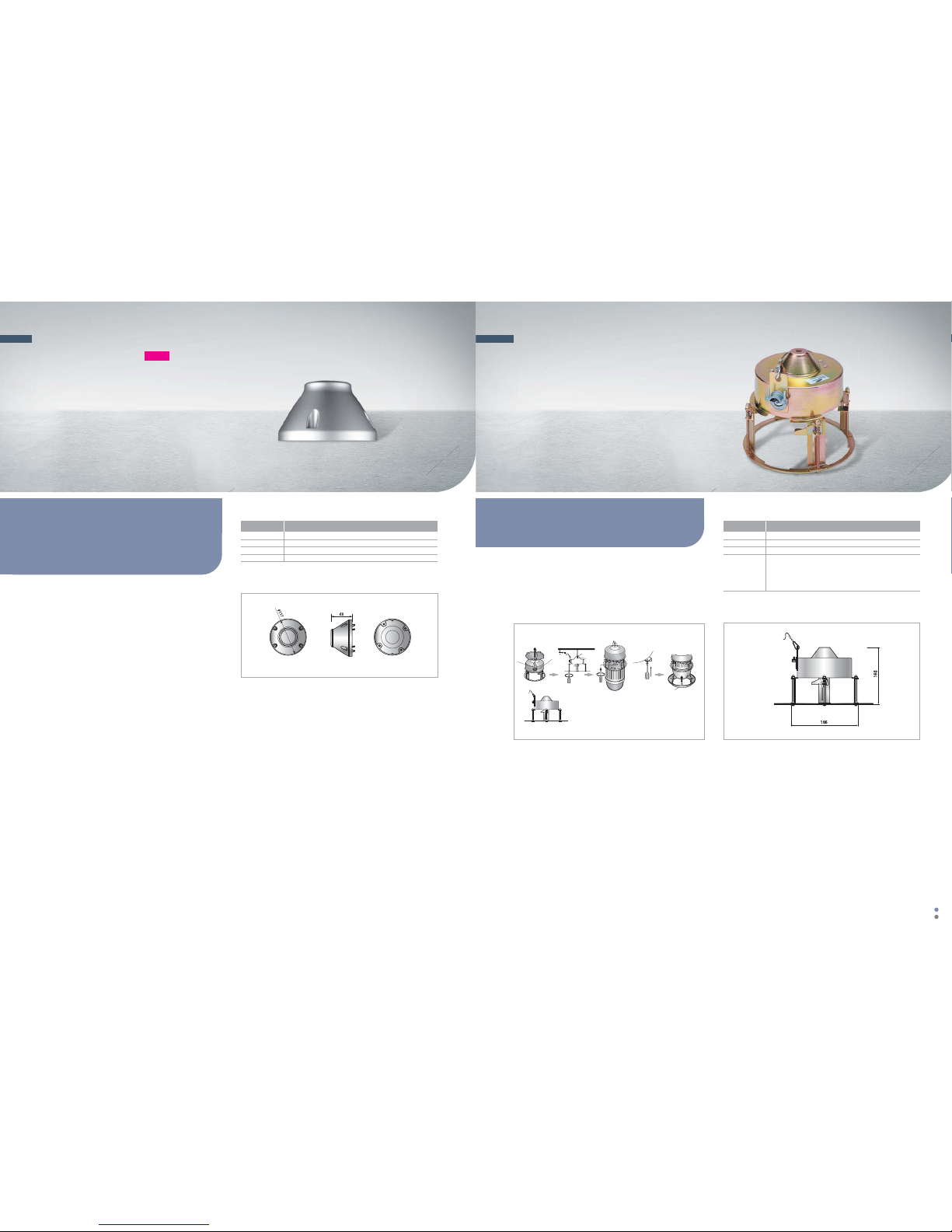

52 / 53

SAMSUNG VIDEO SECURITY SYSTEM I CAMERAS

|

Dimensions (unit:mm

)

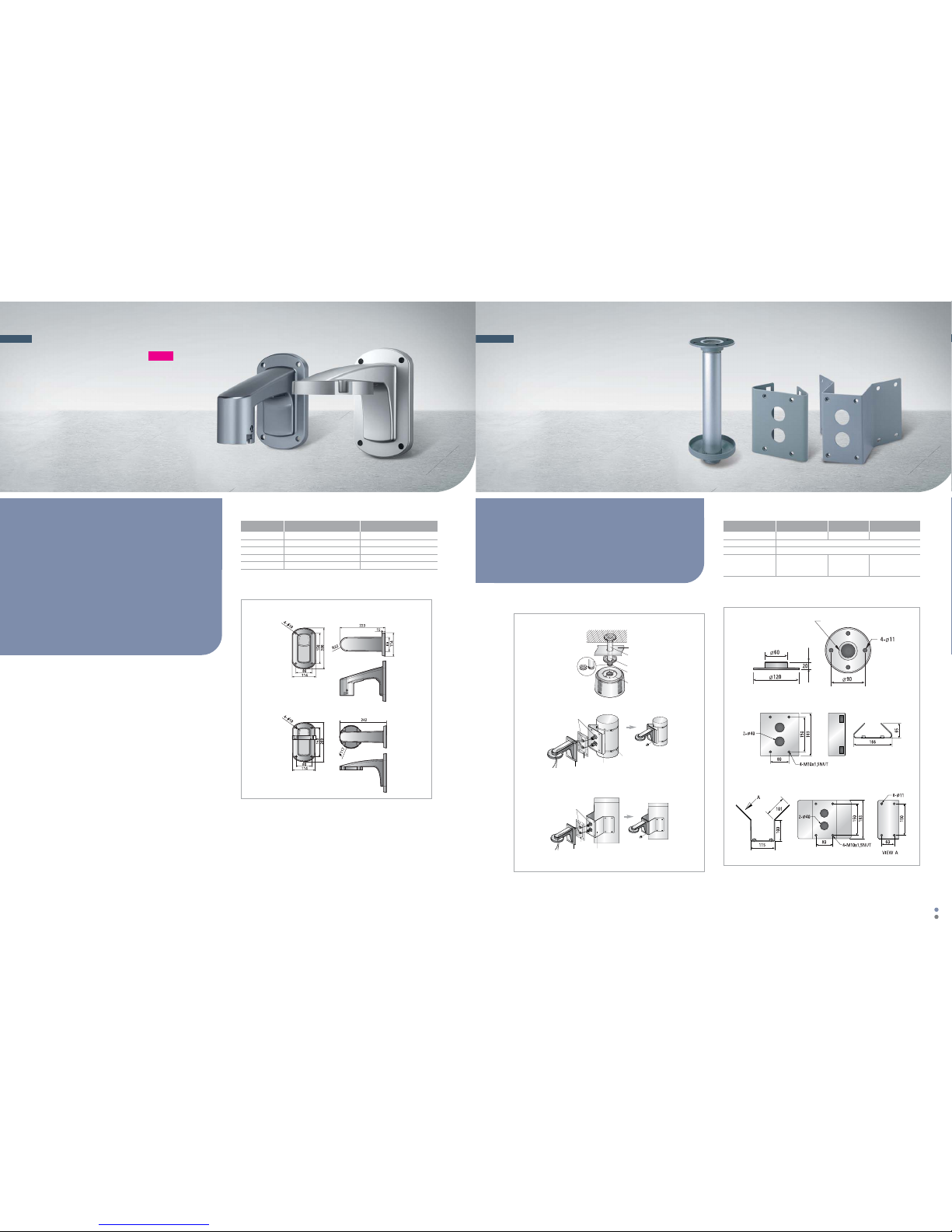

SADT-100WM
SADT-101WM
SADT-102WM

Wall Mount Adaptor

|

Specifications

• Indoor/outdoor use

• Solid structure

• Aluminum material

• Gasket provides waterproof function

• Screws included, for camera mounting

|

Features

|

Installation

Wall

Mount

Adaptor

Wall
Mount
Adaptor

Boss

Gasket

Gasket
Attachment After
Separating
Dummy Plate

Gasket

Back
Plate

Wall
Mount
Adaptor

Wall
Mount
Adaptor

SHG-220

Wall

Mount

Adaptor

Gasket

Back
Plate

Wall

Mount

Adaptor

Gasket

Back
Plate

Weight 800g
Operating Temperature

-40 ~ +50ºC

Operating Humidity

0~100% RH

Accessory Gasket 1EA, Cable Grand(PG-11, PG-13.5),Back Plate 1EA

Back Plate 1EA
Screw(FH M3xL6) 6EA
Screw(PH M4xL22) 2EA Screw(PM M4xL22) 2EA Screw(PM M4xL22) 4EA

Applicable SCC-641/643A SCC-931T SCC-C9302
Camera SCC-C640X SCC-B539X

SCC-C6475

Model SADT-100WM SADT-101WM SADT-102WM

SADT-100WM/101WM/102WM

SADT-100WM

SADT-102WM

SADT-101WM

|

Dimensions (unit:mm

)

SHG-222

Outdoor Housing

|

Specifications

• Hanging mount adaptor(included)

• Outdoor use

• Solid structure

• Aluminum/plastic material

• Applicable camera : SCC-C6433/C6435

• Applicable wall mount adaptor : SADT-103WM

|

Features

|

Installation

411

168
235
258

422

10。

Materials Aluminum & Plastic
Dimensions 258(Ø) x 422(H)mm
Weight 3.8Kg(NET)
Operating Temperature

-40~+50ºC

Operating Humidity

0~100%

Fan Operating Always
Temperature
Heater Operating Below 4ºC
Temperature

Model SHG-222

Cover Front

Camera

Guide

Guide Hole

Camera

CameraScrew

Screw Taptite

Cover Dome

Camera
Adaptor

Arrow

Arrow

Bracket
Lock

Bracket Lock

CAMERA ADAPTOR

CAMERA

GUIDE
HOLE

GUIDE

SCREW FIXING HOLE

Cover rear

Cover rear

Cover Front

Cover rear

Cover Front

Cover
home

Guide

Cover
home

Guide

Holder Housing

NEW
