Samsung SADT-101WM User Manual
WALL MOUNT ADAPTOR
SADT-101WM
Installation Manual
Installationshandbuch
Manuel D’installation
Manual De Instalación
Manuale Dell'Installazione
AB68-00233B
PRINTED IN KOREA
GB
D
F
E
I
C
K
2
GB
1

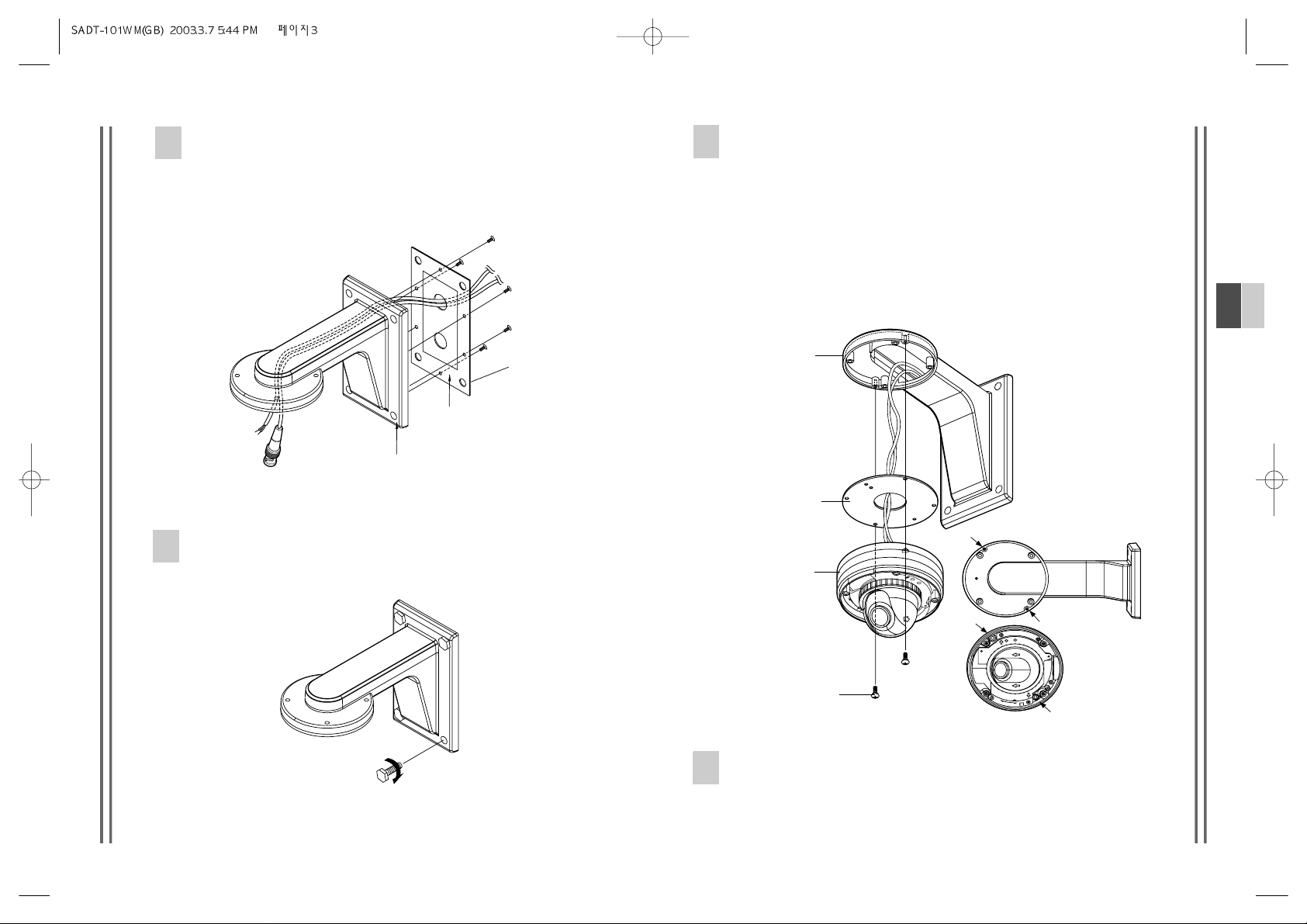

Installation
Choose an installation site that can sufficiently support the weight
of the equipments to be installed.
Use the Back Plate to mark the positions of the M10 anchor
bolts/nuts on the wall, drill the holes and install the anchor
bolts/nuts.
•
When installing in the corner of a wall, use the Corner Mounted Adaptor
(SADT-110CM). When installing on a pole, use the Pole Mounted Adaptor
(SADT-100PM).
If the cable pipe is installed inside the wall:
1) Pull out the power and video cables through the back plate and Wall Mount
Adaptor. When doing this, make sure that the insulation of the cable is not
torn.
•
When installing with the Corner Mounted Adaptor or the Pole Mounted
Adaptor, use a PG-13.5 Cable Gland for watertightness.
If the cable pipe is installed on the wall:
1) Drill a 21 mm hole on the both sides of the Wall Mount and then install the
Cable Grand.
2) Pull the cables out to the Wall Mounted Adaptor through the cable gland.
•
Positions for the hole (unit: mm)
1
2
3
Summary
The Wall Mount Adaptor (SADT -101WM) is an adaptor for installing
the Anti Vandal Dome Camera (SCC-931T/931TP) on a wall.
Precautions Before Installation
•
Make sure that the installation site can sufficiently support a minimum of five times the
net weight (about 10kg) of the Wall Mount Adaptor and the Anti-Vandal Dome
Camera.
•
Please be careful so that the cable is not caught on anything, or that its insulation
sheath is not torn or frayed. (Neglecting to do so may cause fire or damage to the
product.)
•
Keep persons away from the installation area, as there is a risk of falling objects. Also,
move valuables to a safe location before installation.
•
This product is designed to use M10 anchor bolts or nuts.
•
When installing the product on a concrete wall, use M10 anchor bolts/nuts together
with plain and spring washers.
•
Each anchor bolt must be capable of withstanding an extraction force of 700 kg.
•
When installing the product outdoors, use interlocking devices made of stainless steel.
•
The Wall Mounted Adaptor may be installed directly on a wall or in conjunction with
the Corner Mounted Adaptor (SADT-110CM) or the Pole Mounted Adaptor
(SADT-100PM), in which cases a PG-13.5 cable gland should be used.
•
This mount should only be installed by a qualified technician using approved materials
and wiring practices in accordance with national, state, and local electrical code.
