Samsung S24C450F Operating Instructions

Download

User Manual

S22C450F S22C450DW S24C450F

The color and the appearance may differ depending on

the product, and the specifications are subject to

change without prior notice to improve the performance.

BN46-00294H-01

BEFORE USING THE

PRODUCT

PREPARATIONS 19 Checking the Contents

7 Copyright

7 Icons used in this manual

8 Cleaning

9 Securing the Installation Space

9 Precautions for storage

10 Safety Precautions

10 Symbols

11 Electricity and Safety 12 Installation and Safety

14 Operation and Safety

18 Correct posture to use the product

19 Removing the Packaging 20 Checking the Components

CONNECTING AND USING

A SOURCE DEVICE

21 Parts

21 Frontal Buttons

23 Reverse Side

24 Right Side View

25 Installation

25 Attaching the cradle 26 Adjusting the Product Tilt and Height

26 Rotating the Monitor

27 Installing a Wall-mount Kit or Desktop Stand

28 Anti-theft Lock

29 Before Connecting

29 Pre-connection Checkpoints

30 Connecting and Using a PC

30 Connecting to a PC

Table Of Contents

33 Connecting the Power

34 Driver Installation

35 Setting Optimum Resolution

36 Changing the Resolution Using a PC

SCREEN SETUP 40 Brightness

40 Configuring Brightness

41 Contrast

41 Configuring Contrast

42 Sharpness

42 Configuring Sharpness

43 SAMSUNG MAGIC Bright

43 Configuring SAMSUNG MAGIC Bright

45 SAMSUNG MAGIC Angle

45 Configuring SAMSUNG MAGIC Angle

46 SAMSUNG MAGIC Upscale

46 Configuring SAMSUNG MAGIC Upscale

47 Image Size

47 Changing the Image Size

49 HDMI Black Level

49 Configuring the HDMI Black Level Settings

50 H-Position & V-Position

50 Configuring H-Position & V-Position

51 Coarse

51 Adjusting Coarse

52 Fine

52 Adjusting Fine

CONFIGURING TINT 53 Red

53 Configuring Red

Table Of Contents

54 Green

54 Configuring Green

55 Blue

55 Configuring Blue

56 Color Tone

56 Configuring the Color Tone Settings

57 Gamma

57 Configuring Gamma

RESIZING OR

RELOCATING THE

SCREEN

58 Language

58 Configuring Language

59 Menu H-Position & Menu V-Position

59 Configuring Menu H-Position & Menu V-

Position

60 Display Time

60 Configuring Display Time

61 Transparency

61 Changing Transparency

SETUP AND RESET 62 Reset

62 Initializing Settings (Reset)

63 Eco Saving

63 Configuring Eco Saving

64 Off Timer

64 Configuring Off Timer

65 Turn Off After

65 Configuring Turn Off After

66 PC/AV Mode

66 Configuring PC/AV Mode

67 Key Repeat Time

67 Configuring Key Repeat Time

Table Of Contents

68 Source Detection

68 Configuring Source Detection

69 Customized Key

69 Configuring Customized Key

INFORMATION MENU AND

OTHERS

INSTALLING THE

SOFTWARE

70 INFORMATION

70 Displaying INFORMATION

71 Configuring Brightness and Contrast in

the Initial Screen

72 MagicTune

72 What is "MagicTune"? 72 Installing the Software

73 Removing the Software

74 MultiScreen

74 Installing the Software

75 Removing the Software

76 MagicRotation

76 Installing the Software 78 Removing the Software

TROUBLESHOOTING

GUIDE

SPECIFICATIONS 84 General

79 Requirements Before Contacting

Samsung Customer Service Center

79 Testing the Product

79 Checking the Resolution and Frequency

79 Check the following.

82 Q & A

88 PowerSaver

89 Standard Signal Mode Table

Table Of Contents

APPENDIX

INDEX

92 Contact SAMSUNG WORLD WIDE

98 Responsibility for the Pay Service (Cost

to Customers)

98 Not a product defect

98 A Product damage caused by customer's fault 98 Others

99 Correct Disposal

99 Correct Disposal of This Product (Waste

Electrical & Electronic Equipment)

100 Terminology

Table Of Contents

Copyright

The contents of this manual are subject to change without notice to improve quality.

Samsung Electronics owns the copyright for this manual.

Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is

prohibited.

Microsoft, Windows and Windows NT are registered trademarks of Microsoft Corporation.

VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.

Before Using the Product

Icons used in this manual

The following images are for reference only. Real-life situations may differ from what is shown in the images.

Before Using the Product

Cleaning

Before Using the Product

Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.

Take the following steps when cleaning.

1. Power off the monitor and computer.

2. Disconnect the power cord from the monitor.

Hold the power cable by the plug and do not touch the cable with wet

hands. Otherwise, an electric shock may result.

3. Wipe the monitor screen using a clean, soft and dry cloth.

 Do not apply a cleaning agent that contains alcohol,

solvent, or surfactant to the monitor.

 Do not spray water or detergent directly on the product.

4. Wet a soft and dry cloth in water and wring thoroughly to clean the exterior of the monitor.

5. Connect the power cord to the product after cleaning the product.

6. Power on the monitor and computer.

Before Using the Product

10 cm

10 cm 10 cm

10 cm

Securing the Installation Space

 Ensure some space around the product for ventilation. An internal temperature rise may cause fire

and damage the product. Be sure to allow the amount of space as shown below or greater when

installing the product.

The exterior may differ depending on the product.

Precautions for storage

High-glossy models can develop white stains on the surface if an ultrasonic wave humidifier is used

nearby.

Be sure to contact Samsung Customer Service Center (page 92) if the inside of the monitor needs

cleaning. (A service fee will be charged.)

Before Using the Product

Safety Precautions

Caution: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR

BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

Caution

RISK OF ELECTRIC SHOCK DO NOT OPEN

QUALIFIED PERSONNEL.

Symbols

Warning

Caution

A serious or fatal injury may result if instructions are not followed.

Personal injury or damage to properties may result if instructions are not followed.

Activities marked by this symbol are prohibited.

Instructions marked by this symbol must be followed.

Before Using the Product

Electricity and Safety

The following images are for reference only. Real-life situations may differ from what is shown in the

images.

Warning

Do not use a damaged power cord or plug, or a loose power socket.

 An electric shock or fire may result.

Do not plug many products into the same power socket.

 Otherwise, the socket may overheat and cause a fire.

Do not touch the power plug with wet hands.

 Otherwise, an electric shock may result.

Insert the power plug all the way in so it is not loose.

 An unstable connection may cause a fire.

Ensure you connect the power plug to a grounded power socket. (type 1 insulated devices only).

 An electric shock or injury may result.

Do not bend or pull the power cord with force. Do not weigh the power cord down with a heavy object.

 A damaged power cord may cause an electric shock or fire.

Do not place the power cord or product near heat sources.

 An electric shock or fire may result.

Remove foreign substances such as dust around the plug pins and power socket with a dry cloth.

 Otherwise, a fire may result.

Before Using the Product

Caution

Do not unplug the power cord when the product is in use.

 The product may become damaged by an electric shock.

Do not use the power cord for products other than authorized products supplied by Samsung.

 An electric shock or fire may result.

Keep the power socket where the power cord is connected unobstructed.

 If any problem occurs in the product, unplug the power cable to completely

cut the power to the product.

Power to the product cannot be completely cut off with the power button.

Hold the plug when disconnecting the power cord from the power socket.

 An electric shock or fire may result.

Installation and Safety

Warning

DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.

 Otherwise, a fire may result.

Avoid installing the product in a narrow space with bad ventilation, such as a bookshelf or wall closet.

 Otherwise, a fire may result due to an increased internal temperature.

Keep the plastic packaging bag for the product in a place that cannot be reached by children.

 Children may suffocate.

Before Using the Product

Do not install the product on an unstable or vibrating surface (insecure shelf, sloped surface, etc.).

 The product may fall and break or cause a personal injury.

 Using the product in an area with excess vibration may damage the product

or cause a fire.

Do not install the product in a vehicle or a place exposed to dust, moisture (water drips, etc.), oil, or smoke.

 An electric shock or fire may result.

Do not expose the product to direct sunlight, heat, or a hot object such as a stove.

 Otherwise, the product lifespan may be reduced, or a fire may result.

Caution

Do not install the product within the reach of young children.

 The product may fall and injure children.

Edible oil, such as soybean oil, can damage or deform the product. Do not install the product in a kitchen or near a kitchen counter.

Take care not to drop the product when moving it.

 Otherwise, product failure or personal injury may result.

Do not set down the product on its front.

 The screen may become damaged.

When installing the product on a cabinet or shelf, make sure that the bottom edge of the front of the product is not protruding.

 The product may fall and break or cause a personal injury.

 Install the product only on cabinets or shelves of the right size.

Before Using the Product

SAMSUNG

Put down the product carefully.

 The product may fall and break or cause a personal injury.

Installing the product in an unusual place (a place exposed to a lot of fine particles, chemical substances or extreme temperatures, or an airport or train station where the product should operate continuously for an extended period of time) may seriously affect its performance.

 Be sure to consult Samsung Customer Service Center (page 92) before

installation if you want to install the product at such a place.

Operation and Safety

Warning

High voltage runs through the product. Do not attempt to disassemble, repair, or modify the product on your own.

 An electric shock or fire may result.

 Contact Samsung Customer Service Center (page 92) for repair.

Before moving the product, turn off the power switch and disconnect the power cable and all other connected cables.

 Otherwise, the power cord may be damaged and a fire or electric shock may

result.

If the product generates a strange noise, a burning smell, or smoke, remove the power cord immediately and contact Samsung Customer Service Center (page

92).

 An electric shock or fire may result.

Do not let children hang from the product or climb on top of it.

 The product may fall, and your child may become injured or seriously

harmed.

If the product falls or the exterior is damaged, power off the product, remove the power cord, and contact Samsung Customer Service Center (page 92).

 Otherwise, an electric shock or fire may result.

Do not put a heavy object, toy, or sweets on top of the product.

 The product or heavy objects may fall as children try to reach for the toy or

sweets resulting in a serious injury.

Before Using the Product

GAS

100

If there is a thunderstorm or lightning strike, turn off the power and disconnect the power cable.

 An electric shock or fire may result.

Do not drop objects on the product or apply impact.

 An electric shock or fire may result.

Do not move the product by pulling the power cord or any cable.

 Otherwise, the cable may be damaged and product failure, an electric shock

or fire may result.

If a gas leakage is found, do not touch the product or power plug. Also, ventilate the area immediately.

 Sparks can cause an explosion or fire.

Do not lift or move the product by pulling the power cord or any cable.

 Otherwise, the cable may be damaged and product failure, an electric shock

or fire may result.

Do not use or keep combustible spray or an inflammable substance near the product.

 An explosion or fire may result.

Ensure the vents are not blocked by tablecloths or curtains.

 Otherwise, a fire may result from an increased internal temperature.

Do not insert a metallic object (a chopstick, coin, hair pin, etc.) or inflammable object (paper, match, etc.) into the vent or ports of the product.

 If water or any foreign substance enters the product, be sure to power off the

product, remove the power cord, and contact Samsung Customer Service

Center (page 92).

 Product failure, an electric shock or fire may result.

Do not place objects containing liquid (vases, pots, bottles, etc) or metallic objects on top of the product.

 If water or any foreign substance enters the product, be sure to power off the

product, remove the power cord, and contact Samsung Customer Service

Center (page 92).

 Product failure, an electric shock or fire may result.

Before Using the Product

-_-

Caution

Leaving the screen fixed on a stationary image for an extended period of time may cause afterimage burn-in or defective pixels.

 If you are not going to use the product for an extended period of time,

activate power-saving mode or a moving-picture screen saver.

Disconnect the power cord from the power socket if you do not plan on using the product for an extended period of time (vacation, etc.).

 Otherwise, a fire may result from accumulated dust, overheating, an electric

shock, or electric leakage.

Use the product at the recommended resolution and frequency.

 Otherwise,Your eyesight may deteriorate.

Looking at the screen too close for an extended period of time can deteriorate your eyesight.

Do not hold the monitor upside-down or move it by holding the stand.

 The product may fall and break or cause a personal injury.

Do not use humidifiers or stoves around the product.

 An electric shock or fire may result.

Rest your eyes for more than 5 minutes for every 1 hour of product use.

 Eye fatigue will be relieved.

Do not touch the screen when the product has been turned on for an extended period of time as it will become hot.

Store the small accessories used with the product out of reach of children.

Before Using the Product

Exercise caution when adjusting the product angle or stand height.

 Otherwise, children's fingers or hands may become stuck and injured.

 Tilting the product excessively may cause it to fall and result in personal

injury.

Do not place heavy objects on the product.

 Product failure or personal injure may result.

Before Using the Product

Correct posture to use the product

Use the product in the correct posture as follows:

 Straighten your back.

 Allow a distance of 45 to 50cm between your eye and the screen, and look slightly

downward at the screen.

Keep your eyes directly in front of the screen.

 Adjust the angle so light does not reflect on the screen.

 Keep your forearms perpendicular to your upper arms and level with the back of

your hands.

 Keep your elbows at about a right angle.

 Adjust the height of the product so you can keep your knees bent at 90 degrees or

more, your heels attached to the floor, and your arms lower than your heart.

Before Using the Product

Preparations

1.1 Checking the Contents

1.1.1 Removing the Packaging

1 Open the packaging box. Be careful not to damage the product when you open the packaging with

a sharp instrument.

2 Remove the styrofoam from the product.

3 Check the components and remove the styrofoam and plastic bag.

4 Store the box in a dry area so that it can be used when moving the product in the future.

This image is for reference only.

1 Preparations

Preparations

1.1.2 Checking the Components

 Contact the dealer from whom you purchased the product if any item is missing.

 The appearance of the components and items sold separately may differ from the image shown.

Components

Quick setup guide Warranty card

(Not available in some

locations)

Power cable D-SUB cable (optional) DVI cable (optional)

DP cable (optional) HDMI cable (optional) USB cable (optional)

User manual

HDMI-DVI cable (optional) Stand Stand

(Applicable to the stand

models that have USB ports

Components may vary depending on the country.

only.)

1 Preparations

Preparations

SAMSUNG

MAGIC ANGLE

AUTO

,FZ(VJEF

SAMSUNG

MAGIC ANGLE

AUTO

1.2 Parts

1.2.1 Frontal Buttons

The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

Icons Description



Open or close the onscreen display (OSD) menu, or return to the parent

menu.



OSD control lock: Maintain the current settings, or lock the OSD control to

prevent unintended changes to settings.

Enable: To lock the OSD control, press and hold the [ ] button for 10

seconds.

Disable: To unlock the OSD control, press and hold the [ ] button for

more than 10 seconds.

If the OSD control is locked,

 Brightness and Contrast can be adjusted, and INFORMATION

can be viewed.



The

Customized Key

function can be used by pressing the [ ] button. (The Customized Key is available even when the OSD control is locked)

ENU

1 Preparations

SAMSUNG

MAGIC

SAMSUNG

MAGIC

AUTO

Preparations

Icons Description

Configure

enabled.

Move to the upper or lower menu or adjust the value for an option on the OSD menu.

Use this button to control the brightness and contrast of the screen.

Confirm a menu selection.

Pressing the [ ] button when the OSD menu is not displayed will change the input source (

Analog/DVI/DisplayPort

(

the input source by pressing the [ ] button, a message that shows the changed input source will appear at the top left corner of the screen.

Press the [ ] button to automatically adjust the screen settings.

Customized Key

Angle

- -

To configure

and select the mode you want.

Key



Customized Key

Analog/DVI/HDMI

Changing the resolution in Display Properties will activate the

Auto Adjustment

and press [ ]. The following options will be

Bright

Eco Saving - Image Size

, go to

SETUP & RESET

)(S22C450F/S24C450F)

)(S22C450DW). If you power on the product or change

function.

Customized

→

Key Guide



Available only in

Turn the screen on or off.

When a control button on the product is pressed, the Key Guide will be displayed before the onscreen menu opens. (The guide shows the function of the button pressed.)

To access the onscreen menu when the guide is displayed, press the corresponding button again.

The Key guide may vary depending on the function or product model.

Refer to the actual product.

Analog

mode.

1 Preparations

DVI IN

RGB IN

POWER IN

DVI INRGB INDP IN

HDMI IN

S22C450F/ S24C450F

S22C450DW

Preparations

1.2.2 Reverse Side

The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

Port About ports

Connect the power cord for your monitor to the [POWER] port on the back of the product.

Connect to a PC using the D-SUB cable.

Connect to a PC via a DVI cable.

Connect to a source device using an HDMI cable.

Connect to a PC using a DP cable.

Connect to a PC using a USB cable.

This port can connect to a PC only.

1 Preparations

Preparations

1.2.3 Right Side View

The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

Port About port

Connect to a source device using a USB cable.

1 Preparations

Preparations

1.3 Installation

1.3.1 Attaching the cradle

Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.

Fasten the screw tightly (using a screwdriver or coin) into the bottom of the stand base.

Do not remove the fixing pin until you are finished attaching the stand.

After installing the stand, place the product upright.

Insert the stand base into the stand in the direction of the arrow.

You can remove the fixing pin and adjust the stand now.

- Caution

Do not hold the product upside down only by the stand.

 Disassembly is the reverse order of assembly.

 The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

1 Preparations

0(±5mm) ~ 130mm(±5mm)

Preparations

1.3.2 Adjusting the Product Tilt and Height

The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

 To adjust the height, remove the fixing pin.

 The monitor tilt and height can be adjusted.

 Hold the top center of the product and adjust the height carefully.

1.3.3 Rotating the Monitor

You can rotate your monitor as shown below.

 Be sure to fully extend the stand before rotating the monitor.

 If you rotate the monitor without fully extending the stand, the corner of the monitor may hit the

floor and get damaged.

 Do not rotate the monitor counterclockwise. The monitor may get damaged.

1 Preparations

Preparations

1.3.4 Installing a Wall-mount Kit or Desktop Stand

Before Installation

Power the product off and remove the power cable from the power socket.

Place a protective cloth or cushion on a flat surface. Next, place the product with the face down on top of the cloth or cushion.

Installing a Wall-mount Kit or Desktop Stand

Unfasten the screw from the back of the product.

Lift and detach the stand.

Attach the wall-mount kit or desktop stand here

Bracket (sold separately)

Align the grooves and tightly fasten the screws on the bracket on the product with the corresponding

parts on the wall-mount kit or desktop stand you want to attach.

Notes

 Using a screw longer than the standard length can damage the internal components of the

product.

1 Preparations

Preparations

 The length of screws required for a wall mount that does not comply with the VESA standards may

vary depending on the specifications.

 Do not use screws that do not comply with the VESA standards. Do not attach the wall-mount kit

or desktop stand using excessive force. The product may get damaged or fall and cause personal injury. Samsung shall not be held liable for any damage or injury caused by using improper screws or attaching the wall-mount kit or desktop stand using excessive force.

 Samsung shall not be held liable for any product damage or personal injury caused by using a wall-

mount kit other than the one specified or from an attempt to install the wall-mount kit on your own.

 To mount the product on a wall, ensure you purchase a wall-mount kit that can be installed 10cm

or farther away from the wall.

 Be sure to use a wall-mount kit that complies with the standards.

 To install the monitor using a wall mount, disconnect the stand base from the monitor.

1.3.5 Anti-theft Lock

An anti-theft lock allows you to use the product securely even in public places. The locking device shape

and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft

locking device for details. The lock device is sold separately.

The color and shape of parts may differ from what is shown. Specifications are subject to change

without notice to improve quality.

To lock an anti-theft locking device:

1 Fix the cable of your anti-theft locking device to a heavy object such as a desk. 2 Put one end of the cable through the loop on the other end. 3 Insert the locking device into the anti-theft lock slot at the back of the product. 4 Lock the locking device.

 An anti-theft locking device can be purchased separately.

 Refer to the user guide provided with your anti-theft locking device for details.

 Anti-theft locking devices can be purchased at electronics retailers or online.

1 Preparations

Connecting and Using a Source Device

2.1 Before Connecting

2.1.1 Pre-connection Checkpoints

 Before connecting a source device, read the user manual provided with it.

The number and locations of ports on source devices may differ from device to device.

 Do not connect the power cable until all connections are completed.

Connecting the power cable during connection may damage the product.

 Check the types of ports at the back of the product you want to connect.

2 Connecting and Using a Source Device

Connecting and Using a Source Device

RGB IN

DVI IN

2.2 Connecting and Using a PC

2.2.1 Connecting to a PC

Do not connect the power cable before connecting all other cables.

Ensure you connect a source device first before connecting the power cable.

 Select a connection method suitable for your PC.

Connecting parts may differ in different products.

Connection Using the D-SUB Cable (Analog Type)

1 Connect the D-SUB cable to the [RGB IN] port on the back of the product and the RGB port on the

PC.

2 Connect the power cable to the product and power outlet. Turn on the power switch on the PC. 3 Press [ ] to change the input source to Analog.

Connection Using the DVI Cable

1 Connect the DVI cable to the [DVI IN] port on the back of the product and the DVI port on the PC. 2 Connect the power cable to the product and power outlet. Turn on the power switch on the PC. 3 Press [ ] to change the input source to DVI.

2 Connecting and Using a Source Device

HDMI IN

DP IN

Connecting and Using a Source Device

Connection Using the HDMI Cable (S22C450F/S24C450F)

1 Connect the HDMI cable to the [HDMI IN] port on the back of the product and the HDMI port on the

PC.

2 Connect the power cable to the product and power outlet. Turn on the power switch on the PC. 3 Press the [ ] button to change the input source to HDMI.

Connection Using the HDMI-DVI Cable (S22C450F/S24C450F)

Connect the HDMI-DVI cable to the [HDMI IN] port on the back of the product and the DVI port on the PC.

2 Connect the power cable to the product and power outlet. Turn on the power switch on the PC. 3 Press [ ] to change the input source to HDMI.

Connection Using the DP Cable (S22C450DW)

1 Connect the DP cable to the [DP IN] port on the back of the product and the DP port on the PC. 2 Connect the power cable to the product and power outlet. Turn on the power switch on the PC. 3 Press [ ] to change the input source to DisplayPort.

2 Connecting and Using a Source Device

USB

Connecting and Using a Source Device

Connecting USB

 Applicable to the stand models that have USB ports only.

 You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard disk drive

by connecting them to the [ ] port of the monitor without connecting them to the PC.

The [ ] USB port of the monitor supports High-Speed Certified USB 2.0.

High speed Full speed Low speed

Data Rate 480 Mbps 12 Mbps 1.5 Mbps

Power Consumption 2.5 W(Max., each port) 2.5 W(Max., each port) 2.5 W(Max., each port)

1 Connect the [ ] port of the monitor and the USB port of the computer with the USB cable.

2 Connect the [ ] port of the USB monitor and a USB device with the USB cable.

 To use [ ] port, you have to connect the UP (Upstream Cable) to the PC.

 Make sure to use the USB cable supplied with this monitor to connect the monitor's [ ]

port and your computer's USB port.

3 The use procedures are as the same as those for using an external device connecting to the PC.

2 Connecting and Using a Source Device

POWER IN

Connecting and Using a Source Device

 You can connect and use a keyboard and mouse.

 You can play a file from a media device. (Examples of media devices: MP3, digital camera, etc.)

 You can run, move, copy or delete the files on the storage device. (Examples of storage

devices: external memory, memory card, memory reader, HDD-type MP3 player, etc.)

 You can use other USB devices that can be connected to a computer.

 When connecting a device to the [ ] port of the monitor, connect the device using a cable

appropriate to the device.

 For the purchase of the cable and external devices, ask the service center of the corresponding

product.

 The company is not liable for problems or damages to an external device caused by using an

unauthorized cable for the connection.

 Some products do not follow the USB standard, and it may cause a malfunction of the device.

 If the device malfunctions even if it is connected to the computer, contact the service center of the

device/computer.

2.3 Connecting the Power

 To use the product, connect the power cable to a power outlet and the [POWER IN] port on the

product.(The input voltage is switched automatically.)

2 Connecting and Using a Source Device

Connecting and Using a Source Device

2.3.1 Driver Installation

 You can set the optimum resolution and frequency for this product by installing the corresponding

drivers.

 An installation driver is contained on the CD supplied with the product.

 If the file provided is faulty, visit the Samsung homepage (http://www.samsung.com/) and

download the file.

1 Insert the user manual CD provided with the product into the CD-ROM drive. 2 Click "Windows Driver". 3 Complete the remaining software installation steps according to the instructions displayed on the

screen.

4 Select your product model from the list of models.

5 Go to Display Properties and check that the resolution and refresh rate are appropriate.

Refer to your Windows OS manual for further details.

2 Connecting and Using a Source Device

The optimal resolution for this monitor is as follows:

**** x **** **Hz

Use the above settings to set the resolution on your PC.

English

֩ЍیԂ ۴࣏ࢽ

AUTOEXIT

Connecting and Using a Source Device

2.3.2 Setting Optimum Resolution

An information message about setting optimum resolution will appear if you power on the product for the

first time after purchase.

Select a language on the product and change the resolution on your PC to the optimum setting.

1 Press [ ] to move to the language you want and press [ ]. 2 To hide the information message, press [ ].

 If the optimum resolution is not selected, the message will appear up to three times for a specified

time even when the product is turned off and on again.

 The optimum resolution can also be selected in Control Panel on your PC.

2 Connecting and Using a Source Device

**** ****

**********

Connecting and Using a Source Device

2.3.3 Changing the Resolution Using a PC

 Adjust the resolution and refresh rate in Control Panel on your PC to obtain optimum picture

quality.

 The picture quality of TFT-LCDs may degrade if the optimum resolution is not selected.

Changing the Resolution on Windows XP

Go to Control Panel Display Settings and change the resolution.

2 Connecting and Using a Source Device

*********** ***********

Connecting and Using a Source Device

Changing the Resolution on Windows Vista

Go to Control Panel Personalization Display Settings and change the resolution.

2 Connecting and Using a Source Device

Connecting and Using a Source Device

Changing the Resolution on Windows 7

Go to Control Panel Display Screen Resolution and change the resolution.

2 Connecting and Using a Source Device

Connecting and Using a Source Device

Changing the Resolution on Windows 8

Go to Settings Control Panel Display Screen Resolution and change the resolution.

2 Connecting and Using a Source Device

Screen Setup

SAMSUNG

MAGIC

Off

Wide


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Angle

Off

SAMSUNG

MAGIC

Upscale

Custom

SAMSUNG

MAGIC

Bright

Image Size

Adjust EnterReturn

AUTO

Off

Wide


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Angle

Custom

SAMSUNG

MAGIC

Bright

Image Size

Adjust EnterReturn

AUTO

H-Position

Configure the screen settings such as brightness.

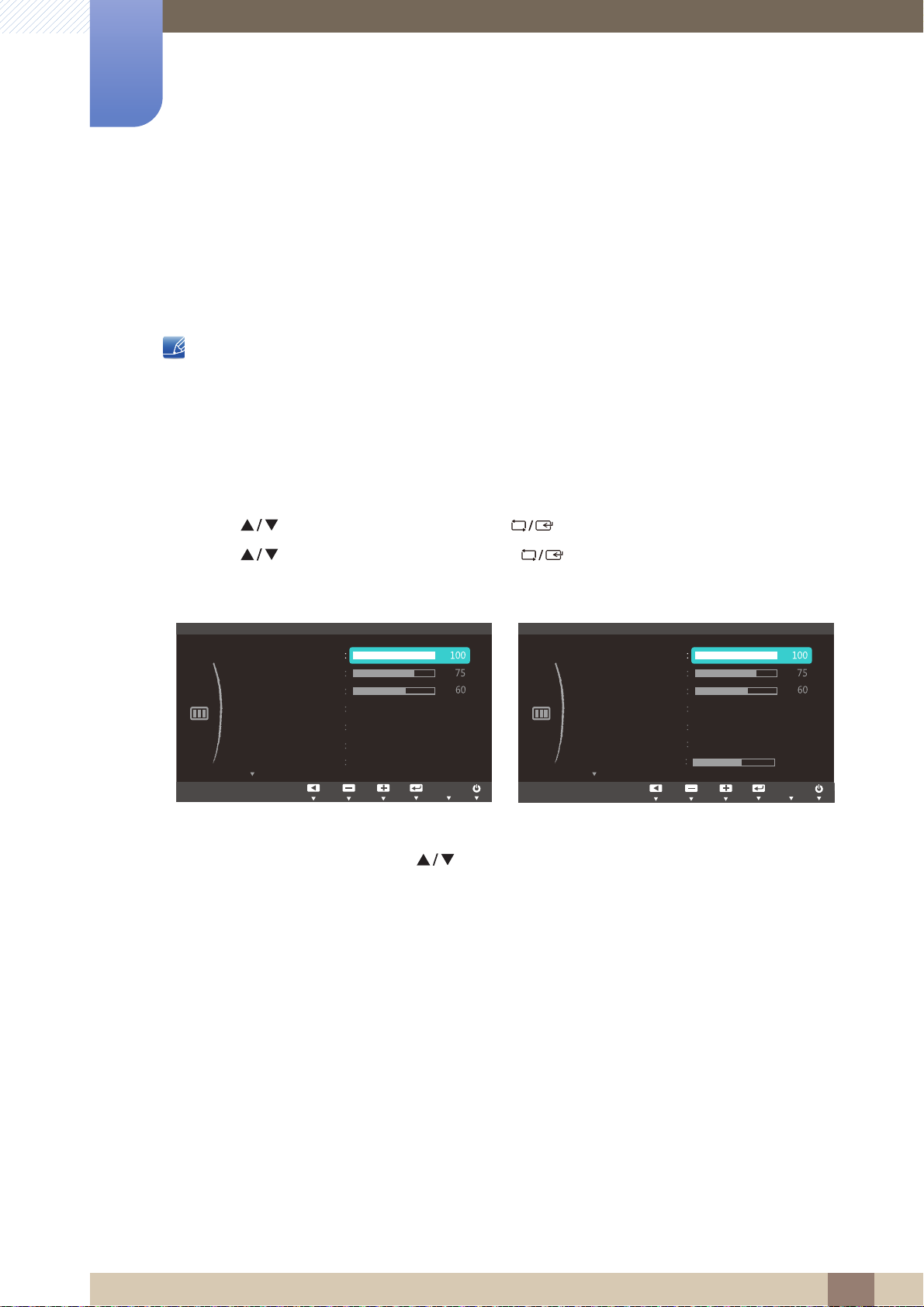

3.1 Brightness

You can adjust the general brightness of the picture. (Range: 0~100)

A higher value will make the picture appear brighter.

 This menu is not available when Bright is set to Dynamic Contrast mode.

 This menu is not available when Eco Saving is enabled.

3.1.1 Configuring Brightness

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Brightness and press [ ] on the product.

The following screen will appear.

(S22C450F/S24C450F) (S22C450DW)

4 Adjust the Brightness using the [ ] buttons.

3 Screen Setup

Screen Setup

SAMSUNG

MAGIC

Custom

Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Adjust EnterReturn

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Wide

Off

SAMSUNG

MAGIC

Upscale

Image Size

Custom

Wide


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Adjust EnterReturn

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Image Size

H-Position

3.2 Contrast

Adjust the contrast between the objects and background. (Range: 0~100)

A higher value will increase the contrast to make the object appear clearer.

This option is not available when Bright is in Cinema or Dynamic Contrast mode.

3.2.1 Configuring Contrast

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Contrast and press [ ] on the product.

The following screen will appear.


(S22C450F/S24C450F) (S22C450DW)

4 Adjust the Contrast using the [ ] buttons.

3 Screen Setup

Screen Setup

SAMSUNG

MAGIC

SAMSUNG

MAGIC

Custom


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Adjust EnterReturn

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Wide

Off

SAMSUNG

MAGIC

Upscale

Image Size

Custom

Wide


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Image Size

Adjust EnterReturn

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

H-Position

3.3 Sharpness

Make the outline of objects more clear or blurry. (Range: 0~100)

A higher value will make the outline of objects clearer.

 This option is not available when Bright is in Cinema or Dynamic Contrast mode.

 This option is not available when Upscale is in Mode1 or Mode2.

3.3.1 Configuring Sharpness

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Sharpness and press [ ] on the product.

The following screen will appear.

(S22C450F/S24C450F) (S22C450DW)

4 Adjust the Sharpness using the [ ] buttons.

3 Screen Setup

Screen Setup

SAMSUNG

MAGIC

SAMSUNG

MAGIC

Custom

Off

Auto

Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

SAMSUNG

MAGIC

Angle

Custom Standard Game Cinema Dynamic Contrast

Move EnterReturn

Adjust EnterReturn

AUTO

Wide

SAMSUNG

MAGIC

Upscale

Image Size

Custom

Off

Auto


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

SAMSUNG

MAGIC

Angle

Custom Standard Game

Image Size

Cinema Dynamic Contrast

Move EnterReturn

Adjust EnterReturn

AUTO

H-Position

3.4 SAMSUNG MAGIC Bright

This menu provides an optimum picture quality suitable for the environment where the product will be

used.

 This menu is not available when Eco Saving is enabled.

 This menu is not available when Angle is enabled.

You can customize the brightness to suit your preferences.

3.4.1 Configuring SAMSUNG MAGIC Bright

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Bright and press [ ] on the product.

The following screen will appear.


(S22C450F/S24C450F) (S22C450DW)

 Custom: Customize the contrast and brightness as required.

 Standard: Obtain a picture quality suitable for editing documents or using Internet.

 Game: Obtain a picture quality suitable for playing games that involve many graphic effects and

dynamic movements.

 Cinema: Obtain the brightness and sharpness of TVs suitable for enjoying video and DVD

content.

 Dynamic Contrast: Obtain balanced brightness through automatic contrast adjustment.

3 Screen Setup

Custom


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Dynamic Standard

Movie

Custom

Move EnterReturn

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Wide

SAMSUNG

MAGIC

Upscale

Image Size

SAMSUNG

MAGIC

Screen Setup

(S22C450F/S24C450F)

When the external input is connected through HDMI or DVI(S22C450F/S24C450F) and

PC/AV Mode is set to AV, Bright has four automatic picture settings (Dynamic, Standard,

Movie and Custom) that are preset at the factory. You can activate either Dynamic, Standard,

Movie or Custom. You can select Custom which automatically recalls your personalized picture

settings.

 Dynamic: Select this mode to view a sharper image than in Standard mode.

 Standard: Select this mode when the surroundings are bright. This also provides a sharp

image.

 Movie: Select this mode when the surroundings are dark. This will save power and reduce eye

fatigue.

 Custom: Select this mode when you want to adjust the image according to your preferences.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

3 Screen Setup

Screen Setup

SAMSUNG

MAGIC

SAMSUNG

MAGIC

SAMSUNG

MAGIC

Custom


Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Off Lean Back Mode 1

Lean Back Mode 2

Standing Mode Side Mode Group View Custom

Move EnterReturn

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

SAMSUNG

MAGIC

Upscale

Image Size

Custom


Brightness

Contrast

Sharpness

H-Position

SAMSUNG

MAGIC

Bright

Off Lean Back Mode 1

Lean Back Mode 2

Standing Mode Side Mode Group View Custom

Move EnterReturn

SAMSUNG

MAGIC

Angle

Image Size

Adjust EnterReturn

AUTO

5 5

②

③

④

⑤

3.5 SAMSUNG MAGIC Angle

Angle allows you to configure the settings to obtain the optimum picture quality according to your

viewing angle.

This menu is not available when Bright is in Cinema or Dynamic Contrast mode.

You can customize the angle to suit your preferences.

3.5.1 Configuring SAMSUNG MAGIC Angle

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Angle and press [ ] on the product. The following screen will

appear.

(S22C450F/S24C450F) (S22C450DW)

 Off : Select this option to view directly in front of the product.

 Lean Back Mode 1 : Select this option to view from a place slightly lower than the product.

 Lean Back Mode 2 : Select this option to view from a place lower than Lean Back Mode 1.

 Standing Mode : Select this option to view from a place higher than the product.

 Side Mode : Select this option to view from either side of the product.

 Group View: Select this option for more than one viewer to view from places , , and .

 Custom: Lean Back Mode 1 will be applied by default if Custom is selected.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

①

④

①

3 Screen Setup

Screen Setup

SAMSUNG

MAGIC

SAMSUNG

MAGIC

SAMSUNG

MAGIC





&XVWRP

2II












SAMSUNG

MAGIC

Bright

SAMSUNG

MAGIC

Angle

SAMSUNG

MAGIC

Upscale

%ULJKWQHVV

&RQWUDVW

6KDUSQHVV

,PDJH6L]H

AUTO

2II 0RGH 0RGH

3.6 SAMSUNG MAGIC Upscale

Upscale function can enhance the layers of the picture details and the vividness of the picture.

 The function has more obvious effects on low-resolution pictures.

 This menu is not available when Bright is in Cinema or Dynamic Contrast mode.

3.6.1 Configuring SAMSUNG MAGIC Upscale

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Upscale and press [ ] on the product. The following screen

will appear.

(S22C450F/S24C450F)

Comparing with Mode1, Mode2 has a stronger effect.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

3 Screen Setup

Screen Setup

Custom

Off

Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Image Size

Off

SAMSUNG

MAGIC

Angle

SAMSUNG

MAGIC

Upscale

Adjust EnterReturn

AUTO

Auto Wide

Custom

Off

Brightness

Contrast

Sharpness

SAMSUNG

MAGIC

Bright

Image Size

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO

Auto Wide

H-Position





&XVWRP

2II












SAMSUNG

MAGIC

Bright

SAMSUNG

MAGIC

Angle

SAMSUNG

MAGIC

Upscale

%ULJKWQHVV

&RQWUDVW

6KDUSQHVV

,PDJH6L]H

AUTO

  6FUHHQ)LW

3.7 Image Size

Change the picture size.

3.7.1 Changing the Image Size

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Image Size and press [ ] on the product. The following screen will

appear.


Move EnterReturn

(S22C450F/S24C450F) (S22C450DW)

 Auto: Display the picture according to the aspect ratio of the input source.

 Wide: Display the picture in full screen regardless of the aspect ratio of the input source.


Move EnterReturn

(S22C450F/S24C450F)

 4:3: Display the picture with an aspect ratio of 4:3. Suitable for videos and standard broadcasts.

 16:9: Display the picture with an aspect ratio of 16:9. Suitable for videos and standard

broadcasts.

 Screen Fit: Display the picture with the original aspect ratio without cutting off.

3 Screen Setup





&XVWRP

2II












SAMSUNG

MAGIC

Bright

SAMSUNG

MAGIC

Angle

%ULJKWQHVV

&RQWUDVW

6KDUSQHVV

,PDJH6L]H

+3RVLWLRQ

AUTO

 :LGH 6FUHHQ)LW

Screen Setup

(S22C450DW)

 4:3 : This mode is suitable to view the 4:3 aspect ratio picture of video content or standard

broadcasts.

 Wide: Display the picture in full screen regardless of the aspect ratio of the input source.

 Screen Fit: Display the picture with the original aspect ratio without cutting off.

Changing the screen size is available when the following conditions are satisfied.

 A digital output device is connected using the DVI/DP/HDMI cable.

 The input signal is 480p, 576p, 720p, or 1080p and monitor can display normally (Not every

model can support all of these signals).

 This can only be set when the external input is connected through DVI/DP/HDMI and

PC/AV Mode is set to AV.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

3 Screen Setup

Screen Setup

H-Position

V-Position

Coarse

Fine

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

HDMI Black Level

Normal Low

AUTO

3.8 HDMI Black Level

If a DVD player or set-top box is connected to the product via HDMI, image quality degradation (contrast/

color degradation, black level, etc.) may occur, depending on the connected source device. In such

case, HDMI Black Level can be used to adjust the image quality. If this is the case, correct the degraded

picture quality using HDMI Black Level.

 This function is only available in HDMI mode.

 Only applicable to models that support HDMI.

3.8.1 Configuring the HDMI Black Level Settings

1 Press any button on the front of the product to display the Key Guide. Next, press [ ] to display

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to HDMI Black Level and press [ ] on the product. The following

screen will appear.


(S22C450F/S24C450F)

 Normal: Select this mode when there is no contrast ratio degradation.

 Low: Select this mode to reduce the black level and increase the white level when there is a

contrast ratio degradation.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

HDMI Black Level may not be compatible with some source devices.

3 Screen Setup

Screen Setup


H-Position

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

HDMI Black Level

AUTO


H-Position

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

HDMI Black Level

AUTO

Custom

Wide


Brightness

Contrast

Sharpness

H-Position

SAMSUNG

MAGIC

Bright

Image Size

Move EnterReturn

Off

SAMSUNG

MAGIC

Angle

Adjust EnterReturn

AUTO







93RVLWLRQ

&RDUVH

)LQH

AUTO






3.9 H-Position & V-Position

H-Position: Move the screen to the left or right.

V-Position: Move the screen up or down.

 This menu is available in Analog mode only.

 This menu is only available when Image Size is set to Screen Fit in AV Mode. When a 480P or

576P or 720P or 1080P signal is input in AV mode and the monitor can display normally ,select

Screen Fit to adjust horizontal position in 0-6 levels.

3.9.1 Configuring H-Position & V-Position

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to H-Position or V-Position, and press [ ].

The following screen will appear.

(S22C450F/S24C450F)

(S22C450DW)

4 Press [ ] to configure H-Position or V-Position.

3 Screen Setup

Screen Setup

H-Position

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

HDMI Black Level

AUTO

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

3.10 Coarse

Adjust the screen frequency.

This menu is available in Analog mode only.

3.10.1 Adjusting Coarse

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Coarse and press [ ] on the product.

The following screen will appear.


(S22C450F/S24C450F) (S22C450DW)

4 Adjust the Coarse using the [ ] buttons.

3 Screen Setup

Screen Setup

H-Position

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

HDMI Black Level

AUTO

V-Position

Coarse

Fine

1936

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

Adjust EnterReturn

AUTO

3.11 Fine

Fine-adjust the screen to obtain a vivid picture.

3.11.1 Adjusting Fine

This menu is available in Analog mode only.

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to PICTURE and press [ ] on the product. 3 Press [ ] to move to Fine and press [ ] on the product.

The following screen will appear.


Adjust EnterReturn


(S22C450F/S24C450F) (S22C450DW)

4 Adjust the Fine using the [ ] buttons.

3 Screen Setup

Configuring Tint

SAMSUNG

MAGIC

COLOR

: : : :



5HG

*UHHQ

%OXH

&RORU7RQH

*DPPD

0RGH

1RUPDO

AUTO

Adjust the tint of the screen. This menu is not available when Bright is set to Cinema or

Dynamic Contrast mode.

4.1 Red

Adjust the value of the color red in the picture. (Range: 0~100)

A higher value will increase the intensity of the color.

4.1.1 Configuring Red

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

2 Press [ ] to move to COLOR and press [ ] on the product. 3 Press [ ] to move to Red and press [ ] on the product.

The following screen will appear.

4 Adjust the Red using the [ ] buttons.

4 Configuring Tint

Configuring Tint

COLOR

: : :



5HG

*UHHQ

%OXH

&RORU7RQH

*DPPD

0RGH

1RUPDO

AUTO

4.2 Green

Adjust the value of the color green in the picture. (Range: 0~100)

A higher value will increase the intensity of the color.

4.2.1 Configuring Green

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to COLOR and press [ ] on the product. 3 Press [ ] to move to Green and press [ ] on the product.

The following screen will appear.

4 Adjust the Green using the [ ] buttons.

4 Configuring Tint

Configuring Tint

COLOR

0RGH



1RUPDO



5HG

*UHHQ

%OXH

&RORU7RQH

*DPPD

AUTO

4.3 Blue

Adjust the value of the color blue in the picture. (Range: 0~100)

A higher value will increase the intensity of the color.

4.3.1 Configuring Blue

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to COLOR and press [ ] on the product. 3 Press [ ] to move to Blue and press [ ] on the product.

The following screen will appear.

4 Adjust the Blue using the [ ] buttons.

4 Configuring Tint

Configuring Tint

SAMSUNG

MAGIC

COLOR

: :

ֻҖ



૲ࣱ



&RRO &RRO 1RUPDO :DUP :DUP &XVWRP

5HG

*UHHQ

%OXH

&RORU7RQH

*DPPD

AUTO

4.4 Color Tone

Adjust the general color tone of the picture.

This menu is not available when Angle is enabled.

4.4.1 Configuring the Color Tone Settings

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to COLOR and press [ ] on the product. 3 Press [ ] to move to Color Tone and press [ ] on the product.

The following screen will appear.

 Cool 2: Set the color temperature to be cooler than Cool 1.

 Cool 1: Set the color temperature to be cooler than Normal mode.

 Normal: Display the standard color tone.

 Warm 1: Set the color temperature to be warmer than Normal mode.

 Warm 2: Set the color temperature to be warmer than Warm 1.

 Custom: Customize the color tone.

When the external input is connected through HDMI or DVI (S22C450F/S24C450F) and

PC/AV Mode is set to AV,Color Tone has four color temperature settings (Cool, Normal, Warm

and Custom).

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

4 Configuring Tint

Configuring Tint

SAMSUNG

MAGIC

COLOR

: :

ֻҖ



1RUPDO



0RGH 0RGH 0RGH3

5HG

*UHHQ

%OXH

&RORU7RQH

*DPPD

AUTO

4.5 Gamma

Adjust the mid-range brightness (Gamma) of the picture.

This menu is not available when Angle is enabled.

4.5.1 Configuring Gamma

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to COLOR and press [ ] on the product. 3 Press [ ] to move to Gamma and press [ ] on the product.

The following screen will appear.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

4 Configuring Tint

Resizing or Relocating the Screen





 20 sec

On

MENU SETTINGS

/DQJXDJH

0HQX+3RVLWLRQ

0HQX93RVLWLRQ

'LVSOD\7LPH

7UDQVSDUHQF\







'HXWVFK (QJOLVK (VSDxRO )UDQoDLV ,WDOLDQR 0DJ\DU 3ROVNL 3RUWXJXrV ƧǊǈǈǁƿǀ 6YHQVND 7UNoH

ଞ˲߭

∝䇁

AUTO

᪥ᮏㄒ

5.1 Language

Set the menu language.

 A change to the language setting will only be applied to the onscreen menu display.

 It will not be applied to other functions on your PC.

5.1.1 Configuring Language

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to MENU SETTINGS and press [ ]. 3 Press [ ] to move to Language and press [ ] on the product.

The following screen will appear.

4 Press [ ] to move to the language you want and press [ ]. 5 The selected option will be applied.

5 Resizing or Relocating the Screen

Resizing or Relocating the Screen

(QJOLVK



VHF

2Q

MENU SETTINGS





AUTO

/DQJXDJH

0HQX+3RVLWLRQ

0HQX93RVLWLRQ

'LVSOD\7LPH

7UDQVSDUHQF\



(QJOLVK



 20 VHF

2Q

MENU SETTINGS

/DQJXDJH

0HQX+3RVLWLRQ

0HQX93RVLWLRQ

'LVSOD\7LPH

7UDQVSDUHQF\







AUTO

5.2 Menu H-Position & Menu V-Position

Menu H-Position: Move the menu position to the left or right.

Menu V-Position: Move the menu position up or down.

5.2.1 Configuring Menu H-Position & Menu V-Position

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to MENU SETTINGS and press [ ]. 3 Press [ ] to move to Menu H-Position or Menu V-Position, and press [ ]. The following

screen will appear.

4 Press [ ] to configure Menu H-Position or Menu V-Position.

5 Resizing or Relocating the Screen

Resizing or Relocating the Screen

(QJOLVK



 20 sec

On

MENU SETTINGS

/DQJXDJH

0HQX+3RVLWLRQ

0HQX93RVLWLRQ

'LVSOD\7LPH

7UDQVSDUHQF\





AUTO



VHF VHF VHF VHF

5.3 Display Time

Set the on-screen display (OSD) menu to automatically disappear if the menu is not used for a specified

period of time.

Display Time can be used to specify the time after which you want the OSD menu to disappear.

5.3.1 Configuring Display Time

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to MENU SETTINGS and press [ ]. 3 Press [ ] to move to Display Time and press [ ] on the product.

The following screen will appear.

4 Press [ ] to move to the language you want and press [ ]. 5 The selected option will be applied.

5 Resizing or Relocating the Screen

Resizing or Relocating the Screen

(QJOLVK



VHF

On

MENU SETTINGS

/DQJXDJH

0HQX+3RVLWLRQ

0HQX93RVLWLRQ

'LVSOD\7LPH

7UDQVSDUHQF\





AUTO



2II 2Q

5.4 Transparency

Set the transparency for the menu windows:

5.4.1 Changing Transparency

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to MENU SETTINGS and press [ ]. 3 Press [ ] to move to Transparency and press [ ] on the product.

The following screen will appear.

4 Press [ ] to move to the language you want and press [ ]. 5 The selected option will be applied.

5 Resizing or Relocating the Screen

Setup and Reset







SETUP&RESET

2II

$FFHOHUDWLRQ

0DQXDO

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

AUTO

5HVHWDOOVHWWLQJV"

<HV 1R

EXIT

AUTO

6.1 Reset

Return all the settings for the product to the default factory settings.

6.1.1 Initializing Settings (Reset)

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Reset and press [ ] on the product.

The following screen will appear.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset

SAMSUNG

MAGIC



SETUP&RESET

Off

$FFHOHUDWLRQ

0DQXDO

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

ଥࢿ

2II

 

AUTO

6.2 Eco Saving

The Eco Saving function reduces power consumption by controlling the electric current used by the

monitor panel.

This menu is not available when Bright is in Dynamic Contrast mode.

6.2.1 Configuring Eco Saving

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Eco Saving and press [ ] on the product.

The following screen will appear.

 75% : Change the monitor power consumption to 75% of the default level.

 50% : Change the monitor power consumption to 50% of the default level.

 Off: Deactivate the Eco Saving function.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset



SETUP&RESET

2II

$FFHOHUDWLRQ

0DQXDO

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

AUTO

2II 2Q

6.3 Off Timer

You can set the product to automatically turn off.

6.3.1 Configuring Off Timer

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Off Timer and press [ ] on the product. The following screen will

appear.

 Off: Deactivate the off timer so that the product does not power off automatically.

 On: Activate the off timer so that the product powers off automatically.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset



SETUP&RESET

2II

$FFHOHUDWLRQ

0DQXDO

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

K

AUTO

6.4 Turn Off After

The off timer can be set within a range of 1 to 23 hours. The product will automatically power off after the

specified number of hours.

This option is only available when Off Timer is set to On.

6.4.1 Configuring Turn Off After

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Turn Off After and press [ ] on the product.

The following screen will appear.

4 Press [ ] to configure Turn Off After.

For products for the market in Europe, the Off Timer is set to automatically activate 4 hours after the

product powers on. This is done in accordance with power supply regulations. If you do not want the

timer to activate, go to MENU SETUP&RESET and set Off Timer to Off.

6 Setup and Reset

Setup and Reset



SETUP&RESET

2II

$FFHOHUDWLRQ

0DQXDO

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

K

AUTO



PC/AV Mode

DVI

HDMI

AUTO

PC AV



PC/AV Mode

DVI

DisplayPort

AUTO

PC AV

6.5 PC/AV Mode

Set PC/AV Mode to AV. The picture size will be enlarged. This option is useful when you view a movie.

 This function does not support Analog mode.

 Supplied for the wide models only such as 16:9 or 16:10.

 If the monitor (when set to DVI) is in power saving mode or is displaying the message Check

Signal Cable, press the [ ] button to display the On Screen Display (OSD). You can select PC

or AV.

6.5.1 Configuring PC/AV Mode

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

ENU

the corresponding menu screen.

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to PC/AV Mode and press [ ] on the product.

The following screen will appear.

(S22C450F/S24C450F) (S22C450DW)

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset



SETUP&RESET

2II

Acceleration

Manual

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

$FFHOHUDWLRQ VHF VHF 1R5HSHDW

AUTO

6.6 Key Repeat Time

Control the response rate of a button when the button is pressed.

6.6.1 Configuring Key Repeat Time

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Key Repeat Time and press [ ] on the product.

The following screen will appear.

 Acceleration, 1 sec, or 2 sec can be selected. If No Repeat is selected, a command responds

only once when a button is pressed.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset



2II

$FFHOHUDWLRQ

5HVHW

(FR6DYLQJ

2II7LPHU

7XUQ2II$IWHU

3&$90RGH

.H\5HSHDW7LPH

6RXUFH'HWHFWLRQ

K

AUTO

$XWR 0DQXDO

6.7 Source Detection

You can activate Source Detection.

6.7.1 Configuring Source Detection

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Source Detection and press [ ].

The following screen will appear.

SETUP&RESET

 Auto: The input source is automatically recognized.

 Manual: Manually select an input source.

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

Setup and Reset



SETUP&RESET

&XVWRPL]HG.H\

$FFHOHUDWLRQ

(FR6DYLQJ ,PDJH6L]H

SAMSUNG

MAGIC

Angle

SAMSUNG

MAGIC

Bright

AUTO

SAMSUNG

MAGIC

SAMSUNG

MAGIC

6.8 Customized Key

You can customize Customized Key as follows.

6.8.1 Configuring Customized Key

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to SETUP&RESET and press [ ] on the product. 3 Press [ ] to move to Customized Key and press [ ] on the product.

The following screen will appear.

 Angle - Bright - Eco Saving - Image Size

4 Press [ ] to move to the option you want and press [ ]. 5 The selected option will be applied.

6 Setup and Reset

INFORMATION Menu and Others

SETUP&RESET

Analog **kHz **Hz NP **** x ****

Optimal Mode **** x **** **Hz

֩ЍیԂ ۴࣏ࢽ


COLOR

MENU SETTINGS

INFORMATION

AUTOEXIT AUTO

EXIT

7.1 INFORMATION

View the current input source, frequency and resolution.

7.1.1 Displaying INFORMATION

1 Press any button on the front of the product to display the Key guide. Next, press [ ] to display

the corresponding menu screen.

ENU

2 Press [ ] to move to INFORMATION. The current input source, frequency and resolution will

appear.

The displayed menu items may vary depending on the model.

7 INFORMATION Menu and Others

INFORMATION Menu and Others

%ULJKWQHVV

100

&RQWUDVW

EXIT

7.2 Configuring Brightness and Contrast in the Initial Screen

Adjust the Brightness, Contrast using the [ ] buttons when the initial screen (that displays no menu

screen) is displayed.

1 Press any button on the front of the product (when no menu screen is displayed) to display the Key

guide. Next, press [ ]. The following screen will appear.

2 Press the [ ] button to alternate between the Brightness and Contrast settings. 3 Adjust the Brightness, Contrast using the [ ] buttons.

7 INFORMATION Menu and Others

Installing the Software

8.1 MagicTune

8.1.1 What is "MagicTune"?

"MagicTune" is a software program that helps with monitor adjustments by providing comprehensive

descriptions of monitor functions and easy-to-understand guidelines.

You can adjust the product with the mouse and the keyboard without using the operating buttons of the

product.

8.1.2 Installing the Software

1 Insert the installation CD into the CD-ROM drive. 2 Select the "MagicTune" setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and

double-click the "MagicTune" setup file on the CD-ROM.

3 Select the installation language and click "Next". 4 Complete the remaining software installation steps according to the instructions displayed on the

screen.

 The software may not work properly if you do not restart the computer after the installation.

 The "MagicTune" icon may not appear depending on the computer system and the product

specifications.

 If the shortcut icon does not appear, press the F5 key.

Restrictions and Problems with the Installation ("MagicTune™")

The installation of "MagicTune™" may be affected by the Graphics Card, Motherboard and the

Networking Environment.

System Requirements

 Windows XP, Windows Vista, Windows 7, Windows 8

8 Installing the Software

Installing the Software

8.1.3 Removing the Software

You can only remove "MagicTune™" through Add or Remove Programs in Windows.

To remove "MagicTune™", complete the following steps.

1 Click Start select Settings, and select Control Panel from the menu.

For Windows XP, click Start, and select Control Panel from the menu.

2 Double-click the Add or Remove Programs icon in the Control Panel. 3 In the Add/Remove window, find and select "MagicTune™" so that it is highlighted. 4 Click Change or Remove Programs to remove the software. 5 Select Yes to start removing "MagicTune™". 6 Wait until a message box appears informing you that the software has been removed completely.

For technical support, the FAQ (frequently asked questions) or information about the software

upgrade for "MagicTune™", please visit our website (http://www.samsung.com/us/consumer/

learningresources/monitor/magetune/pop_intro.html).

8 Installing the Software

Installing the Software

MultiScreen

8.2 MultiScreen

"MultiScreen" enables users to use the monitor by partitioning multiple sections.

8.2.1 Installing the Software

1 Insert the installation CD into the CD-ROM drive. 2 Select the "MultiScreen" setup program.

3 When the Installation Wizard appears, click "Next".

If the pop-up screen for the software installation does not appear on the main screen, find and

double-click the "MultiScreen" setup file on the CD-ROM.

4 Complete the remaining software installation steps according to the instructions displayed on the

screen.

Restrictions and Problems with the Installation ("MultiScreen")

The "MultiScreen" installation may be affected by the Graphics Card, Motherboard and the Networking

Environment.

System Requirements

 Windows™ 2000

 Windows XP Home Edition

 Windows XP Professional

 The software may not work properly if you do not restart the computer after the installation.

 The "MultiScreen" icon may not appear depending on the computer system and the product

specifications.

 If the shortcut icon does not appear, press the F5 key.

 Windows Vista 32Bit

 Windows 7 32Bit

 Windows 8 32bit

For "MultiScreen", the operating systems Windows 2000 or later is recommended.

8 Installing the Software

Installing the Software

Hardware

 At least 32MB of memory

 At least 60MB of free space on the hard disk drive

8.2.2 Removing the Software

Click Start, select Settings/Control Panel, and then double-click Add or Remove Programs.

Select "MultiScreen" from the program list and click the Add/Delete button.

8 Installing the Software

Installing the Software

8.3 MagicRotation

The "MagicRotation" Software from Samsung Electronics, Inc. provides the user with a rotation feature

(0, 90, 180, 270 orientation) that facilitates the optimum utilization of computer display screen, better

viewing and improved user productivity.

8.3.1 Installing the Software

1 Insert the installation CD into the CD-ROM drive. 2 Select the "MagicRotation" setup program.

If the pop-up screen for the software installation does not appear on the main screen, find and

double-click the "MagicRotation" setup file on the CD-ROM.

3 Select the installation language and click "Next". 4 Complete the remaining software installation steps according to the instructions displayed on the

screen.

Restrictions and Problems with the Installation (MagicRotation)

 The software may not work properly if you do not restart the computer after the installation.

 The "MagicRotation" icon may not appear depending on the computer system and the

product specifications.

 If the shortcut icon does not appear, press the F5 key.

1 The installation of "MagicRotation" may be affected by the Graphics Card, Motherboard and the

Networking Environment.

2 When you want to use both "MagicRotation" and "MagicTune", please install "MagicTune" at first.

Limitation

1 The Display Driver should be properly loaded for the "MagicRotation" to work properly. The installed

Display Driver should be the latest driver supplied by the vendor.

2 If some applications like Windows Media Player, Real Player, etc. are not displaying movie files

properly in 90, 180 and 270 orientations then do the following :

 Close the application.

 Select the Orientation (90, 180, 270) you want to view the application.

 Relaunch the application.

In most cases this should fix the problem.

8 Installing the Software

Installing the Software

3 User Applications using OpenGL and DirectDraw (3D drawing) will not function as per the orientation

mode selected (90, 180, 270).

(E.g. 3D games)

4 DOS based applications in Full Screen Mode will not function as per the orientation mode selected

(90, 180, 270).

5 Dual is not supported in Windows™ 98, ME, NT 4.0. 6 "MagicRotation" does not provide support for 24 bits per pixel (Bit depth/Color Quality). 7 If you are changing your Graphic Card it is recommended that you uninstall the "MagicRotation"

Software before doing so.

System Requirements

 Windows™ 98 SE

 Windows™ Me

 Windows™ NT 4.0

 Windows™ 2000

 Windows XP

 Windows Vista 32Bit

 Windows 7 32Bit

 Windows 8 32Bit

For "MagicRotation", Windows 2000 or later is recommended.

Hardware

 At least 128MB of memory(recommended)

 At least 25MB of free space on the hard disk drive

Service Packs

 It is recommended that your System has the latest Service Pack installed.

 For Windows™ NT 4.0, it is recommended to install Internet Explorer 5.0 and above with Active

Desktop component.

 For more information, refer to the website (http://www.samsung.com/sec/consumer/

learningresources/monitor/magicrotation/download.html).

 Windows™ is registered trademark of Microsoft Corporation,Inc.

8 Installing the Software

Installing the Software

8.3.2 Removing the Software

You can only remove "MagicRotation" through Add or Remove Programs in Windows.

To remove "MagicRotation", complete the following steps.

1 Click Start select Settings, and select Control Panel from the menu.

For Windows XP, click Start, and select Control Panel from the menu.

2 Double-click the Add or Remove Programs icon in the Control Panel. 3 In the Add/Remove window, find and select "MagicRotation" so that it is highlighted. 4 Click Change or Remove Programs to remove the software. 5 Select Yes to start removing "MagicRotation". 6 Wait until a message box appears informing you that the software has been removed completely.

For technical support, the FAQ (frequently asked questions) or information about the software upgrade

for "MagicRotation", please visit our website (http://www.samsung.com/sec/consumer/

learningresources/monitor/magicrotation/download.html).

8 Installing the Software

Troubleshooting Guide

9.1 Requirements Before Contacting Samsung Customer Service Center

9.1.1 Testing the Product

Before calling Samsung Customer Service Center, test your product as follows. If the problem persists,

contact Samsung Customer Service Center.

Check if your product is operating normally by using the product test function.

If the screen is turned off and the power indicator blinks even though the product is properly connected

to a PC, perform a self-diagnosis test.

1 Power off both the PC and product. 2 Disconnect the cables from the product. 3 Power on the product. 4 If the message Check Signal Cable appears, the product is working normally.

9.1.2 Checking the Resolution and Frequency

For a mode that exceeds the supported resolution (refer to "10.3 Standard Signal Mode Table"), the

message Not Optimum Mode will appear for a short time.

9.1.3 Check the following.

Installation issue (PC mode)

The screen keeps switching on and off. Check the cable connection between the product

If the screen remains blank, check the PC system, video controller and cable.

Issues Solutions

and PC, and ensure the connectors are locked. (Refer to "2.2 Connecting and Using a PC")

9 Troubleshooting Guide

Troubleshooting Guide

Screen issue

Issues Solutions

The power LED is off. The screen will not switch on.

The message Check Signal Cable appears. Check that the cable is properly connected to the

Not Optimum Mode is displayed. This message appears when the signal from the

The images on the screen look distorted. Check the cable connection to the product (Refer

The screen is not clear. The screen is blurry. Adjust Coarse (page 51) and Fine (page 52).

Check that the power cable is connected properly. (Refer to "2.2 Connecting and Using a PC")

product. (Refer to "2.2 Connecting and Using a PC")

Check that the device connected to the product is powered on.

graphics card exceeds the maximum resolution or frequency for the product.

Change the maximum resolution and frequency to suit the product performance, referring to Standard Signal Mode Table (page 89).

to "2.2 Connecting and Using a PC")

Remove any accessories (video extension cable, etc.) and try again.

Set the resolution and frequency to the recommended level. (Refer to "10.1 General")

The screen appears unstable and shaky. Check that the resolution and frequency for the

There are shadows or ghost images left on the screen.

The screen is too bright. The screen is too dark. Adjust Brightness (page 40) and Contrast

Screen color is inconsistent. Change the COLOR settings.

The colors on the screen have a shadow and are distorted.

White does not really look white. Change the COLOR settings.

PC are within the range of resolution and frequency compatible with the product. Next, if required, change the settings, referring to Standard Signal Mode Table (page 89) in this manual and the INFORMATION menu on the product.

(page 41).

(Refer to " Configuring Tint")

Change the COLOR settings.

(Refer to " Configuring Tint")

9 Troubleshooting Guide

Troubleshooting Guide

Issues Solutions

There is no image on the screen and the power LED blinks every 0.5 to 1 second.

Source device issue

Issues Solutions

A beeping sound is heard when my PC is booting. If a beeping sound is heard when your PC is

The product is operating in power-saving mode.

Press any key on the keyboard or move the mouse to return to normal operating mode.

booting, have your PC serviced.

9 Troubleshooting Guide

Troubleshooting Guide

9.2 Q & A

Question Answer

How can I change the frequency?

Set the frequency on your graphics card.

 Windows XP: Go to Control Panel Appearance and

Themes Display Settings Advanced Monitor,

and adjust Refresh rate under Monitor settings.

 Windows ME/2000: Go to Control Panel Display

Settings Advanced Monitor, and adjust Refresh rate

under Monitor settings.

 Windows Vista: Go to Control Panel Appearance and

Personalization Personalization Display Settings

Advanced Settings Monitor, and adjust Refresh rate

under Monitor settings.

 Windows 7: Go to Control Panel Appearance and

Personalization Display Screen Resolution

Advanced settings Monitor, and adjust Refresh rate under

Monitor settings.

 Windows 8: Go to Settings Control Panel Appearance

and Personalization Display Screen Resolution

Advanced settings Monitor, and adjust Refresh rate under

Monitor settings.

9 Troubleshooting Guide

Troubleshooting Guide

Question Answer

How can I change the resolution?

How do I set power-saving mode?

 Windows XP: Go to Control Panel Appearance and

Themes Display Settings, and adjust the resolution.

 Windows ME/2000: Go to Control Panel Display

Settings, and adjust the resolution.

 Windows Vista: Go to Control Panel Appearance and

Personalization Personalize Display Settings, and

adjust the resolution.

 Windows 7: Go to Control Panel Appearance and

Personalization Display Adjust Resolution, and adjust

the resolution.

 Windows 8: Go to Settings Control Panel Appearance

and Personalization Display Adjust Resolution, and

adjust the resolution.

 Windows XP: Set power-saving mode in Control Panel

Appearance and Themes Display Screen Saver

Settings or BIOS SETUP on the PC.

 Windows ME/2000: Set power-saving mode in Control Panel

Display Screen Saver Settings or BIOS SETUP on the

PC.

 Windows Vista: Set power-saving mode in Control Panel

Appearance and Personalization Personalize Screen

Saver Settings or BIOS SETUP on the PC.

 Windows 7: Set power-saving mode in Control Panel

Appearance and Personalization Personalize Screen

Saver Settings or BIOS SETUP on the PC.

 Windows 8: Set power-saving mode in Settings Control

Panel Appearance and Personalization Personalize

Screen Saver Settings or BIOS SETUP on the PC.

Refer to the user manual for your PC or graphics card for further instructions on adjustment.

9 Troubleshooting Guide

Specifications

10.1 General

Model Name S22C450F S24C450F

Size 54 cm 61 cm

Panel

Synchronization

Display Color 16.7M

Resolution

Input Signal, Terminated RGB Analog, DVI (Digital Visual Interface) Compliant Digital RGB, HDMI

Maximum Pixel Clock 148 MHz

Display area 476.64 mm (H) x 268.11 mm (V) 531.36 mm (H) x 298.89 mm (V)

Pixel Pitch

Horizontal Frequency

Vertical Frequency

Optimum Resolution

Maximum Resolution

0.24825 mm (H) x 0.24825 mm (V)

30 ~ 81 kHz

56 ~ 75 Hz

1920 x 1080 @ 60Hz

0.7 Vp-p ± 5%

separate H/V sync, Composite, SOG

TTL level (V high ≥ 2.0V, V low ≤ 0.8V)

(Analog,Digital)

0.27675 mm (H) x

0.27675 mm (V)

Power Supply

Signal connectors

Dimensions (W x H x D) / Weight

Without Stand

With Stand

This product uses 100 to 240V.

Refer to the label at the back of the product as the standard voltage can vary in different countries.

D-sub connector

DVI-D connector

HDMI connector

504.3 x 301.9 x 55.45 mm 565.4 x 333.2 x 56.7 mm

Minimum

504.3 x 360.35 x 210 mm / 4.84 kg

Maximum

504.3 x 490.35 x 210 mm / 4.84 kg

Minimum

565.4 x 361.75 x 224.0 mm / 5.04 kg

Maximum

565.4 x 491.75 x 224.0 mm / 5.04 kg

10 Specifications

Specifications

Model Name S22C450F S24C450F

VESA Mounting Interface

Operating

Environmental considerations

Storage

Plug-and-Play

Panel Dots (Pixels)

100 mm x 100 mm

(For use with Specialty(Arm) Mounting hardware.)

Temperature : 10°C – 40°C (50°F – 104°F) Humidity : 10 % – 80 %, non-condensing

Temperature : 20°C – 45°C (-4°F – 113°F) Humidity : 5 % – 95 %, non-condensing

This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.

Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.

10 Specifications

Specifications

Model Name S22C450DW

Size 55 cm

Panel

Synchronization

Display Color 16.7M

Resolution

Input Signal, Terminated RGB Analog, DVI (Digital Visual Interface) Compliant Digital RGB, DP

Maximum Pixel Clock 146 MHz

Display area

Pixel Pitch 0.282 mm (H) x 0.282 mm (V)

Horizontal Frequency

Vertical Frequency

Optimum Resolution

Maximum Resolution

473.76 mm (H) x 296.1 mm (V)

30 ~ 81 kHz

56 ~ 75 Hz

1680 x 1050 @ 60Hz

0.7 Vp-p ± 5%

separate H/V sync, Composite, SOG

TTL level (V high ≥ 2.0V, V low ≤ 0.8V)

(Analog,Digital)

Power Supply

Signal connectors

Without

Dimensions (W x H x D) / Weight

VESA Mounting Interface

Environmental considerations

Stand

With Stand

Operating

Storage

This product uses 100 to 240V.

Refer to the label at the back of the product as the standard voltage can vary in different countries.

D-sub connector

DVI-D connector

DP connector

502.4 x 329.8 x 55.5 mm

Minimum

Maximum:

100 mm x 100 mm

(For use with Specialty(Arm) Mounting hardware.)

Temperature : 10°C – 40°C (50°F – 104°F) Humidity : 10 % – 80 %, non-condensing

Temperature : -20°C – 45°C (-4°F – 113°F) Humidity : 5 % – 95 %, non-condensing

: 502.4 x 387.9 x 210 mm / 5.0 kg

502.4 x 517.9 x 210 mm / 5.0 kg

10 Specifications

Specifications

Model Name S22C450DW

This monitor can be installed and used with any Plug-and-Play compatible systems. Two-way data exchange between the monitor

Plug-and-Play

Panel Dots (Pixels)

The above specifications are subject to change without notice to improve quality.

This device is a Class B digital apparatus.

and PC system optimizes the monitor settings. Monitor installation takes place automatically. However, you can customize the installation settings if desired.

Due to the nature of the manufacturing of this product, approximately 1 pixel per million (1ppm) may be brighter or darker on the LCD panel. This does not affect product performance.

10 Specifications

Specifications

10.2 PowerSaver

The power-saving function of this product reduces power consumption by switching off the screen and

changing the color of the power LED if the product is not used for a specified period of time. The power

is not turned off in power-saving mode. To switch the screen back on, press any key on the keyboard or

move the mouse. Power-saving mode functions only when the product is connected to a PC that has a

power-saving function.

PowerSaver

Power Indicator On Blinking Off

Power Consumption

(S22C450F)

Power Consumption

(S22C450DW)

Power Consumption

(S24C450F)

 The power consumption level can vary in different operating conditions or when settings are

changed. (S**C450F* Model Power saving mode / Power off (Power button) : Less than 0.1 watts (Analog Input Condition), Max 0.25 watts, S**C450D* Model Power saving mode / Power off (Power button) : Max 0.45 watts)

 ENERGY STAR

Energy Star power is measured with the test method in the current Energy Star

 To reduce the power consumption to 0 watts, turn off the power switch on the back of the product

or disconnect the power cable. Be sure to disconnect the power cable when you will not be using the product for an extended period of time. To reduce the power consumption to 0 watts when the power switch is not available, disconnect the power cable.

Energy Star Power

Consumption

21 watts Less than 0.1 watts Less than 0.1 watts

19 watts Typical 0.3 watts Typical 0.3 watts

23 watts Less than 0.1 watts Less than 0.1 watts

is a US registered mark of the United States Environmental Protection Agency.

Power saving

mode

Power off

(Power button)

Standard.

10 Specifications

Specifications

10.3 Standard Signal Mode Table

 This product can be set to only one resolution for each screen size to obtain the optimum picture

quality due to the nature of the panel. Therefore, a resolution other than the specified resolution may degrade the picture quality. To avoid this, it is recommended that you select the optimum resolution specified for the screen size of your product.

 Check the frequency when you exchange a CDT monitor (connected to a PC) for an LCD monitor.

If the LCD monitor does not support 85Hz, change the vertical frequency to 60Hz using the CDT monitor before you exchange it with the LCD monitor.

If a signal that belongs to the following standard signal modes is transmitted from your PC, the screen will

automatically be adjusted. If the signal transmitted from the PC does not belong to the standard signal

modes, the screen may be blank even though the power LED turns on. In such a case, change the

settings according to the following table by referring to the graphics card user manual.

S22C450F / S24C450F

Horizontal

Resolution

IBM, 720 x 400 31.469 70.087 28.322 -/+

VESA, 640 x 480 31.469 59.940 25.175 -/-

MAC, 640 x 480 35.000 66.667 30.240 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 640 x 480 37.500 75.000 31.500 +/+

VESA, 800 x 600 35.156 56.250 36.000 +/+

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

MAC, 832 x 624 49.726 74.551 57.284 -/-

VESA, 1024 x 768 48.363 60.004 65.000 -/-

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 -/-

VESA, 1152 x 864 67.500 75.000 108.000 +/+

MAC, 1152 x 870 68.681 75.062 100.000 +/+

VESA, 1280 x 720 45.000 60.000 74.250 +/+

VESA, 1280 x 800 49.702 59.810 83.500 -/+

VESA, 1280 x 1024 63.981 60.020 108.000 +/+

10 Specifications

Specifications

Horizontal

Resolution

VESA, 1280 x 1024 79.976 75.025 135.000 +/+

VESA, 1440 x 900 55.935 59.887 106.500 -/+

VESA, 1600 x 900RB 60.000 60.000 108.000 +/+

VESA, 1680 x 1050 65.290 59.954 146.250 -/+

VESA, 1920 x 1080 67.500 60.000 148.500 +/+

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

10 Specifications

Specifications

S22C450DW

Horizontal

Resolution

IBM, 720 x 400 31.469 70.087 28.322 -/+

VESA, 640 x 480 31.469 59.940 25.175 -/-

MAC, 640 x 480 35.000 66.667 30.240 -/-

VESA, 640 x 480 37.861 72.809 31.500 -/-

VESA, 640 x 480 37.500 75.000 31.500 -/-

VESA, 800 x 600 35.156 56.250 36.000 +/+

VESA, 800 x 600 37.879 60.317 40.000 +/+

VESA, 800 x 600 48.077 72.188 50.000 +/+

VESA, 800 x 600 46.875 75.000 49.500 +/+

MAC, 832 x 624 49.726 74.551 57.284 -/-

VESA, 1024 x 768 48.363 60.004 65.000 -/-

VESA, 1024 x 768 56.476 70.069 75.000 -/-

VESA, 1024 x 768 60.023 75.029 78.750 +/+

Frequency

(kHz)

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

VESA, 1152 x 864 67.500 75.000 108.000 +/+

MAC, 1152 x 870 68.681 75.062 100.000 -/-

VESA, 1280 x 720 45.000 60.000 74.250 +/+

VESA, 1280 x 800 49.702 59.810 83.500 -/+

VESA, 1280 x 1024 63.981 60.020 108.000 +/+

VESA, 1280 x 1024 79.976 75.025 135.000 +/+

VESA, 1440 x 900 55.935 59.887 106.500 -/+

VESA, 1600 x 900RB 60.000 60.000 108.000 +/+

VESA, 1680 x 1050 65.290 59.954 146.250 -/+

 Horizontal Frequency

The time required to scan a single line from the left to the right side of the screen is called a

horizontal cycle. The reciprocal number of a horizontal cycle is called horizontal frequency.

Horizontal frequency is measured in kHz.

 Vertical Frequency

Repeating the same picture dozens of times per second allows you to view natural pictures. The

repeat frequency is called "vertical frequency" or "refresh rate" and is indicated in Hz.

10 Specifications

Appendix

01 8000 112 112 Bogotá 600 12 72

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care cent

U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us

CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca

er.

NORTH AMERICA

(English)

http://www.samsung.com/ca_fr (French)

LATIN AMERICA

ARGENTINE 0800 333 3733 http://www.samsung.com.ar

BOLIVIA 800-10-7260 http://www.samsung.com

BRAZIL 0800-124-421(Demais cidades e

regiões) 4004-0000 (Capitais e grandes centros)

CHILE 800-SAMSUNG (726-7864) http://www.samsung.com/cl

COLOMBIA

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

DOMINICA 1-800-751-2676 http://www.samsung.com/latin

http://www.samsung.com.br

http://www.samsung.com/co

(Spanish)

http://www.samsung.com/latin_en (English)

(Spanish)

http://www.samsung.com/latin_en (English)

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

EL SALVADOR 800-6225 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

Appendix

LATIN AMERICA

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

HONDURAS 800-27919267 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

JAMAICA 1-800-234-7267 http://www.samsung.com

NICARAGUA 001-800-5077267 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com

PANAMA 800-7267 http://www.samsung.com/latin

(Spanish)

http://www.samsung.com/latin_en (English)

PARAGUAY 009 800 542 0001 http://www.samsung.com.py

PERU 0-800-777-08 http://www.samsung.com/pe

PUERTO RICO 1-800-682-3180 http://www.samsung.com

TRINIDAD & TOBAGO 1-800-SAMSUNG (726-7864) http://www.samsung.com

URUGUAY 000 405 437 33 http://www.samsung.com

VENEZUELA 0-800-100-5303 http://www.samsung.com/ve

EUROPE

AUSTRIA 0810 - SAMSUNG

(7267864, € 0.07/min)

http://www.samsung.com

BELGIUM 02-201-24-18 http://www.samsung.com/be

(Dutch)

http://www.samsung.com/be_fr (French)

BOSNIA 051 331 999 http://www.samsung.com

BULGARIA 07001 33 11 , share cost tariff http://www.samsung.com/bg

CROATIA 062 SAMSUNG (062 726 786) http://www.samsung.com/hr

CYPRUS 8009 4000 only from landline http://www.samsung.com/gr

Appendix

0 801-172-678* lub +48 22 607-93-33 **     

EUROPE

CZECH 800 - SAMSUNG (800-726786) http://www.samsung.com

Samsung Electronics Czech and Slovak, s.r.o. V Parku 2343/24, 148 00 -

Praha 4

DENMARK 70 70 19 70 http://www.samsung.com

EIRE 0818 717100 http://www.samsung.com

ESTONIA 800-7267 http://www.samsung.com/ee

FINLAND 030-6227 515 http://www.samsung.com

FRANCE 01 48 63 00 00 http://www.samsung.com/fr

GERMANY 0180 6 SAMSUNG bzw. http://www.samsung.com

0180 6 7267864* (*0,20 €/Anruf aus dem dt. Festnetz, aus dem Mobilfunk max. 0,60 €/Anruf)

GREECE 80111-SAMSUNG (80111 726

7864) only from land line

(+30) 210 6897691 from mobile and land line

HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/hu

ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com

LATVIA 8000-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.com/lt

LUXEMBURG 261 03 710 http://www.samsung.com

MONTENEGRO 020 405 888 http://www.samsung.com

NETHERLANDS 0900 - SAMSUNG

(0900-7267864) (€ 0,10/Min)

NORWAY 815 56480 http://www.samsung.com

POLAND

http://www.samsung.com/gr

http://www.samsung.com

http://www.samsung.com/pl

PORTUGAL 808 20 - SAMSUNG (808 20 7267) http://www.samsung.com

ROMANIA 08008 SAMSUNG (08008 726

SERBIA 011 321 6899 http://www.samsung.com/rs

7864) TOLL FREE No.

http://www.samsung.com/ro

Appendix

EUROPE

SLOVAKIA 0800 - SAMSUNG (0800-726 786) http://www.samsung.com

SPAIN 902172678 http://www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) http://www.samsung.com

SWITZERLAND 0848-SAMSUNG

(7267864, CHF 0.08/min)

U.K 0330 SAMSUNG (7267864) http://www.samsung.com

CIS

ARMENIA 0-800-05-555 http://www.samsung.com

AZERBAIJAN 088-55-55-555 http://www.samsung.com

BELARUS 810-800-500-55-500 http://www.samsung.com

GEORGIA 0-800-555-555 http://www.samsung.com

KAZAKHSTAN 8-10-800-500-55-500

(GSM: 7799)

KYRGYZSTAN 00-800-500-55-500 http://www.samsung.com

MOLDOVA 0-800-614-40 http://www.samsung.com

MONGOLIA +7-800-555-55-55 http://www.samsung.com

http://www.samsung.com/ch (German)

http://www.samsung.com/ch_fr (French)

http://www.samsung.com

RUSSIA 8-800-555-55-55 http://www.samsung.com

TADJIKISTAN 8-10-800-500-55-500 http://www.samsung.com

UKRAINE 0-800-502-000 http://www.samsung.com/ua

(Ukrainian)

http://www.samsung.com/ua_ru (Russian)

UZBEKISTAN 8-10-800-500-55-500 http://www.samsung.com

ASIA PACIFIC

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA 400-810-5858 http://www.samsung.com

HONG KONG (852) 3698 4698 http://www.samsung.com/hk

(Chinese)

http://www.samsung.com/hk_en (English)

Appendix

ASIA PACIFIC

INDIA 1800 3000 8282

1800 266 8282

INDONESIA 0800-112-8888 (Toll Free)

(021) 56997777

JAPAN 0120-327-527 http://www.samsung.com

MALAYSIA 1800-88-9999 http://www.samsung.com/my

NEW ZEALAND 0800 SAMSUNG (0800 726 786) http://www.samsung.com/nz

PHILIPPINES 1-800-10-7267864 [PLDT]

1-800-8-7267864 [Globe landline and Mobile]

02-4222111 [Other landline]

SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg

TAIWAN 0800-32-9999 http://www.samsung.com/tw

THAILAND 0-2689-3232,

1800-29-3232

VIETNAM 1800 588 889 http://www.samsung.com

http://www.samsung.com/in

http://www.samsung.com/id

http://www.samsung.com/ph

http://www.samsung.com/th

MENA

ALGERIA 0800 100 100 http://www.samsung.com/n_africa

BAHRAIN 8000-4726 http://www.samsung.com/ae

(English)

http://www.samsung.com/ae_ar (Arabic)

EGYPT 08000-726786 http://www.samsung.com

IRAN 021-8255 http://www.samsung.com

JORDAN 0800-22273

06 5777444

KUWAIT 183-2255 (183-CALL) http://www.samsung.com/ae

MOROCCO 080 100 2255 http://www.samsung.com

OMAN 800-SAMSUNG (726-7864) http://www.samsung.com/ae

http://www.samsung.com/Levant (English)

(English)

http://www.samsung.com/ae_ar (Arabic)

(English)

http://www.samsung.com/ae_ar (Arabic)

Appendix

MENA

PAKISTAN 0800-Samsung (72678) http://www.samsung.com/pk/

QATAR 800-2255 (800-CALL) http://www.samsung.com/ae

(English)

http://www.samsung.com/ae_ar (Arabic)

SAUDI ARABIA 920021230 http://www.samsung.com/sa

SYRIA 18252273 http://www.samsung.com/Levant

(English)

TUNISIA 80-1000-12 http://www.samsung.com/n_africa

TURKEY 444 77 11 http://www.samsung.com

U.A.E 800-SAMSUNG (726-7864) http://www.samsung.com

AFRICA

BOTSWANA 8007260000 http://www.samsung.com

BURUNDI 200 http://www.samsung.com

CAMEROON 7095-0077 http://www.samsung.com/africa_fr

COTE D’ IVOIRE 8000 0077 http://www.samsung.com/africa_fr

DRC 499999 http://www.samsung.com

GHANA 0800-10077

0302-200077

KENYA 0800 545 545 http://www.samsung.com

NAMIBIA 08 197 267 864 http://www.samsung.com

NIGERIA 0800-726-7864 http://www.samsung.com/africa_en

MOZAMBIQUE 847267864 / 827267864 http://www.samsung.com

RWANDA 9999 http://www.samsung.com

http://www.samsung.com/africa_en

SENEGAL 800-00-0077 http://www.samsung.com/africa_fr

SOUTH AFRICA 0860 SAMSUNG (726 7864) http://www.samsung.com

SUDAN 1969 http://www.samsung.com

TANZANIA 0685 88 99 00 http://www.samsung.com

UGANDA 0800 300 300 http://www.samsung.com

ZAMBIA 0211 350370 http://www.samsung.com

Appendix

Responsibility for the Pay Service (Cost to Customers)

When the service is requested, in spite of in warranty, we may charge you for a visit from a service

technician in the following cases.

Not a product defect

Cleaning of the product, Adjustment, Explanation, Re-installation and etc.

 If a service technician gives instructions on how to use product or simply adjusts options without

disassembling product.

 If a defect is caused by external environmental factors. (Internet, Antenna, Wired Signal, etc.)

 If a product is reinstalled or devices are connected additionally after installing the purchased product

for the first time.

 If a product is reinstalled to move to a different spot or to move to a different house.

 If customer requests instructions on how to use because of another company's product.

 If customer requests instructions on how to use the network or another company's program.

 If customer requests software installation and setup for the product.

 If a service technician removes/cleans dusts or foreign materials inside of the product.

 If customer requests an installation additionally after purchasing a product through home-shopping

or online.

A Product damage caused by customer's fault

Product damage caused by customer's mishandling or wrong repair

If a product damage is caused by;

 external impact or drop.

 use of supplies or separately sold product unspecified by Samsung.

 repair from a person besides an engineer of outsourcing service company or partner of Samsung

Electronics Co., Ltd.

 remodeling or repairing the product by customer.

 using it with incorrect voltage or non-authorised electrical connections.

 not following the "cautions" in User Manual.

Others

 If product fails by natural disaster. (lightning, fire, earthquake, flood damage, etc)

 If consumable components are all used up. (Battery, Toner, Fluorescent lights, Head, Vibrator,

Lamp, Filter, Ribbon, etc.)

If customer requests a service in case the product has no defect, service fee may be charged. So

please read User Manual first.

Appendix

Correct Disposal

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

(India Only)

For more information on safe disposal and recycling visit our website www.samsung.com/in or contact our Helpline numbers - 18002668282, 180030008282.

Appendix

Terminology

OSD (On Screen Display)

On screen display (OSD) allows you to customize on-screen settings to optimize the picture quality as

required. You can change the screen brightness, tint, size and many other settings using menus

displayed on the screen.

Gamma

The Gamma menu adjusts the grey scale that represents middle tones on the screen. Adjusting the

brightness brightens the whole screen, but adjusting Gamma only brightens the medium brightness.

Grey scale

Scale refers to levels of color intensity that show variations of color change from darker areas to

brighter areas on the screen. Changes to the screen brightness are expressed with black and white

variation, and grey scale refers to the medium area between black and white. Changing the grey scale

through Gamma adjustment will change the medium brightness on the screen.

Scanning rate

Scanning rate, or refresh rate, refers to the frequency of screen refreshes. Screen data is transmitted

as it refreshes to display an image, although the refreshing is invisible to the naked eye. The number of

screen refreshes is called scanning rate and is measured in Hz. A scanning rate of 60Hz means that

the screen refreshes 60 times per second. The screen scanning rate depends on the performance of

the graphics cards in your PC and monitor.

Horizontal Frequency

Characters or images displayed on the monitor screen consist of numerous dots (pixels). Pixels are

transmitted in horizontal lines, which are then arranged vertically to create an image. The horizontal

frequency is measured in kHz and represents how many times horizontal lines per second are

transmitted and displayed on the monitor screen. A horizontal frequency of 85 means that the

horizontal lines that make up an image are transmitted 85000 times per second. The horizontal

frequency is indicated in 85kHz.

Vertical Frequency

One image is made of numerous horizontal lines. The vertical frequency is measured in Hz and

represents how many images can be created per second by those horizontal lines. A vertical

frequency of 60 means that an image is transmitted 60 times per second. The vertical frequency is

also called "refresh rate" and affects screen flicker.

Appendix

100
