Page 1

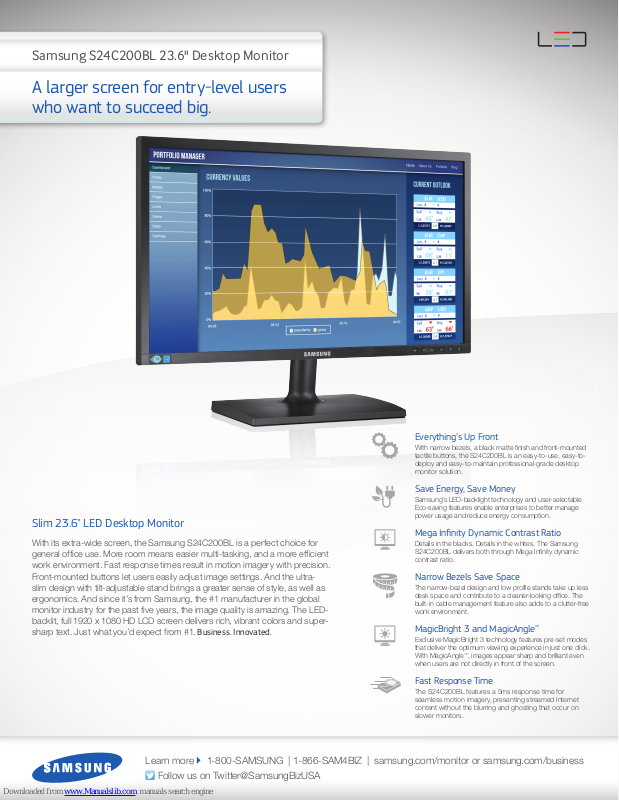

Samsung S24C200BL 23.6" Desktop Monitor
A larger screen for entry-level users
who want to succeed big.
Slim 23.6" LED Desktop Monitor
With its extra-wide screen, the Samsung S24C200BL is a perfect choice for
general office use. More room means easier multi-tasking, and a more efficient
work environment. Fast response times result in motion imagery with precision.
Front-mounted buttons let users easily adjust image settings. And the ultraslim design with tilt-adjustable stand brings a greater sense of style, as well as
ergonomics. And since it’s from Samsung, the #1 manufacturer in the global
monitor industry for the past five years, the image quality is amazing. The LEDbacklit, full 1920 x 1080 HD LCD screen delivers rich, vibrant colors and supersharp text. Just what you’d expect from #1. Business. Innovated.
Everything’s Up Front
With narrow bezels, a black matte finish and front-mounted
tactile buttons, the S24C200BL is an easy-to-use, easy-todeploy and easy-to-maintain professional-grade desktop
monitor solution.
Save Energy, Save Money
Samsung’s LED-backlight technology and user-selectable
Eco-saving features enable enterprises to better manage
power usage and reduce energy consumption.
Mega Infinity Dynamic Contrast Ratio
Details in the blacks. Details in the whites. The Samsung
S24C200BL delivers both through Mega Infinity dynamic
contrast ratio.
Narrow Bezels Save Space
The narrow-bezel design and low profile stands take up less
desk space and contribute to a cleaner-looking office. The
built-in cable management feature also adds to a clutter-free
work environment.
MagicBright 3 and MagicAngle
Exclusive MagicBright 3 technology features pre-set modes
that deliver the optimum viewing experience in just one click.
With MagicAngle™, images appear sharp and brilliant even
when users are not directly in front of the screen.
™
Fast Response Time
The S24C200BL features a 5ms response time for
seamless motion imagery, presenting streamed Internet
content without the blurring and ghosting that occur on
slower monitors.
Learn more } 1-800-SAMSUNG | 1-866-SAM4BIZ | samsung.com/monitor or samsung.com/business
Follow us on Twitter@SamsungBizUSA
Page 2
Samsung S24C200BL
Desktop Monitor
KEY SPECIFICATIONS
Display
Model Number S24C200BL
Screen Size 23.6"
Display Type TN, LED Backlight
Resolution 1920 x 1080
Pixel Pitch 0.2715mm (H) x 0.2715mm (V)
Aspect Ratio 16:9
Brightness 250 cd/m
Contrast Ratio (Typical / Dynamic) 1000:1 / Mega Infinity
Viewing Angle (Horizontal / Vertical) 170˚ / 160˚
Color Support 16.7M
Video Input Signal
Dimensions
Accessories
Management
Certification and
Compliance
Response Time 5ms (On / Off)
Analog VGA
Digital DVI
Power
Voltage 100 - 240V (50 / 60 Hz)
Power Supply Type Internal
Power Consumption (Max / ENERGY STAR®)
Power Consumption (Standby) <0.1W (Analog), <0.3W (Digital)
Features
Special Eco Saving, Samsung MagicAngle, Samsung MagicBright 3, Off Timer, Image Size, Key Repeat Time supported, MagicTune, MultiScreen
Stand Tilt only -1° to + 20°
Wall Mount (Size mm) 100 x 100 Wall Mount Supported, VESA Compliant
Cabinet Color Matte Black
Product Dimensions (W x H x D) 21.8" x 16.2" x 7.3"
Product Dimensions (without stand) 21.8" x 13.0" x 3.0"
Shipping Carton 24.9" x 5.5" x 16.6"
Front Bezel Size (Left, Top, Right, Bottom) 13.7mm (.53"), 15.2mm (.59"), 13.7mm (.53"), 16.2mm (.63")
Panel Depth 3.0"
Stand Base (Length x Depth) 7.28" x 9.05"
Weight
With Stand / Without Stand 9.0 lbs. / 8.3 lbs.
Shipping Weight 12.0 lbs.
Service
Standard Warranty 3-Year Parts / Labor / Backlight
Included VGA Cable, DVI Cable, 1.5m Power Cable, E-manual, Install CD, Quick Setup Guide
Green
ENERGY STAR Compliant Yes
TCO Yes
Packaging Recyclability Some Packing Materials Recyclable
EPEAT Rating Gold
ROHS Yes
Safety UL (USA): UL 60950-1, CSA (Canada): CSA C22.2 No. 60950-1, NOM (Mexico): NOM-019-SCFI-1993; other countries available upon request
EMC FCC (USA) FCC Part 15, Subpart B class A; other countries available upon request
For complete product specifications, visit samsung.com/monitor
2
30W / 20W
For complete product information and accessories, visit samsung.com/monitor or samsung.com/business
Follow us on Twitter@SamsungBizUSA
Product Support: 1-800-SAMSUNG
1- 866- SAM4BIZ
©2013 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd. Specifications and designs are subject to
change without notice. Non-metric weights and measurements are approximate. All other brand, product, service names and logos are trademarks and/
or registered trademarks of their respective manufacturers and companies. Simulated screen images. See samsung.com for detailed information. Printed in
USA. MON-S24C200BLB2BDSHT-JAN13T
