Samsung RVXVHT075, RVXVHT325FE, RVXVHT300FE, RVXVHT125FE, RVXVHT150 Technical Data Book
...Page 1
Outdoor Units
SAMSUNG DVM Air Conditioner
DVM PLUS III
2010
North America for 60Hz
Page 2
Outdoor Units
Page 3
Outdoor Units
Page 4
2
1
2
3
Outdoor units
Indoor units
Accessories
I.
Products
6
9
11
1
2
3
4
5
6
7
8
Specifications

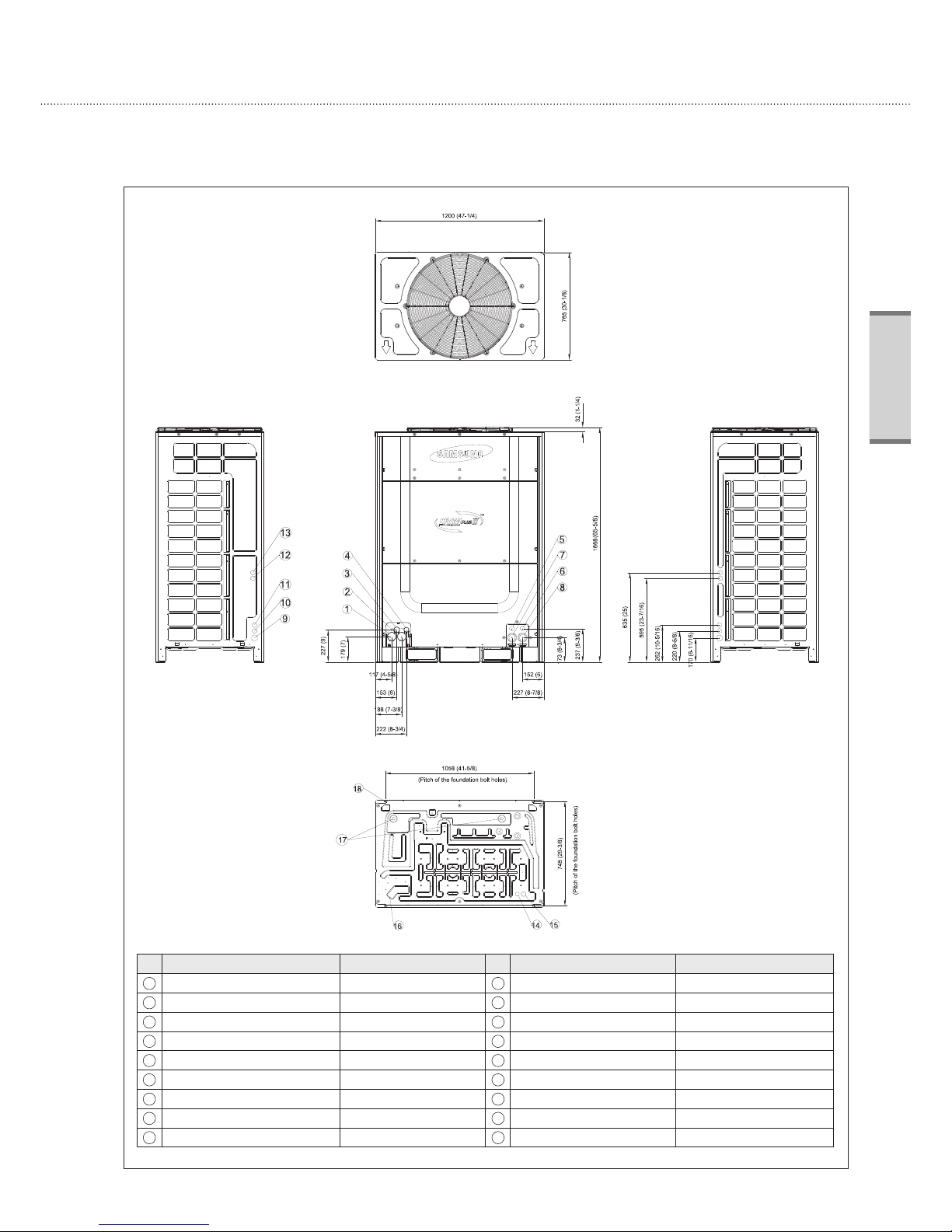

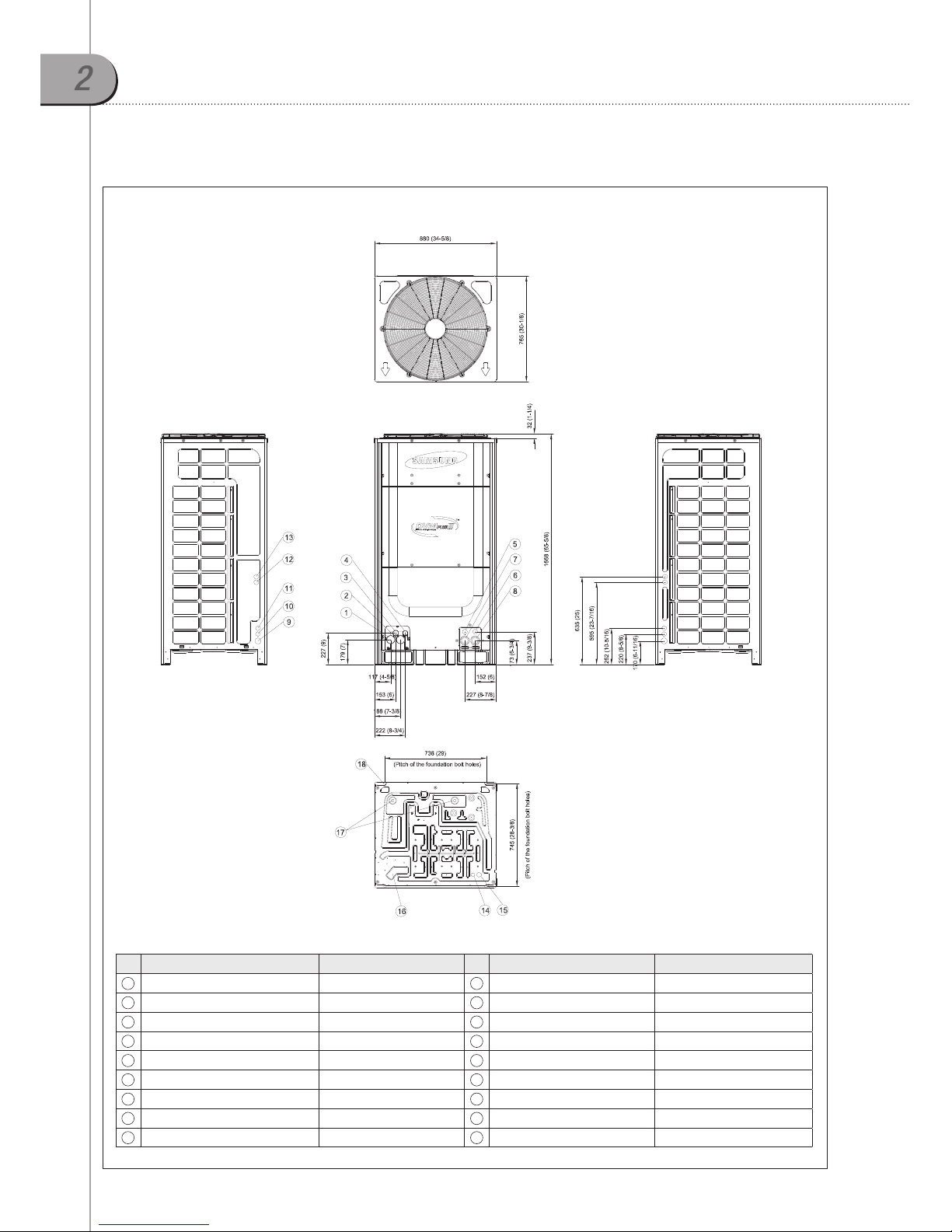

Dimensional drawing

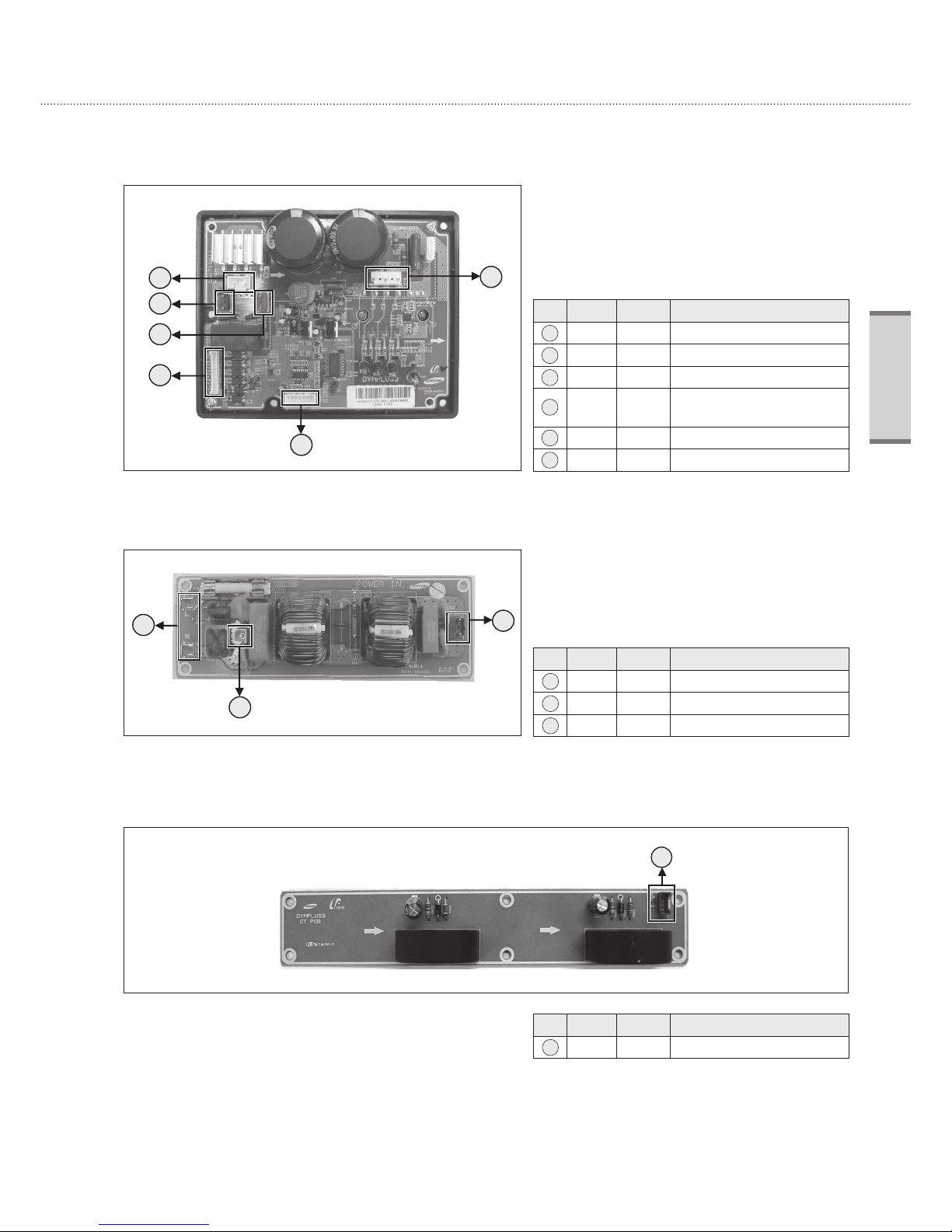

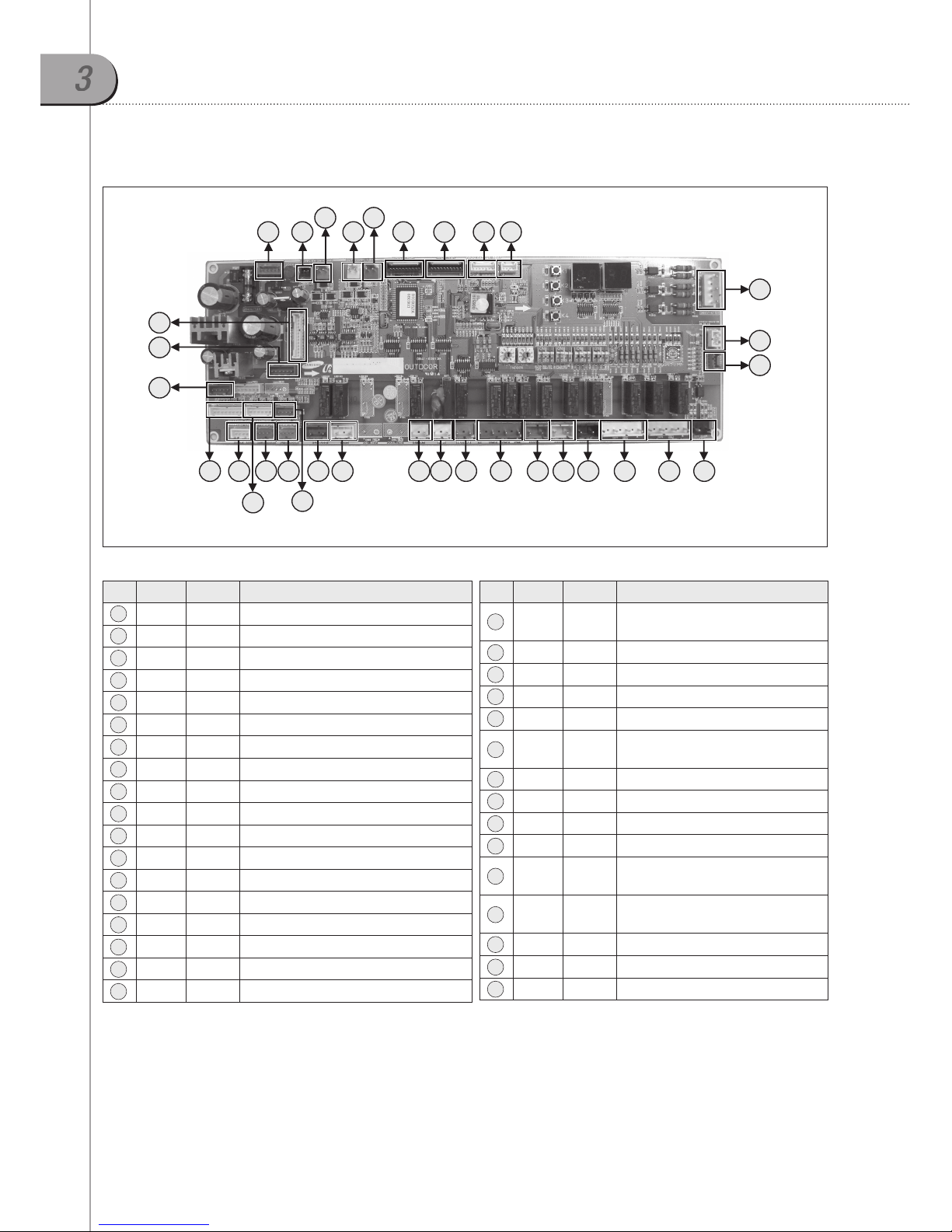

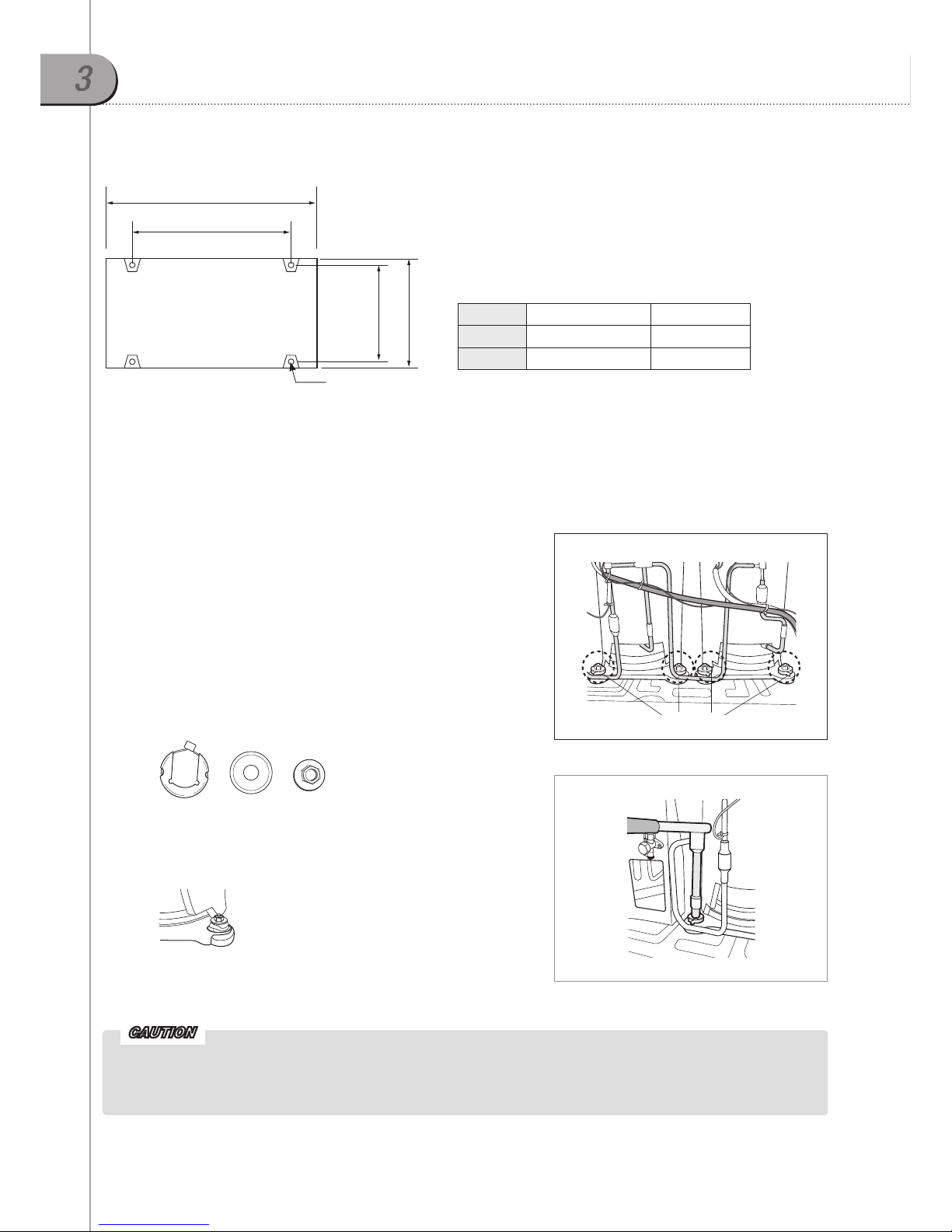

PCB connector layout

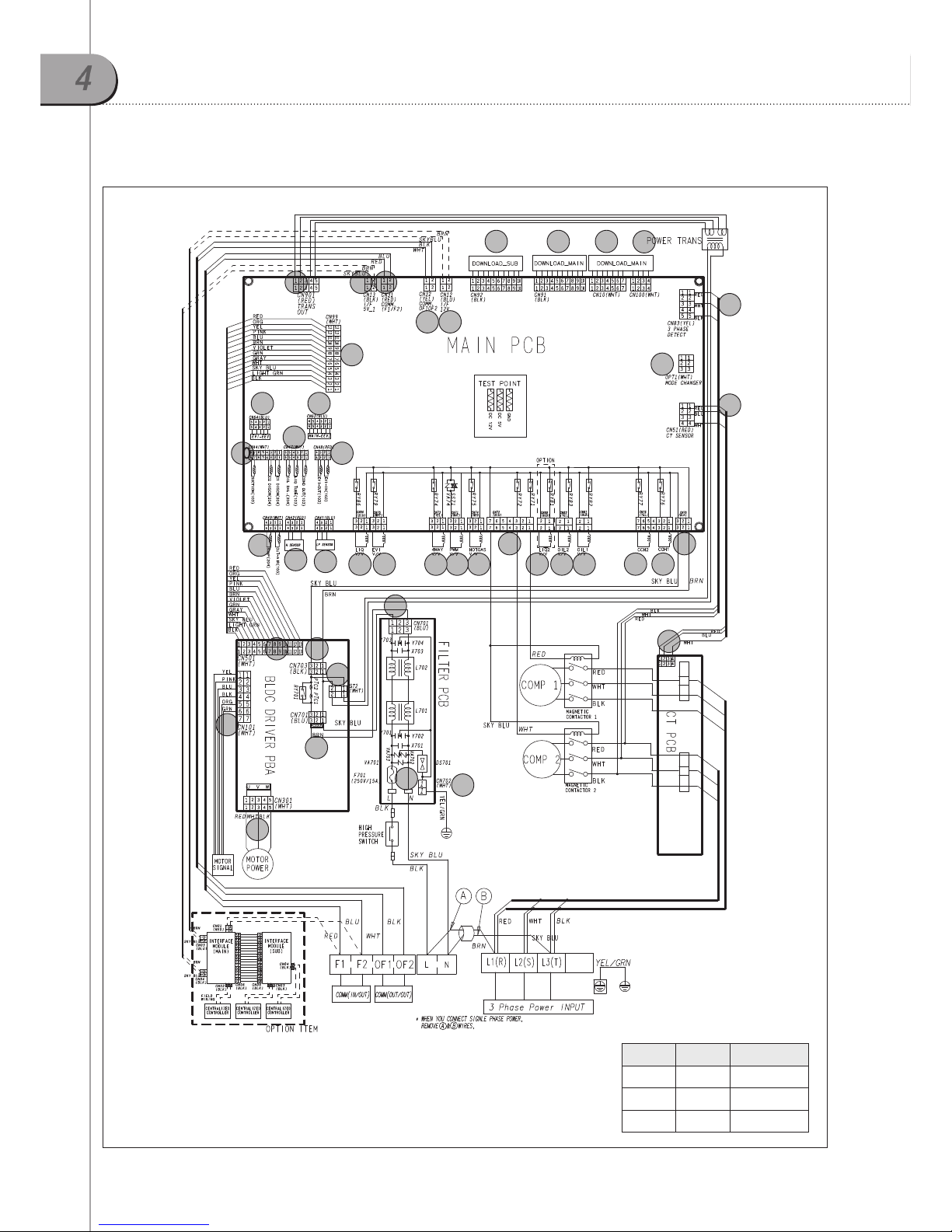

Electrical wiring diagram

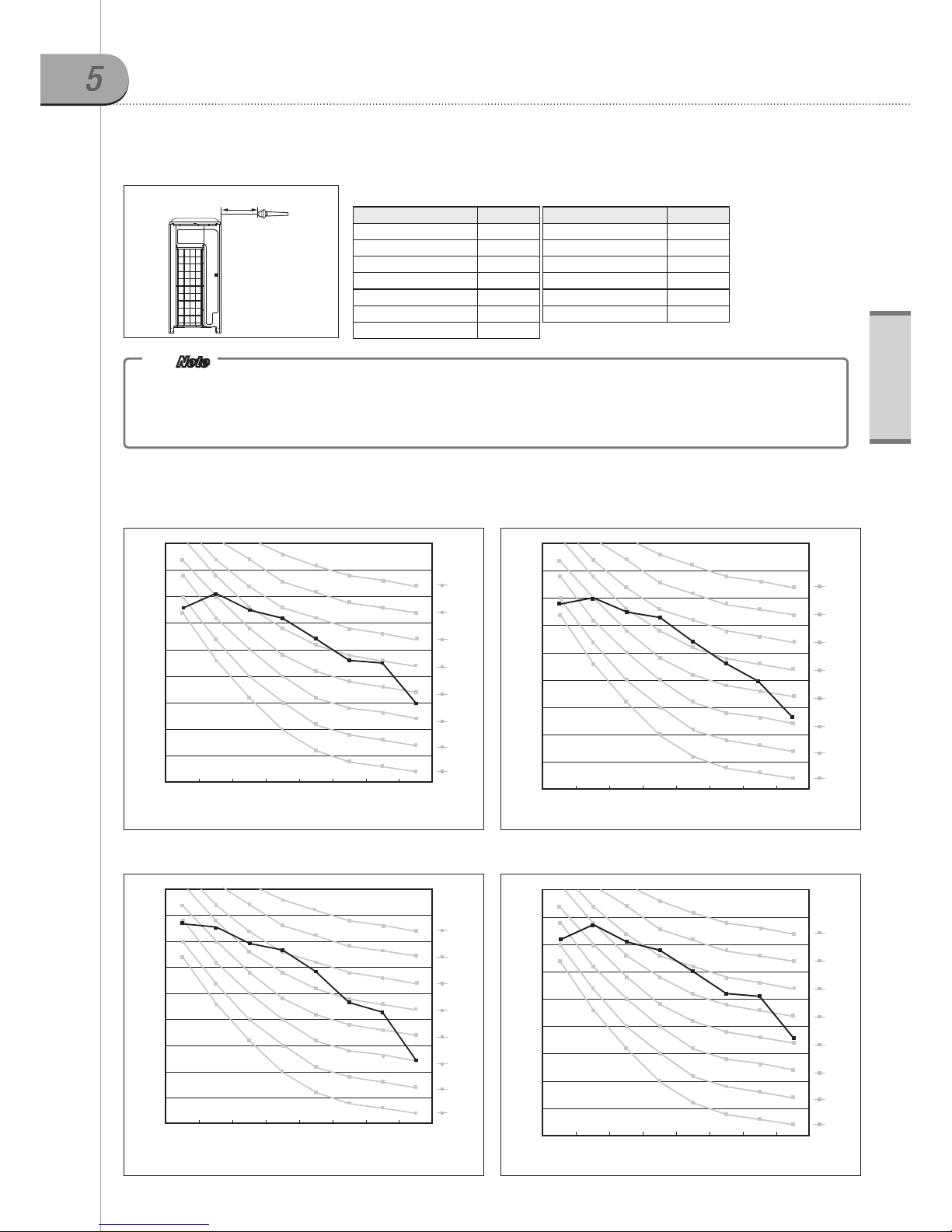

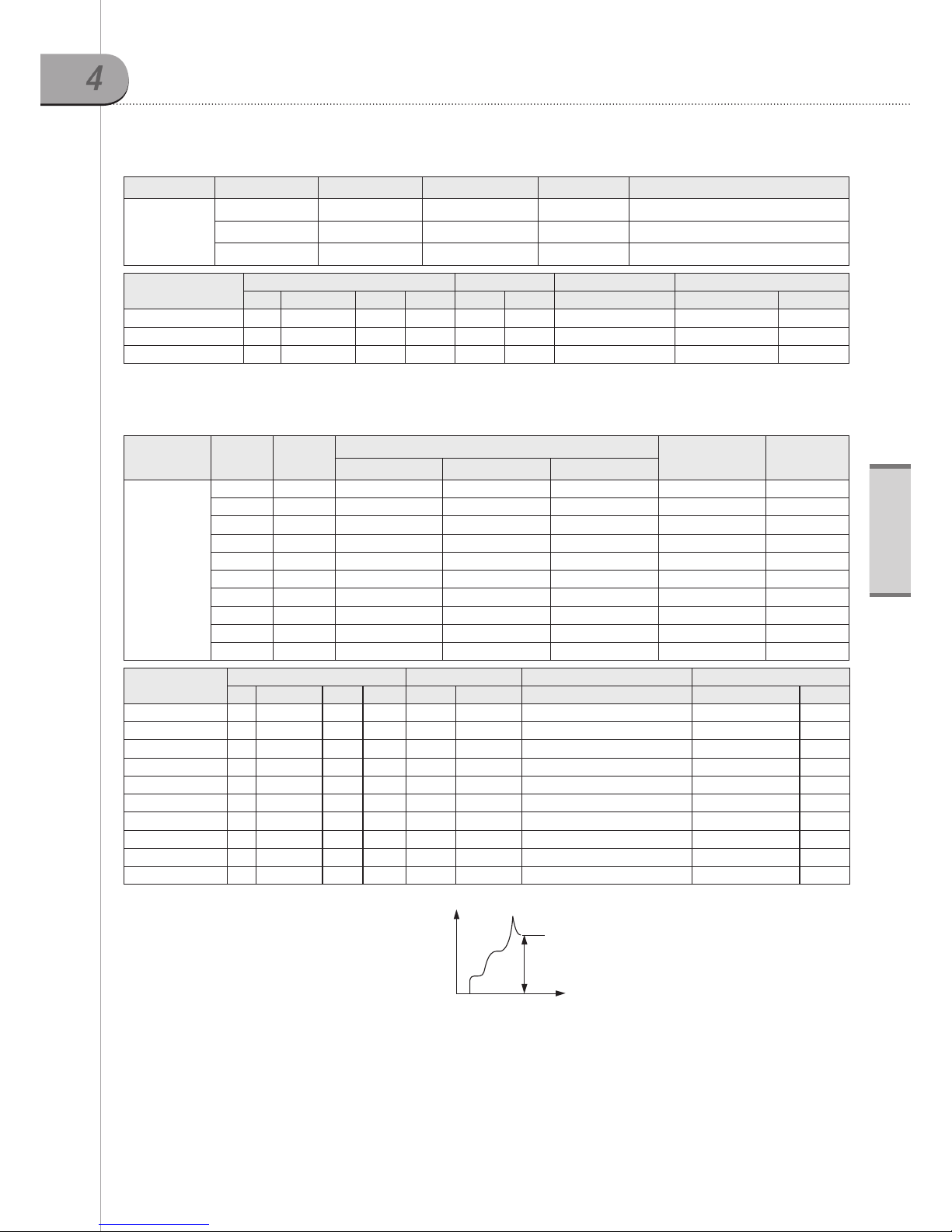

Sound pressure level

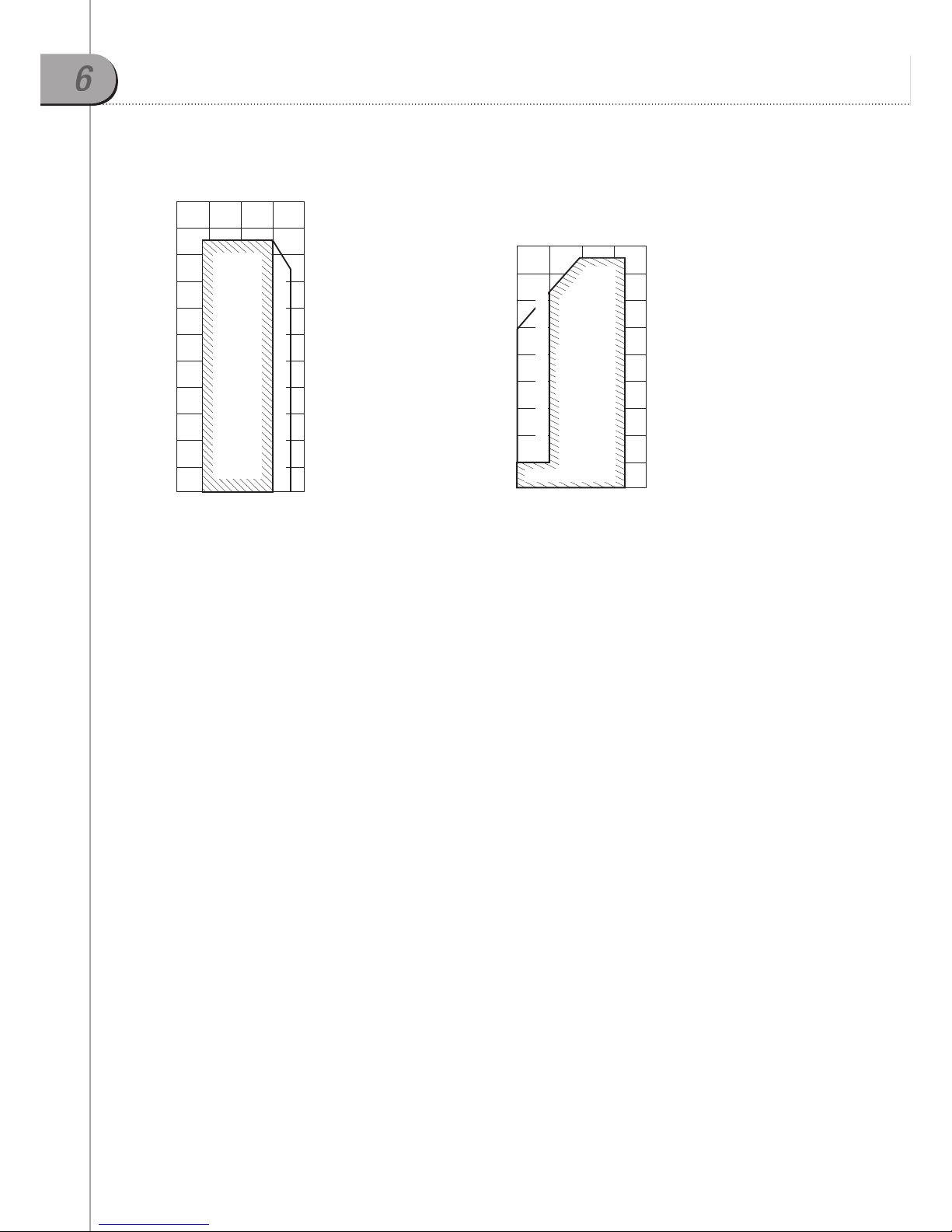

Operation limit

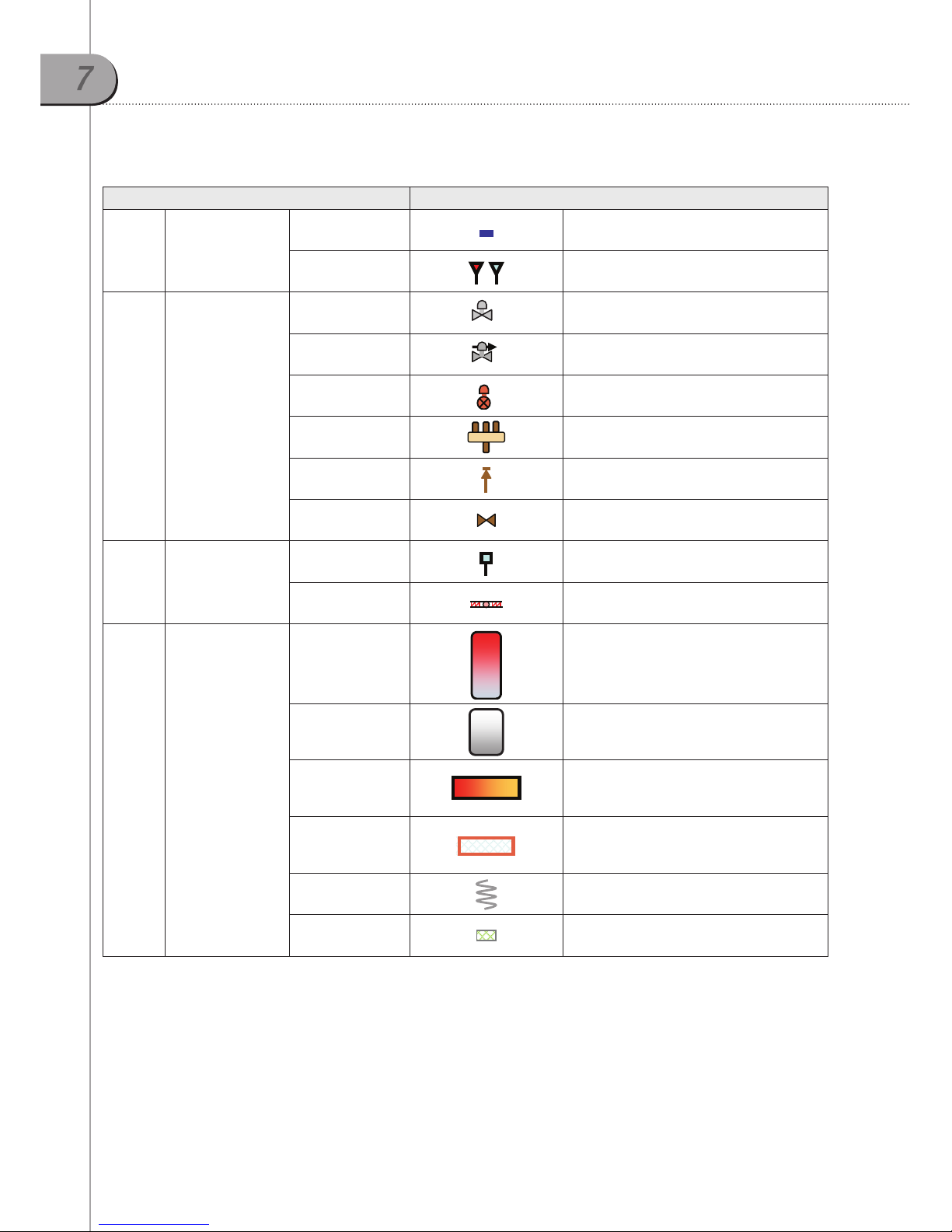

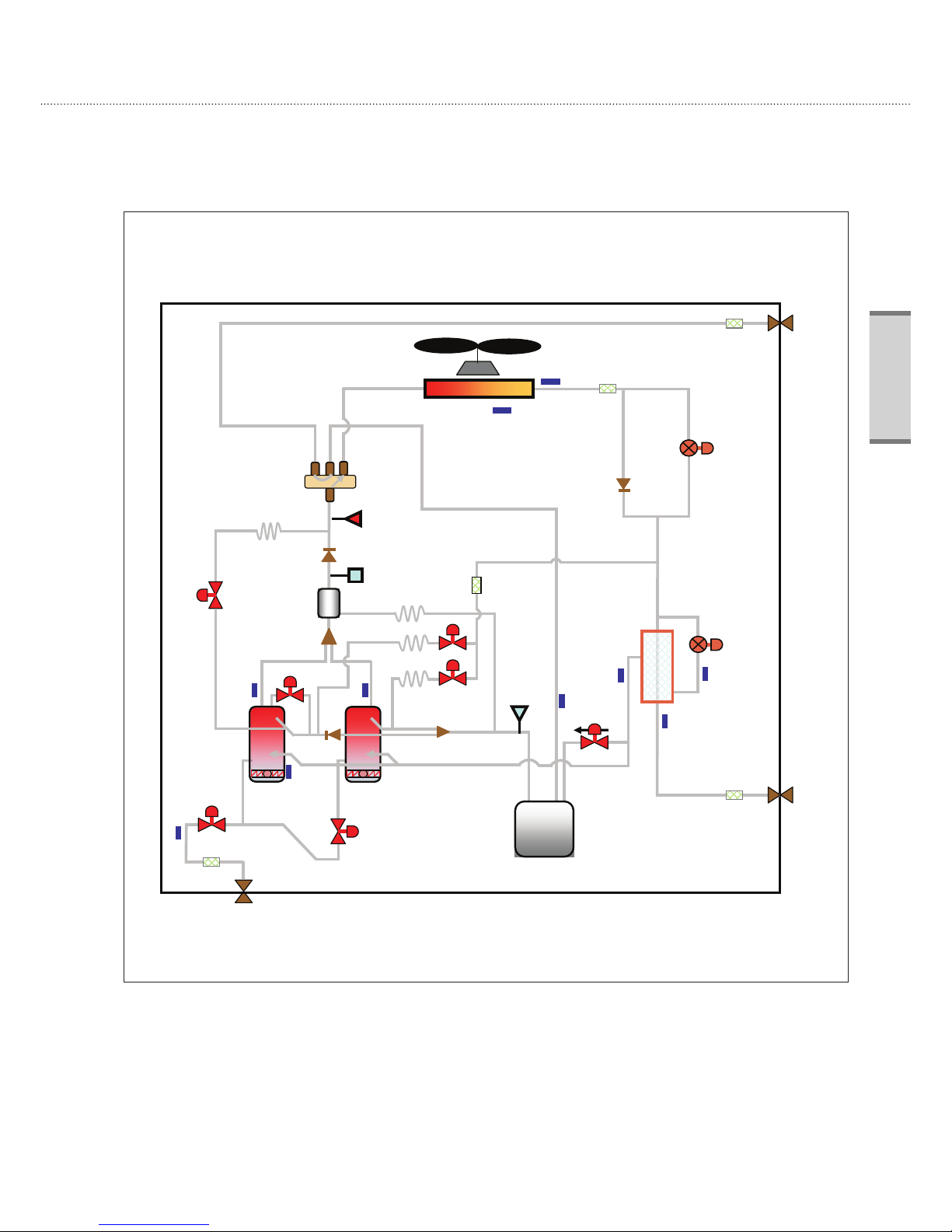

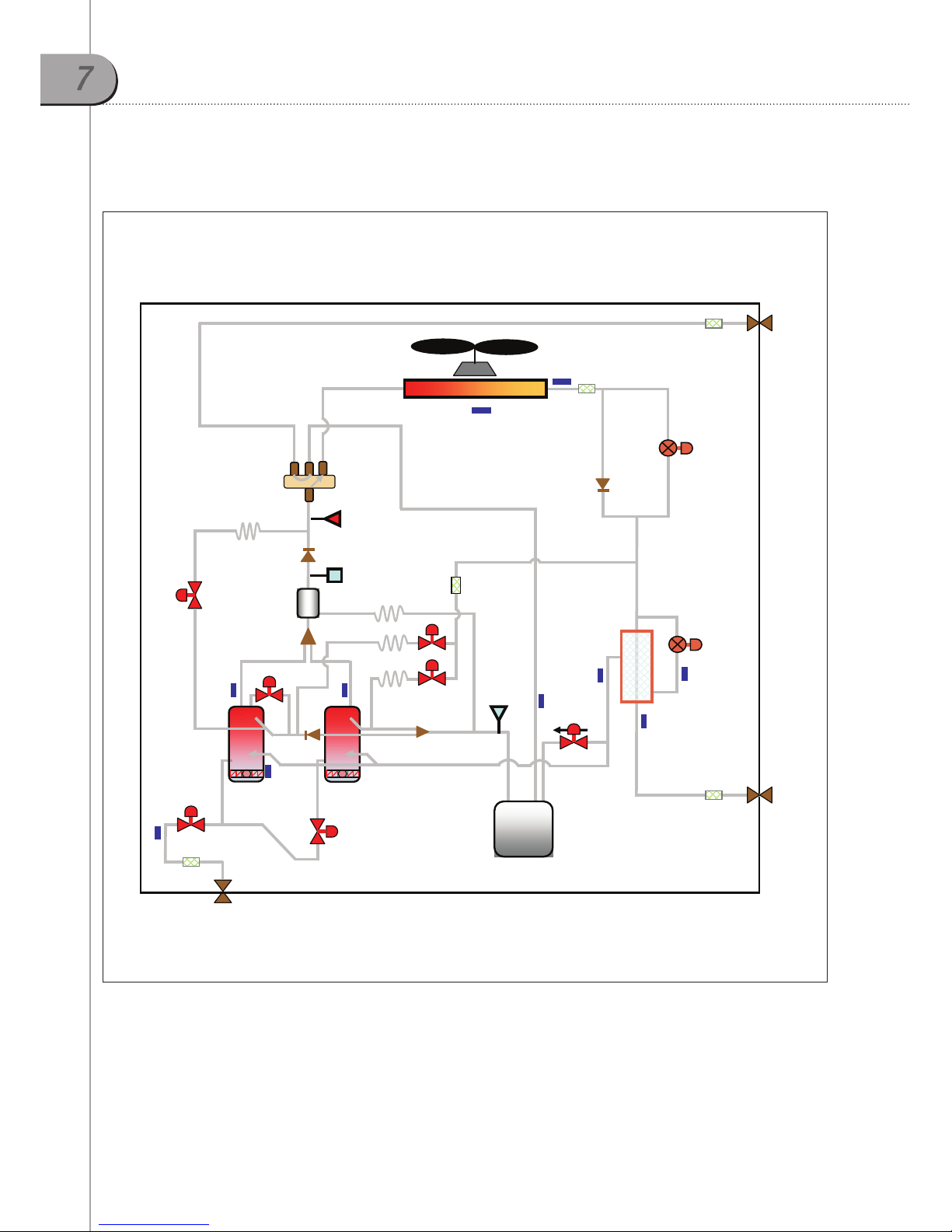

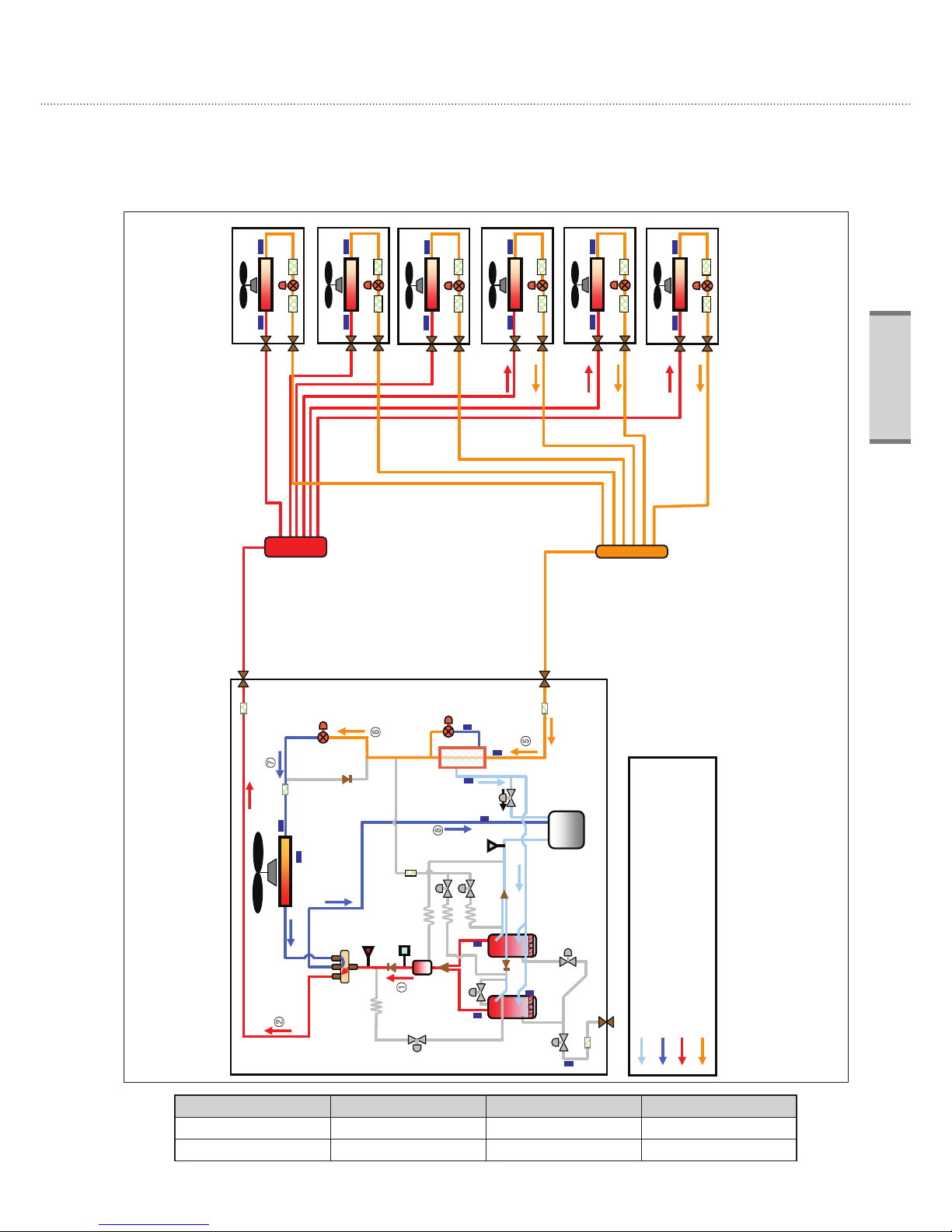

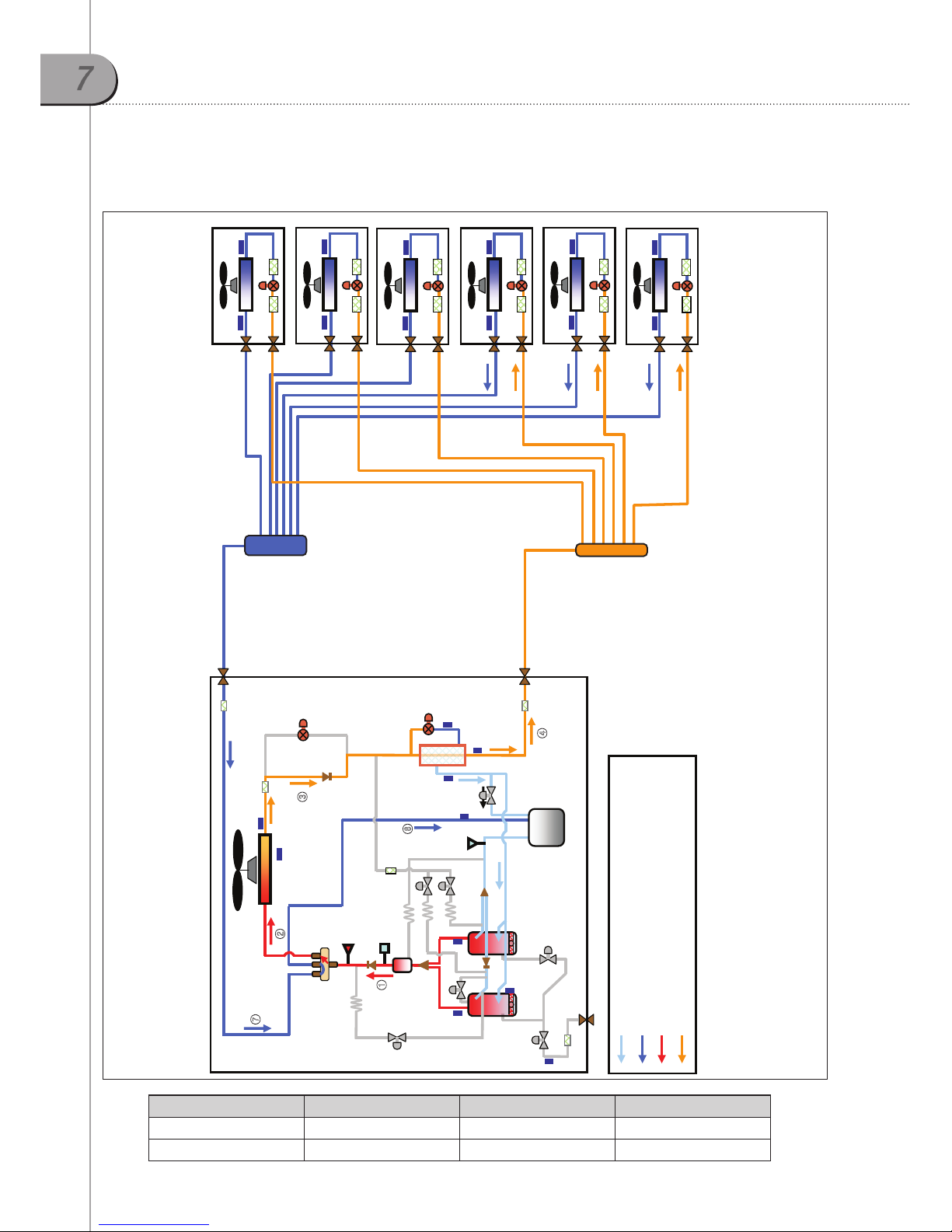

Cycle operation mode

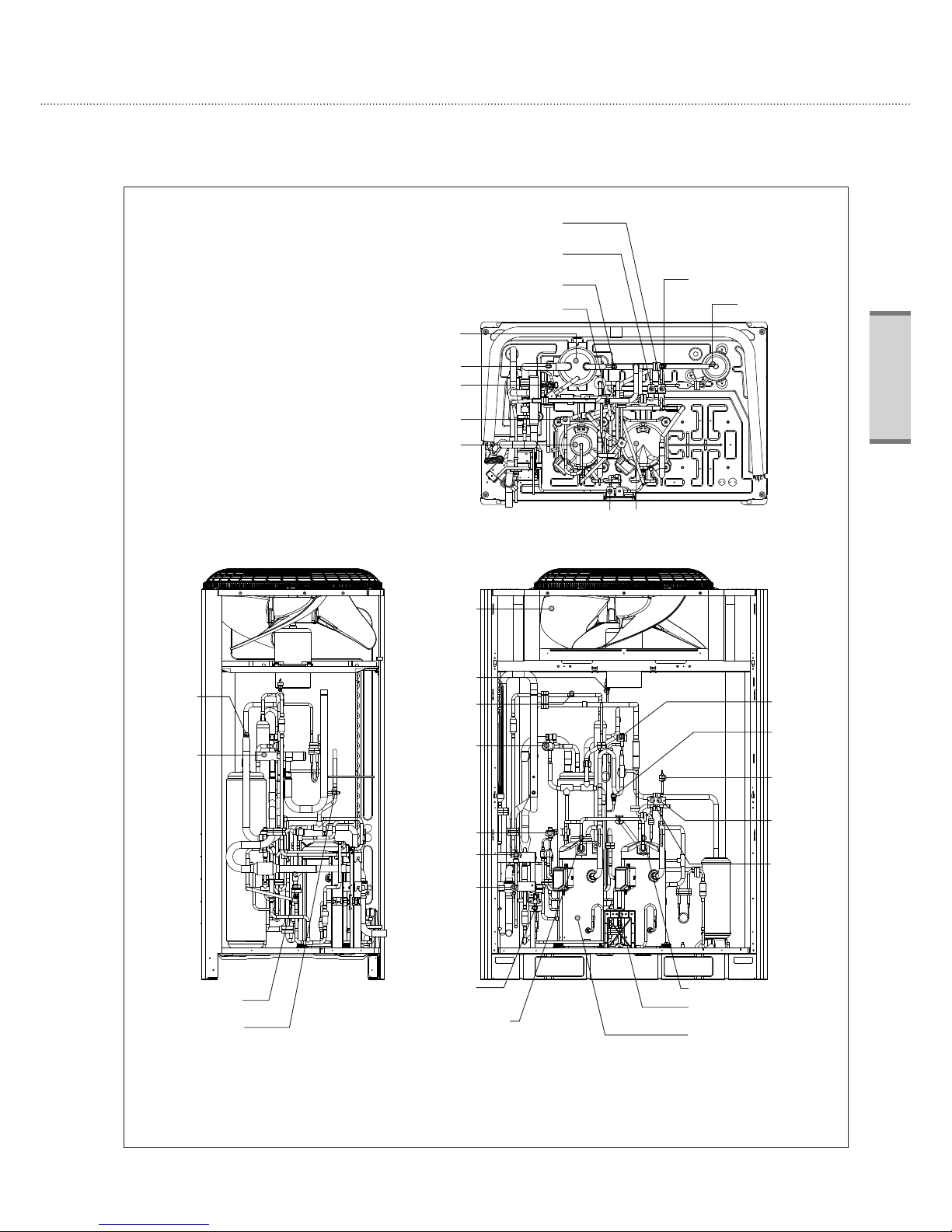

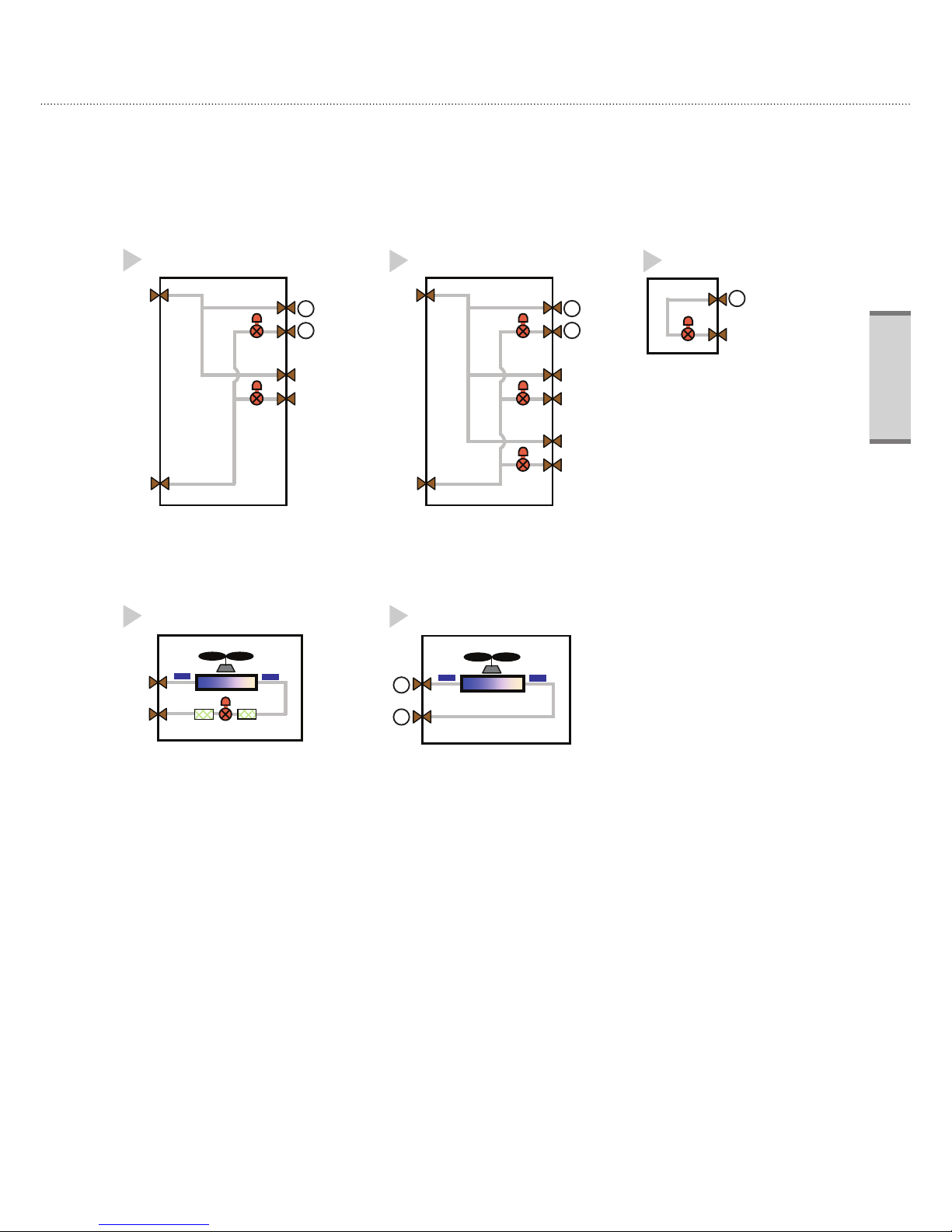

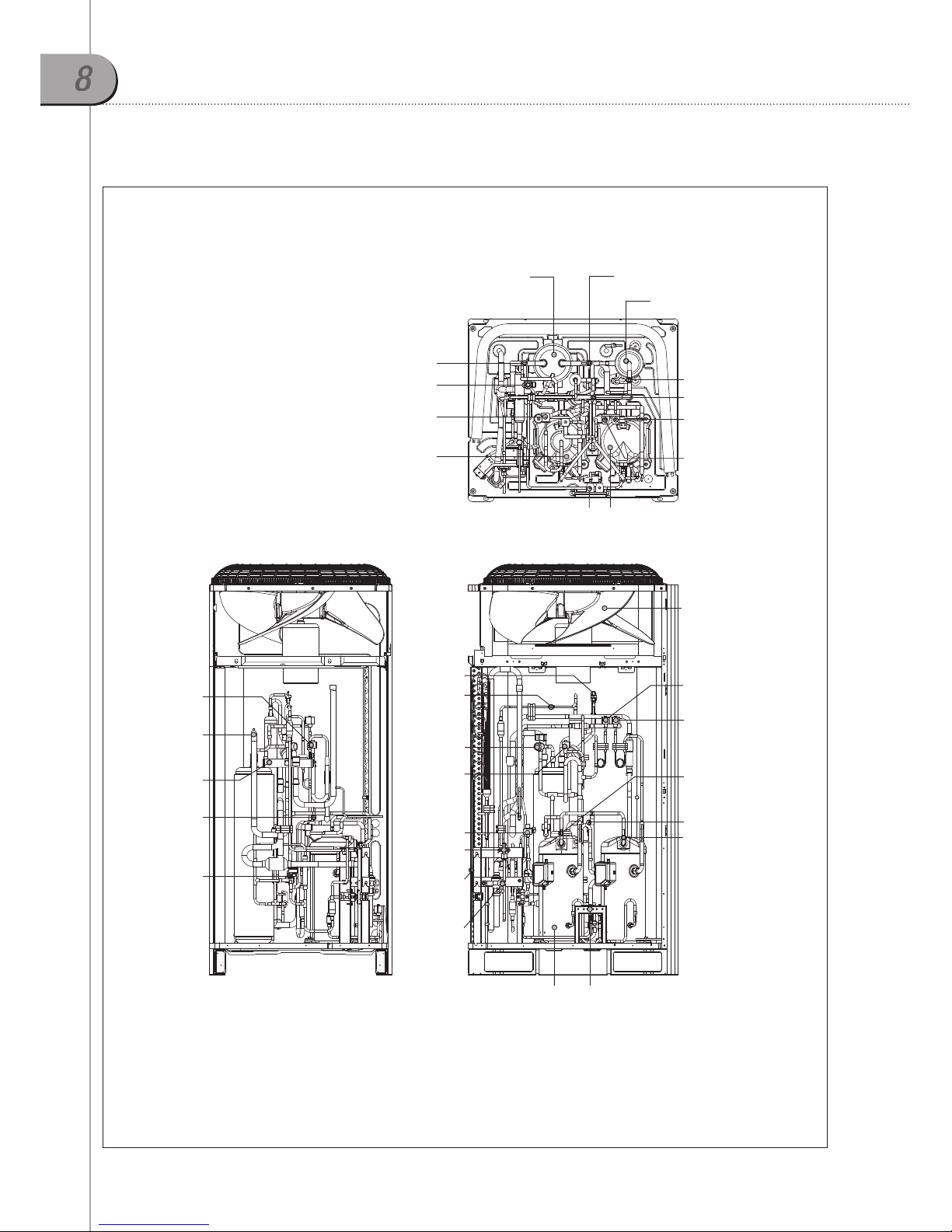

Cycle function parts
II.
Outdoor units
14
20
22
24
25
28
29
36
Page 5
3
Outdoor unitsProducts Installation
1
2
3
4
5
6
7
8
Outdoor unit combinations

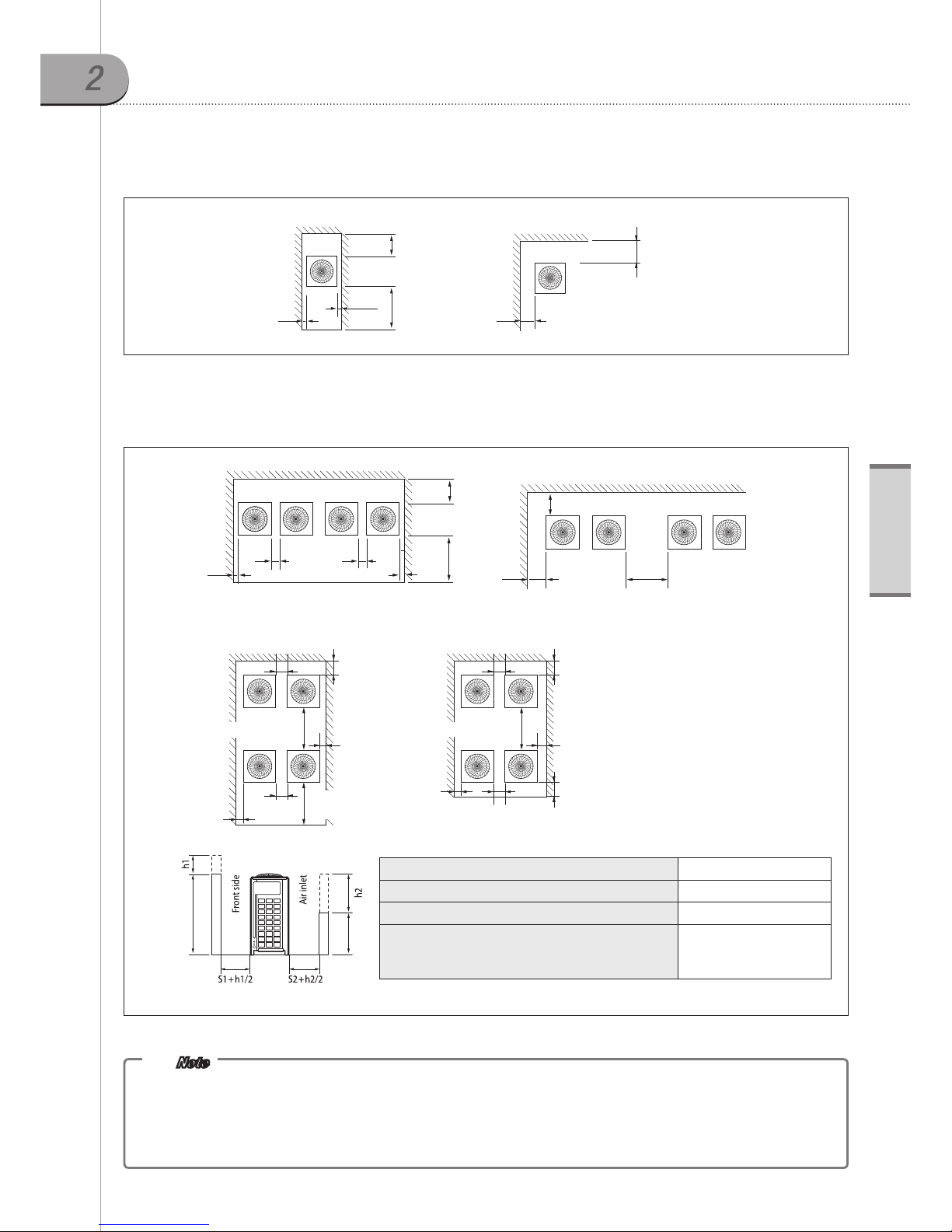

Space requirements
Placing the outdoor units
Electric specifications

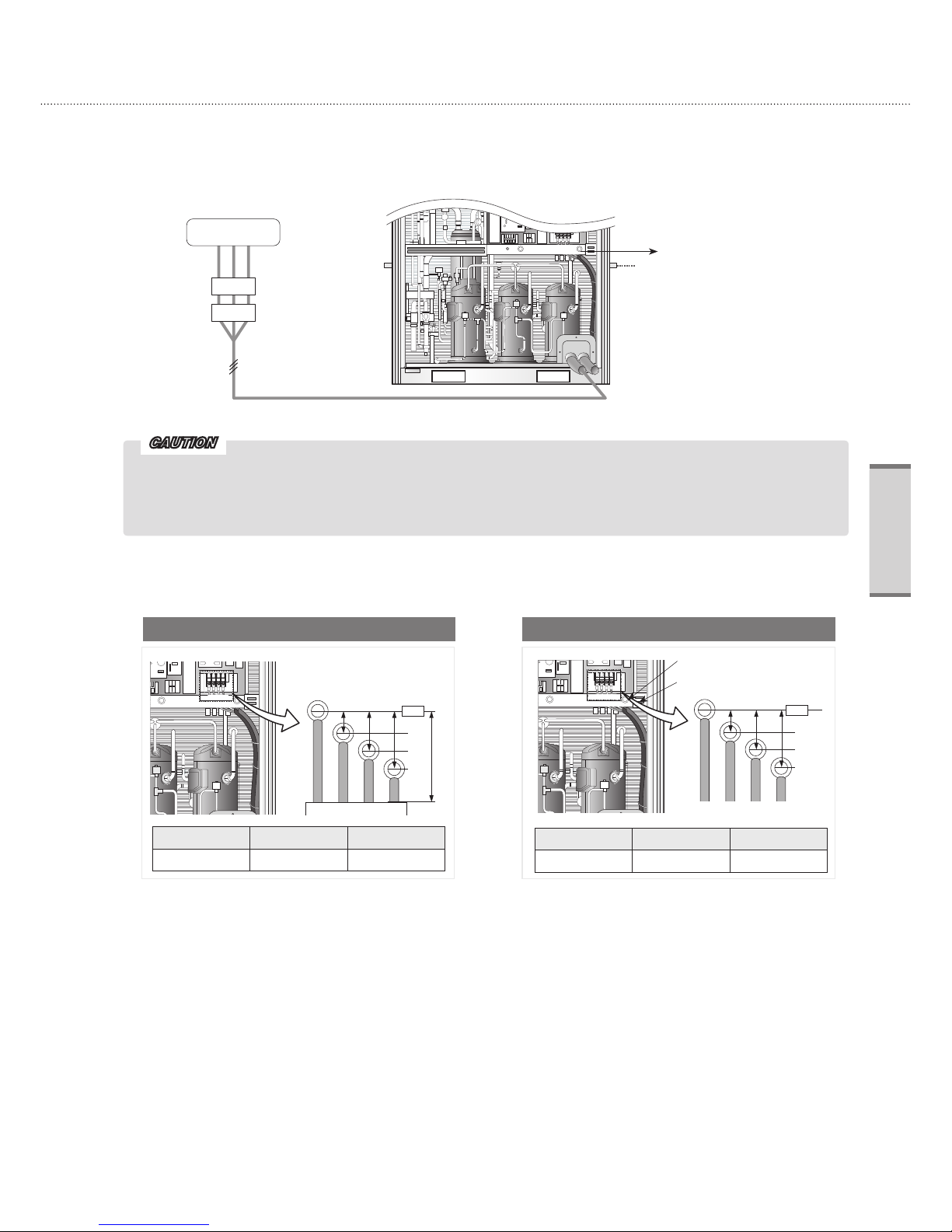

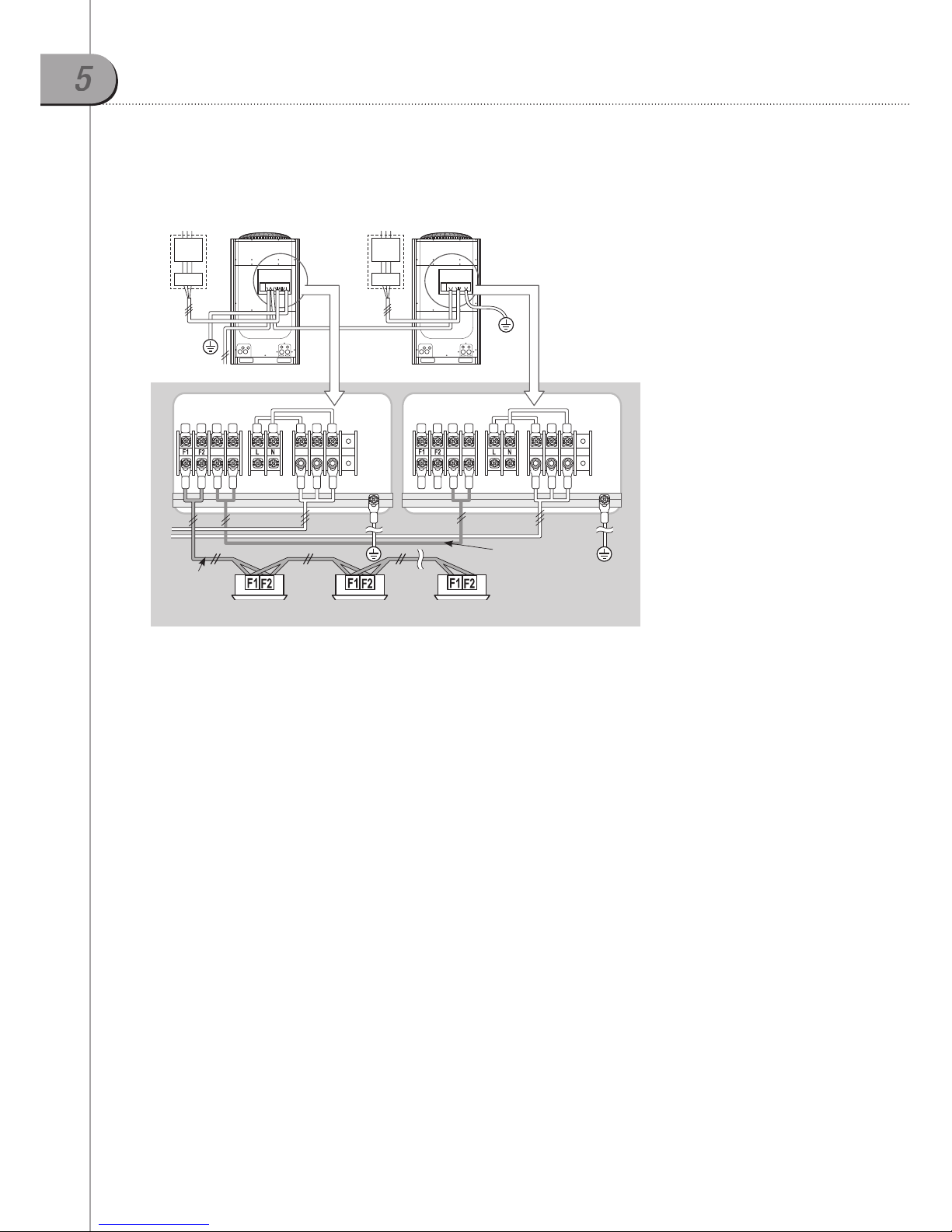

Wiring works

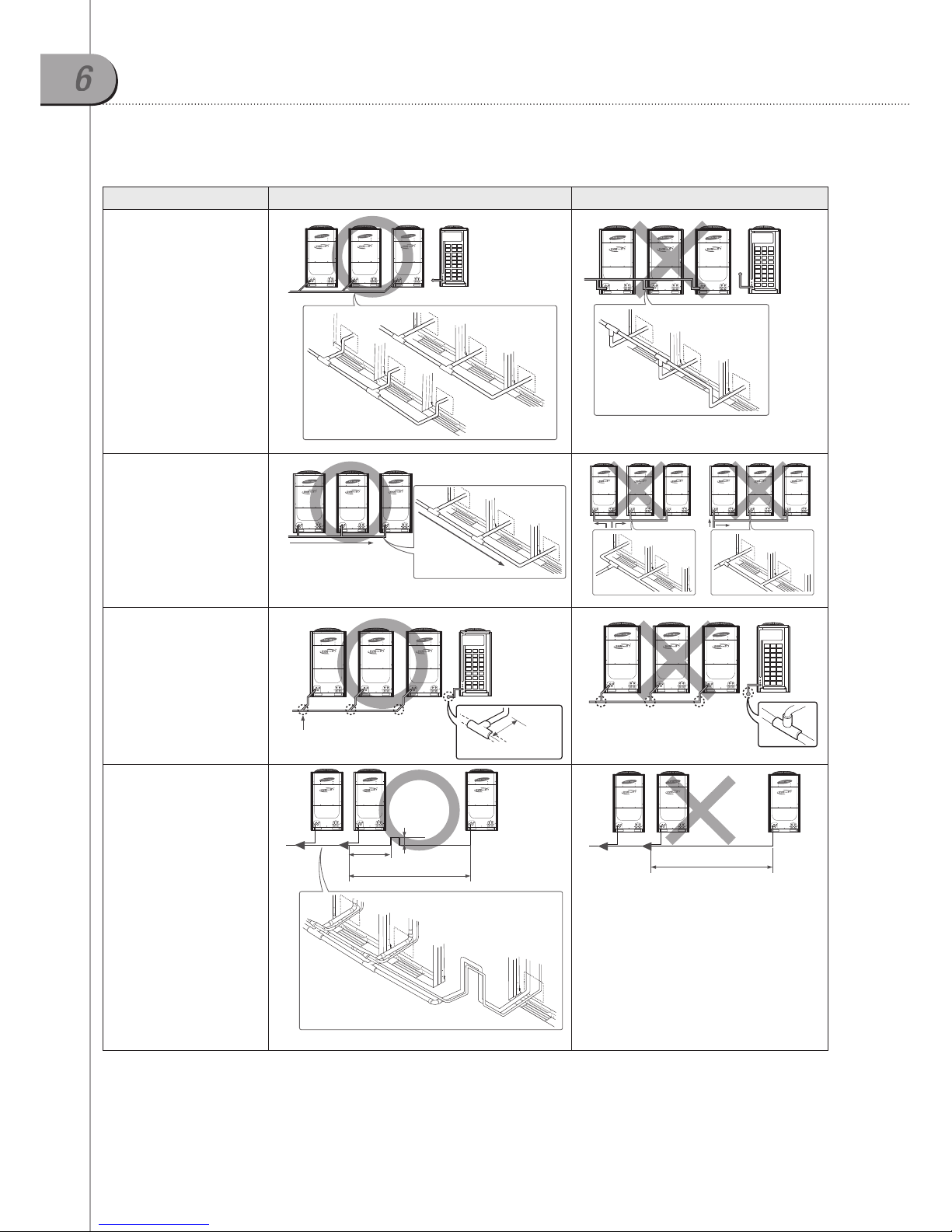

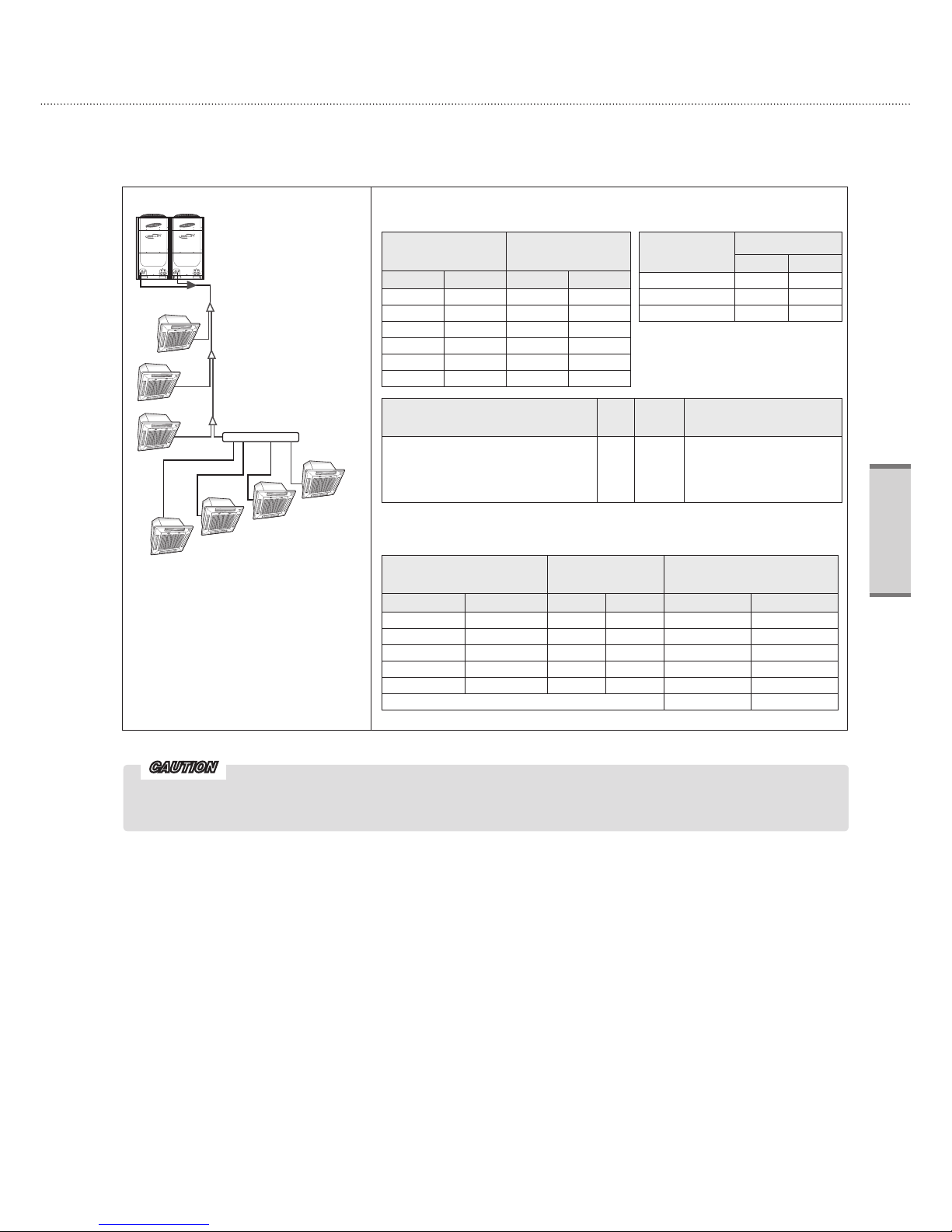

Refrigerant piping works

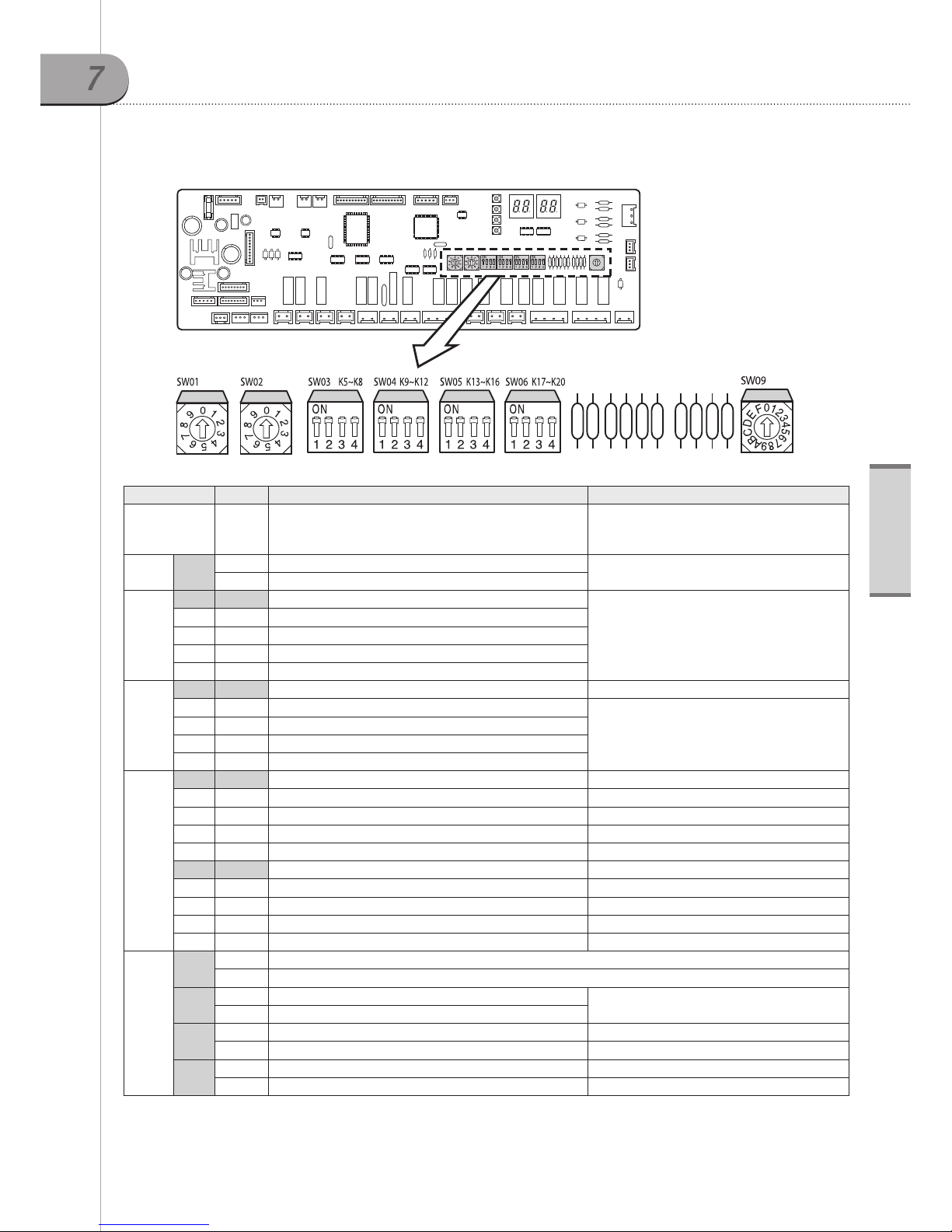

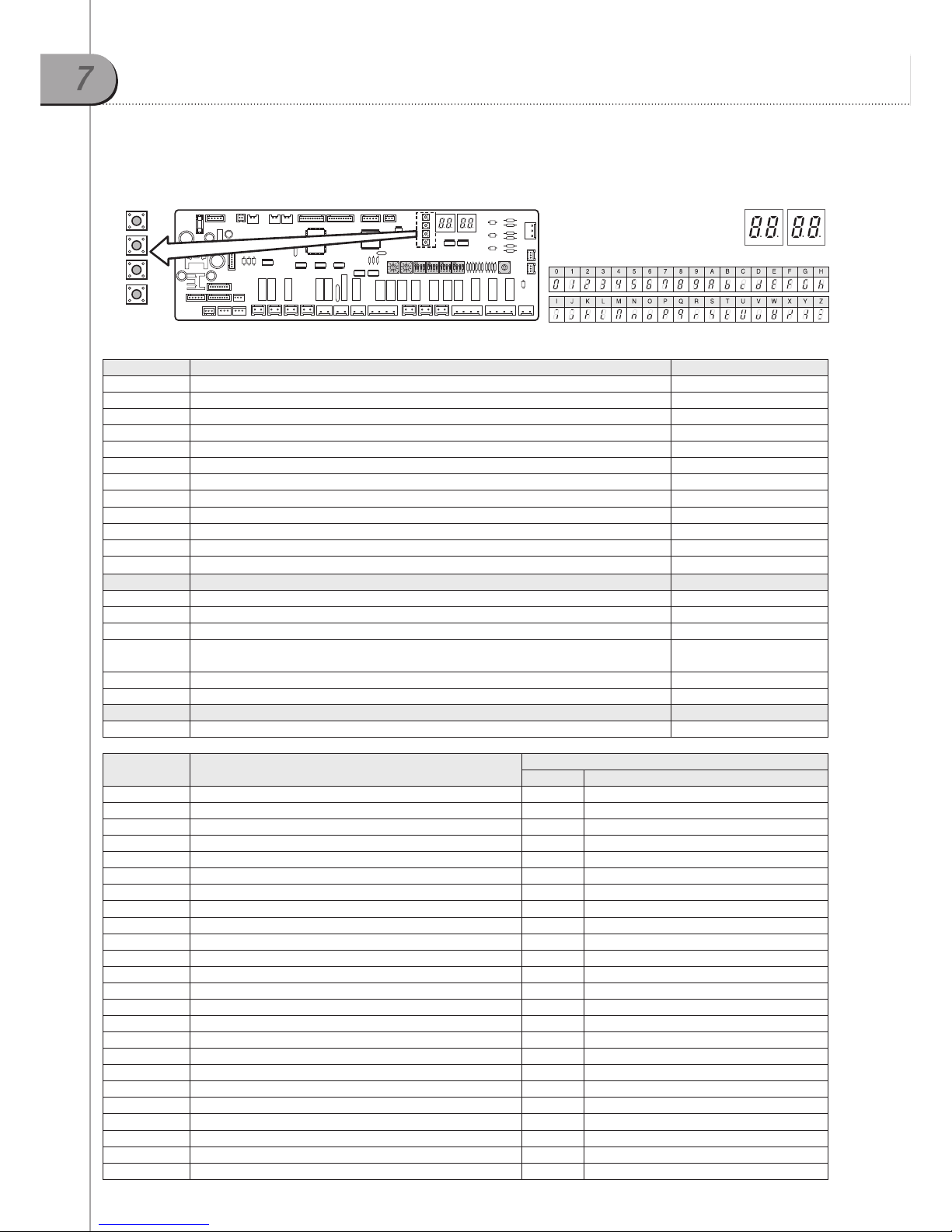

Option switches & function keys

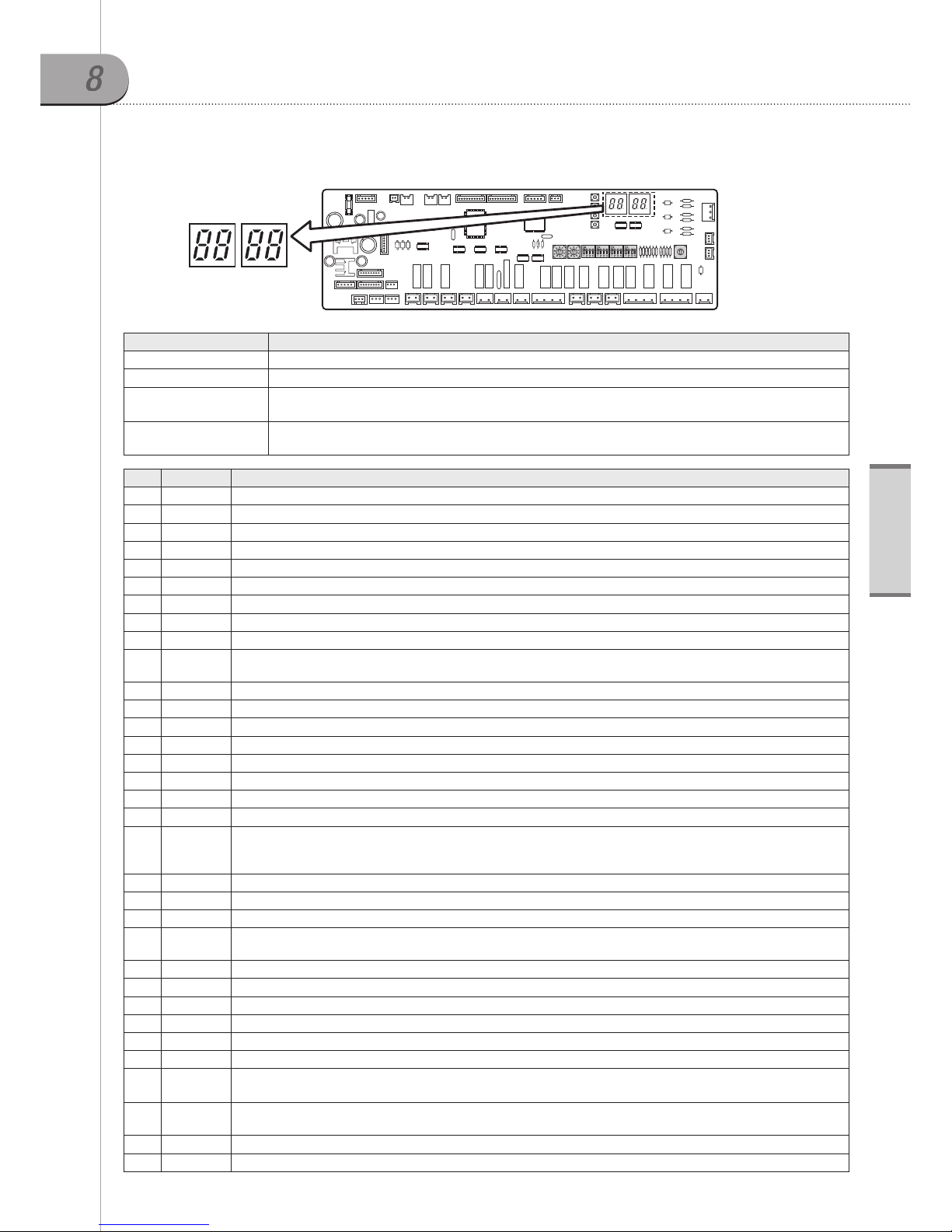

Error codes
III.
Installation
40
41
44
45
46
48
55
57
Page 6
4
DVM PLUS III
Page 7
5
Products
I.
Products
1
Outdoor units .............................................6
2
Indoor units ................................................9
3
Accessories .............................................11
Page 8
6
1
Outdoor units
1-1. Nomenclature
Classification
Outdoor unit (R410A) RVX
Capacity*
×1/10 HP(3 digits)
Type
Mini DVM M
DVM PLUS
III
V
DVM PLUS
III
HR
Airflow direction
Upward airflow T
Frontward airflow F
Mode
Heat Pump H
Heat Recovery R
Rating voltage
1Ø, 220~240V, 50Hz E
3Ø, 208~230V, 60Hz F
3Ø, 380~415V, 50Hz G
3Ø, 380V, 60Hz H
3Ø, 460V. 60Hz J
Version
Export A~Z
Domestic(KOREA) 0~9
* Index
HP TON BTU(MBH)
7.5 6 72
10.0 8 96
12.5 10 120
Model name
RVX
RVX
V
V
H
H
T
T
100
100
F
F
E
E
Page 9
7
Products
TON 6 8
HP 7.5 10.0
Model Name RVXVHT075/100FE
TON 10
HP 12.5
Model Name RVXVHT125FE
TON 12 14 16
HP 15.0 17.5 20.0
Model Name RVXVHT150/175/200FE
TON 18
HP 22.5
Model Name RVXVHT225FE
TON 20
HP 25.0
Model Name RVXVHT250FE
TON 22 24
HP 27.5 30.0
Model Name RVXVHT275/300FE
TON 26
HP 32.5
Model Name RVXVHT325FE
TON 28
HP 35.0
Model Name RVXVHT350FE
TON 30
HP 37.5
Model Name RVXVHT375FE
1-2. Line-up
Page 10
8
1
Outdoor units

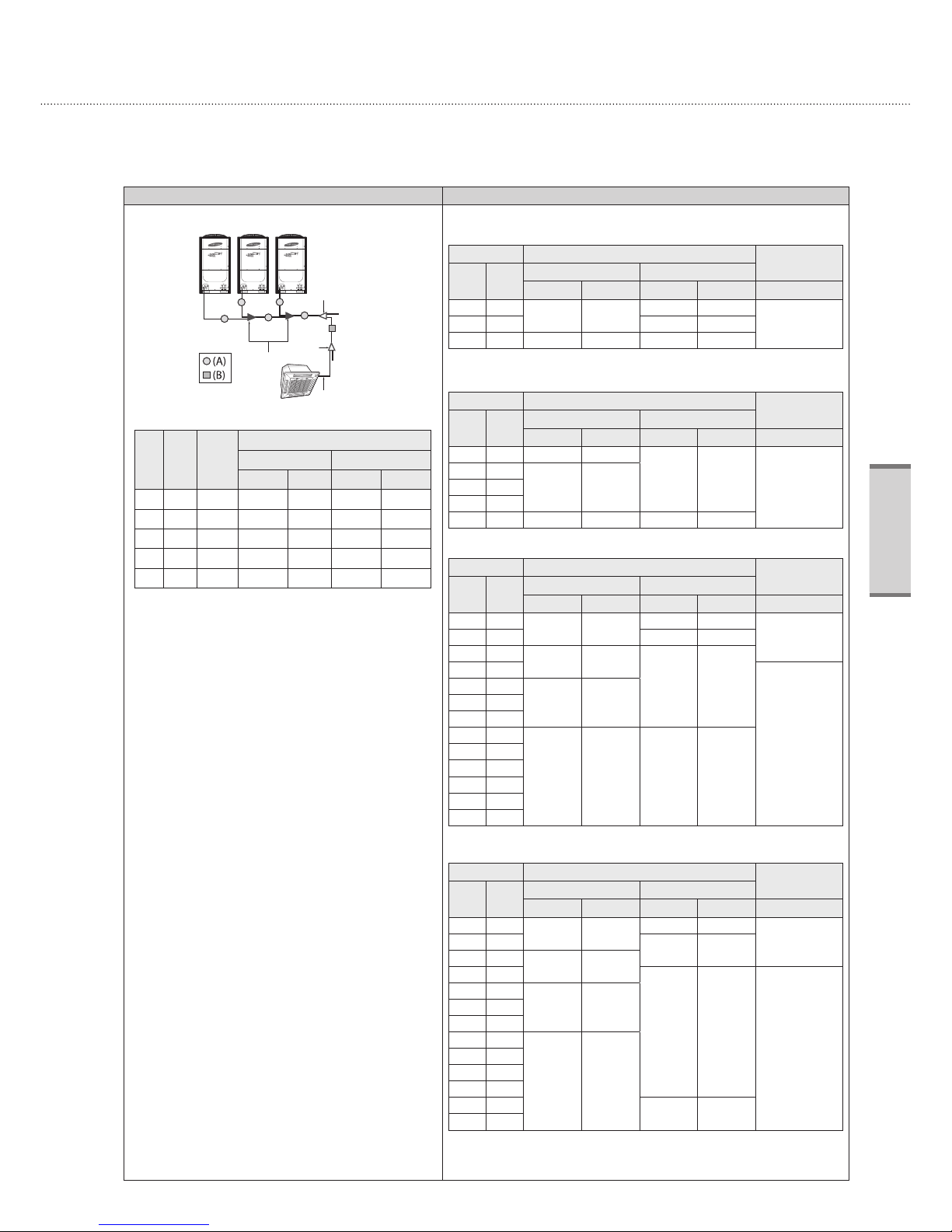

1-3. Outdoor unit combinations
1) Basic models
2) Combinations
Classification Capacity (Ton) Capacity (HP) Model
Single unit
6 7.5 RVXVHT075FE
8 10.0 RVXVHT100FE
10 12.5 RVXVHT125FE
Classification Capacity (Ton) Capacity (HP)
Basic model
RVXVHT075FE RVXVHT100FE RVXVHT125FE
Module unit
12 15.0 2
14 17.5 1 1
16 20.0 2
18 22.5 1 1
20 25.0 2
22 27.5 1 2
24 30.0 3
26 32.5 2 1
28 35.0 1 2
30 37.5 3
Page 11
9
Products
Model name
2
Indoor units
2-1. Nomenclature
Classification
Indoor unit (R410A) AVX
Classification by product group
Cassette type C
Duct type D
Wall mounted type W
Mode
Heat Pump/Heat Recovery H
Product notation
Cassette type
Slim 1way S
2way 2
Mini 4way M
4way 4
Duct type
Slim S
Middle Static Pressure U
Wall mounted type
Neo Forte N
Vivace V
Capacity*
×1/10 kW (3 digits)
Rating voltage
1Ø, 220V, 60Hz B
1Ø, 208V~230V, 60Hz C
1Ø, 220V~240V, 50Hz E
Version
Export A~Z
Domestic(KOREA) 0~9
* Index
Notation Cooling Heating
020 6.0 MBH 7.0 MBH
023 7.5 MBH 8.5 MBH
032 9.5 MBH 10.5 MBH
040 12.0 MBH 13.5 MBH
052 18.0 MBH 20.0 MBH
060 20.0 MBH 23.0 MBH
072 24.0 MBH 27.0 MBH
100 30.0 MBH 34.0 MBH
110 36.0 MBH 40.0 MBH
145 48.0 MBH 54.0 MBH
RVX
AVX
V
C
H
S
T
H
100
022
F
C
E
E
Page 12
10
Indoor units
2-2. Line-up
Model
name
(Notation)
020 023 032 040 052 060 072 100 110 145
MBH 6.0 7.5 9.5 12.0 18.0 20.0 24.0 30.0 36.0 48.0
Slim
1 way
cassette
Mini
4 way
cassette
4 way
cassette
Slim duct
MSP duct
Vivace
NeoForte
2
Page 13
11
Products
Accessories
3
Classification Product Model Image Application model
Integrated
management
system
Controller
DMS MIM-D00 DVM Series, FJM, CAC, ERV
S-NET 3 MST-P3P DVM Series, FJM, CAC, ERV
S-NET mini MST-S3W DVM Series, FJM, CAC
Centralized
control system
Controller
Centralized
controller
MCM-A202B DVM Series, FJM, CAC, ERV
Operation mode
selection switch
MCM-C200 DVM Series
Interface
module
Centralized
controller interface
module
MIM-B13B
Mini DVM(R410A), DVM PLUS II,
DVM PLUS
III
, FJM, ERV
Individual
control system
Controller
Wireless remote
controller
MR-BH01U
Cassette, Duct(Receiver needed)
Wired remote
controller
(Multi function)
MWR-WE00 Cassette, Wall-mounted, Duct
Simplified wired
remote controller
MWR-SH00 Cassette, Wall-mounted, Duct
Wireless
signal
receiver kit
Wireless
signal
receiver
MRK-A00 Duct (For wireless remote controller)
Receiver
wire
MRW-10A Duct (For wireless remote controller)
Guest room management
system
Key-tag interface
module
MIM-B02 DVM Series, FJM
External contact
interface module
MIM-B14
Mini DVM(R410A), DVM PLUS II,
DVM PLUS
III
, FJM
DVM Series : Mini DVM, DVM, DVM PLUS II, DVM PLUS
III
Page 14
12
3
Accessories
Classification Feature
Model Description Relevant unit Remark
Y-joint
MXJ-YA1509
Below 51MBH
DVM PLUS II,
DVM PLUS
III
Requisite
MXJ-YA2512
51~138MBH
MXJ-YA2812
138~160MBH
MXJ-YA2815
160~240MBH
MXJ-YA3119
240~336MBH
MXJ-YA3819
336~468MBH
MXJ-YA4422
Over 468MBH
Outdoor joint
(Outdoor
Connection)
MXJ-T3819
Below 30 TON
DVM PLUS II,
DVM PLUS
III
Requisite
Header joint
MXJ-HA2512
Below 160MBH
(for 4 rooms)
DVM PLUS II,
DVM PLUS
III
Requisite
MXJ-HA3115
160~240MBH
(for 8 rooms)
MXJ-HA3819
Over 240MBH
(for 9 rooms)
EEV kits
MXD-A13K116
Below 12MBH(1 unit) +
18MBH~24MBH(1 unit)
Wall-mounted &
Ceiling
(For 2 indoor units)
Option
MXD-A13K200
Below 12MBH(2 units)
MXD-A16K200
18MBH~24MBH(2 units)
MXD-A22K200
Over 24MBH(2 units)
MXD-A13K216
Below 12MBH(2 units) +
18MBH~24MBH(1 units)
Wall-mounted &
Ceiling
(For 3 indoor units)
MXD-A13K300
Below 12MBH(3 units)
MXD-A16K213
Below 12MBH(1 unit) +
18MBH~24MBH(2 units)
MXD-A16K300
18~ 24MBH(3 units)
MEV-A13SA
Below 12MBH
Wall-mounted & Ceiling
(For single unit)
MEV-A16SA
Over 18~24MBH
Drain pump
MDP-E075SEE
-
AVXDSH020~072C Series
Option
MDP-E075SEE1
AVXDSH100~145C Series
MDP-M075SGU1
AVXDSH100~110C Series
MDP-M075SGU2
AVXDUH145 Series
Front panel
PSSMA
- Cassette panels Requisite
PMSMA
P4SMA
Page 15
13
Outdoor units
II.
Outdoor units
1
Specifications ......................................... 14
2
Dimensional drawing ...............................20
3
PCB connector layout ..............................22
4
Electrical wiring diagram .........................24
5
Sound pressure level ...............................25
6
Operation limit ..........................................28
7
Cycle operation mode .............................29
8
Cycle function parts .................................36
Page 16
14
1
Specifications
Type
Model Name RVXVHT075FE RVXVHT100FE RVXVHT125FE
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump Heat Pump
Performance
US Ton TON
6.0 8.0 10.0
Horse Power HP
7.5 10.0 12.5
Nominal
Capacity
Cooling
2)
Btu/h
72,000 96,000 120,000
US RT
6.0 8.0 10.0
Heating
3)
Btu/h
81,000 108,000 135,000
US RT
6.8 9.0 11.3
Power
Nominal Input
Cooling
kW
5.50 7.50 10.70
Heating
5.15 7.08 10.09
Nominal Running
Current
Cooling
A
18.80 28.90 36.80
Heating
22.60 24.90 33.00
Circuit Breaker (MCCB/ELB/ELCB) A
50 50 60
COP
Cooling -
3.84 3.75 3.29
Cooling (US Only) Btu/Wh
13.09 12.80 11.21
Heating -
4.61 4.47 3.92
Compressor
Model
ZPJ72KCE-TF5
ZPI61KCE-TF5
ZPJ72KCE-TF5
ZPI61KCE-TF5
ZPJ83KCE-TF7
ZPI83KCE-TF7
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
1 1 1 1 1 1
Piston Displacement
cc/Rev
67.1 58.1 67.1 58.1 77.2 77.2
in³/Rev
4.095 3.545 4.095 3.545 4.711 4.711
Output kW
6.94 5.83 6.94 5.83 7.91 7.91
Lubricant
Type -
3MAF POE 3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC Propeller/BLDC
Motor Output W
630 630 630
Airflow Rate
m3/min
170 170 180
CFM
6004 6004 6357
External Static
Pressure
Max.
Pa
78.5 78.5 78.5
WG
0.315 0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
9.52 9.52 12.70
Ø, inch
3/8 3/8 1/2
Gas
Ø, mm
19.05 22.23 28.58
Ø, inch
3/4 7/8 1 1/8
Oil (Flare)
Ø, mm
- - -
Ø, inch
- - -
Installation
Limitation
Max. Length
m
200 200 200
ft
656 656 656
Max. Height
m
50 (40) 50 (40) 50 (40)
ft
164 (131) 164 (131) 164 (131)
Refrigerant
Type -
R410A R410A R410A
Factory Charging
kg
6.5 7.5 9.0
lbs
14.33 16.53 19.84
Sound
4)
Sound Pressure dB(A)
58 58 60
Set Size
Net Weight
kg
240 240 280
lbs
529 529 617
Shipping Weight
kg
253 253 297
lbs
558 558 655
Net Dimensions (WxHxD)
mm
880 x 1668 x 765 880 x 1668 x 765 1200 x 1668 x 765
inch
34 5/8 x 65 5/8 x 30 1/8 34 5/8 x 65 5/8 x 30 1/8 47 1/4 x 65 5/8 x 30 1/8
Shipping Dimensions (WxHxD)
mm
948 x 1888 x 832 948 x 1888 x 832 1268 x 1888 x 832
inch
37 3/8 x 74 3/8 x 32 3/4 37 3/8 x 74 3/8 x 32 3/4 49 7/8 x 74 3/8 x 32 3/4
Cable
Main Power (Below 50m) AWG #
AWG 6 AWG 6 AWG 4
Communication AWG #
AWG 16~18 AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1 -5~46.1
°F
23~115 23~115 23~115
Heating
°C
-20~24 -20~24 -20~24
°F
-4~75 -4~75 -4~75
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Page 17
15
Outdoor units
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Type
Model Name RVXVHT150FE RVXVHT175FE
Model Basic
RVXVHT075FE
2
1
RVXVHT100FE
1
RVXVHT125FE
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump
Performance
US Ton TON
12 14
Horse Power HP
15.0 17.5
Nominal
Capacity
Cooling
2)
Btu/h
144,000 168,000
US RT
12.0 14.0
Heating
3)
Btu/h
162,000 189,000
US RT
13.5 15.8
Power
Nominal Input
Cooling
kW
11.0 13.0
Heating
10.3 12.2
Nominal Running
Current
Cooling
A
37.6 47.7
Heating
45.2 47.5
Circuit Breaker (MCCB/ELB/ELCB) A
50 + 50 50 + 50
COP
Cooling -
3.84 3.79
Cooling (US Only) Btu/Wh
13.09 12.92
Heating -
4.61 4.53
Compressor
Model
ZPJ72* ZPJ83* ZPI61* ZPI83* ZPJ72* ZPJ83* ZPI61* ZPI83*
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
2 2 2 2
Piston Displacement
cc/Rev
67.1 58.1 67.1 58.1
in³/Rev
4.095 3.545 4.095 3.545
Output kW
6.94 5.83 6.94 5.83
Lubricant
Type -
3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC
Motor Output W
(630) x 2 (630) x 2
Airflow Rate
m3/min
(170) x 2 (170) x 2
CFM
(6004) x 2 (6004) x 2
External Static
Pressure
Max.
Pa
78.5 78.5
WG
0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
12.70 15.88
Ø, inch
1/2 5/8
Gas
Ø, mm
28.58 28.58
Ø, inch
1 1/8 1 1/8
Oil (Flare)
Ø, mm
6.35 6.35
Ø, inch
1/4 1/4
Installation
Limitation
Max. Length
m
200 200
ft
656 656
Max. Height
m
50 (40) 50 (40)
ft
164 (131) 164 (131)
Refrigerant
Type -
R410A R410A
Factory Charging
kg
(6.5) x 2 (6.5) x 1 + (7.5) x 1
lbs
(14.33) x 2 (14.33) x 1 + (16.53) x 1
Sound
4)
Sound Pressure dB(A)
60 61
Set Size
Net Weight
kg
(240) x 2 (240) x 2
lbs
(529) x 2 (529) x 2
Shipping Weight
kg
(253) x 2 (253) x 2
lbs
(558) x 2 (558) x 2
Net Dimensions (WxHxD)
mm
(880 x 1668 x 765) x 2 (880 x 1668 x 765) x 2
inch
(34 5/8 x 65 5/8 x 30 1/8) x 2 (34 5/8 x 65 5/8 x 30 1/8) x 2
Shipping Dimensions (WxHxD)
mm
(948 x 1888 x 832) x 2 (948 x 1888 x 832) x 2
inch
(37 3/8 x 74 3/8 x 32 3/4) x 2 (37 3/8 x 74 3/8 x 32 3/4) x 2
Cable
Main Power (Below 50m) AWG #
Separate electrical connection for each outdoor units Separate electrical connection for each outdoor units
Communication AWG #
AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1
°F
23~115 23~115
Heating
°C
-20~24 -20~24
°F
-4~75 -4~75
Page 18
16
1
Specifications
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Type
Model Name
RVXVHT200FE RVXVHT225FE
Model Basic
RVXVHT075FE
RVXVHT100FE
2 1
RVXVHT125FE
1
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump
Performance
US Ton TON
16 18
Horse Power HP
20.0 22.5
Nominal
Capacity
Cooling
2)
Btu/h
192,000 216,000
US RT
16.0 18.0
Heating
3)
Btu/h
216,000 243,000
US RT
18.0 20.3
Power
Nominal Input
Cooling
kW
15.0 18.2
Heating
14.2 17.2
Nominal Running
Current
Cooling
A
57.8 65.7
Heating
49.8 57.9
Circuit Breaker (MCCB/ELB/ELCB) A
50 + 50 50 + 60
COP
Cooling -
3.75 3.48
Cooling (US Only) Btu/Wh
12.80 11.87
Heating -
4.47 4.15
Compressor
Model
ZPJ72* ZPJ83* ZPI61* ZPI83* ZPJ72* ZPJ83* ZPI61* ZPI83*
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
2 2 1 1 1 1
Piston Displacement
cc/Rev
67.1 58.1 67.1 77.2 58.1 77.2
in³/Rev
4.095 3.545 4.095 4.711 3.545 4.711
Output kW
6.94 5.83 6.94 7.91 5.83 7.91
Lubricant
Type -
3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC
Motor Output W
(630) x 2 (630) x 2
Airflow Rate
m3/min
(170) x 2
(170) x 1 + (180) x 1
CFM
(6004) x 2
(6004) x 1 + (6357) x 1
External Static
Pressure
Max.
Pa
78.5 78.5
WG
0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
15.88 15.88
Ø, inch
5/8 5/8
Gas
Ø, mm
28.58 28.58
Ø, inch
1 1/8 1 1/8
Oil (Flare)
Ø, mm
6.35 6.35
Ø, inch
1/4 1/4
Installation
Limitation
Max. Length
m
200 200
ft
656 656
Max. Height
m
50 (40) 50 (40)
ft
164 (131) 164 (131)
Refrigerant
Type -
R410A R410A
Factory Charging
kg
(7.5) x 2 (7.5) x 1 + (9) x 1
lbs
(16.53) x 2 (16.53) x 1 + (19.84) x 1
Sound
4)
Sound Pressure dB(A)
61 62
Set Size
Net Weight
kg
(240) x 2 (240) x 1 + (280) x 1
lbs
(529) x 2 (529) x 1 + (617) x 1
Shipping Weight
kg
(253) x 2 (253) x 1 + (297) x 1
lbs
(558) x 2 (558) x 1 + (655) x 1
Net Dimensions (WxHxD)
mm
(880 x 1668 x 765) x 2 (880 x 1668 x 765) x 1 + (1200 x 1668 x 765) x 1
inch
(34 5/8 x 65 5/8 x 30 1/8) x 2
(34 5/8 x 65 5/8 x 30 1/8) x 1 +
(47 1/4 x 65 5/8 x 30 1/8) x 1
Shipping Dimensions (WxHxD)
mm
(948 x 1888 x 832) x 2 (948 x 1888 x 832) x 1 + (1268 x 1888 x 832) x 1
inch
(37 3/8 x 74 3/8 x 32 3/4) x 2
(37 3/8 x 74 3/8 x 32 3/4) x 1 +
(49 7/8 x 74 3/8 x 32 3/4) x 1
Cable
Main Power (Below 50m) AWG #
Separate electrical connection for each outdoor units Separate electrical connection for each outdoor units
Communication AWG #
AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1
°F
23~115 23~115
Heating
°C
-20~24 -20~24
°F
-4~75
-4~75
Page 19
17
Outdoor units
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Type
Model Name
RVXVHT250FE RVXVHT275FE
Model Basic
RVXVHT075FE
1
RVXVHT100FE
2
RVXVHT125FE
2
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump
Performance
US Ton TON
20 22
Horse Power HP
25.0 27.5
Nominal
Capacity
Cooling
2)
Btu/h
240,000 264,000
US RT
20.0 22.0
Heating
3)
Btu/h
270,000 297,000
US RT
22.5 24.8
Power
Nominal Input
Cooling
kW
21.4 20.5
Heating
20.2 19.3
Nominal Running
Current
Cooling
A
73.6 76.6
Heating
66.0 72.4
Circuit Breaker (MCCB/ELB/ELCB) A
60 + 60
50 + 50 + 50
COP
Cooling -
3.29 3.77
Cooling (US Only) Btu/Wh
11.21 12.88
Heating -
3.92 4.51
Compressor
Model
ZPJ72* ZPJ83* ZPI61* ZPI83* ZPJ72* ZPJ83* ZPI61* ZPI83*
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
2 2 3 3
Piston Displacement
cc/Rev
77.2 77.2 67.1 58.1
in³/Rev
4.711 4.711 4.095 3.545
Output kW
7.91 7.91 6.94 5.83
Lubricant
Type -
3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC
Motor Output W
(630) x 2 (630) x 3
Airflow Rate
m3/min
(180) x 2 (170) x 3
CFM
(6357) x 2 (6004) x 3
External Static
Pressure
Max.
Pa
78.5 78.5
WG
0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
19.05 19.05
Ø, inch
3/4 3/4
Gas
Ø, mm
34.93 34.93
Ø, inch
1 3/8 1 3/8
Oil (Flare)
Ø, mm
6.35 6.35
Ø, inch
1/4 1/4
Installation
Limitation
Max. Length
m
200 200
ft
656 656
Max. Height
m
50 (40) 50 (40)
ft
164 (131) 164 (131)
Refrigerant
Type -
R410A R410A
Factory Charging
kg
(9) x 2 (6.5) x 1 + (7.5) x 2
lbs
(19.84) x 2 (14.33) x 1 + (16.53) x 2
Sound
4)
Sound Pressure dB(A)
62 63
Set Size
Net Weight
kg
(280) x 2 (240) x 3
lbs
(617) x 2 (529) x 3
Shipping Weight
kg
(297) x 2 (253) x 3
lbs
(655) x 2 (558) x 3
Net Dimensions (WxHxD)
mm
(1200 x 1668 x 765) x 2 (880 x 1668 x 765) x 3
inch
(47 1/4 x 65 5/8 x 30 1/8) x 2 (34 5/8 x 65 5/8 x 30 1/8) x 3
Shipping Dimensions (WxHxD)
mm
(1268 x 1888 x 832) x 2 (948 x 1888 x 832) x 3
inch
(49 7/8 x 74 3/8 x 32 3/4) x 2 (37 3/8 x 74 3/8 x 32 3/4) x 3
Cable
Main Power (Below 50m) AWG #
Separate electrical connection for each outdoor units Separate electrical connection for each outdoor units
Communication AWG #
AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1
°F
23~115 23~115
Heating
°C
-20~24 -20~24
°F
-4~75 -4~75
Page 20
18
1
Specifications
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Type
Model Name
RVXVHT300FE RVXVHT325FE
Model Basic
RVXVHT075FE
RVXVHT100FE
3 2
RVXVHT125FE
1
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump
Performance
US Ton TON
24 26
Horse Power HP
30.0 32.5
Nominal
Capacity
Cooling
2)
Btu/h
288,000 312,000
US RT
24.0 26.0
Heating
3)
Btu/h
324,000 351,000
US RT
27.0 29.3
Power
Nominal Input
Cooling
kW
22.5 25.7
Heating
21.2 24.3
Nominal Running
Current
Cooling
A
86.7 94.6
Heating
74.7 82.8
Circuit Breaker (MCCB/ELB/ELCB) A
50 + 50 + 50 50 + 50 + 60
COP
Cooling -
3.75 3.56
Cooling (US Only) Btu/Wh
12.80 12.14
Heating -
4.47 4.24
Compressor
Model
ZPJ72* ZPJ83* ZPI61* ZPI83* ZPJ72* ZPJ83* ZPI61* ZPI83*
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
3 3 2 1 2 1
Piston Displacement
cc/Rev
67.1 58.1 67.1 77.2 58.1 77.2
in³/Rev
4.095 3.545 4.095 4.711 3.545 4.711
Output kW
6.94 5.83 6.94 7.91 5.83 7.91
Lubricant
Type -
3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC
Motor Output W
(630) x 3 (630) x 3
Airflow Rate
m3/min
(170) x 3 (170) x 2 + (180) x 1
CFM
(6004) x 3 (6004) x 2 + (6357) x 1
External Static
Pressure
Max.
Pa
78.5 78.5
WG
0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
19.05 19.05
Ø, inch
3/4 3/4
Gas
Ø, mm
34.93 34.93
Ø, inch
1 3/8 1 3/8
Oil (Flare)
Ø, mm
6.35 6.35
Ø, inch
1/4 1/4
Installation
Limitation
Max. Length
m
200 200
ft
656 656
Max. Height
m
50 (40) 50 (40)
ft
164 (131) 164 (131)
Refrigerant
Type -
R410A R410A
Factory Charging
kg
(7.5) x 3 (7.5) x 2 + (9) x 1
lbs
(16.53) x 3 (16.53) x 2 + (19.84) x 1
Sound
4)
Sound Pressure dB(A)
63 64
Set Size
Net Weight
kg
(240) x 3 (240) x 2 + (280) x 1
lbs
(529) x 3 (529) x 2 + (617) x 1
Shipping Weight
kg
(253) x 3 (253) x 2 + (297) x 1
lbs
(558) x 3 (558) x 2 + (655) x 1
Net Dimensions (WxHxD)
mm
(880 x 1668 x 765) x 3 (880 x 1668 x 765) x 2 + (1200 x 1668 x 765) x 1
inch
(34 5/8 x 65 5/8 x 30 1/8) x 3
(34 5/8 x 65 5/8 x 30 1/8) x 2 +
(47 1/4 x 65 5/8 x 30 1/8) x 1
Shipping Dimensions (WxHxD)
mm
(948 x 1888 x 832) x 3 (948 x 1888 x 832) x 2 + (1268 x 1888 x 832) x 1
inch
(37 3/8 x 74 3/8 x 32 3/4) x 3
(37 3/8 x 74 3/8 x 32 3/4) x 2 +
(49 7/8 x 74 3/8 x 32 3/4) x 1
Cable
Main Power (Below 50m) AWG #
Separate electrical connection for each outdoor units Separate electrical connection for each outdoor units
Communication AWG #
AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1
°F
23~115 23~115
Heating
°C
-20~24 -20~24
°F
-4~75 -4~75
Page 21
19
Outdoor units
*1) Mode HP : Heat Pump, HR : Heat Recovery
*2) Norminal cooling capacities are based on;
Indoor temperature : 26.7°C DB, 19.4°C WB(80°F DB, 67°F WB)
Outdoor temperature : 35°C DB, 23.9°C WB(90°F DB, 75°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*3) Norminal heating capacities are based on;
Indoor temperature : 21.1°C DB, 15.6°C WB(70°F DB, 60°F WB)
Outdoor temperature : 8.3°C DB, 6.1°C WB(47°F DB, 43°F WB), Equivalent refrigerant piping : 7.6m(25ft) , Level differences : 0m(0ft)
*4) Sound level was acquired in a dead room. Thus actual noise level may be different depending on the installation conditions.
*5) Specifications are subject to change without prior notice for product improvement.
Type
Model Name
RVXVHT350FE RVXVHT375FE
Model Basic
RVXVHT075FE
RVXVHT100FE
1
RVXVHT125FE
2 3
Power Supply Ø/ V/ Hz
3/ 208~230/ 60 3/ 208~230/ 60
Mode
1)
-
Heat Pump Heat Pump
Performance
US Ton TON
28 30
Horse Power HP
35.0 37.5
Nominal
Capacity
Cooling
2)
Btu/h
336,000 360,000
US RT
28.0 30.0
Heating
3)
Btu/h
378,000 405,000
US RT
31.5 33.8
Power
Nominal Input
Cooling
kW
28.9 32.1
Heating
27.3 30.3
Nominal Running
Current
Cooling
A
102.5 110.4
Heating
90.9 99.0
Circuit Breaker (MCCB/ELB/ELCB) A
50 + 60 + 60 60 + 60 + 60
COP
Cooling -
3.41 3.29
Cooling (US Only) Btu/Wh
11.63 11.21
Heating -
4.06 3.92
Compressor
Model
ZPJ72* ZPJ83* ZPI61* ZPI83* ZPJ72* ZPJ83* ZPI61* ZPI83*
Type -
DVI Scroll FVI Scroll DVI Scroll FVI Scroll
Number EA
1 2 1 2 3 3
Piston Displacement
cc/Rev
67.1 77.2 58.1 77.2 77.2 77.2
in³/Rev
4.095 4.711 3.545 4.711 4.711 4.711
Output kW
6.94 7.91 5.83 7.91 7.91 7.91
Lubricant
Type -
3MAF POE 3MAF POE
Charging
cc
1,685 1,685 1,685 1,685 1,685 1,685
fl. oz.
57 57 57 57 57 57
Fan
Type / Control -
Propeller/BLDC Propeller/BLDC
Motor Output W
(630) x 3 (630) x 3
Airflow Rate
m3/min
(170) x 1 + (180) x 2 (180) x 3
CFM
(6004) x 1 + (6357) x 2 (6357) x 3
External Static
Pressure
Max.
Pa
78.5 78.5
WG
0.315 0.315
Safety
Devices
Mechanical Type
-
High Pressure Switch High Pressure Switch
-
Comp./Accum. Crank Case Heater Comp./Accum. Crank Case Heater
-
Fuse for PCB Fuse for PCB
Electronic Type
-
Over-voltage Protection Over-voltage Protection
-
Current Transformer Current Transformer
-
Fan motor Voltage Protection Fan motor Voltage Protection
Piping
Connections
Liquid
Ø, mm
19.05 19.05
Ø, inch
3/4 3/4
Gas
Ø, mm
34.93 34.93
Ø, inch
1 3/8 1 3/8
Oil (Flare)
Ø, mm
6.35 6.35
Ø, inch
1/4 1/4
Installation
Limitation
Max. Length
m
200 200
ft
656 656
Max. Height
m
50 (40) 50 (40)
ft
164 (131) 164 (131)
Refrigerant
Type -
R410A R410A
Factory Charging
kg
(7.5) x 1 + (9) x 2 (9) x 3
lbs
(16.53) x 1 + (19.84) x 2 (19.84) x 3
Sound
4)
Sound Pressure dB(A)
64 64
Set Size
Net Weight
kg
(240) x 1 + (280) x 2 (280) x 3
lbs
(529) x 1 + (617) x 2 (617) x 3
Shipping Weight
kg
(253) x 1 + (297) x 2 (297) x 3
lbs
(558) x 1 + (655) x 2 (655) x 3
Net Dimensions (WxHxD)
mm
(880 x 1668 x 765) x 1 + (1200 x 1668 x 765) x 2 (1200 x 1668 x 765) x 3
inch
(34 5/8 x 65 5/8 x 30 1/8) x 1 +
(47 1/4 x 65 5/8 x 30 1/8) x 2
(47 1/4 x 65 5/8 x 30 1/8) x 3
Shipping Dimensions (WxHxD)
mm
(948 x 1888 x 832) x 1 + (1268 x 1888 x 832) x 2
(1268 x 1888 x 832) x 3
inch
(37 3/8 x 74 3/8 x 32 3/4) x 1 +
(49 7/8 x 74 3/8 x 32 3/4) x 2
(49 7/8 x 74 3/8 x 32 3/4) x 3
Cable
Main Power (Below 50m) AWG #
Separate electrical connection for each outdoor units Separate electrical connection for each outdoor units
Communication AWG #
AWG 16~18 AWG 16~18
Operating
Temp. Range
Cooling
°C
-5~46.1 -5~46.1
°F
23~115 23~115
Heating
°C
-20~24 -20~24
°F
-4~75 -4~75
Page 22
20

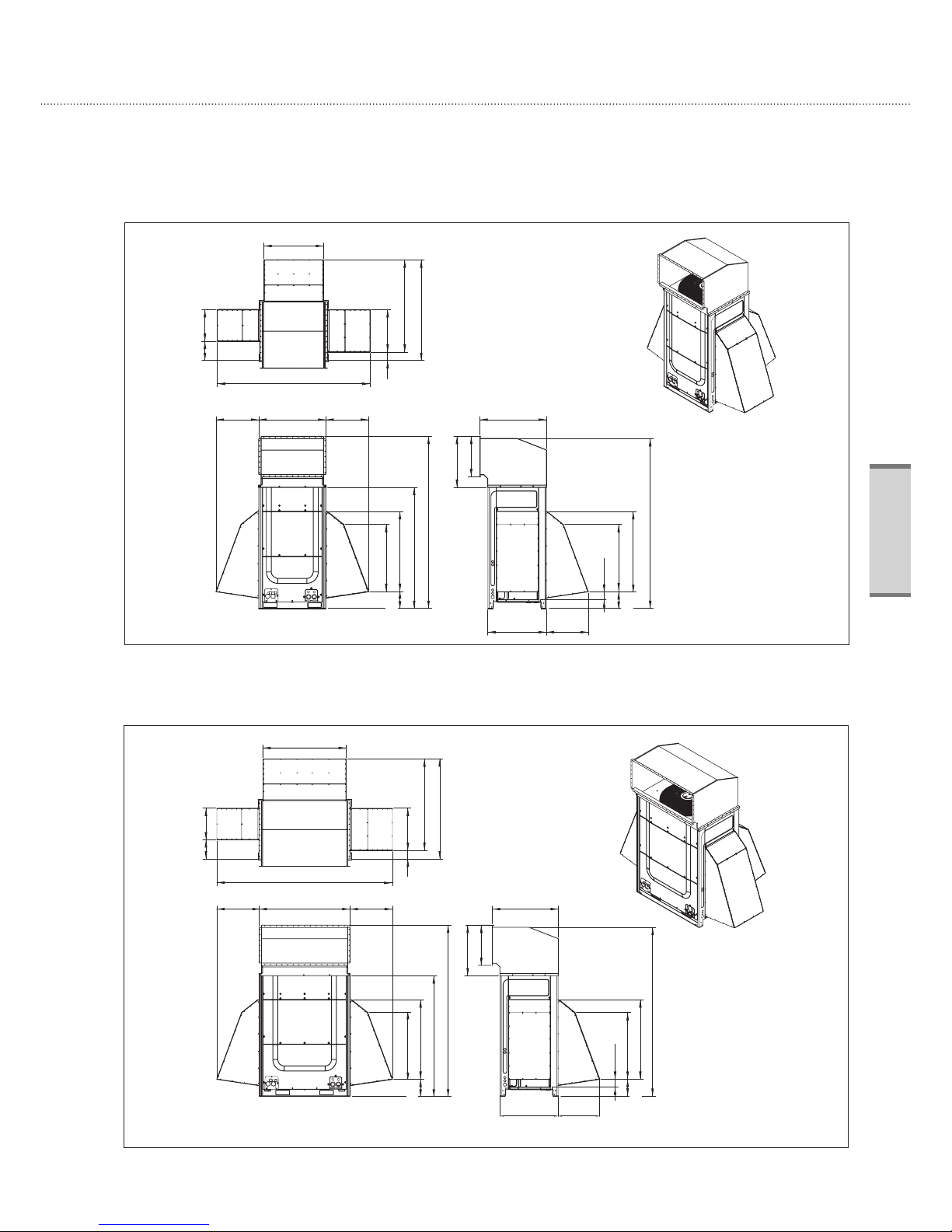

Dimensional drawing
2
2-1. RVXVHT075/100FE
No. Name Description No. Name Description
1 Gas pipe connection Ø57.10, knock-out hole 10 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
2 High pressure gas pipe connection Ø57.10, knock-out hole 11 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
3 Liquid pipe connection Ø37.10, knock-out hole 12 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
4 Oil balance pipe connection between units Ø32.10, knock-out hole 13 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
5 Power & communication wiring conduit Ø34.50, knock-out hole hole-front 14 Power & communication wiring conduit Ø27.80, knock-out hole hole-side
6 Power & communication wiring conduit Ø34.50, knock-out hole hole-front 15 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
7 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 16 Pipe connection through base Pipes connection opening with cover
8 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 17 Condensate drain holes Ø20mm-2 holes
9 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 18 Foundation bolts positions 4-12 x 20 slit-hole
Unit : mm (inch)
Page 23
21
Outdoor units
2-2. RVXVHT125FE
No. Name Description No. Name Description
1 Gas pipe connection Ø57.10, knock-out hole 10 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
2 High pressure gas pipe connection Ø57.10, knock-out hole 11 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
3 Liquid pipe connection Ø37.10, knock-out hole 12 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
4 Oil balance pipe connection between units Ø32.10, knock-out hole 13 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
5 Power & communication wiring conduit Ø34.50, knock-out hole hole-front 14 Power & communication wiring conduit Ø27.80, knock-out hole hole-side
6 Power & communication wiring conduit Ø34.50, knock-out hole hole-front 15 Power & communication wiring conduit Ø34.50, knock-out hole hole-side
7 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 16 Pipe connection through base Pipes connection opening with cover
8 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 17 Condensate drain holes Ø20mm-2 holes
9 Power & communication wiring conduit Ø43.70, knock-out hole hole-front 18 Foundation bolts positions 4-12 x 20 slit-hole
Unit : mm (inch)
Page 24
22
3
PCB connector layout
3-1. Main PCB
1 6 7 8 92
3
4
5
10
11
12
13232425262730
29
28
16202122 171819 1415
32
31
33
No. CN # COLOR FUNCTION
1 CN901 Red Power Trans Out (AC 17V)
2 CN13 Black 5V for Interface Module
3 CN31 Red Communication with Indoor Unit(COM1)
4 CN32 Yellow Communication with Outdoor Unit
5 CN12 Blue 12V for Interface Module
6 CN92 Black Sub Micom Download
7 CN91 Black Main Micom Download
8 CN10 White Main Micom Download (N/A)
9 CN100 White Main Micom Download (N/A)
10 CN83 Yellow 3 Phase Detection
11 OPT1 White Mode Selector (Cooling/Heating)
12 CN51 Red CT Sensor
13 CN70 Black AC 208~230V Input
14 CN76 Yellow Comp.1 CCH
15 CN15 White Comp.2 CCH
16 CN81 Black Oil Valve 1
17 CN82 Yellow Oil Valve 2
18 CN80 Red Liquid Bypass valve for FVI compressor
No. CN # COLOR FUNCTION
19 CN72 Blue
Magnetic contactor control
(Compressor)
20 CN74 Red Hot gas Bypass Valve
21 CN71 White PWM Valve
22 CN73 Yellow 4 Way Valve
23 CN75 White EVI Bypass Valve
24 CN86 Blue
Liquid Bypass valve for
DVI compressor
25 CN41 Blue Low Pressure Sensor
26 CN42 Red High Pressure Sensor
27 CN49 White Sump Sensor, Ambient Sensor
28 CN48 Red EVI-In Sensor, EVI-Out sensor
29 CN47 White
Oil Balance Sensor, Cond. Out
Sensor, Liquid Tube Sensor
30 CN44 White
Comp. Discharge 1,2 Sensor,
Suction Sensor
31 CN62 Blue Main EEV 1
32 CN64 Blue EVI EEV
33 CN69 White Main-BLDC Driver PCB Connector
Page 25
23
Outdoor units
3-2. BLDC Driver PCB
3-3. Noise filter PCB
3-4. CT PCB
38
34
35
37
36
39
41
40
42
43
No. CN # COLOR FUNCTION
34 CN701 Blue AC 208~230V Input
35 GT2 White
Power Trans In (AC 208~230V)
36 CN703 Black AC 208~230V Output
37 CN501 White
Main-BLDC Driver
PCB Connector
38 CN101 White Motor Signal
39 CN301 White Motor Power
No. CN # COLOR FUNCTION
40 L/N Silver AC 208~230V Input
41 CN702 White Earth (Ground)
42 CN701 Blue AC 208~230V Output
No. CN # COLOR FUNCTION
43 CN61 Red Comp. 1,2 CT Output
Page 26
24
4
Electrical wiring diagram
1 2 3
4 5
6 7 8
9
10
11
12
13
14151617
18
19
202122
23
24
25
26
27
28
29
30
3132
33
34
35
38
39
40
41
42
43
3637
K13 K14 Unit option
On On MAIN unit
On Off SUB 1 unit
Off On SUB 2 unit
Page 27
25
Outdoor unit
Sound pressure level
5
5-1. Operation sound level

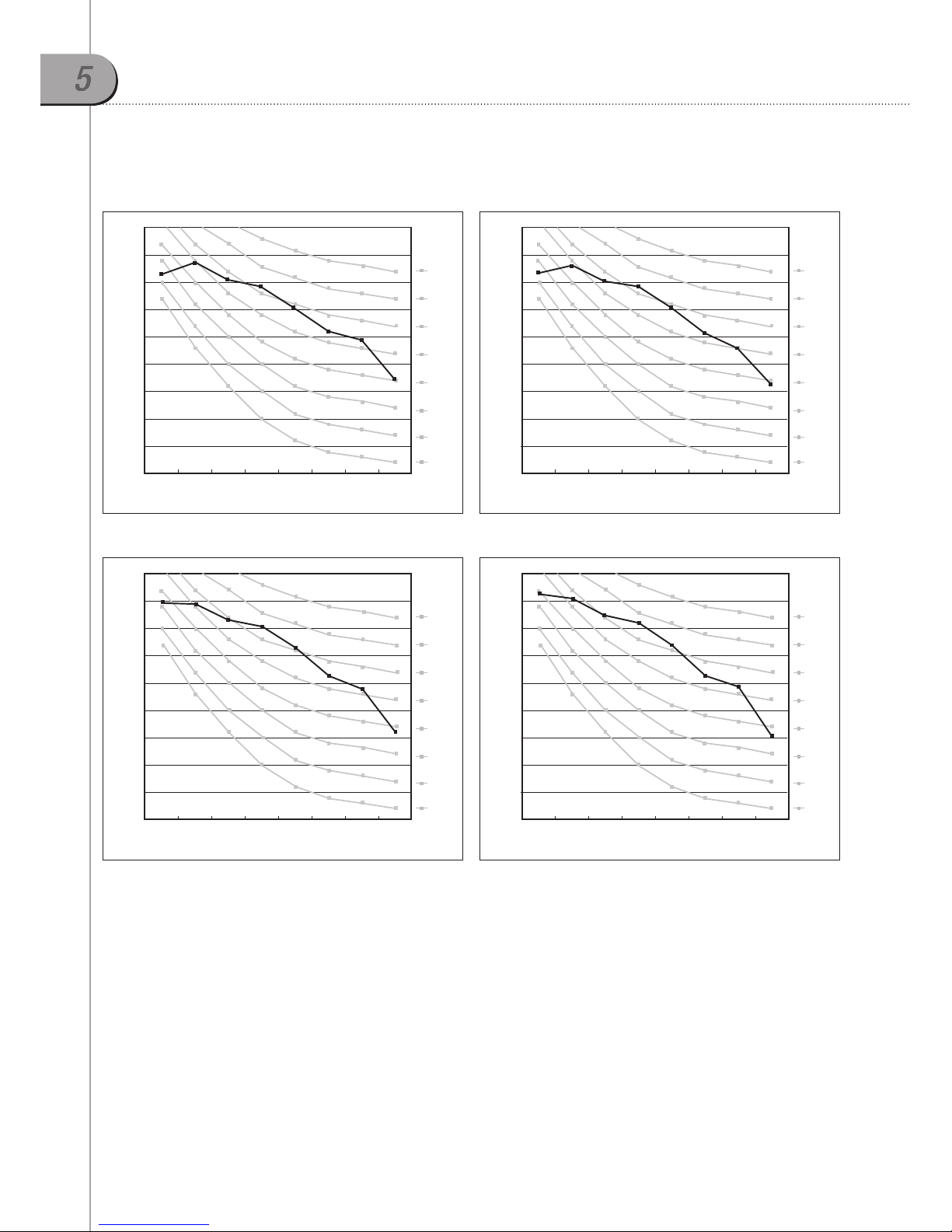

5-2. NC curves (Heat Pump)
1) RVXVHT075FE
2) RVXVHT100FE
4) RVXVHT150FE3) RVXVHT125FE
1m(3.3ft)
Microphone
Front
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
These operation values were obtained in a dead room. Sound pressure level will vary depending on a range of
factors such as the construction of the particular room where the equipment is installed.
Operation sound level may differ depending on operation and ambient conditions.
Note
Model High
RVXVHT075FE 58
RVXVHT100FE 58
RVXVHT125FE 60
RVXVHT150FE 60
RVXVHT175FE 61
RVXVHT200FE 61
RVXVHT225FE 62
Model High
RVXVHT250FE 62
RVXVHT275FE 63
RVXVHT300FE 63
RVXVHT325FE 64
RVXVHT350FE 64
RVXVHT375FE 64
Unit: dB(A)
Page 28
26
5
Sound pressure level
5-2. NC curves (Heat Pump)
5) RVXVHT175FE
6) RVXVHT200FE
8) RVXVHT250FE7) RVXVHT225FE
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Page 29
27
Outdoor units

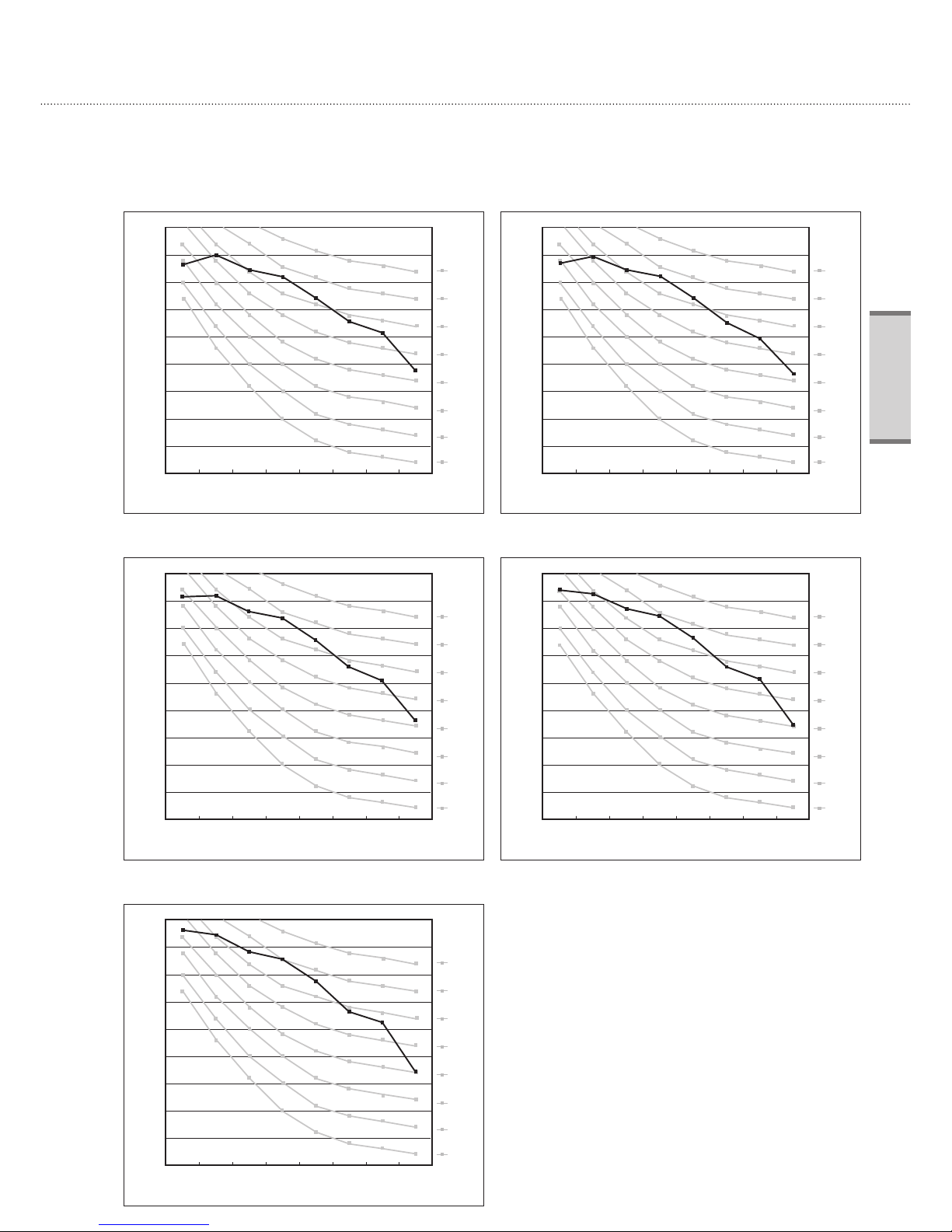

9) RVXVHT275FE
10) RVXVHT300FE
12) RVXVHT350FE11) RVXVHT325FE
13) RVXVHT375FE
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Sound pressure level (dB)
Octave band center frequency(Hz)
70
NC 65
65
60
55
50
45
40
35
30
25
63 125 250 500 1000 2000 4000 8000
NC 60
NC 55
NC 50
NC 45
NC 40
NC 35
NC 30
Page 30
28
6-1. Cooling 6-2. Heating
50
(122)
45
(113)
40
(104)
35
(95)
30
(86)
25
(77)
20
(68)
15
(59)
10
(50)
5
(41)
0
(32)
-5
(23)
10
(50)15(59)20(68)25(77)30(86)
Outdoor temperature [ºC(ºF) DB]
Range for operation
Range for pull down operation
Indoor temperature [ºC(ºF) DB]
6
Operation limit
25
(77)
20
(68)
15
(59)
10
(50)
5
(41)
0
(32)
-5
(23)
-10
(14)
-15
(5)
-20
(-4)
10
(50)15(59)20(68)25(77)30(86)
Outdoor temperature [ºC(ºF) DB]
Range for warming up operation
Indoor temperature [ºC(ºF) DB]
Range for
continuous
operation
Page 31
29
Outdoor unit
7
Cycle operation mode
7-1. Description of cycle function parts
No Classification Description
1 A DVI (Digital Vapor Injection) compressor
2 B FVI (Fixed Vapor Injection) compressor
3 C Discharged gas distributor
4 D PWM (Pulse Width Modulation) solenoid valve
5 E Discharged gas temperature sensor of DVI compressor
6 F Discharged gas temperature sensor of FVI compressor 1
7 G Filter
8 H Oil separator
9 I Capillary tube from oil separator
10 J High pressure switch
11 K Hot gas bypass solenoid valve
12 L Discharged gas check valve
13 M High pressure sensor
14 N Reversing solenoid valve (4way valve)
15 O Heat exchanger of outdoor unit (Condensing unit)
16 P Ambient air temperature sensor
17 Q Cond_out temperature sensor
18 R Main EEV (Electronic Expansion Valve) for heating operation
19 S Liquid refrigerant check valve
20 T Liquid bypass solenoid valve DVI compressor
21 U Liquid bypass solenoid valve FVI compressor
22 V EVI EEV (Electronic Expansion Valve)
23 W Turbo Intercooler
24 X EVI_in temperature sensor
25 Y EVI_out temperature sensor
26 Z Liquid tube temperature sensor
27 a EVI bypass pilot solenoid valve
28 b Suction temperature sensor
29 c Accumulator
30 d Suction gas distributor
31 e Oil solenoid valve 1
32 f Oil solenoid valve 2
33 g Filter between oil balancing pipes
34 h Oil balancing service valve between units
35 i Low pressure sensor
36 j Check valve
37 k Crank case heater of DVI compressor
38 m Crank case heater of FVI compressor 1
39 n Sump(Base) temperature sensor
40 o Oil temperature sensor
41 p Capillary tube from hot gas bypass valve
42 q Capillary tube from liquid bypass valve for DVI compressor
43 r Capillary tube from liquid bypass valve for FVI compressor
44 s Liquid side service valve
45 t Liquid side filter
46 u Gas side service valve
47 v Gas side filter
48 w EEV of indoor unit
49 x Eva_in temperature sensor
50 y Heat exchanger of indoor unit (Evaporating unit)
51 z Eva_out temperature sensor
52 a Liquid side connection for wall mount unit
53 b Gas side connection for wall mount unit
Page 32
30
7
Cycle operation mode
Category Description
1 Sensor
Temperature
Temperature sensor
Pressure High / Low Pressure sensor
2 Valve
Solenoid
s
s
Solenoid valve
Pilot Solenoid
s
Pilot solenoid valve
Expansion
E
Electronic Expansion Valve (EEV)
Reversing Reversing valve
Check
Check valve
Service Service valve (Angle & ball type)
3 Switch & Heater
Pressure Switch High pressure switch (Mechanical type)
Heater
H
Electric heater
4 Others
Compressor
DVI (Digital Vapor Injection) Compressor
FVI (Fixed Vapor Injection) Compressor
Accumulator Accumulator
Heat Exchanger Condensing or Evaporating unit
Sub cooler Turbo Intercooler or Sub cooler
Capillary Capillary tube
Filter Filter
7-1. Description of cycle function parts
Page 33
31
Outdoor units
7-2. Cycle diagrams
1) RVXVHT075/100FE (DVM PLUS
III
- 6/8 TON)
s
s
H
H
E
s
E
s
A
B
D
E
F
H
I
J
L
M
N
O
P
Q
R
S
T
V
W
X
Y
Z
a
b
c
e
f
h
i
j
m
n
o
s
u
d
s
s
s
k
p
K
C
G
U
g
r
q
t
v
Page 34
32
Cycle operation mode
7
2) RVXVHT125FE (DVM PLUS
III
- 10 TON)
s
s
H
H
E
s
E
s
A
B
D
E
F
H
I
J
p
L
M
N
O
P
R
S
V
W
X
Y
Z
a
b
c
e
f
i
j
m
n
o
K
s
d
s
s
s
k
Q
g
h
C
r
q
T
U
G
t
v
u
Page 35
33
Outdoor units
3) EEV kits & Indoor units
(1) MXD series
(3) Indoor units
(2) MEV series
s
u
b
a
E
E
w
u
s
x
y
z
E
x
y
z
b
a
s
a
E
s
u
b
a
E
E
E
2 rooms
Indoor units with built-in EEV Indoor units without EEV (Wall mounted)
3 rooms Single room
Page 36
34
7
Cycle operation mode
4) Cooling operation
Unit Outdoor unit Indoor unit Outdoor unit
Cooling operation
Heating operation
⑤
⑥
Low temperature & pressure liquid
High temperature & pressure gas
High temperature & pressure liquid
Low temperature & pressure gas
s
H H
E
s
E
s
s
s
s
s
⑦
②
③
①
④
⑧
E
E
E
E
E
E
Cooling
Cooling
Cooling
Cooling
Cooling
Cooling
Page 37
35
Outdoor units
5) Heating operation
Unit Outdoor unit Indoor unit Outdoor unit
Cooling operation
Heating operation
Low temperature & pressure liquid
High temperature & pressure gas
High temperature & pressure liquid
Low temperature & pressure gas
③
④
E
E
E
E
E
E
Heating
Heating
Heating
Heating
Heating
Heating
s
H H
E
s
E
s
s
s
s
s
①
②
⑤
⑥
⑦
⑧
Page 38
36
8
Cycle function parts
8-1. RVXVHT075/100FE
Accumulator
Suction temperature sensor
EVI EEV
PWM(Pulse Width Modulation) valve
Hot gas
bypass valve
Suction
temperature
sensor
Outdoor
Main EEV
Refrigerant
charging port in
heating mode
4 way valve
Liquid tube
sensor
EVI bypass
valve
EVI EEV
Sump(Base) temp. sensor Oil balancing valve bracket
Liquid
service valve
Cond_out
temp.
sensor
Hot gas
bypass
valve
High
pressure
sensor
DVI(Digital Vapor Injection) compressor 1
Low pressure sensor
Oil separator
High pressure switch
Liquid bypass valve
for FVI compressor
Liquid bypass valve
for FVI compressor
Discharge
temperature sensor
Low pressure sensor
Liquid bypass valve
for DVI compressor
Discharge
temperature sensor
Liquid bypass valve
for DVI compressor
FVI(Fixed Vapor Injection)
compressor 1
Oil balancing valve
High pressure sensor
Fan
Gas service
valve
Page 39
37
Outdoor units
8-2. RVXVHT125FE
Accumulator
Suction temperature sensor
EVI EEV
PWM(Pulse Width Modulation) valve
DVI(Digital Vapor Injection) compressor 1
High pressure switch
Oil separator
Hot gas
bypass valve
Low pressure
sensor
High pressure
switch
Liquid bypass
valve for FVI
compressor
Liquid bypass
valve for DVI
compressor
Discharge temperature sensor
Oil balancing valve bracket
Sump(Base) temp. sensor
FVI(Fixed Vapor Injection)
compressor 1
Liquid bypass valve for
FVI compressor
Liquid bypass valve for
DVI compressor
Oil balancing valve
High pressure sensor
Low pressure sensor
Fan
EVI bypass valve
Liquid service
valve
Gas service
valve
Oil balancing
service valve
Discharge
temperature sensor
EVI EEV
Liquid tube
sensor
High
pressure
sensor
Suction
temperature
sensor
4 way valve
Outdoor Main EEV
Refrigerant charging
port in heating mode
Page 40
38
8
Cycle function parts
8-3. A description of cycle function parts
No Cycle parts Functions
1
DVI compressor
(Digital Vapor Injection)
DVI compressor coupled with vapor injection controls the capacity 10 to 100% of its
capacity.
It enhances cooling and heating performance and COP with using vapor injection.
2
FVI compressor
(Fixed Vapor Injection)
FVI compressor coupled with vapor injection is fixed compressor. It enhances cooling,
heating performance and COP with using vapor injection.
3 PWM valve
|t is used for variation of digital compressor’s capacity. When the valve is open, the DVI
compressor keeps the unloading state, otherwise loading state.
4 Discharge temp. sensor
It measures the temperature of compressor outlet. The main function of it is to protect
compressor from overheating.
5 Oil separator
It separates oil and refrigerant discharged from the compressor and returns the oil into
compressor again.
6 High pressure switch It protects the system from abnormal high pressure. (Open : 4.1Mpa, Close : 3.5 Mpa)
7 Hot gas bypass valve
When the suction pressure becomes abnormal low pressure, it opens.
During the oil balance operation, it makes high pressure for the shell of compressor
8 High pressure sensor
The main function of it controls the capacity of compressor in pursuit of target of high
pressure in heating operation by measuring the value of the system.
9 4way valve It enables to change operating mode into cooling and heating mode.
10 Ambient air temp. sensor It measures the temperature of ambient.
11 Cond_out temp. sensor It has application to know subcooling and the complete point of defrost.
12 Main EEV 1, 2
It controls the amount of refrigerant entering outdoor’s heat exchanger in heating
operation.
13 Liquid bypass valve When the compressor is overheating, it opens to make discharge temperature low.
14 EVI EEV
It enables to secure sufficient subcooling and control the amount of vapor entering into
vapor port of compressor.
15 Turbo intercooler
Through turbo intercooler, heat is exchanged each other between saturated liquid
refrigerant and a little expanded refrigerant.
16 EVI_in temp. sensor
These temperature sensors enable to control EVI EEV’s step to secure superheat.
17 EVI_out temp. sensor
18 Liquid tube temp. sensor
It is used to know subcooling.
(Subcooling = The saturated temp. of high pressure - Liquid tube temp.)
19 EVI bypass valve This valve closes during application of vapor injection.
20 Suction temp. sensor This is applied to know superheat in heating mode with the low pressure sensor.
21 Accumulator Ambient air temperature sensor (Tair)
22 Oil valve When oil balance operation happens, this valve opens.
23 Low pressure sensor
The main function of it is to control the capacity of compressor in pursuit of target of low
pressure in cooling operation by measuring the low pressure.
24 Sump(Base) temp. sensor
With checking sump temperature of compressor, it prevents the compressor from liquid
back and overheating.
25 Oil temp. sensor While the oil balance is operating, it make a self-diagnosis of the oil valve.
26 Outdoor EEV valve
In order to prevent outdoor heat exchanger from refrigerant accumulation in main cooling
operation, this valve closes, otherwise Main EEV controls the amount of refrigerant.
Page 41
39
Installation
III.
Installation
1
Outdoor unit combinations ......................40
2
Space requirements ................................41
3
Placing the outdoor units .........................44
4
Electric specifications ..............................45
5
Wiring works.............................................46
6
Refrigerant piping works ..........................48
7
Option switches & function keys .............55
8
Error codes ..............................................57
Page 42
40
1
Outdoor unit combinations
1-1. Basic models
1-2. Combinations
Classification Capacity (Ton) Capacity (HP) Model
Total capacifities of
the connectable
indoor units(MBH)
Maximum number of
connectable indoor units
Single unit
6 7.5 RVXVHT075FE 36 ~ 93.6 10
8 10.0 RVXVHT100FE 48 ~ 124.8 10
10 12.5 RVXVHT125FE 60 ~ 156.0 14
Classification
Capacity
(Ton)
Capacity
(HP)
Basic model Total capacifities of
the connectable
indoor units(MBH)
Maximum number
of connectable
indoor units
RVXVHT075FE
RVXVHT100FE
RVXVHT125FE
Module unit
12 15.0 2 72 ~ 187.2 16
14 17.5 1 1 84 ~ 218.4 18
16 20.0 2 96 ~ 249.6 20
18 22.5 1 1 108 ~ 280.8 24
20 25.0 2 120 ~ 312.0 28
22 27.5 1 2 132 ~ 343.2 30
24 30.0 3 144 ~ 374.4 32
26 32.5 2 1 156 ~ 405.6 34
28 35.0 1 2 168 ~ 436.8 36
30 37.5 3 180 ~ 468.0 40
Page 43
41
Installation
2
Space requirements
2-1. Single installation
2-2. Group installation
500(20”)
1500(60”)
Unit : mm (inch)
Unit : mm (inch)
Front wall height 1500mm(60in) and less
Rear wall height 500mm(20in) and less
Side wall height Height unrestricted
If the height of the wall exceeds the above value,
more space should be added to the front and
rear space individually.
Front : S1 + h1/2,
Rear : S2 + h2/2
10(3/8) or more
300(12) or more[S2]
500(20) or more[S1]
Front
10(3/8)
or more
200(8) or more
300(12) or more
Wall height unrestricted
20(3/4) or more
300(12)
or more
10(3/8)
or more
Front
600(24) or more
Front
20(3/4)
or more
10(3/8)
or more
500(20)
or more
20(3/4) or more
300(12)
or more
10(3/8) or
more
300(12) or
more
20(3/4) or more
10(3/8)
or more
Front
500(20) or more
Front
10(3/8)
or more
20(3/4) or more 20(3/4) or more
10(3/8)
or more
500(20) or
more[S1]
300(12) or
more[S2]
Wall height unrestricted
300(12) or more
200(8) or
more
400(16)
or more
Front
Front Front
The installation space mentioned above is minimum suggested clearance.
To secure enough service space and performance of system, take account of more sufficient space.
The required minimum space between outdoor units for service and performance of system is at least
100mm(4in).
Note
Page 44
42
2
Space requirements

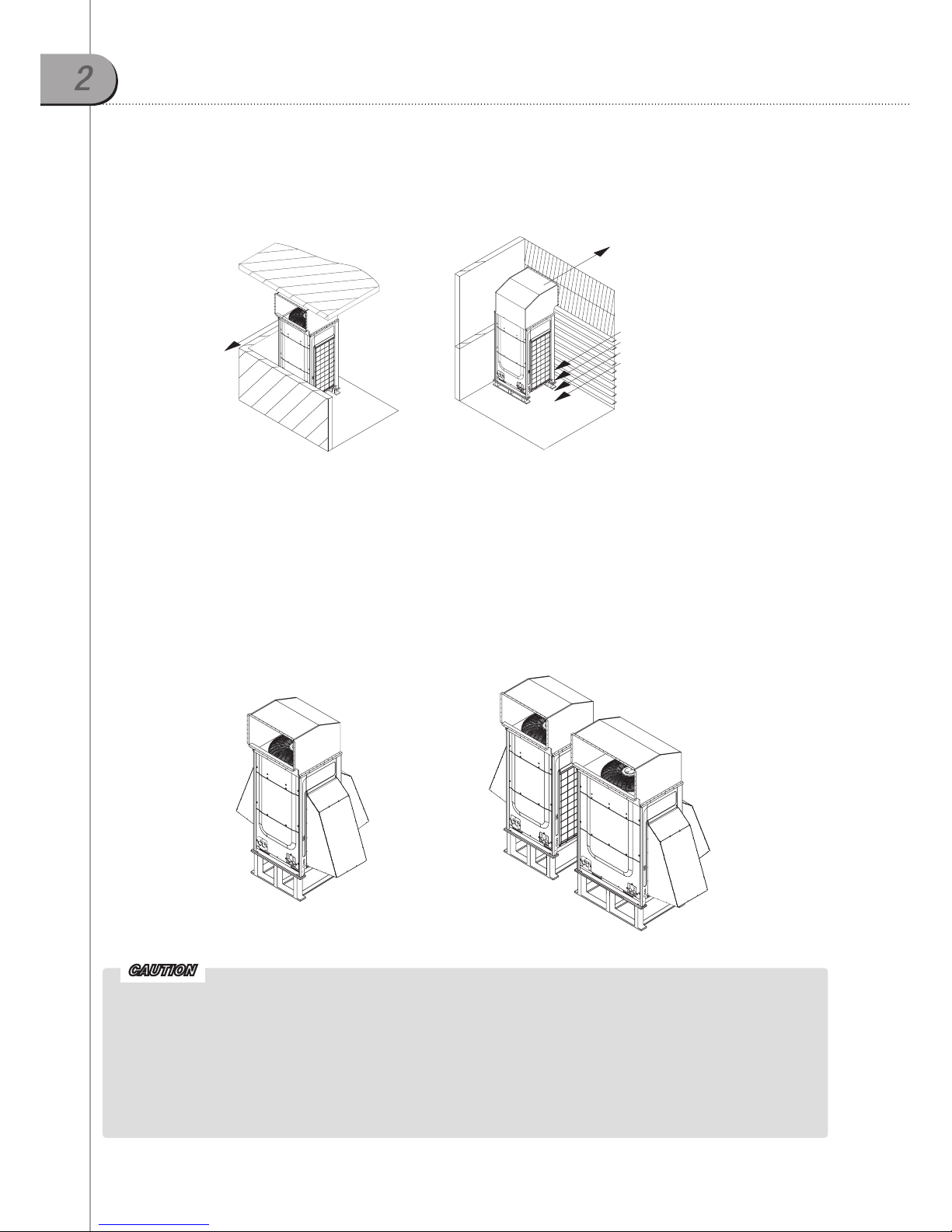

2-3. Installing duct for horizontal exhaust discharge
It is necessary to install an air-discharge duct (field supply) to direct exhaust from the fan horizontally if it is difficult to provide a
minimum space of 2m(6.6 ft) between the air-discharge duct outlet and a nearby obstacle.
2-4. Installing the outdoor unit in harsh environments
In abnormally harsh environments such as cold and/or windy areas, sufficient countermeasures to guard against excessive wind
and snow should be taken to ensure the unit's correct operation. Snow-proof duct (field supply) should be fitted to the unit and
direct exposure to the wind should be avoided as much as possible. When the unit is expected to operate in cooling mode in
condition under 10°C(50°F), in snowy areas, in environments subject to strong winds or rain, install air inlet and outlet ducting as
shown in the below example
Discharged air
Louver
Suction air
Upper floor
Discharged air
Ex) Balcony
Ex) Mechanical room
The frame/foundation should be higher than expected snowfall.
The foundation must be solid and the unit must be secured with anchor bolts.
Be sure to install unit in a place strong enough to withstand its weight.
When installing on a roof subject to strong wind, countermeasures must be taken to prevent the unit form being
overturned.
Any lack of strength may cause unit to fall down, resulting in a personal injury.
For more detailed information about installation, refer to installation manual.
CAUTION
Page 45
43
Installation
2-5. Dimensional drawing of snow-proof duct
1) RVXVHT075/100FE
2) RVXVHT125FE
Unit : mm (inch)
Unit : mm (inch)
782(30-3/4)
2000(78-3/4)
220(8-5/8)
417
(16-3/8)
112(4-3/8)
557(21-7/8)
1207(47-1/2)
1318(51-7/8)
560(22)
880(34-5/8)
560(22)
880(34-5/8)
1050(41-3/8)
1588(62-1/2)
2256(88-7/8)
668(26-1/4)
532(21)
871(34-1/4)
765(30-1/8)
550(21-5/8)
220(8-5/8)
105(4-1/8)
880(34-5/8)
1049(41-1/2)
2227(87-11/16)
252
(9-7/8)
417
(16-3/8)
252
(9-7/8)
1100(43-1/4)
2320(91-3/8)
112(4-3/8)
557(21-7/8)
1207(47-1/2)
1318(51-7/8)
560(22) 560(22)1200(47-1/4)
871(34-1/4)
880(34-5/8)
1050(41-3/8)
1588(62-1/2)
2256(88-7/8)
668(26-1/4)
532(21)
105(4-1/8)
220(8-5/8)
220(8-5/8)
880(34-5/8)
1049(41-1/4)
2226(87-10/16)
Page 46
44
3
Placing the outdoor units
3-1. Anchor bolts position
3-2. Removing fasteners of compressor’s leg
(Only applied to RVXVHT125F)
(1) Open the bottom cabinet with screw driver.
The compressors are fastened with nuts in 4 places of only
following models.
RVXVHT125F
(2) Detach nut washer, washer and stopper nut from
compressors with a tool.
(3) Refasten the nut washer only.
Nut washer Washer Stopper nut
Remove
Model RVXVHT075/100RVXVHT125
A 880(34-5/8) 1200(47-1/4)
B 738(29) 1058(41-5/8)
A
Anchor bolt
745(29-5/16)
765(30-1/8)
B
Unit : mm(inch)
Pay your attention not to touch the copper pipes as detaching the fasteners.
The stopper nut and washer should be removed.
If this work is not conducted correctly, it can cause outdoor unit to vibrate and make much noise.
CAUTION
Page 47
45
Installation
4
Electric specifications
4-1. Basic models
4-2. Combinations
Classification Capacity (Ton) Capacity (HP) Model MCCB(A) ELB
Single unit
6 7.5 RVXVHT075FE 50 50A, 30mA 0.1 Second or less
8 10.0 RVXVHT100FE 50 50A, 30mA 0.1 Second or less
10 12.5 RVXVHT125FE 60 60A, 30mA 0.1 Second or less
Model
Units Power supply Comp. OFM
Hz Volts Min. Max. MCA MFA RLA kW FLA
RVXVHT075FE 60 208~230 187 253 48.1 50 13.8 + 21.8 0.63 7
RVXVHT100FE 60 208~230 187 253 53.8 50 19.6 + 21.8 0.63 7
RVXVHT125FE 60 208~230 187 253 61.1 60 23.4 + 24.6 0.63 7
Classification
Capacity
(Ton)
Capacity
(HP)
Basic model
MCCB(A) ELB
RVXVHT075FE
RVXVHT100FE RVXVHT125FE
Module unit
12 15.0 2 50 + 50
14 17.5 1 1 50 + 50
16 20.0 2 50 + 50
18 22.5 1 1 50 + 60
20 25.0 2 60 + 60
22 27.5 1 2 50 + 50 + 50
24 30.0 3 50 + 50 + 50
26 32.5 2 1 50 + 50 + 60
28 35.0 1 2 50 + 60 + 60
30 37.5 3 60 + 60 + 60
Model
Units Power supply Comp. OFM
Hz Volts Min. Max. MCA MFA RLA kW FLA
RVXVHT150FE 60 208~230 187 253 96.2 50+50 (13.8+21.8)×2 0.63+0.63 7+7
RVXVHT175FE 60 208~230 187 253 101.9 50+50 (13.8+21.8)+(19.6+21.8) 0.63+0.63 7+7
RVXVHT200FE 60 208~230 187 253 107.6 50+50 (19.6+21.8)×2 0.63+0.63 7+7
RVXVHT225FE 60 208~230 187 253 114.9 50+60 (19.6+21.8)+(23.4+24.6) 0.63+0.63 7+7
RVXVHT250FE 60 208~230 187 253 122.2 60+60 (23.4+24.6)×2 0.63+0.63 7+7
RVXVHT275FE 60 208~230 187 253 155.7 50+50+50 (13.8+21.8)+(19.6+21.8)×2 0.63+0.63+0.63 7+7+7
RVXVHT300FE 60 208~230 187 253 161.4 50+50+50 (19.6+21.8)×3 0.63+0.63+0.63 7+7+7
RVXVHT325FE 60 208~230 187 253 168.7 50+50+60 (19.6+21.8)×2+(23.4+24.6) 0.63+0.63+0.63 7+7+7
RVXVHT350FE 60 208~230 187 253 176.0 50+60+60 (19.6+21.8)+(23.4+24.6)×2 0.63+0.63+0.63 7+7+7
RVXVHT375FE 60 208~230 187 253 183.3 60+60+60 (23.4+24.6)×3 0.63+0.63+0.63 7+7+7
All wiring, components and materials to be procured on the site must comply with the applicable local and national codes.
The relationship between the starting time and the starting current (Digital Scroll Comp. + Fixed Scroll Comp)
RLA is based on the following conditions.
- Indoor temp. : 80˚F DB/ 67˚F WB
- Outdoor temp. : 95˚F DB
Voltage range
Units are suitable for use on electrical systems where voltage
supplied to unit terminal is not below or above listed range limits.
Maximum allowable voltage variation between phases is 2%.
Select wire size based on the value of MCA.
MFA is used to select the circuit breaker and the ground fault circuit interrupter (earth leakage circuit breaker).
Abbreviations
- MCA: Min. Circuit Amps. (A)
MCA = 1.25 X LOAD1 + LOAD2
(LOAD1: RLA of Digital Comp. / LOAD2: RLA of Fixed Comp. + FLA of Fan Motor)
- MFA: Max. Fuse Amps. (A)
- RLA: Rated Load Amps. (A)
- OFM: Outdoor Fan Motor
- FLA: Full Load Amps. (A)
- kW : Rated Motor Output (kW)
Starting current
Starting time
RLA
Page 48
46
5
Wiring works
5-1. External connection diagram of DVM PLUS
III
1) 3 phase 3 wires
R S T N
R S T N
OF1 OF2 OF1 OF2
3 phase 3 wires
(208~230V)
3 phase 3 wires
(208~230V)
Communication
cable among
outdoor units
208~230V 208~230V
Indoor Outdoor
Outdoor
Communication
cable between
indoor and
outdoor units
Earth
Earth
Earth
Earth
Main unit Sub unit
Indoor
MCCB
+ELB
or
ELCB
MCCB
+ELB
or
ELCB
•ConnectthepowercableoftheoutdoorunitaftercheckingthatR-S-T(3phase3wires)isproperlyconnected.
•Thecommunicationcablebetweenindoorandoutdoorunitshasnopolarity.
•Arrangethecablesusingcableties.
Page 49
47
Installation
5-2. Caution of wiring work
3 phase 208~230V
MCCB
ELCB
To sub unit
communication cable
Outdoor Unit
1. Be sure to connect the suitable length of power wiring to the power wiring terminal block using ring terminal
above the figures.
2. Make sure to fix wiring using cable tie like above the figures.
3. After wiring, reinstall the housing cover which has an isolator into the middle frame.
Connecting the ring terminal of 3 phase cable (CV) Connecting the ring terminal of 3 phase cable (FCV)
A
B
C
A B C
A
B
250mm
C
A B C
Make sure that all wiring should not contact with piping line during the field wiring work. If not, the vibration of
compressor can make a damage to wiring and piping. It may result in fire.
Make sure to pass electrical wiring of the power cable (3 phase 3 wires) through a conduit hole of the front side.
CAUTION
Base line Base line
Middle frame
Housing cover
A B C
30mm (1-1/8in) 60mm (2-3/8in) 90mm (3-1/2in)
A B C
30mm (1-1/8in) 60mm (2-3/8in) 90mm (3-1/2in)
Page 50
48
Cautions Correct piping work Wrong piping work
The refrigerant piping
should be the same level or
lower than connecting
position of piping to
outdoor units.
Piping work should be run
with side direction for
better uniform distribution
of refrigarant and oil like
next diagram.
Outdoor joint kits should
be installed in a horizontal
direction, even it is a low
pressure pipe.
When the piping length
between outdoor and
branch joints is 2m(6.6 ft)
or more, a vertical trap has
to be installed like right
diagram.
2m(6.6 ft) or over
Less than 1m(3.3 ft)
200~300mm
(7-3/4~11-3/4in)
2m(6.6 ft) or over
Horizontal length =
over 100mm(3-7/8in)
Minimum
100mm
(3-7/8in)
6-1. Notice & Cautions
6
Refrigerant piping works
Page 51
49
Installation

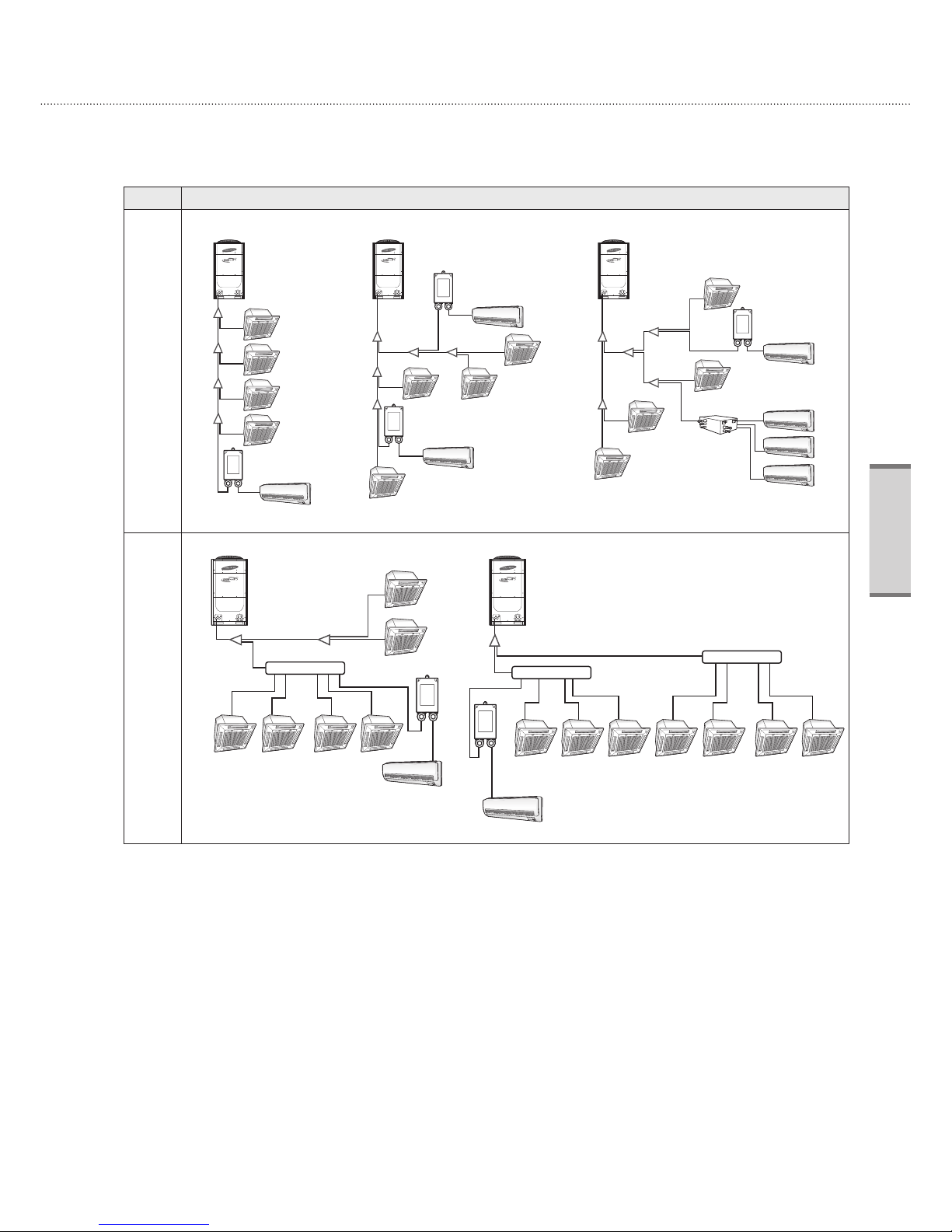

6-2. Example of piping layouts
Example of piping layouts for DVM PLUS
III
Using
Y-joint
Using
Header
joint
Page 52
50

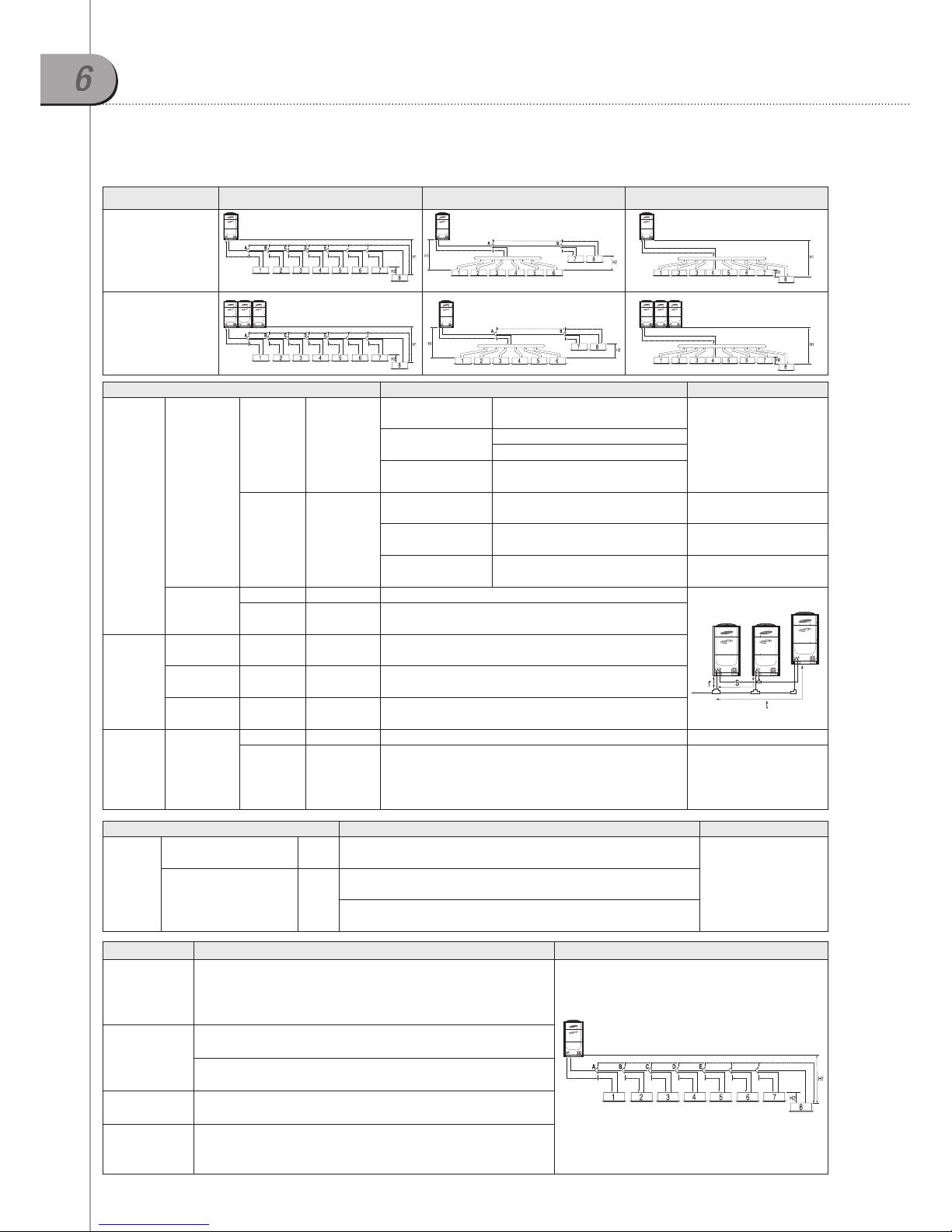

6-3. Piping examples
Classification Branch with Y-joint Branch with Y and Header joint Branch with Header joint
One outdoor unit
installed
Multiple outdoor
units installed
Items Examples Remarks
Max.
piping
length
Outdoor
~
Indoor unit
Piping
(Equivalent
piping)
200m(656ft)
220m(722ft)
Branch with Y joint
a+b+c+d+e+f+g+p
≤
200(220)m / 656(722)
ft
Equivalent pipe length
Y-joint:0.5m(1.6ft),
Header:1m(3.2ft)
Branch with Y joint
and Header joint
a+i+k≤200(220)m / 656(722)
ft
a+b+h≤200(220)m / 656(722)
ft
Branch with
header joint
a+i≤200(220)m / 656(722)
ft
Total piping
1000m
(3281ft)
Branch with Y joint
a+b+c+d+e+f+g+p+h+i+j+k+l+m+n
≤
1000m / 3281
ft
Branch with Y joint
and Header joint
a+b+c+d+e+f+g+p+h+i+j+k
≤
1000m / 3281
ft
Branch with
Header joint
a+b+c+d+e+f+g+p+h+i
≤
1000m / 3281
ft
Outdoor
~
Outdoor unit
Piping 10m(33ft) r≤10 (33ft), s≤10 (33ft), t≤10m (33ft)
Equivalent
piping
13m(43ft) r≤13 (43ft), s≤13 (43ft), t≤13m (43ft)
Level
difference
Outdoor ~
Indoor unit
Piping
50m(164ft)
40m(131ft)
H1≤50m (164ft) / 40m (131ft)
Indoor ~
Indoor unit
Piping 15m(49ft) H2≤15m (49ft)
Outdoor ~
Outdoor unit
Piping 5m(16ft) H3≤5m (16ft)
Allowable
length
after
branch
The first
branch
~
the farthest
indoor unit
Piping 45m(148ft) b+c+d+e+f+g+p≤45 m(148ft), i≤45m(148ft)
Piping 90m(295ft) It needs to satisfy required conditions
Only apply
DVM PLUS
III
(DVM PLUS
III
HR
exclusion)
Distribution kit Model Remarks
Allowable
From distribution kit to
indoor unit
3m
(10ft)
MEV-A13SA / MEV-A16SA (For 1 indoor unit)
For wall-mounted &
ceiling indoor unit
From distribution kit to
indoor unit
20m
(66ft)
MXD-A13K116A / MXD-A13K200A / MXD-A16K200A /
MXD-A22K200A (For 2 indoor units)
MXD-A13K216A / MXD-A13K300A / MXD-A16K213A /
MXD-A16K300A (For 3 indoor units)
Required condition Example
The first branch
joint ~
the farthest
indoor unit
If the sum of pipe length (b+c+d+e+f+g+p) is over 45m (148ft), (but
not exceed : 90m/295ft) increase pipe size of b,c,d,e,f,g (b,c,d,e,f,g :
pipe 1 size up)
Total pipe length
If main pipe size is not increased,a+bx2+cx2+dx2+ex2+fx2+gx2+h+i
+j+k+l+m+n+p≤1000m (3281ft)
If main pipe size is not increased, ax2+bx2+cx2+dx2+ex2+fx2+gx2+h
+i+j+k+l+m+n+p≤1000m (3281ft)
Each Y-joint ~
each indoor
h,I,j,..p≤45m (148ft)
Between
indoor units
The difference between the distance of the outdoor unit to the farthest
indoor unit and the distance of the outdoor unit to the farthest indoor
unit ≤ 45m (148ft) (a+b+c+d+e+f+g+p)-(a+h) ≤ 45m (148ft)
GF
h i j k l m n
bac d e f g p
b
a
c d e f
g
h
i
k
j
b
a
c d e f
g
h
i
GF
h i j k l m n
bac d e f g p
b
a
c d e f
g
h
i
k
j
b
a
c d e f
g
h
i
GF
h i j k l m n
bac d e f g p
6
Refrigerant piping works
Page 53
51
Installation
6-4. Pipe selection
Outdoor unit connection pipe size : (A1), (A2), (A3)
A1 : Select the pipes according to the outdoor unit capacity with
following table.
A2 : Select the pipes according to sum of outdoor unit capacities
behind the outdoor joint with following table.
A3 : Select the main pipe of outdoor units with the following table.
A3 : Select the main pipe of outdoor units with the following table when
if the farthest indoor unit’s length is over 90m(295ft).
Outdoor unit Pipe size (O.D)
Oil balancing
pipe size
Ton HP
Liquid Gas
mm inches mm inches
mm(inches)
6 7.5
Ø9.52 Ø3/8
Ø19.05 Ø3/4
-8 10.0 Ø22.23 Ø7/8
10 12.5 Ø12.70 Ø1/2 Ø28.58 Ø1-1/8
Example) 26 Ton
10Ton 8Ton
(C)
(F)
(D)
(A3)(A2)(A1)
8Ton
(A1)(A1)
(E)
(B)
Ton HP Mark
Pipe size (O. D.mm)
Liquid Gas
mm inches mm inches
8 10 (A1) Ø9.52 Ø3/8 Ø22.23 Ø7/8
8 10 (A1) Ø9.52 Ø3/8 Ø22.23 Ø7/8
10 12.5 (A1) Ø12.70 Ø1/2 Ø28.58 Ø1-1/8
18 22.5 (A2) Ø15.88 Ø5/8 Ø28.58 Ø1-1/8
26 32.5 (A3) Ø19.05 Ø3/4 Ø34.93 Ø1-3/8
*A1 : Pipes to the outdoor unit (Liquid, Gas)
*A2 : Pipes between outdoor joint kits (Liquid, Gas)
*A3 : Main pipes (Liquid, Gas)
Outdoor unit Pipe size (O.D)
Oil balancing
pipe size
Ton HP
Liquid Gas
mm inches mm inches
mm(inches)
12 15.0 Ø12.70 Ø1/2
Ø28.58 Ø1-1/8
Ø6.35
(Ø1/4)
14 17.5
Ø15.88 Ø5/816 20.0
18 22.5
20 25.0 Ø19.05 Ø3/4 Ø34.93 Ø1-3/8
Outdoor unit Pipe size (O.D)
Oil balancing
pipe size
Ton HP
Liquid Gas
mm inches mm inches
mm(inches)
6 7.5
Ø9.52 Ø3/8
Ø19.05 Ø3/4
-8 10.0 Ø22.23 Ø7/8
10 12.5
Ø12.70 Ø1/2
Ø28.58 Ø1-1/8
12 15.0
Ø6.35
(Ø1/4)
14 17.5
Ø15.88 Ø5/816 20.0
18 22.5
20 25.0
Ø19.05 Ø3/4 Ø34.93 Ø1-3/8
22 27.5
24 30.0
26 32.5
28 35.0
30 37.5
Outdoor unit Pipe size (O.D)
Oil balancing
pipe size
Ton HP
Liquid Gas
mm inches mm inches
mm(inches)
6 7.5
Ø12.70 Ø1/2
Ø22.23 Ø7/8
-8 10.0
Ø28.58 Ø1-1/8
10 12.5
Ø15.88 Ø5/8
12 15.0
Ø34.93 Ø1-3/8
Ø6.35
(Ø1/4)
14 17.5
Ø19.05 Ø3/416 20.0
18 22.5
20 25.0
Ø22.23 Ø7/8
22 27.5
24 30.0
26 32.5
28 35.0
Ø41.28 Ø1-5/8
30 37.5
Page 54
52
6
Refrigerant piping works
Pipe size between branch joints : (B) Tempers of pipe
Select the pipe size according to the capacity sum of indoor units
which are connected below this pipe.
Pipe size between branch joints and indoor unit (C)
Select the pipe size according to the indoor unit’s capacity.
Branch joiat : (D), (E), (F)
Branch joint of outdoor unit’s multi connection (D)
First branch joint (E)
Select branch joint according to the outdoor unit’s capacity.
Branch joint (F)
Select the pipe size according to the capacity sum of
indoor units which are connected below this pipe.
1) Y-joint
2) Header joint
Total Indoor unit’s
capacity
Pipe size (O.D)
Liquid Gas
mm inches mm inches
51MBH
Ø9.52 Ø3/8
Ø15.88 Ø5/4
51~79MBH Ø19.05 Ø3/4
79~96MBH Ø22.23 Ø7/8
96~138MBH
Ø12.70 Ø1/2
Ø28.58 Ø1-1/8138~160MBH
160~240MBH Ø15.88 Ø5/8
240~336MBH
Ø19.05 Ø3/4 Ø34.93 Ø1-3/8
336~468MBH
Indoor unit’s
capacity
Pipe size (O.D)
Liquid Gas
mm inches mm inches
6~20MBH Ø6.35 Ø1/4 Ø12.70 Ø1/2
24~48MBH Ø9.52 Ø3/8 Ø15.88 Ø5/8
Outdoor multi
connection
Model
Capacity of outdoor
unit
branch joint (D) MXJ-T3819K 12 ~ 30 Ton
Y-joint
(E)
Model
Capacity of outdoor unit
MXJ-YA2512K 6, 8,10 Ton
MXJ-YA2812K 12 Ton
MXJ-YA2815K 14,16,18,20 Ton
MXJ-YA3119K 22, 24, 26, 28 Ton
MXJ-YA3819K 30 Ton
Header
joint
(F)
Model
Total Indoor unit’s
capacity
The connect-
able quantity of
indoor units
MXJ-HA2512K
160 MBH and below
4
MXJ-HA3115K
Over 160 MBH~ 240 MBH
8
MXJ-HA3819K
Over 240 MBH
8
Pipe size Thickness
Material
mm inches mm inches
Ø6.35 Ø1/4
0.7 0.027
C1220T-O
(Annealed)
Ø9.52 Ø3/8
Ø12.70 Ø1/2 0.8 0.031
Ø15.88 Ø5/8 1.0 0.039
Ø19.05 Ø3/4
0.9 0.035
C1220T-1/2H
(Drawn temper)
Ø22.23 Ø7/8
Ø25.40 Ø1 1.0 0.039
Ø28.58 Ø1-1/8
1.1 0.043
Ø31.75 Ø1-1/4
Ø34.93 Ø1-3/8 1.2 0.047
Ø38.10 Ø1-1/2 1.35 0.053
Ø44.45 Ø1-3/4 1.6 0.062
Ø50.80 Ø2 2.0 0.079
Y-joint
(F)
Model Capacity of outdoor unit
MXJ-YA1509K
51 MBH and below
MXJ-YA2512K
Over 51 MBH ~ 138 MBH and below
MXJ-YA2812K
Over 138 MBH ~ 160 MBH and below
MXJ-YA2815K
Over 160 MBH ~ 240 MBH and below
MXJ-YA3119K
Over 240 MBH ~ 336 MBH and below
MXJ-YA3819K
Over 336 MBH ~ 468 MBH and below
Make sure to use C1220T-1/2H pipe for more than
Ø19.05mm(3/4in). In case of using C1220T-O pipe
for Ø19.05mm(3/4in) pipe may be broken, which
can result in an injury.
CAUTION
Page 55
53
Installation
•Additionalrefrigeranthastobechargedaccordingtothelengthandsizeof
liquid pipe.
•Exampleofadditionalrefrigerantcharging.
Pipe length is as below without distribution kit.
Ø12.70(1m/3.3ft)
Ø12.70(5m/16.4ft)
Ø19.05(5m/16.4ft)
Ø15.88(10m/32.8ft)
Ø15.88(15m/49.2ft)
Ø12.70(15m/49.2ft)
Ø9.52(5m/16.4ft)
Ø9.52(5m/16.4ft)
Ø6.35(5m/16.4ft)
Ø6.35(5m/16.4ft)
Ø6.35(5m/16.4ft)
Ø9.52(7m/22.9ft)
Ø9.52(8m/26.2ft)
Liquid pipe size
(O.D.)
Additional
refrigerant charging
mm inches kg/m lbs/ft
Ø6.35 Ø1/4 0.020 0.0134
Ø9.52 Ø3/8 0.060 0.0403
Ø12.70 Ø1/2 0.125 0.0840
Ø15.88 Ø5/8 0.180 0.1210
Ø19.05 Ø3/4 0.270 0.1814
Ø22.23 Ø7/8 0.350 0.2352
Outdoor unit
Factory charging
kg lbs
RVXVHT075FE 6.5 14.330
RVXVHT100FE 7.5 16.535
RVXVHT125FE 9.0 19.824
Additional refrigerant charging of
distribution kit (kg/m)
kg/m lbs/ft Remarks
Regardless of the liquid pipe size,
additional refrigerant charging is
0.01kg(0.0067lbs) per meter(ft) after
distribution kit.
0.01 0.0067
For wall-mounted &
ceiling Indoor unit
Liquid pipe size (O.D.)
Total piping
lengths
Additional
refrigerant charging
mm inches m ft kg lbs
Ø6.35 Ø1/4 15 49.21 0.300 0.6614
Ø9.52 Ø3/8 25 82.02 1.500 3.3069
Ø12.70 Ø1/2 21 68.90 2.625 5.7871
Ø15.88 Ø5/8 25 82.02 4.500 9.9208
Ø19.05 Ø3/4 5 16.40 1.350 2.9762
Total 10.275 22.652
6-5. Additional refrigerant charging
Total refrigerant amount of the system must be less then 100kg(220lbs). If total refrigerant amount of system is over
100kg(220lbs) more, the system has to be divided into smaller system, each containing less than 100kg(220lbs).
CAUTION
Page 56
54
Refrigerant piping works
6
Elbow
Pipe size(O.D.) Equivalent length
mm inches m ft
Ø9.52 Ø3/8 0.18 0.59
Ø12.70 Ø1/2 0.20 0.66
Ø15.88 Ø5/8 0.25 0.82
Ø19.05 Ø3/4 0.35 1.15
Ø22.23 Ø7/8 0.40 1.31
Ø25.40 Ø1 0.45 1.48
Ø28.58 Ø1-1/8 0.50 1.64
Ø31.75 Ø1-1/4 0.55 1.80
Ø34.93 Ø1-3/8 0.58 1.90
Ø38.10 Ø1-1/2 0.60 1.97
Ø41.30 Ø1-5/8 0.70 2.30
Ø44.45 Ø1-3/4 0.75 2.46
Ø50.80 Ø2 0.80 2.62
6-6. Equivalent length calculations
Equivalent length calculation method
Equivalent length = actual pipe length(m) + number of ‘Y-joint’×0.5(m)+number of ‘Header joint’×1.0(m)+
number of elbows×equivalent length of each elbow
Type
Equivalent length
m ft
Y joint 0.5 1.64
Header joint 1.0 3.28
Page 57
55
Installation
7
Option switches & function keys
7-1. Option switches
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Switch Setting Function Remarks
SW01/SW02
Setting total quantity of Installed indoor units
Main unit required only
SW01 : The tens digit, SW02 : The units digit
Main unit required only
Ex) As 12 indoor units were installed,
SW01:1, SW02: 2
SW03
K5 On Manual address setting
Off Auto address setting
SW04
K9 K10 Target evaporating temperature (°C/°F)
Cooling capacity compensation
On On 7~9(44.6 ~ 48.2)
On Off 5~7(41.0~44.6)
Off On 9~11(48.2~51.8)
Off Off 10~12(50.0~53.6)
SW04
K11 K12 Target high pressure (kgf/cm2, psig, kPa)
On On 30.0, 426, 2941
Heating capacity compensation
On Off 31.5, 448, 3089
Off On 33.0, 469, 3236
Off Off 27.0, 384, 2647
SW05
K13 K14 Outdoor unit’s address
On On Outdoor unit’s address : No 1 Main unit
On Off Outdoor unit’s address : No 2 Sub I unit
Off On Outdoor unit’s address : No 3 Sub 2 unit
Off Off Outdoor unit’s address : No 4 Sub 3 unit
K15 K16 Maximum current control
On On Standard Factory default
On Off 90% of standard peak current value
Off On 80% of standard peak current value
Off Off Not use
SW06
K17
On Since supplying power, first oil return operation happens after 5hrs and then 7 hrs.
Off Since supplying power, first oil return operation happens after 2hrs and then 2 hrs.
K18
On Standard
Defrost period setting
Off Shorten defrost period by 20% approximately
K19
On Standard fan step
Off Fan step compensation (Maximum step) 7.5/10 HP : 19 Steps, 12.5 HP : 23 Steps
K20
On Normal
Off Night’s quiet mode
Factory default
SW01, SW02, SW09 : ‘0’
SW03 ~ SW06 : ON
Page 58
56
7
Option switches & function keys
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
K1
K2
K3
K4
LED display alphabet
SEG 1 SEG 2 SEG 3 SEG 4
K1 Key function Display LED
Push 1st time Refrigerant charging in heating operation “K” “1” “BLANK” “BLANK”
Push 2nd time Test run in heating mode “K” “2” “BLANK” “BLANK”
Push 3rd time Pump out operation in heating mode (Outdoor unit’s address : NO 1) “K” “3” “BLANK” “1”
Push 4th time Pump out operation in heating mode (Outdoor unit’s address : NO 2) “K” “3” “BLANK” “2”
Push 5th time Pump out operation in heating mode (Outdoor unit’s address : NO 3) “K” “3” “BLANK” “3”
Push 6th time Pump out operation in heating mode (Outdoor unit’s address : NO 4) “K” “3” “BLANK” “4”
Push 7th time Open all valve of outdoor unit for vacuum preparation (Outdoor unit’s address : NO 1) “K” “4” “BLANK” “1”
Push 8th time Open all valve of outdoor unit for vacuum preparation (Outdoor unit’s address : NO 2) “K” “4” “BLANK” “2”
Push 9th time Open all valve of outdoor unit for vacuum preparation (Outdoor unit’s address : NO 3) “K” “4” “BLANK” “3”
Push 10th time Open all valve of outdoor unit for vacuum preparation (Outdoor unit’s address : NO 4) “K” “4” “BLANK” “4”
Push 11th time
Open all valve for vacuum preparation (Total outdoor units, indoor unit and MCU units)
“K” “4” “BLANK” “4”
Push 12th time Return to normal view mode -
K2 Key function Display LED
Push 1st time Refrigerant charging in cooling operation “K” “5” “BLANK” “BLANK”
Push 2nd time Test run in cooling mode “K” “6” “BLANK” “BLANK”
Push 3rd time Pump down operation in cooling mode (All outdoor units) “K” “7” “BLANK” “BLANK”
Push 4th time
Pipe checking (Check whether the pipe connection of MCU correspond with indoor unit’s
address in HR system.)
“K” “8” “BLANK” “BLANK”
Push 5th time Judgment system of refrigerant amount “K” “9” “BLANK” “BLANK”
Push 6th time Return to normal view mode -
K3 Key function Display LED
Push 1st time Reset -
K4 Key function
Display LED
SEG 1 SEG 2, 3, 4
Push 1st time Outdoor capacity 1 Ex) 16 HP Off, 1, 6
Push 2nd time Digital comp loading time 2 Ex) Loading 13 sec Off, 1, 3
Push 3rd time High pressure (kg/cm2) 3 Ex) High pressure 15.2 (kg/cm2) 1, 5, 2
Push 4th time Low pressure (kg/cm2) 4 Ex) Low pressure 4.3 (kg/cm2) 0, 4, 3
Push 5th time Discharge temperature of compressor 1 5 Ex) 87°C 0, 8, 7
Push 6th time Discharge temperature of compressor 2 6 Ex) 87°C
0, 8, 7
Push 7th time Discharge temperature of compressor 3 7 Ex) 87°C 0, 8, 7
Push 8th time CT sensor value of compressor 1 8 Ex) 2A 0, 0, 2
Push 9th time CT sensor value of compressor 2 9 Ex) 2A 0, 0, 2
Push 10th time CT sensor value of compressor 3 A Ex) 2A 0, 0, 2
Push 11th time Suction temperature B Ex) -5 °C -, 0, 5
Push 12th time Cond_out temperature C Ex) 35 °C
0, 3, 5
Push 13th time Liquid tube temperature D Ex) 35 °C 0, 3, 5
Push 14th time Oil temperature sensor on oil balancing pipe E Ex) 35 °C 0, 3, 5
Push 15th time Sump temperature of compressor 1 F Ex) 35 °C 0, 3, 5
Push 16th time Ambient air temperature G Ex) 35 °C 0, 3, 5
Push 17th time EVI_in temperature H Ex) 35 °C 0, 3, 5
Push 18th time EVI_out temperature I Ex) 35 °C 0, 3, 5
Push 19th time Main EEV1 step J Ex) 2000 steps 2, 0, 0
Push 20th time Main EEV2 step K Ex) 2000 steps 2, 0, 0
Push 21th time EVI EEV step L Ex) 300 steps 3, 0, 0
Push 22th time HR EEV step M Ex) 300 steps 3, 0, 0
Push 23th time Fan step ( SSR or BLDC ) N Ex) 13 steps Off, 1, 3
Push 24th time Version
7-2. Function keys
Page 59
57
Installation
8
Error codes
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Display alphabet at
Description
E It displays from error 101 to error 700.
P It displays from error 701 to error 800.
U
It displays the address of outdoor unit.
Ex) U200 : Outdoor unit 1, U201: Outdoor unit 2, U202: Outdoor unit 3, U203 : Outdoor unit 4
A
It displays the address of indoor unit.
Ex) A000 : Indoor address 1, A001: Indoor address 1, A002 : Indoor address 2
No. Error code Description
1 E-101 Communication error in indoor unit. It displays when the indoor unit receives no data from the outdoor unit.
2 E-102 Communication error between indoor and outdoor unit. It displays in indoor unit.
3 E-121 Room temperature sensor of indoor unit. (Open or Short)
4 E-122 Eva_in temperature sensor of indoor unit. (Open or Short)
5 E-123 Eva_out temperature sensor of indoor unit. (Open or Short)
6 E-124 Communication error between indoor and outdoor unit. It displays in outdoor unit.
7 E-125 Mid 2 temperature sensor of indoor unit. (Open or Short)
8 E-128 Eva_in temperature sensor is detached from eva_in pipe of indoor unit.
9 E-129 Eva_out temperature sensor is detached from eva_out pipe of indoor unit.
10 E-130
Eva_in and Eva_out temperature sensors are detached from eva_in and out pipes of indoor unit at the same
time.
11 E-137 VOC sensor of ERV product. (Open or Short)
12 E-138 Gas sensor of ERV product. (Open or Short)
13 E-139 CO2 sensor of ERV product. (Open or Short )
14 E-151 EEV opening error of indoor unit (2nd detection)
15 E-152 EEV closing error of indoor unit (2nd detection)
16 E-153 Floating switch error of indoor unit (2nd detection)
17 E-154 RPM feed back error of indoor unit.
18 E-155 RPM feed back error of indoor unit. (The second motor of indoor unit)
19 E-161
Mixed operation mode of indoor units. It occurs when outdoor unit is operating or going to operate in
cooling mode(or heating mode) and then other indoor unit is going to operate in heating mode (or cooling
mode).
20 E-162 EEPROM error of MICOM. (Physical damage)
21 E-163 Option code error of indoor unit’s EEPROM.
22 E-167 Option setting error of indoor unit’s dip switch.
23 E-170
Temperature display setting error for USA market product.
(Mixed setting with Celsius and Fahrenheit temperature)
24 E-180 Opening error of cooling and heating solenoid valve simultaneously in MCU (1st detection)
25 E-181 Opening error of cooling and heating solenoid valve simultaneously in MCU (2nd detection)
26 E-185 Cross wiring error between communication and power of indoor unit.
27 E-190 No matching between indoor unit’s address and eva_in sensor in pipe checking operation.
28 E-191 No matching between indoor unit’s address and eva_out sensor in pipe checking operation.
29 E-199 It displays when pipe checking operation is not operated.
30 E-201
Communication error between indoor and outdoor unit (Tracking failure or the setting quantity of indoor unit
on outdoor unit’s PCB differs from the quantity of installed indoor unit.)
31 E-202
Communication error between indoor and outdoor unit.
(After tracking is completed, and then no response from indoor unit)
32 E-203 Communication error between main and sub outdoor unit
33 E-204 The setting quantity of MCU on outdoor unit’s PCB differs from the quantity of installed MCU.
Page 60
58
8
Error codes
No. Error code Description
34 E-210 Communication error between MCU and outdoor unit.
35 E-211 Indoor unit’s address overlapped on the MCU.
35 E-213 No matching between installed indoor unit’s address and indoor unit’s address on the MCU.
35 E-214 Setting error of MCU’s quantity in outdoor unit’s PCB
36 E-215 Indoor unit’s address setting error on the MCU. (There is same address among the MCUs)
37 E-216
Setting error of indoor unit activating dip switch on MCU’s PCB. (The indoor unit is not connected with the
MCU’s port but indoor unit activating dip switch on MCU’s PCB turns on.)
38 E-217
Setting error of indoor unit activating dip switch on MCU’s PCB. (The indoor unit is connected with the
MCU’s port but indoor unit activating dip switch on MCU’s PCB turns off.)
39 E-218
Setting error of indoor unit’s quantity on MCU’s PCB.
(The quantity of installed indoor units exceeds the setting number of the MCU’s PCB.)
40 E-221 Ambient air temperature sensor of outdoor unit. (Open or Short)
41 E-226 Ambient air temperature sensor is detached from outdoor unit.
42 E-231 Cond_out temperature sensor of main outdoor unit. (Open or Short)
43 E-236 Cond_out temperature sensor of the outdoor unit. (Open or Short)
44 E-237 Cond temperature sensor of outdoor unit. (Open or Short)
45 E-241 Cond_mid temperature sensor is detached from sensor hold of the pipe.
46 E-246 Cond_out 1 temperature sensor is detached from sensor hold of the pipe.
47 E-251 Discharge temperature sensor of compressor 1. (Open or Short)
48 E-256 Discharge temperature sensor of compressor 1. (Open or Short)
49 E-257 Discharge temperature sensor of compressor 2. (Open or Short)
50 E-258 Discharge temperature sensor of compressor 3. (Open or Short)
51 E-261 Discharge temperature sensor of compressor 1 is detached from the sensor hold of the pipe.
52 E-262 Discharge temperature sensor of compressor 1 is detached from the sensor hold of the pipe.
53 E-263 Discharge temperature sensor of compressor 2 is detached from the sensor hold of the pipe.
54 E-264 Discharge temperature sensor of compressor 3 compressor is detached from the sensor hold of the pipe.
55 E-265 Sump(Base) temperature sensor of main unit’s compressor is detached from the base of the compressor.
56 E-266 Sump(Base) temperature sensor of sub1 unit’s compressor is detached from the base of the compressor.
57 E-267 Sump(Base) temperature sensor of sub2 unit’s compressor is detached from the base of the compressor.
58 E-268 Sump(Base) temperature sensor of sub3 unit’s compressor is detached from the base of the compressor.
58 E-269 Suction temperature sensor is detached from the sensor hold of the pipe.
59 E-271 Sump(Base) temperature sensor of compressor 1. (Open or Short)
60 E-276 Sump(Base) temperature sensor of compressor 1. (Open or Short)
61 E-277 Sump(Base) temperature sensor of compressor 2. (Open or Short)
62 E-278 Sump(Base) temperature sensor of compressor 3. (Open or Short)
63 E-291 High pressure sensor. (Open or Short)
64 E-296 Low pressure sensor. (Open or Short)
65 E-307 Oil balance temperature sensor. (Open or Short)
66 E-308 Suction temperature sensor. (Open or Short)
67 E-311 Double tube / Liquid temperature sensor. (Open or Short)
68 E-312 Main cooling solenoid valve opening error.
69 E-321 EVI_in temperature sensor. (Open or Short)
70 E-322 EVI_out temperature sensor. (Open or Short)
71 E-407 Compressor stop by high pressure’s protection control.
72 E-410 Compressor stop by low pressure’s protection control.
73 E-413 Protection control by sump sensor.
74 E-416 Compressor stop by discharge temperature’s protection control.
75 E-425 Reverse phase or phase open. (3ø Wiring of outdoor unit, R-S-T-N)
76 E-428 Compressor stop by abnormal compression ratio.
77 E-431 Self-diagnosis of oil solenoid valve. (Open and Close error)
78 E-438 EVI EEV opening error.
79 E-440 Prohibition of heating operation when the ambient air temperature is over 30°C
80 E-442
Prohibition of refrigerant charging with heating operation when outdoor ambient air temperature is over 15°C.
81 E-443 Prohibition of operating when the high pressure of system is too low.
82 E-452 Power failure temporarily or zero crossing error.
Page 61
59
Installation
No. Error code Description
83 E-453 Overload error of outdoor unit’s motor (by temperature).
84 E-454 RPM error of outdoor unit’s motor
85 E-455 IPM overload error of outdoor unit’s motor (by temperature)
86 E-456 Over Current error of outdoor unit’s motor
87 E-457 Backlash error of outdoor unit’s motor
88 E-458 Over current of CT sensor. (Or outdoor’s motor locking of inverter system.)
89 E-461 Low current of CT sensor. (Or compressor starting failure of inverter system.)
90 E-477
Liquid refrigerant incoming protection error in digital / 1st fixed scroll compressor with sump temperature
sensor.
91 E-559 Indoor unit stop by unidentified error from outdoor units.
92 E-560 Option switch setting error of outdoor unit. (napplicable option switch turns on.)
93 E-561 Fan RPM error of ERV SA (Supply air).
94 E-562 Fan RPM error of ERV RA (Return air).
95 E-563 Model mismatching of Indoor unit.
96 E-601 Communication error between remote controller and indoor unit.
97 E-602 Communication error between master and slave wired remote controller.
98 E-603 Communication packet error (Baud rate error)
99 E-604 Tracking failure error between wired remote controller and indoor unit.
100 E-605
Communication error.
(7-day scheduler Wired remote controller or 7-day scheduler Centralized controller)
101 E-606 COM1/COM2 communication setting error. (Wired remote controller)
102 E-607 Two masters of wired remote controllers were installed in one COM2 communication line.
103 E-608 Can’t detect ERV controller.
104 E-609 Indoor unit is not detected for synchronous control.
105 E-610 Communication error between centralized controller and interface module.
106 E-611 Communication error between DMS and centralized controller.
107 E-613 Communication error between DMS and SIM interface module.
108 E-614 Communication error between SIM and power meter.
109 E-615 Communication error between interface module and indoor unit.
110 E-616 Communication error between interface module and outdoor unit.
111 E-618 The connected indoor units to ERV exceeded 16 units.
112 E-619 Mixed temperature display setting of indoor units which was connected to MWR-WS00 (Celsius/Fahrenheit)
113 E-620 Temperature display setting error of MWR-WS00 (Celsius/Fahrenheit)
114 E-621 Option switch setting error of wired remote controller (Master/Slave)
115 E-652 Two wired remote controllers were set to the master mode. (COM 1 wiring)
116 E-653 Room temperature sensor in the wired remote controller. (Open or Short)
117 E-654 Memory data error in the wired remote controller. (MWR-WS00)
118 P-701 Floating switch error of indoor unit. (1st detection)
119 P-702 EEV closing error of indoor unit. (1st detection)
120 P-703 EEV opening error of indoor unit. (1st detection)
Page 62
DVM
DVM Technical Data Book
Page 63
Page 64
Outdoor Units
2009.12
DB98-31306A(1)
Specification may be subject to change without prior notice for the continuous product improvement.
Samsung Electronics Co., LTD.
Digital Air Solution Business Team, SE Dept.
Head Office (Suwon Korea) 416, Maetan-3Dong, Yeongtong-Gu, Suwon City, Gyeonggi-Do, Korea 443-742
TEL : 82-31-200-6119 Website : www.dvmsystem.com Email: [email protected]
Loading...
