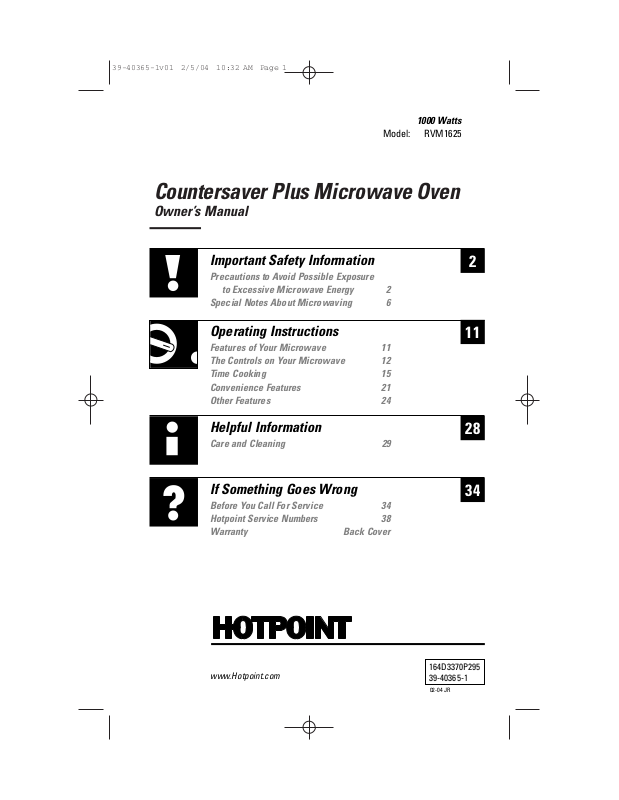

Countersaver Plus Microwave Oven
Owner’s Manual
Model:
1000 Watts
RVM1625
2
28
Helpful Information
Care and Cleaning 29
34
If Something Goes Wrong
Before You Call For Service 34
Hotpoint Service Numbers 38
Warranty Back Cover
11
Important Safety Information
Precautions to Avoid Possible Exposure
to Excessive Microwave Energy 2
Special Notes About Microwaving 6
Operating Instructions
Features of Your Microwave 11
The Controls on Your Microwave 12
Time Cooking 15
Convenience Features 21
Other Features 24
164D3370P295
39-40365-1
02-04 JR
www.Hotpoint.com
39-40365-1v01 2/5/04 10:32 AM Page 1
2
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
FOR YOUR
SAFETY
PRECAUTIONS
TO AVOID
POSSIBLE
EXPOSURE
TO EXCESSIVE
MICROWAVE
ENERGY
For your safety the information in this manual
must be followed to minimize the risk of fire
or explosion or to prevent property damage,
personal injury or loss of life.
Do Not Attempt
to operate this oven
with the door open
since open-door
operation can result
in harmful exposure
to microwave energy.
It is important not to
defeat or tamper with
the safety interlocks.
Do Not Place any object
between the oven front
face and the door or
allow soil or cleaner
residue to accumulate
on sealing surfaces.
Do Not Operate the oven
if it is damaged. It is
particularly important
that the oven door close
properly and that there
is no damage to the:
1 door (bent),
2 hinges and latches
(broken or loosened),
3 door seals and sealing
surfaces.
The Oven Should Not
be adjusted or repaired
by anyone except
properly qualified
service personnel.
39-40365-1v01 2/5/04 10:32 AM Page 2
3
Welcome to the Hotpoint
family. We’re proud of our
quality products and we
believe in dependable
service.
You’ll see it in this
easy-to-use manual
and you’ll hear it in
the friendly voices of
our consumer service
department.
Best of all, you’ll
experience these values
each time you use your
microwave. That’s
important, because your
new microwave will be
part of your family for
a long time.
Welcome
Write down the model
and serial numbers here.
They are on a label inside
the oven.
Model number
Serial number
Date of purchase
Staple your receipt to the
inside back cover of this
manual. You will need it
to obtain service under
warranty.
Before you call for service,
there are a few things you
can do to help us serve
you better.
Read this manual.
It contains instructions to
help you use and maintain
your microwave properly.
If you received a damaged
oven…immediately contact
the dealer (or builder)
that sold you the oven.
Save time and money.
Check the section titled
“If Something Goes
Wrong” before calling.
This section helps you
solve common problems
that might occur.
If you do need service,
you can relax knowing
help is only a phone call
away. A list of toll-free
customer service numbers
is included in the back
of this book.
Need Help?
Start Here!…Before using your Microwave
39-40365-1v01 2/5/04 10:32 AM Page 3
WARNING
• Read and follow the
specific “Precautions to
Avoid Possible Exposure
to Excessive Microwave
Energy” on page 2.
• This appliance must be
grounded. Connect only
to properly grounded
outlet. See Grounding
Instructions section on
page 10.
• Do not mount this
appliance over a sink.
• Install or locate this
appliance only in
accordance with the
provided Installation
Instructions.
• This over-the-range oven
was designed for use
over ranges no wider
than 36.″ It may be
installed over both gas
and electric cooking
equipment.
• Do not cover or block
any openings on the
appliance.
• Do not operate this
appliance if it has a
damaged power cord or
plug, if it is not working
properly, or if it has been
damaged or dropped.
If the power cord is
damaged, it must be
replaced by General
Electric service or an
authorized service agent
using a power cord
available from General
Electric.
• Use this appliance only
for its intended use as
described in this guide.
Do not use corrosive
chemicals or vapors in
this appliance. This
microwave oven is
specifically designed to
heat, dry or cook food,
and is not intended
for laboratory or
industrial use.
This microwave oven is
intended for household
use and is UL listed for
installation over electric
and gas ranges.
This microwave oven is
not approved or tested
for marine use.
SAFETY
PRECAUTIONS
4
IMPORTANT SAFETY INFORMATION
READ ALL SAFETY
INFORMATION BEFORE USING
When using electrical appliances, basic safety precautions should be followed, including
the following:
39-40365-1v01 2/5/04 10:32 AM Page 4
• Do not store this
appliance outdoors.
Do not use this product
near water—for example,
in a wet basement, near
a swimming pool, near
a sink or in similar
locations.
• Keep power cord away
from heated surfaces.
• Do not immerse power
cord or plug in water.
• To reduce the risk of fire
in the oven cavity:
— Do not overcook food.
Carefully attend
appliance when paper,
plastic or other
combustible materials
are placed inside the
oven while cooking.
— Remove wire twist-ties
and metal handles
from paper or plastic
containers before
placing them in
the oven.
— Do not use the oven
for storage purposes.
Do not leave paper
products, cooking
utensils or food in the
oven when not in use.
— If materials inside oven
ignite, keep the oven
door closed, turn the
oven off and disconnect
the power cord, or shut
off power at the fuse or
circuit breaker panel.
If the door is opened,
the fire may spread.
• See door surface
cleaning instructions in
the Care and Cleaning
section(s) of this guide.
• This appliance must only
be serviced by qualified
service personnel.
Contact nearest
authorized service facility
for examination, repair
or adjustment.
• As with any appliance,
close supervision is
necessary when used
by children.
• Do not store anything
directly on top of the
microwave oven surface
when the microwave oven
is in operation.
SAVE THESE INSTRUCTIONS
5
39-40365-1v01 2/5/04 10:32 AM Page 5
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Arcing is the microwave
term for sparks in the
oven. Arcing is caused by:
• Metal or foil touching
the side of the oven.
• Foil not molded to food
(upturned edges act like
antennas).
• Metal, such as twist-ties,
poultry pins, or goldrimmed dishes, in the
microwave.
• Recycled paper towels
containing small metal
pieces being used in the
microwave.
If you see arcing, press
the CLEAR/OFF pad and
correct the problem.
ARCING
• Do not pop popcorn in
your microwave oven
unless in a special
microwave popcorn
accessory or unless you
use popcorn labeled for
use in microwave ovens.
• Some products such as
whole eggs and sealed
containers—for example,
closed jars—are able to
explode and should not
be heated in this
microwave oven. Such use
of the microwave oven
could result in injury.
• Do not boil eggs in a
microwave oven. Pressure
will build up inside egg
yolk and will cause it to
burst, possibly resulting
in injury.
• Operating the microwave
with no food inside for
more than a minute or
two may cause damage to
the oven and could start a
fire. It increases the heat
around the magnetron
and can shorten the life
of the oven.
• Foods with unbroken
outer “skin” such as
potatoes, hot dogs,
sausages, tomatoes,
apples, chicken livers
and other giblets, and
egg yolks should be
pierced to allow steam
to escape during
cooking.
FOODS
6
39-40365-1v01 2/5/04 10:32 AM Page 6
7
SAFETY FACT
SUPERHEATED WATER
Liquids, such as water,
coffee or tea, are able to
be overheated beyond
the boiling point without
appearing to be boiling.
Visible bubbling or boiling
when the container is
removed from the microwave
oven is not always present.
THIS COULD RESULT
IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER
WHEN THE CONTAINER IS
DISTURBED OR A SPOON
OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury
to persons:
— Do not overheat the
liquid.
— Stir the liquid both
before and halfway
through heating it.
— Do not use straight-
sided containers with
narrow necks.
— After heating, allow
the container to stand
in the microwave oven
for a short time before
removing the container.
— Use extreme care when
inserting a spoon or
other utensil into the
container.
• Avoid heating baby food
in glass jars, even with
the lid off. Make sure all
infant food is thoroughly
cooked. Stir food to
distribute the heat evenly.
Be careful to prevent
scalding when warming
formula or breast milk.
The container may feel
cooler than the milk
really is. Always test the
milk before feeding
the baby.
• Don’t defrost frozen
beverages in narrownecked bottles (especially
carbonated beverages).
Even if the container is
opened, pressure can
build up. This can cause
the container to burst,
possibly resulting in
injury.
• Hot foods and steam
can cause burns. Be
careful when opening
any containers of hot
food, including popcorn
bags, cooking pouches
and boxes. To prevent
possible injury, direct
steam away from hands
and face.
• Do not overcook
potatoes. They could
dehydrate and catch
fire, causing damage
to your oven.
• Cook meat and poultry
thoroughly—meat to
at least an INTERNAL
temperature of 160°F
and poultry to at least an
INTERNAL temperature
of 180°F. Cooking to
these temperatures
usually protects against
foodborne illness.
39-40365-1v01 2/5/04 10:32 AM Page 7
IMPORTANT SAFETY INFORMATION
SPECIAL NOTES ABOUT MICROWAVING
Make sure all cookware
used in your microwave
oven is suitable for
microwaving. Most glass
casseroles, cooking dishes,
measuring cups, custard
cups, pottery or china
dinnerware which does not
have metallic trim or glaze
with a metallic sheen can
be used. Some cookware
is labeled “suitable for
microwaving.”
• If you are not sure if a
dish is microwave-safe,
use this test: Place in the
oven both the dish you
are testing and a glass
measuring cup filled with
1 cup of water—set the
measuring cup either
in or next to the dish.
Microwave 30–45 seconds
at high. If the dish heats,
it should not be used for
microwaving.
If the dish remains cool
and only the water in the
cup heats, then the dish
is microwave-safe.
• If you use a meat
thermometer while
cooking, make sure
it is safe for use in
microwave ovens.
• Do not use recycled paper
products. Recycled paper
towels, napkins and waxed
paper can contain metal
flecks which may cause
arcing or ignite. Paper
products containing nylon
or nylon filaments should
be avoided, as they may
also ignite.
• Some styrofoam trays
(like those that meat is
packaged on) have a thin
strip of metal embedded
in the bottom. When
microwaved, the metal can
burn the floor of the oven
or ignite a paper towel.
• Do not use the microwave
to dry newspapers.
• Not all plastic wrap is
suitable for use in
microwave ovens.
Check the package
for proper use.
• Paper towels, waxed paper
and plastic wrap can be
used to cover dishes in
order to retain moisture
and prevent spattering.
Be sure to vent plastic
wrap so steam can escape.
• Cookware may become
hot because of heat
transferred from the
heated food. Pot holders
may be needed to handle
the cookware.
• “Boilable” cooking
pouches and tightly closed
plastic bags should be slit,
pierced or vented as
directed by package.
If they are not, plastic
could burst during or
immediately after cooking,
possibly resulting in injury.
Also, plastic storage
containers should be at
least partially uncovered
because they form a tight
seal. When cooking with
containers tightly covered
with plastic wrap, remove
covering carefully and
direct steam away from
hands and face.
MICROWAVESAFE
COOKWARE
How to test for a microwavesafe dish.
8
39-40365-1v01 2/5/04 10:32 AM Page 8
9
• Use foil only as directed
in this guide. TV dinners
may be microwaved in
foil trays less than 3/4″
high; remove the top foil
cover and return the tray
to the box. When using
foil in the microwave
oven, keep the foil
at least 1″ away from
the sides of the oven.
• Plastic cookware—Plastic
cookware designed for
microwave cooking is
very useful, but should
be used carefully. Even
microwave-safe plastic
may not be as tolerant of
overcooking conditions
as are glass or ceramic
materials and may soften
or char if subjected
to short periods of
overcooking. In longer
exposures to overcooking,
the food and cookware
could ignite.
Follow these guidelines:
1 Use microwave-safe
plastics only and use
them in strict compliance
with the cookware
manufacturer’s
recommendations.
2 Do not microwave empty
containers.
3 Do not permit children
to use plastic cookware
without complete
supervision.
The fan will operate
automatically under
certain conditions (see
Automatic Fan feature).
Take care to prevent the
starting and spreading of
accidental cooking fires
while the vent fan is in use.
• Clean the underside of
the microwave often. Do
not allow grease to build
up on the microwave or
the fan filters.
• In the event of a grease
fire on the surface units
below the microwave
oven, smother a flaming
pan on the surface unit
by covering the pan
completely with a lid, a
cookie sheet or a flat tray.
• Use care when cleaning
the vent fan filters.
Corrosive cleaning
agents, such as lye-based
oven cleaners, may
damage the filters.
• When preparing
flaming foods under
the microwave, turn
the vent fan on.
• Never leave surface units
beneath your microwave
oven unattended at high
heat settings. Boilovers
cause smoking and greasy
spillovers that may ignite
and spread if the
microwave vent fan is
operating. To minimize
automatic fan operation,
use adequate sized
cookware and use high
heat on surface units
only when necessary.
THE VENT
FAN
39-40365-1v01 2/5/04 10:32 AM Page 9
IMPORTANT SAFETY INFORMATION
GROUNDING INSTRUCTIONS/OPTIONAL KITS
WARNING
Improper use of the
grounding plug can result
in a risk of electric shock.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the risk
of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a power cord having a
grounding wire with a
grounding plug. The plug
must be plugged into an
outlet that is properly
installed and grounded.
Consult a qualified
electrician or service
technician if the
grounding instructions
are not completely
understood, or if doubt
exists as to whether the
appliance is properly
grounded.
If the outlet is a standard
2-prong wall outlet, it is
your personal responsibility
and obligation to have it
replaced with a properly
grounded 3-prong wall
outlet.
Do not under any
circumstances cut or
remove the third
(ground) prong from
the power cord.
Do not use an adapter
plug with this appliance.
Do not use an extension
cord with this appliance.
If the power cord is too
short, have a qualified
electrician or service
technician install an outlet
near the appliance.
For best operation, plug
this appliance into its own
electrical outlet to prevent
flickering of lights, blowing
of fuse or tripping of
circuit breaker.
GROUNDING
INSTRUCTIONS
Filler Panel Kits
JX40WH—White
JX41—Black
When replacing a 36″
range hood, filler panel
kits fill in the additional
width to provide a custom
built-in appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3″-wide filler panels.
Filter Kits
JX81A—Recirculating
Charcoal Filter Kit
Filter kits are used when
the microwave oven cannot
be vented to the outside.
Available at extra cost from
your Hotpoint supplier.
Optional Kits
Ensure proper ground
exists before use.
10
39-40365-1v01 2/5/04 10:32 AM Page 10
Operating Instructions
Features of Your Microwave
(Throughout this manual, features and appearance
may vary from your model.)
1 Door Handle. Pull to
open the door. The
door must be securely
latched for the
microwave to operate.
2 Door Latches.
3 Window with Metal
Shield. Screen allows
cooking to be viewed
while keeping
microwaves confined
in the oven.
4 Touch Control Panel
Display.
5 Cooktop Lights.
6 Grease Filters.
7 Removable Turntable.
Turntable and support
must be in place
when using the oven.
The turntable may be
removed for cleaning.
8 Convenience Guide.
NOTE: Rating plate, oven
vent(s) and oven light are
located on the inside walls
of the microwave oven.
Features
321
5
5
6
8
7
4
11
6
1000 Watts
39-40365-1v01 2/5/04 10:32 AM Page 11
Time Features
Time Cooking
Press Enter
TIME COOK I & II (Press once or twice) Amount of cooking time.
DEFROST AUTO/TIME (Press twice) Amount of defrosting time.
MINUTE COOK Starts immediately!
POWER LEVEL Power level 1–10.
12
Quick Start
The Controls on Your Microwave Oven
(Throughout this manual, features and appearance may vary from your model.)
1
You can
microwave by
time or with the
convenience
features.
39-40365-1v01 2/5/04 10:32 AM Page 12
TIME
COOK
ADD
30 SEC
POWER
LEVEL
1 2
minute cook — 1 - 6
4 5
DEFROST
AUTO/TIME
POWER
LEVEL
3
6
Loading...
