SAMSUNG RTS-EH10 User Manual

Room

Cinema System

user Manual

HE10

imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register your product at

www.samsung.com/global/register

features

Multi-Disc Playback & FM Tuner

The RTS-HE10 combines the convenience of multi-disc playback capability, including, DVD-VIDEO, CD, MP3-CD, WMACD, DivX, CD-R/RW, with a sophisticated FM tuner, all in a single player.

USB Host support

You can connect and play ﬁ les from external USB storage devices such as MP3 players, USB ﬂ ash memory, etc. using the Room Cinema's USB HOST function.

TV Screen Saver Function

If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen. The

RTS-HE10

mode.

Power Saving Function

The

RTS-HE10

HDMI

HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.

WHAT’S INCLUDED

Check for the supplied accessories below.

automatically switches itself into the power saving mode after 20 minutes in the Screen Saver

automatically shuts itself off after 20 minutes in Stop mode.

Audio Video Cable

HDMI Cable FM Antenna

User's Manual

Remote Control / Batteries (AAA

size)

safety information

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage”

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1

WARNING : To reduce the risk of ﬁ re or electric shock, do not expose this appliance to rain or moisture.

CAUTION :

INSERT.

•

CAUTION

•

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

This apparatus shall always be connected to a AC outlet with a protective grounding connection. To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁ lled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at any time.

inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CLASS 1 LASER PRODUCT

This Compact Disc player is classiﬁ ed as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those speciﬁ ed herein may result in hazardous radiation exposure.

CAUTION : INVISIBLE LASER RADIATION WHEN

OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

safety information

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The main lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse ﬁ tted in the plug. Replacement covers are available from your dealer. If the ﬁ tted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a main socket as there is a risk of shock hazard from the bared ﬂ exible cord. Never attempt to insert bare wires directly into a main socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the main lead are coloured in accordance with the following code:–

LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARN ING : DO NOT CONN ECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED

WITH THE LETTER E OR BY THE EARTH SYMBOL GREEN AND YELLOW.

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government ofﬁ ce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

BLUE = NEUTRAL BROWN =

, OR COLOURED GREEN OR

PRECAUTIONS

Ensure that the AC power supply in your house complies with the identiﬁ cation sticker located on the back of your player. Install your player horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm). Make sure the ventilation slots are not covered. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the Room Cinema System to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.

During thunderstorms, disconnect the AC main plug from the wall outlet. Voltage peaks due to lightning could damage the unit.

Protect the player

(i.e. vases) , and excess heat (e.g.ﬁ replace) or equipment creating strong magnetic or electric ﬁ elds (i.e.speakers...). Disconnect the power cable from the AC supply if the player malfunctions. Your player is not intended for industrial use. Use of this product is for personal use only.

Condensation may occur if your player or disc has been stored in cold temperatures. If transporting the player during the winter,

mately 2 hours until the unit has reached room temperature

wait approxi before using.

from moisture

Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and malfunction of the unit.

The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

contents

FEATURES

SAFETY INFORMATION

GETTING STARTED

DESCRIPTION

REMOTE CONTROL

2 What’s included

3 Safety Warnings 5 Precautions

8 Before Reading the User’s Manual 9 Playable Discs 9 Do not use the following types of disc! 9 Copy Protection 10 Disc Type and Characteristics

11 Front Panel 12 Rear Panel

14 Tour of the Remote Control

CONNECTIONS

BEFORE USING YOUR ROOM CINEMA

PLAYBACK

16 Connecting the Speakers 18 Connecting the Video Out to your TV 20 HDMI Function 21 Connecting Audio from External Components 22 Connecting the FM Antenna

24 Disc Playback 25 MP3/WMA-CD Playback 26 JPEG File Playback 28 DivX Playback 30 Using the Playback Function 36 Playing Media Files using the USB Host

Feature

SYSTEM SETUP

38 Setting the Language 39 Setting The Audio 40 Setting The Display 43 Setting The Password Parental Controls 43 Rating Level 44 Change Password 44 DIVX(R) Registration 45 Setting the DRC (Dynamic Range

Compression)

45 Setting the EQUALIZER Function

RADIO

TROUBLESHOOTING

USB HOST FEATURE SUPPORTED

PRODUCTS

APPENDIX

46 Listening to Radio

49 Digital Camera 49 USB Flash Disc 49 MP3 Player

50 Cautions on Handling and Storing Discs 51 Speciﬁ cations

getting started

BEFORE READING THE USER’S MANUAL

Make sure to check the following terms before reading the user manual.

Icons that will be used in manual

Icon Term Deﬁ nition

DVD

CD This involves a function available with a data CD (CD-R or CD-RW).

MP3 This involves a function available with CD-R/-RW discs.

JPEG This involves a function available with CD-R/-RW discs.

DivX

Caution

Note

In this manual, the instructions marked with "DVD ( )" are applicable to DVD-VIDEO,



DVD-AUDIO and DVD-R/-RW discs that have been recorded in Video Mode and then ﬁ nalized. Where a particular DVD type is mentioned, it is indicated separately.

If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be



playable.

This involves a function available with DVD or DVD-R/DVD-RW discs that have been recorded and ﬁ nalized in Video Mode.

This involves a function available with MPEG4 discs. (DVD±R/RW, CD-R or CD-RW)

This involves a case where a function does not operate or settings may be cancelled.

This involves tips or instructions on the page that help each function operate.

About the use of this user’s manual

Be sure to be familiar with Safety Instructions before using this product. (See pages 3~4)

1) If a problem occurs, check the Troubleshooting. (See pages 47~48)

prior written permission of Samsung Electronics Co.,Ltd.

DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital

surround sound and MPEG-2 video compression technology. Now you can enjoy these realistic effects in the home, as if you were in a movie Cinema or concert hall.

1 6

Room Cinema Systems and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play. The Region Number for this player is given on the rear panel of the player. (Your Room Cinema System will only play DVDs that are labeled with identical region codes.)

PLAYABLE DISCS

Disc Type Mark (Logo)

DVD-VIDEO VIDEO

AUDIO-CD

DivX

COMPACT

DIGITAL AUDIO

Recorded

Signals

AUDIO

AUDIO + VIDEO

Disc Size Max. Playing Time

Approx. 240 min. (single-sided)

12 cm

8 cm

12 cm 74 min.

8 cm 20 min.

12 cm 74 min.

8 cm 20 min.

Approx. 480 min. (double-

Approx. 80 min. (single-sided)

Approx. 160 min. (double-

DO NOT USE THE FOLLOWING TYPES OF DISC!

LD, CD-G, CD-I, CD-ROM, DVD-RAM and DVD-ROM discs cannot be played on this player.

•

DVD discs purchased abroad may not play on this player.

•

● GETTING STARTED

sided)

COPY PROTECTION

•

Many DVD discs are encoded with copy protection. Because of this, you should only connect your Room Cinema System directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

•

This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

getting started

DISC TYPE AND CHARACTERISTICS

This product does not support Secure (DRM) Media ﬁ les.

CD-R Discs

❖

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and

•

the condition of the disc.

Use a 650MB/74 minute CD-R disc.

•

Do not use CD-R discs over 700MB/80 minute as they may not be played back.

Some CD-RW (Rewritable) media, may not be playable.

•

Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open,

•

you may not be able to fully play the disc.

CD-R MP3 Discs

❖

Only CD-R discs with MP3 ﬁ les in ISO 9660 or Joliet format can be played.

•

MP3 ﬁ le names should be 8 characters or less in length and contain no blank spaces or special characters

•

(. / = +).

Use discs recorded with a compression/decompression data rate greater than 128Kbps.

•

Only ﬁ les with the "mp3" and extensions can be played.

•

Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession

•

disc, the disc can be played only up to the blank segment.

If the disc is not closed, it will take longer to begin playback and not all of the recorded ﬁ les may be played.

•

For ﬁ les encoded in Variable Bit Rate (VBR) format, i.e. ﬁ les encoded in both low bit rate and high bit rate

•

(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.

A maximum of 500 tracks can be played per CD.

•

A maximum of 300 folders can be played per CD.

•

CD-R JPEG Discs

❖

Only ﬁ les with the "jpg" extensions can be played.

•

If the disc is not closed, it will take longer to start playing and not all of the recorded ﬁ les may be played.

•

Only CD-R discs with JPEG ﬁ les in ISO 9660 or Joliet format can be played.

•

JPEG ﬁ le names should be 8 characters or less in length and contain no blank spaces or special characters

•

(. / = +).

Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession

•

disc, the disc can be played only up to the blank segment.

A maximum of 9,999 images can be stored on a single CD.

•

When playing a Kodak/Fuji Picture CD, only the JPEG ﬁ les in the picture folder can be played.

•

Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

•

DVD±R/RW, CD-R/RW DivX Discs

❖

Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX ﬁ le created by

•

the user might not play.

Software updates for incompatible formats are not supported.

•

(Example : QPEL, GMC, resolution higher than 800 x 600 pixels, etc.)

Sections with a high frame rate might not be played while playing a DivX ﬁ le.

•

For more information about the formats authorized by DivX Networks, Inc., please visit "www.divxnetworks.

•

net".

description

FRONT PANEL

● DESCRIPTION

Display

DISC TRAY

POWER( ) BUTTON

SKIP ( ) BUTTON

STOP (¦) BUTTON PLAY/PAUSE ( )

BUTTON

Service for Speaker system is not available. For speaker system replacement please contact your



authorize Samsung Service Center. The maind unit (R Speaker) has a groove on the front side. You can open it by puliling it with a



thin and hard end tool (such as ruller or screwdriver). Do not open unless for service purpose If you press the button. there will be a Bip Sound.



There will be a delay between 3 seconds, when you touch the Power ON/OFF.



SKIP ( ) BUTTON

Volume Control (+)

Volume Control (-)

EJECT BUTTON

description

REAR PANEL

SPEAKER OUTPUT CONNECTORS Connect Left, subwoofer speakers.

USB Host

AUX IN JACK

HDMI OUT JACK

Connect digital still camera, MP3 Player, memory stick, card reader, or other removable storage devisces.

Connect to the analog output of an external device (such as a MP3 Player)

Use the HDMI cable, connect this HDMI output terminal to the HDMI input terminal on your TV for the best quality picture.

FM 75Ω Connect the FM antenna.

AUDIO L, R OUT JACKS

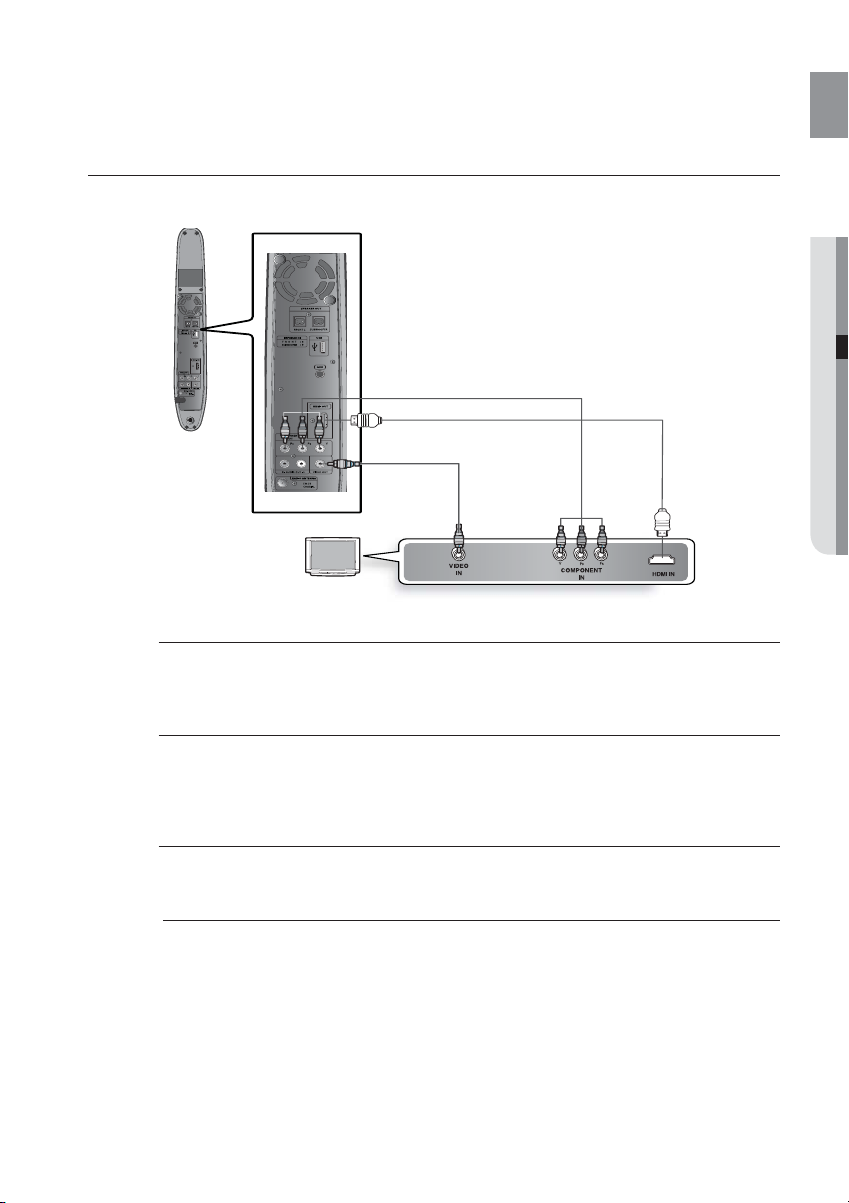

VIDEO OUTPUT JACK Connect the TV's Video Input Jack (Video IN) to the Video Out Jack.

COMPONENT VIDEO OUTPUT JACKS Connect a TV with Component video inputs to these jacks.

COOLING FAN

You can connect your system to the television using the audio cable if the appropriate input is available on the television.

The fan always revolves when the power is on. Ensure a minimum of 10 Cm of clear space on all sides of the fan when installing the product.

remote control

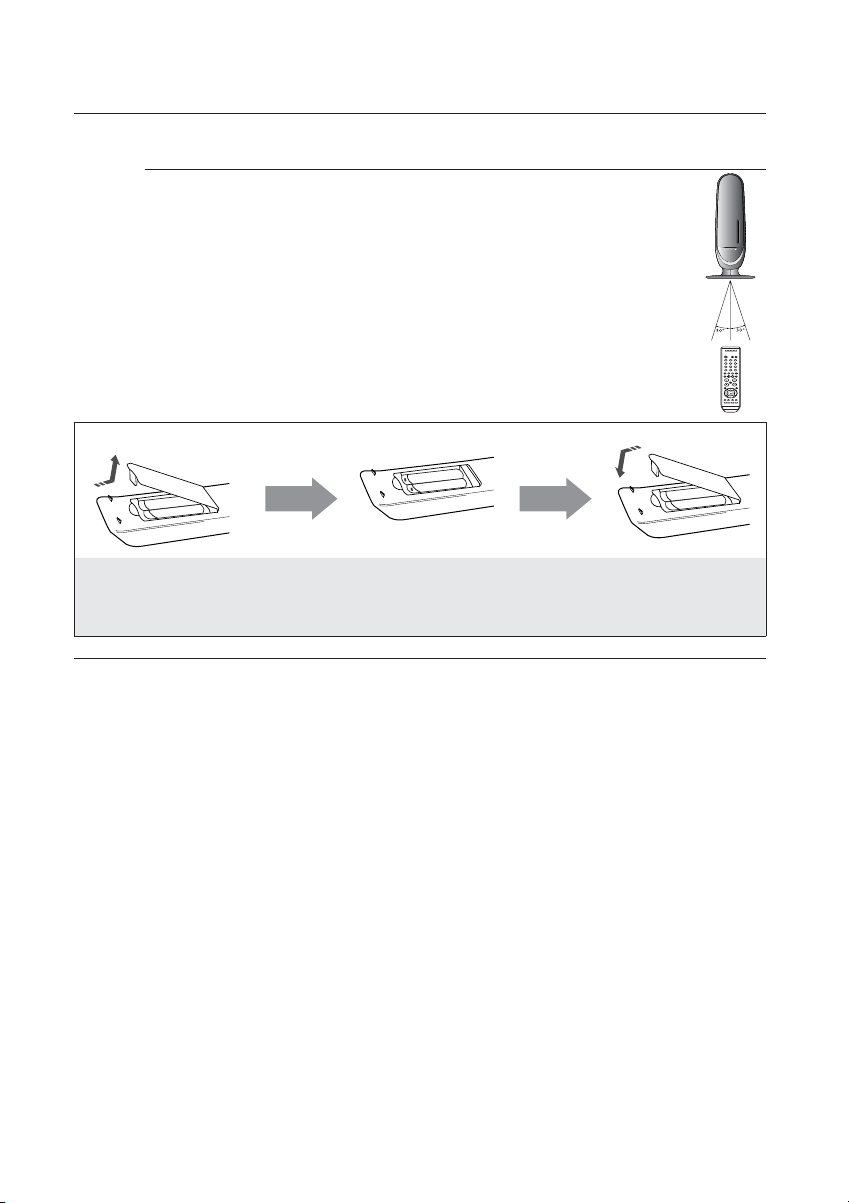

Operation Range of the Remote Control

The remote control can be used up to approximately 23 feet (7 meters) in a straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Insert Remote Batteries

● REMOTE CONTROL

1. Remove the battery cover in the direction of the arrow.

Follow these precautions to avoid leaking or cracking cells:

Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–).



Use the correct type of batteries. Batteries that look similar may differ in voltage.



Always replace both batteries at the same time.



Do not expose the batteries to heat or a ﬂ ame.



2. Insert two 1.5V AAA batteries, paying attention to the correct polarities (+ and –).

3. Replace the battery cover.

remote control

TOUR OF THE REMOTE CONTROL

1 2

29 28

27 26

4 5

6 7

12 13

19 18 17

DVD, TUNER RECEIVER button

POWER button

Number (0~9) buttons

REMAIN button

4 5

STEP button

REVERSE/FORWARD Skip buttons

STOP Button

MUTE button

VOLUME button

MENU button

Preset †

Cursor/ Enter button

SUBTITLE button

AUDIO button

Virtual Sound button

EQ button

ZOOM, MO/ST button

AUTO SCAN, ANGLE button

π, Seek Up, Down/

EXIT button

INFO button

RETURN button

TUNNING button

REVERSE/FORWARD SEARCH

button

23 24

25 26

27 28 29

PLAY and PAUSE button

REPEAT button

CANCEL button

EJECT button

SLEEP button

USB button

button

AUX

● REMOTE CONTROL

connections

This section involves various methods of connecting the Digital Room Cinema to other external components.

Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

CONNECTING THE SPEAKERS

L R

Position of Digital Room Cinema

Place it on a stand or cabinet shelf, or under the TV stand.

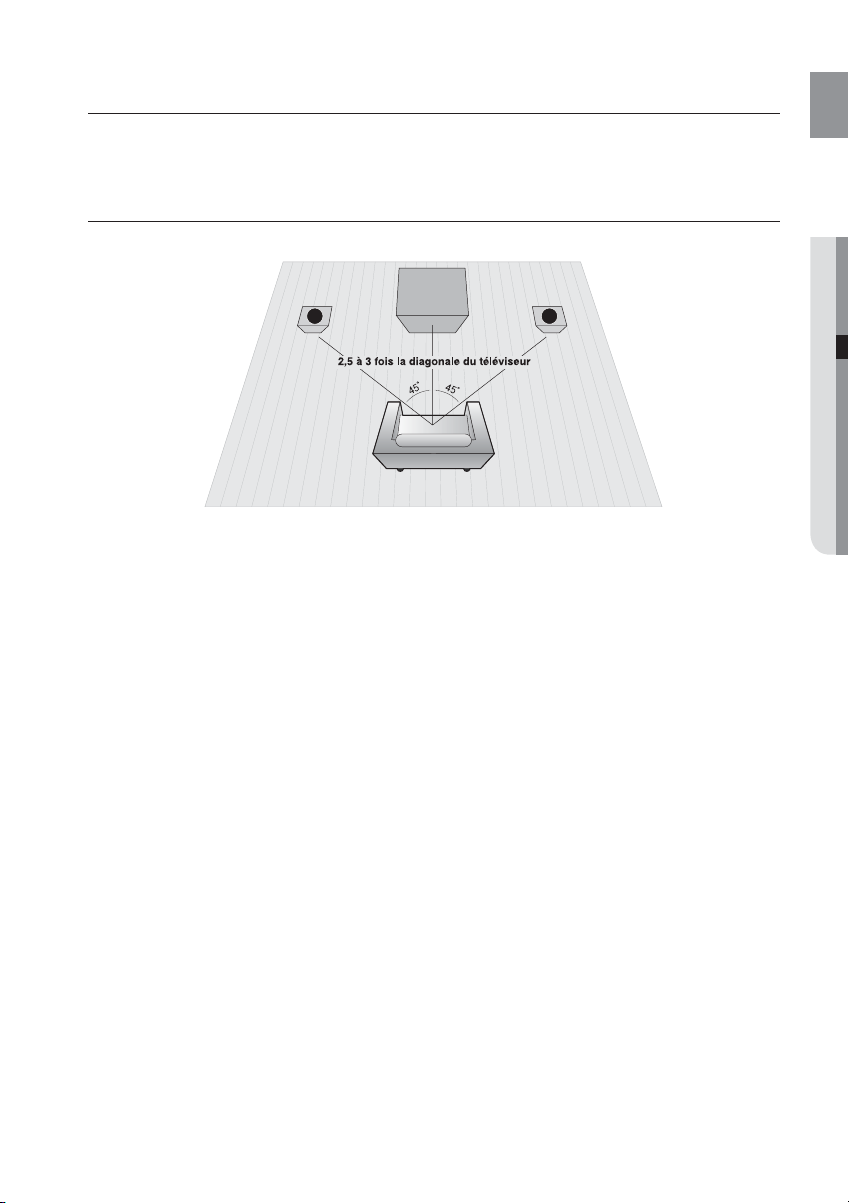

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TVs 2~2.4m (6~8feet)

For 55" TVs 3.5~4m (11~13feet)

Front Speakers

Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front

of the center speakers.

Subwoofer g

The position of the subwoofer is not so critical. Place it anywhere you like.

Connecting The Speakers

Press down the terminal tab on the back of the speaker.

Insert the black wire into the black terminal (–) and the red wire

into the red (+) terminal, and then release the tab. Connect the connecting plugs to the back of the Room Cinema.

Make sure the colors of the speaker terminals match the colors

•

of the connecting plugs.

Black

● CONNECTIONS

Red

Front Speaker (L)

Do not let children play with or near the speakers. They could get hurt if a speaker falls.



When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is



correct. Keep the subwoofer speaker out of reach of children so as to prevent children from



inserting their hands or alien substances into the duct (hole) of the subwoofer speaker. Do not hang the subwoofer on the wall through the duct (hole).



If you place a speaker near your TV set, screen color may be distorted because of the



magnetic ﬁ eld generated by the speaker. If this occurs, place the speaker away from your TV set.

Subwoofer

connections

CONNECTING THE VIDEO OUT TO YOUR TV

Choose one of the three methods for connecting to a TV.

METHOD3 (supplied)

METHOD2 METHOD1

(supplied)

METHOD 1 : HDMI

Connect the HDMI cable from the HDMI OUT jack on the back of the Room Cinema System to the HDMI IN jack on your TV.

METHOD 2 : Component Video

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (P System to the Component Video Input jacks on your TV.

, PB and Y) jacks on the back of the Room Cinema

METHOD 3 : Composite Video

Connect the supplied Video cable from the VIDEO OUT jack on the back of the Room Cinema System to the VIDEO IN jack on your TV.

This product operates in Interlace scan mode 576i(480i) for component output.



HDMI Auto Detection Function

The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.

HDMI (High Deﬁ nition Multimedia Interface)

•

HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD Room Cinema transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

•

HDMI connection description

HDMI connector - Supports video and digital audio data.

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

Why does Samsung use HDMI?

•

Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Room Cinema) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV.

What is the HDCP?

•

HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device

(TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

● CONNECTIONS

connections

HDMI FUNCTION

Resolution Selection

This function allows the user to select the screen resolution for HDMI output.

In Stop mode, press the Menu button button on the remote control, to setup the HDMI output.

Resolutions available for the HDMI output are 576p(480p), 720p, 1080i/1080p.

•

SD(Standard Deﬁ nition) resolution is 576p(480p) and HD

•

(High Deﬁ nition) resolution is 720p, 1080i/1080p.

The default value of HDMI output is 576P(480P).

If the TV does not support the conﬁ gured



resolution, you will not be able to see the picture properly.



See your TV owner's manual for more information on how to select the TV's Video Input source.

Why use HDMI (High Deﬁ nition Multimedia Interface)?

This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection.

CONNECTING AUDIO FROM EXTERNAL COMPONENTS

AUX : Connecting an External Component/MP3 player

Components such as an MP3 Player

Audio Cable (not supplied)

Audio OUT

● CONNECTIONS

Connect AUX IN (Audio) on the Room Cinema to the Audio Out of the external component/MP3

player.

Press the AUX button on the remote control to select AUX input.

When the unit is powered on and you connect an iPod MP3 player, the unit will charge



your iPod's battery.

connections

CONNECTING THE FM ANTENNA

Connect the FM antenna supplied to the FM 75Ω COAXIAL Jack.

Slowly move the antenna wire around until you ﬁ nd a location where reception is good, then

fasten it to a wall or other rigid surface.

FM Antenna

(supplied)

This unit does not receive AM broadcasts.



Cooling Fan

The cooling fan supplies cool air to the unit to prevent overheating. Please observe the following cautions for your safety.

Make sure the unit is well-ventilated. If the unit has poor

•

ventilation, the temperature inside the unit may rise and may damage it.

•

Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a newspaper or cloth, heat may build up inside the unit and ﬁ re may result.)

before using your room Cinema

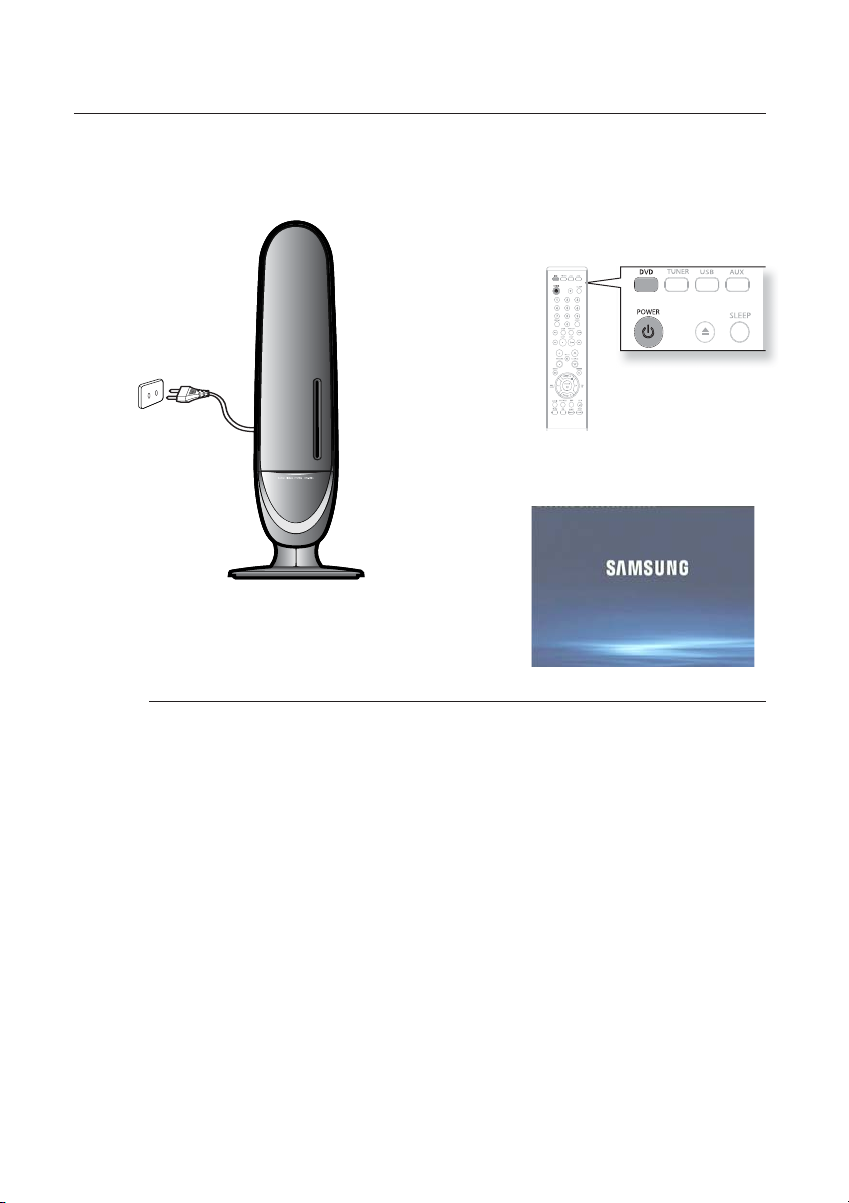

The Room Cinema System

Plug the main unit's power cord into the AC power supply.

Press the DVD button to switch to DVD mode to operate the

DVD Room Cinema.

No Disc

● BEFORE USING YOUR ROOM CINEMA

When you turn the power on or off by using the key touch on the main set, there will be



a delay time about 3 seconds.

There will be a delay time 2 seconds, while you were ejecting the disc.



playback

DISC PLAYBACK

Load a disc vertically into the Disc Insert Hole.

Place a disc vertically into a disc slot with the disc

•

facing right.

PLAY ( ) button.

Playback starts automatically.

•

To stop playback, press the STOP ( playback.

If pressed once, PRESS PLAY is displayed and the stop

•

If pressed twice, STOP is displayed, and if the PLAY (

To temporarily pause playback, press the PAUSE (

) button during playback.

•

To resume playback, press the PLAY ( ) button again.

position will be stored in memory. If the PLAY (

) button or ENTER button is pressed,

playback resumes from the stop position. (This function works only with DVDs.)

button is pressed, playback starts from the beginning.

Depending on the content of the disc, the initial screen may appear different.

 

Pirated discs will not run in this player because it violates the CSS (Content Scrambling System : a copy protection system) recommendations.

) button during

)

MP3/WMA-CD PLAYBACK

Data CDs (CD-R, CD-RW) encoded in MP3/WMA format can be played.

Load the MP3/WMA disc.

The MP3/WMA menu screen will appear and

•

playback will start. The appearance of the menu depends on the

•

MP3/WMA disc. WMA-DRM ﬁ les cannot be played.

•

In Stop mode, use the Cursor

2. to select the album, and then press the ENTER button.

•

Use the Cursor †, π button to select the track.

To change the album, use the Return and Cursor †, button to select another album, and then press the ENTER.

Press the STOP

(■) button to stop playback.

†, π, √, ®

button

Because You

...

Because You

Cactus

Sad Dayu

Wonderful

● PLAYBACK

Off

00:00:23

Return

REPEAT

Repeat

Enter

Depending on the recording mode, some MP3/WMA-CDs may not play.



Table of contents of a MP3-CD varies depending on the MP3/WMA track format



recorded on the disc.

To play a ﬁ le icon in the screen,

Press the Cursor †, π, √, ® button when it is in Stop mode and select a desired icon from

•

the top part of the menu.

Stop

WMA

JPEG

MP3

MPEG4

Enter Return

Off

00:00:00

Music File Icon : To play music ﬁ les only, select the

Icon.

Image File Icon : To view image ﬁ les only, select the Icon. Movie File Icon : To view movie ﬁ les only, select the Icon.

playback

Off

Stop

...

00:00:00

Enter Return

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG ﬁ les on a PC can be stored on a CD and then played back with this Room Cinema.

Picture CD Playback

If you insert a Picture (JPEG) CD Disc into the Room Cinema System, you can see the folder directory.

1 Press the π or † button to select the picture you want to view, then press the ENTER button. The selected picture is displayed.

2 Press the

Rotation

l√√

®®l

button to display the previous or next picture.

Press the √ or ® button to select . Each time the ENTER button is pressed, the picture rotates 90 degrees clockwise.

Zoom

Press the √ or ® button to select . Each time the ENTER button is pressed, the picture is enlarged up to 4X. (Normal ➝ 2X ➝ 4X ➝ 2X ➝ Normal)

Slideshow

Press the √ or ® button to select . Press the ENTER button. The 3 icons are displayed for time interval.

Timer:

● PLAYBACK

Press the √ or ® button to select one of these. Press the ENTER button.

The pictures change automatically with about an 6 second interval. The pictures change automatically with about an 12 second interval. The pictures change automatically with about an 18 second interval.

• Depending on the file size, each interval --between images may take longer or shorter --than the manual suggests.

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel)



for standard JPEG ﬁ les and 2048 x 1536 (or 3.0 MPixel) for progressive image ﬁ les. If a JPEG ﬁ le is played when the HDMI output resolution is 720p/1080i/1080p, the mode



is automatically converted to 576p(480p) mode.

playback

DIVX PLAYBACK

The functions on this page apply to DivX disc playback.

Skip Forward/Back

During playback, press the [

•

Goes to the next ﬁ le whenever you press the $ button, if there are over 2 ﬁ les in the disc.

•

Goes to the previous ﬁ le whenever you press the # button, if there are over 2 ﬁ les in the disc.

l√√

®®l

]

button.

Fast Playback

During playback, press the , button. To play back the disc at a faster speed, press the  or  button during playback.

•

Each time you press either button, the playback speed will change as follows: 2x  4x  8x.

Audio Display

Press the AUDIO button.

•

If there are multiple audio tracks on a disc, you can toggle between them.

•

Each time you press the button, your selection will toggle between AUDIO (1/N, 2/N ...) and .

is displayed when there is one supported language in the disc.



Subtitle Display

Press the SUBTITLE button.

Each time you press the button, your selection will toggle between SUBTITLE (1/N, 2/N ...) and

•

SUBTITLE OFF.

•

If the disc has only one subtitle ﬁ le, it will be played automatically.

•

See number 2 (Caption Function) below for more details concerning Subtitle usage with DivX discs.

DivX(Digital internet video eXpress)

DivX is a video ﬁ le format developed by Microsoft and is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie at near DVD-quality video and audio.

Supported Formats

This product only supports the following media formats.If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format AVI WMV

Supported Versions DivX3.11~DivX5.1, XviD V1/V2/V3/V7

Supported Audio Formats

Format MP3 WMA AC3

Bit Rate 80~384kbps 56~128kbps 128~384kbps

Sampling Frequency 44.1khz 44.1/48khz

•

Aspect Ratio : Although the default DivX resolution is 640x480 pixels (4:3), this product supports up to 800x600 pixels (16:9). TV screen resolutions higher than 800 will not be supported.

•

When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.

Caption Function

•

You must have some experience with video extraction and editing in order to use this feature properly.

•

To use the caption function, save the caption ﬁ le (*.smi) in the same ﬁ le name as that of the DivX media ﬁ le (*.avi) within the same folder. Example. Root Samsung_007CD1.avi

•

Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and Chinese) for the ﬁ le name.

Samsung_007CD1.smi

● PLAYBACK

playback

ENG 5.1CH

ENG

USING THE PLAYBACK FUNCTION

Displaying Disc Information

To view the current Title, Chapter, and counter position, press the INFO button during DVD playback. The display screen can also be used to quickly choose a title, chapter, or

playing time.

View the Display

During DVD playback, press the INFO button.

•

To make the screen disappear, press the EXIT button again.

Press the

button.

•

To make the screen disappear, press the EXIT button again.

or † button to select the desired item.

√

or ® button to make the desired setup, then press the ENTER

You may use the number buttons of the remote control to directly access a title, chapter or to start the playback from the desired time.

To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identiﬁ ed. A DVD may contain several different titles. For example, if a disc contains four different movies, each might be considered a title.

Most of DVD discs are recorded in chapters so that you can quickly ﬁ nd a speciﬁ c passage. Each Title on a DVD is usually divided into chapters.

Allows playback of the ﬁ lm from a desired time.

Enter

Refers to the language of the ﬁ lm English 5.1CH.A DVD disc can have up to eight different soundtracks.

Refers to the subtitle languages available in the disc. You will be able to choose the subtitles language or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.

Checking the Remaining Time

Press the REMAIN button.

•

For checking the total remaining time of being played.

soundtrack. In the example, the soundtrack is played in

+ 76 hidden pages
