Refrigerator
user manual
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
Free Standing Appliance
English
Code No. DA99-01906D REV(0.1)
Page 2
2_ features
features of your new refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR(OPTIONAL)
Your Samsung Refrigerator comes equipped with many space-saving, innovative storage
and energy-efficient features.
• NEW WATER DISPENSER
Flushed & isolated dispenser.
• BLACK CLEAR LED DISPLAY
With luxurious black window, you can see the neat & clear design.
• HIGH-ENERGY EFFICIENCY
Optimized power consumption.
• DELUXE VEGETABLE BIN (COOL EVER ZONE)
Optimized humidity control keeps vegetables & fruits fresh longer.
• DOOR ALARM
A helpful beeper alerts you if door is ajar.
For easy future reference write the model and serial
number down. You will find your model number on the
left hand side wall of the refrigerator.
Model #
Serial #
CE Notice (European Union)
This product has been determined to be in compliance with the Low
Voltage Directive (2006/95/EC), the Electromagnetic Compatibility
Directive (2004/108/EC) and Energy efficiency Directive (96/57/EC) of the
European Union.
Page 3
These warning signs are here to prevent injury to you and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future reference.
Contains fluorinated greenhouse gases covered by the Kyoto Protocol.
Hermetically sealed system.
Do not vent gases into the atmosphere.
Refrigerant type: R-134a
Quantity: 0.16Kg
Global Warming Potential (GWP) = 1300
safety information _3
safety information
SAFETY INFORMATION
• Before operating the appliance, please read this manual thoroughly and retain it
for your reference.
• Use this appliance only for its intended purpose as described in this instruction
manual. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
• Because these following operating instructions cover various models (electronic
control type, mechanical control type) the characteristics of your refrigerator
may differ slightly from those described in this manual.
CAUTION/WARNING SYMBOLS USED
OTHER SYMBOLS USED
Represents something you must NOT do.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug from the socket.
Represents a ground is needed to prevent electric shock.
It is recommended that this symbol be handled by service man.
WARNING
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
WARNING
CAUTION
Page 4
4_ safety information
safety information
SEVERE
WARNING SIGNS FOR DISPOSAL
• When disposing of this or other refrigerator/s, remove the door/door seals, door
latch so that small children or animals cannot become trapped inside. Children
should be supervised to ensure that they do not play with the appliance.
• Please dispose of the packaging material for this product in an environmentally
friendly manner.
• Leave the shelves in place so that children may not easily climb inside. Ensure that
none of the pipes on the back of the appliance are damaged prior to disposal.
• R600a or R134a is used as a refrigerant. Check the compressor label on the rear
of the appliance or the rating label inside the fridge to see which refrigerant is used
for your refrigerator. When this product contains flammable gas(Refrigerant R600a),
contact your local authority in regard to safe disposal of this product. Cyclopentane
is used as a insulation blowing gas. The gases in insulation material require
special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product. Ensure that none of the pipes on the
back of the appliances are damaged prior to disposal. The pipes shall be broke in
the open space.
SEVERE WARNING SIGNS FOR INSTALLATION
• This refrigerator must be properly installed and located in accordance with the
manual before it is used.
• Do not install the refrigerator in a damp place or place where it may come in contact
with water.
- Deteriorated insulation of electrical parts may cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight or expose to the heat from stoves,
room heaters or other appliance.
• The refrigerator must be grounded.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
• Never use gas pipes, telephone lines or other potential lightening rods as ground.
- Improper use of the ground plug can result in electric shock.
• Do not plug several appliances into the same multiple power board. The refrigerator
should always be plugged into its own individual electrical which has a voltage
rating that matched the rating plate.
- This provides the best performance and also prevents overloading house wiring
circuits, which could cause a fire hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of fire.
• Connect the power plug in proper position with the cord hanging down.
- If you connect the power plug upside down, wire can get cut off and cause fire or
electric shock.
WARNING
WARNING
Page 5
safety information _5
• Do not use a cord that shows cracks or abrasion damage along its length or at
either end.
• If the power cord is damaged, have it replaced immediately by the manufacturer or
its service agent.
• Do not bend the power cord excessively or place heavy articles on it.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This constitutes a fire hazard.
• Make sure that the power plug is not squashed or damaged by the back of the
refrigerator.
• Never unplug your refrigerator by pulling on the power cord. Always grip plug rmly
and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, fire and/or electric shock.
• If the power cord is damaged, have it replaced immediately by the manufacturer or
its service agent.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if children put them on their head.
• The appliance must be positioned so that the plug is accessible after installation.
CAUTION SIGNS FOR INSTALLATION
• Allow sufcient space to install the refrigerator on a at surface.
- If your refrigerator is not level, the internal cooling system may not work correctly.
• Keep ventilation opening in the appliance enclosure or mounting structure clear of
obstruction.
• Allow the appliance to stand for 2 hours after installation.
SEVERE WARNING SIGNS FOR USING
• Do not insert the power plug with wet hands.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not let children hang on the door. If not, a serious injury may occur.
• There is a Risk of children entrapment. Do not let children enter inside of the
refrigerator.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not let children step on drawer's cover.
- It can be broken and cause slip accident.
CAUTION
WARNING
Page 6
6_ safety information
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or
material damage.
• Do not touch the inside walls of the freezer or products stored in the freezer with
wet hands.
- This may cause frostbite.
• Bottles should be stored tightly together so that they do not fall out.
• Never put ngers or other objects into the dispenser hole.
- It may cause personal injury or material damage.
• Do not store volatile or ammable substances in the refrigerator.
- The storage of benzene, thinner, alcohol, ether, LP gas and other such products
may cause explosions.
• This product is intended only for the storage of food in a domestic environment.
• Do not store pharmaceuticals products, scientic materials or temperature-
sensitive products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• Do not place or use electrical appliance inside the refrigerator/freezer, unless they
are of a type recommended by the manufacturer.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact
your Samsung Electronics service center.
• Do not dissemble or repair the refrigerator by yourself.
- You run risk of causing a fire, malfunction and/or personal injury.
• If any dust or water is in Refrigerator, pull out power plug and contact your
Samsung Electronics service center.
- Otherwise there is a risk of fire.
• If gas leak is detected, avoid any naked ames or potential sources of ignition and
air the room in which the appliance is standing for several minutes.
• Do not use mechanical devices or any other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty when changing the light, contact service agents.
• If the products equipped with LED Lamp, do not disassemble Lamp Cover and LED
Lamp by yourself.
- Please contact your service agents.
• Use only the LED Lamps provided by manufacturer or service agents.
Page 7
safety information _7
CAUTION SIGNS FOR USING
• If the refrigerator is disconnected from the power supply, you should wait for at
least five minutes before plugging it back.
• If you have a long vacation planned or the refrigerator is not to be used for a long
period of time, you must empty the refrigerator and pull out the power plug.
- Deterioration in the insulation may cause fire.
• Do not re-freeze frozen foods that have thawed completely.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
• When the refrigerator got wet by water, pull out the power plug and contact your
Samsung Electronics service center.
• Allow the appliance to stand for 2 hours after installation.
• To get Best performance of product,
- Do not place foods too closely in front of the vents at the rear of the appliance as
it can obstruct free air circulation in the freezer compartment.
- Wrap the food up properly or place it in airtight containers before put it into the
fridge or freezer.
- Do not put any newly introduced food for freezing near to already food.
• Do not place carbonated or zzy drinks in the freezer compartment. Do not put
bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause personal injury.
• Please observe maximum storage times and expiry dates of frozen goods.
• There is no need to disconnect the refrigerator from the power supply if you will be
away for less than three weeks. But, Remove all the food if you are going away for
the three weeks or more. Unplug the refrigerator and clean it, rinse and dry.
• Fill water tank, ice tray, water cubes only with potable water.
CAUTION
Page 8
8_ safety information
safety information
CAUTION SIGNS FOR CLEANING
• Remove any foreign matter or dust from the power plug pins. But do not use a wet
or damp cloth when cleaning the plug, remove any foreign material or dust from the
power plug pins.
- Otherwise there is a risk of fire or electric shock.
• Unplug the refrigerator before cleaning and making repairs.
• Do not directly spray water inside or outside the refrigerator.
- There is a risk of fire or electric shock.
• Do not place or use electrical appliance inside the refrigerator/freezer, unless they
are of a type recommended by the manufacturer.
•
Do not spray inflammable gas near the refrigerator.
- There is a risk of explosion or fire.
ADDITIONAL TIPS FOR PROPER USAGE
• In the event of a power failure, call the local ofce of your Electriciy Company and
ask how long it is going to last.
- Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures. However, you should minimize the number of door
openings while the power is off.
- But Should the power failure last more than 24 hours, remove all frozen food.
• If the key is provided with refrigerator, the keys should be kept out of the reach of
children and not in vicinity of the appliance.
• The appliance might not operate consistently (possibility of defrosting of contents or
temperature becoming too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of temperatures for which
the refrigerating appliance is designed.
• Do not store food which spoils easily at low temperature, such as bananas, melons.
• Your appliance is frost free, which means there is no need to manually defrost your
appliance, as this will be carried out automatically.
• Temperature rising during the defrost can comply with ISO requirement. But If you
want to prevent an undue rise in the temperature of the frozen food while defrosting
the appliance, please wrap the frozen food in several layers of newspaper.
• Any increase in temperature of frozen food during defrosting can shorten its storage
life.
CAUTION
Page 9
contents _9
SETTING UP YOUR
REFRIGERATOR
10
10 Getting ready to install the refrigerator
11 Levelling the refrigerator
12 Installing and Disassembling the door handle
13 Setting up the refrigerator
OPERATING THE SAMSUNG
REFRIGERATOR
14
14 Using the control panel
15
Controlling the temperature (electronic control)
16
Controlling the temperature (dial control type)
17 Making ice
18 Using water dispenser
20 Storing food
22 Removing the refrigerator accessories
23 Cleaning the refrigerator
25 Cleaning the water Dispenser
26 Replacing the interior light
(Only available on some models)
TROUBLESHOOTING
27
contents
Page 10
10_ setting up
setting up your refrigerator
GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on the purchase of your Samsung Refrigerator. We hope you will enjoy the
many state-of-the-art features and efficiencies that this new appliance has to offer.
• This refrigerator must be properly installed and located in accordance with the
manual before it is used.
•
Use this appliance only for its intended purpose as described in this instruction manual.
• We strongly recommend that any servicing be performed by a qualied individual.
• Please dispose of the packaging material for this product in an environmentally
friendly manner.
•
Pull the power plug out of the socket before changing the interior light of the refrigerator.
- Otherwise, there is a risk of electric shock.
Selecting the best location for the refrigerator
•
Select a location without direct exposure to sunlight.
•
Select a location with level (or nearly level) flooring.
•
Select a location with enough space for the refrigerator doors to open easily.
•
Allow sufficient space to install the refrigerator on a flat surface.
-
If your refrigerator is not level, the internal cooling system may not work correctly.
- Overall space required in use. Refer to drawing and dimension as below.
WARNING
Page 11
Leg
Screw Driver
<case 1>
Leg
Screw Driver
<case 2>
100mm
100mm
GETTING READY TO INSTALL THE REFRIGERATOR
LEVELLING THE REFRIGERATOR
If the front of the appliance is slightly higher than the rear, the door can be opened and
closed more easily.
case 1) The appliance tilts down to the left.
• Turn the left adjusting leg in the direction of the arrow until the appliance is
level.
case 2) The appliance tilts down to the right.
• Turn the right adjusting leg in the direction of the arrow until the appliance is
level.
at least
50mm
1,440mm
1,495mm
at least
50mm
<TYPE 1>
at least
50mm
1,380mm
1,425mm
at least
50mm
<TYPE 2>
When installing, servicing, or cleaning behind the refrigerator, be sure to pull the
unit straight out and push back in straight after finishing.
Also, make sure your floor supports the full-load refrigerator.
Otherwise, it may cause floor damage.
CAUTION
• Please tie up the extra length of the power cord at the
back of the refrigerator so as not to be touched on the
floor preventing the power cord from being crushed by
the rollers upon relocation.
CAUTION
setting up _11
01 SETTING UP
• Allow clearance to the right, left, back and top when installing. This will help reduce
power consumption and keep your energy bills lower.
• Do not install the refrigerator where the temperature will go below 10°C.
Page 12
12_ setting up
CAUTION
There is a possibility of the handle detachment when excessive force is applied to the
handle during relocation of the refrigerator, so do not grab the handle.
setting up your refrigerator
INSTALLING AND DISASSEMBLING THE DOOR HANDLE
Installing the Door Handle
1. Match the Handle Locking Tabs installed on the left hand side of the door and the
handle inserts.
2. Fix the handle by pulling it down or tapping it lightly with a tool like a rubber
hammer.
3. Check whether the locking tabs inside the handle are assembled by pulling it up
and down.
Disassembling the Door Handle
1. Separate the locking tabs by tapping the lower part of the handle with a tool like a
rubber hammer.
2. Pull the handle up to detach the locking tabs from the handle inserts and separate
each other.
Page 13
01 SETTING UP
setting up _13
SETTING UP THE REFRIGERATOR
Now that you have your new refrigerator installed and in place, you are ready to set up and
enjoy the full features and functions of the appliance.
By completing the following steps, your refrigerator should be fully operational.
If not, first check the power supply and electricity source or try the troubleshooting section
at the back of this user guide. If you have any further questions, contact your Samsung
Electronics service center.
1. Place the refrigerator in an appropriate location with reasonable clearance
between the wall and the refrigerator. Refer to installation instructions in this
manual.
2. Once the refrigerator is plugged in, make sure the interior light comes on when
you open the doors.
3. Set the temperature control to the coldest temperature and wait for an hour.
The freezer should get slightly chilled and the motor should run smoothly.
4. After powering the refrigerator, it will take a few hours to reach the appropriate
temperature. Once the refrigerator temperature is sufficiently cool, you can
store food and drink in the refrigerator.
Page 14
14_operating
3
2
4
1
POWER
FREEZE
Speeds up the time needed to freeze products in the freezer.
This can be helpful if you need to quickly freeze items that
spoil easily or if the temperature in the freezer has warmed
dramatically (For example, if the door was left open).
When you have enough, just press the button again to cancel
the “Power Freeze” mode.
When you use this function, the energy consumption will
increase. This function must be activated before putting large
amount of food stuff in the freezer compartment at least 24
hours before.
FREEZER
Press the Freezer button to set the Freezer to your desired
temperature, you can set the temperature between -16°C and -25°C.
CHILD LOCK
By pressing the child lock button for 3 seconds, all buttons will
be locked. To cancel this function, press the child lock button
again for 3 seconds again.
DOOR
ALARM
When you press the Door alarm button, Door alarm icon will
light up. The alarm will go off after a certain period of time (about
2 minutes) when the refrigerator door is kept open. if you want
to turn off the Alarm, press the button again.
1
2
3
4
operating the SAMSUNG refrigerator
USING THE CONTROL PANEL (ELECTRONIC CONNTROL
TYPE)
Page 15
02 OPERATING
operating _15
The temperature of the freezer or the refrigerator may rise from opening the doors
too frequently, or if a large amount of warm or hot food is placed in either side.
This may cause the digital display to blink. Once the freezer and refrigerator return
to their normal set temperatures the blinking will stop. If the blinking continues,
you may need to “reset” the refrigerator. Try unplugging the appliance, wait about
10 minutes and then plug back in.
CONTROLLING THE TEMPERATURE (ELECTRONIC CONNTROL TYPE)
CONTROLLING THE FREEZER TEMPERATURE
The freezer temperature can be set between -16°C and -25°C to suit your particular
needs. Press the Freezer button repeatedly until the desired temperature is shown in
the temperature display. Keep in mind that foods like ice cream may melt at -16°C.
The temperature display will move sequentially from -16°C and -25°C. When the
display reaches -16°C, it will begin again at -25°C.
Five seconds after the new temperature is set the display will again show the actual
current freezer temperature. However, this number will change as the Freezer adjusts
to the new temperature.
-16°C
-17°C
-18°C
-20°C
-21°C
-23°C
-25°C
FREEZER TEMPERAT URE CONTROL
COLD COLDER COLDEST
CONTROLLING THE FRIDGE TEMPERATURE
The refrigerator temperature can be set between 5°C
and 1°C to suit your particular need. Turn the Fridge
lever clockwise or counter clockwise until the desired
temperature is shown in the cover damper.
When storing large quantities of food to be
refrigerated or temperature is not cold enough,
Adjust the temperature control to the "COLDER"
position.
When using MID range, adjust the temperature
control to the halfway position between COLDER and COLD.
When the food refrigerated is frozen, or there is a small quantity of food, adjust the
temperature control to the COLD position.
If you are going on a long vacation or business trip or you do not need to use the
refrigerator, adjust the temperature control to the“VACATION”position. The refrigerator is
switched off but the freezer remains on.
You must empty the refrigerator before adjusting the Vacation position.
CAUTION
Page 16
16_ operating
COLDER : When storing large quantities of foods to be frozen, or to produce ice
quickly.
• Adjust the temperature control to the "COLDER"position.
COLDER to COLD : When using MID range.
•
Adjust the temperature control to the halfway position between COLDER and COLD.
COLD : When storing a small quantity of food to be frozen.
• Adjust the temperature control to the COLD position.
•
If you need to freeze large amount of food stuff, set the temperature of freezer
compartment as the coldest temperature at least 24 hours before.
Vacation
• If you are going on a long vacation
or business trip or you do not need
to use the refrigerator, adjust the
temperature control to the
“VACATION” position.
• The refrigerator is switched off but
the freezer remains on.
COLDER : When storing large quantities of food to be refrigerated or temperature
is not cold enough.
• Adjust the temperature control to the "COLDER" position.
COLDER to COLD : When using MID range.
•
Adjust the temperature control to the halfway position between COLDER and COLD.
COLD : When the food refrigerated is frozen, or there is a small quantity of food.
• Adjust the temperature control to the COLD position.
operating the SAMSUNG
refrigerator
CONTROLLING THE TEMPERATURE (DIAL CONTROL TYPE)
-Freezer
-Fridge
You must empty the refrigerator before adjusting the vacation position.
CAUTION
Page 17
02 OPERATING
operating _17
To get more space, you can remove the TWIST ICE MAKER, ICE STORAGE BIN
and ICE CUBE TRAY. It does not affect thermal and mechanical characteristics. A
declared storage volume of frozen food storage compartment is calculated with
these drawers removed.
MAKING ICE

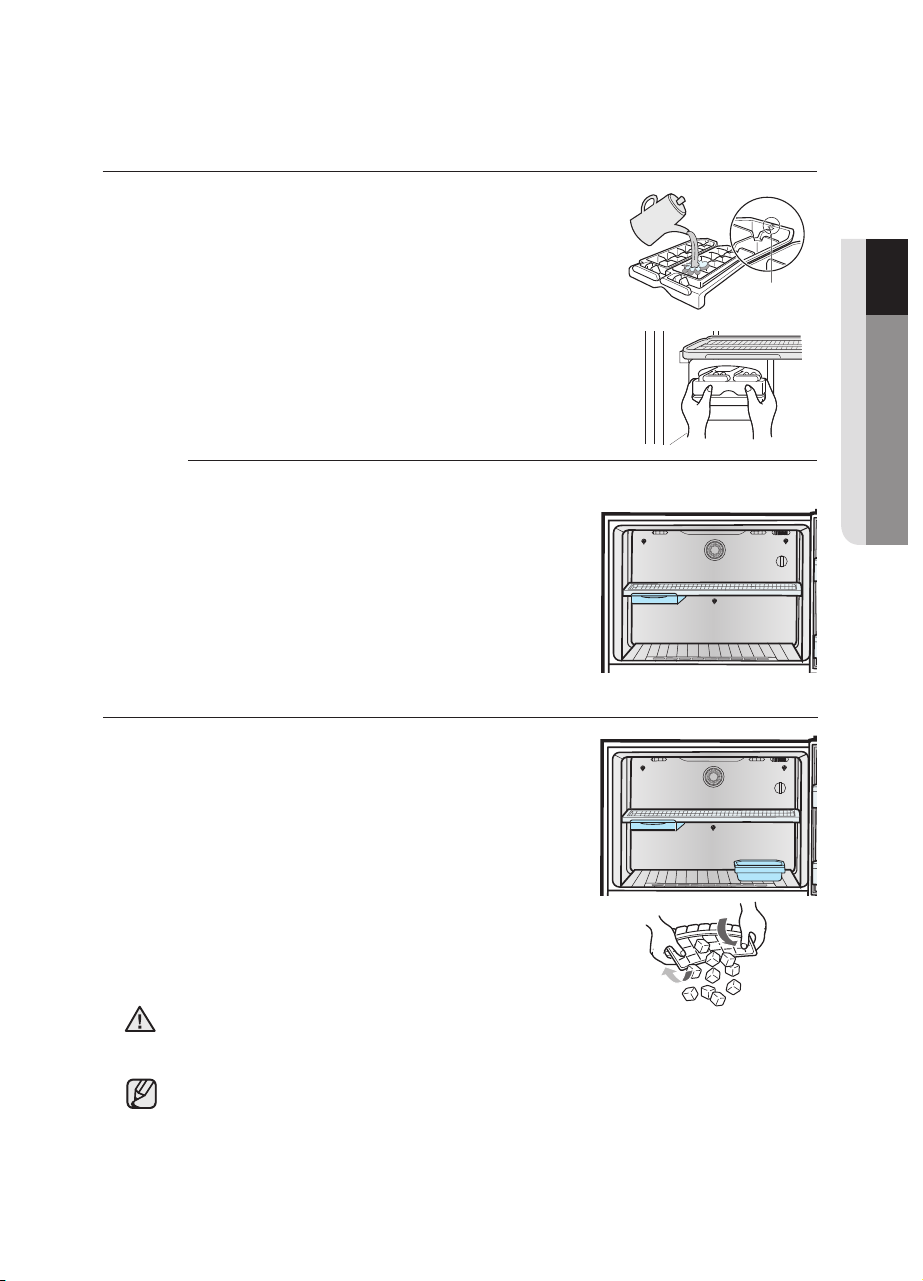

- TWIST ICE MAKER MODEL
Making ice cubes
Remove the ice cube tray by pulling it towards you.
Fill the tray with water up to the maximum water level
marked on the rear of the tray.
Slide the tray back into the holder, taking care not to
spill the water.
Wait until the ice cubes are formed.
Freezing time :
It is recommended that you wait for about one hour
with the temperature set to Power Freeze for the ice
cubes to form.
Removing the ice cubes
Make sure that the ice cube storage bin is in place
under the ice cube tray. If not, slide it into place.
Twist one of the levers firmly in the clockwise
direction until the tray twists slightly.
Result : The ice cubes fall into the storage bin.
Repeat Step 2 for the other half of the tray, if
necessary.
Remove the storage bin by:
• Lifting it slightly
• Pulling it towards you
- REMOVABLE ICE TRAY MODEL
Making ice cubes
Remove the ice cube tray by pulling it towards
you.
Fill the tray with water up to the maximum water
level marked on the rear of the tray.
Slide the tray back into the holder, taking care not
to spill the water.
Removing the ice cubes
To remove ice cubes, hold the tray at its ends
and twist gently.
Water level
Danger of explosion
• Glass bottles containing liquids that can freeze should never be stored in the
freezer as the glass will explode when the contents freeze.
CAUTION
Page 18
18_ operating
operating the SAMSUNG
refrigerator
USING WATER DISPENSER (OPTIONAL)
With the water dispenser, you can obtain chilled water easily without opening the refrigerator
door.
Lift up and pull out the water tank.
• Hold the handgrips on both sides to lift out the
water tank.
• Clean the inside of water tank before using it for
the first time.
Fill the water tank with water, ensuring that it is in a stable position,
allowing for the extended water supply outlet.
• Fill with water up to 2.8l If it is filled higher than this, it may overflow when the
lid is closed.
• It is impossible to ll the tank with water while it is positioned in the refrigerator.
Method 1.
Fill the water lifting the round lid in the
arrow direction to open.
Method 2.
Please ll the water after holding and
lifting the large lid to open it.
Water
tank
Hand-grip
Dispenser
cock
Round lid
Page 19
02 OPERATING
Close the refrigerator door after
tting the water tank.
• Conrm that the dispenser cock is
outside after closing the door.
Place a glass underneath the water outlet
and push gently against the dispenser lever
with your glass. Make sure the glass is in line
with the dispenser to prevent the water from
bouncing out.
Dispenser Lever
operating
_19
Fix water tank to the fridge door tightly.
If not, water tank may not be operate correctly.
Do not use the refrigerator without the water tank.
If not, it may cause an efficiency problem.
CAUTION
Check that the locking device is set to "unlock".
Water can only be dispensed on this setting.
CAUTION
Page 20
20_ operating
operating the SAMSUNG
refrigerator
STORING FOOD
The Samsung Refrigerator has been designed to provide you with maximum
space saving features and functions. Here are some of the customized
compartments we have created to keep your food fresher, longer. Remember,
in order to prevent odour penetration to the ice, stored food should be wrapped
securely and as airtight as possible.
3
5
7
8
1
2
4
6
Storing Food in the Freezer
SHELVES
Can be used to store all types of
frozen food.
ICE CUBE (Optional)
Can be used to store ice.
FREEZER GUARD
Can be used for small packages of
frozen food.
1
2
3
Items may differ slightly from the below model.
Page 21
02 OPERATING
Storing Food in the Fridge
SHELVES
Designed to be crack-resistant.
They can be used to store all types of
food and drinks.
Circular marks on the glass surface are a
normal phenomenon and can usually be
wiped clean with a damp cloth.
EGG TRAY
Best place to keep eggs.
Place the EGG TRAY on the shelf for
easy access.
FRUIT & VEGETABLE
DRAWER (Optional)
Used to preserve the freshness of your stored
vegetables and fruits. It has been specifically
designed to control the level of humidity
within the drawer.
A Big box or Two drawer box is offered
according to your choice.
DAIRY GUARD
Can be used to store smaller dairy
items like butter or margarine, yogurt or
cream-cheese bricks.
BOTTLE GUARD
Designed to handle large, bulky items such
as gallons of milk or other large bottles and
containers.
4
5
6
7
8
operating _21
Bottles should be stored tightly together so that they do not tip and fall out when
the refrigerator door is opened.
• If you plan to go away for a signicant time, empty the refrigerator and turn it
off. Wipe the excess moisture from the inside of the appliance and leave the
doors open. This helps keep odour and mold from developing.
• If the refrigerator is not to be used for a long period of time, pull out the power
plug.
WARNING
Glass bottles containing liquids that can freeze should never be stored in the
freezer as the glass may explode when the contents freeze.
CAUTION
Page 22
22_ operating
operating the SAMSUNG
refrigerator
REMOVING THE REFRIGERATOR ACCESSORIES
1. Pull out the ice tray rst and then lift up the
front part of freezer shelf and pull it out forward.
Before removing any accessories, make sure that no food is in the way.
When possible, remove the food altogether to reduce the risk of accidents.
3. Lift up the vegetable bin lid and pull it forward.
Pull out vegetable box while lifting it up pulling
forward after it has reached the middle of the
slide.
4. Lift up and pull out the water tank (optional)
as shown in the diagram.
5. Pull it out while pressing the end of the sill on
the low temperature catalyzing deodorizer.
6. Lift up and pull out the door guards.
2. Lift up the fridge shelf and pull it forward.
Low temperature
catalyzing deodorizer
Page 23
02 OPERATING
operating _23
CLEANING THE REFRIGERATOR
Caring for your Samsung Refrigerator prolongs the life of your appliance and helps keep it
odor and germ-free.
Cleaning the Interior
Clean the inside walls and accessories with a mild detergent and then wipe dry
with a soft cloth. You can remove the drawers and shelves for a more thorough
cleaning. Just make sure to dry them before putting them back into place.
Cleaning the Exterior
Wipe the digital panel and display panel with a clean,
soft cloth. Spray water onto the cleaning cloth instead
of spraying directly on the surface of the refrigerator.
This helps ensure an even distribution of moisture to the
surface. The doors, handles and cabinet surfaces should
be cleaned with a mild detergent and then wiped dry with
a soft cloth. To keep your appliance looking its best, the
exterior should be polished once or twice a year.
Do not use Benzene, Thinner or Clorox™ for cleaning.
They may damage the surface of the appliance and can create a risk of fire.
WARNING
CAUTION
Do not spray the refrigerator with water while it is plugged in, as it may cause
an electric shock. Do not clean the refrigerator with benzene, thinner or car
detergent for risk of fire.
Cleaning the Rubber door seals
If the rubber door seals are dirty the doors may not close
properly, and the refrigerator will not operate efficiently.
Keep the door seals free of grit or grime by cleaning the
doors with a mild detergent and damp cloth. Wipe dry with
a clean, soft cloth.
Page 24
24_ operating
Cleaning the Deodorizer
In case of food smells in the fridge,
Clean the low temperature catalyzing
deodorizer.
After disassembling, dip into clean
water and leave to dry completely in
sunlight before reinserting.
Low temperature
catalyzing deodorizer
Cartrige
Cleaning behind the Refrigerator
To keep cords and exposed parts free of dust and dirt accumulation, vacuum
behind the appliance once or twice a year.
If the cartridge dries in a confined (or humid) area, there may be an odour to
the cartridge. If this occurs, re-clean and allow to dry in a well-ventilated area.
Do not remove the back cover. There can be a risk of electric shock.
WARNING
Page 25
02 OPERATING
operating _25
Dispenser tray
Dispenser cock
• Do not store hot water in the water tank.
• Be careful not to damage or lose the Dispenser cock.
• Do not let children mishandle the Dispenser cock.
It may cause water overflow.
CAUTION
CLEANING THE WATER DISPENSER
1. Separate the large lid from the water tank
after pulling it out. It can be separated
from water tank by pulling up the handgrip.
3. After washing the water tank and lid with
dishwashing detergent, rinse them with
water.
4. Clean the Dispenser cock with a soft brush.
• Disassemble and clean occasionally.
5. How to use the Dispenser tray.
• Frequently empty water collected in the
tray dispenser and wipe it out with dry
clothe.
2. Separate the water tank from water spout.
• Hold the upper part of Dispenser cock
and unscrew it in arrow direction.
1
Hand-grip
2
Large lid
3
Water tank
Page 26
26_ operating
Freezer lamp (Optional)
1. Remove the screws.
Unlock the sills and pull the Lamp cover down to
remove it.
2. Turn(ccw) the indoor lamp, remove it and replace
it with a new one.
❊ If you have difficulties in replacing and
purchasing parts, contact the nearest
Samsung Electronics Service Center.
operating the SAMSUNG
refrigerator
REPLACING THE INTERIOR LIGHT (ONLY AVAILABLE ON SOME MODELS)
Always unplug the appliance when replacing the refrigerator light.
This eliminates the danger of electric shock.
Fridge lamp
1. Remove the indoor lamp cover by using a
(+) driver, fit the front part of indoor lamp cover
into the groove and then fit the rear part.
2. Turn(ccw) the indoor lamp to remove and replace
it with a new one.
3. After tting the front part of the indoor lamp
cover, fit the rear sill area and then re-fit the
screw.
WARNING
For LED lamp, please contact service engineer to replace it.
Front
Page 27
PROBLEM SOLUTION
The appliance is not
operating at all or the
temperature is too
high.
• Check that the power plug is correctly connected.
• Is the temperature control on the front panel correctly set?
• Does sun shine on the appliance or are there heat sources nearby?
• Is the back of the appliance too near to the wall?
The food in the
refrigerator is frozen.
• Is the temperature control on the front panel set to the coldest
temperature?
• Is the surrounding temperature too low?
• Did you store the food with a high water content in the coldest part of
the fridge?
There are unusual
noises.
• Check that the appliance is installed on a stable, level floor.
• Is the back of the appliance too near to the wall?
• Have any foreign objects fallen behind or under the appliance?
• Is the noise coming from the compressor in the appliance?
• A ticking sound may be heard inside the appliance; this is normal.
This sound occurs when the various accessories contract or expand.
The front corners
and sides of the
appliance are warm
and condensation
starts to form.
• Heat-proof pipes are installed in the front corners of the appliance to
prevent condensation from forming.
When the surrounding temperature rises, this may not always be
effective. However, this is not abnormal.
• In very humid weather, condensation may form on the outer surface
of the appliance when the moisture in the air comes into contact with
the cool surface of the appliance.
You can hear a liquid
bubbling in the
appliance.
• This is the refrigerant, which cools the inside of the appliance.
There is a bad smell
inside the appliance.
• Has a food item spoiled?
• Make sure that strong smelling food (for example, fish) is wrapped so
that it is airtight.
• Clean out your freezer periodically and throw away any spoiled or
suspect food.
There is a layer of
frost on the appliance
walls.
• Are the air outlet vents blocked by food stored inside the refrigerator.
• Space the food out as much as possible to improve ventilation.
• Is the door fully closed?
Condensation forms
on the inside wall of
the appliance and
around vegetables.
• Food with a high water content is stored uncovered with a high
humidity level or the door has been left open for a long time.
• Store the food with a cover or in sealed containers.
troubleshooting
03 TROUBLESHOOTING
troubleshooting _27
Page 28
Ambient Room Temperature Limits
This fridge/freezer is designed to operate in ambient temperatures specified by its
temperature class marked on the rating plate.
Class Symbol Ambient Temperature range(°C)
Extended Temperate SN +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
In an effort to promote recycling this user manual is printed on recycled paper.
Internal temperatures may be affected by such factors as the location of the fridge/
freezer, ambient temperature and the frequency with which you open the door.
Adjust the temperature as required to compensate for these factors.
Loading...
