Samsung RT58, RT62 User Manual
Refrigerator
User manual
Free Standing Appliance
Untitled-1 1 2016-03-16 2:48:36
English2
Contents
Contents
Safety information 3
Important safety symbols and precautions: 4
Severe warning signs for transportation and site 4
Critical installation warnings 5
Installation cautions 7
Critical usage warnings 7
Usage cautions 10
Cleaning cautions 11
Critical disposal warnings 12
Additional tips for proper usage 12
Saving Energy Tips 13
This appliance is intended to be used in household and similar applications such as 14
Instructions about the WEEE 14
Installation 15
Refrigerator at a glance 15
Step-by-step installation 17
Operations 22
Feature panel 22
Samsung Smart Home (applicable models only) 28
Special features 33
Maintenance 36
Handle and care 36
Cleaning 37
Replacement 37
Troubleshooting 38
General 38
Samsung Smart Home 40
Untitled-1 2 2016-03-16 2:48:37
English 3
Safety information
• Before using your new Samsung Refrigerator, please read this manual thoroughly
to ensure that you know how to operate the features and functions that your new
appliance offers safely and efciently.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory, or mental capabilities, or those who lack experience and knowledge,
unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care when installing,
maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the
characteristics of your refrigerator may differ slightly from those described in this
manual and not all warning signs may be applicable. If you have any questions or
concerns, contact your nearest service center or nd help and information online at
www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
the appliance or the rating label inside the fridge to see which refrigerant is used for
your refrigerator. When this product contains ammable gas (Refrigerant R-600a),
contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage. If in doubt, consult your
dealer. The room must be 1 m³ in size for every 8 g of R-600a refrigerant inside the
appliance.
The amount of refrigerant in your particular appliance is shown on the identication
plate inside the appliance.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When
refrigerant leaks from the pipe, avoid any naked ames and move anything ammable
away from the product and ventilate the room immediately.
- Failing to do so may result in re or explosion.
• It is hazardous for anyone other than an Authorised Service Person to service this
appliance.
Safety information
Untitled-1 3 2016-03-16 2:48:37
Safety information
English4
Safety information
Important safety symbols and precautions:
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or property damage.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak
is detected, avoid any naked ames or potential sources of ignition and air the room
in which the appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural
gas with high environmental compatibility that is, however, also combustible. When
transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Untitled-1 4 2016-03-16 2:48:37
English 5
Safety information
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator
should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents overloading of house wiring
circuits, which could cause a re hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or re.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
• Do not install this appliance near a heater or inammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a re
or electric shock.
Untitled-1 5 2016-03-16 2:48:37
Safety information
English6
Safety information
• Make sure that the power plug is not crushed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• The appliance must be positioned so that the plug is accessible after installation.
- Failing to do so may result in an electric shock or re due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, in a location exposed to
direct sunlight and water (rain drops).
- Deteriorated insulation of electrical parts may cause an electric shock or re.
• If any dust or water is in the refrigerator, pull out power plug and contact your
Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the product, or injury.
• You need to remove all the protective plastic lm before you initially plug the product
in.
• Children should be supervised to ensure that they do not play with the snap rings used
for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap ring or water tube
clip. Keep the snap rings and water tube clips out of children’s reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator before attempting to
investigate or repair any part of the appliance. Power leakages can cause severe
electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an
electrical ground.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- This may result in an electric shock, re, explosion, or problems with the product.
• Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• If the power cord is damaged, have it replaced immediately by the manufacturer or
one of its service agents.
• The fuse on the refrigerator must be changed by a qualied technician or service
company.
- Failing to do so may result in an electric shock or personal injury.
Untitled-1 6 2016-03-16 2:48:37
English 7
Safety information
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a at surface.
- Keep the ventilation space in the appliance enclosure or mounting structure clear of
obstructions.
• Allow the appliance to stand for 2 hours before loading foods after installation and
turning on.
• We strongly recommend you have a qualied technician or service company install the
refrigerator.
- Failing to do so may result in an electric shock, re, explosion, problems with the
product, or injury.
• Overload on any one door may fell the refrigerator, causing physical injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
• Do not insert hands, feet or metal objects (such as chopsticks, etc.) into the bottom or
the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene, thinner, propane
gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet
are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
Untitled-1 7 2016-03-16 2:48:37
Safety information
English8
Safety information
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the bottom area under the appliance.
- Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientic materials, or temperature sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• Do not place or use electrical appliance inside the refrigerator/freezer, unless they are
of a type recommended by the manufacturer.
• If you smell pharmaceutical or smoke, pull out power plug immediately and contact
your Samsung Electronics service center.
• If any dust or water is in Refrigerator, pull out power plug and contact your Samsung
Electronics service center.
- Otherwise there is a risk of re.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended
and do not let children enter inside the refrigerator.
• Do not allow babies or children go inside the drawer.
- It can cause death from suffocation by entrapment or personal injury.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material
damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in an electric shock, re, or
problems with the product.
• Do not use or place any substances sensitive to temperature such as ammable sprays,
ammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator for removing bad odours.
- This may result in an electric shock or re.
• Fill the water tank, ice tray and water cubes only with potable water (mineral water or
puried water).
- Do not ll the tank with tea, juice or sports drink, this may damage the refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
Untitled-1 8 2016-03-16 2:48:37
English 9
Safety information
• Do not use mechanical devices or any other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put fridge shelf in upside down. Shelf stopper could not work.
- It may cause a personal injury because of glass shelf drop.
• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and
air the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in explosion or re.
• Use only the LED Lamps provided by the manufacturer or its service agents.
• Bottles should be stored tightly together so that they do not fall out.
• This product is intended only for the storage of food in a domestic environment.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
- Unauthorized modications can cause safety problems. To reverse an unauthorized
modication, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest service
center.
- Failing to do so may result in an electric shock, re, problems with the product, or
injury.
• If the interior or exterior LED lamp has gone out, contact your nearest service center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
and contact your Samsung Electronics service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a Samsung service
center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
LED lamps yourself.
- Contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
Untitled-1 9 2016-03-16 2:48:37
Safety information
English10
Safety information
• Do not use a damaged power plug, damaged power cord or loose wall socket.
- This may result in an electric shock or re.
Usage cautions
CAUTION
• Do not re-freeze frozen foods that have thawed completely. Do not place carbonated
or zzy drinks in the freezer compartment. Do not put bottles or glass containers in the
freezer.
- When the contents freeze, the glass may break and cause personal injury.
• Use only the ice maker provided with the refrigerator.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the refrigerator as this can
obstruct free air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight containers before putting it into the
refrigerator.
- Do not place glass bottles or carbonated beverages into the freezer. They can freeze
and break. Broken beverage containers can cause injury.
- Please observe maximum storage times and expiration dates of frozen goods.
• Do not place glass or bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
• Do not place carbonated or zzy drinks in the freezer compartment. Do not put bottles
or glass containers in the freezer.
- When the contents freeze, the glass may break and cause personal injury and
property damage.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this nished appliance
are not covered under Samsung warranty service, nor is Samsung responsible for
safety issues that result from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be
over cooled. If a cooling period lasts too long, the water lter may break and cause
water leakage.
• Use only the ice-maker provided with the refrigerator.
• Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
• If the refrigerator is disconnected from the power supply, you should wait for at least
ve minutes before plugging it back in.
Untitled-1 10 2016-03-16 2:48:37
English 11
Safety information
• When the refrigerator got wet by water, pull out the power plug and contact your
Samsung Electronics service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property damage.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral
water, or puried water).
- Do not ll the tank with tea or a sports drink. This may damage the refrigerator.

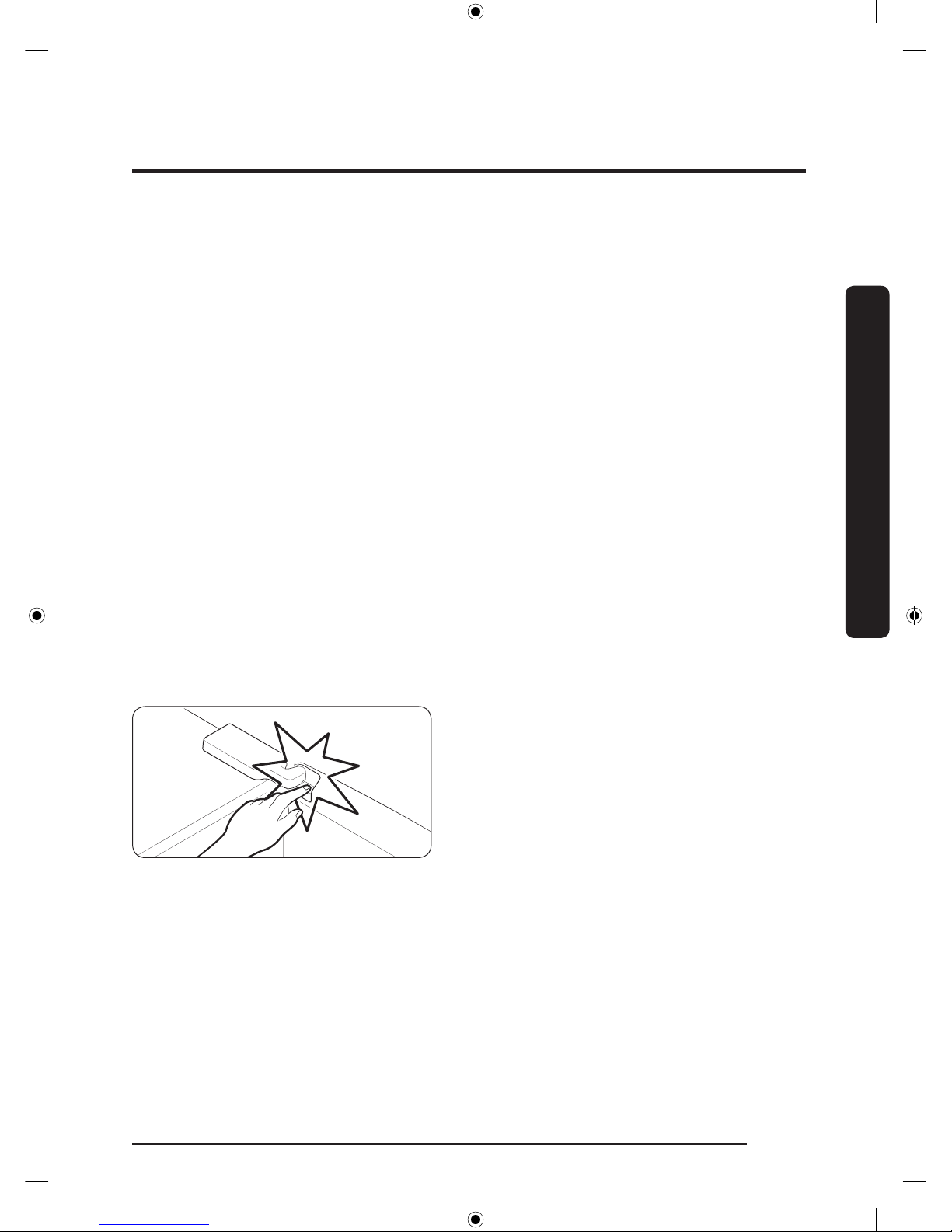

• Be careful that your ngers are not
caught in.
• The lamps in the freezer and refrigerator can be turned off if the doors of the freezer
and refrigerator are left open for 2 seconds or longer.
- The lamps will turn back on when the doors are closed and opened again.
• If the refrigerator is ooded, make sure to contact your nearest service center.
- There is a risk of electric shock or re.
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside the refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power
plug and contact your nearest service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug
blades. Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
Untitled-1 11 2016-03-16 2:48:37
Safety information
English12
Safety information
• Do not use benzene, thinner, or Clorox, Chloride for cleaning.
- They may damage the surface of the appliance and may cause a re.
• Never put ngers or other objects into the dispenser hole.
- It may cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
Critical disposal warnings
WARNING
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to
disposal.
• R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of
the appliance or the rating label inside the fridge to see which refrigerant is used for
your refrigerator. If this refrigerator contains ammable gas (Refrigerant R-600a),
contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance. If trapped inside, a child may get
hurt or suffocate to death.
- If trapped inside, the child may become injury and suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.
Additional tips for proper usage
• In the event of a power failure, call the local ofce of your electric company and ask
how long the failure is going to last.
- Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures. However, you should minimize the number of door
openings while the power is off.
Untitled-1 12 2016-03-16 2:48:37
English 13
Safety information
- Should the power failure last more than 24 hours, remove and discard all frozen
food.
• The refrigerator might not operate consistently (frozen contents can thaw or
temperatures can become too warm in the frozen food compartment) if sited for an
extended period of time in a location where ambient air temperatures are constantly
below the temperatures for which the appliance is designed.
• In case of particular foods, keeping it under refrigeration can have a bad effect on
preservation due to its properties.
• Your appliance is frost free, which means there is no need to manually defrost your
appliance. This will be carried out automatically.
• Temperature rise during defrosting complies with ISO requirements. If you want to
prevent an undue rise in the temperature of frozen food while the appliance defrosts,
wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed completely.
• The temperature of two star section (sections) or compartment (compartments)
which have two star symbol ( ) is slightly higher than other freezer compartment
(compartments).
The two star section (sections) or compartment (compartments) is (are) based on the
instruction and/or the condition as delivered.
Saving Energy Tips
• Install the appliance in a cool, dry room with adequate ventilation. Ensure that it is not
exposed to direct sunlight and never put it near a direct source of heat (a radiator, for
example).
• Not to block any vents and grilles is recommended for energy efciency.
• Allow warm food to cool down before placing it in the appliance.
• Put frozen food in the refrigerator to thaw. You can then use the low temperatures of
the frozen products to cool food in the refrigerator.
• Do not keep the door of the refrigerator open for too long when putting food in or
taking food out. The shorter the time the door is open, the less frost build-up you’ll
have in the freezer.
• It is recommended to install the refrigerator with clearance to the back and sides. This
will help reduce power consumption and keep your energy bills lower.
• For the most efcient use of energy, please keep the all inner ttings such as baskets,
drawers, shelves on the position supplied by manufacturer.
Untitled-1 13 2016-03-16 2:48:37
Safety information
English14
Safety information
This appliance is intended to be used in household and similar applications
such as
• staff kitchen areas in shops, ofces and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates
that the product and its electronic accessories (e.g. charger,
headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, please separate these items from
other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details
of where and how they can take these items for environmentally
safe recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract. This product and its
electronic accessories should not be mixed with other commercial
wastes for disposal.
Untitled-1 14 2016-03-16 2:48:37
English 15
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and
to prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.

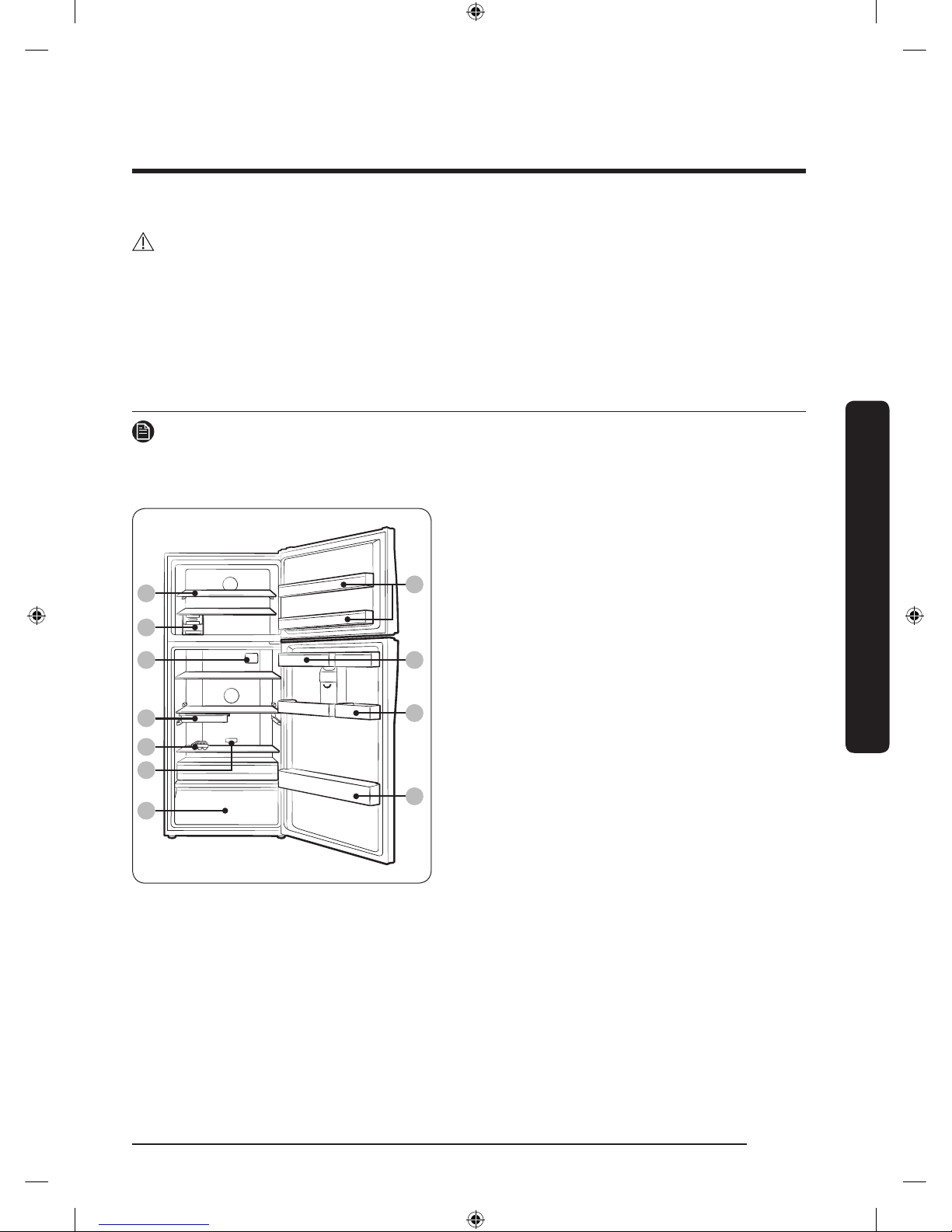

Refrigerator at a glance
NOTE
The actual image and provided component parts of the refrigerator may differ, depending
on the model and the country.
01
06
09
07
08
02
04
03
10
11
05
01 Shelf-Fre
02 Ice Maker
03 Deli Bin *
04 A/Bacteria Protector *
05 Vegetable Box *
06 Guard Low
07 Variety Guard
08 Bottle Guard
09 Tank Water *
10 Guard-Egg
11 Deodorizer *
* applicable models only
Installation
Untitled-1 15 2016-03-16 2:48:38
Installation
English16
Installation

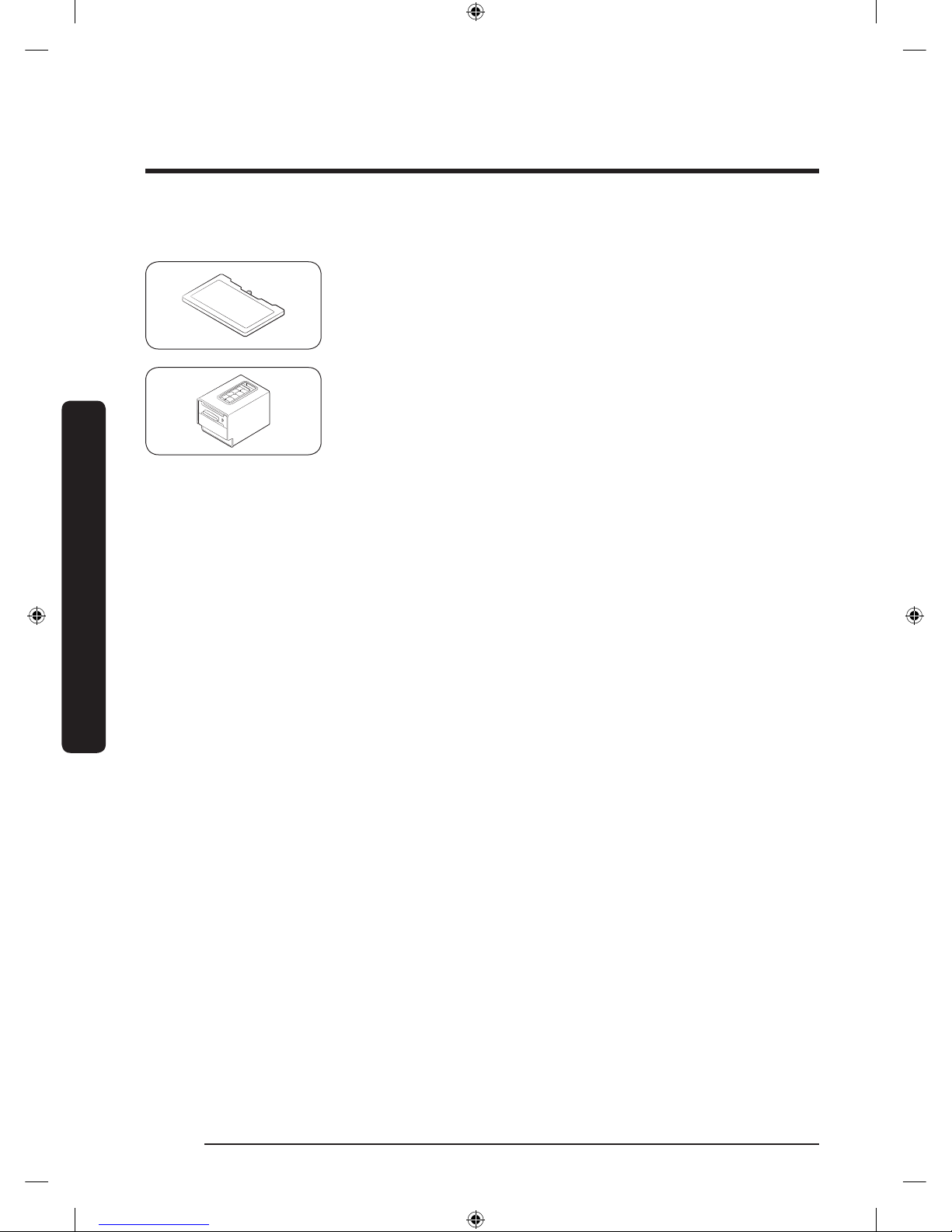

Optional accessories *
Cool pack: This helps keep the refrigerator cool.
Twist Ice Maker: Used to make ice.
* Your refrigerator may not include optional accessories listed above. Provision of optional
accessories depends on the model and the country.
To secure more room for storage in the freezer compartment
Remove the upper shelf, which can be detached manually without a tool.
• Removal of the upper shelf does not affect thermal and mechanical performance of the
freezer.
• To remove both ice makers, remove the right-handed one rst (applicable to Ice Max
models).
• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in
their original position.
Untitled-1 16 2016-03-16 2:48:38
English 17
Installation
Step-by-step installation
STEP 1 Select a site
Site requirements:
• Solid, level surface without carpeting or ooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
• Temperature range: between 10 °C and 43 °C
Effective temperature range
The refrigerator is designed to operate normally in the temperature range specied by its
class rating.
Class Symbol
Ambient Temperature range (°C)
IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN +10 to +32 +10 to +32
Temperate N +16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T +16 to +43 +18 to +43
NOTE
The cooling performance and power consumption of the refrigerator may be affected
by the ambient temperature, the door-opening frequency, and the location of the
refrigerator. We recommend adjusting the temperature settings as appropriate.
Untitled-1 17 2016-03-16 2:48:38
Installation
English18
Installation

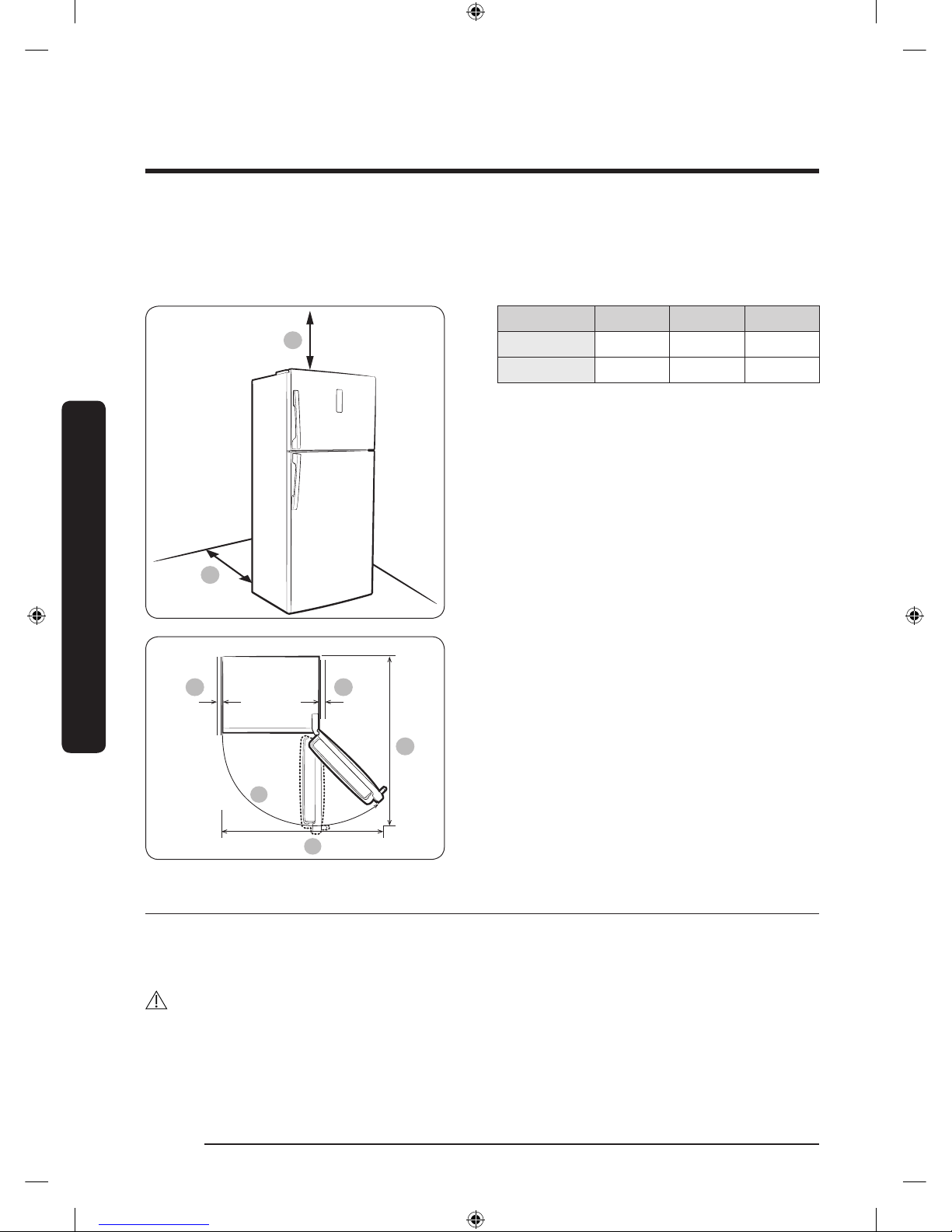

Clearance
See the pictures and table below for space requirements for installation.
01
02
Model A B C
RT58 1507 1352 120˚
RT62 1507 1352 120˚
(unit: mm)
01 100 mm
02 50 mm
03 at least 50 mm
B
C
A
03 03
STEP 2 WiFi connection
You can control the refrigerator remotely using the Smart Home Dongle that is sold
separately. To purchase the Smart Home Dongle, visit www.samsung.com and follow the
product information about the dongle.
CAUTION
• The Samsung Smart Home Dongle comes in two types: one that is dedicated to
Samsung smart TVs, and the other one that is dedicated to Samsung home appliances.
• You must purchase the Samsung Smart Home Dongle dedicated to home appliances.
Any other dongles may cause system failure.
Untitled-1 18 2016-03-16 2:48:38
English 19
Installation

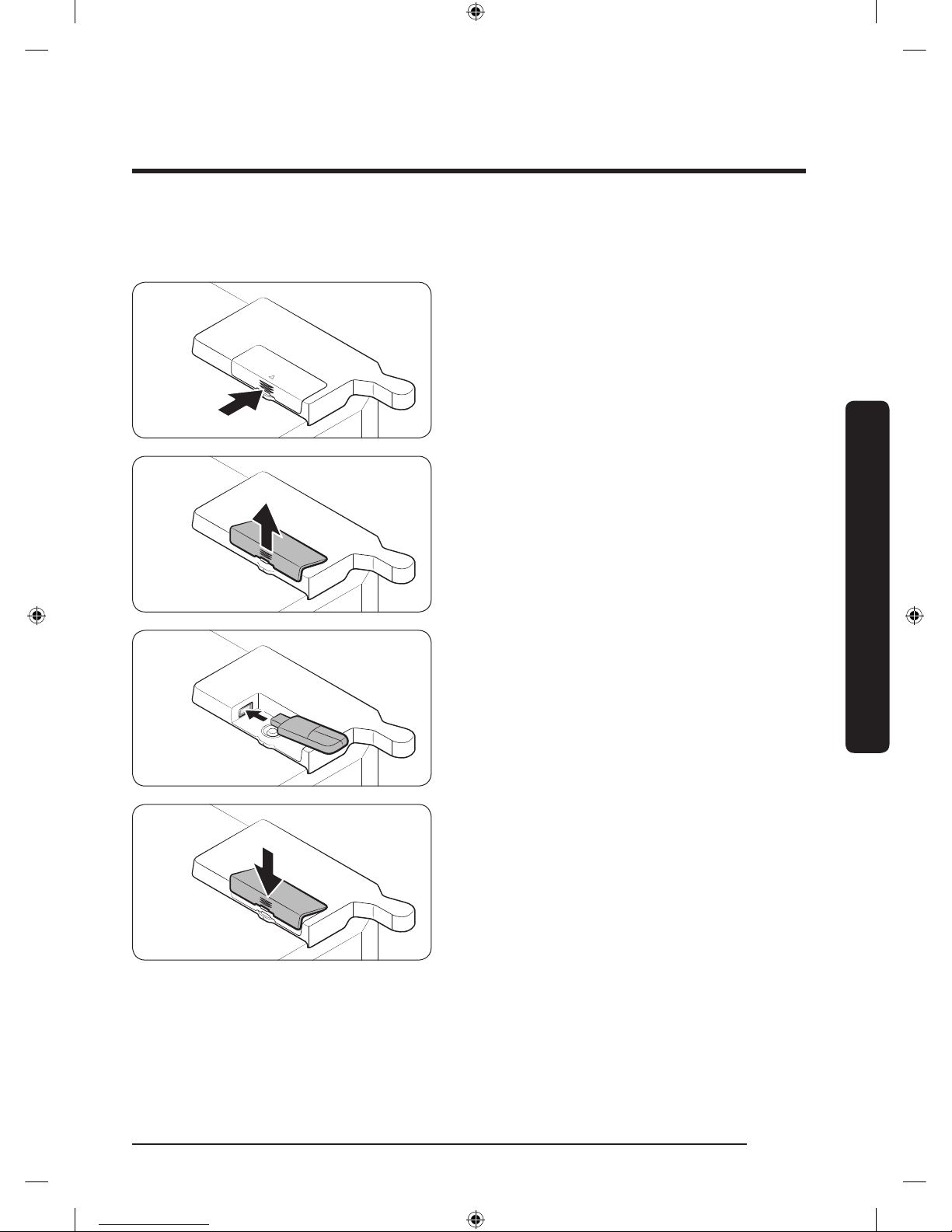

1. Press to unlock the arrow area of the
dongle cover.
2. Open up the dongle cover.
3. Insert the Smart Home Dongle into the
dongle port in the correct direction.
4. Insert the upper area of the dongle
cover rst, and then close to lock as
shown.
NOTE
The marked area is the cover of the
optional dongle, not a crack or defect.
Untitled-1 19 2016-03-16 2:48:39
Installation
English20
Installation

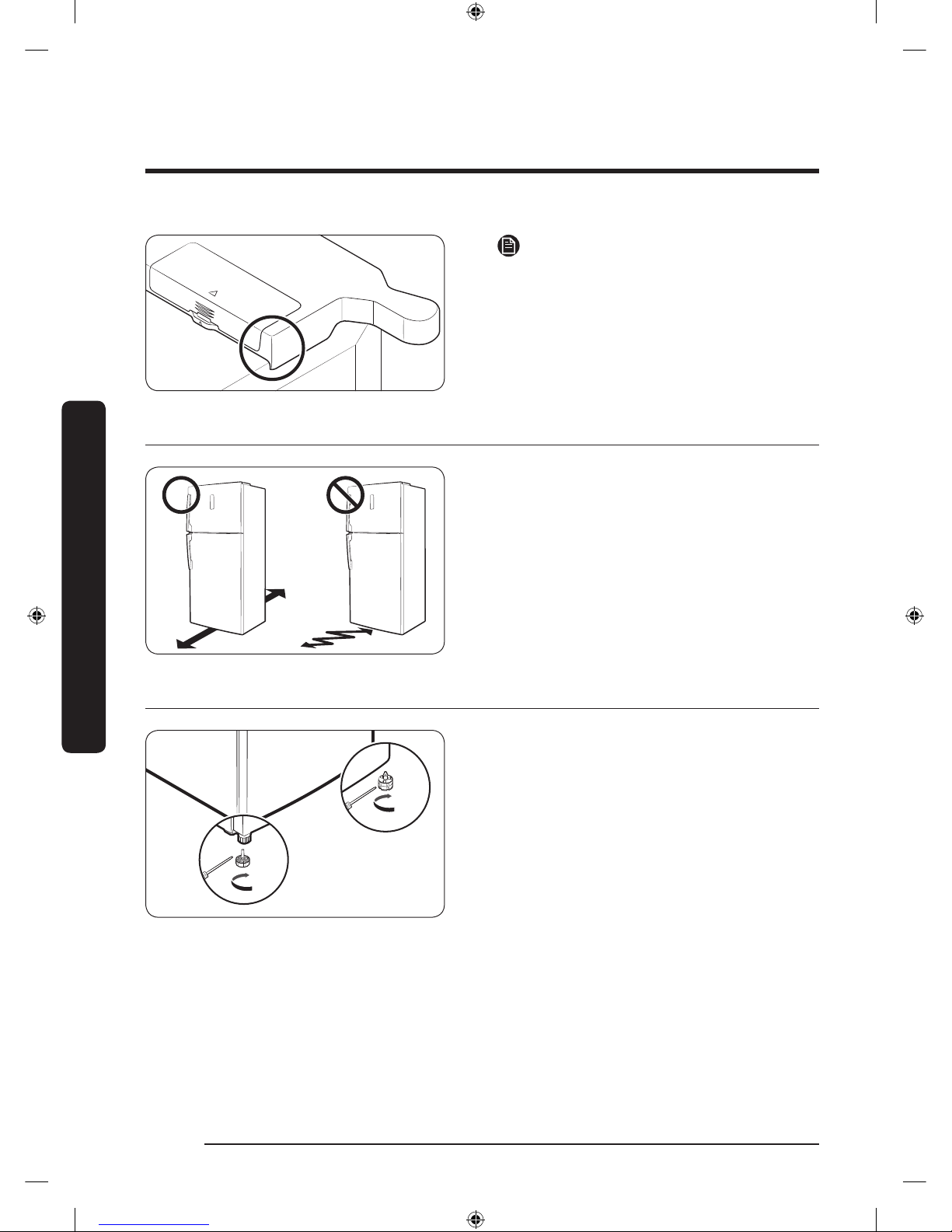

STEP 3 Flooring
• The surface to install the refrigerator
must support a fully loaded refrigerator,
or approximately 100 kg.
• To protect the oor, put a large piece
of cardboard on each leg of the
refrigerator.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to, use a thick paper or cloth such
as old carpets along the movement
path.

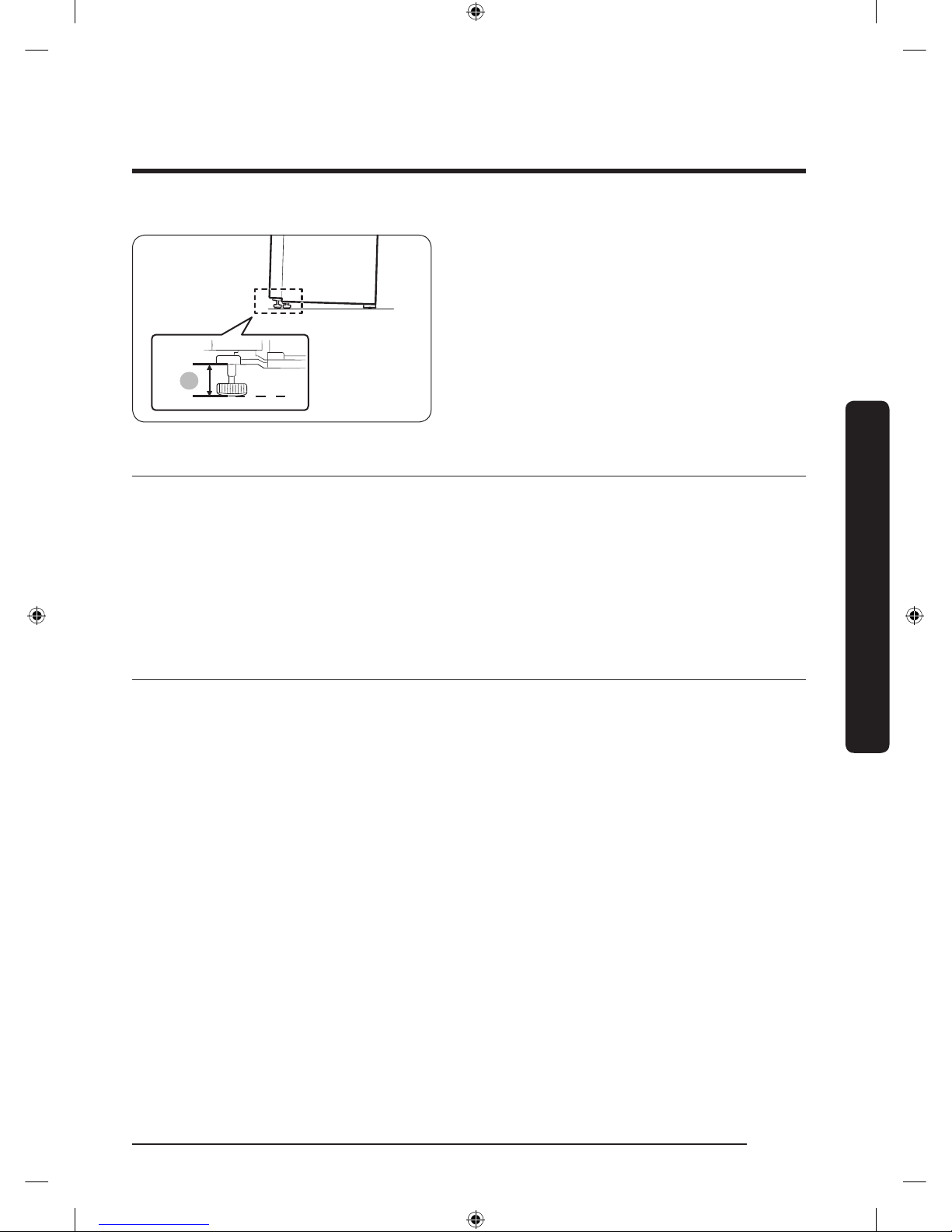

STEP 4 Adjust the levelling feet
Level the refrigerator by manually
adjusting the levelling feet. Turn the
levelling feet clockwise to lower the
position, or turn counter clockwise to raise.
A
Leave the feet at least 35 mm (A) from the
oor as shown.
Untitled-1 20 2016-03-16 2:48:39
English 21
Installation
STEP 5 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour. Then, the freezer will be
slightly chilled, and the motor will run smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
for use.
STEP 6 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from the
wall or the cabinet.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
Untitled-1 21 2016-03-16 2:48:39
English22
Operations

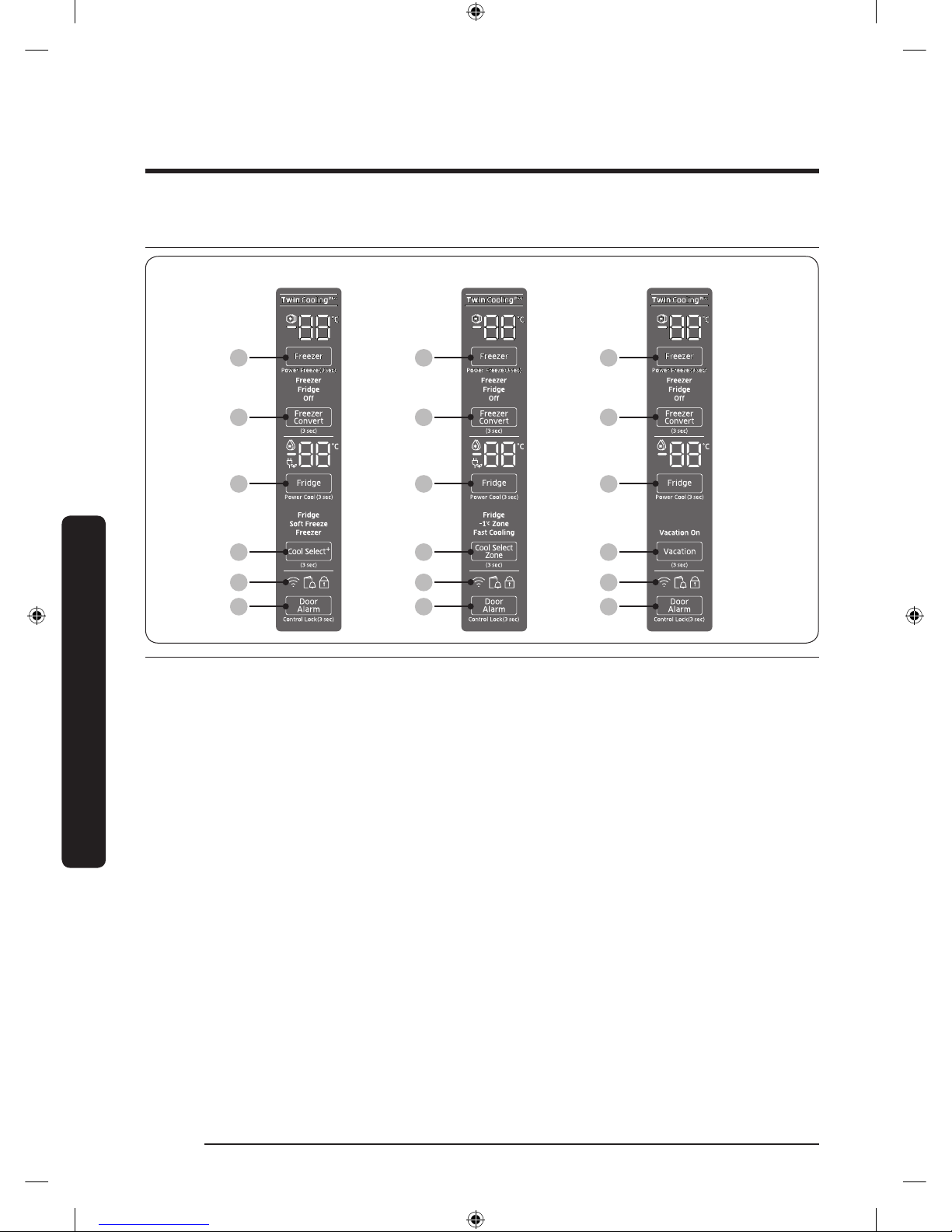

Feature panel
01
02
03
04
05
06
01
02
03
04
05
06
01
02
03
03
05
06
TYPE A TYPE BTYPE C
01 Freezer / Power Freeze 02 Freezer Convert 03 Fridge / Power Cool /
Vacation
04 Cool Select+ / Cool
Select Zone (Type A and
Type B models only)
05 Door Alarm / Control
Lock
06 Network connection
(applicable models only)
Operations
Untitled-1 22 2016-03-16 2:48:39
English 23
Operations
01 Freezer / Power Freeze
Freezer
The Freezer button can be used to set the freezer temperature.
Available temperatures are between -15 °C and -23 °C.
CAUTION
• To prevent system failure or food spoiling, do not set the
temperature to -15 °C in summer (above 35 °C).
• Do not store glass bottles containing liquid in the freezer. Glass
bottles will crack or break into pieces when the liquid freezes.
Power Freeze
Power Freeze speeds up the freezing process at maximum fan speed.
The freezer keeps running at full speed for several hours and then
returns to the previous temperature.
• To activate Power Freeze, press and hold Freezer for 3 seconds.
The corresponding indicator (
) lights up, and the refrigerator will
speed up the cooling process for you.
• To deactivate, press and hold Freezer again for 3 seconds. The
freezer returns to the previous temperature setting.
• To freeze large amounts of food, activate Power Freeze for at least
20 hours before putting food in the freezer.
• The freezer keeps running at full speed for 50 hours and then
returns to the previous temperature.
NOTE
Using Power Freeze increases power consumption. Make sure you turn
it off and return to the previous temperature if you do not intend to
use it.
Untitled-1 23 2016-03-16 2:48:39
Operations
English24
Operations
02 Freezer Convert
Freezer
Convert
You can use the entire refrigerator with Fridge mode, or turn off the
freezer.
To change the default freezer mode, press and hold Freezer Convert
for 3 seconds to enter the selection mode. Then, press Freezer Convert
to select a desired mode.
The mode changes in this sequence: Fridge Off Freezer Off
Fridge setting mode.
• If you select Fridge, the Fridge indicator turns on. Power Freeze will
be deactivated if active, and Ice On will turn off if enabled.
• If you select Off, the Off indicator turns on. The freezer will be
turned off.
• If you select Freezer, the Freezer indicators turns on for your
selection. The default freezer temperature is -19 °C.
Your changes will be set and activated after 10 seconds. To cancel or
change the mode again, press and hold Freezer Convert again for 3
seconds. Then, follow the instructions as mentioned above.
NOTE
• If you press and hold Freezer Convert for 3 seconds, the
refrigerator switches to selection mode where you can press
Freezer Convert to select a different mode.
• When refrigeration or freezing functions are at 'Off mode', the
temperature of the fridge or freezer remains under 15 °C to prevent
mold and odors, using low electricity.
• Fridge or Freezer cannot be powered off independently.
• Do not store food or beverage in refrigerator when refrigeration
or freezing functions are at 'Off mode'. 15 °C is not cool enough to
prevent spoilage.
WARNING
• Do not put glass bottles containing liquid in the freezer. When cancelling Freezer
Convert, the glass bottles may break or burst in the freezer.
• Make sure to remove frozen foods from the freezer before enabling the Freezer
Convert. Frozen foods melt and spoil as the temperature increases (Freezer mode
changes to Fridge mode).
• Make sure to remove chilled foods from the freezer before disabling the Freezer
Convert. Chilled foods may freeze as the temperature decreases (Fridge mode changes
to Freezer mode).
Untitled-1 24 2016-03-16 2:48:39
English 25
Operations
NOTE
If you want to use Freezer Convert, it is strongly recommend to use plastic containers to
store food, especially vegetables.
03 Fridge / Power Cool / Vacation
Fridge
To adjust the fridge temperature, press Fridge to select the
corresponding temperature. You can change the temperature between
1 °C and 7 °C (default: 3 °C).
CAUTION
• In winter, do not set the temperature control to 1 °C. This may cause
problems with the cooling performance.
• In summer, do not set the temperature control to 5-7 °C. This may
also cause problems with the cooling performance.
Power Cool
Power Cool speeds up the cooling process at maximum fan speed. The
fridge keeps running at full speed for several hours and then returns
to the previous temperature.
• To activate Power Cool, press and hold Fridge for 3 seconds. The
corresponding indicator (
) lights up, and the refrigerator will
speed up the cooling process for you.
• To deactivate Power Cool, press and hold Fridge again for 3
seconds. The fridge returns to the previous temperature setting.
NOTE
Using Power Cool increases power consumption. Make sure you turn it
off and return to the previous temperature if you dont intend to use
it.
Untitled-1 25 2016-03-16 2:48:39
Operations
English26
Operations
Vacation
If you are going on vacation or a business trip, or if you do not intend
to use the fridge for an extended time, use the Vacation mode.
(Type A and Type B models only)
• To activate Vacation mode, press Fridge with the 1 °C indicator
selected. The vacation indicator (
) turns on while the display of
the fridge temperatures will turn off. The display of Type A (Cool
Select+) and Type B (Cool Select Zone) models also turns off. The
fridge temperature will be controlled under 15 °C, but the freezer
remains active as previously set.
• To deactivate Vacation mode, press Fridge again. The fridge
temperature will restore the 7 °C. Note that Type A (Cool Select+)
and Type B (Cool Select zone) models return to the temperature
settings of the fridge.
(Type C models only)
• To activate Vacation mode, press and hold Vacation for 3 seconds.
The Vacation On indicator turns on while the display of the fridge
temperatures will turn off. The fridge temperature will be controlled
under 15 °C, but the freezer remains active as previously set.
• To deactivate Vacation mode, press and hold Vacation again for 3
seconds. The fridge temperature will return to the previous setting.
NOTE
It is strongly recommended to empty the fridge compartment and
make sure the door is closed.
For Cool Select+/Cool Select Zone models, Vacation mode is controlled
under 15 °C just like the fridge settings. However, the relevant
indicator turns off, depending on the model.
04 Cool Select+ / Cool Select Zone
Cool Select+
(TYPE A)
Press and hold Cool Select+ for 3 seconds. Then, press again to select a
desired mode. The corresponding indicator turns on.
• Fridge
If selected, the Cool Select Zone will be set to 3 °C.
• Soft Freeze
If selected, the Cool Select Zone will be set to -5 °C. This is useful to
store meat and/or shery for an extended time.
• Freezer
If selected, the Cool Select Zone will be set to -12 °C. This is useful
to keep frozen vegetables for an extended time.
Untitled-1 26 2016-03-16 2:48:40
English 27
Operations
Cool Select
Zone (TYPE B)
Press and hold Cool Select Zone for 3 seconds. Then, press again to
select a desired mode. The corresponding indicator turns on.
• Fridge
If selected, the Cool Select Zone will be set to 3 °C.
• -1 °C Zone
If selected, the Cool Select Zone will be set to -1 °C. This is useful to
store perishable foods.
• Fast Cooling
Select this if you want to fast cool foods. The Cool Select Zone will
cool foods at max speed for 60 minutes.
05 Door Alarm / Control Lock
Door Alarm
You can set the alarm for a reminder. If the door is left open for more
than 2 minutes, the alarm will sound with the Alarm indicator blinking.
You can toggle to enable and disable the alarm by pressing Door
Alarm. The alarm is enabled by factory default.
Control Lock
To prevent accidental manipulation, press and hold Door Alarm for 3
seconds to activate the Control Lock. All controls will be disabled with
the indicator (
) on.
To deactivate, press and hold again for 3 seconds. The controls will be
enabled as normal.
Device
authentication
When connecting the refrigerator to Samsung Smart Home App or
Samsung smart devices such as Samsung Smart TVs, follow the app's
or device's onscreen instructions and press and hold Door Alarm for
5 seconds. The temperature panel displays "on" for 5 seconds before
proceeding with the authentication procedure. Note that the Door
Alarm function will be not affected by this authentication.
Untitled-1 27 2016-03-16 2:48:40
Operations
English28
Operations
06 Network connection (applicable models only)
You can use the optional Smart Home Dongle (sold separately) to control and monitor your
refrigerator through the Samsung Smart Home app. For more information about Samsung
Smart Home, see the Samsung Smart Home section.
NOTE
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or
unstandardized Wi-Fi authentication protocols are not supported.
• Wireless networks may be affected by the surrounding wireless communication
environment.
• If your Internet service provider has registered the MAC address of your PC or modem
for identication, your Samsung Smart Refrigerator may fail to connect to the Internet.
If this happens, contact your Internet service provider for technical assistance.
• The rewall settings of your network system may prevent your Samsung Smart
Refrigerator from accessing the Internet. Contact your Internet service provider for
technical assistance. If this symptom continues, contact a local Samsung service center
or retailer.
• To congure the wireless access point (AP) settings, see the user manual of the AP.
• Samsung Smart Refrigerators featuring the Samsung Smart Home Dongle support
both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and Soft-AP protocols (IEEE 802.11 n is
recommended).
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart
Refrigerators.
Samsung Smart Home (applicable models only)
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “Samsung
Smart Home”. Download and install the Samsung Smart Home app provided by Samsung
Electronics to your smart device.
NOTE
• The Samsung Smart Home app is designed for Android 4.0 (ICS) or higher, or iOS 7.0 or
higher, and is optimized for Samsung smartphones (Galaxy S and Galaxy Note series).
On other smartphone models, some functions may operate differently.
• For improved performance, the Samsung Smart Home app is subject to change without
notice, or discontinued support according to the manufacturer’s policy.
Samsung account
You are required to register your Samsung account to use the app. If you don’t have a
Samsung account, follow the app’s onscreen instructions to create a free Samsung account.
Untitled-1 28 2016-03-16 2:48:40
English 29
Operations
Getting started
1. Insert the Smart Home Dongle into the corresponding port of your refrigerator.
2. Run the Samsung Smart Home app and log in with your Samsung account. iPhone users
are required to provide the login information each time they access the app.
3. Access Device > the + icon, and then tap Refrigerator.
4. Follow the onscreen instructions to provide the necessary information about the
router, and then tap Next.
5. Press and hold Fridge for more than 5 seconds until the "AP" message appears on the
display. Your refrigerator will be registered with the app.
6. When the device registration is complete, the refrigerator icon will appear on the
Samsung Smart Home app.
7. Tap the refrigerator icon to open the refrigerator page.
8. When a network connection is established, the Wi-Fi icon lights up on your refrigerator.

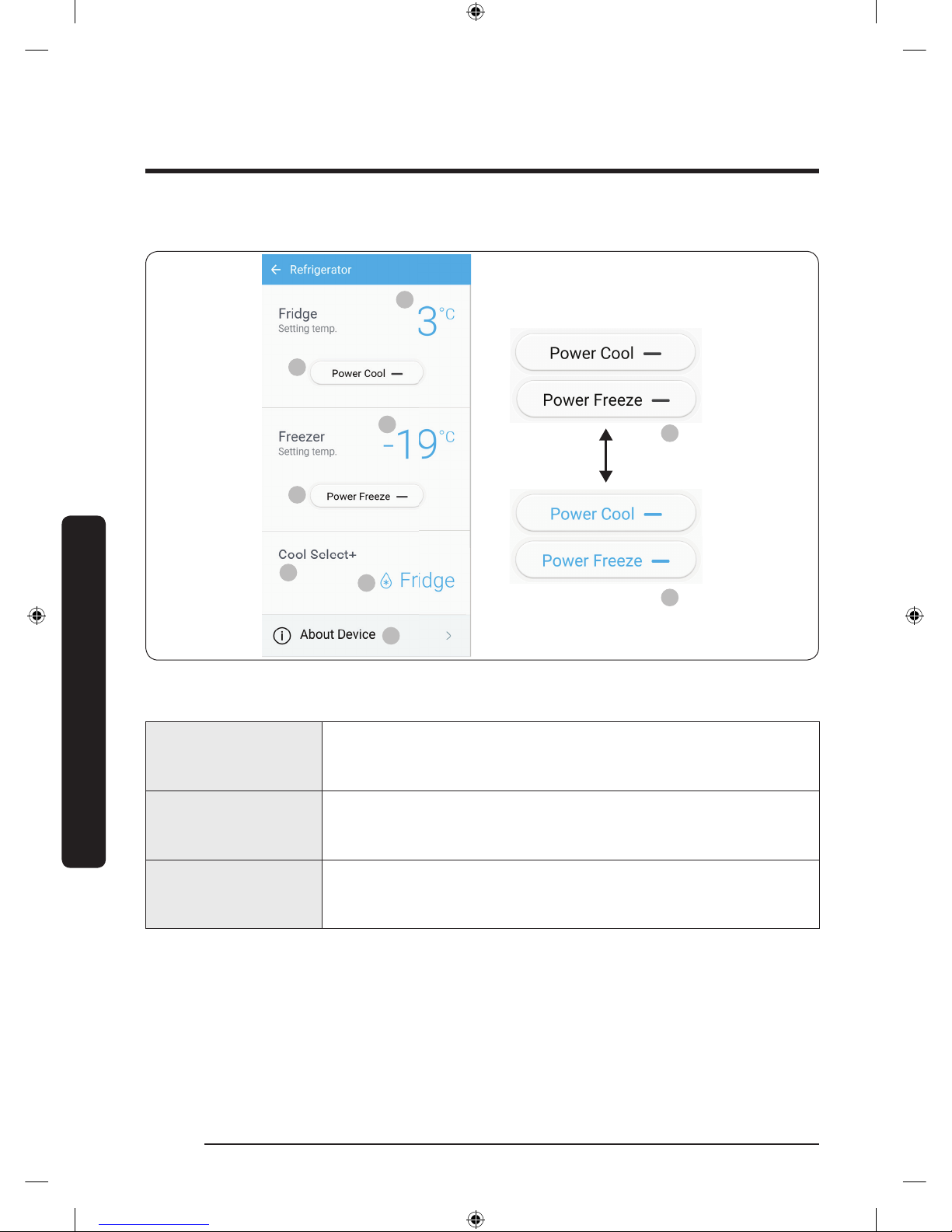

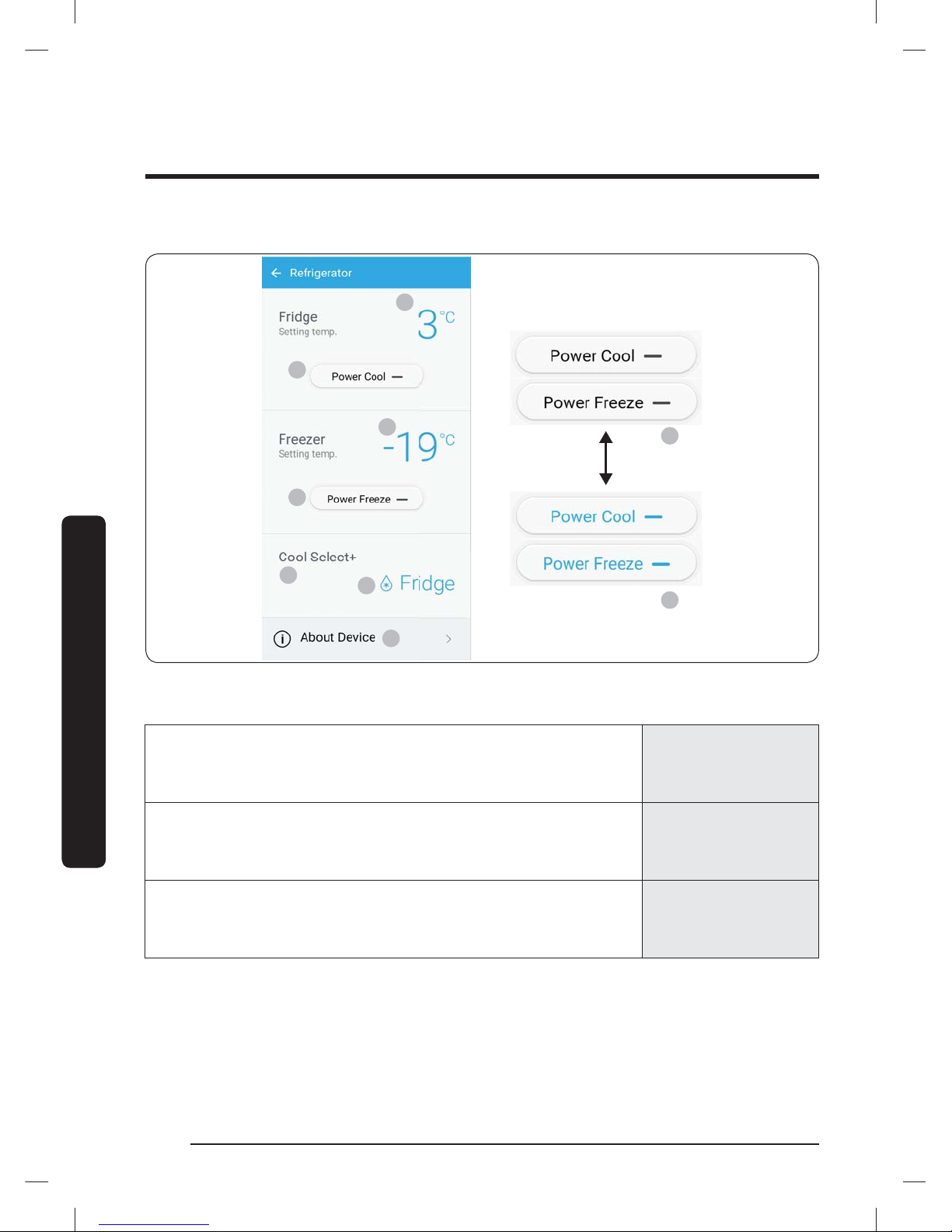

Refrigerator app
Integrated control
You can monitor and control your refrigerator at home as well as while on the move.
• Tap the refrigerator icon on the Samsung Smart Home to open the refrigerator page.
• Check the operation status or notication of your refrigerator, and change options or
settings if necessary.
NOTE
Some options or settings of the refrigerator may not be available for remote control.
Untitled-1 29 2016-03-16 2:48:40
Operations
English30
Operations

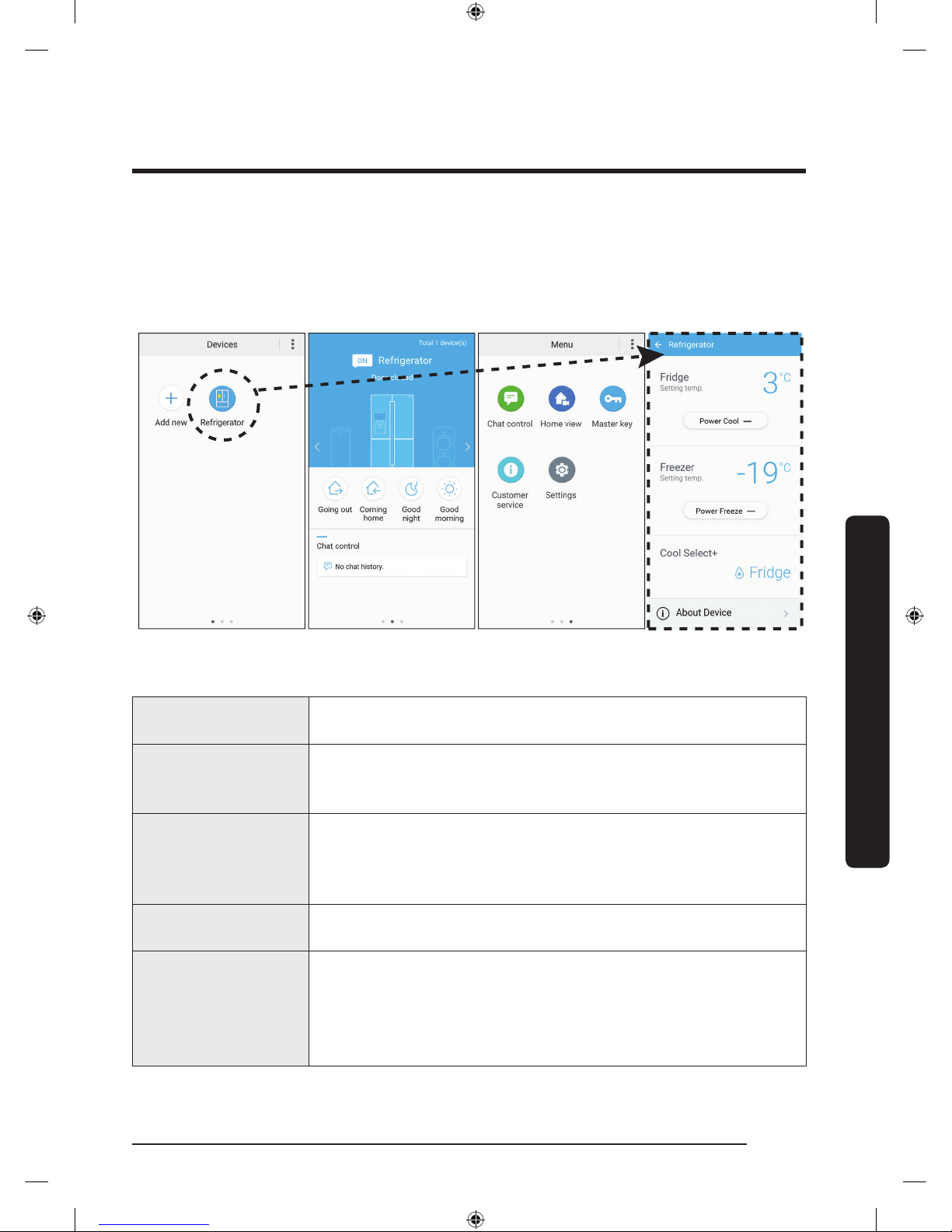

Key features
Register Samsung smart home appliances to the Samsung Smart Home server for remote
access.
Menu overview

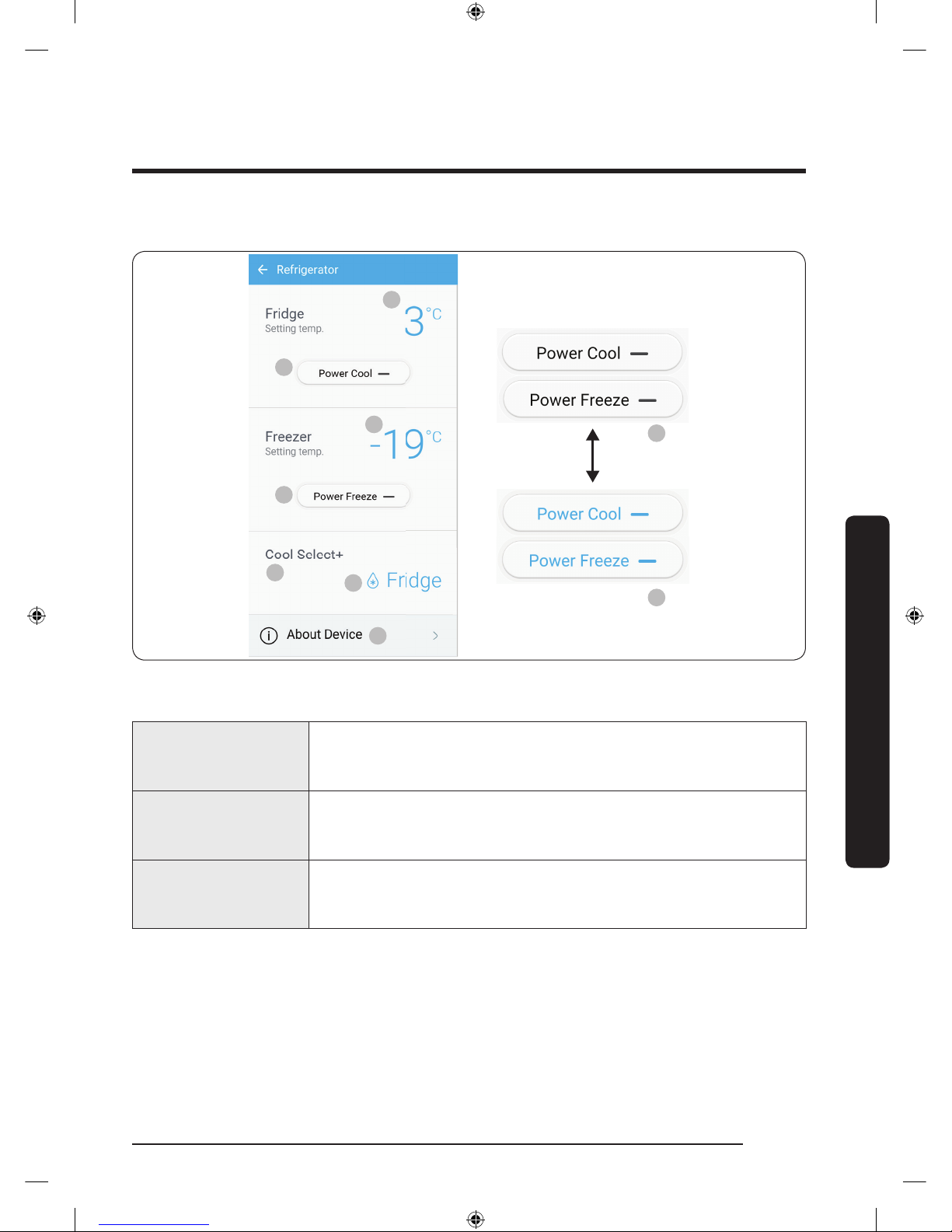

• Tap Refrigerator to open the settings page of the refrigerator.
• Swipe to move to the next page.
Chat control
You can control your Samsung smart home appliances remotely,
or check the operating status.
Home view
(applicable models
only)
By using the built-in camera of a Samsung smart home
appliance, you can monitor your living room. This is available
only with applicable models.
Master key
The master key is designed to control the locking system for
different user activities such as going out, coming home, going
to bed at night, and waking up in the morning. This is available
only with applicable models.
Customer service
The user manual is downloadable, and the contact information
for customer support is also provided.
Settings
You can check the connected device as well as the software
information (version and open-source licenses), and add devices
or select a country.
You can simulate the operation of the current device for
demonstration purposes.
Untitled-1 30 2016-03-16 2:48:41
Loading...
