Samsung RT41M, RT45M, RT45 User Manual
DA68-01574A REV(0.0
)
OWNER’S INSTRUCTIONS
Before operating the unit, please read this manual thoroughly,
and retain for future reference.
REFRIGERATOR
RT45M / RT41M / RT45 / RT41E
ENGLISH
E
1
Large freezer storage area.
- Stores large quantities of food in the freezer.
Silver nano deodorizer.
- Keep fresh by antifungal and deodorizing
using the silver nano technology.
Adjustable storage guards.
-
Position them for your convenience and
according to the height of your food
containers.
The fresh-keeping vegetable
compartment by indirect refrigerating.
- Vegetables are not frozen and always kept
fresh.
- Keep vegetables fresh by maintaining suitable
moisture conditions.
FEATURES
Jumbo storage guard.
- Holds large bottles securely.
2
This manual is made on the basis of model
among model. (P7)
Date of Purchase :
Model No. :
Serial No. :
FEATURES 1
SAFETY INSTALLATION 3~5
LEVELING THE APPLIANCE 6
INSTALLATION 7
CAUTIONS WHILE USING 8
PARTS 9
- Electronic model 9
- Mechanical model 9
REPLACING THE LAMP 10
BASIC PREPARATION 10
- Before using 10
- Storing food 11
STORING FOOD IN THE
REFRIGERATOR OR FREEZER
12
HOW TO USE 13
- Temperature control
(Electronic model)
13~14
- Temperature control
(Mechanical model)
15
- To make ice cubes 16
- Chiller compartment 17
- Vegetable Bin 17
CLEANING THE REFRIGERATOR 18
REMOVING ACCESSORIES 19~20
BEFORE CALLING SERVICE 21~22

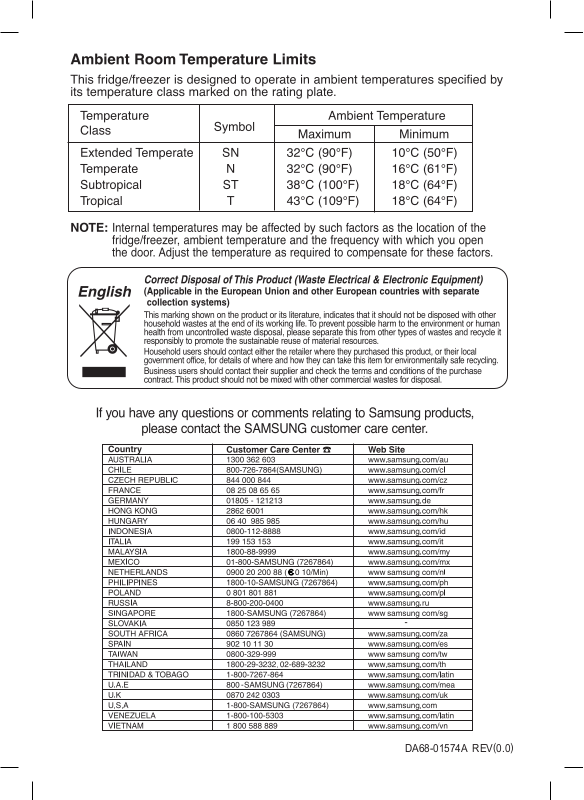

AMBIENT ROOM TEMPERATURE LIMITS
Contents
•
This refrigerator must be properly installed and located
in accordance with the Installation Instructions before it
is used.
Do not install the refrigerator in a damp place or
a place where it may come in contact with water.
•
Deteriorated insulation of electrical parts may cause an
electric shock or re.
•
Do not allow children to climb, stand or hang on the
shelves or doors in the refrigerator.
They could damage the refrigerator and seriously injure
themsleves.
The appliance is not intended for use by
children or inrm persons without supervision.
Children should be supervised to ensure that
they do not play with the appliance.
If the refrigerator is not to be used for vacation or a
long period of time, make refrigerator empty and
pull the power plug.
• Most power failures that are corrected in an hour or two
will not affect your refrigerator temperatures. However,
you should minimize
the number of door openings while the power is
off. But Should the power failure last more than
24hours, remove all frozen food.
• Allow sufcient space to install the refrigerator
on a at surface.
If your refrigerator is not level, the internal cooling
system may not work correctly.
Do not disassemble or repair the refrigerator by
yourself.
You run the risk of causing a re, malfunctions and/or
personal injury.
The appliance must be positioned so that the plug is
accessible after installation.
Do not place this refrigerator in direct sunlight or
expose to the heat from stoves, room heaters or otherappliance.
If you smell pharmaceutical or smoke, pull out the
power plug immediately and contact your
Samsung Electronics service center.
R600a or R134a is used as a refrigerant. Check the
Compressor label on the rear of the appliance and the
rating label inside the fridge to see which refrigerant is
used for your refrigerator.
This appliance contains a small amount of
isobutane refrigerant (R600a), a natural gas with
high environmental compatibility that is, however, also combustible.When transporting and installing
the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
Refrigeran t squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked ames or potential sources of ignition and air
the room in which the appliance is standing for several
minutes.
• In order to avoid the creation of a ammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
The room must be 1m3 in size for every 8 g of R600a
refrigerant inside the appliance. The amount of
refrigerant in your particular appliance is shown on
the identication plate inside the appliance.
• Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
3
SAFETY INSTRUCTIONS
•
When using electrical appliances, basic safety precautions should be followed, including the following:
•
Use this appliance only for its intended purpose as described in this Owner’s Instruction.
We strongly recommend that any servicing be performed by a qualied individual.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
CAUTION/WARNING SYMBOLS USED OTHER SYMBOLS USED
Indicates that a
danger of death or
serious injury exists.
Indicates that a risk of
personal injury or
material damage
exists.
Represents something you must NOT.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug
from the socket.
Represents a ground is needed to prevent electric
shock.
It is recommended that this symbol be handled by
service man.
PROPER DISPOSAL OF THE REFRIGERATOR
Before you throw away your old refrigerator or freezer
• When disposing of this or other
refrigerators, remove the door/door seals,
door latch so that small children or animals
cannot get trapped inside.
• Leave the shelves in place so that children
may not easily climb inside.
• R600a or R134a is used as a refrigerant.
Check the compressor label on the rear of
the appliance or the rating label inside the
fridge to see which refrigerant is used for
your refrigerator.
when this product contains ammable gas
(Refrigerant R600a) contact your local
authority in regard to safe disposal of this
product.
• Child entrapment and suffoxation are not prob
lems of the past. Junked or abandoned refrigera
tors are still dangerous...even if they will sit for
"just a few days."
Do so in a way, that it is not possible for a child
to remain trapped inside.
• The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause a re hazard from overheated wires.
• Never unplug your refrigerator by pulling
the power cord. Always grip plug rmly
and pull straight out from the outlet.
4
SAFETY INSTRUCTIONS
PROPER DISPOSAL OF THE REFRIGERATOR
Before you throw away your old refrigerator or freezer
• When disposing of this or other
refrigerators, remove the door/door seals,
door latch so that small children or animals
cannot get trapped inside.
• Leave the shelves in place so that children
may not easily climb inside.
• R600a or R134a is used as a refrigerant.
Check the compressor label on the rear of
the appliance or the rating label inside the
fridge to see which refrigerant is used for
your refrigerator.
when this product contains ammable gas
(Refrigerant R600a) contact your local
authority in regard to safe disposal of this
product.
• CycloPentane used as a insulation
blowing gas.
The gases in the insulation material require special
disposal procedure. Please dispose of the
packaging material for this product in an environ
mentally friendly manner. Please contact your local
authorities in regard to the environmentally safe
disposal of this product. This product contains
ammable insulation blowing gas.
• Please dispose of the packaging material for this
product in on environmentally friendly.
DANGER RISK OF CHILD ENTRAPMENT
• Child entrapment and suffoxation are not prob
lems of the past. Junked or abandoned refrigera
tors are still dangerous...even if they will sit for
"just a few days."
Do so in a way, that it is not possible for a child
to remain trapped inside.
• If you are getting rid of your old refrigerator, please
follow the instructions below to help prevent ac
cidents.
keep ngers out of the "pinch point" areas;
Clearances between the doors and cabinet are
necessarily small. Be careful while closing the
doors when children are the area.
• The refrigerant used in the refrigerator/freezer and the gases in the insulation
material require special disposal procedures. Ensure that none of the pipes
on the back of the appliance are damaged prior to disposal.
HOW TO CONNECT ELECTRICITY
• The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits, which
could cause a re hazard from overheated wires.
• Never unplug your refrigerator by pulling
the power cord. Always grip plug rmly
and pull straight out from the outlet.
• When moving the refrigerator, be careful not
to roll over or damage the power cord.
• Do not insert the power cord with wet hands.
• Unplug the refrigerator before cleaning and
making repairs.
Do not use a wet or damp cloth when cleaning the
plug.
Remove any foreign matter or dust from the power
plug pins.
• Otherwise there is a risk of re.
If the refrigerator is disconnected from the power
supply, you should wait for at least ve minutes
before plugging it back.
SAFETY INSTRUCTIONS
Do not overll the refrigerator with food.
• When you open the door, an item may fall out
and cause personal injury or material damage.
Do not put bottles or glass containers in the
freezer.
• When the contents freeze, the glass may break
and cause personal injury.
• Bottle should be stored tightly together in the
refrigerator so that they do not fall out.
Do not spray inammable gas near the refrigerator.
• There is a risk of explosion or re.
Do not directly spray water inside or outside
the refrigerator.
• There is a risk of re or electric shock.
Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
• This may cause frostbite.
Do not store volatile or ammable substances
in the refrigerator.
• The storage of benzene, thinner, alcohol, ether,
LP gas and other such products may cause
explosions.
Do not refreeze frozen foods that have thawed
completely.
Do not store pharmaceuticals products,
scientic materials or temperature-sensitive
products in the refrigerator.
• Products that require strict temperature controls
must not be stored in the refrigerator.
Do not put a container lled with water on the
refrigerator.
• If spilled, there is a risk of re or electric shock.
This product is intended only for the storage of
food in a domestic environment.
Do not store articles on the top of the appliance.
• When you open or close the door, the articles
may fall and cause personal injury and/or material
damage.
The refrigerator must be grounded.
• You must ground the refrigerator to prevent any
power leakages or electric shocks caused by
current leakage from the refrigerator.
Never use gas pipes, telephone lines or other
potential lightening rods as ground.
• Improper use of the ground plug can result in
electric shock.
• Keep ventilation openings in the appliance enclosure or
mounting structure clear of obstruction.
• Do not use mechanical devices or any other means to
accelerate the defrosting process, other than those recom
mended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not place or use electrical appliances inside the refrig
erator/ freezer, unless they are of a type recommended by
the manufacturer.
Do not insert your hands into the bottom area
under the appliance.
• Any sharp edges may cause personal injury.
• Make sure that the power plug is not squashed or dam
aged by the back of the refrigerator.
Do not bend the power cord excessively or place heavy
articles on it.
Have the power code repaired or replaced immedi
ately by the manufacturer or its service agent if the
power cord has become frayed or damaged. Do not
use a cord that shows cracks or abrasion damage
along its length or at either end. If the power cord is
damaged, have it replaced immediately by the manu
facturer or its service agent.
• Unplug the appliance from the power supply
before changing the interior light of the
refrigerator.
Otherwise, there is a risk of electric shock.
If you experience difculty when changing the light
contact your service center.
Incase of LED lamp, don’t change the interior light
of the refrigerafor at your own risk, ask its service
agent.
• If the wall socket is loose, do not insert the
power plug.
There is a risk of electric shock or re.
• The appliance must be located where the
plug is easily accessible.
5
The appliance tilts down to the left.
Turn the left adjusting leg in
the direction of the arrow with
a flat head screwdriver until the
appliance is level.
The appliance tilts down to the right.
Turn the right adjusting leg in
the direction of the arrow with
a flat head screwdriver until the
appliance is level.
To compensate for any floor unevenness,
adjust the height of the appliance by
turning the adjustable feet clockwise or
counterclockwise. The adjustable feet are
at the front along the lower edge of the
refrigerator chassis.
LEVELING THE APPLIANCE
6
Foot Front
NOTE :
Foot Front is the component helps prevent
hazard of refrigerator fall when open the door.
INSTALLATION
At first use, Foot Front kept in the
Vegetable Bin of refrigerator, Installing
by turning foot front clockwise under
the door and prevent harzard of
refrigerator fall when open the door.
Insert here
Standtable
NOTE :
Standtable is used as base of refrigerator in Thailand
and some country, when use Standtable we can not
turn the adjusting leg and there is
no Foot Front in this model
.
(There is no Standtable according
to the model).
Insert
Loading...
