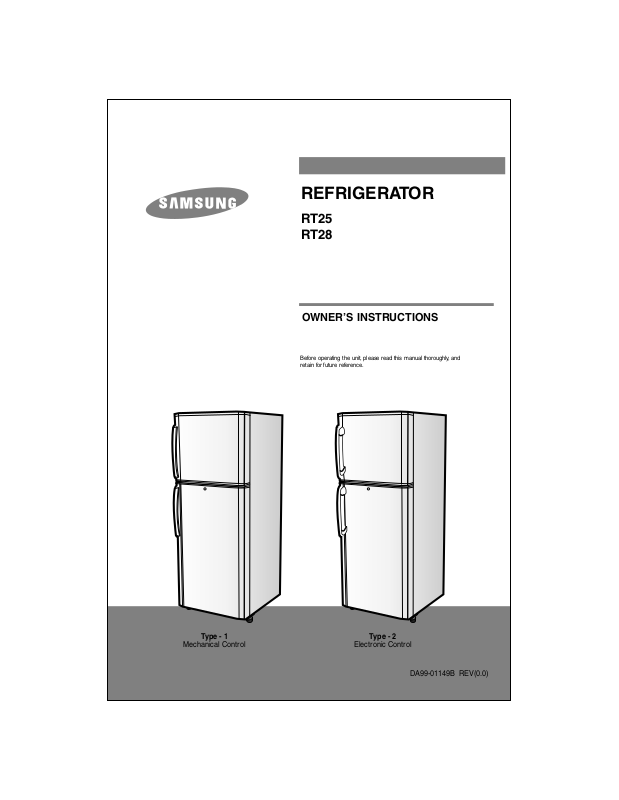

Samsung RT28ZVPS1, RT28YVMS1, RT28ZVSS1 User Manual

REFRIGERATOR

RT25

RT28

Before operating the unit, please read this manual thoroughly, and

retain for future reference.

OWNER’S INSTRUCTIONS

DA99-01149B REV(0.0)

Type - 1

Mechanical Control

Type - 2

Electronic Control

MAIN FEATURES

Large Freezer Storage Area

Sliding Drawer (Select model)

ICooling

Super Freeze Zone (Select model)

Twist Ice-Tray (Select model)

- Stores large quantities of food in the freezer.

- Extra storage space for vegetables and fruits.

- Advanced air circulation for faster surround cooling.

-Freezes stored items quickly.

-Spring mechanism for automatic release of ice

cubes.

- Holds large bottles securely.

- Position them for your convenience

and efficient storage.

- Keep vegetables fresh separately for

longer periods in the twin-box.

Jumbo Storage Guard

Two Type Storage Guard

(Pocket&Foldable)

Twin-Vegetable Box

BASIC PREPARATION

Read Instructions.

Please read all safety and operating instructions before

operating this appliance.

Retain Instructions.

Please keep this Owner's Manual for future reference.

Heed Warnings.

All warnigns, Cautions and Notes on this refrigerator are

important; please pay attention to them.

Follow Instructions.

For best results, follow all instructions given in this manual.

Model and Serial Numbers.

Include both the model number and the serial number when

corresponding with your Dealer concerning this product.

This manual is made on the basis of

RT25/ RT28 model.

Date of Purchase :

Model No. :

Serial No. :

MAIN FEATURES ................................

BASIC PREPARATION ........................

- Getting Started ...................................

INSTALLATION ....................................

CAUTIONS WHILE USING .................

PARTS ..................................................

REPLACING THE LAMP......................

STORING FOOD .................................

HOW TO USE ......................................

- Temperature control ...........................

- Ice cube maker ..................................

- Chiller Compartment .........................

- Twin-Vegetable Box ...........................

LEVELING THE APPLIANCE ..............

REMOVING ACCESSORIES ...............

BEFORE CALLING SERVICE ..............

3,4

12,13

14,15

Mr. Cool Pack (Select model)

- Keep the stored items cool for more time

after power cut off.

Fresh Tech (Select model)

Increases Vitamins in vegetables & fruits.

INSTALLATION

The appliance must be positioned so that the

electrical supply and plug

is easily accessible.

Avoid locations affected

by draughts

or dampness.

Before plugging in for the first time, allow the

refrigerator to stabilize for at least one hour.

Allow the freezer compartment to cool for 2 to 3

hours before storing food.

For optimum operation, normal room

temperature is recommended. Avoid

locations in direct sunlight, near heaters,

radiators, stoves or ovens.

Allow a 100mm space between the refrigeratgor and the

wall.If your refrigerator is going into a recessed area,

allow at least 300mm clearance above the refrigerator.

For personal safety, properly ground this appliance.Do

not ground this refrigerator with a telephone line,

gas pipe, etc.

Getting Started

???

Above 300mm

Above 100mm

CAUTIONS WHILE USING

-Do not allow water to splash onto

the refrigerator.

-Water impairs the insulation of

electric parts and may cause an

electrical shock or a fire hazard.

-Do not use flammable sprays such

as lacquer and paint near the

refrigerator.

-Heat from the refrigeration unit may

ignite flammable aerosols.

-Do not allow unattended children to

play in or around refrigerators and

other large appliances. The child may

get hurt or they could damage the

appliance.

-Do not allow children to hang on to

the refrigerator door.

-The gases in the insulation material required special

disposal procedure.

-Please dispose of the packaging for this product in an

environmentally friendly manner.

-Please contact your local authorities in regards to the

Environmentally safe disposal of this product.

This product contains flammable insulation blowing gas.

Contact your local authority in regards to safe disposal of this product.

-For optimum operation, do not leave the door open

for any longer than necessary.

-Leaving the door open allows warmer air to enter

the refrigerator and causes the refrigeration unit to

use more energy to maintain the temperature.

-Do not store volatile chemicals such as

ether and benzene in the refrigerator.

-The fumes, besides damaging food, can

build up and cause an explosion.

-Do not use the refrigerator if it is not operating

correctly or has been damaged. Disconnect it from

the power supply and call your local service center.

-If the power cord is damaged, avoid a hazard by

replacing it through the manufacturer or its service

agent or a similarly qualified person

-Always be careful of not banging your head on the

bracket lock while storing or taking out food.

-Frequent opening of door can cause excessive

frost in the unit that will reduce the cooling

momentarily, this is a general phenomenon

especially in coastal or high humidity area. It is

not a malfunction. Opening of door should be avoided

while defrosting.

PARTS(RT25/28)

Twist Ice Cube Tray (Select model)

Ice Storage Bin (Select model)

Freezer Compartment Temperature

Control

Guard FRE upp (Select model)

Super-Freeze Zone

(Select model)

Chiller Compartment (Select model)

Refrigerator Compartment Temperature

Control

i-Cooling / Spin-Cool (Optional)

Tray Egg(3-Line)

Refrigerator Shelf (Plastic or Steel or glass)

Lamp

Pocket Storage Guard

Jumbo Guard (2 Bottle Storage Guard)

Bottle Storage Guard

Twin-Vegetable Box

Foldable Storage Guard

It is recommended to store fruits & vegetables in vegetable Box.

Mr. Cool Pack (Select model)

Fresh Tech (Select model)
