Samsung RSG307AABP-XAA User Manual [en, es, fr]

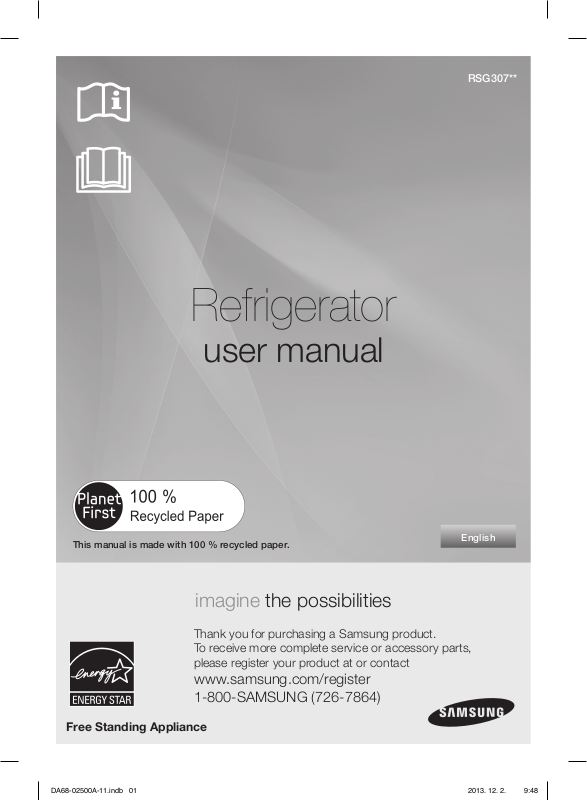

Refrigerator
user manual
RSG307**
This manual is made with 100 % recycled paper.
English
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive more complete service or accessory parts,
please register your product at or contact
www.samsung.com/register
1-800-SAMSUNG (726-7864)
Free Standing Appliance
DA68-02500A-11.indb 01DA68-02500A-11.indb 01 2013. 12. 2. 9:482013. 12. 2. 9:48
safety information
SAFETY INFORMATION
Before using your new Samsung Side-byside door Refrigerator, please read this manual
thoroughly to ensure that you know how to
operate the features and functions that your
new appliance offers safely and effi ciently.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory, or mental capabilities, or
those who lack experience and knowledge,
unless they have been given supervision or
instruction concerning the use of the appliance
by a person responsible for their safety.
Because the following instructions cover various
models, the characteristics of your refrigerator
may differ slightly from the refrigerator described
in this manual. If you have any question,
contact us at 1-800-SAMSUNG or fi nd help
and information online at www.samsung.com.
Important safety symbols and
precautions:
WARNING
CAUTION
These warning signs are here to prevent
injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe
place for future reference.
Hazards or unsafe practices that may
result in severe personal injury or death.
Hazards or unsafe practices that
may result in minor personal injury or
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall
socket.
Make sure the refrigerator is grounded
to prevent electric shock.
Call the contact center for help.
Note.
English - 02
SEVERE WARNING
WARNING
SIGNS FOR
INSTALLATION
• Do not install the refrigerator in a damp
place or place where it may come in
- Deteriorated insulation of electrical parts may
• Do not place this refrigerator in direct sunlight
• Do not plug several appliances into the same
- This provides the best performance and
• If the wall socket is loose, do not insert the
- There is a risk of electric shock of fire.
• Do not use a cord that shows cracks or
• Do not bend the power cord excessively or
• Never unplug your refrigerator by pulling on the
- Damage to the cord may cause a short-circuit,
• Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause
• Connect the power plug in proper position with
- If you connect the power plug upside down,
• When moving the refrigerator, be careful not to
- This constitutes a fire hazard.
contact with water.
cause an electric shock or fire.
or expose to the heat from stoves, room
heaters or other appliance.
multiple power strip. The refrigerator should
always be plugged into its own individual
electrical outlet which has a voltage rating that
matches the voltage listed on the refrigerator’s
rating plate.
also prevents overloading house wiring
circuits, which could cause a fire hazard from
overheated wires.
power plug.
abrasion damage along its length or at either
end.
place heavy articles on it.
power cord. Always grip plug firmly and pull
straight out from the outlet.
fire and/or electric shock.
an explosion or fire.
• This refrigerator must be properly
installed and located in accordance
with the manual before it is used.
the cord hanging down.
the wire can get cut o and cause a fire or
electric shock.
roll over or damage the power cord.
DA68-02500A-11.indb 02DA68-02500A-11.indb 02 2013. 12. 2. 9:482013. 12. 2. 9:48
• Make sure that the power plug is not
squashed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of
children.
- There is a risk of death from suocation if a
child puts the packing materials on his or her
head.
• The appliance must be positioned so that the
plug is accessible after installation.
• You need to remove all the protective plastic
film before you initially plug the product in.
• The refrigerator must be safely
- Always make sure that you have grounded the
• Never use gas pipes, telephone lines or other
- Improper use of the grounding plug can result
CAUTION
- If your refrigerator is not level, the internal
• Keep the ventilation space in the appliance
• Allow the appliance to stand for 2 hours after
grounded
refrigerator before attempting to investigate
or repair any part of the appliance. Power
leakages can cause severe electric shock.
potential lightning attractors as an electrical
ground.
in a risk of electric shock. If it is necessary
to use an extension cord, use only a 3-wire
extension cord that has a 3-blade grounding
plug and a 3-slot receptacle that will accept
the plug on the appliance. The marked rating
of the extension cord should be AC115-120
V, 10 A, or more. If a grounding adapter is
used, make sure the receptacle box is fully
grounded.
• If the power cord is damaged,
have it replaced immediately by the
manufacturer or its service agent.
CAUTION SIGNS FOR
INSTALLATION
• Allow sucient space to install the
refrigerator on a flat surface.
cooling system may not work correctly.
enclosure or mounting structure clear of
obstruction.
installation.
SEVERE WARNING
WARNING
SIGNS FOR USING
• Do not insert the power plug with wet
• Do not store articles on the top of the
- When you open or close the door, the articles
• Do not put a container filled with water on the
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that
• Do not let children hang on the door. A serious
• Do not let children enter inside of the
• Do not insert your hands into the bottom area
- Any sharp edges may cause personal injury.
• Do not let children step on a drawer’s cover.
- The drawer may break and cause them to slip.
• Do not overfill the refrigerator with food.
- When you open the door, an item may fall out
• Do not touch the inside walls of the freezer or
- This may cause frostbite.
• Never put fingers or other objects into the
- It may cause personal injury or material
• Do not spray flammable gas near the
- There is a risk of explosion or fire.
• Do not store volatile or flammable substances
- The storage of benzene, thinner, alcohol, ether,
• Do not store pharmaceuticals products,
- Products that require strict temperature
• Do not place or use an electrical appliance
• Do not use mechanical devices or any other
hands.
appliance.
may fall and cause personal injury and/or
material damage.
refrigerator.
they do not play with the appliance.
injury may occur.
refrigerator. There is a risk of children
entrapment.
under the appliance.
and cause personal injury or material damage.
products stored in the freezer with wet hands.
water dispenser hole, ice chute, or ice maker
bucket.
damage.
refrigerator.
in the refrigerator.
LP gas and other such products may cause
explosions.
scientific materials, or temperature sensitive
products in the refrigerator.
controls must not be stored in the refrigerator.
inside the refrigerator, unless it is of a type
recommended by the manufacturer.
English - 03
DA68-02500A-11.indb 03DA68-02500A-11.indb 03 2013. 12. 2. 9:482013. 12. 2. 9:48
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
• Do not disassemble or repair the
refrigerator by yourself.
- You run risk of causing a fire, malfunction and/
or personal injury.
- When the interior or exterior LED lamp has
gone out, please contact your service agents.
• Children should be supervised to
ensure that they do not play with the
appliance.
• Bottles should be stored tightly together so
that they do not fall out.
• This product is intended only for the storage of
food in a domestic environment.
• If a gas leak is detected, avoid any naked
flames or potential sources of ignition and air
the room in which the appliance is standing for
several minutes.
• Use only the LED Lamps provided by
manufacturer or service agents.
• If there are burning smells or smoke,
pull out power plug immediately and
contact your Samsung Electronics
service center.
• If you experience diculty when changing the
light, contact a service agent.
• If the product is equipped with LED Lamps,
do not disassemble the Lamp Cover and LED
Lamp by yourself.
- Please contact your service agents.
• If any dust or water is in refrigerator, pull out
the power plug and contact your Samsung
Electronics service center.
- Otherwise there is a risk of fire.
- When the contents freeze, the glass may break
and cause personal injury.
• Service warranty and Modification.
- Any changes or modifications
performed by a 3rd party on this
finished appliance are not covered
under Samsung warranty service,
nor can Samsung be responsible for
safety issues that result from 3rd party
modifications.
• Do not block air holes.
- If the air holes are blocked, especially with
a plastic bag, the refrigerator can be over
cooled. If this cooling period lasts too long,
the water filter may break and cause water
leakage.
• If the refrigerator is disconnected from the
power supply, you should wait for at least five
minutes before plugging it back.
• If you have a long vacation planned or the
refrigerator is not to be used for a long period
of time, you must empty the refrigerator and
pull out the power plug.
- Letting the refrigerator run for a long time
without using it can cause the insulation to
deriorate and may cause a fire.
- Wipe excess moisture from the inside and
leave the doors open. Otherwise, odor and
mold may develop.
• To get the best performance from the product:
- Do not place foods too close to the vents at
the rear of the appliance as it can obstruct free
air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight
containers before putting it into the refrigerator.
• Fill the water tank, ice tray, and water cubes
only with potable water.
• If the product is flooded, make sure to
contact your nearest service center.
- There is a risk of electric shock or fire.
CAUTION SIGNS FOR
CAUTION
USING
• Do not re-freeze frozen foods that
have thawed completely. Do not
place carbonated or fizzy drinks in
the freezer compartment. Do not
put bottles or glass containers in the
freezer.
English - 04
DA68-02500A-11.indb 04DA68-02500A-11.indb 04 2013. 12. 2. 9:482013. 12. 2. 9:48
CAUTION SIGNS FOR
CAUTION
CLEANING
• Do not directly spray water on the
- There is a risk of fire or electric shock.
inside or outside the refrigerator.
• Remove any foreign matter or dust
from the power plug pins. Do not use
a wet or damp cloth when cleaning
the plug.
- Otherwise, there is a risk of fire or electric
shock.
• Unplug the refrigerator before cleaning
or making repairs.
• Cyclopentane is used as in the insulation.
The gases in the insulation material require
a special disposal procedure. Please
contact your local authorities in regard to the
environmentally safe disposal of this product.
Ensure that none of the pipes on the back of
the refrigerator are damaged prior to disposal.
• This product contains chemicals
WARNING
WARNING
- Take o the doors.
- Leave the shelves in place so that children can
• Please dispose of the packaging material from
• Leave the shelves in place so that children
• When disposing of this refrigerator, remove
known to the State of California
to cause cancer and reproductive
toxicity.
SEVERE WARNING
SIGNS FOR DISPOSAL
• Risk of child entrapment. Before you
throw away your old refrigerator or
freezer:
not easily climb inside.
this product in an environmentally friendly
manner.
can not easily climb inside. Ensure that none
of the pipes on the back of the appliance are
damaged prior to disposal.
the door/door seals and door latch so that
small children or animals cannot become
trapped inside. Children should be supervised
to ensure that they do not play with the
appliance.
ADDITIONAL TIPS FOR PROPER
USAGE
• In the event of a power failure, call the local
oce of your Electricity Company and ask how
long it is going to last.
- Most power failures that are corrected within
an hour or two will not aect your refrigerator
temperatures. However, you should minimize
the number of door openings while the power
is o.
- Should the power failure last more than 2
hours, remove all ice in the Ice Bucket.
- Should the power failure last more than 24
hours, remove all frozen food.
contents
SETTING UP YOUR SIDE-BY-SIDE REFRIGERATOR …………………………………… 06
OPERATING THE SAMSUNG SIDE-BY-SIDE REFRIGERATOR ………………………… 12
TROUBLESHOOTING ………………………………………………………………………… 18
English - 05
DA68-02500A-11.indb 05DA68-02500A-11.indb 05 2013. 12. 2. 9:482013. 12. 2. 9:48
setting up your side-by-side
2”(50mm)
2”(50mm)
at least ¼”
(6mm)
at least ¼”
(6mm)
68” (1727mm)
46 ½” (1181mm)
51 ½” (1308mm)
40” (1016mm)
38 ⅜” (974mm)
Leg
Screw Driver
refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on the purchase of your Samsung
Side-By-Side Refrigerator. We hope you will enjoy
the many state-of-the-art features and e ciencies
that this new appliance has to o er.
Selecting the best location for the
refrigerator
• Select a location with easy access to a water
supply.
• Select a location without direct exposure to
sunlight.
• Select a location with level (or nearly level)
flooring.
• Select a location with enough space for the
refrigerator doors to open easily. See the
diagram below.
• Select a location that allows sucient space to
the right,left, back, and top for air circulation.
See the diagram below.
• Select a location that allows you to move the
refrigerator easily if it needs maintenance or
service.
at least ¼”
(6mm)
at least ¼”
(6mm)
38 ⅜” (974mm)
46 ½” (1181mm)
68” (1727mm)
When moving your refrigerator
To prevent fl oor damage, be sure the front levelling
legs are in the up position (above the fl oor). Refer
to ‘Levelling the refrigerator’ in this manual (page
08).
To protect the fi nish of your fl ooring while you are
installing the refrigerator, place a large section of
the cardboard carton under the refrigerator where
you are working.
40” (1016mm)
51 ½” (1308mm)
2”(50mm)
CAUTION
Leg
When installing, servicing or cleaning
Screw Driver
behind the refrigerator, be sure to pull the
unit straight out and push back straight in
after finishing.
2”(50mm)
English - 06
DA68-02500A-11.indb 06DA68-02500A-11.indb 06 2013. 12. 2. 9:482013. 12. 2. 9:48
SETTING UP THE
Make sure the color
of the water lines
match.
REFRIGERATOR
Now that you have your new Refrigerator installed
in place, you are ready to set up and enjoy the
features and functions of the appliance. By
completing the following steps, your Refrigerator
should be fully operational. If not, fi rst check the
power supply and electricity source or try the
troubleshooting section at the back of this user’s
guide. If you have any further questions, contact
your Samsung Electronics service center.
2. Remove two water lines (White one is for water
and the other one is for ice) by pressing the
coupler (1) and pulling the water line (2) away.
Make sure the color
of the water lines
match.
1
2
01 SETTING UP
1. Place the Refrigerator in an appropriate
location with reasonable clearance between
the wall and the Refrigerator. Refer to
installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure
the interior light comes on when you open the
doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour. The Freezer
will get slightly chilled and the motor will run
smoothly.
4. After powering the Refrigerator, it will
take a few hours to reach the appropriate
temperature. You can store food and drinks
in the Refrigerator after the temperature is
suciently cool.
SETTING UP THE
REFRIGERATOR DOORS
If your entrance won’t allow the refrigerator to
pass easily through it, you can remove the doors.
Separating the Water Supply Line
from the Refrigerator
1. Pull the two water lines (which are in the Fixer)
out to the front.
Removing the freezer door
A few things to mention fi rst.
• Make sure that you lift the door straight up so
the hinges are not bent or broken.
• Be careful not to pinch the water tubing and
wire harness on the door.
• Place doors on a protected surface to prevent
scratching or damage.
1. Remove a screw on the upper hinge cover
(1). With the door open, disengage the two
locking tabs with a flat-head screw driver (2)
and remove it while the lifting up the rear of the
cover (3), and then disconnect the wires by
gently pulling them apart (4).
1
3
2
2. Removing the FIXER HINGE ,and next take o
the upper hinge. Be careful that the door does
not fall on you as you are removing it.
4
Be sure to keep track of all parts you are
removing.
English - 07
DA68-02500A-11.indb 07DA68-02500A-11.indb 07 2013. 12. 2. 9:482013. 12. 2. 9:48
3. Next, remove the door from the lower hinge (5)
Center of transparent coupler
clip A (¼”)
(6.35mm)
Freezer Leg
Screw Driver
by carefully lifting the door straight up (6).
6
5
2. Removing the FIXER HINGE ,and next take o
the upper hinge. Be careful that the door does
not fall on you as you are removing it.
Be careful not to pinch the water tubing
and wire harness on the door.
Reattaching the freezer doors
To reattach the freezer doors, replace parts in
reverse order
Reattaching the Water Supply Line
1. The Water Line must be fully Inserted to the
center of transparent coupler to prevent water
leakage from the dispenser.
2. Insert the 2 clips in the install pack and check
that each clip holds the line firmly.
Center of transparent coupler
clip A (¼”)
(6.35mm)
Do not cut the water line. Gently separate
it from the coupler.
Removing the Fridge Door
1. Remove a screw on the upper hinge cover (1).
With the door open, disengage the two locking
tabs with a flat-head screw driver (2) and
remove it while the lifting up the rear of the
cover (3), and then disconnect the wires by
gently pulling them apart (4).
1
Be sure to keep track of all parts you are
removing.
3. Remove the door
from the lower hinge
6
(5) by lifting the door
straight up (6).
5
Reattaching the Fridge door
To reattach the fridge doors, replace parts
in reverse order.
LEVELLING THE
REFRIGERATOR
Now that the doors are back on the refrigerator,
you want to make sure the refrigerator is level
so that you can make fi nal adjustments. If the
refrigerator is not level, it will not be possible to get
the doors perfectly even.
When the Freezer part is lower than
the Fridge part.
Insert a fl at-blade screwdriver into a slot on the
Freezer Leg, then turn it clockwise.
3
2
DA68-02500A-11.indb 08DA68-02500A-11.indb 08 2013. 12. 2. 9:482013. 12. 2. 9:48
4
English - 08
Screw Driver
Freezer Leg
When the Fridge part is lower than
Fridge Leg
Screw Driver
the Freezer part.
Insert a fl at-blade screwdriver into a slot on the
Fridge Leg, then turn it clockwise.
Fridge Leg
Refer to the next section for the best way
to make very minor adjustments to the
doors.
Screw Driver
MAKING MINOR
ADJUSTMENTS TO THE
DOORS
Remember, a level refrigerator is necessary for
getting the doors perfectly even. If you need
help, review the previous section on levelling the
refrigerator.
When the door of the fridge is higher
than the freezer
Insert a fl at-blade screwdriver into a slot on the
freezer leg, then turn it clockwise.
CHECKING THE WATER
DISPENSER LINE
A water dispenser is one of the helpful features on
your new Samsung Refrigerator. To help promote
better health, the Samsung water fi lter removes
unwanted particles from your water. However, it
does not sterilize or destroy microorganisms. You
may need to purchase a water purifying system to
do that.
In order for the ice maker to operate properly, a
water pressure of 20~125 psi (pound per square
inch) is required. Under normal conditions, a
170 cc (5.75 oz.) paper cup can be fi lled in 10
seconds.
If the Refrigerator is installed in an area with low
water pressure (below 20psi), you can install
a booster pump to compensate for the low
pressure.
Make sure the water storage tank inside the
Refrigerator is properly fi lled. To do this, press the
water dispenser lever until the water runs from the
water outlet.
Water line installation kits are available
at extra cost from your dealer. We
recommend using a water supply kit that
contains copper tubing.
01 SETTING UP
Check the accessory list below.
When the door of the freezer is higher
than the fridge
Insert a fl at-blade screwdriver into a slot on the
fridge leg, then turn it clockwise.
English - 09
DA68-02500A-11.indb 09DA68-02500A-11.indb 09 2013. 12. 2. 9:482013. 12. 2. 9:48
Hex wrench Clip
Connecting to the water supply line
Shut o valve
Pipe clamp
Cold water
line
Water line installation
kit
Plastic
tubing
(Assembled)
Ferrule (Not
supplied)
Compression
nut (1/4”)
(Assembled)
Compression
fitting
(Assembled)
Molded
end(Bulb)
Compression
nut (B) (1/4”)
(Not supplied)
or
Copper tubing
(Not supplied)
Plastic tubing (B)
(Not supplied)
Household water supply line
Refrigerator
Figure 1
Figure 2
1. First, shut o the main water supply line and
turn the ice-maker o.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply with water
filter, turn on water supply and Flush 3 gallons
through filter before use (flush approximately 6
minutes).
1. Connect the household water line to the
assembled compression fitting.
- If you are using copper tubing, slip the
compression nut (B) (not included) and ferrule
(not included) on copper tubing (not included)
as shown.
- If you are using plastic tubing (B), insert the
molded end(Bulb) of the plastic tubing (B) into
the compression fitting.
Pipe clamp
Shut o valve
Cold water
line
Water line installation
kit
INSTALLING THE WATER LINE
Connecting the water line to the
Refrigerator.
There are several items that you need to purchase
to complete this connection. You may fi nd these
items sold as a kit at your local hardware store.
• 1/4” compression nut • plastic tubing
• copper tubing • ferrule
Refrigerator
Compression
nut (1/4”)
(Assembled)
Compression
fitting
(Assembled)
Molded
end(Bulb)
Compression
nut (B) (1/4”)
(Not supplied)
Plastic tubing (B)
(Not supplied)
(Assembled)
Ferrule (Not
Plastic
tubing
supplied)
Copper tubing
(Not supplied)
or
Household water supply line
Do not use without the molded end(Bulb)
CAUTION
of the plastic tubing (B).
2. Tighten the compression nut (B) onto the
compression fitting. Do not over-tighten the
compression nut (B).
3. Turn water on and check for any leakage.
Only connect the water line to a drinkable
water source.
If you have to repair or disassemble the
water line, cut o 1/4“ of the plastic tubing
to make sure you get a snug, leak-free
connection.
BEFORE USING ICEMAKER
Remove
- Hold the handle as
shown in Figure1.
- Slightly pull up the
bottom part.
- Take out the ice bucket
slowly.
Install
- Assemble the icemaker
in the reverse order of
disassembly.
- Push the bucket in
firmly until you hear a
clicking sound.
- If the bucket does not fit into its place, turn
the gear handle on its back by 90 degrees
and reinstall it again as shown in Figure 2.
English - 10
Figure 1
Figure 2
DA68-02500A-11.indb 10DA68-02500A-11.indb 10 2013. 12. 2. 9:482013. 12. 2. 9:48
Before calling
Ice Chute
Ice
Water
Ice maker
1
Test button
Check the water
level
2
service
- Any sounds you hear
when the ice maker
dumps ice into the
bucket are part of
normal operation.
- If you don’t dispense ice for a long period
of time, the ice may form clumps in the
ice bucket. If ice clumps form, remove the
remaining ice and empty the bucket.
- When ice does not come out, check for ice
stuck in the chute and remove it.
Ice Chute
Ice
Water
A newly installed water filter cartridge
may cause water to briefly spurt from the
water dispenser. This is due to air getting
into the line. It should pose no problem to
operation.
01 SETTING UP
- When Ice O blinks on the display
CAUTION
panel, reinsert the bucket and/or make
sure it’s installed properly.
- When the door is open, the Ice and water
dispenser do not work.
- If you close the door hard, it may cause water
spilling over the ice maker.
- To prevent dropping the ice bucket, use both
hands when removing it.
- To prevent injury, be sure to clean up any ice
or water that may have dropped on the floor.
- Do not let the children hang on the ice
dispenser or on the bucket. They may get hurt.
- Be sure not to put your hand or any object into
the ice chute. It may cause personal injury or
damage mechanical parts.
Removing residual matter inside the
water supply line after installing fi lter.
1. Turn ON the main water supply.
2. Press the Water button and push the
Dispenser Lever.
3. Flush 1 gallons of water through the filter
before use. (Flush approximately 6 minutes.)
This will clean the water supply system and
remove air from the lines.
4. Additional flushing may be required in some
households.
5. Open the refrigerator door and make sure
there are no water leaks coming from the
water filter.
Check the amount of water supplied
to the ic
1. Lift up the icemaker cover and gently pull it
2. When you press the Test button for 3 seconds,
CAUTION
- Do not press the test button continuously
- When the bucket is not installed, the ice maker
- When Ice O blinks on the display panel,
e tray.
out.
the ice cube container is filled with water from
the water supply tap. Check to make sure the
amount of water is correct (see the illustration
below). If the water level is too low, the ice
cubes will be small. This is a water pressure
problem from within the main water pipes, not
the refrigerator.
1
Ice maker
- It will take a few minutes for the water
Test button
to reach the correct level after you push
the Test button.
when the tray is filled with ice or water. Water
may overflow or ice jamming may occur.
does not work.
reinsert the bucket and/or make sure it’s
installed properly.
Check the water
2
level
English - 11
DA68-02500A-11.indb 11DA68-02500A-11.indb 11 2013. 12. 2. 9:482013. 12. 2. 9:48
operating the SAMSUNG sideby-side refrigerator
USING THE CONTROL PANEL
1 4
2
3
910
8
( 1 )
Energy
Saver
( 2 )
Freezer
(Hold 3
sec for
Power
Freeze)
7
Touching this button turns Energy Saver
mode on and o . When you turn Energy
Saver on, the Energy Saver icon lights up.
Turn Energy Saver o , and the icon goes
o . The Energy Saver function turns on
automatically when power is supplied to
the refrigerator.
If condensation or water drops appear on
the doors, turn the Energy Saver mode
o .
Touch this button to set the Freezer
temperature.
You can set the temperature between
8°F(-14°C) and -10°F(-23°C).
Touch and hold this button for 3 seconds
to decrease the time needed to freeze
products in the Freezer. It can be helpful
if you need to freeze easily spoiled items
quickly or if the temperature in the Freezer
has warmed dramatically (For example, if
the door was left open).
( 3 )
Alarm /
Hold 3
sec for
Filter
Reset
5
6
Lighting/
Hold 3
sec for
C↔F
Fridge
(Hold 3
sec for
Power
Cool)
This button serves two purposes:
1) To turn the door open alarm on and o .
If the door alarm is set to On, an alarm
beeps if any refrigerator door is left open
for more than three minutes. The beeping
stops when you close the door. The door
alarm function is pre-set to On in the
factory. You can turn it o by touching and
then releasing this button. You can turn
it back on in the same fashion. The icon
lights up when the function is on.
2) After you replace the water fi lter, Touch
and hold this button for 3 seconds to
reset the water fi lter life indicator.
( 4 )
Touching the Lighting button turns on the
Dispenser LED lamp (under the display)
in continuous mode so that it stays on
continuously. The button also lights up. If
you want the Dispenser lamp to come on
only when some one uses the dispenser,
press the Lighting button to turn the
continuous mode o . Touch and hold
this button for 3 seconds to switch the
temperature units between °C and °F
( 5 )
Touch this button to set the Fridge
temperature.
You can set the temperature between
34°F(1°C) and 46°F(7°C).
Touch and hold the this button for 3
seconds to decrease the time needed
to cool products in the Refrigerator. This
can be helpful if you need to cool easily
spoiled items
quickly or if the temperature in the fridge
has warmed dramatically
(For example, if the door was left open).
English - 12
DA68-02500A-11.indb 12DA68-02500A-11.indb 12 2013. 12. 2. 9:482013. 12. 2. 9:48
( 6 )
Ice O
(Hold 3
sec for
child lock)
(7)
Ice Type
(8)
Water
If you don’t want to make more ice, touch
this button. Also, pressing and
holding this button for 3 second locks the
display panel and dispenser buttons so
the buttons can not be used. The Child
Lock icon lights up to indicate you’ve
activated the Child Lock function.
Touch this button to select your desired
ice type. Cubed and crushed ice modes
alternate each time you press the Ice Type
button.
Note that when you push the Ice Type
button, you turn the Water dispenser o .
Touch this button to dispense water. Note
that you cannot dispense water and ice
simultaneously.
The Water dispenser turns o when you
press the Ice Type button.
( 9 )
Ice O
When you touch the Ice O button (
the Ice O icon lights and the Ice Maker
stops making ice.
We recommend you stop ice making
if the following occur:
- There is enough ice in the ice bucket.
- You want to save water and energy.
- Water is not being supplied to the
refrigerator.
If the ice maker function is ON, and
the water line is not connected,
there will be a water valve noise
from back of the unit. Press the Ice
O (Hold 3sec for child lock) button
(
) for less than 3 seconds
until the Ice O Indicator ( )
illuminates.
),
If you do not press any button(letters not ICON),
the display turns o in a few seconds.
If you press any button(letters not ICON), the
display lights up again.
The function key will operate after you remove
your finger from the letters except E.Saver, Ice
and Water key.
02 OPERATING
( 10 )
Cooling
O Mode
Cooling O mode (also called Shop
mode), is designed for use by retailers
when they are displaying refrigerators on
the shop fl oor. In Cooling O mode, the
refrigerator’s fan motor and lights work
normally, but the compressors do not run,
and the refrigerator and freezer do not
get cold.
To start Cooling O mode, Touch and
hold the Energy Saver button and the
Power Freeze button for 5 seconds during
normal operation. The refrigerator chime
sounds and the temperature display
fl ashes OF OF.
To cancel Cooling O mode, Touch and
hold the Energy Saver and the Power
Freeze buttons again for 5 seconds.
Filter
Water fi lter usage
The Water Filter icon lights in red when
you need to change the water fi lter.
This occurs after you use about 300
gallons of water (which usually takes
about 6 months).
After install the new water fi lter, reset the
Water Filter icon by touching the Alarm/
Hold 3 sec for Filter Reset button for 3
seconds.
• If water is not dispensing or
dispensing slowly, you need to
replace the water filter because
the water filter is clogged.
• Some areas have large amounts
of lime in their water which
causes the water filter to clog
more quickly.
English - 13
DA68-02500A-11.indb 13DA68-02500A-11.indb 13 2013. 12. 2. 9:482013. 12. 2. 9:48
CONTROLLING THE
Recommend Temp (Freezer) : -4°F(-20°C)
Recommend Temp (Fridge) : 38°F(3°C)
NO ICE
Select this if you want to turn ice
maker o
TEMPERATURE
Basic temperature of Freezer and
Refrigerator Compartments
The basic temperature and recommended
temperatures of the Freezer and Refrigerator
Compartments are -4°F(-20°C) and 38°F(3°C)
respectively.
If the temperature of the Freezer or Refrigerator
Compartments are too high or low, adjust the
temperature manually.
Controlling the Freezer temperature
Recommend Temp (Freezer) : -4°F(-20°C)
You can set the Freezer temperature between
-8°F(-23°C) and 10°F( -14°C) to suit your
particular needs. Touch the Freezer button
repeatedly until the desired temperature is shown
in the temperature display. The temperature
will move 2°F(1°C) degrees with each Touch as
follows: -4°F → -6°F → -8°F → -10°F → 8°F →
6°F → 4°F → 2°F → 0°F → -2°F → -4°F (-20°C
→ -21°C → -22°C → -23°C → -14°C → -15°C →
-16°C → -17°C → -18°C → -19°C → -20°C). Keep
in mind that foods such as ice cream can melt
at 4°F(-15°C). The temperature display will move
sequentially from -8°F(-23°C) to 10°F(-14°C).
Controlling the fridge temperature
You can set the fridge temperature between
46°F(7°C) and 34°F(1°C) to suit your particular
needs. Touch the Fridge button repeatedly
until the desired temperature is shown in the
temperature display. The temperature will move
2°F(1°C) degrees with each touch as follows:
38°F → 36°F → 34°F → 46°F → 44°F → 42°F →
40°F → 38°F (3°C → 2°C → 1°C → 7°C → 6°C
→ 5°C → 4°C → 3°C). The temperature control
process for the Fridge works just like the Freezer
process. Touch the Fridge button to set your
desired temperature. After a few seconds, the
Fridge will begin adjusting towards the newly set
temperature. This will be reflected in the digital
display.
- The temperature of the Freezer or Fridge
may rise when you open the doors too
frequently, or if a large amount of warm
or hot food is placed inside.
- This may cause the digital display to blink.
Once the Freezer and Fridge temperatures
return to their normal set temperatures, the
blinking will stop.
- If the blinking continues, you may need to
“reset” the Refrigerator. Try unplugging the
appliance, wait for around 10 minutes, and
then plug the power cord back in.
- If there is a communication error between the
Display and Main Controller, the Convertible
Display light may blink. If the blinking continues
for a long period of time, please contact a
Samsung Electronics Service Center.
HOW TO USE THE DISPENSER
Push the appropriate Ice Type button
or the Water button to select what
you want dispensed.
Select this if you want to turn ice
Recommend Temp (Fridge) : 38°F(3°C)
DA68-02500A-11.indb 14DA68-02500A-11.indb 14 2013. 12. 2. 9:482013. 12. 2. 9:48
English - 14
NO ICE
maker o
Press the Ice Type button to
Ice Chute
Ice Bucket
Ice-Maker Cover
Test button
select the type of ice you want.
Place your cup under the ice
outlet and push gently against the
dispenser lever. Make sure the
glass is in line with the dispenser
to prevent the ice from bouncing
out. When you select Cubed
Ice after using the Crushed
Ice feature, a small amount of
residual crushed ice might be
produced.
Please wait 2 seconds before removing
CAUTION
the glass under the dispenser to prevent
spills.
If the Refrigerator door opens, the Dispenser does
not work.
• Do not pull the lever out. You could damage or
break the lever’s spring.
• To clean the ice bin/bucket, wash with a mild
detergent, rinse well, and dry thoroughly it. Do
not use harsh or abrasive cleaners or solvents.
• In case ice doesn’t come out, pull out the ice
bucket and press the test button located on
the right side of ice maker.
• Do not press the test button continuously
when the tray is filled with ice or water. Water
may overflow or ice may jam the bucket.
• When you press the Test button, you will
hear the refrigerator chime (ding-dong).
When the chime sounds, release the
Test button.
• The chime sounds automatically again to let
you know the ice maker is working well.
If a power failure occurs, ice cubes may
CAUTION
melt then freeze together when the power
comes back on, causing the dispenser to
be out of order.
To prevent this problem, after a power failure, pull
out the ice bucket and discard the residual ice or
water.
After you dump the ice from the ice
CAUTION
bucket, you should press the dispenser
lever once with the ‘ICE CUBED’ or
‘CRUSHED’ function ON.
The ice maker will make new ice faster after you
return the ice bucket to the refrigerator.
• Do not put your fingers, hands or any
CAUTION
other unsuitable objects in the chute
or ice-maker bucket. It may result in
personal injury or material damage.
- It may result in personal injury or material
damage.
• Use only the ice maker provided with the
refrigerator.
• The water supply to this refrigerator must be
installed/connected by a suitably qualified
person and connect to a potable water supply
only.
• For the the ice maker to operate properly, the
water pressure must be between 20 and 125
psi.
CAUTION
• If you have a
long vacation
or business
trip and
Ice-Maker Cover
won’t use the
water or ice
dispensers,
close the
water valve.
Ice Chute
Ice Bucket
- Otherwise, water
leakage may occur.
• When you have not used the Ice maker for a
while, or you have opened the Freezer door
frequently, the Ice may stick together. If this
has occurred, empty the ice bucket or break
up the ice with a wood kitchen tool. Do not
use sharp items such as knives or forks.
• When the bucket is removed, there may still
be some residual ice in the ice maker that the
icemaker can release.
• If ice does not
CAUTION
dispense, pull
out the icemaker
cover and press
test button
located on the ice
Test button
maker.
• Do not press the test button continuously
when the tray is filled with ice or water. Water
may overflow or the ice may jam the icemaker
or dispenser.
02 OPERATING
English - 15
DA68-02500A-11.indb 15DA68-02500A-11.indb 15 2013. 12. 2. 9:482013. 12. 2. 9:48
CLEANING THE
Cold air outlet
Load limit in
the freezing
compartment
REFRIGERATOR
Do not use Benzene, Thinner or Clorox™
WARNING
or car detergent to clean the Refrigerator.
They may damage the surface of the
appliance and can create a risk of fire.
Do not spray the refrigerator with water
CAUTION
while it is plugged in, as it may cause an
electric shock.
REMOVING THE FREEZER/
FRIDGE ACCESSORIES
Cleaning and rearranging the interior of the freezer
is a snap.
1. Shelves (Freezer/
Fridge)
Pull the shelf out as far
as it goes, and then lift
up and remove it.
2. DOOR BIN
Remove the Door Bin
by holding it with both
hands, and then gently
lift it up.
3. DRAWER
Remove the Drawer by
pulling it out and lifting it
up slightly.
4. Drawer Cover
Pull the cover out as far
as it goes, and then lift
up and remove it.
English - 16
5. Ice Bucket
(Freezer)
Remove the Icemaker
Bucket by lifting up and
pulling it out slowly.
• Grip the handle as
shown in the figure.
• Lift the low part
slightly.
• Take the ice bucket
out slowly.
Do not use excessive force when removing
the drawer cover.
You can break the cover and cause injury.
Before removing any accessories, make
sure that no food is in the way.
When possible, remove the food
altogether to reduce the risk of accidents.
CHANGING THE INTERIOR
LIGHTS
Do not disassemble or replace the LED
CAUTION
type Lighting.
To change the LED Type Lighting, contact
a Samsung service center.
TO IMPROVE THE COOLING
PERFORMANCE
If the cold air outlet
is blocked by food
items, the cold air
cannot penetrate the
entire compartment
and will be unable
to freeze the food
eciently which
results in a degraded
cooling performance.
In particular, there
is load limit at the
top of the freezing
compartment. Please
do not put food items
above this limit.
Cold air outlet
Load limit in
the freezing
compartment
DA68-02500A-11.indb 16DA68-02500A-11.indb 16 2013. 12. 2. 9:482013. 12. 2. 9:48
CHANGING THE WATER
FILTER
To reduce risk of water damage to your
WARNING
property DO NOT use generic brands of
water filers in your SAMSUNG Refrigerator.
USE ONLY SAMSUNG BRAND WATER
FILTERS.
SAMSUNG is not legally responsible for any
damage, including, but not limited to property
damage caused by water leakage from the use of
a generic water fi lter.
SAMSUNG Refrigerators are designed to work
ONLY WITH SAMSUNG Water Filters.
The “Filter Indicator” light lets you know when it is
time to change your water fi lter cartridge. To give
you preparation time to get a new fi lter, the red
light will come on just before the capacity of the
current fi lter runs out. Changing the fi lter on time
provides you with the freshest, cleanest water
from your fridge.
To change the water fi lter, follow these steps:
A newly installed water filter cartridge
may cause water to briefly spurt from the
water dispenser. This is due to air getting
into the line. It should pose no problem to
operation.
Removing residual matter inside the
water supply line after installing a
new fi lter
1. Press the Water button, and then push the
Dispenser Lever with a cup or glass.
2. Flush 1 gallon of water through the filter, one
cup or glass at a time. (Flush approximately
6 minutes.) This will clean the water supply
system and remove air from the lines.
- Additional flushing may be required in some
households.
3. Open the refrigerator door and make sure
there are no water leaks coming from the
water filter.
02 OPERATING
1. Turn the water
filter 90˚ counterclockwise.
2. Pull the water
filter from the filter
housing.
3. Insert new water
filter inside the filter
housing.
4. Turn the new water
filter 90˚ clockwise.
5. Press the “Alarm/hold 3 sec for Filter Reset”
button (
water filter. The color of indicator changes from
red to light o.
) for about 3 seconds to reset the
Reverse Osmosis Water Supply
IMPORTANT : The pressure of the water supply
coming out of a reverse osmosis system going to
the water inlet valve of the refrigerator needs to be
between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water fi ltration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis
system is less than 40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment filter in the
reverse osmosis system is blocked. Replace
the filter if necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
• If your refrigerator has a water filter, it may
further reduce the water pressure when used
in conjunction with a reverse osmosis system.
Remove the water filter.
If you have questions about your water pressure,
call a licensed, qualifi ed plumber.
Ordering replacement fi lters
To order more water fi lter cartridges, contact your
authorized Samsung dealer.
English - 17
DA68-02500A-11.indb 17DA68-02500A-11.indb 17 2013. 12. 2. 9:482013. 12. 2. 9:48
Troubleshooting
PROBLEM SOLUTION
The refrigerator
does not work
at all or it
does not chill
suciently.
The food in the
fridge is frozen.
• Check that the power plug is properly connected.
• Is the temperature control on the display panel set to the correct temperature? Try
setting it to a lower temperature.
• Is the refrigerator in direct sunlight or located too near a heat source?
• Is the back of the refrigerator too close to the wall and therefore keeping air from
circulating?
• Is the temperature control on the display panel set to the correct temperature? Try
setting it to a warmer temperature.
• Is the temperature in the room very low?
• Did you store the food with a high water content in the coldest part of the fridge?
You hear
unusual noises
or sounds.
The front
corners of
the appliance
are hot and
condensation is
occurring.
Ice is not
dispensing.
You can
hear water
bubbling in the
refrigerator.
There is a bad
smell in the
refrigerator.
Frost forms on
the walls of the
freezer.
Water
dispenser is not
functioning.
• Check that the refrigerator is level and stable.
• Is the back of the refrigerator too close to the wall and therefore keeping air from
circulating?
• Was anything dropped behind or under the refrigerator?
• A “ticking” sound is heard from inside the refrigerator. This is normal and occurs
because various accessories are contracting or expanding in relation to the temperature
of the refrigerator interior.
• Some heat is normal as anti-condensators are installed in the front corners of the
refrigerator to prevent condensation.
• Is the refrigerator door ajar? Condensation can occur when you leave the door open for
a long time.
• Did you wait at least 12 hours after installation of the water supply line before making
ice?
• Is the water line connected and the shut-o valve open?
• Did you manually stop the ice making function? Make sure Ice Type is set to Cubed or
Crushed.
• Is there any ice blocked within the ice maker bucket?
• Is the freezer temperature too warm? Try setting the freezer temperature lower.
• This is normal. The bubbling comes from the refrigerant coolant liquid circulating
through the refrigerator.
• Has a food item spoiled?
• Make sure that strong smelling food (for example, fish) is wrapped so that it is airtight.
• Clean out your freezer periodically and throw away any spoiled or suspect food.
• Is the air vent blocked? Remove any obstructions so air can circulate freely.
• Allow sucient space between the foods stored for ecient air circulation.
• Is the freezer door closed properly?
• Is the water line connected and the shut-o valve open?
• Has the water supply line tubing been crushed or kinked? Make sure the tubing is free
and clear of any obstruction.
• Is the water tank frozen because the refrigerator temperature is too low? Try selecting a
warmer setting on the main display panel.
English - 18
DA68-02500A-11.indb 18DA68-02500A-11.indb 18 2013. 12. 2. 9:482013. 12. 2. 9:48
Warranty (USA)
WARRANTY ON SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL PURCHASER
This Samsung brand product, as supplied and distributed by Samsung Electronics America, Inc.
(Samsung) and delivered new, in the original carton to the original consumer purchaser, is warranted by
Samsung against manufacturing defects in materials and workmanship for a limited warranty period of:
One (1) year Parts and Labor on Refrigerator
Five (5) years Parts and Labor on sealed Refrigeration System, which includes ONLY those
components that contain refrigerant
(Compressor, evaporator, condenser, drier, connecting tubing)
This limited warranty begins on the original date of purchase, and is valid only on products purchased
and used in the United States. To receive warranty service, the purchaser must contact Samsung for
problem determination and service procedures. Warranty service can only be performed by a Samsung
authorized service center. The original dated bill of sale must be presented upon request as proof of
purchase to Samsung or Samsung authorized service center.
Samsung will repair or replace any part found to be defective, at our option and at no charge as
stipulated herein, with new or reconditioned parts during the limited warranty period specifi ed above.
All replaced parts and products become the property of Samsung and must be returned to Samsung.
Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever
is longer.
In-home service will be provided during the warranty labor period subject to availability within the
contiguous United States. In-home service is not available in all areas. To receive in-home service, the
product must be unobstructed and accessible from fl oor level to service personnel. If during in-home
service repair cannot be completed, it may be necessary to remove, repair and return the product. If
in-home service is unavailable, Samsung may elect, at our option, to provide for transportation of our
choice to and from a Samsung authorized service center. Otherwise, transportation to and from the
Samsung authorized service center is the responsibility of the purchaser.
This limited warranty covers manufacturing defects in materials and workmanship encountered in
normal, noncommercial use of this product, and shall not apply to the following, including, but not
limited to: damage which occurs in shipment; delivery and installation; applications and uses for which
this product was not intended; altered product or serial numbers; cosmetic damage or exterior fi nish;
accidents, abuse, neglect, fi re, water, lightning or other acts of nature; use of products, equipment,
systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external
plumbing and leaks, external wiring, circuit breakers, fuses or connectors not supplied and authorized
by Samsung, or which damage this product or result in service problems; incorrect electrical line
voltage, fl uctuations and surges; customer adjustments and failure to follow operating instructions,
cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction
book; loss of food due to spoilage; consumable items including fi lters and light.
DA68-02500A-11.indb 19DA68-02500A-11.indb 19 2013. 12. 2. 9:482013. 12. 2. 9:48
THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE,
AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL
APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS
WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT
TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR
LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY
OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM
IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE
PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE.
WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR
LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS
AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT
SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS
PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation
of incidental or consequential damages, so the above limitations or exclusions may not apply to you.
This warranty
gives you specifi c legal rights, and you may also have other rights, which vary from state to state.
To obtain warranty service, please contact Samsung at:
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics America, Inc. 85 Challenger Road Ridgefi eld Park, NJ 07660
1-800-SAMSUNG (1-800-726-7864) and www.samsung.com
DA68-02500A-11.indb 20DA68-02500A-11.indb 20 2013. 12. 2. 9:482013. 12. 2. 9:48
Loading...
