Refrigerator
User Manual
Model:
RS50*/RS52*/RS54*
Free Standing Appliance
Page 2
2 English
Contents
Safety information 3
Important safety symbols and precautions: 5
Severe warning signs for transportation and site 6
Critical installation warnings 6
Installation cautions 10
Critical usage warnings 11
Usage cautions 16
Cleaning cautions 19
Critical disposal warnings 21
Additional tips for proper usage 22
Saving Energy Tips 23
Instructions about the WEEE 24
Installation 26
Getting ready to install the refrigerator 26
Clearance 27
Removing the refrigerator doors 28
Reattaching the refrigerator doors 31
Making minor adjustments to the doors 35
Checking the water dispenser line (optional) 36
Installing the water dispenser line(optional) 37
Setting up the refrigerator 41
Using the control panel(optional) 43
Controlling the temperature 45
Using the ice and cold water dispenser (freezer) 46
Using the cold water dispenser (fridge) 48
Shelves and bins 49
Storing food 51
Using the coolselect duo (optional) 53
Removing the freezer accessories 54
Cleaning the refrigerator 56
Changing the interior lights 57
Using the doors 57
Troubleshooting 58
Contents
Page 3
English 3
Safety Information
Safety information
•
Before using your new Samsung Refrigerator, please read this
manual thoroughly to ensure that you know how to operate the
features and functions that your new appliance offers safely
and efciently.
•
This appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental capabilities,
or those who lack experience and knowledge, unless they
have been given supervision or instruction concerning the use
of the appliance by a person responsible for their safety.
•
This appliance can be used by children aged from 8 years and
above and persons with reduced physical,sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.Cleaning and user
maintenance shall not be made by children without supervision.
•
Warnings and Important Safety Instructions in this manual do
not cover all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution,
and care when installing, maintaining, and operating your
appliance.
•
Because these following operating instructions cover various
models, the characteristics of your refrigerator may differ
slightly from those described in this manual and not all
warning signs may be applicable. If you have any questions or
concerns, contact your nearest service center or nd help and
information online at www. samsung.com.
•
R-600a or R-134a is used as a refrigerant. Check the
compressor label on the rear of the appliance or the rating
label inside the fridge to see which refrigerant is used for
your refrigerator. When this product contains ammable gas
(Refrigerant R-600a), contact your local authority in regard to
Page 4
4 English
Safety Information
safe disposal of this product.
•
In order to avoid the creation of a ammable gas-air mixture if
a leak in the refrigerating circuit occurs, the size of the room in
which the appliance may be sited depends on the amount of
refrigerant used.
•
Never start up an appliance showing any signs of damage. If
in doubt, consult your dealer. The room must be 1 m³ in size
for every 8 g of R-600a refrigerant inside the appliance. The
amount of refrigerant in your particular appliance is shown on
the identication plate inside the appliance.
•
Refrigerant squirting out of the pipes could ignite or cause an
eye injury. When refrigerant leaks from the pipe, avoid any
naked ames and move anything ammable away from the
product and ventilate the room immediately.
-
Failing to do so may result in re or explosion.
Warning; Risk of re / ammable materials
Safety information
Page 5
English 5
Safety Information
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual
uses the following safety symbols.
WARNING
Hazards or unsafe practices that may result in severe personal
injury,property damage, and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal
injury and/or property damage.
NOTE
Useful information that helps users understand or benet from the
refrigerator.
These warning signs are here to prevent injury to you and
others.Please follow them carefully.
After reading this section, keep it in a safe place for future
reference.
Safety information
Page 6
6 English
Safety Information
Severe warning signs for transportation and site
WARNING
•
When transporting and installing the appliance,care should
be taken to ensure that no parts of the refrigerating circuit are
damaged.
-
Refrigerant leaking from the pipe work could ignite or cause
an eye injury. If a leak is detected, avoid any naked ames
or potential sources of ignition and air the room in which the
appliance is standing for several minutes.
-
This appliance contains a small amount of isobutane refrigerant
(R-600a), a natural gas with high environmental compatibility
that is, however, also combustible. When transporting and
installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
•
When transporting and installing the refrigerator, do not touch
the water hose on the back side of the refrigerator.
-
This may damage the refrigerator and as a result the water
dispenser can not be used.
Critical installation warnings
WARNING
•
Do not install the refrigerator in a damp location or place where
it may come in contact with water.
-
Deteriorated insulation on electrical parts may cause an
electric shock or re.
•
Do not place this refrigerator in direct sunlight or expose it to
the heat from stoves, room heaters, or other appliances.
•
Do not plug several appliances into the same multiple power
Safety information
Page 7
English 7
Safety Information
strip.The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches the voltage listed on the refrigerator’s rating plate.
-
This provides the best performance and also prevents
overloading of house wiring circuits, which could cause a re
hazard from overheated wires.
•
If the wall socket is loose, do not insert the power plug.
-
There is a risk of electric shock of re.
•
Do not use a power cord that has cracks or abrasion damage
along its length or at either end.
•
Do not bend the power cord excessively or place heavy objects
on it.
•
Do not pull or excessively bend the power cord.
•
Do not twist or tie the power cord.
•
Do not hook the power cord over a metal object, place a heavy
object on the power cord, insert the power cord between
objects, or push the power cord into the space behind the
appliance.
•
When moving the refrigerator, be careful not to roll over or
damage the power cord.
-
This may result in an electric shock or re.
•
Never unplug your refrigerator by pulling on the power cord.
Always grip the plug rmly and pull straight out from the outlet.
-
Damage to the cord may cause a short-circuit, re, and/or
electric shock.
•
Do not use aerosols near the refrigerator.
-
Using aerosols near the refrigerator may cause an explosion or
re.
•
Do not install this appliance near a heater or inammable
material.
•
Do not install this appliance in a location where gas may leak.
-
This may result in an electric shock or re.
Safety information
Page 8
8 English
Safety Information
•
This refrigerator must be properly located and installed in
accordance with the instructions in this manual before you use
it.
•
Connect the power plug in the proper position with the cord
hanging down.
-
If you connect the power plug upside down, the wire can get
cut off and cause a re or electric shock.
•
Make sure that the power plug is not crushed or damaged by
the back of the refrigerator.
•
Keep the packing materials out of reach of children.
-
There is a risk of death from suffocation if a child puts the
packing materials on his or her head.
•
The appliance must be positioned so that the plug is accessible
after installation.
-
Failing to do so may result in an electric shock or re due to
electric leakage.
•
Do not install this appliance in a humid, oily or dusty location,
in a location exposed to direct sunlight and water (rain drops).
-
Deteriorated insulation of electrical parts may cause an electric
shock or re.
•
If any dust or water is in the refrigerator, pull out power plug
and contact your Samsung Electronics service center.
-
Otherwise there is a risk of re.
•
Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance.
-
This may result in an electric shock, re, problems with the
product, or injury.
•
You need to remove all the protective plastic lm before you
initially plug the product in.
•
Children should be supervised to ensure that they do not play
with the snap rings used for door adjustment or the water tube
Safety information
Page 9
English 9
Safety Information
clips.
-
There is risk of death by suffocation if a child swallows a snap
ring or water tube clip. Keep the snap rings and water tube
clips out of children’s reach.
•
The refrigerator must be safely grounded.
-
Always make sure that you have grounded the refrigerator
before attempting to investigate or repair any part of the
appliance. Power leakages can cause severe electric shock.
•
Never use gas pipes, telephone lines, or other potential
lightning attractors as an electrical ground.
-
You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage from
the refrigerator.
-
This may result in an electric shock, re, explosion, or
problems with the product.
•
Plug the power plug into the wall socket rmly. Do not use
a damaged power plug, damaged power cord, or loose wall
socket.
-
This may result in an electric shock or re.
•
If the power cord is damaged, have it replaced immediately by
the manufacturer or one of its service agents.
•
The fuse on the refrigerator must be changed by a qualied
technician or service company.
-
Failing to do so may result in an electric shock or personal
injury.
•
When positioning the appliance, ensure the supply cord is not
trapped or damaged.
•
Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
Safety information
Page 10
10 English
Safety Information
Installation cautions
CAUTION
•
Allow sufcient space around the refrigerator and install it on a
at surface.
-
If your refrigerator is not level, cooling efciency and durability
can be declined.
-
Keep the ventilation space in the appliance enclosure or
mounting structure clear of obstructions.
•
Allow the appliance to stand for 2 hours before loading foods
after installation and turning on.
•
We strongly recommend you have a qualied technician or
service company install the refrigerator.
-
Failing to do so may result in an electric shock, re, explosion,
problems with the product, or injury.
Safety information
Page 11
English 11
Safety Information
Critical usage warnings
WARNING
•
Do not insert the power plug into a wall socket with wet hands.
-
This may result in an electric shock.
•
Do not store articles on the top of the appliance.
-
When you open or close the door, the articles may fall and
cause personal injury and/or material damage.
•
Do not insert hands, feet or metal objects (such as chopsticks,
etc.) into the bottom or the back of the refrigerator.
-
This may result in an electric shock or injury.
-
Any sharp edges may cause a personal injury.
•
Do not touch the inside walls of the freezer or products stored
in the freezer with wet hands.
-
This may cause frostbite.
•
Do not put a container lled with water on the refrigerator.
•
If spilled, there is a risk of re or electric shock.
•
Do not keep volatile or ammable objects or substances
(benzene, thinner, propane gas, alcohol, ether, LP gas, and
other such products) in the refrigerator.
-
This refrigerator is for storing food only.
-
This may result in re or explosion.
•
Children should be supervised to ensure that they do not play
with the appliance.
-
Keep ngers out of “pinch point” areas. Clearances between
the doors and cabinet are necessarily small. Be careful when
you open the doors if children are in the area.
•
Do not let children hang on the door or door bins. A serious
injury may occur.
•
Do not let children go inside the refrigerator. They could
become trapped.
Safety information
Page 12
12 English
Safety Information
•
Do not insert your hands into the bottom area under the
appliance.
-
Any sharp edges may cause personal injury.
•
Do not store pharmaceutical products, scientic materials, or
temperature sensitive products in the refrigerator.
-
Products that require strict temperature controls must not be
stored in the refrigerator.
•
Do not place or use electrical appliance inside the refrigerator/
freezer, unless they are of a type recommended by the
manufacturer.
•
If you smell pharmaceutical or smoke, pull out power plug
immediately and contact your Samsung Electronics service
center.
•
If any dust or water is in Refrigerator, pull out power plug and
contact your Samsung Electronics service center.
-
Otherwise there is a risk of re.
•
Do not let children step on a drawer.
-
The drawer may break and cause them to slip.
•
Do not leave the doors of the refrigerator open while the
refrigerator is unattended and do not let children enter inside
the refrigerator.
•
Do not allow babies or children go inside the drawer.
-
It can cause death from suffocation by entrapment or personal
injury.
•
Do not overll the refrigerator with food.
-
When you open the door, an item may fall out and cause
personal injury or material damage.
•
Do not spray volatile material such as insecticide onto the
surface of the appliance.
-
As well as being harmful to humans, it may also result in an
electric shock, re, or problems with the product.
Safety information
Page 13
English 13
Safety Information
•
Never put ngers or other objects into the water dispenser
hole, ice chute and ice maker bucket.
-
It may cause a personal injury or material damage.
•
Do not use or place any substances sensitive to temperature
such as ammable sprays, ammable objects, dry ice,
medicine, or chemicals near or inside of the refrigerator.
•
Do not use a hair dryer to dry the inside of the refrigerator. Do
not place a lighted candle in the refrigerator for removing bad
odours.
-
This may result in an electric shock or re
•
Fill the water tank, ice tray and water cubes only with potable
water (mineral water or puried water).
-
Do not ll the tank with tea, juice or sports drink, this may
damage the refrigerator.
•
Do not stand on top of the appliance or place objects (such as
laundry, lighted candles, lighted cigarettes, dishes, chemicals,
metal objects, etc.) on the appliance. This may result in an
electric shock, re, problems with the product, or injury. Do not
put a container lled with water on the appliance.
-
If spilled, there is a risk of re or electric shock.
•
Do not use mechanical devices or any other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
•
Do not damage the refrigerant circuit.
•
Never stare directly at the UV LED lamp for long periods of
time.
-
This may result in eye strain due to the ultraviolet rays.
•
Do not put fridge shelf in upside down. Shelf stopper could not
work.
-
It may cause a personal injury because of glass shelf drop.
•
Keep ngers out of “pinch point” areas. Clearances between
the doors and cabinet are necessarily small. Be careful when
Safety information
Page 14
14 English
Safety Information
you open the doors if children are in the area.
•
If a gas leak is detected, avoid any naked ames or potential
sources of ignition, and air the room in which the appliance is
standing for several minutes.
-
Do not touch the appliance or power cord.
-
Do not use a ventilating fan.
-
A spark may result in explosion or re.
•
Use only the LED Lamps provided by the manufacturer or its
service agents.
•
Bottles should be stored tightly together so that they do not fall
out.
•
This product is intended only for the storage of food in a
domestic environment.
•
Never put ngers or other objects into the water dispenser
hole, ice chute and ice maker bucket.
-
It may cause a personal injury or material damage.
•
Do not attempt to repair, disassemble, or modify the refrigerator
yourself.
•
Do not use any fuse (such as cooper, steel wire, etc.) other
than a standard fuse.
•
If your refrigerator needs to be repaired or reinstalled, contact
your nearest service center.
-
Failing to do so may result in an electric shock, re, problems
with the product, or injury.
•
If the interior or exterior LED lamp has gone out, contact your
nearest service center.
•
If the refrigerator emits a burning smell or smoke, unplug the
refrigerator immediately and contact your Samsung Electronics
service center.
-
Failing to do so may result in an electric or re hazards.
•
Pull the power plug out of the socket before changing the
interior lamps of the refrigerator.
Safety information
Page 15
English 15
Safety Information
-
Otherwise, there is a risk of electric shock.
•
If you experience difculty changing a non-LED light, contact a
Samsung service center.
•
If the product is equipped with LED lamps, do not disassemble
the Lamp Covers and LED lamps yourself.
-
Contact a Samsung service center.
•
Plug the power plug into the wall socket rmly.
•
Do not use a damaged power plug, damaged power cord or
loose wall socket.
-
This may result in an electric shock or re.
Safety information
Page 16
16 English
Safety Information
Usage cautions
CAUTION
•
Do not re-freeze frozen foods that have thawed completely.
Do not place carbonated or zzy drinks in the freezer
compartment.Do not put bottles or glass containers in the
freezer.
-
When the contents freeze, the glass may break and cause
personal injury.
•
Use only the ice maker provided with the refrigerator.
•
Have the refrigerator’s water supply connected only to a
potable water supply. To operate the ice maker properly, water
pressure of 20 ~ 125 psi (138 ~ 862 kPa) is required. If you will
be away from home for a long period of time (on vacation, for
example) and won’t be using the water or ice dispensers, close
the water valve.
-
Otherwise, water leakage may occur.
•
If you won’t be using the refrigerator for a very long period of
time, (3 weeks or more) empty the refrigerator including the ice
bucket, unplug it, close the water valve, wipe excess moisture
from the inside walls, and leave the doors open to prevent
odors and mold.
•
To get the best performance from the product:
-
Do not place food too close to the vents at the rear of the
refrigerator as this can obstruct free air circulation in the
refrigerator compartment.
-
Wrap food up properly or place it in airtight containers before
putting it into the refrigerator.
-
Do not place glass bottles or carbonated beverages into
the freezer. They can freeze and break. Broken beverage
containers can cause injury.
Safety information
Page 17
English 17
Safety Information
-
Please observe maximum storage times and expiration dates
of frozen goods.
-
There is no need to disconnect the refrigerator from the power
supply if you will be away for less than three weeks. However,
if you will be away for more than three weeks, remove all the
food and ice in the ice bucket, unplug the refrigerator, close the
water valve, wipe excess moisture from the inside walls, and
leave the doors open to prevent odors and mold.
•
Do not place glass or bottles or carbonated beverages into the
freezer.
-
The container may freeze and break, and this may result in
injury.
•
Do not place carbonated or zzy drinks in the freezer
compartment. Do not put bottles or glass containers in the
freezer.
-
When the contents freeze, the glass may break and cause
personal injury and property damage.
•
Service Warranty and Modication.
-
Any changes or modications performed by a 3rd party on this
nished appliance are not covered under Samsung warranty
service, nor is Samsung responsible for safety issues that
result from 3rd party modications.
•
Do not block the air vents inside the refrigerator.
-
If the air vents are blocked, especially with a plastic bag, the
refrigerator can be over cooled. If a cooling period lasts too
long, the water lter may break and cause water leakage.
•
Use only the ice-maker provided with the refrigerator.
•
Wipe excess moisture from the inside and leave the doors
open.
-
Otherwise, odor and mold may develop.
•
If the refrigerator is disconnected from the power supply, you
should wait for at least ve minutes before plugging it back in.If
Safety information
Page 18
18 English
Safety Information
•
you have a long vacation planned or do not intend to use the
refrigerator for a long period of time, (3 weeks or more) empty
the refrigerator including the ice bucket, pull out the power
plug, close the water valve, wipe excess moisture from the
inside walls, and leave the doors open to prevent odors and
mold.
•
When the refrigerator got wet by water, pull out the power plug
and contact your Samsung Electronics service center.
•
Do not strike or apply excessive force to any glass surface.
-
Broken glass may result in a personal injury and/or property
damage.
•
Fill the water tank and ice cube trays with potable water only
(tap water, mineral water, or puried water).
-
Do not ll the tank with tea or a sports drink. This may damage
the refrigerator.
•
Be careful that your ngers are not caught in.
•
If the refrigerator is ooded, make sure to contact your nearest
service center.
-
There is a risk of electric shock or re.
•
Do not keep vegetable oil in your refrigerator’s door bins. The
oil can solidify, making it foul-tasting and difcult to use. In
addition, the open container can leak and the leaked oil can
cause the door bin to crack. After opening an oil container, it is
best to keep the container in a cool and shaded place such as
a cupboard or pantry.
-
Examples of vegetable oil: olive oil, corn oil, grape-seed oil,
etc.
Safety information
Page 19
English 19
Safety Information
Cleaning cautions
CAUTION
•
Do not spray water directly on the inside or outside the
refrigerator.
-
There is a risk of re or electric shock.
•
Do not use a hair dryer to dry the inside of the refrigerator.
•
Do not place a lighted candle in the refrigerator to remove bad
odors.
-
This may result in an electric shock or re.
•
Do not spray cleaning products directly on the display.
-
Printed letters on the display may come off.
•
If any foreign substance such as water has entered the
appliance,unplug the power plug and contact your nearest
service center.
-
Failing to do so may result in an electric shock or re.
•
Use a clean, dry cloth to remove any foreign matter or dust
from the power plug blades. Do not use a wet or damp cloth
when cleaning the plug.
-
Otherwise, there is a risk of re or electric shock.
•
Do not clean the appliance by spraying water directly onto it.
•
Do not use benzene, thinner, or Clorox, Chloride for cleaning.
-
They may damage the surface of the appliance and may cause
a re.
•
Never put ngers or other objects into the dispenser hole.
-
It may cause a personal injury or material damage.
•
Before cleaning or performing maintenance, unplug the
appliance from the wall socket.
-
Failing to do so may result in an electric shock or re.
•
Use a clean sponge or soft cloth and a mild detergent in warm
water to clean the refrigerator.
Safety information
Page 20
20 English
Safety Information
•
Do not use abrasive or harsh cleansers such as window
sprays,scouring cleansers, ammable uids, muriatic acid,
cleaning waxes,concentrated detergents, bleaches, or
cleansers containing petroleum products on exterior surfaces
(doors and cabinet), plastic parts, door and interior liners, and
gaskets.
-
These can scratch or damage the material.
•
Do not clean glass shelves or covers with warm water when
they are cold.Glass shelves and covers may break if exposed
to sudden temperature changes or impacts such as bumping
or dropping.
Safety information
Page 21
English 21
Safety Information
Critical disposal warnings
CAUTION
•
Please dispose of the packaging material from this product in
an environmentally friendly manner.
•
Ensure that none of the pipes on the back of the refrigerator
are damaged prior to disposal.
•
R-600a or R-134a is used as a refrigerant. Check the
compressor label on the rear of the appliance or the rating
label inside the fridge to see which refrigerant is used for
your refrigerator. If this refrigerator contains ammable gas
(Refrigerant R-600a), contact your local authority in regard to
safe disposal of this product.
•
When disposing of this refrigerator, remove the door/door seals
and door latch so that small children or animals cannot become
trapped inside. Children should be supervised to ensure that
they do not play with the appliance. If trapped inside, a child
may get hurt or suffocate to death.
-
If trapped inside, the child may become injury and suffocate to
death.
•
Cyclopentane is used in the insulation. The gases in the
insulation material require a special disposal procedure. Please
contact your local authorities in regard to the environmentally
safe disposal of this product.
•
Keep all packaging materials well out of the reach of children,
as packaging materials can be dangerous to children.
-
If a child places a bag over his or her head, the child could
suffocate.
Safety information
Page 22
22 English
Safety Information
Additional tips for proper usage
•
In the event of a power failure, call the local ofce of your
electric company and ask how long the failure is going to last.
•
Most power failures that are corrected in an hour or two will
not affect your refrigerator temperatures. However, you should
minimize the number of door openings while the power is off.
•
Should the power failure last more than 24 hours, remove and
discard all frozen food.
•
The refrigerator might not operate consistently (frozen contents
can thaw or temperatures can become too warm in the frozen
food compartment) if sited for an extended period of time in a
location where ambient air temperatures are constantly below
the temperatures for which the appliance is designed.
•
In case of particular foods, keeping it under refrigeration can
have a bad effect on preservation due to its properties.
•
Your appliance is frost free, which means there is no need
to manually defrost your appliance. This will be carried out
automatically.
•
Temperature rise during defrosting complies with ISO
requirements. If you want to prevent an undue rise in the
temperature of frozen food while the appliance defrosts, wrap
the frozen food in several layers of newspaper.
•
Do not re-freeze frozen foods that have thawed completely.
•
The temperature of two star section (sections) or compartment
(compartments) which have two star symbol ( ) is slightly
higher than other freezer compartment (compartments). The
two star section (sections) or compartment (compartments) is
(are) based on the instruction and/or the condition as delivered.
Safety information
Page 23
English 23
Safety Information
Saving Energy Tips
•
Install the appliance in a cool, dry room with adequate
ventilation.Ensure that it is not exposed to direct sunlight
and never put it near a direct source of heat (a radiator, for
example).
•
Not to block any vents and grilles is recommended for energy
efciency.
•
Allow warm food to cool down before placing it in the
appliance.
•
Put frozen food in the refrigerator to thaw. You can then use
the low temperatures of the frozen products to cool food in the
refrigerator.
•
Do not keep the door of the refrigerator open for too long when
putting food in or taking food out. The shorter the time the door
is open, the less frost build-up you’ll have in the freezer.
•
It is recommended to install the refrigerator with clearance to
the back and sides. This will help reduce power consumption
and keep your energy bills lower.
•
For the most efcient use of energy, please keep the all inner
ttings such as baskets, drawers, shelves on the position
supplied by manufacturer.
This appliance is intended to be used in household
and similar applications such as
•
staff kitchen areas in shops, ofces and other working
environments;
•
farm houses and by clients in hotels, motels and other
residential type environments;
•
bed and breakfast type environments;
•
catering and similar non-retail applications
Safety information
Page 24
24 English
Safety Information
Instructions about the WEEE
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger,headset, USB
cable) should not be disposed of with other household waste at the
end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government ofce, for details of
where and how they can take these items for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
For information on Samsung’s environmental commitments and product specic
regulatory obligations e.g. REACH visit: samsung.com/uk/aboutsamsung/
samsungelectronics/corporatecitizenship/data_corner.html
(For products sold in European countries only)
Safety information
Page 25
English 25
Installation
Safety information
Page 26
26 English
Installation
Getting ready to install the refrigerator
Congratulations on the purchase of your Samsung Side-By-Side Refrigerator.
We hope you will enjoy the many state-of-the-art features and efciencies that
this new appliance has to offer.
Selecting the best location for the refrigerator
•
Solid, level surface without carpeting or ooring that may obstruct
ventilation
•
Away from direct sunlight
•
Adequate room for opening and closing the door
•
Away from a heat source
•
Room for maintenance and servicing
•
Temperature range: between 5 °C and 43 °C
Effective temperature range
The refrigerator is designed to operate normally in the temperature
range specied by its class rating.
Class Symbol
Ambient Temperature range (°C)
IEC 62552 (ISO 15502) ISO 8561
Extended Temperate SN +10 to +32 +10 to +32
Temperate N +16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T +16 to +43 +18 to +43
NOTE
•
The cooling performance and power consumption of the refrigerator may be affected by the
ambient temperature, the door-opening frequency, and the location of the refrigerator. We
recommend adjusting the temperature settings as appropriate.
Installation
Page 27
English 27
Installation
Installation
Clearance
Allow sufcient space to install the refrigerator on a at surface.
Overall space required in use. Refer to drawing and dimension as below.
25 mm
al menos 50 mm
al menos 50 mm
1546 mm
1163 mm
25mm
NOTE
•
Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
•
Do not install the refrigerator where the temperature will go below 50°F (10°C).
•
Make sure you disconnect the water supply line BEFORE removing the freezer door.
Page 28
28 English
Installation
Installation
Removing the refrigerator doors
If your entrance won’t allow the refrigerator to pass easily through it, you can
remove the doors.
The actual image of your refrigerator may differ, depending on the model and
the country.
1.Removing the Front Leg Cover
First, open both the freezer and refrigerator doors, and then take off the front
leg cover by turning the three screws counter-clockwise.
Separating the Water Supply Line from the Refrigerator
1. Remove the water line by pressing the coupler 1 and pulling the water line
2
away.
:
1
2
NOTE
•
Do not cut the water line. Gently separate it from the coupler.
Page 29
English 29
Installation
Installation
2. Removing the freezer door
A few things to mention rst.
•
Make sure that you lift the door straight up so the hinges are not bent or broken.
•
Be careful not to pinch the water tubing and wire harness on the door.
•
Place doors on a protected surface to prevent scratching or damage.
1.With the Freezer door closed, remove the upper hinge cover 1 using a
screwdriver, and then disconnect the wires by gently pulling them apart 2.
2
1
2.Remove hinge screws 3 and the ground screw 4 by turning counter-
clockwise, and take off the upper hinge 5. Be careful that the door may fall
on you as you are removing it
3
4
5
3.Next, remove the door from the lower hinge 6 by carefully lifting the door
straight up 7.
7
6
CAUTION
•
Be careful not to pinch the
water tubing and wire harness
on the door.
Page 30
30 English
Installation
Installation

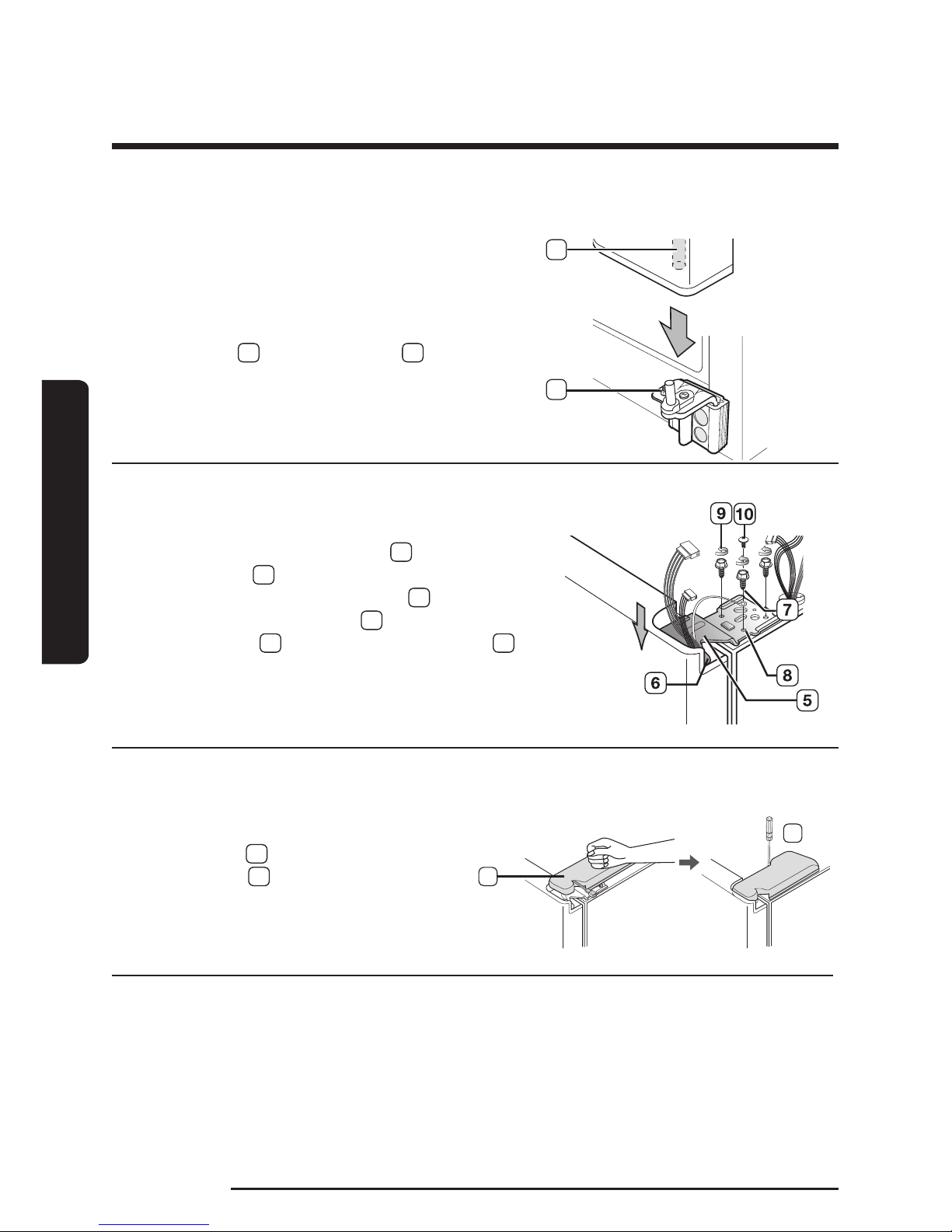

Removing the Fridge Door
1. With the door closed, remove the upper hinge cover 1 using a screwdriver.
1
2.Remove hinge screws 2 and the ground screw 3 by turning counter-
clockwise, and take off the upper hinge 4. Be careful that the door may fall
on you as you are removing it.
4
2
3
3.Remove the door from the lower hinge 5 by lifting the door straight up 6.
Page 31
English 31
Installation
Installation
Reattaching the refrigerator doors
Once you have safely placed your refrigerator where you plan for it to stay, it is
time to put the doors back on.
Reattaching the Freezer Door
1.Insert the upper hinge shaft 3into
the hole on the corner of the freezer
door 4. Make sure the hinge is
level between the upper hinge hole
5
and the hole of the cabinet 6
and reattach the hinge screws 7
and ground screw 8 by turning in a
clockwise direction.
4
5
6
7
8
3
2.Reconnect the wires.
3 Place the front part of the upper
hinge cover 9 on the front of the
upper hinge 10 and reattach with
the screw.
10
9
Page 32
32 English
Installation
Reattaching the Fridge Door
1.Fit the hole in the corner of the
fridge door 3 over the lower 4
hinge .
3
4
2.Insert the upper hinge shaft 5 into the hole
on the hinge 6 Make sure the hinge is level
between the upper hinge hole 7 and the hole
on the top of the cabinet 9. Then,reattach
hinge screws 9 and the ground screw 10 by
turning it in a clock wise direction.
3.Place the front part of the upper
hinge cover 11 on the front of the
upper hinge 12 and reattach it with
the screw.
12
11
Installation
Page 33
English 33
Installation
Reattaching the Water Supply Line
1. Insert the water line 1 into the coupler 2 .
2
1
2.The Water Line must be fully Inserted to the center of transparent coupler to
prevent water leakage from the dispenser.
3.Insert the clip in the install pack and check that it holds the line rmly.
Center of transparent
coupler
clip A (1/4”)
(6.35mm)
Reattaching the Front Leg Cover
NOTE
•
Before attaching the cover, check water connector for leakage.
•
Replace the front leg cover by turning the three screws clockwise, as shown in the gure.
Front Leg Cover
Screw
Installation
Page 34
34 English
Installation
Leveling the refrigerator
Now that the doors are back on the refrigerator, you will want to make sure the
refrigerator is level so you can then make nal adjustments. If the refrigerator is
not level, it will not be possible to get the doors perfectly even.
NOTE
•
The front of the refrigerator is also adjustable.
When the Freezer door is lower than the fridge
Insert a at-blade screwdriver
into a notch on the Leg, turn it
clockwise or counter clockwise to
level the freezer.
Leg
Screw Driver
When the Freezer door is higher than the fridge
Insert a at-blade screwdriver
into a notch on the Leg, turn it
clockwise or counter clockwise
to level the fridge.
Leg
Screw Driver
NOTE
•
Refer to the next section for the best way to make very minor adjustments to the doors.
•
The legs of product are unconnected when it is out of factory. Make sure to adjust the legs
to touch the oor, and make the product level before using.
•
For safety reasons, adjust the front side a little higher than the rear side.
Installation
Page 35
English 35
Installation
Making minor adjustments to the doors
Remember, a leveling refrigerator is necessary for getting the doors
perfectly even. If you need help, review the previous section on leveling
the refrigerator.
When the door of the freezer is higher
than the fridge
Adjustment part
In the case of the process to correct the imbalance is the same. Open
the doors and adjust them, one at a time, as follows:
1.Unscrew the nut 1 from the lower hinge until it reaches the upper end of
the bolt 2 .
3
2
1
Wrench
Bolt
Nut
NOTE
•
When you release the nut 1 , make sure that you use the Allen wrench (4mm) 3 to
loosen the bolt 2 in a counter-clockwise direction. You should then be able to unscrew the
nut 1 with your ngers.
2.Adjust the height difference between the doors by turning the bolt 2
clockwise or counter clockwise
3
2
Wrench
Bolt
NOTE
When you turn clockwise , the door will move up.
Installation
Page 36
36 English
Installation
3.After adjusting the doors, turn the nut 1 clockwise until it reaches
the lower end of the bolt, then tighten the bolt again with the wrench 3
to x the nut in place 1 .
3
2
1
Wrench
Bolt
Nut
NOTE
If you do not secure the nut rmly, the bolt may release.
Checking the water dispenser line (optional)
A water dispenser is just one of the helpful features on your new
Samsung refrigerator. To help promote better health, the Samsung
water lter removes unwanted particles from your water. However, it
does not sterilize or destroy microorganisms. You will need to purchase
a water purifying system to do that.
In order for the icemaker to operate properly, water pressure of 138
~862 Kpa is required. Under normal conditions, a 170 cc paper cup
can be lled in 10 seconds.
If the refrigerator is installed in an area with low water pressure (below
138 Kpa), you can install a booster pump to compensate for the low
pressure.
Make sure the water storage tank inside the refrigerator is properly
lled. To do this, press the water dispenser lever until the water runs
from the water outlet.
NOTE
Water Line installation Kits are included with unit. You can nd it in
freezer drawer.
Installation
Page 37
English 37
Installation
Installing the water dispenser line (optional)
Parts for water line Installation
Water line fixer
and screws
Pipe
connector
Water line Filter
lock-clip
Filter
Connecting to the water supply line
Connect the water pipe with coupler and tap.
1. Close the main water tap.
2. Connect coupler “A” to the tap.
CAUTION
The water line must be connected to
the cold water pipe.If it is connected
to the hot water pipe, it may cause
the lter to malfunction.
COUPLER “A”
TAP
WARRANTY INFORMATION
This water line installation is not covered by the refrigerator or ice
maker manufacturer’s warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
NOTE
If the coupler does not t on the current tap, go the nearest authorised
service dealer and purchase the right couplers ttings.
Installation
Page 38
38 English
Installation
Select the location where the lter is to install.
•
If you wish to reassemble the water
inlet and outlet sides of the lter
during lter installation,see the
reference illustration.
•
Cut the water line attached to the
lter to the appropriate place after
measuring the distance between
the lter and the cold water tap.
COUPLER
SIDE OF
FILTER
WATER INLET
SIDE OF FILTER
LINE OUTLET
90 degree
FILTER WATER
REFERENCE
Remove any residual matter inside the lter.
•
Open the main water tap to check
whether water is running through
the water tube on the water inlet
side of the lter.
•
If water does not come out
through the line,check whether
the tap is open.
•
Leave the tap open until clean
water is running out and any
residual matter that built up
during manufacturing has been
removed.
WATER LINE
FILTER
WATER
OUTLET SIDE
OF FILTER
Attach the lter lock stations.
•
Hold the lter lock stations in the
appropriate position (under the sink
for example) and x it tightly into
place where to screw.
TWO FILTER LOCK
STATION
TWO FILTER LOCK
STATION
Installation
Page 39
English 39
Installation
Secure the lter in position.
•
Fix the lter in position, as shown
in the gure on the right.
TIGHTENING
BAND
FILTER
WATER TUBE
FILTER
LOCK
STATION
S
Connect the water line to the refrigerator.
•
Remove the compressor cover of
the refrigerator.
•
Connect the water line to the
valve, as shown in the gure.
•
When connected, check if there
is any leakage.If any, repeat the
connection.
•
Reattach the compressor cover of
the refrigerator.
WATER LINE
COMPRESSOR COVER OF
REFRIGERATOR
CONNECTION NUT
Secure the water line.
•
- Using clip ”A”, x the water
line to the wall (the back of
refrigerator).
•
- When the water line is secure,
make sure whether the water line
is not excessively bent, pinched
or squashed.
CLIP A
WATER LINE
Installation
Page 40
40 English
Installation
Removing any residual matter inside the water supply line after
installing lter.(Optional)
1.Turn ON the main water supply & turn OFF the
valve to the water supply line.
2.Run water through the dispenser until the water
runs clear (approx. 1L). This will clean the water
supply system and remove air from the lines.
3.Additional ushing may be required in some
households.
4.Open the refrigerator door and make sure there
are no water leaks coming from the water lter.
Ice
Water
NOTE
•
A newly installed water lter cartridge may cause water to briey spurt from the water
dispenser. This is due to air getting into the line. It should pose no problem to operation.
Check the amount of water supplied to the ice tray. (Optional)
1. Lift up the icemaker bucket and gently pull out of the freezer.
2. When you press the Test button for 1.5 seconds, the ice cube container is
lled with water from the water supply tap after ice tray is twisted. Check to
make sure the amount of water is correct(see the illustration below).
If the water level is too low, the ice cubes will be small. This is a water
pressure problem from with in the main water pipes, not the refrigerator
Ice maker
1
2
Check the water level
Test button
Feeler Arm
Installation
Page 41
English 41
Operations
Setting up the refrigerator
Now that you have your new refrigerator installed and in place, you are ready to
set up and enjoy the full features and functions of the appliance.
By completing the following steps, your refrigerator should be fully
operational. If not, rst check the power supply and electricity source or try the
troubleshooting section at the back of this user guide. If you have any further
questions, contact your Samsung Electronics service center.
1.Place the refrigerator in an appropriate location with reasonable clearance
between the wall and the refrigerator. Refer to installation instructions in this
manual.
2.Once the refrigerator is plugged in, make sure the interior light comes on
when you open the doors.
3.Set the temperature control to the coldest temperature and wait for an hour.
The freezer should get slightly chilled and the motor should run smoothly.
3.After powering the refrigerator, it will take a few hours to reach the
appropriate temperature.Once the refrigerator temperature is sufciently
cool, you can store food and drink in the refrigerator.
USE ICE TRAY(OPTIONAL)
When the freeze temperature get zero degre below, you can use Ice Box to
make ice.
1.Pull out the ice
tray.
3.Place it inside ice
tray.
2.Pour cool water
into the tray
until it reaches
the water level
indicator on the
tray.
4.Turn ice tray
button and the
ice automatically
full into the below
ice compartment
after release. Pull
out ice storage
compartment for ice.
Operations
Page 42
42 English
Operations
1.Pull out the ice
tray.
3.Place it under
the freezer shelf
or on the freezer
shelf.
2.Pour water into
the tray until
it reaches the
water level
indicator on the
tray.
4.To separate
individual ice
cubes, pull out
the ice tray and
hold the ice tray
by its ends, then
twist it gently.
Operations
Page 43
English 43
Operations
Using the control panel (optional)
5 6
7
1
2
43
1
2
5 6
7
CAUTION
•
When not in use the temperature key, Dual Flow and Filter (green) display will turn off, and
press the key or door open will turn on again,this is normal.
1.POWER FREEZE
BUTTON
Speeds up the time needed to freeze products in the freezer. This can
be helpful if you need to quickly freeze items that spoil easily or if the
temperature in the freezer has warmed dramatically (For example, if the
door was left open).
2.FREEZER BUTTON
Press the Freezer button to set the freezer to your desired
temperature,You can set the temperature between -14°C (8°F) and
-25ºC (-14°F).
3.ICE TYPE BUTTON
Use this button to choose Cubed, Crushed or to turn the Ice feature off.
4.FILTER CHANGE
BUTTON
When you change the lter, press this button for 3 seconds to reset the
lter schedule.
5.VACATION
BUTTON
If you are going on vacation or business trip or you do not need to use
the refrigerator, press the Vacation button. When you select vacation
button for fridge compartment off, display LED of Vacation will be on.
CAUTION
•
It is strongly requested to remove foods in the fresh-food compartment and
do not leave the door open when you select Vacation function.
6.CHILD LOCK
FUNCTION
By pressing the Vacation button and the Fridge button simultaneously
for 3 seconds, all buttons will be locked. The Water dispenser lever and
the Ice lever will not work either. To cancel this function, Press these two
buttons for 3 seconds again.
7.FRIDGE BUTTON
Press the Fridge button to set the fridge to your desired temperature.
You can set temperature between 1°C and 7°C (34°F and 45°F).
Operations
Page 44
44 English
Operations
Using the control panel (optional)
“88” segment on Freezer part indicates the current Freezer temperature.
“88” segment on Fridge part indicates the current Fridge temperature.
Power Freeze
This icon will light up when you activate the “Power Freeze” feature.
When you don`t need requirement, just press the button again to cancel the
“Power Freeze” mode.
CAUTION
•
When you use this function the energy consumption of the refrigerator will increase.
This function must be activated before putting large amount of food stuff in the freezer
compartment at least 24 hours before.
Child Lock
This icon will light up when you activate the Child Lock function by pressing the
Vacation button or the Power Cool button and the Fridge button simultaneously
for 3 seconds. Press these two buttons for 3 seconds again to reactivate.
Operations
Page 45
English 45
Operations
Filter Indicator (Optional)
When the lter indicator light is on, it is time to change the lter. Typically this
happens about every 6 months.After removing the old water lter and installing
a new one, reset the indicator status light by pressing the Ice Type button for
about 3 seconds.The indicator will light again in about 6 months to let you know
it is time to change your water lter.When you do not use the water lter, press
the Ice Type button for more than 5 seconds, the Filter indicator lamp and the
Filter Change letters will be off.
Cubed Ice, Crushed Ice and turnning the Ice maker off (Optional)
Enjoy cubed or crushed ice by selecting your preference from the digital control
panel. If you don’t need ice, turn the feature off to save on water and energy
consumption.The Ice type light indicates the type of ice(or no ice) that is
currently chosen.
Controlling the temperature
Controlling the Freezer temperature
The freezer temperature can be set between -14°C (8°F) and -25ºC (-14°F)
to suit your particular needs. Press the Freezer button repeatedly until the
desired temperature is shown in the temperature display. Keep in mind that
foods like ice cream may melt at -16ºC (4°F).
The temperature display will move sequentially from -14°C (8°F) and -25ºC
(-14°F). When the display reaches -14ºC (8°F), it will begin again at -25ºC
(-14°F).
Five seconds after the new temperature is set the display will again show the
actual current freezer temperature. However, this number will change as the
Freezer adjusts to the new temperature.
The temperature in two star sections are slightly higher than other freezer
compartment.
Operations
Page 46
46 English
Operations
Controlling the Fridge temperature
The refrigerator temperature can be set between 7ºC (45°F) and 1ºC (34°F) to
suit your particular needs. Press the Fridge button repeatedly until the desired
temperature is shown in the temperature display.
The temperature control process for the Fridge works just like the Freezer
process.Press the Fridge button to set your desired temperature. After a few
seconds, the Fridge will begin tracking towards the newly set temperature.
This will be reected in the digital display.
CAUTION
•
The temperature of the freezer or the refrigerator may rise from opening the doors too
frequently, or if a large amount of warm or hot food is placed in either side.
•
This may cause the digital display to blink. Once the freezer and refrigerator return to their
normal set temperatures the blinking will stop.
•
If the blinking continues, you may need to “reset” the refrigerator. Try unplugging the
appliance, wait about 10 minutes and then plug back in.
Using the ice and cold water dispenser (freezer)
Press the Ice Type button to select the type of ice you want
No Ice
Select this if you want to
turn off the icemaker
NOTE
•
Ice is made in cubes. When you select “Crushed”, the icemaker grinds the ice cubes into
crushed ice.
Operations
Page 47
English 47
Operations
Dispensing ice
Place your glass underneath the ice outlet and
push gently against the ice dispenser lever with
your glass. Make sure the glass is in line with
the dispenser to prevent the ice from bouncing
out.
Push
Using the Water Dispenser
Place a glass underneath the water outlet and
push gently against the water dispenser lever
with your glass. Make sure the glass is in line
with the dispenser to prevent the water from
splashing out.
Push
WARNING
•
Do not put your ngers, hands or any other unsuitable objects in the chute or ice-maker
bucket.
- It may result in personal injury or material damage.
•
Never put nger or any other objects in the dispenser opening.
- It may cause injury.
•
Use only the ice maker provided with the refrigerator.
•
The water supply to this refrigerator must only be installed/connected by a suitably qualied
person and connect to a potable water supply only.
•
In order to operate the ice maker properly, water pressure of 138 ~ 862 Kpa is required.
CAUTION
•
If you have a long vacation or business trip and won’t use water or ice dispensers,close the
water valve.
- Otherwise, water leakage may occur.
•
Wipe excess moisture from the inside and leave the doors open.
- Otherwise, odor and mold may develop.
Operations
Page 48
48 English
Operations
Using the cold water dispenser (fridge)
Place a glass underneath the water outlet and
push gently against the water dispenser lever
with your glass. Make sure the glass is in line
with the dispenser to prevent the water from
splashing out.
Push
Operations
Page 49
English 49
Operations
Operations
Shelves and bins (freezer)
Auto Ice Maker
Door Bins
Ice Chute
(Optional)
Lamp Cover
Glass Shelves
Drawers
Front Leg Cover
Ice Maker Box
Door Bins
Lamp Cover
Front Leg Cover
Glass Shelves
Drawers
ptional
O
( )
Ice Maker Box
O
ptional
O
( )
Page 50
50 English
Operations
Shelves and bins (freezer)
Dairy Bin
Lamp Cover
Glass Shelf
Door Bins
CoolSelect Duo
(Optional)
Vegetable &Fruit
Drawers
(Optional)
Tray Utility
Beverage Station
(Optional)
Wine Rack
(optional)
Operations
Lamp Cover
Glass Shelves
Vegetable &Fruit
Drawers
Water Tank
Door Bins
Dairy Bin
Tray Utility
(optional)
Wine Rack
(optional)
Page 51
English 51
Operations
Operations
Storing food
Storing Food in the Freezer
The Samsung Side-By-Side Refrigerator has been designed to provide you
with maximum spacesaving features and functions. Here are some of the
customized compartments we have created to keep your food fresher, longer.
Remember, in order to prevent odor penetration to the ice, stored food should
be wrapped securely and as airtight as possible.
NOTE
•
To get more space, you can remove freezer drawer(s) except bottom freezer drawer and
ice trays,since it does not affect thermal and mechanical characteristics. A declared storage
volume of frozen food storage compartment is calculated with these components removed.
1
2
3
4
5
11
9
10
8
7
12
6
Page 52
52 English
Operations
Operations
Storing Food in the Freezer
1.ICE CHUTE
Do not put your ngers, hands or any other objects in
the ice chute or the ice maker bucket. This may result
in personal injury or material damage.
2.SHELVES Can be used to store all types of frozen food.
3.DOOR BINS Can be used for small packages of frozen food.
4.DRAWERS
Best used to store meats or dry foods.Stored food
should be wrapped securely using foil or other suitable
wrapping materials or containers.
Storing Food in the Fridge
5.SHELVES
Designed to be crack-resistant.They can be used to
store all types of food and drinks.Circular marks on
the glass surface are a normal phenomenon and can
usually be wiped clean with a damp cloth.
6 WINE RACK
(OPTIONAl)
A place in which the wine is placed.
7.TRAY UTIlITY
Best place to keep eggs.Place the TRAY UTILITY on
the shelf for easy access.
8.COOlSELECT
DUO(OPTIONAl)
Helps to preserve the taste, and prolong the freshness
of your food. Use it to store meat,vegetable, poultry,
sh or any other foods that are consumed on a regular
basis.
9.FRUIT &
VEGETABLE
DRAWER
Used to preserve the freshness of your stored
vegetables and fruits. It has been specically designed
to control the level of humidity within the drawer.
10.DAIRY BIN
Can be used to store smaller dairy items like butter or
margarine, yogurt or cream-cheese bricks.
11.DOOR BINS
Designed to handle large, bulky items such as gallons
of milk or other large bottles and containers.
12.BEVERAGE
STATION
(OPTIONAl)
Canbe used to store the frequently used items,such as
canned beverages and snacks and allows access to
these items without opening the regrigerator door.
Page 53
English 53
Operations
Operations
NOTE
Bottles should be stored tightly together so that they do not tip and fall
out when the refrigerator door is opened.
WARNING
•
If you plan to go away for a signicant time, empty the refrigerator and turn it off. Wipe the
excess moisture from the inside of the appliance and leave the doors open. This helps keep
odor and mold from developing.
•
If the refrigerator is not to be used for a long period of time, pull out the power plug.
- Deterioration in the insulation may cause re.
Using the coolselect duo (optional)
The CoolSelect Duo is designed to make your busy life just a little bit
easier.
Meat
When MEAT is selected, the temperature
of the CoolSelect Duo is suitable for storing
meat or ham by entering chill of freezer to
it. This feature also helps keep meat or ham
fresh for longer.
Vegetable
When VEGETABLE is selected, the
temperature of CoolSelect Duo is suitable
for storing vegetable or fruit by closing chill
of freezer to it. This feature also helps keep
vegetable or fruit.
NOTE
•
When “Meat or Vergetable” is in operation, any items that you do NOT want affected should
be moved out of the drawer.
Page 54
54 English
Operations
Operations
Removing the freezer accessories
Cleaning and rearranging the interior of the freezer is a snap.
1.Remove the Glass Shelf by pulling the shelf
out as far as it will go. Then, gently lift it up and
remove it.
CAUTION
•
In case it does not have hooks itself in the back side
for not being tilted,a shelf should be placed deeply in a
proper position where there are blocks for shelves as
shown. if not, the shelf can fall out of a refrigerator.
Hook
Block
2.Remove the Door Bin by holding the door bin
with both hands and then gently lift it up.
3.Remove the Plastic Drawer by pulling it out
and slightly lifting it up.
4.Remove the Icemaker Bucket by lifting up and
pulling it out.
5.Remove the Front Leg Cover by opening
both the freezer and refrigerator doors, and
removing the three screws. Once the screws
are free, detach the cover. To reattach the front
leg cover, place it back in its original position
and tighten the three screws.
NOTE
•
Do not use excessive force when removing the cover.
•
Otherwise, the cover may break and cause injury.
Page 55
English 55
Operations
Operations
Removing the freezer accessories
1.Remove the Glass Shelf by pulling the shelf
out as far as it will go. Then, gently lift it up and
gently remove it.
CAUTION
•
In case it does not have hooks itself in the back side
for not being tilted,a shelf should be placed deeply in a
proper position where there are blocks for shelves as
shown. if not, the shelf can fall out of a refrigerator.
Hook
Block
2.Remove the Vegetable & Fruit Drawer by
pressing on the indentations found on the
inside left and right sides of the Veggie Box/
Dry Box cover and remove by pulling forward.
Holding the drawer with one hand, lift it up a
little bit while pulling it forward and take it out
of the refrigerator.
3.Remove the Gallon Door Bin by holding the bin
with both hands and gently lifting it up.
4.Push the Case Fixer handle, and lift the Water
Tank up, then take it out.
①
②
NOTE
•
Before removing any accessories, make sure that no food is in the way.When possible,
remove the food altogether to reduce the risk of accidents.
Page 56
56 English
Operations
Cleaning the refrigerator
Caring for your Samsung Side-By-Side Refrigerator prolongs the life of your
appliance and helps keep it odor and germ-free.
Cleaning the Interior
Clean the inside walls and accessories with a mild
detergent and then wipe dry with a soft cloth. You
can remove the drawers and shelves for a more
thorough cleaning. Just make sure to dry them
before putting them back into place.
Cleaning the Exterior
Wipe the digital panel and display panel with a
clean, soft cloth.Spray water onto the cleaning cloth
instead of spraying directly on the surface of the
refrigerator. This helps ensure an even distribution
of moisture to the surface. The doors, handles and
cabinet surfaces should be cleaned with a mild
detergent and then wiped dry with a soft cloth. To
keep your appliance looking its best, the exterior
should be polished once or twice a year.
WARNING
•
Do not use Benzene, Thinner or Clorox™ for cleaning.
•
They may damage the surface of the appliance and can create a risk of re.
If the rubber door seals are dirty the doors may not
close properly, and the refrigerator will not operate
efciently. Keep the door seals free of grit or grime
by cleaning the doors with a mild detergent and
damp cloth. Wipe dry with a clean, soft cloth.
CAUTION
•
Do not spray the refrigerator with water while it is plugged in, as it may cause an electric
shock. Do not clean the refrigerator with benzene, thinner or car detergent for risk of re.
Operations
Page 57
English 57
Operations
Operations
Cleaning the Home Bar
Use a damp cloth to clean the ice and water
dispenser.Then wipe dry with a clean, soft cloth.
Changing the interior lights
WARNING
•
Do not replace LED lamp privately and please contact the specialized repair staff if
necessary.
•
And make it sure that the new LED lamp is the same as the old one.Do not break the lamp
cover .
Using the doors
The refrigerator doors are equipped with a door opening and closing feature
that ensures that the doors close all the way and are securely sealed.
After opening beyond a certain point, the door will “catch” and remain open.
When the door is ajar ahead of the catch that allows it to stay open, it will close
automatically.
Page 58
58 English
Troubleshooting
Troubleshooting
Symptom Action
The refrigerator does not
work at all or it does not
chill sufciently.
•
Check that the power plug is properly connected.
•
Is the temperature control on the display panel set to the
correct temperature? Try setting it to a lower temperature.
•
Is the refrigerator in direct sunlight or located too near a
heat source?
•
Is the back of the refrigerator too close to the wall and
therefore keeping air from circulating?
The food in the fridge is
frozen.
•
Is the temperature control on the display panel set to the
correct temperature? Try setting it to a warmer temperature.
•
Is the temperature in the room very low?
•
Did you store the food with a high water content in the
coldest part of the fridge? Try moving those items into
the body of the fridge instead of keeping them in the
CoolSelect Duo™ drawer.
You hear unusual noises
or sounds.
•
Check that the refrigerator is level and stable.
•
Is the back of the refrigerator too close to the wall and
therefore keeping air from circulating?
•
Was anything dropped behind or under the refrigerator?
•
A “ticking” sound is heard from inside the refrigerator. This
is normal and occurs because various accessories are
contracting or expanding in relation to the temperature of
the refrigerator interior.
The front corners and
sides of the appliance
are hot and condensation
is occurring.
•
Some heat is normal as anti-condensators are installed in
the frontcorners of the refrigerator to prevent condensation
•
Is the refrigerator door ajar? Condensation can occur when
you leave the door open for a long time.
Ice is not dispensing.
•
Did you wait for 12 hours after installation of the water
supply line before making ice?
•
Is the water line connected and the shut-off valve open?
•
Did you manually stop the ice making function? Make sure
Ice Type is set to Cubed or Crushed.
•
Is there any ice blocked within the ice storage unit?
•
Is the freezer temperature too warm? Try setting the
freezer temperature lower.
You can hear water
bubbling in the
refrigerator
•
This is normal. The bubbling comes from the refrigerant
coolant liquid circulating through the refrigerator.
Page 59
English 59
Troubleshooting
Troubleshooting
Symptom Action
There is a bad smell in
the refrigerator.
•
Has a food item spoiled?
•
Make sure that strong smelling food (for example, sh) is
wrapped so that it is airtight.
•
Clean out your freezer periodically and throw away any
spoiled or suspect food.
Frost forms on the walls
of the freezer.
•
Is the air vent blocked? Remove any obstructions so air
can circulate freely.
•
Allow sufcient space between the foods stored for efcient
air circulation.
•
Is the freezer door closed properly?
Water dispenser is not
functioning.
•
Is the water line connected and the shut-off valve open?
•
Has the water supply line tubing been crushed or kinked?
Make sure the tubing is free and clear of any obstruction.
•
Is the water tank frozen because the refrigerator
temperature is too low? Try selecting a warmer setting on
the main display panel.
The alarm does not
sound even though the
door is open?
•
The door alarm only sounds when the refrigerator door is
ajar at an angle of more than 15 for more than 2 minutes.
Initially,the alarm soungs with 10 consecutive rings,then
rings 10 consecutive times every minute.
Page 60
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care center.
Country Contact Center Web Site
NEW ZEALAND 0800 726 786 www.samsung.com/nz/support
INDIA
1800 40 SAMSUNG (1800 40 7267864)
(Toll-Free)
www.samsung.com/in/support
MALAYSIA
1800-88-9999
603-77137477 (Overseas contact)
www.samsung.com/my/support
PHILIPPINES
1-800-10-726-7864 [ PLDT Toll Free ]
1-800-8-726-7864 [ Globe Landline and
Mobile ]
02-422-2111 [ Standard Landline ]
www.samsung.com/ph/support
SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com/sg/support
PANAMA 800-0101
www.samsung.com/latin/support (Spanish)
www.samsung.com/latin_en/support (English)
SOUTH AFRICA 0860 SAMSUNG (726 7864) www.samsung.com/support
UK 0330 SAMSUNG (7267864) www.samsung.com/uk/support
IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support
MYANMAR +95-1-2399-888 www.samsung.com/th/support
SRI LANKA
0117540540
0115900000
www.samsung.com/support
PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/support
DA68-03745B-00
Loading...
