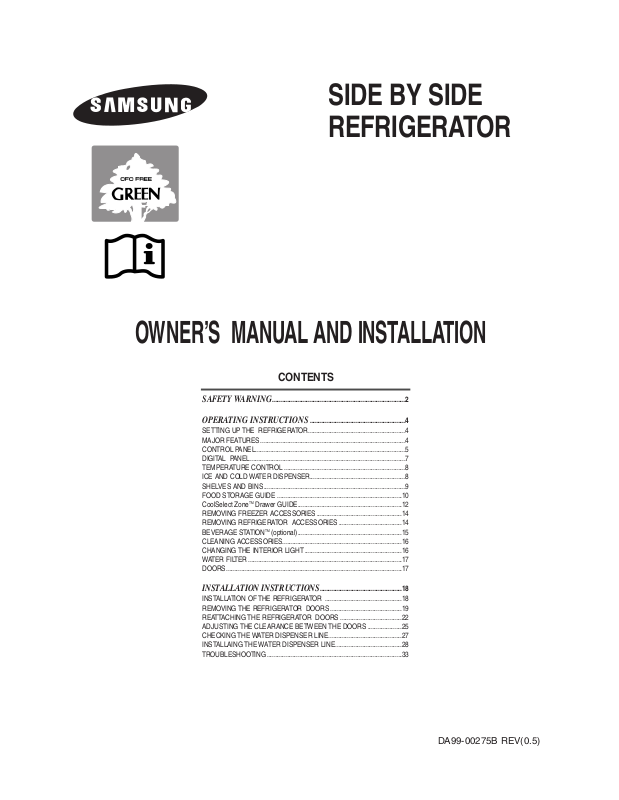

SIDE BY SIDE
REFRIGERATOR
OWNER’S MANUAL AND INSTALLATION
DA99-00275B REV(0.5)
CONTENTS
SAFETY WARNING ..............................................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTING UP THE REFRIGERATOR.........................................................4
MAJOR FEATURES .....................................................................................4
CONTROL PANEL........................................................................................5
DIGITAL PANEL...........................................................................................7
TEMPERATURE CONTROL .......................................................................8
ICE AND COLD WATER DISPENSER........................................................8
SHELVES AND BINS ...................................................................................9
FOOD STORAGE GUIDE .........................................................................10
CoolSelect ZoneTMDrawer GUIDE.............................................................12
REMOVING FREEZER ACCESSORIES ..................................................14
REMOVING REFRIGERATOR ACCESSORIES .....................................14
BEVERAGE STATIONTM(optional).............................................................15
CLEANING ACCESSORIES......................................................................16
CHANGING THE INTERIOR LIGHT.........................................................16
WATER FILTER ..........................................................................................17
DOORS.......................................................................................................17
INSTALLATION INSTRUCTIONS................................................18
INSTALLATION OF THE REFRIGERATOR .............................................18
REMOVING THE REFRIGERATOR DOORS ..........................................19
REATTACHING THE REFRIGERATOR DOORS ....................................22
ADJUSTING THE CLEARANCE BETWEEN THE DOORS ....................25
CHECKING THE WATER DISPENSER LINE...........................................27
INSTALLAING THE WATER DISPENSER LINE.......................................28
TROUBLESHOOTING ...............................................................................33
SAFETY WARNING
2
CAUTION/WARNINGS USED OTHER SIGNS USED
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
WARNING
CAUTION
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
electric shock.
Represents something you must NOT
disassemble.
Represents something you must NOT do.
WARNING
• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteristics of your
refrigerator may differ slightly from those described in this manual
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
Do not plug several appliances into the same multiple
power board.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or damaged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not directly spray water inside or outside the refrigerator
/ freezer. .
• There is a risk of electric shock.
Do not use aerosols near the refrigerator .
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place
heavey articles on it .
• This constitutes a fire hazard. If the power cord is damaged, have it replaced immediately by the manufacturer
or its service agent.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the refrigerator.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation electrical parts may cause electric
shock or fire.
Pull the power plug out of the socket before changing the interior light of the refrigerator.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the
refrigerator / freezer
throw
it away after first removing the doors and seals.
• Do so in a way, that is not possible for a child to remain
trapped inside.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas and
other such products may cause explosions.
Do not disassemble or repair the
refrigerator
by yourself.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
WARNINGS
The refrigerator must be grounded.
•
You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes, telephone lines or other potential lightening rods as ground.
Improper use of the ground plug can result in electric
shock.
•
It is recommended that this sentence be
handled by service man.
3
If the refrigerator is not to be used for a long
period of time, pull out the power plug.
• Deterioration in the insulation may cause fire.
SAFETY WARNING SIGNS
SAFETY WARNING
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance .
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceuticals products, scientific
materials or temperature-sensitive products in the
refrigerator.
• Products that require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door. If not, a serious injury may occur.
If you smell pharmaceuticals or smoke, pull out the
power plug immediately and contact your SAMSUNG Electronics service center.
Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
• This may cause frostbite.
Do not insert your hands into the bottom area
under the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the
dispenser hole and ice chute. It may cause personal injury or material damage
Do not use a wet or damp cloth when cleaning the
plug. Remove any foreign matter or dust from the
power plug pins.
• Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power
supply, you should wait for at least five minutes
before plugging it back.
CAUTIONS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and cause
personal injury or material damage.
Do not put bottles or glass containers in the
freezer
.
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
MAJOR FEATURES
Twin Cooling System
•
The refrigerator and the freezer have two evaporators. Given this
independent system, the freezer and the refrigerator are cooled
individually as required and are, therefore, more efficient. Food odor
from the refrigerator does not affect food in the freezer due to separate of air flow circulation.
Multi-Flow System
•
Cool air circulates through multiple vents on every shelf level. This
provides even distribution of cooling inside cabinets to keep your
food fresh longer.
Xtra Space
TM
• Vertical room next to the ice maker in the freezer provides space
for pizza etc.
Door Alarm
•
A beeper reminds you if the door is left open.
Xtra Fresh
TM
• Optimized humidity control keeps vegetables & fruits fresh.
Deodorizer (optional)
• Reusable deodorizer keeps the refrigerator air fresh and
odor free.
CoolSelect Zone
TM
Drawer(optional)
• User can select Quick Cool, Thaw and Select buttons for quickly
chill, thaw and cools items. Select Soft Freeze, Cool or Chill to
control the temperature of drawer.
SETTING UP THE
REFRIGERATOR
Once you have performed the following steps, your refrigerator should be fully operational. If not, check
the power supply and electricity source. If you have any questions, contact your SAMSUNG
service center.
Place the refigerator in an appropriate location with reasonable clearance between the
wall and the refigerator.
(refer to installation instructions in this mannal)
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is sufficiently low, you can store food in the
refrigerator. After starting the refrigerator, it
takes a few hours to reach the appropriate
temperature.
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
4
This operation instruction covers various models.
The characteristics of your appliance may differ slightly from those described in this manual.
NOTE
5
OPERATING INSTRUCTIONS
CONTROL PANEL
Basic Model
Dispenser Model (Moisture Control)
Dispenser Model (Child Lock)
FREEZER TEMP. BUTTON
To set the freezer temperature,
press the button repeatedly to
change the set temperature in
sequence between
-14°C and -25°C
FRIDGE TEMP. BUTTON
To set the fridge temperature,
press the button repeatedly to
change the set temperature in
sequence between 7°C and 1°C.
POWER COOL BUTTON
Speeds up the cooling
process in the
refrigerator
POWER FREEZE BUTTON
Speeds up the freezing process in
the freeze.
MOISTURE CONTROL BUTTON
Initially the light of moisture control button is on. If the moisture in the dispenser or Beverage Station
TM
is found,
press this button. So the light will be on,
and eliminate the moisture.
ICE TYPE BUTTON
Use this button to choose Cubed
or Crushed Ice or Ice off.
CHILD LOCK BUTTON
When this button is pressed for
3 sec., the Power Freeze, Power
Cool, Freeze Temp. Fridge
Temp. are locked and can not
be modified. The Water and Ice
dispenser are not locked as to
allow for usage.
Basic Model (With CoolSelect ZoneTM)
Dispenser Model (With CoolSelect ZoneTM)
Dispenser Model (With CoolSelect ZoneTM)
6
CONTROL PANEL
Opitonal
7
OPERATING INSTRUCTIONS
DIGITAL PANEL
•
This light indicates the recyclable deodorizer is in operation.
•
Recycle the honeycomb cartridge once or twice a year (see “Cleaning the
Accessories” section)
•
This light is on when you press the Power Cool button.
Press the button to quickly return the refrigerator to the set temperature.
•
Press the button again to cancel the Power Cool mode.
•
This light is on when you press the Power Freeze button.
Press this button to quickly return the freezer to the set temperature.
•
If you need much ice, you can get ice faster.
•
Press the button again to cancel the Power Freezer mode.
•
Press the Ice Type button in seqence to choose
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
•
Bright icon indicates the ice state currently operated.
Cubed Ice, Crushed Ice and Ice Off
•
When the green light changes to orange, it is time to replace the water filter.
If indicator is red, quick replacement is strongly recommended.
•
When the water filer is replaced, reset the indicator by pressing the Ice Type button and the Child Lock buttons simultaneously for 3 seconds.
•
To turn this indicator off, press the Ice Type and Child Lock buttons simultaneously for 5 seconds.
Filter Indicator
Power Freeze
Power Cool
Deodorizer
Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current
refrigerator
temperature.
Quick Cool, Thaw, and Select show the status of the CoolSelect ZoneTMDrawer
Press the Ice Type button to select the type of ice:
•
Cubed Ice
If the Ice remains in the Ice bucket, the
cubed ice is obtained.
Push the ice dispenser lever with a cup.
•
Place a cup in line with the dispenser lever the
dispenser to prevent ice from jumping out.
8
ICE and COLD WATER DISPENSER
Ice Dispenser
The ice maker produces 10 cubes at once and about 120
cubes a day automatically.
This quantity may be influenced
by factors such as the freezer temperature, the Power
Freeze function and the number of door openings. When
your
refrigerator
is plugged in, the Cubed Ice mode is auto-
matically selected .
Water Dispenser
The capacity of the water tank is approximately 1.2l.
Cold Water
•
Push the water dispenser lever with a cup.
•
If you have just installed the
refrigerator
, throw
away the first six glassfuls of water to flush out
impurities in the water supply system.
If you have a long vacation or business trip
and won’t use the water or ice dispensers,
close the water valve. Otherwise, water
may occur leakage.
Push
Push
CAUTION
Ice Maker (Basic Model)
•
Pull out the ice tray.
•
Add water until it reaches the water level indicator.
•
Put the ice tray back in place.
•
Crushed Ice
•
No Ice
TEMPERATURE CONTROL
Freezer
•
The freezer temperature can be set between
-14°C and -25°C.
•
Press the Freezer Temp. button repeatedly until the
desired set temperature is shown in the temperature
display.
•
The temperature display changes in sequence
between -14°C and -25°C. When the display reaches
14°C, it returns to -25°C.
•
After five seconds, the display reverts to the actual
freezer temperature. The unit will then work to adjust to
the new desired temperature.
Refrigerator
•
The refrigerator temperature can be set between
7°C and 1°C.
•
Press the Fridge Temp. button repeatedly until the
desired temperature is shown in the temperature display.
•
The temperature display changes in sequence and
reverts in the same way as the freezer.
•
When ice cream is stored above -15°C in freezer, it may melt.
•
The temperature of the freezer or the refrigerator rises from frequent openings, when sweeping
and from warm food. This may cause the digital display to blink . The digital display will stop
blinking when the freezer and refrigerator return to the normal temperature.
WARNING
No Ice
NOTE
Never put fingers or any other objects in
the dispenser opening.
It may cause injury.
WARNING
9
OPERATING INSTRUCTIONS
SHELVES AND BINS
Door Bin
Xtra Space
TM
Ice Maker
Light
Light
Ice Chute
Glass Shelf
Light Switch
Light Switch
Deodorizer
Plastic Drawers
Front Leg Cover
Pockets
Freezer
Basic Model
Egg Container
Foldable Shelf (optional)
Light (upper)
Water Filter (optional)
Spill-proof glass Shelf
Dairy Compartment
Wine Shelf (optional)
Muti-purpose Bin
Beverage StationTM(optional)
Lights (lower)
Gallon Door Bins
Door Bin Top Lips
CoolSelect Zone
TM
Drawer
or Chilled Bin (optional)
Vegetable & Fruit Drawer
Refrigerator
Dispenser Model
10
FOOD STORAGE GUIDE
FROZEN FOOD STORAGE IN FREEZER
Xtra Space
TM
•
Can be used for frozen foods such as pizza, pasta, burri tos, and fajitas.
•
In order to prevent odor penetration to the ice, stored food should be
wrapped securely.
Tempered Glass Shelf
•
Can be used to store all types of frozen food.
Door Bin
•
Can be used for small packages of frozen food.
Plastics Drawer
•
Can be used to store meat and dry foods. Stored food should be
wrapped securely using foil or other suitable wrapping materials or containers.
Ice chute
WARNING
Do not put your fingers, hands or any other in suitable objects in the chute or ice-maker bucket.
as this may result in personal injury or material damage.
Basic Model
Dispenser Model
11
OPERATING INSTRUCTIONS
FOOD STORAGE GUIDE
Tempered Spill Proof Glass Shelf
•
Can be used to store all types of chilled food.
•
Safe and hard to break resistant.
•
Circular marks on the glass surface are a normal phenomenon.
Chilled Bin or CoolSelect Zone
TM
Drawer
(optional)
•
Helps to preserve the taste of food and prolongs its freshness. Use to
store cheese, meat, poultry, fish or any other foods used quickly.
Fruit & Vegetable Drawer (Upper and Lower)
•
Is used to store fruits and vegetables.
•
This drawer is airtight. Optimized humidity control design helps to preserve the freshness of the stored vegetables and fruits.
Without drawers, the fruit & vegetable can be stored.
Dairy Compartment
•
Can be used to store butter or margarine.
Gallon Door Bins
•
Can be used to store foods in small packages, such as milk and
yogurt.
Beverage Station (optional)
•
Can be used to store the frequently used items, such as canned beverages and snacks and allows access to these items without opening
the refrigerator door.
Egg Container
•
Put eggs in the container and place them on the shelf.
Wine Shelf
(optional)
•
Place your wine bottle on the shelf to maintain their taste.
CHILLED FOOD STORAGE IN REFRIGERATOR
CAUTION
Bottles should be stored tightly together so that they do not fall out.
•
If you have a long vacation planned, you must decide to empty the refrigerator and turn it off. Wipe
excess moisture from the inside and leave the doors open. Otherwise, odor and mold may develop.
WARNING
NOTE
Loading...
