SIDE BY SIDE
REFRIGERATOR
OWNER’S MANUAL AND INSTALLATION
ENGLISH
CONTENTS
SAFETY WARNING....................................................................................2
OPERATING INSTRUCTIONS
SETTING UP THE REFRIGERATOR ........................................................4
MAJOR FEATURES.....................................................................................4
CONTROL PANEL .......................................................................................5
DIGITAL PANEL ..........................................................................................7
TEMPERATURE CONTROL ......................................................................8
ICE AND COLD WATER DISPENSER .......................................................8
USING THE WATER DISPENSER(optional).......................................................9
SHELVES AND BINS ...................................................................................11
FOOD STORAGE GUIDE ........................................................................12
CoolSelect ZoneTMDrawer GUIDE.............................................................14
REMOVING FREEZER ACCESSORIES..................................................16
REMOVING REFRIGERATOR ACCESSORIES.....................................16
BEVERAGE STATIONTM(optional) ............................................................16
CLEANING ACCESSORIES......................................................................17
CHANGING THE INTERIOR LIGHT.........................................................18
WATER FILTER..........................................................................................19
DOORS.......................................................................................................19
INSTALLATION INSTRUCTIONS
INSTALLATION OF THE REFRIGERATOR ............................................20
REMOVING THE FRONT LEG COVER .........................................21
REMOVING THE REFRIGERATOR DOORS ......................................... 22
REATTACHING THE REFRIGERATOR DOORS....................................24

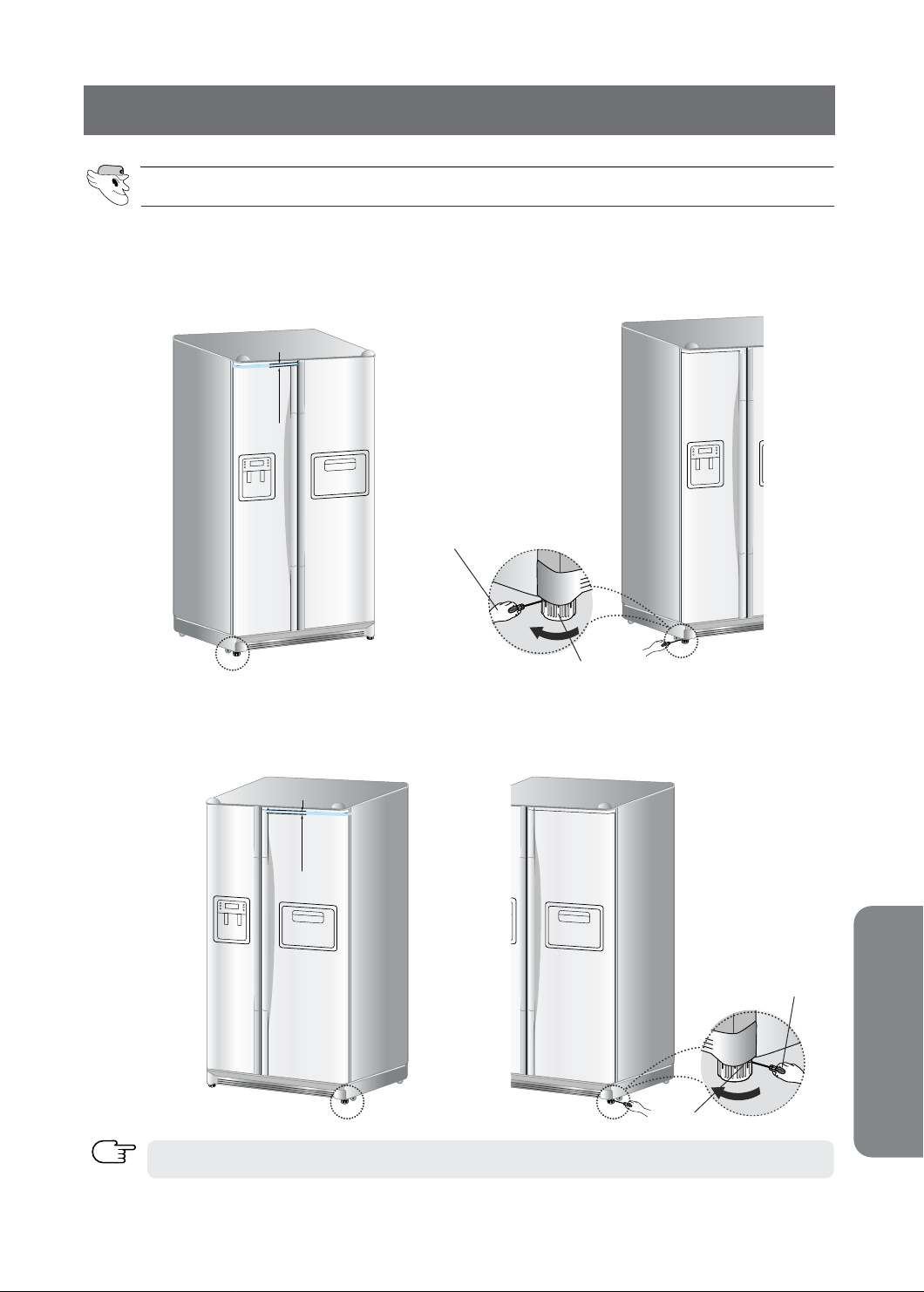

ADJUSTING THE CLEARANCE BETWEEN THE DOORS....................27
CHECKING THE WATER DISPENSER LINE ..........................................29
INSTALLAING THE WATER DISPENSER LINE......................................30
TROUBLESHOOTING...............................................................................35
DA99-00494B REV(0.7
)
SAFETY WARNINGS
• Before operating the appliance, please read this manual thoroughly and retain it for
your reference.
• Because these following operating instructions cover various models, the characteris
WARNING
CAUTION/WARNING SYMBOLS USED OTHER SYMBOLS USED
tics of your refrigerator may differ slightly from those described in this manual
• The appliance is not intended for use by children or infirm persons without adult supervision.
• Children should be supervised to ensure that they do not play with the appliance.
• R600a or R134a is used as a refrigerant. Check the compressor label on the rear of the appli
ance and the rating label inside the fridge to see which refrigerant is used for your refrigerator.
• The refrigerator only use ice makers which made by samsung Electronics for the refrigerator.
• The incorporated ice-makers are to be installed only by the manufacture or its service agent.
Represents something you must NOT
Indicates that a danger of death
or serious injury exists.
WARNING
Indicates that a risk of
personal injury or material
CAUTION
damage exists.
WARNINGS
Do not plug several appliances into the same multiple power board.
• This could cause overheating and the risk of fire.
Make sure that the power plug is not squashed or
dam-aged by the back of the refrigerator .
• A damaged power plug may overheat and cause fire.
Do not bend the power cord excessively or placeheavey articles on it .
• This constitutes a fire hazard. If the power cord is
damaged, have it replaced immediately by the
manufacturer or its service agent.
Do not directly spray water inside or outside the
refrigerator.
• There is a risk of fire or electric shock.
Do not spray inflamable gas near the refrigerator.
• There is a risk of explosion or fire.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with water on the
refrigerator.
• If spilled, there is a risk of fire or electric shock.
Do not install the refrigerator in a damp place or a
place where it may come in contact with water.
• Deteriorated insulation of electrical parts may cause an
electric shock or fire.
Do not store volatile or flammable substances in the
refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP gas
and other such products may cause explosions.
Represents something you must NOT
disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
electric shock.
It is recommended that this symbol be
handled by service man.
Do not disassemble or repair the refrigerator by yourself.
• You run the risk of causing a fire, malfunctions and/or
personal injury.
Pull the power plug out of the socket before changing
the interior light of the refrigerator.
• Otherwise, there is a risk of electric shock.
If you wish to dispose of the refrigerator / freezer
throw it away after first removing the doors and seals.
• Do so in a way, that is not possible for a child to remain
trapped inside.
The refrigerator must be grounded.
• You must ground the refrigerator to prevent any power
leak ages or electric shocks caused by current leakage
from the refrigerator.
Never use gas pipes, telephone lines or other potential lightening rods as ground.
• Improper use of the ground plug can result in electric
shock.
WARNING
• Keep ventilation openings in the appliance enclosure
or mounting structure clear of obstruction.
• Do not use mechanical devices or any other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the refrigera-
tor/freezer, unless they are of a type recommended
by the manufacturer.
2
CAUTIONS
Do not overfill the refrigerator with food.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or glass containers in the freezer.
• When the contents freeze, the glass may break and
cause personal injury.
If the wall socket is loose, do not insert the power
plug.
• There is a risk of electric shock or fire.
Do not disconnect the power cord by pulling on it.
• Damage to the cord may cause a short-circuit, fire
and/or electric shock.
• If the power cord is damaged, it must be replaced by
the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance .
• When you open or close the door, the articles may fall
and cause personal injury and/or material damage.
Do not store pharmaceuticals products, scientific
materials or temperature-sensitive products in the
refrigerator.
• Products that require strict temperature controls must
not be stored in the refrigerator.
Do not let children hang on the door. If not, a serious injury may occur.
If you smell pharmaceutical or smoke, pull out the
power plug immediately and contact your SAMSUNG Electronics service center.
Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
• This may cause frostbite.
Do not insert your hands into the bottom area
under the appliance.
• Any sharp edges may cause personal injury.
Never put fingers or other objects into the dispenser
hole and ice chute. It may cause personal injury or
material damage
Either R600a or R134a are the refrigerants used.
Check the compressor label on the rear of the appliance
and the rating label inside the fridge to
see which refrigerant is used for your refrigerator.
CAUTIONS
The refrigerant used in the refrigerator/freezer and the
gases in the insulation material require special disposal procedures. Ensure that none of the pipes on the
back of the appliance are damaged prior to disposal.
Do not use a wet or damp cloth when cleaning
the plug. Remove any foreign matter or dust
from the power plug pins.
• Otherwise there is a risk of fire.
• If the refrigerator is disconnected from the power
supply, you should wait for at least five minutes
before plugging it back.
If the refrigerator is not to be used for a long
period of time, pull out the power plug.
• Deterioration in the insulation may cause fire.
The appliance is not intended for use by young
children or infirm persons without supervision.
Young children should be supervised to
ensure
that they do not play with the appliance.
Do not place the equipment directly under the
sunlight.
The appliance must be positioned so that the
plug is accessible after installation
If the power cord is damaged it must be
replaced
by manufacturer, a certified service agent or
qualified service personnel.
This appliance contains a small amount of
isobutane refrigerant (R600a), a natural gas
with high environmental compatibility that is,
ing and installing the appliance, care should be taken
to ensure that no parts of the refrigerating circuit are
damaged.
Refrigerant squirting out of the pipes could ignite or
cause an eye injury. If a leak is detected, avoid any
naked flames or potential sources of ignition and air
the room in which the appliance is standing for several minutes.
• In order to avoid the creation of a flammable gas-air mix-
• Never start up an appliance showing any signs of dam-
however, also combustible. When transport-
ture if a leak in the refrigerating circuit occurs, the size of
the room in which the appliance may be sited depends on
the amount of refrigerant used.
The room must be 1m
refrigerant inside the appliance. The amount of refrigerant
in your particular appliance is shown on the identification
plate inside the appliance.
age. If in doubt, consult your dealer.
3
in size for every 8 g of R600a
SAFETY W ARNING
3
SETTING UP THE REFRIGERAT OR
Once you have performed the following steps, your refrigerator should be fully operational. If not, check the power
supply and electricity source. If you have any questions, contact your SAMSUNG service center.
Place the refigerator in an appropriate location
with reasonable clearance between the wall
and the refigerator.
(refer to installation instructions in this mannal)
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
MAJOR FEATURES
Twin Cooling System
• The refrigerator and the freezer have two evapora
tors. Given this independent system, the freezer
and the refrigerator are cooled individually as
required and are, therefore, more efficient. Food
odor from the refrigerator does not affect food in
the freezer due to separate of air flow circulation.
Multi-Flow System
• Cool air circulates through multiple vents on every
shelf level. This provides even distribution of
cooling inside cabinets to keep your food fresh
longer.
Door Alarm
• A beeper reminds you if the door is left open.
High humidity for fresher food
• You can keep food, fruit and vegetables fresh for
longer because your refrigerator supplies highly
humidified cold air. This can be up to four or five
times more effective than a normal refrigerator.
Set the temperature control to the coldest
temperature and wait for an hour. The
freezer should get slightly chilled and the
motor should run smoothly.
Once the refrigerator temperature is sufficiently
low, you can store food in the
refrigerator. After starting the refrigerator, it
takes a few hours to reach the appropriate
temperature.
Beverage Station (optional)
• You do not have to open the main door to access
frequently used food in the extra
refrigerating compartment. This saves time
and money.
Deodorizer (optional)
• Reusable deodorizer keeps the refrigerator air
fresh and odor free.
CoolSelect
TM
Zone
Drawer
(optional)
• User can select
Quick Cool, Thaw
and Select buttons
for quickly chill, thaw
and cools items.
Select Soft Freeze,
Cool or Chill to
control the tempera
ture of drawer.
Energy-saving fridge/freezer
• Power consumption is kept to a minimum by distributing cool air separately to the refrigerator and
freezer.
Faster cooling times
• The power freeze function allow you to freeze food
more quickly.
Abundant supply of ice and cold water
• The ice and water dispenser provides ice and cold
water at any time.
NOTE
4
This operation instruction covers various
models.
The characteristics of your appliance may
differ slightly from those described in this
manual.
CONTROL PANEL
Basic Model
Dispenser Model
FREEZER TEMP. BUTTON
To set the freezer temperature, press the button repeatedly to change the set temperature
in sequence between -14°C and -25°C
POWER FREEZE BUTTON
Speeds up the freezing
process inthe freeze.
CHILD LOCK BUTTON
When the child lock button is pressed for 3 seconds, the child lock indicator is on with an audible tone. when it is
locked, all keys can not be modified except the Ice type button. This function will prevent accidental setting that may
be caused by children or pets. To unlock the setting functions, press this button for 3 seconds again.
Also, this button has another function. When this button is pressed for 3 seconds (lock indication lamp turn on), the
heater for sweat control is off at a same time. If sweat is appeared around the cover dispenser or beverage station
with this function, press this button for 3 seconds again. then, the light will turn off and the sweat control function will
be performed. and all keys will be unlocked at a same time.
ICE TYPE BUTTON
Use this button to choose
Cubed or Crushed Ice or
Ice off.
FRIDGE TEMP. BUTTON
To set the fridge temperature, press the button repeatedly to change the set temperature in sequence between 7°C and 1°C.
POWER COOL BUTTON
Speeds up the cooling process in
the refrigerator
OPERATING INSTRUCTIONS
5
CONTROL PANEL
Cool Select zone
Cool Select zone
Basic Model (With CoolSelect Zone)
Dispenser Model (With CoolSelect Zone)
6
DIGITAL PANEL
Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current refrigerator temperature.
Quick Cool, Thaw, and Select show the status of the CoolSelect Zone
TM
Drawer
Power Freeze
Power Cool
Deodorizer
• This light is on when you press the Power Freeze button.
Press this button to quickly return the freezer to the set temperature.
• If you need much ice, you can get ice faster.
• Press the button again to cancel the Power Freezer mode.
• This light is on when you press the Power Cool button.
Press the button to quickly return the refrigerator to the set temperature.
• Press the button again to cancel the Power Cool mode.
• This light indicates the recyclable deodorizer is in operation.
• Recycle the honeycomb cartridge once or twice a year (see “Cleaning the
Accessories” section)
Cubed Ice, Crushed Ice and Ice Off
Filter Indicator
• When the green light changes to orange, it is time to replace the water filter.
If indicator is red, quick replacement is strongly recommended.
• When the water filer is replaced, reset the indicator by pressing the Ice
Type button and the Child Lock buttons simultaneously for 3 seconds.
• To turn this indicator off, press the Ice Type and Child Lock buttons simulta
neously for 5 seconds.
OPERATING INSTRUCTIONS
• Press the Ice Type button in seqence to choose
Cubed Ice, Crushed Ice or Ice Off to stop making ice.
• Bright icon indicates the ice state currently operated.
7
TEMPERATURE CONTROL
Freezer
• The freezer temperature can be set between -14°C and
-25°C.
• Press the Freezer Temp. button repeatedly until the
desired set temperature is shown in the temperature
display.
• The temperature display changes in sequence between
-14°C and -25°C. When the display reaches 14°C, it
returns to -25°C.
• After five seconds, the display reverts to the actual
freezer temperature. The unit will then work to adjust to
the new desired temperature.
• When ice cream is stored above -15°C in freezer, it may melt.
• The temperature of the freezer or the refrigerator rises from frequent openings, when sweeping
and from warm food. This may cause the digital display to blink . The digital display will stop
WARNING
blinking when the freezer and refrigerator return to the normal temperature.
Refrigerator
• The refrigerator temperature can be set between 7°C
and 1°C.
• Press the Fridge Temp. button repeatedly until the
desired temperature is shown in the temperature
display.
• The temperature display changes in sequence and
reverts in the same way as the freezer.
ICE and COLD W ATER DISPENSER
Ice Maker (Basic Model)
• Pull out the ice tray.
• Add water until it reaches the water level indicator.
• Put the ice tray back in place.
Ice Dispenser
The ice maker produces 10 cubes at once and about 120
cubes a day automatically. This quantity may be influenced by
factors such as the freezer temperature, the Power Freeze
function and the number of door openings. When your refrigerator is plugged in, the Cubed Ice mode is automatically selected .
Press the Ice Type button to select the type of ice:
Water Dispenser
The capacity of the water tank is approximately 1.2 l.
Cold Water
• Push the water dispenser lever with a cup.
• If you have just installed the refrigerator, throw away the
first six glassfuls of water to flush out impurities in the
water supply system.
• Cubed Ice
• Crushed Ice
• No Ice
NOTE
If the Ice remains in the Ice bucket, the
cubed ice is obtained.
No Ice
Push the ice dispenser lever with a cup.
• Place a cup to line of the dispenser lever
to prevent the ice from jumping out.
Push
CAUTION
WARNING
8
Push
If you have a long vacation or business
trip and won’ t use the water or ice dispensers, close the water valve.
Otherwise, water may occur leakage.
Never put fingers or any other objects
in the dispenser opening.
It may cause injury.
USING THE WATER DISPENSER (OPTION)
With the water dispenser, you can obtain chilled water easily without opening the refrigerator door. In addition, you can save electricity by reducing the number of times the door is opened by more than 30%.
Overview
Push lever
Locking device
Water tank cap
Water tank
Water supply device
WHEN THE W A TER DISPENSER IS NOT USED. THE FOLLOWING W AYS RECOMMDED
Fix the water supply device tightly into the fixing hole.
• The door will not be closed automatically when the water supply
device is pulled out for a long time because of cold leaking.
Set the locking device to the “LOCK”.
•
When pressing the “PUSH” button with the water supply device only fixed at
the fixing hole, and the locking device is set on “OPEN”, the water supply
device can be removed from the fixing hole and cold leaks.
NOTE
When exposing to child, set the locking device to the “LOCK”.
FILLING THE W ATER TANK
Open the water tank by removing the round cap and fill it up
with drinking water.
• Fill the tank up to the full level (just over 4.2 litres).
Replace the round cap by pushing down on it until it clicks
into place.
OPERATING INSTRUCTIONS
9
INSTALLING A REGULAR BOTTLE
Press the fixing lever, lift the exclusive water tank upwards, then
remove it.
Remove the water supply device from the exclusive water tank,
then set the inner groove of the water supply device in a regular
spring water bottle and fix it in position by turning it.
Turn the water supply device over, then fix it in position in the
fixing hole.
• Gurgling sounds may be heard when air enters the water tank from regular mineral water or beverage
NOTE
bottles.
• Some regular mineral water or beverage bottles may not fit the water supply device, depending on their
size.
• If water does not come out satisfactorily when you press the “push” button, press it again.
• Do not use carbonated drinks, such as cola, cider or sodas. When you press the button, the beverage
may spurt out due to the pressure of carbonic gas accumulated in the upper part of beverage bottle.
• Use bottled mineral water or boiled tap water that does not contain any particles.
Water T ank / Supply Device
Pull upward and disassemble the hooks on both sides of
the large-sized cap.
Loosen the water supply device by turning it in the direction of the arrow and removing it.
Wipe the large-sized cap and the exclusive water tank with
warm water and detergent.
• Hold the cap and pull it upwards to remove it. Clean the cap
and waste filtering bottle attached to the cap with a soft
brush.
After cleaning the water supply device with a soft brush,
press the water supply device operation lever, then wash
it in running water.
• Clean the water tank frequently if it used to dispense tea or other such beverages. Only use filtered tea. For better hygiene, beverages with a high sugar content (juice, soft drinks) are not
WARNING
recommended.
• Deposits can be cleaned by wiping the tank with a cloth dampened in vinegar or salt water.
• Check that the rubber seal on the water supply device has not slipped off or is not damaged
by a sharp-edged object. Otherwise, it may leak.
10
SHELVES AND BINS
FREEZER
Door Bin
Light
Shelf
Twist ice maker
Ice tray
Drawer
Ice maker
Ice chute
Front leg cover
Basic model Model with ice and water dispenser
REFRIGERATOR
Dairy compartment
Lights
Wine Self(Optional)
Water tank
Door Bin
Beverage Station
Foldable Shelf(optional)
Deodorizer (optional)
Egg Container
CoolSelect ZoneTMDrawer
(optional)
Vegetable & Fruit Drawer
OPERATING INSTRUCTIONS
Door Bins
11
FOOD STORAGE GUIDE
FROZEN FOOD STORAGE IN FREEZER
Tempered Glass Shelf
• Can be used to store all types of frozen food.
Door Bin
• Can be used for small packages of frozen food.
Plastics Drawer
• Can be used to store meat and dry foods. Stored food should be
wrapped securely using foil or other suitable wrapping materials or
containers.
Ice chute (optional)
Do not put your fingers, hands or any other in suitable objects in the chute or ice-maker bucket.
WARNING
It may result in personal injury or material damage.
12
FOOD STORAGE GUIDE
CHILLED FOOD STORAGE IN REFRIGERATOR
Tempered Spill Proof Glass Shelf
• Can be used to store all types of chilled food.
• Safe and hard to be broken.
• Circular marks on the glass surface are a normal phenomenon.
Foldable shelf (optional)
• If you need more taller space for tall items.
Raise the front of shelf slightly and it back to make it half.
You can use the shelf in this position to allow taller items to be stored.
CoolSelect Zone
• Helps to preserve the taste of food and prolongs its freshness.
Fruit & Vegetable Drawer (Upper and Lower)
• Is used to store fruits and vegetables.
• This drawer is airtight. Optimized humidity control design helps to preserve
Dairy Compartment
• Can be used to store butter or margarine.
Beverage Station (optional)
• Can be used to store the frequently used items, such as canned
CAUTION
Egg Container
• Put eggs in the container and place them on the shelf.
TM
Drawer (optional)
Use to store cheese, meat, poultry, fish or any other foods used quickly.
the freshness of the stored vegetables and fruits.
Door Bins
• Can be used to store foods in small packages, such as milk
and yogurt.
beverages and snacks and allows access to these items without opening
the refrigerator door.
Bottles should be stored tightly together so that they do not fall out.
OPERATING INSTRUCTIONS
Wine Shelf (optional)
• Place your wine bottle on the shelf to maintain their taste.
WARNING
The Rail that should not be used for
• If you have a long vacation planned, you must empty the
refrigerator and turn it off. Wipe excess moisture from the inside and leave
the doors open. Otherwise, odor and mold may develop.
• In case the model has CoolSelect zone Do not insert a shelf to this rail, or
the shelf can collide with beverage station coverand the beverage station
cover can be broken.
13
CoolSelect zone model
CoolSelect Zone
Drawer GUIDE
“Select” button (Optional)
Soft Freeze
• When “Soft Freeze” is chosen, the temperature on the
digtal panel displays -5o C regardless of the set temperature
of the refrigerator.
• “Soft-Freeze” temperature helps keep meats and fishes
fresh longer.
• Can cut meat easily without drips.
Chill
• When “Chill” is chosen, the temperature of the CoolSelect
ZoneTMDrawer is kept at -1o C regardless of the set refrigera
tor temperature.
• “Chill” temperature helps keep meat or fish fresh longer.
Cool
• When “Cool” is chosen, the temperature will be the
same as the set temperature of the refrigerator. The digital
panel shows the same temperature as that of the display
panel.
• The CoolSelect ZoneTMDrawer allows extra refrigerator
space.
TM
14
CoolSelect Zone
Drawer GUIDE
“Quick Cool” button
TM
• You can use the Quick Cool feature with the CoolSelect Zone
• “Quick Cool” allows 1~3 canned beverages to cool within 60 min.
• To cancel this option, press the “Quick Cool” button again.
CoolSelect ZoneTMreturns to the previous temperature.
• When “Quick Cool” ends, it returns to the “Cool” temperature seting.
Depending on the beverages, the cool-down time may vary.
NOTA
• For “Quick Cool” option, food stored in the CoolSelect Zone
WARNING
Drawer should be removed.
“Thaw” button
• Drips loss and quality deterioration of meats reduces the freshness
of foods.
• After “Thaw” is selected, warm and cold air is alternately sup-plied
into the CoolSelect ZoneTMDrawer .
• Depending on the weight of meat, thawing time can be selected
for 4 hrs, 6 hrs, 10 hrs, and 12 hrs sequentially.
• When “Thaw” ends, CoolSelect ZoneTMdisplay returns to “chill”
condition.
• When “Thaw” ends, there are no juice in the meats and they are half-
freezed condition so it is easy to cut them for cooking.
• To cancel this option, press any button except “Thaw”.
• The approximate thawing time of meat and fish are shown
below. (Based on 1inch thickness)
TM
.
TM
OPERATING INSTRUCTIONS
Thaw Time 4 hours 6hours 10 hours 12 hours
NOTE
WARNING
Weight 400 g 600 g 800 g 1000g
Depending on the size and thickness of meat and fish, the thawing time may vary.
The above weight represents the total weight of food in the CoolSelect Zon
Ex) The total thawing time for 400g frozen beef and 600g frozen chicken will be 10 hours.
• With the “Thaw” option, food stored in the CoolSelect ZoneTMDrawer should be removed.
15
TM
Drawer.
REMOVING THE FREEZER ACCESSORIES
Tempered glass shelf
Pull the shelf out as far as
•
it goes. Then lift it up and
remove it.
Door bins
Hold the door bin in both
•
hands and then lift it up.
Drawers
Remove the drawer by
•
pulling it out and lifting it up
slightly.
Ice maker and tray
Remove the ice tray by
•
pulling it towards you.
Then remove the ice maker
(basic model only).
Ice maker bucket
Remove the bucket lifting up and pulling out.
•
Front Leg cover
Open the freezer and refrigerator
•
doors, remove the three screws
and detach the cover.
To reassemble the leg cover, put
•
it back into position and tighten
the three screws.
❈ Only remove the leg cover if strictly
necessary.
•
Do not use excessive force when
NOTE
disassembling the cover; otherwise, you may cause damage.
(optional)
REMOVING THE REFRIGERA T OR ACCESSORIES
Tempered glass shelf
Pull the shelf out as far as it will go. Then lift it up
•
and remove it.
Door bins
Hold the door bin in both hands and remove it by
•
lifting it up.
Fresh fruit & vegetable drawer and cover
Remove the compartment by holding the handle,
•
pulling the compartment towards you and lifting it
up slightly.
Remove the cover by pulling it towards you.
•
Wine shelf (optional)
Simpy take the shelf and pull it toward you.
•
BEVERAGE STATION TM(optional)
To access the extra refrigerating compartment, hold the compartment door
handle and pull it downwards.
The extra refrigerating compartment gives
•
you added convenience because you do not
need to open the main refrigerator door. In
addition, this saves energy.
• Before removing the freezer and refrigerator accessories, please move the stored foods to other space.
WARNING
• The door of the Beverage Station should never be removed.
The Beverage Station
• When you close the door of beverage station, be careful not to put your hands or fingers in a position
where those can be caught or injured.
• If you use the opened door as a tray do not place heavy objects on it.
• Do not allow children to hang on the door, because there is a risk of personal injury or material damage.
TM
cannot function if its door is missing.
It is recommended that you use the
extra refrigerating compartment for
frequently used foods like beverages.
When the door is opened, it can be
used as a tray to support items, such
as beverage bottles
and glasses.
Do not scratch the surface of the door.
•
16
CLEANING THE ACCESSORIES
Inside
•
Clean the accessories using a mild detergent. Then wipe with a dry cloth.
•
After washing the accessories, make sure that they are dry before using them again.
Exterior
•
Wipe the front control panel with a clean cloth.
•
The doors and door handles should be cleaned with a mild detergent and cloth. Dry them with a
clean cloth.
•
The exterior should be polished once or twice a year.
Rear
•
Use a vacuum cleaner to remove dust once or twice a year.
Ice and water dispenser and drainage grid (optional)
•
Use a damp cloth to clean the ice and water dispenser. Then wipe it with a dry cloth.
•
Keep the ice and water dispenser and drainage grid dry.
Beverage station (optional)
Use a damp cloth to clean the extra refrigerating compartment. Then wipe it with a dry cloth.
•
Rubber door seals
If the rubber door seals are dirty, the door will not close properly and the refrigerator and freezer will
•
be unable to function efficiently. Clean them with a mild detergent and damp cloth. Then wipe them
with a dry cloth.
When cleaning the appliance or if you are not going to use it for a long time, remove the power plug, leave the
•
NOTE
doors open and keep the appliance dry.
Do not clean it by spraying it directly with water.
•
Do not clean it with benzene, thinner or car detergent.
•
OPERATING INSTRUCTIONS
17
CLEANING THE ACCESSORIES
Deodorizer (optional)
• Remove the cover with a flat blade screw driver as shown.
• Take out the cartridge from the cover and soak it in clean, warm water for
at least 4 hrs. Completely dry out the cartridge with sunlight for at least 8 hrs
in an open area.
• Repeat this process once or twice a year.
• If it is dried in a confined area, odor may be spread to that area.
NOTE
• Keep the children away from yellow water, they may drink water.
With CoolSelect zone
Without CoolSelect zone
CHANGING THE INTERIOR LIGHT
Before changing the interior light, unplug the appliance from the power supply. If you experience difficulty when changing the light, contact your service centre.
WARNING
INTERIOR LIGHT IN THE FREEZER (BASIC MODEL ONLY) / REFRIGERATOR
TM
TM
Model
Model
➁
Place a flat screwdriver under
the light cover hooks and
push in the direction of the
arrow.
Pull the cover in the direction of
the arrow.
After changing the bulb,
replace the light cover.
INTERIOR LIGHT IN THE FREEZER (MODEL WITH ICE AND WA TER
DISPENSER)
Lift and pull out the ice maker cover (➀).
Use a screwdriver to remove the light cover (➁).
Replace the bulb with a new one (➂), and then secure the
light cover back into place using a screwdriver.
Replace the ice maker cover.
➀
➂
➁
18
WATER FILTER
The water “Filter Indicator” light
• “Filter Indicator” light lets you know when it is time change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current
cartridge.
It is recommended that you replace the cartridge when the light changes to red.
(see “Install the water filter” section for more information)
Using the dispenser without the water filter
• You can not use the water and ice dispenser without a water filter cartridge because of the water
line block at the water supply.
Ordering replacement filters
• To order more water filter cartridges, contact your authorized Samsung dealer.
DOORS
The refrigerator doors have a special door opening and closing feature to make sure that the doors
close all the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically .
OPERATING INSTRUCTIONS
19
INSTALLATION OF THE REFRIGERATOR
Checking the Dimensions of your Entrance Door
• Check the dimensions of your entrance door to determine whether the refrigerator can
pass through it.
NOTE
CAUTION
• Moving refrigerator through door if depth or width of refrigerator is bigger than door’s,
removes refrigerator doors.
Selecting the Location for the Refrigerator
• Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Before disassembling the freezer door, the water supply line needs to be disconnected.
(If not, the water supply line can be damaged.)
• See “Separating the water supply line from the refrigerator” on the next page.
Allow sufficient space to install the refrigerator on a flat surface.
• If your refrigerator is not level, the internal cooling system may not work correctly.
NOTE
10 Cm
5 Cm
1 Cm
When you install the refrigerator, it is recommended that the clearance be maintained as much as
specified above.
If the space is not allowed, maintain at least 5cm clearance to the back wall.
20
REMOVING THE FRONT LEG COVER
a
Removing the Front Leg Cover (Optional)
Open the freezer and refrigerator doors, and then take off the front leg cover assembly by turning
the three screws counter-clockwise.
a
FRONT LEG COVER
SCREW
Separating the water supply line from the refrigerator (Optional)
1) Remove the screw from clamp ( ).
2) Remove the water tube by pressing the coupler (➁) and pulling the water tube (➀) away.
a
WARNING
INSTALLATION INSTRUCTIONS
Do not cut the water tube but separate it from the coupler.
21
REMOVING THE REFRIGERAT OR DOORS
• Lift the door straight up.
NOTE
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver, and then disconnect
the wires (➁).
2) Remove hinge screws (➂) and ground screw (➃) counter-clockwise, and take off the upper hinge (➄) along the
• Be careful not to pinch the water tubing and wire harness on the door.
• Place doors on a protected surface.
Removing the Freezer Door
arrow (➅). Take care when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (⑦) by
➇
carefully lifting the door (
).
4) Remove the lower hinge (➈) from the bracket
lower hinge (➉) by lifting the lower hinge (➈)
in the direction of the arrow.
22
REMOVING THE REFRIGERA T OR DOORS
Removing the Refrigerator Door
1) With the door closed, remove the upper hinge cover (➀) using a screwdriver, and then discon-nect
the wires (➁).
2) Remove hinge screws (➂) and ground screw (➃) counter-clockwise, and take off the upper hinge (➄) in the
direction of the arrow (➅). Take care when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (⑦) by
➇
lifting the door (
NOTE
).
• After disassembling the freezer / refrigerator door, move it to the appropriate location. you must reassemble it.
4) Remove the lower hinge (➈) from the bracket
lower hinge (➉) by lifting the lower hinge (➈)
in the direction of the arrow.
INSTALLATION INSTRUCTIONS
23
REA TTACHING THE REFRIGERA TOR DOORS
Reattaching the Freezer Door
1) Insert the lower hinge (➀) in the bracket
lower hinge (➁).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling the upper hinge hole
➇
(➆) with the hole of the cabinet (
). Fasten bolts (➈) and screw (➉) in a clockwise direction.
2) Reattach the freezer door by inserting the
hose (➂) in the lower side of the door into
the hole in the lower hinge (➃) and pulling
the hose down.
4) Connect the wires. 5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach from the front part of the upper hinge
cover first.
12
11
24
REA TTACHING THE REFRIGERA TOR DOORS
Reattaching the Refrigerator Door
1) Insert the lower hinge (➀) in the bracket
lower hinge (➁).
3) Insert the upper hinge shaft (➄) into the hole (➅). After levelling the upper hinge hole (➆)
➇
with the hole of the cabinet (
). Fasten hinge screws (➈) and screw (➉) in the clockwise direc-tion.
2) Place the hole in the refrigerator door (➂)
over the lower hinge (➃).
4) Connect the wires. 5) Put the front part of the upper hinge cover ( )
on the front part of the upper hinge ( ) and
reattach it from the front part of the upper
hinge cover first.
25
11
12
INSTALLATION INSTRUCTIONS
REATTACHING THE REFRIGERATOR DOORS
Reattaching the Water Tube (Optional)
1) While pressing the front face of coupler (➁), insert the water line (➀) in the coupler.
2) Tighten the screw on the clamp ( ).
a
Reattaching the Front Leg Cover (Optional)
Put on the front leg cover by turning the three screws clockwise, as shown in the figure.
FRONT LEG COVER
SCREW
26
ADJUSTING THE CLEARANCE BETWEEN THE DOORS
Please level the refrigerator first.
The doors will be uneven if the refrigerator is not level.
Case 1) Freezer door is lower than
that of the refrigerator
DIFFERANCE OF HEIGHT
DRIVER(-)
➀
Insert a straight screwdriver (-) (①) into a
slot of the control lever (➁), turn it clockwise
and level the refrigerator.
Case 2) Freezer door is higher than
that of the refrigerator
Do not make small adjustment by turning the control lever, Please refer to the next page.
NOTE
DIFFERANCE OF HEIGHT
➁CONTROL LEVER
Insert a straight screwdriver (-) (①) into a
slot of the control lever (➁), turn it clockwise
and level the refrigerator.
DRIVER(-)
➀
➁CONTROL LEVER
INSTALLATION INSTRUCTIONS
27
ADJUST THE CLEARANCE BETWEEN THE DOORS
Making small adjustments between doors.
If the door of the freezer is lower than that of
the refrigerator.
Adjustment part
If the door of freezer is higher than that of the
refrigerator.
Adjustment part
Please open the doors and adjust the doors as follows:
①
1) Release the nut (
) on the lower hinge until the upper end of the bolt (➁).
When you release the nut(①), use enclosed hex wrench (➂) to turn the bolt(➁) a little counter clockwise
①
NOTA
➀ NUT
to make the nut(
➂ WRENCH
➁ BOLT
) loose with your fingers.
➀ NUT
➂ WRENCH
➁ BOLT
2) Please adjust the height difference between the doors turning the bolt (➁) turn clockwise( ) or
counter clockwise ( ).
NOTE
When you turn clockwise ( ), the door goes up.
➂ WRENCH
➁ BOLT
3) After adjusting the doors, turn the nut (①) turn clockwise( ) until the lower end of the bolt, then tighten
the bolt again with the wrench (➂) to fix the nut(①).
➂ WRENCH
➀ NUT
➁ BOLT
➀ NUT
If you do not fix the nut (①) firmly, the bolt (➁) may be released.
➂ WRENCH
➁ BOLT
➂ WRENCH
➁ BOLT
NOTA
28
CHECKING THE WATER DISPENSER LINE (OPTIONAL)
2
1) In order to operate the ice maker properly, water pressure of 1.4 ~ 10 kgf/cm
In this range a 100 cc paper cup can be filled in 10 seconds.
2) The water filter removes particles. It does not sterilize or destroy any micro-organisms.
is required.
3) If the refrigerator is installed in an area with low water pressure (below 1.4kgf/cm
a booster pump to compensate for the low pressure.
4) Ensure the water storage tank inside the refrigerator is preperly filled initially. Push the water dis
penser lever until the water runs from the outlet.
A universal water supply kit is available at extra cost from your dealer. The refrigerator manufacturer
NOTE
recommends using a water supply kit containing copper tubing.
2
), you should install
Checking the Parts
Purifier
(Interior model)
Sealing tape
Tapping screw x 12EA
Water line
Purifier
Tightening band
(Exterior model)
29
Clip A x 8EA
Purifier lock
station
INSTALLATION INSTRUCTIONS
INSTALLING OF THE WATER DISPENSER LINE
For Interior Model
(Case 1)
Connecting to water supply line
- Shut off the main water supply line and turn the Ice
maker to the off position.
- Locate the nearest cold drinking water line.
- Follow the instructions in the ice maker installation kit.
Connect the water line to the refrigerator
- Slip the compression nut and plastic ferrule
through the plastic tube.
- After inserting the sleeve, tighten the compres-sion
nut onto 1/4” compression fitting(union).
Do not overtighten the compression nut.
NOTE
- Slip the compression ferrule and nut on copper(or plastic) tubing as
shown.
Tighten the comperssion nut onto the com-pression fitting(union).
- Turn water on and check for any leakege.
Waterline must be connected to drinkable water only
NOTE
1. Cold Water line
2. Pipe Clamp.
3.Copper (or Plastic) line
4.Compression Nut
5.Compression Sleeve
6.Shut Off Valve
7.Packing Nut.
Compression
Nut
Ferrule
Sleeve
Compression
fitting
Ferrule
Compressi
on Nut
(Case 2)
Check the water supply line
Connect the water pipe with coupler and tap.
- Close the main water tap.
- Connect coupler “A” to the tap.
- Every join should be protected with sealing tape.
WARRANTY INFORMATION
This water line installation is not covered by the refriger-ator
or ice maker manufacturer's warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase
the right couplers fittings.
30
CAUTION
The water line must be connect-ed
to the cold water pipe.
If it is connected to the hot water
pipe, it may cause the
purifier to malfunction.
COUPLER “A”
TAP
INSTALLING THE WATER DISPENSER LINE
Connect the water line to the refrigerator .
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in the figure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
WATER LINE
Secure the water line.
- Using clip ”A”, fix the water line to the wall (the back of refrigerator).
- When the water line is secure, make sure whether the
water line is not excessively bent, pinched or squashed.
Complete the installation of the water supply line.
- Power on the refrigerator and press the lever on the right of the
dispenser until water runs out through the water line and all air has been empty.
- At this time, check for any possible leakages at the join point in the water line.
After securing the water line, move the refrigerator to the required location.
Once the refrigerator is in position, do not move possibly.
Install the water filter .
CONNECTION NUT
COMPRESSOR COVER OF
REFRIGERATOR
CLIP A
WATER LINE
- As shown, separate the fixed cap in the refrigerator by rotating
it counterclockwise.
Remove the water filter from the box and put a month indicator
sticker on the filter as shown.
- Write the month you installed the filter on the label.
EX) If the water filter was installed in March, put “MAR”
- Remove the protective cap then position and insert the filter as shown,
- Slowly turn the water filter clockwise 90º to align the indication mark on the
cover, locking the filter in postion. Do not overtighten.
SEPARATION
OF RED CAP
STICKER
(MONTH INDICATION)
CAUTION
Please check if the indication line aligns with the lock position.
31
COVER FILTER
ALIGN THE INDICATION MARK
WITH LOCK POSITION.
INSTALLATION INSTRUCTIONS
INST ALLING THE W ATER DISPENSER LINE
For Exterior model
Connect to the water supply line
Connect the water pipe with coupler and tap.
- Close the main water tap.
- Connect coupler “A” to the tap.
- Every join should be protected with sealing tape.
WARRANTY INFORMATION
This water line installation is not covered by the refriger-ator
The water line must be connected
to the cold water pipe.
If it is connected to the hot
water pipe, it may cause the
purifier to malfunction.
or ice maker manufacturer's warranty.
Follow these instructions carefully to minimise the risk of
expensive water damage.
COUPLER “A”
Note:
If the coupler does not fit on the current tap, go
the nearest authorised service dealer and purchase
the right couplers fittings.
Select the location where the purifier is to install. (Model with the purifier)
- Cut the water line attached to the purifier
LINE OUTLET
to the appropriate place after measuring
the distance between the purifier and the
cold water tap.
SIDE OF
PURIFIER
CAUTION
TAP
90 degree
- If you wish to reassemble the water inlet
and outlet sides of the purifier during purifier
PURIFIER
WATER
installation, see the reference illustration.
WATER INLET
SIDE OF PURIFIER
Remove any residual matter inside the purifier. (Model with the purifier)
- Open the main water tap to check whether water
is running through the water tube on the water
inlet side of the purifier.
OUTLET SIDE
OF PURIFIER
- If water does not come out through the line,
check whether the tap is open.
- Leave the tap open until clean water is running
out and any residual matter that built up during
manufacturing has been removed.
WATER
32
REFERENCE
COUPLER
PURIFIER
WATER LINE
INST ALLING THE W ATER DISPENSER LINE
Attach the purifier lock stations.
- Hold the purifier lock stations in the appropriate position
(under the sink for example) and fix it tightly into place
where to screw.
Secure the purifier in position.
- Fix the purifier in position, as shown in the figure
on the right.
TWO PURIFIER LOCK
WATER TUBE
PURIFIER
TIGHTENING
BAND
TWO PURIFIER LOCK
STATION
STATION
PURIFIER
LOCK STATIONS
Connect the water line to the refrigerator.
- Remove the compressor cover of the refrigerator.
- Connect the water line to the valve, as shown in the fig-ure.
- When connected, check if there is any leakage.
If any, repeat the connection.
- Reattach the compressor cover of the refrigerator.
Secure the water line.
- Using clip ”A”, fix the water line to the wall (the back of
refrigerator).
- When the water line is secure, make sure whether the water
line is not excessively bent, pinched or squashed.
33
WATER LINE
CONNECTION NUT
COMPRESSOR COVER OF
REFRIGERATOR
CLIP A
WATER LINE
INSTALLATION INSTRUCTIONS
INSTALLING THE WATER DISPENSER LINE
Remove any residual matter inside the water supply line
1) Turn on the main water supply & shut-off valve of the water
supply line.
2) Run water through the dispenser until the water runs clear
(6~7 minutes). This will clean the water supply system and
clear air from the lines.
3) Additional flushing may be required in some households.
4) Open the refrigerator door and check if water leaks around
the water filter.
• A newly-installed water filter cartridge may cause water to briefly spurt from the dispenser.
NOTE
• Before reinstalling the water filter, remove the wine shelf.
Check the amount of water supplied to the ice tray.
ICE
WATER
1) Lift up (①) and pull out (➁) the ice maker bucket in the freezer.
2) When you press the test button, the ice cube container is
filled with water from the water supply tap.
Check the amount of water (see the illustration below).
If the water level is too low,
the ice cubes will be small.
This is not a problem with the ice maker
but of the water pressure in
the pipe, and occurs frequently.
When this problem occurs, contact
the dealer service center to check the
amount of water supplied.
CHECK THE WATER
LEVEL
ICE MAKER
TEST BUTTON
TOO HIGH
OPTIMUMLEVEL
TOO LOW
34
TROUBLESHOOTING
The refrigerator does not work at all or it does not
chill sufficiently
• Check that the power plug is properly connected.
• Is the temperature control on the display panel set to
the correct temperature? Try seting it to a lower
temperature.
• Is the refrigerator in direct sunlight or located near a
heat source?
• Is the back of the refrigerator too close to the wall?
The food in the refrigerator is frozen
• Is the temperature control on the display panel set to
the correct temperature? Try seting it to a warmer
temperature.
• Is the temperature in the room too low?
• Did you store the food with a high water content in
the coldest part of the refrigerator.
You can hear unusual noise or sounds
• Check that the floor is levelled and stable.
• Is the back of the refrigerator too near to the wall?
• Was anything dropped behind or under the
refrigerator?
• A “ticking” sound may be heard from inside the
refrigerator, but this is normal. This occurs because
various accessories are contracted or expanded.
The front corners and sides of the cabinet are hot;
condensation occurs.
• Anti-condensators are installed in the front corners of
the refrigerator to prevent condensation.
• Condensation can occur when you leave the door
open for a long time.
Ice is not dispensed
• Did you stop the ice making function?
• Is there any ice in the ice storage unit?
• Is the water line connected and the shut-off valve
open?
• Is the freezer temperature too warm?
(Set the temperature lower)
• Did you wait for 12 hours after installation of the
water supply line before making ice?
You can hear water bubbling in the refrigerator
• The bubbling comes from the refrigerant circulating in
the refrigerator and is normal.
There is a bad smell in the refrigerator
• Wrap food with a strong smell so that it is airtight.
Throw away any rotten food.
Frost forms on the wall of the freezer
• Is the air vent blocked?
• Allow sufficient space between the foods stored for
efficient air circulation.
• Is the door closed properly?
No water is supplied
• Is the water line connected and the shut-off valve
open?
• Is the water supply line crushed?
• Is the water tank frozen because the refrigerator
temperature is too low? Select a warmer setting on
the display panel.
35
INSTALLATION INSTRUCTIONS
Ambient Room Temperature Limits
This fridge/freezer is designed to operate in ambient temperatures specified by its temperature class marked on the rating plate.
Temperature
Class
Extended Temperate SN 32°C (90°F) 10°C (50°F)
Temperate N 32°C (90°F) 16°C (61°F)
Subtropical ST 38°C (100°F) 18°C (64°F)
Tropical T 43°C (109°F) 18°C (64°F)
NOTE: Internal temperatures may be affected by such factors as the location of the
fridge/freezer, ambient temperature and the frequency with which you open
the door. Adjust the temperature as required to compensate for these factors.
Symbol
Ambient Temperature
Maximum Minimum
Loading...
