safety information
SAFETY INFORMATION
Before operating the appliance, please read this •
manual thoroughly and retain it at a safe place
near the appliance for your future reference.
Use this appliance only for its intended purpose •
as described in this instruction manual.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Warnings and Important Safety Instructions in this •
manual do not cover all possible conditions and
situations that may occur.
It is your responsibility to use common sense,
caution, and care when installing, maintaining,
and operating your appliance.
Because these following operating instructions •
cover various models, the characteristics of
your refrigerator may differ slightly from those
described in this manual and not all warning
signs may be applicable.
If you have any questions or concerns, contact
your nearest service center or fi nd help and
information online at www.samsung.com.
Important safety symbols and
precautions :
Hazards or unsafe practices that may
result in severe personal injury or
WARNING
death.
Hazards or unsafe practices that may
result in minor personal injury or
CAUTION
property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall
socket.
Make sure the machine is grounded to
prevent electric shock.
Call the contact center for help.
Note.
These warning signs are here to prevent injury to you
and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for
future reference.
CE Notice
This product has been determined to be in
compliance with the Low Voltage Directive
(2006/95/EC), the Electromagnetic Compatibility
Directive (2004/108/EC) and the Eco-Design
Directive(2009/125/EC) implemented by Regulation
(EC) No 643/2009 of the European Union.
SEVERE WARNING SIGNS
FOR TRANSPORTATION
WARNING
AND SITE
When transporting and installing the •
appliance, care should be taken to ensure
that no parts of the refrigerating circuit are
damaged.
Refrigerant leaking from the pipe work could ignite or cause an eye injury.
If a leak is detected, avoid any naked fl ames or
potential sources of ignition and air the room
in which the appliance is standing for several
minutes.
In order to avoid the creation of a fl ammable •
gas-air mixture if a leak in the refrigerating
circuit occurs, the size of the room in which the
appliance may be sited depends on the amount
of refrigerant used.
Never start up an appliance showing any signs of •
damage. If in doubt, consult your dealer.
The room where the refrigerator will be sited must
be 1m³ in size for every 8g of R600a refrigerant
inside the appliance.
The amount of refrigerant in your particular
appliance is shown on the identifi cation plate
inside the appliance.
02_ safety information
DA99-02116A(0.4)-EN.indd 02DA99-02116A(0.4)-EN.indd 02 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM
SEVERE WARNING SIGNS
WARNING
FOR INSTALLATION
Do not install the refrigerator in a damp •
place or place where it may come in
contact with water.
Deteriorated insulation of electrical parts may cause an electric shock or fi re.
Do not place this refrigerator in direct sunlight or •
expose to the heat from stoves, room heaters or
other appliance.
Do not plug several appliances into the same •
multiple power board.
The refrigerator should always be plugged into
its own individual electrical which has a voltage
rating that matched the rating plate.
This provides the best performance and also prevents overloading house wiring circuits, which
could cause a fi re hazard from overheated wires.
If the wall socket is loose, do not insert the power •
plug.
There is a risk of electric shock of fi re. Do not use a cord that shows cracks or abrasion •
damage along its length or at either end.
Do not bend the power cord excessively or place •
heavy articles on it.
Do not use aerosols near the refrigerator.•
Aerosols used near the refrigerator may cause an explosion or fi re.
This refrigerator must be properly installed •
and located in accordance with the manual
before it is used.
Connect the power plug in proper position with •
the cord hanging down.
If you connect the power plug upside down, wire can get cut off and cause fi re or electric shock.
Make sure that the power plug is not squashed •
or damaged by the back of the refrigerator.
When moving the refrigerator, be careful not to •
roll over or damage the power cord.
This constitutes a fi re hazard. The appliance must be positioned so that the •
plug is accessible after installation.
If the power cord is damaged, have it •
replaced immediately by the manufacturer
or its service agent.
The fuse on the refrigerator must be changed by •
a qualifi ed technician or service company.
Failing to do so may result in electric shock or personal injury.
CAUTION SIGNS FOR
CAUTION
INSTALLATION
Keep ventilation opening in the appliance •
enclosure or mounting structure clear of
obstruction.
Allow the appliance to stand for 2 hours after •
installation.
SEVERE WARNING SIGNS
WARNING
FOR USING
Do not insert the power plug with wet •
hands.
Do not store articles on the top of the appliance.•
When you open or close the door, the articles may fall and cause personal injury and/or material
damage.
The refrigerator must be grounded.•
You must ground the refrigerator to prevent any power leakages or electric
shocks caused by current leakage from
the refrigerator.
Never use gas pipes, telephone lines or other •
potential lightening rods as ground.
Improper use of the ground plug can result in electric shock.
safety information _03
DA99-02116A(0.4)-EN.indd 03DA99-02116A(0.4)-EN.indd 03 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM
SEVERE WARNING SIGNS
WARNING
FOR USING (CONT’D)
Do not put items fi lled with water on the •
refrigerator.
If spilled, there is a risk of fi re or electric shock. Do not let children hang on the door.•
Failure to do so may cause serious personal injury.
Do not leave the doors of the refrigerator open •
while the refrigerator is unattended and do not let
children enter inside of the refrigerator.
There is a risk of children entrapment and serious personal injury because of low temperature.
Never put fi ngers or other objects into the •
dispenser hole.
Failure to do so may cause personal injury or material damage.
Do not store volatile or fl ammable substances •
such as benzene, thinner, alcohol, ether or LP
gas in the refrigerator.
The storage of any of such products may cause explosions.
Do not store low temperature-sensitive •
pharmaceuticals products, scientifi c materials or
other low temperature-sensitive products in the
refrigerator.
Products that require strict temperature controls must not be stored in the refrigerator.
Do not place or use electrical appliance inside •
the refrigerator, unless they are of a type
recommended by the manufacturer.
Do not use a hair dryer to dry the inside of the •
refrigerator.
Do not place a lighted candle in the refrigerator
for removing bad odors.
This may result in electric shock or fi re. Do not touch the inside walls of the freezer or •
products stored in the freezer with wet hands.
This may cause frostbite. Do not use mechanical devices or any other •
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
Do not damage the refrigerant circuit.•
This product is intended only for the •
storage of food in a domestic environment.
Bottles should be stored tightly together so that •
they do not fall out.
If a gas leak is detected, avoid any naked fl ames •
or potential sources of ignition and air the room
in which the appliance is standing for several
minutes.
Use only the LED Lamps provided by •
manufacturer or service agents.
Children should be supervised to ensure that they •
do not play with and/or climb into the appliance.
Do not disassemble or repair the •
refrigerator by yourself.
You run risk of causing a fi re, malfunction and/or personal injury.
In case of malfunction, please contact your
service agents.
If the appliance generates a strange noise, •
a burning or smell or smoke, unplug the
power plug immediately and contact your
nearest service center.
Failing to do so may result in electric or fi re hazards.
Keep ventilation opening in the appliance
enclosure or mounting structure clear of
obstruction.
If you experience diffi culty when changing the •
light, contact service agents.
If the products equipped with LED Lamp, do •
not disassemble Lamp Cover and LED Lamp by
yourself.
Please contact your service agents. If any dust or water is in refrigerator, pull •
out power plug and contact your Samsung
Electronics service center.
There is a risk of fi re. -
CAUTION SIGNS FOR
CAUTION
USING
To get best performance of product,•
Do not place foods too closely in front of -
the vents at the rear of the appliance as
it can obstruct free air circulation in the
refrigerator compartment.
Wrap the food up properly or place it in airtight containers before put it into the refrigerator.
Do not place carbonated or fi zzy drinks in the •
freezer compartment.
Do not put bottles or glass containers in the
freezer.
When the contents freeze, the glass may break and cause personal injury and property damage.
04_ safety information
DA99-02116A(0.4)-EN.indd 04DA99-02116A(0.4)-EN.indd 04 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM
Do not change the functionality of or modify the •
refrigerator.
Changes or modifi cations may result in personal injury and/or property damage.
Any changes or modifi cations performed by a
3rd party on this completed appliance is neither
covered under Samsung warranty service, nor
is Samsung responsible for safety issues and
damages that result from 3rd party modifi cations.
Do not block air holes.•
If the air holes are blocked, especially with a plastic bag, the refrigerator can be over cooled.
If this cooling period lasts too long, the water fi lter
may break and cause water leakage.
Do not put any newly introduced food for freezing near to already frozen food.
Please observe maximum storage times and •
expiry dates of frozen goods.
Fill water tank, ice tray, water cubes only with •
potable water.
CAUTION SIGNS
FOR CLEANING AND
CAUTION
MAINTENANCE
Do not directly spray water inside or •
outside the refrigerator.
There is a risk of fi re or electric shock. Do not spray infl ammable gas near the •
refrigerator.
There is a risk of explosion or fi re. Do not spray cleaning products directly on the •
display.
Printed letters on the display may come off. -
Remove any foreign matter or dust from •
the power plug pins.
But do not use a wet or damp cloth when
cleaning the plug, remove any foreign
material or dust from the power plug pins.
Otherwise there is a risk of fi re or electric shock. -
SEVERE WARNING SIGNS
WARNING
FOR DISPOSAL
Ensure that none of the pipes on the back •
of the appliance are damaged prior to
disposal.
R600a or R134a is used as a refrigerant.•
Check the compressor label on the rear of the
appliance or the rating label inside the refrigerator
to see which refrigerant is used for your
refrigerator.
When this product contains fl ammable gas
(Refrigerant R600a), contact your local authority
in regard to safe disposal of this product.
Cyclopentane is used as an insulation blowing
gas. The gases in insulation material require
special disposal procedure.
Please contact your local authorities in regard to
the environmentally safe disposal of this product.
Ensure that none of the pipes on the back of the
appliances are damaged prior to disposal.
The pipes shall be broke in the open space.
If the appliance contains iso-butane refrigerant •
(R600a), a natural gas with high environmental
compatibility that is, however, also combustible.
When transporting and installing the appliance,
care should be taken to ensure that no parts of
the refrigerating circuit are damaged.
When disposing of this product or other •
refrigerators, remove the door/door seals, door
latch so that small children or animals cannot
become trapped inside.
Leave the shelves in place so that children may
not easily climb inside.
Children should be supervised to ensure that they
do not play with the old appliance.
Please dispose of the packaging material for this •
product in an environmentally friendly manner.
Unplug the refrigerator before cleaning and •
performing maintenance.
safety information _05
DA99-02116A(0.4)-EN.indd 05DA99-02116A(0.4)-EN.indd 05 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM
ADDITIONAL TIPS FOR
PROPER USAGE
In the event of a power failure, call the local offi ce •
of your Electricity Company and ask how long it
is going to last.
Most power failures that are corrected within an hour or two will not affect your refrigerator
temperatures.
However, you should minimize the number of
door openings while the power is off.
Should the power failure last more than 24 hours, remove all frozen foods.
If keys are provided with the refrigerator, the keys •
should be kept out of the reach of children and
not in vicinity of the appliance.
The appliance might not operate consistently •
(possibility of temperature becoming too warm
in refrigerator) when sited for an extended period
of time below the cold end of the range of
temperature for which the refrigerating appliance
is designed.
Do not store food which spoils easily at low •
temperature, such as bananas, melons.
Your appliance is frost free, which means there is •
no need to manually defrost your appliance, as
this will be carried out automatically.
Temperature rising during the defrost can comply •
with ISO requirement.
But if you want to prevent an undue rise in the
temperature of the frozen food while defrosting
the appliance, please wrap the frozen food in
several layers of newspaper.
Any increase in temperature of frozen food during •
defrosting can shorten its storage life.
Saving Energy Tips
Install the appliance in a cool, dry room with adequate ventilation.
Ensure that it is not exposed to direct sunlight
and never put it near a direct source of heat
(radiator, for example).
Never block any vents or grilles on the appliance. Allow warm food to cool down before placing it in the appliance.
Put frozen food in the refrigerator to thaw. You can then use the low temperatures of the
frozen products to cool food in the refrigerator.
Do not keep the door of the appliance open for too long when putting food in or taking food out.
The shorter time for which the door is open, the
less ice will form in the freezer.
Clean the rear of the refrigerator regularly. Dust increases energy consumption.
Do not set temperature colder than necessary. Ensure suffi cient air exhaust at the refrigerator base and at the back wall of the refrigerator.
Do not cover air vent openings.
Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and
keep your energy bills lower.
contents
SETTING UP YOUR REFRIGERATOR ………………………………………………………………………… 07
OPERATING YOUR REFRIGERATOR ………………………………………………………………………… 13
TROUBLESHOOTING …………………………………………………………………………………………… 19
06_ safety information
DA99-02116A(0.4)-EN.indd 06DA99-02116A(0.4)-EN.indd 06 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM
setting up your refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on your purchase of this Samsung
Refrigerator.
We hope you enjoy state-of-the-art features and
effi ciencies that this new appliance offers.
This refrigerator must be properly installed and •
located in accordance with the manual before it
is used.
Use this appliance only for its intended purpose •
as described in this instruction manual.
We strongly recommend that any servicing be •
performed by a qualifi ed individual.
Please dispose of the packaging material for this •
product in an environmentally friendly manner.
Pull the power plug out of the socket before
WARNING
changing the interior light of the refrigerator.
Otherwise, there is a risk of electric shock. -

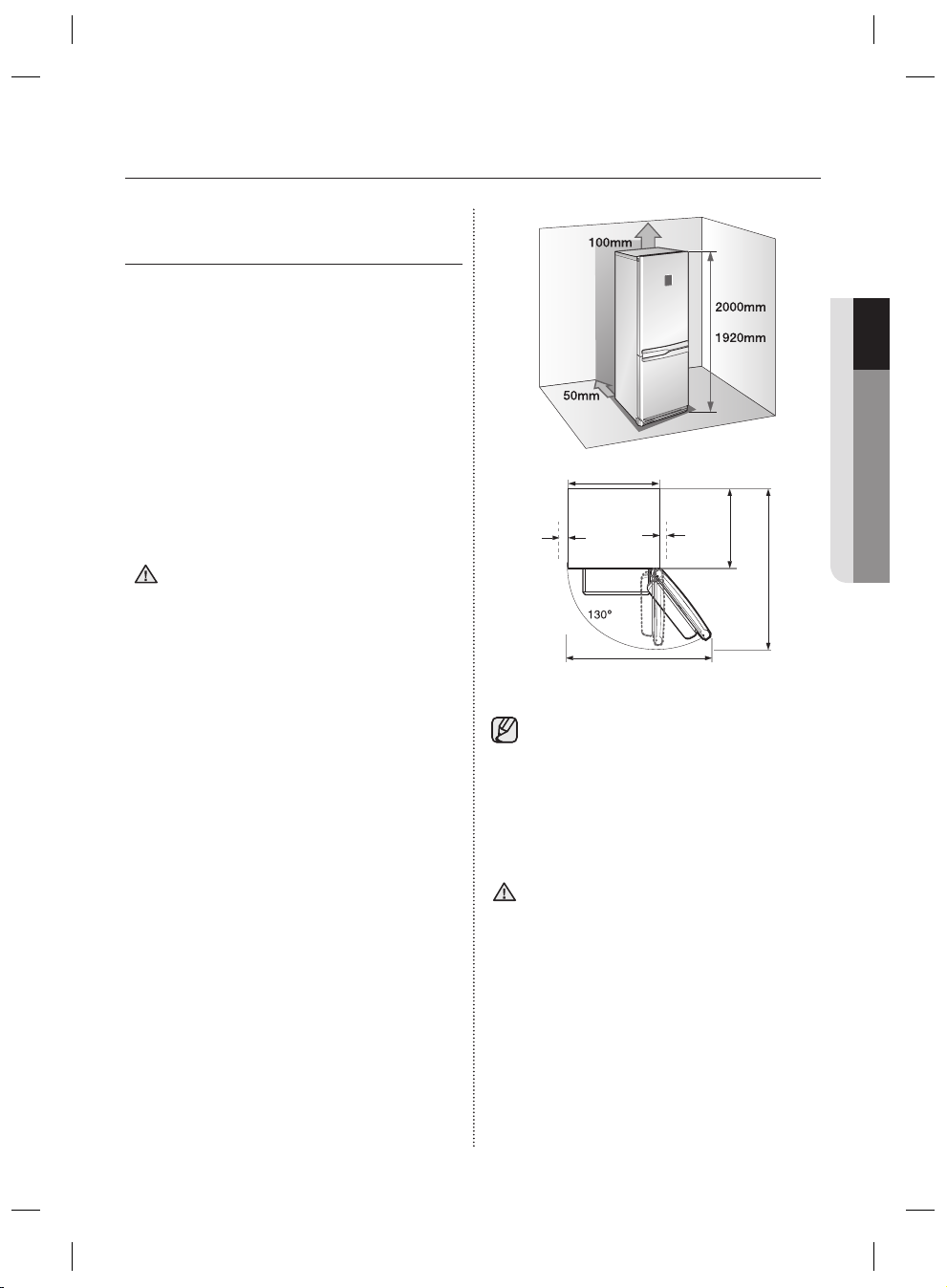

Selecting the best location for the
refrigerator
A location without direct exposure to sunlight.•
A location with fl at fl oor surface.•
A location with enough space for the refrigerator •
door to open easily.
Allow suffi cient space to the right, left, back and •
top for air circulation.
If the refrigerator does not have enough space,
the internal cooling system may not work
properly.
Please ensure that appliance can be moved freely •
in the event of maintenance & service.
or
600mm
560mm
at least
50mm
960mm
Height of the product may be different •
depending on the models.
Allow clearance to the right, left, back and top •
when installing.
This will help reduce power consumption and
keep your energy bills lower.
Do not install the refrigerator in a place with the •
temperature lower than 10°C.
Pull the unit straight out when installing,
CAUTION
servicing or cleaning behind the refrigerator
and push it straight back after work is
complete.
Make sure your fl oor can support fully
loaded refrigerator.
at least
50mm
01 SETTING UP
1,165mm
setting up _07
DA99-02116A(0.4)-EN.indd 07DA99-02116A(0.4)-EN.indd 07 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM

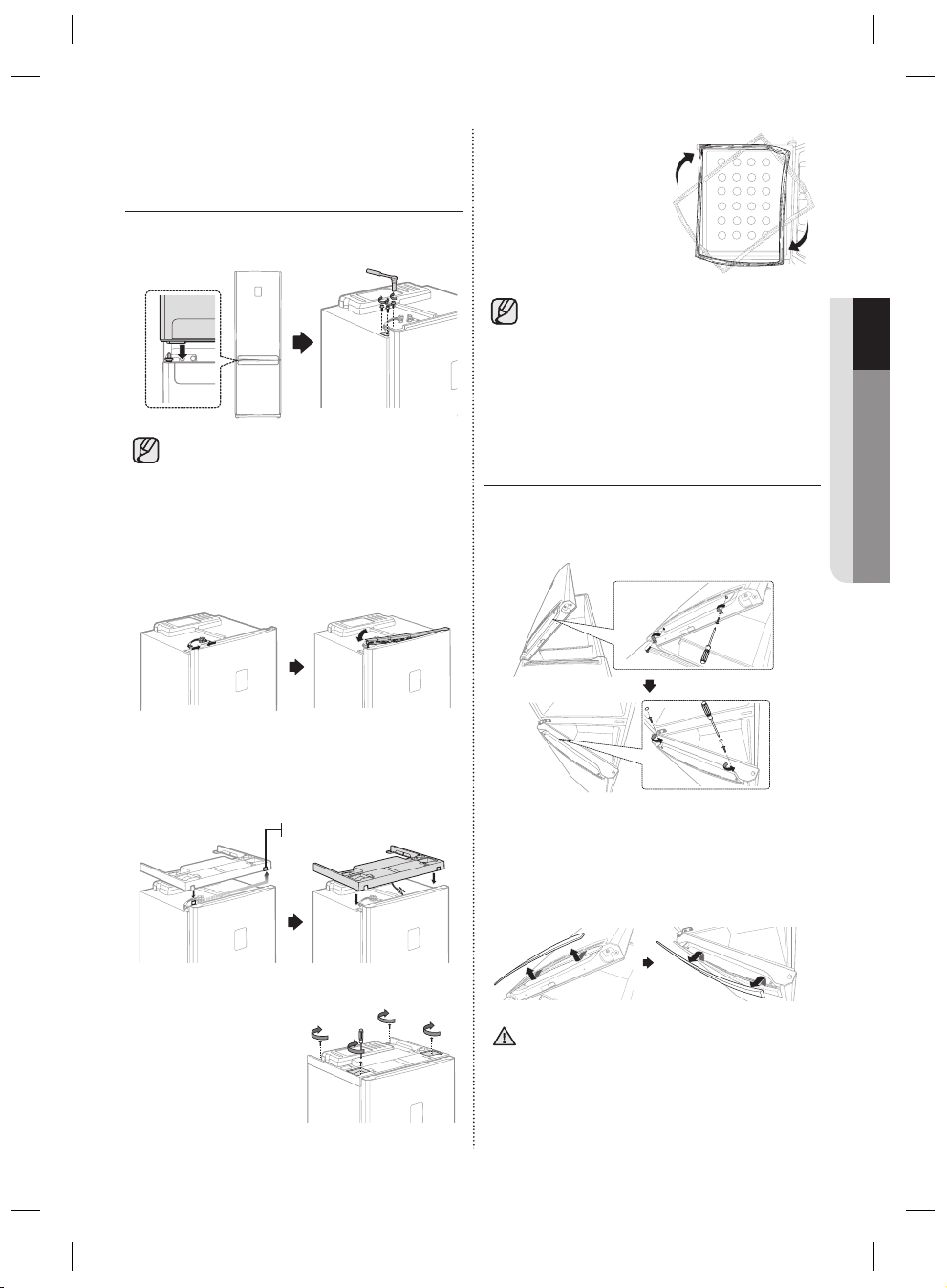

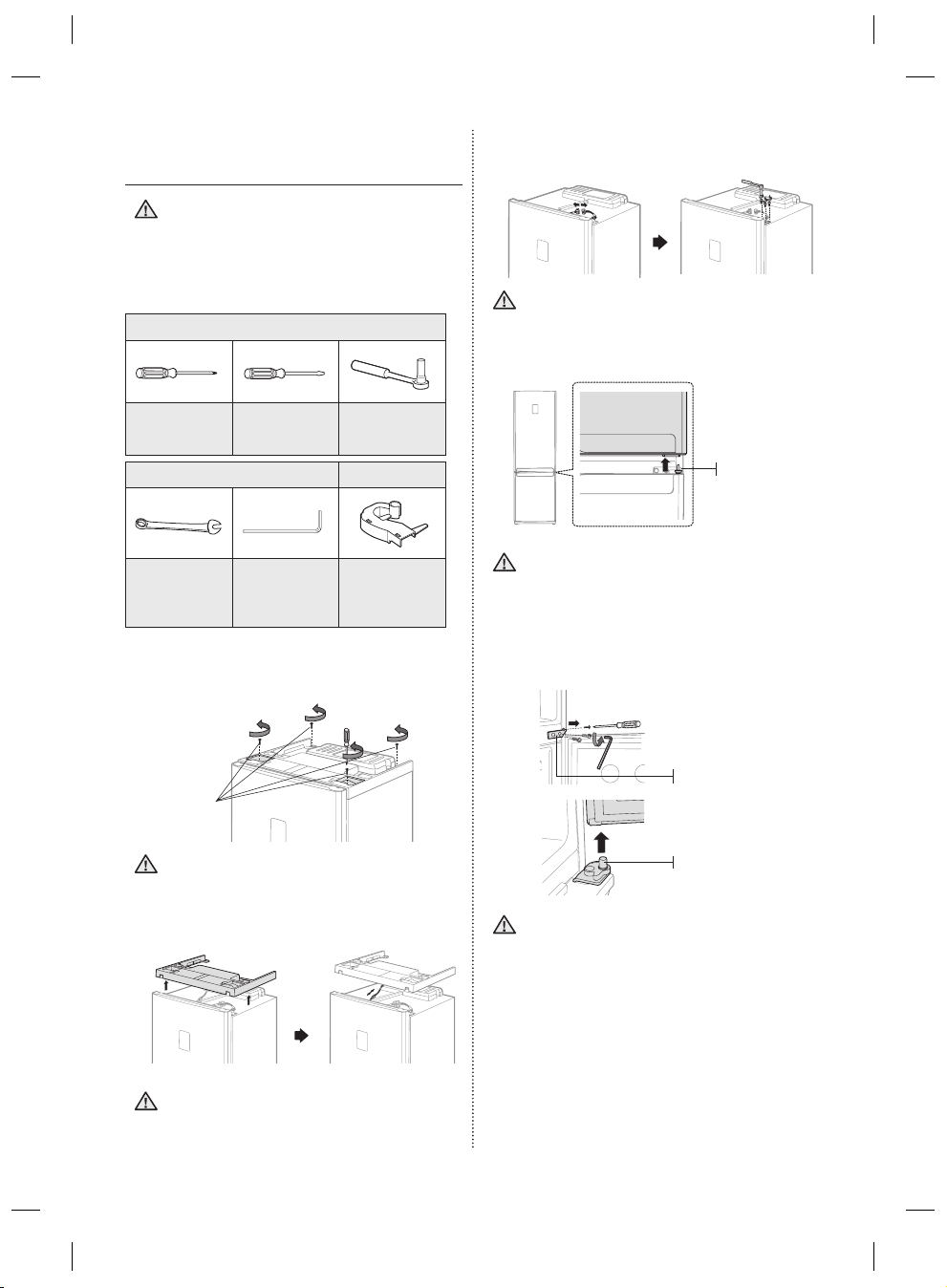

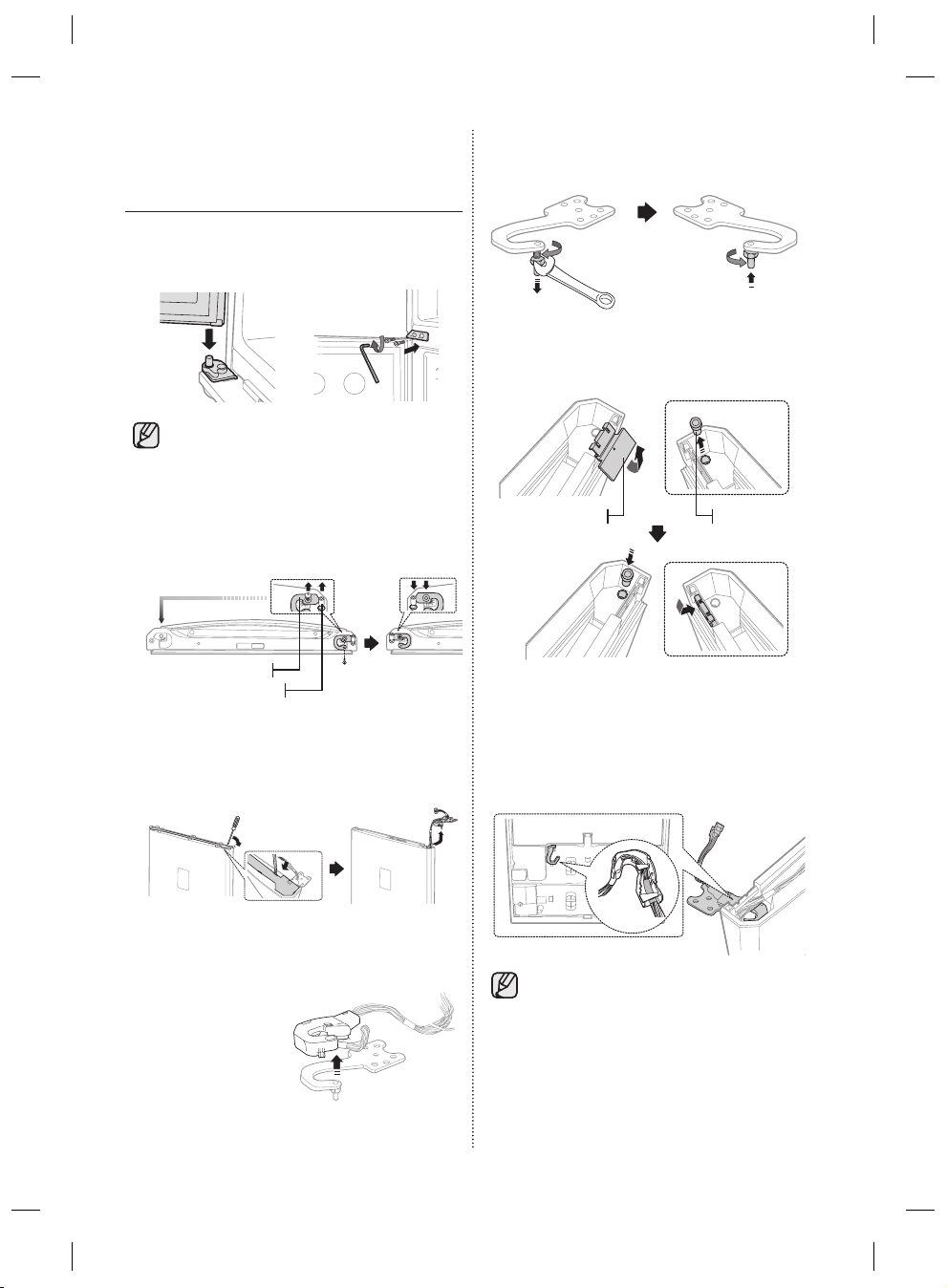

REVERSING THE
REFRIGERATOR DOOR
Before you reverse the refrigerator door,
WARNING
make sure to unplug the refrigerator.
If this operation is not performed by After sales
service, it is not covered by the warranty.
Disconnect the wire and then remove 3 bolts on 3.
the top of the refrigerator.
Required Tools
Phillips Head
Driver (+)
Not provided Additional part
11mm Wrench
(for hinge shaft)
Remove 4 screws on the Top cover of the 1.
refrigerator.
Screw
Not provided
Flat Head
Driver (-)
3/16” Allen
Wrench
(for middle
hinge)
10mm Socket
Wrench
(for bolts)
Top Left
Hinge Cover
(Underneath the
Top Cover)
Make sure the Fridge door is closed fi rmly.
CAUTION
Remove the Fridge door from the Middle hinge 4.
by carefully lifting the door straight up.
Middle hinge
Fridge door is heavy, be careful not to injure
CAUTION
yourself when removing the Fridge door.
Disassemble the Middle hinge by removing 2 5.
bolts and a screw on the right side.
Remove the Freezer door from the Bottom hinge
by carefully lifting the door straight up.
Middle hinge
Make sure your refrigerator is unplugged
WARNING
before handling electrical wires.
Remove the Top cover. Make sure to disconnect 2.
the wire underneath the Top cover.
Freezer door is heavy, be careful not to
CAUTION
injure yourself when removing the Freezer
Bottom hinge
door.
Be careful not to damage the electrical wires
CAUTION
when removing the Top cover.
08_ setting up
DA99-02116A(0.4)-EN.indd 08DA99-02116A(0.4)-EN.indd 08 2011.7.14 5:26:3 PM2011.7.14 5:26:3 PM

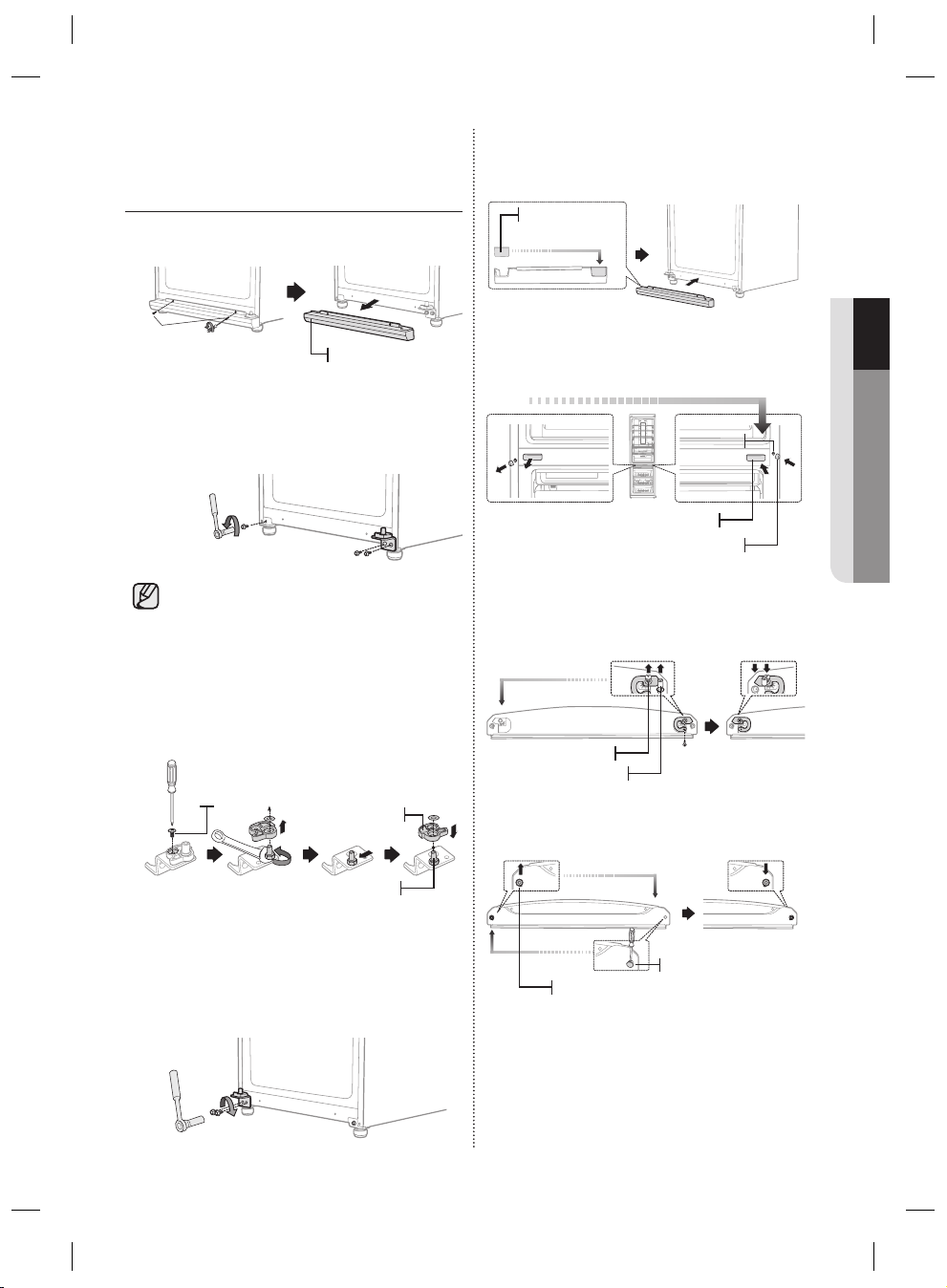

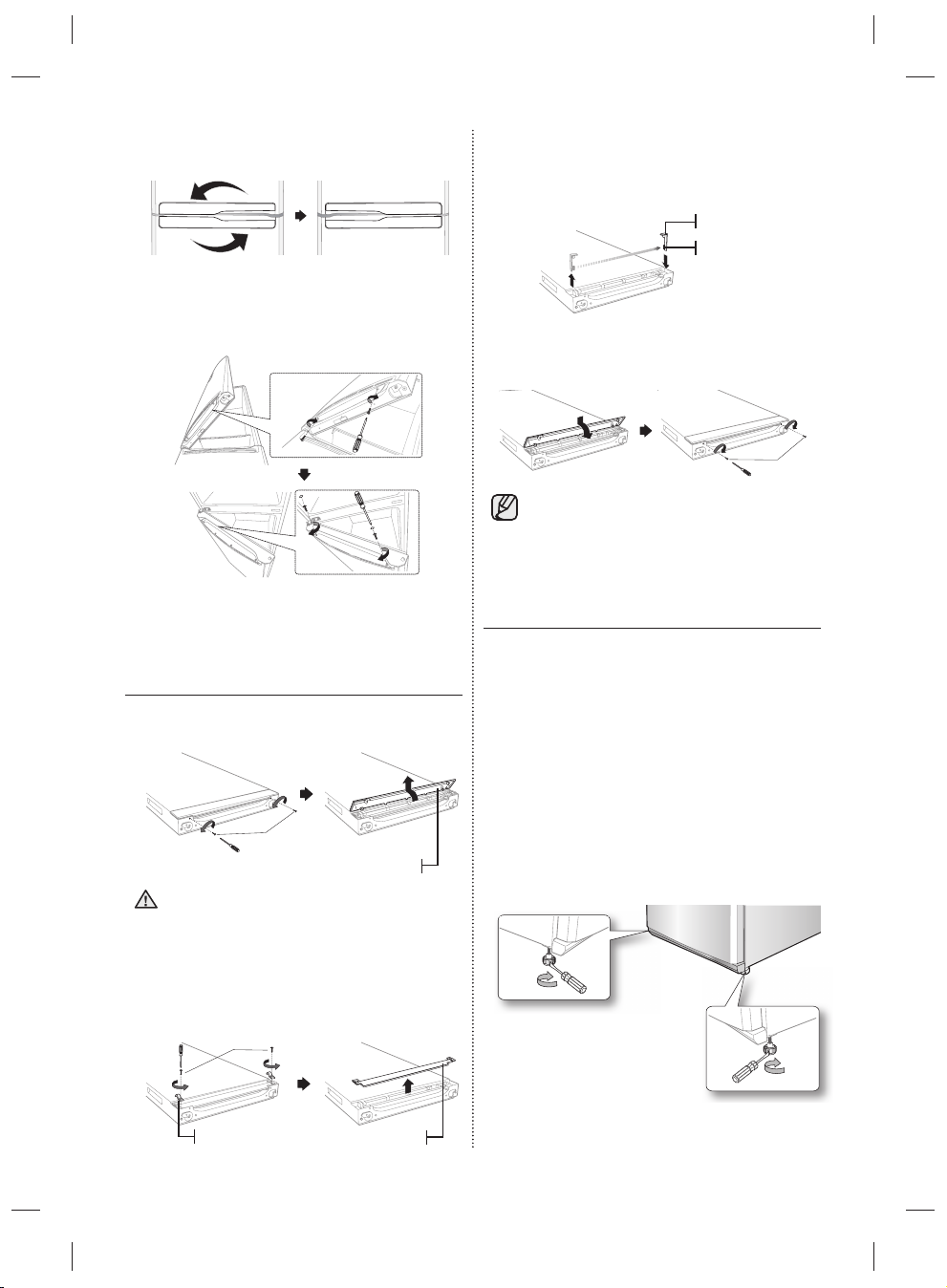

REVERSING THE
Screw
REFRIGERATOR DOOR
(CONT’D)
Separate the Front leg cover after removing 2 6.
screws.
Switch the side of bottom hinge cap and then 10.
attach the Front leg cover on the bottom of the
refrigerator.
Bottom hinge
cap
01 SETTING UP
Screw
Front leg cover
Unscrew 2 bolts tightening the Bottom hinge 7.
and also unscrew a bolt on the left side by the
front leg where removed Bottom hinge will be
attached.
10mm
10mm
Before removing the Bottom hinge, slightly
turn the front legs clockwise for easier
disassembling and assembling.
Switch the position of the Bottom hinge shaft. 8.
Remove the screw on the Auto guide and remove
the Bottom hinge shaft with 11mm wrench.
Attach the Bottom hinge shaft on the left and put
the reversed Auto Guide back.
Screw
Auto guide
Bottom hinge shaft
Switch the side of the Middle hinge cap,11.
Screw cap and a Screw from left to the right side.
Screw
Middle hinge cap
Screw cap
Remove the screw on the bottom right side of 12.
the Freezer door.
Switch the Door stopper and the Hinge grommet
from the right to the left.
Door stopper
Hinge grommet
Switch the Hinge grommet and the Grommet cap on 13.
the top of the Freezer door.
Attach the Bottom hinge on the bottom left side 9.
of the refrigerator where a bolt was previously
removed in step 8.
Screw remaining bolt on the bottom right side of
Hinge grommet
Grommet cap
the refrigerator for the future usage.
setting up _09
DA99-02116A(0.4)-EN.indd 09DA99-02116A(0.4)-EN.indd 09 2011.7.14 5:26:4 PM2011.7.14 5:26:4 PM
REVERSING THE
REFRIGERATOR DOOR
(CONT’D)
Carefully put the Freezer door back on.14.
Assemble the Middle hinge with 2 bolts on the
left side.
A screw will be remained after reversing
freezer door. And it does not affect
performance of the refrigerator.
Use 11mm wrench to separate the Top hinge 18.
shaft. Flip the Top hinge and reattach the Top
hinge shaft.
Switch the side of the Door cap and the Hinge 19.
grommet on the top of the Fridge door.
Remove the screw on the bottom right side of 15.
the Fridge door.
Switch the Door stopper and the Hinge grommet
from the right to the left.
Door stopper
Hinge grommet
Remove the Wire cover on the top of the Fridge 16.
door with fl at head driver and then take out the
Top hinge and wires from right side of Fridge
door.
Detach the Top right hinge cover from the Top 17.
hinge and pull the wires out from the Top right
hinge cover.
Door cap
Reassemble the Top hinge by reversing the step 20.
19. (Make sure to use the Top left hinge cover
which can be found underneath the Top table.)
Put the assembled hinge on the left side of the
fridge door.
Make sure that red tape on the wire is
positioned on the end of the Top left hinge
cover.
Hinge
grommet
10_ setting up
DA99-02116A(0.4)-EN.indd 10DA99-02116A(0.4)-EN.indd 10 2011.7.14 5:26:4 PM2011.7.14 5:26:4 PM
REVERSING THE
REFRIGERATOR DOOR
(CONT’D)
Carefully put the Fridge door back on.21.
Then tighten 3 bolts to assemble the Top hinge.
Detach the Fridge and 25.
the Freezer door gaskets
and then attach them
after rotating them 180˚.
You must reverse the Type B door handle •
before putting the Fridge door back.
Please refer to page 12.
For Door handle Type A, make sure to •
switch the door handle after reversing the
door.
Connect wires and then assemble the Wire cover 22.
on the top of the Fridge door.
Change the position of the Top hinge cap. 23.
Connect the wire under the Top cover and put
the Top cover back to its original position.
Top hinge cap
After reversing the doors, make sure
the Fridge and Freezer door gaskets are
properly arranged. If not, there might
be a noise or dew formed which affects
perfomance of the refrigerator.
REVERSING THE DOOR
HANDLE (TYPE A)
Remove 2 screws underneath the Fridge door 1.
and then take off 2 Cap sheets and remove 2
screws on the Freezer door.
Slightly push down the Fridge handle and then 2.
remove it by pulling it toward to you.
Slightly push up the Freezer handle and then
remove it by pulling it toward to you.
01 SETTING UP
Tighten 4 screws back 24.
to its place.
DA99-02116A(0.4)-EN.indd 11DA99-02116A(0.4)-EN.indd 11 2011.7.14 5:26:4 PM2011.7.14 5:26:4 PM
Disassemble the door handle carefully. Hooks
inside of the door handles can break easily.
CAUTION
setting up _11
Assemble the handles after switching the side of 3.
the Fridge handle and the Freezer handle.
Tighten 2 screws underneath the Fridge door and 4.
then assemble 2 screws and 2 Cap sheets on
the Freezer door.
Change the positions of the Handle slider and 3.
spring from the left side to the right side.
Make sure to change position of the Handle slider
cap from the right side to the left side.
Slider
Spring
Assemble the door handle by following step 2 4.
and 1 in reverse order.
Screw
This procedure must be done before
‘Reversing the Refrigerator Door’ step 23.
LEVELLING THE
REFRIGERATOR
REVERSING THE DOOR
HANDLE (TYPE B)
Remove 2 screws underneath the Fridge door 1.
and then pull the Handle cover.
Screw
Cover handle
Disassemble the Handle cover carefully.
WARNING
Hooks inside of the Handle cover can break
easily.
Remove 2 screws on the Handle grommets. 2.
Remove the Handle grommets and disassemble
the Easy handle.
Screw
handleGrommet
12_ setting up
If the front of the appliance is slightly higher than
the rear, the door can be opened and closed more
easily.
Turn the adjusting legs clockwise to raise and
counter-clockwise to lower the height.
Case 1) The appliance tilts down to the left.
Turn the left adjusting leg in the direction of the •
arrow until the appliance is level.
Case 2) The appliance tilts down to the right.
Turn the right adjusting leg in the direction of the •
arrow until the appliance is level.
DA99-02116A(0.4)-EN.indd 12DA99-02116A(0.4)-EN.indd 12 2011.7.14 5:26:5 PM2011.7.14 5:26:5 PM
operating your refrigerator
Light off
Light on
(Bright)
Light on
(Medium)
Light on
(Dark)

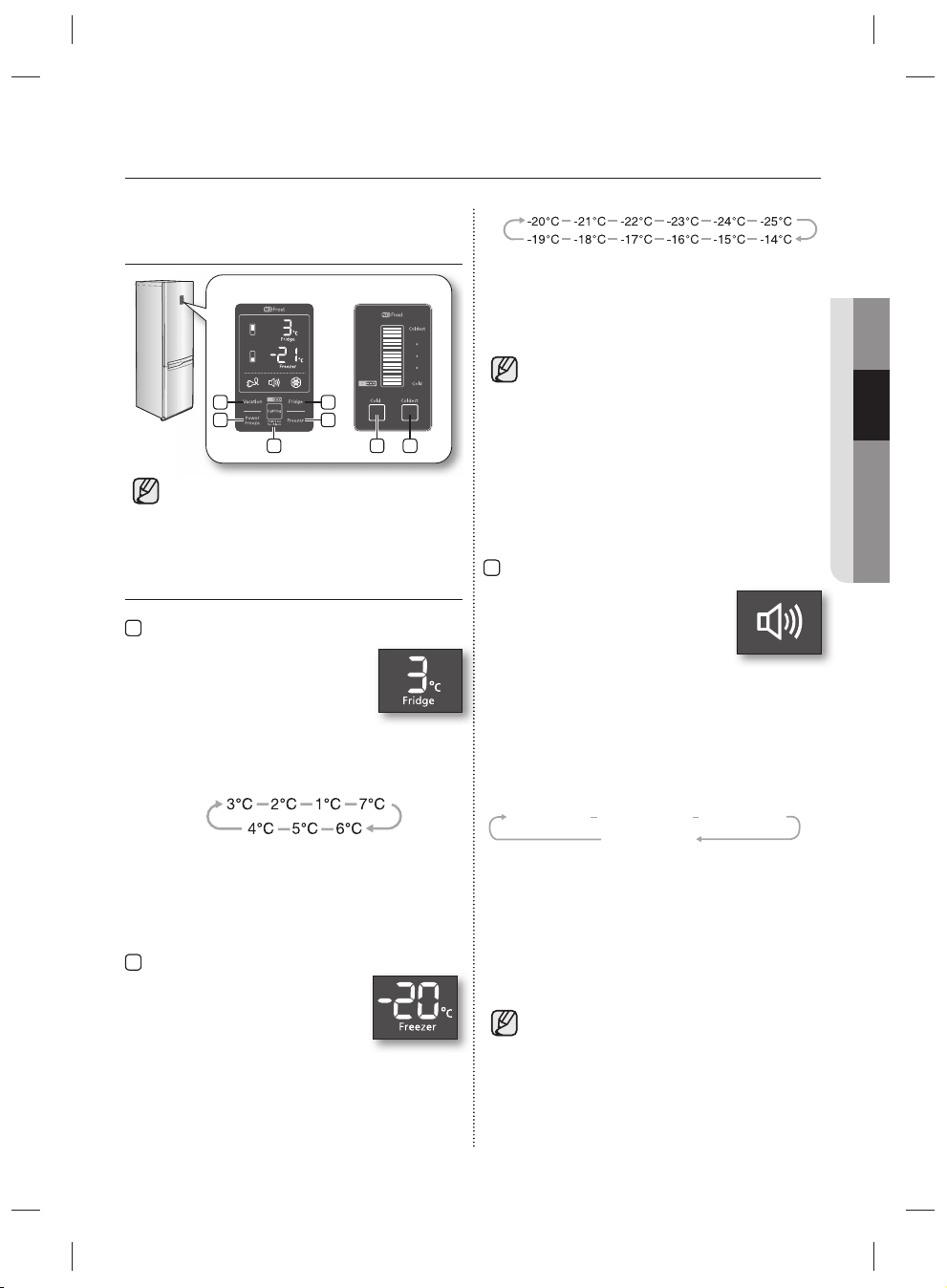

CHECKING THE CONTROL
PANEL
(TYPE A)
4
5
3
(TYPE B)
1
2
2 1
Each time you press the button, a short
beep will sound.
USING THE CONTROL PANEL
(TYPE A)
1
Fridge
Touch the Fridge button to set the
fridge to desired temperature from
the range between 1°C and 7°C.
Default set temperature is set on 3°C
and each time you press the Fridge
button, temperature will change in following order
and temperature indicator will display the desired
temperature.
When the temperature setting is done, the set
temperature is displayed initially for 5 seconds and
then indicator will display the actual temperature of
the fridge.
2
Freezer
Touch the Freezer button to set
the freezer to desired temperature
from the range between -14°C and
-25°C. Default set temperature is
set on -20°C and each time you touch the Freezer
button, temperature will change in following order
and temperature indicator will display the desired
temperature.
When the temperature setting is done, the set
temperature is displayed initially for 5 seconds and
then indicator will display the actual temperature of
the freezer.
Fridge or Freezer temp indicator will blink
when temperature in the fridge or freezer
compartment goes up dramatically by
storing warm food or frequent door opening.
(Fridge or Freezer temperature indicator will
stop blinking when temperature in the fridge
or freezer is become normal.
If temperature indicator does not stop
blinking after several hours, please contact
your service center.
3
Lighting (Hold 3sec for Alarm)
Touch the Lighting button to activate
the Lighting Function and the light
underneath fridge door will be on.
The light keeps on while Lighting
function is activated.
If you want to adjust the brightness of the light,
touch the Lighting button again.
(Adjusting brightness may not be available
depending on the models.)
To deactivate the Lighting function, touch the
Lighting button again until the light is off.
Light on
(Bright)
Touch the Lighting button for longer than 3 seconds
to activate the Alarm function.
Alarm indicator will light up and the refrigerator will
Light on
(Medium)
Light off
Light on
(Dark)
alert you with alarm sound if the refrigerator door is
kept open for longer than 2 minutes.
To deactivate the Alarm function, touch the Lighting
button for longer than 3 seconds.
Lighting activated : Light stay on.•
Lighting deactivated : If you open the •
freezer door with the fridge door closed
the Light will be turned on.
02 OPERATING
operating _13
DA99-02116A(0.4)-EN.indd 13DA99-02116A(0.4)-EN.indd 13 2011.7.14 5:26:5 PM2011.7.14 5:26:5 PM

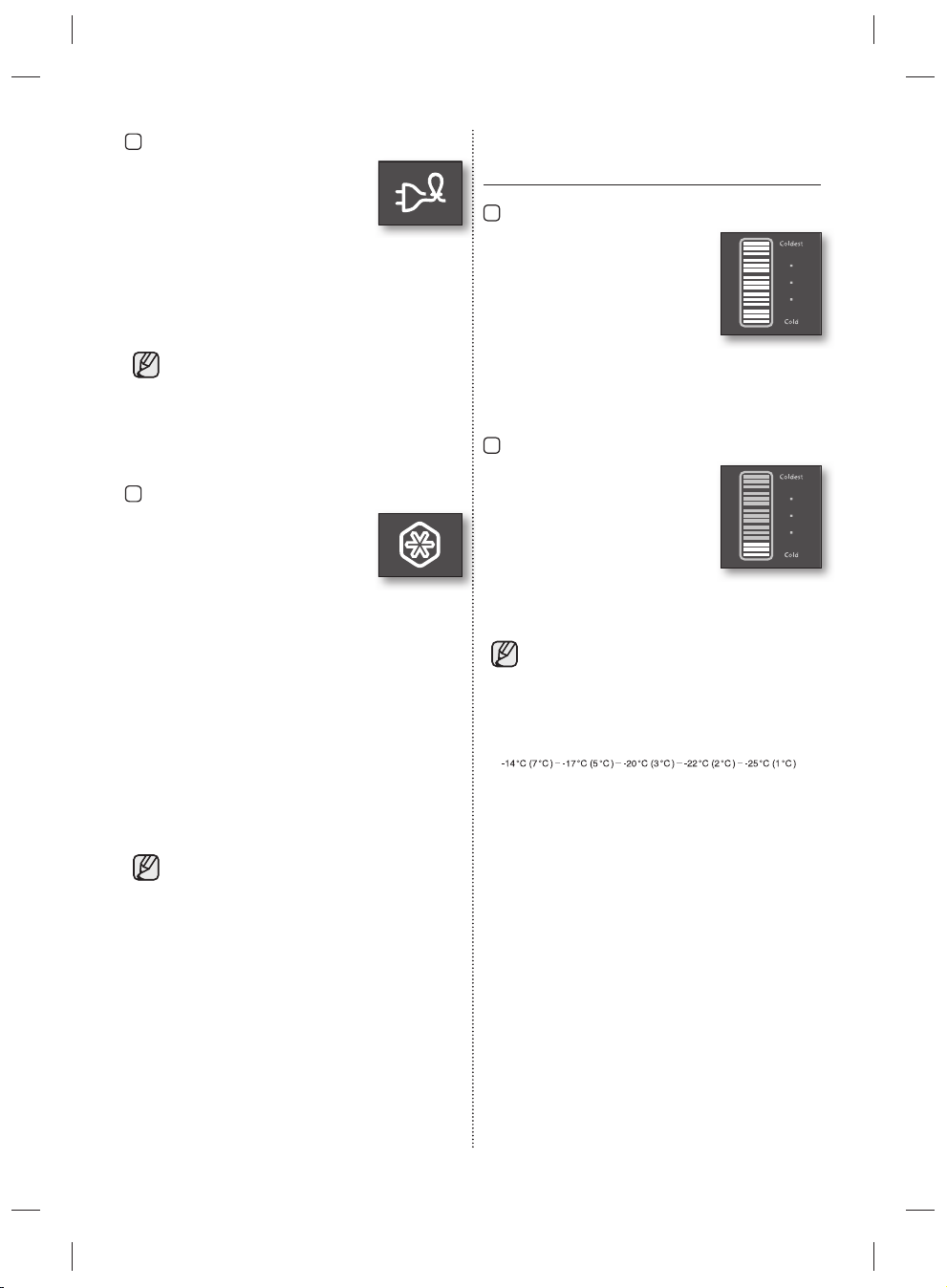

4
Vacation
Touch the Vacation button to activate
the Vacation function.
Vacation indicator will light up and the
refrigerator will set the temperature to
15°C to minimize the power consumption when you
are going on a long vacation or business trip or you
do not need to use the refrigerator.
While Vacation function is activated, freezer
compartment remains on.
Vacation function will be automatically •
deactivated if you adjust fridge temperature
while Vacation function is on.
Make sure to remove foods in the fridge •
compartment before using Vacation
function.
5
Power Freeze
Touch the Power Freeze button to
activate the Power Freeze function.
Power Freeze indicator will light up and
the refrigerator will speed up the time
to needed to freeze products in the freezer.
Power freeze function will be activated for 72 hours
and freezer indicator will display -25°C.
The Power Freeze function switches off
automatically.
When the Power Freeze process is completed, the
Power freeze indicator switches off and the freezer
switches back to the previous temperature setting.
When you use this function, the energy consumption
will increase.
To deactivate the Power Freeze function, touch the
Power Freeze button again.
If you need to freeze large amount of food
stuff, activate Power Freeze function at least
24 hours before.
USING THE CONTROL PANEL
(TYPE B)
1
Coldest
Press the Coldest button one or
more times to lower the temperature
of the refrigerator.
Temperature indicator will change
from cold to coldest.
Default set temperature is the Midpoint temperature.
When all lights are on, the temperature is at its
coldest.
2
Cold
Press the Cold button one or more
times to raise the temperature of the
refrigerator.
Temperature indicator will change
from coldest to cold.
Default set temperature is the Midpoint temperature.
When one light is on, the temperature is at its cold.
There are fi ve temperature settings, •
represented by fi ve indicator lights.
The freezer temperature will be adjusted •
automatically according to the refrigerator
temperature (as stated in below).
Cold Coldest
Temperature of Freezer(Fridge)
If you need to freeze large amount of food stuff, •
set the temperature of refrigerator as the coldest
temperature at least 24 hours before.
Temp indicator will blink when temperature •
in the fridge or freezer compartment goes up
dramatically by storing warm food or frequent
door opening.
Temperature indicator will stop blinking when
temperature in the fridge or freezer becomes
normal.
If temperature indicator does not stop blinking
after several hours, please contact your service
center.
14_ operating
DA99-02116A(0.4)-EN.indd 14DA99-02116A(0.4)-EN.indd 14 2011.7.14 5:26:7 PM2011.7.14 5:26:7 PM

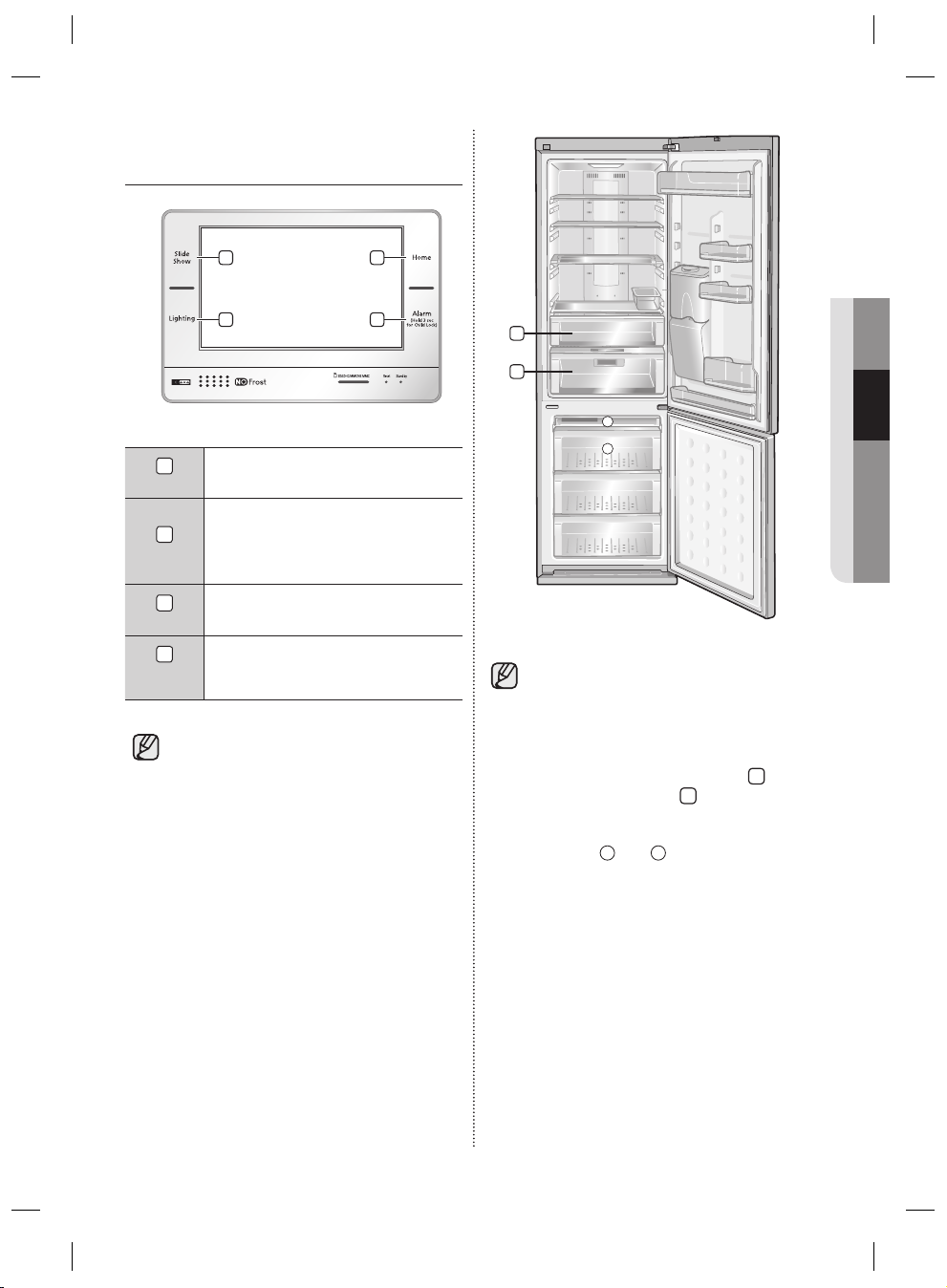

CHECKING THE CONTROL
PANEL (TYPE C)
4
3
1
You can go to the home screen with the main
HOME
ALARM
LIGHTING
SLIDE
SHOW
functions of the refrigerator.
The alarm will alert you if the refrigerator door is
kept open for longer than 2 minutes.
2
To cancel the alarm, touch the Alarm button again.
You can activate/deactivate the Child Lock function
by touching this button for 3 seconds.
3
You can turn the lighting underneath the fridge door
on or off.
4
You can use this function to see images saved in
the Photo Album.
For more information about using Control •
panel (Type C), refer to LCD Control
Manual enclosed with this manual.
If you need to freeze large amount of food •
stuff, activate Power Freeze function at
least 24 hours before.
1
2
1
2
1
2
02 OPERATING
Some of the feature such as Water Tank, •
Cool Select Zone, Cooler Zone and
Photosynthetic Fresh can be different and
may not be available depending on the
model.
To get more space in the refrigerator, you •
1
can remove Fresh Safe Drawer
2
Cooler Zone Drawer
(except Cool
and
Select Zone Box).
To get more space in the freezer, you can
remove
and 2 drawers.
1
It does not affect thermal and mechanical
characteristics.
A declared storage volume of the freezer
compartment is calculated with these parts
removed.
operating _15
DA99-02116A(0.4)-EN.indd 15DA99-02116A(0.4)-EN.indd 15 2011.7.14 5:26:9 PM2011.7.14 5:26:9 PM

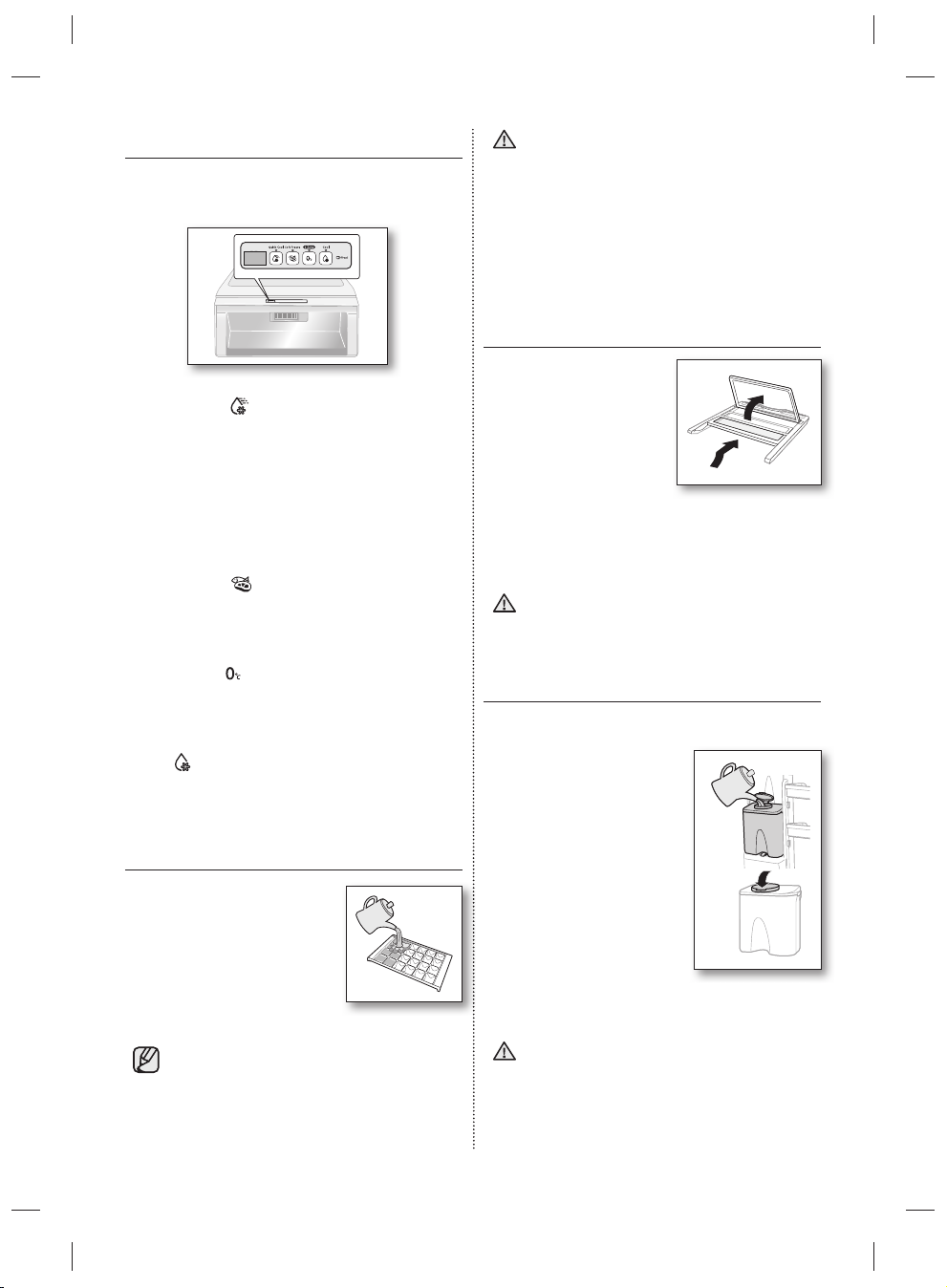

USING COOL SELECT ZONE™
You can store various foods such as cheese, meat,
poultry fi sh and other foods at ideal temperature to
preserve the taste of food.
Quick Cool
If you want to cool down food quickly, store •
food in Cool Select Zone and press Quick Cool
button.
Cool Select Zone will cool food for 60 minutes. •
When Quick Cool mode is completed,•
the Cool Select Zone drawer will automatically
set the mode to Cool.
Danger of explosion
CAUTION
The coldest parts of the refrigerator is the •
rear panel.
This is the best place to store delicate
foodstuffs.
Glass bottles containing liquids should never •
be stored in the freezer as the glass can shatter
when the contents freeze.

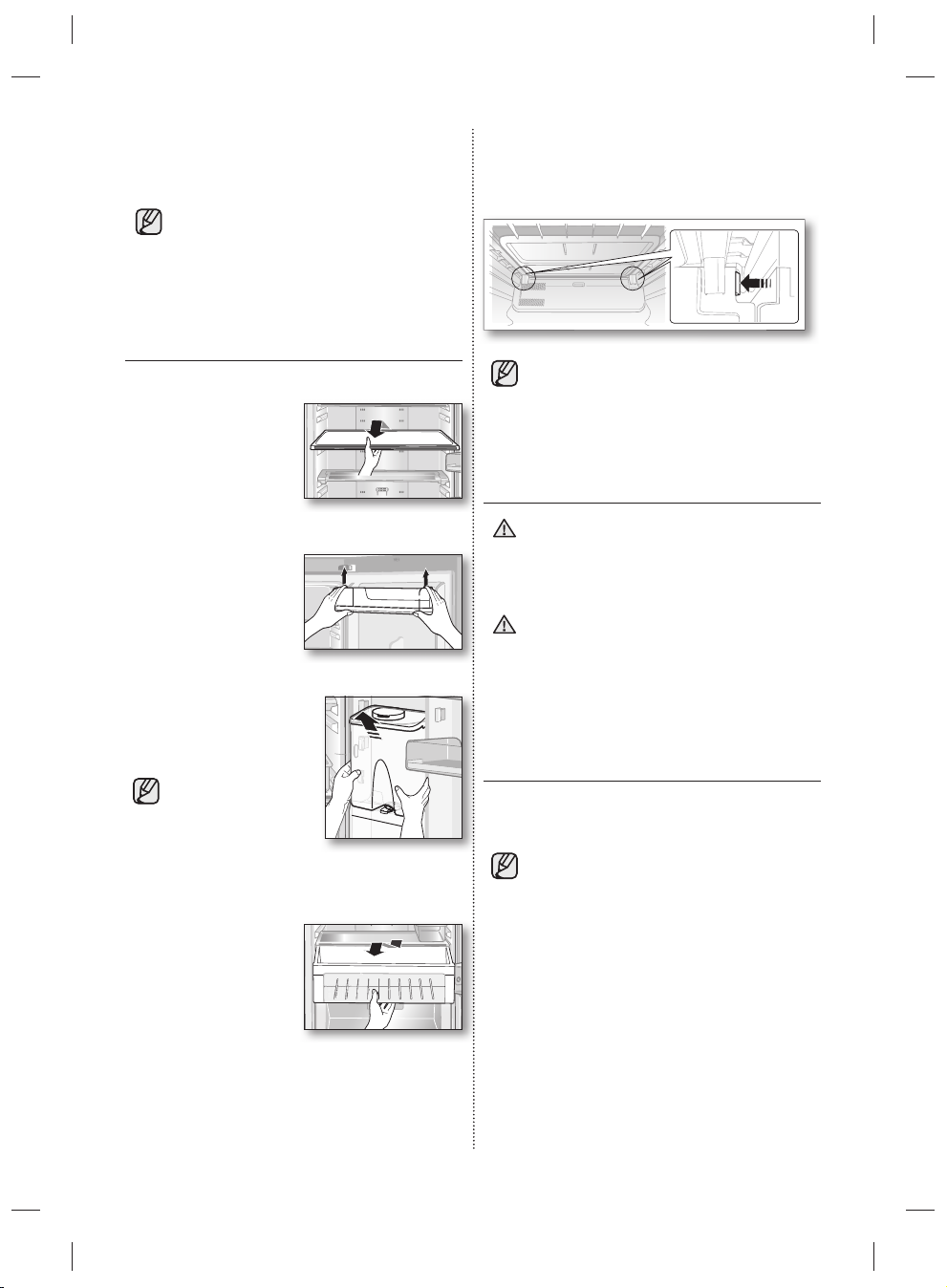

USING THE FOLDABLE SHELF
You can fold the foldable
shelf if you need to
accommodate taller
containers or products on
the shelf underneath.
Slightly lift up the shelf 1.
and slide it inward.
Lift up the tucked shelf towards the rear wall.2.
You can simply pull the folded shelf in reverse 3.
procedure to use the fully extended shelf.
Soft Freeze
When you select Soft Freeze mode, temperature •
of the Cool Select Zone will be set on -5°C.
Zero Zone
When you select Zero Zone mode, temperature •
of the Cool Select Zone will be set on 0°C.
Cool
When you select Cool mode, temperature of the •
Cool Select Zone will be set on 3°C.

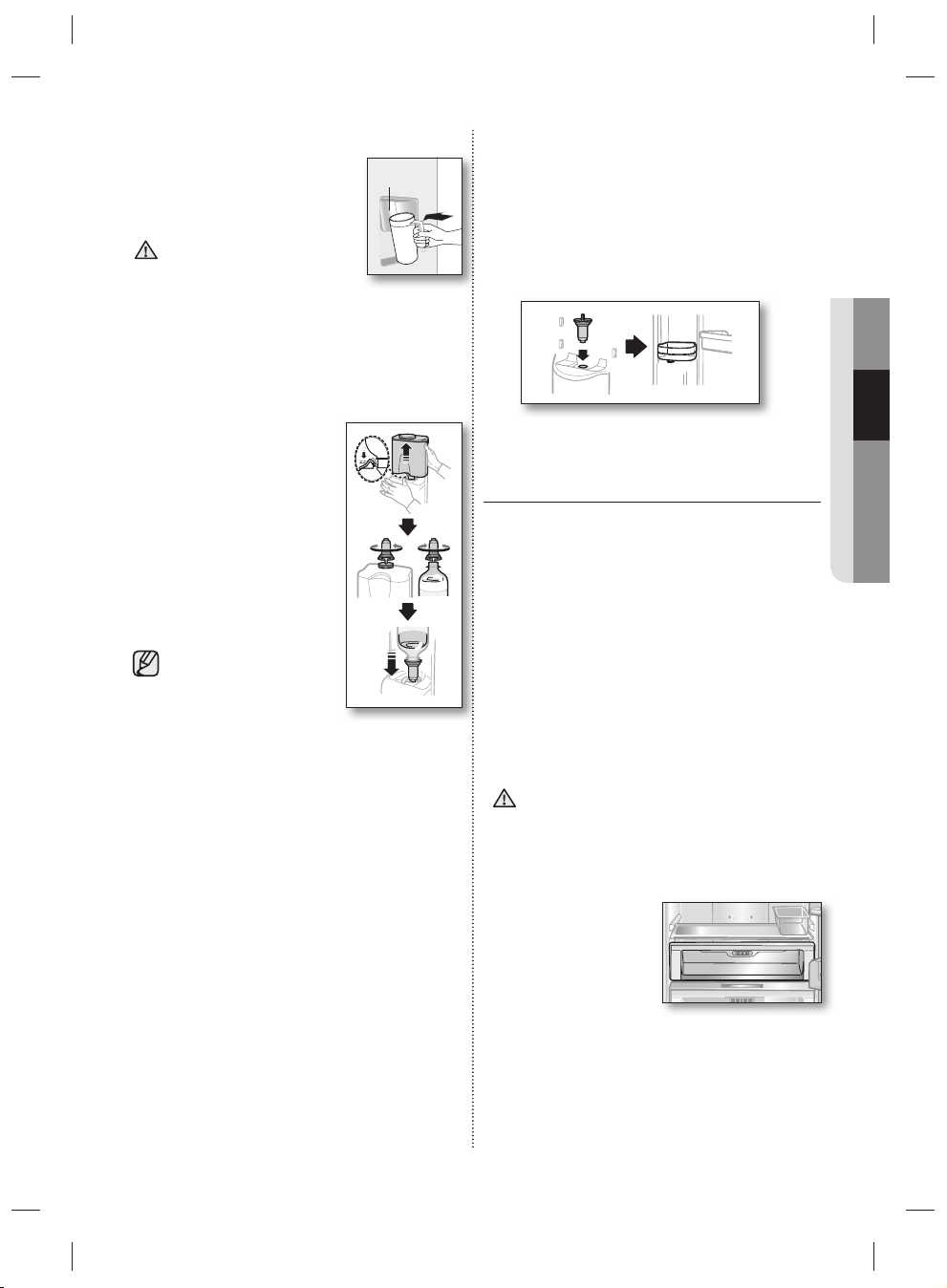

MAKING ICE
Fill the tray up to 80% with 1.
water level.
Place the ice tray in the top 2.
freezer drawer.
Wait until the ice cubes are 3.
formed.
Twist the ice tray slightly to 4.
take out the ice cubes.
Freezing time
It is recommended that you wait for about
1~2 hour with the temperature set to Power
Freeze for the ice cubes to form.
Shelf can fall out, handle with care when
CAUTION
using or cleaing the shelf.
USING THE WATER DISPENSER
Filling the water
You can fi ll the water with the
water tank sitting inside of the
refrigerator or you can remove
the water tank to fi ll the water.
Open the round cap and 1.
fi ll the water tank up with
drinking water.
Do not fi ll up the water tank •
too much (just over 4.2
liters).
As it could overfl ow when
the door opens and closes.
Close the round cap by pushing down on it until 2.
it clicks into place.
Do not put anything other than water in the
CAUTION
water tank.
16_ operating
DA99-02116A(0.4)-EN.indd 16DA99-02116A(0.4)-EN.indd 16 2011.7.14 5:26:9 PM2011.7.14 5:26:9 PM
Getting water from the dispenser
Place a glass underneath the 1.
water outlet.
Push it gently against the water 2.
dispenser lever with your glass.
CAUTION
Make sure the glass is in •
line with the dispenser to
prevent the water from
splashing out.
Water dispenser may not be available depending •
on the model.
Push
Installing a regular bottle
Press the fi xing lever, lift the 1.
Water tank upwards and
remove it.
Remove the Dispenser cock 2.
from the Water tank.
Put the Dispenser cock on the 3.
regular mineral water bottle
and rotate them clockwise to
lock the Dispenser cock.
Put the water bottle with 4.
the Dispenser cock in the
dispenser hole.
Gurgling sounds may •
be heard when air
enters the water bottle
from regular mineral
water or beverage bottles.
Some regular mineral water or beverage•
bottles may not fi t the Dispenser cock
depending on their size.
If water does not come out satisfactorily •
when you press the lever, press the lever again.
Do not use carbonated drinks.•
When you press the lever, beverage may
spurt out due to the pressure of carbonic gas
accumulated in the upper part of beverage bottle.
For better hygiene, beverages with a high sugar •
content (juice, soft drinks) are not recommended.
You can use bottled mineral water or boiled •
tap water as long as it does not contains any
particles.
When the water dispenser is not used
Fix the Dispenser cock tightly into the dispenser 1.
hole.
When the Dispenser cock is pulled out for a •
long time, Refrigerator may not operate properly
because cold air will leak.
Place a Variety guard in the location of the Water 2.
tank and store beverage bottle.
Two 1.5 liter bottles can be placed.•
USING THE PHOTOSYNTHETIC
FRESH (OPTIONAL)
Feature of photosynthetic fresh LED
Plants breathe only without light.
However, if there is light, plants can breathe and
photosynthesize at the same time.
Therefore, if you keep the vegetables in dark
refrigerator, they continue breathing and it makes
organic matter in vegetables decrease and wither
more quickly.
If you keep vegetables and fruits in fresh safe
drawer, you can keep them fresher because they
can breathe and photosynthesize in there at the
same time.
Do not look directly at the Photosynthetic
Fresh LED for a long time.
CAUTION
It may cause an eye trouble.
Operating photosynthetic fresh
Photosyn thetic Fresh •
LED is installed on the
back of the fresh safe
drawer.
It keeps vegetable and
fruits stored in fresh
safe drawer fresher by
providing light.
To maximize the effect, keep the vegetables and •
fruits in the transparent vinyl bag or itself.
Effect may decrease if vegetables and fruits are in
the opaque boxes, containers or black vinyl bag.
02 OPERATING
operating _17
DA99-02116A(0.4)-EN.indd 17DA99-02116A(0.4)-EN.indd 17 2011.7.14 5:26:10 PM2011.7.14 5:26:10 PM
Photosynthetic Fresh LED is always on when the •
fridge door is opened.
LED will turn on and off repeatedly when the door
is closed.
In winter time, if you set the desired
temperature of fridge as 1°C and store
vegetables for a long time, vegetables can
be frozen.
REMOVING THE INTERIOR
PARTS
Shelves
Gently lift up the shelves
with both hands and pull it
toward you. (Glass shelf/
Foldable shelf)
Cooler zone
Press the locking device on the rear left and right
side of the cooler zone cover and pull the cooler
zone cover to remove it.
To get the best energy effi ciency of this
product, please leave all selves, drawers
and baskets on their original position like as
illustration in page (15).
CLEANING THE REFRIGERATOR
Door guards
Firmly grab the door
guards with both hands
and lift it up gently to
remove the door guards.
Water tank
Firmly grab the water tank
with both hands and lift it up
towards you gently to remove
the water tanks.
Water tank may
not be available
depending on the
model.
Drawers
Pull the drawers out fully
then slightly lift it up to
remove the drawers. (Fresh
safe drawer / Cool select
zone drawer / Cooler zone
drawer / Freezer Drawers )
Do not use Benzene, Thinner or Clorox™ for
WARNING
cleaning.
They may damage the surface of the
appliance and can create a risk of fi re.
Do not spray the refrigerator with water
CAUTION
while it is plugged in, as it may cause an
electric shock.
Do not clean the refrigerator with benzene,
thinner or car detergent for risk of fi re.
REPLACING THE LED LAMP
When the interior or exterior LED lamp has gone out,
do not disassemble the lamp cover and LED lamp
by yourself.
Please contact your service agents.
18_ operating
DA99-02116A(0.4)-EN.indd 18DA99-02116A(0.4)-EN.indd 18 2011.7.14 5:26:11 PM2011.7.14 5:26:11 PM
troubleshooting
PROBLEM SOLUTION
The appliance is not
operating at all or the
temperature is too high.
The food in the
refrigerator is frozen.
There are unusual
noises.
The front corners
and sides of the
appliance are warm and
condensation starts to
form.
You can hear a liquid
bubbling in the
appliance.
There is a bad smell
inside the appliance.
Check if the power plug is correctly connected.•
Is the temperature control on the front panel correctly set?•
Does sun shine on the appliance or are there any heat sources nearby?•
Is the back of the appliance too close to the wall?•
Is the temperature control on the front panel set to the coldest •
temperature?
Is the surrounding temperature too low?•
Check if the appliance is installed on a stable and even fl oor.•
Is the back of the appliance too close to the wall?•
Have any foreign objects fallen behind or under the appliance?•
Is the noise coming from the compressor in the appliance?•
A ticking sound occurs when the various accessories contract or •
expand.
Heat-proof pipes are installed in the front corners of the appliance to •
prevent condensation from forming.
When the surrounding temperature rises, this may not always be
effective. However, this is not abnormal.
In very humid weather, condensation may form on the outer surface of •
the appliance when the moisture in the air comes into contact with the
cool surface of the appliance.
This is the refrigerant, which cools the inside of the appliance.•
Is there any spoiled food inside of the refrigerator? •
Make sure that strong smelling food (for example, fi sh) is wrapped so •
that it is airtight.
Clean out your refrigerator periodically and throw away any spoiled or •
suspect food.
03 TROUBLESHOOTING
There is a layer of frost
on the appliances walls.
Condensation forms on
the inside wall of the
appliance and around
vegetables.
DA99-02116A(0.4)-EN.indd 19DA99-02116A(0.4)-EN.indd 19 2011.7.14 5:26:11 PM2011.7.14 5:26:11 PM
Are the air outlet vents blocked by food stored inside the refrigerator?•
Space the food out as much as possible to improve ventilation.•
Is the door fully closed?•
Food with a high water content is stored uncovered with a high humidity •
level or the door has been left open for a long time.
Store the food with a cover or in sealed containers.•
troubleshooting _19
Ambient Room Temperature Limits
This fridge/freezer is designed to operate in ambient temperatures specifi ed by its temperature class marked
on the rating plate.
Class Symbol Ambient Temperature range(°C)
Extended Temperate SN +10 to +32
Temperate N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Internal temperatures may be affected by such factors as the location of the fridge/freezer, ambient
temperature and the frequency with which you open the door.
Adjust the temperature as required to compensate for these factors.
