Samsung RL40L, RL40U, RL42H User Manual

RL34E*
RL34S*
RL34H*
RL35H*
RL37H*

RL34L*
RL37L*

RL40E*
RL40S*
RL40H*
RL40W*
RL40Z*
RL40L*

RL40U*

RL42H*

Free Standing Appliance

(RL40E*,RL40/42H*,RL40Z*,RL40U*,RL34E*,RL34H*,RL35H*,RL37H*)

CENotice

This product has been determined to be in compliance with the Low Voltage Directive (2006/95/EC),
the Electromagnetic Compatibility Directive (2004/108/EC) and the Eco-Design Directive(2009/125/EC)
implemented by Regulation (EC) No 643/2009 of the European Union.

Don't touch the compressor if the refrigerator is running.

• Allow the appliance to stand for 2hours after installation.

• To get best performance of product,

- Do not place foods too closely in front of the vents at the rear of the appliance as it can
obstruct free air circulation in the freezer compartment.

- Wrap the food up properly or place it in airtight containers before put it into the fridge
freezer

- Do not put any newly introduced food for freezing near to already frozen food.

• Do not place carbonated or fizzy drinks in the freezer compartment

• Please observe maximum storage times and expiry dates of frozen goods.

• There is no need to disconnect the refrigerator from the power supply if you will be away

for less than three weeks. But, remove all the food if you are going away for the three
weeks or more. Unplug the refrigerator and clean it, rinse and dry.

• Most power failures that are corrected in an hour or two will not affect your refrigerator

temperatures. However, you should minimize the number of door openings while the
power is off. But should the power failure last more than 24hours, remove all frozen food.

• If the key is provided with refrigerator, the keys should be kept out of the reach of children

and not in the vicinity of the appliance.

• The appliance might not operate consistently (possibility of defrosting of contents or

temperature becoming too warm in the frozen food compartment) when sited for an
extended period of time below the cold end of the range of temperatures for which the
refrigerating appliance is designed.

• Do not store food which goes bad easily at low temperature, such as bananas, melons.

• Place the ice tray at the originally provided posistion by manufacturer in order to achieve

optimal ice-freezing.

• Your appliance is frost free, which means there is no need to manually defrost your

appliance, as this will be carried out automatically.

• Temperature rising during the defrost can comply with ISO requirement. But If you

want to prevent an undue rise in the temperature of the frozen food while defrosting the
appliance, please wrap the frozen food in several layers of paper such as newspaper.

• Any increase in temperature of frozen food during defrosting can shorten its storage life.

Do not store explosive substances such as aerosol cans with a flammable propellant
in this appliance.
The appliance is intended to be used in household and similar applications such as
– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
– bed and breakfast type environments;
– catering and similar non-retail applications.

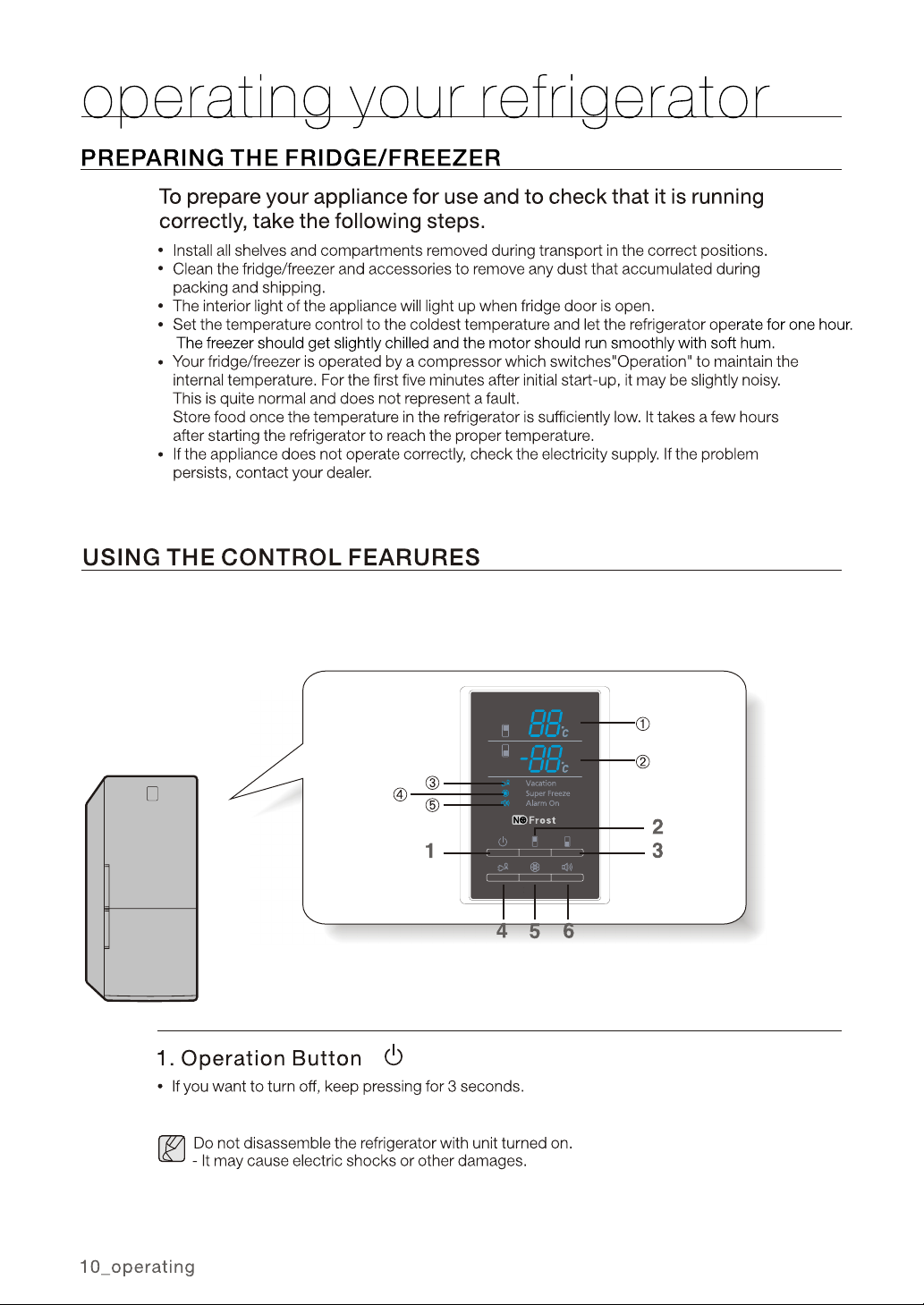

A:RL40E*,RL40H*,RL42H*,RL40Z*,RL40U*,RL34E*,RL34H*,RL35H*,RL37H*

displayed ( ).

Display Off
10 seconds after the door close or display button operation, the display LEDs are turned Off
except the Door Alarm Icon. It is not mal-function or failure of refrigerator. If any button is touched
or door is opened, the display LEDs are turned ON.

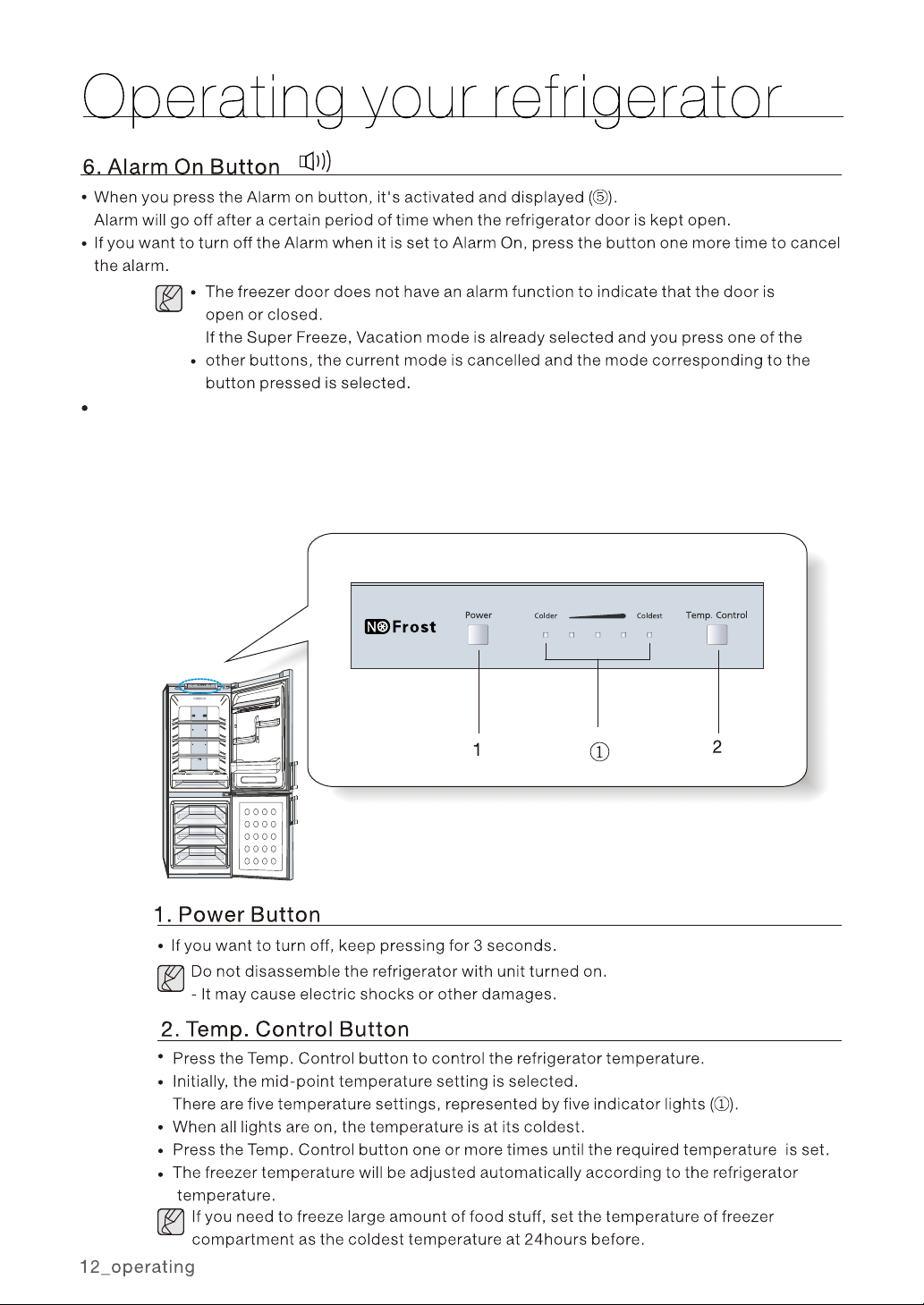

B:RL40S*,RL40W*,RL40L*,RL34S*,RL34L*,RL37L*

3

4

1

7

2

6

5

To get the best energy efficiency of this product, please leave all selves, drawers and baskets on
their original position like as above illustration.

FREEZER

7

WIRE SHELF

Optional. To use it, please remove the top freezer drawer.

To get more space, remove top freezer drawer since it does not affect
thermal and mechanical characteristics.
And if freezer wire shelf (optional) is provided, place the shelf just abovethe
middle drawer after removing the top drawer.
A declared storage volume of frozen food storage compartment is
calculated with this drawer removed and freezer wire shelf (optional) is
located if provided.

Do not replace LED lamp privately and please contact the specialized repair staff if
necessary.

And make it sure that the new LED lamp is the same as the old one.
Do not break the lamp cover .

REMOVING VEGETALE TRAY COVER(OPTIONAL)

1.Take out the vegetable tray carefully;

2.Pull the vegetable tray cover carefully outwards
while pressing the hooks on both sides by fingers.

Hooks

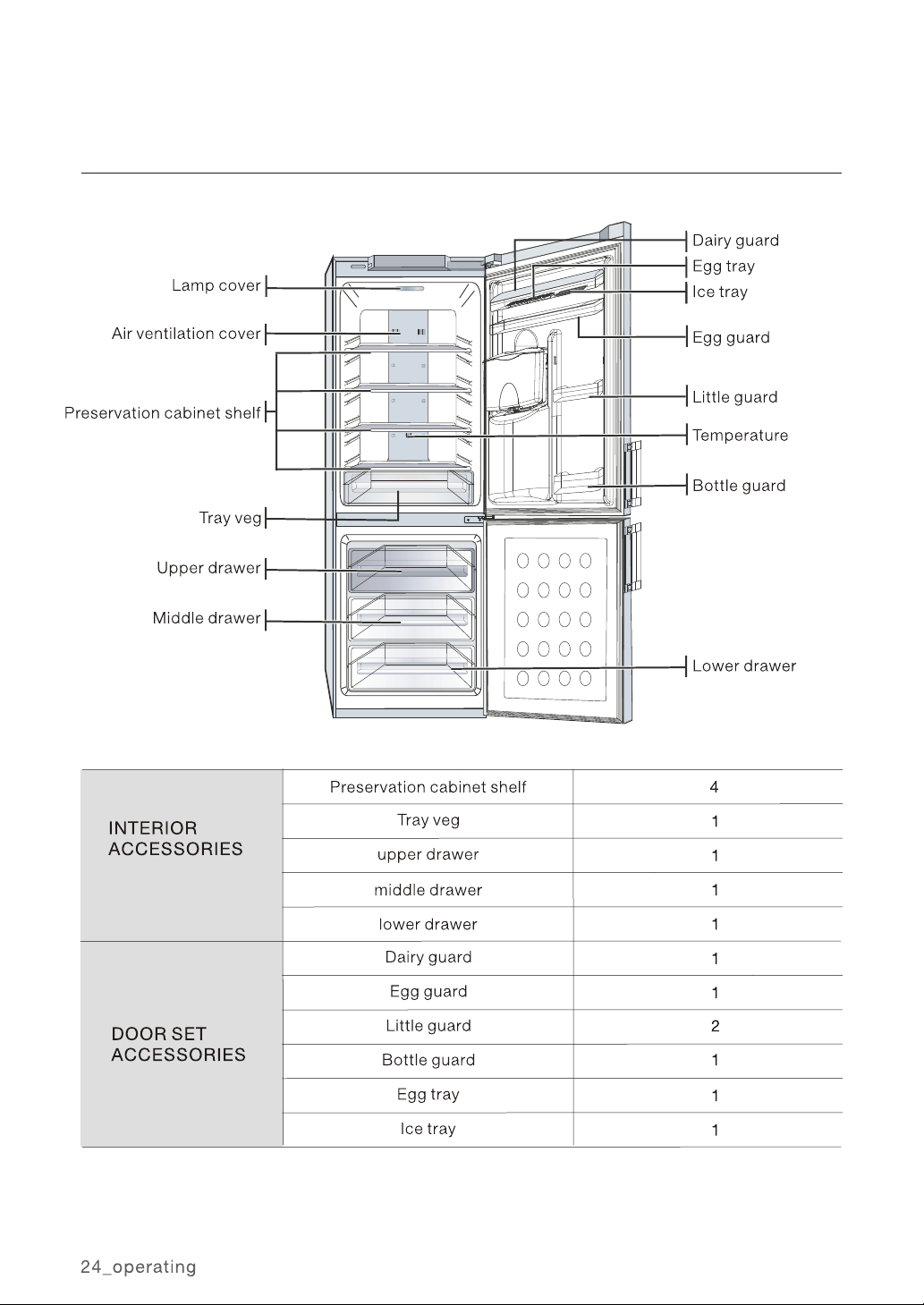

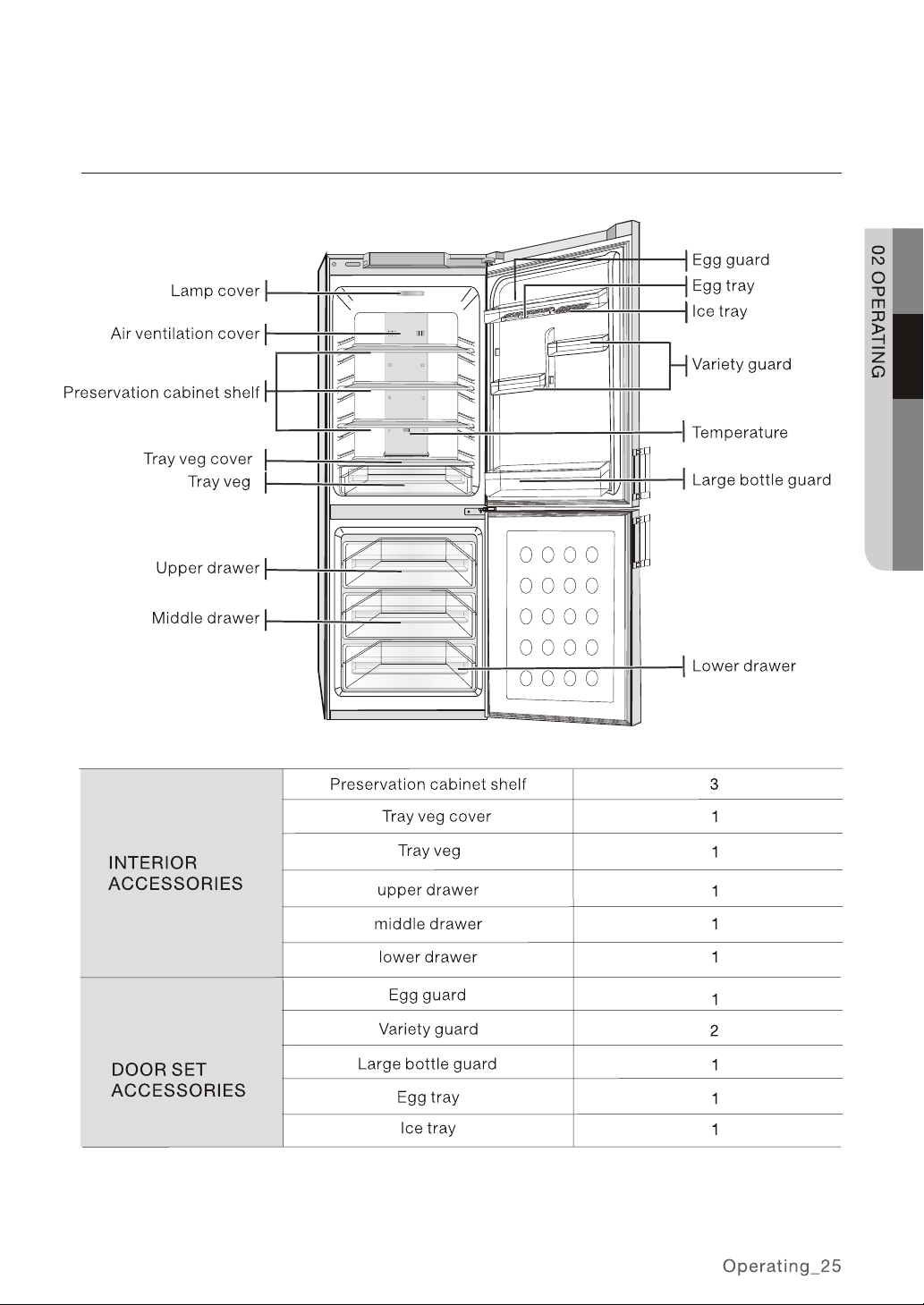

VIEW OF YOUR FRIDGE / FREEZER

(RL40E*,RL40H*,RL42H*,RL40S*,RL40Z*,RL40L*,RL40U*)

Tray veg upp(only RL40Z*/RL40U*)

VIEW OF YOUR FRIDGE / FREEZER(RL40W*)

VIEW OF YOUR FRIDGE / FREEZER

(RL34E*,RL34S*,RL34H*,RL35H*,RL37H*,RL34L*,RL37L*)

Class Symbol Ambient Temperature range (°C)

Extended Temperate SN +10 to +32

Temperate N +16 to +32

Subtropical ST +16 to +38

Tropical T +16 to +43

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)

English

(Applicable in the European Union and other European
countries with separate collection systems)

This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable)
should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate these items from other
types of waste and recycle them responsibly to promote the sustainable
reuse of material resources.

Household users should contact either the retailer where they purchased
this product, or their local government office, for details of where and how
they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
