Samsung RL38HCIH, RL38HCBP, RL44ECIS, RL41WCSW, RL41SBSW1 User Manual
...

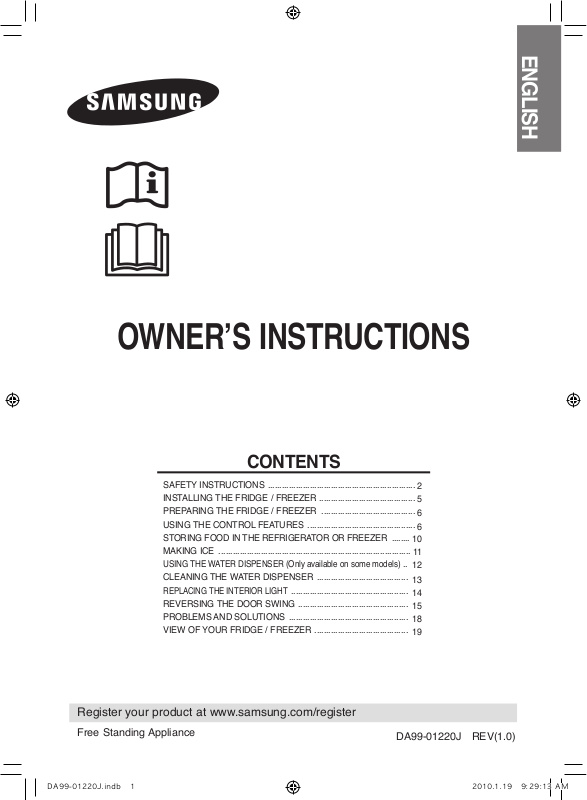

OWNER’S INSTRUCTIONS
DA99-01220J REV(1.0)
ENGLISH
Register your product at www.samsung.com/register
CONTENTS
SAFETY INSTRUCTIONS ...............................................................
2
INSTALLING THE FRIDGE / FREEZER .........................................
5
PREPARING THE FRIDGE / FREEZER ........................................
6

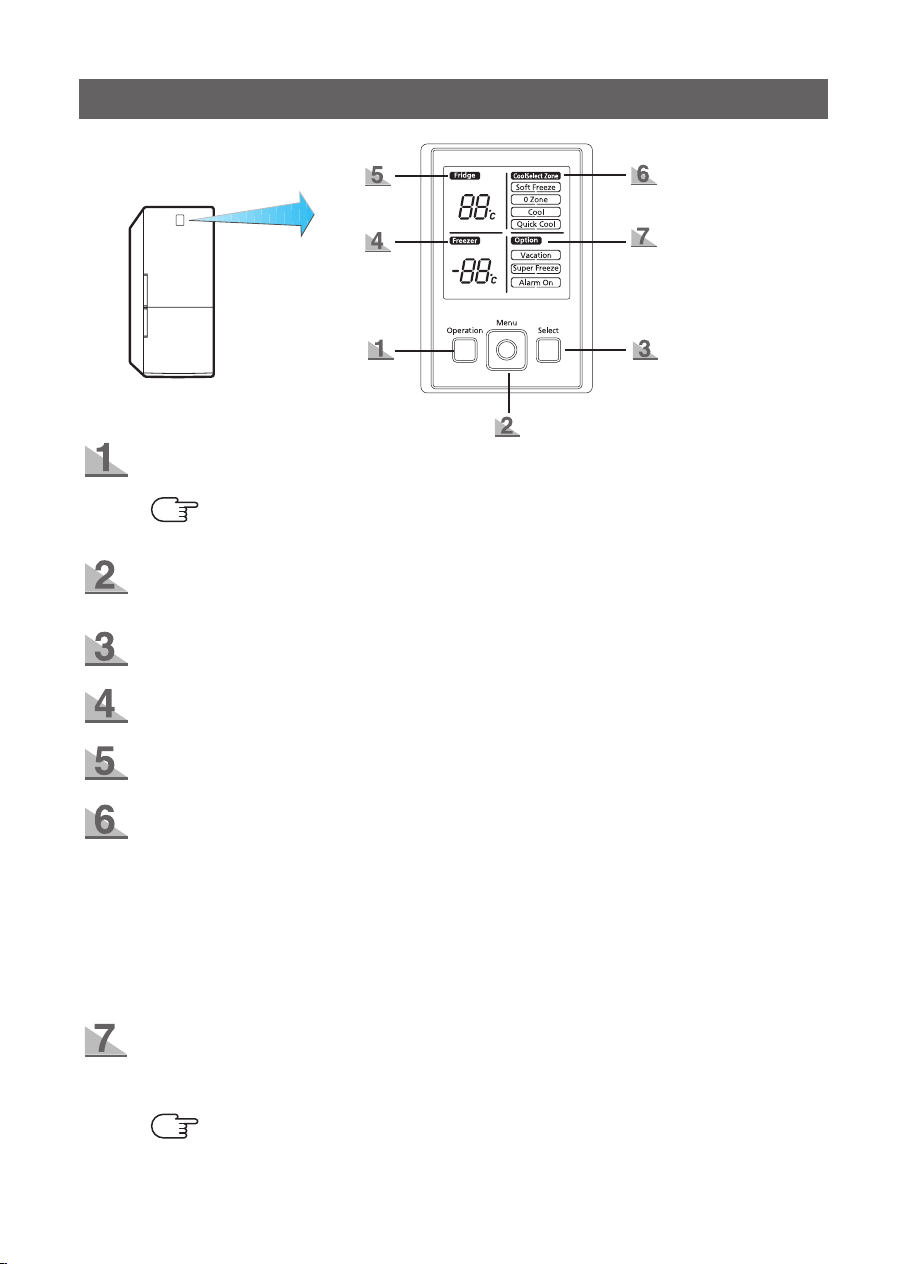

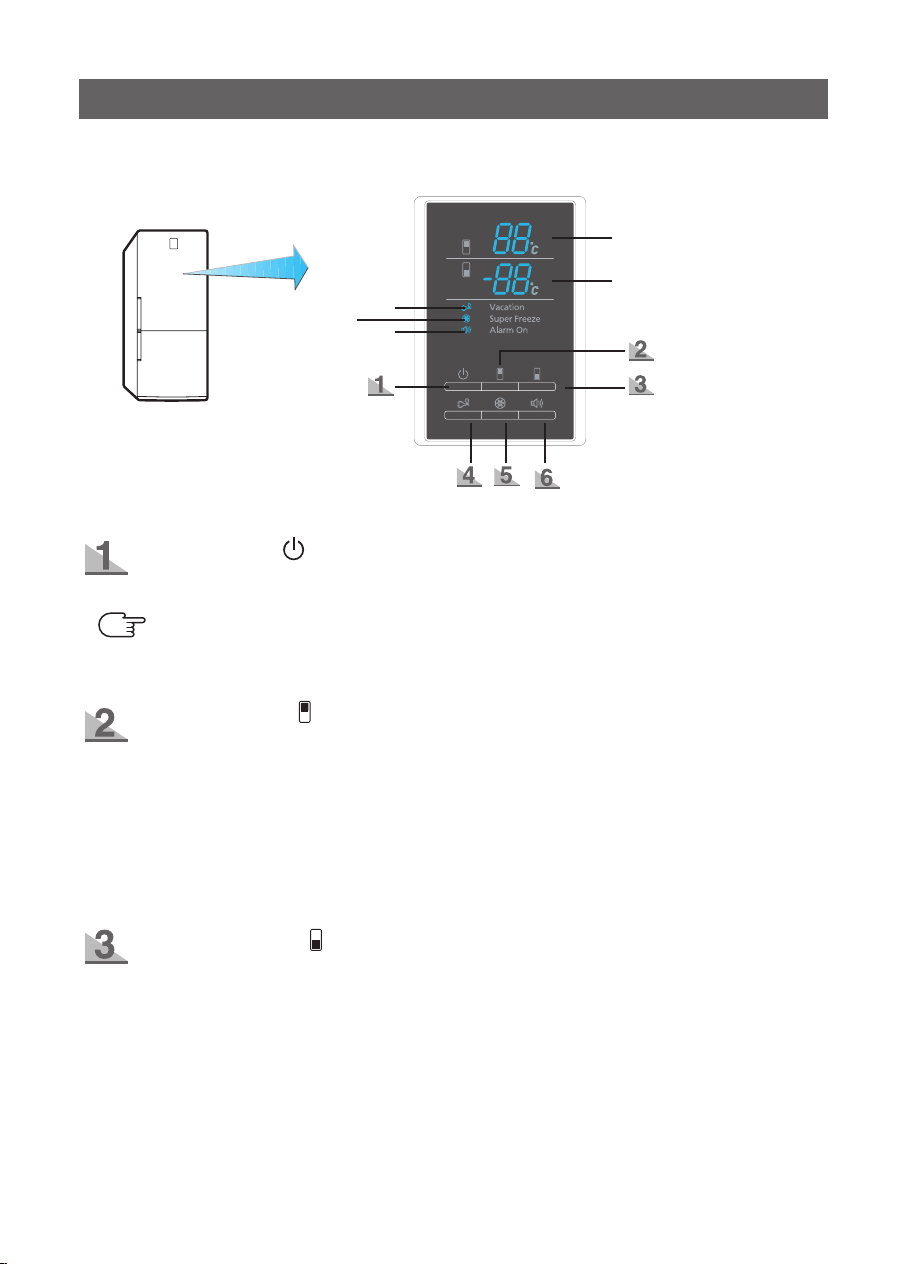

USING THE CONTROL FEATURES ..............................................
6

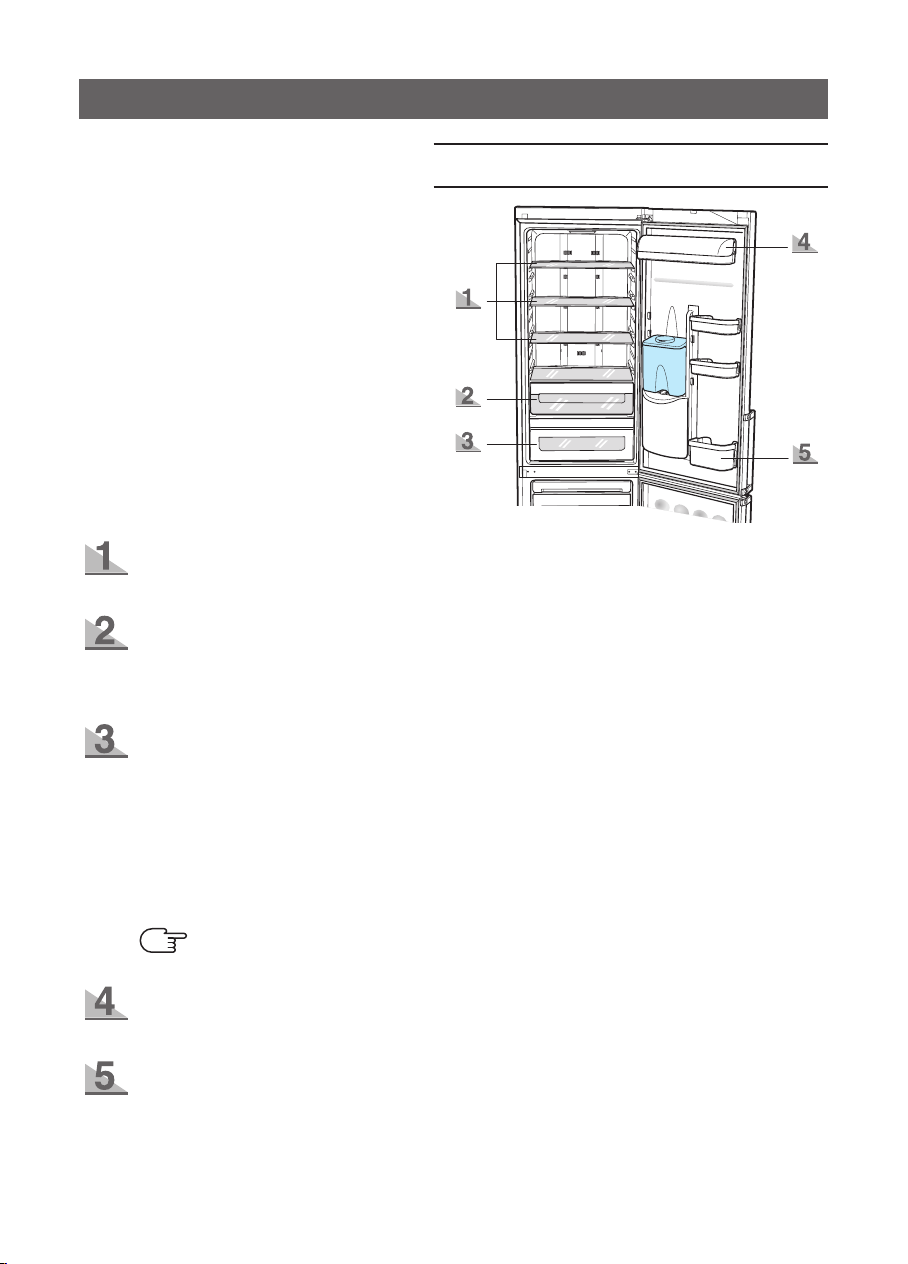

STORING FOOD IN THE REFRIGERATOR OR FREEZER ........
10

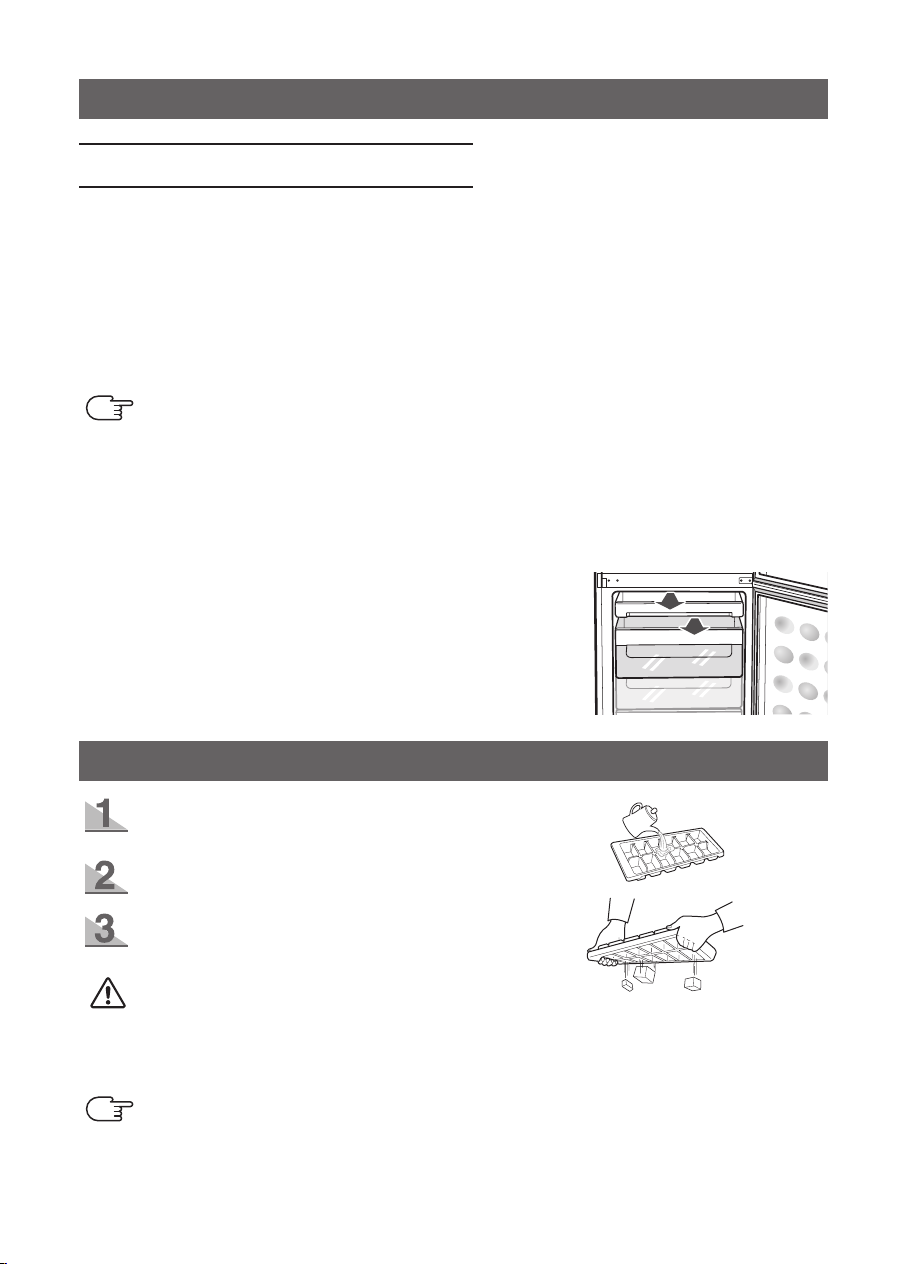

MAKING ICE ..................................................................................
11

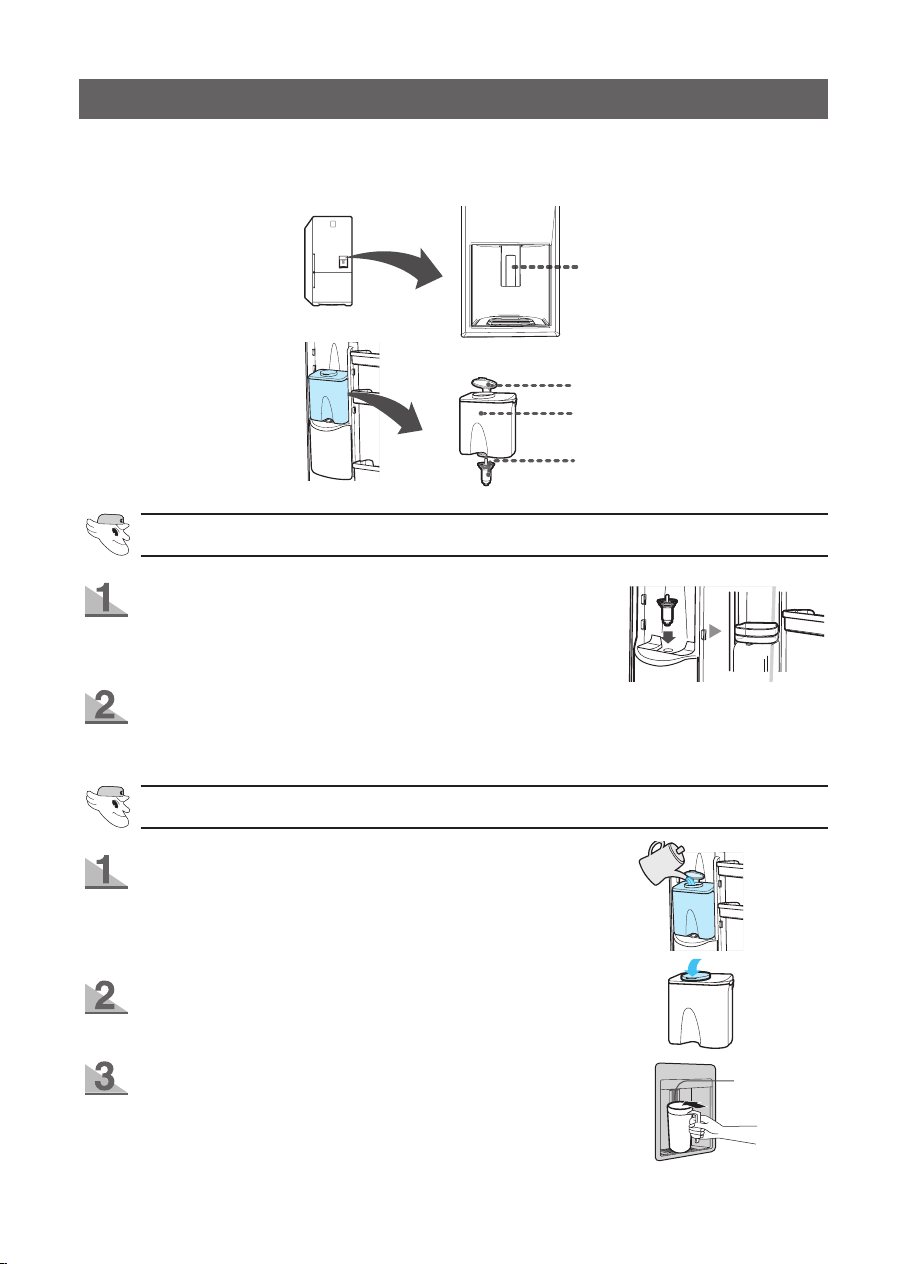

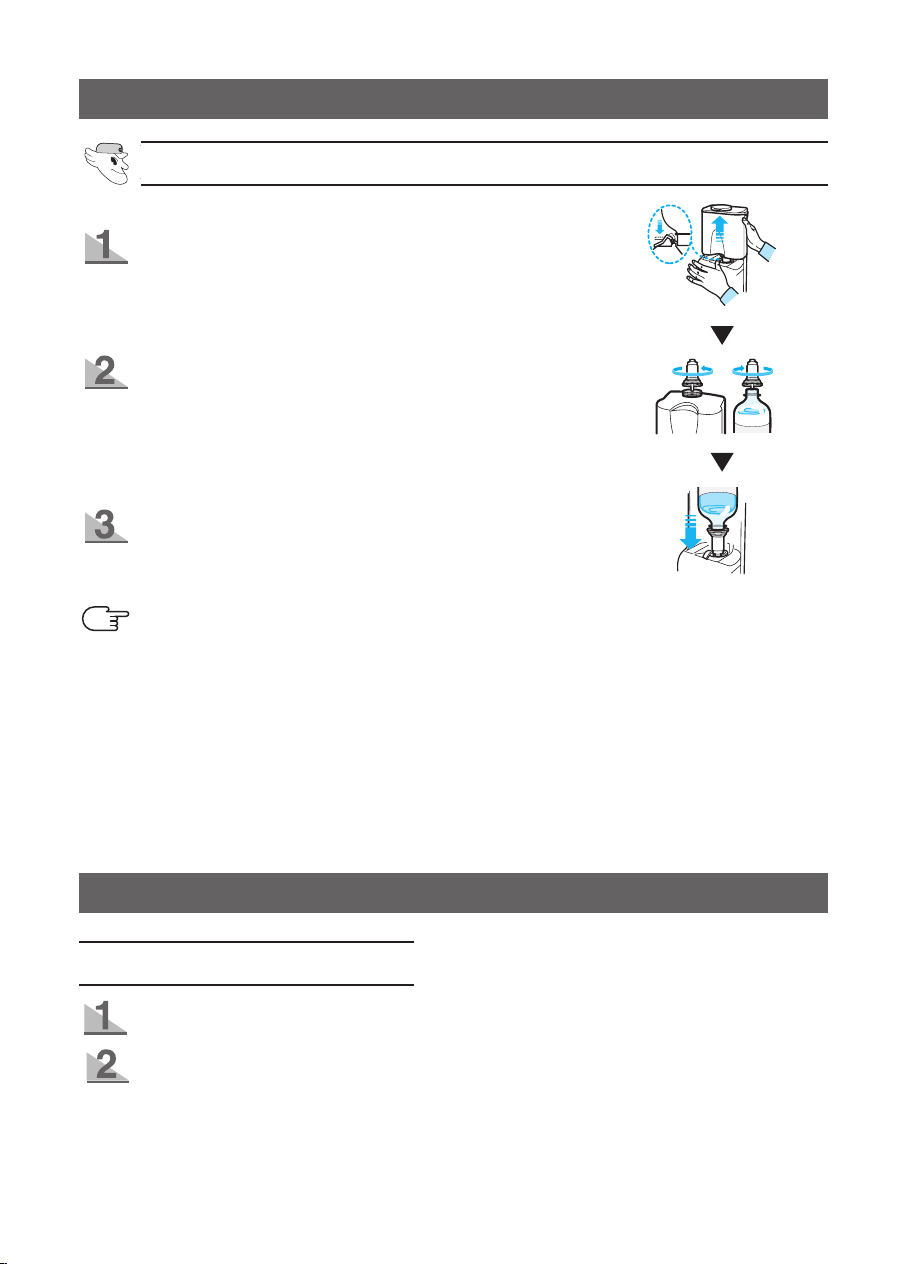

USING THE WATER DISPENSER (Only available on some models)
. .
12

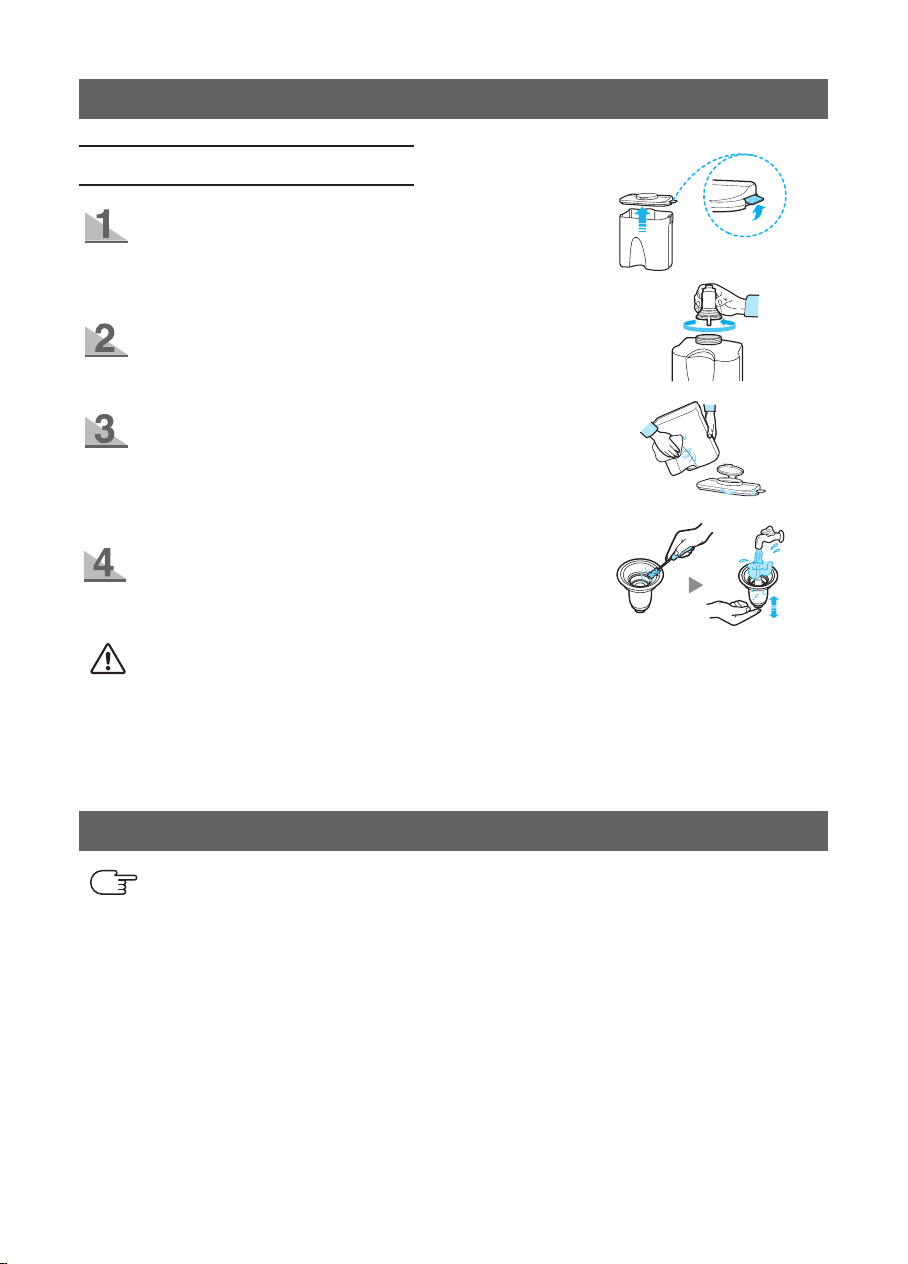

CLEANING THE WATER DISPENSER .......................................
13
REPLACING THE INTERIOR LIGHT
..................................................
14

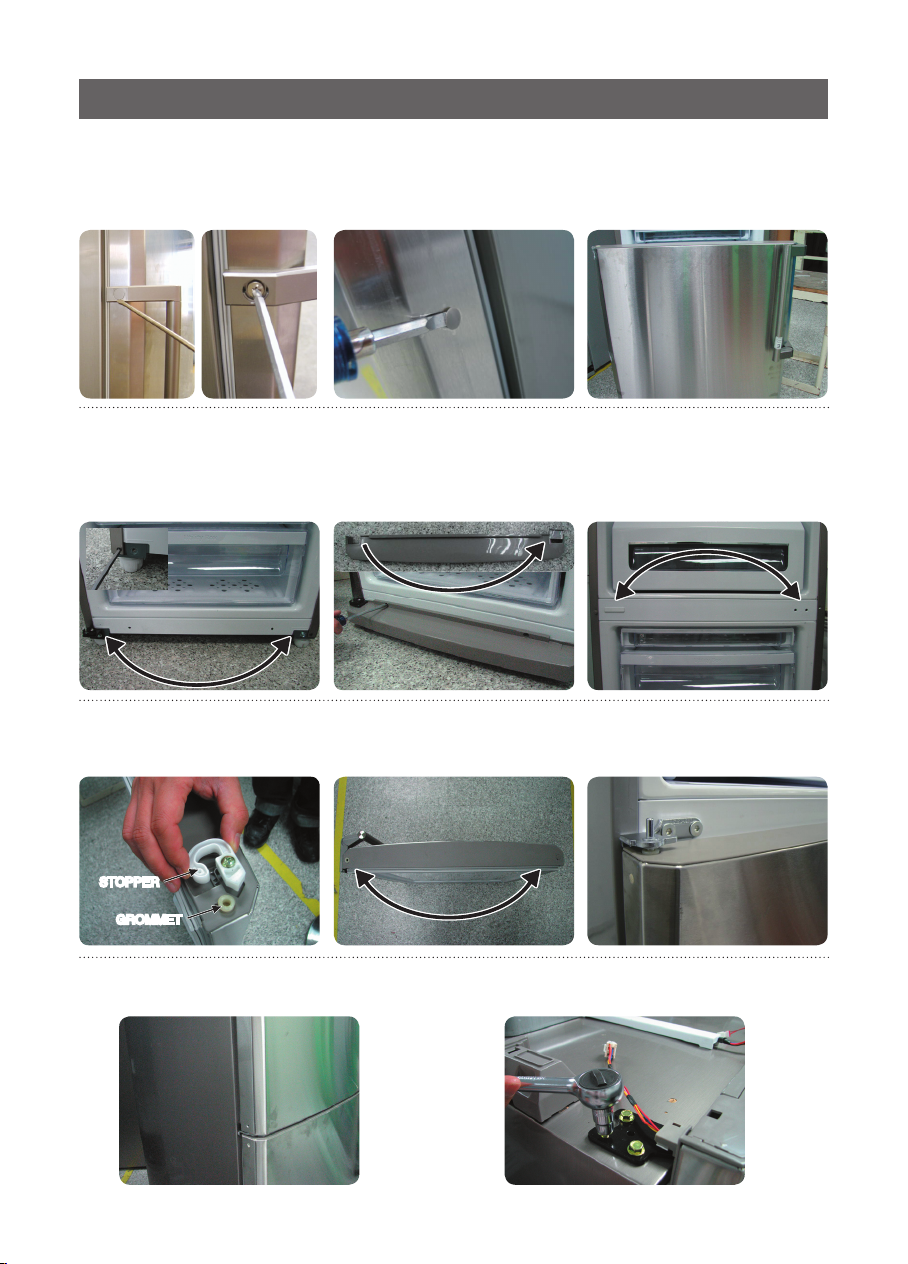

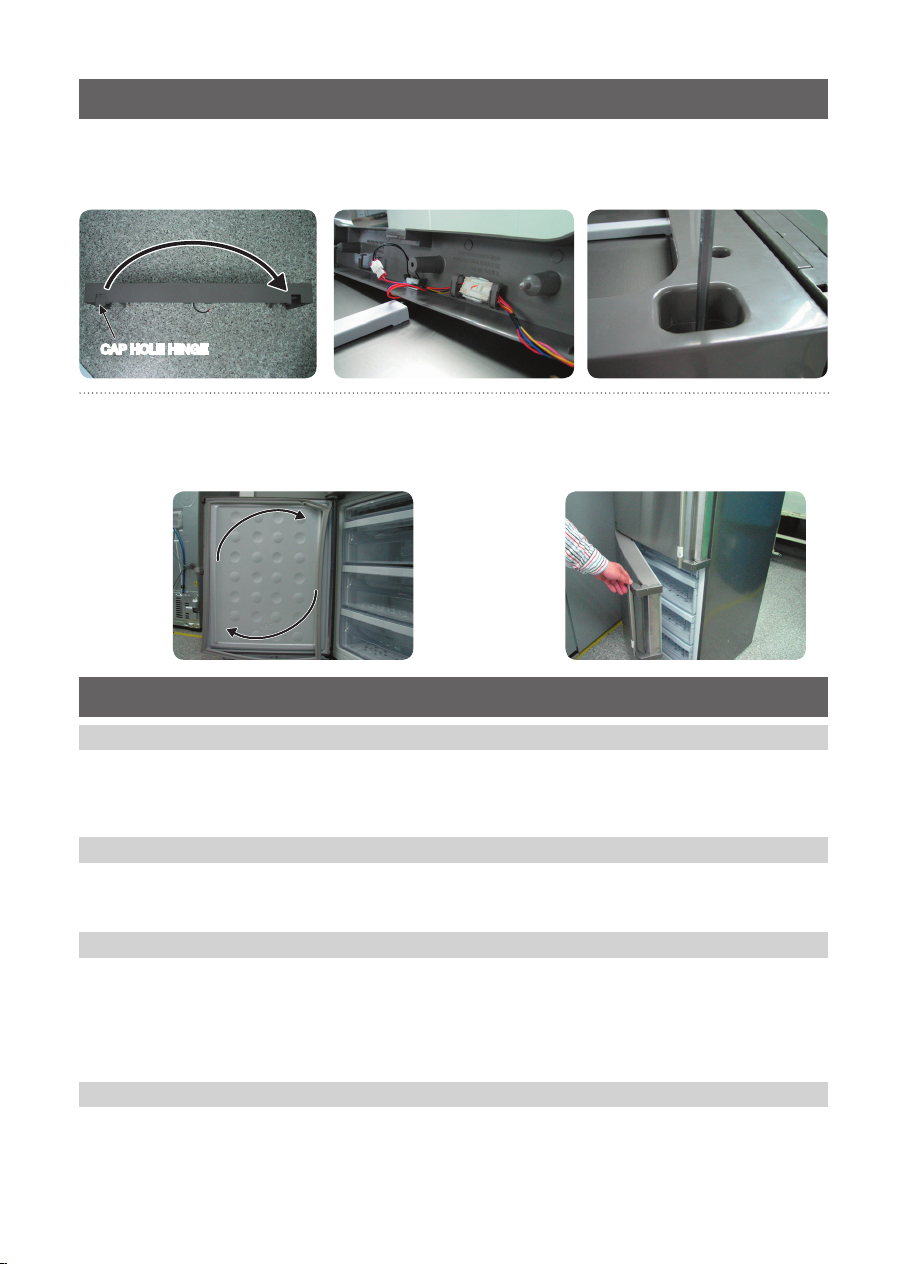

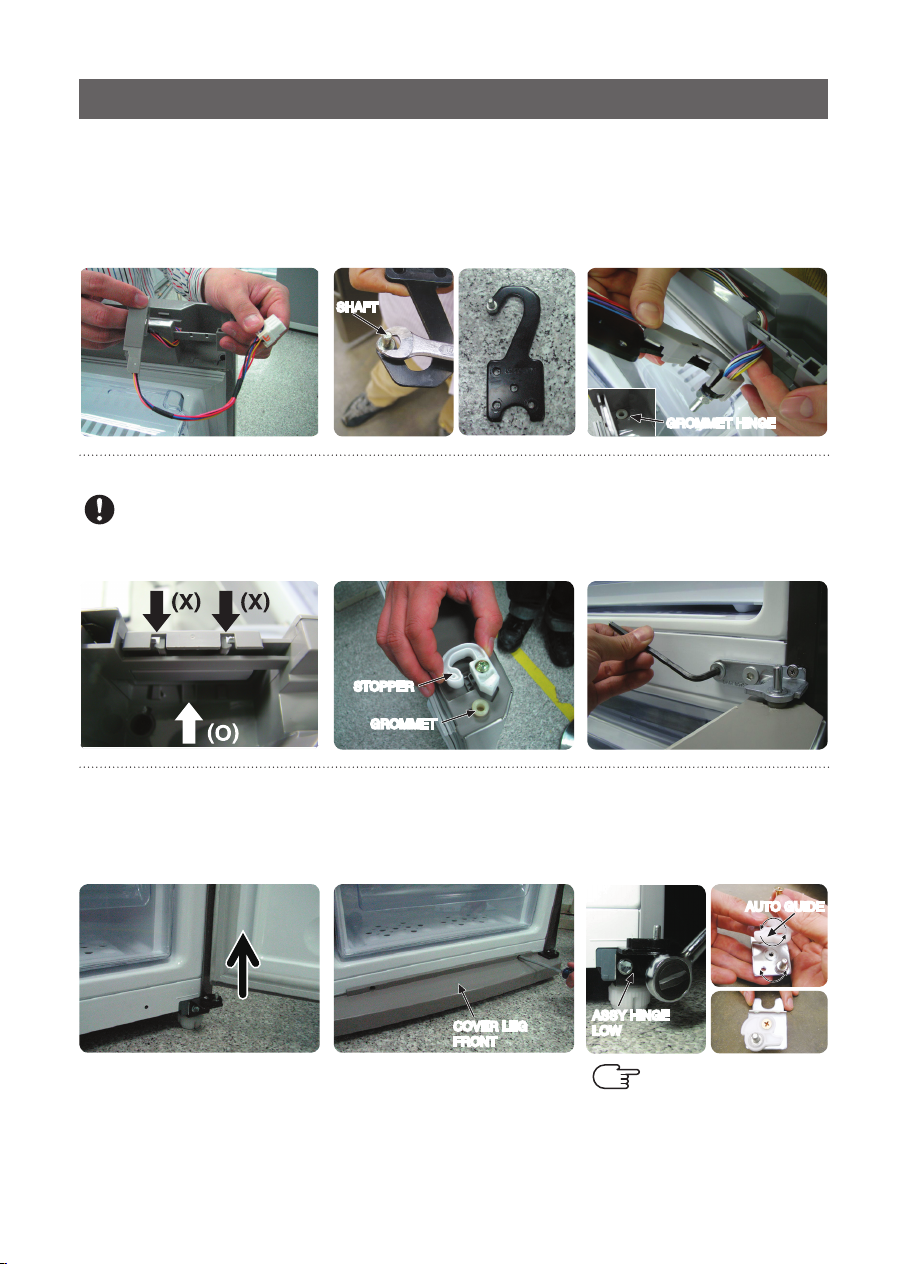

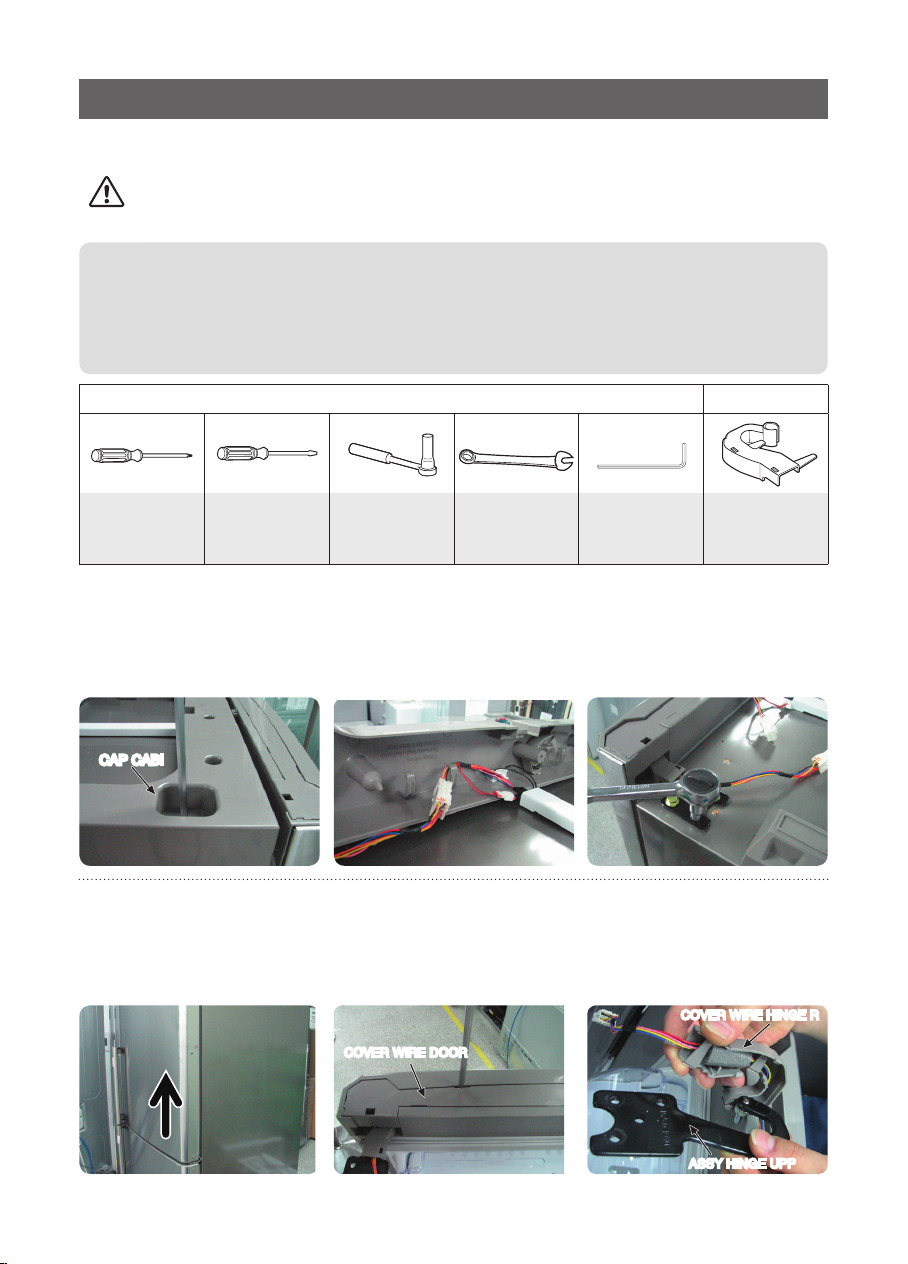

REVERSING THE DOOR SWING
...............................................
15
PROBLEMS AND SOLUTIONS ...................................................
18

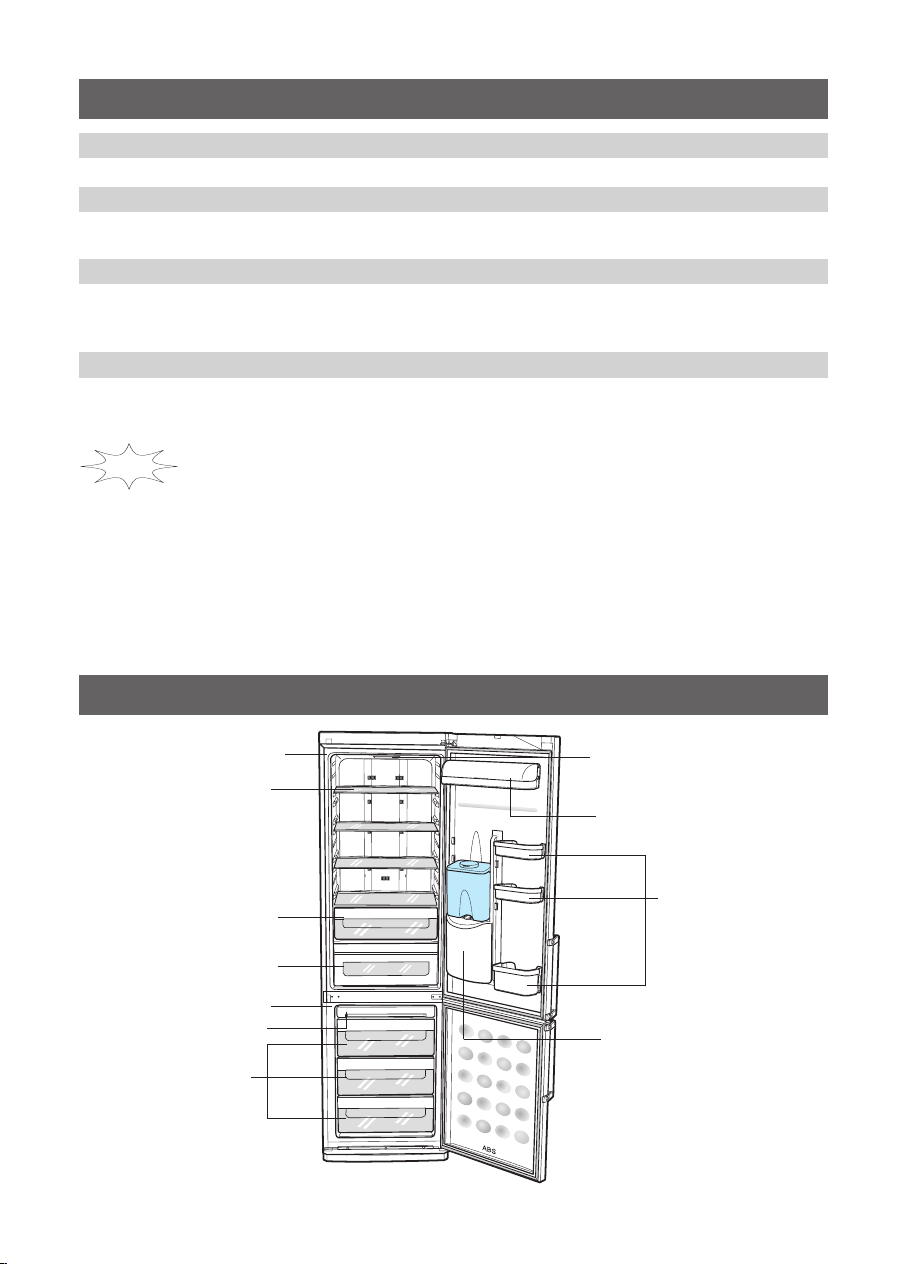

VIEW OF YOUR FRIDGE / FREEZER ........................................
19
Free Standing Appliance
2
These operating instructions cover various models. The characteristics of your appliance
may differ slightly from those described in this instructions.
SAFETY INSTRUCTIONS
CAUTION / WARNING SYMBOLS USED
OTHER SYMBOLS USED
Indicates that a
danger of death or
serious injury exists.
Indicates that a risk of
personal injury or
material damage
exists.
WARNING
CAUTION
• When using electrical appliances, basic safety precautions should be followed, including the following:
This appliance contains a small amount
of isobutane refrigerant (R600a), a natural
gas with high environ mental compatibility
that is, however, also combustible. When
transporting and installing the appliance, care
should be taken to ensure that no parts of the
refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could
ignite or cause an eye injury. If a leak is detected,
avoid any naked flames or potential sources of
ignition and air the room in which the appliance is
standing for‑several minutes.
• In order to avoid the creation of a flammable gas-air
mixture if a leak in the refrigerating circuit occurs, the
size of the room in which the appliance may be sited
depends on the amount of refrigerant used.
The room must be 1m3 in size for every 8 g of
R600a refrigerant inside the appliance. The amount
of refrigerant in your particular appliance is shown on
the identification plate inside the appliance.
• Never start up an appliance showing any signs of
damage. If in doubt, consult your dealer.
Do not place this refrigerator in direct sunlight or
expose to the heat from stoves, room heaters or
other appliance.
If you smell pharmaceutical or smoke, pull out
the power plug immediately and contact your
Samsung Electronics service center.
R600a or R134a is used as a refrigerant. Check
the Compressor label on the rear of the appliance
and the rating label inside the fridge to see which
refrigerator is used for your refrigerator.
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
SAFETY PRECAUTIONS
This refrigerator must be properly installed
and located in accordance with the
Installation Instructions before it is used.
Do not install the refrigerator in a damp place or
a place where it may come in contact with water
.
• Deteriorated insulation of electrical parts may
cause an electric shock or fire.
Do not allow children to climb, stand or hang
on the shelves or doors in the refrigerator.
They could damage the refrigerator and
seriously injure themsleves.
The appliance is not intended for use by
children or infirm persons without supervision.
Children should be supervised to ensure that
they do not play with the appliance.
If the refrigerator will not be used for vacation or
a long period of time, ensure the refrigerator is
empty and disconnect the plug from the mains.
• Most power failures that are corrected in an
hour or two will not affect your refrigerator
temperatures. However, you should minimize
the number of door openings whilst the power is
off. But Should the power failure last more than
24hours, remove all frozen food.
Allow sufficient space to install the refrigerator
on a flat surface.
Do not disassemble or repair the refrigerator by yourself.
You run the risk of causing a fire, malfunctions and/or
personal injury.
The appliance must be positioned so that the plug is
accessible after installation.
Represents something you must NOT disassemble.
Represents something you must NOT touch.
Represents something you must follow.
Indicates that you must disconnect the power plug
from the socket.
Represents a ground is needed to prevent electric shock.
Represents something you must NOT do.
WARNING
• Use this appliance only for its intended purpose as described in this Owner's Instructions.
We strongly recommend that any servicing be performed by a qualified individual.
Note
3
SAFETY INSTRUCTIONS
PROPER DISPOSAL OF THE REFRIGERATOR
Before you throw away your old refrigerator or freezer
When disposing of this or other
refrigerators, remove the door/door seals,
door latch so that small children or animals
cannot get trapped inside.
Leave the shelves in place so that children
may not easily climb inside.
When this product contains flammable
gas (Refrigerant R600a) contact your local
authority with regard to safe disposal of this
product.
Cyclopentane used as a insulation
blowing gas.
The gases in the insulation material require
special disposal procedure. Please dispose
of the packaging material for this product in
an environmentally friendly manner. Please
contact your local authorities in regard to the
environmentally safe disposal of this product.
This product contains flammable insulation
blowing gas.
Please dispose of the packaging
material for this product in an
environmentally friendly way.
CAUTIONS
•
The refrigerant used in the refrigerator/freezer and the gases in the insulation
material require special disposal procedures. Ensure that none of the pipes
on the back of the appliance are damaged prior to disposal.
WARNING
HOW TO CONNECT ELECTRICITY
When moving the refrigerator, be careful not
to roll over or damage the power cord.
Do not insert the power cord with wet
hands.
Unplug the refrigerator before cleaning and
making repairs.
Do not use a wet or damp cloth when
cleaning the plug. Remove any foreign matter
or dust from the power plug pins. Otherwise
there is a risk of fire.
If the refrigerator is disconnected from the
power supply, you should wait for at least five
minutes before plugging it back.
If the wall socket is loose, do not insert the
power plug. There is a risk of electric shock
or fire.
The refrigerator should always be plugged
into its own individual electrical outlet
which has a voltage rating that matches
the rating plate.
This provides the best performance and
also prevents overloading house wiring
circuits, which could cause a fire hazard
from overheated wires.
Never unplug your refrigerator by pulling
the power cord. Always grip plug firmly and
pull straight out from the outlet.
Make sure that the power plug is not
squashed or damaged by the back of the
refrigerator.
Do not bend the power cord excessively or
place heavy articles on it.
Have the power code repaired or replaced
immediately by the manufacturer or its
service agent if the power cord has become
frayed or damaged. Do not use a cord that
shows cracks or abrasion damage along its
length or at either end. If the power cord is
damaged, have it replaced immediately by
the manufacturer or its service agent.
4
SAFETY INSTRUCTIONS
FOOD KEEPING & TREATMENT CAUTION
Do not overfill the refrigerator with food.
• When you open the door, an item may
fall out and cause personal injury or
material damage.
Do not put bottles or glass containers in
the freezer.
• When the contents freeze, the glass
may break and cause personal injury.
•
Bottle should be stored tightly together in
the refrigerator so that they do not fall out.
Do not spray inflammable gas near the
refrigerator.
• There is a risk of explosion or fire.
Do not directly spray water inside or
outside the refrigerator.
• There is a risk of fire or electric shock.
Do not touch the inside walls of the
freezer or products stored in the freezer
with wet hands.
• This may cause frostbite.
Do not store volatile or flammable
substances in the refrigerator.
• The storage of benzene, thinner, alcohol,
ether, LP gas and other such products
may cause explosions.
Do not refreeze frozen foods that have
thawed completely.
Do not store pharmaceuticals products,
scientific materials or temperaturesensitive products in the refrigerator.
• Products that require strict temperature
controls must not be stored in the
refrigerator.
Do not put a container filled with water on
the refrigerator.
• If spilled, there is a risk of fire or electric
shock.
This product is intended only for the storage
of food in a domestic environment.
GROUNDING CAUTION
The refrigerator must be grounded.
• You must ground the refrigerator to
prevent any power one word or electric
shocks caused by current leakage from
the refrigerator.
Never use gas pipes, telephone lines or
other potential lightening rods as ground.
• Improper use of the ground plug can
result in electric shock.
CLEANING CAUTION
Do not insert your hands into the bottom
area under the appliance.
• Any sharp edges may cause personal
injury.
Never put fingers or other objects into the
dispenser hole. It may cause personal
injury or material damage.
INSTALLATION CAUTION
Do not store articles on the top of the appliance.
• When you open or close the door, the
articles may fall and cause personal injury
and/or material damage.
WARNING
• Keep ventilation openings in the appliance
enclosure or mounting structure clear of
obstruction.
• Do not use mechanical devices or any other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
•
Do not place or use electrical appliances
inside the refrigerator/ freezer, unless they are
of a type recommended by the manufacturer.
Before operating the appliance,
please read this manual throughly
and retain it for your reference.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
• Children should be supervised to ensure that
they do not play with the appliance.
5
Allow an adequate space and install the fridge/freezer on a firm, level floor.
• If the appliance is not level, there may be unusual noises and poor cooling.
• Wait for at least one hour before plugging the appliance in.
Clean the fridge/freezer.
• Wipe and clean the appliance inside and outside with a damp cloth.
Plug the fridge/freezer into a wall socket used exclusively by this appliance.
• This appliance must be properly grounded.
If the front of the appliance is slightly higher than the rear, the door can be closed more easily.
Place the food in the fridge/freezer.
• It is recommended that you wait for the appliance to cool for 2-3 hours before storing
food in it.
INSTALLING THE FRIDGE/FREEZER
LEVELLING
The appliance tilts down to the left.
Turn the left adjusting leg in the
direction of the arrow with a flat head
screwdriver until the appliance is level.
950mm
595mm
1050mm
600mm
at least
50mm
Allow the enough space for
opening drawers.
Drawers can be easily opened with
this condition.
depth with doors
opened
at least
50mm
The appliance tilts down to the right.
Turn the right adjusting leg in the
direction of the arrow with a flat head
screwdriver until the appliance is level.
at least
50mm
6
PREPARING THE FRIDGE/FREEZER
Install all shelves and compartments removed during transport in the correct positions.
Clean the fridge/freezer and accessories to remove any dust that accumulated during packing and
shipping.
The interior light of the appliance will light up when fridge door is open.
Your fridge/freezer is operated by a compressor which switches “Operation” to maintain the internal
temperature. For the first five minutes after initial start-up, it may be slightly noisy. This is quite
normal and does not represent a fault.
Store food once the temperature in the refrigerator is sufficiently low. It takes a few hours after
starting the refrigerator to reach the proper temperature.
If the appliance does not operate correctly, check the electricity supply. If the problem persists,
contact your dealer.
To prepare your appliance for use and to check that it is running correctly, take the following steps.
USING THE CONTROL FEATURES
A. Basic Model
Operation Button
• If you want to turn off, keep pressing for 3 seconds.
Temp. Control button
• Press the Temp. Control button to control the refrigerator temperature.
• Initially, the mid-point temperature setting is selected.
• There are five temperature settings, represented by five indicator lights (
➀
).
When all lights are on, the temperature is at its coldest.
• Press the Temp. Control button one or more times until the required temperature is set.
• The freezer temperature will be adjusted automatically according to the refrigerator temperature.
• If you need to freeze large amount of food stuff, set the temperature of freezer compartment as
the coldest temperature at least 24 hours before.
➀
Do not disassemble the refrigerator with unit turned on.
- It may cause electric shocks or other damages.
Note
Set the temperature control to the coldest temperature and let the refrigerator operate for
one hour.
The freezer should get slightly chilled and the motor should run smoothly with soft hum.
Loading...
