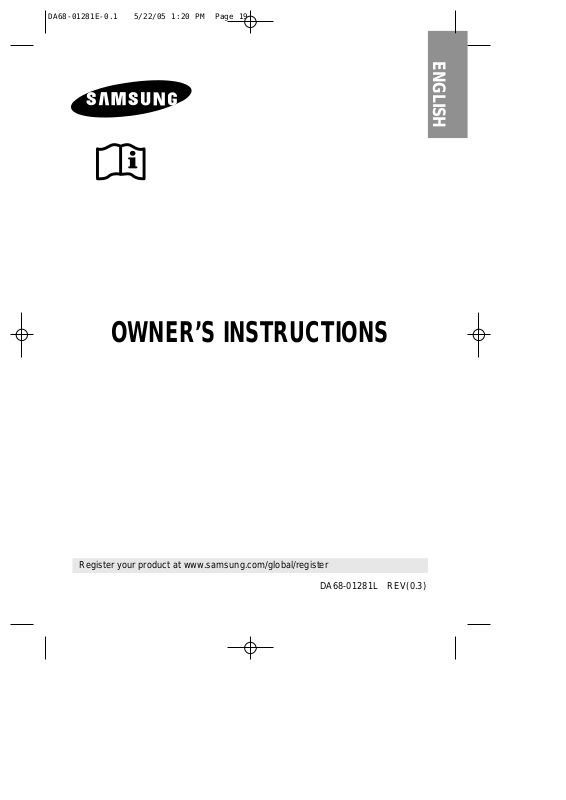

SAMSUNG RL39WBSM, RL39SBSM User Manual
ENGLISH
OWNER’S INSTRUCTIONS
Register your product at www.samsung.com/global/register
DA68-01281L REV(0.3)
FEATURES
These operating instructions cover various models.
Environment-friendly fridge/freezer using R600a
refrigerant and cyclopentane blowing agent.
• This products protects the environment by using the
R600a refrigerant and the cyclopentane blowing agent.
• Properties:
ODP (Ozone Depletion Potential):0
GWP (Global Warming Potential):Lowest
High-energy efficiency
• Optimized power consumption when using R600a and
cyclopentane.
SUPER fast freezing function
• Food can be stored in fresh conditions by cooling it
quickly via the “SUPER” freezing function.
Fresh compartment, just above 0°C
• Drawer for dry or wrapped food.
• Drawer for fresh salades, vegetables and fruits.
Fridge at the top, drawer-type freezer at the bottom
• The highly ergonomic vegetable compar tment is placed
at waist height as it is frequently used.
• The drawer-type freezer minimizes temperature variations
and stores food cleanly and conveniently.
Power on/off
• The main power switch is handy to switch the appliance on
and off without pulling out the main plug.
Digital temperature control display
• The display shows all functions of the appliance, so that
you can easily control them.
ECO
• Just press the ECO button to obtain the most energyefficient temperature settings: freezer at -17°C and fridge at
6°C.
VAC
• Save on energy consumption by switching off the fridge
and maintaining only the freezer running when you take
a long vacation or are away for any reason.
The characteristics of your appliance may differ
slightly from those described in this manual.
R600a or R134a is used as a refrigerant.
Check the compressor label on the rear of the
appliance and the rating label inside the fridge to
see which refrigerant is used for your refrigerator.
CONTENTS
FEATURES................................................................................. 1
WARNINGS / SAFETY PRECAUTIONS ................................. 2
INSTALLING THE FRIDGE / FREEZER................................... 4
PREPARING THE FRIDGE / FREEZER ................................... 5
USING THE CONTROL FEATURES..........................................5
STORING FOOD IN THE REFRIGERATOR OR FREEZER..... 8
MAKING ICE ............................................................................ 10
USING THE WATER DISPENSER (OPTION)........................ 11
REMOVING AND CLEANING THE ACCESSORIES............. 13
CLEANING THE WATER DISPENSER................................... 14
REPLACING THE INTERIOR LIGHT.......................................15
PROBLEMS AND SOLUTIONS.............................................. 15
USAGE PRECAUTIONS.......................................................... 16
VIEW OF YOUR FRIDGE / FREEZER.....................................17
1
WARNINGS / SAFETY PRECAUTIONS
To avoid any risk of personal injury, material damage or incorrect use of the appliance, be sure to
observe the following safety precautions. (After reading these owner’s instructions, please keep them in
a safe place for reference). Remember to hand them over to any subsequent owner.
Indicates that a danger of death or
Warning
Do not plug several appliances into the same
socket.
• This could cause overheating and the risk of fire.
Keep the power plug away from the rear of the
fridge/freezer.
• A damaged power plug may cause fire due to
overheating.
Do not directly spray water inside or outside the
fridge/freezer.
• There is a risk of fire or electric shock.
Do not spray inflammable gas near the
fridge/freezer.
• There is a risk of explosion or fire.
Do not bend the power cord excessively or place
heavy articles on it.
This constitutes a fire hazard.
damaged, have it replaced immediately by the
manufacturer,its service agent or a similarly
qualified person.
Do not insert the power plug with wet hands.
• You may receive an electric shock.
Do not put a container filled with liquid on top of
the appliance.
• If the water spills on to any electrical parts, it may
lead to fire or electric shock.
Do not install the refrigerator / freezer in a damp
place, where it may come into contact with water.
• Incorrect insulation of the electrical par ts may
cause an electric shock or fire.
Do not store volatile and inflammable
substances in the refrigerator.
• The storage of benzene, thinner, alcohol, ether, LP
gas or other such substances may cause an
explosion.
serious injury exists.
Warning
Do not disassemble, repair or alter the
appliance.
• It may cause fire or abnormal operations, which
Pull the power plug out of the socket before
replacing the interior light in the refrigerator.
• Otherwise, there is a risk of electric shock.
Be sure to ground the appliance.
• Otherwise, it may cause material damage and
If you wish to dispose of the refrigerator /
freezer, throw it away after removing the door or
its seals.
• In this way, it is not possible for a child to remain
If the power cord is
compatibility,but it is also combustible.When
transporting and installing the appliance, care
should be taken to ensure that no parts of the
refrigerating circuit are damaged.
Refrigerant squirting out of the pipes could
ignite or cause an eye injury. If a leak is detected,
avoid any naked flames or potential sources of
ignition and air the room in which the appliance
is standing for several minutes.
• In order to avoid the creation of a flammable gas-
• Never start up an appliance showing any signs of
Indicates that a risk of personal
Caution
may lead to injury.
electric shock.
trapped inside it.
air mixture if a leak in the refrigerating circuit occurs,
the size of the room in which the appliance may be
sited depends on the amount of refrigerant used.
The room must be 1m
R600a refrigerant inside the appliance.The amount
of refrigerant in your particular appliance is shown
on the identification plate inside the appliance.
damage. If in doubt, consult your dealer.
injury or material damage exists.
This appliance contains a small amount
of isobutane refrigerant (R600a), a
natural gas with high environmental
3
in size for every 8 g of
2
Warning
• Keep ventilation openings in the appliance
enclosure or mounting structure clear of
obstruction.
• Do not use mechanical devices or any other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the
fridge/freezer, unless they are of a type
recommended by the manufacturer.
Caution
Do not store too much food in the appliance.
• When you open the door, an item may fall out and
cause personal injury or material damage.
Do not put bottles or any kinds of glass in the
freezer.
• The container may break and cause personal
injury.
If the wall socket is loose, do not insert the
power plug.
• If may cause electric shock or fire.
Do not disconnect the power cord by pulling
on it.
• You may disconnect a wire and cause a short
circuit.
Do not store articles on top of the appliance.
• When you open or close the door, the articles may
fall and cause personal injury or material damage.
Do not store pharmaceutical products, scientific
materials or other temperature-sensitive
products in the refrigerator.
• Products that require strict temperature controls
must not be stored in the refrigerator.
Do not let a child hang from the door.
Do not touch any containers and food in the
freezer with wet hands.
• It may cause frostbite.
Remove any foreign matter from the power plug
pins.
• Otherwise, there is a risk of fire.
Do not insert your hand into the bottom area of
the appliance.
• Any sharp edges may cause personal injury.
After unplugging the appliance, wait for at least
five minutes before plugging it in again to the
wall socket.
• Abnormal operation of the freezer may cause
material damage.
If the appliance is not to be used for a long
period of time, pull out the power plug.
• Any deterioration in the insulation may cause fire.
Do not let children touch or play with the
control panel on the front of the appliance.
• Do not allow children to play with this appliance.
• Do not stand or lean on the base panel, pull-out
parts, doors and so on.
• Repairs and maintenance of the appliance should
only be performed by a qualified technician.
Incorrect repairs by an unqualified person are a
potential source of danger that may have critical
consequences for the user of the appliance.
• Never put ice cubes or ice lollies straight from the
freezer into your mouth.(The low temperature
may cause “freezer burns”.)
Caution
The refrigerant used in fridge/freezers and the
gases in the insulation material require special
disposal procedures. Ensure that none of the pipes
on the back of the appliance are damaged prior to
disposal.
3
INST ALLING THE FRIDGE/FREEZER
25cm
Allow an adequate space and install the fridge/freezer on a firm, level floor.
• If the appliance is not level, there may be unusual noises and poor cooling.
• Wait for at least one hour before plugging the appliance in.
Clean the fridge/freezer.
• Wipe and clean the appliance inside and outside with a damp cloth.
Plug the fridge/freezer into a wall socket used exclusively by this appliance.
• This appliance must be properly grounded.
Place the food in the fridge/freezer.
• It is recommended that you wait for the appliance to cool for 2-3 hours before storing food in it.
Warning
Use of an grounded socket exclusively for the
appliance:
• If you are using a socket with an earthing terminal, you
do not require a separate earthing connection.
Use of a non-grounded socket:
• Connect the “earthing wire” to the copper plate and bury
it at a depth of at least 25 cm in the ground.
LEVELLING
If the front of the appliance is slightly higher than the rear, the door can be open and closed more easily.
The appliance tilts down to the left.
Turn the left adjusting leg in the direction of the arrow with
a flat head screwdriver until the appliance is level.
The appliance tilts down to the right.
Turn the right adjusting leg in the direction of the arrow
with a flat head screwdriver until the appliance is level.
4
PREP ARING THE FRIDGE/FREEZER
On/Off Cooling Power
Low Mid High
To prepare your appliance for use and check that it is running correctly, take the following steps.
Install all shelves and compartments removed during transport in the correct positions.
Clean the fridge/freezer and accessories to remove any dust that accumulated during packing and
shipping.
The interior light of the appliance will light up when the door is open.
Set the temperature control to the coldest temperature and let the refrigerator operate for one hour.
The freezer should get slightly chilled and the motor should run smoothly with a soft hum and no
noise.
Your fridge/freezer is operated by a compressor which switches “on and off” to maintain the internal
temperature.When the compressor is new, it requires running in for a period of up to five months.
During this period, it may be slightly noisy.This is quite normal and does not represent a fault.
Store food once the temperature in the refrigerator is sufficiently low.It takes a few hours after
starting the refrigerator to reach the proper temperature.
If the appliance does not operate correctly, check the electricity supply. If the problem persists,
contact your dealer.
USING THE CONTROL FEA TURES
A. Basic Model
➀
On/Off Button
• Main power on/off switch.
• Switches the appliance on and off.
Cooling Power button
• Press the Cooling Power button to control the refrigerator temperature.
• Initially, the mid-point temperature setting is selected.
• There are five temperature settings, represented by five indicator lights (
When all lights are on, the temperature is at its coolest.
• Press the Cooling Power button one or more times until the required temperature is set.
• The freezer temperature will be adjusted automatically according to the refrigerator temperature.
➀
).
5
Loading...
