RL34EG*
RL34EC*
RL34SC*
RL34SG*
Super Freeze
Alarm On
Vacation
www.samsung.com/global/register
INSTRUCTIONS MANUAL
ENGLISH
Please join in our product registration in the following website.
Before operating the appliance, please read this manual carefully and keep
it properly for future reference.
Follow the instructions and the related safety precaution in this manual
before your proper operation.
Our products are improved constantly and it will be subject to change
without notice.
MODEL£º
English
DA68-01718A(4)
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact
the SAMSUNG customer care centre.
United Kingdom 0870 SAMSUNG (7267864)
Fax
0870 7221127 www.samsung.com/uk
Republic of Ireland 0818 717 100
+44 (0)870 7221127 www.samsung.com/uk
RL37EG*
RL37EC*
RL37SC*
RL37SG*
Page 2
Troubleshooting
The front frame and side panels of the refrigerator are hot.
There is condensate on the fresh fruit box.
There is condensate on the exterior or middle frame.
-It happens when the humidity is high.
-Wipe the moist with soft cloth.
-Condensate pipes are installed in the front frame of the refrigerator
to prevent condensation. The refrigerator may become hot during the
operation, and that is not a malfunction.
-The heat radiators (condensers) are installed on both sides of the
refrigerator. It is normal to be hot on both sides.
-The door is left open too long;
-Liquid foods are not covered properly.
-Many high water-contented foods are stored inside.
1
Contents
means the situations that may cause slight hazards or malfunctions if not
being avoided.
Welcome to buy the world famous SAMSUNG Refrigerator!
This manual includes RL34EG*, RL34EC*,
RL34SC*, RL34SG*,
As these eight
models have similar structure, RL34EG*,
is the main descriptive subject.
RL37EG*, RL37EC*,
RL37SC*, RL37SG*,
Please use the appliance according to the requirements after reading
this manual. "Warning" and "Precaution"are the important information
related to the safety. Please read it carefully.
¡ñ
Warning
means the dangerous situations that may cause potential serious hazards
if it is not operated according to the requirements.
Caution
16
Condensation/Leakage, Moisture/Icing
-The foods with smells shall be packed tightly.
-Check if there is any rotten food.
-Clean the internal refrigerator.
There is abnormal smell in the refrigerator.
-The water outlet is blocked
-Please smooth the outlet with drain plug or similar tool.
Melted frost water flows inside the refrigerator:
The refrigerator is hot on both sides and has abnormal smells.
Parts Description ............................................................. 2
Safety Precautions........................................................... 3
........................................4
Preparing the Appliance for Use
Installation Instructions
....................................................5
Control Panel....................................................................6
Food Storage Instructions...............................................10
Maintenance and Cleaning...............................................11
Removing the Accessories...............................................12
Changing the opening Directions of the Doors..................13
Troubleshooting..............................................................15

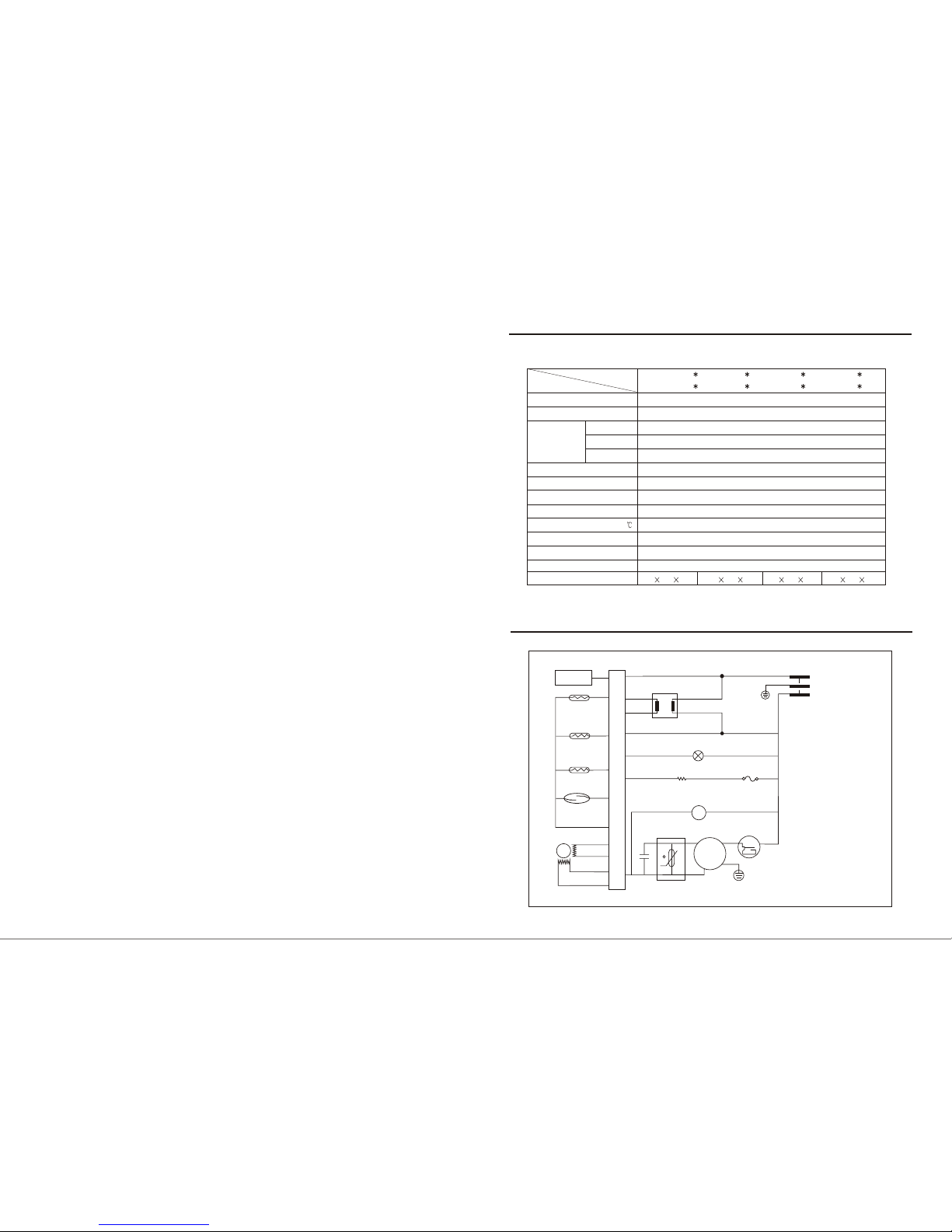

Technical Parameters and Electrical Diagram..................17
Page 3
2
RL34SC*
3
1
1
1
1
1
1
2
1
1
1
RL34EG*
1
1
Parts Description
Fruit box cover
Middle drawer
Lamp cover
Refrigerator shelf
Ice tray
Lower drawer
Air ventilation cover
Egg guard
Can guard
Large bottle guard
Temperature sensor
Upper drawer
Egg tray
NAME
Interior accessories
Door set accessories
Printed
documents
Refrigerator shelf
Fruit box cover
Fruit box
upper drawer
middle drawer
lower drawer
Egg guard
Can guard
large bottle guard
Egg tray
Ice tray
User's Manual
RL34EC*
1
3
1
1
1
1
1
1
2
1
1
1
3
1
1
1
1
1
1
2
1
1
1
Indirect refrigerating and Frost-free: The refrigerator is indirect refrigerating and frost-free
with its automatic de-frost function and even distributed temperature in the compartments.
Dual-loop: The temperatures in the refrigerator and freezer can be displayed and controlled
separately.
Left/right door opening: The direction of the door opening can be adjusted according to the
user's habit.
Features
Structure introduction
Accessories
MODEL
15
Troubleshooting
The refrigerator does not work or refrigerate.
-The plug is not plugged properly.
-The power is not connected and power socket has fault.
The power is disconnected during the operation and
reconnected within less than 5 minutes after power
disconnection.
Fruit box
RL34SG*
1
3
1
1
1
1
1
1
2
1
1
1
Not cold, not very cold and too cold
The refrigerator is not very cold.
-The doors are not closed properly.
-The temperature is set too high.
-Door seal is damaged or deformed. The sealing is not tight.
-The refrigerator has heat resources or around or is exposed
to the direct sunlight.
-The external ventilation is poor.
After the appliance has been running for a long
period of time:
-The doors are opened frequently or not closed properly.
-The external ventilation is poor. The refrigerator has long
time heat radiation.
The fridge is too cold and the foods are frozen.
-The temperature is set too low; The user is suggested to
raise the set temperature in the fridge.
The refrigerator has abnormal sounds.
The temperature in the refrigerator is reduced by the running of the compressor and the
circulation of the refrigerant etc to ensure the freshness and nutrition of the foods in the
refrigerator. During the running of the refrigerator, you can hear some slight sounds. It is
normal and please take ease to use it.
If the refrigerator is positioned slightly
not level, the running sound will be
increased. Its stabilization can be adjusted
by turning the adjustment leg on the
bottom of the body.
When the refrigerator is stopped, the
electrical components such as main control
panel, startup relay and heat protector will
have clicking or bubbling sounds suddenly
due to their connection or disconnection.
When the refrigerator is running, due to
the variation of temperature differences,
the foods are broken or the evaporator
and pipes have cracking sounds because
of their contraction and expansion.
When the compressor is running, the
sound is slightly high during the startup.
The high-efficient refrigerator has quite
higher sound when the compressor is
working strongly. When you hear the low
motor sounds, it is the sound caused by
the freezing fan to keep the temperature
regular. It is not a fault.
The temperature in the refrigerator can
drop rapidly only by the circulation of
refrigerant in the pipeline. The
refrigerant can be gas or liquid. The low
sound may be heard during the circulation.
The refrigerator is not positioned in level.
Clicking and Bubbling Sounds.
Cracking Sounds
Slight Buzzing Sounds
Air Flow or Babbling Sound
RL37EG*
RL37EC*
RL37SC*
RL37SG*
Page 4
3
Safety Precautions
Do not use inflammable aerosols such as spray paint and
dope near the refrigerator. Otherwise, there will be a risk
of explosion.
Do not let children hang on the doors or climb the
refrigerator to avoid damaging the refrigerator and
injuring the children.
Do not store corrosive, inflammable and explosive, strong
acid or alkali substances such as butane, ether, vitriol,
benzene, and alcohol. Bottles containing liquid foods also
shall not be stored in the freezer; otherwise the bottles may
be broken.
If the appliance is disconnected from the power supply, you
should wait for at least five minutes before reconnecting the
power to avoid damaging the compressor.
: If the flexible power cord is damaged, it must be
repaired by special tools. Thus, it must be replaced
by the repair store appointed by the manufacturer.
If the refrigerator can not work normally or is damaged, do
not continue using it. Pull out the power plug and contact the
local service center immediately. If the power cord is
damaged, to avoid any accident, it must be replaced by
service agent of the manufacturer or a qualified staff.
Do not splash water on the top or back of the refrigerator to
avoid reducing the insulation effects of the appliance.
If you wish to dispose of the refrigerator, please first
remove the door seals.
When the appliance is disposed of, it shall be handled by
professional staff instead of being discarded casually;
otherwise it may cause hazards or other dangers to the
environment.
CAUTION

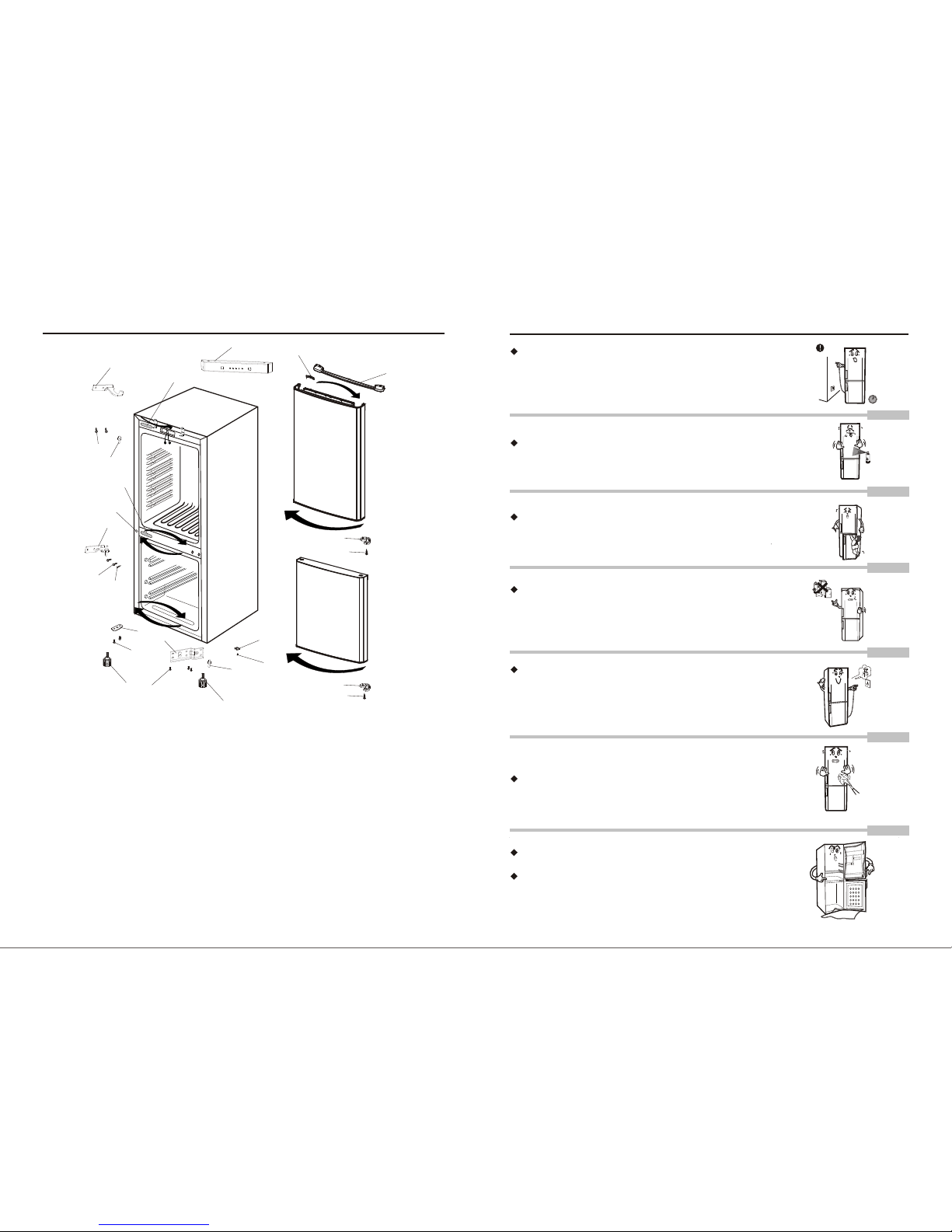

Changing the direction of the door opening(RL34SC*,RL37SC*)
14
Simply Type:
1. Take down HINGE UPP and SHAFT-HINGE and install them at the opposite side of the
HING-UPP. Take down COVER DOOR UPP and fridge door.
2. Take down SCREW A, SCREW E and MID HINGE, and then the refrigerator door. Take down
CAP HINGE HOLE, CAP SCREW CABI and SCREW F. Then fix them at right.
3. Gently incline the appliance in less than 45 degree, remove the right side FOOT, and unfasten
the SCREW D. Take down HINGE LOW, FIXER HINGE LOW , and
STOPPER HINGE LOW. Reverse and fix STOPPER HINGE LOW with FIXER HINGE LOW to
the left of HINGE LOW and .
4. Take down left FOOT and unfasten SCREW D. Take down and fix REINF to the right.
Then install FOOT.
5. Take down SCREW G and STOPPER DOOR in the fridge and freezer doors and install them at
the left of the doors. Take down CAP HOLE DOOR and CAP SPACER DOOR and fix them at
the left of the doors,
6.
SHIFT HINGE
SHIFT HINGE
Fix MID HINGE with SCREW A and SCREW E, and install the freezer door Fix HINGE-LOW to
the left and install FOOT.Put the refrigerator stable and install the fridge door.
Fix HINGE UPP with SCREW A.
7
SCREW A
SHAFT HINGE
MID HINGE
SCREW A
SCREW E
REINF
SCREW HEX
(SCREW D)
FOOT
SCREW HEX
SCREW D
HINGE LOW
SHAFT HINGE
STOPPER HINGE LOW
CAP SCREW CABI
SCREW F
CAP HINGE HOLE
CAP HINGE HOLE
CAP SPACER DOOR
COVER DOOR UPP
STOPPER DOOR
SCREW G
COVER TOP FRONT
HINGE UPP
FIXER HINGE LOW
FOOT
STOPPER DOOR
SCREW G
Page 5
4

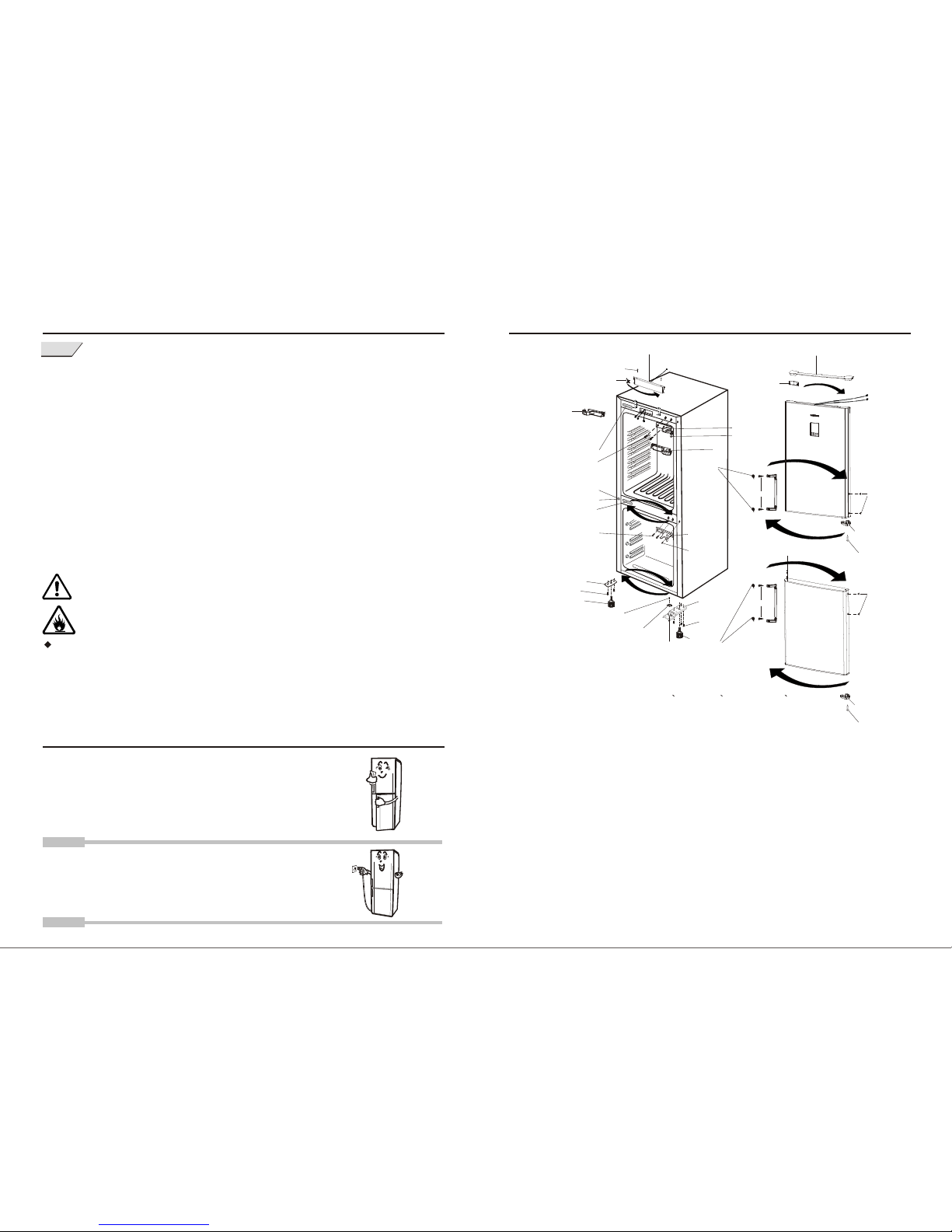

Changing the direction of the door opening(RL34EG*,RL37EG*)
Safety Precautions
When comparing the appliance with other refrigerators, please refer to the model and
number;
Before the appliance is connected to the power, verify if voltage rating of the refrigerator is
same to the power voltage. The voltage can be variable from 187V to 240V; if the power
voltage can not meet the requirements, an automatic transformer with a minimum output of
500W shall be used.
If the appliance is disconnected from the power, you should wait for at least five minutes
before reconnection; otherwise there may be a hazard to the compressor.
Do not store food close to the temperature sensor; otherwise it may display wrong
temperatures.
Do not open and close the door too frequently or for a long time during hot weather;
otherwise it may affect the efficiency of the entire unit and burden the appliance with
excessive load.
Do not leave the refrigerator upside down or horizontal or keep inclined over 45 degree to
the ground if necessary;
Do not pull or push the appliance by holding the door handles or exert too much upward/
downward forces on the door handle;
If a lot of hot foods are stored at the same time or the door is opened frequently or kept open
for a long period of time, the internal temperature will rise and the temperature display may
flash. It will be recovered normal after a period of stable operation;
The refrigerator must be located with an easy access to the power supply.
¡ô
¡ô
¡ô
¡ô
¡ô
¡ô
¡ô
¡ô
¡ô
1.Remove all the packing materials of the components,
and do remove the foam pad under the refrigerator
during the operation;
2.Clean the interior and exterior of the refrigerator with
wet warm cloth (add little neutral detergent in the warm
water).
3.The power plug can be connected around one hour after the
refrigerator is positioned stable, please make the appropriate
operations with careful reference to the page of control panel
introduction.
Preparing the appliance for use
Caution
The cooling effects originates from refrigerant that is filled through
special process. Please ensure the pipes in the rear are intact.
Alert
This appliance adopts R600a refrigerant which is combustible.
During transportation and installation, please handle the appliance carefully
to protect the cooling system from damage.
- To avoid the combustible gas composed of the refrigerant leaked from the cooling circuit and the air,
please select the room size to accommodate t he appliance according to the refrigerant quantity.
The room size shall be calculated as per the criterion of 8g R600a per square metres.
For details of the refrigerant quantity, please refer to the manual.
- Do not start the appliance that has any damage. If any problems, please contact the dealer or
service centre.
The refrigerant leaked from the pipe may catch fire or hurt your eyes. If refrigerant leakage occurs,
please keep away the fire or potential fire source, and keep the room aired for several minutes.
13
1. Take down the SCREW B which is fixing the COVER TOP
FRONT and then COVER TOP FRONT. Pull out the wire inserts.
Take down COVERHINGE UPP R SCREW A HINGE UPP R
COVER DOOR UPP and fridge door.Take down and fix SHAFT-HINGE
to the opposite side of HINGE UPP.Take down CAP HOLE TOP at
COVER TOP FRONT and install it on the right of COVER TOP FRONT.
2. Take down SCREW A, SCREW E and MID HINGE of the fixing hinge and then freezer door.
Take down CAP HINGE HOLE, CAP SCREW CABI and SCREW F at left and install them at right.
3. Gently incline the appliance in less than 45 degree, remove the right FOOT and unfasten
SCREW D. Take down right HINGE LOW. Then take down FIX HINGE LOW,SHIFT HINGE
and STOPPER HINGE LOW.Reverse STOPPER HINGE LOW and fix it to the left of
HINGE LOW with FIXER HINGE LOW andSHIFT HINGE.
4. Take down the left FOOT and unfasten SCREW D.
Take down and fix REINF to the right. Then fix FOOT.
5. Take off the SCREW G and STOPPERDOOR in the freezer door and install them at the left
of the door.Take off CAP HOLEDOOR, CAP SCREW HANDLE, SCREW C, ASSY HANDLE BAR,
and CAP SPACER DOOR, and install them at the right of the door.
Install CAP HOLEDOOR on the left of the door.
6. Fix MID HINGE with SCREW A and SCREW E, and install the freezer door Fix HINGE-LOW to the
left and install FOOT.Put the refrigerator stable and install the fridge door.
Fix HINGE UPP with SCREW A.
7. Fix the wire inserts properly.Install COVER HINGE UPP L and cover it with COVER DOOR UPP.
8. Install COVER TOP FRONT and finally fasten SCREW B.
COVER TOP FRONT
CAP SCREW CABI
CAP HINGE HOLE
MID HINGE
REINF
SCREW D
FOOT
HINGE LOW
CAP HANDLE
SCREW A
HINGE UPP R
FOOT
SCREW B
CAP SPACER DOOR
COVER TOP UPP
CAP HOLE DOOR
STOPPER DOOR
STOPPER DOOR
CAP HOLE DOOR
STOPPER HINGE LOW
FIXER HINGE LOW
COVER HINGE UPP L
COVER HINGE UPP R
CAP SCREW HANDLE
SCREW A
SCREW E
SCREW C
CAP SCREW HANDLE
SCREW C
SCREW D
SCREW F
CAP HINGE HOLE
SCREW G
SCREW G
SHAFT-HINGE
CAP HOLE TOP
SHAFT HINGE
Advance Type:
Page 6
5
Your refrigerator should be put in a solid and level place.
The adjusting leg on the bottom of the refrigerator shall be
turned to adjust its horizontal location if not level. (lifting it
up counterclockwise)
The distance between the wall and rear or sides of the
refrigerator should not be less than 55 mm and the top
clearance shall not be less than 55 mm.
Keep the appliance away from any heat sources and avoid
the direct sunlight.
The appliance should not be put in a humid environment to
avoid that its metal parts become rusty or their insulation
effects get reduced. In case of any natural disasters (i.e.
storm, accident), if the refrigerator has been soaked in
water, you should go to the appointed local SAMSUNG
service centre for repair. You can use it again only when
you make sure if there is no problem.
For the safety concerns, the refrigerator must be earthed
correctly and shall not be earthed through telephone wire
or gas pipe.
Do not have the power cord pressed by any object.

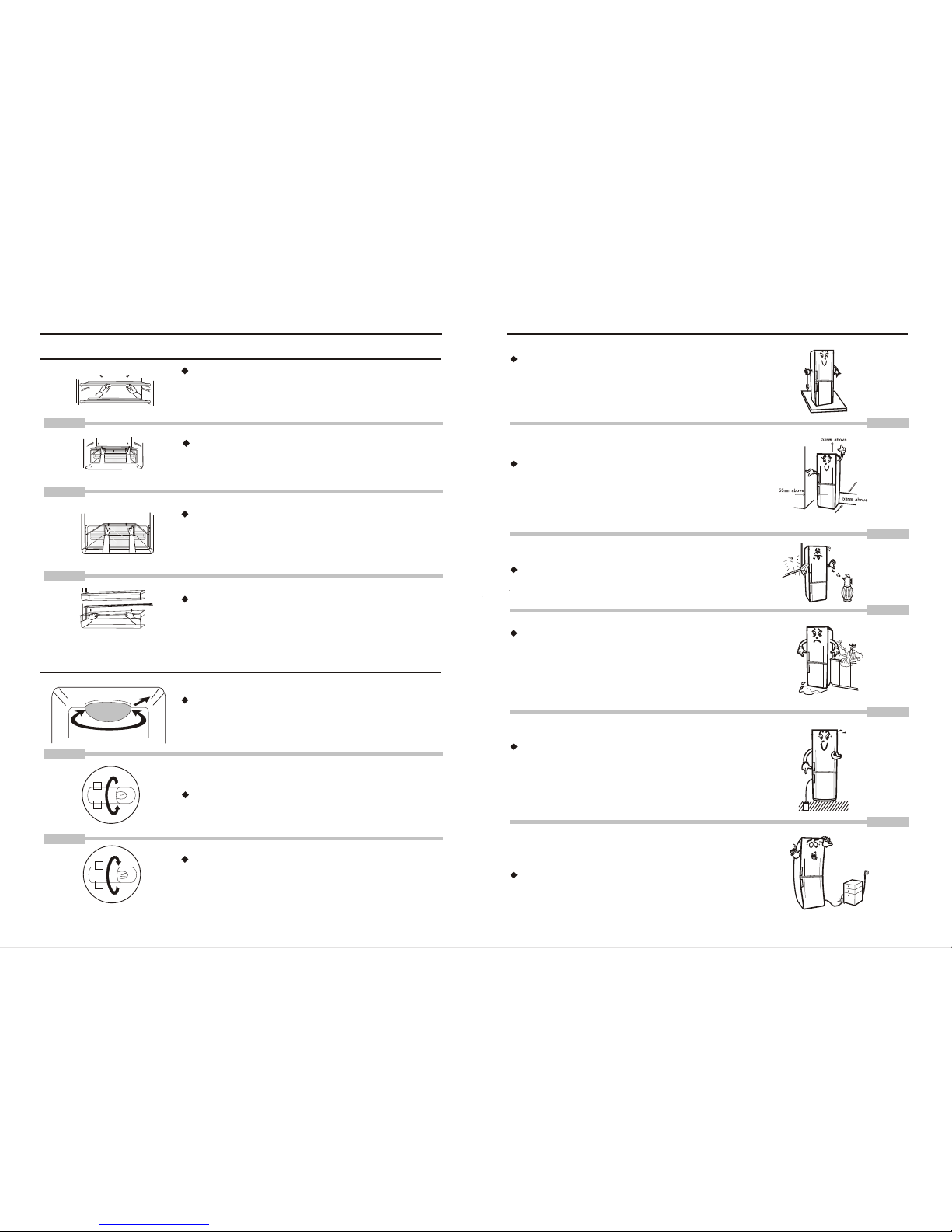

Installation Instructions
12
Removing the Accessories
Lift the back of the fresh fruit drawer cover up to take
it out.
Fruit box cover
Lift the back of the shelf up to take it out.
(Its location can be changed as per the heights
of the containers)
Refrigerator shelf
Pull it out till the edge and then lift it up to remove it;
If it contains heavy articles, you need to lift it up
slightly to put it back;
Freezer Drawer
Egg Tray and Large Bottle Guard
Lift them up to take out.
The use of the Accessories
Turn the bulb counterclockwise to take it out.
Replacing the lamp bulb
Pull out the power plug.
Insert the (+)screw driver into the lamp cover from
the gap and lift the cover up to take it out.
Turn the new bulb clockwise.
Put the lamp cover back into the slot. Fasten the
screw back at the back of the lamp cover.
Parameter of the lamp bulb: 220V/240V, 30W E14.
Page 7
6

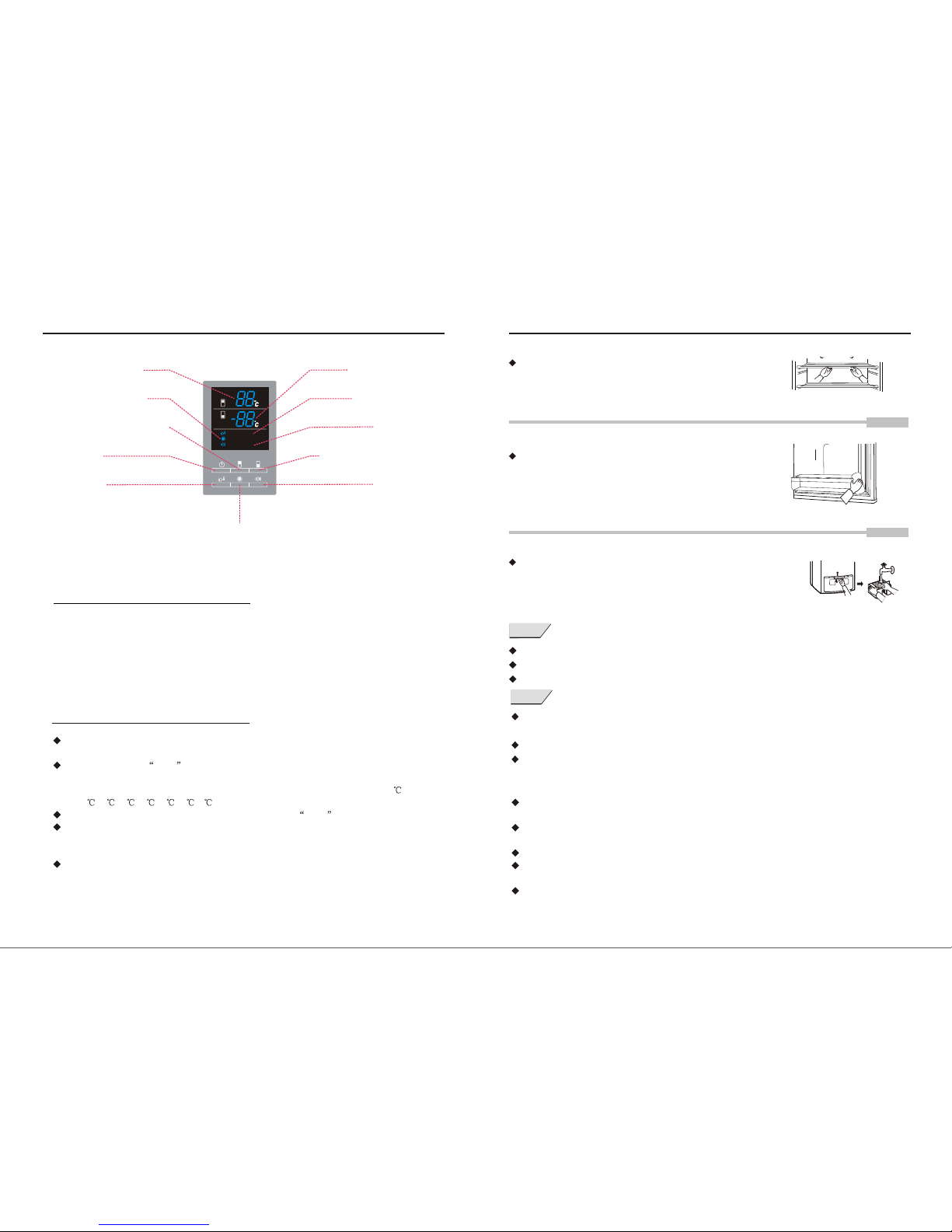

2. Refrigerator Temperature Setting
2-1.
2-2.
2-3.
2-4.
2-5.
You may adjust the temperature in the refrigerator by pressing the
temperature setting button;
You will hear a Ding sound when you press the button, then the current
temperature will be displayed. You may set a new temperature by pressing
the button again. The temperature will be changed in a sequence of 3 ,
2 , 1 , 7 , 6 , 5 , 4 ,3 , every time once you press the button;
Every time you press the button, you will hear a Ding sound;
5 seconds after you press the button, the selected temperature will be
confirmed. The screen will recover to display the current refrigerator
temperature;
In Vacation Mode, the refrigerator temperature will not be displayed. If you
press the Refrigerator Temperature Setting button, the appliance will
automatically quit from the Vacation Mode. The refrigerator temperature will
be controlled according to the set temperature.
1. Power Button
Super Freeze
Alarm On
Vacation
Refrigerator Temperature Setting
Freezer Temperature Setting
Super Freeze
Refrigerator Temperature
Super Freeze Mode
Freezer Temperature
Super Refrigeration Mode
Vacation Mode
Power On/Off
Alarm Button
Alarm On/Off
Control Panel (RL34EG*, RL34EC*, )RL37EG*, RL37EC*
1-1.While the refrigerator is running, all the lamps will be off and the appliance stops
running if you press the button and hold for 3 seconds;
1-2.If you press the button again and hold for 3 seconds, it will start running again and
the temperatures will be set at the levels before you turned it off.
¡ô
¡ô
11
Maintenance and Cleaning
Remove all the shelves, guards, trays, covers, and drawers,
and clean them with a wet warm cloth.
For interior accessories:
Door Seal:
Clean the door seal carefully; the chopstick wrapped with
cotton wool may be used to clean the grooves.
It shall be wiped off if being cleaned with water.
Receiving Water Pan:
Loosen the screw in the middle of the compressor cover.
Pull out a little and lift the pan up to take it out.
Clean it up before putting it back.
Unplug the appliance before you clean it;
Make sure there is no water entering the lamp cover;
It is better to use neutral detergent to clean the refrigerator.
The glass shelf is a removable accessory and relatively heavy.
Please prevent the children from moving it to avoid any injury.
If the refrigerator is not installed level, it may cause abnormal noise;
For the initial startup of the appliance, it will take a period of time for the machine to
cool down from the ambient temperature to a set temperature. It is usually 3 hours
before the appliance can work normally.
Caution
Warning
Keep ventilation openings, in the appliance enclosure or in the build-in structure,
clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Page 8
7
4. Vacation Function Button
4-1.Once you press the vacation function button, the refrigerator will be shifted to
the vacation mode. The refrigerator will be turned off and the refrigerator
temperature lamp will also be off. You will see Vacation lamp turned on.
4-2.In vacation mode, if you press the temperature setting button, the appliance
will quit from the current mode. The refrigerator temperature will be controlled
according to the set temperature.
4-3.If you press vacation function button again, the refrigerator will be turned on
and the temperature display lamp will be on. The refrigerator's temperature will
be controlled according to the set temperature before the vacation mode is off.
5. Super Freeze Button
5-1.Press Super Freeze button, the refrigerator will be shifted to Super Freeze mode,
then the Super Freeze lamp will be on;
5-2.Press Super Freeze button again, you will quit from the super freeze mode or the
appliance will automatically quit from the super freeze mode 2.5 hours later;
5-3.When the appliance is in the super freeze mode, the refrigerator temperature is
controlled according to its set temperature. Freezer temperature can be set, but its
actual control shall start after the refrigerator quits from super freeze mode.
6. Alarm Button
6-1. Alarm On
6-2.
When you press the alarm button, the door alarm will be off, the
lamp will be off. The appliance will not alarm when the door is left open;
When you press the button again, the alarm will be on again;
3. Freezer Temperature Setting Button
3-1.You can set the freezer temperature by pressing the freezer Temperature
button.
3-2.Press the temperature setting button, you will hear the Ding sound.
The freezer setting temperature will display the current set temperature.
Every time you press the button, the temperature will be changed in a
sequence of-20 , -21 , -22 , -23 , -24 , -25 , -14 , -15 , -16 , -17 ,
-18 , -19 , -20 .
3-3.Every time you press the temperature setting button you will hear the Ding
sound.
3-4.5 seconds after you press the button, the temperature you set will be
confirmed. The screen will then display the current temperature before you
set the new one.
Control Panel (RL 34 EG*, RL 34EC*, )RL 37EG*, RL 37EC*
10

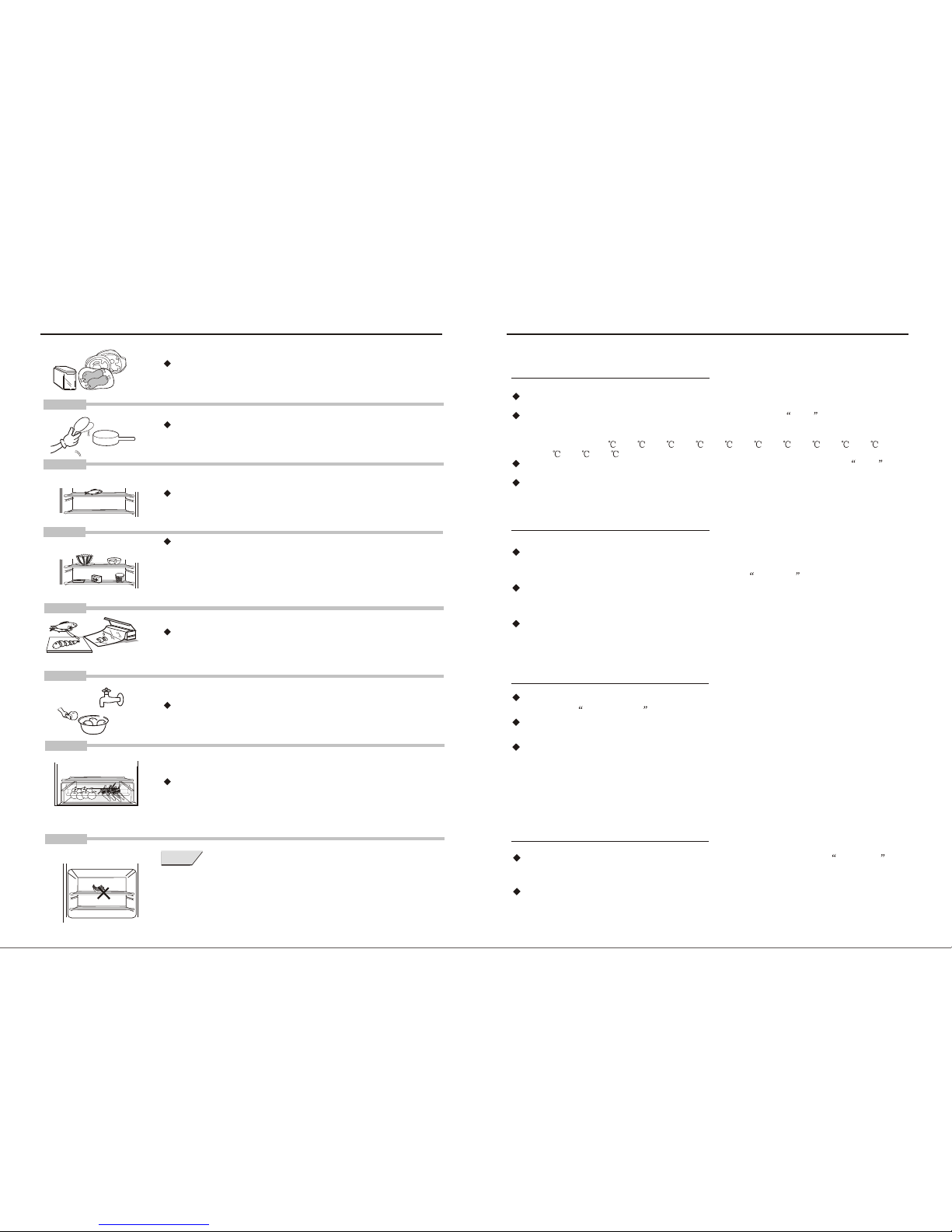

Food storage instructions
Stored food should be wrapped with the fresh bag, film
or put in the food containers with covers to avoid the
foods from being dried or smell affected.
Hot foods and drinks should be cooled to the room
temperature before they are put into the refrigerator.
Cooked and uncooked foods should be stored separately.
Stored foods should not be placed too compact to ensure
that there is enough space for good cool air circulation.
Air vent at the rear should not be blocked.
Caution: 1. Do not place the food close to the
temperature sensor;
2. Food or container should not be
against the rear wall.
It is better to store the food by dividing them
into small pieces.
It is better to wash the washable foods such as fruits
or vegetables before storage.
Tropical fruits such as bananas and pineapples shall not
be stored in the refrigerator;
Articles that have strict requirements for the temperatures
such as blood serum, vaccine,or academicmaterials shall
not be stored in the refrigerator.
Fruits and vegetables shall be stored in the fresh
fruit drawer to keep their water contents and
freshness.
Caution
If you need to freeze large amount of food stuff, set the temperature of freezer
compartment as the coldest temperature before you turn on the Super Freeze Button.

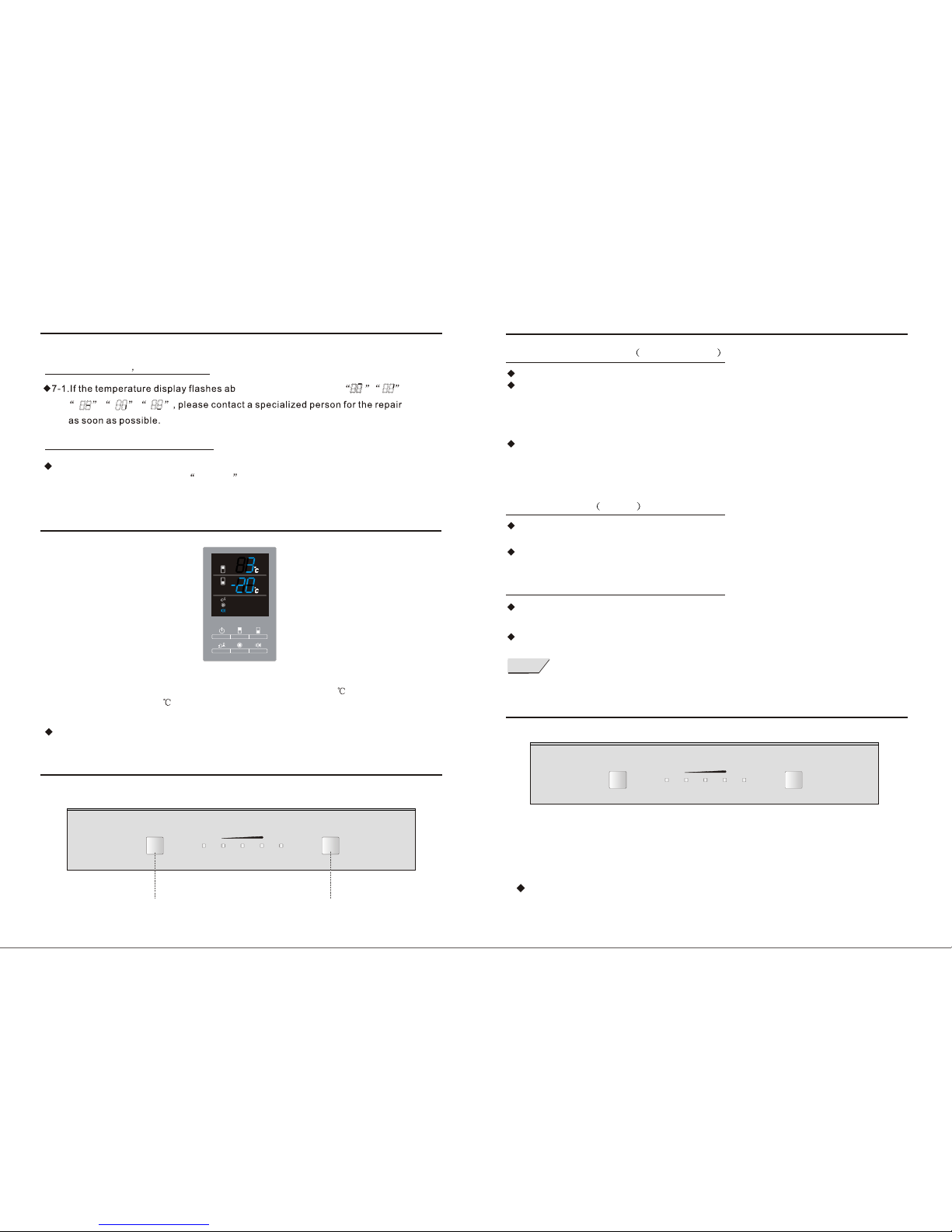

Page 9
8
First Power-on and Temperature Adjustment
When the appliance is connected with the power for the first time , all the displays will be on
for 2 seconds. The refrigerator temperature will be automatically set at 3 while the freezer
temperature will be set at -20 . The door opening alarm is on while the refrigerator and
freezer temperatures are displayed.
You may set the inside temperatures according to your actual requirements.
8. Door Open Alarm function
8-1.In the Door Open Alarm function, if you open the door for a long period of time,
the refrigerator will give off DeeDee sound at intervals to Remind you of
closing the door.
7. Malfunction Alarm Function
Super Freeze
Alarm On
Vacation
Power Button
Temperature Setting Button
Control Panel (RL34SC*,RL34SG*, )RL37SC*,RL37SG*
9
1.Temperature Setting Temp.Control
1-2.
The set temperatures will be circulation
displayed according to some sequences when pressing the buttons.
1-3.
1-1.Press Cooling Power button to set the temperatures;
Press the Cooling Power button and the refrigerator will flash to display the current
set temperatures. If you press the button again, the new temperature will be set.
There are five temperatures as options.
The more the
lamps are on, the cooler the temperature will be;
The set value will be confirmed five seconds after stop pressing the button, the
currently selected temperature will be confirmed and be displayed.
2.Power Button Power
2-1.
2-2.
During the operation of the refrigerator, if the button is pressed for 3
seconds,all the lamps will be off and the refrigerator will stop running.
If the button is pressed for another 3 seconds, the refrigerator will start
running again.
3.Malfunction Alarm Function
3-1.
3-2.
If the following problems occur, please notify the specialized staff to repair
the refrigerator.
If the indicating lamp is flashing, it means the refrigerator has problem.
If you want to clean the refrigerator,do pull out the power plug.
The First Power Connection and Temperature Adjustment
When the appliance is connected with the power, all displays will be on for 2
seconds, and then the refrigerator will enter the set operation mode
automatically. (3 lamps on)
The inside temperature is usually set under the default setting mode
(3 lamps on) or is adjusted according to the actual requirements of the user.
Caution
Power
Colder Coldest
Temp.Control
Power
Colder Coldest
Temp.Control
The panel is on the upper frame.
If you need to freeze large amount of food stuff, set the temperature of freezer
compartment as the coldest temperature at least 24 hours before.
normally and shows as
Control Panel (RL34EG*, RL34EC*, )RL37EG*, RL37EC*
Control Panel (RL34SC*,RL34SG*, )RL37SC*,RL37SG*
Page 10
Electrical Diagram
Technical Parameters
Electrical Shock Protection Class
Effective Capacity
(L)
Rated voltage/ Frequency/Current
Total Input Power (W)
Freezing Capacity kg/24h
Refrigerant and Fill-in Amount
Overall Size (W*D*H)(mm)
Defrost Power (W)
Climate Type
Weight(kg)
DESCRIPTION
Power Consumption kWh/24h(25 )
Max. Power of Lamp(W)
Total Effective Capacity
Refrigerator
Freezer
MODEL
À䶳ÊÒ
RL34EG RL34EC RL34SC RL34SG
600 685 1775
220V-240V/50Hz/0.48A
R-600a,0.055Kg
286
201
85
10
0.945
71
SN,N,ST
I
100
30
250
595 646 1775 595 646 177517600 685 1775
RED
RED
RED
RED
O/L PROTECTOR
RED
EARTH
2
TEMP FUSE
Y/GRN
1
3
B/WHT
C
Y/GRN
FAN MOTOR
COMPRESSOR
1~
M
GRY
LAMP
M
M
M
S
P.T.C RELAY
DEFROSTHEATER
TRANSFORMER
t
RUNNING
CAPACITOR
MAIN CONTOROL PCB
BLK
BRN
RED
F-SENSOR
PANEL PCB
BLU
REF-SENSOR
F-EVAP
SENSOR
REED SWITCH
PINK
RED
WHT
YEL
DAMPER
BLU
GRY
BLU
BLU
RED
PINK
RED
YEL
BLK
BRN
BLU
B/WHT-BLACK/WHITE
BRN-BROWN
BLU-BLUE
GRY-GRAY
WHT-WHITE
YEL-YELLOW
Y/GRN-YELLOW GREEN
EARTH
RL37EG RL37EC RL37SC RL37SG
Loading...
