INSTRUCTION MANUAL
MODEL:
RL33SB
RL33EB
RL33EA
ENGLISH
DA68-01339C(5)
Please read all the safety precautions included in this manual prior to use
and retain this manual properly for future reference.
Please read through this manual before connecting to power and keep it
for future reference.
Any change relating to this manual will result in no additional notice due to
continuous improvement made on our products.
Register your product at www.samsung.com/global/register
Page 2
TECHNICAL PARAMETERS
CONTENTS
DESCRIPTION
Climate type
Electric shock proof
Effective volume
(L)
Rated voltage & frequency
Total input power (W)
Frost thaw power (W)
Max.lighting power(W)
Power consumption kWh/24h(25 C)
Freezing capacity kg/24h
Refrigerating agent and dosage(g)
Weight (kg)
Visual dimension(width*deepth*hight)(mm)
MODEL
Total volume
Refrigerator
Freezer
CIRCUIT DIAGRAM
RL33SB RL33EB RL33EA
ST
I
290
200
90
220V-240V~/50Hz
100
300
20
0.87
12
R-600a,60g
76
595 646 1774
Parts description-----------------------------------2
Safety notes-------------------------------------------3
Pre-running issues-----------------------------------4
Installation and Placing notes--------------------5
Control panel introduction-------------------------6
Storing Foods----------------------------------------11
Maintenance and cleaning------------------------12
Dismount method of attachment ----------------13
Trouble shooting-----------------------------------14
Technical parameters and circuit diagram----16
Welcome to buy the world famous brand samsung refrigerator!
This manual includes three similar modelsof RL33SB
RL33EA RL33EB ,where RL33EB is dominater
by discriptions.
16
Please read this manual and use it as instructed. The messages marked with
"Warning" and "Notes" were about safety and of high importance.
Please read it carefully and repeatedly.
WARNING
Which means it is possible to cause potential and severe damage
about dangerous issues if the instructions not followed.
NOTES
Which means it may cause slight damage or performance
failure if certain cases not avoided.
1
Page 3
PARTS DESCRIPTION
Product features
Indirect cooling and frost-free: The refrigerator is the type of interval cooling and frost-free,
Double temperature display and double control modes:
The temperature of both cooling and freeze cabinets can be read and controlled respectively.
Revolving icebox: convenient for ice-making and its preservation.
Structure introduction
Control panel
Lamp cover
Air ventilation cover
Preservation cabinetshelf
Fruit box cover
Fruit separation sheet
Fruit box
Revolving icebox(option)
Ice storage box(option)
Upper drawer
Lower drawer
Attachment
Description
Preservation cabinet shelf
Cabinet attachment
Fruit box cover
Fruit box
Revolving icebox
Ice storage box
Smaller drawer
Upper drawer
Lower drawer
Door attachment
Egg guard
Can guard
Big bottle guard
Tray egg
Bottle separation sheet
Steel frame
Printed
documents
User manual
auto defrost and even cabinet temperature.
C C
Model
RL33SB
3
1
1
0
0
0
2
1
1
1
1
1
1
1
2
1
1
1
1
11 1
RL33EB
3
1
1
1
1
1
1
1
1
2
1
1
1
1
Tray egg
Temperaturesensor
Can guard
Sterilized &deodorized
fresh-keeping box
(behind fruit basket)
Steel frame
Bottle separation sheet
Bigbottleguard
Small drawer(option)
Egg guard
RL33EA
TROUBLE SHOOTING
Refrigerator stops working
- The plug is connected improperly .
Long time running takes place
-
Hot in summer.
-
The door is opened and closed frequently.
-
The temperature setting is too low.
-
The ventilation outside of the unit is in bad situation.
The foodstuff in the refrigerator was frozen up.
-
The temperature setting is too low.
-
The foodstuff is in contact with the back cold
resource.
-
The appliance is under the state of deepfreeze.
Refrigerator emits noise
-
The inner items are not evenly placed.
-
The refrigerator is installed unevenly.
-
The unit is located too close to wall.
-
The external refrigerating pipe is in collision with
each other or the unit wall.
-
There are foreign objects behind or under the unit.
-
The noise is generated during compressor operation.
When the freezing function is not adequate.
-
3
1
1
1
1
1
1
1
1
2
1
1
1
1
The door is not shut properly.
-
The temperature setting is too hot.
-
The door gasket is damaged or deformed, which impairs the
sealing effect.
-
The refrigerator is laid near heat resource and exposed in
the sunlight.
- The refrigerator is stuffy inside.
The water result from frost thaws floods
in the refrigerator.
- The drainage outlet is blocked.
If it still does not work with above causes, please ask help from the appointed repair station
with The Repair Guarantee Card, or call the SAMSUNG Technical Service Center.
2
15
Page 4

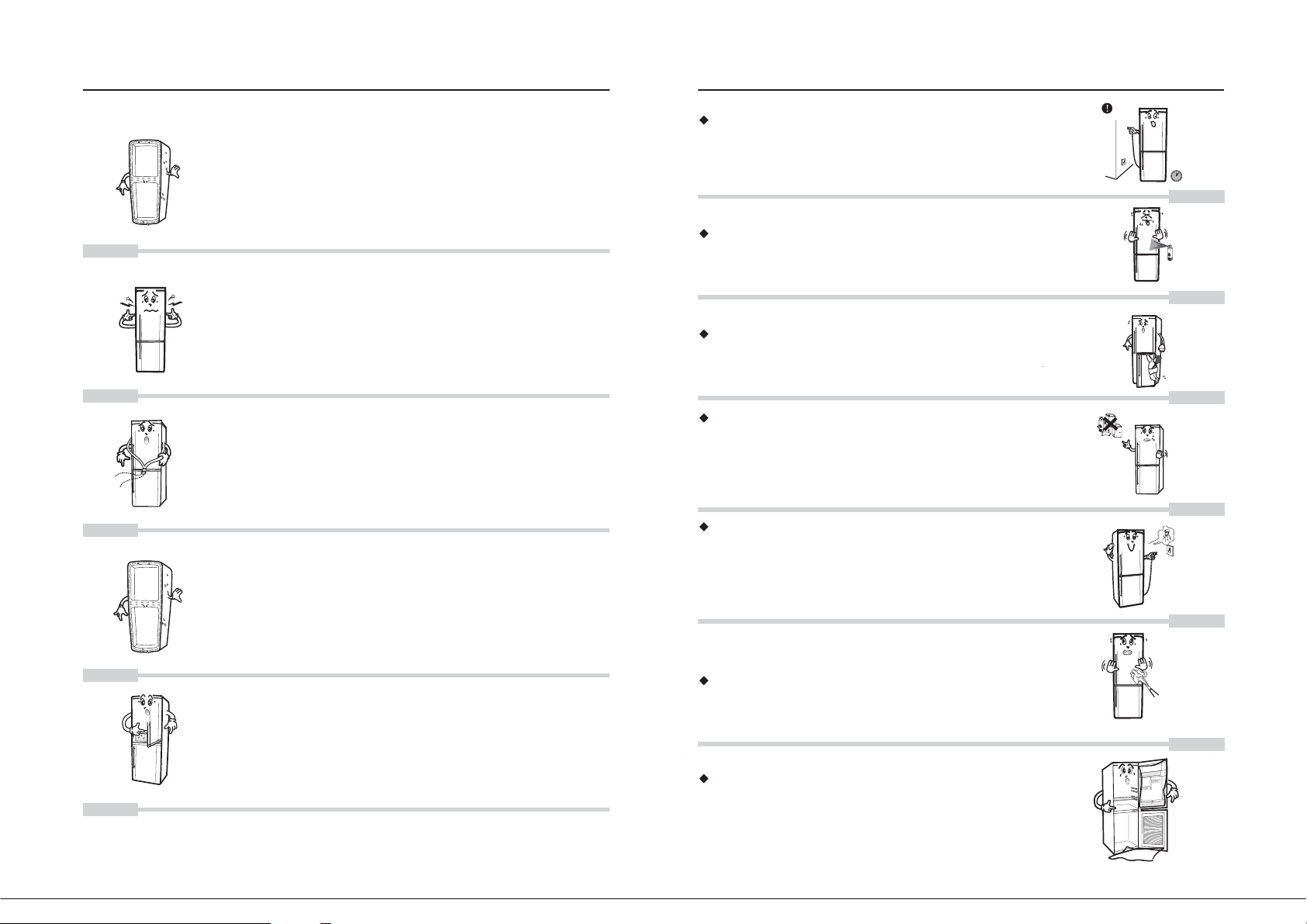

TROUBLE SHOOTING
SAFETY NOTES
The front or side wall grows hot
--For the sake of restraining water steam condensing on
the unit frame, the frame is embedded with dew proof
pipe that will heat during the unit operation. It is not a
problem.
In both sides of the refrigerator was fitted with devices
to drive off heat (condenser).
Ice crack sound.
- While refrigeratory starting to run or stopping,
temporary ice crack sound may be heared because
the inner mechanisms occured inordinate heat
expansionthe or cold shrink caused by severe
temperature change,which is not a failure.
Bicker is heard.
--It's the sound arising from refrigeration agent when
it flows.
It is not malfunction.
Dew appears on the inner bottom and frame.
--The environment is too moist.
Not a trouble, just wipe it by cloth.
Cautions:
The power cut-off should not be reconnected within 5
minutes to prevent the compressor being damaged.
Never use the combustible sprays like lacquer and
paint near the machine for those will cause blasting
hazard.
Don't let children play with or hang on the unit as this
will damage the unit or hurt children.
Neither store inflammable, explosive items, strongacid
and alkali corrosive items, such as butane, ether,
benzene, sulfuric acid, gas, alcohol and so on, nor put
the bottled fluid food in the freezer as the bottle might
crack.
When the refrigerator works in malfunction, or is damaged,
operation shall be stopped immediately. Cut off the power
and call the local service center.
Damaged power cord should be replaced by the manufacturer
representatives or the personnel with same qualification.
If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a smililar qualified
person in order to avoid hazard.
14
Do not splash the water to the unit back as this will impair
the insulation.
Dew is found in the fruit and vegetable room.
--It occurs when the door is open for a long time.
The fluid food is not sealed.
In case of discard the refrigeratory, please discard the
door seal at first.
3
Page 5

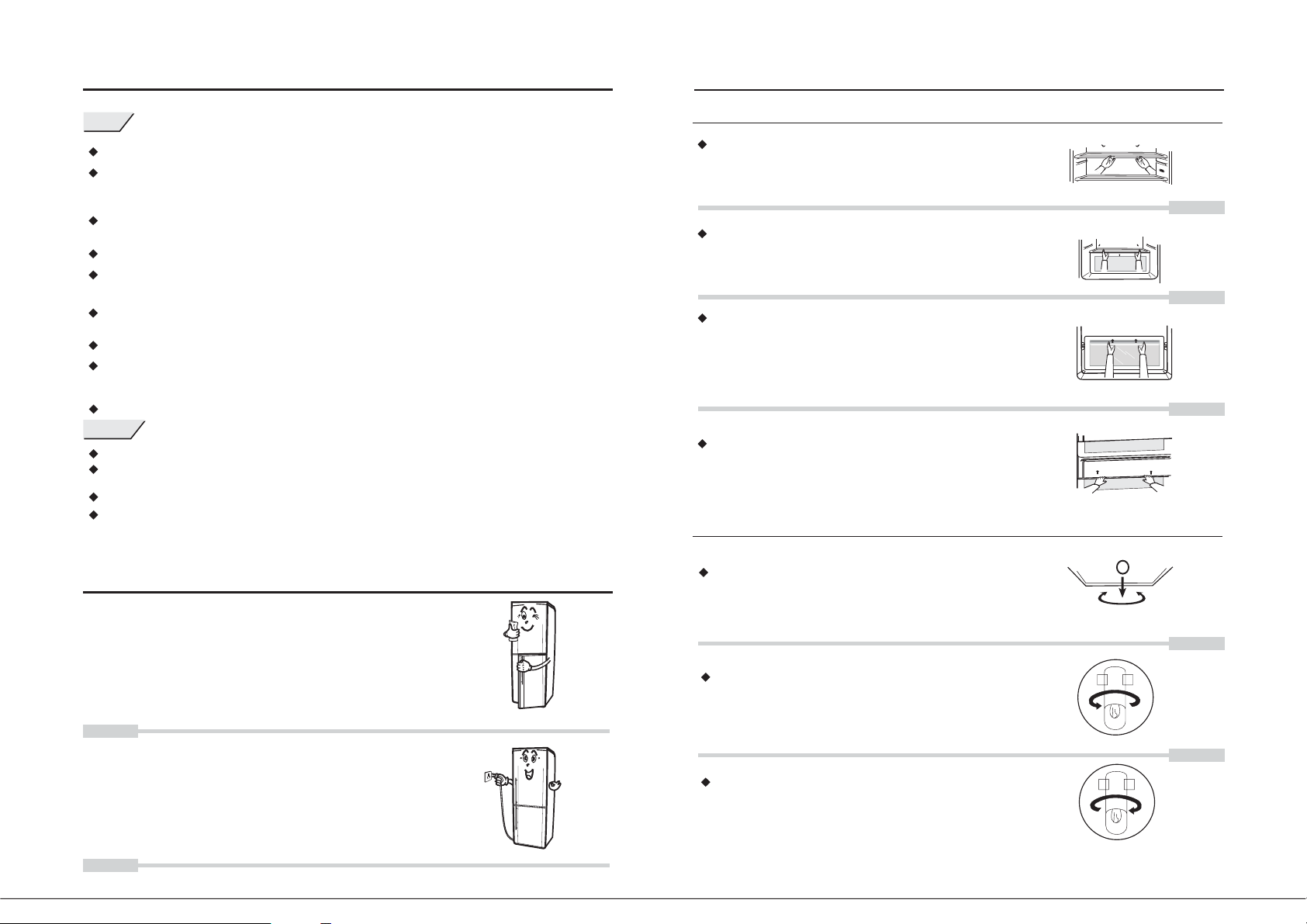

SAFETY NOTES
DISMOUNT METHOD OF ATTACHMENT
NOTES
Please refer to product's model and No. while contrasting each other;
Before power supply connected, please make sure the matching between refrigeratory's voltage
range and supplied voltage. The optional voltage range is from 220V to 240V; if power supply not
meeting the requirement, then the auto-transformer with minimum 500 W output power should be used.
In case of power supply shutdown, wait for 5 minutes or longer interval for running again lest compressor
damaged.
Do not place food near temperature sensor lest negative effects to correct display of temperature sensor;
In hot seasons, avoid to keep door open long time or to open and close frequently, otherwise the
efficiency of total set shall be weakened, and the running load shall also be increased.
Keep in mind and do not reverse or make it lie down. If necessary to make it incline,the gradient between
cabinet and ground should be less than 45 degree;
Do not move it by holding door handle; or to pull or draw the door handle forcibly;
If abundant hot items placed in at one time, keeping it open long time or opening frequently, the cabinet
temperature shall be increased, and temperature display also flashes. usually it shall recover within 24
hours.
The appliance must be installed so that the plug is easily accessible .
WARNING
Keep ventilation openings, in the appliance enclosure or in the build-in structure, clear of obstruction.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those
recommended by the manufacturer.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
Attachment application
Refrigerator shelf
Lift the shelf head and pull it out. (Position the
shelf as per the container height)
Fruit Box Cover
To raise up the rear portion, then take it out.
Freezer tray
Draw out it till the block, lift the shelf rear and
pull it out.
In case of heavy food stuff preserved in the drawer,
hold drawer up slightly and pull it back.
Egg guard and bottle guard
Lift them up to take them down.
Cabinet Lamp Replacement
PRE-RUNNING ISSUES
1. Remove all package material and remove
bottom pad before running.
2. Make the interior and external clean with mild wet cloth
( little natural cleaner can be added to mild water).
3. Keep it ready and after 1 hour, plug in the power supply.
Please refer to the upper indication and conduct relative
operations.
4
Draw out the plug of power supply
To loose the screw behind the lamp cover. And take out
lamp cover by means of unclenching along its edge with
flat screw-driver.
To screw out the bulb anti-clockwise.
To screw in new bulb clockwise.
To embed lamp cover again and fix the screw behind
lamp cover.
Lighting lamp specification: 220/240V, 20W ,E14
13
Page 6

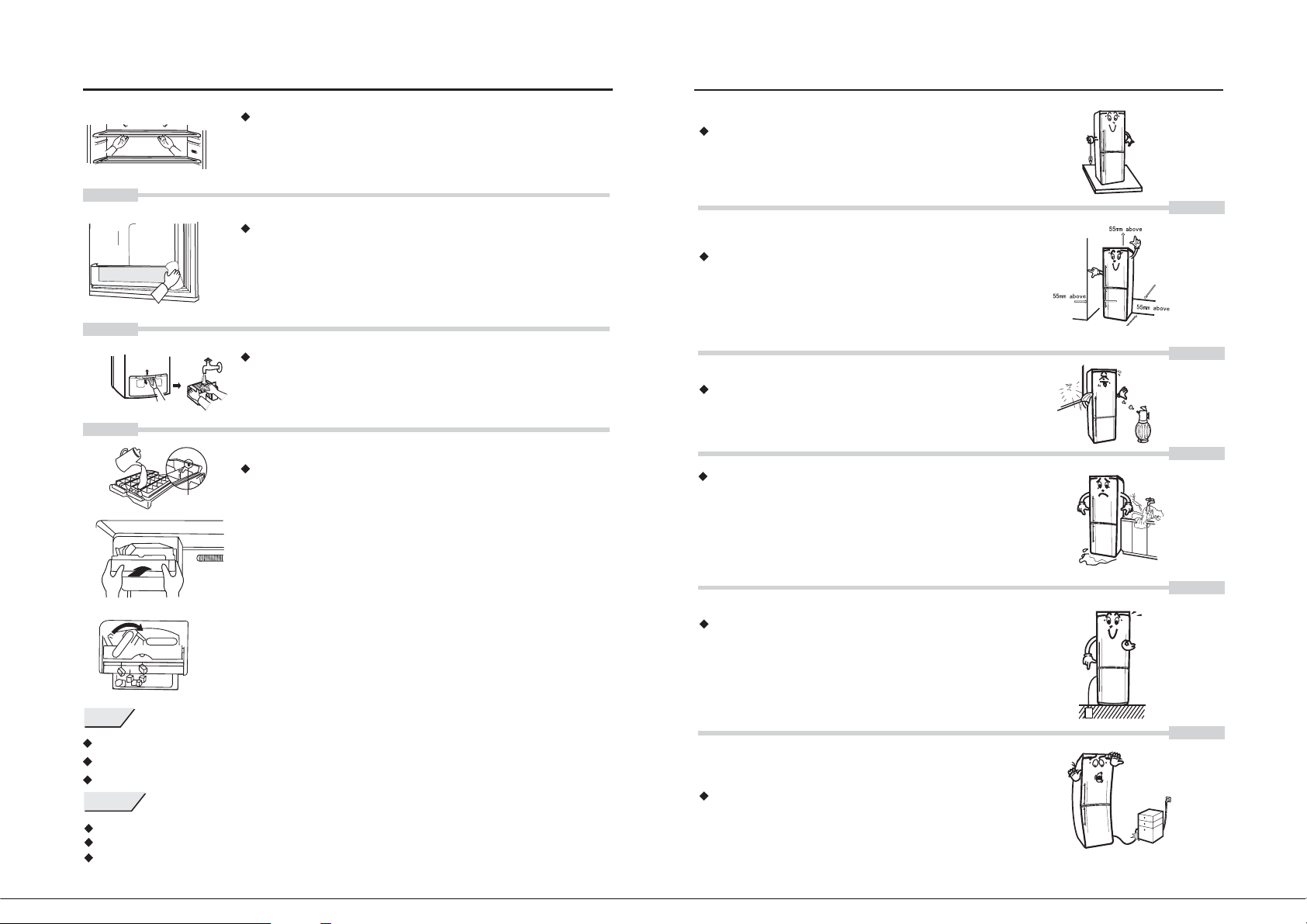

MAINTENANCE AND CLEANING
INSTALLATION AND PLACING NOTES
Waterline
Interior parts
Dismantle all shelves, bars, trays, covers and
drawers, and clean with a warm damp cloth wiper.
Door Seal
To remove and clean the door seal, use the stick wrapped
by cotton cloth to clean the notch position. If cleaned with
water, then to clean it dry.
Water tray
Screw off the screw in the compressor cover, pull
up the water tray lightly and draw it out. Fix it as
before after washing.
Ice Making Method
Fill water into revolving ice box until water line arrived;
place the ice box carefully to the ice-making shelf.
When taking out ice, turn the revolving ice box clockwise
to its end and release it. Then ice can be loosed from ice
making box. Store the ice in preservation box.
The refrigerator should be placed on the flat and
firm floor. In case of any unevenness, regulate the
adjustable foot under the body to level the refrigerator
(counterclockwise means rising).
leave 55 mm between the back of the unit,
55 mm between the unit and the wall and
55 mm above.
The refrigerator shall be away from hot resource
and direct sunlight.
Don't place the refrigerator in moisture as the metal
parts will get rust and impair the insulation effects.
In the event of natural disasters (such as rainstorm,
accidents), the submerged unit shall not be put into
use until nominated SAMSUNG service center
repairs it and proves that it is in good condition.
NOTES
To draw out the plug of power supply;
To make sure no water in lamp cover;
To clean with neutral cleaner(recommended)
WARNING
Glass separation is moveable and very heavy. Please take care of children no touching lest injured.
If the placement of refrigerator is not stable enough, it may produce abnormal noise.
For first time running, it takes long time to cool down from room temperature to setting temperature.
usually it stops in 3 hours and keeps normal running later.
12
Ground properly for personal safety.
The refrigerator shall not be grounded via phone
wire or gas pipe.
Don't press the power cord.
5
Page 7

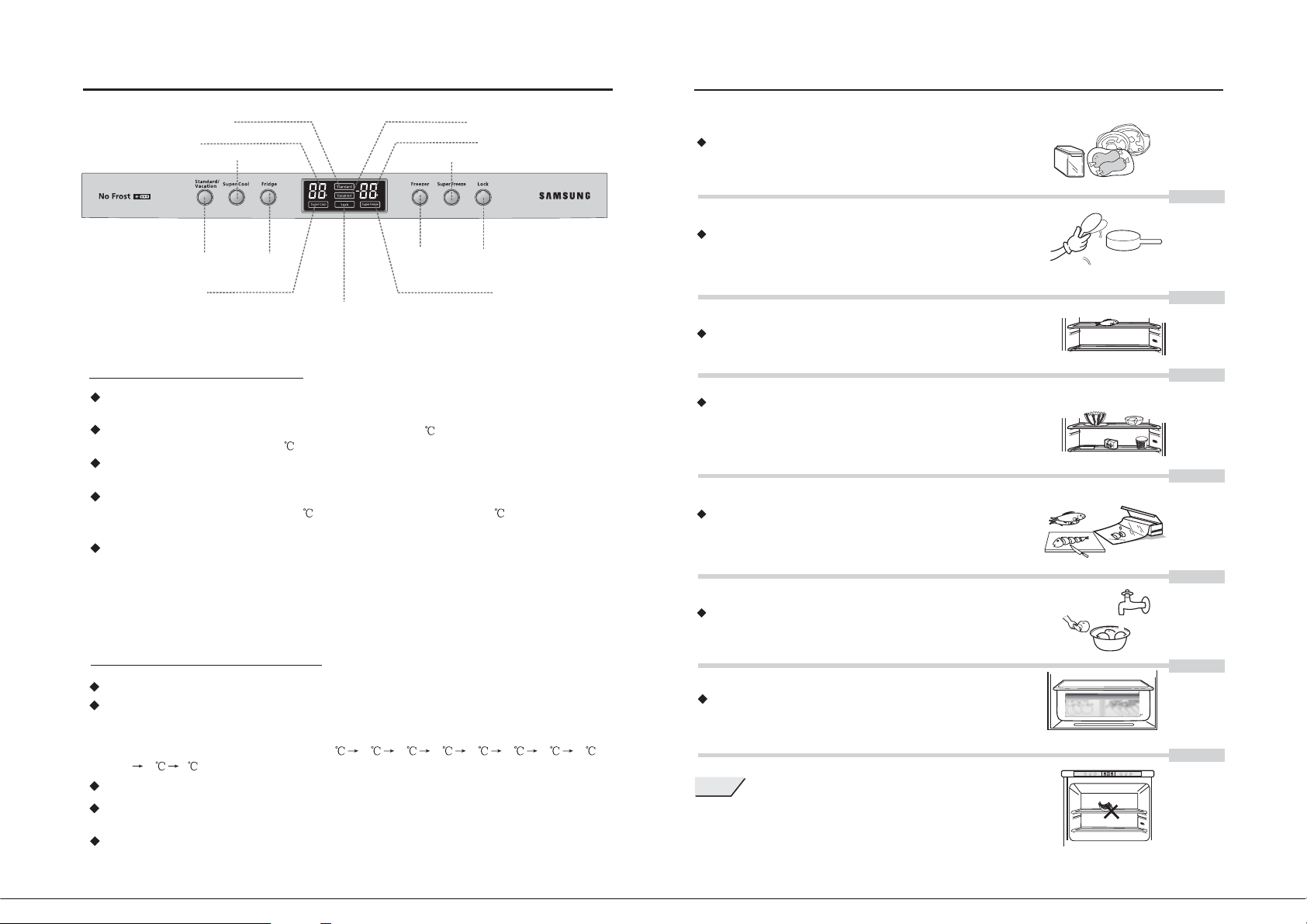

CONTROL PANEL INTRODUCTION
(RL33EA*,RL33EB*)
STORING FOODS
Vacation indication
Freezer Temperature
Super Freeze Button
Freezer Button
Super Freezeindication
Lock Button
Refrigerator Temperature
Super CoolButton
Standard/Vacation
Button
Super Coolindication
Standard indication
C C
Fridge Button
Lock statusindication
1. Standard/Vacation Button
1-1. For saving energy, this product has three running modes: Standard , Vacation
and user setting;
1-2. Standard : the refrigerator temperature was set to 5 , the freezer temperature was
1-3. Vacation: The refrigerate cabinet doesn't work, where the freezer keeps normal
1-4. User setting: The user setting modes covered all conditions except refrigerator
1-5. In case of first time power supplied, the refrigerator starts to run automatically
in the mode of tandard ; upon Standard/Vacation Button pressed down, the
running modes shall skip repeated along the cycle of "Standard ", "Vacation" and
"User setting".
In case of not user setting, the running modes shall be selected by the turn of
"Standard " and "Vacation" when the Standard/Vacation Button was pressed.
settorunat-18 .
running;
temperature at 5 and freezer temperature at -18 .(Where in
user setting mode, there was no indication of "User Setting").
"S " " "
""
Pack the foods with freshness reserving bags (films)
or seal the food container with a lid to prevent drying
or bad odor escaping.
Hot food and drink should be cooled to the room
temperature before putting into the refrigerator.
The cooked and raw foods shall be placed separately.
Please do not put the goods near the temperature
sensor to ensure the correct indication of
temperature.
Store foods in smaller portions.
Dry the fruits and vegetables for storage after
washing.
2. Fridge Button
2-1. Press down the button to set refrigerator temperature.
2-2. Press down the Button and you will hear "Ringing". The indicator displays
the current setting of refrigerator temperature.Press the button again to change
the setting of refrigerator temperature. Each pressing will make temperature
setting display as following steps 5 4321987
65.
2-3. Pressing down the temperature button every time will make a "Ringing" sound;
2-4. The setting value shall be confirmed once stopping pressing 5 seconds. it displays
the current setting of refrigerator temperature.
2-5. There was no refrigerator temperature indication in the mode of "Vacation . No
pressing sound produced after button pressed down.
6
"Fridge"
Fruits and vegetables shall be placed in the fruit and
vegetable room to retain their water content and
freshness.
C C
NOTE
The tropic fruit, such as bananas and pineapples, were not suitable
to preserve in the refrigerator;
"
Do not store the items with rigorous temperature requirements, such
as blood serum, bacterin, academic data and so on.
11
Page 8
FIRST POWER SUPPLY & TEMPERATURE ADJUSTMENT
When the power is switched on, all lamps are alive for 2 seconds and
the appliance enters the setting mode (3 lamps on) automatically,
leaving the refrigerating temperature at 5 and the freeze temperature
at -18 .
The appliance generally runs at the default temperature (3 lamps on) that
may be adjusted by the user for particular purposes.
CONTROL PANEL INTRODUCTION
(RL33EA*,RL33EB*)
3. Freezer Button
3-1. Press Freezer Button to set freezer temperature.""
3-2. Press down the Freezer Button and you will hear "Ringing".The indicator
displays the current setting of freezer temperature.Press the button again to
change the setting of freezer temperature. Each pressing will make temperature
setting display as following steps -18 -19 -20
-15 -16 -17 -18 .
3-3. Pressing down the Freezer Button every time will make a Ringing" sound;"" "
3-4. The setting value shall be confirmed once stopping pressing 5 seconds.
It displays the current setting of freezer temperature.
3-5. The freezer temperature can be set in any mode.
""
-21 -22 -23
4. Open-door alarm Function
4-1. In case of refrigerator door keeping open in a long time, it will make "Hooting"
sound to remind you to close the door.
5. Super Cool and Super Freeze Buttons
5-1. It is recommended to use this function in case of abundant food preserved in the
cabinet or any requirements of Cool ;"Super "
5-2. Press down the Cool Button in the upper panel to enter the status of
5-3. Press the button again to exit the mode of Cool or after 1.5 hours' successive
5-4. It is recommended to use this function in case of abundant food preserved in the
5-5. Press down the Freeze Button in the upper panel to enter the status of
5-6. Press the button again to exit the mode of Freeze or after 2 hours' successive
5-7. The temperature of r Cool and r Freeze can be set in the mode of
Cool , and "Super Cool characters can be read there.
"Super " "
and Cool , it shall automatically exit the mode of Cool .
"Super " "Super "
cabinet,making ice or for any requirements of Freeze ;"Super "
Freeze , and "Super Freeze characters can be read there.
"Super " "
and Freeze , it shall automatically exit the mode of r Freeze .
"Super " "Supe "
er Cool , but actually it will run after exitting the Freeze Mode.
"Sup " "Super "
"Super "
"Super "
"Super "
"Super "
"Supe " "Supe "
10
6. Failure Alarm Function
6-1.To call professional personnel for repair in case of following problems occured.
6-2.The temperature indication displays as " ", " " or " ", it shows that the
refrigerator works in trouble; till repair,it will run as time setting of starting and
stopping.
""
7
Page 9

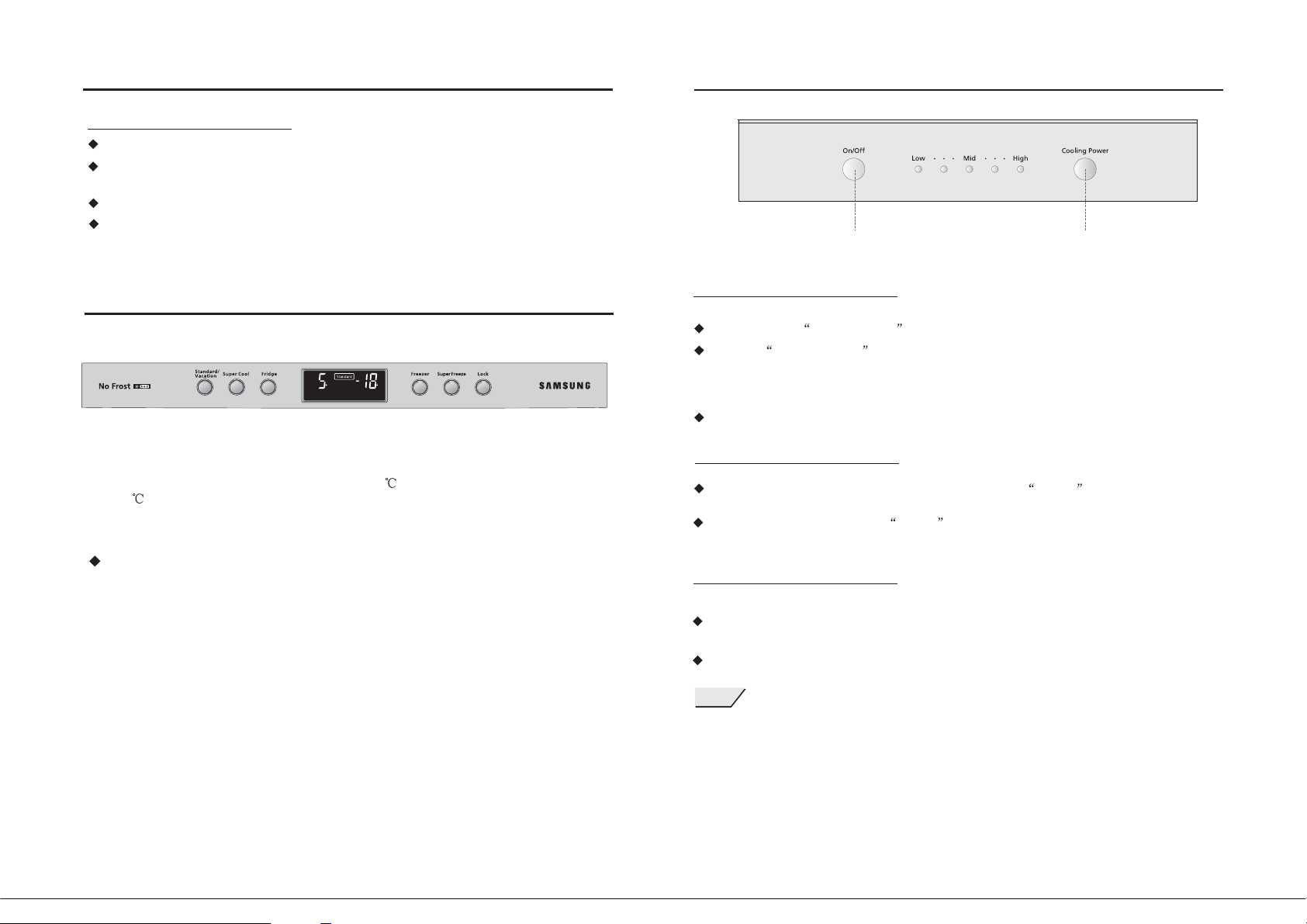

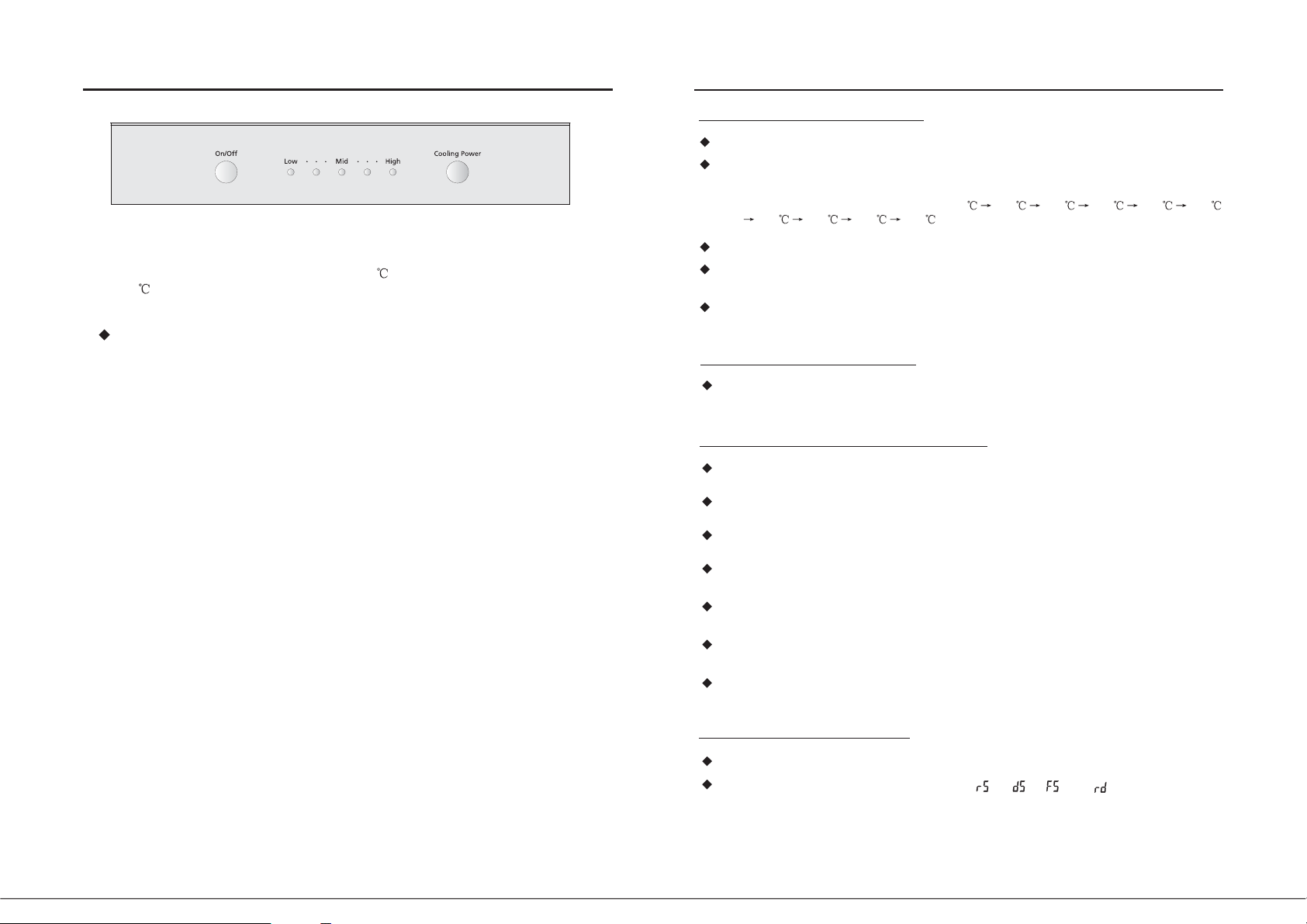

CONTROL PANEL INTRODUCTION
7. Lock Function
7-1 After setting and 2 minutes passed, it entered the automatical lock status;
7-2 The lock indication shows that, upon button pressed, there were no pressing
sound or relative responses.
7-3 In lock status, press ock button in the control panel to unlock the setting."L "
7-4 In unlock status, press Lock button in the control panel to lock the setting.""
FIRST POWER SUPPLY & TEMPERATURE ADJUSTMENT
C C
Upon power supplied, all indications read as 2 seconds. The "Standard "
displays as refrigerator setted to run automatically in the standard mode.
The temperature setting of refrigerator is 5 , where that of freezer
is -18 . The temperature of cooling and freeze cabinets shall display with
the music of activating running.
CONTROL PANEL INTRODUCTION
On/Off Key Cooling PowerKey
(RL33SB*)(RL33EA*,RL33EB*)
1.Cooling Power Key
1-1.Press down Cooling Power Key and set refrigeration temperature.
1-2. If the Cooling Power Key is activated, the appliance will display the current setting
that may changed by repeat pressing actions. There are 5 temperature options you
may take. The temperature setting will change in cycle with key press. More are the
lamps on, the temperature is lower.
1-3. Some setting is confirmed and shown as the current temperature after a pause up to
5 seconds.
2.On/Off key
2-1.While refrigerator is running, keep pressing down On/Off Key 3 seconds and all
indication lamps light off. The refrigerator stops running.
2-2.In case of repressing down On/Off Key 3 seconds, the refrigerator recovers running.
To set cabinet temperature. It is common to run in the standard mode,
and also adjustable based on the actual use requirements of users.
8
3.Failure Running Function
3-1.Inform authorized personal for repair service in case of any following problems
happening;
3-2.When indication lamp flashing, it shows the refrigerator is in trouble.
NOTE
Disconnect the plug from power socket for any cleaning service.
9
Loading...
