Page 1
,
www.samsung.com/global/register
DA68-01530D
Register yourproduct at www.samsung.com/global/register
Please readall the safetyprecautions included inthis manual priorto use
and retainthis manual properlyfor future reference.
Please readthrough this manualbefore connecting topower and keepit
for futurereference.
Any changerelating to thismanual will resultin no additionalnotice due to
continuous improvementmade on ourproducts.
ENGLISH
OWNER'S INSTRUCTIONS
MODEL:
RL32FCSW
RL32FCWR
RL32FCAS
Page 2
R600a/58g
320
0.64
65
548*614*1607
T,ST,N,SN
I
220V-240V/50Hz/0.40A
80W
25W
4
t
M
1~
t
63 4
M
S
C
TECHNICAL PARAMETERS
Climate type
Electric shock proof
Rated volgage/frequency/current
Total power input (W)
Lamp MAX power (W)
Power consumption kWh/24h(25 )°C
Freezing capacity kg/24h
Refrigerating agent and dosage(g)
Weight (kg)
Visual dimension
(width*deepth*hight)(mm)
DESCRIPTION
MODEL
CIRCUIT DIAGRAM
12
GRY
BLK/WHT
RED
RED
SKY BLU
THERMOSTAT
PTC RELAY
YGRN
/
GRY
YGRN
/
COMPRESSOR
HEATER
HEATER SWITCH
SWITCH DOOR
YGRN
/
EARTH
GRY
LAMP
O L PROTECTOR
/
BLK/WHT
BLU
BRN
1
CONTENTS
PARTS DESCRIPTION......................................................2
SAFETY NOTES...............................................................3
PREPARATIONS BEFORE USE........................................4
INSTALLATION&SETUP...................................................5
STORING FOODS............................................................7
MAINTENANCE & CLEANING........................................8
DISASSEMBLY OF ACCESSORIES..................................9
TROUBLE SHOOTING....................................................11
TECHNICAL PARAMETERS & CIRCUITS DIAGRAM.........12
WARNING
NOTES
Please read this manual and use it as instructed. The messages marked with
"Warning" and "Notes" were about safety and of high importance.
Please read it carefully and repeatedly.
Which means it is possible to cause potential and severe damage
about dangerous issues if the instructions not followed.
Which means it may cause slight damage or performance
failure if certain cases not avoided.
Total volume (L)
BRN-BROWN
BLK-BLACK
BLU-BLUE
GRY-GRAY
WHT-WHITE
YEL-YELLOW
Y/GRN-YELLOW GREEN
RL32FCSW RL32FCWR RL32FCAS
Page 3
PARTS DESCRIPTION
Product features
Mechanical control:the built-in temperature sensor controls the inside temperature more precisely.
Fi-free environmental protection: this appliance is the green product.
Reliable performance: seamless high efficient compactor of famous brand is used in this product
with excellent performance and high reliability.
Reasonable structure:the layout of reefer up and freezer down can reduce the cooling energy
and power loss. The frequently used upper reefer can facilitate the access. The reefer shelf
is position adjustable with the volume.
Odour reservation: the freezer is drawer-structured to ease food storage and protect from odour mixing.
Flat back:the built-in condenser is easy to clean.
Attachment
311 2 1 121
DRAWER-F
SHELF-R
Name
Model
TRAY-VEG
COVER-VEG
TRAY-ICETRAY-EGGGUARD-EGG
GUARD-BOTTLE
2
LAMP COVER
DRAWER-F
SHELF-R
TRAYCOVER-VEG
TRAY-VEG
GUARD-BOTTLE
TRAY-EGG
GUARD-EGG
TRAY-ICE
LAMP SWITCH
TROUBLE SHOOTING
11
The front frame and side plate get hot
- The de-dew pipe is built in the frame to avoid dews condensing
on the frame. It will get hot when the appliance is running.
- The cooling assembly(condensor) is installed on both sides
of the frame.
Ice cracks are heard
- It is not a fault. When the appliance is initiated or closed,
poop will be heard due to sharp change of temperature which
cause uneven heat imposed on the interior parts
- The cooling pipes in the back will be under 0 when the appliance
is running. Frost or ice will be found on the back due to dense moisture.
- When the appliance is off, the frost will disappear automatically.
- Suggest to clean the appliance once per month.
- Foods and food container shall not lean closely against the back.
Frost or ice is found on the back
- It is not a fault. The sound is heard when the refrigerant flows.
Streaming is heard
Dews are condensed on the mid-ridge and the frame
- When the environmental humidity exceeds standard.
- Please wipe with the soft cloth.
-
When the door is left open for long time or
- The fluid food are not properly sealed.
Dews condensed in the vegetable compartment.
Should your problems falls out of the above, please visit the designated
service center with the WARRANTY CERTIFICATE or contact Sumsung Technical
Help Center.
RL32FCSW
RL32FCWR
RL32FCAS
Parts description
Page 4

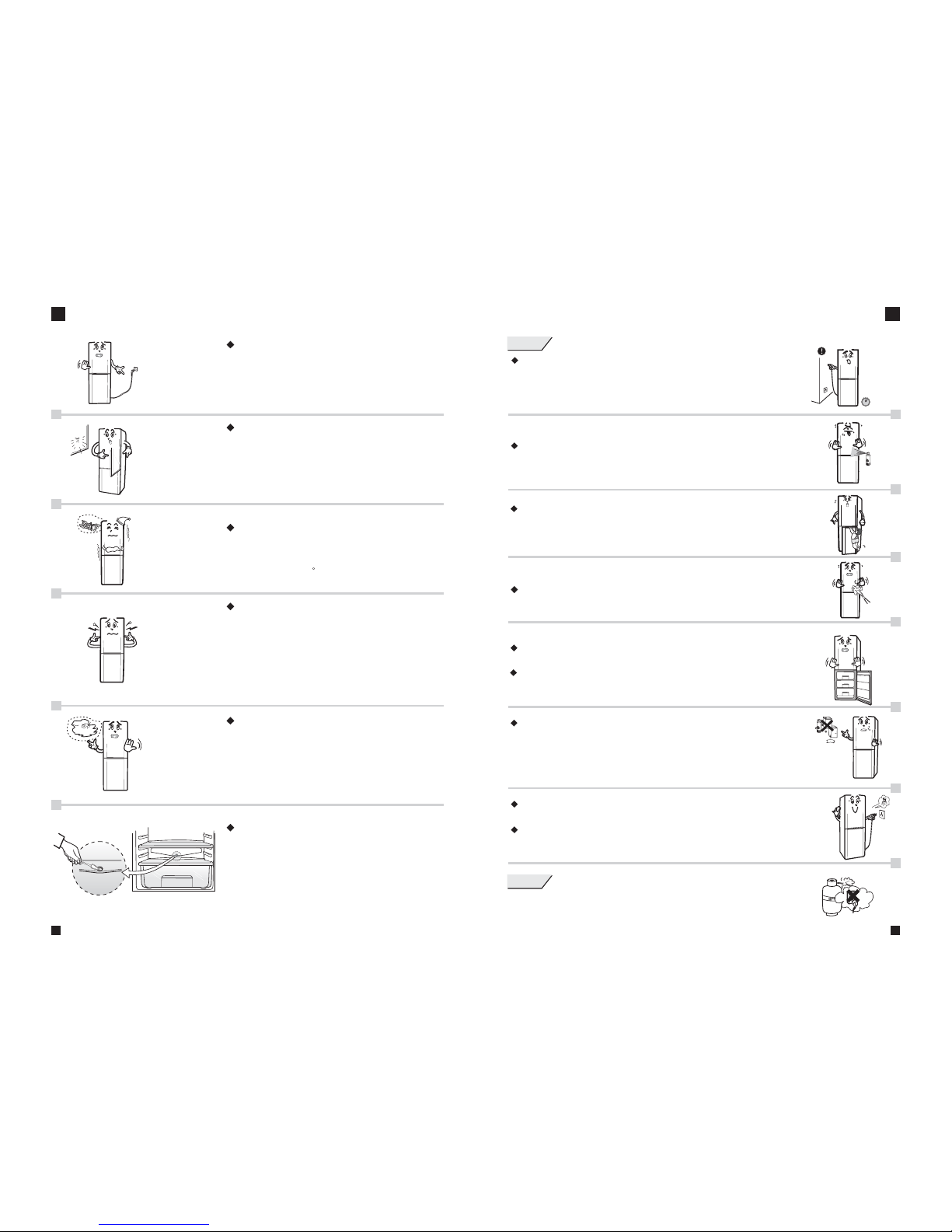

TROUBLE SHOOTING
- The Plug is not well connected.
- Nopower supply.
- Resartthe appliance within5 minutes
after power-off.
The appliance does not work.
Nonstop working is incurred to the appliance.
- Whenthe room temperatureis high, orthe
appliance isnear heat orexposed in thesun.
- The door is opened frequently or well closed.
- The room has poor ventilation.
- The food is over stuffed, resulting in bad cooling.
-
- The foods contact the cooling source
in theback wall.
The thermostatsetting is toolow.
The food in the refrigerator is frozen
Noise is heard
- The appliance is not steadily placed.
- The appliance is too close to the wall.
- The exterior cooling pipes clash with
each otheror with fridgewall.
- Somethingunexpected is behindor under.
- The motor will give out buzz when running.
- Itemsstored are notsteadily placed.
The freezer generates poor effect.
- The door is not well closed.
- The door gasket is damaged or distored or
poorly sealed.
- The appliance is near heat or exposed in
Sun.
- The appliance is not well aired.
The defrost water outflows inside.
- The water outlet is block.
- Pleaseget rid ofthe block witha
plug orsimilar tools.
SAFETY NOTES
WARNING
If the supply cord is damaged, it must be replaced by the
manufacturer or their service agent or a similar qualified
person in order to avoid any hazard.
The power supply should not be reconnected within 5
minutes to prevent the compressor being damaged.
Do not use combustible sprays,such as spray-paint or dopes, which will
probably give risetoexplosion.
Note: Do not expose the appliance in the outdoor and rain.
Don't let children play with or hang on the unit as this
will damage the unit or hurt children.
A lump input of hot items or frequent or long-lasting opening will
raise theinside temperature, it is generally recover in 24 hours;
Poor doorclosing or alump input ofhot items orfrequent or
long-lasting openingmay result intemperature indicator flash,
poor coolingeffect or long work;
Do not store inflammable or explosive hazardous items and strong acid
or alkaline corrosives chemicals, such as butane,aether,benzene,
vitriol,gasoline,alcohol etc. Do not put the bottled fluid foods in
the freezer as that will cause bottle cracks.
Do not continue using the malfunctional or damaged appliance.
Please cut off the power and call the local service center.
WARNING
If thereis gas leaking,please shut thegas valve and
change theroom air beforepulling out thepower plug
because unpluggingwill accompany sparksthat will
probably giverise to accidents.
10
3
Keep the appliance back out of water to avoid impairing insulation.
The appliancemust be installationthat the plugshould be easily
accessible afterinstallation.
Page 5

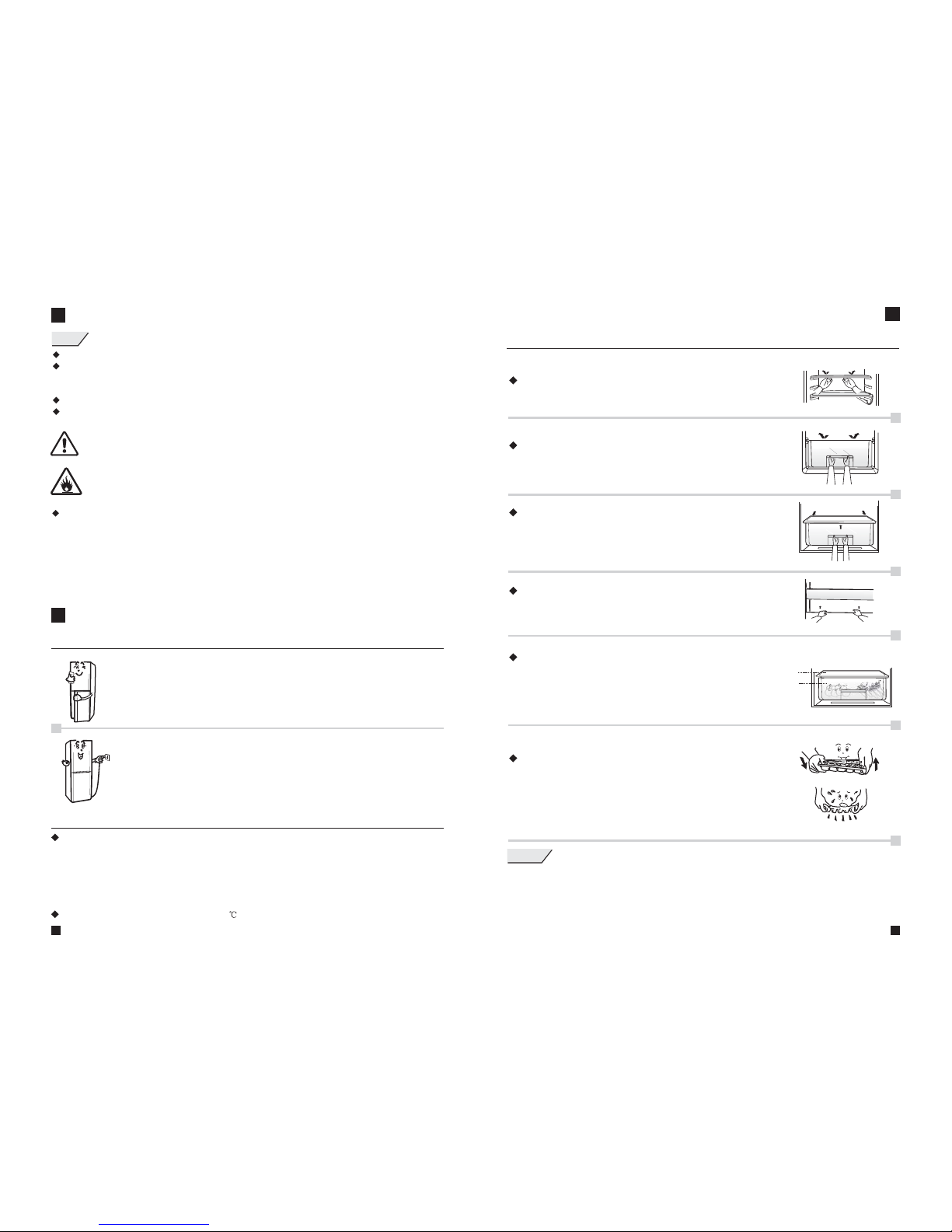

SAFETY NOTES
NOTES
Please refer to the model and serial number to compare the products;
Before connecting to power, please verify the power supply voltage and the rated voltage of the
appliance.The rated voltage allowance is 220-240V. For safety purpose, the wires which can
bear over 10Acurrent must be used.
After using the freezer, do close the drawer before you shut the freezer door.
During the hot weather in Summer, the appliance will run a longer time, the ice will
be found in the back wall and the freezer temperature is low. The above is normal.
The cooling effects originates from refrigerant that is filled through
special process. Please ensure the pipes in the rear are intact.
Alert
This appliance adopts R600a refrigerant which is combustible.
During transportation and installation, please handle the appliance carefully
to protect the cooling system from damage.
- To avoid the combustible gas composed of the refrigerant leaked from the cooling circuit and the air,
please select the room size to accommodate t he appliance according to the refrigerant quantity.
The room size shall be calculated as per the criterion of 8g R600a per square metres.
For details of the refrigerant quantity, please refer to the manual.
- Do not start the appliance that has any damage. If any problems, please contact the dealer or
service centre.
The refrigarant leaked from the pipe may catch fire or hurt your eyes. If refrigerant leakage occurs,
please keep away the fire or potential fire source, and keep the room aired for several minutes.
PREPARATIONS BEFORE USE
Basic preparations
1. In the initial use, please remove 2 tapes from both sides of the
glass shelf and embed two side tubers into the recess of the
inner gallbladder.
2. Clean the appliance with the wet wiper(add a few detergents
into the warm water).
3. Place the appliance steadily and connect to the power in 1 hour.
4. After 2-3 hours cooling, you may store the foods to regulate the
appliance working.
* Suggest to put in the foods after 2-3 hours cooling.
Temperature control
When the room temperature is under 10 ,please open the season switch.
The inside temperature is adjusted by the thermostat whose arrow points to the silk screen
of the temperature controller ("HIGH\MID\LOW"-indicates the inside temperature), where
stronger the thermostat shows, the inside temperature is lower. "OFF" means shut-down.
The user may switch the thermostat,which may point to"MID" normally as necessary.
You may switch the thermostat between"MID" and "LOW" in hot weather and between "MID"
and "HIGH" in cold weather. If a few foods need storing, you may switch to "LOW".
DISASSEMBLY OF ACCESSORIES
4
Disassembly of accessories
Shelf-R
You may adjust the shelf position as per the container height.
Drawer-F
You may pull the drawer to the stopper and take it out tipsily.
Tray and COVER-VEG
Draw out the tray-veg and take it out when the cover is lifted.
Warning: During disassembling, do not force out the tray to
avoid the damage of the appliance.
TRAY-EGG & GUARD-BOTTLE
Lift and take out them.
TRAY-VEG.
The tray-veg can reserve the water and freshness of
fruits and vegetables because it is sealed to avoid
direct contact between cold air and vegetables.
Applicable to storage of vegetables and fruits.
TRAY COVER-VEG
TRAY-VEG
- Distribute the cold water or beverage into the clean tray-ice
and put them into the freezer.
- When getting the ice piece, just turn the ice tray but do not
turn it up and down.
TRAY-ICE
1.The glass partition is movable and heavy.Children are not allowed to move it.
2.The unsteadiness of the appliance will cause noise.
3.The first start needs a long time of about 3 hours as the room temperature
will fall to the setup temperature. The appliance will resume after shutdown.
4.For the foods or fluids that is absorbable, transferrable or odoriferous,
please use a seamless container to store.
WARNING
9
Page 6
45
MAINTENANCE & CLEANING
Interior parts
Dismantle all shelfs, door frames, trays, covers and drawers
and clean with a soft cloth that is soaked with water or medium
detergent (for bowl or chopstick wash).If detergent is used,
please clean with water first,then wipe with a piece of dry cloth.

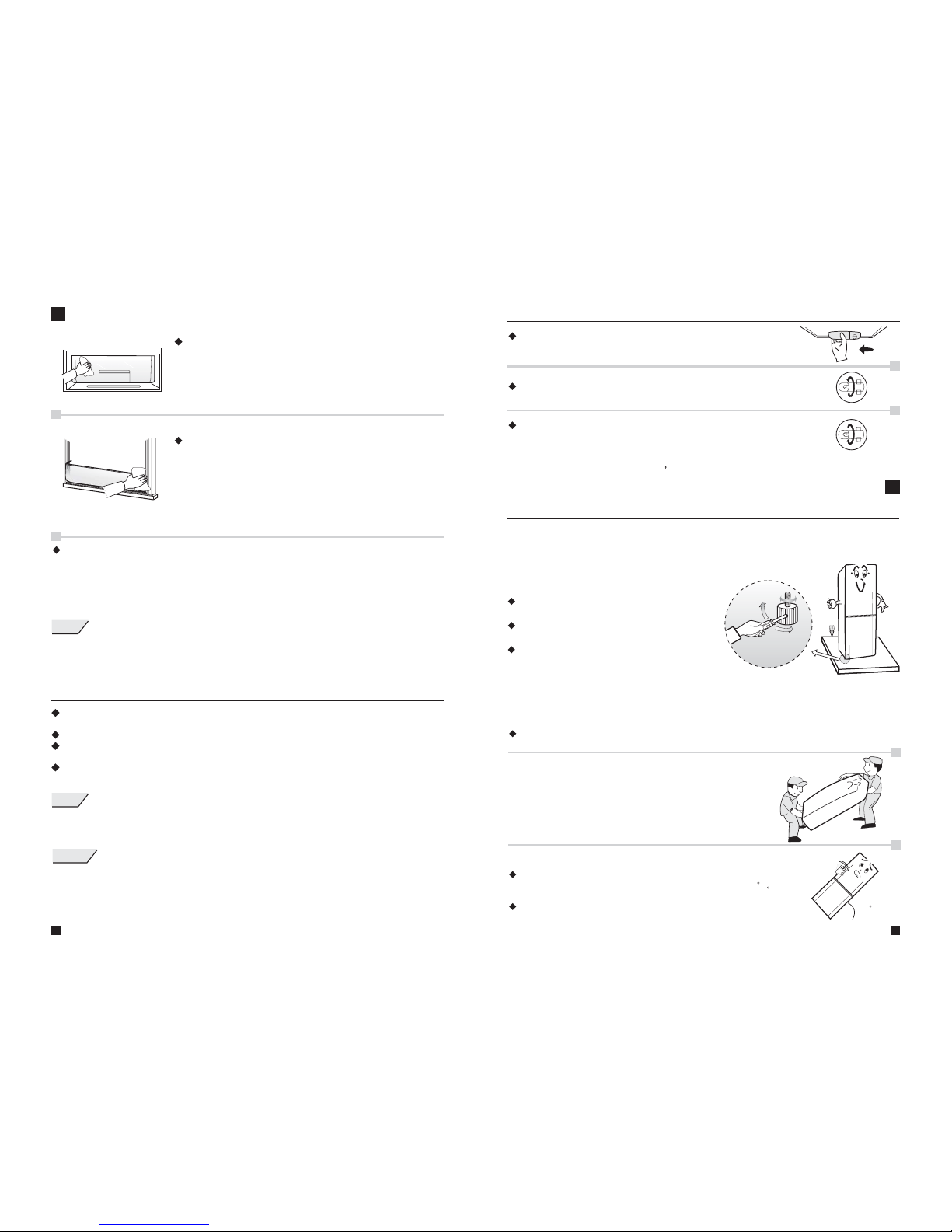

Door gasket
If the door gasket contacts the oil or sauce etc.,it will be
impaired after a long time, especially for the gasket of the
door up and down.Make sure to cleanthe gasket carefully.
The recess shall be cleaned by the chopstick shrouded by
cotton piece.When embed the gasket, fit four corners first
and embed the gaskets section by section.
Defrost method
When the frost layer gets thick, it may impair the cooling effect. You may take out and pack
the foods. Pull out the power plug and wipe off the water with soft cloth when the frost layer
vanishes. Then connect to the power and restart the appliance to setup the temperature.
Generally once or twice defrost is required per year.
NOTES
1.Plug off the power first, then clean the freezer after defrost;
2.The best time to defrost is when the freezer is empty or half empty;
3.Do not use metal or sharp tools for defrost to prevent damage;
4.No electric heater is allowed for defrost;
Cleaning precautions
Pull outthe plug fromthe socket beforecleaning, the intervalbetween
plug inand out shallbe over 5minutes;
No wateris allowed inthe lamp andPCB cover duringcleaning;
Wipe withsoft towel dippedover water ormedium detergent, thenclean
with drycloth;
Do notuse the detergentwith abrasive(e.g. Toothpaste),acid,chemical
solvent(e.g.alochol) orputty agent.
NOTES
The following checks shall be made after maintenance:
Any chaps or scars are found on the power cord.
Plug in the socket reliably
The power plug gets hot or other accidents.
8
Change the lamp
Screw off the lamp cover, then hold the cover and pull left to remove the cover.
Plug out the power cord.
Turn off the bulb counterclockwise.
Turn on the bulb clockwise.
Push the right side of the lamp cover into the left recess of the temperature
controller, then turn on the screws.
Bulb parameters: ~220V-240V,15W E14
INSTALLATION & SETUP
Place the refrigerator
1.Remove thefoot cushion priorto use.
2.If theappliance is placedunsteadily, you may adjust the front leg inthe bottom to stablize
the appliance(lift by turningleft).There is aadjust hole inthe front leg.You may adjust it
with acrosshead screwdriver (seeright figure).
3.The groundunder the applianceshall be flatand solid.
Otherwise noiseand oscillation willarise.
The noisewill grow strongerif the
appliance isput on thesoft ground;
Please puta solid plateon the blanket,
to avoidmiscolor or heatblocking;
Tostablize the appliance,please leave
the footcontacting the groundclosely and
keep theappliance leaning backfor easy closingof the door.;
Packaging & handling
5
1.Unpacking, repackingand handling
2.Do nothold the doorduring transportation.
3.Avoid clash or acute shaking during handling.
Do rememberwhere the packagesare during unpackingand examining.
The productscan not betransported until theyare repacked afterexamining.
Do not position the appliance reversely or horizontally.
If tilting is required, the tilting angle shall be less than45
Please handle the appliance as per the instructions to
prevent from noise or some other problems.
4.Vertical handling to avoid clash
WARNING
- Keepventilation openings, inthe appliance enclosureor in thebuild-in structure,
clear ofobstruction.
- Donot use mechanicaldevices or othermeans to acceleratethe defrosting process,
other thanthose recommended bythe manufacturer.
- Donot damage therefrigerant circuit.
- Donot use electricalappliances inside thefood storage compartmentsof the
appliance, unlessthey are ofthe type recommendedby the manufacturer.
Page 7
55mm above
300mm above
55mm above

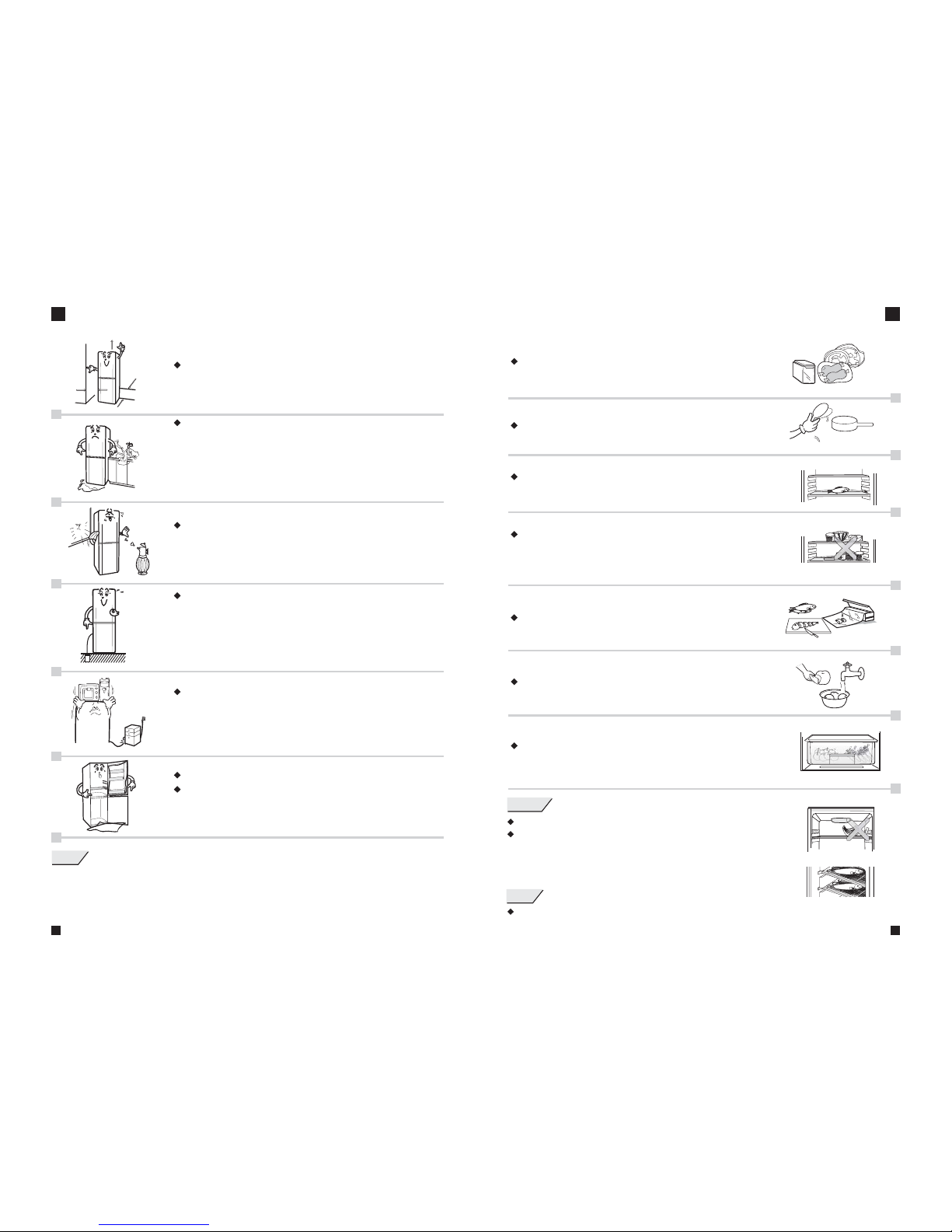

INSTALLATION & SETUP
Leave 50~100mm between the appliance back and the wall.
At least 300mm shall be left empty over the appliance.
The appliance shall not be place where there is moisture
to avoid mental rust and insulation impairment;
If the appliance is placed near the pool or in the basement,
a overload protector is required except for the earth wire.
If the appliance is soaked due to the natural disaster
(such as rainstorm or accidents), please have it repaired
by Sumsung service center before use.
The appliance shall be far away from heat source and direct
sunlight.
A separate socket for earth wire with 3 cores shall be used
and shall not be shared with other apparatus. For safety
purpose,please connect the earth wire that is in place on
the earthing pole of the socket.The wire shall not be
connected to the water pipe, gas pipeline, telephone line
and lightning rod etc.
Make sure not to press the power cord.
No appliances such as microwave, electric cooker and
transformer are allowed on the top of the appliance.
.Before you discard the appliance, please scrap the gasket
The scraped items shall be properly treated or disposed
of by professionals. Do not discard the scraps anywhere
to avoid damages to the environment or other risks.
NOTES
6
1.Keep the appliance out of water because it will get rusty and problem.
Please wipe the electric parts such as switch with dry cloth.
2.Do not use wash powder,alkaline detergent,brush,gas,thinner,alochol,
coal oil, acid and boiled water that may hurt the face or plastic items.
3.Do not use chemical wiper that may hurt the face or plastic items.
4.The oiled plastics items is easy to get aged, wipe off the oil soon.
STORING FOODS
The foods shall be packed with the freshness reservation bag
(film) or put in the sealed container to avoid air-dry
or mix-odour.
Hot foods or beverages shall be cooled to the room temperature
to save power consumption.
The cooked and raw foods shall be placed separately.
The foods shall be kept loose to leave enough space for air cycle.
Note: 1. Do not put the foods near the sensor.
2. The foods and containers shall not lean against the
back wall.
Store foods in smaller portions.
Better clean the washable foods,such as fruits and vegetables
before storage.
The fruits and vegetables shall be stored in the vegetable
compartment to reserve the water and freshness.
NOTES
The tropic fruits such as banana and pineapple are not suitable.
Do not store the items that has strict storage standard, such as
blood serum, bacterin and academic materials.
Recommendation: If you need a large quantity of foods to be stored,
ice making or fast cooling, please take out the freezer drawer and
freeze the foods directly on the evaporator partition.
WARNING
Do not touch the freezer evaporator with wet hands to avoid the water ices
on your hands.
7
Loading...
