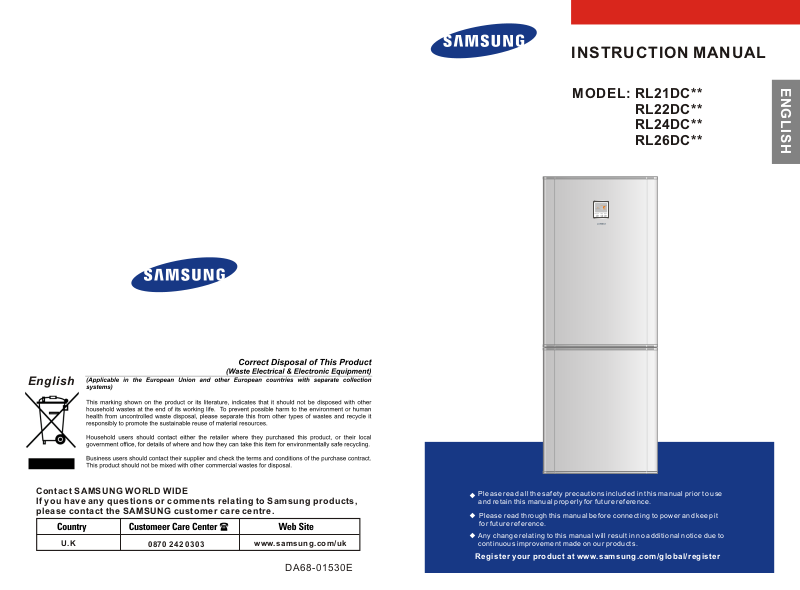

INSTRUCTION MANUAL
MODEL:
RL21DC**
RL22DC**
RL24DC**
RL26DC**
ENGLISH
English
Contact SAMSUNG WORLD WIDE
If you ha ve any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care centre.
U.K
0870 242 0303
www.sa msu ng. com /uk
DA68-01530E
Please r ead a ll the safe ty precau tions inc lud ed in this ma nual prio r to us e
◆
and reta in th is manual p roperly f or future r efe rence.
◆在 接通 电源 之前 ，请 先完 整阅 读本 说明 书， 并妥 善保 存以 供参 考。
◆请 遵守 本说 明书 的操 作说 明及 有关 安全 注意 事项 ，然 后正 确使 用。
◆因 为本 公司 产品 不断 改进 ，如 有变 动， 恕不 另行 通知 。
Please r ead t hrough th is manual b efore con nec ting to pow er and keep i t
◆
for futu re re ference .
Any chan ge re lating to t his manua l will resu lt in n o additio nal notic e due t o
◆
contin uou s improve ment made o n our produ cts .
Register your product at www. sam sun g.c om/ glo bal /re gis ter
参加产品 注册, 获得意 外惊喜
www.samsung.com/global/register
MEMO
CONTENTS
PARTS DESCRIPTION............................................ .........2
SAFETY NOTES........... ............ ............ ............ ............ ...3
PREPARATIONS BEF ORE USE.... ....................................4
INSTALLATION&SETU P.. ....................... ................ ..........5
INTRODUCTION TO PCB .... ............ ............ ............ .........7
STORING FOODS ...........................................................9
MAINTENANCE & CLEANING. ............ ............ ............ ....10
DISASSEMBLY OF ACCESSORIE S........... ............ ..........11
TROUBLE S HOOTING..... ............ ...................................12
TECHNICAL PAR AMETERS & CIRCUIT DIAGRAM...........14
This manual includes four models of RL26DC**/R L24DC**/ RL22DC** /
RL21DC** in similar structures with major impo rtance to th e model
RL24DC**.
*Typical colors:
,
MS : Mist S ilver (Thai Silver) MR : Mirr or
TW : Two-tone White, TS : Two-tone Silver
AS : Alumin um WR: Win e Red
SW : Snow W hite (PCM), EW : Snow W hite (Embo)
Silver
16
Please read this manual and use it as instructed. The mes sages mark ed with
"Wa rning" and "Notes" were about safety and of high import ance.
Please read it carefully and repeatedly.
WARNING
Which m eans it is possible to cause potential and severe damag e
about d angerous issues if the instructions not followed.
NOT ES
Which m eans it may ca use slight damage or performance
failu re if certai n cases not avoided.
1
PARTS DESCRIPTION
Product features
Digital control: Control from outside and display working state and temperature.
Fi-free environmental protection: This appliance is the green product.
Reliable performance: Seamless high efficient compactor of famous brand is used in this product
with excellent performance and high reliability.
Reasonable structure: The layout of refrigerator up and freezer down can reduce the cooling energy
and power loss. The frequently used upper refrigerator can facilitate the access.
The refrigerator shelf is position adjustable with the volume.
Odour reservation: The freezer is drawer-structured to ease food storage and protect from odour
mixing.
Flat back: The built-in condenser is easy to clean.
Attachment
MEMO
Name
Model
RL26DC**
RL24DC**
RL22DC**
RL21DC**
DRAWER-F TRAY-VEG
SHELF-R
3 3 1 1 2 1 1 1 1
3
2 1 1 2 1 1 1 1
2
TRAY COVER
-VEG
GUARD
-EGG
Parts description (RL24DC** for example)
LAMP COV ER
SHELF-R
GUARD-WINE
TRAY COV ER -VE G
TRAY-VEG
GUARDBOTTLE
TRAY-EGG TRAY-ICE
TRAY-ICE
GUARD-EGG
TRAY-EGG
DOO R SWI TCH
TEM SENSOR
GUARD-BOT TLE
GUARD
-WINE
DRAWER -F
2
15
TECHNICAL PARAMETERS
Model
DESCRIPTION
Climat e typ e
Electr ic sh ock proof
Total volume
Volume (L)
Rated volgage/frequency/current
Total power input (W)
Lamp MAX power (W)
Power consumption kWh/24h(25 )°C
Freezing capacity kg/24h
Refrigerating agent and dosage(g)
Wei ght ( kg)
Visual dimension
(width*deepth*hight)(mm)
Refri gerator
Freezer
RL26DC** RL24DC** RL22DC** RL21DC**
240
160
80
220-240V/50Hz/0.35A
0.74 0.72 0.68 0.67
R600a/58g R 600 a/5 6g
67 65 61 59
548*614*1705 548*614*1607
CIRCUIT DIAGRAM
DISPLAY
YEL
REF TEM- SENSOR
WHT
REF EVAP SENSOR
GRN
F TEM- SENSOR
SKY BLU
DOOR SWITCH
YEL
14
P C B
GRY
BLU
BLK
RED
BLK-WHT
BRN
Capacitor
SKY BLU
TRANSFORMER
GRY
RED
LAMP
COMPENSATION HEATER
Compressor
S
M
t
P.T.C RELAY
M
1~
YEL-GRN
C
T, ST, N, SN
220
140
80
220-240V/50Hz/0.40A
80W
25W
BRN
YEL/GRN
GROUND
1
3
O/L PROTECTOR
I
200
135
65
4
548*614*1493 548*614*1430
BLU
RED
RED
YEL
BRN -BROW N
BLK -BLAC K
RED
2
BLU -BLUE
GRY-G RAY
GRN -GREE N
WHT- WHITE
YEL -YELL OW
Y/G RN-YE LLOW GR EEN
191
140
51
SAFETY NOTES
WARNING
If th e supply cord is damaged, it must be replaced by the
manufacturer or their service agent or a similar qualified
person in order to avoid any hazard.
The p ower supply should not be reconnected within 5
minutes to prevent the compressor being damaged.
Do not use combusti ble sprays,such as spray-paint or dopes, which will
probab ly give rise t o explosion.
Note: Do not expo se the app liance in the outdoo r and rain.
Don't let children play with or hang on the unit as this
will damage the unit or hurt children.
◆
Keep the appliance back out of water to avoid impairing insulation.
War nin g
The temperature indicator flash may probably result from
too much stuff,long lasting or frequent opening or li ttle space
between hot items and the sensor.
Keep the sensor uncovered or out of item contact;
A lump input of hot items or frequent or long-lasting opening will
raise the inside temperature; and the temperature indicator will flash
and recover in 24 hours;
Poor door closing or a lump input of hot items or frequent or long-lasting
opening may result in temperature indicator flash, poor cooling effect or long work;
Do not store infl ammable or explos ive hazardous items and strong acid
or alka line corrosive s chemicals, such as butan e,aeth er,benz ene,
vitriol,gasoline,alcohol etc. Do not put the bottled fluid foods in
the freez er as that will cause bottle cracks.
Do not continue using the malfunctional or damaged appliance.
Please cut off the power and call the local service center.
The appliance must be installation that the plug sh oul d be ea sil y
accessible after installation.
WARNING
If there is gas leaking, please shut the gas valve and
change the room air before pulling out the power p lug
because unplugging will accompan y spa rks t hat w ill
probably give rise to accidents.
煤
气
3
SAFETY NOTES
NOT ES
◆Please refer to the model and serial number to compare the products;
◆Before connecting to power, please verify the power supply voltage and the rated voltage of the
appliance.The rated voltage allowance is 220-240V. For safety purpose, the wires which can
bear over 10A current must be used.
◆After using the freezer, do close the drawer before you shut the freezer door.
◆Should the Fridge TEMP. reads negative,please check if the appliance runs under Super Cool.
◆During the hot weather in Summer, the appliance will run a longer time, the ice will be found in the
back wall and the freezer temperature is low. The above is normal.
◆The electric parts in PCB will get hot during work and shall be kept from water.
Alert
◆The refrigarant leaked from the pipe may catch fire or hurt your eyes. If refrigerant leakage occurs,
please keep away the fire or potential fire source, and keep the room aired for several minutes.
- To avoid the combustible gas composed of the refrigerant leaked from the cooling circuit and the air,
please select the room size to accommodate t he appliance according to the refrigerant quantity.
The room size shall be calculated as per the criterion of 8g R600a per square metres.
For details of the refrigerant quantity, please refer to the manual.
- Do not start the appliance that has any damage. If any problems, please contact the dealer or
service centre.
WARNING
The cooling effects originates from refrigerant that is filled through
special process. Please ensure the pipes in the rear are intact.
This appliance adopts R600a refrigerant which is combustible.
During transportation and installation, please handle the appliance carefully
to protect the cooling system from damage.
- Keep ventilati on op enings, in the appl ian ce en closure or in th e bui ld- in structure,
clear of obstruc tio n.
- Do not use mechani cal d evices or other mea ns to a cce lerate the def ros tin g process,
other than those r eco mmended by the manu fac turer.
- Do not damage the re fri gerant circuit.
- Do not use electri cal a ppliances insid e the f ood s torage compa rtm ent s of the
appliance, unl ess t hey are of the type rec omm ended by the manufa ctu rer.
TROUBLE SHOOTING
The front frame and side plate get hot
- The de-dew pipe is built in the frame to avoid dews condensing
on the frame. It will get hot when the appliance is running.
- The cooling assembly(condensor) is installed on both sides
of the frame.
Ice cracks are heard
- It is not a fault. When the appliance is initiated or closed,
poop will be heard due to sharp change of temperature which
cause uneven heat imposed on the interior parts
Frost or ice is found on the back
- The cool ing pipes in the back will be under 0℃ when the appl iance
is running. Fros t or ice will be found on the back due to dense moist ure.
- When the appliance is off, the fros t will disappear automati cally.
- Suggest to clean the appl iance once per month.
- Foods and food container shall not lean closely agai nst the back.
Streaming is heard
- It is not a fault. The sound is heard when the refrigerant flows.
PREPARATIONS BEFORE USE
Basic preparations
1. In the initial use, please remove 2 tapes from both sides of the glass
shelf and embed two side tubers into the recess of the inner gallbladder.
2. Clean the appliance with the wet wiper(add a few detergents into
the warm water).
3. After 2-3 hours cooling, you may store the foods to regulate the
appliance working.
* Suggest to put in the foods after 2-3 hours cooling.
4
Dews are condensed on the mid-ridge and the frame
- When the environmental humidity exceeds standard.
- Please wipe with the soft cloth.
Dews condensed in the vegetable compartment.
- When the door is left open for long time or
- The fluid food are not properly seal ed.
Should your problems falls out of the above, please visit the designated
service center with the WARRANTY CERTIFICATE or co ntact Sumsung Techn ical
Help Center.
13
TROUBLE SHOOTING
The appliance does not work.
- The Plug is not well connected.
- No power supply.
- Resart the appliance within 5 minutes
after power-off.
Nonstop working is incurred to the appliance.
- When the room temperature is high, or the
appliance is near heat or exposed in the sun.
- The door is opened frequently or well closed.
- The room has poor ventilation.
- The food is over stuffe d, re sul tin g in ba d coo lin g.
The food in the refrigerator is frozen
-
The thermostat setting is too low.
- The foods contact the cooling source
in the back wall.。
Noise is heard
- The appliance is not steadily placed.
- The appliance is too close to the wall.
- The exterior cooling pipes clash with
each other or with fridge wall.
- Something unexpected is behind or under.
- The motor will give out buzz when running.
- Items stored are not steadily placed.
Change the lamp
◆
Pull out the power plug.
Remove the screws from the lamp cover, then hold the rear
with fingers to draw out the cover with forward force.
◆
Turn off the bulb counterclockwise.
Turn on the bulb clockwise.
◆
Hang the back hook first, fix the front hook and fit the screws.
Lamp parameters: ~220V-240V,25W，E14
INSTALLATION & SETUP
Place the refrigerator
1.Remove the foot cushion prior to use.
2.If the appliance is placed unsteadily, you may adjust the front leg in the bottom to stablize
the appliance (lift by turning left).There is a adjust hole i n the f ron t leg .You may adjust it
with a crosshead screwdriver (see right figure).
3.The ground under the appliance shall be flat a nd so lid .
Otherwise noise and oscillation will arise.
◆The noise will grow stronger if the
appliance is put on the soft ground;
◆Please put a solid plate on the blanket,
to avoid miscolor or heat blocking;
◆To stablize the appliance, please leave
the foot contacting the ground closely and
keep the appliance leaning back for easy closing of t he do or.;
Packaging & handling
12
The freezer generates poor effect.
- The door is not well closed.
- The door gasket is damaged or distored or
poorly sealed.
- The appliance is near heat or exposed in
Sun.
- The appliance is not well aired.
The defrost water outflows inside.
- The water outlet is block.
- Please get rid of the block with a
plug or similar tools.
1.Unpacking, repacking and handling
Do remember where the packages are during unpa cki ng an d exa min ing .
The products can not be transported until they are repac ked a fte r exa min ing .
2.Do not hold the door during transportation.
3.Avoid clash or acute shaking during handling.
4.Vertical handling to avoid clash
Do not position the appliance reversely or horizontally.
If ti lting is required, the tilting angle shall be less than45° 。
Please handle the appliance as per the instructions to
prevent from noise or some other problems.
45
。
5
INSTALLATION & SETUP
300mm above
Leave 50~100mm between the appliance back and the wall.
55mm above
55m above
m
At least 300mm shall be left empty over the appliance.
DISASSEMBLY OF ACCESSORIES
Accessories
◆
GUARD-WINE
The multifunctional wine guard may support 3 cans o f bev era ge
horizontally or 1 bottle of drinking vertically.
The appl iance shall not be place where ther e is moisture
to avoi d mental rust and insulation impai rment;
If the appl ianc e is placed near the pool or in the basement ,
a overload prot ector is required except for the eart h wire.
If the appl ianc e is soaked due to the natural disaster
(such as rainst orm or acci dents), pleas e have it repaired
by Sumsung service center bef ore use.
The appliance shall be far away from heat source and direct
sunlight.
A separate socket for earth wire with 3 cores sha ll be used
and shall not be shared with other apparatus. For safety
purpose,please connect the earth wire that is in pl ace on
the earthing pole of the socket.The wire shall not be
connected to the water pi pe, gas pipeline, telephone line
and lightning rod etc.
Make sure not to press the power cord.
No appliances such as microwave, electric cooker and
transformer are allowed on the top of the appliance.
Disassembly of accessories
Shelf-R
You may adjust the shelf position as per the container height.
Drawer-F
You may pull the drawer to the stopper and take it out tipsily.
Tray and COVER-VEG
◆
Draw out the tray-veg and take it out when the cover is lifted.
Warning: During disassembling, do not force out the tray to
avoid the damage of the appliance.
◆
TRAY-EGG & GUARD-BOTTLE
Lift and take out them.
◆
TRAY-VEG.
The tray-veg can reserve the water and freshness of
fruits and vegetables because it is sealed to avoid
direct contact between cold air and vegetables.
Applicable to storage of vegetables and fruits.
TRAY COVER-VEG
TRAY-VEG
NOT ES
6
Before you discard the appliance, please scrap the gasket.
The scraped items shall be properly treated or disposed
of by professionals. Do not discard the scraps anywhere
to avoid damages to the environment or other risks.
1.K eep the appliance out of water because it will get rusty and problem.
Ple ase wipe the electric parts such as switch with dry cloth.
2.D o not use wash powder,alkaline detergent,brush, gas, thin ner,alochol,
coa l oil, acid and boiled water that may hurt the face or plastic items.
3.D o not use chemical wiper that may hurt the face or plastic items.
4.T he oiled plastics items is easy to get aged, wipe off the oil soon.
◆
TRAY-ICE
- Distribute the cold water or beverage into the clean tray-ice
and put them into the freezer.
- When getting the ice piece, just turn the ice tray but do not
turn it up and down.
WARNING
1.The glass partition is movable and heavy.Children are not allowed to move it.
2.The unsteadiness of the appliance will cause noise.
3.The first start needs a long time of about 3 hours as the room temperature
will fall to the setup temperature. The appliance will resume after shutdown.
4.For the foods or fluids that is absorbable, transferrable or odoriferous,
please use a seamless container to store.
11
MAINTENANCE & CLEANING
Interior parts
Dismantle all shelfs, door frames, trays, covers and drawers
and clean with a soft cloth that is soaked with water or medium
detergent (for bowl or chopstick wash).If detergent is used,
please clean with water first,then wipe with a piece of dry cloth.
INTRODUCTION TO PCB
RL26DC**/RL24DC**/RL22DC**/RL21DC**
Door gasket
If th e door gasket contacts the oil or sauce etc.,it will be
impaired after a long time, especially for the gasket of the
door up and down.Make sure to cleanthe gasket carefully.
The r ecess shall be cleaned by the chopstick shrouded by
cotton piece.When embed the gasket, fit four corners first
and embed the gaskets section by section.
Defrost method
When the frost layer gets thick, it may impair the cooling effect. You may take out and pack
the foods. Pull out the power plug and wipe off the water with soft cloth when the frost layer
vanishes. Then connect to the power and restart the appliance to setup the temperature.
Generally once or twice defrost is required per year.
NOT ES
1.Plug off the power first, then clean the freezer after defrost;
2.The best time to defrost is when the freezer is empty or half empty;
3.Do not use metal or sharp tools for defrost to prevent damage;
4.No electric heater is allowed for defrost;
Cleaning precautions
Pull out the plug from the socket before cleaning, the int erv al be twe en
plug in and out shall be over 5 minutes;
No water is allowed in the lamp and PCB cover during c lea nin g;
Wipe with soft towel dipped over water or medium dete rge nt, t hen c lea n
with dry cloth;
Do not use the detergent with abrasive(e.g. Toothpaste),acid,chemical
solvent(e.g.alochol) or putty agent.
Super Cool display
Super Cool key
Fridge key
Fridge & Freezer TEMP.
Display
Freezer key
When power is on, all lamps will light up with welcome music for 2 seconds with
the refrigerator temperature set to 5 . The display will indicate the actual
°C
refrigerator temperature.
Fridge - The display indicates the refrigerator tem perature ;
Freezer - The display indicates the freezer tempera ture;
1.Super Cool key
◆1-1.If the appliance is not under the Super Cool state, pressi ng the "Supe r Cool"
key wil l energize the Super Cool light and bring the appliance t o the Super
Cool st ate;
◆1-2.Entering the Super Cool state, the compressor will sta rt working ;
◆1-3.There are two ways to cancel Super Cool:
1-3-1 .Press the "Super Cool" key to exit the Super Cool state;
1-3-2 .The appliance exits the Super Cool state automatic ally;
◆1-4.Exitting the Super Cool state will disable t he display o f "Super Coo l" ;
NOT ES
10
The following checks shall be made after maintenance:
Any chaps or scars are found on the power cord.
Plu g in the socket reliably
The power plug gets hot or other accidents.
7
INTRODUCTION TO PCB
STORING FOODS
2.Fridge key
◆2-1.Press the "Fridge" key to setup the refrigerator tempe rature;
◆2-2.When pressing the "Fridge" key, the refrigerator tempera ture will fl ash and
displ ay the current setup value with beeps. Repressing the " Fridge" ke y will
enabl e the change of the setup temperature in the cycle of 5 →4 → 3
→7 →6 →5 for each press;
°C °C °C
°C °C °C
3.Freezer key
◆3-1.Press the "Freezer" key to display the freezer tempera ture. The "Frid ge" will
go off and the " Freezer" will light up. The display will show th e freezer te mpe-
ratur e.
Sever al seconds later, the display will indicate the refrig erator tem perature .
◆3-2 When the display indicates the freezer temperature, pr ess the"Fr eezer" key t o
exit th e freezer te mperature and enter the refrigerator temperature;
4.Trim function
◆4-1.Hold down the "Fridge" key for 5 seconds to enter the trim sta te;
◆4-2.Under the trim state, repressing the "Fridge" key will e nable the tr im operati on
as per "- -" "01" "02" " 03"…… "07" " 08" "09" "-- ";
◆4-3.If no actions are input for 5 seconds under the trim state, th e applianc e will
retur n to the norma l work;
◆4-4.If the temperature setup is changed, it will exit the trim s tate;
◆4-5.When trimming the temperature, each press will trigg er a beep soun d;
◆4-6.Higher is the value, the setup temperature i s lower:
* Trim function is not recommended;
The foods shall be packed with the freshness reservation bag
(film) or put in the sealed container to avoid air-dry
or mix-odour.
Hot foods or beverages shall be cooled to the room temperature
to save power consumption.
The cooked and raw foods shall be placed separately.
The foo ds shall be kept loo se to leave enough space for air cycle .
Note: 1. Do not put the foods near the sensor.
2. The foo ds and co ntainers shall not lean against the
back wall.
Store foods in smaller portions.
Better clean the washable foods,such as fruits and vegetables
before storage.
The fruits and vegetables shall be stored in the vegetable
compartment to reserve the water and freshness.
5.Opening alarm
◆5-1.When the refrigerator door is open for 2 minutes, an alarm w ill be heard ;
When it i s open for 3 minutes, two alarms will be heard; When the door is
open fo r more than 4 minutes, alarms in the cycle of 1 minute alarm and
2 minut es stop to rem ind the user of closing the door;
◆5-2.The alarm will stop when the refrigerator do or is closed ;
8
WARNING
The tropic fruits such as banana and pineapple are not suitable.
Do not store the items that has strict storage standard, such as
blood serum, bacterin and academic materials.
Recommendation: If you need a large quantity of foods to be stored,
ice making or fast cooling, please take out the freezer drawer and
freeze the foods directly on the evaporator partition.
NOT ES
Do not touch the freezer evaporator with wet hands to avoid the water ices
on your hands.
9
Loading...
