Refrigerator
User manual
Free Standing Appliance
Barosa_NA_DA68-02676V-01_EN.indd 1 |
|
|
2020-06-10 2:58:00 |
|
|
||
|
|
|
|
Contents
Safety information
|
What you need to know about the safety instructions |
|
|
Important safety symbols and precautions: |
|
<![if ! IE]> <![endif]>Contents |
State of California Proposition 65 Warning |
|
Important safety precautions |
||
|
||
|
Severe warning signs for transportation and site |
|
|
Critical installation warnings |
|
|
Installation cautions |
|
|
Critical usage warnings |
|
|
Usage cautions |
|
|
Cleaning cautions |
|
|
Critical disposal warnings |
Installation
Refrigerator at a glance
Step-by-step installation
Operations
Control panel
Special features
Maintenance
Door reversal (applicable models only)
Handle and care
Cleaning
Replacement
Troubleshooting
General
Do you hear abnormal sounds from the refrigerator?
LIMITED WARRANTY (U.S.A.)
SAMSUNG REFRIGERATOR
Warranty Information (CANADA)
If your refrigerator needs service
Limited Warranty for Original Purchaser
Obligation to the Original Owner
Exclusions of the Warranty
2 English
3
3
4
4
5
7
7
9
9
12
13
14
15
15
16
19
19
21
22
22
29
30
30
31
31
33
35
35
38
38
38
39
39
Barosa_NA_DA68-02676V-01_EN.indd 2 |
|
|
2020-06-10 2:58:00 |
|
|
||
|
|
|
|
Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.
• This appliance is not intended for use by persons (including children) with reduced |
|
|
physical, sensory or mental capabilities, or lack of experience and knowledge, unless |
|
|
they have been given supervision or instruction concerning use of the appliance by a |
|
|
person responsible for their safety. Children should be supervised to ensure that they |
<![if ! IE]> <![endif]>Safety |
|
do not play with the appliance. |
||
|
||
• Because the following instructions cover various models, the characteristics of your |
<![if ! IE]> <![endif]>information |
|
refrigerator may differ slightly from the refrigerator described in this manual. |
||
• If you have any question, contact us at 1-800-SAMSUNG or find help and information |
||
|
||
online at www.samsung.com. |
|
|
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When |
|
|
refrigerant leaks from the pipe, avoid any naked flames and move anything flammable |
|
|
away from the product and ventilate the room immediately. |
|
|
- Failing to do so may result in fire or explosion. |
|
|
• Improper use of the grounding plug can result in a risk of electric shock. If it is |
|
|
necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade |
|
|
grounding plug and a 3-slot receptacle that will accept the plug on the appliance. |
|
|
The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a |
|
|
grounding adapter is used, make sure the receptacle box is fully grounded. |
|
English 3
Barosa_NA_DA68-02676V-01_EN.indd 3 |
|
|
2020-06-10 2:58:00 |
|
|
||
|
|
|
|
Safety information
<![endif]>information Safety
Please follow all safety instructions in this manual. This manual uses the following safety symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury and/or property damage.
NOTE
Useful information that helps users understand or benefit from the refrigerator.
These warning signs are here to prevent injury to you and others. Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
4 English
Barosa_NA_DA68-02676V-01_EN.indd 4 |
|
|
2020-06-10 2:58:00 |
|
|
||
|
|
|
|
Warning; Risk of fire / flammable materials
WARNING
•R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.
•In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.
•The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.
•If you use two products side by side, for safety reason, be sure to use certified products in explosive gas atmospheres.
•Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.
•If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
•The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.
•Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
•New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
•When positioning the appliance, ensure the supply cord is not trapped or damaged.
•Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
English 5
<![endif]>information Safety
Barosa_NA_DA68-02676V-01_EN.indd 5 |
|
|
2020-06-10 2:58:00 |
|
|
||
|
|
|
|
Safety information
<![endif]>information Safety
WARNING
•Fill with potable water only.
•Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.
•Connect to potable water supply only.
WARNING
•Risk of child entrapment. Before you throw away your old refrigerator or freezer:
-Take off the doors.
-Leave the shelves in place so that children may not easily climb inside.
This appliance is intended to be used in household and similar applications such as
•staff kitchen areas in shops, offices and other working environments;
•farm houses and by clients in hotels, motels and other residential type environments;
•bed and breakfast type environments;
•catering and similar non-retail applications.
6 English
Barosa_NA_DA68-02676V-01_EN.indd 6 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
WARNING
•When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
-Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.
-This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also flammable.
WARNING
•Do not install the refrigerator in a damp location or place where it may come in contact with water.
-Deteriorated insulation on electrical parts may cause an electric shock or fire.
•Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.
•Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate.
-This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a fire hazard.
•If the wall socket is loose, do not insert the power plug.
-There is a risk of electric shock or fire.
•Do not use a power cord that has cracks or abrasion damage along its length or at either end.
•Do not bend the power cord excessively or place heavy objects on it.
•Do not pull or excessively bend the power cord.
•Do not twist or tie the power cord.
•Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.
•When moving the refrigerator, be careful not to roll over or damage the power cord.
-This may result in an electric shock or fire.
•Never unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
-Damage to the cord may cause a short-circuit, fire, and/or electric shock.
•Do not install this appliance near a heater or flammable material.
•Do not install this appliance in a location where gas may leak.
-This may result in an electric shock or fire.
English 7
<![endif]>information Safety
Barosa_NA_DA68-02676V-01_EN.indd 7 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Safety information
• This refrigerator must be properly located and installed in accordance with the
|
instructions in this manual before you use it. |
|
|
• Connect the power plug in the proper position with the cord hanging down. |
|
|
- If you connect the power plug upside down, the wire can get cut off and cause a fire |
|
|
or electric shock. |
|
|
• Make sure that the power plug is not crushed or damaged by the back of the |
|
|
refrigerator. |
|
<![if ! IE]> <![endif]>Safety |
• Keep the packing materials out of reach of children. |
|
- There is a risk of death from suffocation if a child puts the packing materials on his |
||
|
||
|
or her head. |
|
<![if ! IE]> <![endif]>information |
• The appliance must be positioned so that the plug is accessible after installation. |
|
- Deteriorated insulation on electrical parts may cause an electric shock or fire. |
||
|
- Failing to do so may result in an electric shock or fire due to electric leakage. |
|
|
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed |
|
|
to direct sunlight or to water (rain drops). |
|
|
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and |
|
|
contact a Samsung Electronics service center. |
|
|
- Otherwise there is a risk of fire. |
|
|
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, |
|
|
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. |
|
|
- This may result in an electric shock, fire, problems with the product, or injury. |
|
|
• You need to remove all the protective plastic film before you initially plug the product |
|
|
in. |
|
|
• Children should be supervised to ensure that they do not play with the snap rings used |
|
|
for door adjustment or the water tube clips. |
|
|
- There is risk of death by suffocation if a child swallows a snap ring or water tube |
|
|
clip. Keep the snap rings and water tube clips out of children’s reach. |
|
|
• The refrigerator must be safely grounded. |
|
|
- Always make sure that you have grounded the refrigerator before attempting to |
|
|
investigate or repair any part of the appliance. Power leakages can cause severe |
|
|
electric shock. |
|
|
• Never use gas pipes, telephone lines, or other potential lightning attractors as an |
|
|
electrical ground. |
|
|
- You must ground the refrigerator to prevent any power leakages or electric shocks |
|
|
caused by current leakage from the refrigerator. |
|
|
- Current leakage may result in an electric shock, fire, explosion, or problems with the |
|
|
product. |
|
|
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, |
|
|
damaged power cord, or loose wall socket. |
|
|
- This may result in an electric shock or fire. |
|
|
• Only a qualified technician or service company should be allowed to change the fuse in |
|
|
the refrigerator. |
|
|
- Failing to do so may result in an electric shock or personal injury. |
|
8 |
English |
Barosa_NA_DA68-02676V-01_EN.indd 8 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
CAUTION
• Allow sufficient space around the refrigerator and install it on a flat surface. |
|
|
- Keep the ventilation space in the appliance enclosure or mounting structure clear of |
|
|
obstructions. |
|
|
• After you have installed the refrigerator and turned it on, allow the appliance to stand |
<![if ! IE]> <![endif]>Safety |
|
for 2 hours before loading it with food. |
||
|
||
• It is strongly recommended you have a qualified technician or service company install |
|
|
the refrigerator. |
<![if ! IE]> <![endif]>information |
|
- Failing to do so may result in an electric shock, fire, explosion, problems with the |
||
|
||
product, or injury. |
|
|
• Overloading one door may make the refrigerator fall, causing physical injury. |
|
|
Critical usage warnings |
|
|
|
|
|
WARNING |
|
•Do not insert the power plug into a wall socket with wet hands.
-This may result in an electric shock.
•Do not store articles on the top of the appliance.
-When you open or close the door, the articles may fall and cause personal injury and/or material damage.
•Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.
-This may result in an electric shock or injury.
-Any sharp edges may cause a personal injury.
•Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.
-This may cause frostbite.
•Do not put a container filled with water on the refrigerator.
-If spilled, there is a risk of fire or electric shock.
•Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
-This refrigerator is for storing food only.
-This may result in fire or explosion.
•Children should be supervised to ensure that they do not play with the appliance.
-Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.
•Do not let children hang on the door or door bins. A serious injury may occur.
•Do not let children go inside the refrigerator. They could become trapped.
English 9
Barosa_NA_DA68-02676V-01_EN.indd 9 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Safety information
|
• Do not insert your hands into the area under the appliance. |
|
|
- Any sharp edges may cause personal injury. |
|
|
• Do not store pharmaceutical products, scientific materials, or temperature sensitive |
|
|
products in the refrigerator. |
|
|
- Products that require strict temperature controls must not be stored in the |
|
|
refrigerator. |
|
|
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are |
|
<![if ! IE]> <![endif]>Safety |
of a type recommended by the manufacturer. |
|
• If you smell smoke, pull out the power plug immediately, and then contact a Samsung |
||
|
||
|
Electronics service center. |
|
<![if ! IE]> <![endif]>information |
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and |
|
- The drawer may break and cause them to slip. |
||
|
contact your Samsung Electronics service center. |
|
|
- Otherwise there is a risk of fire. |
|
|
• Do not let children step on a drawer. |
|
|
• Do not leave the doors of the refrigerator open while the refrigerator is unattended and |
|
|
do not let children enter the refrigerator. |
|
|
• Do not allow babies or children to go into a drawer. |
|
|
- It can cause death from suffocation by entrapment or personal injury. |
|
|
• Do not overfill the refrigerator with food. |
|
|
- When you open the door, an item may fall out and cause personal injury or material |
|
|
damage. |
|
|
• Do not spray volatile material such as insecticide onto the surface of the appliance. |
|
|
- As well as being harmful to humans, it may also result in an electric shock, fire, or |
|
|
problems with the product. |
|
|
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker |
|
|
bucket. |
|
|
- It may cause a personal injury or material damage. |
|
|
• Do not use or place any substances sensitive to temperature such as flammable sprays, |
|
|
flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator. |
|
|
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted |
|
|
candle in the refrigerator to remove bad odors. |
|
|
- This may result in an electric shock or fire. |
|
|
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, |
|
|
or purified water). |
|
|
- Do not fill the tank with tea, juice, or a sports drink. They can damage the |
|
|
refrigerator. |
|
|
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, |
|
|
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may |
|
|
result in an electric shock, fire, problems with the product, or injury. Do not put a |
|
|
container filled with water on the appliance. |
|
|
- If spilled, there is a risk of fire or electric shock. |
|
|
• Never stare directly at the UV LED lamp for long periods of time. |
|
|
- This may result in eye strain due to the ultraviolet rays. |
|
10 |
English |
Barosa_NA_DA68-02676V-01_EN.indd 10 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
work. |
|
|
- The glass shelf could fall and cause personal injury. |
|
|
• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are |
|
|
necessarily small. Be careful when you open the doors if children are in the area. |
|
|
• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and air |
|
|
the room in which the appliance is standing for several minutes. |
|
|
- Do not touch the appliance or power cord. |
<![if ! IE]> <![endif]>Safety |
|
- Do not use a ventilating fan. |
||
|
||
- A spark may result in an explosion or fire. |
|
|
• Use only the LED Lamps provided by the manufacturer or its service agents. |
<![if ! IE]> <![endif]>information |
|
bucket. |
||
• Bottles should be stored tightly together so that they do not fall over or out. |
|
|
• This product is intended only for the storage of food in a domestic environment. |
|
|
• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker |
|
|
- This can cause a personal injury or material damage. |
|
|
• Do not attempt to repair, disassemble, or modify the refrigerator yourself. |
|
|
- Unauthorized modifications can cause safety problems. To reverse an unauthorized |
|
|
modification, we will charge the full cost of parts and labor. |
|
|
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse. |
|
|
• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung |
|
|
service center. |
|
|
- Failing to do so may result in an electric shock, fire, problems with the product, or |
|
|
injury. |
|
|
• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service |
|
|
center. |
|
|
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately |
|
|
and contact a Samsung service center. |
|
|
- Failing to do so may result in an electric or fire hazards. |
|
|
• Pull the power plug out of the socket before changing the interior lamps of the |
|
|
refrigerator. |
|
|
- Otherwise, there is a risk of electric shock. |
|
|
• If you experience difficulty changing a non-LED light, contact a Samsung service center. |
|
|
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and |
|
|
LED lamps yourself. |
|
|
- Contact a Samsung service center. |
|
|
• Plug the power plug into the wall socket firmly. |
|
|
• Do not use a damaged power plug, damaged power cord, or loose wall socket. |
|
|
- This may result in an electric shock or fire. |
|
English 11
Barosa_NA_DA68-02676V-01_EN.indd 11 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Safety information
CAUTION
• Do not re-freeze frozen foods that have thawed completely.
• Use only the ice maker provided with the refrigerator.
• To get the best performance from the product:
<![if ! IE]> <![endif]>Safety |
- Do not place food too close to the vents at the rear of the refrigerator as this can |
|
obstruct free air circulation in the refrigerator compartment. |
||
|
||
|
- Wrap food up properly or place it in airtight containers before putting it into the |
|
<![if ! IE]> <![endif]>information |
refrigerator. |
|
- Please observe maximum storage times and expiration dates of frozen goods. |
||
|
||
|
• Do not put glass containers or bottles or carbonated beverages into the freezer. |
|
|
- The container may freeze and break, and this may result in injury. |
|
|
• Service Warranty and Modification. |
|
|
- Any changes or modifications performed by a 3rd party on this finished appliance |
|
|
are not covered under Samsung warranty service, nor is Samsung responsible for |
|
|
safety issues that result from 3rd party modifications. |
|
|
• Do not block the air vents inside the refrigerator. |
|
|
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be over |
|
|
cooled. If a cooling period lasts too long, the water filter may break and cause water |
|
|
leakage. |
|
|
• If the refrigerator is disconnected from the power supply, you should wait for at least |
|
|
five minutes before plugging it back in. |
|
|
• If large amounts of water enter the refrigerator, pull out the power plug and contact a |
|
|
Samsung service center. |
|
|
• Do not strike or apply excessive force to any glass surface. |
|
|
- Broken glass may result in a personal injury and/or property damage. |
|
|
• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, |
|
|
or purified water). |
|
|
- Do not fill the tank with tea, juice, or a sports drink. They can damage the |
|
|
refrigerator. |
|
|
• If the refrigerator is flooded, shut off the power to the refrigerator and contact your |
|
|
nearest Samsung service center. |
|
|
- There is a risk of electric shock or fire. |
|
|
• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it |
|
|
foul-tasting and difficult to use. In addition, the open container can leak and the leaked |
|
|
oil can cause the door bin to crack. After opening an oil container, it is best to keep the |
|
|
container in a cool and shaded place such as a cupboard or pantry. |
|
|
- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. |
12 English
Barosa_NA_DA68-02676V-01_EN.indd 12 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
CAUTION
• Do not spray water directly on the inside or outside of the refrigerator. |
|
|
- There is a risk of fire or electric shock. |
|
|
• Do not use a hair dryer to dry the inside of the refrigerator. |
|
|
• Do not place a lighted candle in the refrigerator to remove bad odors. |
<![if ! IE]> <![endif]>Safety |
|
• Do not spray cleaning products directly on the display. |
||
- This may result in an electric shock or fire. |
|
|
- Printed letters on the display may come off. |
<![if ! IE]> <![endif]>information |
|
• If any foreign substance such as water has entered the appliance, unplug the power |
||
|
||
plug and contact your nearest Samsung service center. |
|
|
- Failing to do so may result in an electric shock or fire. |
|
|
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. |
|
|
Do not use a wet or damp cloth when cleaning the plug. |
|
|
- Otherwise, there is a risk of fire or electric shock. |
|
|
• Do not clean the appliance by spraying water directly onto it. |
|
|
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator. |
|
|
- They may damage the surface of the appliance and may cause a fire. |
|
|
• Never put fingers or any objects into the dispenser outlet. |
|
|
- This can cause a personal injury or material damage. |
|
|
• Before cleaning or performing maintenance, unplug the appliance from the wall socket. |
|
|
- Failing to do so may result in an electric shock or fire. |
|
|
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the |
|
|
refrigerator. |
|
|
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, |
|
|
flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or |
|
|
cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic |
|
|
parts, door and interior liners, and gaskets. |
|
|
- These can scratch or damage the material. |
|
|
• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves |
|
|
and covers may break if exposed to sudden temperature changes or impacts such as |
|
|
bumping or dropping. |
|
English 13
Barosa_NA_DA68-02676V-01_EN.indd 13 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Safety information
WARNING
|
• Children trapped inside a refrigerator can hurt themselves or suffocate to death. |
|
|
• Please dispose of the packaging material from this product in an environmentally |
|
|
friendly manner. |
|
<![if ! IE]> <![endif]>Safety |
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to |
|
disposal. |
||
|
||
|
• This product contains R-600a, a flammable gas, which is used as the refrigerant. Contact |
|
<![if ! IE]> <![endif]>information |
your local authorities regarding safe disposal of this product. |
|
• When disposing of this refrigerator, remove the door/door seals and door latch so that |
||
|
||
|
small children or animals cannot become trapped inside. Children should be supervised |
|
|
to ensure that they do not play with the appliance. |
|
|
- If trapped inside, the child could be injured or suffocate to death. |
|
|
• Cyclopentane is used in the insulation. The gases in the insulation material require |
|
|
a special disposal procedure. Please contact your local authorities in regard to the |
|
|
environmentally safe disposal of this product. |
|
|
• Keep all packaging materials well out of the reach of children, as packaging materials |
|
|
can be dangerous to children. |
|
|
- If a child places a bag over his or her head, the child could suffocate. |
14 English
Barosa_NA_DA68-02676V-01_EN.indd 14 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.
WARNING
•Use the refrigerator only for its intended purpose as described in this manual.
•Any servicing must be performed by a qualified technician.
•Dispose of the product packaging material in compliance with the local regulations.
•To prevent electric shock, unplug the power cord before servicing or replacements.

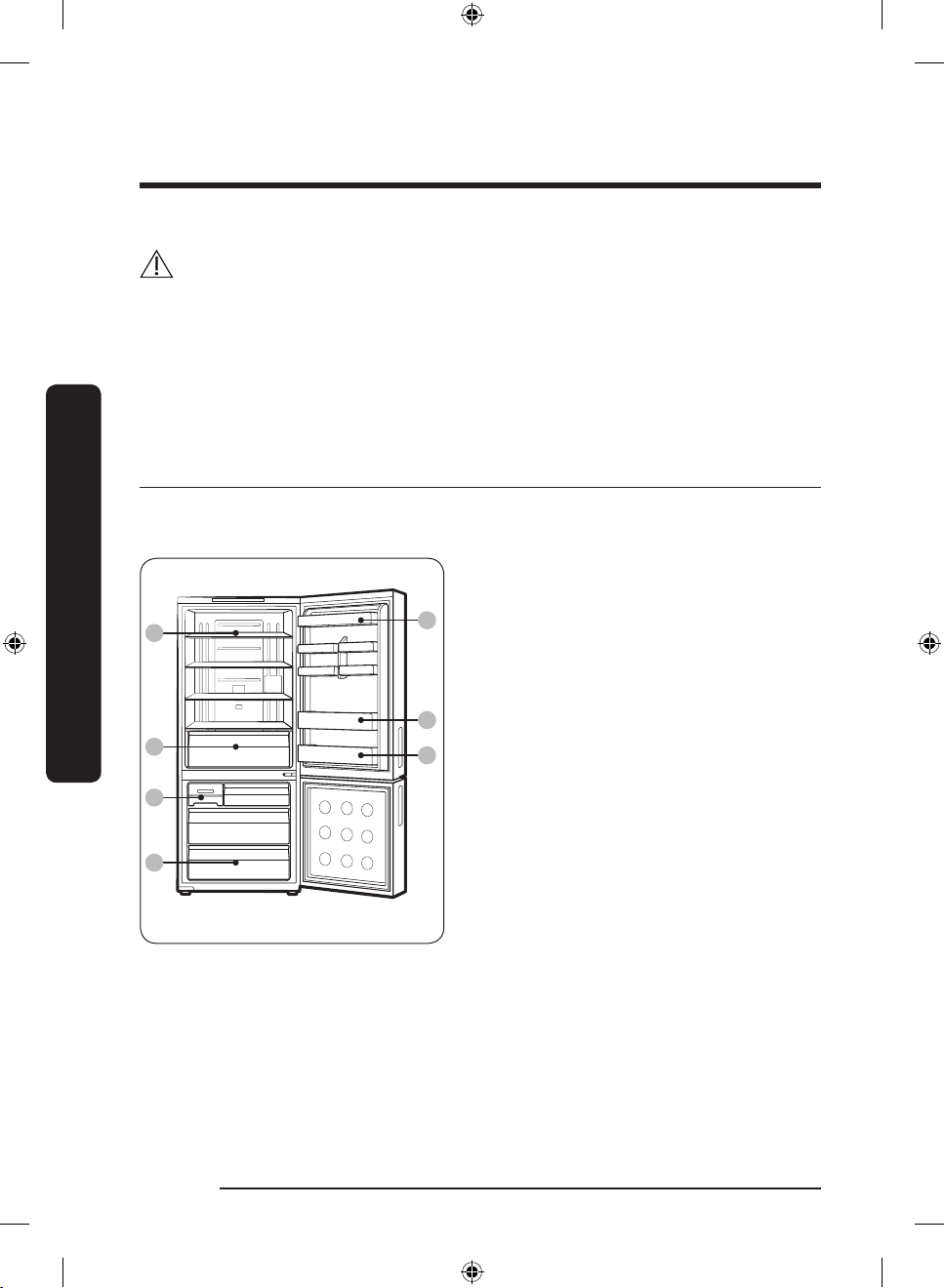

The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.
|
|
01 Fridge shelves |
|
|
02 Fridge drawer |
|
|
03 Twist ice maker |
01 |
05 |
04 Freezer drawers |
|
05 Egg tray |
|
|
|
|
|
|
06 Door bins |
|
06 |
|
02 |
06 |
|
|
|
|
03 |
|
|
04 |
|
|
<![endif]>Installation
English 15
Barosa_NA_DA68-02676V-01_EN.indd 15 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Installation
STEP 1 Select a site
<![endif]>Installation
Select a site that:
•Has a solid, level surface without carpeting or flooring that may obstruct ventilation
•Is away from direct sunlight
•Has adequate room for opening and closing the door
•Is away from any heat sources
•Provides room for maintenance and servicing
•Has a temperature range between 50 °F (10 °C) and 109 °F (43 °C)
NOTE
To facilitate moving your refrigerator to its final location, be sure to measure the width and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be taken into consideration to ensure you can move your refrigerator safely. The following diagram illustrates the exact height and depth (factory specifications) of your refrigerator.
Clearance
See the following pictures and tables for space requirement for installation.
B |
Depth "A" |
27¾" (705 mm) |
|
|
|
||
|
Width “B” |
271/2" (700 mm) |
|
|
Height “C” |
65⅝" (1668 mm) |
|
A |
Overall Height |
66⅞" (1700 mm) |
|
“D” |
|||
|
|||
C |
D |
|
16 English
Barosa_NA_DA68-02676V-01_EN.indd 16 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
|
|
01 |
more than 2" (50 mm) |
|
|
recommended |
|
|
|
|
|
01 |
|
02 |
120° |
|
|
||
03 |
03 |
03 |
at least 2" (50 mm) |
|
05 |
04 |
43⅛" (1093.5 mm) |
|
|
05 |
52¼" (1326.7 mm) |
|
02 |
|
|
|
04 |
|
|
NOTE
The measurement in the above table may differ, depending on the measuring method.
STEP 2 Flooring
•The surface to install the refrigerator must support a fully loaded refrigerator.
•To protect the floor, put a large piece of cardboard on each foot of the refrigerator.
•Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you
have to, use a thick paper or cloth such as old carpet along the movement path.
English 17
<![endif]>Installation
Barosa_NA_DA68-02676V-01_EN.indd 17 |
|
|
2020-06-10 2:58:01 |
|
|
||
|
|
|
|
Installation
STEP 3 Adjust the levelling legs
<![endif]>Installation
CAUTION
•The refrigerator must be levelled on a flat, solid floor. Failing to do so can cause damage to the refrigerator or physical injury.
•Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator.
If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily.
Case 1) The appliance tilts down to the left.
Turn the left adjusting leg in the direction of the arrow until the appliance is level.
Case 2) The appliance tilts down to the right.
Turn the right adjusting leg in the direction of the arrow until the appliance is level.
Case 1
STEP 4 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1.Plug the power cord into the wall socket to turn the refrigerator on.
2.Open the door, and check if the interior light lights up.
3.Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer should be slightly chilled, and the motor should be running smoothly.
4.Wait until the refrigerator reaches the set temperature. The refrigerator is now ready for use.
STEP 5 Final check
When installation is complete, confirm that:
•The refrigerator is plugged into an electrical outlet and grounded properly.
•The refrigerator is installed on a flat, level surface with a reasonable clearance from the wall or the cabinet.
•The refrigerator is level and is sitting firmly on the furniture.
•The door opens and closes freely, and the interior light turns on automatically when you open the door.
18 English
Barosa_NA_DA68-02676V-01_EN.indd 18 |
|
|
2020-06-10 2:58:02 |
|
|
||
|
|
|
|
01 |
02 |
03 |
04 |
01 Door Alarm / °F °C |
02 Freezer / Power Freeze |
03 Fridge |
04 Vacation |
NOTE
•To ensure optimal performance, we recommend setting the temperature to -2 °F (-19 °C) for the freezer, and 38 °F (3 °C) for the fridge.
•The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator.
•The display of the main panel turns on only if the door is opened and turns off if the door is closed.
01 Door Alarm / °F °C (3 sec)
|
You can set the alarm for a reminder. If the door is left open for |
|
|
more than 2 minutes, the alarm will sound with the Alarm indicator |
|
Door Alarm |
blinking. |
|
|
You can toggle to enable and disable the alarm by pressing Door |
|
|
Alarm. |
|
|
|
|
|
You can also use the Door Alarm button to switch the temperature |
|
°F °C |
scale between Celsius and Fahrenheit. |
|
To switch the temperature scale, press and hold Door Alarm for |
||
|
||
|
3 seconds to change the current temperature scale. |
|
|
|
English 19
<![endif]>Operations
Barosa_NA_DA68-02676V-01_EN.indd 19 |
|
|
2020-06-10 2:58:02 |
|
|
||
|
|
|
|
Operations
02 Freezer / Power Freeze (3 sec)
<![endif]>Operations
Freezer |
The Freezer button can be used to set the freezer temperature. |
|
Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C). |
||
|
||
|
|
|
|
Power Freeze uses maximum fan speed to speed up the freezing |
|
|
process. The freezer keeps running at full speed for 50 hours and then |
|
|
returns to the previous temperature. |
|
|
• To activate Power Freeze, press and hold Freezer for 3 seconds to |
|
|
select Power Freeze. |
|
|
The corresponding indicator ( ) lights up, and the refrigerator |
|
|
will speed up the freezing process for you. |
|
|
• To deactivate Power Freeze, press and hold Freezer for 3 seconds |
|
Power Freeze |
again. |
|
The freezer returns to the previous temperature setting, and the |
||
|
||
|
indicator turns off. |
|
|
• To freeze large amounts of food, activate Power Freeze for at least |
|
|
20 hours before putting food in the freezer. |
|
|
NOTE |
|
|
Using Power Freeze increases power consumption. Make sure you |
|
|
turn it off and return to the previous temperature if you do not intend |
|
|
to use it. |
|
|
|
03 Fridge
To adjust the fridge temperature, press Fridge to select the corresponding temperature. You can change the temperature between 34 °F (1 °C) and 44 °F (7 °C).
04 Vacation (3 sec)
If you are going on vacation or a business trip, or if you do not intend to use the fridge for an extended time, use the Vacation mode.
•To activate Vacation mode, press and hold Vacation for 3 seconds. The Vacation On
indicator ( ) turns on while the display of the fridge temperatures will turn off. The fridge temperature will be controlled under 59 °F (15 °C), but the freezer remains active as previously set.
•To deactivate Vacation mode, press and hold Vacation again for 3 seconds. The fridge temperature will return to the previous setting.
NOTE
•Make sure to remove foods in the fridge compartment before using Vacation mode.
•The Vacation mode will be disabled if you adjust the temperature.
20 English
Barosa_NA_DA68-02676V-01_EN.indd 20 |
|
|
2020-06-10 2:58:02 |
|
|
||
|
|
|
|
Your refrigerator and its special functions may differ from the images and functions presented in this section depending on your model and country.
Ice making (applicable models only)
Twist ice maker
1. Open the freezer door, and slide open the ice tray.
2. Fill the tray with water up to the maximum level (A) marked on the inner rear of the tray.
3. Slide the tray back into position.
A |
NOTE |
|
The ice making time depends on your temperature settings.
Twist the lever firmly in the clockwise direction until the tray twists slightly.
NOTE
•Make sure the ice bucket is in place
under the ice tray.
•Take out the bin by slightly twisting and pulling to the front.
English 21
<![endif]>Operations
Barosa_NA_DA68-02676V-01_EN.indd 21 |
|
|
2020-06-10 2:58:02 |
|
|
||
|
|
|
|
WARNING
•Tilting/laying the refrigerator requires minimum of 2 people.
•Disconnect power source and water line before reversing the doors.
•If the unit is allowed to lay on its back or side for more than an hour, let it stand for 15 minutes after it is returned to the upright position before plugging it in.
Tools required (not provided)
<![endif]>Maintenance
Phillips screwdriver |
Flat-head screwdriver |
7/11" (11 mm) spanner |
⅜" (10 mm) socket wrench |
3/16" (5 mm) Allen wrench |
Accessories (provided)
Top-left hinge cover |
Screw covers (2) |
CAUTION
Throughout the entire reversing procedure, keep all the small parts (screws, caps, etc.) of the refrigerator away from children or infants for safety reasons.
NOTE
•Samsung recommends that reversing of the door opening is only completed by Samsung approved Service providers. This will be on a chargeable basis at the customer expense.
•Before reversing the doors, put a protective material (such as a cardboard box) on the floor where you can safely place the removed parts, preventing any damage throughout the whole process.
22 English
Barosa_NA_DA68-02676V-01_EN.indd 22 |
|
|
2020-06-10 2:58:03 |
|
|
||
|
|
|
|
Reversing the door
1. With the fridge door closed, use a Phillips screwdriver to remove the screws fastening the top cover (A).
2. Gently lift the top cover (A) and place it on top of the refrigerator.
- Be careful when you lift the top cover (A). There is a wire connected underneath it.
A
3. Use a socket wrench (⅜" / 10 mm) to remove the screws fastening the top hinge (B). Then, remove the top hinge
(B) from the fridge door.
B
4. Lift the fridge door to remove it from the middle hinge.
CAUTION
The door is heavy. To prevent damage or injury, use caution while removing the door.
English 23
<![endif]>Maintenance
Barosa_NA_DA68-02676V-01_EN.indd 23 |
2020-06-10 2:58:03 |
Maintenance
<![endif]>Maintenance
5. Use a Phillips screwdriver and Allen wrench (3/16" / 5 mm) to remove the screws fastening the middle hinge (C).
C |
6. Remove the middle hinge (C) from the |
|
door. |
7. Lift the freezer door to remove it from the bottom hinge.
CAUTION
|
The door is heavy. To prevent damage or |
|
|
injury, use caution while removing the |
|
|
door. |
|
|
8. Remove the bottom hinge washer (D), |
|
E |
screw (E), auto guide (F), and shaft (G) |
|
from the right bottom hinge plate in |
||
|
||
D |
that order. |
|
F |
- Use a Phillips screwdriver for the |
|
screw (E), and a spanner (7/11" / |
||
|
||
G |
11 mm) for the shaft (G). |
9. Remove the bottom hinge cover (H) from the left bottom hinge plate.
H
24 English
Barosa_NA_DA68-02676V-01_EN.indd 24 |
|
|
2020-06-10 2:58:03 |
|
|
||
|
|
|
|
10. Put the bottom hinge cover (H) on the right bottom hinge plate.
11. Assemble the shaft (G), auto guide (F), screw (E), and bottom hinge washer (D)
Eonto the left bottom hinge plate in that order.
D |
- Use a Phillips screwdriver for the |
|
|
F |
screw (E), and a spanner (7/11" / |
G |
11 mm) for the shaft (G). |
|
12. On the bottom of the freezer door, remove the door stopper (H) and the grommet (J). Then, put them on the opposite side of the door.
|
- Use a Phillips screwdriver to |
J H |
remove or tighten the screw |
fastening the door stopper (H). |
<![endif]>Maintenance
K13. On top of the freezer door, switch the position of the grommet (K) and the
grommet cover (L).
L
English 25
Barosa_NA_DA68-02676V-01_EN.indd 25 |
|
|
2020-06-10 2:58:04 |
|
|
||
|
|
|
|
Maintenance
<![endif]>Maintenance
14. Remove the middle hinge screw covers and put them on the opposite side.
15. Put the freezer door on the bottom hinge.
16. Put the middle hinge (C) into the grommet on the top of the freezer door
C and fasten it with the screws using a Phillips screwdriver and Allen wrench (3/16" / 5 mm).
|
17. |
On the bottom of the fridge door, use |
|
|
a Phillips screwdriver to remove the |
|
|
screws. |
P |
18. |
Remove the door stopper (M), door |
|
N |
stopper bracket (N), and grommet (P). |
|
|
Then, put them on the opposite side of |
|
|
the door. |
|
19. Fasten the door stopper bracket (N) and |
|
P |
door stopper (M) with the screws using |
|
a Phillips screwdriver. |
||
N |
||
- One screw is longer than the other |
||
|
||
|
two. Use the longer screw to fasten |
|
|
the door stopper (M). |
|
M |
|
26 English
Barosa_NA_DA68-02676V-01_EN.indd 26 |
|
|
2020-06-10 2:58:04 |
|
|
||
|
|
|
|
20. Remove the door cover on the top of the fridge door.
|
21. |
Remove the top hinge from the fridge |
R |
T |
door, and then remove the top-right |
|
|
hinge cover (R) from the top hinge. |
|
|
NOTE |
|
Keep the removed part in a safe place for |
|
|
later use. |
|
|
22. |
Use a spanner (7/11" / 11 mm) to remove |
|
|
the shaft (S) from the top hinge plate. |
S |
23. Flip the top hinge plate and reattach |
|
|
|
the shaft (S). |
|
24. |
Attach the provided top-left hinge |
|
|
cover (T) to the top hinge. |
|
25. |
Remove the door hinge cover (Q) and |
|
Q |
put it on the opposite side of the door. |
English 27
<![endif]>Maintenance
Barosa_NA_DA68-02676V-01_EN.indd 27 |
|
|
2020-06-10 2:58:04 |
|
|
||
|
|
|
|
Maintenance
<![endif]>Maintenance
28 English
26. |
Put the top hinge on the top-left side of |
|
the fridge door, and then assemble the |
|
door cover back. |
27. |
Put the fridge door on the middle |
|
hinge. |
28. |
Fasten the top hinge (B) with the |
B |
screws using a socket wrench |
|
(⅜" / 10 mm). |
29.With the fridge door closed, put the top cover (A) back. Fasten the top cover
(A) with the screws using a Phillips screwdriver.
A
30.Detach the fridge and the freezer door gaskets and then attach them after rotating them 180°.
Barosa_NA_DA68-02676V-01_EN.indd 28 |
2020-06-10 2:58:04 |
Shelves
Slightly lift up the rear side of the shelf to pull out.
CAUTION
Do not put the shelves upside down or backwards. There is a risk of falling.
Fridge door bin / Variety door bin
Hold the bin with both hands, and then lift up to remove.
CAUTION
To prevent accidents, empty the bins before removing.
Fridge drawer / Freezer drawer
Gently lift up the front of the drawer and slide out.
English 29
<![endif]>Maintenance
Barosa_NA_DA68-02676V-01_EN.indd 29 |
|
|
2020-06-10 2:58:04 |
|
|
||
|
|
|
|
Maintenance
Interior and exterior
WARNING
•Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a fire.
•Do not spray water onto the refrigerator. This may cause electric shock.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.
1.Unplug the power cord.
2.Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior and exterior.
3.When done, use a dry cloth or paper towel to dry well.
4.Plug in the power cord.
LED Lamps
To replace the lamps of the refrigerator, contact a local Samsung service centre.
WARNING
The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock.
<![if ! IE]><![endif]>Maintenance
30 English
Barosa_NA_DA68-02676V-01_EN.indd 30 |
|
|
2020-06-10 2:58:04 |
|
|
||
|
|
|
|
