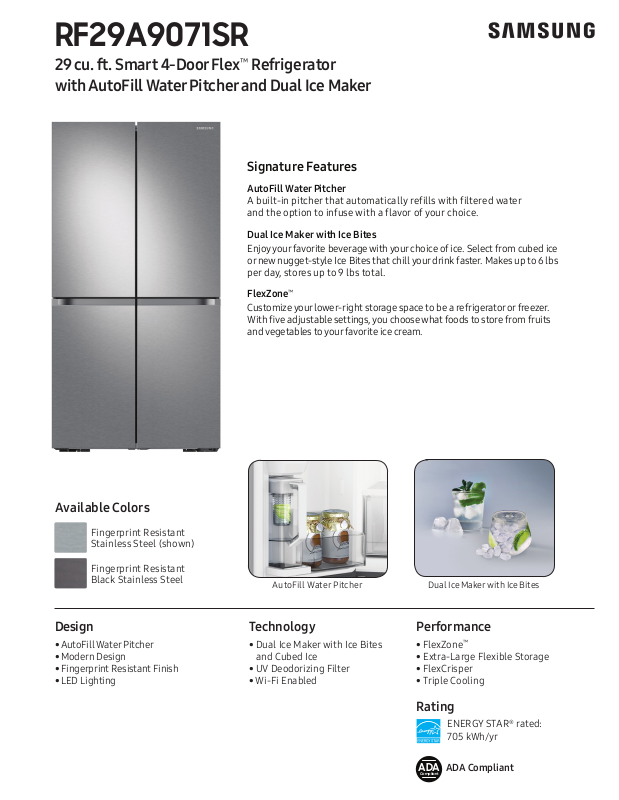

Samsung RF29A9071SR Specification Sheet

RF29A9071SR

Stainless Steel

29 cu. ft. Smart 4-Door Flex™ Refrigerator with AutoFill Water Pitcher and Dual Ice Maker

Signature Features

AutoFill Water Pitcher

A built-in pitcher that automatically refills with filtered water and the option to infuse with a flavor of your choice.

Dual Ice Maker with Ice Bites

Enjoy your favorite beverage with your choice of ice. Select from cubed ice or new nugget-style Ice Bites that chill your drink faster. Makes up to 6 lbs per day, stores up to 9 lbs total.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

FlexZone

Customize your lower-right storage space to be a refrigerator or freezer. With ve adjustable settings, you choose what foods to store from fruits and vegetables to your favorite ice cream.

™

AutoFill Water Pitcher

Dual Ice Maker with Ice Bites

Design

• AutoFill Water Pitcher

• Modern Design

• Fingerprint Resistant Finish

• LED Lighting

Technology

• Dual Ice Maker with Ice Bites and Cubed Ice

• UV Deodorizing Filter

• Wi-Fi Enabled

Performance

• FlexZone

• Extra-Large Flexible Storage

• FlexCrisper

• Triple Cooling

™

Rating

ENERGY STAR® rated: 705 kWh/yr

ADA

ADA Compliant

Compliant

RF29A9071SR

125° 125°

17/8"

58"

/8"

17/8"

29 cu. ft. Smart 4-Door Flex™ Refrigerator with AutoFill Water Pitcher and Dual Ice Maker

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely, do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

293/8"

337/8"

/4"

/8"

125° 125°

58"

17/8"

111/8"

Total Capacity: 29.2 cu. ft.

Refrigerator: 17.6 cu. ft.

• 4 Tempered Glass Spill-Proof Shelves

• 2 Clear Drawers: FlexCrisper and Crisper+

• 6 Door Bins Right: 1 Gallon Bin, 2 Regular Bins Left: 1 Gallon Bin, 2 Regular Bins

• LED Lighting

Freezer: 11.6 cu. ft.

• Dual Ice Maker in Freezer (Cubed Ice or Ice Bites) 2 Ice Buckets with Cover and 1 Scoop

• 3 Slide-Out Shelves

• 6 Door Bins

• LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges and doors): 357/8" x 717/8" x 337/8"

Dimensions (WxHxD without hinges and door): 357/8" x 703/4" x 293/8"

Weight: 308.6 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 381/4" x 775/8" x 361/4" Weight: 330.7 lbs

Color Model # UPC Code

Fingerprint Resistant Stainless Steel

Fingerprint Resistant Black Stainless Steel

RF29A9071SR 887276525716

RF29A9071SG 887276525693

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
