Samsung RF29A9671SG, RF29A9071SG, RF23A9071SG, RF23A9671SG User Manual

Refrigerator

User manual

Free Standing Appliance

Untitled-1 1			2020-12-18 3:46:06

Contents

Safety information

		What you need to know about the safety instructions
		Important safety symbols and precautions:
	<![if ! IE]> <![endif]>Contents	State of California Proposition 65 Warning
		Important safety precautions
		Severe warning signs for transportation and site
		Critical installation warnings
		Installation cautions
		Critical usage warnings
		Usage cautions
		Cleaning cautions
		Critical disposal warnings

Installation

Refrigerator at a glance

Step-by-step installation

Operations

Control panel

SmartThings

SMART GRID Function (Demand Response)

Special features

Maintenance

Handling and care

Cleaning

Replacement

2  English

4

4

5

5

5

7

8

10

10

13

14

15

16

17

21

40

40

45

48

52

59

59

63

64

Untitled-1 2			2020-12-18 3:46:06

Troubleshooting

General

Do you hear abnormal sounds from the refrigerator? SmartThings

Smart Grid

LIMITED WARRANTY (U.S.A.)

SAMSUNG REFRIGERATOR

Warranty Information (CANADA)

If your refrigerator needs service Limited Warranty for Original Purchaser Obligation to the Original Owner Exclusions of the Warranty

Regulatory Notice

FCC Notice

IC Notice

Open Source Announcement

67

	67
	71
	73	<![if ! IE]> <![endif]>Contents
	74

75

75

78

78

78

79

79

80

80

81

82

English  3 

Untitled-1 3			2020-12-18 3:46:06

Safety information

Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently.

What you need to know about the safety instructions

		• This appliance is not intended for use by persons (including children) with reduced
		physical, sensory or mental capabilities, or lack of experience and knowledge, unless
	<![if ! IE]> <![endif]>Safety	they have been given supervision or instruction concerning use of the appliance by a
		person responsible for their safety. Children should be supervised to ensure that they
		do not play with the appliance.
	<![if ! IE]> <![endif]>information	• Because the following instructions cover various models, the characteristics of your
		• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When
		refrigerator may differ slightly from the refrigerator described in this manual.
		• If you have any question, contact us at 1-800-SAMSUNG or find help and information
		online at www.samsung.com.
		refrigerant leaks from the pipe, avoid any naked flames and move anything flammable
		away from the product and ventilate the room immediately.
		- Failing to do so may result in fire or explosion.
		• Improper use of the grounding plug can result in a risk of electric shock. If it is
		necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade
		grounding plug and a 3-slot receptacle that will accept the plug on the appliance.
		The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a
		grounding adapter is used, make sure the receptacle box is fully grounded.

4  English

Untitled-1 4			2020-12-18 3:46:06

Important safety symbols and precautions:

Please follow all safety instructions in this manual. This manual uses the following safety symbols.

WARNING

Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death.

CAUTION

Hazards or unsafe practices that may result in severe personal injury and/or property damage.

NOTE

Useful information that helps users understand or benefit from the refrigerator.

These warning signs are here to prevent injury to you and others. Please follow them carefully.

After reading this section, keep it in a safe place for future reference.

<![if ! IE]>

<![endif]>information Safety

State of California Proposition 65 Warning

WARNING

Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Important safety precautions

Warning; Risk of fire / flammable materials

WARNING

•R-600a is used as a refrigerant. This product contains flammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

•In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

English  5 

Untitled-1 5			2020-12-18 3:46:06

Safety information

		• The installation location should not be exposed to direct sunlight and not placed near
		any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.
		• If you use two products side by side, for safety reason, be sure to use certified
		products in explosive gas atmospheres.
		• Never start up an appliance showing any signs of damage. If in doubt, consult your
		dealer.
		• If the supply cord is damaged, it must be replaced by the manufacturer, its service
	<![if ! IE]> <![endif]>Safety	agent or similarly qualified persons in order to avoid a hazard.
		from the supply in an emergency. It must be outside the area of the rear of the
		• The socket must be easily accessible so that the appliance can be quickly disconnected
	<![if ! IE]> <![endif]>information	appliance.
		• Do not store explosive substances such as aerosol cans with a flammable propellant in
		this appliance.
		• New hose-sets supplied with the appliance are to be used and that old hose-sets should
		not be reused.
		• When positioning the appliance, ensure the supply cord is not trapped or damaged.
		• Do not locate multiple portable socket-outlets or portable power supplies at the rear of
		the appliance.
		WARNING
		• Fill with potable water only.
		• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
		of obstruction.
		• Do not use mechanical devices or other means to accelerate the defrosting process,
		other than those recommended by the manufacturer.
		• Do not damage the refrigerant circuit.
		• Do not use electrical appliances inside the food storage compartments of The appliance,
		unless they are of the type recommended by the manufacturer.
		• Connect to potable water supply only.
		WARNING
		• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
		- Take off the doors.
		- Leave the shelves in place so that children may not easily climb inside.

6  English

Untitled-1 6			2020-12-18 3:46:06

CAUTION

	• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices
	To Defrost Refrigerator. Do Not Puncture Refrigerant Tubing.
	• Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained
	Service Personnel. Do Not Puncture Refrigerant Tubing.
	• Risk Of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner’s
	Guide Before Attempting to Service This Product. All Safety Precautions Must Be
	Followed.	<![if ! IE]> <![endif]>Safety
	• Risk Of Fire Or Explosion. Dispose Of Properly In Accordance With Federal Or Local
	Regulations. Flammable Refrigerant Used.	<![if ! IE]> <![endif]>information
	The Vicinity Of Freezer Or Refrigerator.
	• Risk Of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling
	Instructions Carefully. Flammable Refrigerant Used.
	• To Prevent A Child From Being Entrapped, Keep Out Of Reach Of Children And Not In

This appliance is intended to be used in household and similar applications such as

•staff kitchen areas in shops, offices and other working environments;

•farm houses and by clients in hotels, motels and other residential type environments;

•bed and breakfast type environments;

•catering and similar non-retail applications.

Severe warning signs for transportation and site

WARNING

•When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

-Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which the appliance is standing for several minutes.

-This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also flammable.

English  7 

Untitled-1 7			2020-12-18 3:46:06

Safety information

Critical installation warnings

WARNING

	• Do not install the refrigerator in a damp location or place where it may come in contact
	with water.
	- Deteriorated insulation on electrical parts may cause an electric shock or fire.
	• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
<![if ! IE]> <![endif]>Safety	room heaters, or other appliances.
	• Do not plug several appliances and the refrigerator into the same multiple power strip.
	The refrigerator should always be plugged into its own individual electrical outlet
<![if ! IE]> <![endif]>information	which has a voltage rating that matches the voltage listed on the refrigerator’s rating
	plate.
	- This provides the best performance and also prevents overloading of house wiring
	circuits, which could overheat the wires and cause a fire hazard.
	• If the wall socket is loose, do not insert the power plug.
	- There is a risk of electric shock or fire.
	• Do not use a power cord that has cracks or abrasion damage along its length or at
	either end.
	• Do not bend the power cord excessively or place heavy objects on it.
	• Do not pull or excessively bend the power cord.
	• Do not twist or tie the power cord.
	• Do not hook the power cord over a metal object, place a heavy object on the power
	cord, insert the power cord between objects, or push the power cord into the space
	behind the appliance.
	• When moving the refrigerator, be careful not to roll over or damage the power cord.
	- This may result in an electric shock or fire.
	• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
	firmly and pull straight out from the outlet.
	- Damage to the cord may cause a short-circuit, fire, and/or electric shock.
	• Do not install this appliance near a heater or flammable material.
	• Do not install this appliance in a location where gas may leak.
	- This may result in an electric shock or fire.
	• This refrigerator must be properly located and installed in accordance with the
	instructions in this manual before you use it.
	• Connect the power plug in the proper position with the cord hanging down.
	- If you connect the power plug upside down, the wire can get cut off and cause a fire
	or electric shock.
	• Make sure that the power plug is not crushed or damaged by the back of the
	refrigerator.
8	English

Untitled-1 8			2020-12-18 3:46:06

	• Keep the packing materials out of reach of children.
	- There is a risk of death from suffocation if a child puts the packing materials on his
	or her head.
	• The appliance must be positioned so that the plug is accessible after installation.
	- Failing to do so may result in an electric shock or fire due to electric leakage.
	• Do not install this appliance in a humid, oily or dusty location, or in a location exposed
	to direct sunlight or to water (rain drops).
	- Deteriorated insulation on electrical parts may cause an electric shock or fire.	<![if ! IE]> <![endif]>Safety
	• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
	contact a Samsung Electronics service center.	<![if ! IE]> <![endif]>information
	- This may result in an electric shock, fire, problems with the product, or injury.
	- Otherwise there is a risk of fire.
	• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
	lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
	• You need to remove all the protective plastic film before you initially plug the product
	in.
	• Children should be supervised to ensure that they do not play with the snap rings used
	for door adjustment or the water tube clips.
	- There is risk of death by suffocation if a child swallows a snap ring or water tube
	clip. Keep the snap rings and water tube clips out of children's reach.
	• The refrigerator must be safely grounded.
	- Always make sure that you have grounded the refrigerator before attempting to
	investigate or repair any part of the appliance. Power leakages can cause severe
	electric shock.
	• Never use gas pipes, telephone lines, or other potential lightning attractors as an
	electrical ground.
	- You must ground the refrigerator to prevent any power leakages or electric shocks
	caused by current leakage from the refrigerator.
	- Current leakage may result in an electric shock, fire, explosion, or problems with the
	product.
	• Plug the power plug into the wall socket firmly. Do not use a damaged power plug,
	damaged power cord, or loose wall socket.
	- This may result in an electric shock or fire.
	• Only a qualified technician or service company should be allowed to change the fuse in
	the refrigerator.
	- Failing to do so may result in an electric shock or personal injury.

English  9 

Untitled-1 9			2020-12-18 3:46:06

Safety information

Installation cautions

CAUTION

		• Allow sufficient space around the refrigerator and install it on a flat surface.
		- Keep the ventilation space in the appliance enclosure or mounting structure clear of
		obstructions.
		• After you have installed the refrigerator and turned it on, allow the appliance to stand
	<![if ! IE]> <![endif]>Safety	for 2 hours before loading it with food.
		the refrigerator.
	<![if ! IE]> <![endif]>information	• It is strongly recommended you have a qualified technician or service company install
		- Failing to do so may result in an electric shock, fire, explosion, problems with the
		product, or injury.
		• Overloading one door may make the refrigerator fall, causing physical injury.

Critical usage warnings

WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance.

- When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator.

- This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands.

- This may cause frostbite.

• Do not put a container filled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock.

• Do not keep volatile or flammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator.

- This refrigerator is for storing food only. - This may result in fire or explosion.

• Children should be supervised to ensure that they do not play with the appliance.

- Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

10  English

Untitled-1 10			2020-12-18 3:46:06

	• Do not let children hang on the door or door bins. A serious injury may occur.
	• Do not let children go inside the refrigerator. They could become trapped.
	• Do not insert your hands into the area under the appliance.
	- Any sharp edges may cause personal injury.
	• Do not store pharmaceutical products, scientific materials, or temperature sensitive
	products in the refrigerator.
	- Products that require strict temperature controls must not be stored in the
	refrigerator.	<![if ! IE]> <![endif]>Safety
	of a type recommended by the manufacturer.
	• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are	<![if ! IE]> <![endif]>information
	• If you smell smoke, pull out the power plug immediately, and then contact a Samsung
	Electronics service center.
	• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
	contact your Samsung Electronics service center.
	- Otherwise there is a risk of fire.
	• Do not let children step on a drawer.
	- The drawer may break and cause them to slip.
	• Do not leave the doors of the refrigerator open while the refrigerator is unattended
	and do not let children enter the refrigerator.
	• Do not allow babies or children to go into a drawer.
	- It can cause death from suffocation by entrapment or personal injury.
	• Do not overfill the refrigerator with food.
	- When you open the door, an item may fall out and cause personal injury or material
	damage.
	• Do not spray volatile material such as insecticide onto the surface of the appliance.
	- As well as being harmful to humans, it may also result in an electric shock, fire, or
	problems with the product.
	• Never put fingers or any objects into the water dispenser outlet, ice chute, or ice maker
	bucket.
	- It may cause a personal injury or material damage.
	• Do not use or place any substances sensitive to temperature such as flammable sprays,
	flammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
	• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
	candle in the refrigerator to remove bad odors.
	- This may result in an electric shock or fire.
	• Fill the water tank and ice cube trays with potable water only (tap water, mineral
	water, or purified water).
	- Do not fill the tank with tea, juice, or a sports drink. They can damage the
	refrigerator.
	English	11

Untitled-1 11			2020-12-18 3:46:06

Safety information

		• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
		lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
		result in an electric shock, fire, problems with the product, or injury. Do not put a
		container filled with water on the appliance.
		- If spilled, there is a risk of fire or electric shock.
		• Never stare directly at the UV LED lamp for long periods of time.
		- This may result in eye strain due to the ultraviolet rays.
	<![if ! IE]> <![endif]>Safety	• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
		work.
	<![if ! IE]> <![endif]>information	- The glass shelf could fall and cause personal injury.
		• Keep fingers out of “pinch point” areas. Clearances between the doors and cabinet are
		necessarily small. Be careful when you open the doors if children are in the area.
		• If a gas leak is detected, avoid any naked flames or potential sources of ignition, and
		air the room in which the appliance is standing for several minutes.
		- Do not touch the appliance or power cord.
		- Do not use a ventilating fan.
		- A spark may result in an explosion or fire.
		• Use only the LED Lamps provided by the manufacturer or its service agents.
		• Bottles should be stored tightly together so that they do not fall over or out.
		• This product is intended only for the storage of food in a domestic environment.
		• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
		- Unauthorized modifications can cause safety problems. To reverse an unauthorized
		modification, we will charge the full cost of parts and labor.
		• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
		• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung
		service center.
		- Failing to do so may result in an electric shock, fire, problems with the product, or
		injury.
		• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service
		center.
		• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
		and contact a Samsung service center.
		- Failing to do so may result in an electric or fire hazards.
		• Pull the power plug out of the socket before changing the interior lamps of the
		refrigerator.
		- Otherwise, there is a risk of electric shock.
		• If you experience difficulty changing a non-LED light, contact a Samsung service
		center.

12  English

Untitled-1 12			2020-12-18 3:46:06

•If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself.

-Contact a Samsung service center.

•Plug the power plug into the wall socket firmly.

•Do not use a damaged power plug, damaged power cord, or loose wall socket.

-This may result in an electric shock or fire.

Usage cautions

CAUTION

•Do not re-freeze frozen foods that have thawed completely.

•Use only the ice maker provided with the refrigerator.

•To get the best performance from the product:

-Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment.

-Wrap food up properly or place it in airtight containers before putting it into the refrigerator.

-Please observe maximum storage times and expiration dates of frozen goods.

•Do not put glass containers or bottles or carbonated beverages into the freezer.

-The container may freeze and break, and this may result in injury.

•Service Warranty and Modification.

-Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications.

•Do not block the air vents inside the refrigerator.

-If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water filter may break and cause water leakage.

•If the refrigerator is disconnected from the power supply, you should wait for at least five minutes before plugging it back in.

•If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.

•Do not strike or apply excessive force to any glass surface.

-Broken glass may result in a personal injury and/or property damage.

•Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or purified water).

-Do not fill the tank with tea, juice, or a sports drink. They can damage the refrigerator.

<![if ! IE]>

<![endif]>information Safety

English  13 

Untitled-1 13			2020-12-18 3:46:06

Safety information

<![if ! IE]>

<![endif]>information Safety

•If the refrigerator is flooded, shut off the power to the refrigerator and contact your nearest Samsung service center.

-There is a risk of electric shock or fire.

•Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.

-Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.

Cleaning cautions

CAUTION

•Do not spray water directly on the inside or outside of the refrigerator.

-There is a risk of fire or electric shock.

•Do not use a hair dryer to dry the inside of the refrigerator.

•Do not place a lighted candle in the refrigerator to remove bad odors.

-This may result in an electric shock or fire.

•Do not spray cleaning products directly on the display.

-Printed letters on the display may come off.

•If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center.

-Failing to do so may result in an electric shock or fire.

•Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug.

-Otherwise, there is a risk of fire or electric shock.

•Do not clean the appliance by spraying water directly onto it.

•Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.

-They may damage the surface of the appliance and may cause a fire.

•Never put fingers or any objects into the dispenser outlet.

-This can cause a personal injury or material damage.

•Before cleaning or performing maintenance, unplug the appliance from the wall socket.

-Failing to do so may result in an electric shock or fire.

•Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

14  English

Untitled-1 14			2020-12-18 3:46:06

•Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets.

-These can scratch or damage the material.

•Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping.

Critical disposal warnings

WARNING

•Children trapped inside a refrigerator can hurt themselves or suffocate to death.

•Please dispose of the packaging material from this product in an environmentally friendly manner.

•Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

•This product contains R-600a, a flammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.

•When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance.

-If trapped inside, the child could be injured or suffocate to death.

•Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

•Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.

-If a child places a bag over his or her head, the child could suffocate.

<![if ! IE]>

<![endif]>information Safety

English  15 

Untitled-1 15			2020-12-18 3:46:06

Installation

Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it.

WARNING

•Use the refrigerator only for its intended purpose as described in this manual.

•Any servicing must be performed by a qualified technician.

•Dispose of the product packaging material in compliance with the local regulations.

•To prevent electric shock, unplug the power plug before servicing or replacing parts.

<![if ! IE]>

<![endif]>Installation

16  English

Untitled-1 16			2020-12-18 3:46:07

Refrigerator at a glance

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

Type A

B C

01

02

	A
	13
04
03	05
06	14
07
D	E
08
09
10
11
12

<![if ! IE]>

<![endif]>Installation

English  17 

Untitled-1 17			2020-12-18 3:46:07

Installation

Type B

C

<![if ! IE]>

<![endif]>Installation

A

04

03

01

06

07

D E

08

09

10

11

12

18  English

13

05

14

Untitled-1 18			2020-12-18 3:46:07

	01	AutoFill Pitcher *	A. Fridge
	02	Water dispenser **	B. Beverage Center **
			C.	Showcase door *
	03	Fridge door bin
			D.	Freezer
	04	Fridge shelf
			E.	FlexZone
	05	Quick Space shelf *
	06	Crisper+ / Flex Crisper *
	07	Water filter
	08	Auto ice maker - Cubed Ice *

09Auto ice maker - Ice Bites *

10Freezer door bin

11Freezer shelf

12Freezer drawer

13UV Deodorizing Filter *

14Control panel

*Applicable models only

**Dispenser models only

NOTE

•For energy efficiency, keep all shelves, drawers, and baskets in their original positions.

•When closing the door, make sure the vertical hinged section is in the correct position to avoid scratching the other door.

•If the vertical hinged section is reversed, put it back into the correct position, and then close the door.

•Moisture may form at times on the vertical hinged section.

•If you close a door forcefully, the other door may open.

•If the internal or external LED lamp is out of order, contact a local Samsung service center.

<![if ! IE]>

<![endif]>Installation

English  19 

Untitled-1 19			2020-12-18 3:46:07

Installation

Door bins

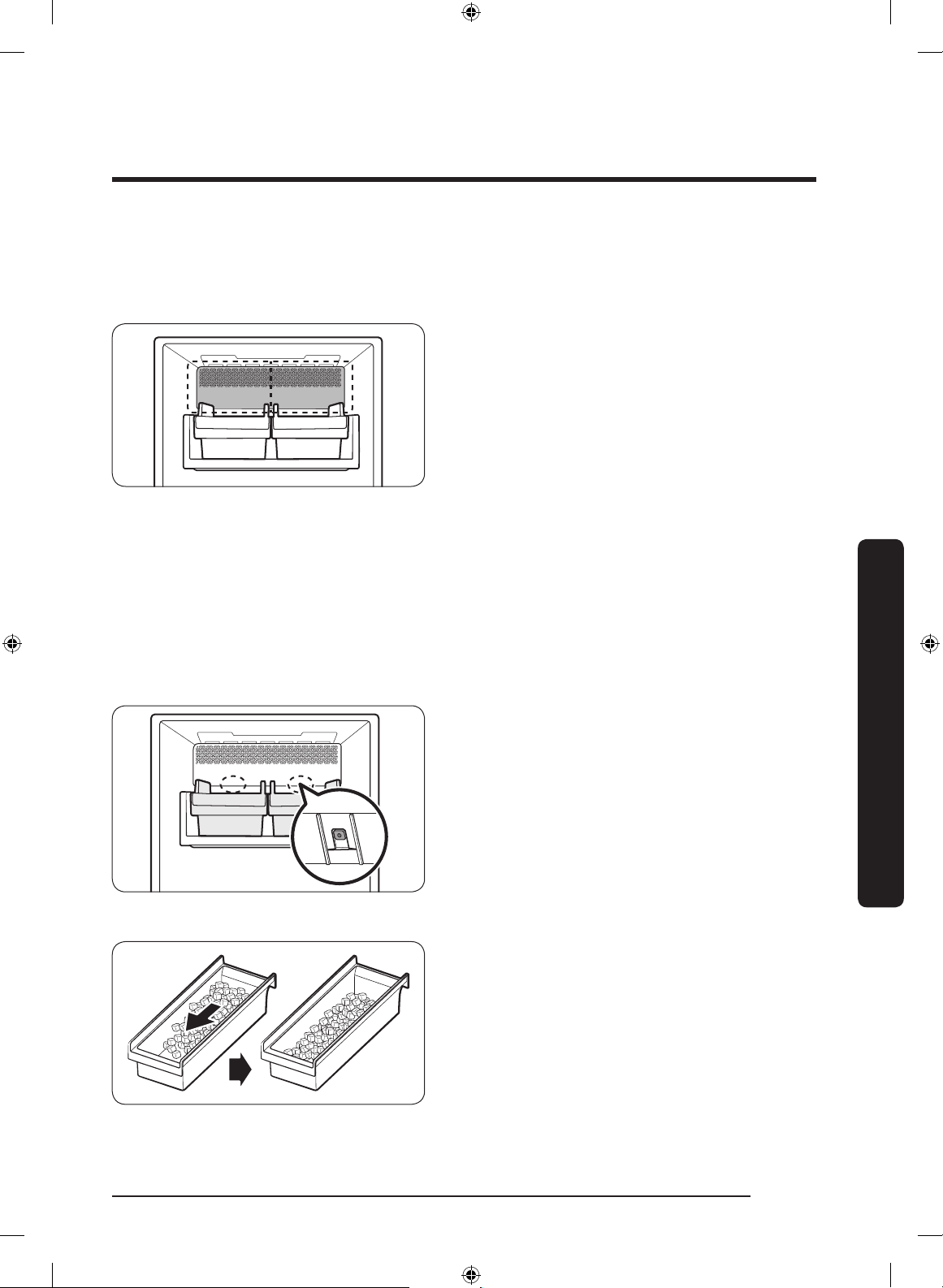

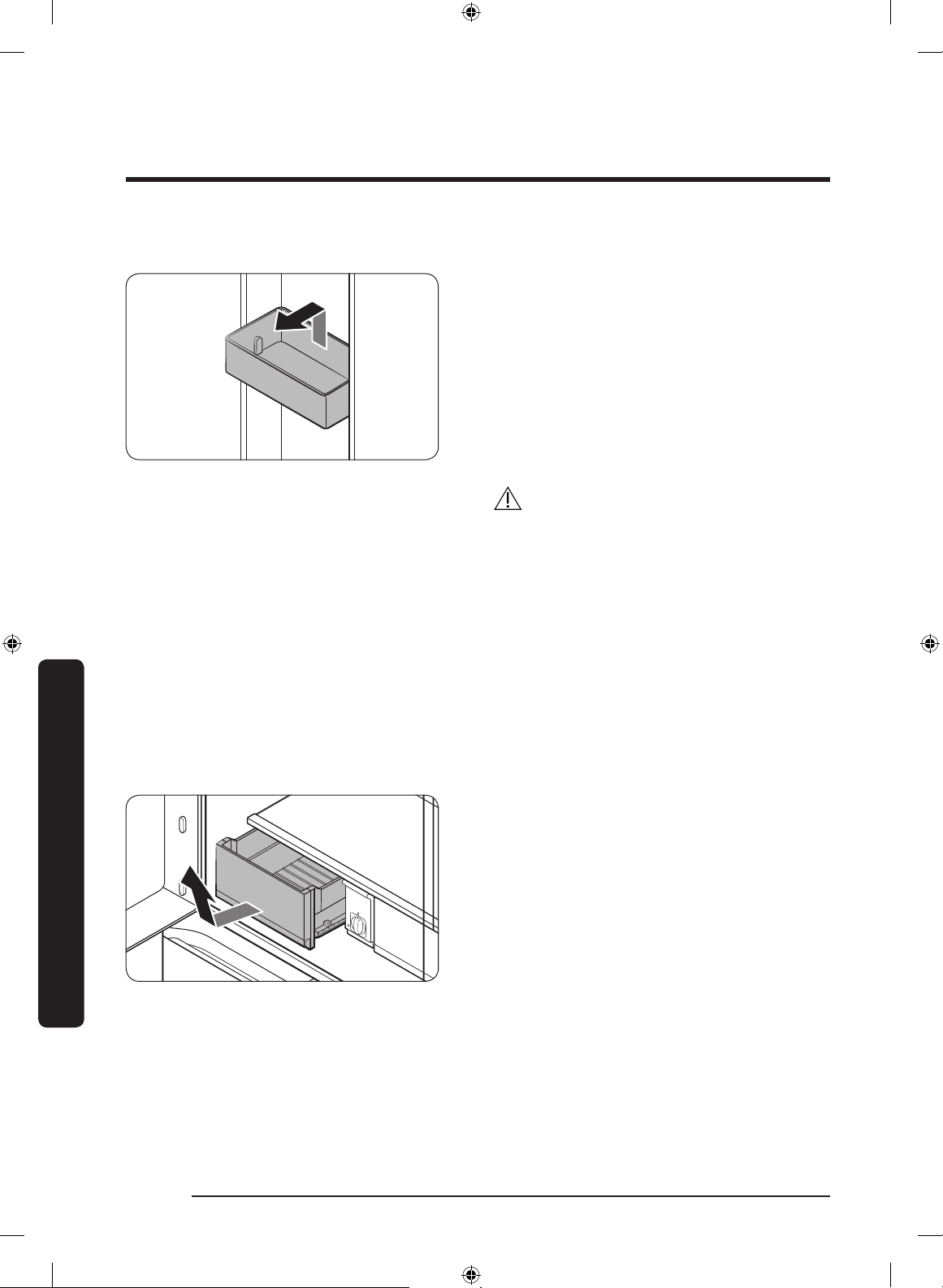

Your refrigerator ships with door bins of different types and sizes. If the door bins for your refrigerator were packaged separately, use the figure below to help you position the bins properly.

NOTE

The actual refrigerator and provided component parts of your refrigerator may differ from the illustrations in this manual, depending on the model and the country.

<![if ! IE]>

<![endif]>Installation

20  English

Untitled-1 20			2020-12-18 3:46:07

Step-by-step installation

STEP  1  Select a site

The site must:

•Have a solid level surface without carpeting or flooring that may obstruct ventilation

•Be out of direct sunlight

•Have adequate room for opening and closing the door

•Be away from any heat source

•Provide room for maintenance and servicing

•Have a temperature range between 50 °F (10 °C) and 110 °F (43 °C)

<![if ! IE]>

<![endif]>Installation

English  21 

Untitled-1 21			2020-12-18 3:46:07

Installation

<![if ! IE]>

<![endif]>Installation

Clearance

See the following figures and tables for installation space requirements.

B

Model

RF23A9671**

RF29A9671**

RF23A9071**

RF29A9071**

A

A

28 1/2"

33 7/8"

(723 mm)

(861 mm)

D

B

35 7/8" (912 mm)

C

C

70 3/4" (1797 mm)

D

71 7/8" (1825 mm)

E

71 7/8" (1825 mm)

Model

RF23A9675**

RF29A9675**

A

28 3/4"

34 1/4"

(731 mm)

(869 mm)

B

35 7/8" (912 mm)

C

70 3/4" (1797 mm)

D

73" (1853 mm)

E

C

D

E

71 7/8" (1825 mm)

A.Depth

B.Width

C.Height (without hinge)

D.Overall Height

E.Height (with hinge)

22  English

Untitled-1 22			2020-12-18 3:46:07

														Model	RF23A9671**	RF29A9671**
															RF23A9071**	RF29A9071**
01
														01	2" (50 mm)
														02	125°
04								04
														03	58" (1472 mm)
														04	11 1/8" (282 mm)
02							02							05	24" (610 mm)	29 3/8"
																(748 mm)
03														06	1 7/8" (47 mm)
														07	43"	48 1/2"
															(1093 mm)	(1231 mm)

																Model	RF23A9675**	RF29A9675**
05					06											01	2" (50 mm)
														07		02	125°
																03	59" (1498 mm)
																04	11 3/4" (295 mm)
																05	24" (610 mm)	29 3/8"
																		(748 mm)
																06	2 1/4" (55 mm)
																07	43"	48 1/2"
																	(1093 mm)	(1231 mm)

NOTE

The measurements in the tables may differ slightly from the actual measurements, depending on the measuring and rounding method.

English  23 

<![if ! IE]>

<![endif]>Installation

Untitled-1 23			2020-12-18 3:46:08

Installation

<![if ! IE]>

<![endif]>Installation

STEP  2  Flooring

If the refrigerator cannot pass through the entrance due to its size, see Door removal for entrance.

NOTE

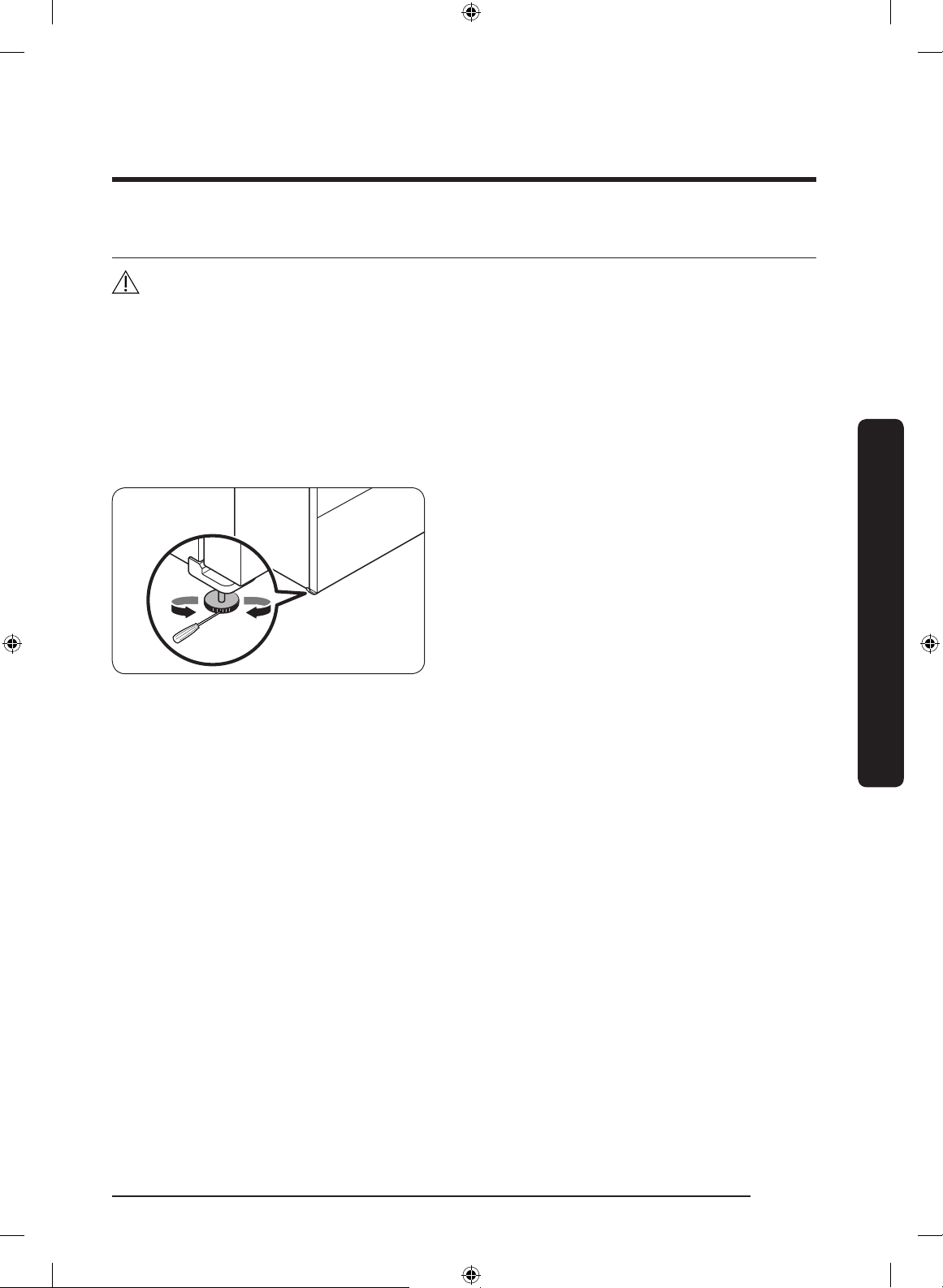

To prevent floor damage, make sure the front leveling legs are in the upright position.

• The surface you install the refrigerator on must support a fully loaded refrigerator.

• To protect the floor, put a large piece of cardboard along the path to the refrigerator's final installation location.

• Once the refrigerator is in its final position, do not move it unless necessary to protect the floor. If you have to move the refrigerator, place thick paper or cloth such as old carpets along the path of movement.

24  English

Untitled-1 24			2020-12-18 3:46:08

STEP  3  Door removal for entrance

If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 33 to continue the installation procedure.

WARNING

Unplug the power cord of the refrigerator before removing the doors.

Tools required (not provided)

Phillips screwdriver

Flat-head screwdriver

Socket wrench 3/8" (10 mm)

Pliers

Allen wrench 1/4" (5 mm)

Detach the fridge doors

1. With the doors closed, use a Phillips screwdriver to remove the screws (x3) from the top cover. Pull up and remove the top cover with the connectors.

<![if ! IE]>

<![endif]>Installation

English  25 

Untitled-1 25			2020-12-18 3:46:08

Installation

<![if ! IE]>

<![endif]>Installation

26  English

2.Disconnect the two wire connectors on the left door. The position of the connectors differs with the model.

CAUTION

•Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, any of the doors may fall and cause physical injury.

•Make sure the refrigerator is off before disconnecting the connectors.

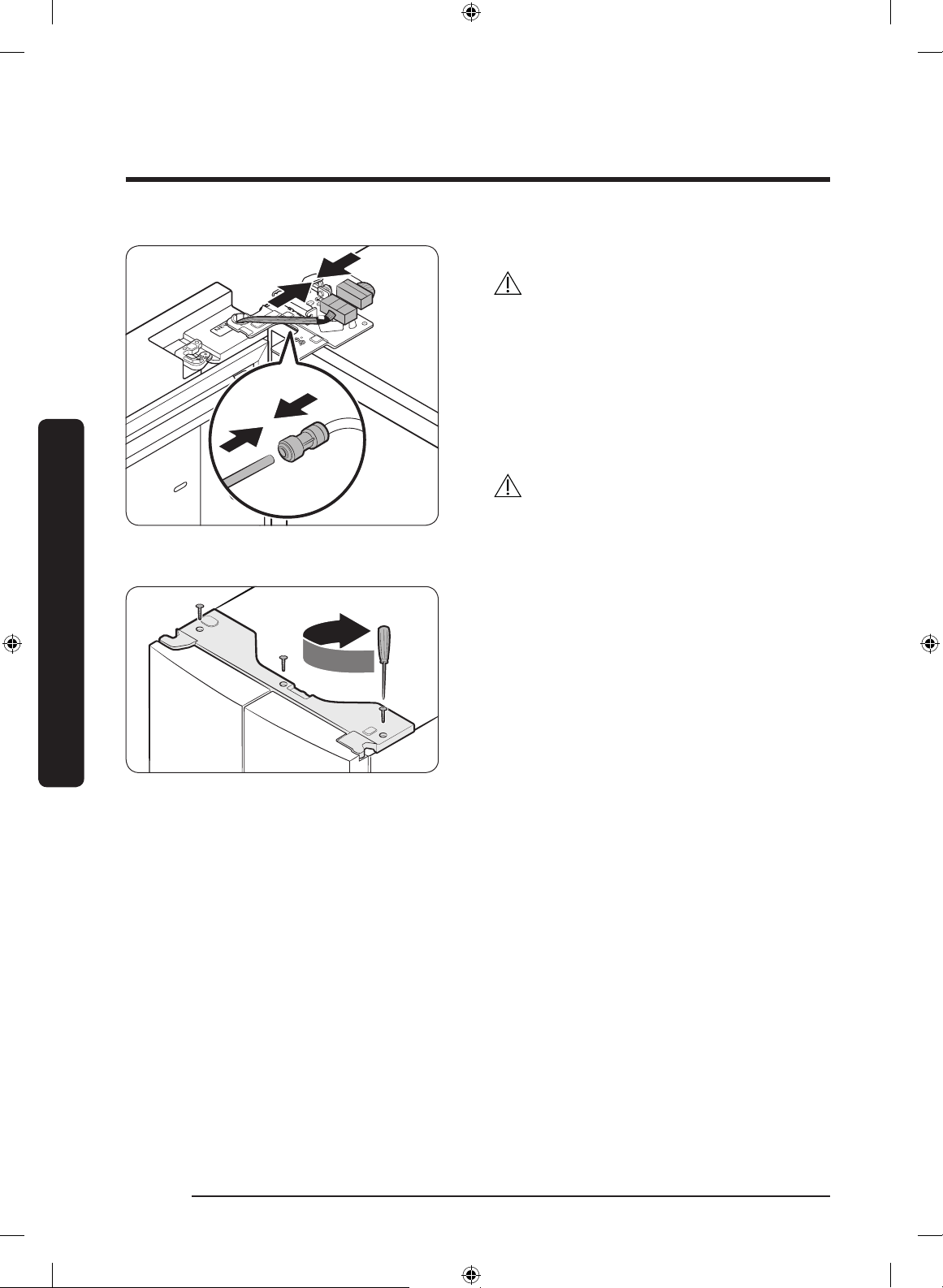

3.Disconnect the water tube from the coupler on the left door as shown.

-This step does not apply to the models without the AutoFill Pitcher and the water dispenser.

4.Gently draw up the clamp in several steps. To prevent finger injuries, do not apply a sudden force to the clamp.

5.Pull up the clamp to remove.

Untitled-1 26

2020-12-18 3:46:09

6.Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.

7.Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury.

8.Lay the door down on a flat surface.

9.Repeat steps 1-8 for the other door, except for step 3. There is no water tube on the right side door.

-Step 2 does not apply to the models without the Showcase door.

<![if ! IE]>

<![endif]>Installation

English  27 

Untitled-1 27			2020-12-18 3:46:09

Installation

<![if ! IE]>

<![endif]>Installation

Detach the freezer doors

CAUTION

•Be sure to remove the fridge doors before removing the freezer doors.

•Use caution when disconnecting the bottom connectors.

1. Open the freezer door.

2. Use a Phillips screwdriver to remove the screw holding the cover (A).

- This step only applies to the right side freezer door (FlexZone door).

A

3. Disconnect the wire connectors.

- This step only applies to the right side freezer door (FlexZone door).

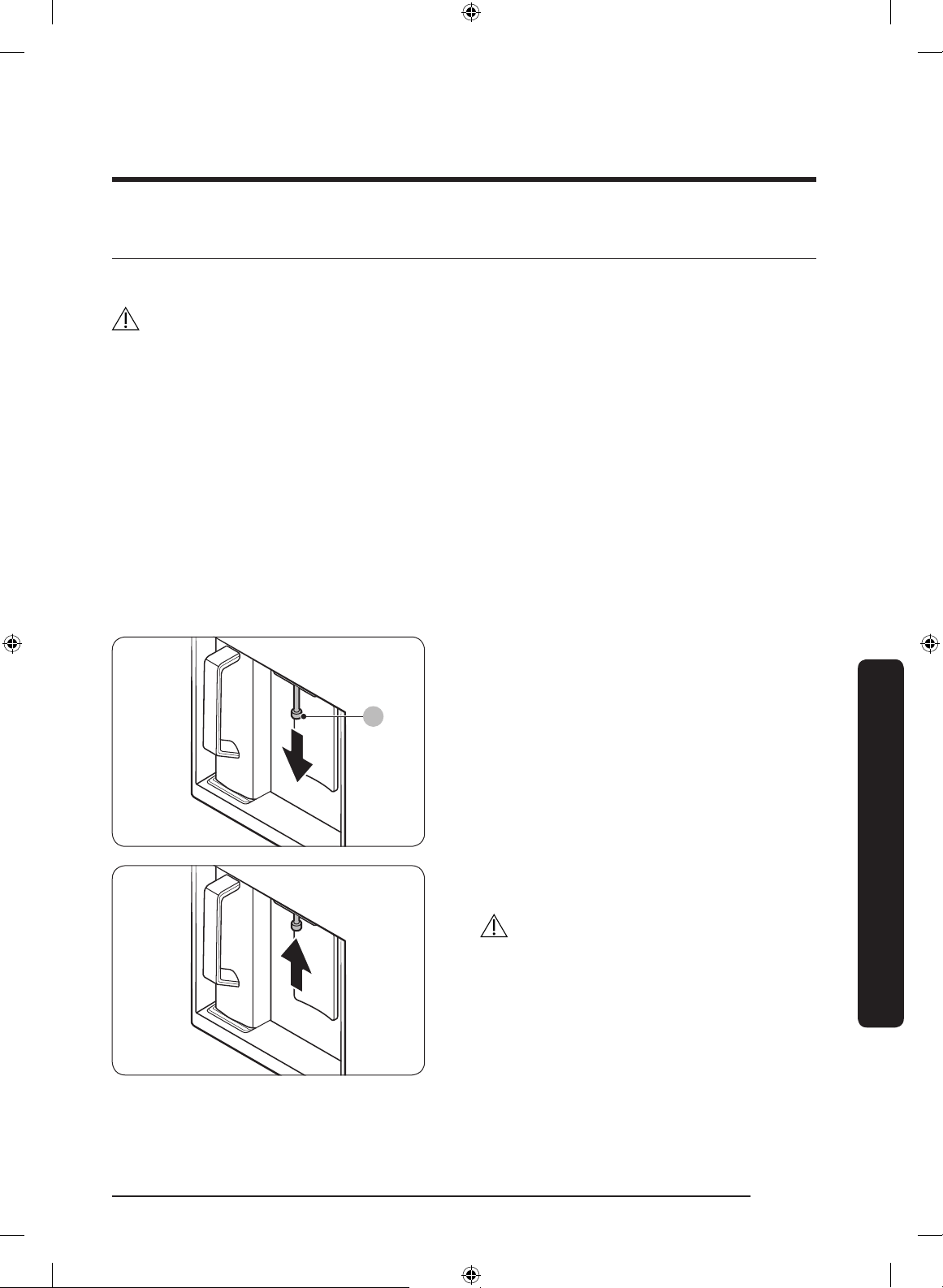

4. Locate the hinge shaft. While holding the door with one hand, use a flat-head screwdriver or Allen wrench to press the shaft down. Make sure to hold the door to prevent the door from falling.

28  English

Untitled-1 28			2020-12-18 3:46:09

5. To prevent contact with the middle hinge, slightly tilt the door to the front, and then lift it up to remove.

6. Repeat steps 1-5 for the other door, except for steps 2 and 3.

To reattach the freezer doors

CAUTION

•The freezer doors must be re-attached before the fridge doors.

•Be careful not to damage or step on the wires during this process.

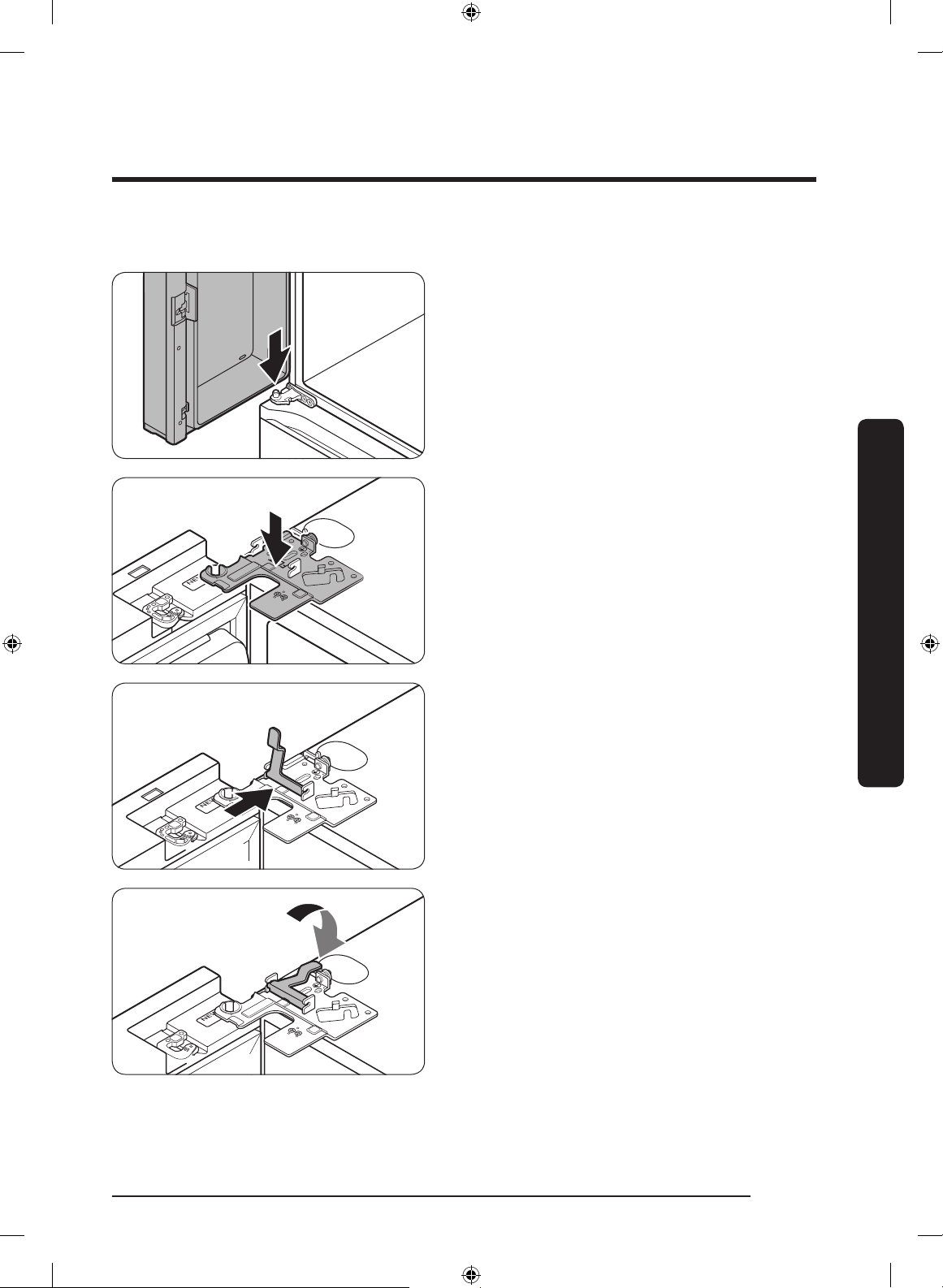

1. Insert the freezer door into the bottom hinge while pushing the freezer door in the direction of the arrow.

CAUTION

• Be careful not to damage or step on the wires during this process.

<![if ! IE]>

<![endif]>Installation

English  29 

Untitled-1 29			2020-12-18 3:46:09

Installation

2. While pressing the hinge shaft down, position the door so that the hinge shaft is below the shaft hole in the middle hinge. Release the hinge shaft so that it enters the shaft hole.

3. With the door open, connect the bottom connectors in the direction of the arrows.

- This step only applies to the right side freezer door (FlexZone door).

<![if ! IE]>

<![endif]>Installation

4. Attach the cover using a Phillips screwdriver. Be careful not to damage or step on the connectors.

- This step only applies to the right side freezer door (FlexZone door).

5. Repeat steps 1-5 for the other door, except for steps 3 and 4.

30  English

Untitled-1 30			2020-12-18 3:46:10
