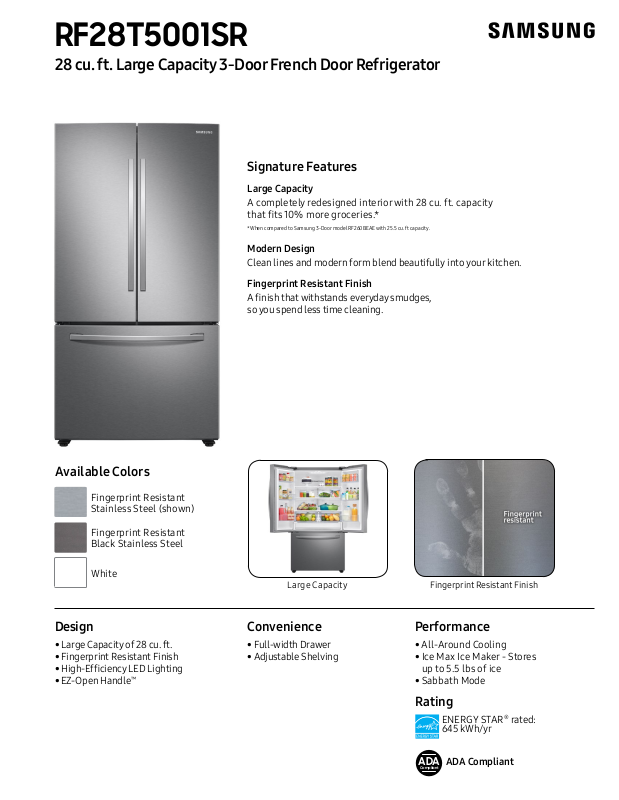

Samsung RF28T5001SR Specifications

RF28T5001SR

Stainless Steel

28 cu. ft. Large Capacity 3-Door French Door Refrigerator

Signature Features

Large Capacity

A completely redesigned interior with 28 cu. ft. capacity

that ts 10% more groceries.*

*When compared to Samsung 3-Door model RF260BEAE with 25.5 cu. ft capacity.

Modern Design

Clean lines and modern form blend beautifully into your kitchen.

Fingerprint Resistant Finish

A nish that withstands everyday smudges, so you spend less time cleaning.

Available Colors

Fingerprint Resistant Stainless Steel (shown)

Fingerprint Resistant Black Stainless Steel

White

Design

• Large Capacity of 28 cu. ft.

• Fingerprint Resistant Finish

• High-Efciency LED Lighting

• EZ-Open Handle

™

Large Capacity

Convenience

• Full-width Drawer

• Adjustable Shelving

Fingerprint Resistant Finish

Performance

• All-Around Cooling

• Ice Max Ice Maker - Stores up to 5.5 lbs of ice

• Sabbath Mode

Rating

ENERGY STAR® rated: 645 kWh/yr

ADA

ADA Compliant

Compliant

RF28T5001SR

621/4"

/4"

130° 130°

353/4"

/8"

353/4"

/8"

28 cu. ft. Large Capacity 3-Door French Door Refrigerator

Installation Specifications

1. Measure the height, width and depth of the opening, making sure to include baseboards, molding tile, countertop overhang, etc. Check to be sure there is enough room to open the door (consider walls, islands or other obstacles when measuring).

2. Refer to illustration below to determine dimensions.

3. Allow 2.5" of clearance on hinge side of refrigerator when installing next to a wall

where handle may make contact.

4. Allow 1" minimum clearance at rear for proper air circulation and water/electrical connections. Allow a 3/8" minimum clearance at sides and top for ease of installation.

5. Ensure each door and entryway in the home is wide enough for the refrigerator

to be moved through easily.

For optimal usage and ability to open refrigerator doors completely,

do not install next to a wall.

Please note: The following dimension and cutout information is for planning purposes only. For complete installation details, consult manual packed with product, or download manual online at samsung.com.

Measure height including flooring. Be sure to allow for hinge clearance height if needed.

Measure width including countertop overhang.

Measure depth including molding or trim.

Dimensions

353/4"

/8"

/4"

Total Capacity: 28.2 cu. ft.

Refrigerator: 19.6 cu. ft.

• Full-Width Drawer

• 5 Tempered Glass Spill-Proof Shelves

• 2 Humidity-Controlled Crispers

• 6 Door Bins – Right Door: 3 Gallon Bins – Left Door: 3 Gallon Bins

• Adjustable Shelves for Tall, Oversized Items

• High-Efciency LED Lighting

Freezer: 8.6 cu. ft.

• EZ-Open Handle

™

• 1 Large Opaque Bin with 1 Divider

• High-Efciency LED Lighting

Accessories

Water Filter: HAF-QIN

Warranty

One (1) Year Parts and Labor on Refrigerator Five (5) Years Parts and Labor on

Sealed Refrigeration System Only* Ten (10) Years Parts and Five (5) Years

Labor on Digital Inverter Compressor

*Compressor, evaporator, condenser, drier and connecting tubing.

Product Dimensions & Weight

Dimensions (WxHxD with hinges, handles and doors): 353/4" x 70" x 353/8"

Dimensions (WxHxD without hinges and door): 353/4" x 687/8" x 287/8"

Dimensions (WxHxD with hinge and door, no handle): 353/4" x 70" x 327/8"

Weight: 276 lbs

Shipping Dimensions & Weight (WxHxD)

Dimensions: 3723/32" x 755/16" x 3529/32" Weight: 284 lbs

130° 130°

621/4"

353/4"

/8"

Color Model # UPC Code

Fingerprint Resistant Stainless Steel

Fingerprint Resistant Black Stainless Steel

White RF28T5001WW 887276429397

RF28T5001SR 887276429380

RF28T5001SG 887276429373

/8"

327/8"

353/8"

70"

Actual color may vary. Design, specifications, and color availability are subject to change without notice. Non-metric weights and measurements are approximate.
