Samsung RF28HFED User Manual
Refrigerator
user manual
RF28HFED**
imagine the possibilities
Thank you for purchasing this Samsung product.
Free Standing Appliance
DA68-02953A-10.indb 1 2015. 11. 6. 11:11
Contents
SAFETY INFORMATION ……………………………………………………………… 2
SETTING UP YOUR FRENCH DOOR REFRIGERATOR
OPERATING YOUR FRENCH DOOR REFRIGERATOR
TROUBLESHOOTING
………………………………………………………………… 36
………………………… 9
………………………… 18
Safety information
SAFETY INFORMATION
Before using your new Samsung French Door
Refrigerator, please read this manual thoroughly to
ensure that you know how to operate the features
and functions that your new appliance offers safely
and efficiently.
This appliance is not intended for use by persons
(including children) with reduced physical,
sensory, or mental capabilities, or those who lack
experience and knowledge, unless they have been
given supervision or instruction concerning the use
of the appliance by a person responsible for their
safety.
Because the following instructions cover various
models, the characteristics of your refrigerator may
differ slightly from the refrigerator described in this
manual.
If you have any question, contact us at
1-800-SAMSUNG or find help and information
online at www.samsung.com.
Important safety symbols and
precautions:
WARNING
Hazards or unsafe practices that may result in
severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in
minor personal injury or property damage.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall
socket.
Make sure the refrigerator is grounded to
prevent electric shock.
Call the contact center for help.
Note.
These warning symbols are here to prevent
injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe
place for future reference.
English - 2
DA68-02953A-10.indb 2 2015. 11. 6. �� 11:11
WARNING
STATE OF CALIFORNIA
PROPOSITION 65 WARNING
(US ONLY)
• This product contains chemicals known to the
State of California to cause cancer and birth
defects or other reproductive harm.
WARNING
CRITICAL INSTALLATION
WARNINGS
• Do not install the refrigerator in a damp
location or place where it may come in
contact with water.
- Deteriorated insulation on electrical parts may
cause an electric shock or fire.
• Do not place this refrigerator in direct sunlight
or expose it to the heat from stoves, room
heaters, or other appliances.
• Do not plug several appliances into the same
multiple power strip.
The refrigerator should always be plugged into
its own individual electrical outlet which has a
voltage rating that matches the voltage listed
on the refrigerator’s rating plate.
- This provides the best performance and
also prevents overloading of house wiring
circuits, which could cause a fire hazard from
overheated wires.
• If the wall socket is loose, do not insert the
power plug.
- There is a risk of electric shock of fire.
• Do not use a power cord that has cracks or
abrasion damage along its length or at either
end.
• Do not bend the power cord excessively or
place heavy objects on it.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal
object, place a heavy object on the power
cord, insert the power cord between objects, or
push the power cord into the space behind the
appliance.
• When moving the refrigerator, be careful not to
roll over or damage the power cord.
English - 3
- This may result in an electric shock or fire.
• Never unplug your refrigerator by pulling on the
power cord.
Always grip the plug firmly and pull straight out
from the outlet.
- Damage to the cord may cause a short-circuit,
fire, and/or electric shock.
• Do not use aerosols near the refrigerator.
- Using aerosols near the refrigerator may cause
an explosion or fire.
• Do not install this appliance near a heater or
inflammable material.
• Do not install this appliance in a humid, oily,
or dusty location , or in a location exposed to
direct sunlight or water (rain, etc.).
• Do not install this appliance in a location where
gas may leak.
- This may result in an electric shock or fire.
• This refrigerator must be properly
located and installed in accordance
with the instructions in this manual
before you use it.
• Connect the power plug in the proper position
with the cord hanging down.
- If you connect the power plug upside down, the
wire can get cut off and cause a fire or electric
shock.
• When moving the refrigerator, be careful not to
roll over or damage the power cord.
- This constitutes a fire hazard.
• Make sure that the power plug is not crushed
or damaged by the back of the refrigerator.
• Keep the packing materials out of reach of
children.
- There is a risk of death from suffocation if a
child puts the packing materials on his or her
head.
• The appliance must be positioned so that the
plug is accessible after installation.
- Failing to do so may result in an electric shock
or fire due to electric leakage.
• You need to remove all the protective plastic
film before you initially plug the product in.
• Children should be supervised to ensure that
they do not play with the fastener.
- There is a risk of death from suffocation if a
child swallows the fastener.
Pay special attention to children because it can
be dangerous.
Keep the fastener out of reach of children.
SAFETY INFORMATION
DA68-02953A-10.indb 3 2015. 11. 6. �� 11:11
• The refrigerator must be safely
grounded.
- Always make sure that you have grounded the
refrigerator before attempting to investigate or
repair any part of the appliance.
Power leakages can cause severe electric
shock.
• Never use gas pipes, telephone lines, or other
potential lightning attractors as an electrical
ground.
- Improper use of the grounding plug can result
in a risk of electric shock.
If it is necessary to use an extension cord, use
only a 3-wire extension cord that has a 3-blade
grounding plug and a 3-slot receptacle that will
accept the plug on the appliance.
The marked rating of the extension cord should
be AC 115-120 V, 10 A, or more.
If a grounding adapter is used, make sure the
receptacle box is fully grounded.
• Plug the power plug into the wall socket firmly.
Do not use a damaged power plug, damaged
power cord, or loose wall socket.
- This may result in an electric shock or fire.
• If the power cord is damaged,
have it replaced immediately by the
manufacturer or one of its service
agents.
CAUTION
INSTALLATION CAUTIONS
• Allow sufficient space around the
refrigerator and install it on a flat
surface.
- Keep the ventilation space in the appliance
enclosure or mounting structure clear of
obstructions.
• Allow the appliance to stand for 2 hours before
loading foods after installation and turning on.
• We strongly recommend you have a qualified
technician or service company install the
refrigerator.
- Failing to do so may result in an electric shock,
fire, explosion, problems with the product, or
injury.
WARNING
CRITICAL USAGE WARNINGS
• Do not insert the power plug into a wall
socket with wet hands.
• Do not store articles on the top of the
appliance.
- When you open or close the door, the articles
may fall and cause personal injury and/or
material damage.
• Do not insert hands, feet or metal objects (such
as knives, etc.) into the bottom or the back of
the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury
• Do not put a container filled with water on the
refrigerator.
- If spilled, there is a risk of fire or electric shock.
• Children should be supervised to ensure that
they do not play with the appliance.
- Keep fingers out of “pinch point” areas.
Clearances between the doors and cabinet are
necessarily small. Be careful when you open
the doors if children are in the area.
• Do not let children hang on the door.
A serious injury may occur.
• Do not let children go inside the refrigerator.
They could become trapped.
• Do not insert your hands into the bottom area
under the appliance.
- Any sharp edges may cause personal injury.
• Do not let children step on a drawer cover.
- The drawer may break and cause them to slip.
• Do not overfill the refrigerator with food.
- When you open the door, an item may fall out
and cause personal injury or material damage.
• Do not touch the inside walls of the freezer or
products stored in the freezer with wet hands.
- This may cause frostbite.
• Never put fingers or other objects into the water
dispenser hole, ice chute, or ice maker bucket.
- It may cause personal injury or material
damage.
• Do not use or place any substances sensitive
to temperature such as inflammable sprays,
inflammable objects, dry ice, medicine, or
chemicals near or inside the refrigerator.
• Do not keep volatile or inflammable objects
or substances (benzene, thinner, propane
gas, alcohol, ether, LP gas, and other such
English - 4
DA68-02953A-10.indb 4 2015. 11. 6. �� 11:11
products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in fire or explosion.
• Do not store pharmaceutical products, scientific
materials, or temperature sensitive products in
the refrigerator.
- Products that require strict temperature
controls must not be stored in the refrigerator.
• Do not place or use an electrical appliance
inside the refrigerator, unless it is of a type
recommended by the manufacturer.
• Do not stand on top of the appliance or place
objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal
objects, etc.) on the appliance.
This may result in an electric shock, fire,
problems with the product, or injury.
Do not put a container filled with water on the
appliance.
- If spilled, there is a risk of fire or electric shock.
• Do not use mechanical devices or any other
means to accelerate the defrosting process,
other than those recommended by the
manufacturer.
• Do not damage the refrigerant circuit.
• Do not spray volatile material such as
insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also
result in an electric shock, fire, or problems with
the product.
• Never stare directly at the UV LED lamp for long
periods of time.
- This may result in eye strain due to the
ultraviolet rays.
Be careful when you open the doors if children
are in the area.
• Do not let children hang on the door.
A serious injury may occur.
• Do not let children go inside the refrigerator.
They could become trapped.
• Bottles should be stored tightly together so that
they do not fall out.
• This product is intended only for the storage of
food in a domestic environment.
• If a gas leak is detected, avoid any naked
flames or potential sources of ignition, and air
the room in which the appliance is standing for
several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or fire.
• Use only the LED Lamps provided by the
manufacturer or its service agents.
• If the refrigerator emits a burning smell
or smoke, unplug the refrigerator
immediately and contact your
Samsung Electronics service center.
• If you experience difficulty changing a non-LED
light, contact a Samsung service center.
• If the product is equipped with LED Lamps, do
not disassemble the Lamp Covers and LED
Lamps yourself.
- Please contact your service agents.
• If dust or water enters the refrigerator, unplug
the refrigerator and contact your Samsung
Electronics service center.
- There is a risk of fire.
SAFETY INFORMATION
• Do not attempt to repair, disassemble,
or modify the appliance yourself.
• Do not use any fuse (such as cooper, steel wire,
etc.) other than a standard fuse.
• If your appliance needs to be repaired or
reinstalled, contact your nearest service center.
- Failing to do so may result in an electric shock,
fire, problems with the product, or injury.
• If the interior or exterior LED lamp has gone
out, please contact your nearest service center.
• Children should be supervised to
ensure that they do not play with the
appliance.
- Keep fingers out of “pinch point” areas. :
Clearances between the doors and cabinet are
necessarily small.
English - 5
DA68-02953A-10.indb 5 2015. 11. 6. �� 11:11
CAUTION
USAGE CAUTIONS
• Do not re-freeze frozen foods that have
thawed completely.
Do not place carbonated or fizzy drinks
in the freezer compartment.
Do not put bottles or glass containers
in the freezer.
- When the contents freeze, the glass may break
and cause personal injury.
• Use only the ice maker provided with the
refrigerator.
• Have the refrigerator’s water supply connected
only to a potable water supply.
To operate the ice maker properly, water
pressure of 20 ~ 125psi (138 ~ 862kPa) is
required. If you will be away from home for a
long period of time (on vacation, for example)
and won’t be using the water or ice dispensers,
close the water valve.
- Otherwise, water leakage may occur.
• If you won’t be using the refrigerator for a very
long period of time, (3 weeks or more) empty
the refrigerator including ice bucket, unplug it,
close the water valve, wipe excess moisture
from the inside walls, and leave the doors open
to prevent odors and mold.
• Service Warranty and Modification.
• Any changes or modifications
performed by a 3rd party on this
finished appliance are not covered
under Samsung warranty service, nor is
Samsung responsible for safety issues
that result from 3rd party modifications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a
plastic bag, the refrigerator can be over cooled.
If this cooling period lasts too long, the water
filter may break and cause water leakage.
• If the refrigerator is disconnected from the
power supply, you should wait for at least five
minutes before plugging it back in.
• If you have a long vacation planned or do not
intend to use the refrigerator for a long period of
time, (3 weeks or more) empty the refrigerator
including ice bucket, pull out the power plug,
close the water valve, wipe excess moisture
from the inside walls, and leave the doors open
to prevent odors and mold.
• To get the best performance from the product:
- Do not place food too close to the vents at the
rear of the appliance as it can obstruct free air
circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight
containers before putting it into the refrigerator.
- Do not place glasses, bottles, or carbonated
beverages in the freezer.
These items may freeze and break.
Broken glasses, bottles, and beverage
containers can cause injury.
- Please observe maximum storage times and
expiration dates of frozen goods.
- There is no need to disconnect the refrigerator
from the power supply if you will be away for
less than three weeks.
However, if you will be away for more than three
weeks, remove all the food and ice in the ice
bucket, unplug the refrigerator, close the water
valve, wipe excess moisture from the inside
walls, and leave the doors open to prevent
odors and mold.
• Fill the water tank and ice cube trays with
potable water only (tap water, mineral water, or
purified water).
- Do not fill the tank with tea or a Sports drink.
This may damage the refrigerator.
• Do not strike or apply excessive force to any
glass surface.
- Broken glass may result in a personal injury
and/or property damage.
• If the product is flooded, make sure to
contact your nearest service center.
- There is a risk of electric shock or fire.
English - 6
DA68-02953A-10.indb 6 2015. 11. 6. �� 11:11
CAUTION
WARNING
CLEANING CAUTIONS
• Do not spray water directly on the
inside or outside the refrigerator.
- There is a risk of fire or electric shock.
• Do not use a hair dryer to dry the inside of the
refrigerator.
• Do not place a lighted candle in the refrigerator
to remove bad odors.
- This may result in an electric shock or fire.
• Use a clean, dry cloth to remove any
foreign matter or dust from the power
plug blades.
Do not use a wet or damp cloth when
cleaning the plug.
- Otherwise, there is a risk of fire or electric
shock.
• Before cleaning or performing
maintenance, unplug the appliance
from the wall socket.
- Failing to do so may result in an electric shock
or fire.
CRITICAL DISPOSAL WARNINGS
• DANGER : Risk of child entrapment.
Before you throw away your old
refrigerator or freezer:
- Take off the doors and door latch.
- Leave the shelves in place so that children
cannot easily climb inside.
- Children trapped inside a refrigerator can hurt
themselves or suffocate to death.
• Please dispose of the packaging material from
this product in an environmentally friendly
manner.
• Ensure that none of the pipes on the back of
the appliance are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of
the appliance or the rating label inside the
fridge to see which refrigerant is used for your
refrigerator.
If this product contains flammable gas
(Refrigerant R-600a), contact your local
authority in regard to safe disposal of this
product.
• When disposing of this refrigerator, remove the
door/door seals and door latch so that small
children or animals cannot become trapped
inside.
Children should be supervised to ensure that
they do not play with the appliance.
If trapped inside, the child may get hurt or
suffocate to death.
• Cyclopentane is used in the insulation.
The gases in the insulation material require a
special disposal procedure.
Please contact your local authorities in regard
to the environmentally safe disposal of this
product.
• Keep all packaging materials well out of the
reach of children, as packaging materials can
be dangerous to children.
- If a child places a bag over his or her head, the
child could suffocate.
SAFETY INFORMATION
English - 7
DA68-02953A-10.indb 7 2015. 11. 6. �� 11:11
ADDITIONAL TIPS FOR
PROPER USAGE
• In the event of a power failure, call the local
office of your Electricity Company and ask how
long it is going to last.
- Most power failures that are corrected in an
hour or two will not affect your refrigerator
temperatures. However, you should minimize
the number of door openings while the power
is off.
- Should the power failure last more than 24
hours, remove and discard all frozen food.
• The appliance might not operate consistently
(frozen contents can thaw or temperatures
can become too warm in the frozen food
compartment) when sited for an extended
period of time in a location where ambient
air temperatures are constantly below the
temperatures for which the appliance is
designed.
• In case of particular foods, keeping it under
refrigeration can have a bad effect on
preservation due to its properties.
• Your appliance is frost free, which means there
is no need to manually defrost your appliance.
This will be carried out automatically.
• Temperature rise during defrosting complies
with ISO requirements.
But If you want to prevent an undue rise in the
temperature of frozen food while the appliance
defrosts, wrap the frozen food in several layers
of newspaper.
• Do not re-freeze frozen foods that have thawed
completely.
Saving Energy Tips
- Install the appliance in a cool, dry room with
adequate ventilation.
Ensure that it is not exposed to direct sunlight
and never put it near a direct source of heat (a
radiator, for example).
- Not to block any vents and grilles is
recommended for energy efficiency.
- Allow warm food to cool down before placing it
in the appliance.
- Put frozen food in the refrigerator to thaw.
You can then use the low temperatures of the
frozen products to cool food in the refrigerator.
- Do not keep the door of the appliance open for
too long when putting food in or taking food
out.
The shorter the time the door is open, the less
frost build-up you’ll have in the freezer.
- It is recommended to install the refrigerator with
clearance to the back and sides.
This will help reduce power consumption and
keep your energy bills lower.
English - 8
DA68-02953A-10.indb 8 2015. 11. 6. �� 11:11
Setting up your French Door
Refrigerator
GETTING READY TO INSTALL
THE REFRIGERATOR
Congratulations on your purchase of this Samsung
French Door Refrigerator.
We hope you enjoy the state-of-art features and
efficiencies that this new appliance offers.

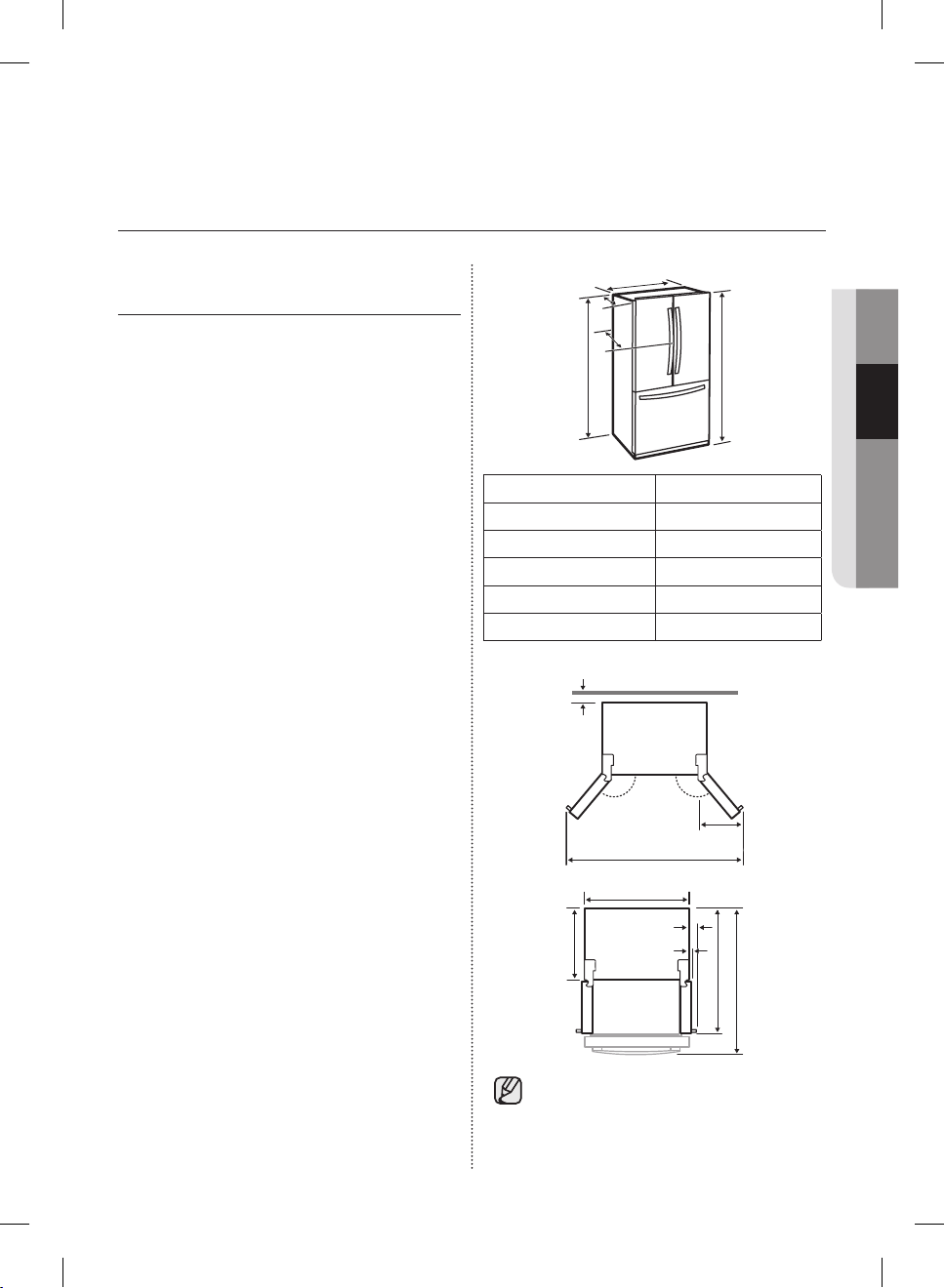

Selecting the best location for the
refrigerator
Choose:
• A location with easy access to a water supply.
• A location without direct exposure to sunlight.
• A location with level (or nearly level) flooring.
• A location with enough space for the
refrigerator doors to open easily.
• A location that allows sufficient space to the
right, left, back, and top for air circulation.
If the refrigerator does not have enough space,
it can cause the bad influence to refrigeration
efficiency and power consumption.
• A location that allows you to move the
refrigerator easily if it needs maintenance or
service.
• Do not install the refrigerator in locations where
the temperature is over 110°F (43°C) or below
50°F (10°C ).
B
B
AA
E
E
D
C
C
Model RF28HF**
Depth “A” 33 1/2” (851mm)
Width “B” 35 6/8” (908mm)
Height “C” 68 7/8” (1749mm)
Overall Height “D” 70” (1777mm)
Depth “E” 36” (913mm)
2"
(50mm)
125° 125°
62 1/8" (1578mm)
35 3/4" (908mm)
4 6/8" (122mm)
2 3/8" (61mm)
28 7/8"
(735mm)
D
13 2/8"
(335mm)
SETTING UP
47 6/8" (1213mm)
52 1/2" (1333mm)
• Each measurement based on the design
dimension, so it may differ depending on
the measuring method.
English - 9
DA68-02953A-10.indb 9 2015. 11. 6. �� 11:11
CAUTION

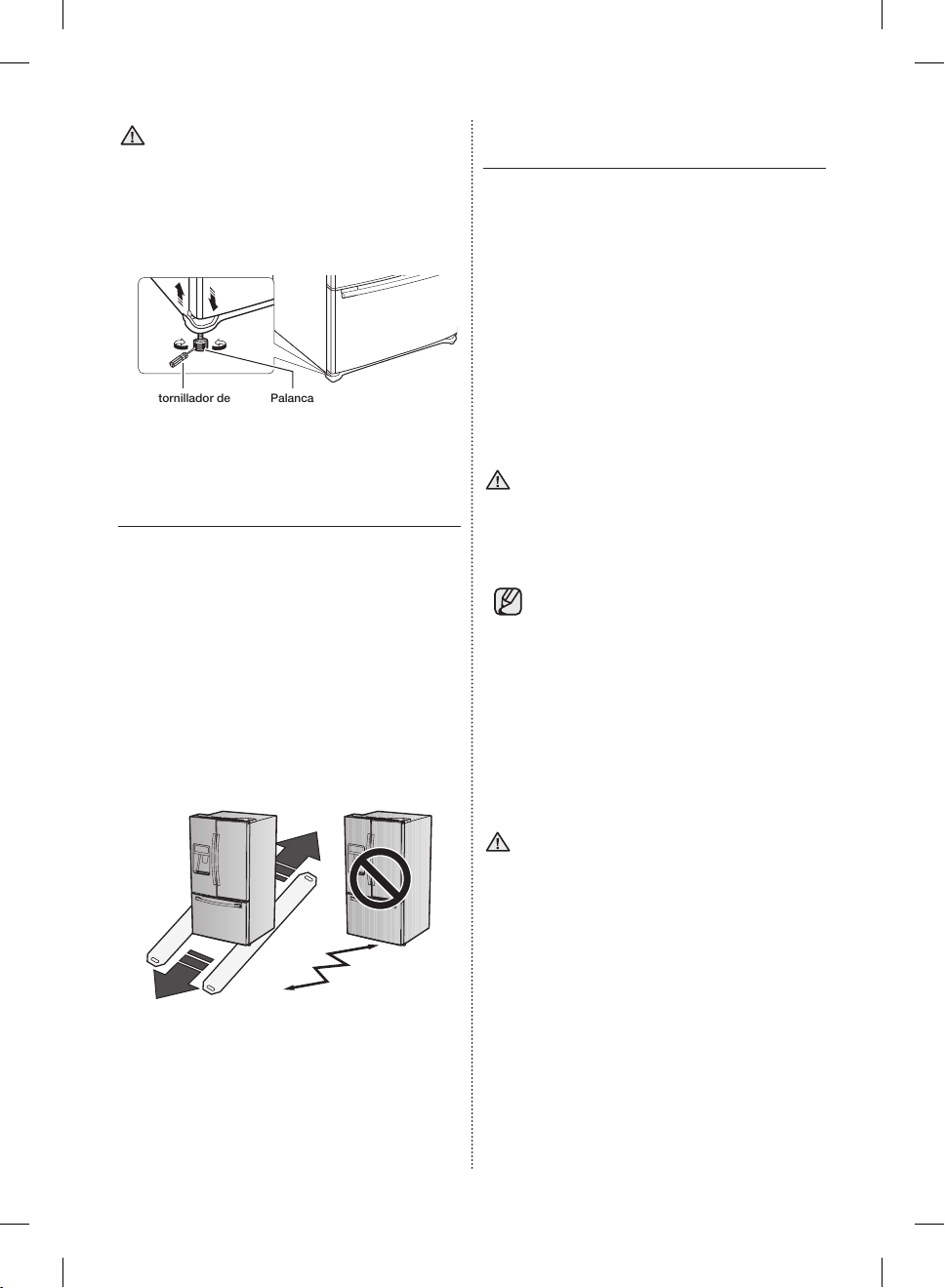

When moving your refrigerator
To prevent floor damage, be sure the front
adjusting legs are in the up position (above the
floor).
Refer to “Leveling the Refrigerator” on page 14.
REMOVING THE REFRIGERATOR
DOORS
For some installations, you need to remove the
fridge and freezer drawers so you can move the
refrigerator to its final location.
Do not remove the doors/drawer if you don’t need
to.
If you do not need to remove the refrigerator
doors, go to “Leveling the Refrigerator” on page
14.
If you need to remove the doors. continue below.
Before removing the door/drawer, make sure you
read the following items:
Flat-blade screw
driver (-)
Control Lever
Flooring
For proper installation, you must place this
refrigerator on a level, hard surface that is the
same height as the rest of the floor.
This surface should be strong enough to support a
fully loaded refrigerator.
To protect the finish of the flooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working.
When moving the refrigerator, you need to pull and
push it straight forwards or back.
Do not wiggle it from side to side.
WARNING
Disconnect power to the refrigerator before
removing the door or drawer.
• Be careful not to drop, damage or
scratch the door / drawer while removing
them.
• Be careful not to injure yourself while removing
the doors / drawer.
• Reattach the door/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
WARNING
Disassembling the refrigerator doors
Be careful not to drop and scratch the doors while
removing them.
English - 10
DA68-02953A-10.indb 10 2015. 11. 6. �� 11:11

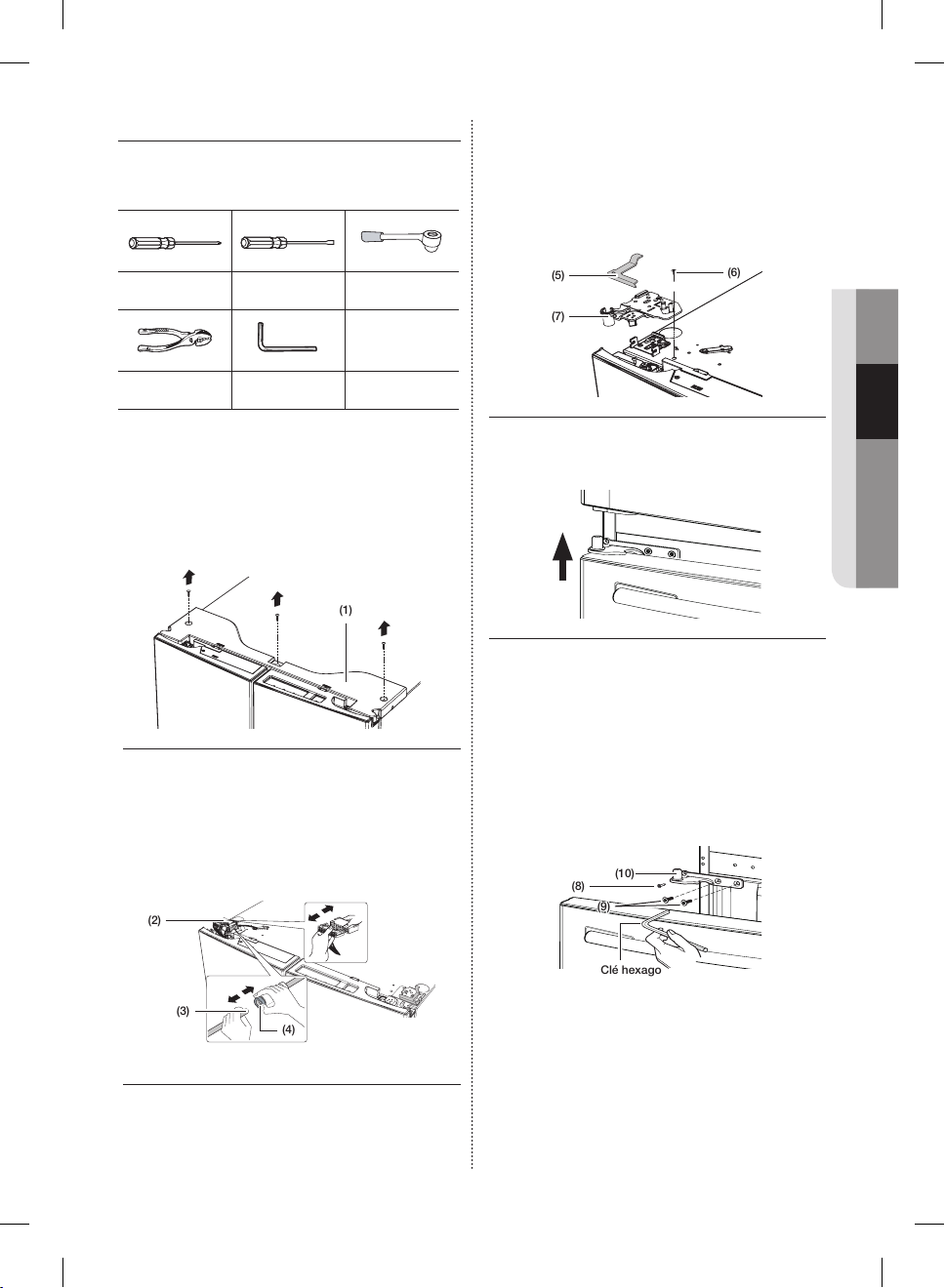

Required Tools (Not provided)
You need the following tools to complete the
installation of your refrigerator:
3. Pull and remove the hinge lever (5).
Remove the ground screw (6) attached to the
upper left door hinges with a philips screwdriver
(+). Remove the upper left and right door
hinges (7).
Philips
screwdriver (+)
Pliers
Flat-blade screw
driver (-)
Allen wrench
(3/16”) (5mm)
Socket wrench
(13/32”) (10mm)
With the door opened
1. Remove 3 screws holding down the TOP
TABLE (1) and separate the connected wires.
(1)
2. Disconnect two connectors (2) on the left side
door. To remove the water coupler from the
hinge, twist and pull it from the hinge.
Remove the water line (3) while pressing the
marked part (4) of the water line coupler.
(2)
(5)
(7)
(6)
4. Lift the door straight up to remove.
5. Remove the screw (8) attached to the
lower left and right door hinges with a philips
screwdriver (+).
Remove the 2 hex head bolts (9) attached to
the lower left and right door hinges with an allen
wrench (3/16”).
Remove the lower left and right door hinges
(10).
(10)
(8)
(9)
Allen wrench
SETTING UP
(3)
(4)
English - 11
DA68-02953A-10.indb 11 2015. 11. 6. �� 11:11

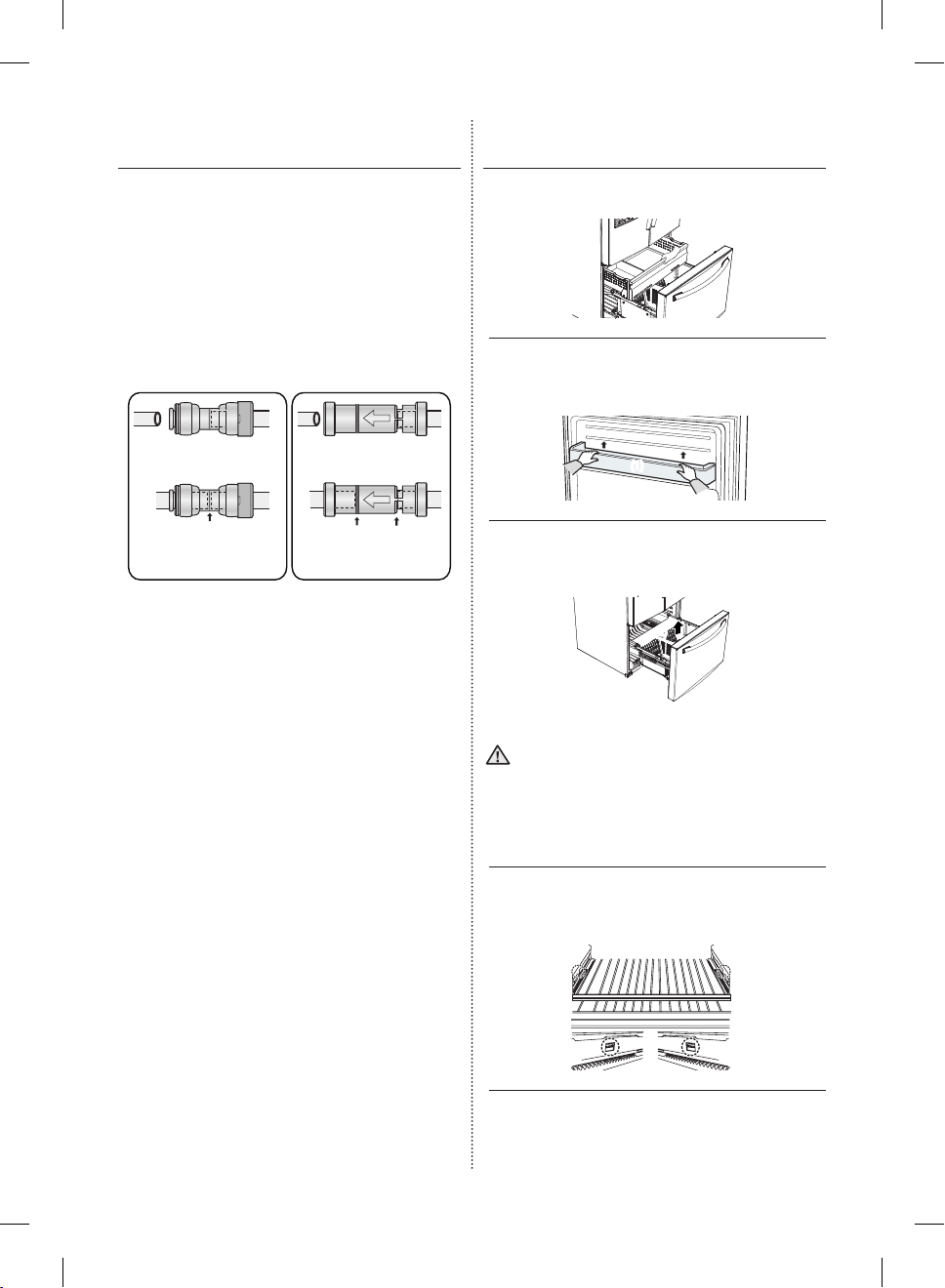

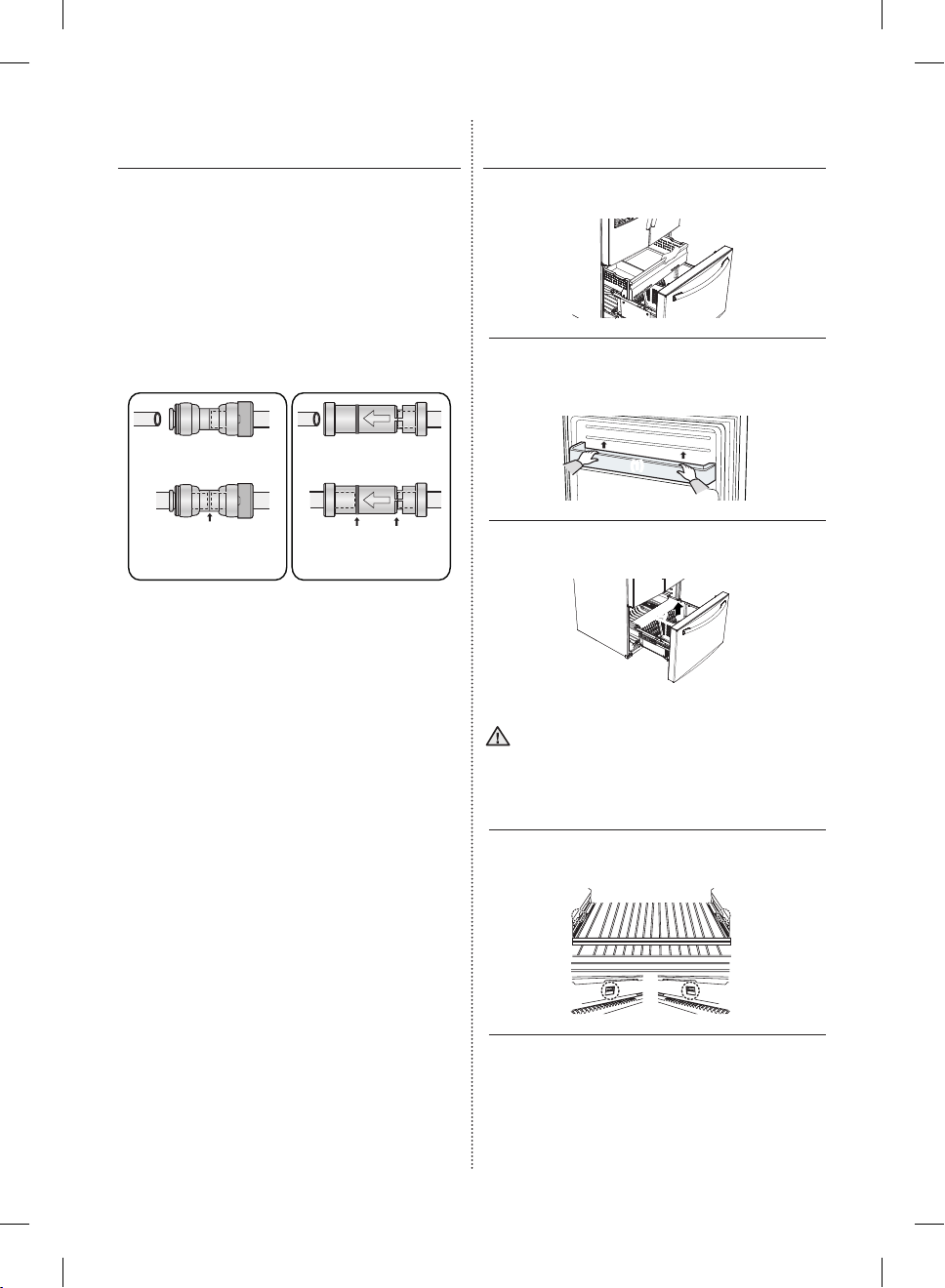

REATTACHING THE
REFRIGERATOR DOORS
To reattach the fridge doors after you have moved
the fridge to its final location, assemble the parts in
reverse order.
1. The Water Line must be fully inserted into the
center of the transparent coupler (Type A) or the
Guide Lines (Type B) to prevent water leakage
from the dispenser.
Type A Type B

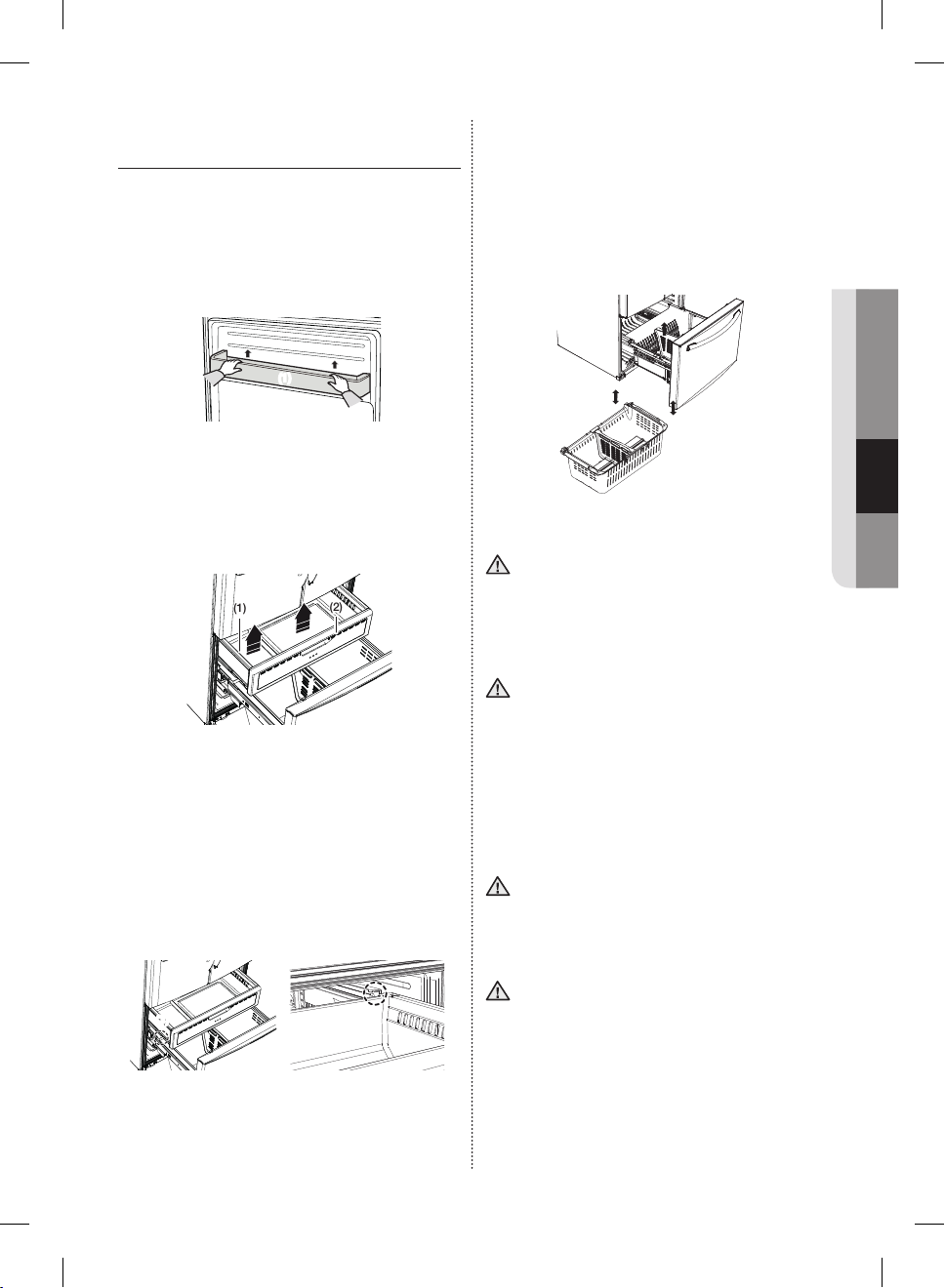

DISASSEMBLE THE FREEZER
DRAWER
1. Take out the upper drawer by lifting it up.
2. Remove the freeze room guard (1) by lifting
the guard up.
Center of Transparent
coupler
Dispenser
The Guide Lines
(1)
3. Take out the lower basket (2) by lifting the
basket up from the rail system.
(2)
CAUTION
You can scratch the side of the bin if you twist it
left or right when disassembling or re-assembling
it.
4. Press the fixing hook of the rail system.
English - 12
DA68-02953A-10.indb 12 2015. 11. 6. �� 11:11

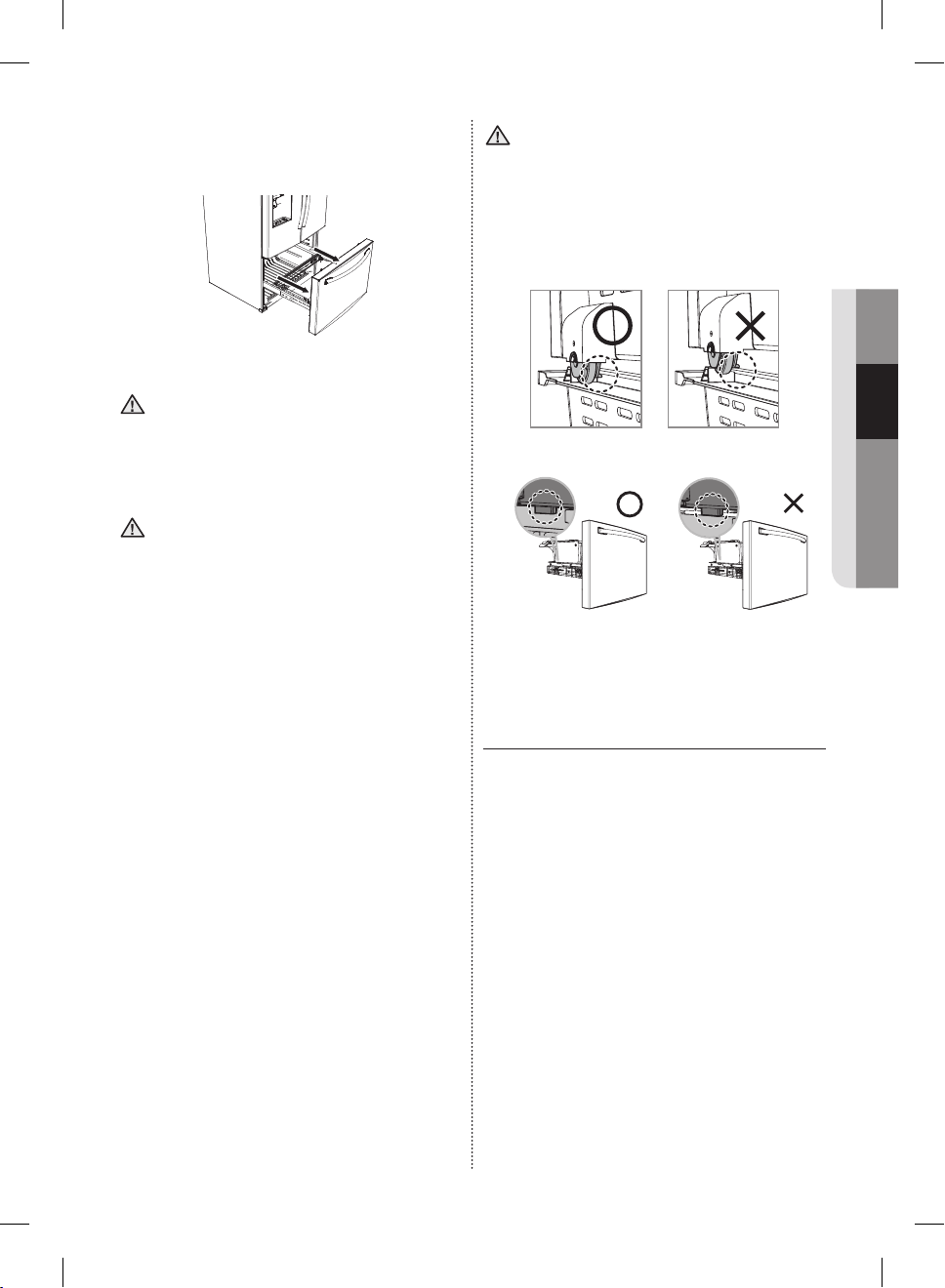

5. Holding the top of the Freezer Drawer, pull it
out all the way, and then remove it from the rail
system.
CAUTION
Be careful not to scratch or dent the sliding rail by
letting it strike the floor.
CAUTION
Make sure that you mount the freezer basket in the
right position when removing / installing the freezer
door.
Failing to do so may result in the door not opening
or closing properly.
CAUTION
Putting too much food into the freezer drawers can
prevent the freezer from closing completely and
can cause frost build-up.
SETTING UP
RE-ASSEMBLE THE FREEZER
DRAWER
To reattach the drawer after you have moved the
fridge to its final location, assemble the parts in
reverse order.
English - 13
DA68-02953A-10.indb 13 2015. 11. 6. �� 11:11

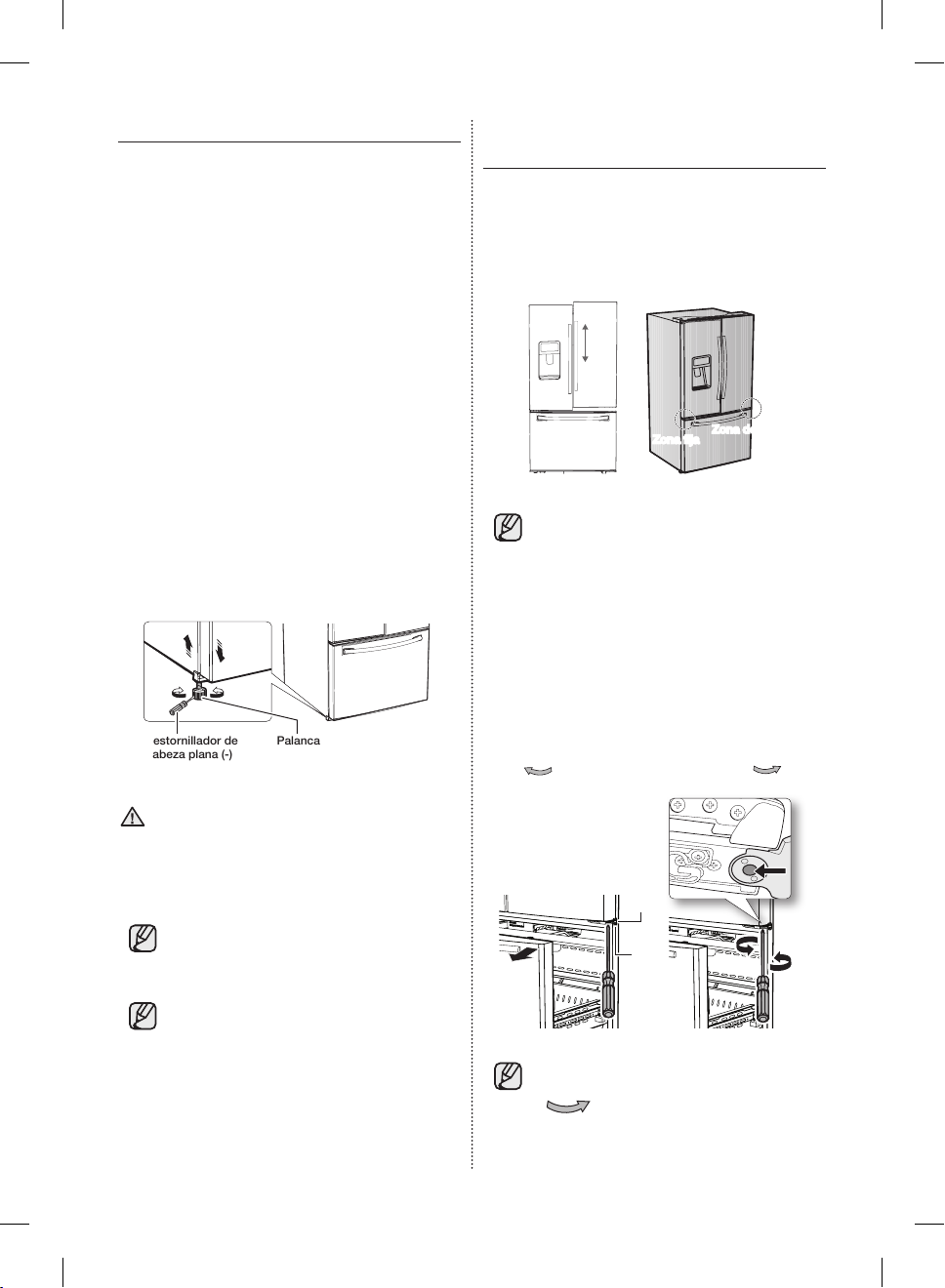

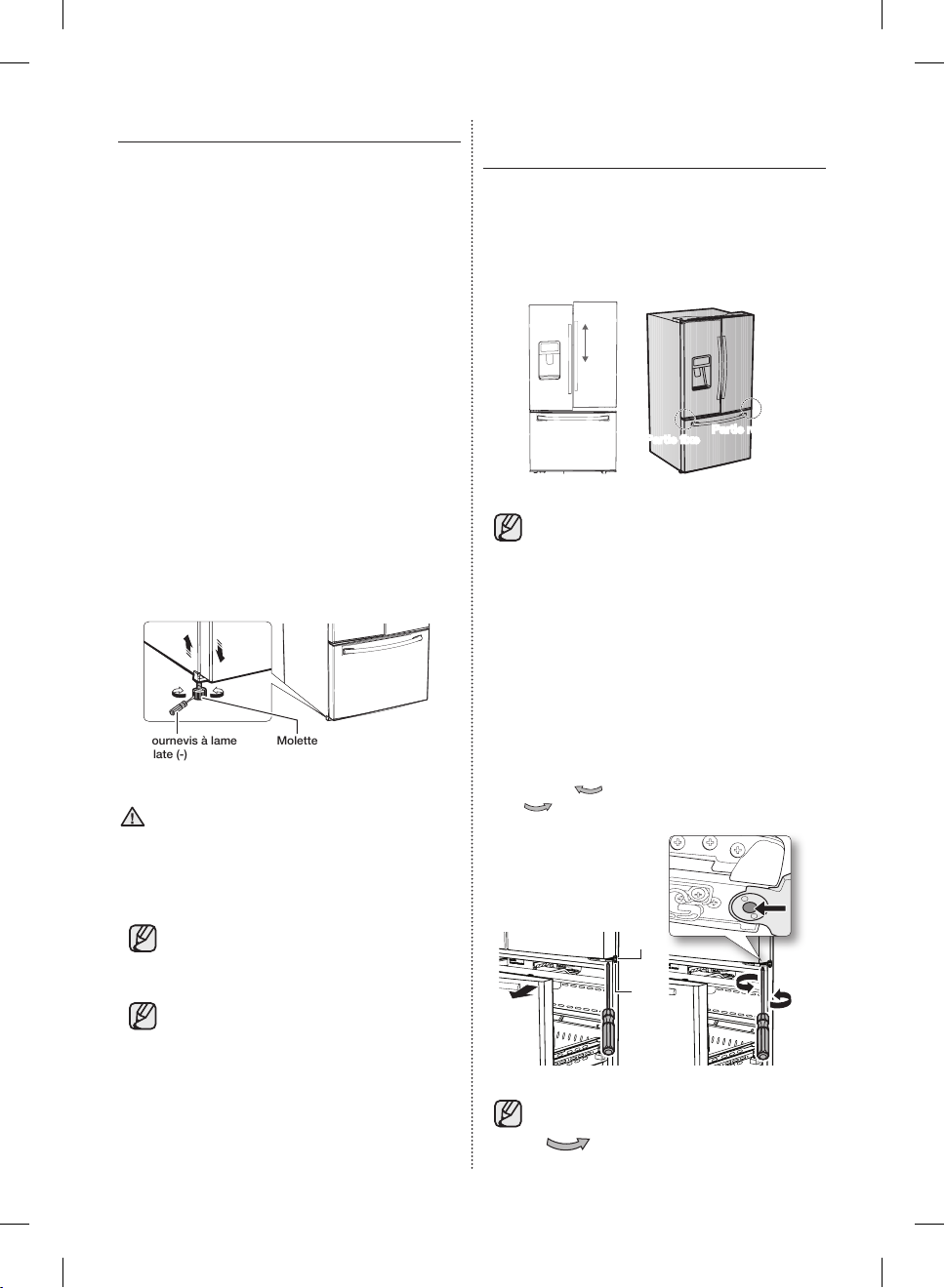

LEVELING THE REFRIGERATOR
Make sure the refrigerator is level so that you can
make final adjustments.
Use a level to test if the refrigerator is level both
side to side and back to front.
If the refrigerator is not level, you will not be able
to get the doors perfectly even, which may cause
moisture condensation and increased energy bills.
Below is an example of how to level the refrigerator
if the left side of the refrigerator is lower than the
right side.
MAKING MINOR ADJUSTMENTS
BETWEEN DOORS
Remember, a leveled refrigerator is necessary for
getting the doors perfectly even.
If you need help, review the previous section on
leveling the refrigerator.
How to adjust the level
1. Open the freezer drawer and remove the lower
basket.
2. Insert a flat-blade screwdriver (-) into a notch on
the left control lever, and then turn it counterclockwise to level the refrigerator.
(You turn the lever clockwise to lower the
refrigerator and counterclockwise to raise it.)
flat-blade
screwdriver (-)
Control Lever
CAUTION
Both control levers must be touching the floor to
avoid possible personal injury or property damage
because of tipping.
If the right side is lower, perform the same
procedure, but with the right control lever.
It is difficult to remove the cover leg
front from the refrigerator, so we do not
recommend making small adjustments
with the control lever.
Instead, refer to the next page for the best
way to make minor adjustments to the
doors.
Fixed part
Adjustment part
The left door is fixed.
To make minor adjustments between
doors, adjust only the right door.
1. Pull out the freezer drawer (1) to reveal the
lower hinge (2).
2. Insert a philips screwdriver (+) (3) into the shaft
(4) of the lower hinge.
3. Adjust the height by turning a philips
screwdriver (+) (3) clockwise (
counterclockwise (
(1)
UP
(2)
(4)
(3)
DOWN
) or
).
(3)
When you turn a philips screwdriver (+)
counterclockwise ( ), the door will
move up.
English - 14
DA68-02953A-10.indb 14 2015. 11. 6. �� 11:11
INSTALLING THE WATER
DISPENSER LINE
A water dispenser with a filter is one of the helpful
features on your new refrigerator.
To help promote better health, the water filter
removes unwanted particles from your water.
However, it does not sterilize the water or destroy
microorganisms.
You may need to purchase a water purifying
system to do that.
The water line also connects to the ice maker.
For the ice maker to operate properly, water
pressure of 20 ~ 125psi (138 ~ 862kPa) is
required.
If the refrigerator is installed in an area with low
water pressure (below 20psi), you can install a
booster pump to compensate for the low pressure.
After you have connected the water line, make
sure the water storage tank inside the refrigerator
is properly filled.
To do this, press the water dispenser lever until the
water runs from the water outlet.
Water line installation kits are available at
extra cost from your dealer.
We recommend using a water line
installation kit that contains copper tubing
and a ¼” compression nut.

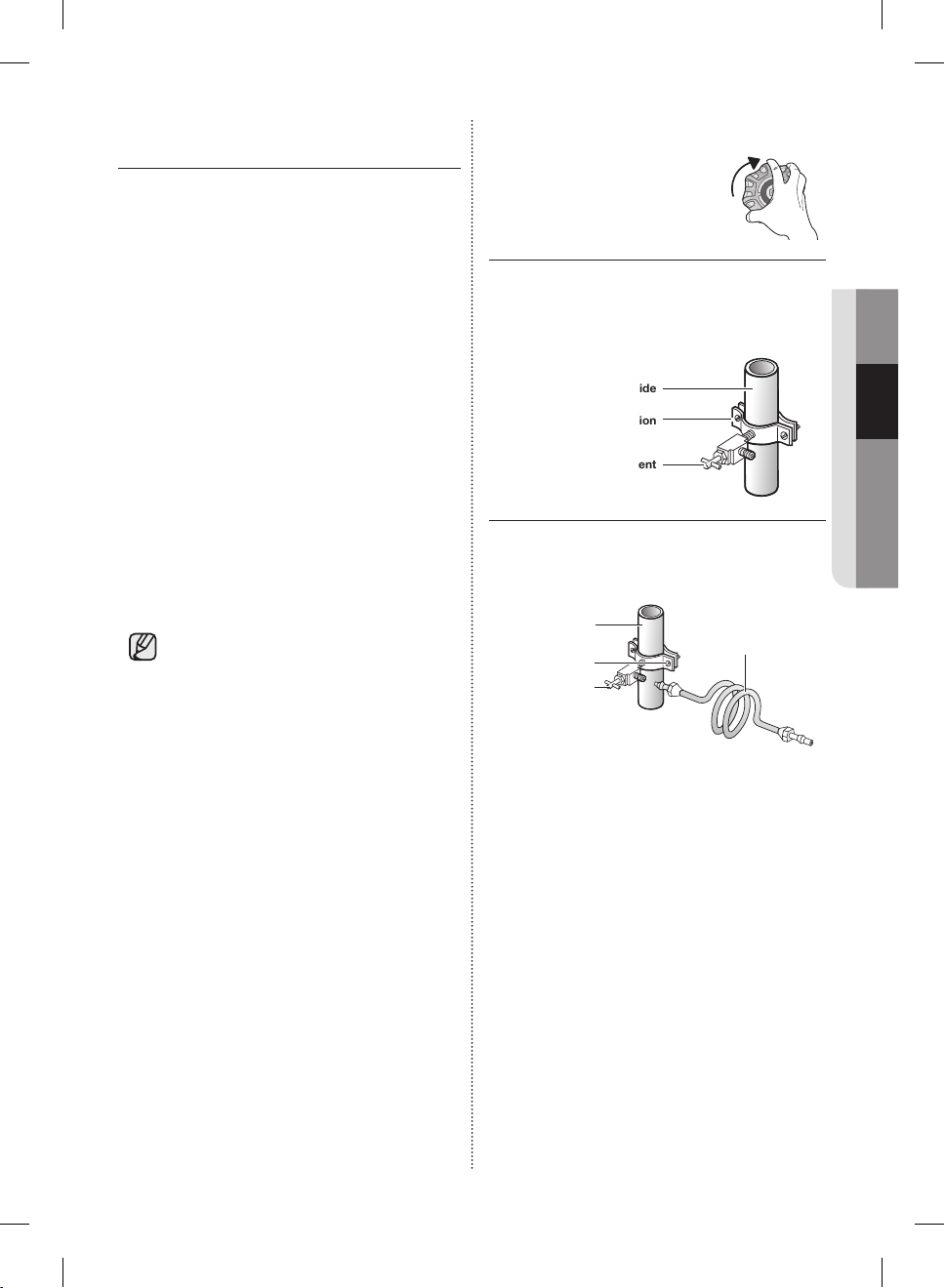

Connecting to the water supply line
1. First, shut off the main water
supply.
2. Locate the nearest cold water drinking line and
install the pipe clamp and shut off valve.
Cold water line
Pipe clamp
Shut off valve
3. Connect the water line installation kit to the
shut off valve.
Cold water line
Water line installation kit
Pipe clamp
Shut off valve
SETTING UP
English - 15
DA68-02953A-10.indb 15 2015. 11. 6. �� 11:11

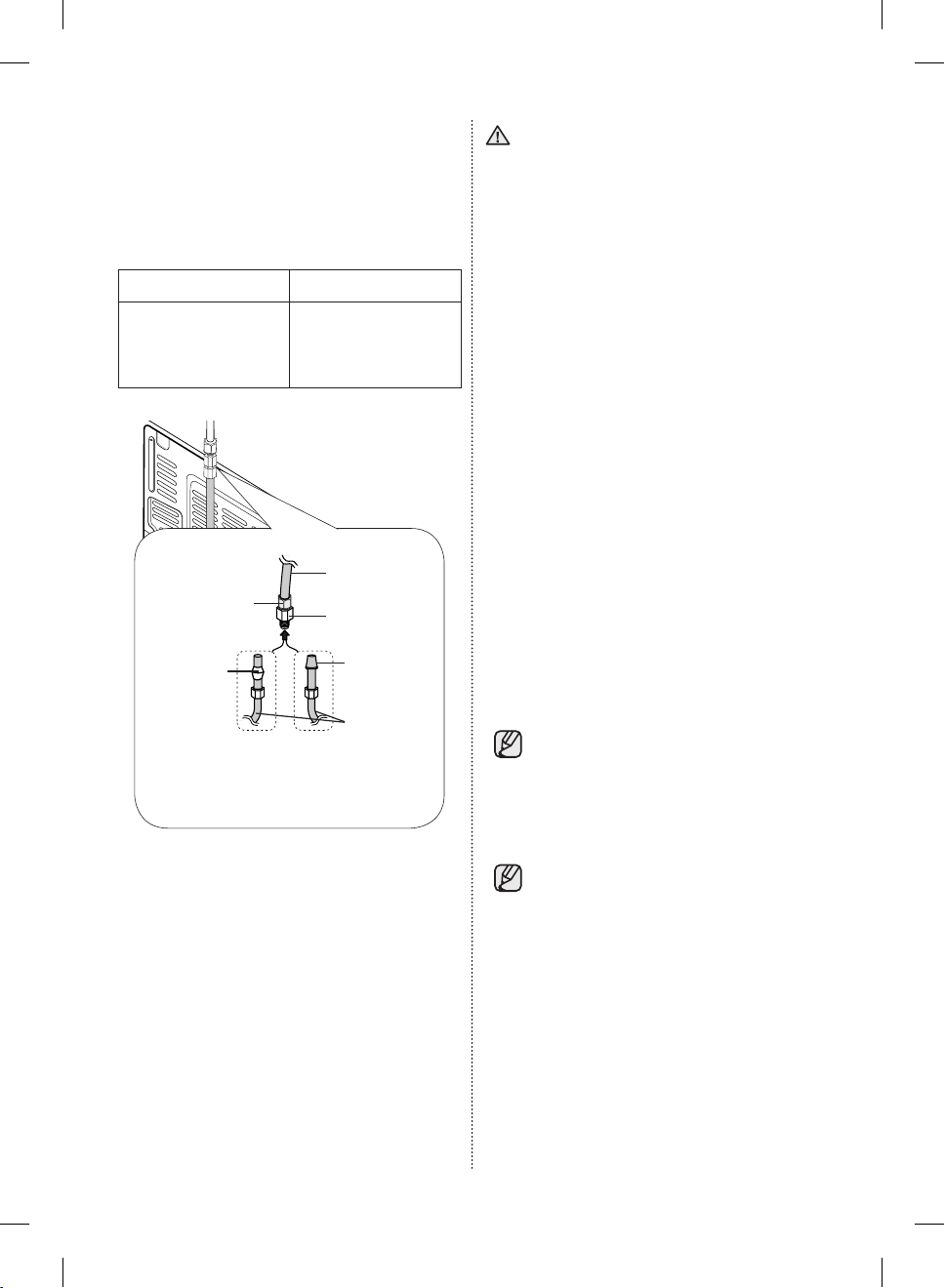

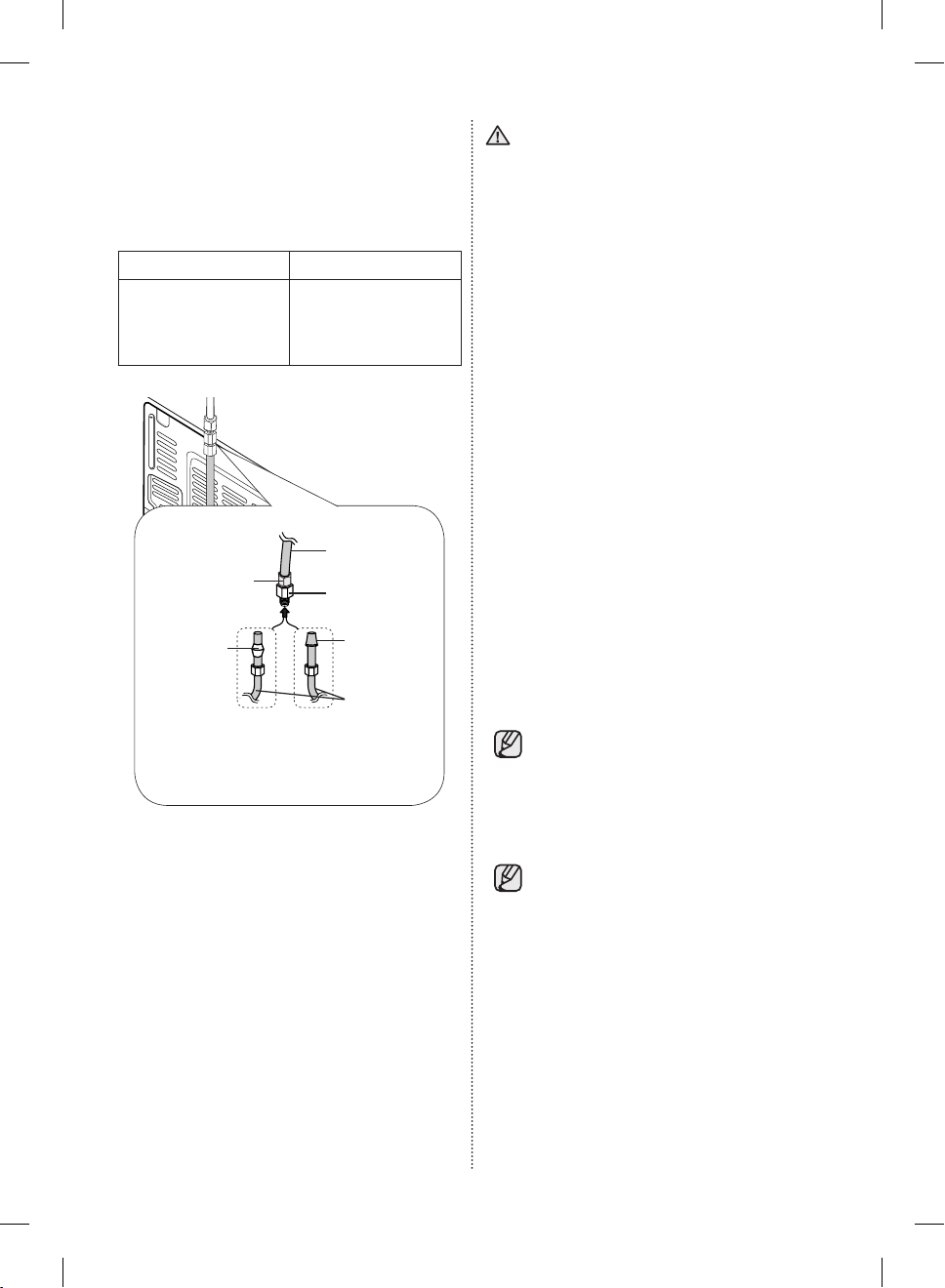

Connecting the water supply line to the
refrigerator
There are several items that you need to purchase
to complete this connection.
You may find these items sold as a kit at your local
hardware store.
Use Copper Tubing Use Plastic Tubing
• ¼” copper tubing
• ¼” compression nut
(1pc)
• Ferrule (2pc)
Compression Nut
(1/4”) (Assembled)
Ferrule
(Not supplied)
Copper tubing
(Not supplied)
Household water supply line
• ¼” plastic tubing
→ Molded end (Bulb)
• ¼” compression nut
(1pc)
Refrigerator
Plastic Tubing
(Assembled)
Compression
Fitting (Assembled)
Plastic tubing (B)
or
(Not supplied)
Molded end
(Bulb)
Compression
nut (B) (1/4”)
(Not supplied)
CAUTION
Do not use without the molded end (Bulb) of the
plastic tubing (B).
2. Tighten the compression nut (B) onto the
compression fitting.
Do not over-tighten the compression nut (B) .
3. Turn the water on and check for any leakage.
If you find water drops or leakage in the
connection areas, turn off the main water
supply. Check the connections and, if
necessary, tighten.
4. Flush 1 gallon of water through the filter before
drinking or using the water from the refrigerator.
(Flush approximately 6 minutes.)
To flush, press a large glass or cup against the
water dispenser lever.
Fill the glass, empty it into the kitchen sink after
it is filled, and then repeat.
5. After you turn on the refrigerator, let the ice
maker make ice for 1 to 2 days.
Over that period of time, throw out the first 1 or
2 buckets of ice the freezer makes to ensure all
impurities have been removed from the water
line.
Only connect the water line to a drinkable
water source.
If you have to repair or disassemble the
water line, cut off 1/4“ of the plastic tubing
to make sure you get a snug, leak-free
connection.
You can test the water line quickly using a
1. Connect the household water line to the
assembled compression fitting.
- If you are using copper tubing, slip the
paper cup. Under normal conditions, the
water dispenser can fill a 5.75oz. (170cc)
cup in about 10 seconds.
compression nut (B) (not supplied) and
ferrule (not supplied) on the copper tubing (not
supplied) as shown.
- If you are using plastic tubing (B), insert the
molded end (Bulb) of the plastic tubing (B) into
the compression fitting.
English - 16
DA68-02953A-10.indb 16 2015. 11. 6. �� 11:11
COMPLETING THE SET UP
Now that you have your new refrigerator installed
in place, you are ready to set up and enjoy the
features and functions of the appliance.
By completing the following steps, your refrigerator
should be fully operational.
1. Make sure your refrigerator is in an appropriate
location with reasonable clearance between it
and the wall. Refer to installation instructions in
this manual.
2. Once the refrigerator is plugged in, make sure
the interior light comes on when you open the
doors.
3. Set the Temperature control to the coldest
temperature and wait for an hour.
The freezer will get slightly chilled and the motor
will run smoothly.
Reset the refrigerator and freezer to the
temperatures you want.
4. After you plug the refrigerator in, it will
take a few hours to reach the appropriate
temperature.
You can store food and drinks in the refrigerator
after the temperature is sufficiently cool.
If condensation or water drops appear
on both sides of the fridge door’s central
part, turn the Energy Saver mode off after
removing the condensation.
(See the explanation of the Energy Saver
button in “Using the control panel” on
page 19.)
SETTING UP
English - 17
DA68-02953A-10.indb 17 2015. 11. 6. �� 11:11
Operating your French Door
Refrigerator

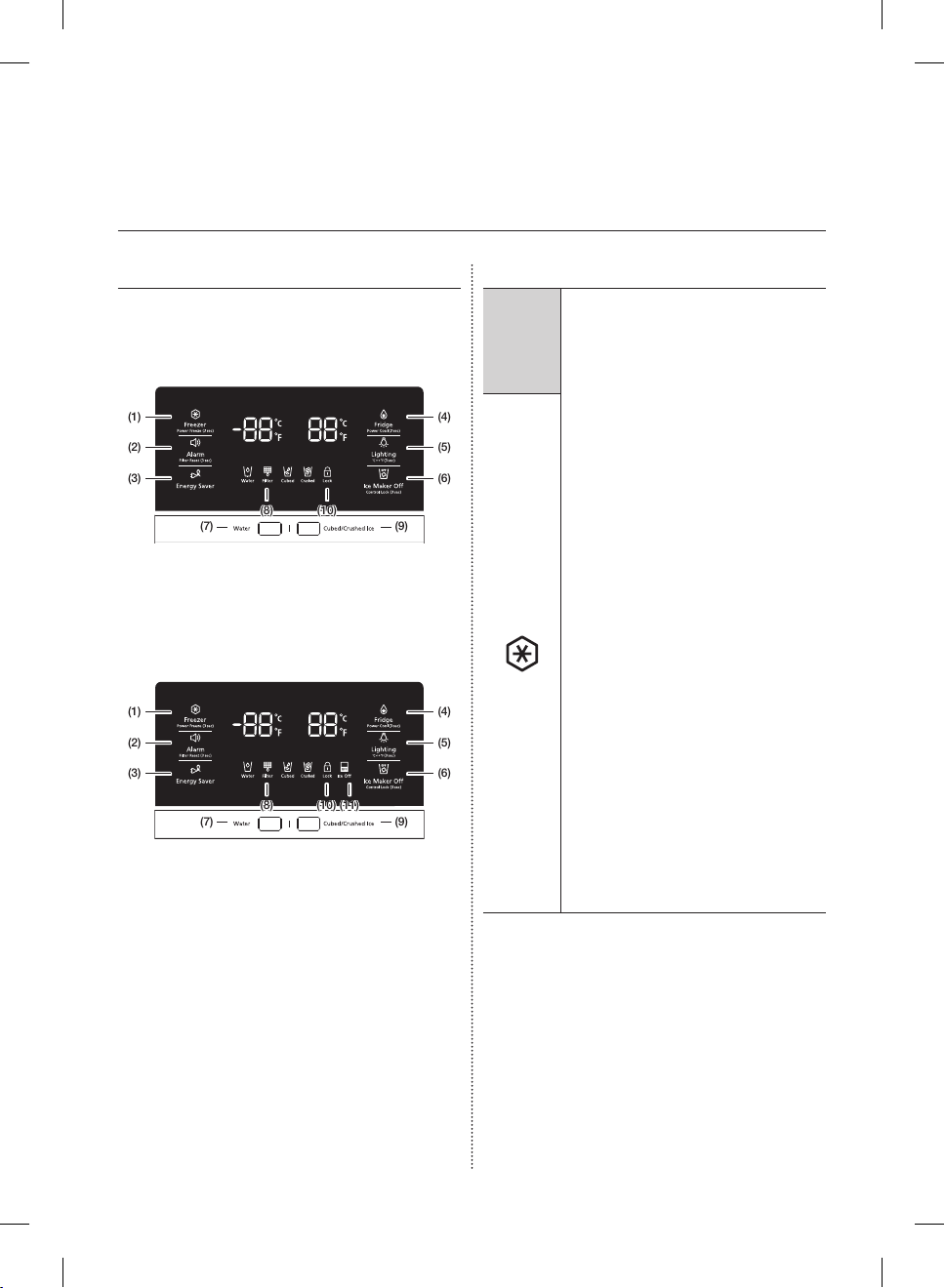

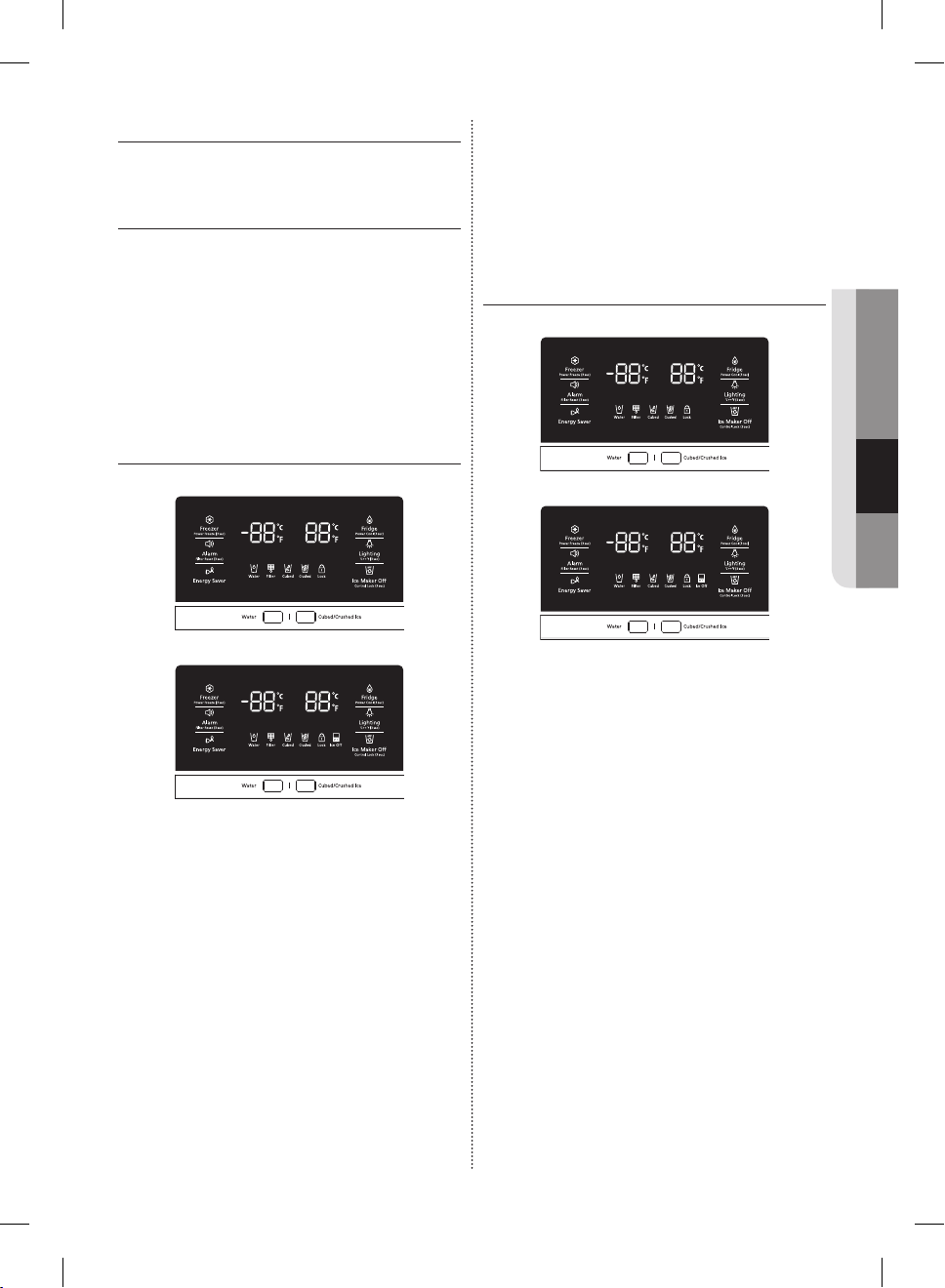

USING THE CONTROL PANEL
( 1 )
The Freezer button serves two purposes:
- To set the Freezer to your desired
temperature.
- To turn the Power Freeze function on
and off.
RF28HFEDB* / RF28HFPDB*
Freezer
/ Power
Freeze
(3sec)
(1)
(2)
(3)
(8)
(7)
(10)
RF28HFEDT*
(1)
(2)
(3)
(8)
(7)
(10) (11)
(4)
(5)
(6)
(9)
(4)
(5)
(6)
(9)
1. To set the Freezer temperature, touch
the Freezer button.
You can set the temperature between
5°F (-15°C) and -8°F (-23°C).
2. Power Freeze function
Touch and hold this button for 3 seconds
to decrease the time needed to freeze
products in the Freezer.
It can be helpful if you need to quickly
freeze easily spoiled items or if the
temperature in the freezer has warmed
dramatically.
(For example, if the door was left open.)
When you use this function, the energy
consumption of the refrigerator will
increase.
Remember to turn it off when you don’t
need it and return the freezer to your
original temperature setting.
If you need to freeze a large amount of
food, activate the Power Freeze function at
least 24 hours before you put the food into
the freezer.
English - 18
DA68-02953A-10.indb 18 2015. 11. 6. �� 11:11
( 2 )
Alarm
/ Filter
Reset
(3sec)
( 3 )
Energy
Saver
The Alarm button serves two purposes:
- To turn the door open alarm on and off
- To reset the water filter life indicator.
1. Door Alarm Function
If the door alarm is set to On, an alarm
beeps if any refrigerator door is left open
for more than three minutes.
The beeping stops when you close the
door.
The door alarm function is pre-set to On in
the factory.
You can turn it off by pressing and then
releasing the Alarm button.
You can turn it back on in the same
fashion.
The icon lights up when the function is on.
When the Door Alarm function is on and
the alarm sound is triggered, the Door
Alarm Icon will blink while the alarm
sounds.
2. Water Filter Life Indicator Function
After you replace the water filter, touch and
hold this button for 3 seconds to reset the
water filter life indicator.
When you reset the water filter life indicator,
the Filter icon on the panel turns Off.
The Filter icon will turn red to let you know
it is time to change the water filter after six
months (about 300 gallons).
Some areas have large amounts of lime in
their water, which causes the water filter to
clog more quickly.
If this is the case in your area, you will have
to change the filter more frequently than
every six months.
Touching this button turns Energy Saver
mode on and off.
When you turn Energy Saver on, the
Energy Saver icon lights.
Turn Energy Saver off and the icon goes
off.
The Energy Saver function automatically
turns on when power is supplied to the
refrigerator.
If condensation or water drops appear on
the doors, turn the Energy Saver mode off.
( 4 )
Fridge /
Power
Cool
(3sec)
( 5 )
Lighting
/ °C↔°F
(3sec)
The Fridge button serves two purposes:
- To set the Fridge to your desired
temperature.
- To turn the Power Cool function on
and off.
1. To set the Fridge temperature, press
the Fridge button.
You can set the temperature between
44°F (7°C) and 34°F (1°C).
2. Power Cool function
Touch and hold this button for 3 seconds
to decrease the time needed to cool
products in the Refrigerator.
It can be helpful if you need to quickly cool
easily spoiled items or if the temperature in
the fridge has warmed dramatically.
(for example, if the door was left open)
The Lighting button serves two purposes:
- To turn the dispenser light on and off
- To switch the temperature units
between ºC and ºF.
1. Light Function
Touching the Lighting button turns on the
Dispenser LED lamp in continuous mode
so that it stays on continuously.
The button also lights up.
If you want the Dispenser lamp to come on
only when some one uses the dispenser,
press the Lighting button to turn the
continuous mode off.
2. To switch the temperature units
between ºC and ºF.
Touch and hold this button for 3 seconds
to select the temperature display you want.
Each time you press and hold the button,
the ºC and ºF temperature modes alternate
and the ºC or ºF icon lights up, indicating
your selection.
OPERATING
English - 19
DA68-02953A-10.indb 19 2015. 11. 6. �� 11:11
( 6 ), ( 11 )
Ice Maker
Water
If you don’t want to make more ice, touch
the Ice Maker Off button.
The icon will light up and the Ice-Maker
Off
stops making ice.
We recommend you to stop ice making
if the following occur:
- There is enough ice in the ice bucket.
- You want to save water and energy.
- Water is not being supplied to the
refrigerator.
If the ice maker function is ON, and the
water Line is not connected, there will be
a water valve noise from the back of the
unit. Press the Ice Maker Off (Control Lock
(3sec)) button for less than 3 seconds until
the Ice Off Indicator (
( 7 )
Touch this button to dispense water.
This mode can not be used with the Ice
Type mode simultaneously.
Water mode shuts off when you touch the
Cubed / Crushed Ice button.
) illuminates.
To save electricity, the Panel Display turns off
automatically under the following conditions:
When no button has been pressed, when no
doors are open, or when no Dispenser Lever
has been pushed.
However, the icon indicating your cubed or
crushed ice selection, will stay on.
When you press a button, open a door, or push
a Dispenser Lever, the Panel Display will turn
on again.
Except for the Energy Saver, Water, and Cubed
/ Crushed Ice buttons, all function buttons
will become operational after you remove
your finger from the button you are currently
pressing.
( 8 )
Filter
Water filter usage
This icon lights up when you need
to change the filter, usually after the
refrigerator has dispensed about 300
gallons of water (after about 6 months).
The icon will blink red for several seconds
when you open or close the door.
After you install the new water filter, reset
the filter indicator by touching and holding
the Hold 3sec for Filter Reset button for
3seconds.
- If water is not dispensing or dispensing
slowly, you need to replace the water
filter because the water filter is clogged.
- Some areas have large amounts of lime
in their water, which causes the water
filter to clog more quickly.
( 9 )
Ice Type
(Cubed)
(Crushed)
( 10 )
Ice Maker
Off /
Control
Lock
(3sec)
Cooling
Off Mode
Touch this button to select your desired
ice type.
Cubed and crushed ice modes alternate
when you press the button.
This mode can not be used with the Water
mode simultaneously.
The Ice Maker Off button serves two
purposes:
- To turn the Ice maker on and off
- To turn the Control Lock Function on
and off.
1. Ice Off Function
If you don’t want to make more ice, press
the Ice Maker Off button.
2. Control Lock Function
Touch and hold this button for 3 seconds
to lock the display and the dispenser
buttons so the buttons can not be used.
When Control Lock is on, the refrigerator
does not dispense ice or water, even if the
Dispenser Lever is pressed.
The Control Lock icon lights up to indicate
you’ve activated the Control Lock function.
Press 3 seconds to unlock.
Cooling Off mode (also called Shop mode),
is designed for use by retailers when they
are displaying refrigerators on the shop
floor.
In Cooling Off mode, the refrigerator’s
fan motor and lights work normally, but
the compressors do not run, and the
refrigerator and freezer do not get cold.
To start Cooling Off mode, touch and hold
the Freezer, Fridge and Alarm buttons for
5seconds during normal operation.
The refrigerator chime sounds and the
temperature display flashes OFF.
To cancel Cooling Off mode, touch and
hold the Freezer, Fridge and Alarm buttons
again for 5seconds.
English - 20
DA68-02953A-10.indb 20 2015. 11. 6. �� 11:11

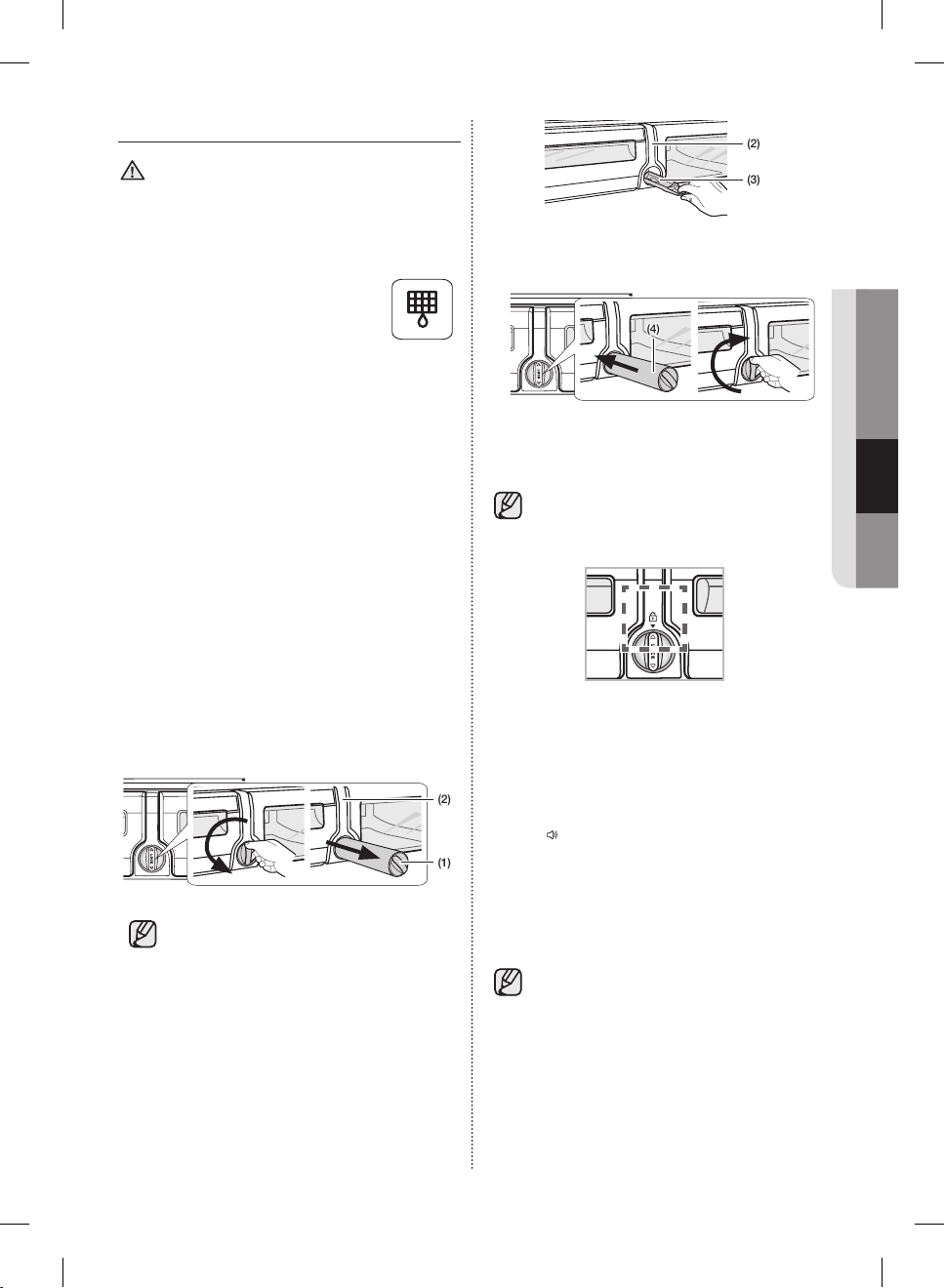

CHANGING THE WATER FILTER
WARNING
To reduce risk of water damage to your property
DO NOT use generic brands of water filters in your
SAMSUNG Refrigerator.
(2)
(3)
3. Insert the new filter into the filter case (4).
USE ONLY SAMSUNG BRAND
WATER FILTERS. SAMSUNG is not
legally responsible for any damage,
including, but not limited to, property
damage caused by water leakage
(Red)
from the use of a generic water filter.
SAMSUNG Refrigerators are designed to work
ONLY WITH SAMSUNG Water Filters.
The Filter light turns red to let you know when it is
time to change your water filter cartridge.
To give you time to get a new filter, the red light
comes on just before the capacity of the current
filter runs out.
Changing the filter on time provides you with the
freshest, cleanest water from your refrigerator.
1. Shut off the water supply. Then, turn the water
filter (1) about 1/4 turn, counter-clockwise.
2. Pull the water filter (1) from the case filter (2).
(2)
(1)
• To change the water filter more easily,
shut off the water supply valve.
• Sometimes, it is hard to disassemble the water
filter because impurities in the water cause it to
stick. If you are having difficulties, grip the water
filter firmly and pull it hard.
• When you pull the water filter, a little water
can leak from the opening. This is normal.
To minimize the water leaks, keep the filter
cartridge horizontal when you pull it.
• To prevent overflow, empty the water filter tray
(3) and dry around the filter case (2).
(4)
4. Push the filter, and then turn it clockwise until
it locks.
• If you have trouble inserting the water
filter because of high water pressure,
shut off the water supply valve.
• The locked symbol should be lined up with the
indicator line.
5. Touch and hold the “Alarm / hold 3 sec for
Filter Reset” button (
(Filter Reset)
) for about
3seconds to reset the water filter indicator.
The indicator’s red light will turn off.
6. If you turned off the water supply, turn it back
on.
For a replacement water filter, visit your
local home Improvement center or visit
Samsung’s parts distributor on line at:
http://www.samsungparts.com
Be sure the replacement water filter has
the SAMSUNG logo on the box and on the
water filter.
OPERATING
English - 21
DA68-02953A-10.indb 21 2015. 11. 6. �� 11:11
Removing any residual matter inside the
water supply line after installing the water
filter.
1. Turn ON the the water supply if you turned it off
when you installed the water filter.
2. Run water through the dispenser until the water
runs clear (approx. 6 to 7 minutes).
This will clean the water supply system and
remove air from the lines.
3. Additional flushing may be required in some
households.
4. Open the Refrigerator door and make sure
there are no water leaks coming from the water
filter.
Be sure to flush the dispenser thoroughly,
otherwise water may drip from the
dispenser.
This means that there is still air in the line.
Reverse Osmosis Water Supply
IMPORTANT:
The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet
valve of the refrigerator needs to be between 35
and 120psi. (241 and 827kPa)
If a reverse osmosis water filtration system is
connected to your cold water supply, the water
pressure to the reverse osmosis system needs to
be a minimum of 40 to 60psi. (276 to 414kPa)
If the water pressure to the reverse osmosis
system is less than 40 to 60psi (276 to 414kPa):
• Check if the sediment filter in the reverse
osmosis system is blocked.
Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis
system to refill after heavy usage.
• If your refrigerator has a water filter, it may
further reduce the water pressure when used
in conjunction with a reverse osmosis system.
Remove the water filter.
If you have questions about your water pressure,
call a licensed, qualified plumber.
English - 22
DA68-02953A-10.indb 22 2015. 11. 6. �� 11:11
CONTROLLING THE
TEMPERATURE
Basic temperature of Freezer and
fridge compartments
The basic and recommended temperatures of the
Freezer and Fridge compartments are 0°F and
37°F (or -18°C and 3°C) respectively.
If the temperature of the Freezer and Fridge
compartments are too high or low, adjust the
temperature manually.
Controlling the Freezer temperature
RF28HFEDB* / RF28HFPDB*
Keep in mind that foods such as ice cream may/
melt at 4°F (or -15.5°C).
The temperature display will move sequentially
from -8°F to 5°F (or from -23°C to -15°C).
Controlling the fridge temperature
RF28HFEDB* / RF28HFPDB*
OPERATING
RF28HFEDT*
RF28HFEDT*
Recommend Temp (Freezer) : 0°F (or -18°C )
The Freezer temperature can be set between -8°F
and 5°F (or between -23°C and -15°C) to suit
your particular needs.
Press the Freezer button repeatedly until the
desired temperature is shown in the temperature
display.
The temperature will change by 1°F (or 1°C) with
each press. See below.
Fahrenheit : 0°F ➞ -1°F ➞ -2°F ➞ -3°F ➞ -4°F
➞ -5°F ➞ -6°F ➞ -7°F ➞ -8°F ➞ 5°F ➞ 4°F ➞
3°F ➞ 2°F ➞ 1°F ➞ 0°F.
Centigrade : -18°C ➞ -19°C ➞ -20°C ➞ -21°C
➞ -22°C ➞ -23°C ➞ -15°C ➞ -16°C ➞ -17°C
➞ -18°C.
Recommend Temp (Fridge) : 37°F (or 3°C )
The fridge temperature can be set between 34°F
and 44°F (or between 1°C and 7°C) to suit your
particular needs.
Press the Fridge button repeatedly until the desired
temperature is shown in the temperature display.
The temperature will change by 1°F (or 1°C) with
each press. See below.
Fahrenheit : 37°F ➞ 36°F ➞ 35°F ➞ 34°F ➞
44°F ➞ 43°F ➞ 42°F ➞ 41°F ➞ 40°F ➞ 39°F
➞ 38°F ➞37°F.
Centigrade : 3°C ➞ 2°C ➞ 1°C ➞ 7°C ➞ 6°C
➞ 5°C ➞ 4°C ➞ 3°C.
The temperature control process for the Fridge
works just like the Freezer process.
Press the Fridge button to set your desired
temperature.
After a few seconds, the Fridge will begin adjusting
towards the newly set temperature.
This will be reflected in the digital display.
English - 23
DA68-02953A-10.indb 23 2015. 11. 6. �� 11:11
• The temperature of the Freezer or Fridge
may rise when you open the doors too
frequently, or if a large amount of warm
or hot food is placed inside.
• A rise in temperature may cause the digital
display to blink.
Once the Freezer and Fridge temperature return
to their normal set temperatures, the blinking
will stop.
• If the blinking continues, you may need to
“reset” the Refrigerator.
Try unplugging the appliance, wait for around
10 minutes and then plug the power cord back
in.
• If there is a communication error between the
Display and Main Controller, the Convertible
Display light may blink.
If the blinking continues for a long period of
time, please contact a Samsung Electronics
Service Center.
USING THE COLD WATER
DISPENSER

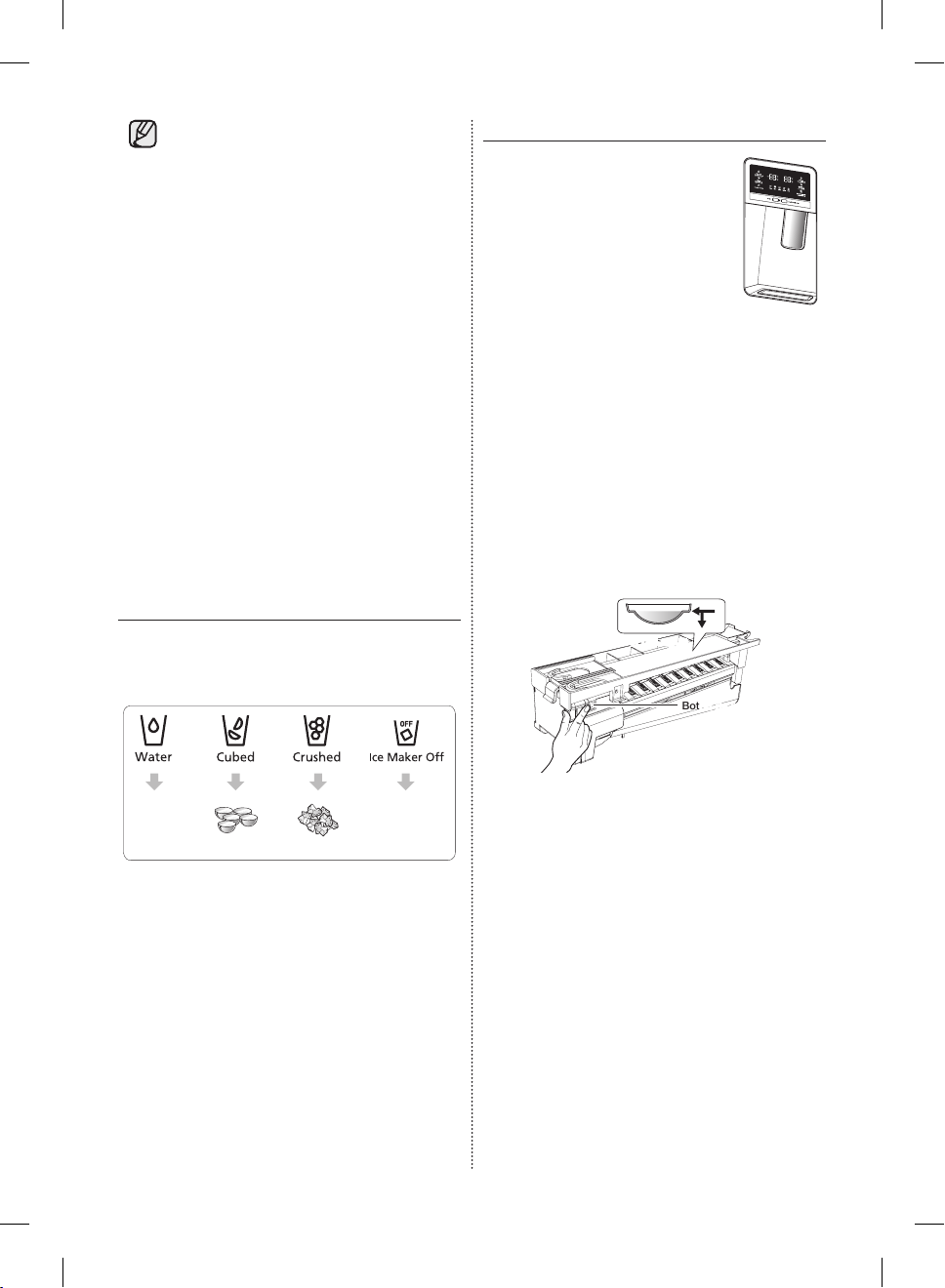

Push the appropriate ice type button to
select what you want dispensed.
Using the ice Dispenser
Place a glass underneath the ice
dispenser and push gently against
the dispenser lever with your glass.
Make sure the glass is in line with
the dispenser to prevent the ice
from bouncing out.
• To select water, press the water button on the
display, and then press the dispenser lever.
• To select Ice, press the ICE type button of
your choice on the display, and then press the
dispenser lever.
• If you have selected cubed ice, when you press
the lever, the dispenser may dispense a small
amount of crushed ice first.
• If ice doesn’t come out, pull out the ice bucket
and press the test button located on the right
side of ice maker.
Check the water level
Test button
NO ICE
Select this if you want
to turn ice maker off
• Do not press the test button continuously when
the tray is filled with ice or water. Water may
overflow or ice may jam the bucket.
• When you press the Test button, you will hear
the refrigerator chime (ding-dong). When the
chime sounds, release the Test button.
• The chime sounds automatically again to let
you know the ice maker is working well.
• Replace the ice bucket.
English - 24
DA68-02953A-10.indb 24 2015. 11. 6. �� 11:11
Ice Making
To fill the ice bucket to maximum capacity after
installation, follow these steps:
1. Allow your refrigerator to operate and cool
down for 24 hours (or 1 full day).
- Waiting 24 hours will allow your ice maker to
cool properly.
2. Dispense 4 to 6 ice cubes into a glass.
3. After 8, and then 16 hours, dispense a full glass
of ice.
CAUTION
• To clean the ice bin/bucket, wash with a mild
detergent, rinse well, and then dry it thoroughly.
Do not use harsh or abrasive cleaners or
solvents.
• When you select Cubed Ice after using the
Crushed Ice mode, a small amount of residual
crushed ice might be produced.
If There is a Power Failure
If a power failure occurs, ice cubes may melt,
and then freeze together when the power comes
back on, preventing the dispenser from working
properly.
To prevent this problem, after a power failure, pull
out the ice bucket and discard the residual ice or
water.
After you dump the ice from the ice bucket, you
should press the dispenser lever once with the
‘Water’ or ‘Ice Type’ function ON.
The ice maker will make new ice faster after you
return the ice bucket to the refrigerator.
If you use all the ice at once, you must
repeat Steps 2 and 3 under Ice Making.
However, only wait 8 hours before
dispensing the first 4 to 6 ice cubes.
This will replenish the ice cubes and
ensure maximum ice production.
Using the ice off Function
When you select the Ice Off mode, remove all ice
cubes from the bucket.
If you leave the ice cubes in the bucket, the ice
cubes may clump together, making it difficult to
remove them.

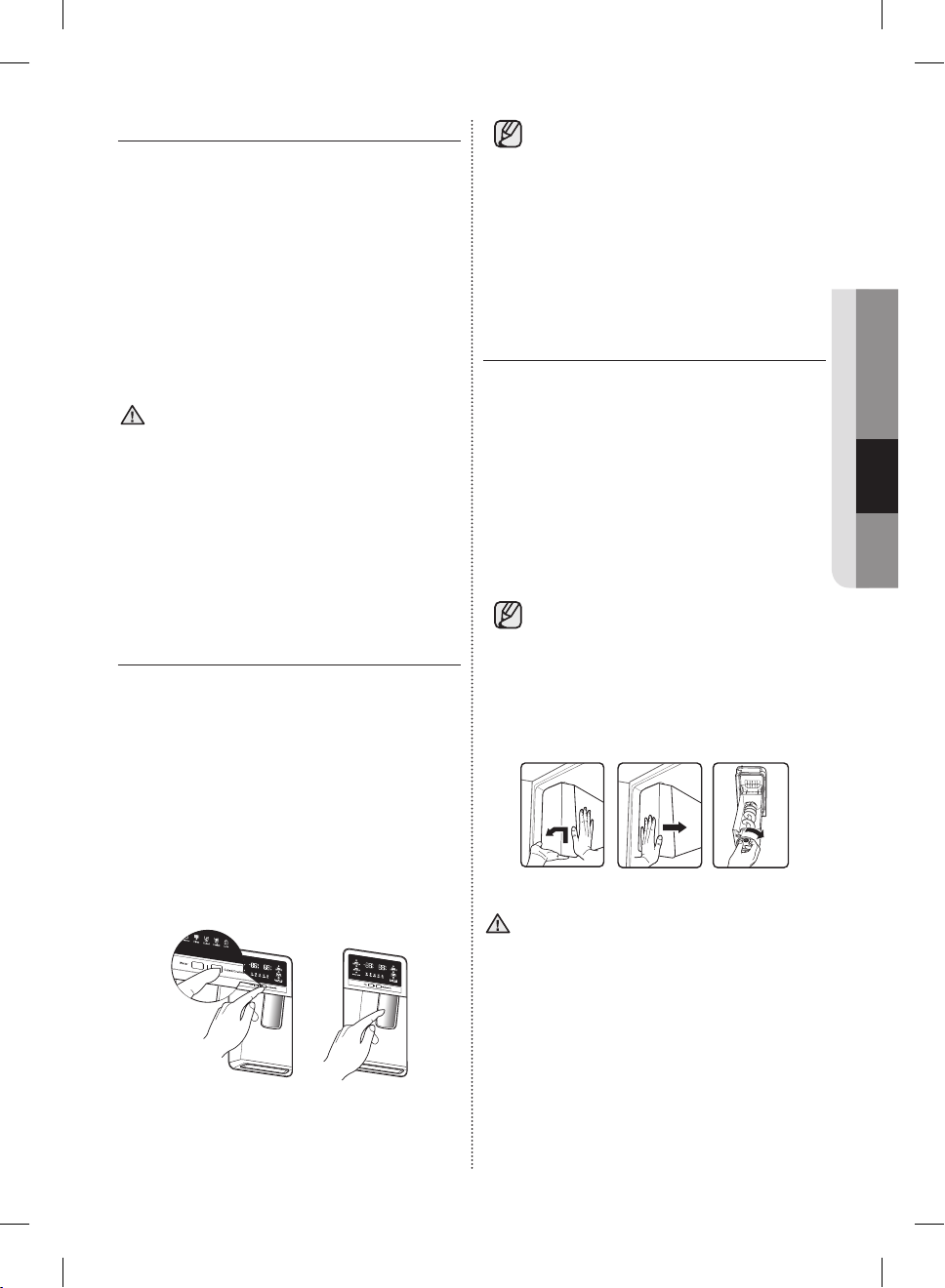

To remove the ice bucket safely and avoid injury,
hold the bottom of the bucket with one hand and
the side of the bucket with the other.
Then, lift up on the ice bucket, and pull it straight
out.
To put the ice bucket back in, push it firmly straight
back.
If the ice bucket is not pushed firmly into
place, ice in the bucket can melt.
If the bucket does not fit, turn the helix 90 degree
(see the last illustration on the right, below) and try
again.
CAUTION
• Use only the ice maker provided with the
refrigerator.
• Have the refrigerator’s water supply connected
only to a potable water supply.
• To operate the ice maker properly, water
pressure of 20 ~ 125 psi is required.
OPERATING
English - 25
DA68-02953A-10.indb 25 2015. 11. 6. �� 11:11
Going on vacation...
If you are going on a long vacation or business trip
and won’t use the water or ice dispensers for a
long time:
• Close the water valve. Otherwise, water
leakage may occur.
• Remove all food and ice in the ice bucket.
• Unplug the refrigerator.
• Wipe excess moisture from inside and leave
the doors open. Otherwise, odor and mold may
develop.
Ice Maker Do’s and Don’ts
• Do not put your fingers, hands or any other
unsuitable objects in the chute or ice-maker
bucket.
- It may result in personal injury or material
damage.
• Never put your finger or any other objects in the
dispenser opening.
- It may cause injury.
• Do not try to disassemble the ice maker.
• Do not wash or spray the ice bucket with water
while it is in the refrigerator.
Remove it to clean it.
Water clouding phenomenon
All water provided to the refrigerator flows
through the core filter which is an alkaline
water filter.
In the filtering process, the pressure of
the water that has flowed out of the filter
is increased, and the water becomes
saturated with oxygen and nitrogen.
When this water flows out into the air, the
pressure plummets and the oxygen and
nitrogen get supersaturated, which results
in gas bubbles.
The water may temporarily look misty or
cloudy due to these oxygen bubbles.
After a few seconds, the water will look
clear.
Please wait 1 second before removing
the cup after dispensing water to prevent
spills.
Do not pull out the lever dispenser after
dispensing ice or water.
It comes back automatically.
Ice is made in cubes.
When you select “Crushed”, the ice maker
grinds the ice cubes into crushed ice.
CAUTION
When you insert the Ice maker tray, be sure that
the tray is well centered at the entrance.
Otherwise, the tray may get stuck.
English - 26
DA68-02953A-10.indb 26 2015. 11. 6. �� 11:11

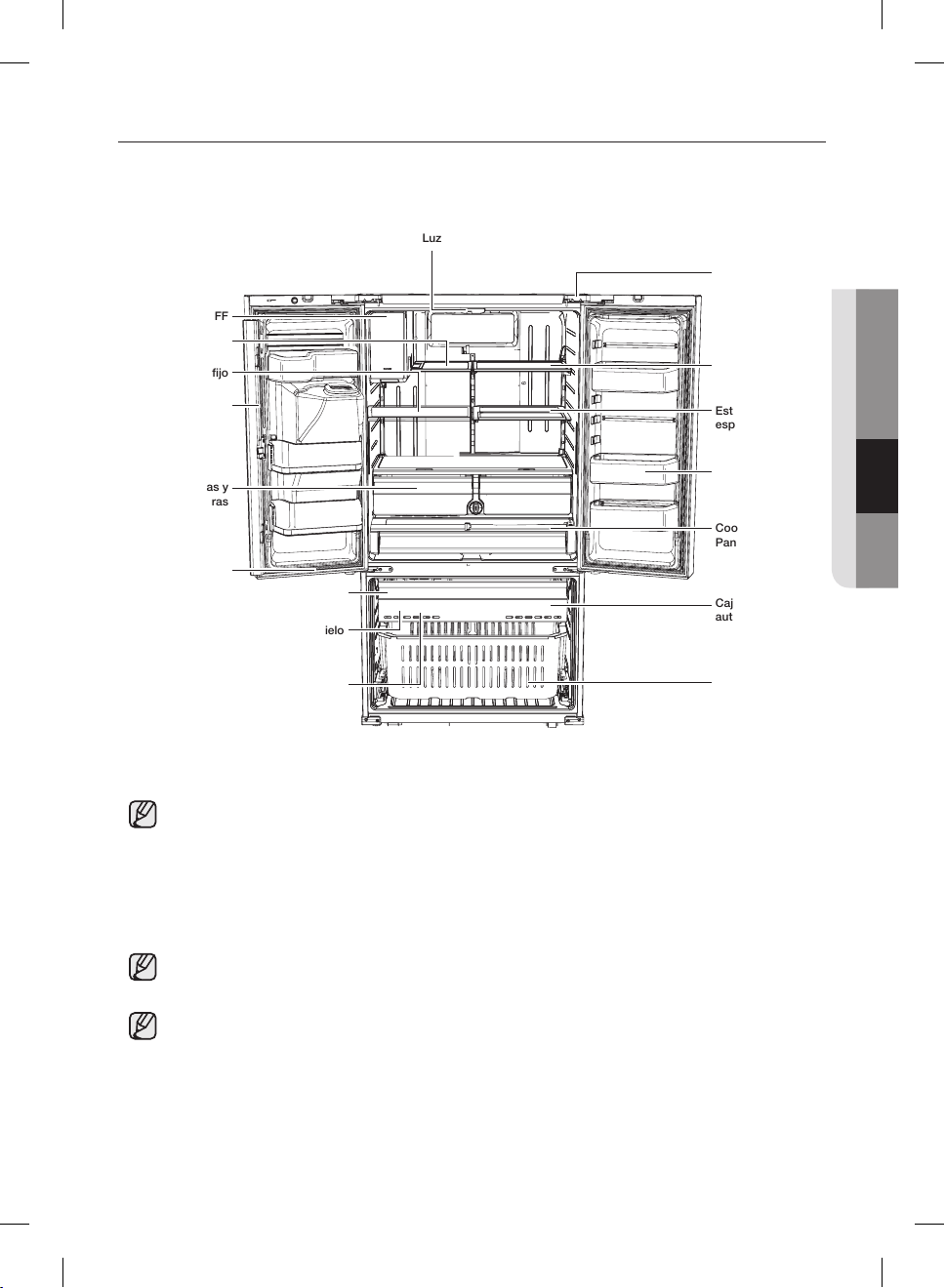

PARTS AND FEATURES
Review the illustration below to become more familiar with the parts and features of your refrigerator.
Light
Door Closer
FF Ice-Maker
Foldable-Shelf
Fixed Shelf
Vertical Hinged
Section
Vegetable &
Fruit Drawers
Light
FZ Ice-Maker
Ice Bucket
Slide Shelf
Quick-Space
Glass Shelf
(on some models)
Door Bins
Cool Select
PLUS
Pantry
Auto Pull Out
Drawer
OPERATING
Guard
Freezer
Drawer Bin
When closing the door, make sure the Vertical Hinged Section is in the correct position to avoid
scratching the other door.
If the Vertical Hinged Section is reversed, put it back to the right position and close the door.
Moisture may appear at times on the Vertical Hinged Section.
The door handle may become loose over time.
If this happens, tighten the bolts found on the inside of the door.
If you close one door with too much force, the other door may open.
When the door opens, the interlock switch automatically turns off the auger motor in the ice
maker for safety reasons.
When the interior or exterior LED lamp has gone out, please contact Samsung Customer
Support.
English - 27
DA68-02953A-10.indb 27 2015. 11. 6. �� 11:12

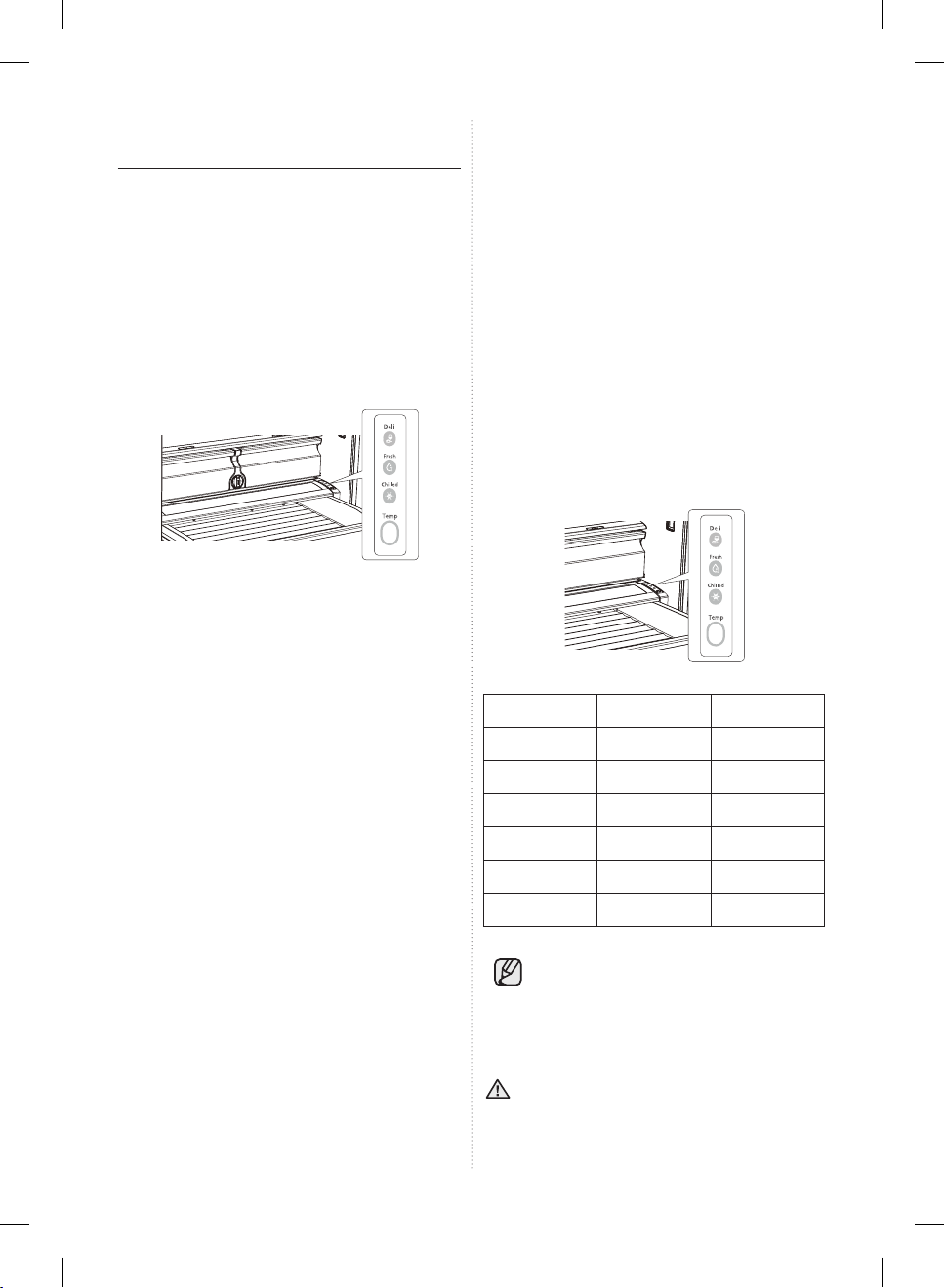

USING THE COOL SELECT
PANTRY™
The Cool Select Pantry™ is a full-width drawer
with adjustable temperature control.
This pantry can be used for large party trays, deli
items, pizza, beverages, or miscellaneous items.
There is a temperature control which can adjust
the amount of cold air allowed into the pantry.
The control is located on the right side of the
pantry.
• The Pantry has three modes: The Fresh mode,
Chilled mode, and Deli mode.
Fresh mode is the default.
Press the Temp button repeatedly until the
mode you want is lit.
Once you select a mode, the temperature will
change to match the mode you selected.
• The Pantry temperature may change depending
on the number of items inside and where they
are located, the ambient temperature, and how
often the door is opened.
The Pantry Selection Button
1. When you select “Deli”, the temperature of the
pantry will be kept around 41°F (or 5°C).
This feature helps keep food fresh for a long
time.
2. When you select “Fresh”, the temperature of
the pantry will be kept around 38°F (or 3°C).
This feature helps keep food fresh for a longer
time.
3. When you select “Chilled”, the temperature of
the pantry will be kept around 34°F (or 1°C).
This feature also helps keep meat or fish fresh
for a longer time.
The table below lists the Pantry modes and
the kinds of foods that can be stored safely for
each mode.
Deli Fresh Chilled
• Pineapple • cucumbers • steaks
• lemon • apples • hard cheeses
• avocado • oranges • cold cuts
• potato • grapes • bacon
• zucchinis • hot dogs
• corn
Fruits and vegetables may be damaged if
you set the Pantry to the Chilled mode.
Do not store lettuce or other leafy produce
in this pantry.
CAUTION
Do not store glass bottles in the Cool Select
Pantry.
If they are freeze, they can break and cause
personal injury.
English - 28
DA68-02953A-10.indb 28 2015. 11. 6. �� 11:12
REMOVING THE REFRIGERATOR
ACCESSORIES
1. Door Bins
• Door Bins (1)
- To remove : Simply lift the bin up and pull
straight out.
- To relocate : Slide it in above the desired
location and push down until it stops.
• Door Bins (2)
- To remove : Take the right side of the bin out
by lifting it at an angle along the guide, and then
take the left side out by pulling it from the door.
- To relocate : Slide it into the original location
and push down until it sticks.
(1)
2. Tempered Glass shelves
- To remove : Tilt up the front of the shelf in the
direction shown (1) and lift it up vertically (2).
Pull the shelf out.
- To relocate : Tilt the front of the shelf up and
guide the shelf hooks into the slots at a desired
height. Then lower the front of the shelf so that
the hooks can drop into the slots.
OPERATING
(1)
(2)
CAUTION
The Tempered Glass shelves are heavy.
Use special care when removing them.
(2)
Injury may occur if the door bins are not
firmly assembled.
Do not allow children to play with the bins.
Sharp corners of the bins may cause
injury.
CAUTION
Do not adjust a bin full of food.
Remove the food first.
To remove dust from the bins : Remove the guard
and wash the bin in water.
CAUTION
After sliding the foldable shelf in and folding it, the
Shelf Front can be removed for your convenience.
If you use the self without removing the Shelf Front,
be aware the Shelf Front can separate from the
shelf.
English - 29
DA68-02953A-10.indb 29 2015. 11. 6. �� 11:12

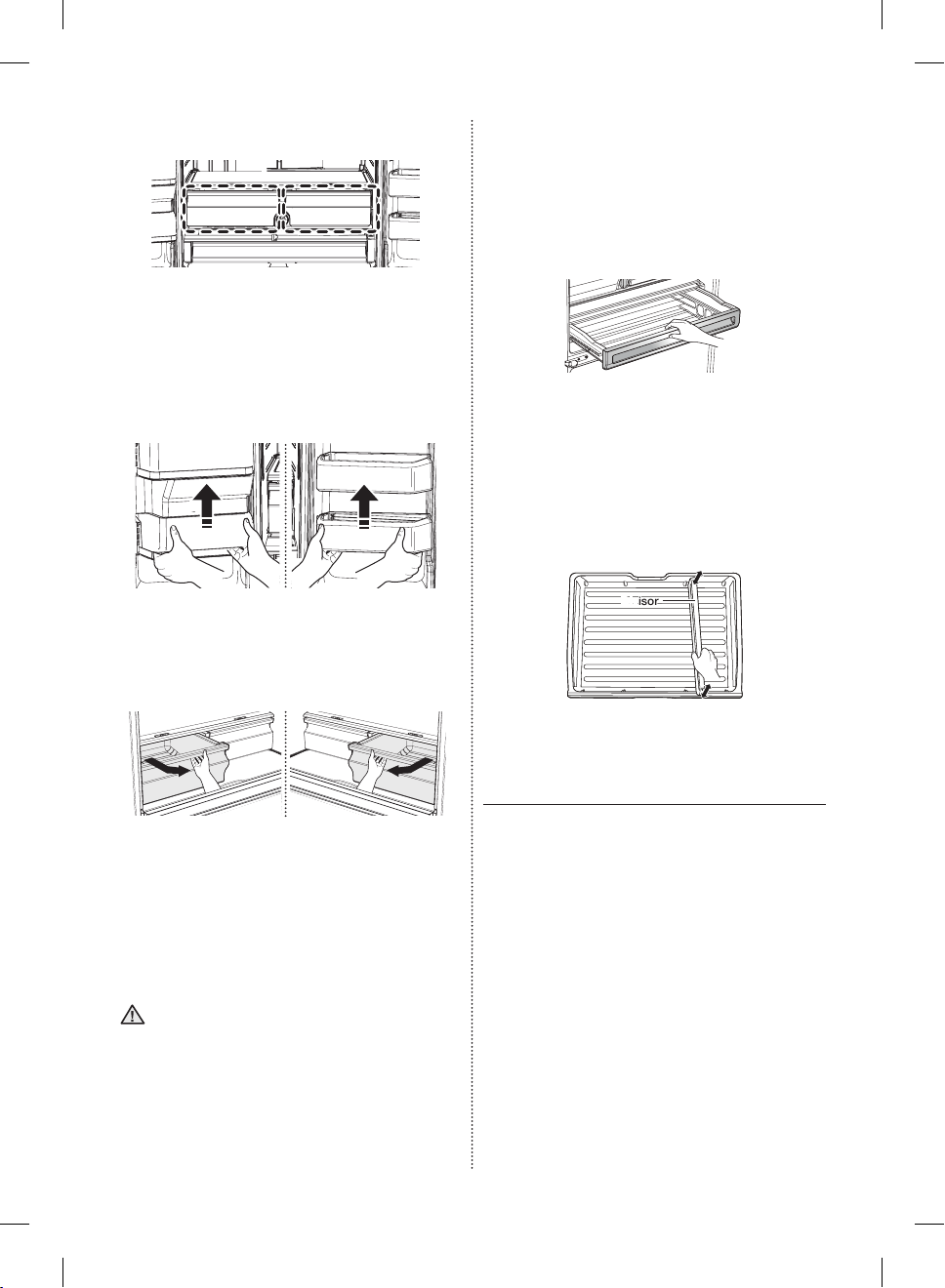

3. Vegetable & Fruit Drawers
• Door Bins
Before removing the drawer, please remove door
bins first as below.
To remove
• Simply lift the bin up and pull straight out.
4. Cool Select Pantry
PLUS
- To remove the pantry : Pull the pantry out to
full extension. Tilt up the front side of the pantry
and pull straight out.
- To relocate the pantry : Push the rails to the
back of the refrigerator. Place the drawer onto
the rails and slide the pantry back until it is in
place.
- To remove the divider : Pull the pantry
completely out to full extension and raise the
front side of the divider to unhook it from the
rear wall of the pantry, then lift the divider out.
- To relocate the divider : Hook the back of the
divider over the rear wall of the pantry and push
the divider down.
• Tilt up the front of the drawer and pull straight
out, and pull out the drawer after moving
slightly in the direction of the arrow.
To re-install
• Insert the drawer into the frame rails and push
back into place.
• Slide bin in above the desired location and
push down until it stops.
CAUTION
The drawers need to be removed before the glass
shelf above them can be lifted out.
Divider
Using the doors
Ensure that the doors close all the way and are
securely sealed.
When the refrigerator door is only partially open, it
will automatically close.
But, the door will stay open when opened more
than the auto close range and you must close it
manually.
English - 30
DA68-02953A-10.indb 30 2015. 11. 6. �� 11:12
