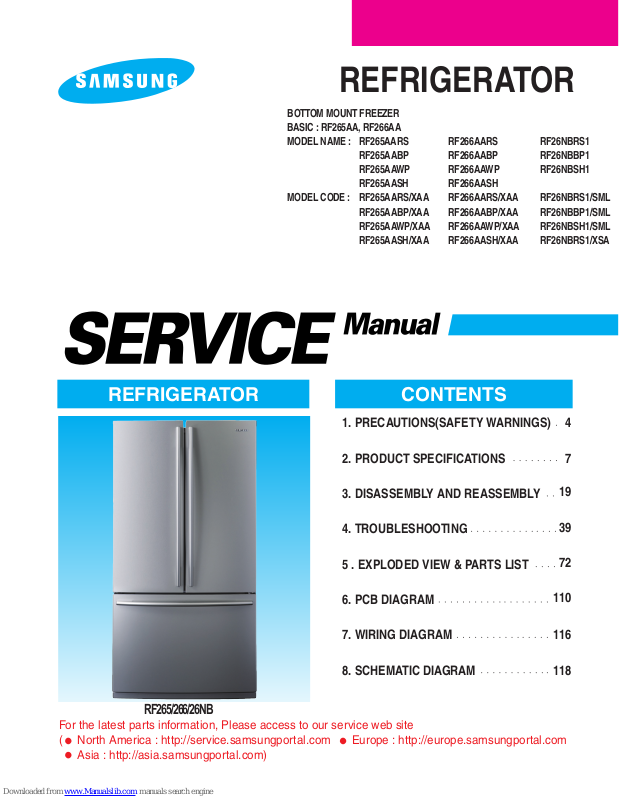

Samsung RF265ABRS, RF265AARS, RF266ABRS, RF266ABWP, RF266ABBP Service Manual

BOTTOM MOUNT FREEZER
BASIC : RF265AA, RF266AA
MODEL NAME : RF265AARS RF266AARS RF26NBRS1

RF265AABP RF266AABP RF26NBBP1
RF265AAWP RF266AAWP RF26NBSH1
RF265AASH RF266AASH

MODEL CODE : RF265AARS/XAA RF266AARS/XAA RF26NBRS1/SML

RF265AABP/XAA RF266AABP/XAA RF26NBBP1/SML
RF265AAWP/XAA RF266AAWP/XAA RF26NBSH1/SML
RF265AASH/XAA RF266AASH/XAA RF26NBRS1/XSA

REFRIGERATOR

REFRIGERATOR CONTENTS

For the latest parts information, Please access to our service web site
(

North America : http://service.samsungportal.com Europe : http://europe.samsungportal.com
Asia : http://asia.samsungportal.com)

1. PRECAUTIONS(SAFETY WARNINGS) 4

2. PRODUCT SPECIFICATIONS

7

3. DISASSEMBLY AND REASSEMBLY

19

4. TROUBLESHOOTING

39

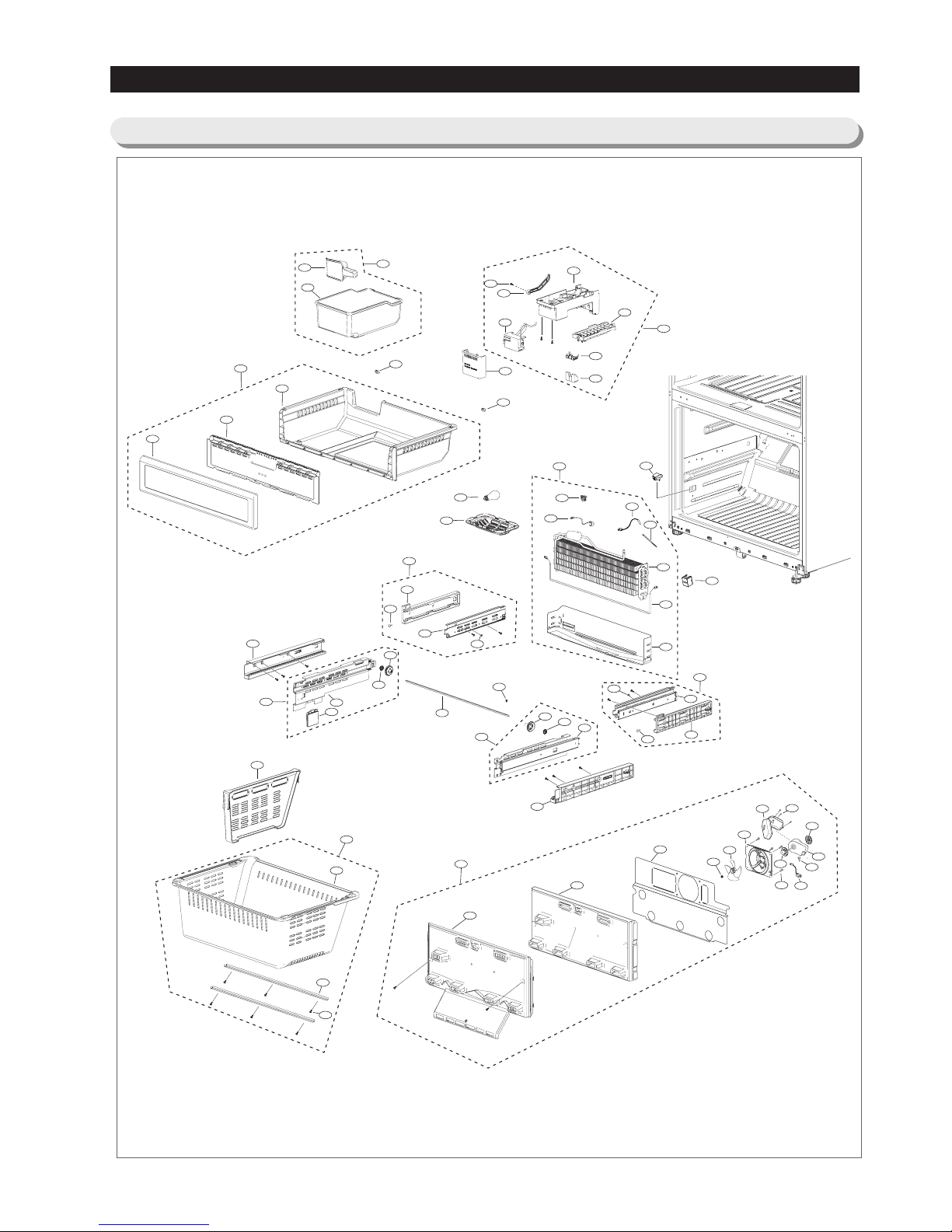

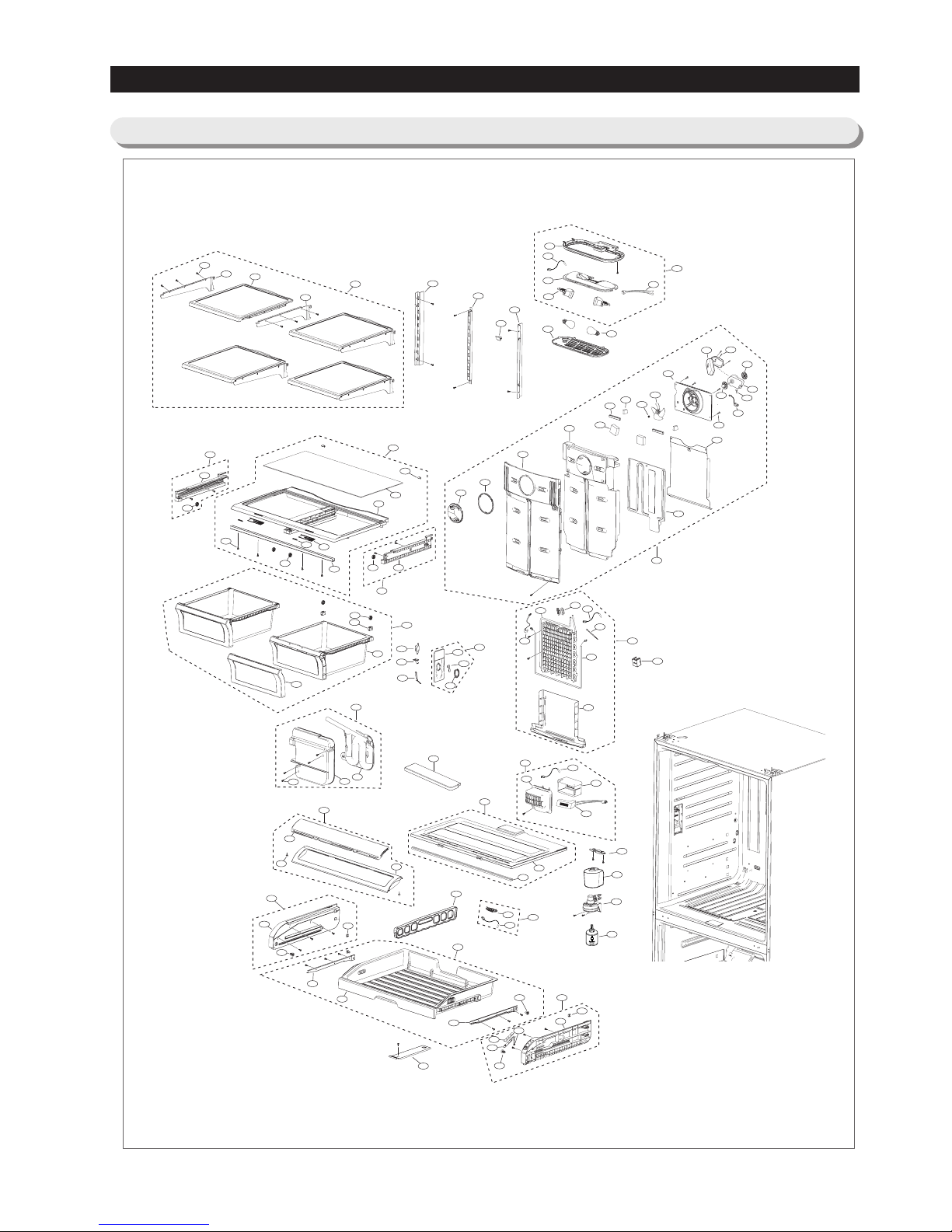

5 . EXPLODED VIEW & PARTS LIST

72

6. PCB DIAGRAM

110

7. WIRING DIAGRAM

116

8. SCHEMATIC DIAGRAM

118

RF265/266/26NB

IMPORTANT SAFETY NOTICE

The service guide is for service men with adequate backgrounds of
electrical, electronic, and mechanical experience. Any attempt to repair
a major appliance may result in personal injury and property damage.
The manufacturer or dealer cannot be responsible for the interpretation
of this information.

SAMSUNG ELECTRONICS AMERICA, INC.

Technical Service Guide

Copyright ⓒ2008

All rights reserved. This service guide may not be reproduced in whole or in
part in any form without written permission from the SAMSUNG ELECTRONICS
Company.

WARNING

3

Contents

1. PRECAUTIONS(SAFETY WARNINGS) 4

2. PRODUCT SPECIFICATIONS 7

3. DISASSEMBLY AND REASSEMBLY

4. TROUBLESHOOTING

5 . EXPLODED VIEW & PARTS LIST

19

39

72

RF265/266/26NB

6. PCB LAYOUT WITH PART POSITION

7. WIRING DIAGRAM SCHEMATIC 116

8. CIRCUIT PLAN 118

110

4

1. PRECAUTIONS(SAFETY WARNINGS)

●

Pull the power plug out before for the change or repair of electric parts.

→

Be careful the electric shock.

●

When exchanging the parts, use the correct parts.

→

Check the model name, rating voltage, rating current, running

temperature symbols.

●

When troubleshooting, connect firmly the types of harness.

→

Make not to be separated when some power is imposed.

●

Check the traces of water infiltration at the electric parts.

→

If there is a trace of water infiltration, exchange or tape the parts.

●

Check the assemble status of parts after troubleshooting.

→

It should be done indiscriminately as before the repair.

●

Check the use circumstance of refrigerator.

→

If the refrigerator is installed at the place that is damp or wet, or

status of installation is unstable, change the installation place.

●

Do earth in case of need.

→

Particularly, Be sure to earth when there is a risk of an electric

leakage by humidity or wetness.

●

Do not use multi plugs in a plug socket at the same time.

Check if the power cord and socket is damaged, pressed, squeezed,
or fired.

→

If the plug or plug socket is damaged, repair or exchange that

immediately.

●

Do not repair the refrigerator by user himself.

●

Do not store other materials except the foods.

→

Drugs or scientific materials : difficult to keep precise temperature.

→

The inflammables(alcohol, benzene, ether, LP gas, butane gas etc.):

have risk of explosion.

5

PRECAUTIONS(SAFETY WARNINGS)

Read all instructions before repairing the product and follow the instructions
in order to prevent danger or property damage.

CAUTION/WARNING SYMBOLS DISPLAYED

SYMBOLS

Indicates that a
danger of death
or serious injury
exists.

Indicates that a risk
of personal injury
or material damage
exists.

means “Prohibition”.

means “Do not disassemble”.

means “No contact”.

means ”The things to
be followed”.

means “Earth to prevent Electric
shock”.

means “Power cord should be
unplugged from the consent”

Pull the power plug out to
exchange the interior lamp
of the refrigerator.

●

It may cause electric shock.

Warning

Warning & Caution

Caution

Unplug

Use the rated components
on the replacement.

●

Check the correct model, rated
voltage, rated current, operating
temperature and so on.

On repair, make sure that the
wires such as harness are
bundled tightly.

●

Bundle tightly wires in order not to be
detached by the external force and then not
to be wetted.

Check if there is any trace
indicating the permeation
of water.

●

If there is that kind of trace, change

the related components or do the

necessary treatment
such as taping
using the
insulating tape.

After repair, check the
assembled state of components.

●

It must be in the same assembled state
when compared with the state before
disassembly.

On repair, remove completely dust
or other things of housing parts,
harness parts, and check parts.

●

Cleaning may prevent the possible fire by

tracking or short.

Rated

components

6

PRECAUTIONS(SAFETY WARNINGS)

❈

Please let users know following warnings & cautions in detail.

Do not allow users to put bottles or
kinds of glass in the freezer.

●

Freezing of the contents may inflict a wound.

Do not allow users to store narrow
and lengthy bottles or foods in a
small multi-purpose room.

●

It may hurt you when refrigerator door is
opened and closed resulting in falling stuff
down.

Do not allow users to store
pharmaceutical products, scientific
materials, etc., in the refrigerator.

●

The products which temperature control
should not be stored in the refrigerator.

Do not allow users to store
articles on the product.

●

Opening or closing the door may cause
things to fall down, with may inflict a
wound.

Prohibition

Prohibition

Prohibition

Prohibition

Warning & Caution

Do not allow users to
disassemble, repair or alter.

●

It may cause fire or abnormal

operation which leads to injury.

Do not

disassemble

Do not allow users to insert the
power plugs for many products
at the same time.

●

May cause abnormal generation of

heat or fire.

Prohibition

Do not allow users to bend the
power cord with excessive force
or do not have the power cord
pressed by heavy article.

●

May cause fire.

Do not allow users to install the
refrigerator in the wet place or
the place where water splashes.

●

Deterioration of insulation of electric

parts may cause electric shock or fire.

Make sure of the earth.

●

If earthing is not done, it will cause

breakdown and electric shock.

Earth

7

2. PRODUCT SPECIFICATIONS

2-1) Introduction of main function 8

2-2)

Specifications

9

2-3)

Interior Views

10

2-4)

Model Specification &Comparison Chart

11

2-5)

Model Specification &Specification Chart

12

2-6)

Dimensions of Refrigerator (Inches)

15

2-7)

Optional Material Specification

16

2-8)

Refrigerant Route in Refrigeration cycle

17

2-9)

Cooling Air Circulation

18

8

2. PRODUCT SPECIFICATIONS

●●

A newly Developed SAMSUNG bottom mount freezer in 2008 has the following
characteristics.

Surround Multi Flow

●●

Uniform cooling for each shelf and even in corner in fresh
food compartment by centerpositioned fan and duct with
multiple flow effluences

Twin Cooling System

●●

The refrigerator and the freezer have two evaporators.
Given this independent system, the freezer and the
refrigerator are cooled individually as required and are,
therefore, more efficient.
Food odor from the refrigerator does not affect food in the
freezer due to separate air flow circulation.

Electronic control from outside of Pantry Cover

●●

Adjustable temperature control (around 34 (1 )
Chilled / around 38

(3 ) : Fresh) Temperature control
from outside of the Pantry : user friendly design helps
keep foods fresh for longer

16" Pizza Corner

●●

Special Guard

●●

Open Flip : Store Large Pizza

One Touch Water Dispenser (Internal)

●●

One Hand Water Dispenser

Secure Auto Close Door System

●●

Secure Auto Close Door System

●●

Cool tight doors

●●

Energy saving

●●

Preventing sweat on fridge doors

2-1) Introduction of main function

9

2-2) Specifications

PRODUCT SPECIFICATIONS

Defrost Control From 24 to 32 hrs
Thermo Bimetal Protector 140°F(60

)(off) 104°F(40 )(on)

Defrost Thermistor(502AT) 50°F(10

)(off)
Electrical Rating AC115V 60Hz 11.6 Amps/220V~240V 50Hz
Maximum Current Leakage 0.25 mA
Maximum Ground Path Resistance 0.1 Ohm
Energy Consumption KWh/mo.

Ambient Temperature 70

℉(21 90℉(32 )
Refrigerator,℉ 34℉(1 )∼46℉(8 ) 34℉(1 )∼46℉(8 )
Freezer,℉ -14℉(-26

)∼8℉(-13 ) -14℉(-26 )∼8℉(-13 )

Run Time,% 󳠞40 󳠞60

Refrigerant Charge (R134a) 5.64 oz(160g)
Compressor((MK172D-R2U) 897 Btu/hr(0.263kw)
Compressor oil Freol α -10
Capillary tube(Dia, Length) 0.032

＂＂

,118

＂＂((00..8811mmmm,, 22999977mmmm))

Dryer Molecular Sieve XH-9

Clearance must be provided for air circulation
AT TOP 1

＂＂ ((2255mmmm))

AT SIDES 0.5

＂＂ ((1155mmmm))

AT REAR 1

＂＂ ((2255mmmm))

Fan

Fan

(Air inlet)(Air inlet)

Heat exchanger

Compressor

C-Fan Noise FilterDryer

Sub-condenser Water Valve

ELECTRICAL SPECIFICATIONS

Freezer

Refrigerator

NO LOAD PERFORMANCE

REFRIGERATION SYSTEM

INSTALLATION

Heat exchangerHeat exchanger

Heat exchanger

FanFan

(Air inlet)(Air inlet)(Air inlet)(Air inlet)

FanFan

FanFan

(Air inlet)(Air inlet)

10

PRODUCT SPECIFICATIONS

2-3)

Interior Views

Freezer

Refrigerator

Light

Egg Container

Digital Sensor Control

Auto Door Closer
Daily Compartment

Water Filter

Door Bin

Internal Water
Dispenser(RF266AA)

Gallon Door Bin

Cool Select Pantry

TM

Light
Pull Out Drawer

TM

Freezer Draweer Bin

Front Leg Cover

Spill Proof

Glass Shelf

Vertical Hinged

Section

Vegetable

& Fruit Drawers

Ice Maker

Ice Bin

Tilting Pocket

11

2-4) Model Specification &Comparison Chart

PRODUCT SPECIFICATIONS

F-Room

R-Room

F-Room

R-Room

F-Room

R-Room

F-Room

R-Room

N-N

Sound power level

Sound Pressure level

Cooling

Speed(Min)

Product Zone

Appearance

ITEM SPEC

89.6 (32°C)

109.4 (43°C)

Temperature

Distribution

(Fridge)

Operation rate

PerformanceNoise

Cooling Tech

Door Shape

Special Room

250

250

-26.0

2.0

-18.0

5.0

2.0

2.0

60%

46dB

45dB

SAMSUNG

RF266AA/RF26NB

Twin Cooling

Contour

Cool Select Pantry

175.4

172.8

-32.0

-1.2

-24.8

-2.5

0.3

0.5

47.4

41.8

41.2

MAYTAG

MFI2568AES

Mono Cooling

Contour

Pantry

246

575

-27.2

1.6

-20.9

5.9

0.6

1.1

60.7

47.0

48.2

LG

LFX25960ST

Mono Cooling

Contour

Pantry

224

232

-28.8

-1.8

-22.5

0.8

1.3

0.5

56.5

41.7

40.1

COLOR

ModelITEM

12

2-5) Model Specification &Specification Chart

PRODUCT SPECIFICATIONS

External size

Net

Capacity

Weight

Packing

D

H

W

Efficiency of volume

On Cabinet
W/O Handle
With Handle

W/O Hinge Cap
With Hinge Cap

Total

Freezer

Refrigerator

Set

Packing

Width

Depth

Height

Black

Real STS

White

Platinum STS

Cabinet (Both sides of Embo)

All Black

Noble STS

Snow White

Noble STS

Door

Empire Black

Versailles Stainless

Snow White

Stainless Platinum

Molding

I Black

Creamy STS

Snow White

Creamy STS

Compressor

Rated Frequency and Frequency

Refrigerant

Foaming agent

Refrigerant Input Amount

Kind of Refrigerator

Motor Rated Consumption Power

Electric Heater Rated Consumption Power

RF265

Pantry

RF26NB

No Dispenser

RF266

Int W/D with Pantry

35.7 inch (908mm)

29.1 inch (704mm)

32.9 inch (836mm)

35.6 inch (905mm)

68.6 inch (1744mm)

69.8 Inch (1778mm)

25.8Cu.ft (731.1 )

8.1Cu.ft (230.6 )

17.7Cu.ft (500.5 )

50.17%
300 Pounds (137kg)
333 Pounds (152kg)

38.6 Inch (980mm)

39.4 Inch (1001mm)

75.7 Inch (1923mm)

reciprocate

AC 115V/60Hz / AC230V50Hz

R 134a

C-Pantane

5.64 oz (160g)

Indirect Cooling Method Refrigerator

140A

385W

Items

Model

13

2-5) Model Specification &Specification Chart

PRODUCT SPECIFICATIONS

Compressor

Evaporator

Model

First Defrost Cycle (Concurrent defrost of F and R)

Defrost Cycle(FRE)
Defrost Cycle(REF)

Pause time

THERMISTOR

(F-SENSOR)

502AT

Temperature Selection

-14 (-26 )

-2 (-19 )
8 (-13 )

Model

THERMISTOR

(R-SENSOR)

502AT

F Defrost-Sensor

R Defrost-Sensor

F Bimetal-thermo

Protector

R Bimetal-thermo

Protector

Temperature Selection

34 (1 )
38 (3 )
46 (8 )

Model
SPEC
Model
SPEC
Rated

Operating temperature

Rated

Operating temperature

Condenser

Dryer

Capillary tube(Dia x Length)

Refrigerant

Model

Starting type

Oil Charge

Freezer

Refrigerator

MK172D-R2U / MK190QL2U

R.S.C.R

FREOL - 10
SPLIT FIN TYPE
SPLIT FIN TYPE

Forced and natural convection type

Molecular sieve XH-9

0.032” x 118” (0.81mm x 2997mm)
R134a

6hr 10min

12~23hr(vary according to the conditions used)

6~11hr(vary according to the conditions used)

12 1min

THERMISTOR (502AT)

5.0 at 77 (25 )

THERMISTOR (502AT)

5.0 at 77 (25 )

AC 125V 10A / AC 250V 3A

Off : 140 (60 ) / On : 104 (40 )

AC 125V 10A / AC 250V 3A

Off : 140 (60 ) / On : 104 (40 )

ON( )

-11 (24 )
1 (-17 )

11 (-12 )

ON( )
36 (2 )
40 (4 )
48 (9 )

OFF( )

-17 (-27 )

-5 (-21 )
5 (-15 )

OFF( )
32 (0 )
36 (2 )
44 (7 )

RF265

Specification

RF266 RF26NB

Components for FreezerDefrost Related Components

FreezerRefrigerator

Defrost Cycle

Defrost SensorBimetal

Room Temperature Sensor Components

14

PRODUCT SPECIFICATIONS

Items

Model

Defrost Heater(FRE)
Defrost Heater(REF)

DISPENSER Heater

FRENCH Heater

Interlock with F-FAN

-

Running

Starting

Model

Operation

Model

Temp.ON

Temp.OFF

Condenser for COMP

(Package type)

Starting-Relay

Over load Relay

Rated Voltage
MOTOR-BLDC(FRE)
MOTOR-BLDC(REF)

MOTOR-BLDC(Circuit)

MOTOR-DAMPER(PANTRY)

Lamp(FRE)
Lamp(REF)

Conducting af F Defrost

Conducting at R Defrost

Door Switch

FRE
REF

Power cord

Earth Screw

Bimetal thermo For Preventing Overheating of Refrigerator Lamp

AC 115V, 240W / AC 230V, 240W
AC 115V, 120W / AC 230V, 120W

AC 115V, 10W / AC 230V, 3W

AC 115V, 10W / AC 230V, 10W

AC125V 10A / AC250V 3A Off: 140 (60 ) / On : 104 (40 )

12 ,250V / 5 ,450V

-

J531Q33E100M200-2

10 20%

4TM435RFBYY-53

266 41 (130 5 )

141.8 48.2 (61 9 )

AC 115V/60Hz / 220~240V/50Hz

DC12V / FDQT06SS3
DC12V / FDQT06SS3
DC12V / FDQT06SS2

DC12V / NSBY001TA1

AC 120V 60W(1EA) / AC230V 40W(1EA)

AC 120V 60W(2EA) / AC 230V 60W(2EA)

AC 125V 1.5A (1EA) / AC 250V 0.5A

DC200V 1.5A / MS-406-SS-01(2EA)

AC125V 15A / AC 250V 10A

BSBN (BRASS SCREW)

RF265 RF266 RF26NB

Specification

Electric Components

15

PRODUCT SPECIFICATIONS

29.1"(739mm)

3.4"(8.6mm)

21.6"(549mm)41.7"(1059mm)

0.6"(15mm)

69.8"(1778mm)

1.3"(34mm)

32.9"(836mm)

35.6"(905mm)

35.7"(908mm)

24.3"(617mm)

3.4"
(86mm)

54.5"(1384mm)

18.7"(475mm)

47.8"(1214mm)

2-6)Dimensions of Refrigerator (Inches)

16

PRODUCT SPECIFICATIONS

2-7) Optional Material Specification

Photographe Part Name

FILTER

WATER-ASSY

DA29-00003B 1

1

3

ASSY-PACKING

SUB

DA99-00240G

LAMP INCANDENT

4713-001223

Part Code AMOUNT

1

1

3

AMOUNT

Photographe Part Name

ASSY-INSTALL FILTER

DA97-01469W

PIPE-CONECT WATER

PACKING

DA62-01329A

LAMP INCANDENT

4713-001232(REF) : 60W
4713-001201(FRE) : 40W

Part Code

RF265AA

RF26NB

17

Compressor → Sub-condenser → Hot Pipe → Dryer → Capillary Tube → Refrigerator Evaporator → Freezer
Evaporator→ Suction Pipe → Compressor

Refrigerator
Evaporator

Freezer
Evaporator

Suction Pipe

Capillary Tube

Accumulator

Compressor

Sub Condenser

Hot Pipe

Muffler

PRODUCT SPECIFICATIONS

2-8) Refrigerant Route in Refrigeration cycle

18

Refrigerator

PRODUCT SPECIFICATIONS

2-9) Cooling Air Circulation

Freezer

19

3. DISASSEMBLY AND REASSEMBLY

3-1) Refrigerator Door 20
3-2) Door Switch In Refrigerator

22

3-3) Door Gasket

22

3-4) Door Handle

22

3-5) Refrigerator Light

23

3-6) Internal Water Dispenser

23

3-7) Spill Proof Glass Shelf

24

3-8) Vegetable & Fruit Drawers

24

3-9) Cool Select Pantry

25

3-10) Motor Damper

26

3-11) Water Filter

26

3-12) Gallon Door Bin

27

3-13) Vertical Hinged Section

28

3-14) Evaporator Cover In Refrigerator

29

3-15) Evaporator In Refrigerator

30

3-16) Freezer Door

31

3-17) Pull Out Drawer

32

3-18) Ice Maker

33

3-19) Freezer Light

33

3-20) Door Switch In Freezer

33

3-21) Evaporator Cover In Freezer

34

3-22) Evaporator In Freezer

34

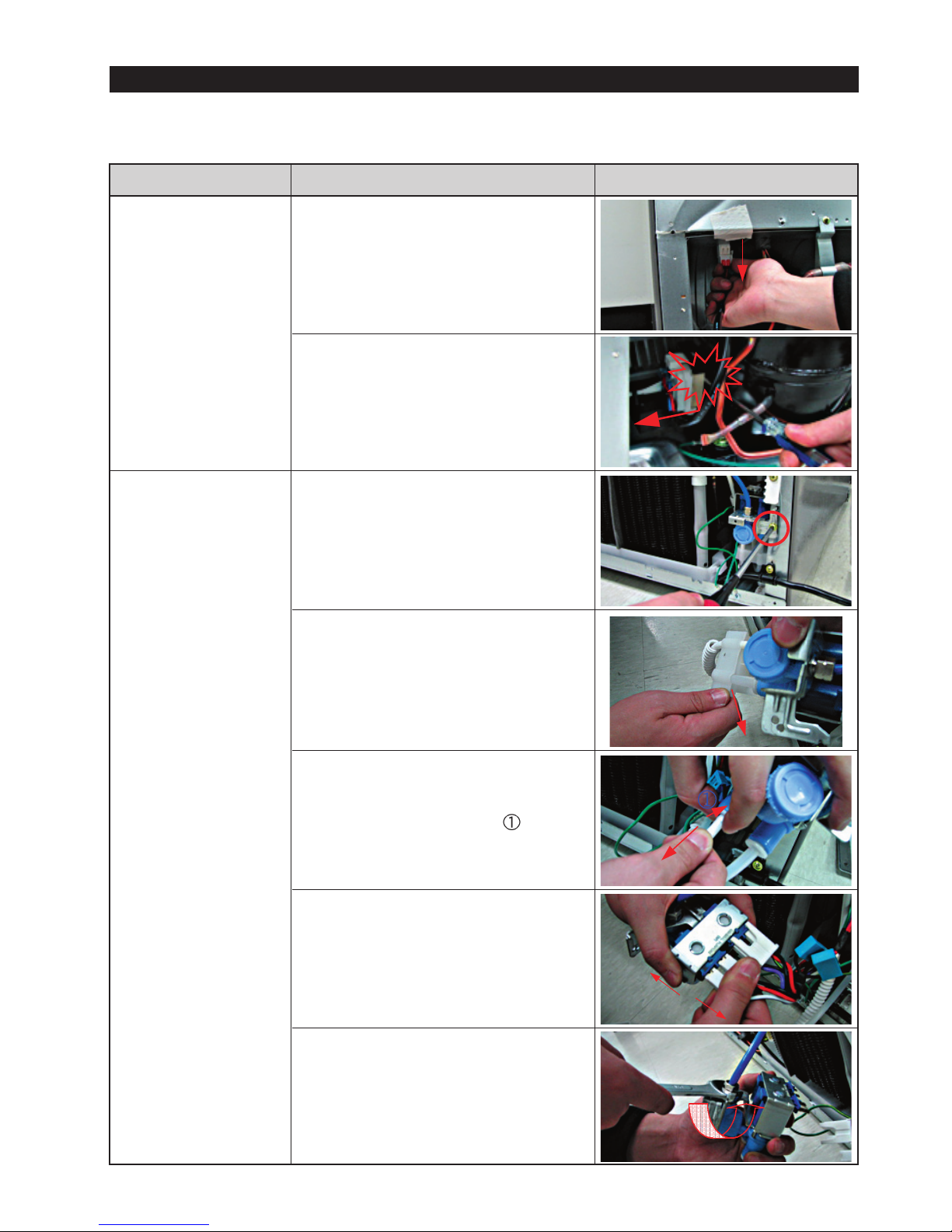

3-23) Machine Compartment

35

3-24) Electric Box

38

20

3-1) Refrigerator Door

DISASSEMBLY AND REASSEMBLY

Refrigerator

Door

Part Name How To Do Descriptive Picture

1. Remove the cap-top table with
using a flat-blade(-) screwdriver.

2. Remove 3 screws of the top­table.

3. Remove the 3 housing-connect
screws of TOP-TABLE.
(Refer to the picture)

4. Disengage the housing-connect
of upper hinge (left door).

21

DISASSEMBLY AND REASSEMBLY

Refrigerator

Door

Part Name How To Do Descriptive Picture

5. Remove the earth-screw of

upper hinge.

6. Remove 3 bolt screws of hinge.

Caution : Avoid damage or

separation of the door
when removing the
bolt.

7. Remove the door by lifting it

straight up.

22

3-2) Door Switch In Refrigerator

DISASSEMBLY AND REASSEMBLY

3-3) Door Gasket

3-4) Door Handle

Door Switch

In Refrigerator

Part Name How To Do Descriptive Picture

1. Remove the magnet switch with
using a flat-blade(-) screwdriver.
(Refer to the picture)

Door Gasket

In Refrigerator

Part Name How To Do Descriptive Picture

1. Remove the door-gasket by
pulling it out of the retaining
channel.

Door Handle

Refrigerator

Door Handle

Freezer

Part Name How To Do Descriptive Picture

1. Remove the door handle of
refrigerator by lifting it up and
pulling it out.
(Refer to the picture)

1. Remove the door handle of
freezer by pushing it to the right
and pulling it out.
(Refer to the picture)

23

DISASSEMBLY AND REASSEMBLY

3-5) Refrigerator Light

3-6) Internal Water Dispenser

Internal Water

Dispenser Cover

Water Hose Cap

Part Name How To Do Descriptive Picture

1. Remove the internal water

dispenser cover by inserting a
flat-blade(-) screwdriver to the
gap of dispenser with pulling the
cover.

2. Remove the water hose cap by

pulling it out.
(Refer to the picture)

Refrigerator

Light

Part Name How To Do Descriptive Picture

1. Remove the light cover by

pulling it down with pushing the
rear of light cover.

2. Remove the lamp by turning it

counterclockwise.

24

DISASSEMBLY AND REASSEMBLY

3-7) Spill Proof Glass Shelf

3-8) Vegetable & Fruit Drawers

Micro Switch

Part Name How To Do Descriptive Picture

1. Remove the micro switch with
using flat- blade(-) screwdriver.
(Refer to the picture)

2. Disengage the Housing
Connect.
(Refer to the picture)

Spill Proof

Glass Shelf

Part Name How To Do Descriptive Picture

1. Remove the shelf by lifting the
front plane of the shelf up and
pulling it out.

Vegetable &

Fruit Drawers

Part Name How To Do Descriptive Picture

1. Remove the vegetable & fruit
drawer by pulling the roller part
and lifting it up.

25

DISASSEMBLY AND REASSEMBLY

3-9) Cool Select Pantry

Vegetable & Fruit

Drawers Shelf

Part Name How To Do Descriptive Picture

1. Remove the vegetable & fruit

drawers shelf by pulling it out.
(Refer to the picture)

Cool Select Pantry

Part Name How To Do Descriptive Picture

1. Remove the cool select pantry

by pulling the roller part and
lifting it up.

Cool Select Pantry

Cover

1. Remove the cool select pantry

cover by lifting the central part
of the cover with pushing it to
the left.

Cool Select Pantry

Shelf

1. Remove the cool select pantry

shelf by lifting the front part of
the shelf with pulling it.

Cool Select Pantry

Rail

1. Remove the cool select pantry

rail by unscrewing the 3 screw
parts and pulling the rail.

2. Disconnect the housing connect

of internal rail part.
(Refer to the picture)

26

DISASSEMBLY AND REASSEMBLY

3-10) Motor Damper

3-11) Water Filter (Disassembly)

Motor Damper

Part Name How To Do Descriptive Picture

1. Remove the cool select pantry.
Remove the screw part of lower
motor damper part and then
push the motor damper down.

1. Disengage 2 housing connects
of the rear motor damper.
(Refer to the picture)

Water Filter

Part Name How To Do Descriptive Picture

1. Remove the shelf by lifting the
front plane of the shelf up and
pulling it out.

2. Remove the water filter by
turning it clockwise.
(Refer to the picture)

27

DISASSEMBLY AND REASSEMBLY

3-11) Water Filter (Reassembly)

3-12) Gallon Door Bin

Gallon Door Bin

Part Name How To Do Descriptive Picture

1. Remove the gallon door bin by
lifting it up.
(Refer to the picture)

Water

Filter

Part Name How To Do Descriptive Picture

1. Place the part of ( ) arrow (that
is indicating in the picture) in the
middle of the front filter cover
and push it up.

2. Turn the water filter
counterclockwise until central
horizontal line of filter cover and
both ends of water filter label
are made all of the same width.
(Refer to the picture.)

28

DISASSEMBLY AND REASSEMBLY

3-13) Vertical Hinged Section

Vertical Hinged

Section

Part Name How To Do Descriptive Picture

1. Remove 2 screw cap parts with

using flat-blade(-) screwdriver.
(Refer to the picture)

2. Unscrew 2 screws.

3. Disengage the internal housing

connect of vertical hinge.

4. Remove the vertical hinged

section by lifting vertical hinge
up.
(Refer to the picture)

29

DISASSEMBLY AND REASSEMBLY

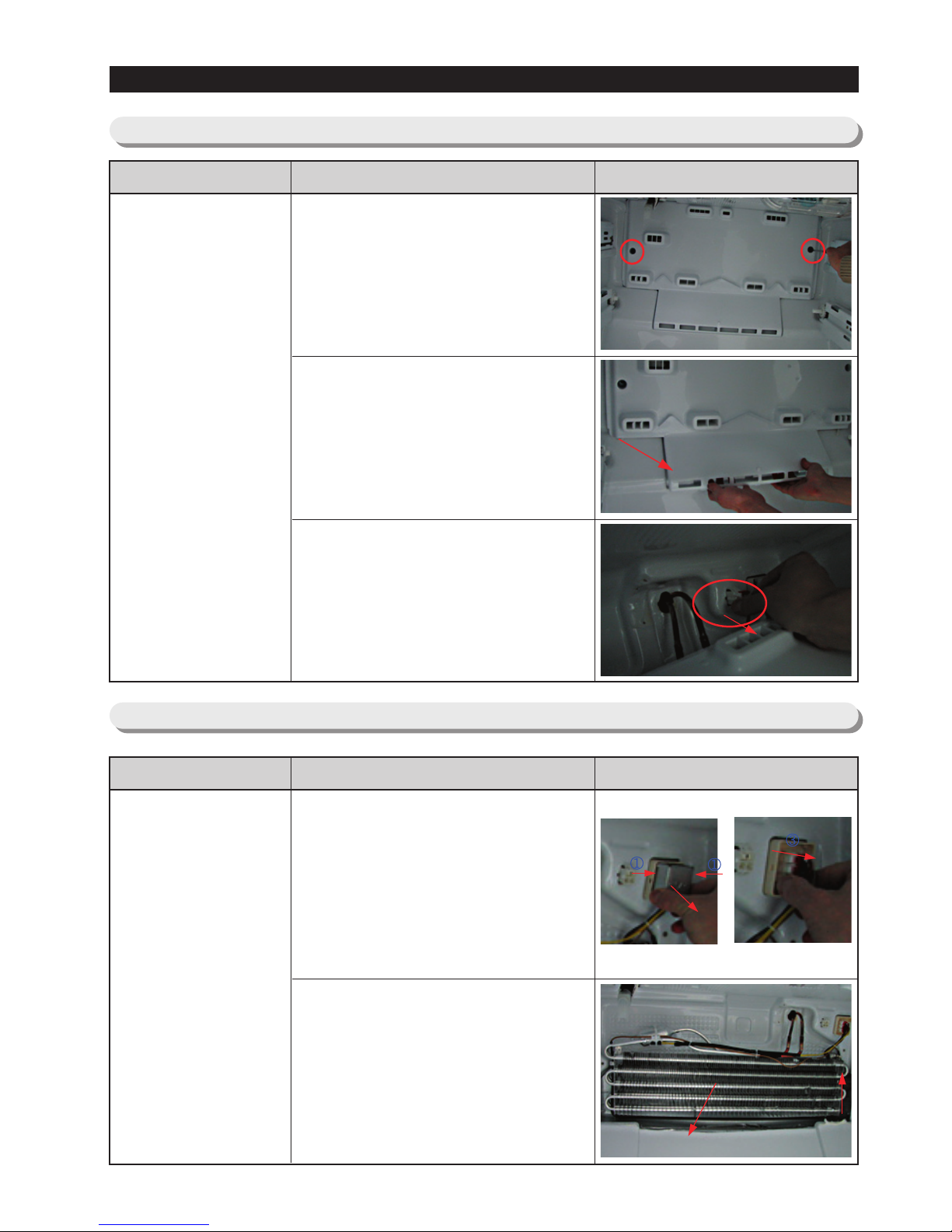

3-14) Evaporator Cover In Refrigerator

Evaporator Cover

In Refrigerator

Part Name How To Do Descriptive Picture

1. Remove the angle cap with
using a flat-blade screwdriver.
(Refer to the picture)

2. Unscrew 4 screws.

3. Remove the the lower part of
angle mid by pulling it out and
pushing it down.
(Refer to the picture)

4. Remove the hook by pulling it
from the lower part and pushing
the cover down.
(Refer to the picture)

5. Disconnect the housing connect
of rear plane.
(Refer to the picture)

30

DISASSEMBLY AND REASSEMBLY

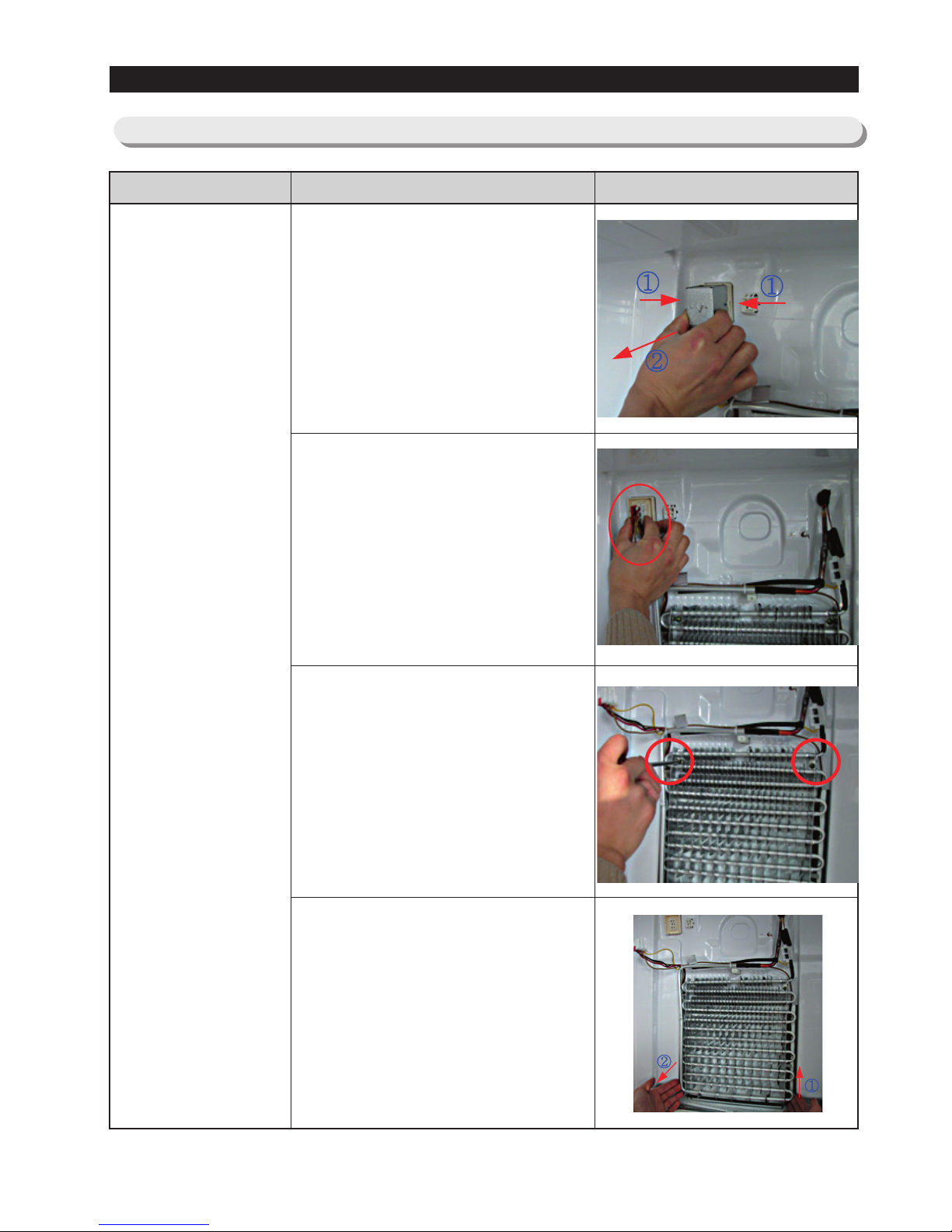

3-15) Evaporator In Refrigerator

Evaporator

In Refrigerator

Part Name How To Do Descriptive Picture

1. Remove the the housing cover

by pushing both lateral sides of
the housing cover and pulling it
out.
(Refer to the picture)

2. Disconnect the housing connect

part.
(Refer to the picture)

3. Unscrew 2 screws.

4. Remove the evaporator by lifting

the bottom side of it up and
pulling it out.
(Refer to the picture)

31

DISASSEMBLY AND REASSEMBLY

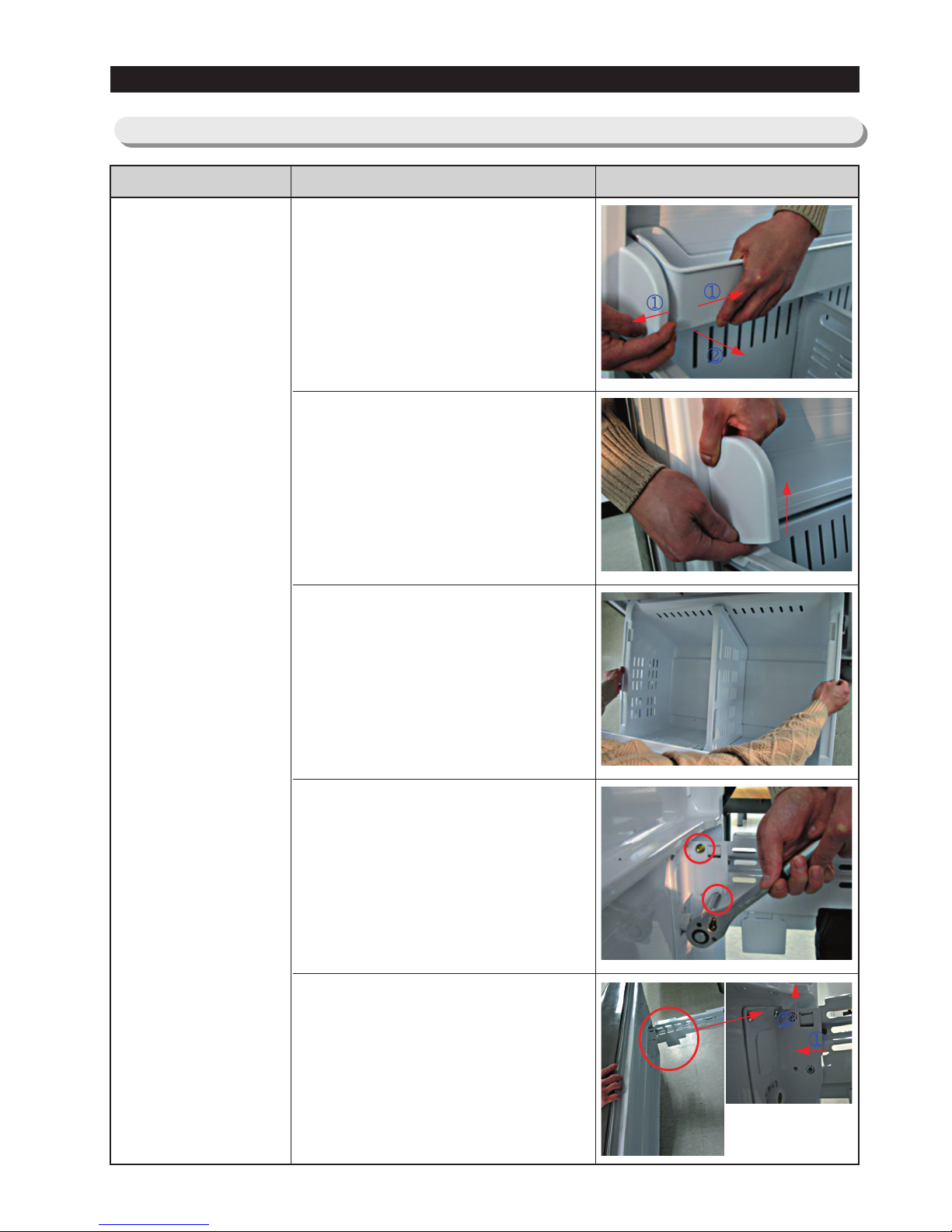

3-16) Freezer Door

Freezer

Door

Part Name How To Do Descriptive Picture

1. Open the freezer door.
Remove the tilting pocket by
pushing it to the left.
(Refer to the picture)

2. Remove the 2 support tilting
pockets with temporary force.
(Refer to the picture)

3. Remove the freezer drawer bin
by lifting the bottom part of it up.
(Refer to the picture)

4. Remove 4 internal bolts at both
lateral sides of rail part.
(Refer to the picture)

5. Remove the freezer door by
tilting the bottom part of it and
lifting it up.

32

DISASSEMBLY AND REASSEMBLY

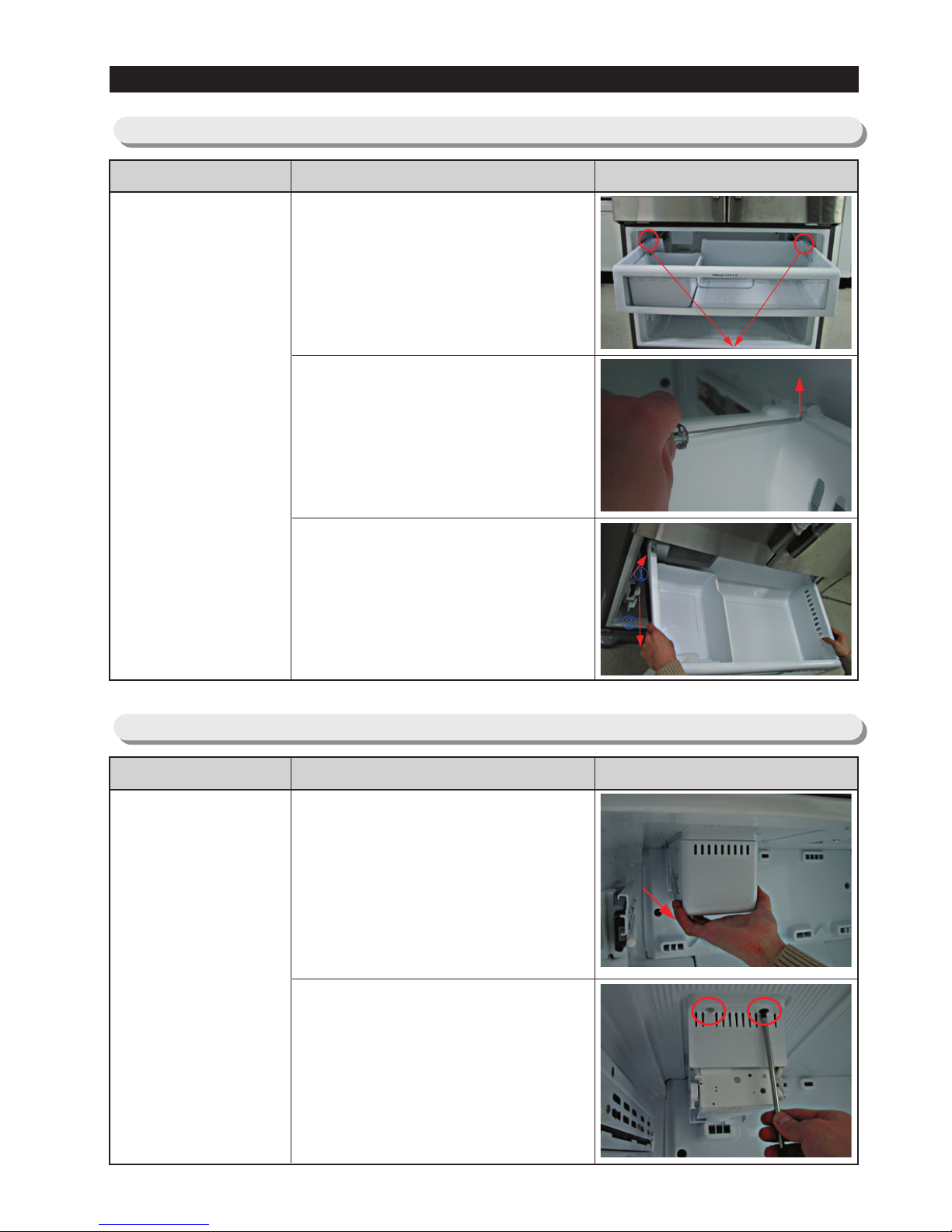

3-17) Pull Out Drawer

3-18) Ice Maker

Ice Maker

Part Name How To Do Descriptive Picture

1. Remove the ice maker cover by

pulling the bottom part of ice
maker cover out.

2. Unscrew 2 screws.

Pull Out Drawer

Part Name How To Do Descriptive Picture

1. Slide the drawer out as much as

possible.

2. Insert a flat screw driver(-) into

the gap and then push it up to
diassemble.

3. Remove the pull out drawer by

lifting the bottom part of drawer
bin and pulling it out.

33

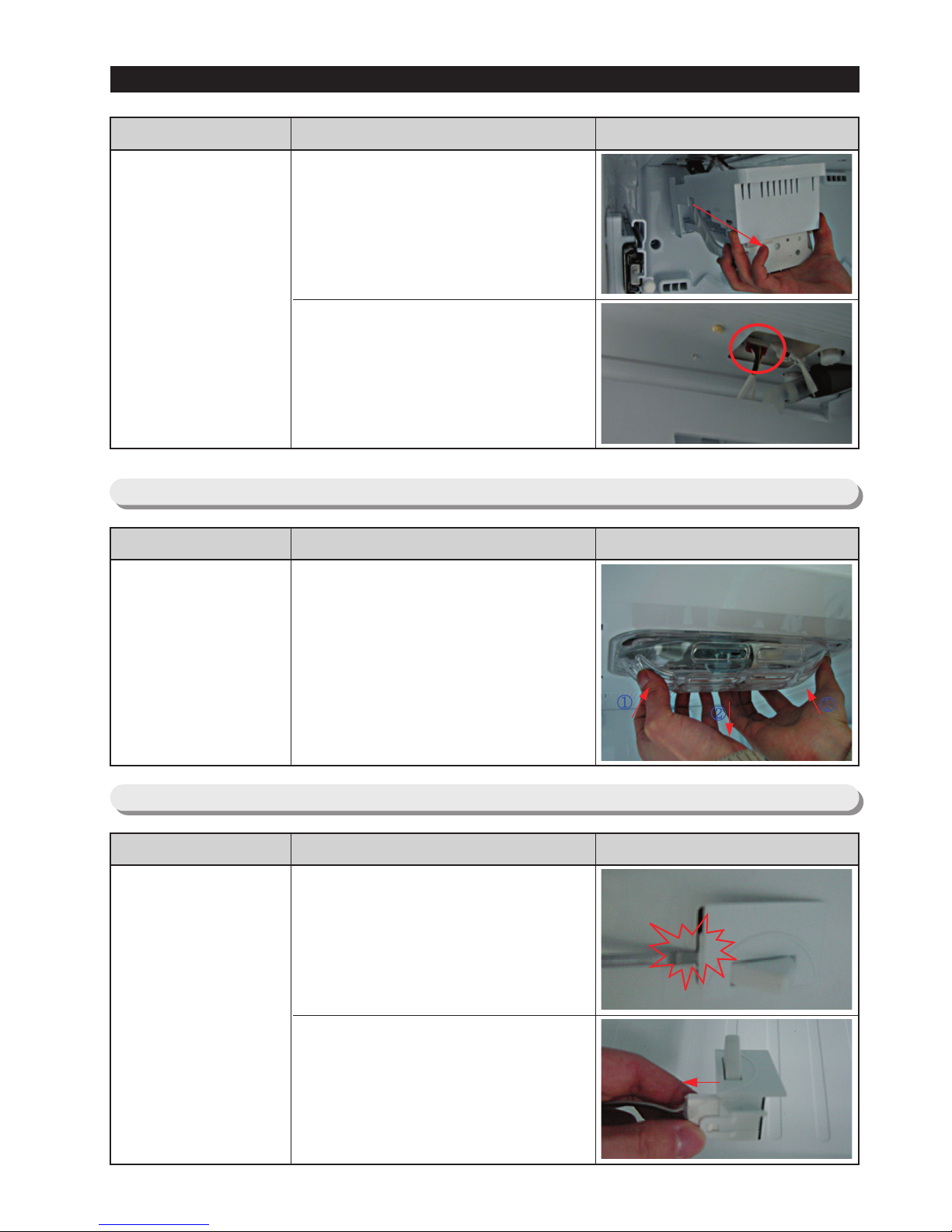

DISASSEMBLY AND REASSEMBLY

3-19) Freezer Light

3-20) Door Switch In Freezer

Ice Maker

Part Name How To Do Descriptive Picture

3. Remove the ice maker by
pulling it out.

4. Disconnect the housing
connector part.

Door Switch In

Freezer

Part Name How To Do Descriptive Picture

1. Remove the freezer drawer bin
with using flat-blade(-)
screwdriver.(Refer to the
picture)

2. Disconnect the housing
connector part.

Freezer Light

Part Name How To Do Descriptive Picture

1. Remove the light by pulling the
light cover down with pushing
the rear plane of light cover.

34

DISASSEMBLY AND REASSEMBLY

3-21) Evaporator Cover In Freezer

3-22) Evaporator In Freezer

Evaporator In

Freezer

Part Name How To Do Descriptive Picture

1. Remove the housing cover by

pushing both lateral sides of
housing cover part and pulling it
out.
Remove the housing connector
part.

2. Remove the evaporator by

pulling the lower part of
evaporator with lifting it up.

Evaporator Cover

In

Freezer

Part Name How To Do Descriptive Picture

1. Remove the freezer door,

freezer drawer bin, pull out
drawer, ice maker and then
unscrew 2 screws.

2. Remove the evaporator cover by

pulling the bottom part of it out.

3. Disconnect the housing

connector part.

35

DISASSEMBLY AND REASSEMBLY

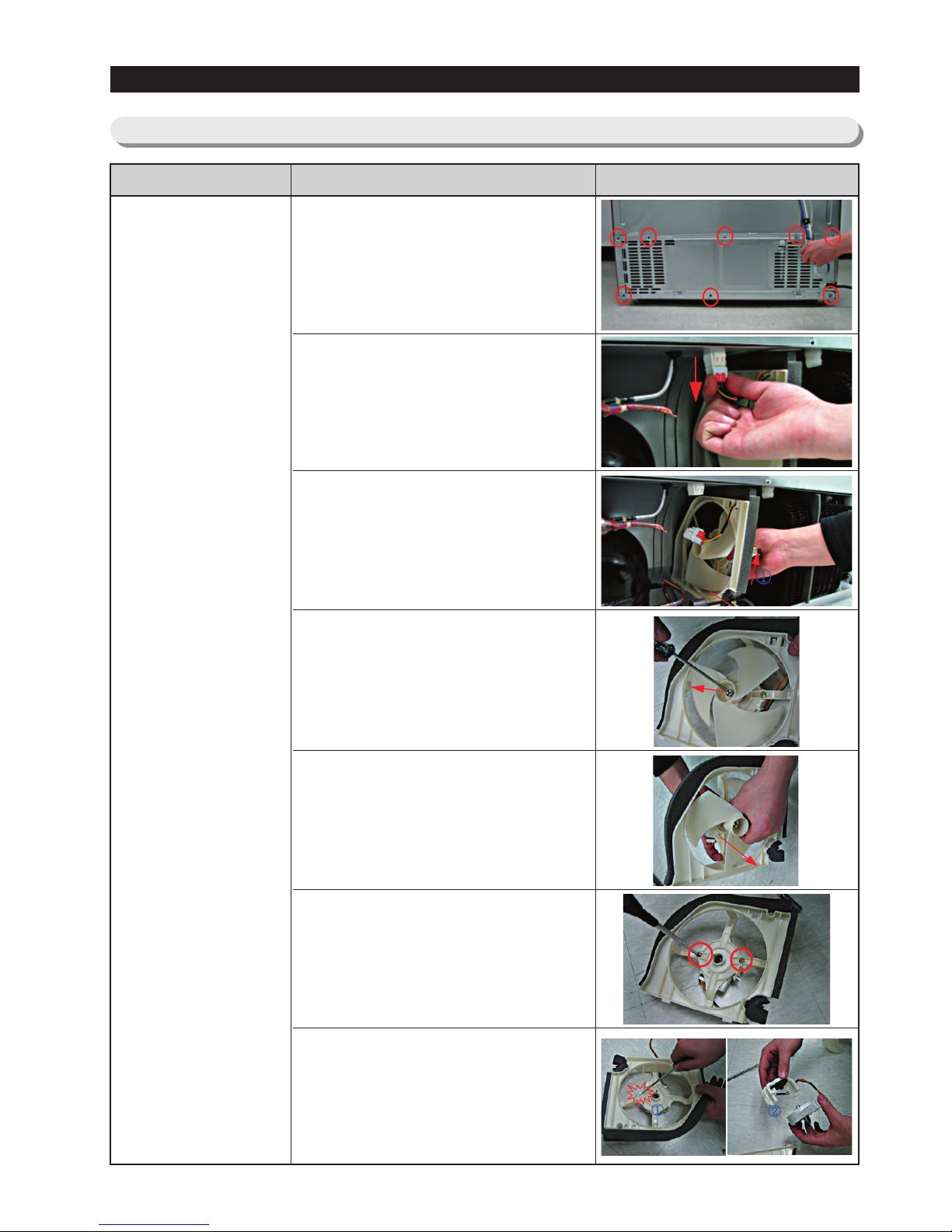

3-23) Machine Compartment

Motor Fan

Part Name How To Do Descriptive Picture

1. Unscrew 8 screws of cover
comp.

2. Disengage the housing
connector.
(Refer to the picture)

3. Remove the hooker of support
circuit motor by lifting the hooker
up and pulling it out.

4. Remove the spring with using
flat-blade screwdriver.
(Refer to the picture)

5. Remove the motor fan by pulling
the fan out with grasping the
motor part.
(Refer to the picture)

6. Unscrew 2 screws fixed in the
motor.

7. Remove the hook of motor
cover with using a flat-blade (-)
screwdriver and then remove
the motor.

36

DISASSEMBLY AND REASSEMBLY

Relay

PTC & O/L

Water Valve

Part Name How To Do Descriptive Picture

1. Disengage the housing

connector.

2. Remove the relay PTC with

using a flat-blade screwdriver.
(Refer to the picture)

1. Unscrew the water valve fixed in

the screw part.

2. Remove the the hook part of

hose fixer by pushing it down.

3. Remove 2 water hose parts with

pushing upper part of

.

(Refer to the picture)

4. Disengage 2 housing connector

parts.

5. Remove the hose connecting

nut with using a wrench(8mm).

37

DISASSEMBLY AND REASSEMBLY

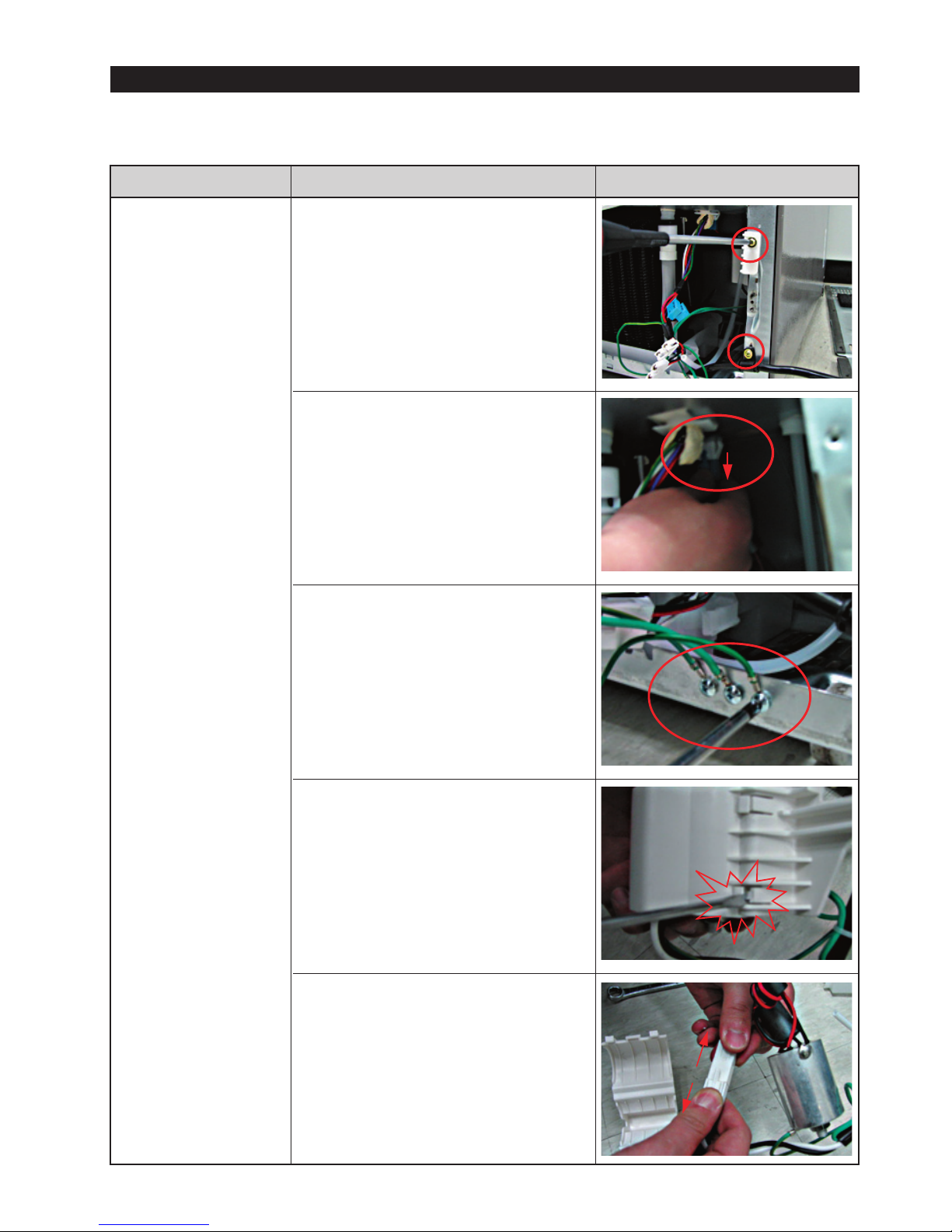

Power Cord &

Noise Filter

Part Name How To Do Descriptive Picture

1. Unscrew 2 screws.

2. Disengage the housing
connector.

3. Unscrew 3 earth screws.

4. Remove the cover by pushing
the hook up with using a flat­blade(-) screwdriver.
(Refer to the picture)

5. Disengage the housing
connector to separate the power
cord and noise filter.

38

DISASSEMBLY AND REASSEMBLY

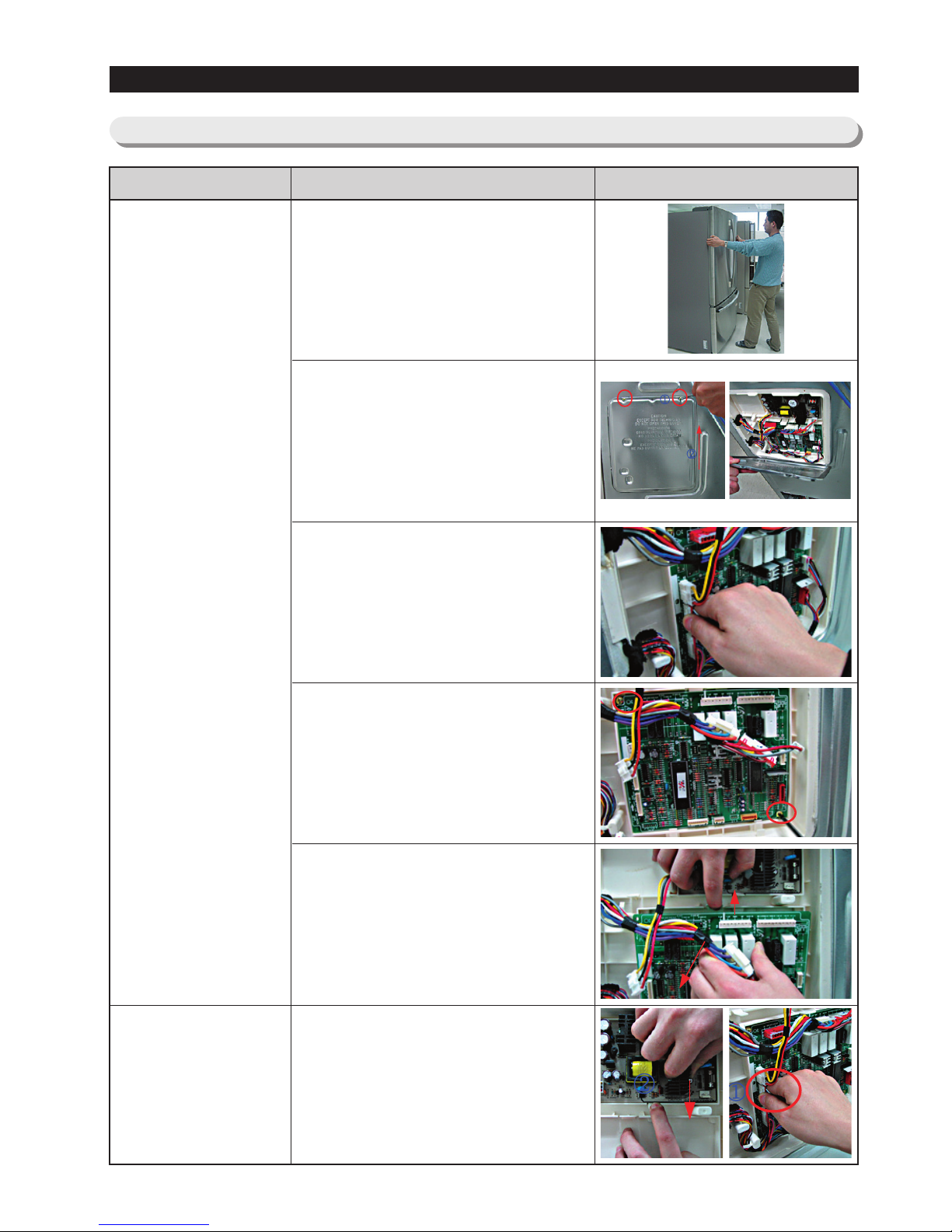

3-24) Electric Box

PBA Main

PBA SMPS

Part Name How To Do Descriptive Picture

1. Pull the refrigerator forward for

having enough space to work at
the rear side of the appliance.

2. Unscrew 2 PCB cover fixed

screws.

3. Disengage all housing

connectors connected with main
PCB.

4. Unscrew 2 PCB fixed screws.

5. Remove the main PCB with

lifting the upper part of the hook
up.
(Refer to the picture)

1. Remove the cover PCB and

then disengage the housing
connector connected with main
PCB.
Remove the SMPS PCB with
pushing the lower part of the
hook down.

39

4. TROUBLESHOOTING

4-1. Function for failure diagnosis 40

4-1-1) TEST MODE 40

4-1-2) DISPLAY FUNCTION OF COMMUNICATION ERROR

41

4-1-3) SELF-DIAGNOSTIC FUNCTION

42

4-1-4) DISPLAY FUNCTION OF LOAD CONDITION

45

4-1-5) EXHIBITION MODE SETTING FUNCTION

46

4-1-6) OPTION SETTING FUNCTION

46

4-1-7) Option TABLE

49

4-2.

Diagnostic method according to the trouble symptom

51

4-2-1) IF THE TROUBLE IS DETECTED BY SELF-DIAGNOSIS 52

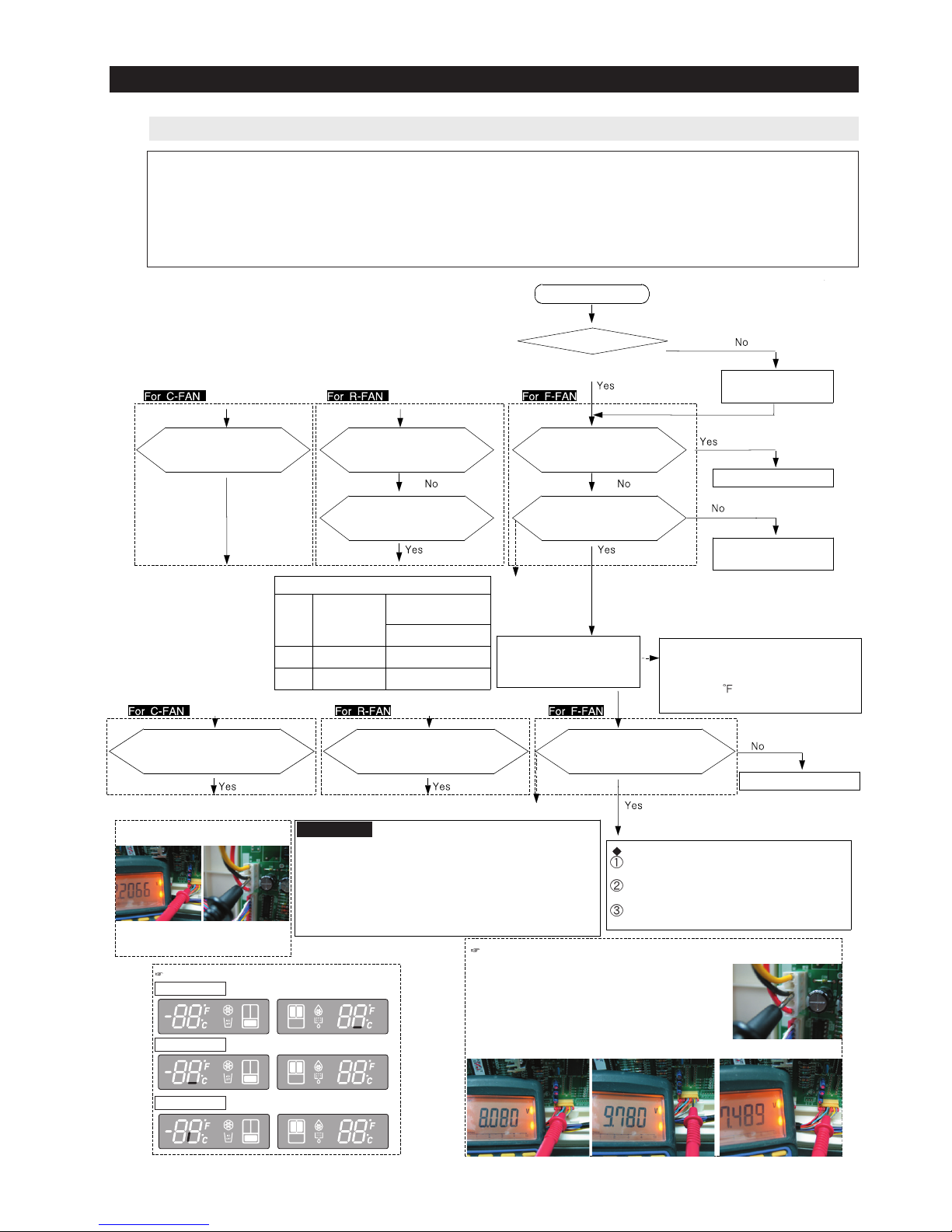

4-2-2) IF FAN DOES NOT OPERATE

60

4-2-3) IF ICE MAKER DOES NOT OPERATE

61

4-2-4) IF DEFROST DOES NOT OPERATE (F,R DEF HEATER)

62

4-2-5) IF POWER IS NOT SUPPLIED

63

4-2-6) IF COMPRESSOR DOES NOT OPERATE

64

4-2-7) WHEN ALARM SOUND CONTINUOUS WITHOUT STOP

65

4-2-8) IF PANEL PCB DOES NOT WORK NORMALLY

67

4-2-9) IF PANTRY PANEL PCB IS NOT WORKING NORMALLY

68

4-2-10) WHEN REFRIGERATOR ROOM LAMP DOES NOT LIGHT UP

69

4-2-11) IF ICE WATER IS NOT SUPPLIED

70

4-2-12) IF WATER IS NOT SUPPLIED

71

40

TROUBLESHOOTING

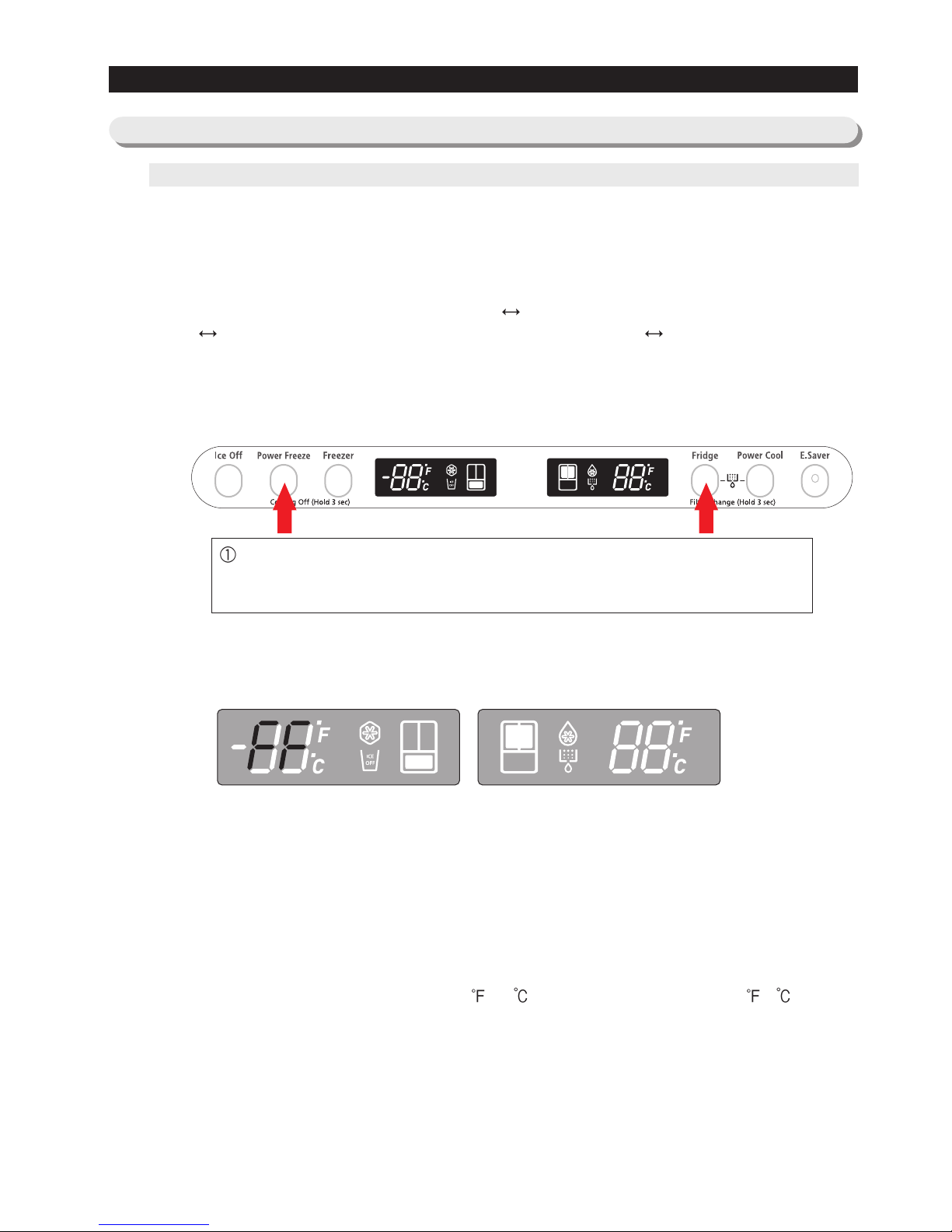

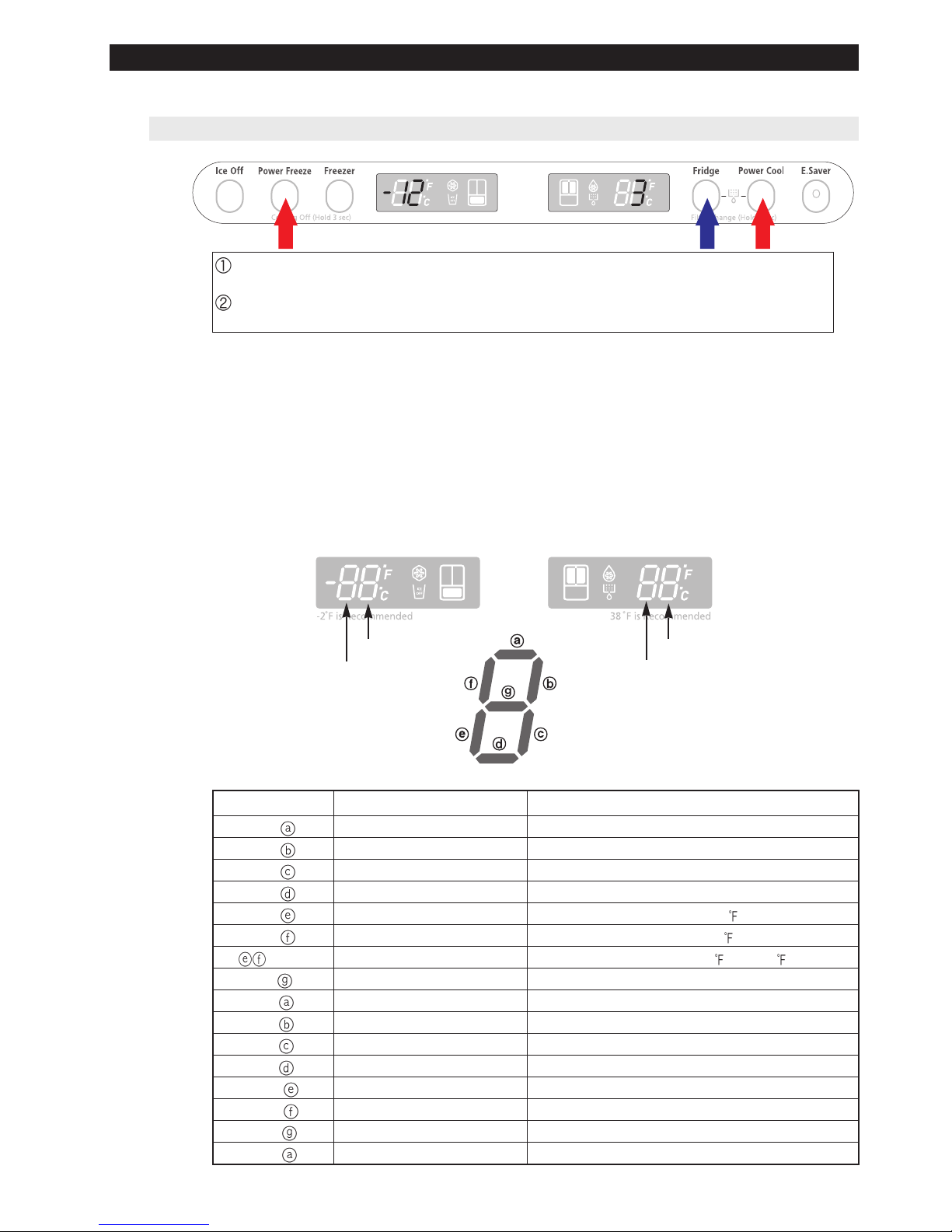

4-1) Function for failure diagnosis

● If Power Freeze & Fridge temperature control Key on the front of panel are pressed

simultaneously for 8 seconds , it will be changed to the test mode and all displays on the front
of panel will be off.

● If any key on the front of panel is pressed within 15 seconds after the test mode, it will be

operated as below sequence :
manual operation(fresh food compartment)

manual defrost of fresh food compartment(rd)

manual defrost of fresh food and freezer compartments (Fd) Cancel(Display all off).

● If any key on the front of panel is not pressed within 15 seconds after the test mode, the test

mode will be canceled and it will be returned to previous mode.

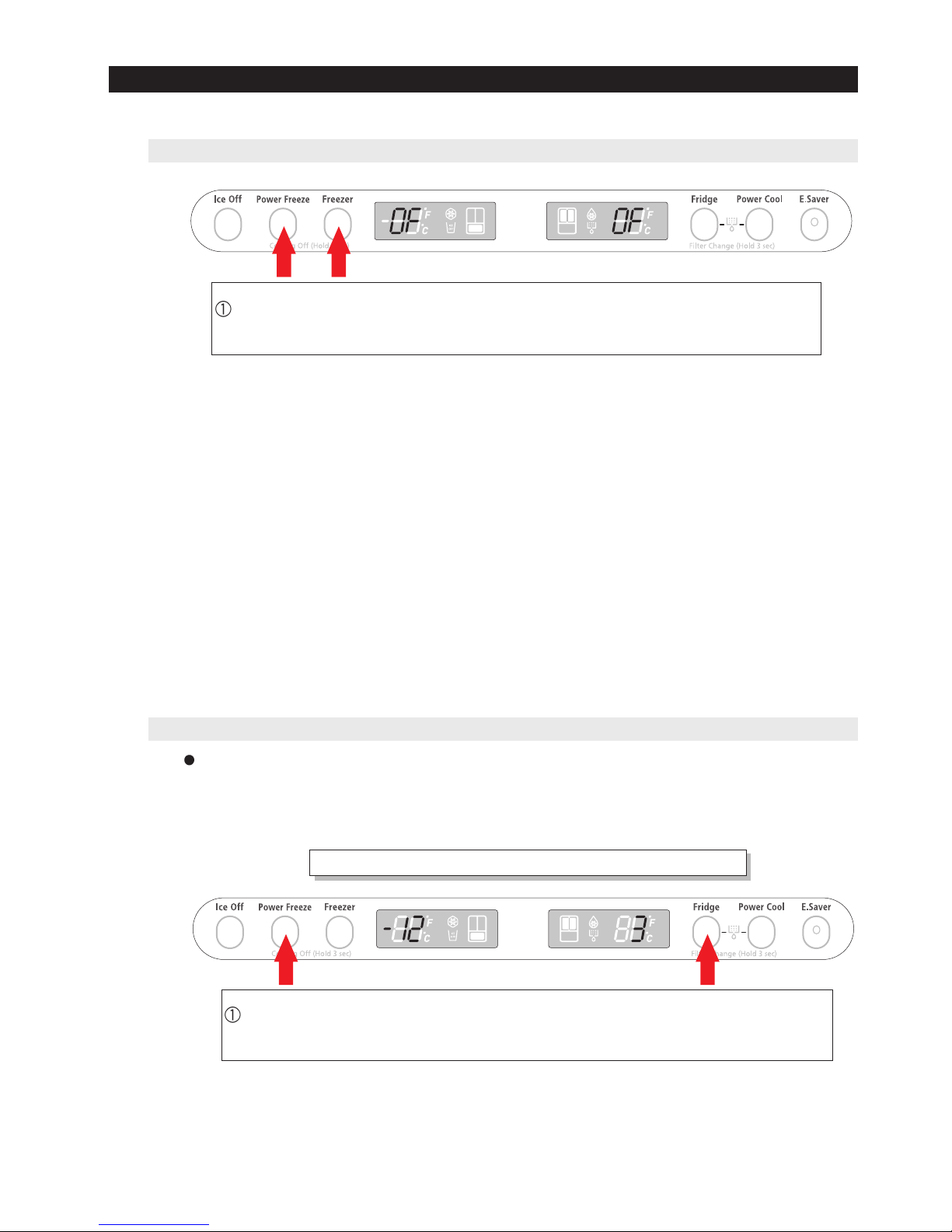

1) Manual operation function

If Power Freeze Key + Fridge Key are pressed simultaneously for 8 seconds,

(displays are all off)

It will be changed to the test mode (manual operation) by pressing any key

4-1-1. Test mode (manual operation / manual defrost function)

1-1) If any key is pressed once in test mode, blinks "FF" on the display and it indicates the

refrigerator has entered the manual operation. At this moment, buzzer beeps as an
alarm.

1-2) If manual operation is selected, comp will run at once without 5 minutes delay in any

mode. If the refrigerator is on the defrost cycle at the moment, defrost will be finished
and manual operation will begin.
(Be careful if manual operation get started at the moment of comp off, over load could
be occurred)

1-3) If manual operation works, comp & f-fan operate continuously for 24 hours and fresh

food compartment will be controlled by the setting temperature.

1-4) When the manual operation runs, setting temperature will be selected automatically as

below: freezer compartment -14

(-25 ), fresh food compartment 33.8 (1 ).

1-5) During manual operation, Power Freeze & Power Cool function will not be worked.

If a function is selected, the power function icon of the selected function will be off
automatically after 10 seconds.

1-6) Manual operation can be canceled during manual operation by turning on the appliance

after power off(reset) or choosing the step 4) test cancel mode.

1-7) Alarm(0.25 sec ON/ 0.75 sec OFF) will beep continuously until manual operation is

completed and there is no function to make the sound stop.

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

①

①

41

TROUBLESHOOTING

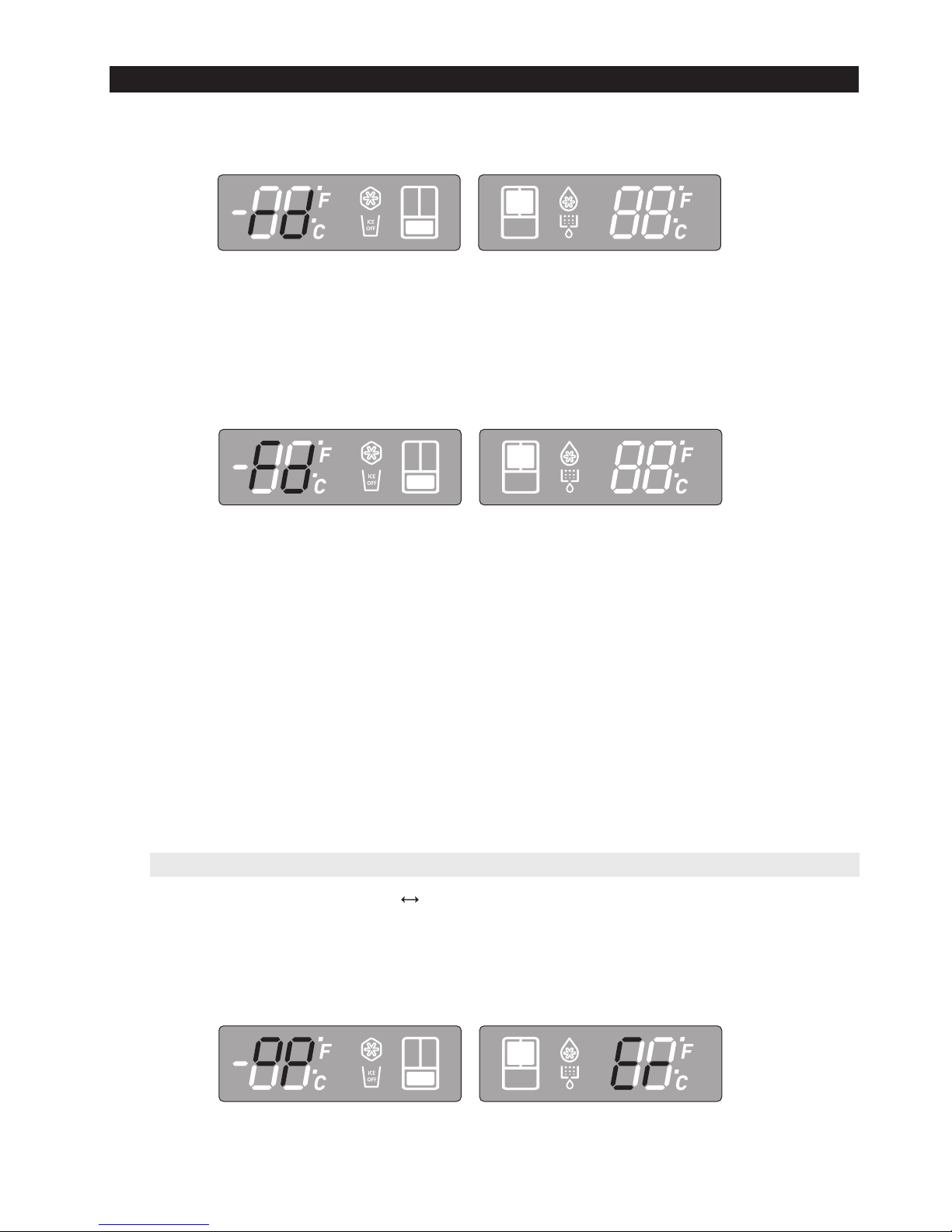

2) Manual defrost(fresh food compartment) function

4-1-2. Display function of Communication error

2-1) If any key is pressed one more time during manual operation(fresh food compartment),

"rd" shows in the display and then manual operation will be canceled at once and fresh
food compartment will be defrosted.

2-2) At this moment, alarm beeps for 3 seconds(0.1 sec ON/ 1 sec OFF) during manual

defrost(fresh food compartment) function.

3) Simultaneous manual defrost(fresh food and freezer compartments) function

3-1) If any key is pressed one more time during manual defrost(defrost of fresh food

compartment, "rd"), "Fd" shows on the display and then fresh food and freezer
compartments defrost will operate.
Manual defrost of Fresh food and freezer compartments are followed by manual defrost
freezer compartment.

3-2) At this moment, alarm beeps for 3 seconds (0.5 sec ON/ 0.5 sec OFF) during manual

defrost function of fresh food and freezer compartment.

4-1) During defrosting of fresh food and freezer compartments simultaneously, if the display

panel change to the test mode and test button is pressed one more time, defrosting of
fresh food and freezer compartments will be canceled at the same time and will return
to the normal operation.
Or, all test functions will be canceled by turning main power ON again after it OFF.

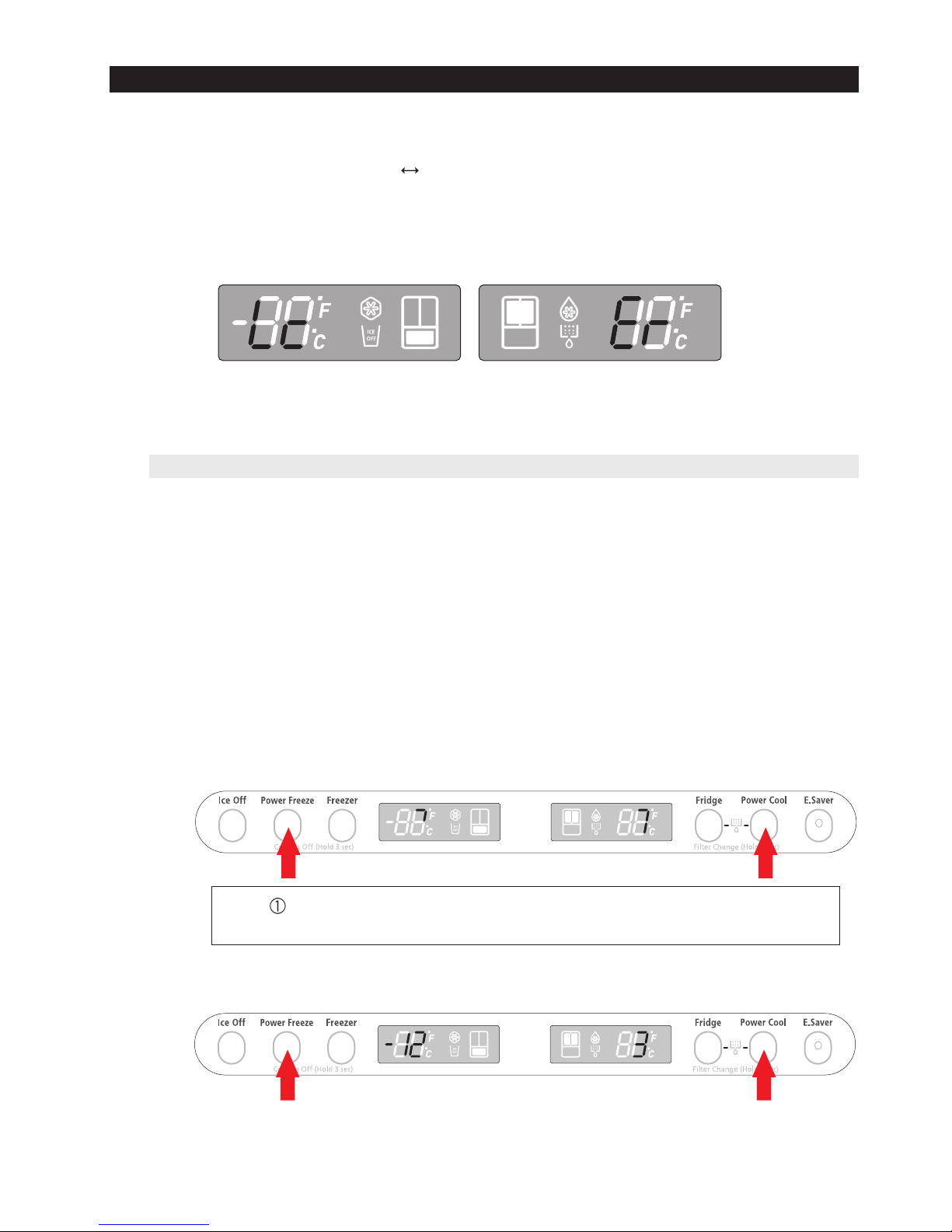

1-1) If there is no answer for 10 seconds after the panel micom received the requirement of

communication, "Pc - Er" display on the panel PCB will be ON/OFF alternately until the
communication error is canceled. (0.5 sec ALL ON, 0.5 sec ALL OFF alternately)

4) Test cancel mode

(0.5 sec ALL ON, 0.5 sec ALL OFF alternately)

1) Display function when Panel

MAIN MICOM communication has error

42

2-1) If there is no answer for 20 seconds after the main micon received the requirement of

communication from load MICOM, "Lc - Er" display on the panel PCB will be ON/OFF
alternately until the communication error is canceled.

2-2) Also pantry room display will be ON/OFF alternately until the communication error is

canceled.

(0.5 sec ALL ON, 0.5 sec ALL OFF alternately)

(0.5 sec ALL ON, 1.5 sec ALL OFF alternately)

2) Display function when MAIN LOAD MICOM communication has error

TROUBLESHOOTING

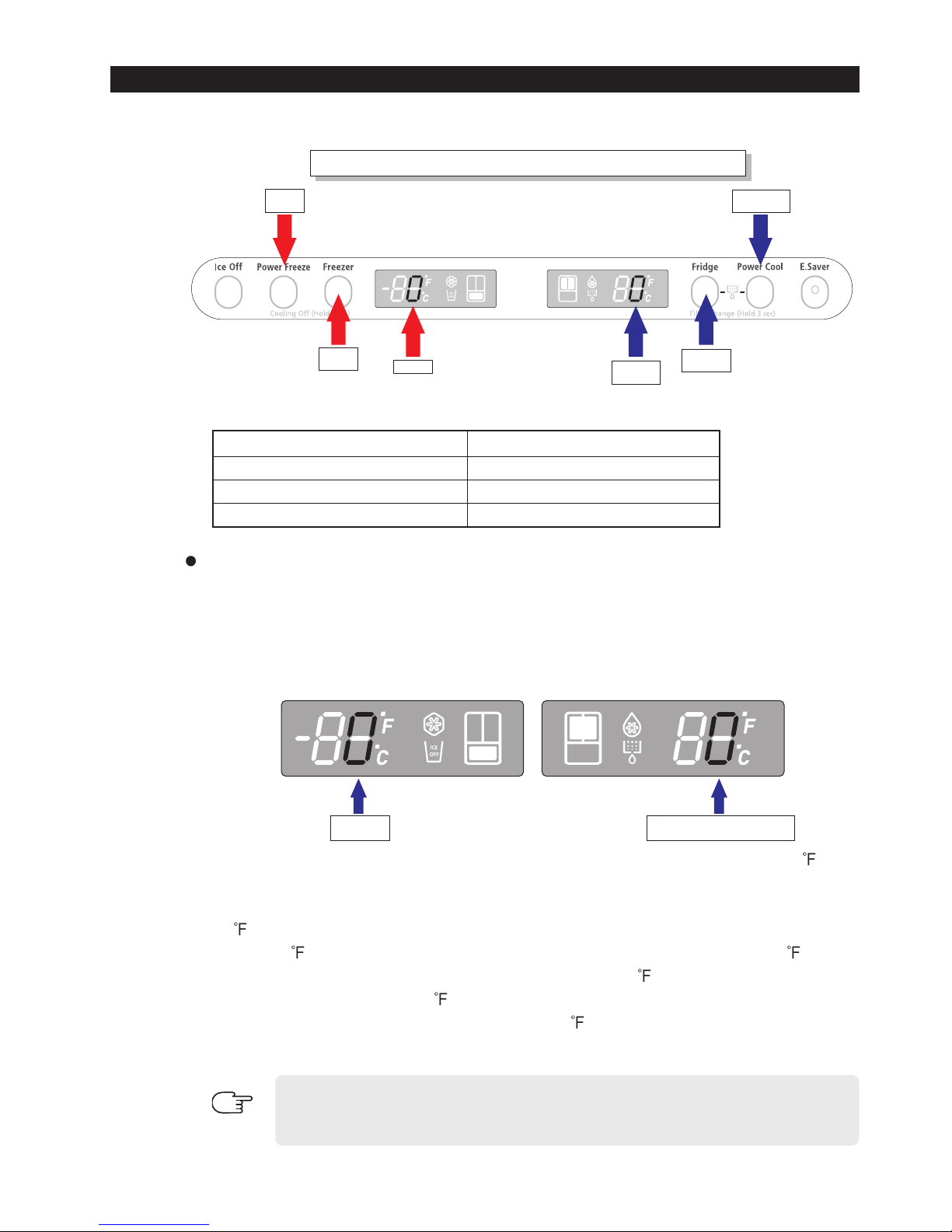

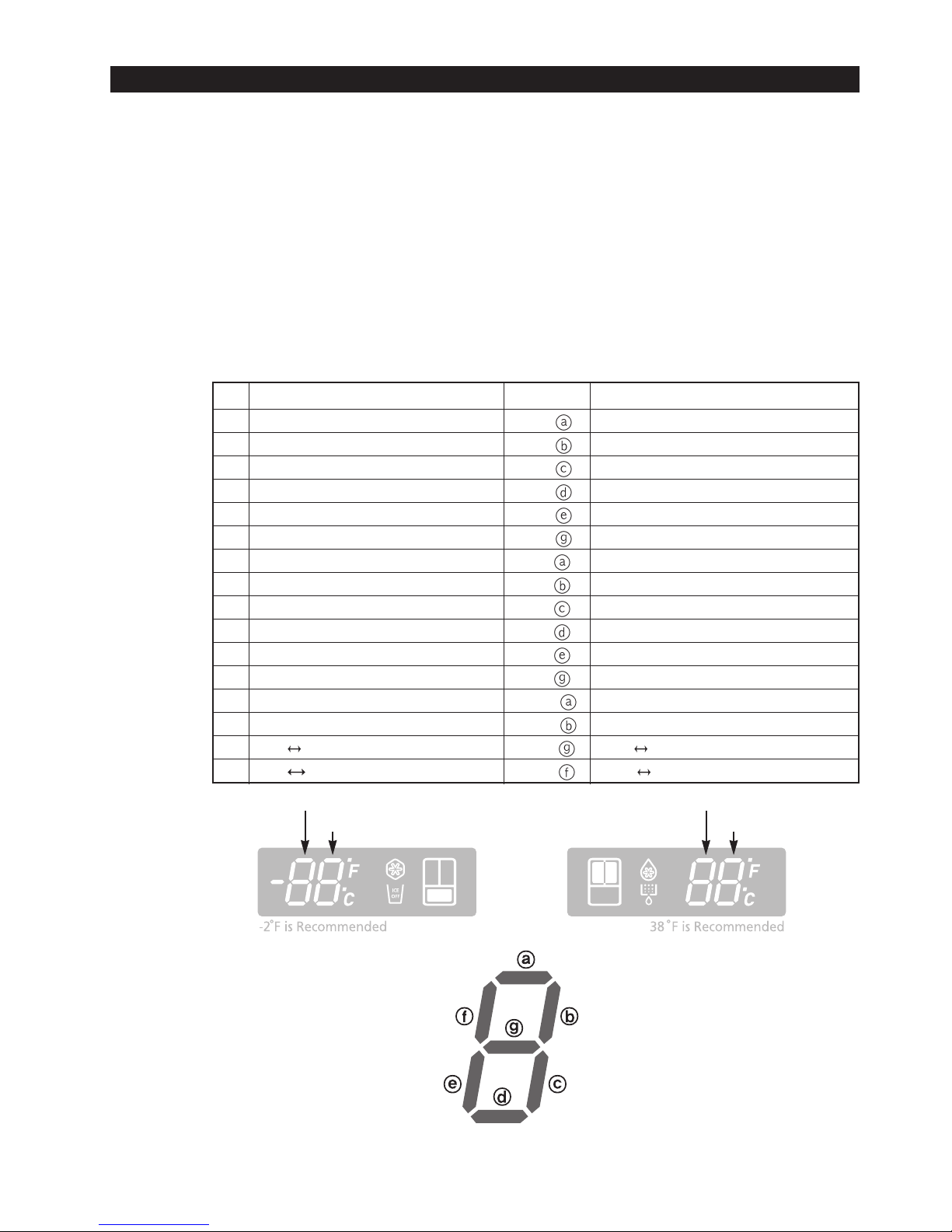

4-1-3. Self-diagnostic function

1-1) Micom operates self-diagnostic function to check the temperature sensor condition

within 1 second when the refrigerator turned On initially.

1-2) If bad sensor is detected by the self-diagnostic function, the applicable display LED will

blink for 0.5 sec.
At this moment, there is no beep sound.(Refer to self-diagnostic CHECK LIST)

1-3) Self-diagnostic button is recognized only when the error is displayed by the bad sensor.

Display does not operate normally but temperature control will be controlled by the
emergency operation.

1-4) When the error is detected by self-diagnosis, the error can be canceled automatically if

all troubled sensors are corrected or Self-diagnostic function key (Power Freeze +
Power Cool ) are pressed simultaneously for 8 seconds.
(Return to normal display mode)

1) Self-diagnostic function in the Initial power ON

2) Self-diagnostic function during normal operation

If Power Freeze Key + Power Cool Key are pressed simultaneously

for 8 seconds, the error mode by self-diagnosis will be canceled.

① ①

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

① ①

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

43

TROUBLESHOOTING

2-1) If Power Freeze + Power Cool Key are pressed simultaneously for 6 seconds during

normal operation, the temperature setting display will operate for 2 seconds (ON/OFF

0.5sec each).
If Power Freeze + Power Cool Key are pressed simultaneously for 8 seconds (including
above 2 seconds), self-diagnostic function will be selected.

2-2) At this moment, self-diagnostic function will be returned with buzzer sound 'ding-dong'.

If there is an error, display of error will be operated for 30 seconds and then return to
normal condition whether problem is corrected or not.
(Refer to self-diagnosis CHECK LIST)

2-3) Input by button is not accepted during self-diagnostic function.

󳢬 Self-diagnosis CHECK LIST

NO

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16

Trouble item

Ice Maker Sensor Error

R-Sensor Error

R-DEF-Sensor Error

R-FAN Error

Ice Maker Error

R-DEF.Error

Ambient-Sensor Error

F-Sensor Error

F-DEF-Sensor Error

F-FAN Error
C-FAN Error
F-DEF. Error

Pantry-Damper-Heater Error

Pantry-Sensor Error

Panel Main MICOM communication Error

L M communication Error

Display LED

R-1­R-1­R-1­R-1­R-1­R-1­F-1­F-1­F-1­F-1­F-1-

F-1­R-10­R-10-

F-10­F-10-

Trouble contents

ICE MAKER SENSOR part error

FF SENSOR part error

FF defrost SENSOR part error

FF inner fan motor part error

ICE MAKER operation error

FZ defrost part error

External SENSOR part error

FZ SENSOR part error

FZ defrost SENSOR part error

FZ inner fan motor part error

Machine room fan motor part error

FZ defrost part error

Damper Heater open/wire error

Pantry Room SENSOR part error

Panel Main MICOM communication error

LOAD Main MICOM communication error

F-1

F-10

R-1

R-10

44

󳢬 Self-diagnostics check list

TROUBLESHOOTING

LED

R-1-

R-1-

R-1-

R-1-

R-1-

R-1-

F-1-

F-1-

F-1-

F-1-

F-1-

F-1-

R-10-

R-10-

F-10-

F-10-

Item

Ice Maker Sensor Error

R-Sensor Error

R-DEF-Sensor Error

R-FAN Error

Ice Maker Error

R-DEF. Error

Ambient-Sensor Error

F-Sensor Error

DEF-Sensor Error

F-FAN Error

C-FAN Error

F-DEF. Error

Pantry-Damper-Heater Error

Pantry-Sensor Error

Panel Main communication Error

Load Main communication Error

Trouble contents Diagnostic method

Display error : separation of sensor housing
part, contact error, disconnection, short
circuit
Display error of detecting temperature of
sensor: more than 149 (+65°C) or less
than -58 (-50°C)

Display error : sensor housing separation,
contact error, disconnection, short circuit
Display error by detecting temperature of
sensor: more than 149 (+65°C) or less
than -58 (-50°C)

Display "oP/LC-Er" in the panel with alarm :
MICOM MAIN LOAD communication error
MICOM MAIN PANEL communication error
LC-Er is displayed when the Option is not
equivalent with the right value

Actually, it is desirable to recheck the condition with
the oscilloscope after replacing Main and Panel
PCB.

When checking the voltage of MAIN PCB CN90
#3 CN90#4 : shall be between 4.5V~1.0V.

When checking the voltage of MAIN PCB
CN30#6 CN75#1:shall be between 4.5V~1.0V

When checking the voltage of MAIN PCB
CN30#7 CN75#:shall be between 4.5V~1.0V

Voltage of MAIN PCB CN75 Orange Gray
shall be between 7V~12V

After replacing ice maker, check the operation
by turning the appliance ON again.

When checking the voltage of MAIN PCB
CN32#1 #4 : shall be between 4.5V~1.0V.

When checking the voltage of MAIN PCB
CN30#3 CN75#1:shall be between 4.5V~1.0V

When check the voltage of MAIN PCB
CN30#4 CN75#1:shall be between 4.5V~1.0V

Voltage of MAIN PCB CN75 Yellow Gray
shall be between 7V~12V.

Voltage of MAIN PCB CN75 Sky-blue Gray
shall be between 7V~12V.

When checking the voltage of MAIN PCB
CN30#8

#9 : shall be between 4.5V~1.0V.

Display error : separation of fresh food compartment defrost heater housing
part, contact error, disconnection, short circuit or temperature fuse error.
Display error : the defrosting does not finish though fresh food compartment
defrost is heating continuously for more than 80 minutes.

After separating MAIN PCB CN70,CN71 from PCB, check the
resistance value between CN70 White CN71 Orange shall be
102(441) ohm 7%. (Resistant value is varied by the input power)
Check 0 Ohm : heater short, Ohm : wire / bimetal Open.

After separating MAIN PCB CN70,CN71 from PCB, check the
resistant value between CN70 brown CN71 Orange shall be
102(220) ohm 7%. (Resistant value is varied by input power)
Check 0 Ohm : heater short, Ohm : wire / bimetal Open.

After separating MAIN PCB CN91from PCB, check the resistant
value between Black brown wire shall be 145 ohm 7%.
Check 0 Ohm : heater short, Ohm : wire / bimetal Open.

Display error : separation of freezer compartment defrost heater housing
part , contact error, disconnection, short circuit or temperature fuse error.
Display error : the defrosting does not finish though fresh food compartment
compartment defrost is heating continuously for more than 70 minutes.

Display error during operation of applicable
fan motor : Feed Back signal line contact
error, separation of motor wire, motor error

Display error : ice making kit is harvested
more than 3 times and level error
** Apply to the applicable Ice Maker model.

Display error during operation of applicable
fan motor : Feed Back signal line contact
error, motor wire separation, motor error

Display error during operation of applicable
fan motor : Feed Back signal line contact
error, motor wire separation, motor error

Display error when open error is detected by damper
heater : separation of Damper Heater housing part,
contact error, disconnection, short circuit

Display error : separation of sensor housing, contact error,
disconnection, short circuit.
Display error by detecting temperature of sensor: more
than 149 (+65°C) or less than -58 (-50°C)

45

TROUBLESHOOTING

4-1-4. Display function of Load condition

1) If Power Freeze Key + Power Cool Key are pressed simultaneously for 6 seconds during normal operation, the
temperature setting display of fresh food and freezer compartments will blink ALL ON/OFF with 0.5 for 2
seconds.

2) At this moment, If Fridge Key after Power Freeze Key + Power Cool Key is pressed, load condition display
mode will be returned with alarm.

3) Load condition display mode shows the load that micom signal is outputting.
However, It means that micom signal is outputting, it does not mean whether load is operating or not. That is to
say that though load operation is displayed, load could not be operated by actual load error or PCB relay error
etc.

4) Load condition display function will maintain for 30 seconds and then normal condition will be returned
automatically.

5) Load condition display is as below.

If Power Freeze Key + Power Cool Key are pressed simultaneously for 6

seconds, ALL ON/OFF will blink with 0.5interval for 2 seconds.
If take the finger off from above keys and press Fridge Key, load condition mode
will be started.

① ①②

F-1

F-10

R-1

R-10

󳢬 Load mode Check list

Display LED

R-1­R-1­R-1­R-1­R-1­R-1-

F-1- , ALL LED Off

R1­F-1­F-1­F-1­F-1-

R-10­R-10­F-10­F-10-

Operation contents

When fresh food compartment fan high operates, applicable LED ON
When fresh food compartment fan low operates, applicable LED ON
When fresh food compartment defrost heater operates, LED ON
Initial power ON refrigerator, LED ON
When ambient temperature is more than 93

(34°C), LED ON

When ambient temperature is less than 72

(22°C), LED ON
When ambient temperature is between 73 (23°C) ~ 91 (33°C), LED ON
Display mode, LED ON
When compressor operates, applicable LED ON
When freezer compartment fan high operates, applicable LED ON
When freezer compartment fan low operates, applicable LED ON
When freezer compartment defrost heater operates, LED ON
When compressor fan high operates, applicable LED ON
When compressor fan low operates, applicable LED ON
When french heater operates, applicable LED ON
When damper open, applicable LED ON

Display contents

R-FAN High
R-FAN Low
R-DEF Heater
Start Mode
Overload condition
Low temperature condition
Normal Condition
Exhibition Mode
COMP.
F-FAN High
F-FAN Low
F-DEF Heater
C-FAN High
C-FAN Low
French Heater
Pantry Room Damper Open

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

46

TROUBLESHOOTING

4-1-5. Exhibition mode setting function

1) If Power Freeze Key + Freezer Key are pressed simultaneously for 3 seconds during normal
operation, show room mode will be started with buzzer sound(ding-dong).

2) If above Power Freeze & Freezer Key are pressed one more time, show room mode will be
canceled.

3) If show room mode is selected, blinks "OF-OF" on the temperature setting display of the panel
and it indicates the refrigerator has entered the show room mode.

4) During show room mode, if fresh food and freezer compartments sensors are higher than 65
show room mode will be canceled automatically and freezing operation will be returned.
(There is no buzzer sound when the show room mode is canceled by the temperature)

5) Operation contents of show room mode

- Display, Fan motor and etc operate normally, not to operate compressor only.

- Defrost is not operated. (including french heater)

- Display function of the initial real temperature is finished.

- Under the condition of show room mode, show room mode will be operated when Power On

after Power OFF.

If Power Freeze Key + Freezer Key are pressed for 3 seconds, show room mode will
be started.

①①

4-1-6. Option setting function

If Freezer Key + Fridge Key are pressed simultaneously for 12 seconds during normal
operation, fresh food and freezer compartments temperature display will be changed to option
setting mode.

If Freeze Key + Fridge Key are pressed simultaneously for 12 seconds, option
setting mode will be started.

①①

KEY operation method for changing to option mode

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

47

TROUBLESHOOTING

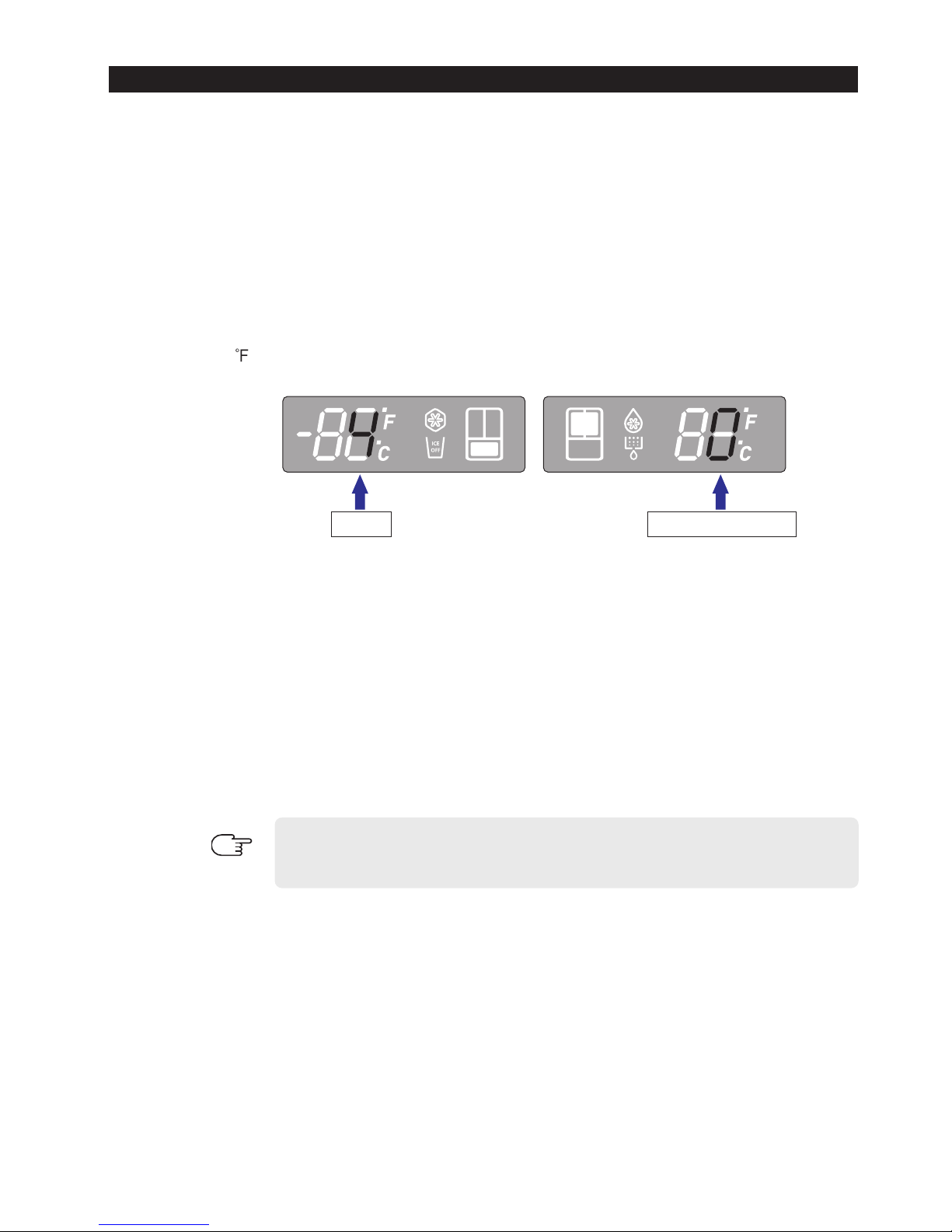

1) For example, if you want to change freezer compartment standard temperature to 28.4 (-

2°C) by operating option, do as below.
This function is for changing the standard temperature.
In -2 (-19°C) of current temperature of freezer compartment, if you make the temperature
lower to 28.4 (-2°C) by the option, the standard temperature would be controlled -6 (-21°C)
Therefore, if you change the setting of temperature option to -2 (-19°C) on the panel, the
appliance will be operated with -6 (-21°C).
It means that standard temperature is controlled 28.4 (-2°C) less than setting temperature in
the display.

If the display changes to option setting mode, all displays will be off except freezer and
fridge compartments temperature display as below.
(Fresh food and freezer compartments case will be explained only because all options
are operated with the same method according to the option table.)

Code
Down

Reference

Value Down

Code

Up

Reference

Value Up

Code

Reference

Value

-2℉(-19℃)is Recommended 38℉(3℃)is Recommended

①①

KEY control method after converting to option mode

󳢬 Key control in option mode

Power Freeze Key

Freezer Key

Power Cool key

Fridge key

Code Down key

Code Up key

Reference Value down key

Reference Value Up key

Basically, option function has cleared data at shipping process.
Therefore, almost all setting value are "0".
Check the product information manual or specifications because setting value could be
changed particularly for the purpose of improving product at mass producing process.

NOTE

Reference ValueCode

48

TROUBLESHOOTING

2) After changing to the option mode, fresh food compartment "0" , freezer compartment

"0" will be displayed. ( Basically fresh food compartment "0", freezer "0" would be set at
shipping process, but setting value could be changed for the purpose of improving
product at mass producing process.)

- If fresh food compartment "0" shows only, temperature reference value of freezer
compartment will be set and current freezer compartment temperature code will be
displayed on the freezer temperature display.

3) If freezer compartment "4" is set as below freezer compartment code after fresh food
compartment "0 is set, standard temperature of freezer compartment will be lower than

28.4

(-2.0°C).

(Refer to the picture "changing the freezer compartment temperature")

: If you wait for 20 seconds after completing the setting, MICOM will save the setting

value to the EEPROM and normal display will be returned and the option setting mode
will be canceled.

4) Option changing method as above is the same as all RF266/265** model.

5) By the same method as above, it is possible to control the fresh food compartment
temperature, water supply, ice-maker harvest temperature/time, defrost return time,
hysteresis by temperature, notch gap by temperature etc.

6) Option function is set in the EEPROM at shipping process in the factory.
You would better not to change the option of your own.
Completing the setting is that option function return to normal display after 20 seconds.
Do not turn off the appliance before returning to the normal display mode.

Reference ValueCode

Option setting function exists in the other items.
We will skip the explanation of the other functions by the option because it is
associated with refrigerator control function and is not needed at SERVICE.
(Please do not set the other options except above SERVICE Manual.)

NOTE

49

Reference ValueCode

TROUBLESHOOTING

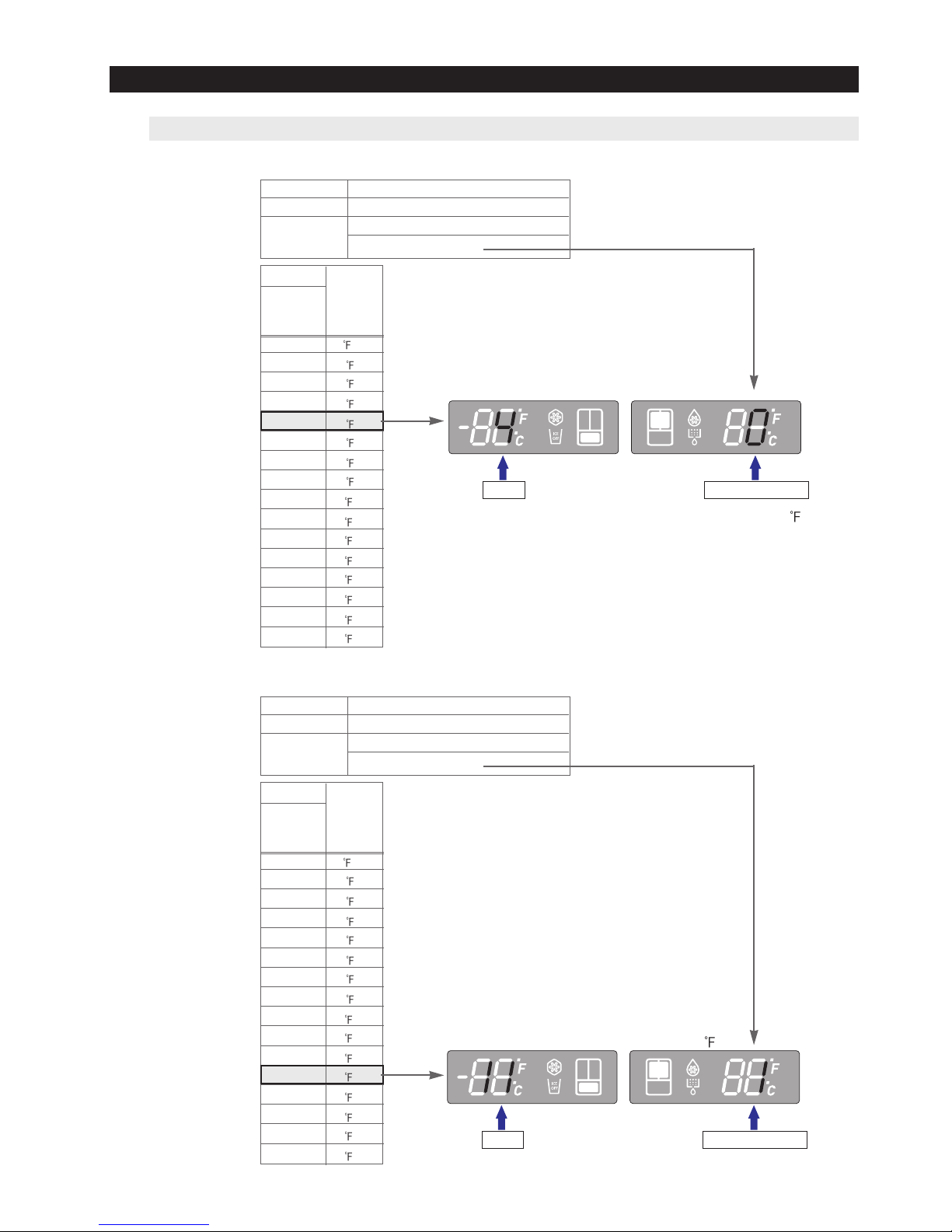

4-1-7. Option TABLE

1) Temperature changing table of freezer compartment

ex) If you want to change the freezer standard temperature to 28.4 (-2°C)

Set item Freezer Temp Shift
MODEL RF265/266/RF26NB

Fridge Room 7-SEG

0

Setting value

Temp.

compensation

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

32 (0.0°C)

31.1 (-0.5°C)

30.2 (-1.0°C)

29.3 (-1.5°C)

28.4 (-2.0°C)

27.5 (-2.5°C)

26.6 (-3.0°C)

25.7 (-3.5°C)

32.9 (+0.5°C)

33.8 (+1.0°C)

34.7 (+1.5°C)

35.6 (+2.0°C)

36.5 (+2.5°C)

37.4 (+3.0°C)

38.3 (+3.5°C)

39.2 (+4.0°C)

FZ

compartment

Code

Reference

Value

Reference ValueCode

2) Temperature changing table of fresh food compartment

ex) If you want to change the Fresh Food

compartment standard temperature to 35.6 (2°C)

Set item Freezer Temp Shift
MODEL RF265/266/RF26NB

Fridge Room 7-SEG

1

Setting value

Temp.

compensation

0

1

2

3

4

5

6

7

8

9
10
11
12
13
14
15

32 (0.0°C)

31.1 (-0.5°C)

30.2 (-1.0°C)

29.3 (-1.5°C)

28.4 (-2.0°C)

27.5

(-2.5°C)

26.6

(-3.0°C)

25.7 (-3.5°C)

32.9 (+0.5°C)

33.8 (+1.0°C)

34.7

(+1.5°C)

35.6

(+2.0°C)

36.5 (+2.5°C)

37.4 (+3.0°C)

38.3 (+3.5°C)

39.2

(+4.0°C)

FZ

compartment

Code

Reference

Value

50

■Below options are applied to the applicable model with ice maker.
Do not set below options to the model without Ice Maker.

TROUBLESHOOTING

Reference ValueCode

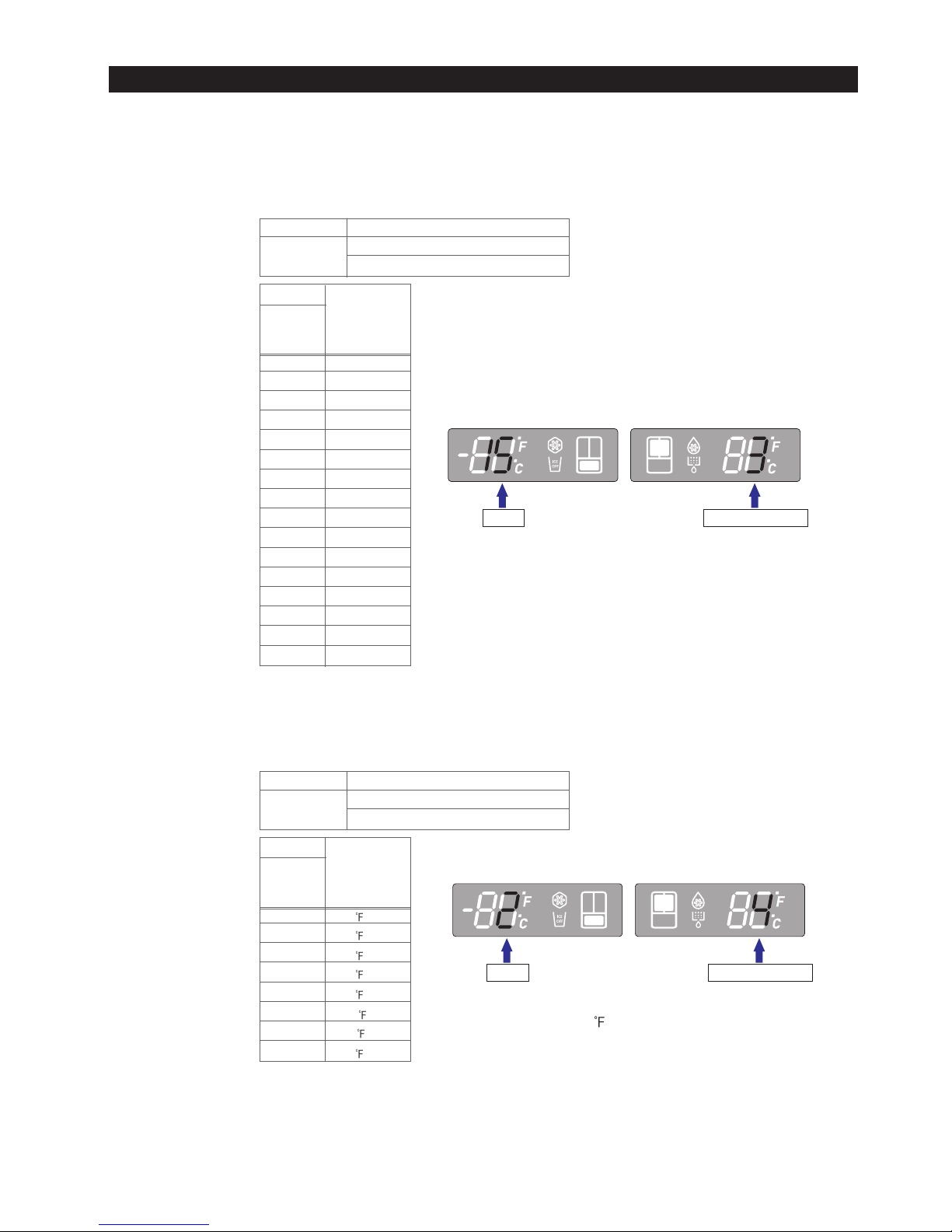

3) To change the ice maker harvest waiting time

This option controls the harvest waiting time for ice dispensing from Ice maker

ex) If you want to change the waiting time to 60 minutes

Set item ICE MAKER waiting time of ice making

Fridge Room 7-SEG

3

Setting value

Temp.

compensation

(mins)

0
1
2
3
4
5
6
7
8

9
10
11
12
13
14
15

58
57
56
55
54
53
52
51
50
49
48
47
46
45
59
60

FZ

compartment

Code

Reference

Value

Reference ValueCode

4) To change the ice making sensor temperature of ice maker
This option Controls the standard temperature of judgment that is checking whether ice of ice
maker is frozen completely or not.

ex) If you want to change the ice making sensor

temperature to 5.0 (-15°C)

Set item ICE MAKER control the temperature of ice making

Fridge Room 7-SEG

4

Setting value

Temp.

compensation

(mins)

0
1
2
3
4
5
6
7

1.4 (-17°C)

3.2 (-16°C)

5.0 (-15°C)

6.8 (-14°C)

8.6 (-13°C)

10.4 (-12°C)

-0.4 (-18°C)

2.2 (-19°C)

FZ

compartment

Code

Reference

Value

51

TROUBLESHOOTING

4-2) Diagnostic method according to the trouble symptom(Flow Chart)

DATA1.Temperature table
Resistance value and MICOM port voltage of sensor according to the temperature
SENSOR CHIP : based on PX41C

-50

-49

-48

-47

-46

-45

-44

-43

-42

-41

-40

-39

-38

-37

-36

-35

-34

-33

-32

-31

-30

-29

-28

-27

-26

-25

-24

-23

-22

-21

-20

-19

-18

-17

-16

-15

-14

-13

-12

-11

-10

-9

-8

-7

-6

-58

-56.2

-54.4

-52.6

-50.8

-49

-47.2

-45.4

-43.6

-41.8

-40

-38.2

-36.4

-34.6

-32.8

-31

-29.2

-27.4

-25.6

-23.8

-22

-20.2

-18.4

-16.6

-14.8

-13

-11.2

-9.4

-7.6

-5.8

-4

-2.2

-0.4

1.4

3.2
5

6.8

8.6

10.4

12.2
14

15.8

17.6

19.4

21.2

4.694

4.677

4.659

4.641

4.622

4.602

4.581

4.560

4.537

4.514

4.490

4.465

4.439

4.412

4.385

4.356

4.326

4.296

4.264

4.232

4.199

4.165

4.129

4.093

4.056

4.018

3.980

3.940

3.899

3.858

3.816

3.773

3.729

3.685

3.640

3.594

3.548

3.501

3.453

3.405

3.356

3.307

3.258

3.208

3.158

153319
144794
136798
129294
122248
115631
109413
103569

98073
92903
88037
83456
79142
75077
71246
67634
64227
61012
57977
55112
52406
49848
47431
45146
42984
40938
39002
37169
35433
33788
32230
30752
29350
28021
26760
25562
24425
23345
22320
21345
20418
19537
18698
17901
17142

℃℉

Voltage

Resistance

-5

-4

-3

-2

-1
0
1
2
3
4
5
6
7
8
9

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

23

24.8

26.6

28.4

30.2
32

33.8

35.6

37.4

39.2
41

42.8

44.6

46.4

48.2
50

51.8

53.6

55.4

57.2
59

60.8

62.6

64.4

66.2
68

69.8

71.6

73.4

75.2
77

78.8

80.6

82.4

84.2
86

87.8

89.6

91.4

93.2
95

96.8

98.6

100.4

102.2

3.107

3.057

3.006

2.955

2.904

2.853

2.802

2.751

2.700

2.649

2.599

2.548

2.498

2.449

2.399

2.350

2.301

2.253

2.205

2.158

2.111

2.064

2.019

1.974

1.929

1.885

1.842

1.799

1.757

1.716

1.675

1.636

1.596

1.558

1.520

1.483

1.447

1.412

1.377

1.343

1.309

1.277

1.253

1.213

1.183

16419
15731
15076
14452
13857
13290
12749
12233
11741
11271
10823
10395

9986
9596
9223
8867
8526
8200
7888
7590
7305
7032
6771
6521
6281
6052
5832
5621
5419
5225
5039
4861
4690
4526
4369
4218
4072
3933
3799
3670
3547
3428
3344
3204
3098

℃℉

Voltage

Resistance

40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84

104

105.8

107.6

109.4

111.2
113

114.8

116.6

118.4

120.2
122

123.8

125.6

127.4

129.2
131

132.8

134.6

136.4

138.2
140

141.8

143.6

145.4

147.2
149

150.8

152.6

154.4

156.2
158

159.8

161.6

163.4

165.2
167

168.8

170.6

172.4

174.2
176

177.8

179.6

181.4

183.2

1.153

1.124

1.095

1.068

1.040

1.014

0.988

0.963

0.938

0.914

0.891

0.868

0.846

0.824

0.803

0.783

0.762

0.743

0.724

0.706

0.688

0.670

0.653

0.636

0.620

0.604

0.589

0.574

0.560

0.546

0.532

0.519

0.506

0.493

0.481

0.469

0.457

0.446

0.435

0.424

0.414

0.404

0.394

0.384

0.375

2997
2899
2805
2714
2627
2543
2462
2384
2309
2237
2167
2100
2036
1973
1913
1855
1799
1745
1693
1642
1594
1547
1502
1458
1416
1375
1335
1297
1260
1225
1190
1157
1125
1093
1063
1034
1006

978
952
926
902
877
854
832
810

℃℉

Voltage

Resistance

52

TROUBLESHOOTING

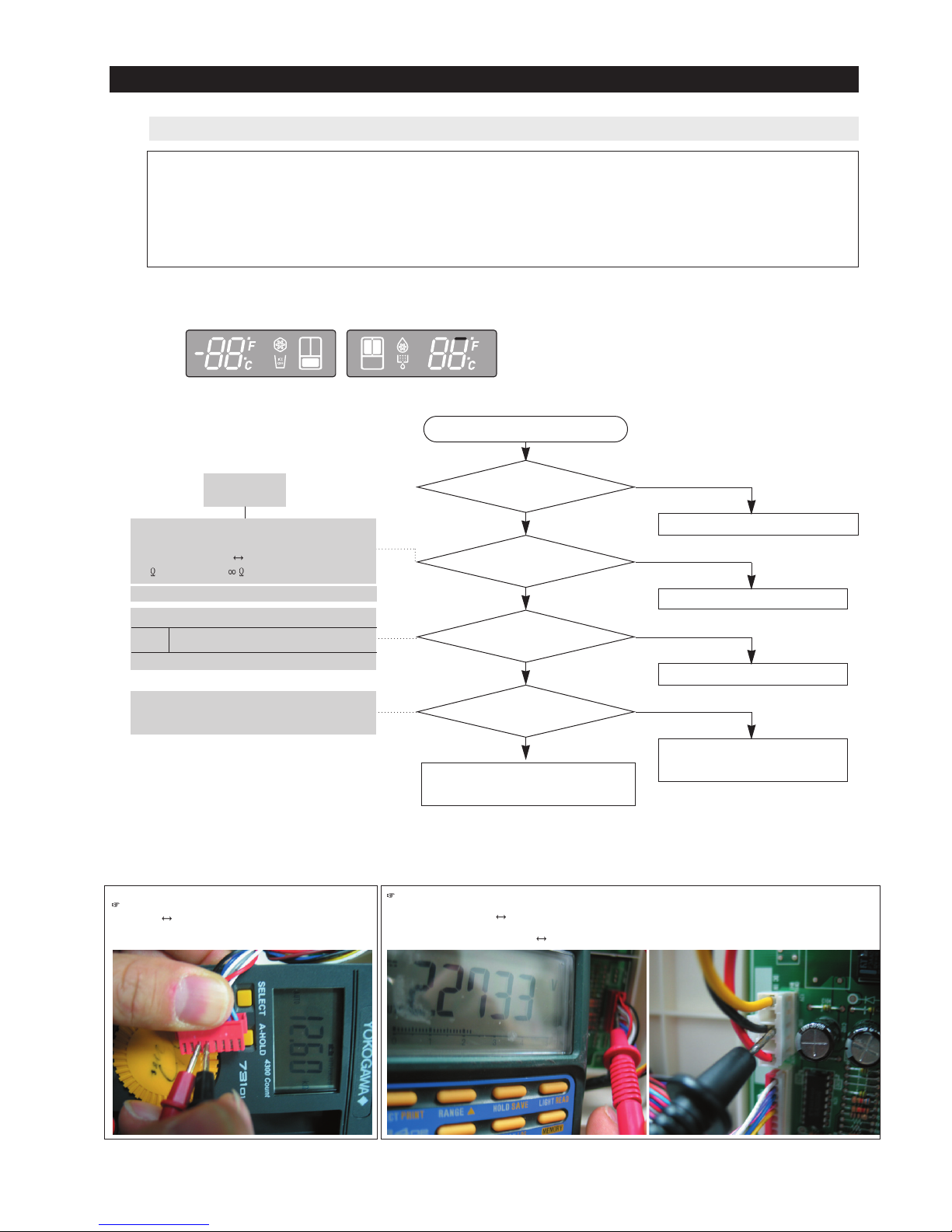

- The error of sensor will be displayed on the front of display.
when the error of sensor is detected at initial power ON, the appliance will not operated and display
of abnormal sensor part will blink.

- The appliance will not stop operating when the error of sensor is detected during operation of the
appliance.
But normal freezing might be not operated if the appliance is operated by the emergency operation
mode. You would better to check the appliance according to the self-diagnosis of the manual.

4-2-1. If the trouble is detected by self-diagnosis

1) If ICE Maker Sensor has trouble

Bad contact of connector/ insert correctly

Is MAIN PCB Connector

CN90 inserted correctly?

Is ICE Maker Sensor

unit normal?

Is the voltage between

MAIN PCB Connector CN90#"4"(White) and

CN1#"3"(Black) normal?

Is input voltage of IC02

MICOM #30 normal?

Start

NO

YES

YES

YES

YES

Replace the temperature sensor

NO

Recheck the wire connection part

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder

bridging, disturbed solder.

NO

No trouble with PCB and temperature sensor.

Recheck the bad contact of the connection.

** Measuring point of resistance value according to

Sensor **
ICE MAKER : CN90#3 #1 measuring resistance value
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC02 MICOM #30,
CN90#4(White) and CN1#3(Black) from

PCB typical Ground part are similar.

Checking method of ICE Maker Sensor resistance CN90#

"3(White) #4"(White)

- Compare the temperature table after the measure.

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

ICE
Maker

Connector CN90#"4"(White) and
CN1#"3"(Black) PCB common Ground

Checking method of ICE Maker Sensor resistance

- Measure the voltage of Sensor Check Point #6(IC02 MICOM #30)
on PCB or CN90#4(White)

CN1#3(Black)

- Compare the temperature table after the measure.
Measuring voltage of CN90#4(White) CN1#3(Black) are below.

typical PCB Ground
CN1#3(Black)

53

TROUBLESHOOTING

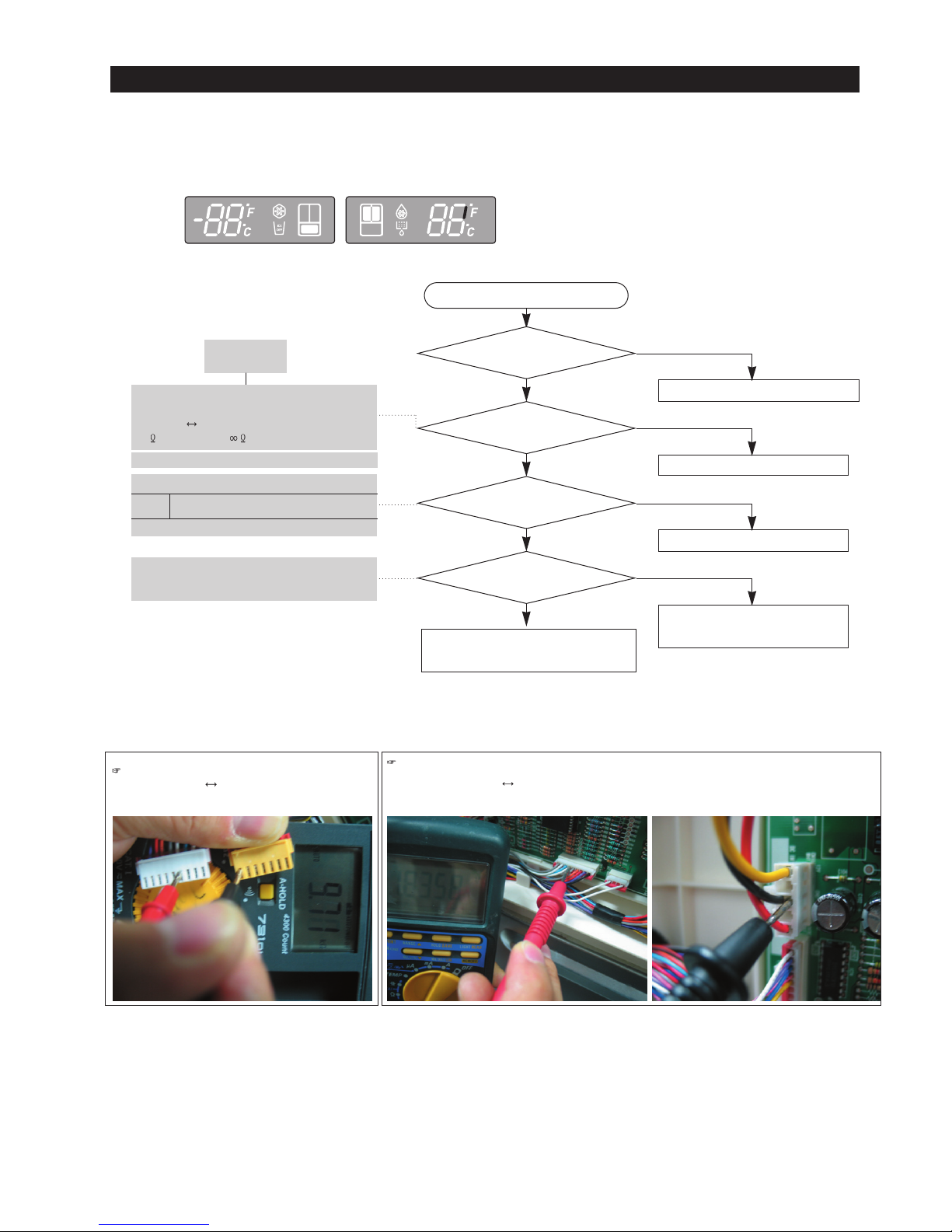

2) If R Sensor has trouble

Bad contact of connector/ insert correctly

Is MAIN PCB

Connector CN30 to CN75 inserted

correctly?

Is R Sensor
unit normal?

Is the voltage between

MAIN PCB Connector CN30#6(White) to

CN1#3(Black) normal?

Is the input voltage to

IC01 MICOM #54 normal?

Start

NO

YES

YES

YES

YES

Replace the temperature sensor

NO

Recheck the wire connection part

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder bridging,

disturbed solder.

NO

No trouble with PCB and temperature sensor.

Recheck the bad contact of the connection.

** Measuring point of resistance value according to

Sensor **
R : CN30#6 CN75#1 measuring resistance value
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage IC01 MICOM #54,

CN30#6(White) and CN1#3(Black)

from PCB typical Ground part are similar.

Checking method of R Sensor resistance
CN30#6(White) CN75#1(Gray) Compare the
temperature table after the measure.

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

R

Connector CN30#6(White) to
CN1#3(Black) PCB typical Ground

Checking method of R Sensor resistance

- Measure the voltage of Sensor Check Point #3(IC01 MICOM #54)
on PCB or CN30#6(White) CN1#3(Black)

- Compare the temperature table after the measure.
Measuring voltage of CN30#6(White)°ÍCN1#3(Black) are below.

typical PCB Ground
CN#3(Black)

54

TROUBLESHOOTING

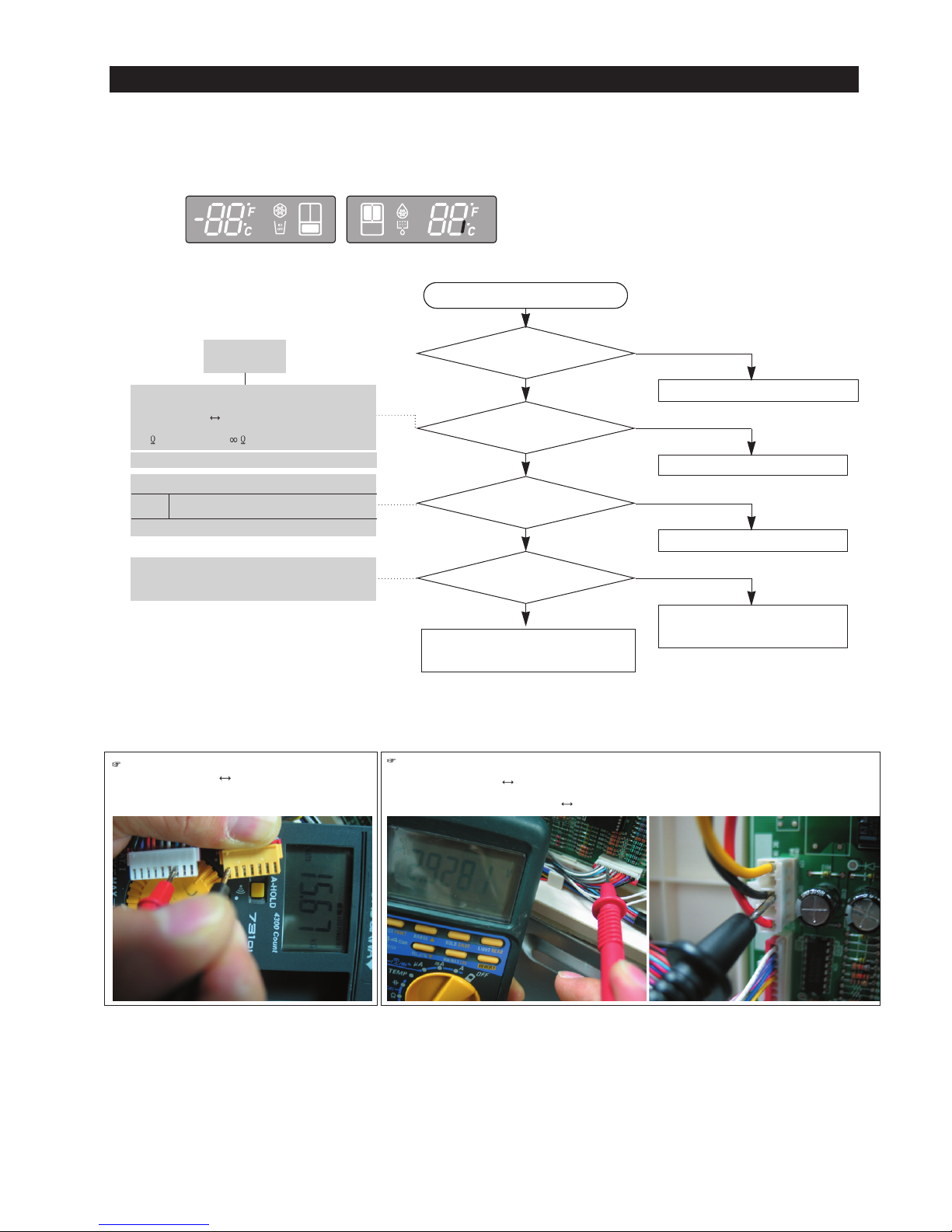

3) If R DEF Sensor has trouble

Bad contact of connector/ insert correctly

Is MAIN PCB

Connector CN30 to CN75 inserted

correctly?

Is R DEF Sensor

unit normal?

Is the input voltage between

MAIN PCB Connector CN30#7(Skyblue)

to CN1#3(Black) normal?

Is the input voltage of IC01

MICOM # 57 normal?

Start

NO

YES

YES

YES

YES

Replace the temperature sensor

NO

Recheck the wire connection part

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder bridging,

disturbed solder.

NO

No trouble with PCB and temperature sensor.

Recheck the bad contact of the connection.

** Measuring point of resistance value according to

Sensor **
R-DEF : CN30#7 CN75#1 measuring
resistance value
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector Number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC01 MICOM #57,

CN30#7(Sky-blue) and CN1#3(Black) from

PCB typical Ground part are similar.

Checking method of R Sensor resistance
CN30#7(Sky-blue) CN75#1(Gray)

- Compare the temperature table after the
measure.

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

RDEF

Connector CN30-"7"(Sky-blue) and
CN1-"3"(Black) PCB common Ground

Checking method of R DEF Sensor resistance

- Measure the voltage of Sensor Check Point #4(IC01 MICOM #57) on
PCB or CN30#7Sky-blue) CN1#3(Black)

- Compare the temperature table after the measure.

Measuring voltage of CN30#7(Sky-blue) CN1#3(Black) are below.

typical PCB Ground
CN1#3(Black)

Start

YES

YES

YES

55

TROUBLESHOOTING

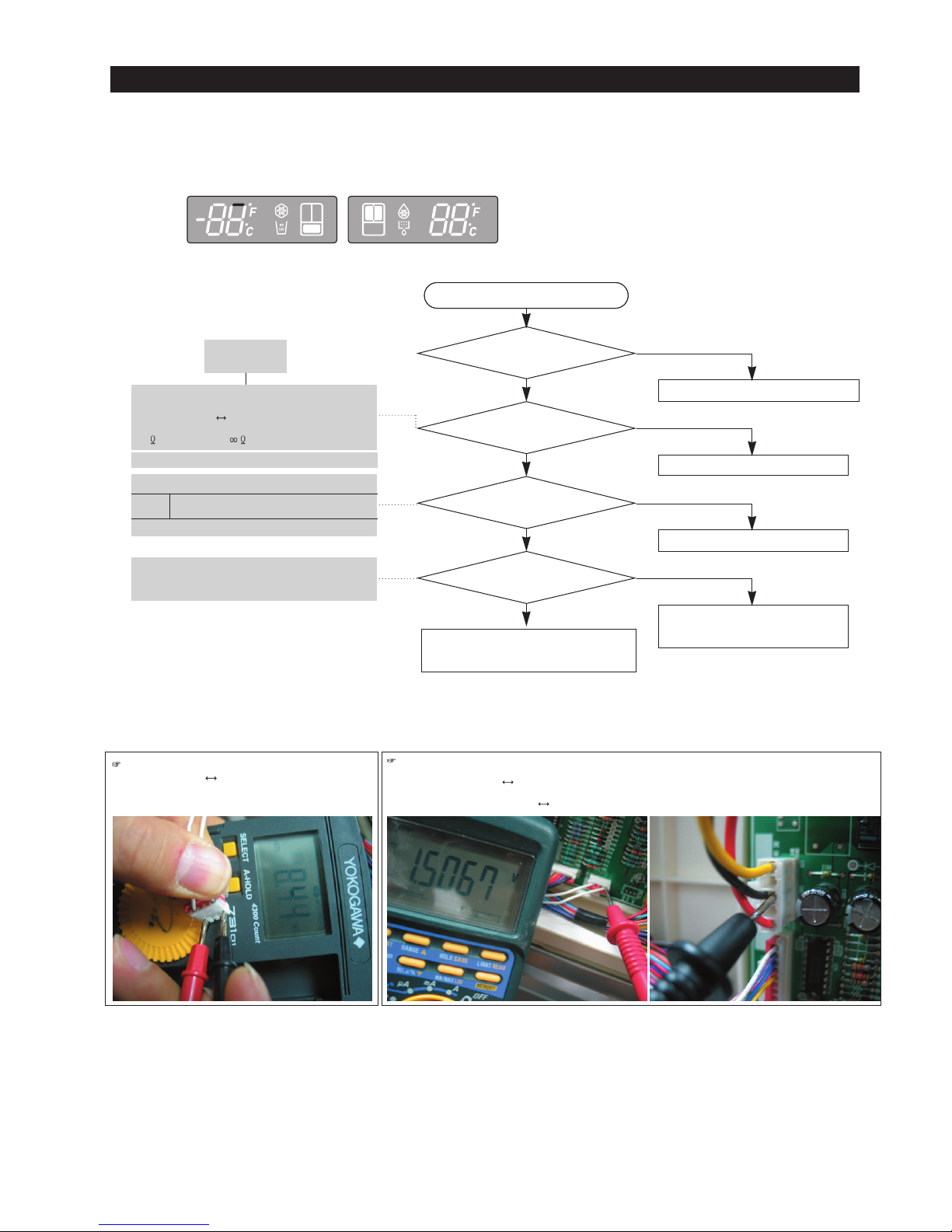

4) If Ambient Sensor has trouble

Bad contact of connector/ insert correctly

Is MAIN PCB

Connector CN32 inserted

correctly?

Is Ambient Sensor

unit normal?

Is the voltage between

MAIN PCB Connector CN32#1(White)

to CN1#3(Black) normal?

Is the input voltage of

IC01 MICOM #59 normal?

Start

NO

YES

YES

YES

YES

Replace the temperature sensor

NO

Recheck the wiring connection

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder

bridging, disturbed solder

NO

No trouble with PCB and temperature sensor

Recheck the bad contact of the connection

** Measuring point of resistance value according to

Sensor **
Ambient : CN32#1 #4 measuring resistance value
** Placed in the right top table of upper hinge.
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC01 MICOM #59,
CN32#1(White) and CN1#3(Black) from

PCB typical Ground part are similar.

Checking method of Ambient Sensor resistance
CN32#1(White) #4(White)

- Compare the temperature table after the
measure

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

Ambient

Connector CN32#1(White) to
CN1#3(Black) PCB typical Ground

Checking method of Ambient Sensor voltage

- Measure the voltage of Sensor Check Point #7(IC01 MICOM #59)
on PCB or CN32#1(White) CN1#3(Black)

- Compare the temperature table after the measure

Measuring voltage of CN32#1(White) CN1#3(Black) are below

typical PCB Ground
CN1#3(Black)

Start

YES

YES

YES

56

TROUBLESHOOTING

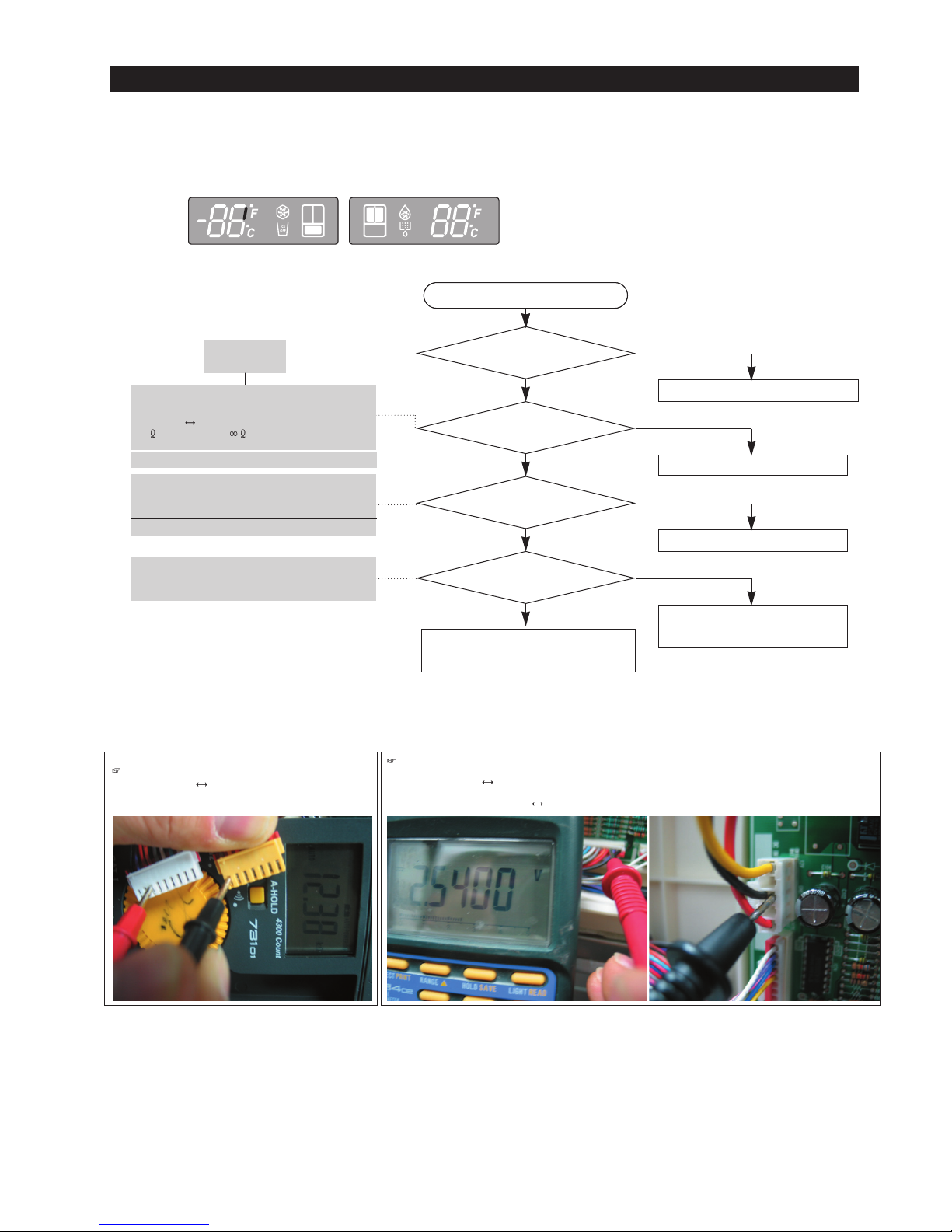

5) If F Sensor has trouble

Bad contact of connector/ insert correctly

Are MAIN PCB

Connector CN30 to CN75

inserted correctly?

Is F Sensor
unit normal?

Is the voltage between

MAIN PCB Connector CN30#3(Red) to

CN1#3(Black) normal?

Is the input voltage of

IC01 MICOM #52 normal?

Start

NO

YES

YES

YES

YES

Replace temperature sensor

NO

Recheck the wiring connection

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder

bridging, disturbed solder

NO

No trouble with PCB and temperature sensor

Recheck the bad contact of the connection

** Measuring point of resistance value according to

Sensor **
F : CN30#3 CN75#1 measuring resistance value
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC01 MICOM #52,

CN30#3(Red) and CN1#3(Black) from

PCB typical Ground part are similar.

Checking method of F Sensor resistance

CN30#3(Red) CN75#1(Gray)

- Compare the temperature table after the measure

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

F

Connector CN30#3(Red) to
CN1#3(Black) PCB typical Ground

Checking method of F Sensor voltage

- Measure the voltage of Sensor Check Point #1(IC01COM #52) on
PCB or CN30#3(Red) CN1#3(Black)

- Compare the temperature table after the measure

Measuring voltage of CN30#3(Red) CN1#3(Black) are below.

typical PCB Ground
CN1#3(Black)

Start

YES

YES

YES

57

TROUBLESHOOTING

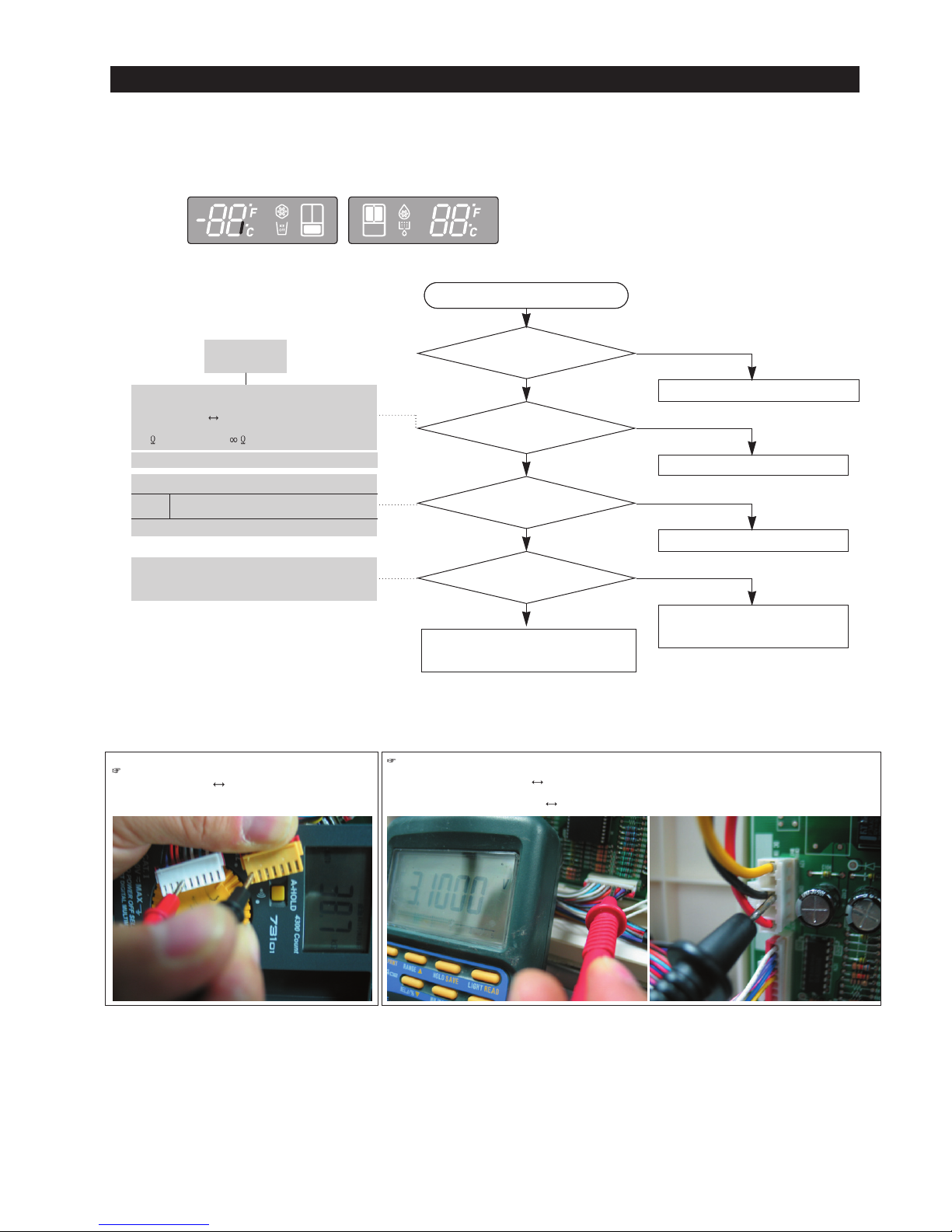

6) If F DEF Sensor has trouble

Bad contact of connector/ insert correctly

Are MAIN PCB

Connector CN30 to

CN75 insert correctly?

Is F DEF Sensor

unit normal?

Is the voltage between

MAIN PCB Connector CN30#4(Orange)

to CN1#3(Black) normal?

Is the input voltage of

IC01 MICOM #53 normal?

Start

NO

YES

YES

YES

YES

Replace temperature sensor

NO

Recheck the wiring connection

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder

bridging, disturbed solder

NO

No trouble with PCB and temperature sensor.

Recheck the bad contact of the connection.

** Measuring point of resistance value according to

Sensor **

F-DEF : CN30#4 CN75#1 measuring resistance

value

** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC01 MICOM #53,

CN30#4(Orange) and CN1#3(Black) from

PCB typical Ground part are similar.

Checking method of F DEF Sensor resistance

CN30#4(Orange) CN75#1(Gray)

- Compare the temperature table after the measure.

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

F DEF

Connector CN30#4(Orange) to
CN1#3(Black) PCB typical Ground

Checking method of F DEF Sensor voltage

- Measure the voltage of Sensor Check Point #1(IC01 MICOM
#52) on PCB or CN30#4(Orange) CN1#3(Black)

- Compare the temperature table after the measure

Measuring voltage of CN30#4(Orange) CN1#3(Black) are below

typical PCB Ground
CN1#3(Black)

Start

YES

YES

YES

58

TROUBLESHOOTING

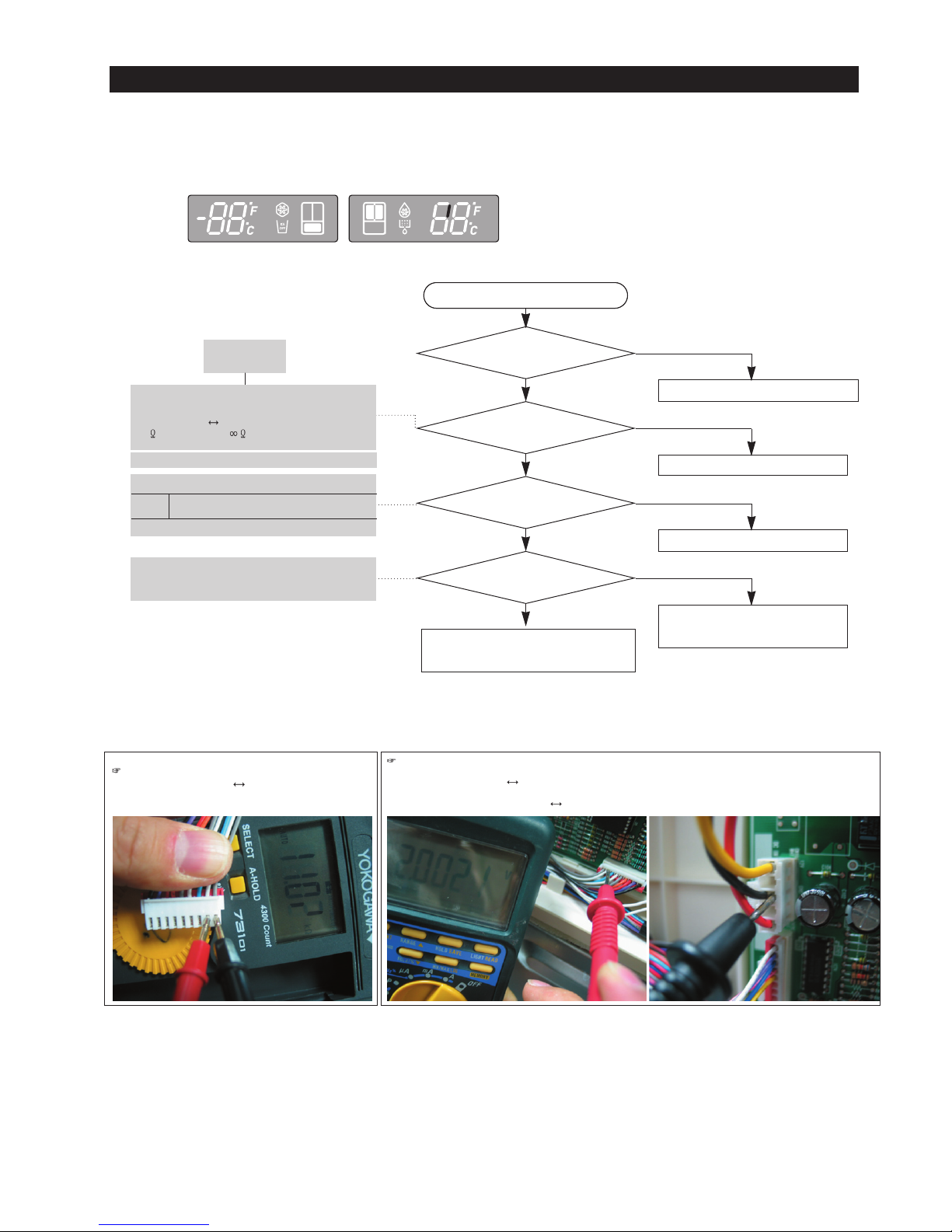

7) If Pantry Sensor has trouble

Bad contact of connector/ insert correctly

Is MAIN PCB

Connector CN30 insert

correctly?

Is Pantry Sensor

normal?

Is the voltage between

MAIN PCB Connector CN30#8(Whiteblack)

to CN1#3(Black) normal?

Is the input voltage of IC01

MICOM Pin# 58 normal?

Start

NO

YES

YES

YES

YES

Replace temperature sensor

NO

Recheck the wiring connection

NO(0.6V > Measurement < 4.6V)

Check the iced-solder, solder

bridging, disturbed solder

NO

No trouble with PCB and temperature sensor.

Recheck the bad contact of the connection.

** Measuring point of resistance value according to

Sensor **
Pantry : CN30#8 #9 measuring resistance value
** 0 : Short trouble / : Open trouble

Sensor MICOM/Connector number

Voltage measured between 4.6V ~ 0.6V.

Measuring voltage of IC01 MICOM #58,

CN30#8(White-black) and CN1#3(Black)

from PCB typical Ground part are similar.

Checking method of Pantry Sensor resistance

CN30#8(White-black) #9(Gray)

- Compare the temperature table after the measure

DATA1.

Temperature table

ERROR Code

Refer to circuit diagram in the manual

Pantry

Connector CN30#8(White-black) to
CN1#3(Black) PCB typical Ground

Checking method of Pantry Sensor voltage

- Measuring voltage of Sensor Check Point #5(IC01 MICOM #58) on
PCB or CN30#8(White-black) CN1#3(Black)

- Compare the temperature table after the measure

Measuring voltage of CN30#8(white-black) CN1#3(Black) are below

typical PCB Ground
CN1#3(Black)

Start

YES

YES

YES

59

TROUBLESHOOTING

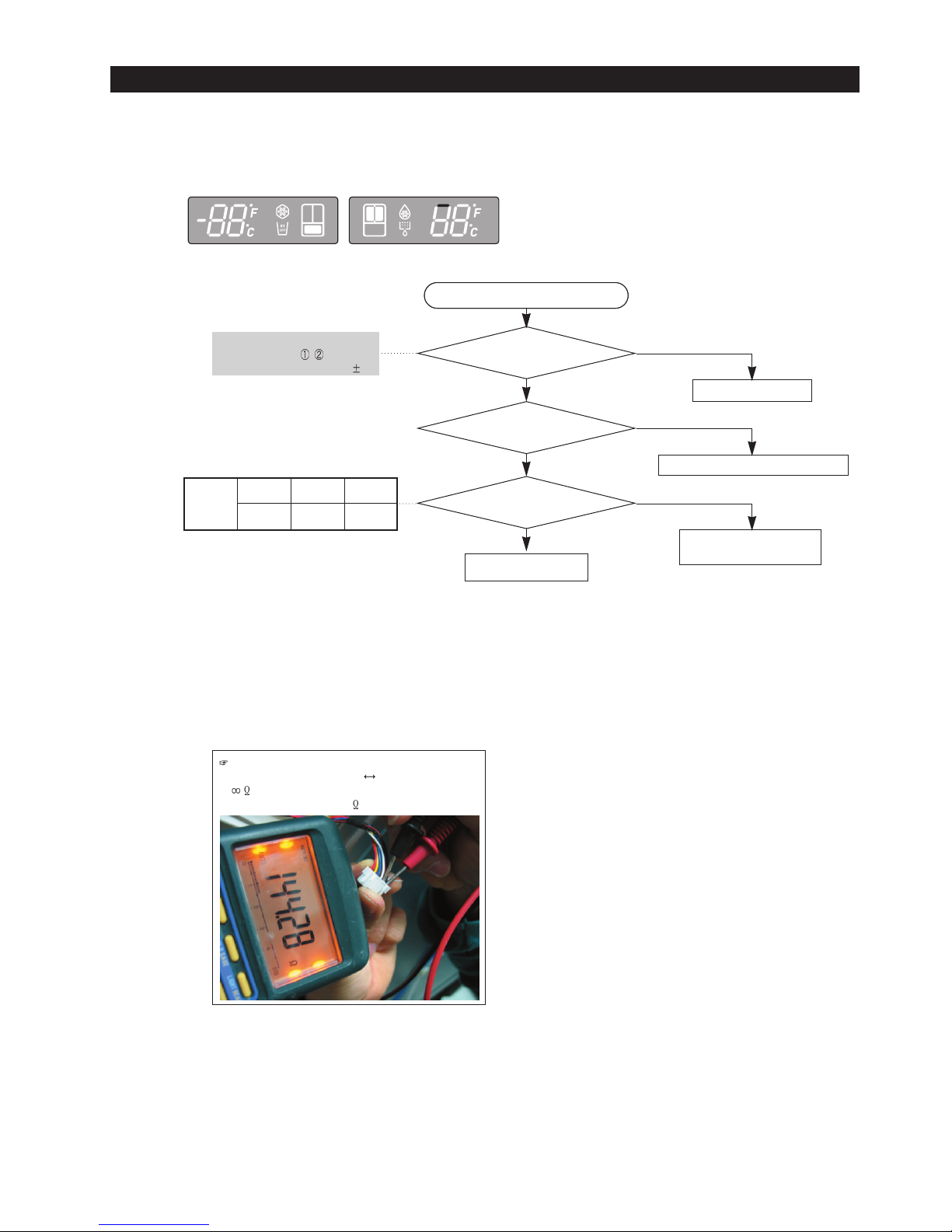

8) If Pantry Room Damper Heater has trouble

Replace Damper

Is Damper Heater

normal?(about145ohm)

Is MAIN PCB connector

(CN91) inserted correctly?

Is the input voltage of

IC02 MICOM #37 normal?

Start

NO

YES

YES

YES

Bad contact of connector/ insert correctly

NO

1) Recheck the wire

2) Replace PCB MAIN

NO

Normal(recheck)

Measure the resistance

between - after

CN90 connector open 145ohm 7%

ERROR Code

Checking method of Pantry Room Damper

resistance CN91#1(Black) #2(Brown)

** : Open(wire disconnection, heater

disconnection) trouble 0 : Short trouble

Start

YES

YES

YES

Initial

power On

Damper

heater off

Damper

heater On

4.0V ~

4.5V

MICOM

#37

condition

4.0V ~

4.5V

0V

60

TROUBLESHOOTING

- The refrigerator of this model has BLDC FAN motor. BLDC motor is driven by DC 7~12V.

- On the normal condition of COMP ON, it operates together with F-FAN motor.
If door is opened and closed once at a high ambient temperature, it will be operated after 1 minute
delay.
Therefore, you are advised not to taken it for an error.

-. If there is a trouble, you should select the self-diagnostic function to check the trouble before power off.

4-2-2. If FAN does not operate

Start

Is COMP ON ?

Door & MICOM State

Door

F FAN pulse voltage

CN75#5(Black)

The voltage measured around 2~3V
with multi-meter though the voltage is
very weak because of pulse signal

Display for checking the self-diagnostic function

R FAN ERROR

typical PCB Ground

CN10#3(Black)

F

MICOM

(#50)

Close

Open

5V(High)

0V(Low)

0V(Low)

5V(High)

R MICOM(#3)

Right and Left

Execute manual

operation

FAN work normally

Repair the connection

of Door switch

Replace MAIN PCB

1) R-FAN 2) F-FAN 3) C-FAN

typical PCB Ground
CN1#3(Black)

Power ON with 5 minutes
delay after power OFF.
For preventing the over
load of compressor)

Expected causes
Check that if FAN-MOTOR has failure
itself.
Check that if wiring connection has bad
contact.
Check the input of the fan motor rotation
pulse when motor fan operates.

CN75-5(F),6(R),7(C)will generate the pulse signal when motor rotates.
These signals will be inputted into MICOM.
Unless signals are not inputted during motor operating, will be ON 10
seconds after fan Off. But if signals are not still entered, the above operation
will restart four times more.
If signals are not entered continuously, the motor will be restarted after 10
seconds.
This function is effective when the normal operation of motor would be
restrained by foreign matters such as ice.

Checking method of R,F,C FAN Motor voltage
The voltage between PCB typical Ground CN1-"3"(Black) and
R FAN ; CN75#2(Yellow) shall be less than DC 7~12V.
F FAN ; CN75#3(Orange) shall be less than DC 7~12V.
C FAN ; CN75#4(Sky-blue) shall be less than DC 7~12V.

- Recheck if resistance values are different after measuring.

Is the voltage between MAIN

PCB CN1#3 (Black) and CN75#2

(Yellow) around DC7~12V?

Is the voltage between MAIN

PCB CN1#3 (Black) and CN75#3

(Orange) around DC7~12V?

Is the voltage between MAIN

PCB CN1#3 (Black) and CN75#4(Sky

-blue) around DC7~12V?

Is the voltage between MAIN

PCB CN1#3 (Black) and CN30#2

(Purple) around 0V?

Is the voltage between MAIN

PCB CN1#3 (Black) and CN30#1

(Black) around 5V?

Does DC7~12V alternate with

below DC 2V between MAIN PCB

CN1#3(Black) and CN75-#2(Yellow)

Does DC7~12V alternate with below

DC 2V between MAIN PCB CN1#3(Black)

and CN75#3(Orange)

Does DC7~12V alternate with below

DC 2V between MAIN PCB CN1#3(Black)

and CN75#4(Sky-blue)

In initial power to appliance, the compressor
and fans of fresh food/ freezer, compressor
fan operate. If freezer temperature is
sensed of 41

by momentary power

failure, fans will operate after 5 minutes.

Reference

F FAN ERROR

C FAN ERROR

61

TROUBLESHOOTING

1. Water is automatically supplied to the Ice maker by temperature & time and ice maker dispenses
cubed or crushed ice.

2. Power is applied to one of its wires. So, refer to its exploded diagram when disassembling.

3. The operation of the Ice maker shall be checked after pressing the Ice maker test switch.
(Freezer compartment Ice Maker) It is not possible to check when the power is disengaged.

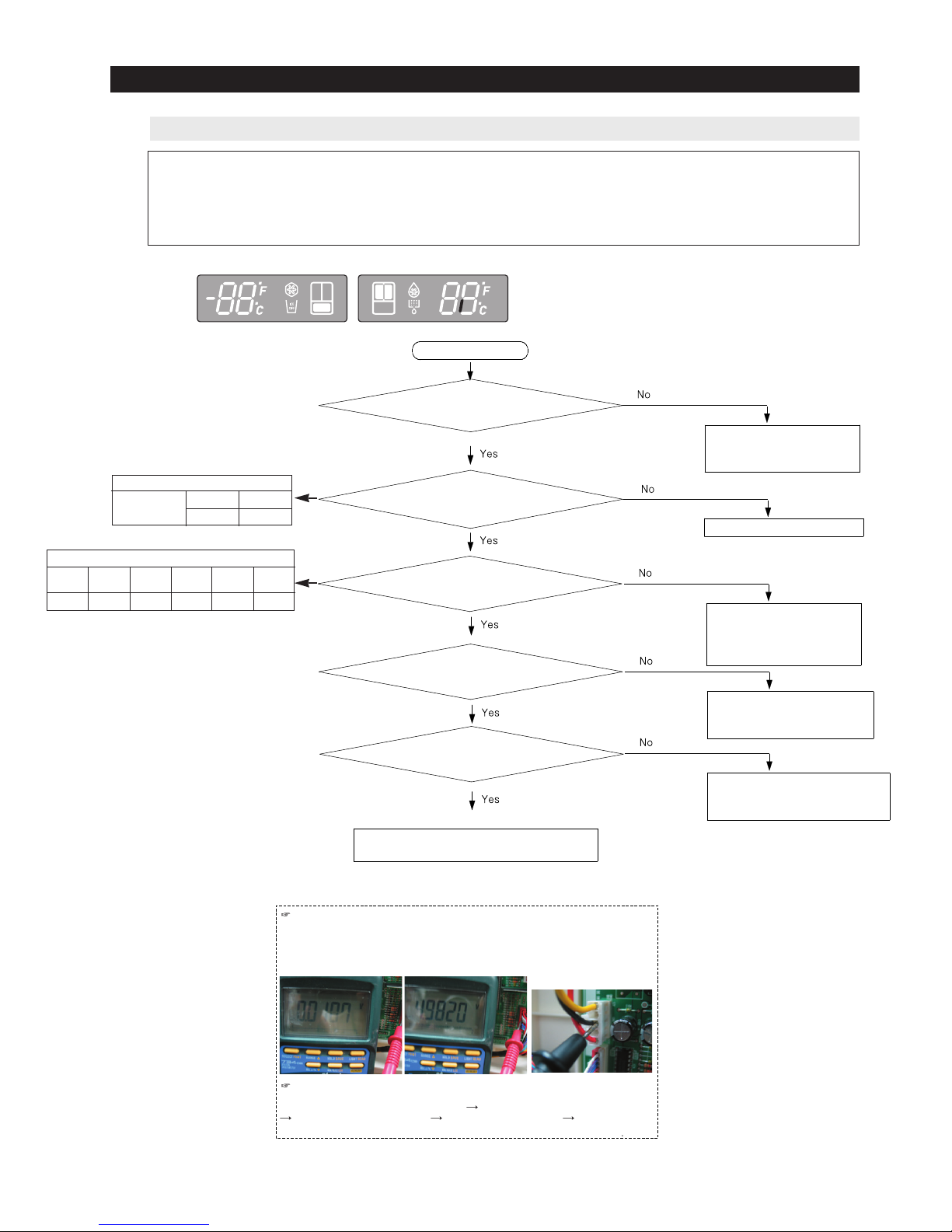

4-2-3. If ICE MAKER does not operate

Checking method of ICE Maker voltage

The voltage between PCB typical Ground CN1#3(Black) and

1) Test switch operation(press selected) ; CN90#5(Gray) shall be DC 0V.
Waiting for test switch operation ; CN90#5(Gray) shall be less than DC 5V.

Checking method of ICE Maker voltage

The voltage between PCB typical Ground CN1#3(Black) and

2) IC02 MICOM #27 voltage ; wait(5V) rotate clockwise(0V)
rotate counterclockwise(5V) horizontal condition(0V) wait(5V)

* The voltage of MICOM #27 and Connector CN90#7(Purple) are same.

1)Test Switch operating 1)Test Switch waiting

typical PCB Ground
CN1-"3"(Black)

Function ERROR Code

Start

Does the self-diagnostic

function for detecting position of Ice maker at the

initial Power ON?

Micom(IC02) Condition

Ready Operation

#29

(Test Switch)

5V 0V

Does ice maker rotate when Ice

maker test switch is pressed?

Is the input voltage of IC02

MICOM #27 normal?

Is water supplied after a

certain time?

Is Ice maker sensor

unit normal?

No trouble with PCB and temperature sensor.

Recheck bad contact of the connection.

1) Check the wiring connection

2) Replace the ICE MAKER KIT

Replace the ICE MAKER KIT

1) Check the wiring connection
part

2) Replace ICE MAKER KIT

3) Replace the MAIN PCB

1) Replace the Water Valve
* refer to operation condition of

water valve

1) Repair ICE Maker Sensor
* Refer to solution when ICE Maker

Sensor has trouble

Ready Rotation

Reverse-

Rotation

Return-

Rotation

Ready

Micom(IC02) Condition

#27 5V 0V 5V 0V 5V

62

TROUBLESHOOTING

- If defrost has trouble, select the self-diagnostic function to detect the error of defrost heater before
Power Off. (Check the function with refer to the self-diagnostic function)

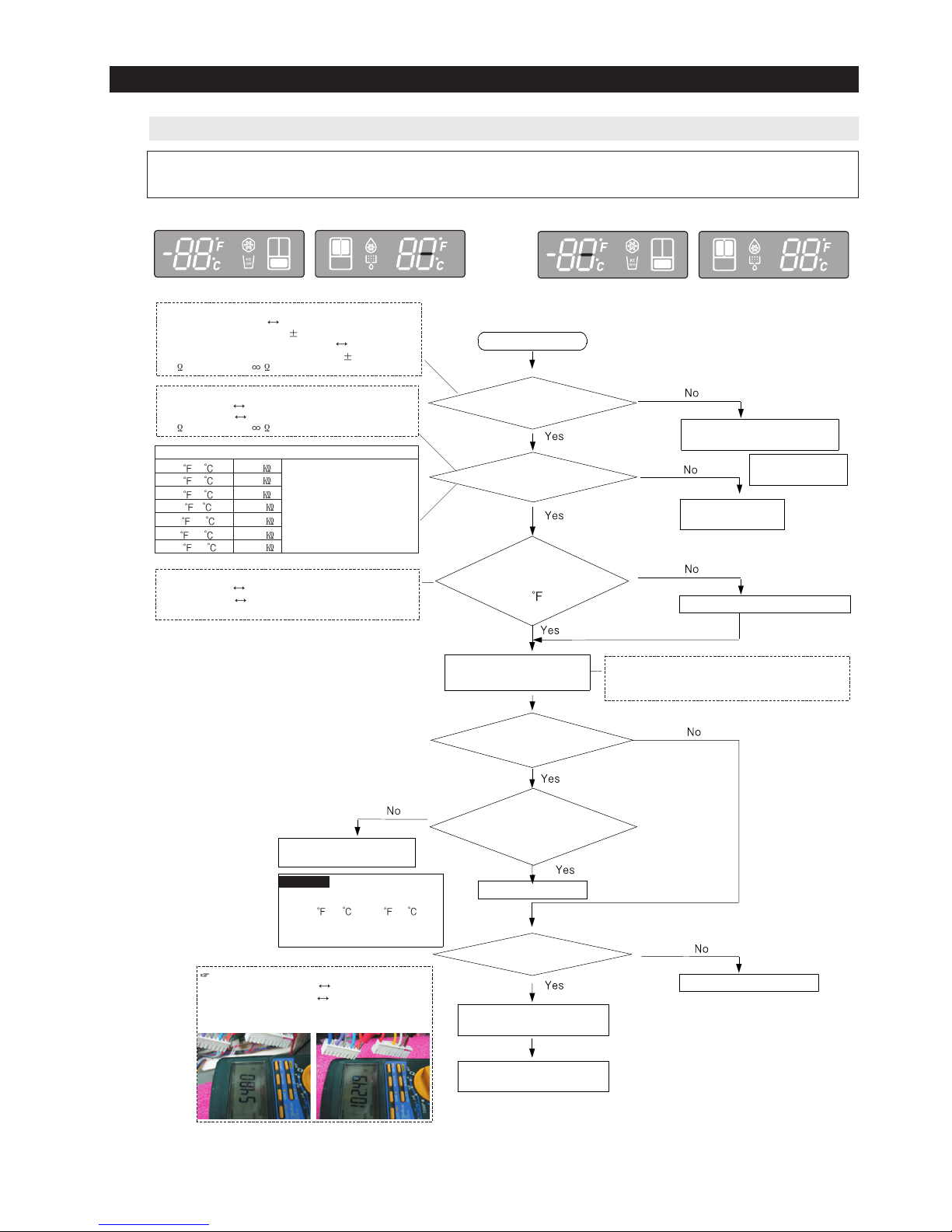

4-2-4. If defrost does not operate (F,R DEF Heater)

R DEF ERROR F DEF ERROR

Start

Are the all deforst

heater normal?

Check the bimetal, heater
disconnection, wiring connection etc.

Refer to self-diagnostic

function in the manual

Replace the
applicable sensor

manual operation for a certain time

Manual defrosting of fresh food

and freezer compartments

operate simultaneously.

Resistance value of sensor according to temperature

If you need the

temperature with detail,

refer to DATA1.

temperature

table

**Measuring point of resistance value according to sensor **
F-DEF : CN30#4 CN75#1 measuring resistance value
R-DEF : CN30#7 CN75#1 measuring resistance value
** 0 : Short trouble / : Open trouble

**Measuring point of resistance value according to heater**
F-DEF : CN70#9(Brown)

CN71#9(Orange) measuring

resistance value(55(220) ohm

7%)

R-DEF(Ice Pipe parallel) : CN70#7(White)

N71#9(Orange)

measuring resistance value(105(407) ohm

7%)

** 0

: Short trouble / : Open(bimetal, heater) trouble

86

(30 )

68

(20 )

50

(10 )

32

(0 )

14

(-10 )

-4

(-20 )

-22

(-30 )

4.22

6.05

8.87

13.29

20.42

32.23

52.41

If Power Freeze Key + Fridge Key are pressed
simultaneously for 8 seconds and then select any key,
3rd test mode(manual defrosting) will be operated.

Is the temperature of

defrost sensor lower

than 53.6

(12°C)?

Is defrost sensor by

self-diagnostic normal?

Is power applied to

each defrost heaters?

Is connection terminal of

MAIN PCB part normal?

Recheck the applicable

sensor.

**Measuring point of resistance value according to sensor **
F-DEF : CN30#4

CN75#1 measuring resistance value

R-DEF : CN30#7

CN75#1 measuring resistance value

** 0V: Short trouble / 5V: Open trouble

Normal

Repair connection terminal

Reference If defrost sensor

temperatures of fresh food and
freezer compartments are higher
than 50

(10 ), 53.6 (12 ) by
the heating from heater, heating
would be finished and will return
to cooling operation after a pause.

Check bimetal, heater itself,

disconnection etc.

Replace failure Relay or

replace PCB ASS'Y

Does the system return

to cooling operation after

heating for specified time?

Checking method of F,R DEF Heater resistance value

F FEF ; CN70#9(Brown)

CN71#9(Orange)

R FEF ; CN70#7(White)

CN71#9(Orange)

- Recheck if resistance values are different after the test

1) F DEF Heater 2) R DEF Heater

63

TROUBLESHOOTING

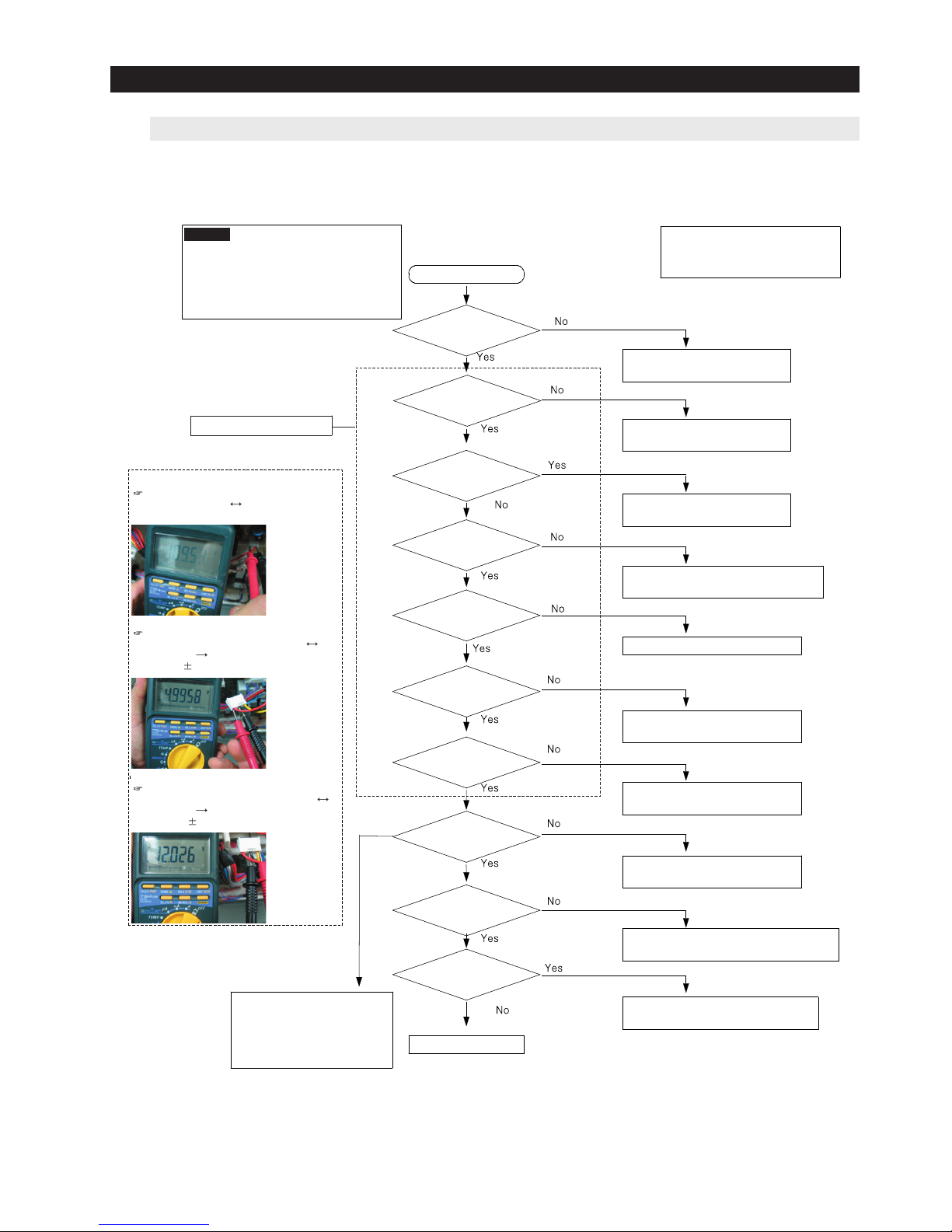

4-2-5. If Power is not supplied

Caution

At the power of main PCB, the
AC115(220)V power and a high­voltage over DC 170(325)V are
occurred. Please take care of
yourself on repair and measurement.

Check in SMPS PBA

Start

- Refer to function and
reference parts in the manual
when check the MAIN PCB

Connect plug again,
check the plug loosening

Check the assembly and wire
connection

1) Replace FUSE AC 250V 2.0A

2) Replace SMPS assembly

Replace PCB ASS'Y

1) Replace U4 (D10LC20U)

2) Replace PCB ASS'Y

1) Replace REG1 (KA7805)

2) Replace PCB ASS'Y

1) Check assembly wire and repair

2) Replace Panel PCB

1) Solder again

2) Replace PCB MAIN

- Check MAIN PCB connection

- Check the connections
between cabinet to door

- Check the connections
between door to panel PCB

1) Check the contact of lead wire

2) Replace the applicable relay / PCB MAIN

1) Check PCB PATTERN and replace BD1

2) Replace PCB ASS'Y

Is plug connected in?

Is power 115(220)V

both terminals of SMPS

PCB CN1?

Is fuse on the SMPS

PCB down?

Is DC170(325)V applied

both

terminals of BD1+,-

Is DC5.8V

applied between TOP

switch 246Y C to S?

Is 12V applied both

terminals of C16?

Is 5V applied both

terminals of C19?

Does Panel PCB

operate normally?

Is normal load such

as Relay?

Is there any PCB

soldering, short,

breakage?

Normal(Recheck)

Checking method of SMPS voltage CN1
input ; CN1#1(Red) #3(Black) AC voltage

Checking method of SMPS 2nd output
voltage CN2 input ; CN2#1(Red)
#3(Black) same as C19 terminals..
DC 5V 0.3V

Checking method of SMPS 2nd output
voltage CN2 input ; CN2#5(Yellow)
#3(Black) same as C16 terminals.
DC 12V 0.6V

64

TROUBLESHOOTING

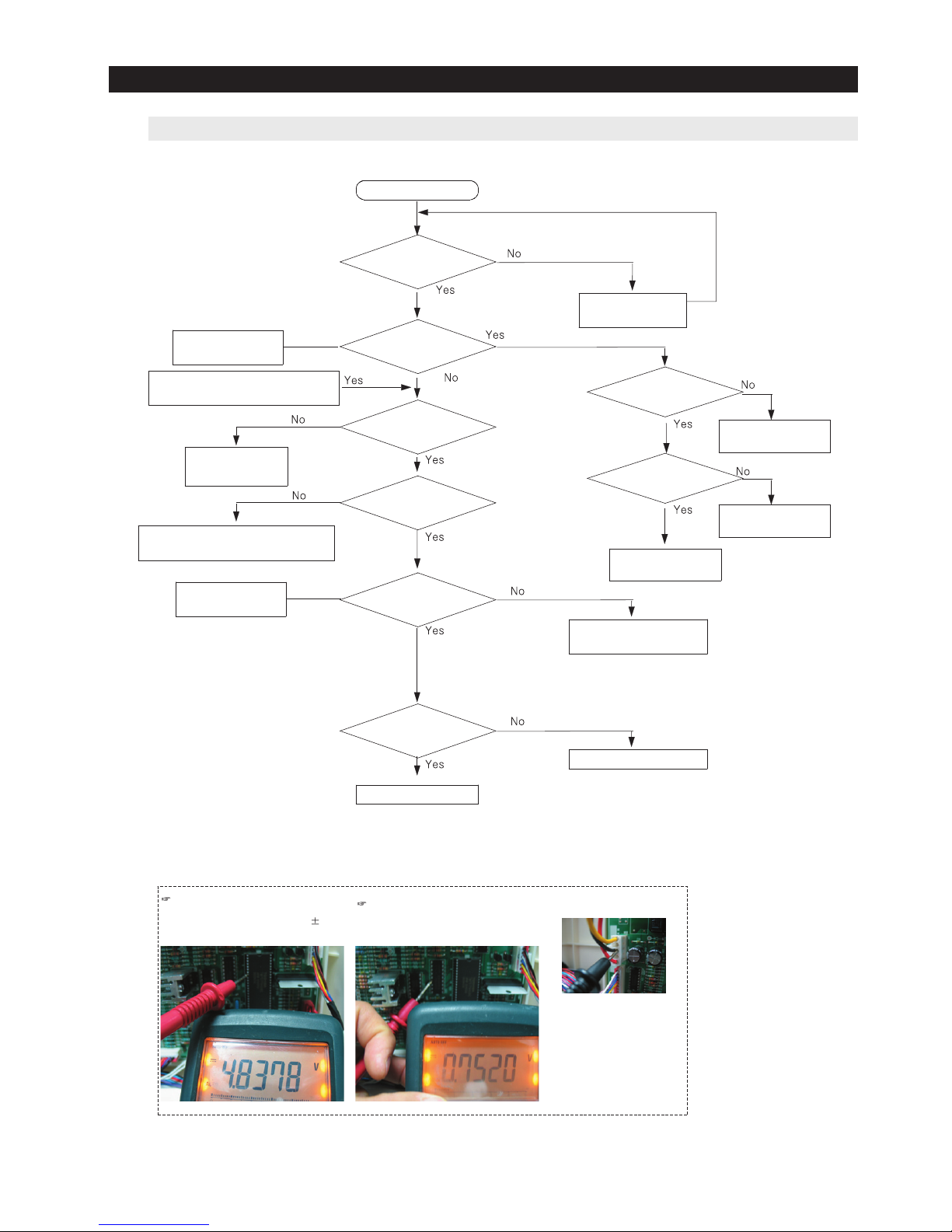

4-2-6. If compressor does not operate

Start

Did 5 mins pass

after COMP OFF ?

Does compressor work
with manual operation?

Is IC02 MICOM #8

High?(5V)

Is freezer sensor

normal?

Is the temperature sensor

of MAIN PCB normal?

Is IC72 #15 about

0.8V?

Is CN71 connector

normal?

Is COMP ASS'Y

normal?

Normal (recheck)

Replace COMP ASS'Y

Check bad contact of

connector

OPEN and repair

the connection

Repair the sensor

and replace PCB

Open and repair

the connection

Check after

5 minutes

Refer to test function

in the manual

1) Replace MICOM

2) Replace PCB

Refer to circuit diagram
in the manual

1) Replace IC72 Driver IC(TD62083AP)

2) Replace PCB

Did buzzer of manual operation sound?
(Check certainly after manual operation)

Checking method of voltage PCB typical
Ground CN1#3(Black) and

1) IC02 MICOM #8 ; voltage High(5V 0.5V)
IC02 MICOM #8, COMP operating

Checking method of voltage
PCB typical Ground CN1#3(Black) and

1) IC72 #15 : Voltage Low(0V)

typical PCB Ground
CN1#3(Black)

65

TROUBLESHOOTING

4-2-7. When alarm sound continuous without stop(related with buzzer sound)

Start

Door is ajar

Start

Is door closed

completely?

Is water penetrated

into the door switch?

Is the connector(CN30)

inserted correctly?

Is manual operation

/defrost selected?

Does buzzer sounds

when power On again?

Is the door switch unit

normal?

Is the input

voltage of main #50 and #3

changed at door-open,

door-close?

If 'ding-dong' sounds continuously

If 'beep-beep' sounds continuously

Remove causes after comprehending
the conditions of interference by door
gasket, food etc.

Replace Door S/W

Replace Door S/W

MAIN PCB normal

Check if there is any short parts
due to foreign matters and the
test jumper part in the main­PCB.

Recheck MAIN PCB and

door switch

Separate the door switch and check if
the measured value of unit is
changed from 0 to according
to switch ON/OFF.
* FF Door Switch is magnetic switch .
(it can be operated when door
magnet is combined with)

Repair wire connection and
Door S/W

Connector is not inserted,
Repair bad contact

Enforce the cancelation the
manual operation/ defrost function
or power On after power Off

Door & MICOM State

DoorFMICOM

(#50)

Close
Open

5V(High)
0V(Low)

0V(Low)
5V(High)

R MICOM(#3)

Right and Left

66

TROUBLESHOOTING

If buzzer does not sound

Buzzer is installed on the panel PCB in this model.
If buzzer does not sound when button is pressed, manual operation is started and door is opened,
should separate panel PCB and check the breakage of buzzer and bad soldering.
It is very hard to repair the panel PCB because it consists of SMD assemblies.
It is recommended to replace assembly PCB when the failure associated with panel is occurred
except the minor error such as switch pressing error, surface peeling off and so on.

Start

Does it sound

'dingdong' if press a button

on the front panel?

Is the damage

or breakage of the buzzer in

the panel PCB?

Did lead of a component

fall on the vibration plate of

buzzer?

Does it make a

sound of 'dooropen' alarm when

you are opening the door of freezer or

fridge more than 2 minutes?

MAIN PCB normal,
BUZZER normal

Check the panel PCB with reference
of <how to check Panel Display>

Replace(repair) buzzer
Replace Panel PCB

Replace buzzer
Replace Panel PCB

Recheck the button pressing
force and mechanical problem

67

TROUBLESHOOTING

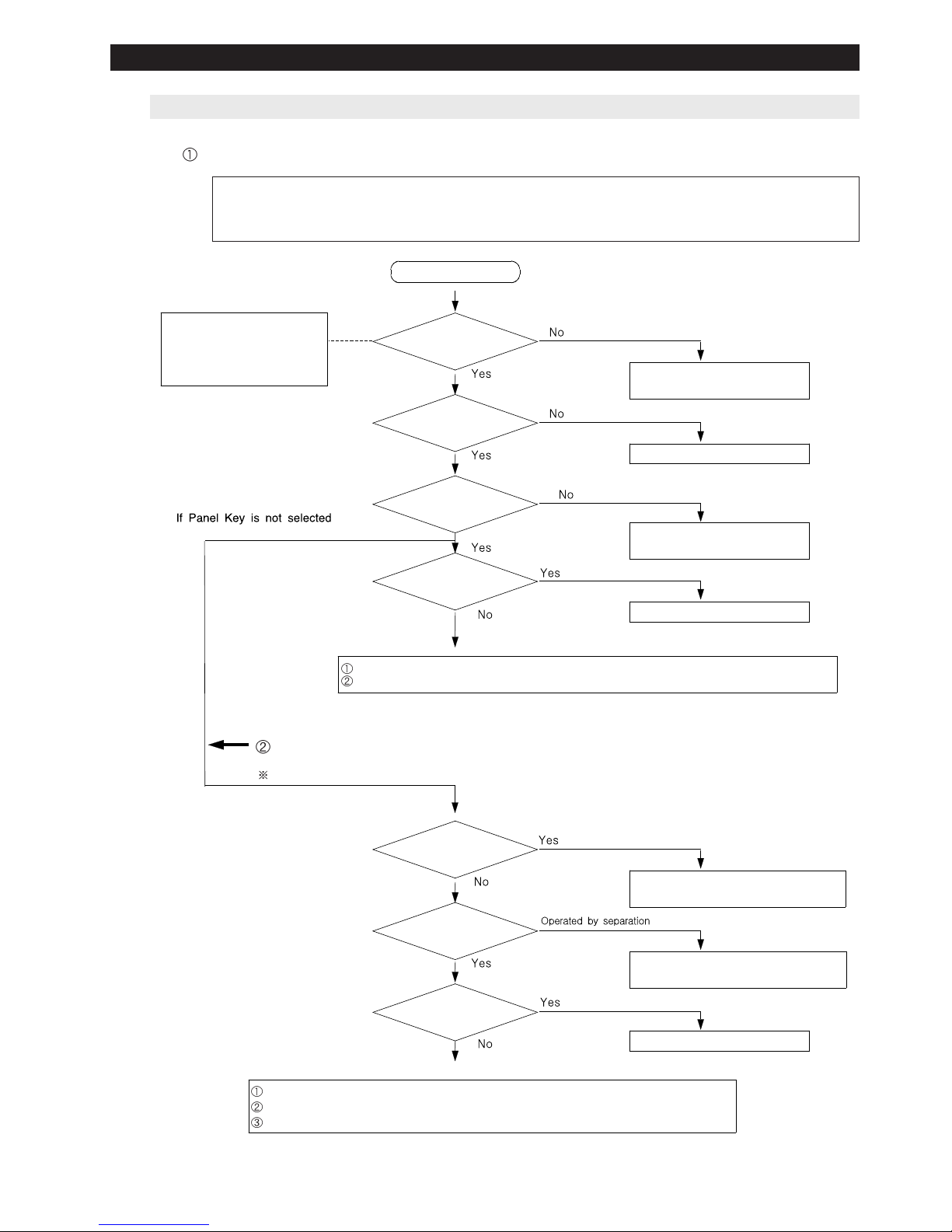

4-2-8. If Panel PCB does not work normally

When lighting of Panel PCB is disabled or only some LED Lamp are disabled

Be careful to repair because display of this model is installed in the MICOM of internal PCB.
It is recommend to replace PCB MAIN after checking except specified solder touch.

Start

Is the connector of
upper hinge cover
inserted correctly?

Is MAIN PCB
connector (CN50)
inserted correctly?

Is Top Table

Panel PCB connector

inserted correctly?

Is lighting operate

normally when replace

Panel-PCB?

Are one or more keys

pressed continuously?

Is the PCB system

still operated by separating

of the mechanism?

Is the lighting operated

normally when replace the

Panel-PCB ?

Refer to electronic circuit
diagram in the manual or
circuit diagram on the back
side of the appliance

Reinsert connector,
Repair bad contact

Reinsert connector of MAIN PCB

Reinsert connector,
Repair bad contact

Panel PCB itself has trouble.

Reassemble the PCB ASS'Y /
Enforce the cancelation of pressed keys

Reassemble the PCB ASS'Y /
Enforce the cancelation of pressed keys

Panel PCB itself has trouble.

Check the wire of Top Table Panel - disconnection, short between wires
Check the wires between fresh food compartment upper cabinet - MAIN PCB - disconnection, short between wires

Check the wires of Top Table Panel - disconnection, short between wires.
Check the wires of fresh food compartment upper cabinet - disconnection, short between wires.
Check the short/open of the panel communication and power supply circuit in MAIN PCB.

If Panel PCB KEY is not selected
If it is not repaired with using the basic checking method as above

68

TROUBLESHOOTING

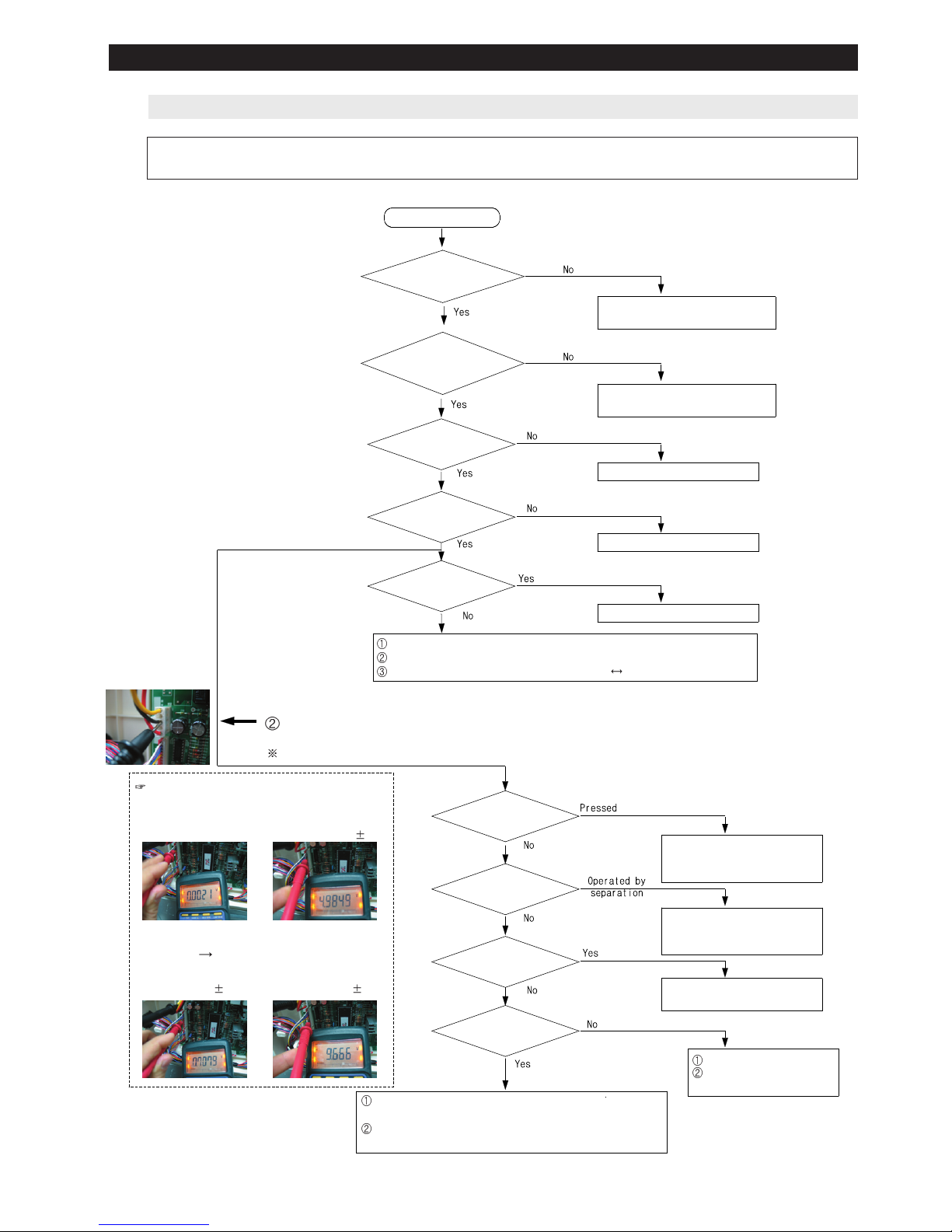

4-2-9. If Pantry Panel PCB is not working normally

You should check the display after door opening because the display of this model operates only when
the fresh food compartment door is opened.

Start

Does fresh food

compartment door switch

operate normally?

Is the connector of

pantry room in fresh food

compartment inserted

correctly?

Is MAIN PCB

Connector (CN78) inserted

correctly?

Is signal of MAIN

PCB CN78 normal?

Is the lighting

operated when replace Pantry

Panel-PCB?

Is a key pressed

continuously?

Is the PCB system

still operated by separating

of the mechanism?

Is the lighting operated

when replace Pantry

Panel-PCB?

Is a normal voltage

outputted from MAIN PCB IC74

in the key operating?

Check and repair the switch
* Refer to<how to repair door switch>

Reinsert Connector,
Repair bad contact

Reinsert connector in MAIN PCB

Check voltage/Replace MAIN PCB

Panel PCB itself has trouble.

Reassemble PCB ASS'Y /
Enforce the cancelation of
pressed keys

Reassemble PCB ASS'Y /
Enforce the cancelation of
pressed keys

Convertible compartment Panel
PCB itself has trouble.

Replace MAIN PCB
Check the short of MAIN
Panel wire

Check the wires of Pantry Room - disconnection, short between wires
Recheck the control circuit of MAIN PCB Pantry Panel
Check the wire assembling between Panel MAIN

Check the wire of Pantry Room - disconnection, short
between wires
Check the short/open of the pantry panel lighting
circuit in MAIN PCB.

If Panel Panel PCB Key is not selected

If Panel Key is not selected

If it is not repaired with using the basic checking method as above

typical PCB Ground
CN1#3(Black)

Checking method of voltage Based on
PCB typical Ground CN1#3(Black)

1) Key voltage ; CN78#1"(Purple)

2) LED part voltage ; CN78-"7"(Yellow),
"8"(Pink)

Voltage of CN78 is same as

IC74 #12,#11 voltage.

1) select(operating) (0V)

2) normal(about5.0V

0.5V)

- Display On (0.7V 0.3V) - Display Off (9.7V 1V)

69

TROUBLESHOOTING

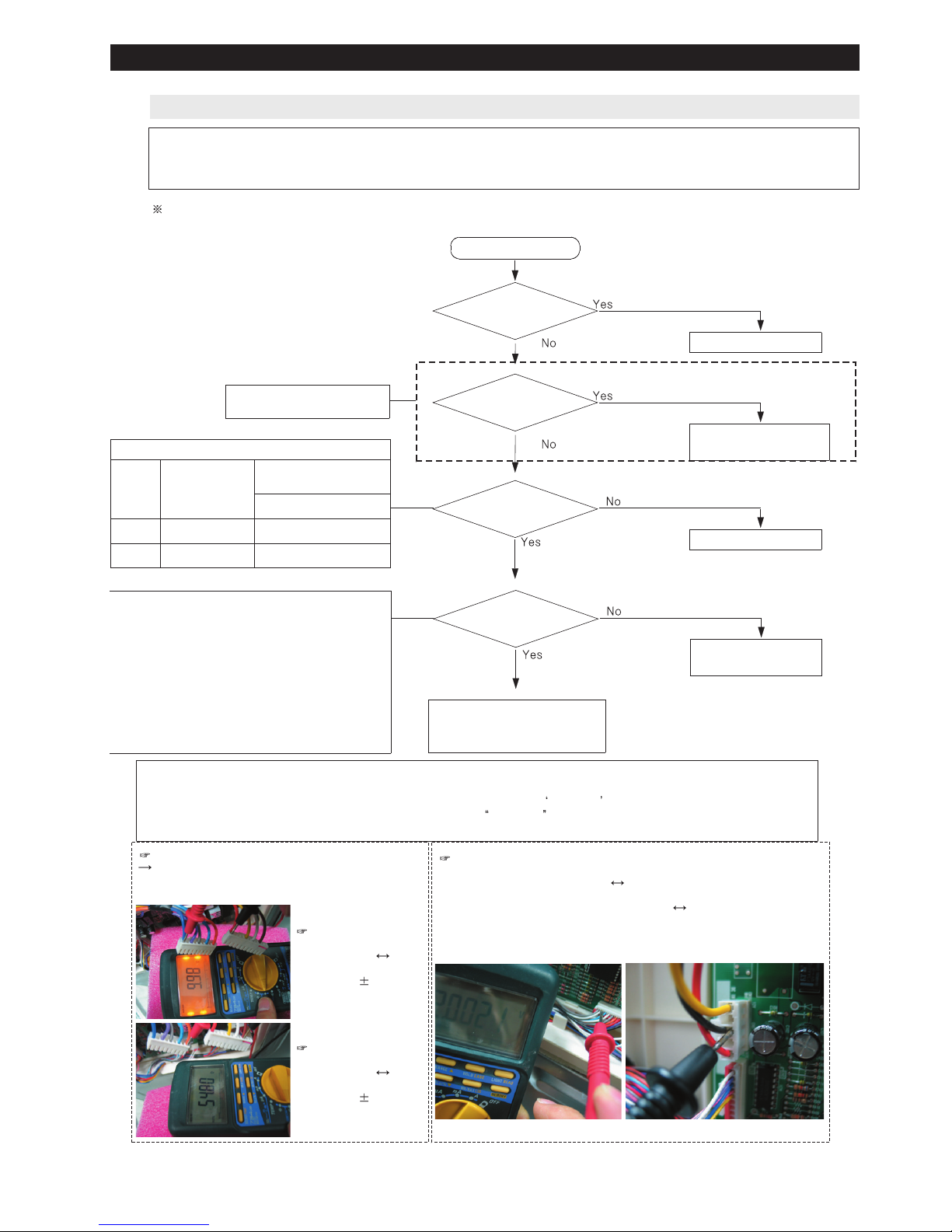

4-2-10. When refrigerator ROOM Lamp does not light up

1. When you replace the lamp of freezer, please power OFF to avoid an electric shock.

2. Please keep in mind you could get burnt by the excessive heating of an incandescent light bulb.

3. Bimetal is installed in the refrigerator LAMP. Check that if LAMP may be OFF by bimetal.

The case of fresh food compartment(room) lamp will be explained only.
Because it is possible to repair the other room lamps with the same method.

Start

Is the inside lamp

filament cut?

Is Lamp OFF by

bimetal operating?

Is the connection

point of R-door switch

normal?

Is the control relay

of the inside lamp in PCB

normal?(RY76)

Repair the inside lamp

Fresh food compartment
Lamp is applied only.

Repair door switch

Replace PCB and
Replace Relay

Check the connection of RDoor
switch and repair the inside lamp
socket

Reference

* The interior lamp relay operates lighting/lightout

according to door open / close.

* If interior lamp does not light, check the noise of relay

operation.

* Noise of relay operation sounds every Door Open /

Close.
* F-LAMP Relay -- RY75
* R-LAMP Relay -- RY76

Reference
If the door is opened, the contact of door switch will be opened and MICOM will get applied 5V to finally sense Open.
If 5V has been sensed over two minutes afterwards, Door-Open alarm will sound

Ding-Dong for 10 seconds in a oneminute cycle. For
that reason, if the door switch has failure, the refrigerator can make a Ding-Dong sound per a oneminute cycle. Please note the step
for its service.

Wait for returning time
of bimetal

When measure lamp resistance to the Wire
Resistance can be changed by Lamp input voltage.
(Actual measurement is below, it can be changed by
performance)

Checking method of Door Switch voltage

- Measuring voltage of Sensor Check Point #5(IC01 MICOM #58) on
PCB or CN30#8(White-black) CN75#1(Gray)

- Compare time table after measuring

Measuring voltage of CN30#8(white-black) CN75#1(Gray) are below

Fresh food
compartment lamp
CN70#1(Red)
CN71#1 (Blue) ;
10(33)Ohm 3 Ohm
Lamp ; 60W + 60W

Freezer
compartment lamp
CN70#1(Red)
CN71#3 (Purple) ;
15(66)Ohm 5 Ohm
Lamp ; 60W

typical PCB Ground CN10#3"(Black)

Door & MICOM State

Door

F

MICOM

(#50)

Close
Open

5V(High)

0V(Low)

0V(Low)

5V(High)

R MICOM(#3)

Right and Left

70

TROUBLESHOOTING

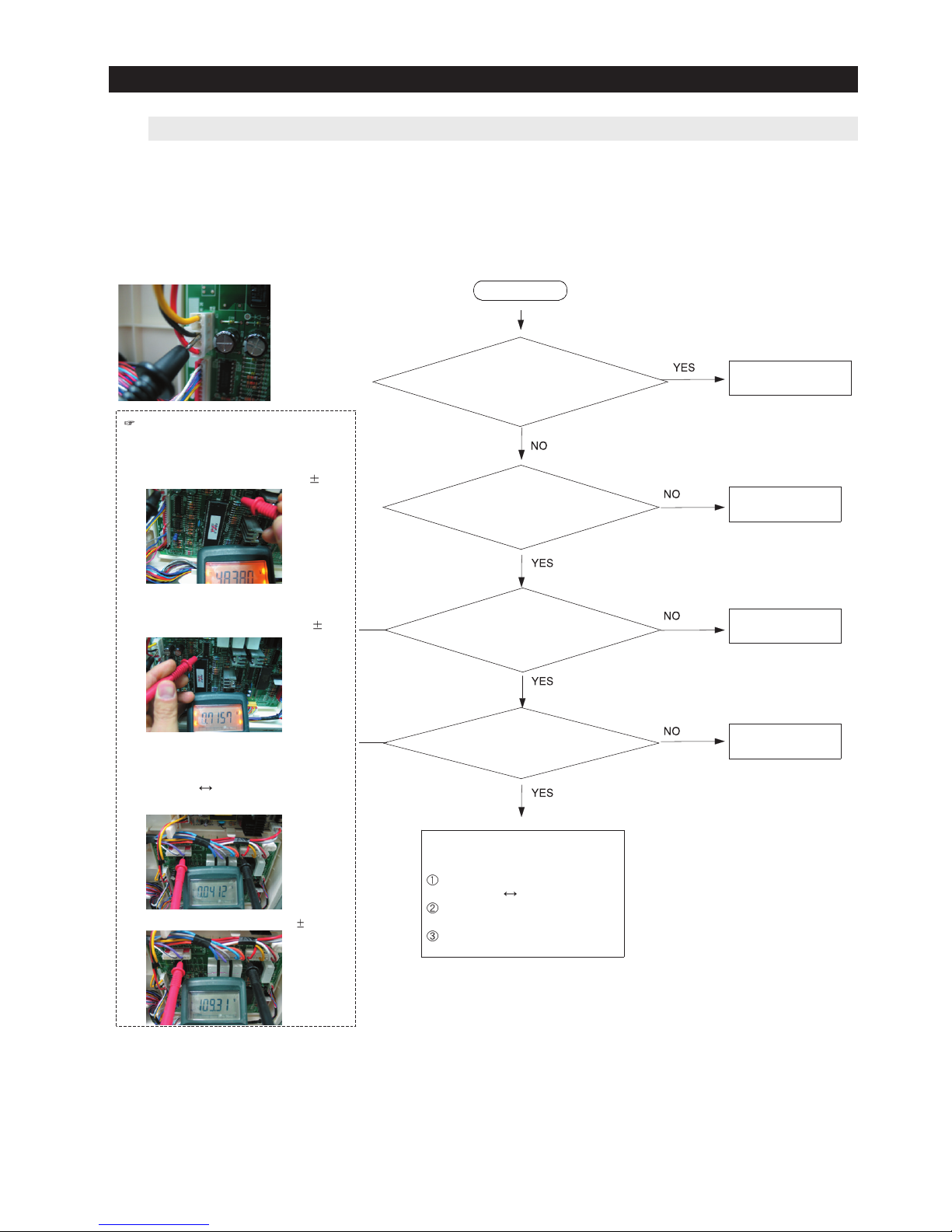

4-2-11. If ICE Water is not supplied

Start

Is the confirming sound of

the valve operation heard when

Ice maker test switch pushed?

Does Main PCB MICOM

#12 have high (5V)output?

Does Main PCB IC73

#13 have about 0.7V

output?

Is the contact point of main

PCB RELAY RY79 normal?

MAIN PCB normal

-- Need to check the other parts
Check the wire between Ice
water valve MAIN PCB
Ice water valve itself has trouble
or bad contact of connector
Check the connection hose

Normal(Check Ice
water valve hose)

Check soldering
short/Replace PCB

Check soldering
short/Replace PCB

Check soldering
short/Replace PCB

typical PCB Ground CN1#3(Black)

Checking method of voltage Based on
PCB typical Ground CN1#3(Black)

1) Check the voltage of IC73#4(same voltage
as IC02 #12)

- ICE Water valve operating (about 5V 0.5V)

Based on PCB typical Ground CN1#3(Black)

2) IC73 #13 voltage

- ICE Water valve operating (about 0.7V

0.5V)

3) Check the voltage of ICE Water Valve

operating(AC voltage)
=> For checking the Relay RY79 operating.
CN70#1(Red)

CN73#7(Purple)

- ICE Water valve waiting (about AC 0V)

- ICE Water valve operating (about AC 110V 20%)

71

TROUBLESHOOTING

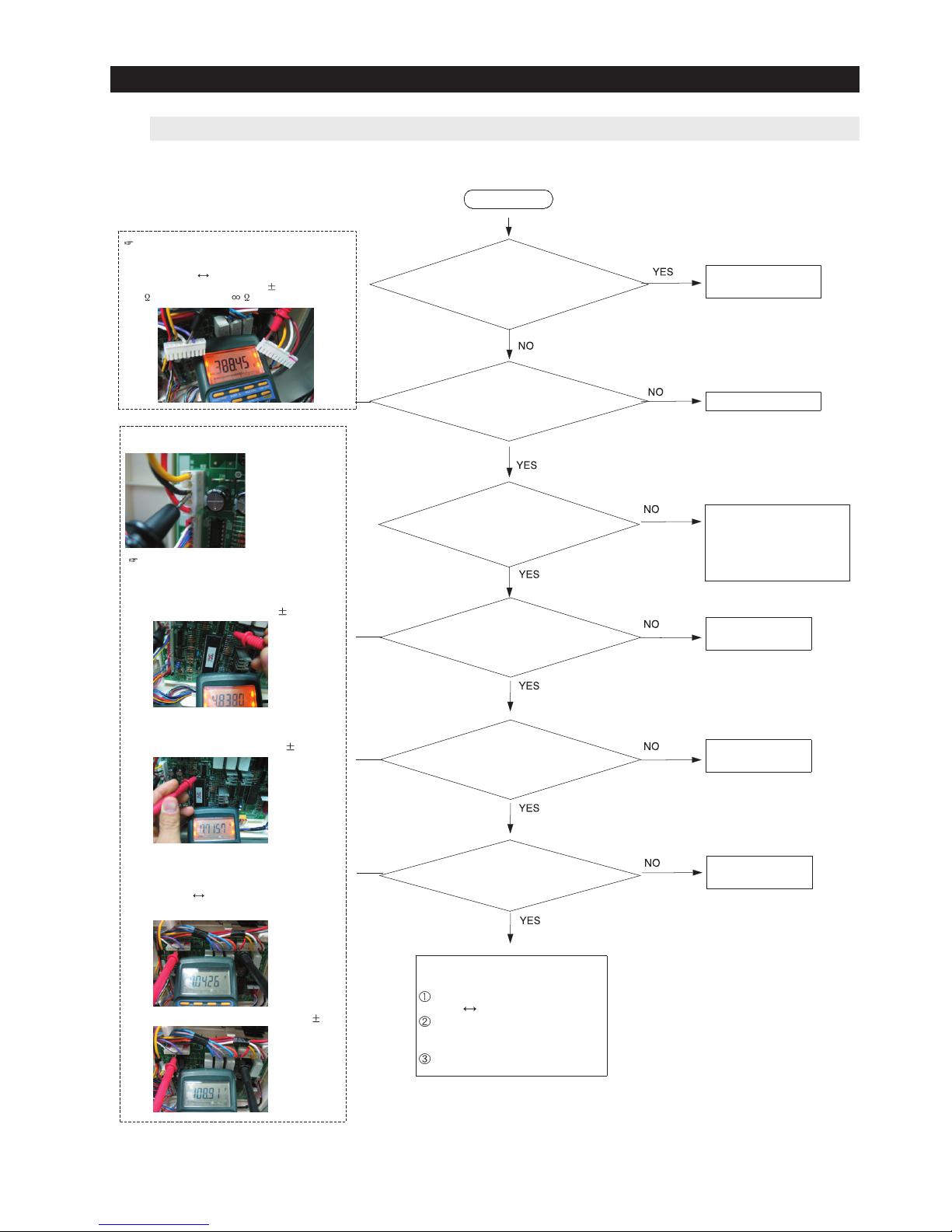

4-2-12. If Water is not supplied

Checking method of Valve resistance (Must

power off for checking)
Resistance can be changed by input voltage.
CN70#1 (Red) CN73#5 (White-black)

- resistance value ; 388Ohm 7%)
** 0 : Short trouble / : Open trouble

Start

Is the confirming sound of
the valve operation heard

when dispenser switch

pushed?

Is the valve unit normal?

Is the voltage of PCB IC01

MICOM #15 changed 0V~5V

according to switch On/Off?

Does Main PCB IC73 #3

have about 5V input?

Does Main PCB IC73 #14

have about 0.7V output?

Is the contact point of main

PCB RELAY RY7A normal?

MAIN PCB normal

-- Need to check the other parts
Check the wire between water
valve MAIN PCB
Ice water valve itself has
trouble or bad contact of
connector
Check the connection hose

Normal(Check Ice
water valve hose)

Replace Valve

Check soldering
short/Replace PCB

Check soldering
short/Replace PCB

Check soldering
short/Replace PCB

1) Check the dispensing
lever

2) Check switch unit/ wiring
connection

3) Replace PCB

typical PCB Ground CN1#3(Black)

Checking method of voltage

Based on PCB typical Ground CN1#3(Black)

1) Check voltage of IC73# (same voltage as
IC01#64)

- Water valve operating (about 5V

0.5V)

Based on PCB typical Ground CN1#3(Black)

2) IC73 #14 voltage

- Water valve operating (about 0.7V

0.5V)

3) Check the voltage of Water Valve operating
(AC voltage)

=> For checking the Relay RY7A operating.
CN70#1(Red)

CN73#5(White-black)

- ICE Water valve waiting (about AC 0V)

- ICE Water valve operating (about AC 110(230)V 20%)

72

5 . EXPLODED VIEW& PARTS LIST

5-1) Freezer 73

5-2) Refrigerator

76

5-3) Cabinet

80

5-4) Disassembly of Freeze Door

84

5-5) Disassembly of Refrigerator Door Left

86

5-6) Disassembly of Refrigerator Door Right

89

RF265/266

73

EXPLODED VIEW& PARTS LIST

5-1) Freezer

1-6

5-2

5-3

7-2

7-1

8-1

8-2

9-3

9-4

10-4

21-8

21-3

21-6

21-12

21-2

21-1

21-10

21-4

21-14

21-5

21-11

10-3

12-3

20-3

21-13

21-9

21-7

20-2

20-1

15-3

15-1

15-2

12-2

12-4

12-1

10-2

10-1

9-2

9-1

8-3

5-5

5-7

5-6

5-4

5-1

1

5

6

8

7

2

3

9

11

12

13

14

15

16

17

18

19

20

21

17

10

4

1-3

1-4

1-7

1-5

1-2

1-1

74

EXPLODED VIEW& PARTS LIST

NNOO

1
1-1
1-2
1-3
1-4
1-5
1-6
1-7

2

3

4

5
5-1
5-2
5-3
5-4
5-5
5-6
5-7

6

7
7-1
7-2

8
8-1
8-2
8-3

9
9-1
9-2
9-3
9-4

10
10-1
10-2
10-3
10-4

11

12
12-1
12-2
12-3
12-4

13

14

15
15-1
15-2
15-3

16

17

18

QQUUAANN

TTIITTYY

1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1

CCOODDEE--NNOO

DA96-00364D

6501-000123

DA32-00006Q

DA47-00243B
DA47-00244A
DA59-00358A
DA61-02901A
DA61-03187A
DA63-02902B
DA63-03420A

4713-001223
DA97-05037A
DA59-00294A
DA60-10132A
DA61-00954B
DA61-01800A
DA61-03213B
DA63-02183A
DA63-02284B
DA63-03613A
DA97-04845A
DA61-03189A
DA67-01231A
DA97-04849A
DA63-03435A
DA63-03436A
DA63-03437A
DA97-04834B

6002-000458
DA61-03334A
DA63-40167A
DA63-03416A
DA97-04833A

6002-000458
DA61-03159A
DA63-40167A
DA63-03417A
DA63-03414A
DA97-04836A
DA34-00047A
DA61-03154A
DA61-03158A
DA66-00436A
DA66-00437A
DA67-00859C
DA97-04835A
DA61-03154A
DA61-03333A
DA66-00435A
DA63-03415A
DA61-03190A
DA34-10120E

SSVVCC--CCOODDEE

RF011

RO101

RI074
RF030
RF011

RI157
RF026

RI222
RF031

RI081

RM023
RM001

RS080

RQ582
RM027
RM010

RI021

RM011
RM003

RM012

RI247

RI064

RI062

RI064

RI177
RS059

RI187

RI220

RI225

RI178
RS059

RI188

RI220

RI226

RI223

RI171

RO151

RI170

RI184

RI242

RI244
RD059

RI173

RI170

RI185

RI243

RI224
RF122
RF041

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY EVAP-FRE
CABLE TIE
SENSOR TEMP-F-DEF
THERMO BIMETAL-PROTECTOR
HEATER-METAL SHEATH
EVAP FRE
FIXER-SENSOR EVAP
PLATE-DRAIN FRE
COVER-FIXER HOUSING,V
COVER-LAMP FRE
LAMP INCANDESCENT
ASSY-SUPPORT ICE MAKER
ICE MAKER-ASSY
SCREW-TAPPING
GUIDE-ICE FULL
FIXER-SENSOR(ICE MAKER)
SUPPORT-ICE MAKER
COVER-SENSOR
TRAY ICE
COVER-ICE MAKER
ASSY CASE-ICE CUBE
CASE-ICE CUBE
SCOOP ICE
ASSY TRAY-FRE UPP
COVER-TRAY FRE UPP A
COVER-TRAY FRE UPP B
TRAY-FRE UPP
ASSY RAIL-SLIDE UPP L
SCREW-TAPPING
RAIL-SLIDE UPP L
GROMMET-COVER SLIDE
COVER-RAIL UPP L
ASSY RAIL-SLIDE UPP R
SCREW-TAPPING
RAIL-SLIDE UPP R
GROMMET-COVER SLIDE
COVER-RAIL UPP R
COVER-RAIL LOW L
ASSY RAIL-SLIDE LOW L
SWITCH PRESSURE
FIXER-GEAR
RAIL-SLIDE LOW L
GEAR-L
SHAFT-GEAR
CAP-DOOR HANDLE
ASSY RAIL-SLIDE LOW R
FIXER-GEAR
RAIL-SLIDE LOW R
GEAR-R
COVER-RAIL LOW R
FIXER-TRAY FRE UPP
SWITCH DOOR-F

SSPPEECC

AW-PJT,PIN,115V/240
DACT140,W3.6,L146,NTR,NYLON66
PX41C,40~110,5V,FDEF SENSOR,YEL,500MM

AW-PJT(F),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW-PJT,240W,115V,55.1,F-ROOM
PIN,115V,AW-PJT
CORE-PJT,PP,NTR
AW-PJT,GALVANUME,T0.4
NEXT-PJT,GALVA,T0.3,W31,L42
AW,GPPS,NTR
120V,500mA,60W,47x84mm
AW-PJT
NTGN,DC12V
PH,+,PI3,L15,PASS,STS430,2S
AW,ABS,NTR
AD,URETHANE
AW-PJT,HIPS,NTR
AD,PP,T1.0,WHITE
AD,PP,NTR,BJ73SLW180
AW-PJT,HIPS,COOL WHITE
AW-PJT
AW-PJT,PP,COOL WHITE
W2-PJT(05),PP(BJ703T4),SC02740R
AW-PJT
AW-PJT,HIPS,COOL WHITE
AW-PJT,GPPS
AW-PJT,HIPS,COOL WHITE
AW-PJT
FH,+,2,M4.0,L14,PASS,STS304
AW-PJT,STS430
T3.0,SILICON,NTR
AW,HIPS,COOL WHITE
AW-PJT
FH,+,2,M4.0,L14,PASS,STS304
AW-PJT,STS430
T3.0,SILICON,NTR
AW-PJT,HIPS,COOL WHITE,
AW-PJT,ABS,COOL WHITE
AW-PJT
AW-PJT,HIPS,COOL WHITE
AW-PJT,POM,NTR
AW-PJT,STS430
AW-PJT,POM,NTR
AW-PJT,SM25C
CORE,POM,-,-,-,INOX,SC-06034R
AW-PJT
AW-PJT,POM,NTR
AW-PJT,STS430
AW-PJT,POM,NTR
AW-PJT,ABS,COOL WHITE
AW-PJT,PP,NTR
slide,250V,0.5A,cool white

■■

Parts List of Freezer

75

EXPLODED VIEW& PARTS LIST

NNOO

19

20
20-1
20-2
20-3

21
21-1
21-2
21-3
21-4
21-5
21-6
21-7
21-8
21-9

21-10
21-11
21-12
21-13
21-14

QQUUAANN

TTIITTYY

1
1
6
2
1
1
3
4
1
1
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA61-03416A
DA97-04848A

6002-000213
DA61-03160A
DA63-03418A
DA97-04938A

6002-000213

6002-000215
DA31-00124A
DA31-00146C
DA39-00060K
DA61-03183A
DA61-03184A
DA61-20128A
DA62-01384A
DA63-01146A
DA63-01808A
DA63-01809A
DA63-03432B
DA63-40167A

SSVVCC--CCOODDEE

RI218
RI227

RS047

RI181

RI237
RF005
RS047
RS080

RI085

RI089
RF028
RF120
RF092

RW716

RI232
RO138
RO137
RF083
RF005

RI087

RREEMMAARRKKPPAARRTT NNAAMMEE

GUIDE-DRAWER BOX
ASSY TRAY-DRAWER BOX
SCREW-TAPPING
REINF-DRAWER BOX
TRAY-DRAWER BOX
ASSY COVER-EVAP FRE
SCREW-TAPPING
SCREW-TAPPING
FAN-AX100W4CC-T1
MOTOR BLDC
WIRE HARNESS-MOTOR
CASE-MOTOR FRE
PLATE-INS EVAP FRE
SPRING ETC-FAN
INSULATION-EVAP FRE
GROMMET-MOTOR,REAR
GROMMET-MOTOR,FRONT
COVER MOTOR-BLDC
COVER-EVAP FRE
GROMMET-COVER CHIL

SSPPEECC

AW-PJT,HIPS,COOL WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,SECC1,T3.0,COOL WHITE
AW-PJT,PP,COOL WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
TD-PJT,ABS
2950,DC12V,150mA,2.1W,MOTORBLDC
ATOP,351510410,N00909204,BLDC,R,FFAN
AW-PJT,BUBBLE PP,NTR
AW-PJT,GALVANUME,T0.4
STS304,PI7.8,OD1.0,FD
AW-PJT,FOAM-PS
ATOP,NBR,ID6.5,OD42,BLK,BLDC
BLDC,NBR,BLACK,H20
BLDCNEW,PP,NTR,BJ730
AW-PJT,PP,NTR
T3.0,SILICON,NTR

■■

Parts List of Freezer

76

EXPLODED VIEW& PARTS LIST

5-2) Refrigerator

1-3

1-6

1-2

1-1

1-4

1-7

1-5

1

2

3

3-9

3-12

3-7

3-13

3-8

3-11

3-10

3-17

3-20

3-18

3-3

3-6

3-16

3-2

3-1

3-14

3-4

3-19

3-5

3-15

4-2

4-1

4-5

4-3

4-4

10-3

10-1

10-2

10-4

11-3

11-2

11-5

11-7

11-6

11-4

11-1

12-2

12-1

13-2

14-1

14-2

14-4

14-3

15-1

15-2

23-2

23-3

23-1

23-4

15-3

19-2

21-2

21-3

22-2

22-1

24-2

24-1

21-1

29-2

30-4

30-2

30-5

31-6

31-2

31-3

31-1

31-4

31-5

30-3

29-3

29-1

19-1

19-3

13-1

11-8

6

5

7

7

10

11

12

13

14

15

18

16

17

19

20

23

22

24

25

26

27

33

28

30

32

31

29

21

8

9

4

77

EXPLODED VIEW& PARTS LIST

NNOO

1
1-1
1-2
1-3
1-4
1-5
1-6
1-7

2

3
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
3-9

3-10
3-11
3-12
3-13
3-14
3-15
3-16
3-17
3-18
3-19
3-20

4
4-1
4-2
4-3
4-4
4-5

5

6

7

8

9

10
10-1
10-2
10-3
10-4

11
11-1
11-2
11-3
11-4
11-5

QQUUAANN

TTIITTYY

1
2
1
1
1
1
1
1
1
1
3
4
1
1
1
1
2
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
2
1
1
4
6
1
1
1
1
4
1
2
1
1

CCOODDEE--NNOO

DA96-00365E

6501-000123
DA32-00006S
DA47-00243C
DA47-00244B
DA97-00357B
DA61-00453A
DA61-03188A
DA63-02902B
DA97-04939E

6002-000213

6002-000215
DA31-00124A
DA31-00146C
DA39-00060K
DA61-03181A
DA61-03182A
DA61-03186A
DA61-20128A
DA62-01381A
DA62-01382A
DA62-01383A
DA62-01423A
DA63-01146A
DA63-01808A
DA63-01809A
DA63-03430A
DA63-03517A
DA63-40167A
DA64-02065A
DA97-04842C
DA32-00006T
DA61-03163A
DA61-03169A
DA47-40001D
DA47-00243D
DA63-03773A

4713-001223
DA61-03180A
DA61-03179A
DA67-01688A
DA97-04850A

6002-001397
DA67-01606A
DA67-01608A
DA67-01609A
DA97-04832A

6002-000213
DA01-00400A
DA61-03166A
DA61-03173A
DA63-03428A

SSVVCC--CCOODDEE

RI016

RO101

RI074

RF030

RI016

RM017

RF026

RI222

RI008
RS047
RS080

RI085

RI089
RF028
RF121

RI210

RI141

RW716

RI231

RI233

RI232

RI236

RO138
RO137

RF083

RI008

RI240

RI087

RI241

RI246

RI139

RI119

RI151

RI074

RI078

RI081

RI248
RS080

RI248

RI249

RI250

RI997
RS047

RI208

RI209

RI010

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY EVAP-REF
CABLE TIE
SENSOR TEMP-R-DEF
THERMO BIMETAL-PROTECTOR
HEATER-METAL SHEATH
EVAP REF
FIXER-SENSOR
PLATE-DRAIN REF
COVER-FIXER HOUSING,V
ASSY COVER-EVAP REF
SCREW-TAPPING
SCREW-TAPPING
FAN-AX100W4CC-T1
MOTOR BLDC
WIRE HARNESS-MOTOR
CASE-MOTOR REF
GUIDE-INS EVAP REF
PLATE-INS EVAP REF
SPRING ETC-FAN
INSULATION-EVAP REF
INSULATION-EVAP REAR
INSULATION-EVAP SUB
INSULATION-EVAP DUCT
GROMMET-MOTOR,REAR
GROMMET-MOTOR,FRONT
COVER MOTOR-BLDC
COVER-EVAP REF
COVER-EVAP REF SUB
GROMMET-COVER CHIL
TRIM-COVER EVAP REF
ASSY CASE LAMP-REF
SENSOR TEMP-R
CASE-LAMP REF
PLATE LAMP REF
LAMP HOLDER ASSY
THERMO BIMETAL PROTECTOR
COVER-LAMP REF
LAMP INCANDESCENT
ANGLE-SHELF REF SIDE
ANGLE-SHELF REF MID
CAP-ANGLE
ASSY SHELF-GLASS REF FIX
SCREW-TAPPING
SHELF-GLASS REF FIX
SHELF-HANGER REF L
SHELF-HANGER REF R
ASSY COVER-VEG
SCREW-TAPPING
GLASS-COVER VEG
FIXER-COVER VEG
REINF-COVER VEG
COVER-VEG REF

SSPPEECC

AW-PJT(265,266),115V/120W,-,-,-,­DACT140,W3.6,L146,NTR,NYLON66

PX41C,502AT,AW-PJT,40~110,5V,RDEF SENSOR,YEL,400MM
AW-PJT(R),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW-PJT,120W,115V,110.2?,RROOM
AW-PJT
ATOP,EVAP,PP,NTR,ALL
AW-PJT,GALVANUME,T0.4,
NEXT-PJT,GALVA,T0.3,W31,L42
AW-PJT(BASIC)
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
TD-PJT,ABS
2950,DC12V,150mA,2.1W,MOTORBLDC
ATOP,351510410,N00909204,BLDC,R,FFAN
AW-PJT,BUBBLE PP,NTR
AW-PJT,ABS,NTR
AW-PJT,GALVANUME,T0.4
STS304,PI7.8,OD1.0,FD
AW-PJT,FOAMPS
AW-PJT,FOAMPS
AW-PJT,FOAMPS
AW-PJT,FOAMPS,T20,W44.5,L45
ATOP,NBR,ID6.5,OD42,BLK,BLDC
BLDC,NBR,BLACK,H20
BLDCNEW,PP,NTR,BJ730
AW-PJT,HIPS,NTR,
AW-PJT,HIPS(HG1760SF),COOL -WHT
T3.0,SILICON,NTR
AW-PJT,ABS,COOL -WHITE
AW-PJT
PX-41C, 502AT,AW-PJT,-40~1
AW,HIPS,COOL WHITE
AW,SBHG1,T0.4
E26,250V,660W,TE5006F

AW-PJT(R-Lamp),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW,PC,crystal
120V,500mA,60W,47x84mm
AW,SECC1,T2.0,COOL -WHITE
AW,SECC1,T2.0,COOL -WHITE
AW-PJT,HIPS,COOL -WHITE
AW-PJT
TH,+,1,M4,L10,ZPC(WHT),SWRCH18A,HD6.5,HT2
AW,PP,INSERT
AW,SECC1,T1.6,COOL -WHITE
AW,SECC1,T1.6,COOL -WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
756*343,T3.2,1 PRINT
AW,HIPS,COOL -WHITE
AW-PJT,SHP1,T2.9,BLACK
AW,HIPS,COOL -WHITE

■■

Parts List of Refrigerator

78

EXPLODED VIEW& PARTS LIST

NNOO

11-6
11-7
11-8

12
12-1
12-2

13
13-1
13-2

14
14-1
14-2
14-3
14-4

15
15-1
15-2
15-3

16

17

18

19
19-1
19-2
19-3

20

21
21-1
21-2
21-3

22
22-1
22-2

23
23-1
23-2
23-3
23-4

24
24-1
24-2

25

26

27

28

29
29-1
29-2
29-3

30
30-1
30-2

QQUUAANN

TTIITTYY

2
2
2
1
1
1
1
1
1
2
1
1
2
2
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
6
1

CCOODDEE--NNOO

DA64-00817A
DA66-00438A
DA66-10104A
DA97-04839A
DA61-03172A
DA66-10104A
DA97-04840A
DA61-03177A
DA66-10104A
DA97-04846A
DA61-03165A
DA63-03426A
DA66-10104A
DA71-20145A
DA97-04952B
DA63-03516B
DA64-02113A
DA73-00230A
DA61-03327A
DA66-00451A
DA34-00011A
DA97-05033B

6002-000213

DA63-03449A

DA97-02650F
DA67-01605A
DA97-04831C
DA63-40167A
DA63-03424A
DA63-03425A
DA97-04841A
DA61-03174A
DA67-01604A
DA97-04856B
DA31-00071C
DA32-00006R
DA62-01380A
DA63-03419A
DA97-02019A
DA32-10105B
DA63-10467B
DA61-03202A
DA63-03685B
DA97-01666Y
DA61-03167A
DA97-04830C
DA61-03176A
DA63-03422A
DA97-05297B
DA97-04847D

6002-000213

DA61-03164A

SSVVCC--CCOODDEE

RQ611
RD023

RW648

RI028
RI028

RW648

RI029
RI029

RW648

RI999
RI999
RI100

RW648

RH029
RD026
RD032

RW782

RS047

RI044
RI043
RI206
RI192
RI220
RI199
RI200
RI195
RI204
RI205

RI168

RI228

RF037

RI021

RS126

RI021
RI211
RI238
RI006
RI201
RI190
RI207
RI197

RQ266

RI189

RS047

RI196

RREEMMAARRKK

RF266
RF266
RF266
RF266
RF266
RF266
RF266
RF266
RF266
RF266
RF266
RF265

PPAARRTT NNAAMMEE

KNOB-HUMIDITY
LEVER-HUMIDITY
ROLLER-FRE
ASSY RAIL-VEG L
RAIL-VEG L
ROLLER-FRE
ASSY RAIL-VEG R
RAIL-VEG R
ROLLER-FRE
ASSY CASE-VEG REF
CASE-VEG REF
COVER-VEG FRONT
ROLLER-FRE
FIXER-ROLLER
ASSY COVER-DISPENSER
COVER-DISPENSER
BUTTON-COVER DISPENSER
RUBBER-COVER-DISPENSER
FIXER-WATER HOSE
LEVER-CASE DISPENSER
SWITCH-MICRO
ASSY-COVER WATER TANK
SCREW-TAPPING
COVER-TANK WATER
ASSY TANK WATER
SHELF-PANTRY SUB
ASSY COVER-SLIDE PANTRY
GROMMET-COVER SLIDE
COVER-SLIDE PANTRY A
COVER-SLIDE PANTRY B
ASSY SHELF-PANTRY
REINF-SHELF PANTRY
SHELF-PANTRY
ASSY COVER-MOTOR DAMPER
ASSY DAMPER MOTOR
SENSOR TEMP-PANTRY
INSULATION-MOTOR DC DAMPER
COVER-MOTOR DC DAMPER
ASSY COVER-SENSOR
SENSOR-ASSY
COVER-SENSOR
GUIDE-FRENCH
COVER-WATER FILTER
ASSY CASE-FILTER
GUIDE-PANTRY
ASSY COVER-RAIL PANTRY L
SUPPORT-ROLLER PANTRY
COVER-RAIL PANTRY L
ASSY ROLLER B
ASSY CASE-PANTRY
SCREW-TAPPING
CASE-PANTRY

SSPPEECC

QUEEN,ABS
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,SAN,NTR
AW,HIPS,COOL -WHITE
POM,D22
PA
AW-PJT
AW-PJT,HIPS,SC-02740R,COOL-WHT
AW-PJT,PP(BJ730),COOL -WHT,SC-02740R
AW-PJT,SILICON,4 05,GRAY
AW-PJT,PP(BJ730),COOL -WHT,SC0 -2740R
AW-PJT,POM,NTR
VP533AOF5,MICRO,250V,15A,PBT,GP1006F,1
AW-PJT,BETTER
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,PP,COOL -WHITE
AW-PJT,BETTER
AW,HIPS,COOL WHITE
AW-PJT
T3.0,SILICON,NTR
AW,GPPS,NTR
AW,HIPS,COOL WHITE
AW-PJT
AW-PJT,SECC1,T1.2,COOL WHITE
AW,HIPS,COOL WHITE
AW-PJT
DC 12V,MAX 600mA,BBC-PJT
PX-41C,502AT,AW-PJT
AW-PJT,FOAMPS,NTR
AW-PJT,PP,COOL WHITE
COMBI-PJT,COOLWHITE,SC -02740R
TEMP CAP TYPE
COMBI-PJT,HIPS,SC -02740R,COOL -WHITE
AW-PJT,POM,COOL -WHITE(SC02740R)
AW-PJT,HIPS,T3,WHT,GEN-2 ¿˚øÎÄ
AW-PJT
AW,PP,COOL -WHITE
AW-PJT(BASIC)
AW-PJT,NBR,NTR
AW,HIPS,COOL -WHITE
AW-PJT,Ni-Zn
AW-PJT,COOL WHITE,ROLLER(Ni-Zn)
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW,HIPS,COOL -WHITE

■■

Parts List of Refrigerator

79

EXPLODED VIEW& PARTS LIST

NNOO

30-3
30-4
30-5

31
31-1
31-2
31-3
31-4
31-5
31-6

32

33

QQUUAANN

TTIITTYY

2
1
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA97-05296B
DA97-04837A
DA97-04838A
DA97-04829C

6002-000630
DA41-00423B
DA64-02064B
DA61-03176A
DA63-03423A
DA97-05297B
DA61-03175A
DA29-00003B

SSVVCC--CCOODDEE

RQ265

RI193
RI194
RI191

RS080

RO052

RI207
RI198

RQ266

RI206
RI070

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY ROLLER A
ASSY RAIL-PANTRY L
ASSY RAIL-PANTRY R
ASSY COVER-RAIL PANTRY R
SCREW-TAPPING
PBA PANEL-PANTRY
INLAY CONTROL PANEL
SUPPORT-ROLLER PANTRY
COVER-RAIL PANTRY R
ASSY ROLLER B
SUPPORT-PANTRY
FILTER WATER-ASSY

SSPPEECC

AW-PJT,Ni-Zn
AW-PJT
AW-PJT
AW-PJT(BASIC)
PH,+,2S,M3,L8,ZPC(WHT),SWRCH18A

AW-PJT,PANTRY ROOM BLUE LED,FR1,PANTRY LOWES BLUE,12V

AW,PC
AW-PJT,NBR,NTR
AW,HIPS,COOL -WHITE
AW-PJT,Ni-Zn
AW,PP,COOL -WHITE
ATOP,86*86*167,NSF53

■■

Parts List of Refrigerator

80

EXPLODED VIEW& PARTS LIST

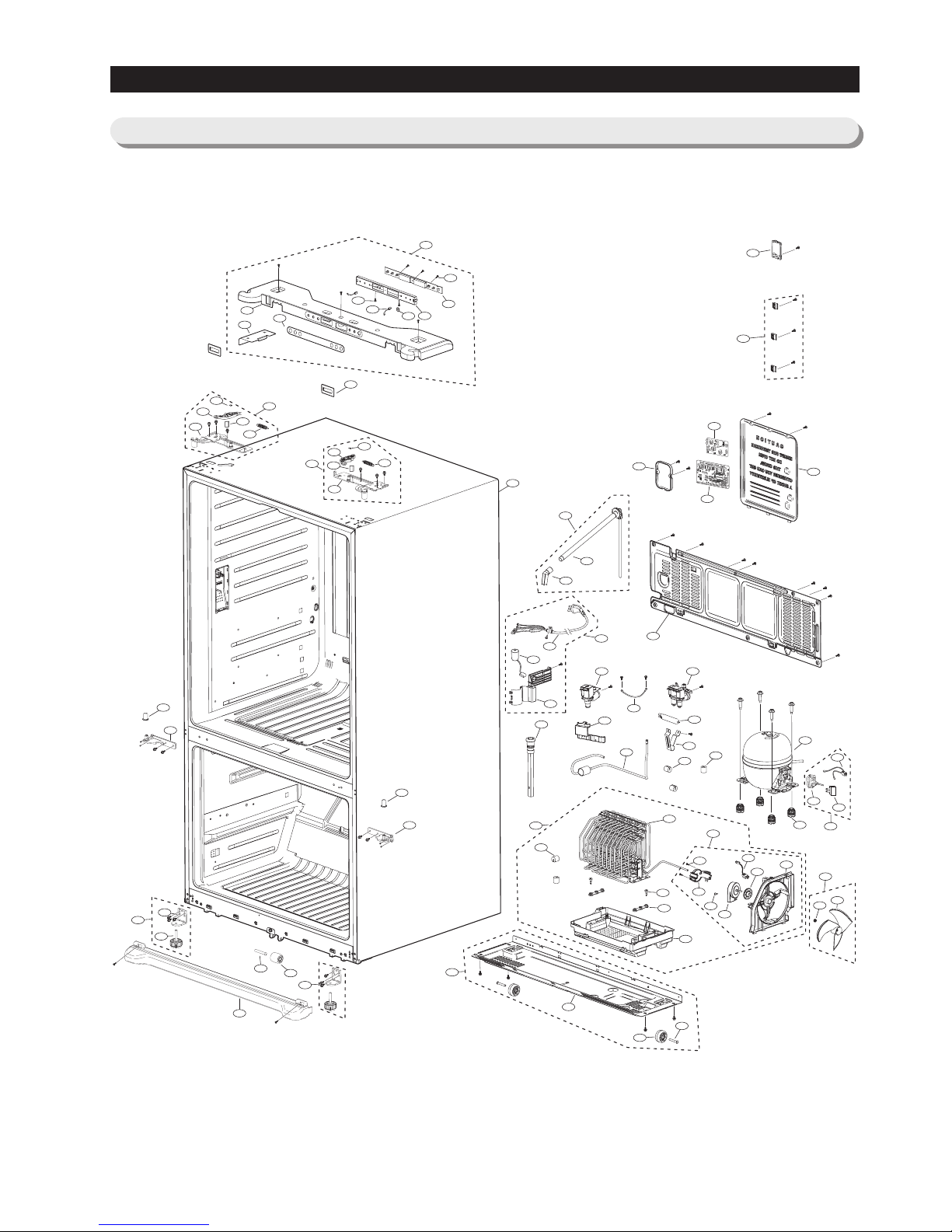

5-3) Cabinet

2-6

4-2

4-4

4-1

4-3

4-5

5-3

5-1

5-4

5-2

11-2

11-1

13-3

13-2

14-2

15-1

15-2

14-3

14-4

14-6

14-5

28-1

28-2

28-3

29-1

29-2

14-1

14-5-4

14-5-1

14-5-2

14-5-6

14-5-5

14-5-7

14-5-3

13-1

2-9

2-7

2-5

2-8

2-3

2-4

2-1

2-2

1

2

3

4

6

6

8

9

10

7

11

5

11

13

14

17

18

16

15

18-3

18-1

18-2

19

20

22

21

23

24

25

26 37

28

29

27

30

32

33

31

34

35

36

12

5-5

81

EXPLODED VIEW& PARTS LIST

NNOO

1
1
1

2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9

2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9

2
2-1
2-2
2-3
2-4
2-5
2-6
2-7
2-8
2-9

3

3

3

4
4-1
4-2
4-3
4-4
4-5

4
4-1
4-2
4-3
4-4
4-5

4
4-1
4-2
4-3

QQUUAANN

TTIITTYY

1
1
1
1
3
2
2
1
1
1
1
1
1
1
3
2
2
1
1
1
1
1
1
1
3
2
2
1
1
1
1
1
1
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA90-03646B
DA90-03646F

DA90-03646G

DA97-04901A

6002-000630

6002-001122
DA34-00043B
DA41-00412A
DA61-03194B
DA61-03331A
DA64-02066A
DA64-02071A
DA64-02076D
DA97-04901B

6002-000630

6002-001122
DA34-00043B
DA41-00412A
DA61-03194B
DA61-03331A
DA64-02066B
DA64-02071A
DA64-02076E
DA97-04901C

6002-000630

6002-001122
DA34-00043B
DA41-00412A
DA61-03194B
DA61-03331A
DA64-02066C
DA64-02071A
DA64-02076F
DA67-01613A
DA67-01613B
DA67-01613C
DA97-04874A
DA60-00162A
DA61-03239A
DA61-03301A
DA97-04903A
DA63-03673A
DA97-04874B
DA60-00162A
DA61-03239A
DA61-03301A
DA97-04903B
DA63-03673A
DA97-04874C
DA60-00162A
DA61-03239A
DA61-03301A

SSVVCC--CCOODDEE

RS080

RS059
RO150
RO052

RD011
RO159
RO008

RD108

RD112

RS080

RS059
RO150
RO052

RD011
RO159
RO008

RD108

RD112

RS080

RS059
RO150
RO052

RD011
RO159
RO008

RD108

RD112
RO184
RO184
RO184
RO041
RO152
RO129

RE084
RO172
RO170
RO041
RO152
RO129

RE084
RO172
RO170
RO041
RO152
RO129

RE084

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY CABINET FORM
ASSY CABINET FORM
ASSY CABINET FORM
ASSY-TOP TABLE
SCREW-TAPPING
SCREW-TAPPING
SWITCH REED-ASS'Y
PBA PANEL-LED
CASE-PBA DISPLAY
PLATE-TOP TABLE
TOP TABLE
BUTTON-CONTROL
INLAY-DISPLAY
ASSY-TOP TABLE
SCREW-TAPPING
SCREW-TAPPING
SWITCH REED-ASS'Y
PBA PANEL-LED
CASE-PBA DISPLAY
PLATE-TOP TABLE
TOP TABLE
BUTTON-CONTROL
INLAY-DISPLAY
ASSY-TOP TABLE
SCREW-TAPPING
SCREW-TAPPING
SWITCH REED-ASS'Y
PBA PANEL-LED
CASE-PBA DISPLAY
PLATE-TOP TABLE
TOP TABLE
BUTTON-CONTROL
INLAY-DISPLAY
CAP-TOP TABLE
CAP-TOP TABLE
CAP-TOP TABLE
ASSY HINGE UPP-L
FASTENER-RING
HINGE-UPP L
SPRING ETC-AUTO CLOSE
ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
ASSY HINGE UPP-L
FASTENER-RING
HINGE-UPP L
SPRING ETC-AUTO CLOSE
ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
ASSY HINGE UPP-L
FASTENER-RING
HINGE-UPP L
SPRING ETC-AUTO CLOSE

SSPPEECC

RF265,BLACK
RF265,-,REAL STAINLESS
RF265,SNOW WHITE
AW-PJT,ABS,I-BLACK(SC-00477R)
PH,+,2S,M3,L8,ZPC(WHT),SWRCH18A,
FH,+,1,M4,L14,ZPC(WHT),SWRCH18A
200VDC,1.5A,
AWBASIC,DOOR REF,FR4,BLUE LED,12V
AW-PJT,HIPS,NTR
AW-PJT,SBHG1,T0.3,
AW-PJT,ABS(VH0815),I-BLACK(SC-00477R)
AW-PJT,GPPS,NTR,
AW-PJT,PC,0.3,299.5,27.5
AW-PJT,ABS,Creamy STS(SC-07009R)
PH,+,2S,M3,L8,ZPC(WHT),SWRCH18A,
FH,+,1,M4,L14,ZPC(WHT),SWRCH18A
200VDC,1.5A,
AWBASIC,DOOR REF,FR4,BLUE LED,12V
AW-PJT,HIPS,NTR
AW-PJT,SBHG1,T0.3,
AW-PJT,ABS(VH0815),Creamy STS(SC-07009R)
AW-PJT,GPPS,NTR,
AW-PJT,PC,0.25,28,300,CREAMY-STS
AW-PJT,ABS,Snow-White(SC-97527R)
PH,+,2S,M3,L8,ZPC(WHT),SWRCH18A,
FH,+,1,M4,L14,ZPC(WHT),SWRCH18A
200VDC,1.5A,
AWBASIC,DOOR REF,FR4,BLUE LED,12V
AW-PJT,HIPS,NTR
AW-PJT,SBHG1,T0.3,
AW-PJT,ABS(VH0815),Snow-White(SC-97527R)
AW-PJT,GPPS,NTR,
AW-PJT,PC,0.25,28,300,SNOW-WHITE
AW-PJT,ABS,I-BLACK(SC-00477R)
AW-PJT,ABS,Creamy STS(SC-07009R)
AW-PJT,ABS,Snow-White(SC-97527R)
AW-PJT,T2.9,BLACK
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,
AW-PJT,POM,i-BLACK
AW-PJT,NBR,-,-,-,-,-,BLACK
AW-PJT,T2.9,Creamy-STS
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,
AW-PJT,POM,Creamy-STS
AW-PJT,NBR,-,-,-,-,-,BLACK
AW-PJT,T2.9,Snow-White
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,

■■

Parts List of Cabinet

82

EXPLODED VIEW& PARTS LIST

NNOO

4-4
4-5

5
5-1
5-2
5-3
5-4
5-5

5
5-1
5-2
5-3
5-4
5-5

5
5-1
5-2
5-3
5-4
5-5

6

7

8

9

10

11
11-1
11-2

12

12

12

13
13-1
13-2
13-3

14
14-1
14-2
14-3
14-4
14-5

14-5-1
14-5-2
14-5-3
14-5-4
14-5-5
14-5-6
14-5-7
14-5-8

15
15-1
15-2

QQUUAANN

TTIITTYY

1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
2
2
1
1
2
1
2
2
1
2
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA97-04903C
DA63-03673A
DA97-04875A
DA60-00162A
DA61-03240A
DA61-03301A
DA97-04903A
DA63-03673A
DA97-04875B
DA60-00162A
DA61-03240A
DA61-03301A
DA97-04903B
DA63-03673A
DA97-04875C
DA60-00162A
DA61-03240A
DA61-03301A
DA97-04903C
DA63-03673A
DA63-02905A
DA97-04876B
DA97-04877B
DA61-40115B
DA61-01920A
DA97-05016A
DA61-00805C
DA61-03217A
DA63-03434A
DA63-03434B
DA63-03434C
DA97-02064B
DA60-90146A
DA61-40126B
DA64-01170A
DA97-05043B

6009-001252
DA63-03450A
DA63-40128A
DA63-40171B
DA97-03145K

6003-000003
DA31-00146D
DA61-02349B
DA61-02355B
DA63-01146A
DA63-40167A
DA96-00042A
DA97-05093A
DA31-00010D
DA31-00015C
DA61-20128A

SSVVCC--CCOODDEE

RO172
RO170
RO042
RO152
RO128
RE084
RO172
RO170
RO042
RO152
RO128
RE084
RO172
RO170
RO042
RO152
RO128
RE084
RO172
RO170
RO163
RO039
RO039
RH009
RH012

RO001
RO158
RO003
RO003
RO003
RO002
RH019
RH011
RO002
RH003
RQ747
RH003
RH022
RH033
RO132
RS080

RI089
RF033
RH039
RO138

RI087

RI133
RH031

RI085

RI085

RW716

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
ASSY HINGE UPP-R
FASTENER-RING
HINGE-UPP R
SPRING ETC-AUTO CLOSE
ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
ASSY HINGE UPP-R
FASTENER-RING
HINGE-UPP R
SPRING ETC-AUTO CLOSE
ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
ASSY HINGE UPP-R
FASTENER-RING
HINGE-UPP R
SPRING ETC-AUTO CLOSE
ASSY LEVER-AUTO CLOSE
GROMMET-LEVER
GROMMET HINGE-MID,R
ASSY HINGE MID-L
ASSY HINGE MID-R
CASTER-FRONT
CASTER-RIVET
ASSY-SUPPORT FOOT FRONT
FOOT-FRONT
SUPPORT-FOOT FRONT
COVER-LEG FRONT
COVER-LEG FRONT
COVER-LEG FRONT
ASSY CHASSIS-COMP
PIN-CASTER
CASTER-REAR
CHASSIS COMP
ASSY TRAY-DRAIN WATER
SCREW-SPECIAL
TRAY-DRAIN WATER
GROMMET-SUB COND
GROMMET-SUCT PIPE A
ASSY SUPPORT-CIRCUIT MOTOR
SCREW-TAPTITE
MOTOR BLDC
SUPPORT-CIRCUIT MOTOR
BRACKET-CIRCUIT MOTOR
GROMMET-MOTOR,REAR
GROMMET-COVER CHIL
ASSY-HARNESS MOTOR
ASSY PIPE-SPIRAL COND
FAN-ASS'Y
FAN-TURBO
SPRING ETC-FAN

SSPPEECC

AW-PJT,POM,Snow-White
AW-PJT,NBR,-,-,-,-,-,BLACK
AW-PJT,T2.9,i-BLACK
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,
AW-PJT,POM,i-BLACK
AW-PJT,NBR,-,-,-,-,-,BLACK
AW-PJT,T2.9,Creamy-STS
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,
AW-PJT,POM,Creamy-STS
AW-PJT,NBR,-,-,-,-,-,BLACK
AW-PJT,T2.9,Snow-White
AW-PJT,STS304,ID5,T0.5,OD11,BLACK,
AW-PJT,SHP1,T2.9,
AW-PJT,STS604,1.4,9.2,12,24,
AW-PJT,POM,Snow-White
AW-PJT,NBR,-,-,-,-,-,BLACK
NEXT,POM,T2.0,WHITE,
AW-PJT,T4.5
AW-PJT,T4.5
SR-50,PP
(ZPC2),MSWR10,OD8.0,L54
AW-PJT
AW-PJT,PP
AW-PJT,SHP1,T4.0,BLACK
AW-PJT,PP,i-BLACK
AW-PJT,PP,Creamy-STS
AW-PJT,PP,Snow-White
AD,NEXT,SBHG1,T1.4,
MSWR10,OD6.0,L40,ZPC2,SR2894
REFALL,PP,PI 44,NTR,W22,
AD,SBHG1,T1.4,
AW-PJT
PH,+,M4.0,L20(12),ZPC(WHT),SWRCH18A
AW-PJT,PP,NTR,
,NBR,DARKGRAY
,NBR,OD20,ID4,L20,BLK
AW-PJT
BH,+,B,M4,L10,ZPC(BLK),SWRCH18A,
,1500,DC12V,250mA,2.5W,MOTORBLDC,
NEXT,ABS,NTR,
ABS,NEXT,,NTR
ATOP,NBR,ID6.5,OD42,BLK,BLDC
T3.0,SILICON,NTR
ATOP UL(MOTOR),CFAN,350MM
AW-PJT,
,ET,ZIPEL,ASSY,UNIT,?150
,ET-PJT,ABS+GLASS FIBE,GR4010
,STS304,PI7.8,OD1.0,FD

■■

Parts List of Cabinet

83

EXPLODED VIEW& PARTS LIST

NO

16
17

18
18-1
18-2
18-3

19

20

21

22

23

24

25

26

27

28
28-1
28-2
28-3

29
29-1
29-2

30

31

32

33

34

35

36

37

QUAN

TITY

4
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1

1
3
1
1

1

CODE-NO

DA63-02017A

MK172DR2U/E08

DA97-02895C
DA96-00270C
DA96-00174C

2301-001837
DA63-40171B
DA63-40171D
DA62-01514A
DA61-02657A
DA97-04977A
DA61-02434A
DA97-04049A
DA62-01477A
DA39-20389R
DA97-05147A
DA63-02907A
DA27-00009B
DA39-10165E
DA97-00209H
DA63-02469A
DA73-00134B
DA97-05029B
DA97-01947D
DA97-05031B
DA41-00413A

DA41-00320A
DA61-01181A
DA63-00586B
DA62-00914B

DA41-00413B

SVC-CODE

RQ565

RH002

RO138

RH005
RH027

RO153

RH033
RH034
RH014

RO141

RT094

RO128

RZ110

RO089

RH032
RH040

RH040
RQ408
RO005

RF018

RF059

RH001

RO007

RO052
RO128
RW303
RO089

REMARK

RF265

RF266

PART N AME

GROMMET-COMP
COMPRESSOR
ASSY-COMP SUB
ASSY-RELAY PTC
ASSY-HARNESS COMP
C-FILM,LEAD
GROMMET-SUCT PIPE A
GROMMET-SUCT PIPE B
DRYER
CLIP-DRYER
ASSY PIPE CONNECT-SUCTION
FIXER-HOSE(VALVE)
ASSY CAP-DRAIN
VALVE WATER-ONE WAY FITTING
WIRE HARNESS-EARTH
ASSY-COVER NOISE FILTER
COVER-NOISE FILTER
COIL CHOKE-EMI FILTER
CBF-POWER CORD
ASSY PIPE-WATER
GROMMET-PIPE WATER FILL IN
PIPE-WATER FRE ASSY
ASSY-COVER PIPE WATER
ASSY COVER-COMP
ASSY-COVER PCB PANEL
PBA MAIN-BETTER

PBA SMPS-NEXT
FIXER-HOSE
COVER-TUBE FILTER
VALVE-WATER FITTING

PBA MAIN-GOOD

SPEC

QUEEN,EPDM,
115127V~60HZ,RSCR,FAN
AW-PJT,MK172D-R2U
12SP16A435RF100,135/61 ,10
AW-PJT,AWG 18
12000nF,5/10%,250V,Bulk,50x25x36
,NBR,OD20,ID4,L20,BLK
RAIL L19.5,NR,OD20,ID6,BLK
REF-ALL,C1220T,OD18.70,L114
AD,SECC1,T0.4,
aw,c1220 t
ET'05-PJT,PP,T2
EPEL,ASSY,L224.5,SOFTPVC
RIV-11A-31,1.0~8.0Kgf,110~127V,60Hz
AW-PJT,YEL/GRN,AWG#18,700mm
AW-PJT
NEXT,PP,NFPP
FA2107LB,QUEEN GE,5mH,+50%,30%,10A,38*50
ET-PJT,SVT-3,125V,15A,L=2300,BLACK,UL
ET-PJT,115V
ET-PJT,SILICON
W205,ASSY,L295,
AW-PJT
AD,SBHG1,T0.35,
AW-PJT
AW-PJT,FR4,163*197,BETTER,+12V,+5V,60Hz

NEXT,TOP,CEM1,148*100,POWER SUPPLY,85~170V,50~60Hz

INSERT-FILTER,ABS,BLK
A-TOP,PP,W76,L83,NTR
12A-41,110~127V

115V

■

Parts List of Cabinet

RF266

RF265

84

EXPLODED VIEW& PARTS LIST

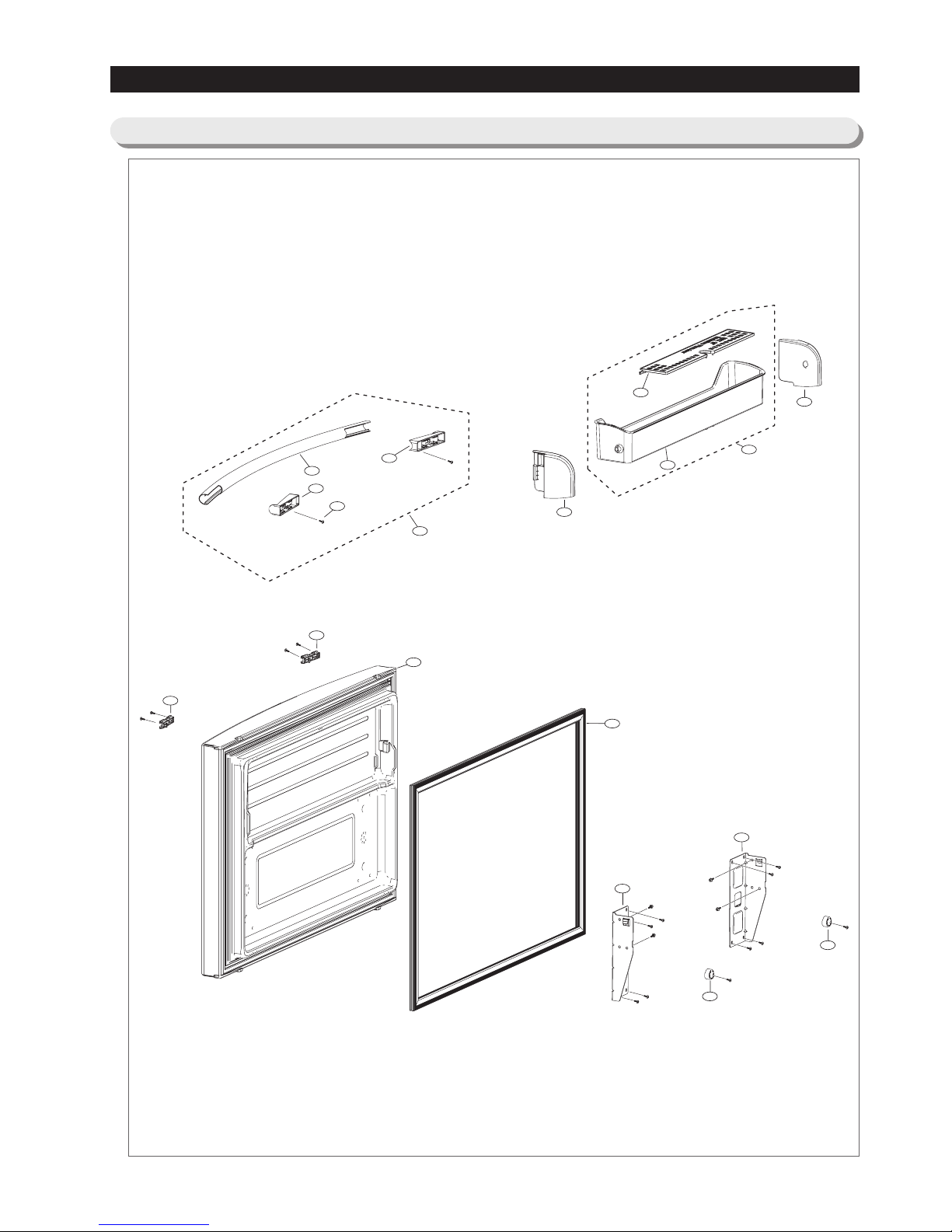

5-4) Disassembly of Freeze Door

10-2

7-2

7-4

7-1

7-3

10-1

10

9

7

2

2

1

3

5

4

6

6

9

85

EXPLODED VIEW& PARTS LIST

NNOO

1
1
1
1
2
3
3
4
5
6

7
7-1
7-2
7-3
7-4

7
7-1
7-2
7-3
7-4

7
7-1
7-2
7-3
7-4

7
7-1
7-2
7-3
7-4

8

9

10
10-1
10-2

QQUUAANN

TTIITTYY

1
1
1
1
2
1
1
1
1
2
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA91-02462R
DA91-02462N
DA91-02462P

DA91-02462Q

DA61-02984A
DA97-05557A
DA97-05557B
DA61-03153B
DA61-03155B
DA61-02904B

DA97-04869G

6002-000215
DA64-02068A
DA67-01716A
DA67-01717A
DA97-04869E

6002-000215
DA64-02068D
DA67-01716B
DA67-01717B
DA97-04869H

6002-000215

DA64-02068 C

DA67-01716C
DA67-01717C

DA97-04869J

6002-000215
DA64-02068B
DA67-01716D
DA67-01717D
DA61-03762A
DA61-03763A
DA97-04880A
DA63-03458A
DA63-03459A

SSVVCC--CCOODDEE

RD001
RD001
RD001
RD001

RO061

RD012
RD012
RD092
RD093
RD086

RS080

RO017

RS080

RO017

RS080

RO017

RS080

RO017

RI214
RI216

RD017
RD107

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY DOOR FOAM FRE
ASSY DOOR FOAM FRE
ASSY DOOR FOAM FRE
ASSY DOOR FOAM FRE
FIXER-HANDLE
ASSY-GASKET DOOR FRE
ASSY-GASKET DOOR FRE
HANGER-RAIL FRONT L
HANGER-RAIL FRONT R
SUPPORT DOOR POSITION IN
ASSY HANDLE-BAR FRE
SCREW-TAPPING
HANDLE-BAR FRE
CAP-HANDLE L FRE
CAP-HANDLE R FRE
ASSY HANDLE-BAR FRE
SCREW-TAPPING
HANDLE-BAR FRE
CAP-HANDLE L FRE
CAP-HANDLE R FRE
ASSY HANDLE-BAR FRE
SCREW-TAPPING
HANDLE-BAR FRE
CAP-HANDLE L FRE
CAP-HANDLE R FRE
ASSY HANDLE-BAR FRE
SCREW-TAPPING
HANDLE-BAR FRE
CAP-HANDLE L FRE
CAP-HANDLE R FRE
SUPPORT-GUARD FRE L
SUPPORT-GUARD FRE R
ASSY GUARD FRE
GUARD-FRE
GUARD-FRE FLIP

SSPPEECC

AW-PJT,EMPIRE-BLACK
AW-PJT,VERSAILLES-STS
AW-PJT,SNOW-WHITE
AW-PJT,STS-PLATINUM
ATOP 06,POM,NTR
AW-PJT,BLACK,AW NEW-SECTION
AW-PJT,GRAY,NEW SUCTION
AW-PJT,SECC1,T2.0,COOL-WHITE,-,-,RESTRIKING
AW-PJT,SECC1,T2.0,COOL-WHITE,-,-,RESTRIKING
AW-PJT,HIPS,NTR
AW-PJT,MATURE BLACK,SPRAY
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
AW-PJT,AL(A6063),MATURE -BLACK
AW-PJT,ABS(i-BLACK),-,-,-,MATURE-BLACK SPRAY
AW-PJT,ABS(i-BLACK),-,-,-,MATURE-BLACK SPRAY
AW-PJT,VERSAILLESS STS
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
AW-PJT,VERSAILLESS STS
AW-PJT,ABS,CREAMY-STS,VERSAILLES SILVER SPRAY
AW-PJT,ABS,CREAMY-STS,VERSAILLES SILVER SPRAY
AW-PJT,SNOW WHITE,SPRAY
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
AW-PJT,AL(A6063), Snow-White
AW-PJT,ABS,SNOW-WHITE
AW-PJT,ABS,SNOW-WHITE
AW-PJT,NEW VERSAILLES SILVER,SANDING
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
AW-PJT,AL6063,VERSAILLES STS
AW-PJT,ABS,CREAMY-STS,STS-PLATINUM SPRAY
AW-PJT,ABS,CREAMY-STS,STS-PLATINUM SPRAY
AW-PJT(BEST),HIPS(HG-1760SF),COOL-WHITE(SC-02740R)
AW-PJT(BEST),HIPS(HG-1760SF),COOL-WHITE(SC-02740R)
AW-PJT,COOL -WHT
AW-PJT,HIPS(HR1360),COOL -WHITE
AW-PJT,HIPS(HR1360),COOL -WHITE

■■

Parts List of Freezer Door

86

EXPLODED VIEW& PARTS LIST

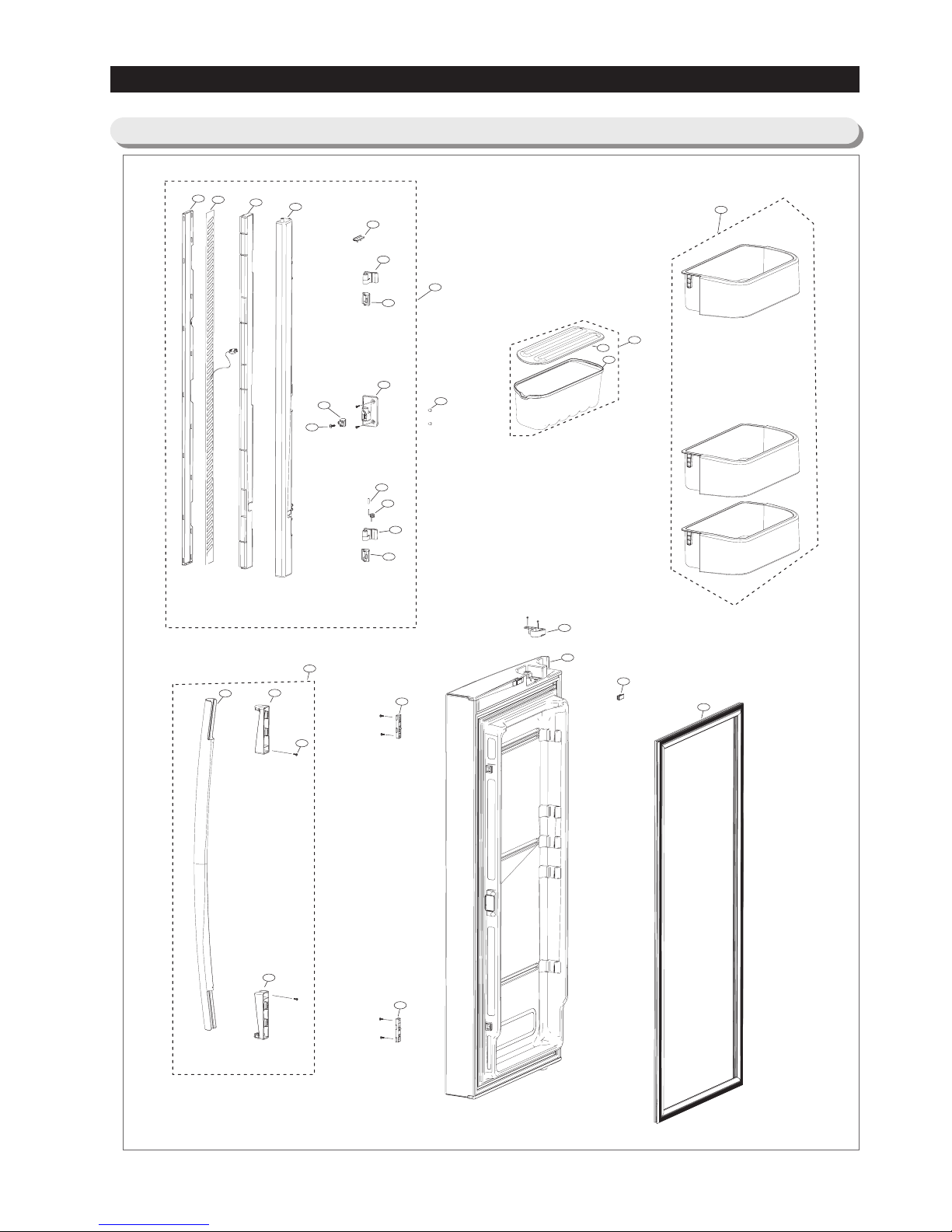

5-5) Disassembly of Refrigerator DoorLeft

6-3

8-2

8-1

6-4

6-1

6-2

9-2

9-1

9-4

9-5

9-7

9-3

9-8

9-6

9-9

9-12

9-11

9-10

9-3

9-8

9

10

8

7

1

2

5

5

6

4

3

87

EXPLODED VIEW& PARTS LIST

NNOO

1
1
1
1
2
2
2
3
3
3
4
4
5

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

7

8
8-1
8-2

9
9-1
9-2
9-3
9-4
9-5
9-6
9-7
9-8
9-9

9-10
9-11
9-12

9
9-1

QQUUAANN

TTIITTYY

1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
3
1
1
1
1
1
1
2
1
1
1
2
2
1
1
1
1
1
1

CCOODDEE--NNOO

DA91-02460 A

DA91-02460 B
DA91-02460 C
DA91-02460 D

DA61-02738 E

DA61-02738 F

DA61-02738 A

DA66-00442A

DA66-00442 B
DA66-00442 C

DA97-04954A

DA97-04954 B

DA61-02984A
DA97-04417N

6002-000215
DA64-01979A
DA67-01527E
DA67-01528E

DA97-04417J

6002-000215
DA64-01979E

DA67-01527 F
DA67-01528 F

DA97-04417D

6002-000215

DA64-01979 D
DA67-01527 D
DA67-01528 D

DA97-04417K

6002-000215
DA64-01979B
DA67-01527F
DA67-01528F
DA63-03467A
DA97-02806A
DA63-02492A
DA63-02491A
DA97-05021D
DA47-00245A
DA61-03207A
DA61-03230B
DA61-03234A
DA62-01387A
DA63-03454A
DA63-03508A
DA67-01650A
DA67-01701A
DA81-01345A
DA81-01346A

6002-000213
DA97-05021E
DA47-00245A

SSVVCC--CCOODDEE

RE083
RE083

RE083
RO175
RO175
RO175

RE016

RE016
RO061

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RE024

RI158
RE022
RE023

RF118

RD098

RI234

RI239

RO168

RE090
RE091

RS047

RF118

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY DOOR FOAM REF L
ASSY DOOR FOAM REF L
ASSY DOOR FOAM REF L
ASSY DOOR FOAM REF L
MAGNET-ASS'Y
MAGNET-ASS'Y
MAGNET-ASS'Y
CAM AUTO CLOSE L
CAM AUTO CLOSE L
CAM AUTO CLOSE L
ASSY-GASKET DOOR REF
ASSY-GASKET DOOR REF
FIXER-HANDLE
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
GUARD-REF
ASSY TRAY-EGG
TRAY-EGG
COVER-TRAY EGG
ASSY-FRENCH
HEATER CORD-FRENCH
PLATE-FRENCH
HINGE-FRENCH
CASE-FRENCH
INSULATION-FRENCH
COVER-HEATER FRENCH
GASKET-FRENCH
CAP-CASE FRENCH
CAP-CASE FRENCH MID
SPRING-ETC FRENCH
PIN-FRENCH SPRING
SCREW TAPPING
ASSY-FRENCH
HEATER CORD-FRENCH

SSPPEECC

AW-PJT,Empire-Black,i-BLACK
AW-PJT,Versailles STS,Noble-STS
AW-PJT, Snow-White
AW-PJT, Platinum-STS,Noble-STS
CORE-PJT, T5,W7,L18,i-BLACK
CORE-PJT,T5,W7,L18 ,Creamy-gray
CORE-PJT,T5,W7,L18 ,Snow-White
AW-PJT, Nylon6,i-BLACK
AW-PJT, Nylon6,Creamy-STS
AW-PJT, Nylon6,Snow-White
AW-PJT,W404,L978 ,BLACK
AW-PJT,W404,L978 ,GRAY
ATOP 06,POM,NTR,
AW-PJT,-,-,-,-,-,MATURE BLACK
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
ATOP 06,AL(A6063), MATURE-BLACK
ATOP06,ABS(HG0760), i-BLACK
ATOP06,ABS(HG0760), i-BLACK
AW-PJT,-,-,-,-,-,VERSAILLES SILVER
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
A-TOP 06,AL(A6063),-,-,-,-,VERSAILLES SILVER(SC-05061T),VERTICAL HAIR LINEÄ
ATOP06,ABS(HG0760), Versailles-Silver
ATOP06,ABS(HG0760), Versailles-Silver
A-TOP06,AL(0603),-,-,L876.2,-,SNOW-WHITE
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
ATOP 06,AL(A6063), Snow-White
ATOP06,ABS(HG0760), Snow-White
ATOP06,ABS(HG0760), Snow-White
AW-PJT,-,-,-,-,-,PLATIUNEM STS,-Ä
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
A-TOP06,AL(A6063),-,-,-,-,VERSAILLES SILVER(SC-05061T),-Ä

A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)Ä
A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)Ä

AW-PJT,PP(BJ730),COOL -WHITE(SC02740R)
EPEL,T2.5,W324.5,L122.2,H122.5
EPEL,GPPS,T2.5,W324.5,L122.2,H120
EPEL,GPPS,T2.5,W319,L116.3,H13
AW-PJT,ALL-BLACK,-,-Ä
AW-PJT,P -CORD,10W,115V,1322 ,FRENCH
AW-PJT,SECC1,T0.8 ,ALL-BLACK
AW-PJT,PC(HF-1023IM),-,-,-,COOL-WHITE(SC-02740R
AW-PJT,ABS, SNOW-WHITE
AW-PJT,FOAMPS
AW-PJT,HIPS(HR1360), SNOW-WHITE
AW-PJT, SILICON ,BLACK
AW-PJT,ABS,SNOW-WHITE
AW-PJT,ABS,SNOW-WHITE
STS304,PI1.4
RDPVC,WHITE
TH,+,-,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,THAI SILVER
AW-PJT,P -CORD,10W,115V,1322 ,FRENCH

■■

Parts List of Refrigerator Door-Left

88

EXPLODED VIEW& PARTS LIST

NNOO

9-2
9-3
9-4
9-5
9-6
9-7
9-8

9-9
9-10
9-11
9-12

9
9-1
9-2
9-3
9-4
9-5
9-6
9-7
9-8
9-9

9-10
9-11
9-12

10

QQUUAANN

TTIITTYY

1
2
1
1
1
2
2
1
1
1
1
1
1
1
2
1
1
1
2
2
1
1
1
1
2

CCOODDEE--NNOO

DA61-03207 B

DA61-03230B
DA61-03234A
DA62-01387A
DA63-03454A

DA63-03508 B

DA67-01650A
DA67-01701A
DA81-01345A
DA81-01346A

6002-000213

DA97-05021F
DA47-00245A
DA61-03207C
DA61-03230B
DA61-03234A
DA62-01387A
DA63-03454A
DA63-03508C
DA67-01650A
DA67-01701A
DA81-01345A
DA81-01346A

6002-000213

DA67-30218R

SSVVCC--CCOODDEE

RD098

RI234

RI239
RO168
RE090
RE091

RS047

RF118

RD098

RI234

RI239
RO168
RE090
RE091

RS047
RO086

RREEMMAARRKKPPAARRTT NNAAMMEE

PLATE-FRENCH
HINGE-FRENCH
CASE-FRENCH
INSULATION-FRENCH
COVER-HEATER FRENCH
GASKET-FRENCH
CAP-CASE FRENCH
CAP-CASE FRENCH MID
SPRING-ETC FRENCH
PIN-FRENCH SPRING
SCREW TAPPING
ASSY-FRENCH
HEATER CORD-FRENCH
PLATE-FRENCH
HINGE-FRENCH
CASE-FRENCH
INSULATION-FRENCH
COVER-HEATER FRENCH
GASKET-FRENCH
CAP-CASE FRENCH
CAP-CASE FRENCH MID
SPRING-ETC FRENCH
PIN-FRENCH SPRING
SCREW TAPPING
CAP-SCREW

SSPPEECC

AW-PJT,SECC1,T0.8
AW-PJT,PC(HF-1023IM),-,-,-,COOL-WHITE(SC-02740R
AW-PJT,ABS,SNOW-WHITE
AW-PJT,FOAMPS
AW-PJT,HIPS(HR1360), SNOW-WHITE
AW-PJT, SILICON ,GRAY
AW-PJT,ABS,SNOW-WHITE
AW-PJT,ABS,SNOW-WHITE
STS304,PI1.4
RDPVC,WHITE
TH,+,-,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,SNOW-WHITE
AW-PJT,PCORD,10W,115V,1322 ,FRENCH
AW-PJT,SECC1(PCM),T0.8,-,-,SNOW WHITE,-Ä
AW-PJT,PC(HF-1023IM),-,-,-,COOL-WHITE(SC-02740R
AW-PJT,ABS,SNOW-WHITE
AW-PJT,FOAMPS
AW-PJT,HIPS(HR1360), SNOW-WHITE
AW-PJT,SILICON,-,W9.9,L41.1,WHITE,-,-Ä
AW-PJT,ABS,SNOW-WHITE
AW-PJT,ABS,SNOW-WHITE
STS304,PI1.4
RD-PVC,WHITE
TH,+,-,1,M4,L12,ZPC(WHT),SWRCH18A
PP,SC97527R,SNOW WHITE

■■

Parts List of Refrigerator Door-Left

89

EXPLODED VIEW& PARTS LIST

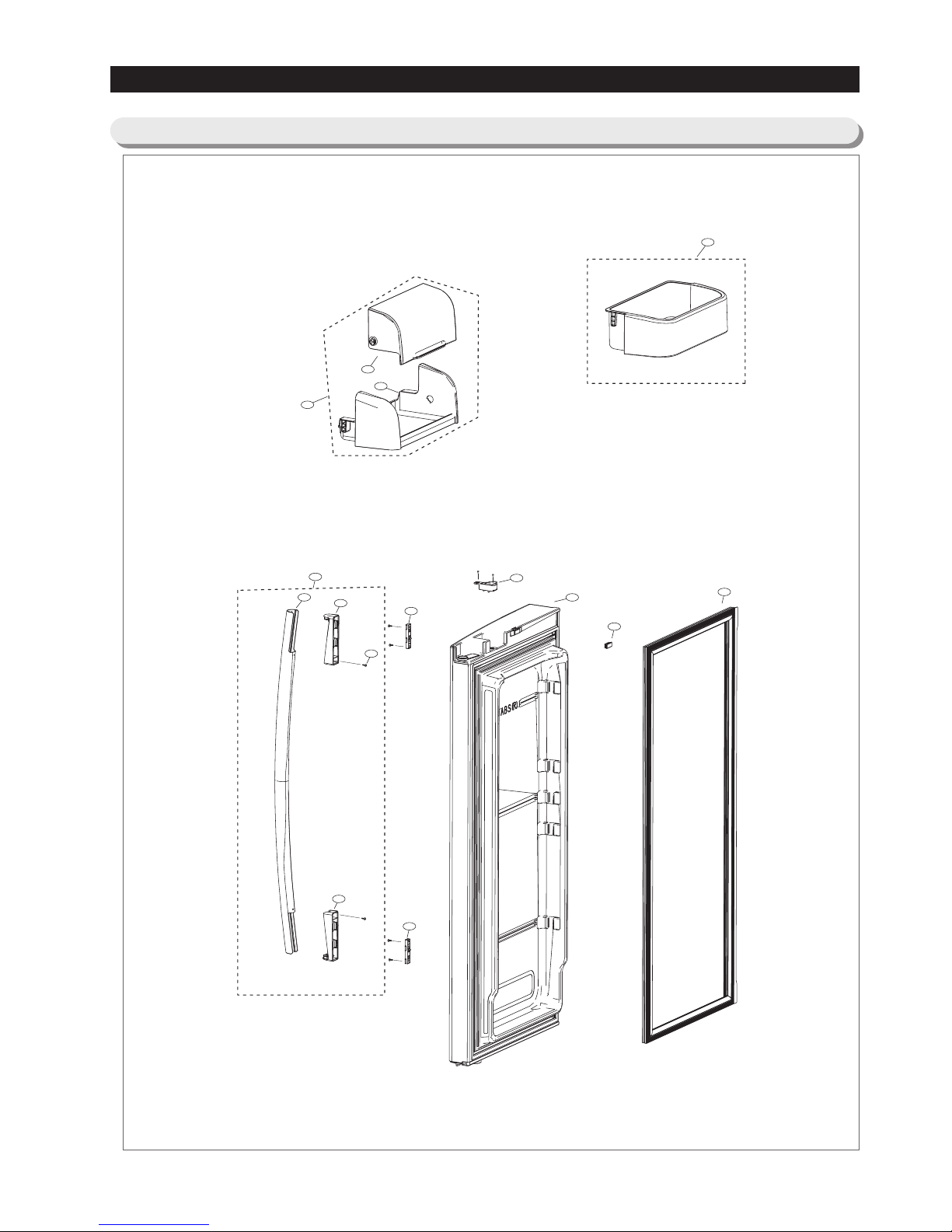

5-6) Disassembly of Refrigerator Door Right

1

2

5

5

6

4

3

6-3

8-2

8-1

6-4

6-1

6-2

7

8

90

EXPLODED VIEW& PARTS LIST

NNOO

1
1
1
1
2
2
2
3
3
3
4
4
5

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

6
6-1
6-2
6-3
6-4

7

8
8-1
8-2

QQUUAANN

TTIITTYY

1
1
1
1
1
1
1
1
1
1
1
1
2
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
1
2
1
1
1
2
1
1
1

CCOODDEE--NNOO

DA91-02461A
DA91-02461B
DA91-02461C
DA91-02461C
DA61-02738E
DA61-02738F
DA61-02738A
DA66-00441A
DA66-00441B
DA66-00441C
DA97-04954A
DA97-04954B
DA61-02984A
DA97-04417N

6002-000215
DA64-01979A
DA67-01527E
DA67-01528E

DA97-04417J

6002-000215
DA64-01979E
DA67-01527F
DA67-01528F
DA97-04417D

6002-000215
DA64-01979D
DA67-01527D
DA67-01528D
DA97-04417K

6002-000215
DA64-01979B
DA67-01527F
DA67-01528F
DA63-03467A
DA97-04881B
DA63-03455A
DA63-03462A

SSVVCC--CCOODDEE

RE083
RE083

RE083
RO176
RO176
RO176

RE016

RE016
RO061

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RS080
RO017
RO106
RO058

RE024

RE028

RE025

RE034

RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY DOOR FOAM REF R
ASSY DOOR FOAM REF R
ASSY DOOR FOAM REF R
ASSY DOOR FOAM REF R
MAGNET-ASS'Y
MAGNET-ASS'Y
MAGNET-ASS'Y
CAM AUTO CLOSE R
CAM AUTO CLOSE R
CAM AUTO CLOSE R
ASSY-GASKET DOOR REF
ASSY-GASKET DOOR REF
FIXER-HANDLE
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
ASSY HANDLE-BAR
SCREW-TAPPING
HANDLE BAR
CAP-HANDLE UPP
CAP-HANDLE LOW
GUARD-REF
ASSY GUARD-DAIRY
GUARD-DAIRY
COVER-GUARD DAIRY

SSPPEECC

AW-PJT,Empire-Black,i-BLACK
AW-PJT,Versailles STS,Noble-STS
AW-PJT,Snow-White
AW-PJT,Platinum-STS,Noble-STS
CORE-PJT,T5,W7,L18,i-BLACK
CORE-PJT,T5,W7,L18,Creamy-gray
CORE-PJT,T5,W7,L18,Snow-White
AW-PJT,Nylon6,i-BLACK
AW-PJT,Nylon6,Creamy-STS
AW-PJT,Nylon6,Snow-White
AW-PJT,W404,L978,BLACK
AW-PJT,W404,L978,GRAY
ATOP 06,POM,NTR
AW-PJT,-,-,-,-,-,MATURE BLACK
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
ATOP 06,AL(A6063),MATURE-BLACK
ATOP06,ABS(HG0760),i-BLACK
ATOP06,ABS(HG0760),i-BLACK
AW-PJT,-,-,-,-,-,VERSAILLES SILVER,­TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A

A-TOP 06,AL(A6063),-,-,-,-,VERSAILLES SILVER(SC-05061T),VERTICAL HAIR LINE
A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)
A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)

A-TOP06,AL(0603),-,-,L876.2,-,SNOW-WHITE
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
A-TOP06,AL(A6063),-,-,-,-,SNOW WHITE(SC-97527T),­A-TOP06,ABS(HG-0760),-,-,-,SNOW-WHITE(SC-97572R)
A-TOP06,ABS(HG-0760),-,-,-,SNOW-WHITE(SC-97572R),­AW-PJT,-,-,-,-,-,PLATIUNEM STS
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A

A-TOP06,AL(A6063),-,-,-,-,VERSAILLES SILVER(SC-05061T),­A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)
A-TOP06,ABS(HG-0760),-,-,-,NOBLE-GRAY(SC-02008R),VERSAILLES SILVER(SC-05061S)

AW-PJT,PP(BJ730),COOLWHITE(SC02740R)
AW-PJT
AW-PJT,HIPS(HR1360),COOL-WHITE
AW-PJT,GPPS(HF2660)

■■

Parts List of Refrigerator Door-Right

91

5 . EXPLODED VIEW& PARTS LIST

5-1) Freezer 92

5-2) Refrigerator

95

5-3) Cabinet

99

5-4) Disassembly of Freeze Door

103

5-5) Disassembly of Refrigerator Door Left

105

5-6) Disassembly of Refrigerator Door Right

108

RF26NB

92

EXPLODED VIEW& PARTS LIST

5-1) Freezer

1-6

5-2

5-3

7-2

7-1

8-1

8-2

9-3

9-4

10-4

21-8

21-3

21-6

21-12

21-2

21-1

21-10

21-4

21-14

21-5

21-11

10-3

12-3

20-3

21-13

21-9

21-7

20-2

20-1

15-3

15-1

15-2

12-2

12-4

12-1

10-2

10-1

9-2

9-1

8-3

5-5

5-7

5-6

5-4

5-1

1

5

6

8

7

2

3

9

11

12

13

14

15

16

17

18

19

20

21

17

10

4

1-3

1-4

1-7

1-5

1-2

1-1

93

EXPLODED VIEW& PARTS LIST

NNOO

1
1-1
1-2
1-3
1-4
1-5
1-6
1-7

2

3

4

5
5-1
5-2
5-3
5-4
5-5
5-6
5-7

6

7
7-1
7-2

8
8-1
8-2
8-3

9
9-1
9-2
9-3
9-4

10
10-1
10-2
10-3
10-4

11

12
12-1
12-2
12-3
12-4

13

14

15
15-1
15-2
15-3

16

17

18

QQUUAANN

TTIITTYY

1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1

CCOODDEE--NNOO

DA96-00364E

6501-000123

DA32-00006Q

DA47-00243B
DA47-00244E
DA59-00358A
DA61-02901A
DA61-03187A
DA63-02902B
DA63-03420A

4713-001201
DA97-05037A
DA59-00294A
DA60-10132A
DA61-00954B
DA61-01800A
DA61-03213B
DA63-02183A
DA63-02284B
DA63-03613A
DA97-04845A
DA61-03189A
DA67-01231A
DA97-04849A
DA63-03435A
DA63-03436A
DA63-03437A
DA97-04834B

6002-000458
DA61-03334A
DA63-40167A
DA63-03416A
DA97-04833A

6002-000458
DA61-03159A
DA63-40167A
DA63-03417A
DA63-03414A
DA97-04836A
DA34-00047A
DA61-03154A
DA61-03158A
DA66-00436A
DA66-00437A
DA67-00859C
DA97-04835A
DA61-03154A
DA61-03333A
DA66-00435A
DA63-03415A
DA61-03190A
DA34-10120E

SSVVCC--CCOODDEE RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY EVAP-FRE
CABLE TIE
SENSOR TEMP-F-DEF

THERMO BIMETAL-PROTECTOR

HEATER-METAL SHEATH
EVAP FRE
FIXER-SENSOR EVAP
PLATE-DRAIN FRE
COVER-FIXER HOUSING,V
COVER-LAMP FRE
LAMP INCANDESCENT
ASSY-SUPPORT ICE MAKER
ICE MAKER-ASSY
SCREW-TAPPING
GUIDE-ICE FULL
FIXER-SENSOR(ICE MAKER)
SUPPORT-ICE MAKER
COVER-SENSOR
TRAY ICE
COVER-ICE MAKER
ASSY CASE-ICE CUBE
CASE-ICE CUBE
SCOOP ICE
ASSY TRAY-FRE UPP
COVER-TRAY FRE UPP A
COVER-TRAY FRE UPP B
TRAY-FRE UPP
ASSY RAIL-SLIDE UPP L
SCREW-TAPPING
RAIL-SLIDE UPP L
GROMMET-COVER SLIDE
COVER-RAIL UPP L
ASSY RAIL-SLIDE UPP R
SCREW-TAPPING
RAIL-SLIDE UPP R
GROMMET-COVER SLIDE
COVER-RAIL UPP R
COVER-RAIL LOW L
ASSY RAIL-SLIDE LOW L
SWITCH PRESSURE
FIXER-GEAR
RAIL-SLIDE LOW L
GEAR-L
SHAFT-GEAR
CAP-DOOR HANDLE
ASSY RAIL-SLIDE LOW R
FIXER-GEAR
RAIL-SLIDE LOW R
GEAR-R
COVER-RAIL LOW R
FIXER-TRAY FRE UPP
SWITCH DOOR-F

SSPPEECC

AW-PJT,PIN,230V/240W
DACT140,W3.6,L146,NTR,NYLON66
PX41C,40~110,5V,FDEF SENSOR,YEL,500MM

AW-PJT(F),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW-PJT,240W,230V,220.4Ω,F-ROOM
PIN,115V,AW-PJT
CORE-PJT,PP,NTR
AW-PJT,GALVANUME,T0.4
NEXT-PJT,GALVA,T0.3,W31,L42
AW,GPPS,NTR
230V,0mA,40W,FROST,0Lm,0Cd/m^2,47x84mm
AW-PJT
NTGN,DC12V
PH,+,PI3,L15,PASS,STS430,2S
AW,ABS,NTR
AD,URETHANE
AW-PJT,HIPS,NTR
AD,PP,T1.0,WHITE
AD,PP,NTR,BJ73SLW180
AW-PJT,HIPS,COOL WHITE
AW-PJT
AW-PJT,PP,COOL WHITE
W2-PJT(05),PP(BJ703T4),SC02740R
AW-PJT
AW-PJT,HIPS,COOL WHITE
AW-PJT,GPPS
AW-PJT,HIPS,COOL WHITE
AW-PJT
FH,+,2,M4.0,L14,PASS,STS304
AW-PJT,STS430
T3.0,SILICON,NTR
AW,HIPS,COOL WHITE
AW-PJT
FH,+,2,M4.0,L14,PASS,STS304
AW-PJT,STS430
T3.0,SILICON,NTR
AW-PJT,HIPS,COOL WHITE,
AW-PJT,ABS,COOL WHITE
AW-PJT
AW-PJT,HIPS,COOL WHITE
AW-PJT,POM,NTR
AW-PJT,STS430
AW-PJT,POM,NTR
AW-PJT,SM25C
CORE,POM,-,-,-,INOX,SC-06034R
AW-PJT
AW-PJT,POM,NTR
AW-PJT,STS430
AW-PJT,POM,NTR
AW-PJT,ABS,COOL WHITE
AW-PJT,PP,NTR
slide,250V,0.5A,cool white

■■

Parts List of Freezer

94

EXPLODED VIEW& PARTS LIST

NNOO

19

20
20-1
20-2
20-3

21
21-1
21-2
21-3
21-4
21-5
21-6
21-7
21-8
21-9

21-10
21-11
21-12
21-13
21-14

QQUUAANN

TTIITTYY

1
1
6
2
1
1
3
4
1
1
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA61-03416A
DA97-04848A

6002-000213
DA61-03160A
DA63-03418A
DA97-04938A

6002-000213

6002-000215
DA31-00124A
DA31-00146C
DA39-00060K
DA61-03183A
DA61-03184A
DA61-20128A
DA62-01384A
DA63-01146A
DA63-01808A
DA63-01809A
DA63-03432B
DA63-40167A

SSVVCC--CCOODDEE RREEMMAARRKKPPAARRTT NNAAMMEE

GUIDE-DRAWER BOX
ASSY TRAY-DRAWER BOX
SCREW-TAPPING
REINF-DRAWER BOX
TRAY-DRAWER BOX
ASSY COVER-EVAP FRE
SCREW-TAPPING
SCREW-TAPPING
FAN-AX100W4CC-T1
MOTOR BLDC
WIRE HARNESS-MOTOR
CASE-MOTOR FRE
PLATE-INS EVAP FRE
SPRING ETC-FAN
INSULATION-EVAP FRE
GROMMET-MOTOR,REAR
GROMMET-MOTOR,FRONT
COVER MOTOR-BLDC
COVER-EVAP FRE
GROMMET-COVER CHIL

SSPPEECC

AW-PJT,HIPS,COOL WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,SECC1,T3.0,COOL WHITE
AW-PJT,PP,COOL WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
TD-PJT,ABS
2950,DC12V,150mA,2.1W,MOTORBLDC
ATOP,351510410,N00909204,BLDC,R,FFAN
AW-PJT,BUBBLE PP,NTR
AW-PJT,GALVANUME,T0.4
STS304,PI7.8,OD1.0,FD
AW-PJT,FOAM-PS
ATOP,NBR,ID6.5,OD42,BLK,BLDC
BLDC,NBR,BLACK,H20
BLDCNEW,PP,NTR,BJ730
AW-PJT,PP,NTR
T3.0,SILICON,NTR

■■

Parts List of Freezer

95

EXPLODED VIEW& PARTS LIST

5-2) Refrigerator

1-3

1-6

1-2

1-1

1-4

1-7

1-5

1

2

3

3-9

3-12

3-7

3-13

3-8

3-11

3-10

3-17

3-20

3-18

3-3

3-6

3-16

3-2

3-1

3-14

3-4

3-19

3-5

3-15

4-2

4-1

4-5

4-3

4-4

10-3

10-1

10-2

10-4

11-3

11-2

11-5

11-7

11-6

11-4

11-1

12-2

12-1

13-2

14-1

14-2

14-4

14-3

15-1

15-2

23-2

23-3

23-1

23-4

15-3

19-2

21-2

21-3

22-2

22-1

24-2

24-1

21-1

29-2

30-4

30-2

30-5

31-6

31-2

31-3

31-1

31-4

31-5

30-3

29-3

29-1

19-1

19-3

13-1

11-8

6

5

7

7

10

11

12

13

14

15

18

16

17

19

20

23

22

24

25

26

27

33

28

30

32

31

29

21

8

9

4

96

EXPLODED VIEW& PARTS LIST

NNOO

1
1-1
1-2
1-3
1-4
1-5
1-6
1-7

2

3
3-1
3-2
3-3
3-4
3-5
3-6
3-7
3-8
3-9

3-10
3-11
3-12
3-13
3-14
3-15
3-16
3-17
3-18
3-19
3-20

4
4-1
4-2
4-3
4-4
4-5

5

6

7

8

9

10
10-1
10-2
10-3
10-4

11
11-1
11-2
11-3
11-4
11-5

QQUUAANN

TTIITTYY

1
2
1
1
1
1
1
1
1
1
3
4
1
1
1
1
2
1
1
1
1
2
2
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
2
1
1
4
6
1
1
1
1
4
1
2
1
1

CCOODDEE--NNOO

DA96-00365G

6501-000123
DA32-00006S
DA47-00243C
DA47-00244F
DA59-00357B
DA61-00453A
DA61-03188A
DA63-02902B
DA97-04939E

6002-000213

6002-000215
DA31-00124A
DA31-00146C
DA39-00060K
DA61-03181A
DA61-03182A
DA61-03186A
DA61-20128A
DA62-01381A
DA62-01382A
DA62-01383A
DA62-01423A
DA63-01146A
DA63-01808A
DA63-01809A
DA63-03430A
DA63-03517A
DA63-40167A
DA64-02065A
DA97-04842D
DA32-00006T
DA61-03163A
DA61-03169A
DA47-40001C
DA47-00243D
DA63-03773A

4713-001232
DA61-03180A
DA61-03179A
DA67-01688A
DA97-04850A

6002-001397
DA67-01606A
DA67-01608A
DA67-01609A
DA97-04832A

6002-000213
DA01-00400A
DA61-03166A
DA61-03173A
DA63-03428A

SSVVCC--CCOODDEE RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY EVAP-REF
CABLE TIE
SENSOR TEMP-R-DEF
THERMO BIMETAL-PROTECTOR
HEATER-METAL SHEATH
EVAP REF
FIXER-SENSOR
PLATE-DRAIN REF
COVER-FIXER HOUSING,V
ASSY COVER-EVAP REF
SCREW-TAPPING
SCREW-TAPPING
FAN-AX100W4CC-T1
MOTOR BLDC
WIRE HARNESS-MOTOR
CASE-MOTOR REF
GUIDE-INS EVAP REF
PLATE-INS EVAP REF
SPRING ETC-FAN
INSULATION-EVAP REF
INSULATION-EVAP REAR
INSULATION-EVAP SUB
INSULATION-EVAP DUCT
GROMMET-MOTOR,REAR
GROMMET-MOTOR,FRONT
COVER MOTOR-BLDC
COVER-EVAP REF
COVER-EVAP REF SUB
GROMMET-COVER CHIL
TRIM-COVER EVAP REF
ASSY CASE LAMP-REF
SENSOR TEMP-R
CASE-LAMP REF
PLATE LAMP REF
LAMP HOLDER ASSY
THERMO BIMETAL PROTECTOR
COVER-LAMP REF
LAMP INCANDESCENT
ANGLE-SHELF REF SIDE
ANGLE-SHELF REF MID
CAP-ANGLE
ASSY SHELF-GLASS REF FIX
SCREW-TAPPING
SHELF-GLASS REF FIX
SHELF-HANGER REF L
SHELF-HANGER REF R
ASSY COVER-VEG
SCREW-TAPPING
GLASS-COVER VEG
FIXER-COVER VEG
REINF-COVER VEG
COVER-VEG REF

SSPPEECC

AW-PJT,PIN,230V,120W
DACT140,W3.6,L146,NTR,NYLON66

PX41C,502AT,AW-PJT,40~110,5V,RDEF SENSOR,YEL,400MM
AW-PJT(R),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW-PJT,130W,230V,406.9Ω,R-ROOM
AW-PJT
ATOP,EVAP,PP,NTR,ALL
AW-PJT,GALVANUME,T0.4,
NEXT-PJT,GALVA,T0.3,W31,L42
AW-PJT(BASIC)
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
TH,+,1,M4.0,L16,ZPC(WHT),SWRCH18A
TD-PJT,ABS
2950,DC12V,150mA,2.1W,MOTORBLDC
ATOP,351510410,N00909204,BLDC,R,FFAN
AW-PJT,BUBBLE PP,NTR
AW-PJT,ABS,NTR
AW-PJT,GALVANUME,T0.4
STS304,PI7.8,OD1.0,FD
AW-PJT,FOAMPS
AW-PJT,FOAMPS
AW-PJT,FOAMPS
AW-PJT,FOAMPS,T20,W44.5,L45
ATOP,NBR,ID6.5,OD42,BLK,BLDC
BLDC,NBR,BLACK,H20
BLDCNEW,PP,NTR,BJ730
AW-PJT,HIPS,NTR,
AW-PJT,HIPS(HG1760SF),COOL -WHT
T3.0,SILICON,NTR
AW-PJT,ABS,COOL -WHITE
AW-PJT
PX-41C, 502AT,AW-PJT,-40~1
AW,HIPS,COOL WHITE
AW,SBHG1,T0.4
E26,1A,PBT(5VA)

AW-PJT(R-Lamp),BT-121-M, PW-5M1N,125 / 250V,10 / 5A,60?,40?,100MΩ

AW,PC,crystal
230V,261mA,60W,47x112mm
AW,SECC1,T2.0,COOL -WHITE
AW,SECC1,T2.0,COOL -WHITE
AW-PJT,HIPS,COOL -WHITE
AW-PJT
TH,+,1,M4,L10,ZPC(WHT),SWRCH18A,HD6.5,HT2
AW,PP,INSERT
AW,SECC1,T1.6,COOL -WHITE
AW,SECC1,T1.6,COOL -WHITE
AW-PJT
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
756*343,T3.2,1 PRINT
AW,HIPS,COOL -WHITE
AW-PJT,SHP1,T2.9,BLACK
AW,HIPS,COOL -WHITE

■■

Parts List of Refrigerator

97

EXPLODED VIEW& PARTS LIST

NNOO

11-6
11-7
11-8

12
12-1
12-2

13
13-1
13-2

14
14-1
14-2
14-3
14-4

15
15-1
15-2
15-3

16

17

18

19
19-1
19-2
19-3

20

21
21-1
21-2
21-3

22
22-1
22-2

23
23-1
23-2
23-3
23-4

24
24-1
24-2

25

26

27

28

29
29-1
29-2
29-3

30
30-1
30-2

QQUUAANN

TTIITTYY

2
2
2
1
1
1
1
1
1
2
1
1
2
2
1
1
1
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
6
1

CCOODDEE--NNOO

DA64-00817A
DA66-00438A
DA66-10104A
DA97-04839A
DA61-03172A
DA66-10104A
DA97-04840A
DA61-03177A
DA66-10104A
DA97-04846A
DA61-03165A
DA63-03426A
DA66-10104A
DA71-20145A
DA97-04952B
DA63-03516B
DA64-02113A
DA73-00230A
DA61-03327A
DA66-00451A
DA34-00011A
DA97-05033B

6002-000213

DA63-03449A

DA97-02650F
DA67-01605A
DA97-04831C
DA63-40167A
DA63-03424A
DA63-03425A
DA97-04841A
DA61-03174A
DA67-01604A
DA97-04856B
DA31-00071C
DA32-00006R
DA62-01380A
DA63-03419A
DA97-02019A
DA32-10105B
DA63-10467B
DA61-03202A
DA63-03685B
DA97-01666Y
DA61-03167A
DA97-04830C
DA61-03176A
DA63-03422A
DA97-05297B
DA97-04847D

6002-000213

DA61-03164A

SSVVCC--CCOODDEE RREEMMAARRKKPPAARRTT NNAAMMEE

KNOB-HUMIDITY
LEVER-HUMIDITY
ROLLER-FRE
ASSY RAIL-VEG L
RAIL-VEG L
ROLLER-FRE
ASSY RAIL-VEG R
RAIL-VEG R
ROLLER-FRE
ASSY CASE-VEG REF
CASE-VEG REF
COVER-VEG FRONT
ROLLER-FRE
FIXER-ROLLER
ASSY COVER-DISPENSER
COVER-DISPENSER
BUTTON-COVER DISPENSER
RUBBER-COVER-DISPENSER
FIXER-WATER HOSE
LEVER-CASE DISPENSER
SWITCH-MICRO
ASSY-COVER WATER TANK
SCREW-TAPPING
COVER-TANK WATER
ASSY TANK WATER
SHELF-PANTRY SUB
ASSY COVER-SLIDE PANTRY
GROMMET-COVER SLIDE
COVER-SLIDE PANTRY A
COVER-SLIDE PANTRY B
ASSY SHELF-PANTRY
REINF-SHELF PANTRY
SHELF-PANTRY
ASSY COVER-MOTOR DAMPER
ASSY DAMPER MOTOR
SENSOR TEMP-PANTRY
INSULATION-MOTOR DC DAMPER
COVER-MOTOR DC DAMPER
ASSY COVER-SENSOR
SENSOR-ASSY
COVER-SENSOR
GUIDE-FRENCH
COVER-WATER FILTER
ASSY CASE-FILTER
GUIDE-PANTRY
ASSY COVER-RAIL PANTRY L
SUPPORT-ROLLER PANTRY
COVER-RAIL PANTRY L
ASSY ROLLER B
ASSY CASE-PANTRY
SCREW-TAPPING
CASE-PANTRY

SSPPEECC

QUEEN,ABS
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,HIPS,COOL -WHITE
POM,D22
AW-PJT
AW,SAN,NTR
AW,HIPS,COOL -WHITE
POM,D22
PA
AW-PJT
AW-PJT,HIPS,SC-02740R,COOL-WHT
AW-PJT,PP(BJ730),COOL -WHT,SC-02740R
AW-PJT,SILICON,4 05,GRAY
AW-PJT,PP(BJ730),COOL -WHT,SC0 -2740R
AW-PJT,POM,NTR
VP533AOF5,MICRO,250V,15A,PBT,GP1006F,1
AW-PJT,BETTER
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW-PJT,PP,COOL -WHITE
AW-PJT,BETTER
AW,HIPS,COOL WHITE
AW-PJT
T3.0,SILICON,NTR
AW,GPPS,NTR
AW,HIPS,COOL WHITE
AW-PJT
AW-PJT,SECC1,T1.2,COOL WHITE
AW,HIPS,COOL WHITE
AW-PJT
DC 12V,MAX 600mA,BBC-PJT
PX-41C,502AT,AW-PJT
AW-PJT,FOAMPS,NTR
AW-PJT,PP,COOL WHITE
COMBI-PJT,COOLWHITE,SC -02740R
TEMP CAP TYPE
COMBI-PJT,HIPS,SC -02740R,COOL -WHITE
AW-PJT,POM,COOL -WHITE(SC02740R)
AW-PJT,HIPS,T3,WHT,GEN-2 ¿˚øÎÄ
AW-PJT
AW,PP,COOL -WHITE
AW-PJT(BASIC)
AW-PJT,NBR,NTR
AW,HIPS,COOL -WHITE
AW-PJT,Ni-Zn
AW-PJT,COOL WHITE,ROLLER(Ni-Zn)
TH,+,1,M4,L12,ZPC(WHT),SWRCH18A
AW,HIPS,COOL -WHITE

■■

Parts List of Refrigerator

98

EXPLODED VIEW& PARTS LIST

NNOO

30-3
30-4
30-5

31
31-1
31-2
31-3
31-4
31-5
31-6

32

33

QQUUAANN

TTIITTYY

2
1
1
1
1
1
1
1
1
1
1
1

CCOODDEE--NNOO

DA97-05296B
DA97-04837A
DA97-04838A
DA97-04829C

6002-000630
DA41-00423B
DA64-02064B
DA61-03176A
DA63-03423A
DA97-05297B
DA61-03175A
DA29-00003B

SSVVCC--CCOODDEE RREEMMAARRKKPPAARRTT NNAAMMEE

ASSY ROLLER A
ASSY RAIL-PANTRY L
ASSY RAIL-PANTRY R
ASSY COVER-RAIL PANTRY R
SCREW-TAPPING
PBA PANEL-PANTRY
INLAY CONTROL PANEL
SUPPORT-ROLLER PANTRY
COVER-RAIL PANTRY R
ASSY ROLLER B
SUPPORT-PANTRY
FILTER WATER-ASSY

SSPPEECC

AW-PJT,Ni-Zn
AW-PJT
AW-PJT
AW-PJT(BASIC)
PH,+,2S,M3,L8,ZPC(WHT),SWRCH18A

AW-PJT,PANTRY ROOM BLUE LED,FR1,PANTRY LOWES BLUE,12V

AW,PC
AW-PJT,NBR,NTR
AW,HIPS,COOL -WHITE
AW-PJT,Ni-Zn
AW,PP,COOL -WHITE
ATOP,86*86*167,NSF53

■■

Parts List of Refrigerator

99

EXPLODED VIEW& PARTS LIST

5-3) Cabinet

2-6

4-2

4-4

4-1

4-3

4-5

5-3

5-1

5-4

5-2

11-2

11-1

13-3

13-2

14-2

15-1

15-2

14-3

14-4

14-6

14-5

28-1

28-2

28-3

29-1

29-2

14-1

14-5-4

14-5-1

14-5-2

14-5-6

14-5-5

14-5-7

14-5-3

13-1

2-9

2-7

2-5

2-8

2-3

2-4

2-1

2-2

1

2

3

4

6

6

8

9

10

7

11

5

11

13

14

17

18

16

15

18-3

18-1

18-2

19

20

22

21

23

24

25

26 37

28

29

27

30

32

33

31

34

35

36

12

5-5
