Contents
Contents
Safety information 4
Important safety symbols and precautions: 5
State of California Proposition 65 Warning (US only) 5
Severe warning signs for transportation and site 5
Critical installation warnings 6
Installation cautions 8
Critical usage warnings 8
Usage cautions 12
Cleaning cautions 13
Critical disposal warnings 14
This appliance is intended to be used in household and similar applications such as 14
Installation 15
Refrigerator at a glance 15
Step-by-step installation 17
Operations 34
Main panel 34
SmartThings (applicable models only) 42
Dispenser panel 45
Special features 47
Maintenance 53
Handling and care 53
Cleaning 63
Replacement 64
Troubleshooting 67
General 67
Do you hear abnormal sounds from the refrigerator? 71
SmartThings 73
English2
Untitled-10 2 2018-07-05 6:50:47
LIMITED WARRANTY (U.S.A.) 74
SAMSUNG REFRIGERATOR 74
Warranty Information (CANADA) 77
If your refrigerator needs service 77
Limited Warranty for Original Purchaser 77
Obligation to the Original Owner 77
Exclusions of the Warranty 78
Contents
English 3
Untitled-10 3 2018-07-05 6:50:47
Safety information
• Before using your new Samsung Refrigerator, please read this manual thoroughly
to ensure that you know how to operate the features and functions that your new
appliance offers safely and efciently.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
Safety information
• Because the following instructions cover various models, the characteristics of your
refrigerator may differ slightly from the refrigerator described in this manual.
• If you have any question, contact us at 1-800-SAMSUNG or nd help and information
online at www.samsung.com.
• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When
refrigerant leaks from the pipe, avoid any naked ames and move anything ammable
away from the product and ventilate the room immediately.
WARNING
• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant
R-600a), contact your local authority in regard to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may be sited
depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every
8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and not placed near
any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certied
products in explosive gas atmospheres.
• Never start up an appliance showing any signs of damage. If in doubt, consult your
dealer.
Warning; Risk of re / ammable materials
English4
Untitled-10 4 2018-07-05 6:50:47
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This manual uses the following safety
symbols.
WARNING
Hazards or unsafe practices that may result in severe personal injury, property damage,
and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal injury and/or property
damage.
NOTE
Useful information that helps users understand or benet from the refrigerator.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
State of California Proposition 65 Warning (US only)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Safety information
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
- Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak
is detected, avoid any naked ames or potential sources of ignition and air the room
in which the appliance is standing for several minutes.
- This appliance contains a small amount of isobutane refrigerant (R-600a), a natural
gas with high environmental compatibility that is, however, also ammable. When
transporting and installing the appliance, care should be taken to ensure that no
parts of the refrigerating circuit are damaged.
English 5
Untitled-10 5 2018-07-05 6:50:48
Safety information
Critical installation warnings
WARNING
• Do not install the refrigerator in a damp location or place where it may come in contact
with water.
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves,
Safety information
room heaters, or other appliances.
• Do not plug several appliances into the same multiple power strip. The refrigerator
should always be plugged into its own individual electrical outlet which has a voltage
rating that matches the voltage listed on the refrigerator’s rating plate.
- This provides the best performance and also prevents overloading of house wiring
circuits, which could overheat the wires and cause a re hazard.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a power cord that has cracks or abrasion damage along its length or at
either end.
• Do not bend the power cord excessively or place heavy objects on it.
• Do not pull or excessively bend the power cord.
• Do not twist or tie the power cord.
• Do not hook the power cord over a metal object, place a heavy object on the power
cord, insert the power cord between objects, or push the power cord into the space
behind the appliance.
• When moving the refrigerator, be careful not to roll over or damage the power cord.
- This may result in an electric shock or re.
• Never unplug your refrigerator by pulling on the power cord. Always grip the plug
rmly and pull straight out from the outlet.
- Damage to the cord may cause a short-circuit, re, and/or electric shock.
• Do not store explosive substances such as aerosol cans with a ammable propellant in
this appliance.
• Do not install this appliance near a heater or ammable material.
• Do not install this appliance in a location where gas may leak.
- This may result in an electric shock or re.
• This refrigerator must be properly located and installed in accordance with the
instructions in this manual before you use it.
• Connect the power plug in the proper position with the cord hanging down.
- If you connect the power plug upside down, the wire can get cut off and cause a re
or electric shock.
English6
Untitled-10 6 2018-07-05 6:50:48
• Make sure that the power plug is not crushed or damaged by the back of the
refrigerator.
• Keep the packing materials out of reach of children.
- There is a risk of death from suffocation if a child puts the packing materials on his
or her head.
• The appliance must be positioned so that the plug is accessible after installation.
- Failing to do so may result in an electric shock or re due to electric leakage.
• Do not install this appliance in a humid, oily or dusty location, or in a location exposed
to direct sunlight or to water (rain drops).
- Deteriorated insulation on electrical parts may cause an electric shock or re.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact a Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
- This may result in an electric shock, re, problems with the product, or injury.
• You need to remove all the protective plastic lm before you initially plug the product
in.
• Children should be supervised to ensure that they do not play with the snap rings used
for door adjustment or the water tube clips.
- There is risk of death by suffocation if a child swallows a snap ring or water tube
clip. Keep the snap rings and water tube clips out of children's reach.
• The refrigerator must be safely grounded.
- Always make sure that you have grounded the refrigerator before attempting to
investigate or repair any part of the appliance. Power leakages can cause severe
electric shock.
• Never use gas pipes, telephone lines, or other potential lightning attractors as an
electrical ground.
- You must ground the refrigerator to prevent any power leakages or electric shocks
caused by current leakage from the refrigerator.
- Current leakage may result in an electric shock, re, explosion, or problems with the
product.
- Improper use of the grounding plug can result in a risk of electric shock. If it is
necessary to use an extension cord, use only a 3-wire extension cord that has a
3-blade grounding plug and a 3-slot receptacle that will accept the plug on the
appliance. The marked rating of the extension cord should be AC 115-120 V, 10
A, or more. If a grounding adapter is used, make sure the receptacle box is fully
grounded.
Safety information
English 7
Untitled-10 7 2018-07-05 6:50:48
Safety information
• Plug the power plug into the wall socket rmly. Do not use a damaged power plug,
damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
• If the power cord is damaged, have it replaced immediately by the manufacturer or
one of its service agents.
• Only a qualied technician or service company should be allowed to change the fuse in
the refrigerator.
Safety information
- Failing to do so may result in an electric shock or personal injury.
• The wall socket must be easily accessible so that the appliance can be quickly
disconnected from the wall socket in an emergency.
• It must be outside the area of the rear of the appliance.
• When positioning the appliance, ensure the power cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Installation cautions
CAUTION
• Allow sufcient space around the refrigerator and install it on a at surface.
- Keep the ventilation space in the appliance enclosure or mounting structure clear of
obstructions.
• After you have installed the refrigerator and turned it on, allow the appliance to stand
for 2 hours before loading it with food.
• It is strongly recommended you have a qualied technician or service company install
the refrigerator.
- Failing to do so may result in an electric shock, re, explosion, problems with the
product, or injury.
• Overloading one door may make the refrigerator fall, causing physical injury.
Critical usage warnings
WARNING
• Do not insert the power plug into a wall socket with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause personal injury
and/or material damage.
English8
Untitled-10 8 2018-07-05 6:50:48
• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or
the back of the refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not touch the inside walls of the freezer or products stored in the freezer with wet
hands.
- This may cause frostbite.
• Do not put a container lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not keep volatile or ammable objects or substances (benzene, thinner, propane
gas, alcohol, ether, LP gas, and other such products) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
• Children should be supervised to ensure that they do not play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet
are necessarily small. Be careful when you open the doors if children are in the area.
• Do not let children hang on the door or door bins. A serious injury may occur.
• Do not let children go inside the refrigerator. They could become trapped.
• Do not insert your hands into the area under the appliance.
- Any sharp edges may cause personal injury.
• Do not store pharmaceutical products, scientic materials, or temperature sensitive
products in the refrigerator.
- Products that require strict temperature controls must not be stored in the
refrigerator.
• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are
of a type recommended by the manufacturer.
• If you smell smoke, pull out the power plug immediately, and then contact a Samsung
Electronics service center.
• If large amounts of dust or water enter the refrigerator, disconnect the power plug and
contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not leave the doors of the refrigerator open while the refrigerator is unattended
and do not let children enter the refrigerator.
• Do not allow babies or children go into a drawer.
- It can cause death from suffocation by entrapment or personal injury.
Safety information
English 9
Untitled-10 9 2018-07-05 6:50:48
Safety information
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and cause personal injury or material
damage.
• Do not spray volatile material such as insecticide onto the surface of the appliance.
- As well as being harmful to humans, it may also result in an electric shock, re, or
problems with the product.
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
Safety information
bucket.
- It may cause a personal injury or material damage.
• Do not use or place any substances sensitive to temperature such as ammable sprays,
ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted
candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral
water, or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• Do not stand on top of the appliance or place objects (such as laundry, lighted candles,
lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product, or injury. Do not put a
container lled with water on the appliance.
- If spilled, there is a risk of re or electric shock.
• Do not use mechanical devices or any other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Never stare directly at the UV LED lamp for long periods of time.
- This may result in eye strain due to the ultraviolet rays.
• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not
work.
- The glass shelf could fall and cause personal injury.
• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are
necessarily small. Be careful when you open the doors if children are in the area.
• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and
air the room in which the appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or re.
• Use only the LED Lamps provided by the manufacturer or its service agents.
English10
Untitled-10 10 2018-07-05 6:50:48
• Bottles should be stored tightly together so that they do not fall over or out.
• This product is intended only for the storage of food in a domestic environment.
• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker
bucket.
- This can cause a personal injury or material damage.
• Do not attempt to repair, disassemble, or modify the refrigerator yourself.
- Unauthorized modications can cause safety problems. To reverse an unauthorized
modication, we will charge the full cost of parts and labor.
• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.
• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung
service center.
- Failing to do so may result in an electric shock, re, problems with the product, or
injury.
• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service
center.
• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately
and contact a Samsung service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the interior lamps of the
refrigerator.
- Otherwise, there is a risk of electric shock.
• If you experience difculty changing a non-LED light, contact a Samsung service
center.
• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and
LED lamps yourself.
- Contact a Samsung service center.
• Plug the power plug into the wall socket rmly.
• Do not use a damaged power plug, damaged power cord, or loose wall socket.
- This may result in an electric shock or re.
Safety information
English 11
Untitled-10 11 2018-07-05 6:50:48
Safety information
Usage cautions
CAUTION
• Do not re-freeze frozen foods that have thawed completely.
• Use only the ice maker provided with the refrigerator.
• To get the best performance from the product:
- Do not place food too close to the vents at the rear of the refrigerator as this can
Safety information
obstruct free air circulation in the refrigerator compartment.
- Wrap food up properly or place it in airtight containers before putting it into the
refrigerator.
- Please observe maximum storage times and expiration dates of frozen goods.
• Do not put glass containers or bottles or carbonated beverages into the freezer.
- The container may freeze and break, and this may result in injury.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd party on this nished appliance
are not covered under Samsung warranty service, nor is Samsung responsible for
safety issues that result from 3rd party modications.
• Do not block the air vents inside the refrigerator.
- If the air vents are blocked, especially with a plastic bag, the refrigerator can be
over cooled. If a cooling period lasts too long, the water lter may break and cause
water leakage.
• If the refrigerator is disconnected from the power supply, you should wait for at least
ve minutes before plugging it back in.
• If large amounts of water enter the refrigerator, pull out the power plug and contact a
Samsung service center.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or property damage.
• Fill the water tank and ice cube trays with potable water only (tap water, mineral
water, or puried water).
- Do not ll the tank with tea, juice, or a sports drink. They can damage the
refrigerator.
• If the refrigerator is ooded, shut off the power to the refrigerator and contact your
nearest Samsung service center.
- There is a risk of electric shock or re.
• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it
foul-tasting and difcult to use. In addition, the open container can leak and the leaked
oil can cause the door bin to crack. After opening an oil container, it is best to keep the
container in a cool and shaded place such as a cupboard or pantry.
- Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc.
English12
Untitled-10 12 2018-07-05 6:50:48
Cleaning cautions
CAUTION
• Do not spray water directly on the inside or outside of the refrigerator.
- There is a risk of re or electric shock.
• Do not use a hair dryer to dry the inside of the refrigerator.
• Do not place a lighted candle in the refrigerator to remove bad odors.
- This may result in an electric shock or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• If any foreign substance such as water has entered the appliance, unplug the power
plug and contact your nearest Samsung service center.
- Failing to do so may result in an electric shock or re.
• Use a clean, dry cloth to remove any foreign matter or dust from the power plug
blades. Do not use a wet or damp cloth when cleaning the plug.
- Otherwise, there is a risk of re or electric shock.
• Do not clean the appliance by spraying water directly onto it.
• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator.
- They may damage the surface of the appliance and may cause a re.
• Never put ngers or any objects into the dispenser outlet.
- This can cause a personal injury or material damage.
• Before cleaning or performing maintenance, unplug the appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the
refrigerator.
• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers,
ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches,
or cleansers containing petroleum products on exterior surfaces (doors and cabinet),
plastic parts, door and interior liners, and gaskets.
- These can scratch or damage the material.
• Do not clean glass shelves or covers with warm water when they are cold. Glass
shelves and covers may break if exposed to sudden temperature changes or impacts
such as bumping or dropping.
Safety information
English 13
Untitled-10 13 2018-07-05 6:50:48
Safety information
Critical disposal warnings
WARNING
• DANGER : Risk of child entrapment. Before you throw away your old refrigerator or
freezer:
- Take off the doors and door latch.
- Leave the shelves in place so that children may not easily climb inside.
Safety information
- Children trapped inside a refrigerator can hurt themselves or suffocate to death.
• Please dispose of the packaging material from this product in an environmentally
friendly manner.
• Ensure that none of the pipes on the back of the refrigerator are damaged prior to
disposal.
• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant
R-600a), contact your local authority in regard to safe disposal of this product.
• When disposing of this refrigerator, remove the door/door seals and door latch so that
small children or animals cannot become trapped inside. Children should be supervised
to ensure that they do not play with the appliance.
- If trapped inside, the child could be injured or suffocate to death.
• Cyclopentane is used in the insulation. The gases in the insulation material require
a special disposal procedure. Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• Keep all packaging materials well out of the reach of children, as packaging materials
can be dangerous to children.
- If a child places a bag over his or her head, the child could suffocate.
This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, ofces and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
English14
Untitled-10 14 2018-07-05 6:50:48
Installation
01
02
03
04
05
06
07
08
09
Follow these instructions carefully to ensure a proper installation of this refrigerator and
to prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
• To prevent electric shock, unplug the power plug before servicing or replacing parts.
Refrigerator at a glance
The actual refrigerator and provided component parts of your refrigerator may differ
from the illustrations in this manual, depending on the model and the country.
Installation
English 15
Untitled-10 15 2018-07-05 6:50:48
Installation

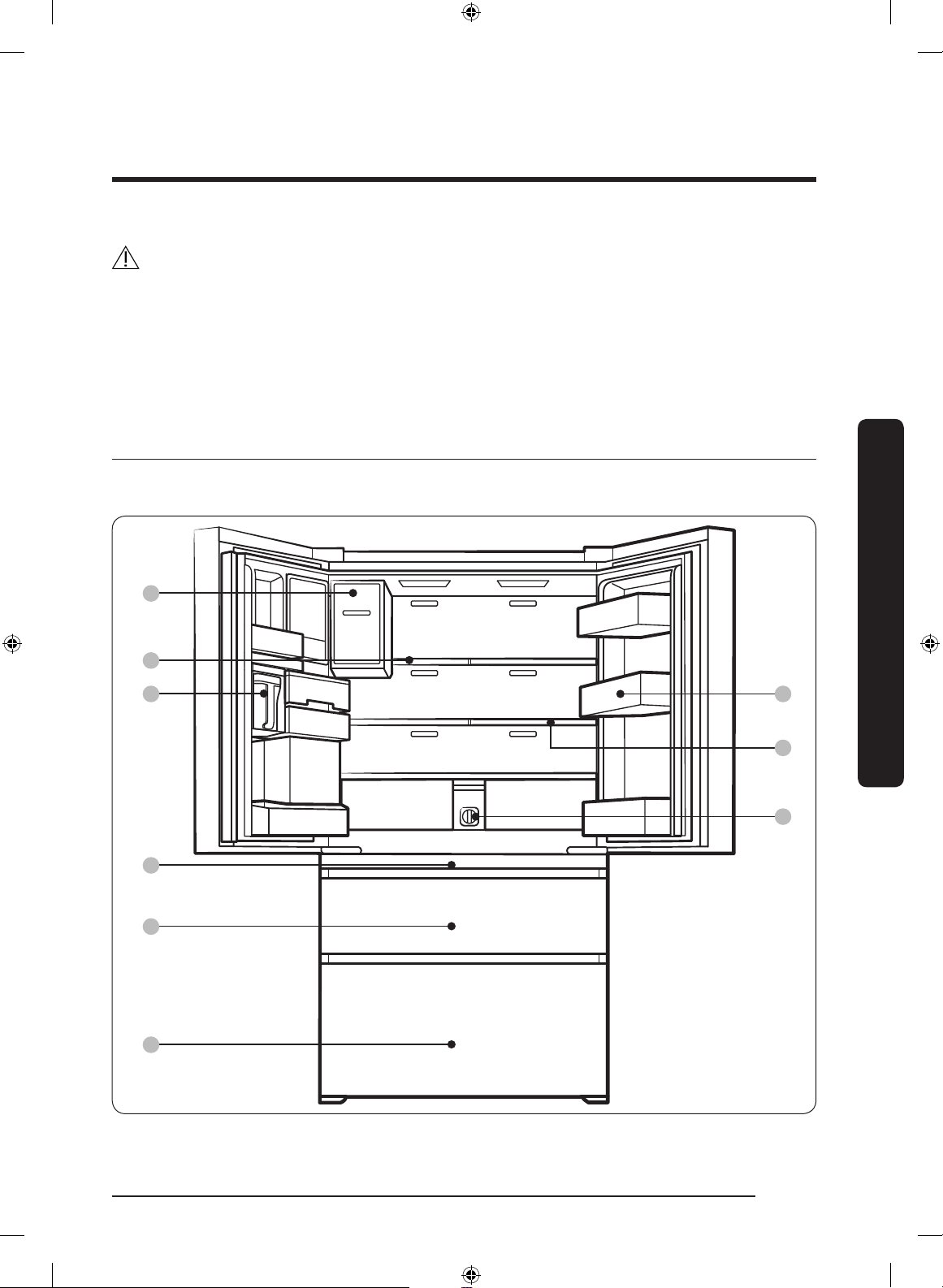

01 Auto Ice Maker 02 1-Step Foldable Shelf
03 Water tank (Auto Water Fill) 04 Main panel (on the FlexZone™ handle)
05 FlexZone™ 06 Freezer
07 Door bins 08 2-Step Foldable Shelf
09 Water lter
* applicable models only
• For energy efciency, keep all shelves, drawers, and baskets in their original positions.
• When closing the door, make sure the vertical hinged section is in the correct position
Installation
• If the vertical hinged section is reversed, put it back into the correct position, and then
• Moisture may form at times on the vertical hinged section.
• If you close a door forcefully, the other door may open.
• When a door opens, the interlock switch automatically disables the auger motor of the
• If the internal or external LED lamp is out of order, contact a local Samsung service
NOTE
to avoid scratching the other door.
close the door.
ice maker for safety reasons.
center.
Door bins

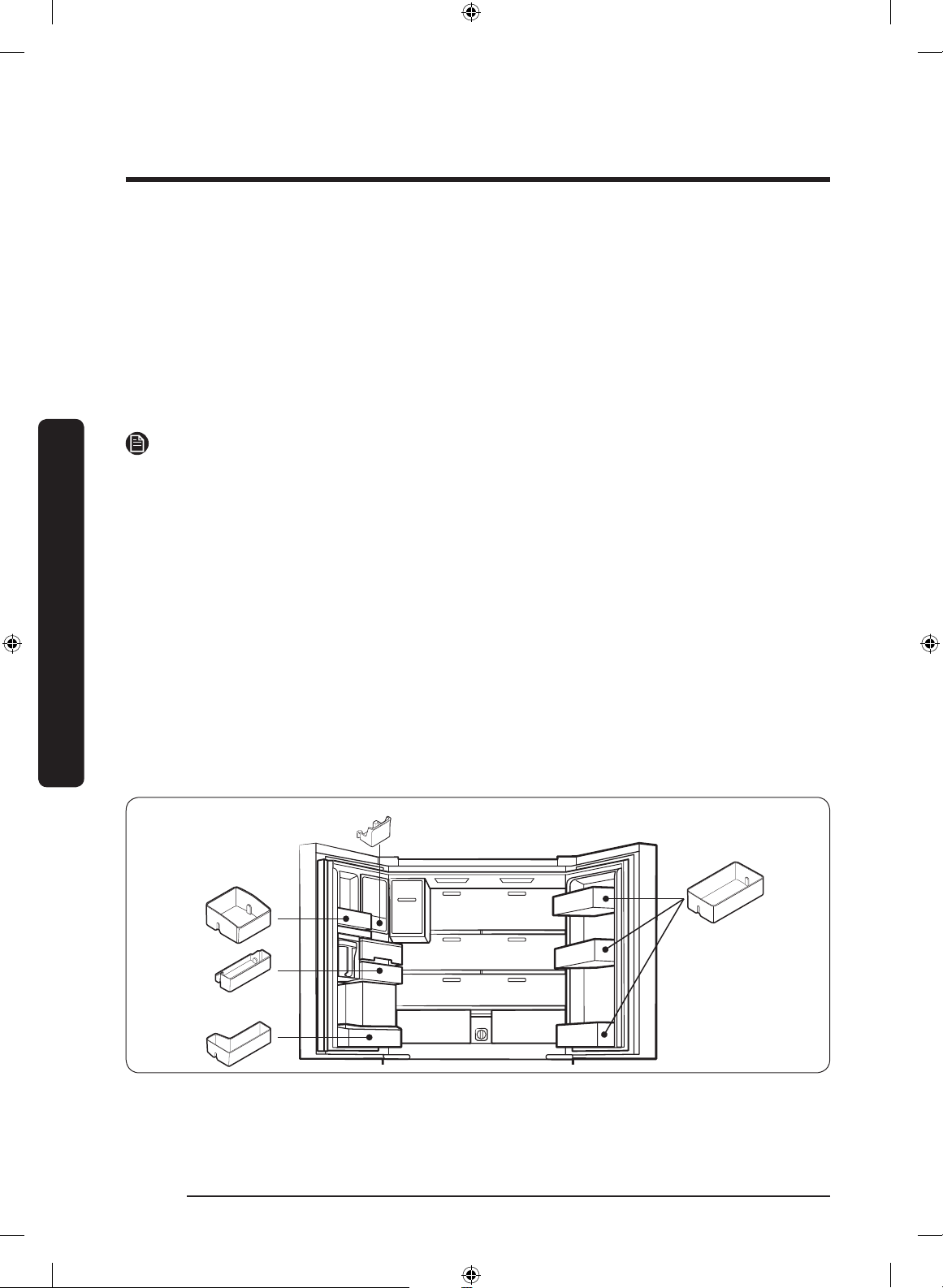

Your refrigerator ships with door bins of different types and sizes. If the door bins for
your refrigerator were packaged separately, use the gure below to help you position the
bins properly.
English16
Untitled-10 16 2018-07-05 6:50:49
Step-by-step installation
C
D
A
E
B
STEP 1 Select a site
Select a site that:
• Has a solid, level surface without carpeting or ooring that may obstruct ventilation
• Is away from direct sunlight
• Has adequate room for opening and closing the door
• Is away from any heat sources
• Provides room for maintenance and servicing
• Has a temperature range between 50 °F (10 °C) and 109 °F (43 °C)
CAUTION
• If your refrigerator is equipped with an ice maker, secure extra space at the rear of the
refrigerator for the water line connection.
• When you install the refrigerator next to a xed wall, you must secure a minimum
clearance of 3 3/4" (95 mm) from the wall to allow the door to swing open.
NOTE
To facilitate moving your refrigerator to its nal location, be sure to measure the width
and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be
taken into consideration to ensure you can move your refrigerator safely. The following
diagram illustrates the exact height and depth (factory specications) of your refrigerator.
Installation

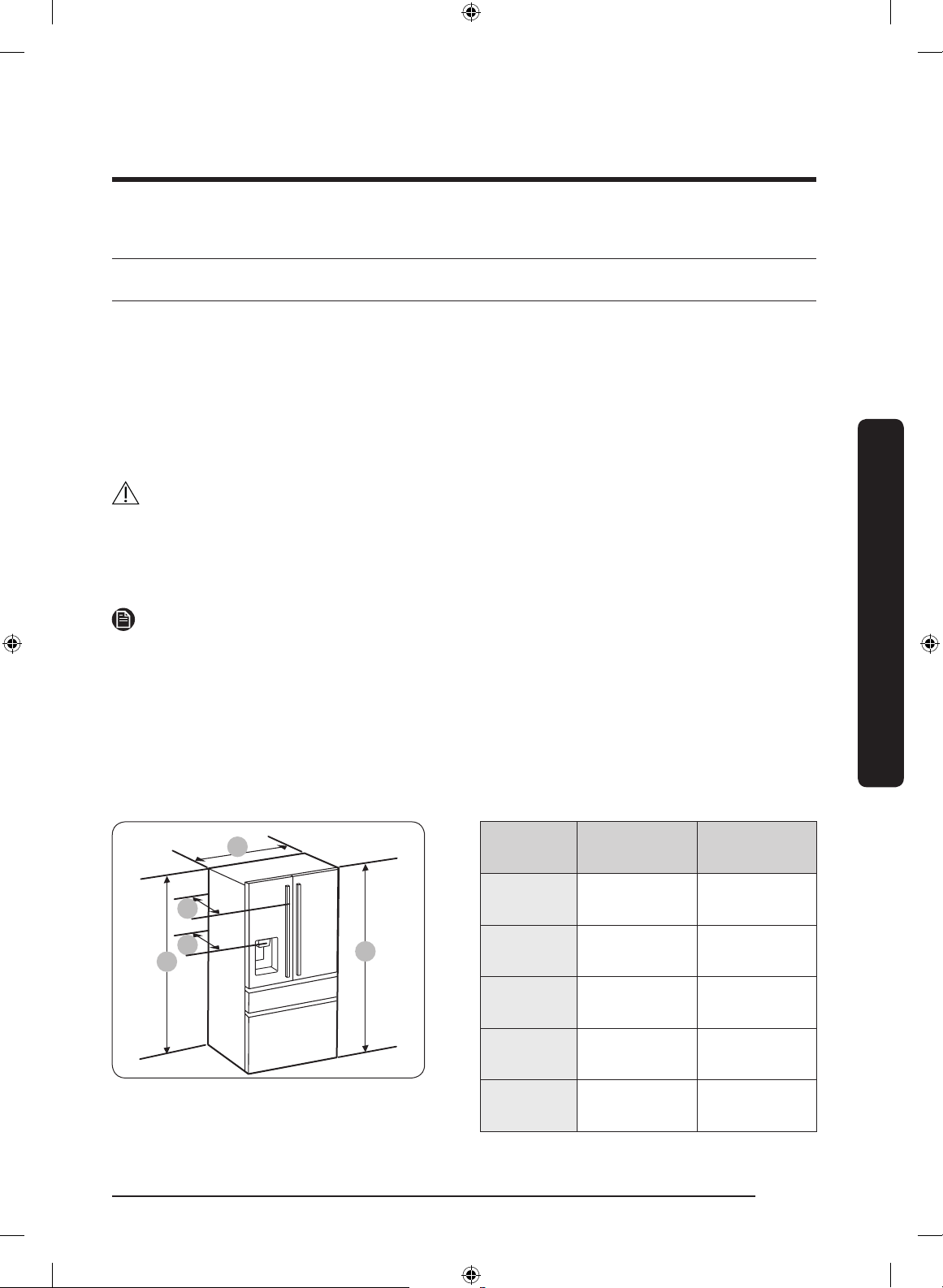

Clearance

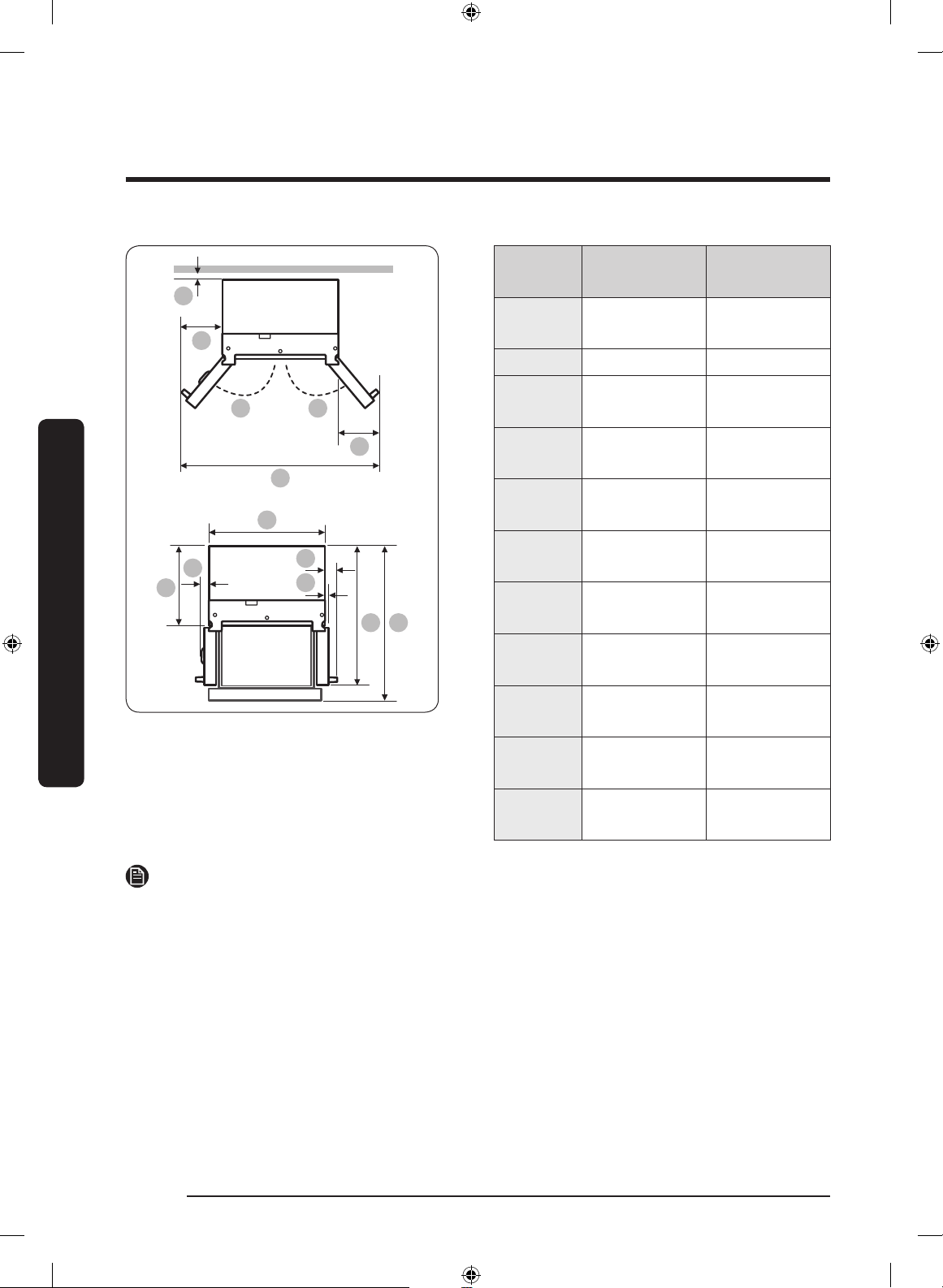

See the pictures and table below for space requirements for installation.
Model
Depth “A” -
Width “B”
Height “C”
Overall
Height “D”
Depth “E”
RF23M807***
RF23M808***
35 3/4"
(908 mm)
68 7/8"
(1749 mm)
70"
(1777 mm)
29 1/4"
(742 mm)
RF23M809***
30 3/4"
(781 mm)
35 3/4"
(908 mm)
68 7/8"
(1749 mm)
70"
(1777 mm)
29 1/4"
(742 mm)
English 17
Untitled-10 17 2018-07-05 6:50:49
Installation
01
04
04
03
05
1110
06
02 02
08
07
09
Installation
Model
01
RF23M807***
RF23M808***
2"
(50 mm)
RF23M809***
(50 mm)
02 135° 135°
03
04
05
06
07
08 -
09
10
11
62”
(1575 mm)
13 1/4"
(333.5 mm)
35 3/4"
(908 mm)
24"
(610 mm)
2 1/2"
(64 mm)
1 3/4"
(45.4 mm)
43 1/8"
(1095.5 mm)
45"
(1143 mm)
(1624 mm)
14 1/8"
(358 mm)
35 3/4"
(908 mm)
(610 mm)
(64 mm)
(104 mm)
(45.4 mm)
43 1/8"
(1095.5 mm)
(1143 mm)
2"
64”
24"
2 1/2"
4 1/8"
1 3/4"
45"
NOTE
The measurements in the table above may differ slightly from the actual measurements,
depending on the measuring and rounding method.
Untitled-10 18 2018-07-05 6:50:49
English18
STEP 2 WiFi connection
You can control the refrigerator remotely using the Smart Home Adapter that is sold
separately. To purchase the Smart Home Adapter, visit www.samsung.com and follow the
product information about the adapter.
NOTE
You may not be able to purchase the Smart Home Adapter separately in some countries.
Please check with your dealer for availability.
CAUTION
• The Samsung Smart Home Adapter comes in two types: one that is dedicated to
Samsung smart TVs, and the other one that is dedicated to Samsung home appliances.
• You must purchase the Samsung Smart Home Adapter (HD39N1230GW) dedicated to
home appliances. Any other adapters may cause system failure.
1. Press the front area of the adapter
cover to unlatch.
2. Open up the adapter cover.
Installation
3. Insert the Smart Home Adapter into the
dongle port in the correct orientation.
4. Insert the front area of the adapter
cover rst, and then t the cover into
position.
English 19
Untitled-10 19 2018-07-05 6:50:49
Installation

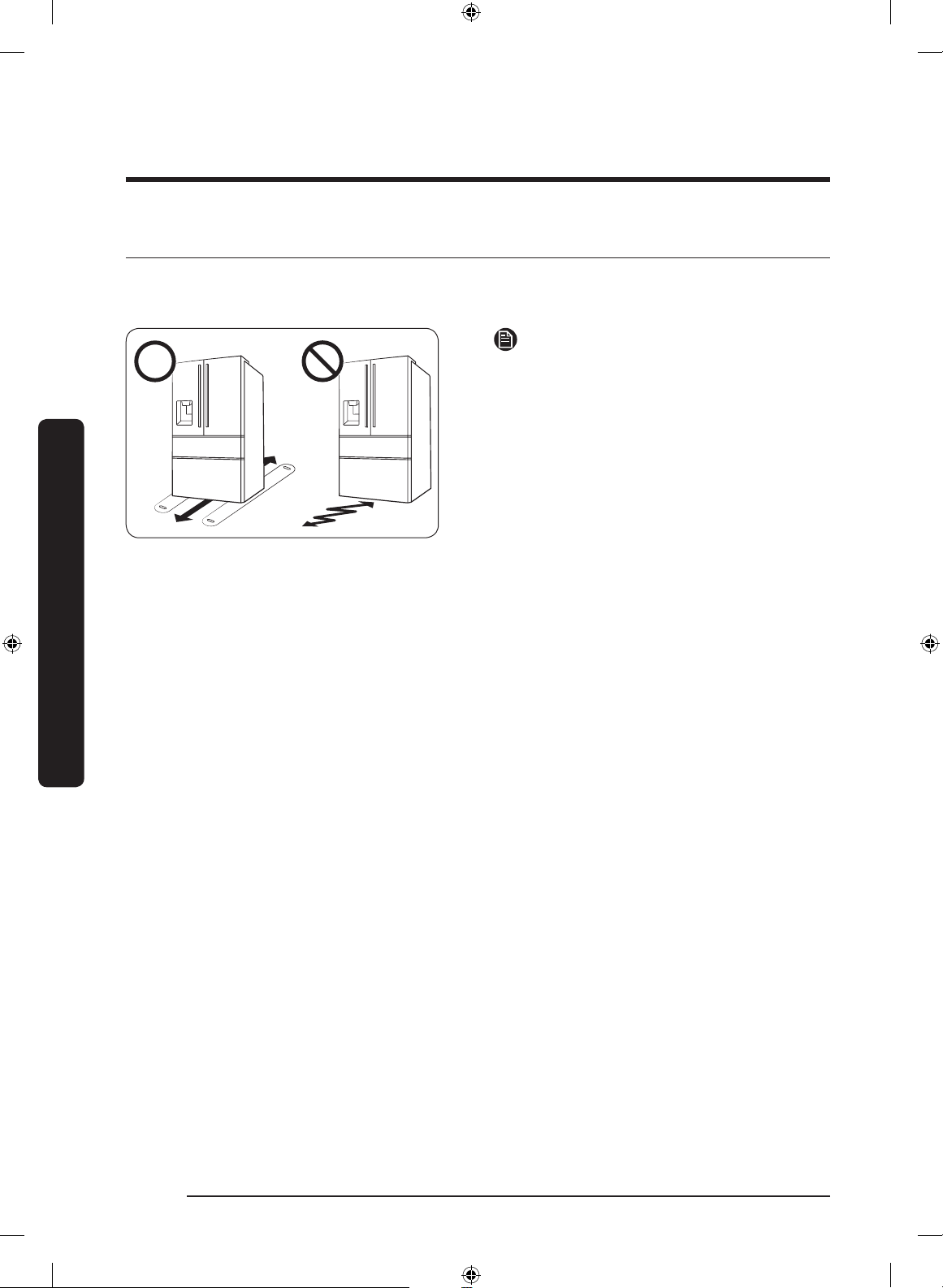

STEP 3 Flooring
If the refrigerator cannot pass through the entrance due to its size, see STEP 4 Door
removal for entrance.
Installation
NOTE
To prevent oor damage, make sure the
front levelling legs are in the upright
position.
• The surface you install the refrigerator
must support a fully loaded refrigerator.
• To protect the oor, put a large piece
of cardboard along the path to the
refrigerator's nal installation location.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor. If you
have to move the refrigerator, place
thick paper or cloth such as old carpets
along the path of movement.
English20
Untitled-10 20 2018-07-05 6:50:50
STEP 4 Door removal for entrance
If the refrigerator cannot pass through the entrance to your home or kitchen due to its
size, follow these instructions to remove and then re-install the refrigerator's doors. If you
do not need to remove the doors, go to page 28 to continue the installation procedure.
WARNING
Unplug the power cord of the refrigerator before removing the doors.
Tools required (not provided)
Phillips screwdriver Flat-heat screwdriver Socket wrench 3/8" (10 mm)
Pliers Allen wrench 1/4" (5 mm)
Installation
English 21
Untitled-10 21 2018-07-05 6:50:50
Installation
Detach the fridge doors
Installation
1. With the door opened, remove the
screws from the top cover.

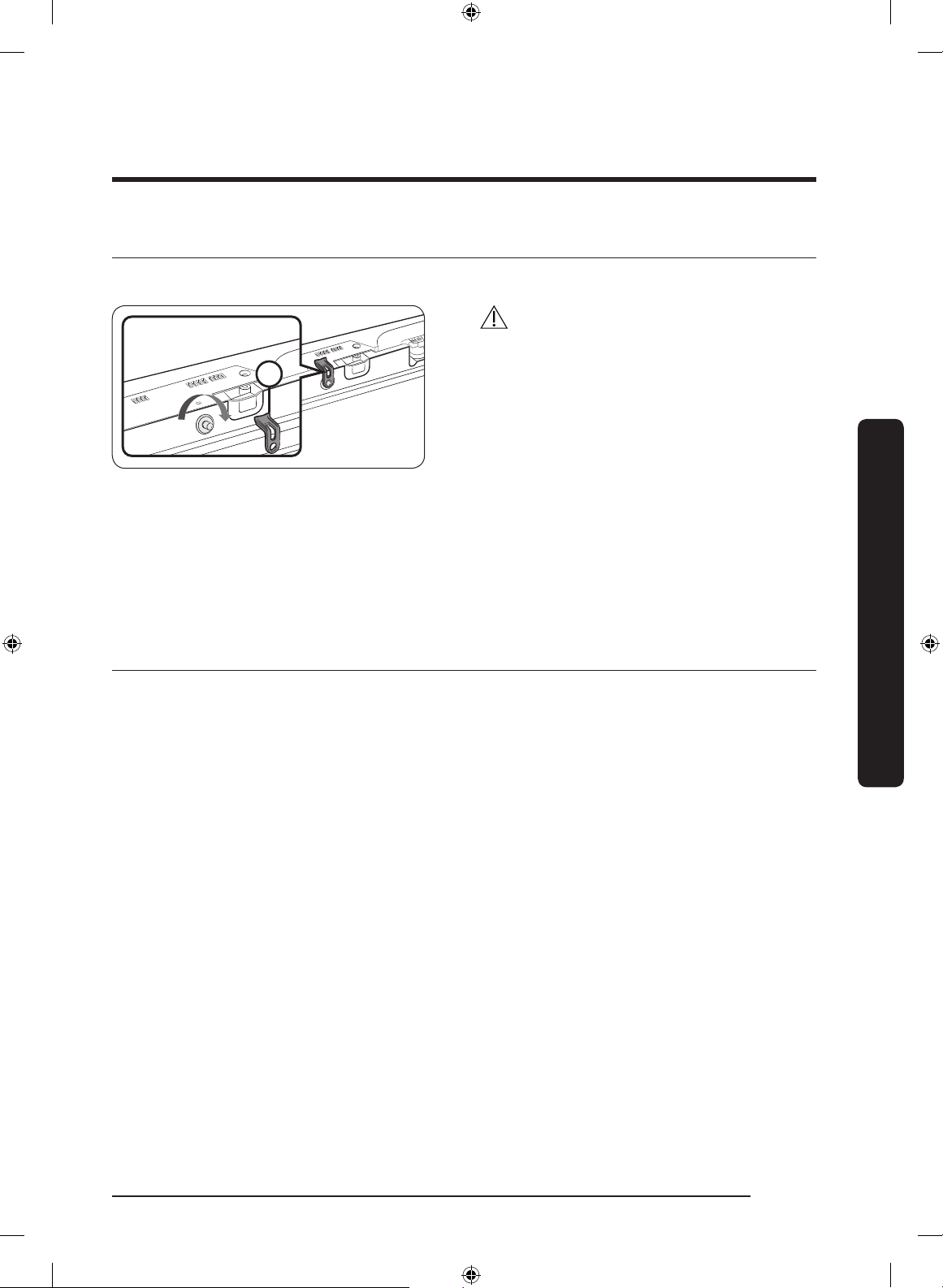

2. Disconnect the wires and the water
tube from the left-side door. Do the
following sequentially:
• Decouple the connector.
• While holding down one end of the
water line coupler, disconnect the water
tube.
CAUTION
Keep the water tube clips out of children’s
reach.
3. Remove the top hinges.
• Pull and remove the hinge lever.
• Then, remove the door hinge.
• Repeat this step on the other side.
English22
Untitled-10 22 2018-07-05 6:50:51
4. Lift straight up to remove the door.
A
01
02
03
B
• Repeat this step on the other side.
CAUTION
Do not remove both doors simultaneously.
Make sure to remove one door at a time.
Otherwise, any of the doors may fall and
cause physical injury.
5. Remove the middle hinge.
• Remove the screw from the hinge using
a Phillips screwdriver.
• Remove 2 hex-head bolts from the
hinge using an Allen wrench (1/4",
5 mm).
• Remove the middle hinge.
• Repeat this step on the other side.
To reattach the fridge door
After you have moved the refrigerator to its nal location, reattach the doors by following
the removal instructions in reverse order.
Installation
CAUTION
To prevent water leaks from the dispenser,
the water line must be fully connected.
Make sure both tubes of the water line are
inserted fully to the center of transparent
coupler (A) or the guidelines (B).
01 Dispenser
02 Center of transparent coupler
03 Guidelines
Untitled-10 23 2018-07-05 6:50:51
English 23
Installation
Detach the FlexZone™ drawer
Installation
1. Lift up to remove the FlexZone™ basket.
2. Remove the wire cover with harness
using a at-head screwdriver.
3. Press the locking tab to disconnect the
wire connector.
4. Remove the hex-head bolt from each
side using a socket wrench (3/8", 10 mm)
or a screwdriver.
English24
Untitled-10 24 2018-07-05 6:50:52
5. Lift up to remove the drawer front of
the FlexZone™ from the rail assembly.
CAUTION
• Use caution when removing the rail
assembly, which may fall off causing
damage to the oor.
• Make sure to put the FlexZone™ drawer
in place after removing or mounting
the FlexZone™ basket. The FlexZone™
drawer may not open or close if the
freezer drawer is not in place.
• Do not store too much food in the
FlexZone™ drawer. This prevents
the FlexZone™ drawer from closing
properly, resulting in frost buildup.
Installation
To reattach the FlexZone™ drawer
After you have moved the refrigerator to its nal location, reattach the FlexZone™ drawer
by following the removal instructions in reverse order.
CAUTION
If the FlexZone™ or the indicator does not operate properly, make sure the connectors are
connected properly.
English 25
Untitled-10 25 2018-07-05 6:50:52
Installation

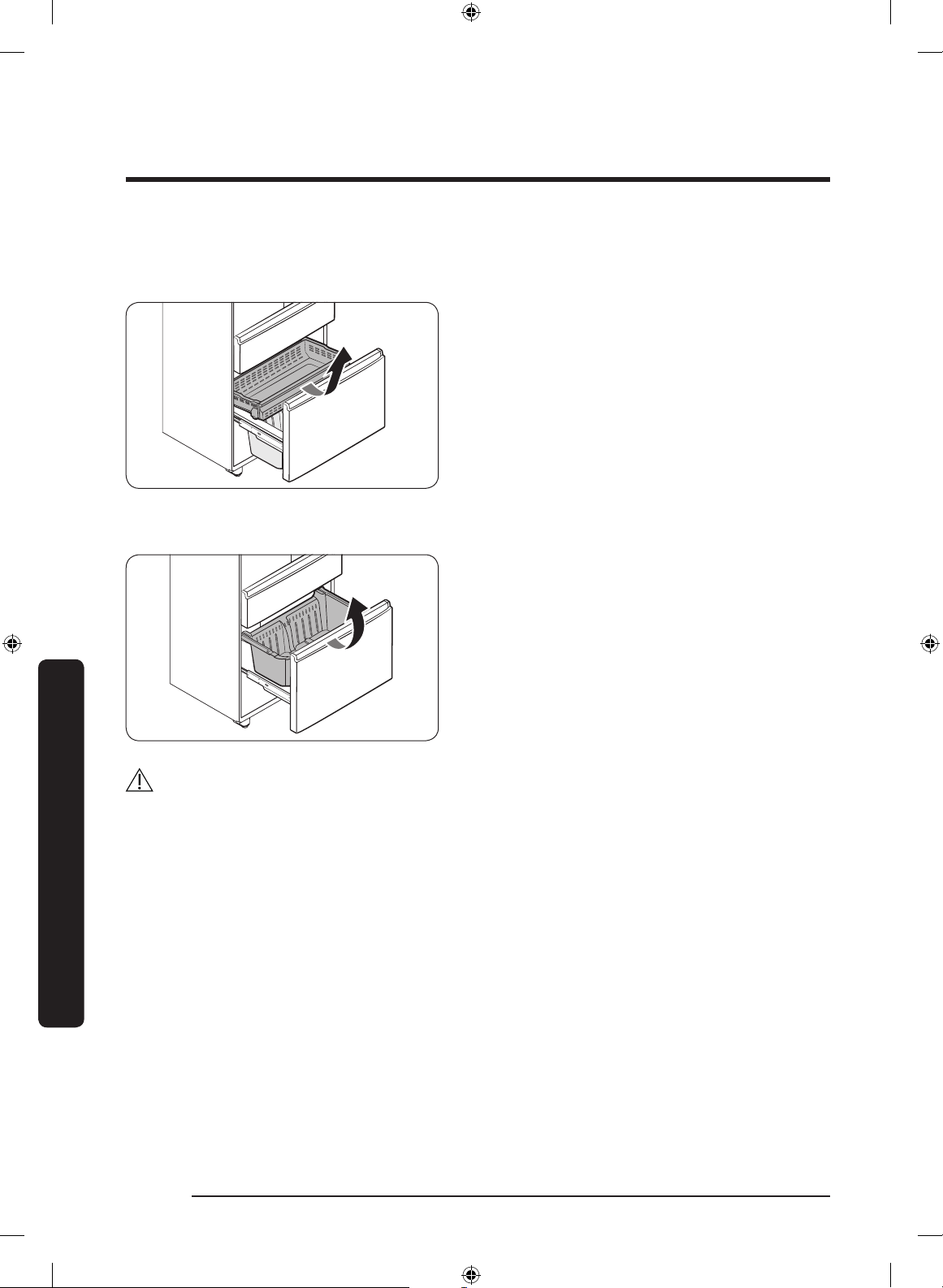

Detach the freezer drawer
Installation
1. Push the upper basket to the end, and
then pull up to remove.
2. Pull up to remove the lower basket
from the rail assembly.
3. Press down the hooks to unlock the rail
assembly.
4. While holding the upper area of the
drawer front of the freezer, slide out all
the way to remove the freezer drawer
from the rail assembly.
English26
Untitled-10 26 2018-07-05 6:50:53
CAUTION
• Make sure you mount the freezer
baskets in the right position. Otherwise,
the drawer will not open or close
properly, which causes frost to build up.
• Do not store too much food in the
freezer baskets. This prevents the
freezer drawer from closing properly,
resulting in frost buildup.
• While the lower basket is fully open,
put the upper basket into the freezer
drawer. Make sure the wheels of the
upper basket are on the end of the rails
of the lower basket.
• Put the wheels of the upper basket on
the end of the rails of the lower basket.
Then, slide the upper basket all the way
to the front.
• Be careful not to scratch or dent the rail
assembly.
Installation
To reattach the freezer drawer
After you have moved the refrigerator to its nal location, reattach the freezer drawer by
following the removal instructions in reverse order.
English 27
Untitled-10 27 2018-07-05 6:50:53
Installation
STEP 5 Levelling the refrigerator
CAUTION
• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause
damage to the refrigerator or physical injury.
• Levelling must be performed with the refrigerator empty. Make sure no food items are
inside the refrigerator.
• Also, open the freezer drawer and remove the lower basket.
• For safety reasons, adjust the refrigerator so that the front is a little higher than the
rear.
Level the refrigerator using the special screws (levellers) on the front legs. Use a at-head
screwdriver to turn the levellers.
Installation
• To adjust the height on one side: Insert
a at-head screwdriver into a notch in
the leveller on that side. (left or right)
Turn the leveller clockwise to raise the
refrigerator. Turn it counterclockwise to
lower. Repeat on the other side.
English28
Untitled-10 28 2018-07-05 6:50:53
STEP 6 Adjust the door height and the door gap
A
Snap rings
The height of a door can be adjusted using the provided snap
rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm,
and 2.5 mm).
To adjust the height of a door
1. Check the height difference between
the doors, and then raise and hold the
door with the lower height.
Installation
2. Insert a suitable-sized snap ring (A)
between the door and the hinge as
shown.
CAUTION
• Insert only one snap ring. If you insert two or more snap rings, the rings may slip out
or make a rubbing noise.
• Keep the snap rings out of children’s reach and keep them for future use.
• Do not raise the door too much. The door can contact and damage the top cover.
English 29
Untitled-10 29 2018-07-05 6:50:54
Installation
A
B
C
A
B
STEP 7 Connect the water dispenser line
A water dispenser with a lter is one of the helpful features on your new refrigerator. To
help promote better health, the water lter removes unwanted particles from your water.
However, it does not sterilize or destroy microorganisms. You may need to purchase a
water purifying system to do that.
The water line also connects to the ice maker. For the ice maker to operate properly,
water pressure of 20-125 psi is required.
If the refrigerator is installed in an area with low water pressure (below 20 psi), you can
install a booster pump to compensate for the low pressure.
After you have connected the water line, make sure the water storage tank inside the
refrigerator is properly lled. To do this, press the water dispenser lever until water runs
from the water outlet.
Installation
• Water line installation kits are available at extra cost from your retailer. We
• Use the new hose-sets supplied with the appliance only. Do not re-use an old hose set.
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
NOTE
recommend using a water line installation kit that contains copper tubing and a 1/4"
(6 mm) compression nut.
WARNING
of obstruction. Connect to potable water supply only.
1. Shut off the main water source.
2. Insert the pipe clamp (B) and the
shutoff valve (C) into the cold water
line (A).
3. Connect the water line installation kit
(A) to the shutoff valve (B).
Untitled-10 30 2018-07-05 6:50:54
English30
Connect the water supply line to the refrigerator
A
01
02
03 08
04
05
06
07
B
C

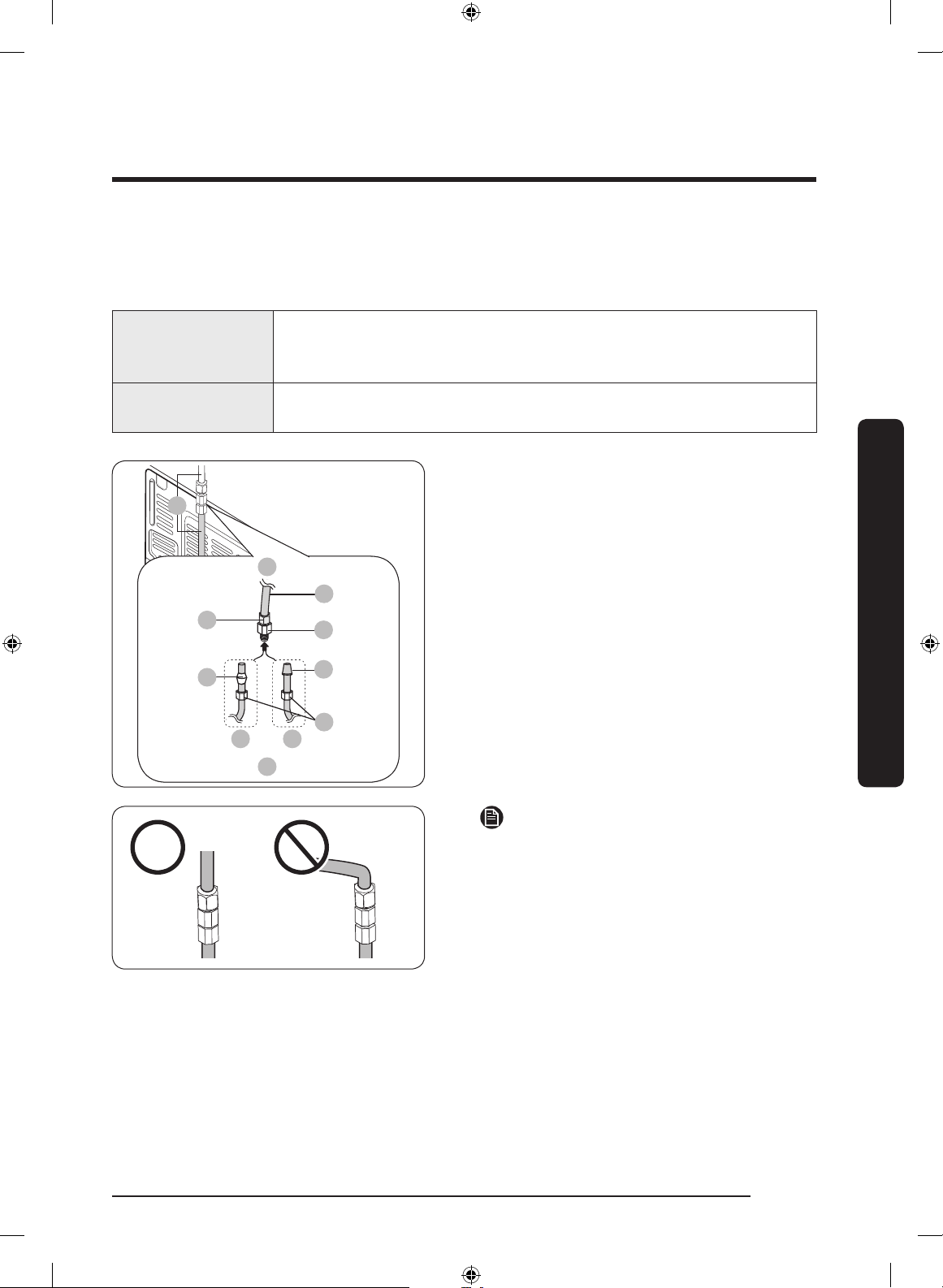

There are several items you must purchase to complete this connection. You may nd
these items sold as a kit at your local hardware store.
• 1/4" copper tubing
Copper Tubing
• 1/4" compression nut (1 pc)
• Ferrule (2 pc)
Plastic Tubing
• 1/4" plastic tubing Molded end (Bulb)
• 1/4" compression nut (1 pc)
A. Refrigerator
B. Household water supply line
C. Water Line: must be kept straight.
01 Compression Nut (1/4") (Assembled)
Installation
02 Ferrule (Not supplied)
03 Copper tubing (Not supplied)
04 Plastic Tubing (Assembled)
05 Compression Fitting (Assembled)
06 Molded end (Bulb)
07 Compression nut (B) (1/4") (Not
supplied)
08 Plastic Tubing (A) (Not supplied)
NOTE
If you have to relocate the refrigerator
after connecting the water line (C), make
sure the joined section of the water line
must is straight.
1. Connect the household water line to the assembled compression tting.
- If you are using copper tubing, slip the compression nut (B) (not supplied) and
ferrule (not supplied) on the copper tubing (not supplied) as shown.
- If you are using plastic tubing (A), insert the molded end (Bulb) of the plastic tubing
(A) into the compression tting.
Untitled-10 31 2018-07-05 6:50:55
English 31
Installation
• If you use plastic tubing (A), do not use it without the molded end (Bulb).
• Leaving the water line disconnected may cause the water valve to produce a buzzing
2. Tighten the compression nut (B) onto the compression tting. Do not over-tighten the
3. Turn the water on and check for any leakage. If you nd water drops or leakage in
4. Flush 1 gallon of water through the lter before drinking or using the water from
Installation
5. After you turn on the refrigerator, let the ice maker make ice for 1 to 2 days. Over that
CAUTION
sound over time. If this is the case, make sure that the ice making function is turned
“OFF” and do not attempt to use the water dispenser.
compression nut (B).
the connection areas, turn off the main water supply. Check the connections and, if
necessary, tighten.
the refrigerator. (Flush approximately 6 minutes.) To ush, press a large glass or cup
against the water dispenser lever. Fill the glass, empty it, and then repeat.
period of time, throw out the rst 1 or 2 buckets of ice the ice maker makes to ensure
all impurities have been removed from the water line.
NOTE
Only connect the water line to a potable water source.
• If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to
make sure you get a snug, leak-free connection.
• You can test the water line quickly using a paper cup. Under normal conditions, the
water dispenser can ll a 5 3/4 oz. (170 cc) cup in about 10 seconds.
English32
Untitled-10 32 2018-07-05 6:50:55
STEP 8 Initial settings
1
By completing the following steps, the refrigerator should be fully functioning.
CAUTION
Before installing the refrigerator, make
sure to remove the Cover Interlock (1)
from the top of the fridge door. Otherwise,
injuries may be caused by the ice crushing
blade.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest setting, and wait for about an hour. Then, the
freezer will be slightly chilled, and the motor should be running smoothly.
4. Wait until the refrigerator reaches the set temperature. Now the refrigerator is ready
for use.
STEP 9 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from
walls and cabinets.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
Installation
Untitled-10 33 2018-07-05 6:50:55
English 33
Operations
01 02 1112 03 04 05 06 07 08 11 09
10 10 10
Main panel
01 Fridge / Power Cool 02 Freezer / Power Freeze
03 FlexZone™ 04 Ice Maker
05 Auto Water Fill 06 Filter Reset
07 Energy Saver 08 Door Alarm / °F °C
09 Control Lock 10 Cooling Off
11 Sabbath Mode 12 Network connection *
Operations
* applicable models only
• When you change the temperature on the panel, the panel displays the actual
• To ensure optimal performance, we recommend setting the temperature to 0 °F (-18 °C)
• The temperature in the refrigerator may rise if you open the door frequently or put
• If a communication error occurs between the temperature display and the main
• The display of the main panel turns on only if the door is opened and turns off if the
• If you set Control Lock on the main panel, the main panel locks automatically 1 minute
NOTE
temperature inside the refrigerator until the temperature matches the temperature you
set. Then, the panel displays the new set temperature. Note that it will take time for the
refrigerator to reach the new temperature. This is normal. During this time, you do not
need to set the temperature again.
for the freezer, and 37 °F (3 °C) for the fridge.
a large amount of food into the refrigerator. If this happens, the temperature display
blinks until the refrigerator returns to the specied temperature settings.
controller, this blinking continues for an extended time. Contact a local Samsung
service center for technical assistance.
door is closed.
after inactivity.
English34
Untitled-10 34 2018-07-05 6:50:55
01 Fridge / Power Cool (3 sec)
You can use the Fridge button to set the fridge temperature or to
activate/deactivate Power Cool.
Fridge
Press Fridge repeatedly to select a desired temperature between
34 °F (1 °C) and 44 °F (7 °C). The temperature indicator displays
the currently set or selected temperature.
Power Cool speeds up the cooling process at maximum power to
lower the fridge temperature. The cooling process continues to
run for several hours, and then the fridge returns to the previous
temperature setting.
Use Power Cool to rapidly cool food that spoils quickly or to
rapidly cool the refrigerator after the door has been left open for
some time.
• To activate Power Cool, press and hold Fridge for 3 seconds.
Power Cool
The corresponding indicator ( ) lights up and the refrigerator
speeds up the cooling process.
• To deactivate Power Cool, press and hold Fridge again for
3 seconds. The fridge returns to the previous temperature
setting.
NOTE
Using Power Cool increases power consumption. Make sure you
turn it off if you no longer need it and let the refrigerator return
to its previous temperature.
Operations
English 35
Untitled-10 35 2018-07-05 6:50:55
Operations
02 Freezer / Power Freeze (3 sec)
Freezer
Power Freeze
Operations
You can use the Freezer button to set the freezer temperature or
to activate and de-activate Power Freeze.
To set the freezer temperature manually, press Freezer
repeatedly. The currently set or selected temperature appears on
the temperature display. Available temperatures are between 5 °F
(-15 °C) and -8 °F (-23 °C).
Power Freeze speeds up the freezing process at maximum power
to lower the freezer temperature. The freezing process continues
to run for several hours, and then the freezer returns to the
previous temperature setting with normal power.
• To activate Power Freeze, press and hold Freezer for
3 seconds. The corresponding indicator ( ) lights up and the
refrigerator speeds up the freezing process.
• To de-activate Power Freeze, press and hold Freezer for 3
seconds again. The freezer returns to its previous temperature
setting.
• To freeze large amounts of food, activate Power Freeze for at
least 20 hours before putting the food in the freezer.
NOTE
Using Power Freeze increases power consumption. Make sure you
turn it off if you no longer need it and let the refrigerator return
to its previous temperature.
English36
Untitled-10 36 2018-07-05 6:50:55
03 FlexZone™
The FlexZone™ is a full-width drawer featuring temperature control. It has a temperature
sensor that adjusts the amount of cold air allowed into the zone.
• Press FlexZone™ repeatedly to select a desired mode. By default, Deli is selected.
• The refrigerator adjusts the temperature in the FlexZone™ according to the selected
mode.
Mode Description Examples
Wine
Deli
Beverage
Select Wine to keep food fresh for a long time.
The temperature of the FlexZone™ will be kept
around 42 °F (5 °C).
Select Deli to keep food fresh for a longer time.
The temperature of the FlexZone™ will be kept
around 37 °F (3 °C).
Select Beverage to keep drinks cold and
refreshing.
The temperature of the FlexZone™ will be kept
around 33 °F (1 °C).
Wine, cocktails,
cake, cheese
Pineapples,
lemons, biscuits,
potatoes
Bottled water,
juice, soft drinks,
beer
Select Meat to keep meat or sh fresh for a longer
Meat
time.
The temperature of the FlexZone™ will be kept
Steaks, cold cuts,
bacon, chili dogs
around 29 °F (-1 °C).
Operations
CAUTION
• Do not use the FlexZone™ to store most kinds of fruit or leafy vegetables. These food
items may suffer cold-temperature damage.
• Do not store glass bottles in the FlexZone™ in Beverage or Meat mode. They may break
and cause physical injury.
English 37
Untitled-10 37 2018-07-05 6:50:55
Operations
04 Ice Maker (3 sec)
Ice Maker
05 Auto Water Fill (3 sec)
Operations
Press and hold Ice Maker for more than 3 seconds to turn the ice
maker on or off.
The ice maker has 2 indicators (ON/OFF) to indicate the operating
status.
• When the ice maker operates, the ON indicator turns on.
• When the ice maker is turned off, the OFF indicator turns on.
In this case, ice making is disabled even if you press the Cubed
or Crushed Ice buttons on the dispenser panel. To enable ice
making, you must turn the ice maker on.
NOTE
If the ice maker is turned off, it will turn on if you press and hold
the ice lever for more than 5 seconds.
Press and hold Auto Water Fill for 3 seconds to turn the function
on. Open the left door of the fridge, and then insert the water
tank. Close the door and the water tank starts to be lled with
water up to the a preset level some time later.
To turn the function off, press and hold Auto Water Fill again for
3 seconds.
Auto Water Fill
English38
NOTE
• By default, Auto Water Fill is disabled. Enable this function
after you have installed the water line.
• If you open the door or push the dispenser lever, this function
is stopped temporarily.
• While the water tank is lled with water, the mood light on the
dispenser panel stays lit.
• The Auto Water Fill indicators blink if there is a leak. This may
occur because the water tank overows, or the water-line or
water-level sensor fails. If this is the case, follow these steps.
a. Open the rubber cap and drain water.
b. When draining is complete, the indicators stop blinking and
turn solid.
c. Close the rubber cap.
• If the indicators continue to blink, this might be a system
failure. Contact a local service center.
Untitled-10 38 2018-07-05 6:50:56
06 Filter Reset (3 sec)
Filter Reset
07 Energy Saver
After about 6 months (and typically, about 300 gallons (1200 L)
of water), the Filter indicator blinks red for several seconds when
you open or close the door, reminding you that the lter needs to
be replaced.
When this happens, replace the lter, and then press and hold
Filter Reset for 3 seconds. The lter lifecycle will be reset and the
Filter indicator turns off.
NOTE
• Some regions have relatively large amounts of lime in their
water. This can reduce the lifecycle of the lter. In these areas,
you will have to replace the water lter more often than
specied above.
• If water is not dispensing properly, the water lter is most
likely clogged. Replace the water lter.
Use Energy Saver mode to reduce power consumption.
Press Energy Saver to turn on or off Energy Saver mode and
the corresponding indicator. By default, Energy Saver mode is
Energy Saver
enabled.
NOTE
If condensation or water drops form on or around the doors, turn
Energy Saver mode off.
08 Door Alarm / °F °C (3 sec)
If the door is left open for more than 2 minutes, an alarm will
Door Alarm
sound and the Alarm Indicator will blink. You can toggle the alarm
on and off by pressing Door Alarm. The alarm is enabled by
factory default.
You can also use the Door Alarm button to switch the temperature
°F °C
scale between Celsius and Fahrenheit.
To switch the temperature scale, press and hold Door Alarm for
3 seconds to change the current temperature scale.
Operations
English 39
Untitled-10 39 2018-07-05 6:50:56
Operations
09 Control Lock (3 sec)
Control Lock
(Main panel)
Operations
Device
authentication
To prevent accidental setting changes, press and hold Control
Lock for 3 seconds. The main panel will be disabled and the Lock
indicator ( ) will turn on.
When Control Lock is on, the indicator blinks if any button (except
for the Control Lock button) on the main panel is pressed.
If you press and hold the button again for more than 3 seconds,
Control Lock will be deactivated.
However, Control Lock will be reactivated if no button is pressed
within 1 minute.
NOTE
Control Lock on the main panel does not affect the dispenser.
The dispenser operates independently and so does the dispenser
lever. To lock the dispenser and the dispenser lever, use the Lock
function on the dispenser.
When connecting the refrigerator to SmartThings App or Samsung
smart devices such as Samsung Smart TVs, follow the app’s
or device’s onscreen instructions and press and hold Control
Lock for 5 seconds. The temperature panel displays “on” for 5
seconds before proceeding with the authentication procedure.
Note that the Control Lock function will be not affected by this
authentication.
10 Cooling Off
Cooling Off mode (also called Shop mode), is designed for use by retailers when they are
displaying refrigerators on a retail oor.
In Cooling Off mode, the refrigerator’s fan motor and lights operate normally, but the
compressors do not run so that neither the refrigerator nor the freezer get cold.
To enter Cooling Off mode, press and hold Ice Maker, Auto Water Fill, and Door Alarm for
5 seconds.
The refrigerator chime sounds, and the refrigerator shows O on the fridge display and FF
on the freezer display.
English40
Untitled-10 40 2018-07-05 6:50:56
11 Sabbath Mode
The Sabbath mode stays active for 85 hours once it is activated. After that, it will be
deactivated automatically.
• To activate, press and hold Freezer and Door Alarm simultaneously for 5 seconds
to enter Sabbath mode. Then the refrigerator operates in Sabbath mode where the
buttons, the display, and the room lamps are all under control.
• To deactivate, press and hold the buttons again for 5 seconds to exit Sabbath mode.
NOTE
Even after the refrigerator powers off and restarts, the Sabbath mode remains active. To
exit, you must deactivate it rst.
12 Network connection (applicable models only)
You can use the optional Smart Home Adapter (sold separately) to control and monitor
your refrigerator through the SmartThings app. For more information about SmartThings,
see the SmartThings (applicable models only) section.
Operations
English 41
Untitled-10 41 2018-07-05 6:50:56
Operations
SmartThings (applicable models only)
Installation
Visit the Google Play Store, Galaxy Apps, or Apple App Store and search for “SmartThings”.
Download and install the SmartThings app provided by Samsung Electronics to your smart
device.
• The SmartThings app is designed for Android 6.0 (Marshmallow) or later, iOS 10.0
• For improved performance, the SmartThings app is subject to change without notice or
• Recommended encryption systems include WPA/TKIP and WPA2/AES. Any newer or
• Wireless networks may be affected by the surrounding wireless communication
• If your Internet service provider has registered the MAC address of your PC or modem
Operations
• The rewall settings of your network system may prevent your Samsung Smart
• To congure the wireless access point (AP) settings, see the user manual of the AP
• Samsung Smart Refrigerators support both Wi-Fi 2.4 GHz with IEEE 802.11 b/g/n and
• Unauthorized Wi-Fi wireless routers may fail to connect to applicable Samsung Smart
NOTE
or later, iPhone 6 or later, and is optimized for Samsung smartphones (Galaxy S and
Galaxy Note series).
discontinued support according to the manufacturer’s policy.
non-standard Wi-Fi authentication protocols are not supported.
environment.
for identication, your Samsung Smart Refrigerator may fail to connect to the Internet.
If this happens, contact your Internet service provider for technical assistance.
Refrigerator from accessing the Internet. Contact your Internet service provider for
technical assistance. If this symptom continues, contact a local Samsung service center
or retailer.
(router).
Soft-AP protocols. (IEEE 802.11 n is recommended.)
Refrigerators.
English42
Untitled-10 42 2018-07-05 6:50:56
Samsung account
You are required to register your Samsung account to use the app. If you don’t have a
Samsung account, follow the app’s onscreen instructions to create a free Samsung account.
Getting started
Turn on the device you want to connect, open the SmartThings app on your phone, and
then follow the instructions below.
If a pop-up appears saying that a new device has been found, tap ADD NOW.
If a pop-up doesn't appear, tap the + button, and then select the device you want to
connect from the list of available devices.
If your device isn't in the list of available devices, tap Supported Devices, select the device
type (Refrigerator), and then select the specic device model.
Follow the instructions in the app to set up your device. Once setup is complete, your
refrigerator will appear as a "card" on your Devices screen.
Refrigerator app
Integrated control
You can monitor and control your refrigerator at home and on the go.
• Tap the refrigerator icon on the SmartThings Dashboard or tap the Devices icon at the
bottom of the Dashboard, and then tap the refrigerator "card" to open the Refrigerator
page.
• Check the operation status or notications related to your refrigerator, and then
change options or settings if necessary.
Operations
NOTE
Some options or settings of the refrigerator may not be available for remote control.
English 43
Untitled-10 43 2018-07-05 6:50:56
Operations
Monitoring
Functions
Operations
Alarms
Category Item Description
Fridge temperature
Freezer temperature
FlexZone™ settings Displays the settings of the FlexZone™.
Diagnosis
Energy monitoring
Ice making
Power Cool
Power Freeze
Abnormally high
temperature
Door opening
Auto Water Fill
overowing
Water lter
replacement
Displays the current temperature setting of the
fridge.
Displays the current temperature setting of the
freezer.
Detects abnormal operations of the
refrigerator.
Checks the accumulated power consumption of
the refrigerator for the last 180 days.
You can turn the ice making function on or off,
and check the current settings of the function.
You can also check the status and progress of
ice making.
You can turn Power Cool on or off, and check
the current settings.
You can turn Power Freeze on or off, and
check the current settings.
This alarm is triggered when the fridge, the
freezer, or the FlexZone™ has abnormally high
temperatures.
This alarm is triggered if the fridge door, the
freezer drawer, or the FlexZone™ drawer is
open for a specic time.
If the Auto Water Fill function senses an
overow, it triggers this alarm to let you know
the status of the overow.
This alarm reminds you that the water lter
must be replaced.
English44
Untitled-10 44 2018-07-05 6:50:56

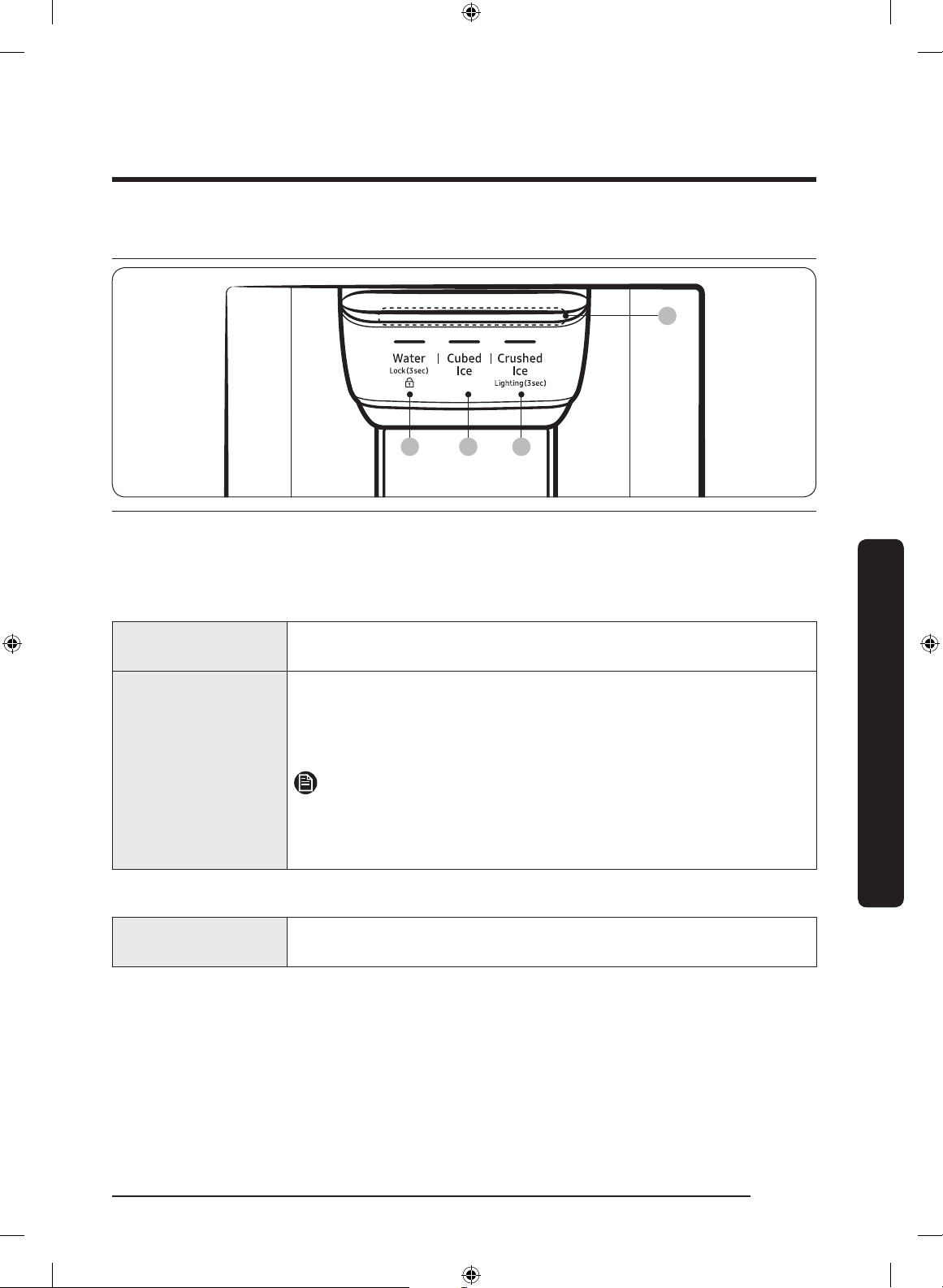

Dispenser panel
01 02 03
04
01 Water / Lock 02 Cubed Ice
03 Crushed Ice / Lighting 04 Dispenser mood light
01 Water / Lock (3 sec)
Water
Lock
(Dispenser panel /
Dispenser lever)
02 Cubed Ice
Cubed Ice
To dispense chilled water, press Water. The corresponding
indicator turns on.
To prevent use of the dispenser panel buttons and the dispenser
lever, press and hold Water for more than 3 seconds.
If you press and hold the button again for more than 3 seconds,
the dispenser lock will be deactivated.
NOTE
The Lock on the dispenser panel does not affect the controls
on the main panel. To lock the main panel, use the Control Lock
function on the main panel.
Press Cubed Ice to dispense cubed ice. The corresponding
indicator turns on.
Operations
English 45
Untitled-10 45 2018-07-05 6:50:56
Operations
03 Crushed Ice / Lighting (3 sec)
Crushed Ice
Lighting
04 Dispenser mood light
The Dispenser mood light lights up in the following conditions:
• When you push the dispenser lever with the dispenser lock disabled
• While the water tank is being lled with water with the Auto Water Fill function turned
Operations
Press Crushed Ice to dispense crushed ice. The corresponding
indicator turns on.
By default, the dispenser lamp turns on only when the dispenser
is used. To keep the dispenser lamp turning on, press and hold
Crushed Ice for 3 seconds. To turn the lamp off, press and hold
Crushed Ice for 3 seconds again.
- Push the dispenser lever and the dispenser mood light turns on. Release the lever
and the light turns off after a some time.
on
- The dispenser mood light stays lit.
English46
Untitled-10 46 2018-07-05 6:50:56
Special features
01
02
03
04

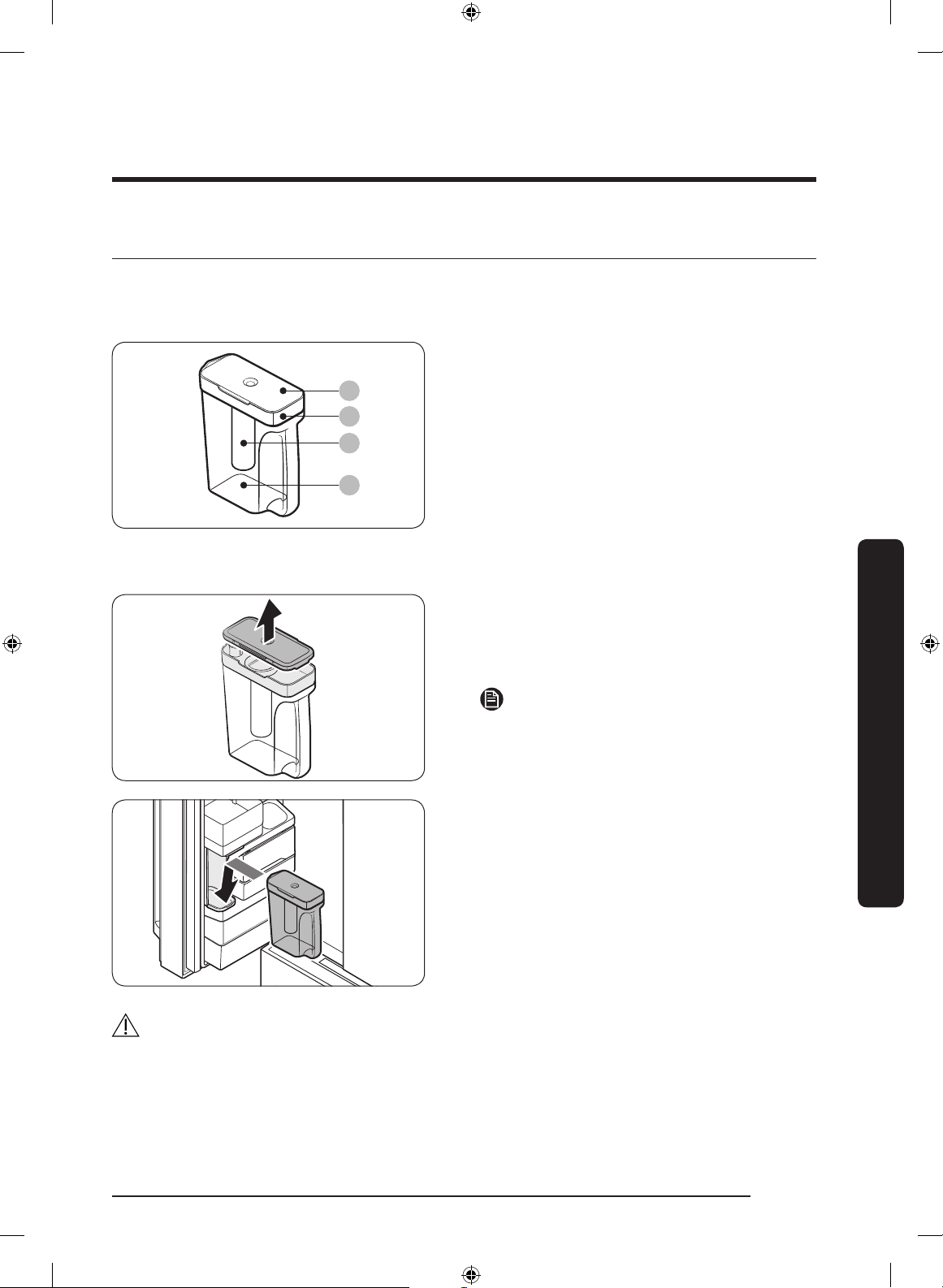

Water tank (Auto Water Fill)
The Auto Water Fill function lets you enjoy cold brewed tea in your refrigerator.
01 Lid
02 Sealed mouth
03 Infuser
04 Body
To ll the water tank
1. Grasp a handle groove of the sealed
mouth, and then pull up to open the lid.
2. Put tea leaves or fruits to your taste
into the infuser.
NOTE
If you want to keep the infused water in its
initial concentration, turn the Auto Water
Fill function off.
Operations
3. Enable the Auto Water Fill function on
the main panel. Open the left door of
the fridge door, and then mount the
water tank onto the holder. Push it
straight in as shown in the illustration
on the left.
4. Close the door. The infuser will start to
ll with chilled water some time later.
CAUTION
Make sure the infuser ts in the water tank holder.
Untitled-10 47 2018-07-05 6:50:57
English 47

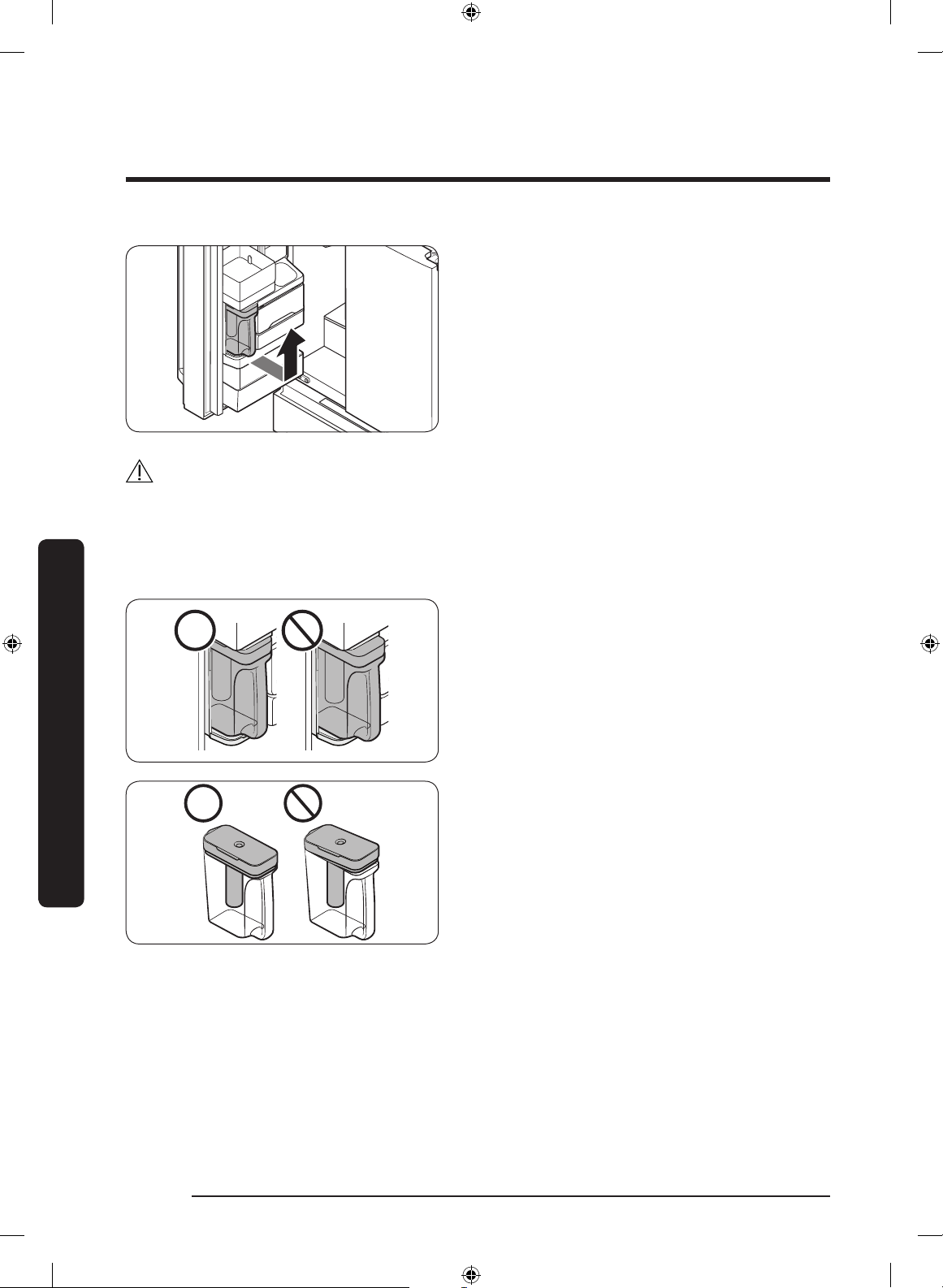

Operations
• We recommend consuming fruit infused water within 24 hours. After that, the infused
• You must clean the water tank after you have consumed up the infused water or when
Operations
5. To drink tea, open the door and detach
the water tank. Pull it straight out.
CAUTION
water can spoil over time.
a long time has passed without using the water tank.
• To prevent the water tank from tipping
over or leaking, make sure the water
tank ts in the water tank holder.
• To prevent the water tank from spilling
over or leaking, make sure the sealed
mouth is properly inserted.
English48
Untitled-10 48 2018-07-05 6:50:57

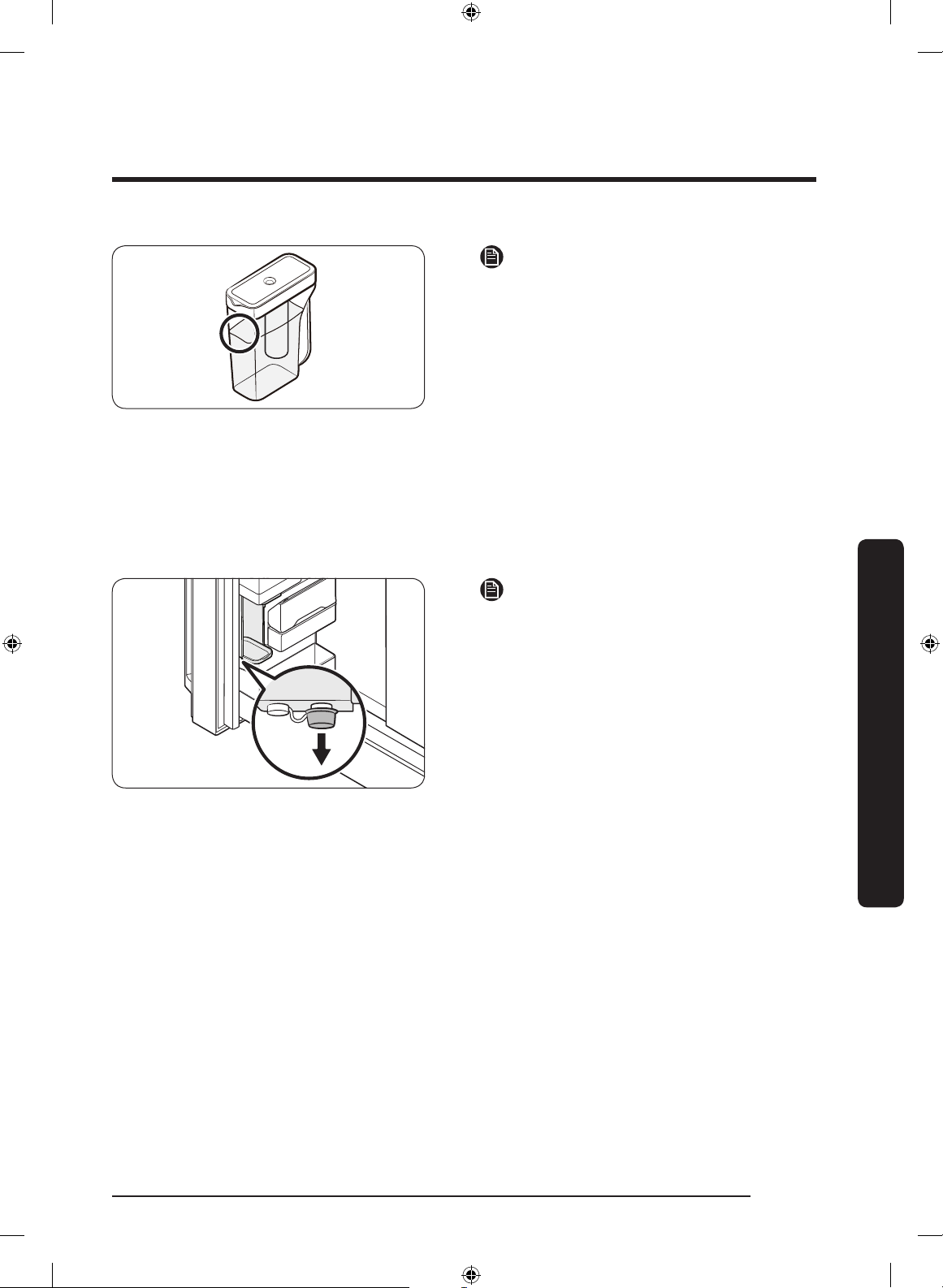

NOTE
• If the front side (specically marked
area) of the water tank has too much
moisture, the water tank may not fully
ll. Remove the moisture, and then try
again.
• Auto Water Fill will stop supplying
water for the water tank if the water
tank does not ll after a certain amount
of time. If this happens, check if the
water line is properly connected.
Remove and reinsert the water tank,
and then try again.
NOTE
• Wipe around the infuser holder if the
infuser overows or leaks.
• Water drops off if the rubber cap is
opened.
• The Auto Water Fill indicator blinks if
there is a leak. In case of a leak, open
the rubber cap so that the leaked water
drains. The indicator will then turn off.
However, if the indicator continues to
blink, there might be a system failure.
Contact your local Samsung service
center.
• The Auto Water Fill indicators blink if
there is a leak. See page 38 for more
information.
Operations
Water/Ice dispenser
Using the dispenser, you can dispense water with or without ice.
The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. To
dispense chilled water, press Water on the dispenser panel. Put a water glass under the
dispenser, and then push the dispenser lever.
English 49
Untitled-10 49 2018-07-05 6:50:57
Operations

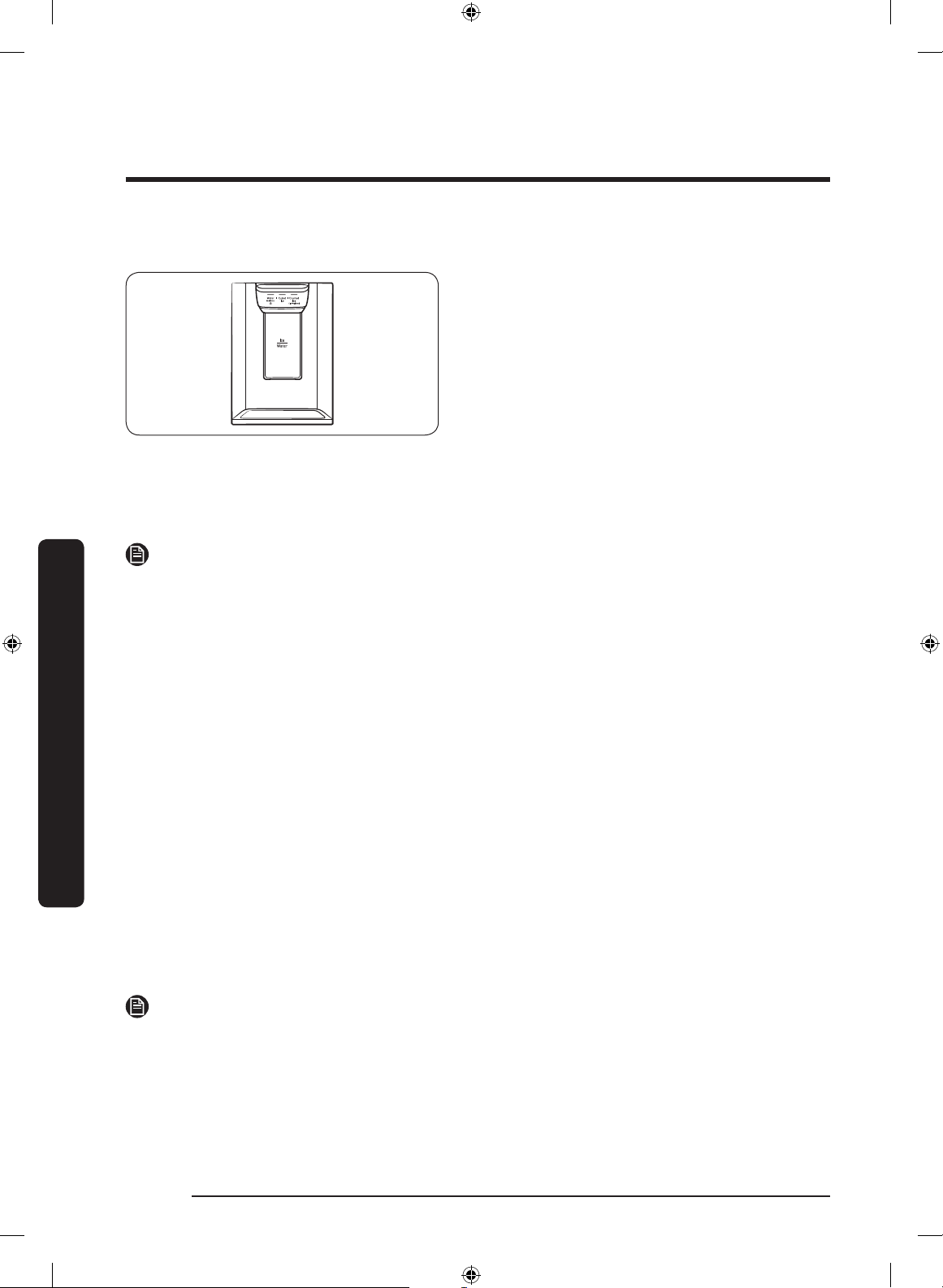

To dispense water with ice
• The dispenser will stop dispensing if you keep pushing the dispenser lever for about 1
• Make sure the glass is in line with the dispenser to prevent the dispensed water from
Operations
• If you do not use the water dispenser for 2-3 days, the dispensed water may have an
1. With the Ice Maker enabled, press
Cubed Ice or Crushed Ice to select the
ice type.
2. Put a water glass under the dispenser,
and then push the dispenser lever with
the glass. Ice will be dispensed from the
dispenser.
3. Press Water to select water.
4. Push the dispenser lever with the
glass. Water will be dispensed from the
dispenser.
NOTE
minute. To dispense more water, release and push the lever again.
spilling out.
abnormal smell or taste. This is not a system failure. Discard the rst 1-2 glasses of
water.
Ice maker
The refrigerator has a built-in ice maker that automatically dispenses ice so that you can
enjoy ltered water with cubed or crushed ice.
Ice making
After you have installed your refrigerator and plugged it in, follow these instructions to
ensure proper ice making and to keep the ice bucket full of ice:
1. Let the refrigerator operate for at least 24 hours to ensure optimal performance.
2. Dispense the rst 4 to 6 ice cubes into a glass.
3. Wait another 8 hours and dispense another 4 to 6 ice cubes.
4. Then, wait another 16 hours and dispense the rst glass-full of ice.
NOTE
• If you consume all the ice at once, you must wait 8 hours before dispensing the rst 4
to 6 cubes. This ensures that the ice bucket is lled with ice properly.
• Ice cubes generated rapidly may look white, which is normal.
English50
Untitled-10 50 2018-07-05 6:50:58

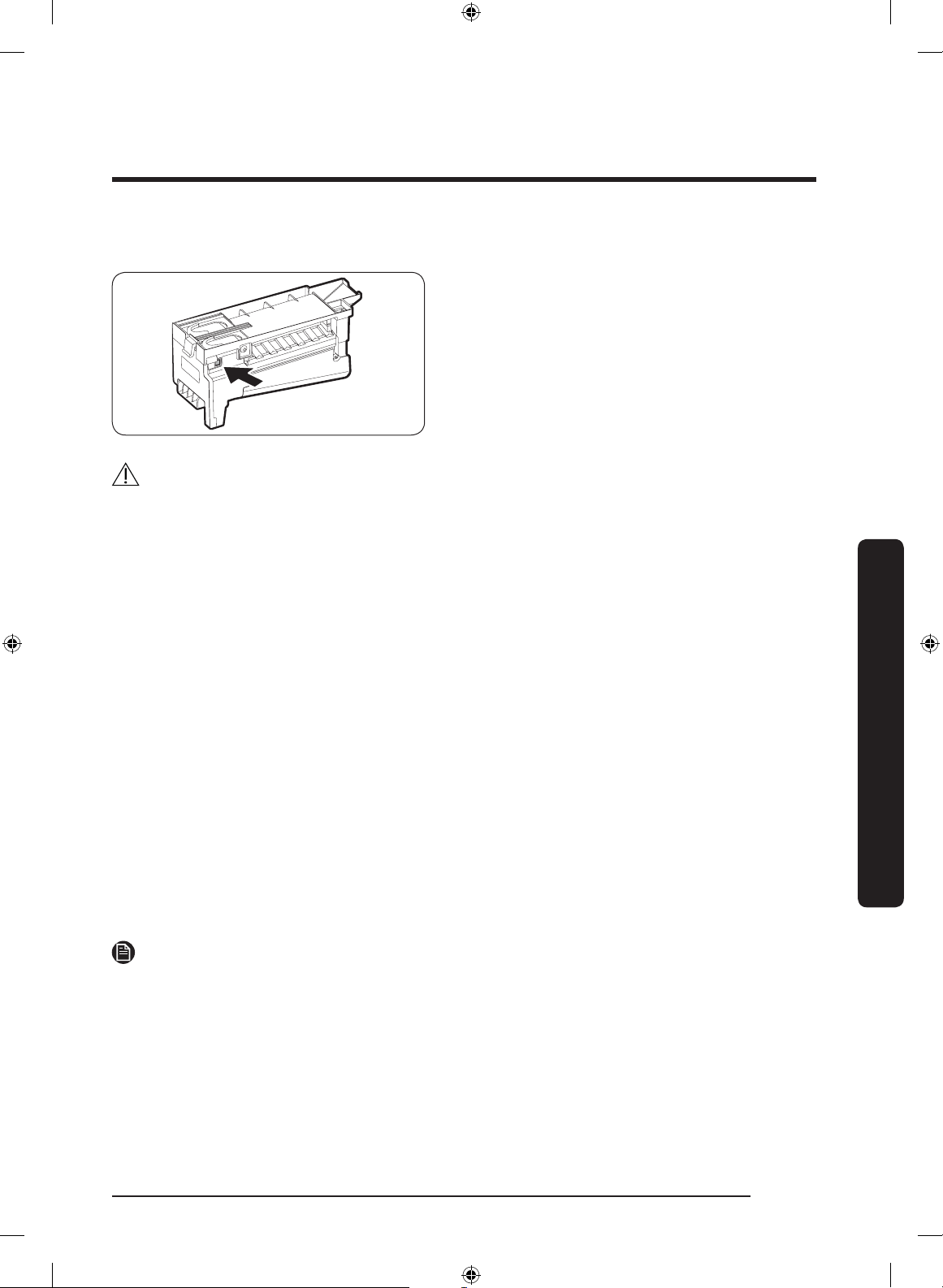

Diagnosis
If ice does not dispense, rst check the ice
maker.
1. Press Test on the side of the ice maker.
You will hear a chime (ding-dong) when
you press the button.
2. You will hear another chime if the ice
maker is operating properly.
CAUTION
• If the ice making chime rings repeatedly, contact your waterline installer or a local
Samsung service center.
• Do not press Test repeatedly after the ice tray is lled with ice or water. Water may
overow or ice may jam.
• Do not put food in the ice bucket. The frozen food may damage the ice maker,
especially when you open or close the door.
• When the refrigerator recovers power after a power failure, the ice bucket may contain
a mix of melted and jammed ice cubes, which can prevent the ice maker from working
properly. To prevent this, make sure to empty the ice bucket so the ice bucket can rell
with fresh, loose ice cubes.
• Do not put ngers or any objects into the dispenser outlet or the ice maker. This can
cause physical injury or property damage.
• When reinserting the ice maker tray, make sure that the tray is properly centered at
the entrance. Otherwise, the tray can get stuck.
Operations
If You Turn the Ice Maker Off
If you press and hold Ice Maker for more than 3 seconds to turn the ice maker off, make
sure to remove all ice cubes from the ice bucket. Remaining ice cubes may clump together,
making it difcult to remove them.
To remove the ice bucket, see the Ice bucket section on page 53.
NOTE
• Removal of the ice bucket does not affect the thermal and mechanical performance of
the refrigerator.
Water clouding
Water supplied to the refrigerator ows through a core alkaline lter. During this ltering
process, the water pressure of the water increases and the water becomes saturated with
oxygen and nitrogen. This causes the water to look misty or cloudy temporarily when
dispensed. This is normal and the water will look clear after a few seconds.
English 51
Untitled-10 51 2018-07-05 6:50:58
Operations

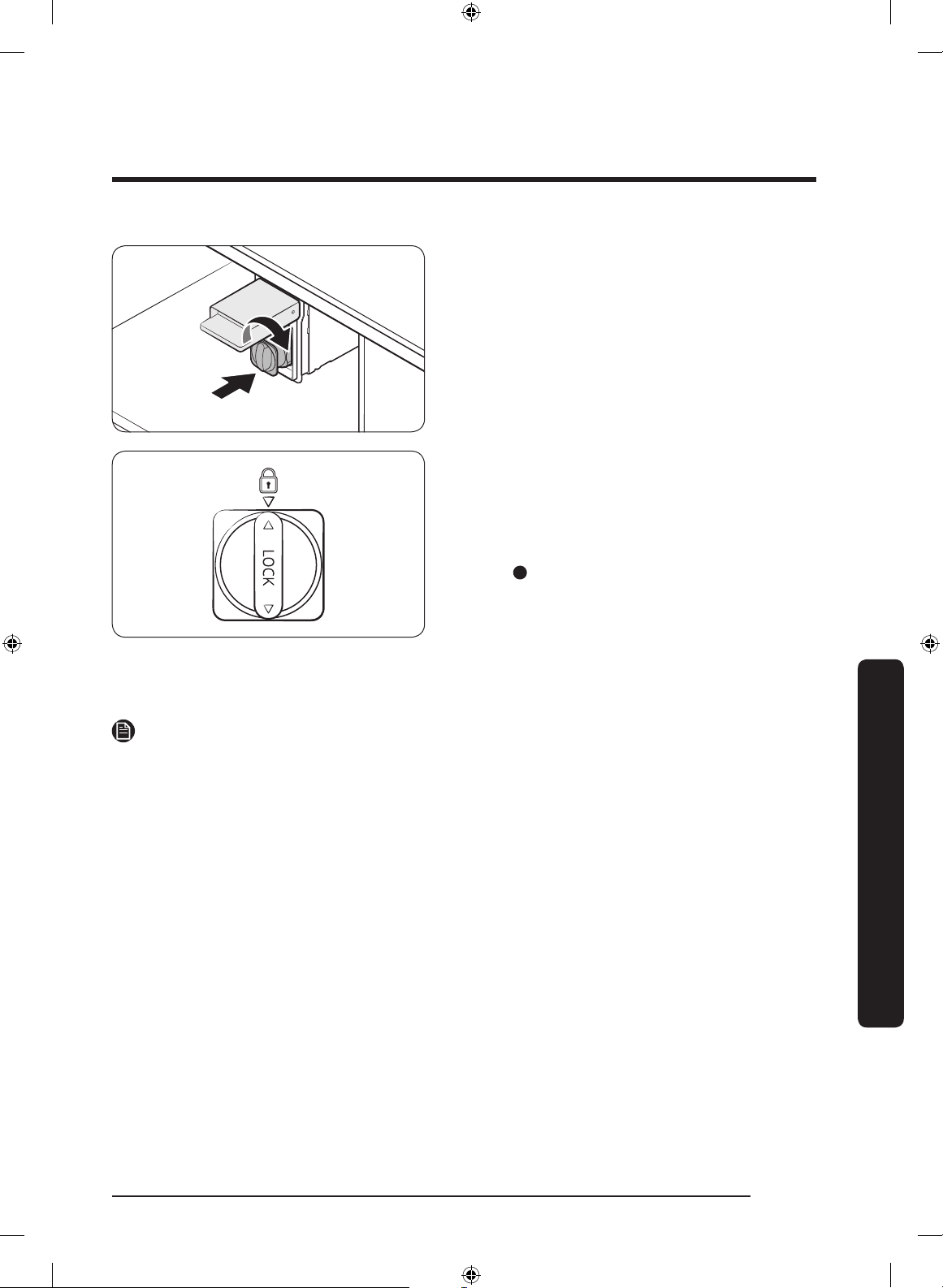

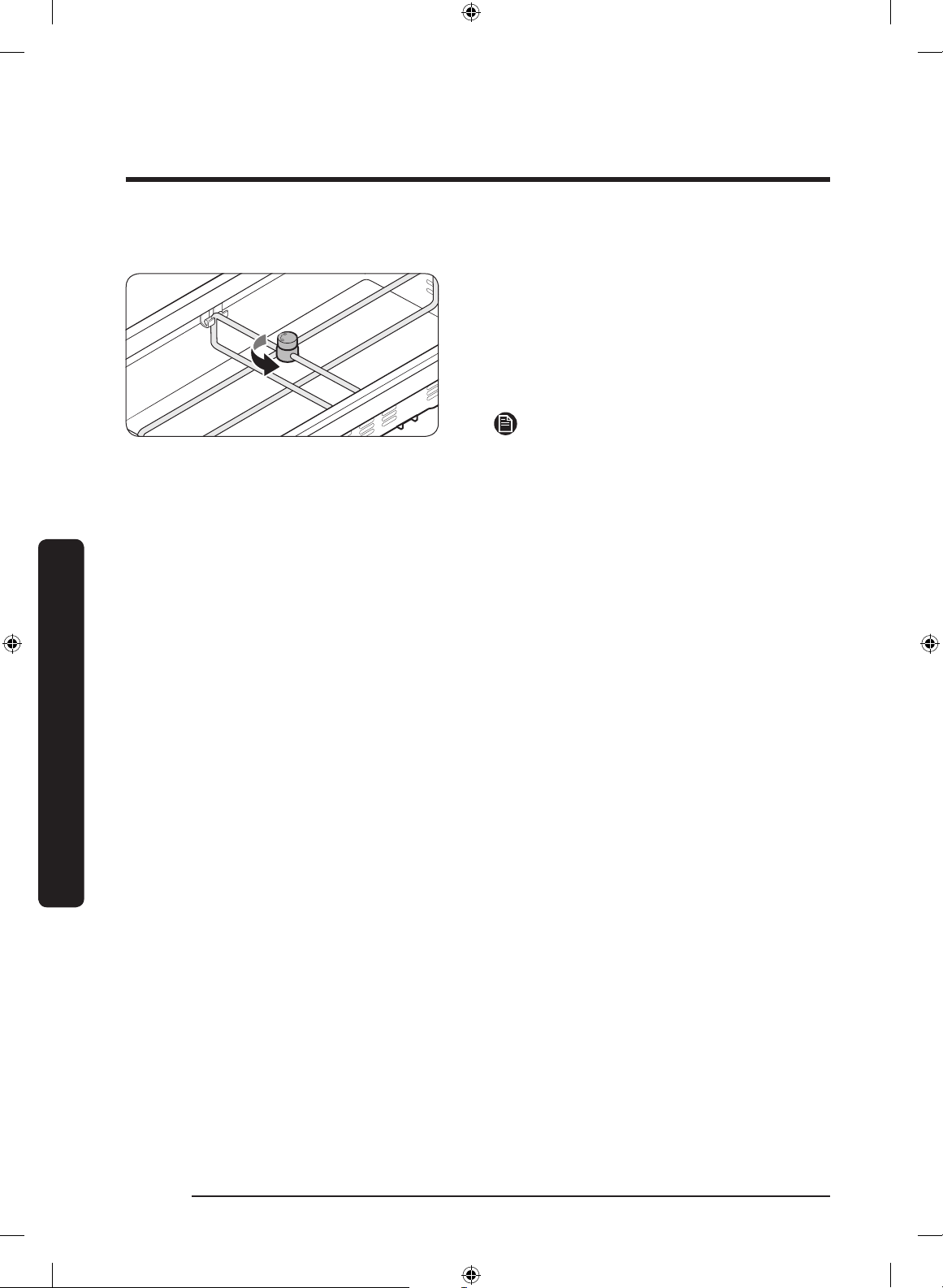

FlexZone™ divider
You can change the divider position.
To do this, unlock the divider by turning
the divider dial counter clockwise. Then,
move the width and height bars as
appropriate. When done, turn the dial
clockwise to lock the divider.
NOTE
If the divider lock does not function, wipe
the bars to remove moisture on them.
Operations
English52
Untitled-10 52 2018-07-05 6:50:58
Maintenance
Handling and care
Ice bucket
If you do not dispense ice for an extended period, ice may form clumps inside the bucket.
If this happens, remove and empty the ice bucket.
1. While grabbing the handle of the ice
bucket, slightly lift up the bucket, and
then remove it to the front.
2. Remove the remaining ice cubes and
put the ice bucket back into place.
English 53
Maintenance
Untitled-10 53 2018-07-05 6:50:58
Maintenance

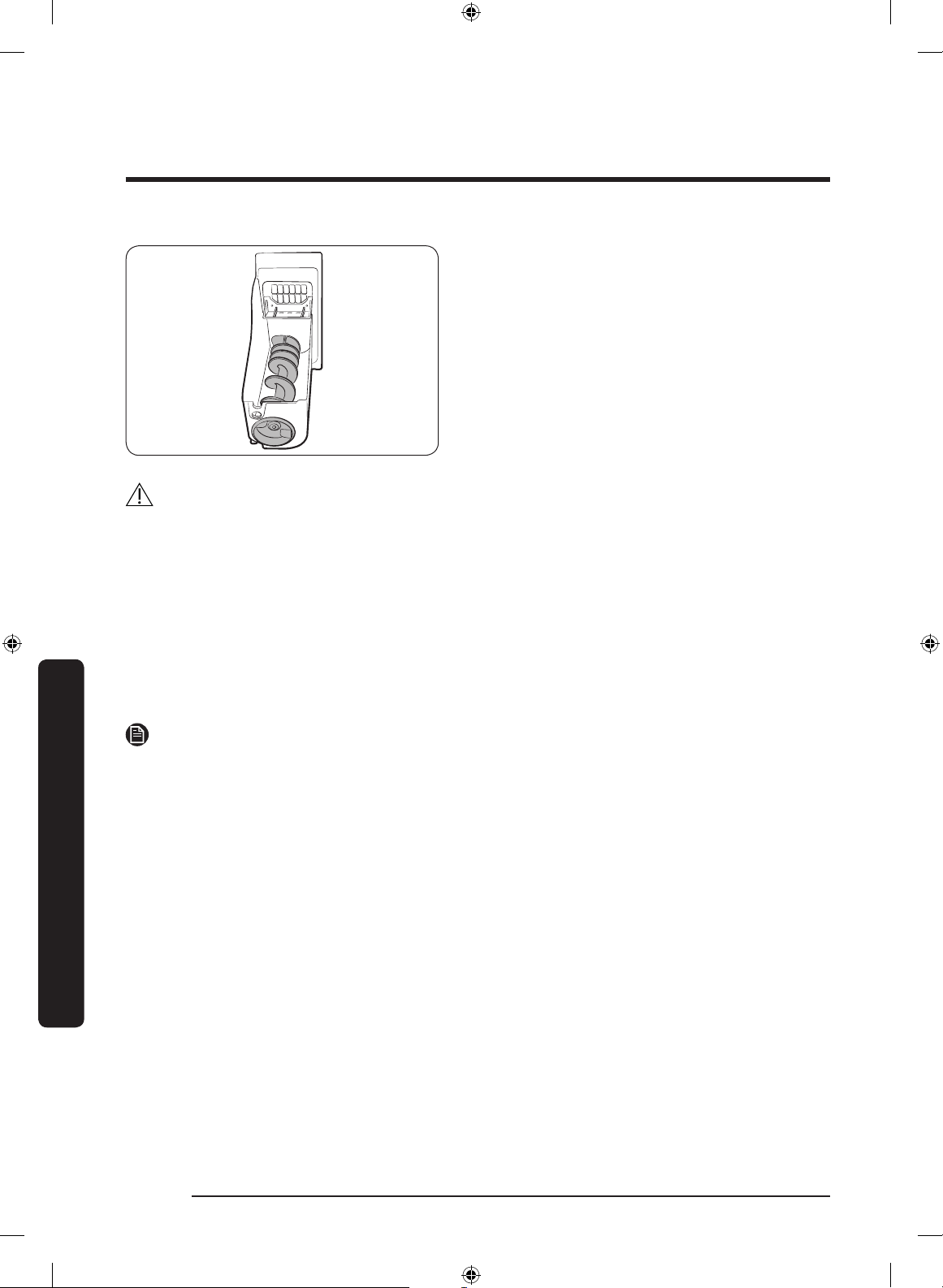

If the ice bucket is not rmly inserted, turn
the ice screw 90 degrees, and then try
again.
CAUTION
• Do not apply excessive force to the bucket cover. The cover may break.
• Do not forcefully close the door. Water may spill over the ice maker.
• To prevent injury, make sure to clean up any ice or water that has spilled on the oor.
• To prevent accidents or injury, do not let children play with the water dispenser or the
ice maker.
• Do not put your hand or an object into the ice chute. This may cause physical injury or
product damage.
• Use only the provided ice bucket. Third-party ice buckets may cause a system failure.
• Use only potable water that is connected to the water supply line.
• The water pressure required for ice making is between 20 psi and 125 psi.
Maintenance
• If the Ice Off indicator blinks, remove and reinsert the ice bucket. Make sure it is
reinserted properly.
• Noise from the ice maker as it produces ice during the ice making process is normal.
• While the door is open, neither the ice maker nor the water dispenser operates.
English54
NOTE
Untitled-10 54 2018-07-05 6:50:59

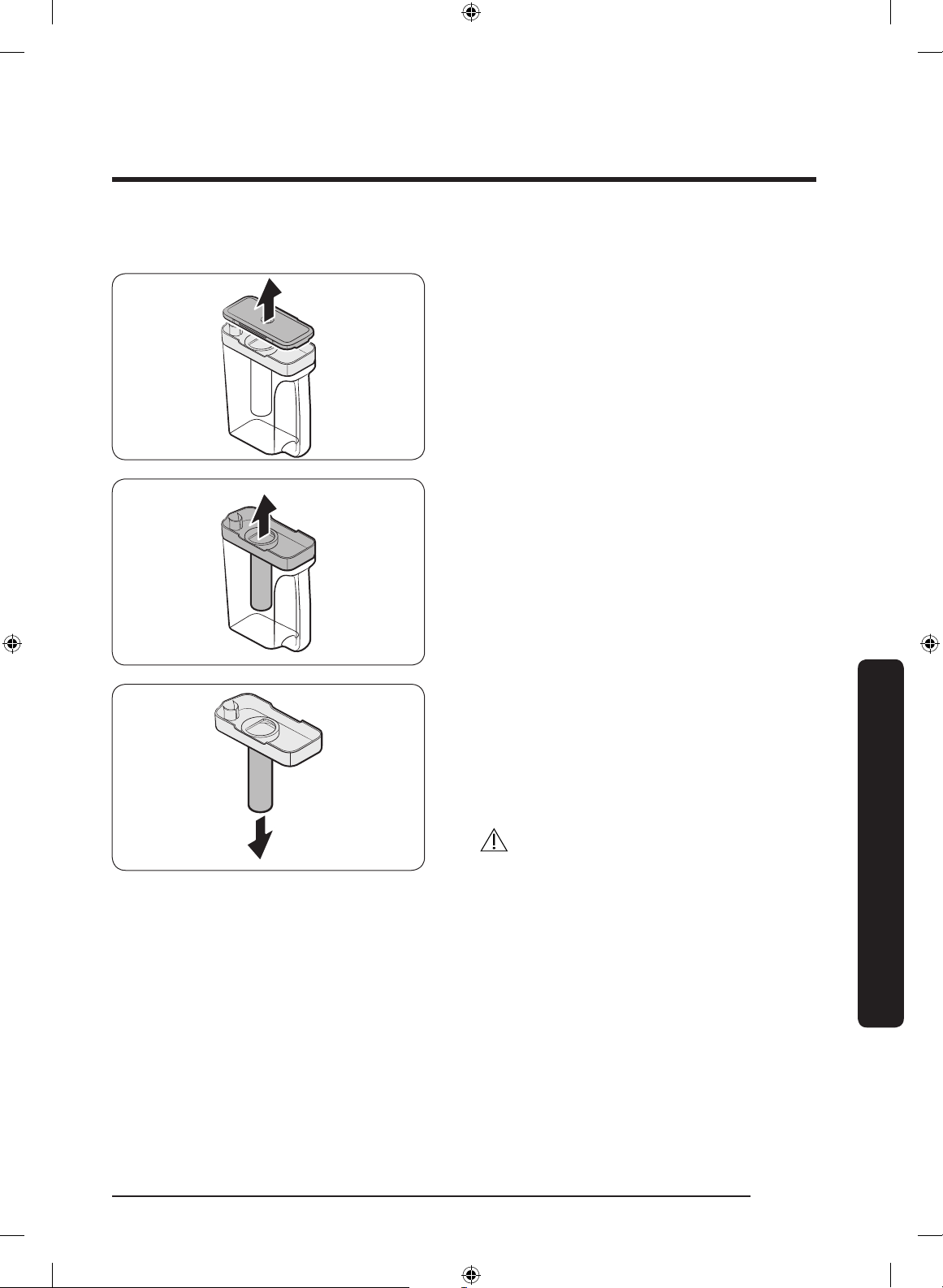

Auto Water Fill
1. Grasp a handle groove of the sealed
mouth, and then pull up to remove.
2. Grasp both sides of the sealed mouth,
and then lift to remove.
3. While slightly twisting the infuser, pull
it out of the sealed mouth.
4. Clean the infuser with neutral agents
and running water. Rinse and dry well.
5. Reassemble the Auto Water Fill in the
reverse order of disassembly.
Maintenance
CAUTION
Water pitcher and lid are not dishwasher
safe and can deform under high
temperatures. Please hand wash as
needed.
English 55
Untitled-10 55 2018-07-05 6:50:59
Maintenance
Fridge shelves
The appearance of the shelves differs by model.
• To remove a shelf, fully open the
corresponding door. Hold the front of
the shelf, and then gently lift up and
slide out.
NOTE
Do not lift up the shelf fully when
removing or reinserting the shelf. The rear
wall of the fridge room can be dented.
• To reinsert, hold the shelf at an angle
so the front is higher than the back, and
then insert the top hook into the top
shelf notch. Then, lower the shelf and
insert the bottom shelf hook into the
bottom shelf notch.
Maintenance
English56
CAUTION
• The tempered glass shelves are heavy.
Use caution when removing them.
• The shelf must be inserted correctly. Do
not insert upside down.
• Glass containers may scratch the
surface of glass shelves.
Untitled-10 56 2018-07-05 6:50:59

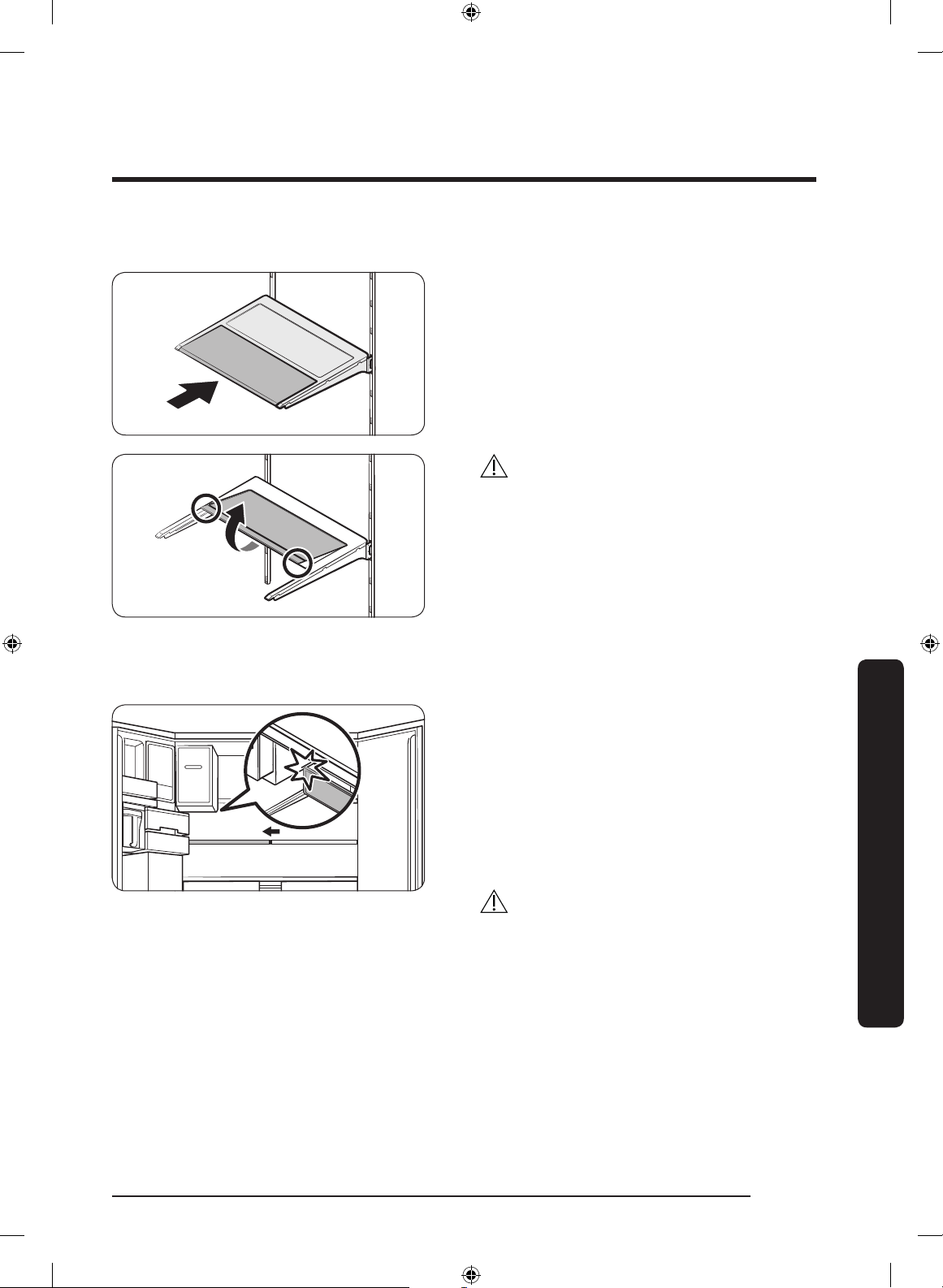

Foldable shelf
Recommended foldable shelf location
To remove, slide up the front of the shelf
so that it folds. Then gently lift up and
pull out. To reinsert, place the shelf on the
angled frame in the main unit, and then,
press down to unfold.
CAUTION
After sliding the foldable shelf in and
folding it, the front of the shelf can be
removed for your convenience. If you use
the shelf without removing the front of the
shelf, be aware that it can separate from
the rear portion, be careful of its possible
separation.
The foldable shelf folds up from the center,
giving you more room for storage.
• Insert the shelf in the right side of the
fridge. Left side insertion does not
allow the shelf to fold completely.
• To fold, push the front area of the shelf
inward so that it folds up from the
middle.
Maintenance
CAUTION
Do not lift up quickly or twist the foldable
shelf to take out food under it. It may fall
off.
English 57
Untitled-10 57 2018-07-05 6:51:00
Maintenance

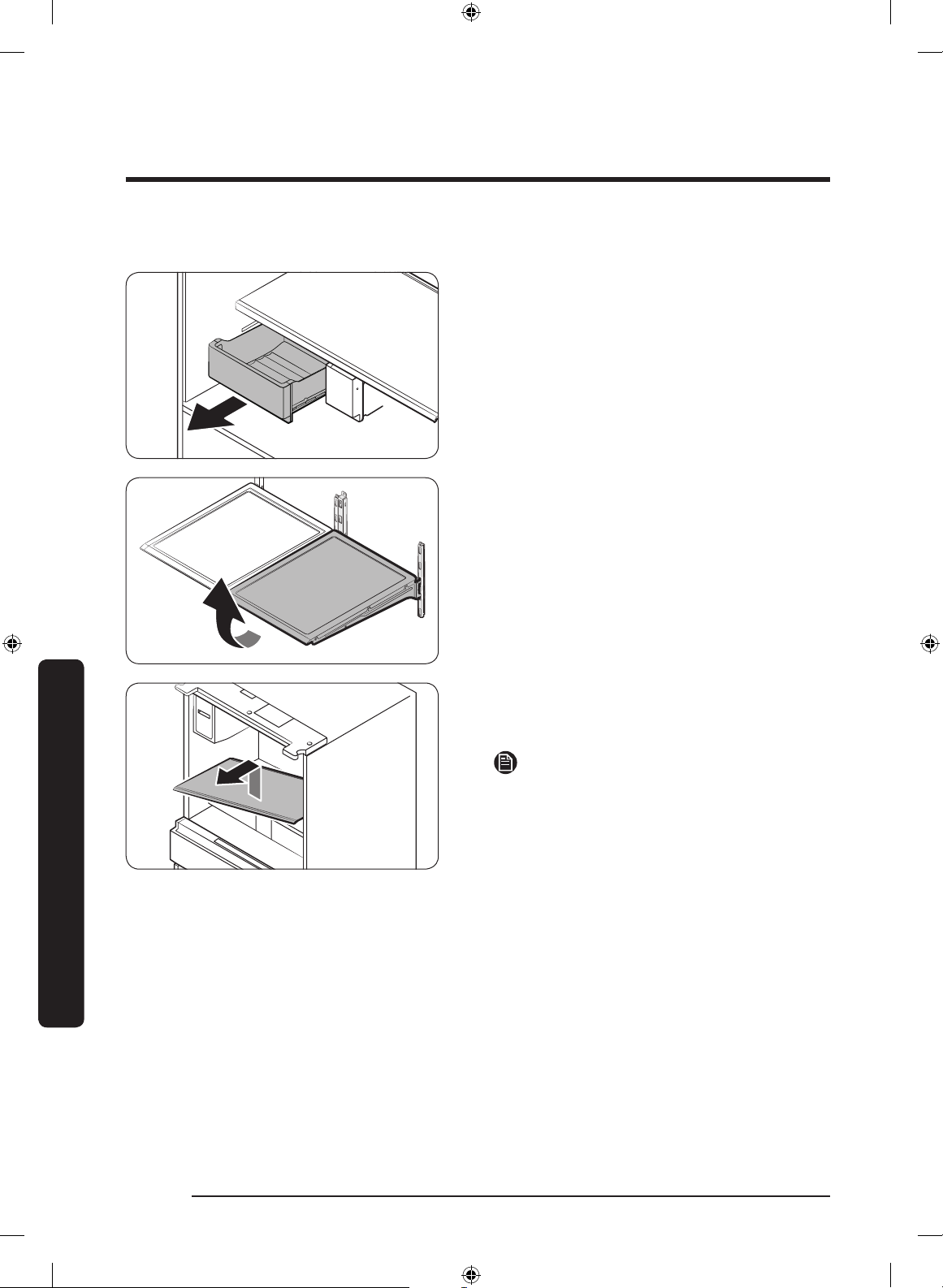

Vegetable shelf
1. Slide out the left-side vegetable drawer.
2. Fully open the door, and then remove
the shelf.
Maintenance
3. While supporting the vegetable shelf
with one hand, slide it out with the
other hand.
NOTE
To use the space that is opened up after
removing the foldable shelf, take out the
vegetable shelf.
To reinsert, follow the steps above in the
reverse order.
English58
Untitled-10 58 2018-07-05 6:51:00

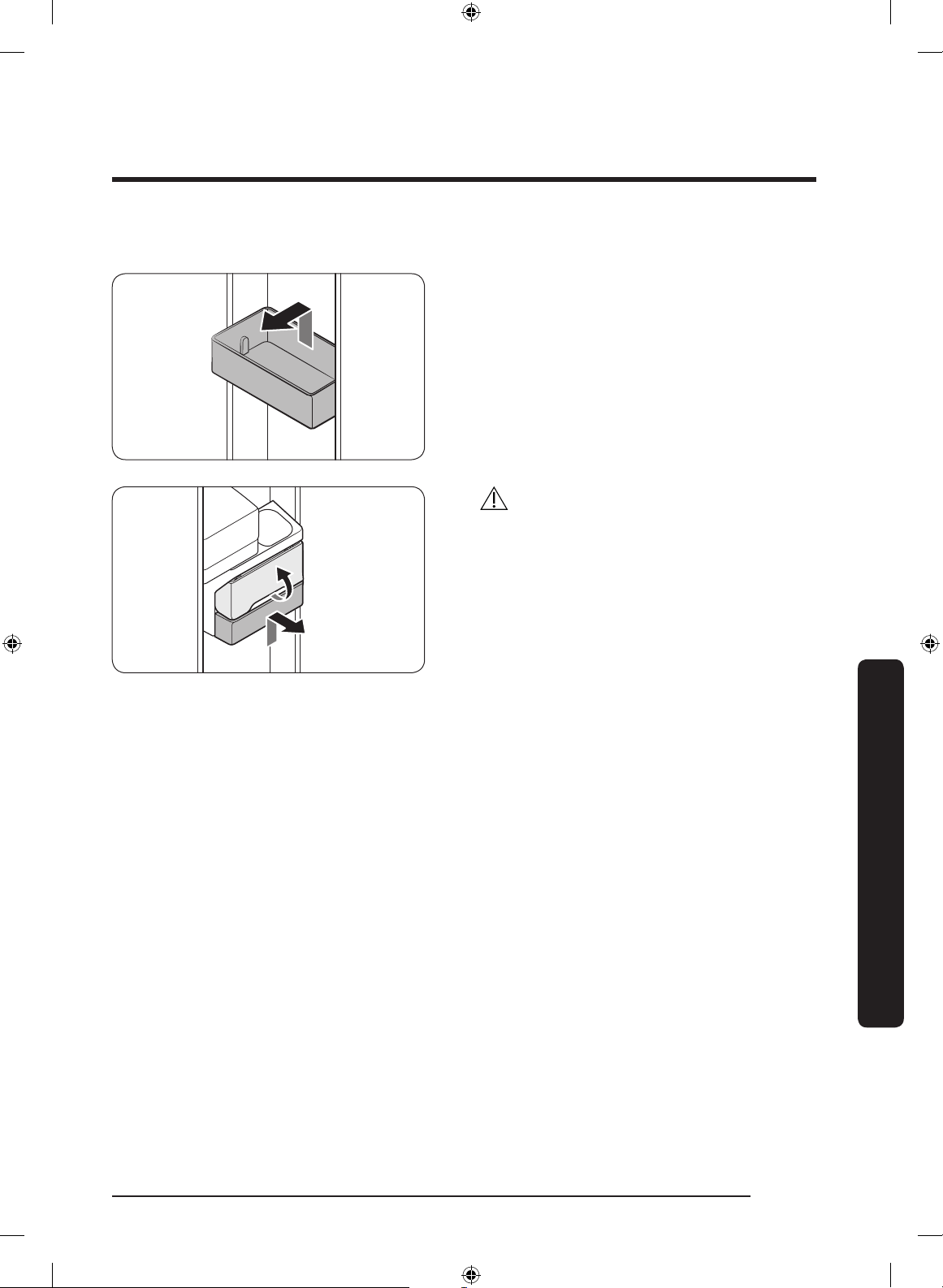

Door bins
• To remove the top door bin, hold the
front sides of the bin, and then gently
lift up to remove.
• To reinsert, insert the door bin slightly
above its nal location making sure that
the back of the bin is against the door.
Hold the rear of the door bin with both
hands, and then press down so that it
ts snugly.
CAUTION
• Do not remove a bin that is lled with
food. Empty the bin beforehand.
• Use caution when opening the door if
the bottom bin contains larger bottles,
which may fall over.
• Do not allow children to play with the
bins. Sharp corners of the bin may
cause injury.
English 59
Maintenance
Untitled-10 59 2018-07-05 6:51:01
Maintenance

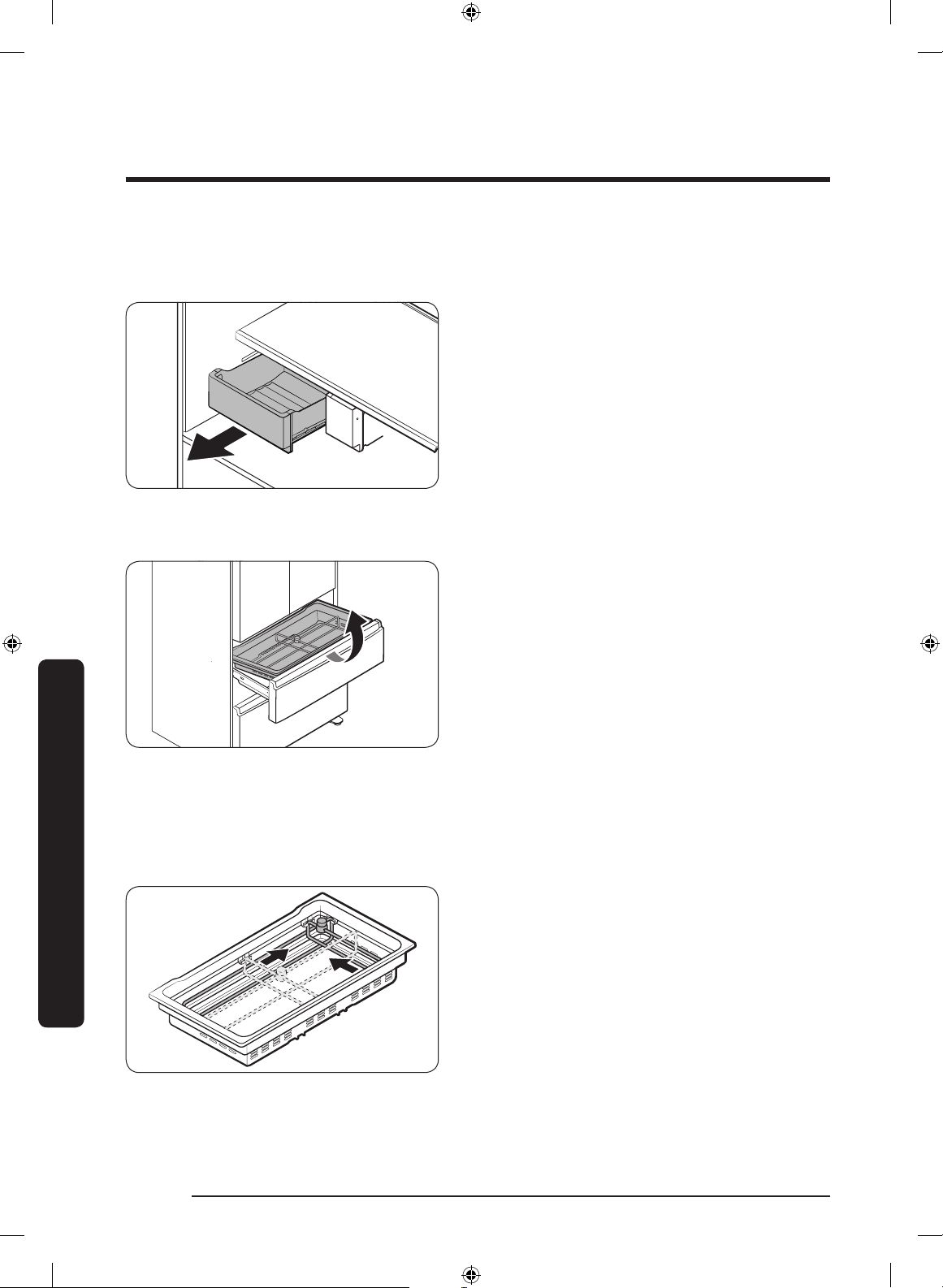

Fridge drawers
Vegetable / fruit drawers
FlexZone™ basket
Maintenance
Gently lift up the front of the drawer and
slide out.
• We recommend that you remove the
door bins before removing the drawer.
This is to prevent damage to the door
bins.
• To reinsert, insert the drawer into the
frame rails and then slide inward.
• To remove, fully open the FlexZone™
drawer. Lift up the FlexZone™ basket,
and then pull out with both hands.
• To reinsert, fully open the FlexZone™
drawer. While tilting up the front of the
basket, insert the rear of the basket into
the rail assembly. Lower the front until
the basket settles down.
• If the divider lock does not function,
wipe the bars to remove moisture on
them.
To remove the divider and the metal cooling plate (applicable models only) from the
FlexZone™ basket
1. Unlock the divider by turning the
divider dial counter clockwise.
2. Slide the divider to the end as shown.
English60
Untitled-10 60 2018-07-05 6:51:01

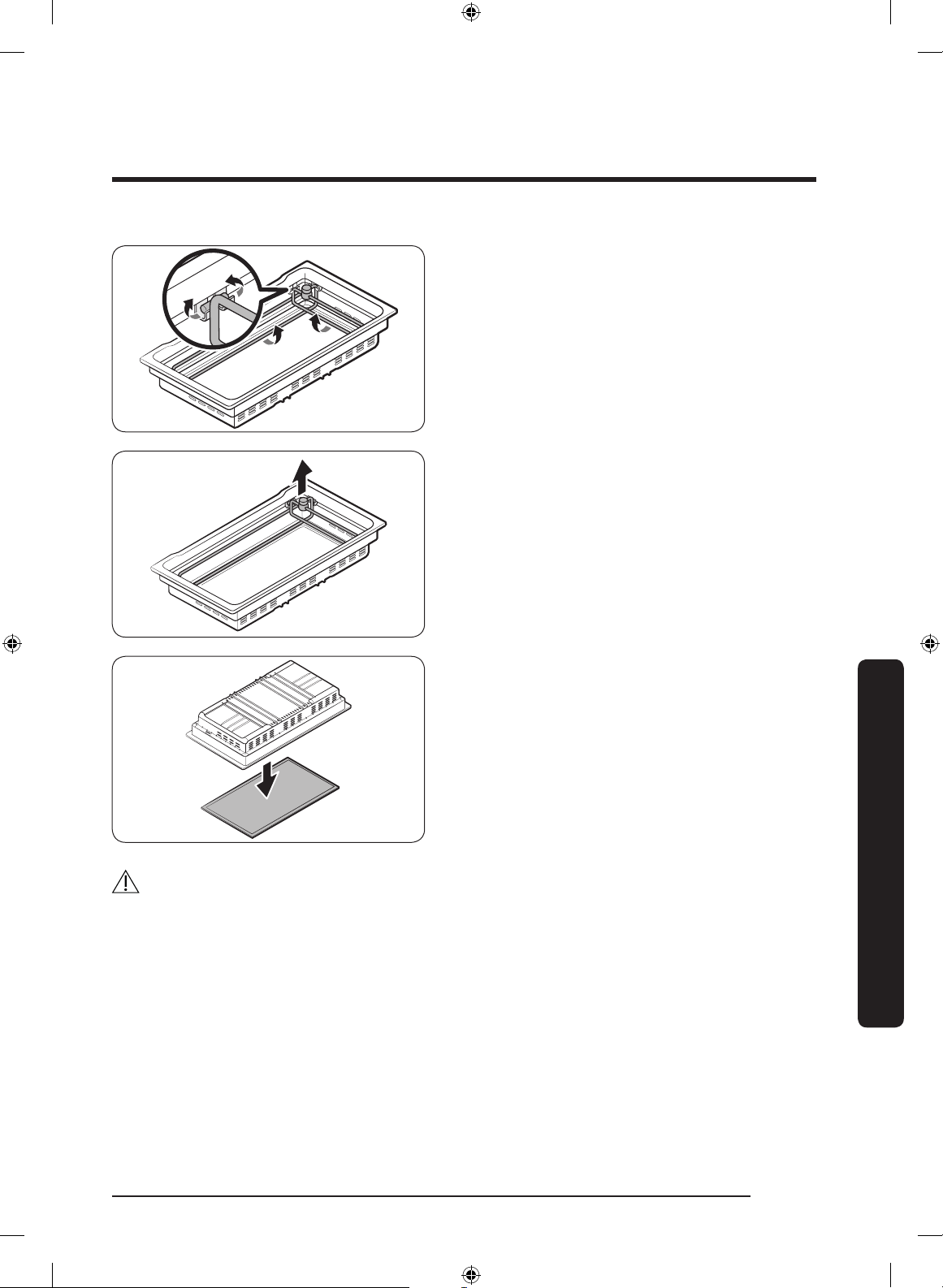

3. As the divider has the width and length
bars, push the lower part of each bar
inward to unlock. See the gures for
details.
4. Hold the divider and pull up to remove.
5. Turn over the basket to remove the
metal cooling plate.
CAUTION
The basket and the metal cooling plate are heavy. Use caution when handling them.
Careless handling may cause personal injury or property damage.
To reinsert the metal cooling plate
Reinsertion in the reverse order of removal.
Reinsert the divider into the FlexZone™ basket rmly until you hear a clicking sound.
Maintenance
English 61
Untitled-10 61 2018-07-05 6:51:01
Maintenance
Freezer baskets
Upper basket
Lower basket
• To remove, fully slide open the freezer
drawer. Push the upper basket to the
end, and then pull up to remove.
• To reinsert, align the front wheels of
the upper basket with the end of the
lower basket. Slide the upper basket to
the front.
• To remove, rst remove the upper
basket. Then, tilt up the front of the
lower basket to pull out.
• To reinsert, put the basket into the rail
assembly with the rear side rst.
Maintenance
• Do not twist the basket when removing or reinserting the basket. The basket can be
scratched.
• To prevent physical injury, property damage, or suffocation, keep children away from
freezer baskets that have been removed.
• Do not remove the divider.
• Put the wheels of the upper basket on the end of the rails of the lower basket. Then,
slide the upper basket all the way to the front. Otherwise, the drawer does not open or
close properly, which causes frost to build up.
English62
CAUTION
Untitled-10 62 2018-07-05 6:51:02

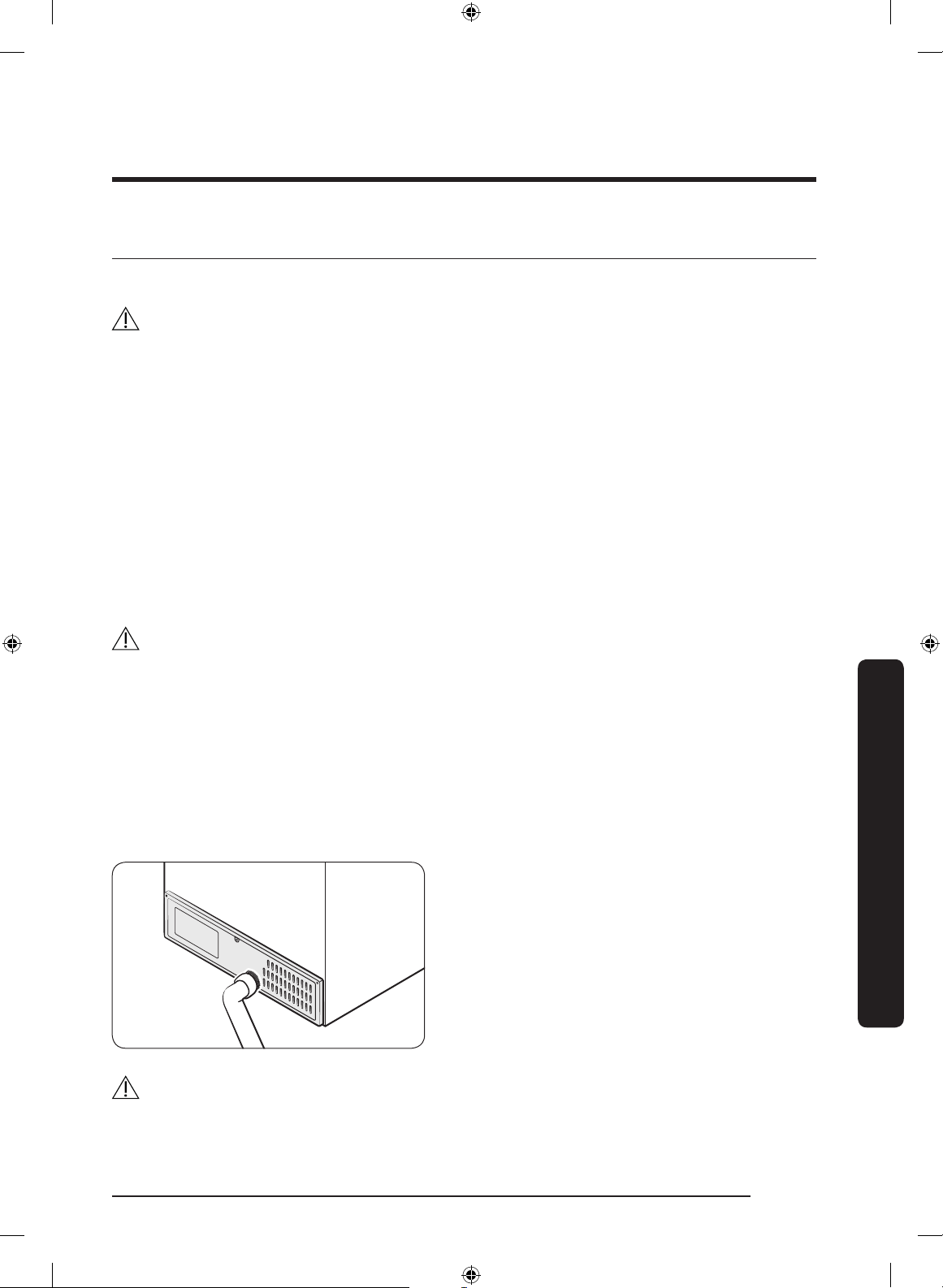

Cleaning
Interior and exterior
WARNING
• Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator.
They may damage the surface of the refrigerator and cause a re.
• Do not spray water onto the refrigerator. This may cause electric shock.
Regularly use a dry cloth to remove all foreign substances such as dust or water from the
power plug terminals and contact points.
1. Unplug the power cord.
2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior
and exterior.
3. When done, use a dry cloth or paper towel to dry well.
4. Plug in the power cord.
Ice / Water dispenser
CAUTION
When crushed ice is selected, some residual ice chips may collect in the ice chute. To
prevent this, remove the residual ice from the chute using a soft, clean cloth.
Rubber seals
If the rubber seals of a door become dirty, the door may not close properly and reducing
refrigerator performance and efciency. Use a mild detergent and damp cloth to clean the
rubber seals. Then, dry well with a cloth.
Rear panel
To keep cords and exposed parts of the
rear panel free of dirt, vacuum the panel
once or twice a year.
CAUTION
Do not remove the rear panel cover. Electric shock may occur.
English 63
Maintenance
Untitled-10 63 2018-07-05 6:51:02
Maintenance

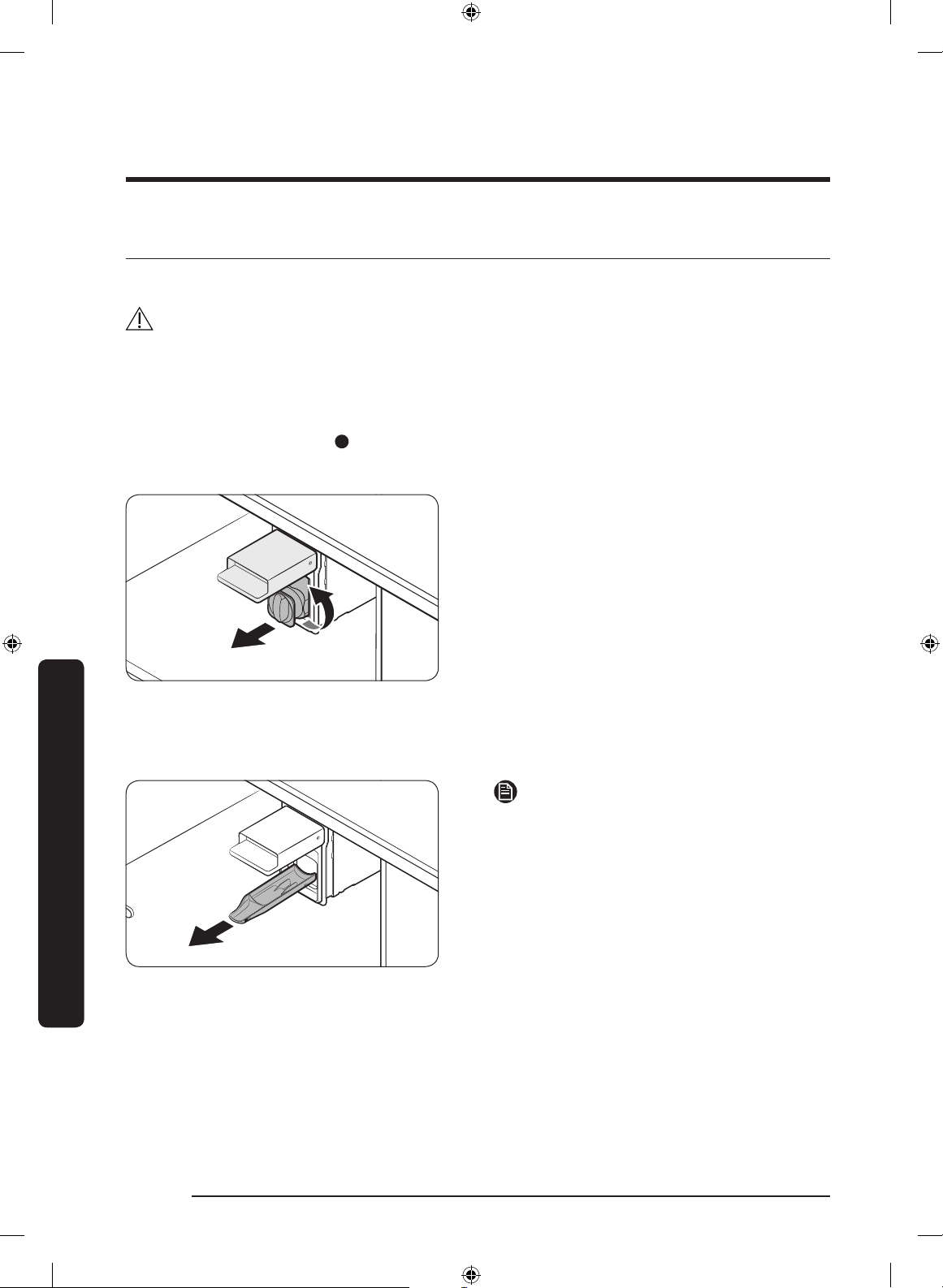

Replacement
Water lter
WARNING
• Do not use third-party water lters. Use only Samsung-provided or -approved lters.
• Unapproved lters may leak and damage the refrigerator, causing electric shock.
Samsung is not responsible for any damage that may occur from use of third-party
water lters.
The Filter Reset indicator ( ) turns red to let you know it is time to replace the water
lter. Before replacing the lter, make sure the water supply line is shut off.
1. While opening the lter cover, turn
the knob of the lter cartridge counter
clockwise by 90 degrees (1/4 turn). The
lter cartridge unlocks.
2. Pull out to remove the cartridge.
- If the water lter is severely
contaminated, the cartridge may not
be easily removable. In that case, use
force to pull it out.
- To prevent water leaks from the
opening, pull the cartridge straight
out while removing it.
Maintenance
English64
NOTE
To prevent overow, empty and dry the
water lter tray.
Untitled-10 64 2018-07-05 6:51:02
3. Insert a new lter cartridge. Use only
Samsung-provided or approved lters.
4. Turn the cartridge knob clockwise to
lock into place.
5. Press and hold Filter Reset on the main
panel for 3 seconds to reset the life
cycle detector. The Filter Reset indicator
( ) turns off.
6. When you are done replacing the lter,
open the water valve and run water
through the dispenser for about 7
minutes. This is to remove impurities
and air from the water line.
NOTE
• A newly installed lter may cause the water dispenser to spurt water briey. This is
because air has entered the waterline.
• The replacement process may cause the water dispenser to drip for a short period of
time. If it drips, simply wipe up any water on the oor with a dry towel.
Reverse osmosis water ltration system
The water pressure of the water supply system to a reverse osmosis water ltration
system must be between 35 psi and 120 psi (241 kPa and 827 kPa).
The water pressure of the reverse osmosis water ltration system to the refrigerator’s
cold water line must be at least 40 psi (276 kPa). If the water pressure is below these
specications:
• Check if the sediment lter in the reverse osmosis system is blocked. Replace the lter
if necessary.
• Rell the water tank in the reverse osmosis system with water.
• If your refrigerator has a water lter, it may further reduce the water pressure when
used in conjunction with a reverse osmosis system. Remove the water lter.
For more information or servicing, contact a licensed plumbing professional.
English 65
Maintenance
Untitled-10 65 2018-07-05 6:51:03
Maintenance
Ordering a new lter
To purchase a new water lter, contact a local Samsung service center or visit the web
site (www.samsungparts.com).
LED Lamps
To replace the lamps of the refrigerator, contact a local Samsung service center.
WARNING
• The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can
cause electric shock.
Maintenance
English66
Untitled-10 66 2018-07-05 6:51:03
Troubleshooting
Before calling for service, review the checkpoints below. Any service calls regarding
normal situations (No Defect Cases) will be charged to users.
General
Temperature
Symptom Possible causes Solution
Fridge/freezer does
not operate.
Fridge/freezer
temperature is warm.
Fridge/freezer is
over-cooling.
• Power cord is not plugged
in properly.
• Temperature control is not
set correctly.
• Refrigerator is located near
a heat source or direct
sunlight.
• Not enough clearance
between refrigerator and
nearby walls or cabinets.
• Energy Saver mode is
activated.
• The refrigerator is
overloaded. Food is
blocking the refrigerator
vents.
• Temperature control is not
set correctly.
• Properly plug in the power
cord.
• Set the temperature lower.
• Keep the refrigerator away
from direct sunlight or a
heat source.
• Make sure there is a gap of
at least 2.5 inches (5 cm)
between the refrigerator
back and sides and any
nearby walls or cabinets.
• Deactivate Energy Saver
mode.
• Do not overload the
refrigerator. Do not allow
food to block vents.
• Set the temperature higher.
English 67
Untitled-10 67 2018-07-05 6:51:03
Troubleshooting
Troubleshooting

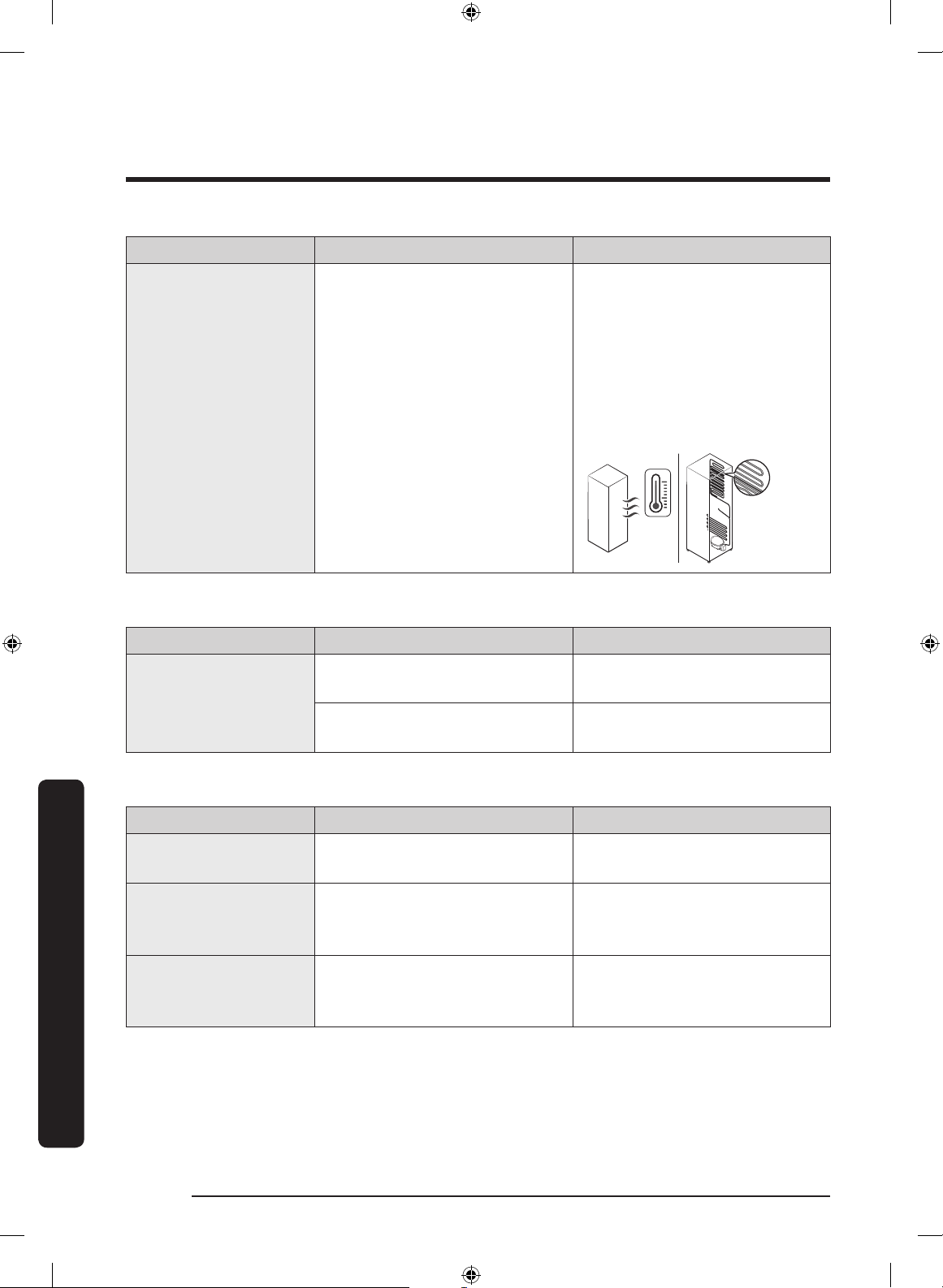

Symptom Possible causes Solution
Interior wall is hot.
Odors
• Refrigerator has heat-proof
piping in the interior wall.
• To prevent condensation
from forming, the
refrigerator has heat-proof
piping in the front corners.
If the ambient temperature
rises, this equipment may
not work effectively. This is
not a system failure.
Refrigerator has
odors.
Frost
Frost around the
vents.
Troubleshooting
Frost on interior
walls.
Fruits or vegetables
are frozen.
Symptom Possible causes Solution
• Spoiled food.
• Food with strong odors.
Symptom Possible causes Solution
• Food is blocking the vents.
• Door is not closed properly.
• Fruits or vegetables are
stored in the FlexZone™.
• Clean the refrigerator and
remove any spoiled food.
• Make sure strong smelling
food is wrapped airtight.
• Make sure no food blocks
the refrigerator vents.
• Make sure food does not
block the door. Clean the
door gasket.
• Do not store most kinds of
fruit or vegetables in the
FlexZone™.
English68
Untitled-10 68 2018-07-05 6:51:03
Condensation
Symptom Possible causes Solution
• If door is left open, moisture
Condensation forms
enters the refrigerator.
on the interior walls.
• Food with high moisture
content.
Water/ice (dispenser models only)
Symptom Possible causes Solution
Water ow is weaker
than normal.
Ice maker makes a
buzzing sound.
Ice maker does not
make ice.
• Water pressure is too low.
• The ice maker function is
activated, but the water
supply to the refrigerator
has not been connected.
• Ice maker has just been
installed.
• Freezer temperature is too
high.
• Dispenser panel Lock is
activated.
• Ice maker is off. • Turn on the ice maker.
• Remove the moisture and
do not leave a door open
for extended periods of
time.
• Make sure food is wrapped
airtight.
• Make sure the water
pressure is between 20 to
120 psi.
• Press Ice Maker off .
• You must wait for 12 hours
for the refrigerator to make
ice.
• Set the freezer temperature
below 0 °F (-18 °C) or -4 °F
(-20 °C) in warm ambient
air.
• Deactivate dispenser panel
Lock.
Troubleshooting
English 69
Untitled-10 69 2018-07-05 6:51:03
Troubleshooting

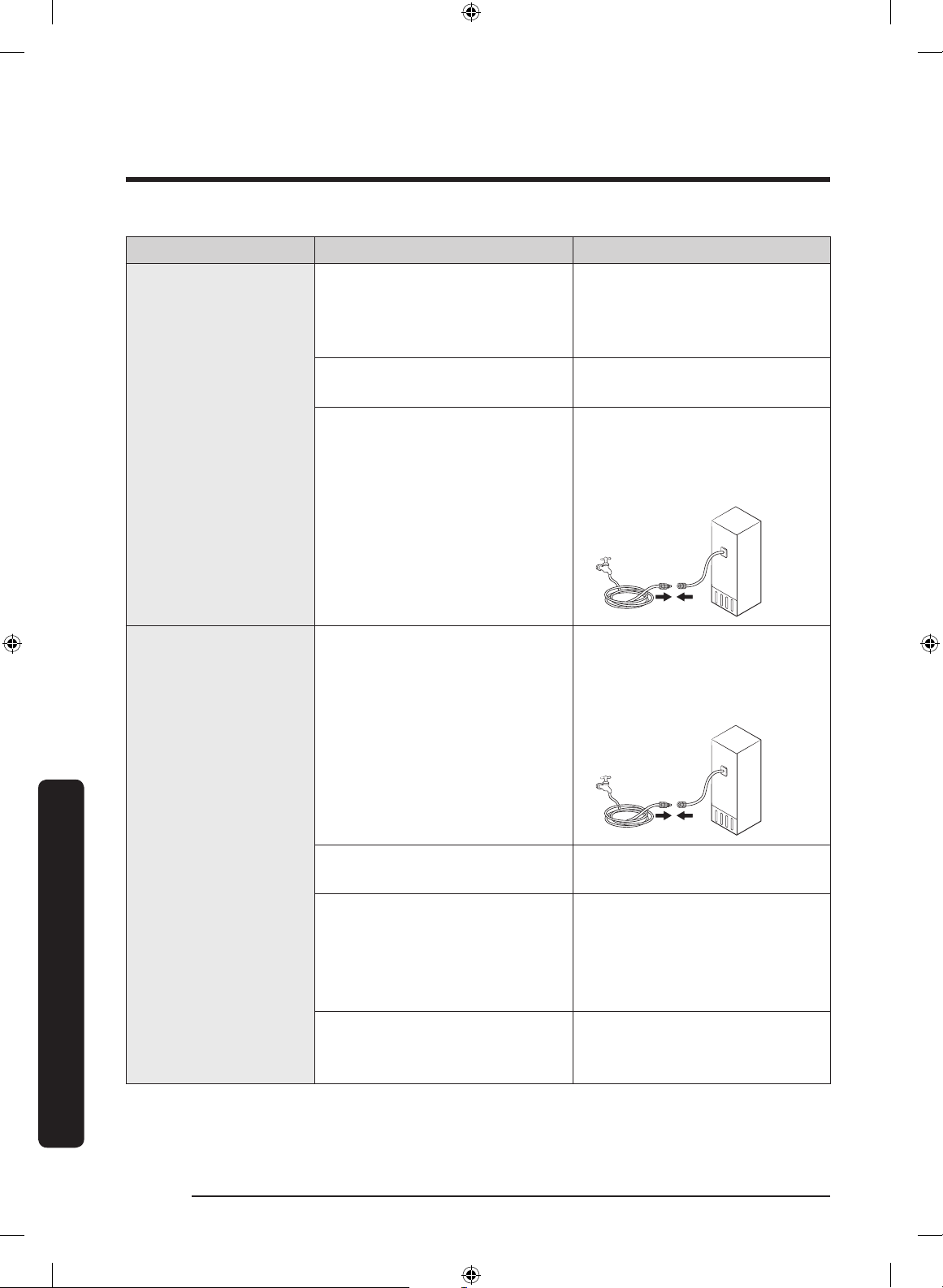

Symptom Possible causes Solution
• Ice may jam if the ice
dispenser is not used for a
long time (approx. 3 weeks).
• Ice bucket is not properly
inserted.
Ice does not dispense.
• Water line is not connected
properly or water supply is
not on.
• If you won't be using the
refrigerator for a long time,
empty the ice bucket and
turn off the ice maker.
• Make sure the ice bucket is
properly inserted.
• Check if the water line is
installed correctly. Check if
the water line stop cock is
closed.
Water does not
dispense.
Troubleshooting
• Water line is not connected
properly or water supply is
not on.
• Dispenser panel Lock is
activated.
• A third-party water lter
was installed.
• Water lter indicator turns
on or blinks.
• Check if the water line is
installed correctly. Check if
the water line stop cock is
closed.
• Deactivate dispenser panel
Lock.
• Use only Samsung-provided
or approved lters.
• Unapproved lters may
leak and damage the
refrigerator.
• Replace the water lter.
After replacing, reset the
lter indicator sensor.
English70
Untitled-10 70 2018-07-05 6:51:03

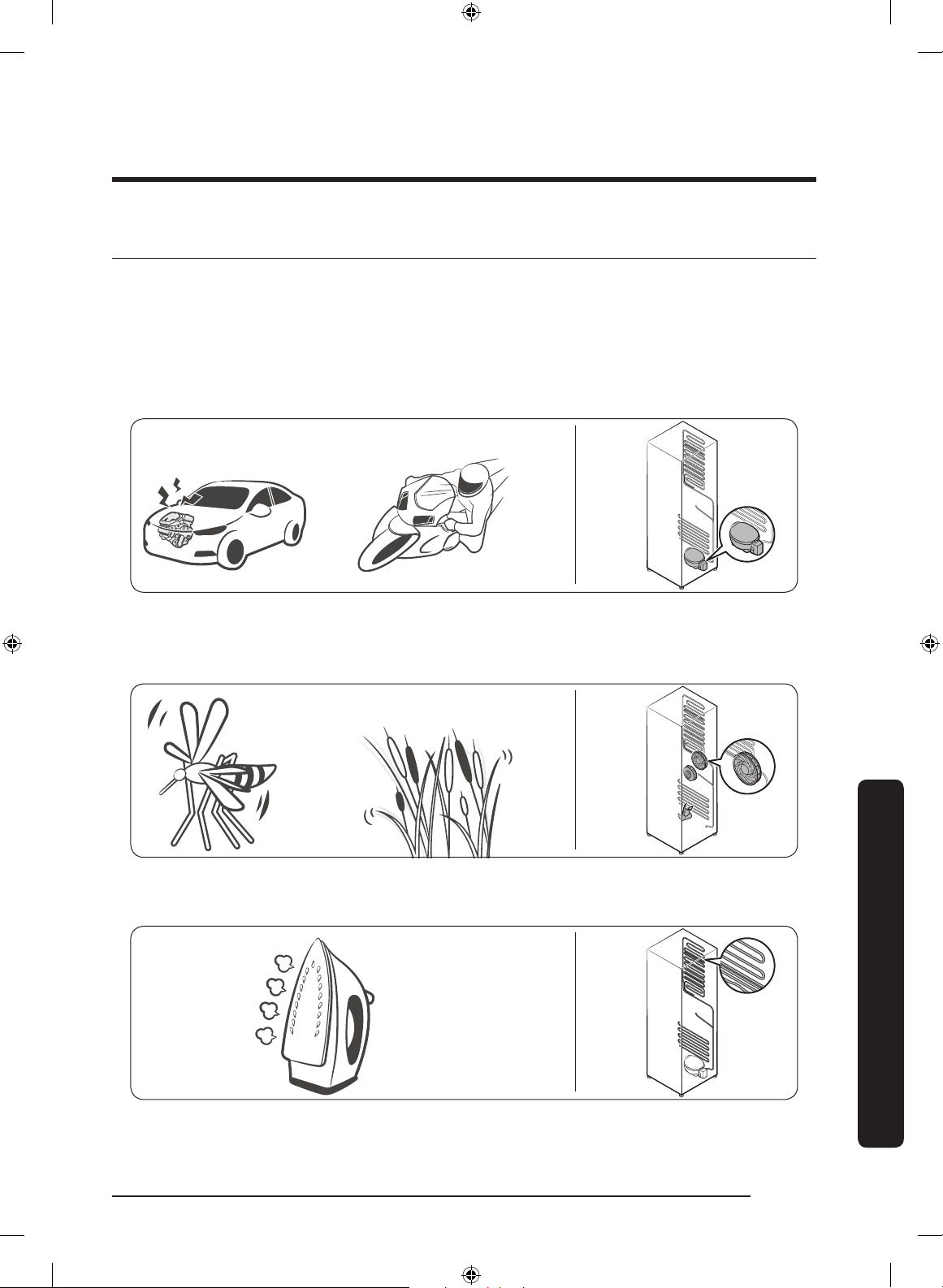

Do you hear abnormal sounds from the refrigerator?
Clicking!
or Chirping!
Buzzing!
SSSRRR!
Whir!
HiSS!
Before calling for service, review the checkpoints below. Any service calls related to
normal sounds will be charged to the user.
These sounds are normal.
• When starting or ending an operation, the refrigerator may make sounds similar to a
car engine ignition. As the operation stabilizes, the sounds will decrease.
• While the fan is operating, these sounds may occur. When the refrigerator reaches the
set temperature, the fan sound will stop.
• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds.
Untitled-10 71 2018-07-05 6:51:04
English 71
Troubleshooting
Troubleshooting

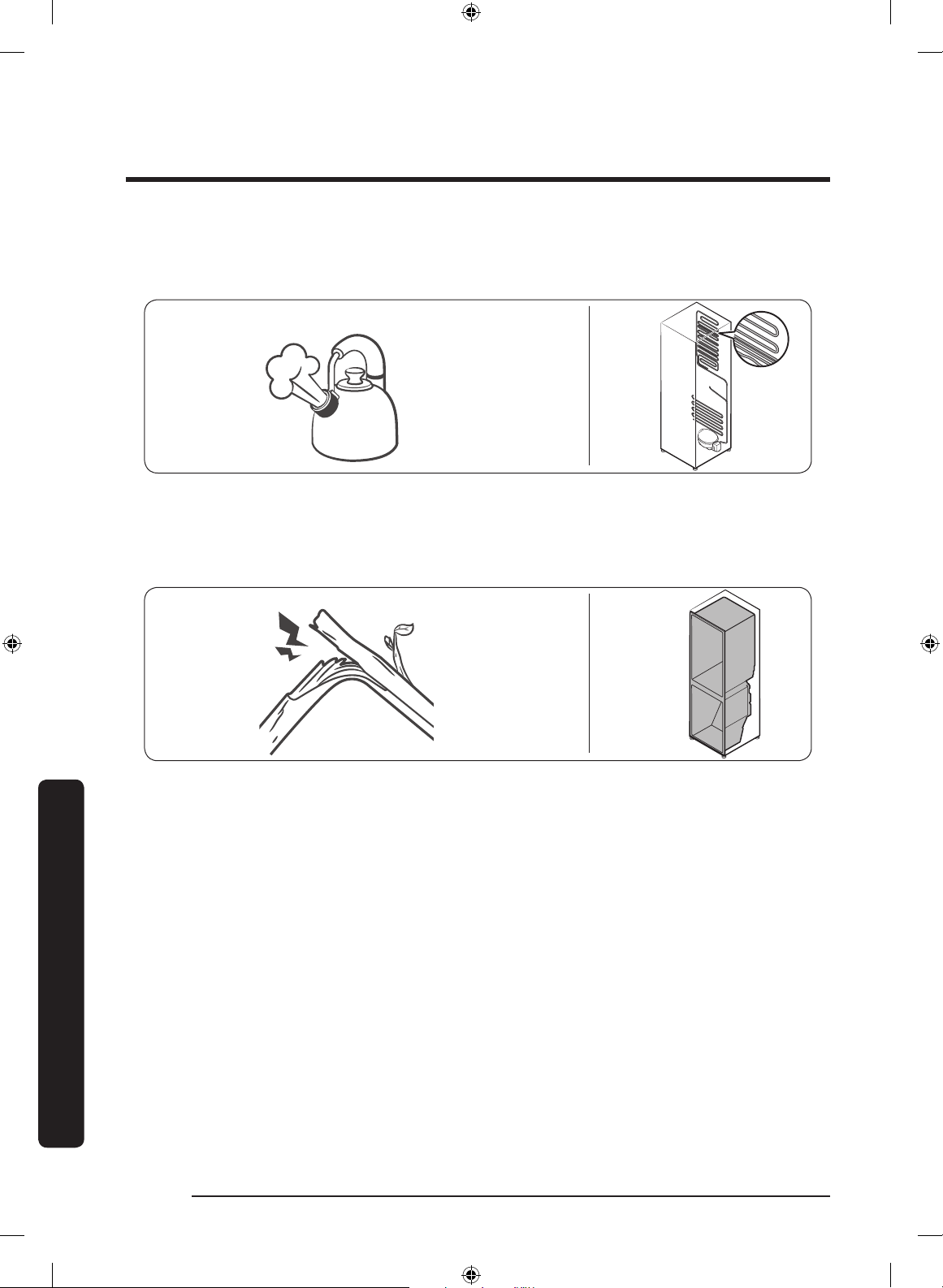

Bubbling!
Cracking!
• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes,
causing bubbling sounds.
• As the refrigerator temperature increases or decreases, plastic parts contract and
expand, creating knocking noises. These noises occur during the defrosting cycle or
when electronic parts are working.
• For ice maker models: When the water valve opens to ll the ice maker, buzzing
sounds may occur.
• Due to pressure equalizing when you open and close the refrigerator door, whooshing
sounds may occur.
Troubleshooting
English72
Untitled-10 72 2018-07-05 6:51:04
SmartThings
Symptom Action
Could not nd
“SmartThings” in the
app market.
The SmartThings app
fails to operate.
The SmartThings app
is installed but is
not connected to my
refrigerator.
Could not log into the
app.
An error message
appears when I
try to register my
refrigerator.
The SmartThings
app is successfully
connected to my
refrigerator but does
not run.
• The SmartThings app is designed for Android 6.0
(Marshmallow) or later, iOS 10.0 or later, iPhone 6 or later,
and is optimized for Samsung smartphones (Galaxy S and
Galaxy Note series).
• The SmartThings app is available for applicable models only.
• The old Samsung Smart Refrigerator app cannot connect with
Samsung Smart Home models.
• You must log into your Samsung account to use the app.
• Make sure that your router is operating normally.
• If you have not connected your refrigerator to the
SmartThings App after the app was installed, you must make
the connection using the device registration function of the
app.
• You must log into your Samsung account to use the app.
• If you don’t have a Samsung account, follow the app’s
onscreen instructions to create one.
• Easy Connection may fail due to the distance from your
access point (AP) or electrical interference from the
surrounding environment. Wait a moment and try again.
• Exit and restart the SmartThings app or disconnect and
reconnect the router.
• Unplug the power cord of the refrigerator, and then plug it in
again after 1 minute.
Troubleshooting
English 73
Untitled-10 73 2018-07-05 6:51:04
LIMITED WARRANTY (U.S.A.)
SAMSUNG REFRIGERATOR
LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF
PURCHASE
This SAMSUNG brand product, as supplied and distributed by Samsung Electronics
America, Inc. (SAMSUNG) and delivered new, in the original carton to the original
consumer purchaser, is warranted by SAMSUNG against manufacturing defects in
materials or workmanship for the limited warranty period of:
One (1) year parts and labor
Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor,
Evaporator, Condenser, Drier, and Connecting Tubing)
Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only
This limited warranty is valid only on products purchased and used in the United States
that have been installed, operated, and maintained according to the instructions attached
to or furnished with the product. To receive warranty service, the purchaser must contact
SAMSUNG at the address or phone number provided below for problem determination and
service procedures. Warranty service can only be performed by a SAMSUNG authorized
service center. The original dated bill of sale must be presented upon request as proof
of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty
service.
SAMSUNG will provide in-home service within the contiguous United States during the
warranty period at no charge, subject to availability of SAMSUNG authorized servicers
within the customer’s geographic area. If in-home service is not available, SAMSUNG may
elect, at its option, to provide transportation of the product to and from an authorized
service center. If the product is located in an area where service by a SAMSUNG
authorized servicer is not available, you may be responsible for a trip charge or required
to bring the product to a SAMSUNG authorized service center for service.
To receive in-home service, product must be unobstructed and accessible to the service
agent.
During the applicable warranty period, a product will be repaired, replaced, or the
purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new
or reconditioned parts in repairing a product, or replace the product with a new or
reconditioned product. Replacement parts and products are warranted for the remaining
portion of the original product’s warranty or ninety (90) days, whichever is longer. All
replaced parts and products are the property of SAMSUNG and you must return them to
SAMSUNG.
English74
Untitled-10 74 2018-07-05 6:51:04
This limited warranty covers manufacturing defects in materials or workmanship
encountered in normal household, noncommercial use of this product and shall not
cover the following: damage that occurs in shipment, delivery, installation, and uses
for which this product was not intended; damage caused by unauthorized modication
or alteration of the product; product where the original factory serial numbers have
been removed, defaced, changed in any way, or cannot be readily determined; cosmetic
damage including scratches, dents, chips, and other damage to the product’s nishes;
damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts
of nature or God; damage caused by use of equipment, utilities, services, parts, supplies,
accessories, applications, installations, repairs, external wiring or connectors not supplied
or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage,
uctuations and surges; damage caused by failure to operate and maintain the product
according to instructions; in-home instruction on how to use your product; and service
to correct installation not in accordance with electrical or plumbing codes or correction
of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The
cost of repair or replacement under these excluded circumstances shall be the customer’s
responsibility.
Visits by an authorized servicer to explain product functions, maintenance or installation
are not covered by this limited warranty. Please contact SAMSUNG at the number below
for assistance with any of these issues.
EXCLUSION OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST
PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitations or exclusions may not apply to you. This warranty
gives you specic rights, and you may also have other rights, which vary from state to
state.
English 75
Untitled-10 75 2018-07-05 6:51:04
LIMITED WARRANTY (U.S.A.)
LIMITATION OF REMEDIES
YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT,
OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS
LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK,
HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR
PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL
THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of
incidental or consequential damages, so the above limitations or exclusions may not apply
to you. This warranty gives you specic rights, and you may also have other rights, which
vary from state to state.
SAMSUNG does not warrant uninterrupted or error-free operation of the product. No
warranty or guarantee given by any other person, rm, or corporation with respect to this
product shall be binding on SAMSUNG.
To obtain warranty service, please contact SAMSUNG at:
Samsung Electronics America, Inc.
85 Challenger Road
Ridgeeld Park, NJ 07660
1-800-SAMSUNG (726-7864)
www.samsung.com/us/support
English76
Untitled-10 76 2018-07-05 6:51:04
Warranty Information (CANADA)
If your refrigerator needs service
Do not hesitate to call any Samsung Authorized Service Center nearby giving them your
name, address and telephone number if your product is not functioning properly.
Limited Warranty for Original Purchaser
This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred
to as SECA) against manufacturing defects in material or workmanship for the following
periods:
Labor : 1 year (in-home)
Parts : 1 year
Inverter Compressor : 10 years (Part only)
SECA further warrants that if this product fails to operate properly within the specied
warranty period and the failure is due to improper workmanship or defective material,
SECA will repair or replace the product at its option. In-home service is not available in all
areas. Contact us to nd out if in-home service is currently available in your area by using
the contact information at the back of this warranty.
All warranty repairs or part replacements must be performed by a SECA Authorized
Service Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864)
or visit our web site at www.samsung.com/ca)
Obligation to the Original Owner
The original dated sales receipt must be retained by the customer and is the only
acceptable proof of purchase. It must be presented to a SECA Authorized Service Center
at the time service is requested before warranty services are rendered. On all carry-in
models, transportation to and from the Authorized Service Center is the responsibility of
the customer.
English 77
Untitled-10 77 2018-07-05 6:51:04
Warranty Information (CANADA)
Exclusions of the Warranty
This warranty does not cover damage due to accident, re, ood, and/or other Acts of
God, misuse, incorrect line voltage, improper installation, improper or unauthorized
repairs, commercial use, or damage that occurs during shipping. Customer adjustments
which are explained in this owners manual are not covered under the terms of this
warranty. This warranty will automatically be voided for any unit found with a missing
or altered serial number. This warranty is valid only on products purchased and used in
Canada.
SAMSUNG CUSTOMER CARE CENTER
Samsung Electronics Canada Inc.
2050 Derry Road West
Mississauga, Ontario L5N 0B9
Canada
1-800-SAMSUNG (726-7864)
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
English78
Untitled-10 78 2018-07-05 6:51:04
Memo
Untitled-10 79 2018-07-05 6:51:04
Scan the QR code* or visit
www.samsung.com/spsn
s
to view our helpful
How-to Videos and Live Show
* Requires reader to be installed on your
smartphone
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the
SAMSUNG Customer Care Center.
Country Contact Center Web Site
U.S.A
CANADA
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
1-800-SAMSUNG (726-7864)
1-844-SAM-PAYS (726-7297)
www.samsung.com/us/support
www.samsung.com/ca/support (English)
www.samsung.com/ca_fr/support (French)
Untitled-10 80 2018-07-05 6:51:05
DA68-03563A-03
Refrigerador
Manual del usuario
Electrodoméstico independiente
Untitled-12 1 2018-07-05 6:57:19
Contenido
Información sobre seguridad 4
Símbolos y advertencias de seguridad importantes: 5
Advertencia sobre la State of California Proposition 65 (solo EE.UU.) 5
Contenido
Señales de advertencia importantes para el transporte y el emplazamiento 5
Advertencias muy importantes para la instalación 6
Precauciones para la instalación 8
Advertencias muy importantes para el uso 8
Precauciones de uso 12
Precauciones para la limpieza 13
Advertencias muy importantes para la eliminación de residuos 14
Este electrodoméstico está diseñado para uso doméstico y en lugares como 14
Instalación 15
Descripción breve del refrigerador 15
Instalación paso a paso 17
Funcionamiento 34
Panel principal 34
SmartThings (solo para los modelos correspondientes) 43
Panel del dispensador 46
Funciones especiales 48
Mantenimiento 54
Manipulación y cuidado 54
Limpieza 64
Reemplazo 65
Solución de problemas 68
General 68
¿Se oyen ruidos anómalos procedentes del refrigerador? 73
SmartThings 75
Español2
Untitled-12 2 2018-07-05 6:57:19
GARANTÍA LIMITADA (EE.UU.) 76
REFRIGERADOR SAMSUNG 76
Contenido
Español 3
Untitled-12 3 2018-07-05 6:57:19
Información sobre seguridad
• Antes de utilizar su nuevo refrigerador Samsung, lea detenidamente este manual a n de aprender a
usar las funciones que ofrece de manera segura y eciente.
• Este electrodoméstico no debe ser utilizado por personas (incluidos niños) con capacidades mentales,
sensoriales o físicas reducidas, o por personas que carezcan de experiencia y de conocimientos, a
menos que se encuentren bajo supervisión o hayan recibido las instrucciones de uso por parte de un
responsable de su seguridad. Se deberá vigilar a los niños para asegurarse de que no jueguen con el
electrodoméstico.
Información sobre seguridad
• Debido a que las siguientes instrucciones corresponden a diversos modelos, es posible que las
características de su refrigerador dieran ligeramente de las que se describen en este manual.
• Si tiene alguna duda, comuníquese al 1-800-SAMSUNG o encuentre ayuda e información en línea en
www.samsung.com.
• Si el refrigerante sale por los tubos, este podría incendiarse o dañar los ojos. Si hay pérdida de
refrigerante del tubo, manténgalo alejado de las llamas, aparte cualquier material inamable del
producto y ventile la habitación inmediatamente.
ADVERTENCIA
• Se utiliza R-600a como refrigerante. Este producto contiene gas inamable (Refrigerante R-600a),
comuníquese con las autoridades locales para desechar este producto en forma segura.
• Para evitar la creación de una mezcla de gas-aire inamable en caso de una pérdida en el circuito
del refrigerante, el tamaño del lugar en el que se coloca el refrigerador depende de la cantidad
de refrigerante utilizado. El lugar debe tener 35.3 pies³ por cada 8 g de refrigerante R-600a en el
electrodoméstico.
• La ubicación de instalación no debe estar expuesta a la luz solar directa ni cerca de ningún
electrodoméstico o fuente de calor, tales como estufas, hornos u hornillas, radiadores, etc.
• Si coloca dos productos uno junto al otro, por razones de seguridad, asegúrese de utilizar productos
certicados en atmósferas de gas explosivas.
• Nunca debe poner en marcha un electrodoméstico que presente signos de haber sido dañado. Si tiene
alguna inquietud, consulte a su distribuidor.
Advertencia: riesgo de incendio/materiales inamables
Español4
Untitled-12 4 2018-07-05 6:57:19
Símbolos y advertencias de seguridad importantes:
Sírvase seguir todas las instrucciones de seguridad del presente manual. En el presente manual se utilizan
los siguientes símbolos de seguridad.
ADVERTENCIA
Riesgos o prácticas inseguras que pueden causar graves lesiones personales, daños a la propiedad y/o
incluso la muerte.
PRECAUCIÓN
Riesgos o prácticas inseguras que pueden causar lesiones personales leves y/o daños materiales.
NOTA
Información útil que ayuda a los usuarios a comprender u obtener benecios del refrigerador.
Estas señales de advertencia se incluyen aquí para evitar que usted o terceros sufran lesiones.
Sígalas atentamente.
Después de leer esta sección, consérvela en un lugar seguro para referencia futura.
Advertencia sobre la State of California Proposition 65 (solo EE.UU.)
ADVERTENCIA: Cáncer y Daño Reproductivo - www.P65Warnings.ca.gov.
Información sobre seguridad
Señales de advertencia importantes para el transporte y el emplazamiento
ADVERTENCIA
• Al transportar e instalar el electrodoméstico deberá tener cuidado de no dañar ninguna de las piezas
del circuito del refrigerante.
- La pérdida de refrigerante del tubo podría incendiarse o dañar los ojos. Si se detecta una fuga,
manténgalo alejado de las llamas o de posibles fuentes de inamación y ventile durante varios
minutos el ambiente en el que se encuentra la unidad.
- El electrodoméstico contiene una pequeña cantidad de refrigerante de isobutano (R-600a), un
gas natural con alta compatibilidad ambiental, no obstante también inamable. Al transportar e
instalar el electrodoméstico deberá tener cuidado de no dañar ninguna de las piezas del circuito del
refrigerante.
Español 5
Untitled-12 5 2018-07-05 6:57:19
Información sobre seguridad
Advertencias muy importantes para la instalación
ADVERTENCIA
• No instale el refrigerador en un lugar húmedo o donde pueda entrar en contacto con agua.
- El aislamiento deciente de las piezas eléctricas puede provocar una descarga eléctrica o un
incendio.
Información sobre seguridad
• No exponga este refrigerador a la luz solar directa ni al calor de estufas, calefactores u otros
electrodomésticos.
• No enchufe varios electrodomésticos en la misma toma múltiple. El refrigerador debe conectarse
siempre a un tomacorriente individual cuyo voltaje nominal coincida con el que se especica en la
placa de voltaje del refrigerador.
- De esta manera se obtiene el mejor desempeño y también se evita que se sobrecarguen los
circuitos del cableado de la casa, lo que podría sobrecalentar los cables y provocar un riesgo de
incendio.
• Si el tomacorriente está ojo, no conecte el enchufe.
- Existe el riesgo de que se produzca una descarga eléctrica o un incendio.
• No utilice un cable de alimentación que esté dañado o gastado en su extensión o en cualquiera de los
extremos.
• No doble excesivamente el cable de alimentación ni coloque objetos pesados sobre él.
• No tire del cable de alimentación ni lo doble excesivamente.
• No retuerza ni amarre el cable de alimentación.
• No coloque el cable de alimentación sobre un objeto metálico; no coloque sobre él ningún objeto
pesado; no lo coloque entre objetos ni lo empuje hacia el espacio que hay detrás del electrodoméstico.
• Al mover el refrigerador, tenga cuidado de no enroscar ni dañar el cable de alimentación.
- Esto podría causar una descarga eléctrica o un incendio.
• Nunca desenchufe el refrigerador jalando el cable de alimentación. Siempre sostenga el enchufe con
rmeza y jale para extraerlo del tomacorriente.
- Los daños al cable pueden provocar un cortocircuito, un incendio o una descarga eléctrica.
• No almacene sustancias explosivas como latas de aerosoles con gases propelentes inamables en este
electrodoméstico.
• No instale este electrodoméstico cerca de calefactores o materiales inamables.
• No instale este electrodoméstico en un lugar donde pueda haber fugas de gas.
- Esto podría causar una descarga eléctrica o un incendio.
• Antes de usarse, el refrigerador debe ubicarse e instalarse de manera apropiada de acuerdo con las
instrucciones de este manual.
• Conecte el enchufe en la posición correcta con el cable colgando hacia abajo.
- Si conecta el enchufe al revés, el cable puede cortarse y provocar un incendio o una descarga
eléctrica.
Español6
Untitled-12 6 2018-07-05 6:57:19
• Asegúrese de que el enchufe no esté aplastado ni haya sido dañado por la parte posterior del
refrigerador.
• Mantenga los materiales de empaque fuera del alcance de los niños.
- Existe el riesgo de muerte por asxia si un niño se coloca los materiales de empaque en la cabeza.
• El electrodoméstico debe colocarse de manera tal que se pueda acceder al enchufe después de la
instalación.
- No seguir esta recomendación puede causar una descarga eléctrica o un incendio debido a una fuga
Información sobre seguridad
de electricidad.
• No instale este electrodoméstico en un lugar húmedo, engrasado o sucio, o en un sitio con exposición
directa al sol o al agua (lluvia).
- El aislamiento deciente de las piezas eléctricas puede provocar una descarga eléctrica o un
incendio.
• Si ingresaran grandes cantidades de polvo o agua al refrigerador, desenchufe el cable de alimentación
y comuníquese con un Centro de Servicio de Samsung Electronics.
- Si no lo hace, existe el riesgo de que se produzca un incendio.
• No se pare sobre el electrodoméstico ni le coloque objetos encima (tales como ropa, velas o cigarrillos
encendidos, platos, productos químicos, objetos metálicos, etc.).
- Esto podría causar una descarga eléctrica, un incendio, problemas con el producto o lesiones.
• Es necesario quitar toda la película plástica protectora antes de enchufar el producto por primera vez.
• Se deberá vigilar a los niños para asegurarse de que no jueguen con los anillos elásticos utilizados para
el ajuste de la puerta o con las grapas del tubo de agua.
- Existe riesgo de muerte por asxia si un niño se traga un anillo elástico o una grapa del tubo de
agua. Mantenga los anillos elásticos y las grapas del tubo de agua fuera del alcance de los niños.
• El refrigerador debe estar conectado a tierra de manera segura.
- Siempre asegúrese de haber conectado el refrigerador a tierra antes de intentar examinar o reparar
alguna pieza. Las fugas de energía pueden provocar una descarga eléctrica grave.
• Nunca utilice como conexión a tierra tubos de gas, líneas telefónicas ni otras posibles fuentes de
atracción de rayos.
- El refrigerador debe estar conectado a tierra para evitar cualquier fuga de energía o descarga
eléctrica provocada por fugas de corriente del refrigerador.
- La fuga de corriente podría causar descargas eléctricas, incendios, explosiones o problemas con el
producto.
- El uso inapropiado de la conexión a tierra puede traer como consecuencia un riesgo de descarga
eléctrica. Si necesita usar un cable de extensión, use solo uno de tres hilos con un enchufe que
tenga una tercera punta para el polo a tierra; la toma de corriente deberá tener 3 ranuras para
adaptarse al enchufe del electrodoméstico. La potencia indicada en el cable de extensión debe ser
CA 115-120 V, 10 A o superior. Si se utiliza un adaptador de tierra, asegúrese de que el receptáculo
esté conectado correctamente a tierra.
Español 7
Untitled-12 7 2018-07-05 6:57:19
Información sobre seguridad
• Conecte bien el enchufe a la toma de pared. No utilice enchufes o cables de alimentación dañados ni
enchufes de pared ojos.
- Esto podría causar una descarga eléctrica o un incendio.
• Si el cable de alimentación está dañado, solicite su reemplazo de inmediato al fabricante o a uno de los
agentes de servicio técnico.
• Únicamente un técnico calicado o compañía de reparaciones debe estar autorizado para cambiar el
Información sobre seguridad
fusible del refrigerador.
- No seguir esta recomendación, podría causar una descarga eléctrica o lesiones.
• Debe poder accederse a la toma de pared con facilidad para que el electrodoméstico pueda
desenchufarse rápidamente en caso de emergencia.
• Debe encontrarse fuera de la zona trasera del electrodoméstico.
• Cuando instale el electrodoméstico, asegúrese de que el cable de alimentación no esté atrapado ni
dañado.
• No ubique varias regletas de tomacorrientes portátiles o unidades de alimentación móviles en la parte
trasera del electrodoméstico.
Precauciones para la instalación
PRECAUCIÓN
• Deje espacio suciente alrededor del refrigerador e instálelo sobre una supercie plana.
- Mantenga libre de obstáculos el espacio de ventilación en el gabinete o la estructura de montaje
del electrodoméstico.
• Una vez que haya instalado el refrigerador y lo haya encendido, permita que funcione durante 2 horas
antes de cargarlo con alimentos.
• Se recomienda que el refrigerador sea instalado por un técnico calicado o una compañía de servicios.
- No seguir esta recomendación puede causar descargas eléctricas, incendios, explosiones, problemas
con el producto o lesiones.
• Sobrecargar una de las puertas puede ocasionar la caída del refrigerador y provocar lesiones
personales.
Advertencias muy importantes para el uso
ADVERTENCIA
• No conecte el enchufe en un tomacorriente con las manos mojadas.
- Esto podría causar una descarga eléctrica.
Español8
Untitled-12 8 2018-07-05 6:57:20
• No coloque objetos en la parte superior de la unidad.
- Cada vez que abra o cierre la puerta, estos podrían caerse y provocar lesiones personales o daños
materiales.
• No coloque las manos, los pies ni objetos metálicos (tales como palillos chinos, etc.) en la parte inferior
o posterior del refrigerador.
- Esto podría causar una descarga eléctrica o lesiones personales.
- Algunos bordes losos podrían provocar lesiones personales.
• No toque las paredes internas del congelador ni los productos almacenados en este con las manos
mojadas.
- Esto puede provocar quemaduras por frío.
• No coloque un recipiente con agua sobre el refrigerador.
- Si se derrama, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No almacene sustancias u objetos volátiles o inamables (benceno, solvente, gas propano, alcohol, éter,
gas LP ni cualquier otro producto de este tipo) en el refrigerador.
- Este refrigerador se debe utilizar solo para almacenar alimentos.
- Esto podría causar un incendio o una explosión.
• Se deberá vigilar a los niños para asegurarse de que no jueguen con el electrodoméstico.
- Aleje los dedos de los puntos de agarre. Los espacios entre las puertas y el gabinete son
inevitablemente pequeños. Abra las puertas con cuidado si hay niños cerca.
• No permita que los niños se cuelguen de la puerta ni de los compartimientos de la puerta. Pueden
producirse lesiones graves.
• No permita que los niños ingresen al refrigerador. Podrían quedar atrapados.
• No coloque las manos debajo del electrodoméstico.
- Es posible que algunas puntas losas le provoquen lesiones.
• No almacene en el refrigerador productos farmacéuticos, materiales cientícos ni productos sensibles a
la temperatura.
- No se deben almacenar productos que requieran controles estrictos de temperatura.
• No coloque ni utilice aparatos eléctricos dentro del refrigerador/congelador, a menos que sean del tipo
recomendado por el fabricante.
• En caso de sentir olor a humo, desconecte el enchufe de inmediato y comuníquese con un Centro de
Servicio de Samsung Electronics.
• Si ingresaran grandes cantidades de polvo o agua al refrigerador, desenchufe el cable de alimentación
y comuníquese con el Centro de Servicio de Samsung Electronics.
- Si no lo hace, existe el riesgo de que se produzca un incendio.
• No permita que los niños se paren sobre un cajón.
- El cajón se puede romper y los niños pueden caerse.
• No deje las puertas del refrigerador abiertas si el refrigerador no está siendo vigilado y no permita
que los niños ingresen en el refrigerador.
Información sobre seguridad
Español 9
Untitled-12 9 2018-07-05 6:57:20
Información sobre seguridad
• No permita que los bebés ni los niños ingresen al cajón.
- Esto puede provocar muerte por asxia debido al encierro o lesiones personales.
• No sobrecargue el refrigerador con comida.
- Cuando abra la puerta, algún elemento podría caerse y provocar lesiones personales o daños
materiales.
• No pulverice material volátil, tal como un insecticida, sobre la supercie del electrodoméstico.
Información sobre seguridad
- Además de ser perjudicial para los seres humanos, puede causar una descarga eléctrica, un incendio
o problemas con el producto.
• Nunca coloque los dedos ni otros objetos en el oricio del dispensador de agua, en el recipiente de
hielo o en la cubeta de la fábrica de hielo.
- Esto puede provocar lesiones personales o daños materiales.
• No utilice ni coloque ninguna sustancia sensible a la temperatura, tales como pulverizadores
inamables, objetos inamables, hielo seco, medicamentos o productos químicos, cerca o dentro del
refrigerador.
• No utilice un secador de cabello para secar el interior del refrigerador. No coloque velas encendidas en
el refrigerador para eliminar los malos olores.
- Esto podría causar una descarga eléctrica o un incendio.
• Llene el tanque de agua y la charola para el hielo solamente con agua potable (agua de la llave, agua
mineral o agua puricada).
- No llene el tanque con té, jugo ni bebidas isotónicas. Pueden dañar el refrigerador.
• No se pare sobre el electrodoméstico ni le coloque objetos encima (tales como ropa, velas o cigarrillos
encendidos, platos, productos químicos, objetos metálicos, etc.). Esto podría causar una descarga
eléctrica, un incendio, problemas con el producto o lesiones. No coloque un recipiente con agua sobre
el electrodoméstico.
- Si se derrama, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No utilice dispositivos mecánicos ni cualquier otro medio para acelerar el proceso de descongelamiento
que no sean aquellos recomendados por el fabricante.
• No dañe el circuito del refrigerante.
• No mire jamente la lámpara LED UV durante mucho tiempo.
- Los rayos ultravioletas podrían dañarle la visión.
• No coloque el estante del refrigerador al revés. El tope del estante no funcionará.
- El estante de vidrio puede caerse y provocar lesiones.
• Aleje los dedos de los puntos de agarre. Los espacios entre las puertas y el gabinete son
inevitablemente pequeños. Abra las puertas con cuidado si hay niños cerca.
• Si se detecta una fuga de gas, evite las llamas o posibles fuentes de ignición y ventile durante varios
minutos la habitación en la que se encuentra el electrodoméstico.
- No toque el electrodoméstico ni el cable de alimentación.
- No utilice un ventilador.
- Una chispa puede provocar una explosión o un incendio.
Español10
Untitled-12 10 2018-07-05 6:57:20
• Utilice solamente lámparas LED proporcionadas por el fabricante o sus agentes de servicio técnico.
• Las botellas se deben almacenar una junto a otra de manera tal que no se tumben ni se caigan.
• Este producto se debe utilizar solo para almacenar alimentos en un entorno doméstico.
• Nunca coloque los dedos ni otros objetos en el oricio del dispensador de agua, en el recipiente de
hielo o en la cubeta de la fábrica de hielo.
- Puede provocar lesiones personales o daños materiales.
• No intente reparar, desensamblar ni modicar el refrigerador por su cuenta.
Información sobre seguridad
- Las modicaciones que no han sido autorizadas pueden provocar problemas de seguridad. Para
revertir una modicación no autorizada, cobraremos el costo completo de las piezas y mano de
obra.
• No utilice ningún fusible (tales como los de alambres de acero, de cobre, etc.) que no sea un fusible
estándar.
• Si es necesario reparar o volver a instalar el refrigerador, comuníquese con su Centro de Servicio
Samsung más cercano.
- No seguir esta recomendación puede causar una descarga eléctrica, un incendio, problemas con el
producto o lesiones.
• Si la lámpara LED interior o exterior se ha apagado, comuníquese con el Centro de Servicio más
cercano.
• En caso de sentir olor a quemado o a humo en el refrigerador, desenchúfelo de inmediato y
comuníquese con un Centro de Servicio Samsung.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
• Desenchufe el refrigerador antes de cambiar las lámparas internas.
- Si no lo hace, existe el riesgo de que se produzca una descarga eléctrica.
• Si le resulta difícil cambiar una luz que no sea de LED, comuníquese con un Centro de Servicio de
Samsung.
• Si el producto cuenta con lámparas LED, no desensamble las cubiertas de la lámpara y las lámparas
LED usted mismo.
- Comuníquese con un Centro de Servicio de Samsung.
• Conecte bien el enchufe a la toma de pared.
• No utilice enchufes o cables de alimentación dañados ni enchufes de pared ojos.
- Esto podría causar una descarga eléctrica o un incendio.
Español 11
Untitled-12 11 2018-07-05 6:57:20
Información sobre seguridad
Precauciones de uso
PRECAUCIÓN
• No vuelva a congelar alimentos que se hayan descongelado completamente.
• Utilice solamente la fábrica de hielo del refrigerador.
• Para obtener el mejor desempeño del producto:
Información sobre seguridad
- No coloque alimentos muy cerca de las rejillas de ventilación en la parte posterior del refrigerador,
ya que pueden obstruir la libre circulación del aire en el compartimiento del refrigerador.
- Envuelva los alimentos adecuadamente o colóquelos en recipientes herméticos antes de
almacenarlos en el refrigerador.
- Cumpla con los tiempos máximos de almacenamiento y las fechas de vencimiento de los alimentos
congelados.
• No coloque recipientes ni botellas de vidrio ni bebidas carbonatadas en el congelador.
- El recipiente puede congelarse y romperse, y esto puede ocasionar lesiones.
• Garantía de servicio y modicación.
- El servicio de garantía de Samsung no cubre los cambios o las modicaciones realizadas por un
tercero a este electrodoméstico; Samsung tampoco es responsable de los problemas relacionados
con la seguridad que puedan surgir a causa de modicaciones hechas por terceros.
• No obstruya las rejillas de ventilación dentro del refrigerador.
- Si las rejillas de ventilación están tapadas, en particular con una bolsa de plástico, el refrigerador
se puede sobrecongelar. Si el período de enfriamiento es demasiado prolongado, el ltro de agua
puede romperse y provocar fugas de agua.
• Si se desconecta el refrigerador del suministro de energía, espere al menos cinco minutos antes de
volver a enchufarlo.
• Si entraran grandes cantidades de agua al refrigerador, desenchúfelo y comuníquese con un Centro de
Servicio Samsung.
• No golpee ni aplique una fuerza excesiva sobre ninguna supercie de vidrio.
- Un vidrio roto puede causar lesiones personales o daños materiales.
• Llene el tanque de agua y la charola para el hielo solamente con agua potable (agua de la llave, agua
mineral o agua puricada).
- No llene el tanque con té, jugo ni bebidas isotónicas. Pueden dañar el refrigerador.
• Si el refrigerador se inunda, desconecte la alimentación del refrigerador y comuníquese con el centro
de servicios Samsung más cercano.
- Existe el riesgo de que se produzca una descarga eléctrica o un incendio.
• No guarde aceite vegetal en los compartimientos de la puerta del refrigerador. El aceite puede
solidicarse y modicar su sabor y la facilidad de uso. Asimismo, el envase abierto puede gotear y el
aceite vertido puede causar grietas en el compartimiento de la puerta. Una vez abierto u envase de
aceite, es mejor almacenarlo en un lugar fresco y a la sombra, como un armario o alacena.
- Ejemplos de aceite vegetal: aceite de oliva, de maíz, de semilla de uva, etc.
Español12
Untitled-12 12 2018-07-05 6:57:20
Precauciones para la limpieza
PRECAUCIÓN
• No pulverice con agua directamente dentro o fuera del refrigerador.
- Existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No utilice un secador de cabello para secar el interior del refrigerador.
• No coloque velas encendidas en el refrigerador para eliminar los malos olores.
- Esto podría causar una descarga eléctrica o un incendio.
• No rocíe productos de limpieza directamente sobre el visor.
- Las letras impresas en el visor pueden borrarse.
• Si cualquier sustancia extraña, tal como agua, ingresa en el refrigerador, desenchúfelo y comuníquese
con su Centro de Servicio Samsung más cercano.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
• Use un paño seco y limpio para retirar cualquier sustancia extraña o polvo de las clavijas del enchufe.
No utilice un paño mojado ni húmedo para limpiar el enchufe.
- De lo contrario, existe el riesgo de que se produzca un incendio o una descarga eléctrica.
• No limpie el refrigerador rociando agua directamente sobre él.
• No limpie el refrigerador con benceno, disolvente o Clorox (blanqueador).
- Pueden dañar la supercie del refrigerador y provocar un incendio.
• Nunca coloque los dedos ni otros objetos en la salida del dispensador.
- Puede provocar lesiones personales o daños materiales.
• Antes de limpiar o realizar el mantenimiento, desenchufe el refrigerador del enchufe de pared.
- No seguir esta recomendación podría causar una descarga eléctrica o un incendio.
• Utilice una esponja limpia o un paño suave y un detergente neutro disuelto en agua templada para
limpiar el refrigerador.
• No utilice limpiadores abrasivos ni muy fuertes, como limpiacristales, limpiadores corrosivos,
líquidos inamables, ácido clorhídrico, ceras limpiadoras, detergentes concentrados, blanqueadores
o limpiadores que contengan petróleo en las supercies exteriores (puertas y paneles), piezas de
plástico, revestimientos de puertas e interiores y juntas.
- Pueden rayar o dañar el material.
• No limpie con agua templada los estantes o las cubiertas de vidrio cuando estén fríos. Los estantes y
las cubiertas de vidrio pueden romperse si se exponen a cambios bruscos de temperatura o a impactos
como golpes o caídas.
Información sobre seguridad
Español 13
Untitled-12 13 2018-07-05 6:57:20
Información sobre seguridad
Advertencias muy importantes para la eliminación de residuos
ADVERTENCIA
• PELIGRO : Existe el riesgo de que los niños queden encerrados. Antes de desechar su antiguo
refrigerador o congelador:
- Retire las puertas y los pestillos.
Información sobre seguridad
- Deje los estantes en su lugar de manera tal que los niños no puedan entrar fácilmente al
electrodoméstico.
- Si algún niño queda atrapado dentro del refrigerador, puede lastimarse o asxiarse hasta morir.
• Deseche el material de empaque de este producto de forma tal que no resulte nocivo para el medio
ambiente.
• Asegúrese de que ninguno de los tubos que se encuentran en la parte trasera del refrigerador estén
dañados antes de desecharlos.
• Se utiliza R-600a como refrigerante. Este producto contiene gas inamable (Refrigerante R-600a),
comuníquese con las autoridades locales para desechar este producto en forma segura.
• Cuando deseche este refrigerador, retire los burletes y los pestillos de las puertas de manera tal que
los niños pequeños o los animales no puedan quedar atrapados en el interior. Se deberá vigilar a los
niños para asegurarse de que no jueguen con el electrodoméstico.
- Si quedan atrapados dentro, los niños pueden lesionarse o sofocarse hasta morir.
• Se utiliza ciclopentano como aislante. Los gases del material de aislamiento requieren un
procedimiento especial para desecharlos. Comuníquese con las autoridades locales para desechar este
producto de manera que no resulte nocivo para el medio ambiente.
• Mantenga los materiales de empaque fuera del alcance de los niños, ya que pueden ser peligrosos para
ellos.
- Si un niño se coloca una bolsa en la cabeza, puede asxiarse.
Este electrodoméstico está diseñado para uso doméstico y en lugares como
• zonas de cocina de tiendas, ocinas y otros entornos de trabajo
• granjas y zonas de uso de los clientes en hoteles, moteles u otros entornos de tipo residencial
• hospederías
• banqueterías y eventos en instalaciones similares
Español14
Untitled-12 14 2018-07-05 6:57:20
Instalación
01
02
03
04
05
06
07
08
09
Siga las instrucciones cuidadosamente a n de garantizar la instalación adecuada del refrigerador y de
evitar accidentes antes de utilizarlo.
ADVERTENCIA
• Utilice el refrigerador solamente para su uso previsto como se describe en este manual.
• Todas las reparaciones deben estar a cargo de un técnico calicado.
• Descarte el material de empaque del producto de acuerdo con la normativa local.
• A n de evitar descargas eléctricas, desconecte el enchufe antes de realizar trabajos de mantenimiento
o reemplazo de piezas.
Descripción breve del refrigerador
El refrigerador y los componentes provistos pueden diferir de las ilustraciones en este manual según el
modelo y el país.
Instalación
Español 15
Untitled-12 15 2018-07-05 6:57:20
Instalación
01 Fábrica de hielo automática 02 Estante plegable de 1 posición
03 Tanque de agua (Llenado automático de agua) 04 Panel principal (en el asa de FlexZone™)
05 FlexZone™ 06 Congelador
07 Compartimientos de las puertas 08 Estante plegable de 2 posiciones
09 Filtro de agua
* solo para los modelos correspondientes
• Para una mayor eciencia energética, asegúrese de que todos los estantes, cajones y canastos estén en
• Al cerrar la puerta, asegúrese de que la sección de la bisagra vertical se encuentre en la posición
Instalación
• Si la sección de la bisagra vertical está invertida, colóquela en la posición correcta y cierre la puerta.
• Algunas veces puede aparecer humedad en esta sección de la bisagra vertical.
• Si cierra una puerta por la fuerza, la otra puerta puede abrirse.
• Cuando se abre una puerta, el disyuntor desactiva automáticamente el motor sinfín de la fábrica de
• Si la lámpara LED interna o externa no funcionan, comuníquese con un centro de servicio Samsung.
NOTA
su posición original.
correcta para impedir que se raye con la otra puerta.
hielo por razones de seguridad.
Compartimientos de las puertas
Su refrigerador se despacha con compartimientos de las puertas de distintos tipos y tamaños. Si los
compartimientos de las puertas de su refrigerador se embalaron por separado, utilice la siguiente gura
como guía para colocar los compartimentos correctamente.
Español16
Untitled-12 16 2018-07-05 6:57:20
Instalación paso a paso
C
D
A
E
B
PASO 1 Seleccione un lugar
Seleccione un lugar que:
• Tenga una supercie sólida, nivelada sin alfombrado ni pisos que puedan obstruir la ventilación
• Esté alejado de la luz solar directa
• Cuente con el lugar adecuado para abrir y cerrar la puerta
• Esté alejado de las fuentes de calor
• Cuente con lugar para realizar mantenimiento y reparaciones
• Cuente con un rango de temperatura de entre 50 °F (10 °C) y 109 °F (43 °C)
PRECAUCIÓN
• Si su refrigerador cuenta con una fábrica de hielo, asegúrese de dejar un espacio adicional en la parte
posterior del refrigerador para la conexión de la tubería de agua.
• Si se instala el refrigerador junto a una pared ja, debe asegurarse de dejar una distancia mínima de 3
3
/4" (95 mm) entre el refrigerador y la pared para poder abrir la puerta.
NOTA
Para facilitar el desplazamiento del refrigerador hasta su ubicación nal, asegúrese de medir el ancho
y el alto de las entradas, los umbrales, los techos, las escaleras, y todo lo que deba considerarse para
garantizar que el refrigerador pueda trasladarse de manera segura. El siguiente diagrama ilustra la altura
y la profundidad exactas de su refrigerador (especicaciones de fábrica).
Instalación
Espacio libre
Consulte las ilustraciones y la tabla que aparece a continuación para conocer los requisitos de espacio para
la instalación.
Modelo
Profundidad
“A”
Ancho “B”
Altura “C”
Altura total
“D”
Profundidad
“E”
RF23M807***
RF23M808***
-
35 3/4"
(908 mm)
68 7/8"
(1749 mm)
70"
(1777 mm)
29 1/4"
(742 mm)
RF23M809***
30 3/4"
(781 mm)
35 3/4"
(908 mm)
68 7/8"
(1749 mm)
70"
(1777 mm)
29 1/4"
(742 mm)
Español 17
Untitled-12 17 2018-07-05 6:57:21
Instalación
01
04
04
03
05
1110
06
02 02
08
07
09
Instalación
Modelo
01
RF23M807***
RF23M808***
2"
(50 mm)
RF23M809***
(50 mm)
02 135° 135°
03
04
05
06
07
08 -
09
10
11
62”
(1575 mm)
13 1/4"
(333.5 mm)
35 3/4"
(908 mm)
24"
(610 mm)
2 1/2"
(64 mm)
1 3/4"
(45.4 mm)
43 1/8"
(1095.5 mm)
45"
(1143 mm)
(1624 mm)
(358 mm)
(908 mm)
(610 mm)
(64 mm)
(104 mm)
(45.4 mm)
(1095.5 mm)
(1143 mm)
2"
64”
14 1/8"
35 3/4"
24"
2 1/2"
4 1/8"
1 3/4"
43 1/8"
45"
NOTA
Las medidas de la tabla anterior pueden variar ligeramente de las medidas reales según el método de
medición y redondeo.
Untitled-12 18 2018-07-05 6:57:21
Español18

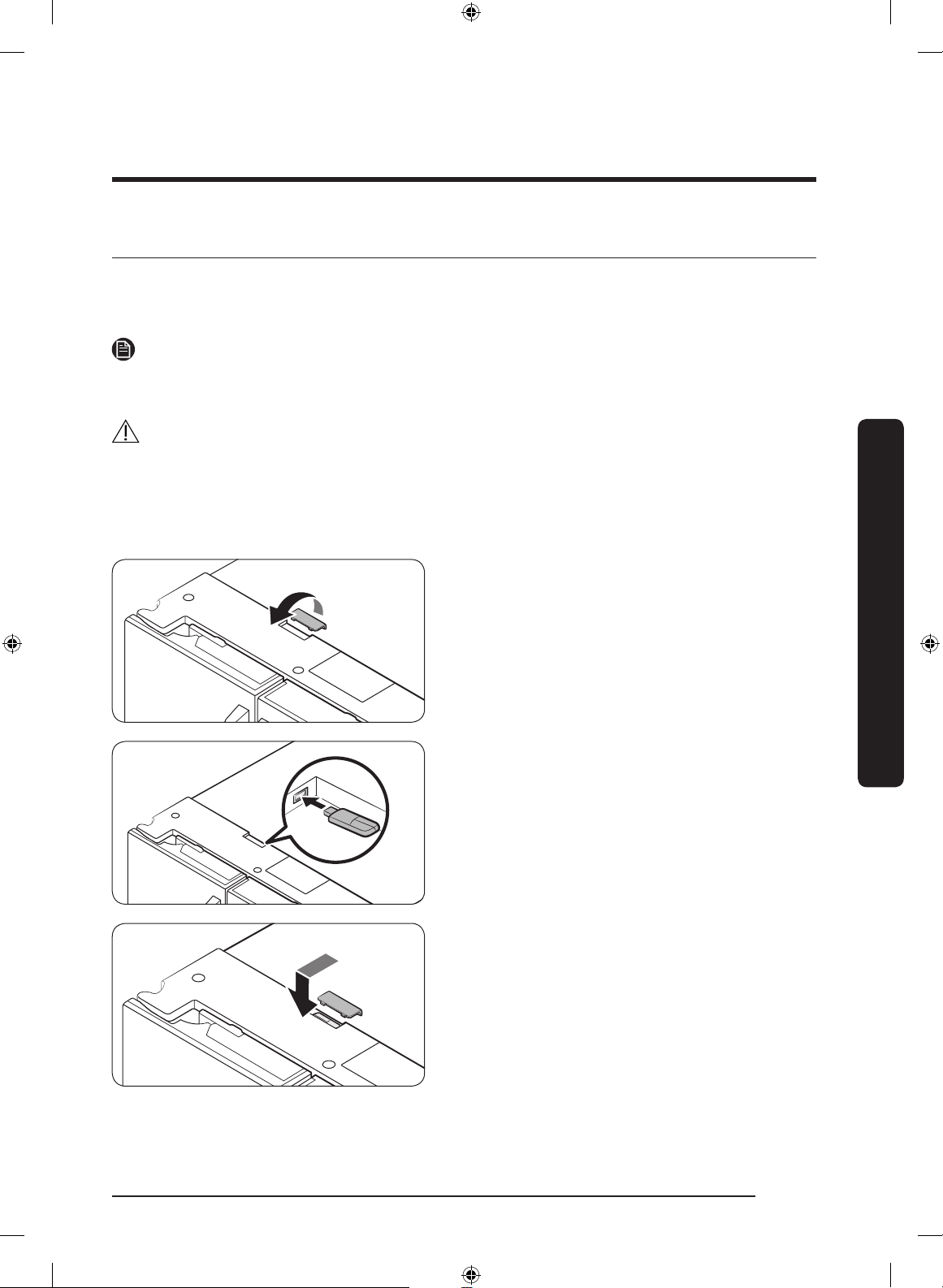

PASO 2 Conexión Wi-Fi
Puede controlar el refrigerador en forma remota mediante el Smart Home Adapter que se vende por
separado. Para comprar el Smart Home Adapter, visite www.samsung.com y siga la información de
producto acerca del adaptador.
NOTA
En algunos países puede no venderse el Smart Home Adapter por separado. Conrme la disponibilidad con
su distribuidor.
PRECAUCIÓN
• El Samsung Smart Home Adapter se provee en dos tipos: uno dedicado a los televisores inteligentes
Samsung y el otro dedicado a los electrodomésticos Samsung.
• Usted debe comprar el Samsung Smart Home Adapter (HD39N1230GW) dedicado a electrodomésticos.
Cualquier otro adaptador puede originar un error del sistema.
1. Presione el área delantera de la cubierta del
adaptador para desbloquearlo.
2. Abra la cubierta del adaptador.
3. Inserte el adaptador Smart Home en el puerto
correspondiente y en la dirección correcta.
4. Inserte el área delantera de la cubierta del
adaptador en primer lugar y luego coloque la
cubierta en su lugar.
Instalación
Español 19
Untitled-12 19 2018-07-05 6:57:21
Instalación
PASO 3 Piso
Si el refrigerador no pasa por la puerta por su tamaño, consulte PASO 4 Extracción de la puerta para la
entrada.
Instalación
NOTA
Para evitar que se dañe el piso, asegúrese de
que las patas de nivelación delanteras estén en
posición vertical.
• La supercie sobre la que se instalará el
refrigerador debe soportar un refrigerador
completamente cargado.
• A n de proteger el piso, coloque un trozo de
cartón por el recorrido del refrigerador hasta
su ubicación nal.
• Una vez que el refrigerador esté en su posición
nal, no lo mueva a menos que sea necesario
a n de proteger el piso. Si debe hacerlo,
utilice un papel grueso o tela, como una
alfombra vieja, en el recorrido por el que se lo
desplazará.
Español20
Untitled-12 20 2018-07-05 6:57:21
Loading...
