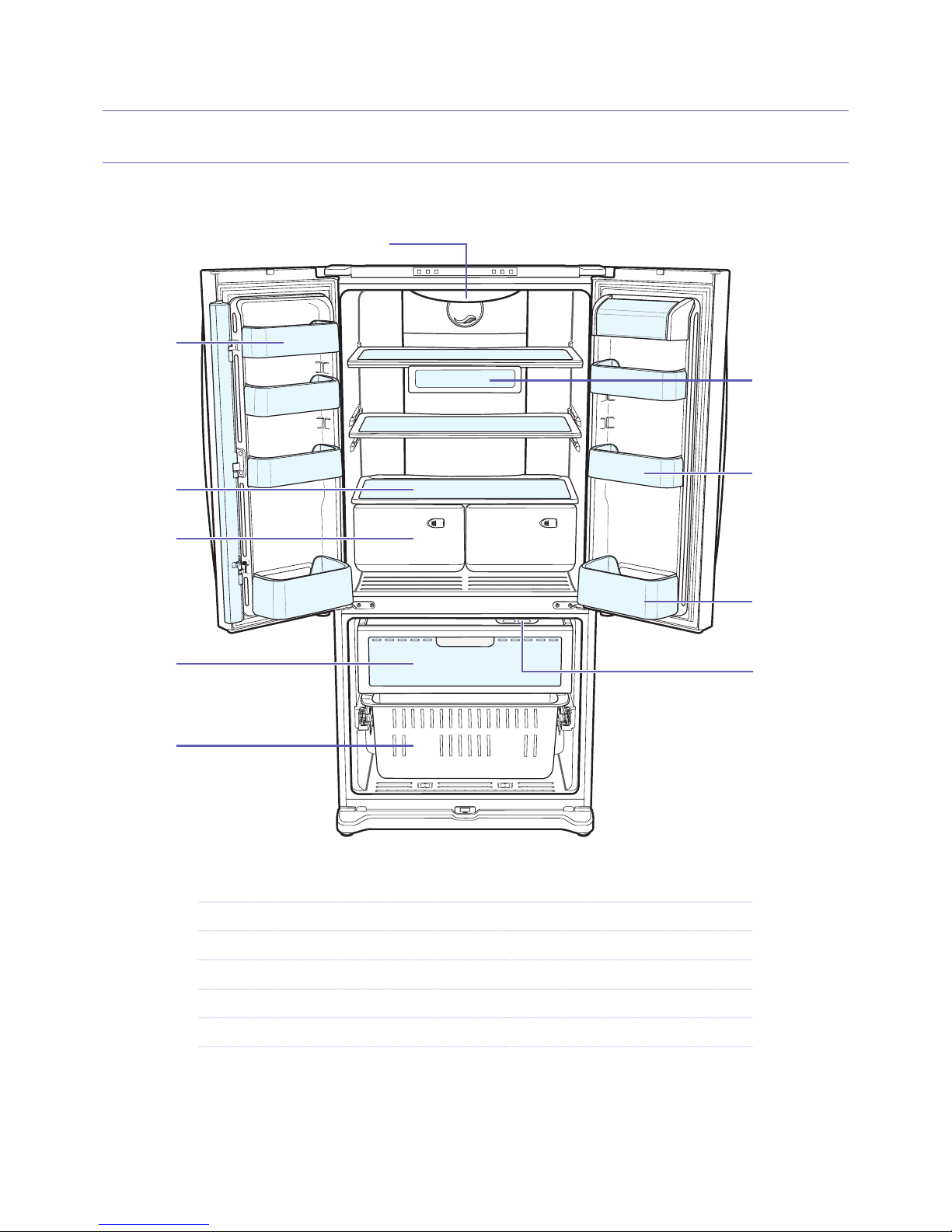

Product features

RF195/197**
RF215/217**

Surround Multi Flow

A center-positioned fan and
ducts with multiple flow
effluences provide uniform
cooling for each shelf and fresh
food compartment corners.

Moving Tray

The Deli Drawer can be moved
side to side for easier access.

Twin Cooling System

The refrigerator and the freezer
have two evaporators. Given this
independent system, the freezer
and the refrigerator are cooled
individually and more efficiently.
Food odor from the refrigerator
does not affect food in the
freezer due to separate air flow
circulation.

Digital Display &
Temperature Control

Digital Display & Temperature
Control enable easy setting of your
refrigerator.

Easy Handle System
(RF197/217**)

The freezer door is more user

friendly and convenient.

The Installation Space

Selecting the best location for the Refrigerator

• A

Location with easy access to the water supply.

• A

Location without direct exposure to sunlight.

• A

Location with level (or nearly level) flooring.

• A

Location with enough space for the Refrigerator doors to open easily.

•

Allow sufficient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling system may not work properly.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.

• Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy bills lower.

• If you install the Refrigerator where is below 50ºF (10ºC), it may not
function optimally.

• Do not locate the refrigerator where it may become wet.

FLOORING

For proper installation, this refrigerator must be placed on a level
surface of hard material that is the same height as the rest of the
flooring. This surface should be strong enough to support a fully
loaded refrigerator, or approximately 223lbs(106kg). To protect
the finish of the flooring, cut a large section of the cardboard
carton and place under the refrigerator where you are working.
When moving the refrigerator, be sure to pull it straight out and
return it to position by pushing it straight in.

CAUTION

inches

2 inches

2 inches

Model RF19* RF21*

Capacity (cu.ft) 17.8 19.7

Dimension

(inches)

Width (A) 32 1/4” 32 1/4”

Depth

without door (B) 24 3/8” 26 1/4”

with door (C) 30 1/2” 32 1/2”

Height

without hinge (D) 68 5/8” 68 5/8”

with hinge (E) 69 3/4” 69 3/4”

B

C

D

A

E

Operating your French Door Refrigerator

USING THE CONTROL PANEL

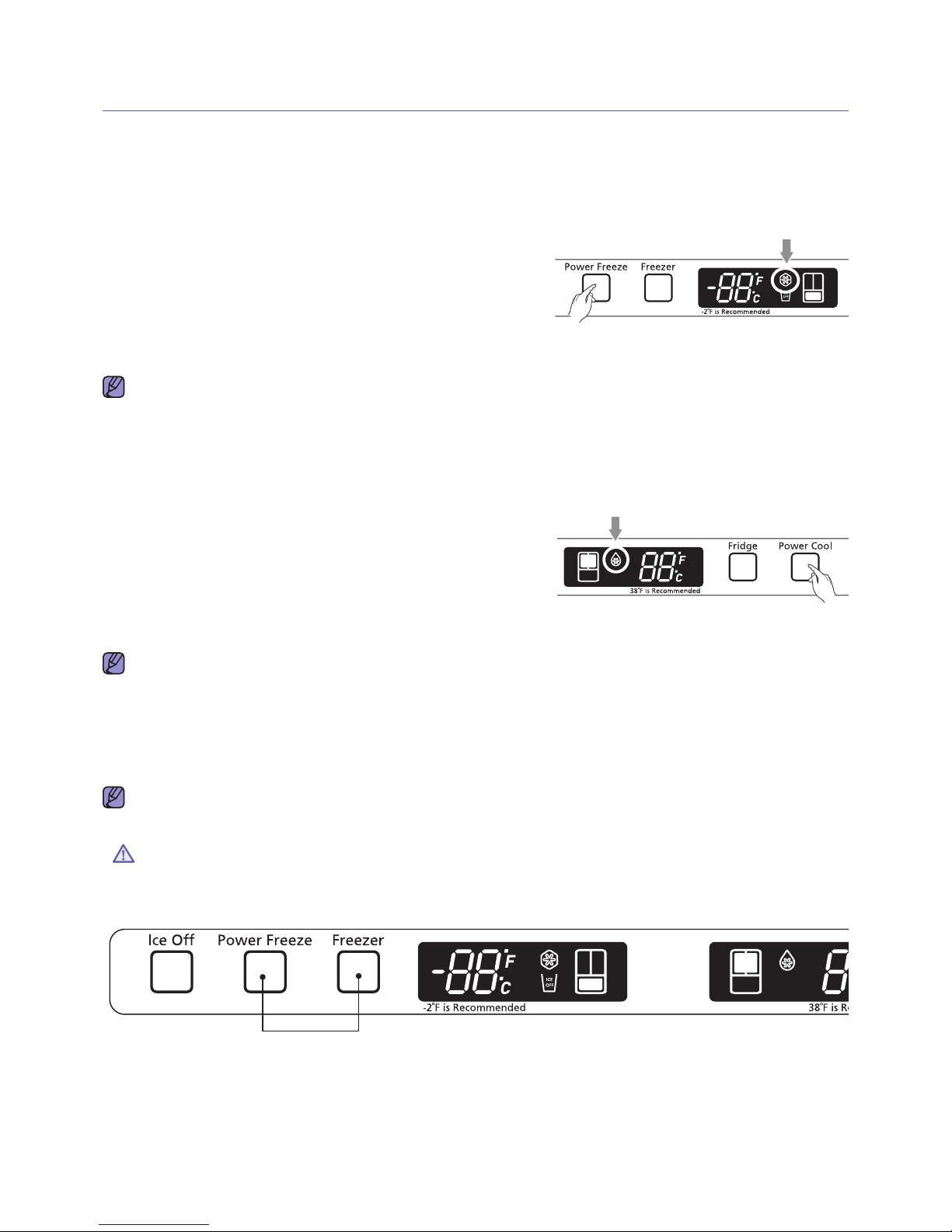

When the Ice Off Button is pressed, ice will not be produced.
Use this function only when it is needed.

(

1

) Ice Off Button

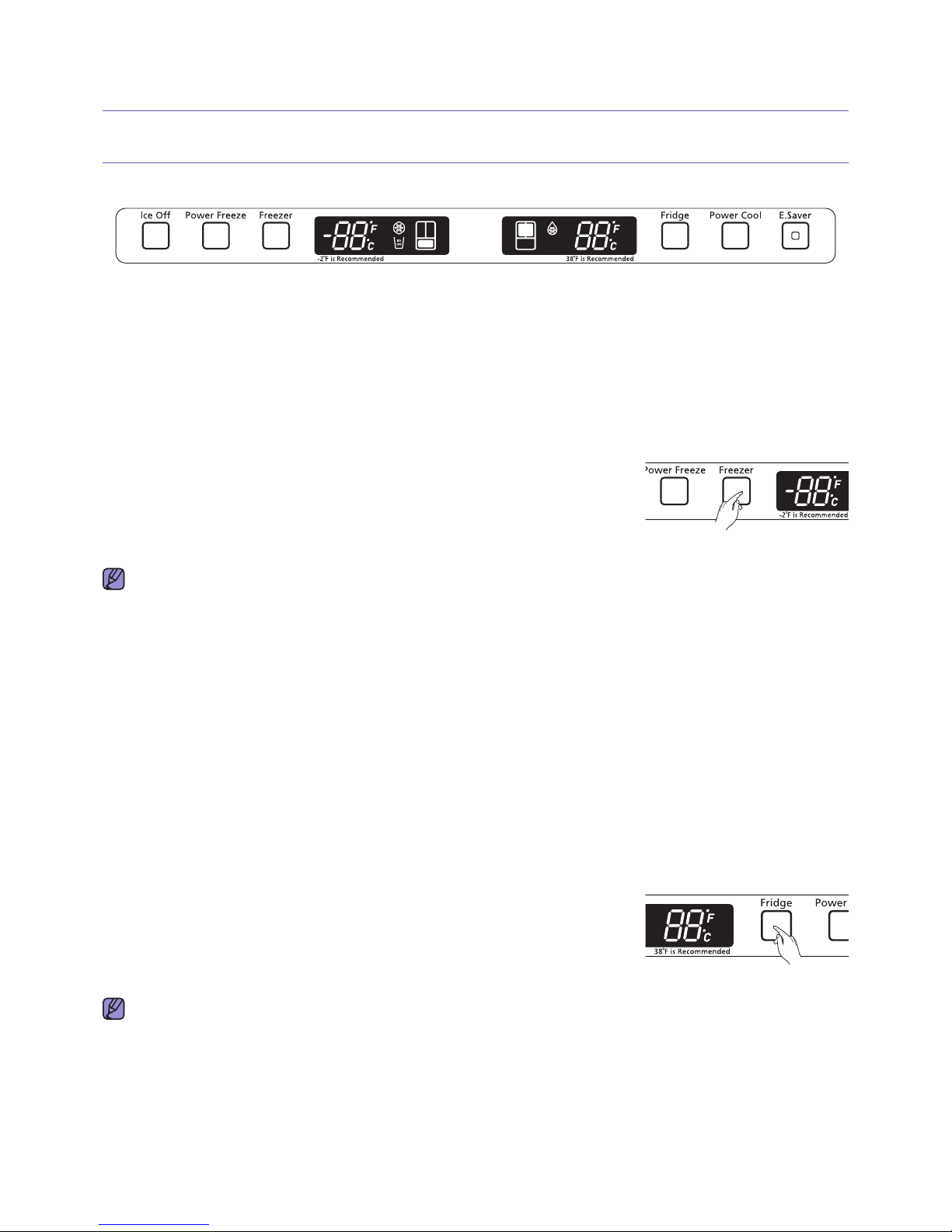

1 2 3 4 5 6

Press this button to freeze food quickly.
(Power Freeze will last 2 and a half hours.)

(

2

)

Power Freeze Button

Freezer temperature set button.
Press this button to set the Freezer temp between 8ºF and -8ºF.
(At initial power on, the default setting is -2ºF.)

(

3

)

Freezer Button

Fridge temperature set button.
Press this button to set the Fridge temperature in 2ºF intervals between 46ºF and 34ºF.
(At initial power on, the default setting is 38ºF.)

(

4

)

Fridge Button

Press this button to cool the food in the fridge quickly.
(Power Cool will shut off when 25ºF is reached or after 2 and a half hours.

(

5

)

Power cool Button

Press the Energy Saver button for better energy efficiency. If water drops appear on the doors, turn the
Energy Saver function off.

(

6

)

E.Saver Button
