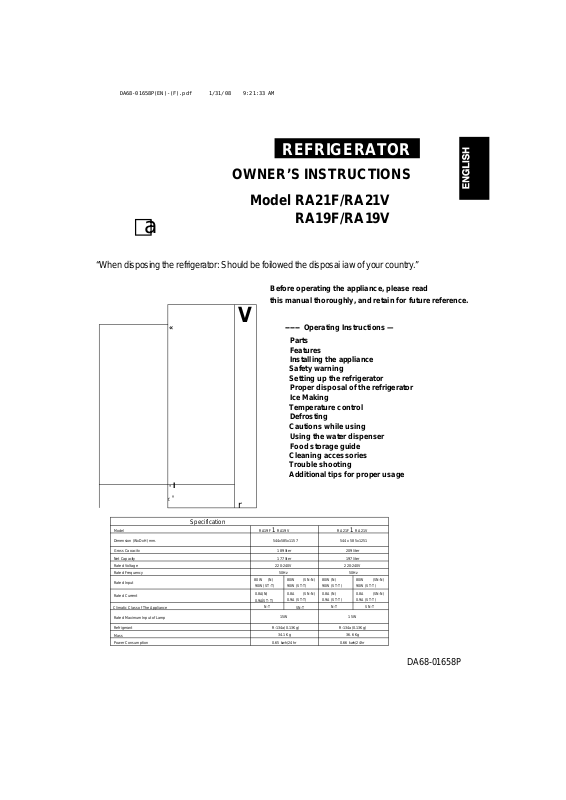

OWNER’S INSTRUCTIONS

Model RA21F/RA21V

REFRIGERATOR

□a

RA19F/RA19V

“When disposing the refrigerator: Should be foilowed the disposai iaw of your country.”

Before operating the appliance, please read

this manual thoroughly, and retain for future reference.

«

* I

f. '

V

r

------

Operating Instructions —

Parts
Features
Installing the appliance
Safety warning
Setting up the refrigerator
Proper disposal of the refrigerator
Ice Making
Temperature control
Defrosting
Cautions while using

Using the water dispenser
Food storage guide
Cleaning accessories
Trouble shooting
Additional tips for proper usage

Model RA19F 1 RA19V

Dimension (WxDxH) mm.

Gross Caoacitv 189 liter 209 liter
Net Capacity
Rated Voltage 220-240V 220-240V
Rated Frequency 50Hz

Rated Input

Rated Current

Climatic Class of The Appliance

Rated Maximum Input of Lamp

Refrigerant R-134a(0.13Kg) R-134a(0.13Kg)
Mass
Power Consumption 0.65 kwh/24hr 0.66 kwh/24hr

Specification

544x585x1157 544 x 585x1251

177 liter 197 liter

80W (N)
90W (ST-T)

0.8A(N)

0.9AÌST-T)

80W (SN-N)
90W (ST-T)

0.8A (SN-N)

0.9A (ST-T)

N-T

SN-T

15W

34.1 Kg 36.6 Kg

RA21F 1 RA21V

50Hz
80W (N)
90W (ST-T)

0.8A (N)

0.9A (ST-T)

N-T SN-T

15W

80W (SN-N)
90W (ST-T)

0.8A (SN-N)

0.9A (ST-T)

DA68-01658P

DA68-01658P(EN)-(1).pdf 1/31/08 10:19:58 AM

FEATURES

(^^BO STORAGE GUARD

- Holds large bottles securely.

^SY EGG & CAN CARRY

- Store eggs and can in sliding tray.

^ VEGETABLE BOX

- Large space for vegetable.

PARTS

Mo

(Model without water dispenser)

A21F/RA19F

1. Freezer

2. Ice tray

3. Tray partition

4. Shelf

5. Vegetable &
Fruit Drawer

6. Leveling leg

7. Temperature

control button

8. storage guard

9. Light

10. Egg & can carry

11. Big bottle guard

<§) 12. Storage guard

13. Rubber door seals

14. Stand table (Option)

15. Cover hose

16. Water tank

CAUTION : Don't put eggs on top of each other-they can get broken.

Model RA21V/RA19V

(Model with water dispenser)

DA68-01658P(EN)-(3).pdf 1/31/08 10:32:07 AM

INSTALLING THE APPLIANCE

Selecting the location for appliance.

Install the appliance
properly on the flat an
firm surface

Stand table option
model can not be
adjustable for the height
of appliance.

Install appliance In the available space.

• Allow 1 foot (30cm)
from the ceiling, and
2 Inches (5 cm) from
the wall.

Install appliance in the appropriate location.

• Place the appliance
away from direct
sunlight or heat.

Do not install appliance in a damp place.

• There Is a risk of i
electric shock or * * ­malfunctions.

V y

\^ut5c

&

V y

4 ^

Replacing the lamp.

1. Unplug the power cord from the socket.

2. Remove Tray partition and shelf.

3. Unscrew by plus-type driver then take

out lamp cover.(optlonal model only)

4. Turn the lamp counter clockwise.

5. Replace with new lamp same specification

as original one.

Warning !: Disconnect power supply before

Contains fluorinated greenhouse gases covered by
the Kyoto Protocol.

Hermetically sealed system.
Do not vent gases into the atmosphere.
Refrigerant type: R-134a
Quantity: 0.13 Kg
Global Warming Potential (GWP) = 1300

replacing the lamp.

SETTING UP THE REFRIGERATOR

Step 1

Clean up inside of the refrigerator with a
ciean cioth.

SAFETY WARNINGS

Specification of electric powe .

• The electric power specificatio
of the appliance is
attached Inside at the top
of the door or outside at
the back.

Do not use any extension cords or double

adaptors.

• Do not plug several
appliances Into the same
multiple power board.

This could cause over
heating and the risk of fire.

Earthing the appliance.

• If the socket is the

2-legged type, the
appliance must be earthed.

• Do not connect the earthing'

wire to the gas pipes or telephone lines.

0

------------

— Step 2 -

Insert the power plug into the socket while
keeping the door open for checking the
interior light, then turn the temperature

V control button to “MAX”.

___________

Step 3 -

Close the door and let the refrigerator
operate for 2-3 hours.

Step 4-

Check the refrigerator temperature by

touching inside the freezer.

^ Step 5 -

The appropriate temperature should

be controlled by turing the temperature
control button to “4", or the desired

temperature can be adjustable. Now your

V^refrigerator is ready to work.

________

J

^

DA68-01658P(EN)-(03).pdf 1/31/08 10:42:12 AM

PROPER DISPOSAL OF THE REFRIGERATOR

Before you throw away your old refrigerator or freezer

4) The water will become the ice cubes within
3-4 hours. Please remove the ice tray by

pulling it out. Never use any kind of

■ When disposing of this or other refrigerators, remove
the door/door seals,door latch so that small children or
animals cannot get trapped inside.

■ Leave the shelves in place so that children may not easily
climb inside.

■ R600a or R134a is used as a refrigerant, check the
compressor label on the rear of the appliance or the
rating label inside the fridge to see which refrigerant is
used for your refrigerator.
when this product contains flammable gas (Refrigerant
R600a) contact your local authority in regard to safe
disposal of this product.

■ Cycio Pentane used as a insulation blowing gas.
The gases in the insulation material require speacial
disposal procedure. Please dispose of the packaging
material for this product in an environmentally friendly
manner. Please contact your local authorities in regard to
the envirommentally safe disposal of this product. This
product contains flammable insulation blowing gas.

■ Please dispose of the packaging material for this product
in on environmentally friendly.

instrument. This may cause damage on

the freezer.

TEMPERATURE CONTROL

The temperature control is level “2”

• The temperature at low level ^

“2” is used if extreme cool
is not needed.

ICE MAKING

■ It is used when there is not
much food in the

Fill the ice tray with

refrigerator.

water of about 80% of its
capacity, or of its “water
level” indicator.

The temperature control is level “4”

• The temperature at level “4” is suitable for
storing food.

2) Carefully place the ice tray on the freezer
shelf otherwise the splashed water will be

■ It is appropriate for

operating the refrigerator.

frozen and cause the ice tray stuck hard.

To take the ice cubes from
the ice cube tray, you should
gently twist the ice tray (As
shown). Do not bend it over.

________

Temp. Control.

Temp. Control. \

3)

Temp. Control.

For making quick ice
cubes, the temperature
control button must be set
to “ MAX”

NOTE : After unplug the appliance,

wait for about 5 minutes

______

before restarting.

_______

UJT^Jenlperature control is level “MAX”

• “MAX” is properly used if the power cool

is in need.

* It is used when there are

a lot of food.

NOTE : To save energy consumption, Do not set

the refrigerator temperature lower than

_______

necessary.

________________________

DA68-01658P(EN)-(04).pdf 1/31/08 11:45:12 AM

DEFROSTING

Defrosting should be often operated, as the thick
frost (1 Minch) may cause low efficiency of the
refrigerator.

1) If the thick frost is over the red level, you

should push the defrosting button.

Check level

2) As soon as the “Push Defrosting” is pushed,

the frost is gradually defrosting.

"Push Defrosting"

Remark : After defrosting, should be clean the tray

partitionfRefer to "PARTS" Page, No.3)

3) Do not use a knife or other metal instruments
to remove ice/frost. It may cause damage on
the freezer.

USING THE WATER DISPENSER

(MODEL WITH WATER DISPENSER ONLY)

If drinking water is

needed, push the water
dispenser lever with a glass.

To refill the water tank,
remove the cap and fill it up
with drinking water, then
keep the cap into place.

When you want to clean
water tank, let water out of
the tank. Remove
(D away from @
then remove the water tank
from the locking device by
lifting it up.
Remove the lid @ by
pulling outward straightly.
Wash it with detergent
and warm water, then
wash with clean water.
After drying it with a clean cloth, place it correctly.

Steps to Operate the water dispenser

the refrigerator operates properly.

CAUTIONS WHILE USING

• Do not use the refrigerator if it is not operating
correctly or has been damaged. Disconnect it
from the power supply and call
your local service center.

• If the power cord is damaged,
avoid a hazard by replacing it
through the manufacturer or
its service agent or a similarly
qualified person.

1. The water tank should be cleaned up firstly

before use, to remove any dust or Oder.

2. The water tank should be filled up with pure
drinking water. The water dispenser devices
might be damaged by the syrup, soft drink or hot
water.

3. If the appliance has just been installed, please let
3 or 4 glasses of water away to remove the dust
and plastic smell of the water tank.

4. To prevent soaking on the floor, you should softly
push the water dispenser lever with a glass, then
pull it backward slowly and wait until the last
drop of water.

5. The accessories should be removed for cleaning
up at least once or twice a month.

DA68-01658P(EN)-(05).pdf 1/31/08 11:50:50 AM

FOOD STORAGE GUIDE

Allow warm food and beverages to cool
down before storing them In the appliance.

Liquid or nasty smell food should be covered
or well-wrapped before it is stored.

Never store any bottles of beverages in the
freezer. There Is a risk of bottle explosion.

Please keep the space between shelves for
air circulation.

Do not let the refrigerator door open for a
long while. This will cause Its lost of cool air.

Do not spray water directly on the
refrigerator. This Is a risk of electric shock

or leak.

appliance. As the compressor starts working, It

___

________________________

Do not put the gas container near the

may catch a fire on the electric circuit.

Avoid placing food at the front of cover
vegetable bin,
because the door
can not close and
food should be
damage.

Do not store volatile or flamable substances In
the refrigerator. The storage of benzene, thinner,
alcohol, ether LP gas or other such substances

may cause explosions.

DA68-01658P(EN)-(06).pdf 1/31/08 11:58:18 AM

CLEANING ACCESSORIES

Before using, the appliance should be cleaned up.

The appliance should be cleaned regularly.

Cleaning the exterior
Clean the exterior with a mild detergent and cloth.

Dry It with a clean cloth.

Cleaning the Interior and other
accessories.

After removing all the stored foods, clean the Interior
and other accessories with a mild detergent and
damp cloth. Then wipe again with a clean cloth.

Cleaning the rubber door seals

If the rubber door seals are dirty, the door will

not does properly and the refrigerator and
freezer will be unable to function efficiently
Clean the rubber door seals with a mild
detergent. Then wipe again with a clean cloth.

(But Inside the rubber doesn’t have to be
cleaned)

Warning:

■ Remove the power plug before cleaning.

■ Do not clean appliance with bezene, thinner, or strong detergent. This will ruin the coated materials

and become rusty.

TROUBLE SHOOTING

If there are following problems with your appliance, please check them by yourself before contacting

the service center, If you can't find the solution, note down the appliance model and running number,
then contact the service center.

The appliance is not operating at all or the temperature Is too high

1. Check that the power plug is properly connected.

2. Check that the power plug fuse has not blown.

3. Is the temperature control on the front panel set to the correct temperature?

4. Is there too much stored food? Space of food out as much as possible to Improve ventilation.

The side of the appliance are normally warm

The warm sides of the appliance is not abnormal. Because the heat exchanger pipes are installed

In the front corners of the appliance to prevent condensation from defrosting. In vety humid weater,
condensation may form on the outer surface of the appliance when moisture In the air comes Into
contact with the cool surface of the appliance. Thus, do not cover the refrigerator with cloth or other

materials.

DA68-01658P(EN)-(07).pdf 1/31/08 12:03:14 PM

Additional tips for proper usage

a) Overall space required in use. Refer to drawing and dimension as bellowed.

Model name
RA19/RA21

b) Allow the appliance to stand for 2 hours after Installation.
c) To get best performance of product,

1 ) Do not place foods too closely In front of the vents at the rear of the appliance as It can obstruct free air

circulation In the freezer compartment.

2) Wrap the food up properly or place It In airtight containers before put it into the fridge freezer

3) Do not put any newiy introduced food for freezing near to already frozen food.

d) Do not place carbonated or fizzy drinks in the freezer compartment
e) Please observe maximum storage times and expiry dates of frozen goods.
f) There is no need to disconnect the refrigerator from the power supply if you will be away for less than three

weeks. But, Remove all the food If you are going away for the three weeks or more. Unplug the refrigerator
and clean It, rinse and dry.

g) Most power failures that are corrected In an hour or two will not affect your refrigerator temperatures. However,

you should minimize the number of door openings while the power Is off. Remove all frozen food if the
power failure last more than 24 hours.

h) If the key Is provided with refrigerator, the key should be kept out of the reach of children and not In the vicinity

of the appliance.

I) The appliance might not operate consistently (possibility of defrosting of contents or temperature becoming too

warm In the frozen food compartment) when sited for an extended period of time below the cold end of the range
of temperatures for which the refrigerating appliance is designed.

j) Do not store food which goes bad easily at low temperature, such as bananas, melons.

k) Place the ice tray at the originally provided posistion by manufacturer in order to achieve optimal ice-freezing.

l) In “No-Frost” appliance, defrosting of freezer Is completely automatic. No manual defrost by user Is

required.

In other appliance, please refer to defrosting procedure as described In each user's manual.

m) Temperature rising during the defrost can comply with ISO requirement. But If you want to prevent an undue rise

in the temperature of the frozen food while defrosting the appliance, please wrap the frozen food in several
layers of newspaper.

n) Any increase in temperature of frozen food during defrosting can shorten its storage life.

Depth (mm) Width (mm)

1055 976
