User Guide

Q70/Q71

Chapter 1.

Getting Started

Product Features 2

Before You Start

Contents 5

Safety Precautions 6

Proper Posture During Computer Use 1

Important Safety Information 1

Replacement Parts and Accessories 2

Regulatory Compliance Statements 2

WEEE SYMBOL INFORMATION 3

Overview 3

Front View 33

Status Indicators 3

Right View 3

Left View 3

Back View 3

Bottom View 3

Turning the Computer On and Off 39

Turning the computer on 39

Turning the computer off 3

High Performance Notebook Computer

■ Intel Core™2 Duo Processor*. DDR II Memory

■ Wireless LAN*, Bluetooth

Easy-to-Use AV

■ Play AVStation and AVStation Now* are provided to easily play various multimedia ﬁles.

Sophisticated Design for Increased Usability

■ AV and various shortcut keys on the keyboard

■ Multi card slot

■ Luxurious design with increased usability

Note

The items marked with this symbol are optional items that are

supported depending on the computer model.

Product Features

Before You Start

Before reading the User Guide, ﬁrst check the following information.

User Guide Information

This product is supplied with an Installation Guide, and a User Guide.

You can even more easily and conveniently use the computer by using any of the guides depending on your needs.

Installation Guide

This guide is provided so that you can conveniently refer to this guide when using the computer for the ﬁrst time after purchasing it. This document includes the computer components and the connection procedures.

User Guide

You are currently reading the User Guide. To open the ﬁle at any time, double-click the icon on the Desktop. Alternatively, select Start > All Programs > Samsung > User Guide > User Guide. This document includes the computer functions, how to use the functions, and how to use the program.

Utilizing the User Guide

 Be sure to read the Safety Precautions before using

the computer.

 Refer to the separately supplied Installation Guide

when installing your computer.

 Refer to the User Guide for the procedures to use the

computer.

 Using the Index of the User Guide, you can easily ﬁnd

any information you are looking for.

 Using the Glossary of the User Guide, you can easily

ﬁnd meanings for technical terms.

 If a problem occurs, refer to the Q & A included in the

User Guide.

Note

■

Some devices and software referred to in the User Guide may not be provided and/or changed by upgrade. Note that the computer environment referred in the User Guide may not be the same as your own environment.

■

Images used in this User Guide may differ from actual product.

■

This guide describes procedures for using both the mouse and the touchpad.

■

The User guide supplied with this computer may vary depending on your model.

■

The User guide supplied with computer may be varied depending on model.

Safety Precaution Notations

Icon Notation Description

Warning

Failing to follow instructions marked with this symbol, may cause personal injury and or fatality.

Caution

Failing to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Icon Notation Description

Before

You Start

Content included in this section includes information required before using a function.

Caution

Content included in this section includes information required about the function.

Note

Content included in this section includes helpful information to use the function.

Page XX

This notation represents the page number you can refer to for information about related functions or as a reference.

Start > All Programs > Samsung > User Guide > User Guide

This represents a menu path to run a program. Click the Start button and then select All

Programs > Samsung > User Guide > User Guide in this order from the menu.

Samsung Electronics Co., Ltd. owns the copyright of this manual.

No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your

data to prevent any such data loss.

Precautions for Operating System Support

The operating system (OS) installed on this product is the latest version of Windows Vista. You cannot install an operating system other than Windows Vista as well as any unauthorized copy of Windows Vista.

Example) When trying to install Windows Vista Home Premium when Windows Vista Home Basic is already installed.

Other operating systems (Windows 98, Windows ME, Windows 2000, Windows 2003 server, UNIX and LINUX, other Windows Vista versions, etc.) other than the operating system already installed on this computer are not supported.

If a problem occurs because of the installation of another operating system, the company will not provide technical support, a replacement or refund, and if our service engineer visits you due to this problem, a service charge will be applied.

In addition, installing a program that does not support Windows Vista, may cause the program to not work properly.

In this case, ask the corresponding software manufacturer about the problem. If you request our services to resolve a problem caused by incompatible software, a service charge will be applied.

Chapter 1. Getting Started

Product Features 2 Before You Start

3 Contents 5 Safety Precautions 6 Proper Posture During Computer Use 1

5 Important Safety Information 1

8 Replacement Parts and Accessories 2

0 Regulatory Compliance Statements 2

2 WEEE SYMBOL INFORMATION 3

2 Overview 3

Front View 33 Status Indicators 34 Right View 35 Left View 36 Back View 37 Bottom View 38

Turning the Computer On and Off 3

Turning the computer on 39 Turning the computer off 39

Chapter 2. Using the Computer

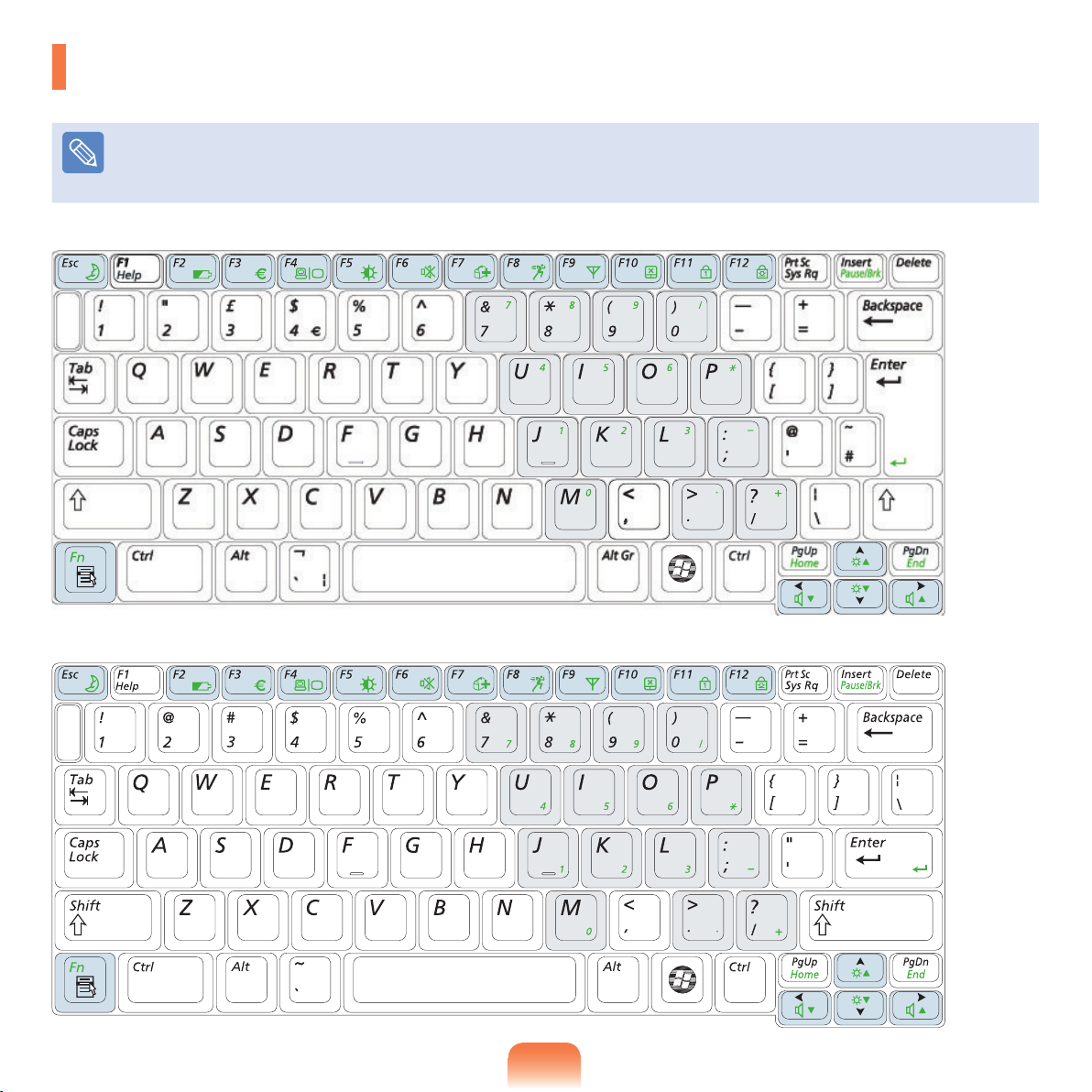

Keyboard 41 Touchpad 4

4 CD Drive 4

Inserting and Ejecting a CD 47 Burning a CD 48 HD DVD 49 Blu-Ray 51

Multi Card Slot 5

3 PC Card Slot 5

6 Connecting a Monitor 5

Connecting a Monitor 57 Viewing Through a Monitor 57

Adjusting the Volume 5

8 Using Digital Output (S/PDIF) 6

Chapter 3. Using Microsoft Windows Vista

About Microsoft Windows Vista 64

Welcome Center 64 Help and Support 65

Windows Vista Screen Layout 66

Desktop 66 Start Menu 68 Sidebar / Gadget 70 Window 73

Control Panel 7

Opening the Control Panel 76 User Accounts 78 Phishing Filter 83 User control function 85 Windows Mobile Center 87

Chapter 4. Using the Network

Wired Network 89 Wireless Network 9

Connecting to a Wireless LAN 93

Using the Easy Network Manager 9

Network Settings 94 Using in Another Location 96 Diagnosing the Network Status 97

Connecting with a Modem 9

Bluetooth 9

Bluetooth Function 99 Using Bluetooth 100

Chapter 5. Using Applications

Introducing Programs 104 CyberLink PowerDVD (Optional) 107 Samsung Update Plus (Optional) 10

Play AVStation (Optional) 11

Launching and Screen Layouts 111 Movie Station 112 Music Station 116 Photo Station 120

AVStation Now (Optional) 12

Start 124 Exit 124 Screen Layout 124

Chapter 6. Settings and Upgrade

LCD Brightness Control 126 BIOS Setup 12

Entering the BIOS Setup 127 The BIOS Setup Screen 129

Setting a Boot Password 13

Changing the Boot Priority 133 Upgrading Memory 13

Battery 13

Installing/Removing the Battery 136 Charging the Battery 137 Measuring the Remaining Battery Charge 137 Extending the Battery Usage Time 138

Using the Security Lock Port 14

Chapter 7. Windows Media Center

About Package Contents and the Program Guide 143

Connecting and Setting Up Media Center 144

Optional Devices 144

Using Media Center 14

Start Screen Layout 148 Pictures + Videos 149 Music 153 TV + Movies 157

Chapter 8. Appendix

Using McAfee SecurityCenter (Optional) 161

Using Samsung Magic Doctor (Optional) 162

Reinstalling Software 16

Q & A 16

Display Related 166 Modem Related 167 Wired Network (LAN) Related 169 Wireless Network (WLAN) Related 170 Game and Program Related 174 Bluetooth 175 HD DVD 176 Blu-Ray 177 Other 178

About Intel Media Sharing Software (Only for some models) 179

Product Speciﬁcations 18

Glossary 18

Index 18

Contact SAMSUNG WORLD WIDE 18

Installation Related Power Related

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions speciﬁed in the Manufacturers User Guide.

Keep the plastic bags out of the reach of children.

There is a danger of suffocation.

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Do not touch the mains plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multi-plug or power outlet extension when using it for the product.

There is a danger of electric shock or ﬁre hazard.

The power plug and wall outlet ﬁgures may differ depending on the country speciﬁcations and the product model.

Warning

Failing to follow instructions marked with this symbol may cause personal injury and even fatality.

Safety Precautions

For your security and to prevent damage, please read the following safety instructions carefully. Since this is commonly applied to Samsung Computers, some ﬁgures may differ from actual ones.

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or ﬁre hazard.

Do not use a damaged or loose mains plug or power cord or power outlet.

There is a danger of electric shock or ﬁre hazard.

Plug the power cord ﬁrmly into the power outlet and AC adapter.

Failing to do so may cause ﬁre hazard.

Do not unplug the power cord out by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or ﬁre.

Use a wall outlet or multi-plug with a grounding part.

Failing to do so may cause electric shock hazard.

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Battery Usage Related

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

Damage to the device within the computer may cause electric shock or ﬁre hazard.

Usage Related

Disconnect all cables connected to the computer before cleaning it. If you are using a notebook computer, remove the battery.

There is a danger of electric shock or damage to the product.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, ﬁre or damage to the product.

Do not place any container ﬁlled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause ﬁre or electric shock.

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

Using a broken computer may cause electric shock or ﬁre hazard.

Avoid direct sunlight when the computer is in an airtight location such as inside a vehicle.

There is a danger of a ﬁre hazard. The computer may overheat and also present opportunity to thieves.

Upgrade Related

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Use only authorized parts (multi-plug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or ﬁre hazard.

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If you are using a notebook computer, make sure to remove the battery.

Failing to do so, may cause electric shock.

Custody and Movement Related

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Caution

Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related Battery Usage Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or ﬁre.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failing to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Dispose of worn-out batteries properly.

- There is a danger of ﬁre or explosion.

- The battery disposal method may differ depending on your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, ﬁre or explosion.

Use only a battery authorized by Samsung Electronics.

Failing to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a ﬁre.

Charge the battery according to the instructions in the manual.

Failing to do so, may cause and explosion or ﬁre from damage to the product.

Do not heat the battery or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or ﬁre.

Usage Related

Do not place a candle, lighted cigar, etc. over or on the product.

There is a danger of ﬁre.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorised Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety might cause electric shock or ﬁre.

In case of lightning, immediately turn the system off, disconnect the power cord from the wall outlet and line do not use a modem or phone.

There is a danger of electric shock or ﬁre.

Connect only permitted devices to the connectors or ports of the computer.

Failing to do so, may cause electric shock and ﬁre.

Close the LCD panel only after checking if the notebook computer is turned off.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the Floppy Disk/CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not contact the antenna with electricity facility such as the power outlet.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failing to do so, may cause damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center. If your computer is a notebook computer, make sure to remove the battery.

There is a danger of ﬁre.

Do not use a damaged or modiﬁed CD/Floppy Disk.

There is a danger of damaging the product or personal injury.

Do not insert your ﬁngers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completed dried.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Use parts authorized by Samsung Electronics only.

Failing to do so, may cause ﬁre or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or ﬁle.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Failing to do so may cause electric shock or ﬁre.

Emergency disk eject method using paperclip should not be used while the disk is in mothion. Make sure to use the emergency disk eject method only when the Optical Disk Drive is stopped.

There is a danger of injury.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Custody and Movement Related

When moving the product, turn the power off and separate all connected cables ﬁrst.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached.

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

This may cause a trafﬁc accident. Concentrate on driving.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

■ A hard disk drive is so sensitive

to external impact that an external impact may cause loss of data on the surface of the disk.

■ Take extra care, because

moving the computer or an impact on the computer when it is turned on may damage the data of the hard disk drive.

■ The company is not liable for

the loss of any data caused by customer such as the carelessness usage or bad environmental condition.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

■ The data may be lost when an external impact is applied to the disk while disassembling or assembling the computer.

■ The data may be lost when the computer is turned off or reset by a power failure while the hard disk drive is operating.

■ The data may be lost and irrecoverable due to a computer virus infection.

■ The data may be lost if the power is turned off while running a program.

■ Moving or causing an impact to the computer while the hard disk drive is operating, may cause ﬁles to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Proper Posture

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the ﬂoor.

■ Do not use the computer while you are lying down, but only while you are sitting down.

■ Do not use the computer on your lap. If the computer temperature increases, there is a danger of burning yourself.

■ Work while keeping your wrist straight.

■ Use a chair with a comfortable back.

■ Keep the center of your leg weight not on the chair but on your feet when you are sitting on a chair.

■ To use the computer while talking over the telephone, use a headset. Using the computer with the phone on your shoulder is bad for posture.

■ Keep frequently used items within a comfortable work range (where you can reach them with your hands).

Proper Posture During Computer Use

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

Note

The instructions in this manual have been prepared so that they can be applied within the coverage of general users. If the user is not included in the coverage, the recommendation is to be applied according to the user’s needs.

Since this is commonly applied to Samsung Computers, some ﬁgures may differ from actual ones.

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

■ Adjust the height of the monitor and the LCD screen so that its top height is equal to or lower than your eyes.

■ Avoid setting the monitor and LCD excessively bright.

■ Keep the monitor and LCD screen clean.

■ If you wear glasses, clean them before using the computer.

■ When entering contents printed on a paper into the computer, use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Hand Position

Keep your arm at a right angle as shown by the ﬁgure.

■ Keep the line from your elbow to your hand straight.

■ Do not place your palm over the keyboard while typing.

■ Do not hold the mouse with excessive force.

■ Do not press the keyboard, touchpad or mouse with excessive force.

■ It is recommended connecting an external keyboard and mouse when using the computer for long periods of time.

50cm

Volume Control (Headphones and Speakers)

Check your volume ﬁrst to listen to music.

■ Check if the volume is too loud before using headphones.

■ It is not recommended using headphones for long periods of time.

Use Time (Break Time)

■ Take a break for 10 minutes or more after a 50-minute period when working for more than one hour.

Illumination

■ Do not use the computer in dark locations. The illumination level for computer use must be as bright so for reading a book.

■ Indirect illumination is recommended. Use a curtain to prevent reﬂection on the LCD screen.

Operation Condition

■ Do not use the computer in hot and humid locations.

■ Use the computer within the allowed temperature and humidity range speciﬁed in the User Guide.

Check your

volume!!

Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

Caution

Always follow t he se instructions t o hel p guard against personal injury and damage to your system.

Setting Up your System

■ Read and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use.

■ Do not use this product near water or a heat source such as a radiator.

■ Set up the system on a stable work surface.

■ The product should be operated only with the type of power source indicated on the rating label.

■ Ensure that the electrical outlet you are using to power your equipment is easily accessible in case of ﬁre or short circuit.

■ If your computer has a voltage selector switch, make sure that the switch is in the proper position for your area.

■ Openings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area. Never insert objects of any kind into the computer ventilation openings.

■ Ensure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents.

■ If you use an extension cord with this system, make sure that the total power rating on the products plugged into the extension cord does not exceed the extension cord power rating.

Important Safety Information

Safety instructions

Care During Use

■ Do not walk on the power cord or allow anything to rest on it.

■ Do not spill anything on the system. The best way to avoid spills is to not eat or drink near your system.

■ Some products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturers instructions. If the CMOS battery requires replacement insure that a qualiﬁed technician performs the task.

■ When the computer is turned off, a small amount of electrical current still ﬂows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system.

■ Unplug the system from the wall outlet and refer servicing to qualiﬁed personnel if:

– The power cord or plug is damaged.

– Liquid has been spilled into the system.

– The system does not operate properly when the operating

instructions are followed.

– The system was dropped or the casing is damaged.

– The system performance changes.

The Instruction On Safety Operation of computer

When installing and operating devices please refer to

safety requirements in the user guide.

Devices can be used only with the equipment

speciﬁed in the technical speciﬁcations of the

devices.

If any smell of burning or smoke from the computer

the unit should be switched off and battery removed.

The unit should be checked by a qualiﬁed technician

before reuse.

Service and repair of devices should be carried out

by authorized service centers.

Caution

Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage.

Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries.

Caution

THERE IS A RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS

Battery Disposal

All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 60825-1. The laser devices in these components are classiﬁed as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard. Should the unit ever need servicing, contact an authorized service location.

Caution

■

Laser Safety Note:

Use of controls or adjustments or performance of procedures other than those speciﬁed in this manual may result in hazardous radiation exposure. To prevent exposure to laser beams, do not try to open the enclosure of a CD or DVD drive.

■

Class 1M laser radiation when operating part is open. Do not view directly with optical instruments.

■

Class 3B invisible laser radiation when open. Avoid exposure to the beam.

Laser Safety

Replacement Parts and Accessories

Use only replacement parts and accessories recommended by manufacturer.

Caution

To reduce the risk of ﬁre, use only No. 26 AWG or larger telecommunications line cord.

Note

Do not use this product in areas classiﬁed as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas.

The socket-outlet shall be installed near the equipment and shall be easily accessible.

Do not unplug the power cord out by pulling the cable only.

Connect and Disconnect the AC adapter

The power cord set (wall plug, cable and AC adapter plug) you received with your computer meets the requirements for use in the country where you purchased your equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer. For more information on power cord set requirements, contact your authorized dealer, reseller, or service provider.

Power Cord Requirements

General Requirements

The requirements listed below are applicable to all countries:

■ The length of the power cord set must be at least 6.00 feet (1.8m) and a maximum of 9.75 feet (3.0m).

■ All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be used.

■ The power cord set must have a minimum current capacity of 7 A and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

■ The appliance coupler must meet the mechanical conﬁguration of an EN 60 320/IEC 320 Standard Sheet C7 connector, for mating with appliance inlet on the computer.

Regulatory Compliance Statements

Wireless Guidance

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. The following section is a general overview of considerations while operating a wireless device.

Additional limitations, cautions, and concerns for speciﬁc countries are listed in the speciﬁc country sections (or country group sections). The wireless devices in your system are only qualiﬁed for use in the countries identiﬁed by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, please contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.

The RF ﬁeld strength of the wireless device or devices that may be embedded in your notebook are well below all international RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your notebook) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation.

As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting. (This Statement is not applicable to UMPC(Ultra Mobile PC) such as PDA, Portable PC.)

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Some circumstances require restrictions on wireless devices. Examples of common restrictions are listed below:

Caution

■

Radio frequency wireless communication can interfere with equipment on commercial aircraft. Current aviation regulations require wireless devices to be turned off while traveling in an airplane.

802.11B (also known as wireless Ethernet or Wiﬁ) and Bluetooth communication devices are examples of devices that provide wireless communication.

■

In environments where the risk of interference to other devices or services is harmful or perceived as harmful, the option to use a wireless device may be restricted or eliminated. Airports, Hospitals, and Oxygen or ﬂammable gas laden atmospheres are limited examples where use of wireless devices may be restricted or eliminated. When in environments where you are uncertain of the sanction to use wireless devices, ask the applicable authority for authorization prior to use or turning on the wireless device.

■

Every country has different restrictions on the use of wireless devices. Since your system is equipped with a wireless device, when traveling between countries with your system, check with the local Radio Approval authorities prior to any move or trip for any restrictions on the use of a wireless device in the destination country.

■

If your system came equipped with an internal embedded wireless device, do not operate the wireless device unless all covers and shields are in place and the system is fully assembled.

■

Wireless devices are not user serviceable. Do not modify them in any way. Modiﬁcation to a wireless device will void the authorization to use it. Please contact manufacturer for service.

■

Only use drivers approved for the country in which the device will be used. See the manufacturer System Restoration Kit, or contact manufacturer Technical Support for additional information.

USA and Canada Safety Requirements and Notices

Do not touch or move antenna while the unit is transmitting or receiving.

Do not hold any component containing the radio such that the antenna is very close or touching any exposed parts of the body, especially the face or eyes, while transmitting.

Do not operate the radio or attempt to transmit data unless the antenna is connected; if not, the radio may be damaged.

Use in speciﬁc environments:

The use of wireless devices in hazardous locations is limited by the constraints posed by the safety directors of such environments.

The use of wireless devices on airplanes is governed by the Federal Aviation Administration (FAA).

The use of wireless devices in hospitals is restricted to the limits set forth by each hospital.

Caution

Explosive Device Proximity Warning

Do not operate a portable transmitter (such as a wireless network device) near unshielded blasting caps or in an explosive environment unless the device has been modiﬁed to be qualiﬁed for such use.

Caution

Use On Aircraft Caution

Regulations of the FCC and FAA prohibit airborne operation of radio-frequency wireless devices because their signals could interfere with critical aircraft instruments.

Other Wireless Devices

Safety Notices for Other Devices in the Wireless Network: Refer to the documentation supplied with

wireless Ethernet adapters or other devices in the wireless network.

Caution

The Part 15 radio device operates on a noninterference basis with other devices operating at this frequency. Any changes or modiﬁcation to said product not expressly approved by Intel could void the user’s authority to operate this device.

Unintentional Emitter per FCC Part 15

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

United States of America

Caution

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■

Reorient or relocate the receiving antenna.

■

Increase the separation between the equipment and receiver.

■

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

■

Consult the dealer or an experienced radio/TV technician for help.

If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may ﬁnd the following booklet helpful: “Something About Interference.”

This is available at FCC local regional ofﬁces. Our company is not responsible for any radio or television interference caused by unauthorized modiﬁcations of this equipment or the substitution or attachment of connecting cables and equipment other than those speciﬁed by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system.

Intentional emitter per FCC Part 15

Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz Band, may be present (embedded) in your notebook system. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualiﬁed for use in the United States of America if an FCC ID number is on the system label.

The FCC has set a general guideline of 20 cm (8 inches) separation between the device and the body, for use of a wireless device near the body (this does not include extremities). This device should be used more than 20 cm (8 inches) from the body when wireless devices are on. The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by the FCC. (This Statement is not applicable to UMPC(Ultra Mobile PC) such as PDA, Portable PC.)

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation of the device.

Caution

Wireless devices are not user serviceable. Do not modify them in any way.

Modiﬁcation to a wireless device will void the authorization to use it. Contact manufacturer for service.

Caution

FCC Statement for Wireless LAN use:

“While installing and operating this transmitter and antenna combination the radio frequency exposure limit of 1mW/cm2 may be exceeded at distances close to the antenna installed. Therefore, the user must maintain a minimum distance of 20cm from the antenna at all times.

This device can not be colocated with another transmitter and transmitting antenna.” (This Statement is not applicable to UMPC(Ultra Mobile PC) such as PDA, Portable PC.)

FCC Part 68 (If ﬁtted with a modem device.)

This equipment compiles with part of the FCC rules. On the back of this equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If requested, this information must be provided to the telephone company.

This equipment uses the following USOC jacks : RJ11C

An FCC compliant telephone cord and modular plug is provided with this equipment. This equipment is designed to be connected to the telephone network or promises wiring using a compatible modular jack which is Part 68 compliant. See Installation Instructions for details.

The REN is used to determine the quantity of devices which may be connected to telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed ﬁve (5.0). To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.

If the terminal equipment causes harm to the telephone network, the Telephone Company will notify you in advance that temporary discontinuance of service may be required. But if advance notice is not practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to ﬁle a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the operation of the equipment. If this happens, the telephone company will provide advanced notice in order for you to make necessary modiﬁcations to maintain uninterrupted service.

If trouble is experienced with this equipment (Modem) for repair or warranty information, please contact your local distributor. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

The user must use the accessories and cables supplied by the manufacturer to get optimum performance from the product.

No repairs may be done by the customer.

This equipment cannot be used on public coin phone service provided by the telephone company. Connection to party line service is subject to state tariffs.

The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device, including fax machines, to send any message unless such message clearly contains in a margin at the top or bottom of each transmitted page or on the ﬁrst page of the transmission, the date and time it is sent and an identiﬁcation of the business or other entity, or other individual sending the message and the telephone number of the sending machine or such business, other entity, or individual. (The telephone number provided may not be any number for which charges exceed local or long-distance transmission charges.)

In order to program this information into your fax machine, refer to your communications software user manual.

Canada

Unintentional Emitter per ICES-003

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the radio interference regulations of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limitesapplicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par Industrie Canada.

Intentional Emitter per RSS 210

Wireless devices that may be in your system are only qualiﬁed for use in Canada if an Industry Canada ID number is on the system label.

The power output of the wireless device (or devices), which may be embedded in your notebook, is well below the RF exposure limits as set by Industry Canada.

This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter except the installed Bluetooth transmitter.

Caution

To prevent radio interference to licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing.

Caution

Wireless devices are not user serviceable. Do not modify them in any way. Modiﬁcation to a wireless device will void the authorization to use it. Contact manufacturer for service.

Telecommunications per DOC notice (for products ﬁtted with an IC-compliant modem)

The Industry Canada label identiﬁes certiﬁed equipment. This certiﬁcation means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Department does not guarantee the equipment will operate to the users’ satisfaction.

Before installing this equipment, users should make sure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of

connection. In some cases, the inside wiring associated with a single-line individual service may be extended by means of a certiﬁed connector assembly. The customer should be aware that compliance with the above conditions may not prevent degradation of service in some situations.

Repairs to certiﬁed equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.

Users should make sure, for their own protection, that the electrical ground connections of the power utility, telephone lines, and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

Caution

To avoid electrical shock or equipment malfunction do not attempt to make electrical ground connections by yourself. Contact the appropriate inspection authority or an electrician, as appropriate.

The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.

European Union CE Marking and Compliance Notices

Products intended for sale within the European Union are marked with the Conformité Européene (CE) Marking, which indicates compliance with the applicable Directives and European standards and amendments identiﬁed below. This equipment also carries the Class 2 identiﬁer. The following information is only applicable to systems labeled with the CE mark .

European Directives

This Information Technology Equipment has been tested and found to comply with the following European directives:

■ EMC Directive 89/336/EEC with amending

directives 92/31/EEC & 93/68/EEC as per

– EN 55022 Class B – EN 61000-3-2 – EN 61000-3-3 – EN 55024

■ Low Voltage Directive (Safety) 73/23/EEC as per EN

60950(A1/A2/A3/A4/A11)

■ Radio and Telecom Terminal Equipment Directive 199/5/EC as per

– CTR21 (if ﬁtted with a modem device) – ETS 300 328 (if ﬁtted with a 2.4 GHz band embedded

wireless device)

– ETS 301 489-1 (if ﬁtted with a 2.4 GHz band embedded

wireless device)

– ETS 301 489-17 (if ﬁtted with a 2.4 GHz band embedded

wireless device)

European Radio Approval Information (for products ﬁtted with EU-approved radio devices)

This Product is a Notebook computer; low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz band, may be present (embedded) in your notebook system which is intended for home or ofﬁce use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.

Wireless devices that may be in your system are only qualiﬁed for use in the European Union or associated areas if a CE mark with a Notiﬁed Body Registration Number and the Alert Symbol is on the system label.

The power output of the wireless device or devices that may be embedded in you notebook is well below the RF exposure limits as set by the European Commission through the R&TTE directive.

Caution

See 802.11b and 802.11g restrictions for speciﬁc countries or regions within countries under the heading “European Economic Area Restrictions” below.

European Union

Translated Statements of Compliance

[English]

This product follows the provisions of the European Directive 1999/5/EC.

[Danish]

Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC

[Dutch]

Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.

[Finnish]

Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.

[French]

Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.

[German]

Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EC

[Greek]

Το προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/ΕC.

[Icelandic]

Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC

[Italian]

Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.

[Norwegian]

Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.

[Portuguese]

Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.

[Spanish]

Este producto cumple con las normas del Directivo Europeo 1999/5/EC.

[Swedish]

Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.

European Economic Area Restrictions

Local Restriction of 802.11b/802.11g Radio Usage

[Note to integrator: The following statements on local restrictions must be published in all end-user documentation provided with the system or product incorporating the Intel PRO/Wireless 2200BG Network Connection product.]

Caution

Due to the fact that the frequencies used by

802.11b/802.11g wireless LAN devices may not yet be harmonized in all countries, 802.11b/802.11g products are designed for use only in speciﬁc countries or regions, and are not allowed to be operated in countries or regions other than those of designated use.

As a user of these products, you are responsible for ensuring that the products are used only in the countries or regions for which they were intended and for verifying that they are conﬁgured with the correct selection of frequency and channel for the country or region of use. Any deviation from permissible settings and restrictions in the country or region of use could be an infringement of local law and may be punished as such.

The European variant is intended for use throughout the European Economic Area. However, authorization for use is further restricted in particular countries or regions within countries, as follows:

General

European standards dictate maximum radiated transmit power of 100 mW effective isotropic radiated power (EIRP) and the frequency range 2400 – 2483.5 MHz.

Belgium

The product may be used outdoors, but for outdoor transmissions over a distance of 300m or more, a license from the BIPT is required.

This restriction should be indicated in the manual as follows:

Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à 300m un enregistrement auprès de l’IBPT est requise. Pour une utilisation publique à l’extérieur de bâtiments, une licence de l’IBPT est requise. Pour les enregistrements et licences, veuillez contacter l’IBPT.

France

For Metropolitan departments:

2.400 - 2.4835 GHz for indoor use.

2.400 - 2.454 GHz (channels 1 to 7) for outdoor use.

For Guadeloupe, Martinique, St Pierre et Miquelon, Mayotte:

2.400 - 2.4835 GHz for indoor and outdoor use.

For Reunion, Guyane:

2.400 - 2.4835 GHz for indoor use.

2.420 - 2.4835 GHz for outdoor use (channels 5 to 13)

European Telecommunication Information (for products ﬁtted with EU-approved modems)

Marking by the symbol indicates compliance of this equipment to the Radio and Telecom Terminal Equipment Directive 1999/5/EC. Such marking is indicative that this equipment meets or exceeds the following technical standards:

CTR 21 - Attachment requirements for pan-European approval for connection to the analogue Public Switched Telephone Networks (PSTNs) of TE (excluding TE supporting voice telephony services) in which network addressing, if provided, is by means of Dual Tone MultiFrequency (DTMF) signaling.

Caution

Although this equipment can use either loop disconnect (pulse) or DTMF (tone) signaling, only the performance of the DTMF signaling is subject to regulatory requirements for correct operation.

It is therefore strongly recommended that the equipment is set to use DTMF signaling for access to public or private emergency services. DTMF signaling also provides faster call setup.

This equipment has been approved to Council Decision 98/482/EEC - “CTR 21” for Pan-European single terminal connection to the Public Switched Telephone Network (PSTN).

However, due to differences between the individual PSTNs provided in different countries, the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN termination point. In the event of problems, you should contact manufacturer Technical Support.

WEEE SYMBOL INFORMATION

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product should not be mixed with other commercial wastes for disposal.

This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.”

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF

ACCORDING TO LOCAL, STATE OR FEDERAL LAWS.

For details see lamprecycle.org, eise.org, or call 1-800-Samsung.

USA ONLY

Overview

Before You Start!

■

The items marked with this symbol are optional items which may be changed or may not be provided depending on the

computer model.

■

The actual color and appearance of the computer may differ from the pictures used in this guide.

Front View

1 LCD

The screen images are displayed here.

2 Keyboard

A device to enter data by pressing the keys. p. 41

3 Status Indicators

Shows the operating status of the computer. The corresponding operating LED is lit when the corresponding function operates. p. 34

10 Power Button

Turns the computer on and off.

p. 39

8 Touchpad/Touchpad Buttons

The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons. p. 44

9 AV Button

Launches AVStation Now.

p. 124

7 Multi Card Slot

A card slot that supports Memory Stick, Memory Stick Pro, SD Card, MMC and xD cards.

6 Microphone Jack

A jack used to connect the microphone.

Headphone Jack (S/PDIF Support)

You can connect a headphone or S/PDIF (digital output, optical cable support) cable. You can connect to an external digital ampliﬁer using this port and enjoy multi-channel surround sound.

Microphone

4 Charge Status

This shows the power source and the battery charge status.

Green: When the battery is fully charged or the battery is not installed. Amber: When the battery is being charged. Off: When the computer is running on battery power without being connected to AC adapter.

3 Power

This shows the computer operating status.

On : When the computer is operating Blinks: When the computer is in Sleep

mode.

2 Caps Lock

This turns on when the Caps Lock key is pressed allowing capital letters to be typed without holding the Shift button down.

7 Scroll Lock

This turns on when the Scroll Lock key is pressed and screen scroll is locked. p. 42

HDD

This turns on when the hard disk is being accessed.

5 Wireless LAN

This turns on when the wireless LAN is operating.

1 Num Lock

This turns on when the Num Lock key is pressed and numeric keypad is activated.

p. 42

Status Indicators

Right View

Fan Vents

The internal heat of the computer is emitted through these holes.

Caution

If the vents are blocked the computer may overheat. Avoid blocking the vents as this may be dangerous.

Modem Port

A port to which a telephone cable is connected to in order to dial up to the Internet.

Monitor Port

A port used to connect a mo nitor, TV or projector supporting a 15pin D-SUB interface. p. 57

USB Port

You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

Left View

1 Wired LAN Port

Connect the Ethernet cable to this port. p. 89

PC Card Slot

Install the PC card into this slot.

CD Drive(ODD)

Plays CD or DVD titles. Since an ODD drive is optional, the installed drive depends on the computer model. p. 47

IEEE 1394 Port

A port used to connect IEEE 1394 devices such as a digital camcorder. (4-pin Support)

4 Security Lock Port

You can connect a Kensington lock to the Security Lock Port to prevent the computer from being stolen.

Back View

2 Battery

This is a Lithium-Ion rechargeable battery that supplies power to the computer.

p. 137

1 DC Jack

A jack to connect the AC adapter that supplies power to the computer.

3 USB Port

You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

Bottom View

1 Battery Latches

The latch used to remove or install the battery. p. 136

3 Memory Compartment Cover

The main memory is installed inside the cover. p. 134

2 Hard Disk Drive Compartment Cover

The hard disk drive is installed inside the cover.

Caution

You will be charged to replace the hard disk at service centers.

Turning the Computer On and Off

Turning the computer on

Install the battery and connect the AC adapter.

(Refer to the Installation Guide.).

Lift the LCD panel up.

Press the Power button to turn the computer on.

Note

■

If you press and release the Power button on the computer when it is on, the computer enters Sleep mode.

■

When running the computer on battery power, the LCD brightness is dimmed automatically to save battery power.

Press the Fn+ ( ) key to increase the LCD brightness. p. 43

■

When turning the computer on for the ﬁrst time, the Register Windows screen appears. You can use the computer after registering your user information.

Turning the computer off

Click the Start ( ) button on the taskbar.

Click the ( ) and click on Shut down.

The computer will shut down.

Note

Before Using the Power Button

Since the Power Icon is set to power saving mode, selecting Start > Power Button ( ), will cause the computer to enter Sleep mode.

To shut down the computer by clicking this icon, refer to the descriptions for Setting up Start menu power button of the Control Panel. p. 81

Caution

When the system cannot be shut down due to a system error, turn it off by pressing and holding the Power Button for longer than 4 seconds.

However, turning the computer off by this method may cause a system problem. Thereafter, when turning the computer back on, the disk checking program may launch to check for and correct any disk errors.

Power Button

1 2 3

Chapter 2.

Using the computer

Keyboard 41

Touchpad 4

CD Drive 4

Inserting and Ejecting a CD 47

Burning a CD 4

HD DVD 4

Blu-Ray 51

Multi Card Slot 53

PC Card Slot 5

Connecting a Monitor 5

Connecting a Monitor 57

Viewing Through a Monitor 5

Adjusting the Volume 58

Using Digital Output (S/PDIF) 6

Keyboard

Note

The keyboard is supplied according to the corresponding country. Refer to the keyboard ﬁgure for the corresponding country.

United Kingdom

United States

Shortcut Keys

You can use the following functions by pressing the keys below with the Fn key.

Fn+ Name Function

REST

(Sleep Mode)

Switches to Sleep mode. To wake the computer up, press the Power button.

Gauge

Shows the remaining battery charge. You can only use this function when the Easy Display Manager program is installed.

Euro

Enters the Euro monetary unit symbol. This key may not be provided depending on the keyboard type.

CRT/LCD

Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.

p. 57

Backlit

Turns the LCD backlight on or off.

Mute

Mutes or cancels mute.

Samsung Magic

Doctor

System diagnosis, recovery and Internet consultation program, Samsung Magic Doctor, will be launched.

Easy SpeedUp

Manager

You can select operation mode when you need maximum system performance or low-noise/low power consumption with one-click.

■ Silent: Low-noise and low power consumption mode

■ Normal: Normal Mode

■ Speed: Maximum performance mode. The system operates in its maximum performance,

and system resources are allocated to the currently active program with priority for maximum performance.

Wireless LAN

Turns the wireless LAN function on or off in models with wireless LAN capability.

Touchpad

Turns the Touchpad function on or off. When using an external mouse only, you can turn the Touchpad off.

Num Lock

Turns the numeric keyboard on or off.

Scroll Lock

If you turn the Scroll Lock on, you can scroll the screen up or down without changing the cursor location in some applications.

Screen Brightness Control

To adjust the LCD brightness press the Fn + ( ) key combination or the Fn + ( ) key combination. The changed screen brightness is displayed at the center of the screen for a moment.

Volume Control

To control the volume, press the Fn + ( ) key combination or the Fn + ( ) key combination. You can mute the sound or cancel the mute function by clicking the Fn + ( ) key combination.

Numeric Key

The numbers are printed in blue on the numeric keys. If Num Lock is turned on by pressing the Fn + ( ) key combination, you can use the numeric keys to enter digits.

Other Function Keys

■ Application Key ( )

Performs the right-click mouse function (touchpad).

Touchpad

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

Before You Start!

■

Use the Touchpad with your ﬁngers. Using a sharp object may damage the Touchpad.

■

If you touch the Touchpad or press the Touchpad buttons while booting up, the Windows boot time may be extended.

Touchpad

Use to move the cursor.

Scroll Area

Plays the role of the mouse wheel. You can scroll up and down using the Scroll Area.

Touchpad Left Button

You can select or run a program using this button,

Touchpad Right Button

Plays the role of the right mouse button.

Moving the cursor on the screen

Place your ﬁnger on the touchpad slightly and move your ﬁnger. The mouse cursor will move accordingly. Move your ﬁnger in the direction you wish to move the cursor.

Click Function

Place your ﬁnger on the touchpad and tap your ﬁnger once over an item you want. Alternatively, press the left touchpad button once.

Double-Click Function

Put your ﬁnger on the touchpad and quickly tap twice with your ﬁnger on an item you want. Alternatively, press the left touchpad button twice quickly.

Right Button Function

This corresponds to clicking the right mouse button. Press the right touchpad button once. The corresponding pop-up menu appears.

Click

Tap

Click

TapTap

ClickClick

Drag Function

Dragging refers to moving an item to another place after selecting it.

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

Touchpad Scroll Function

The touchpad scroll area provides the mouse wheel function (scroll function).

Place your ﬁnger on the touchpad’s right edge for vertical scrolling or the bottom edge for horizontal scrolling and then move your ﬁnger along the edge to scroll the screen vertically or horizontally.

Touchpad On/Off Function

If you want to use the mouse only without using the touchpad, you can turn the touchpad off. To lock the touchpad function, press the Fn + ( ) keys.

Note

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Start >

Control Panel > Hardware and Sound > Mouse.

Holding down the left touchpad button

Move

CD Drive

An optical disk drive is optional and may differ depending on your computer model. For detailed speciﬁcations, refer to the catalog.

Before You Start!

One of the following optical disk drives is installed on this computer.

Drive Type Function

RW-Combo You can read CDs and DVDs, and burn a CD.

DVD Super Multi

You can read CDs and DVDs, and burn CDs and DVDs.

Supported DVD recording types include DVD±R, DVD±RW, DVD-RAM.

HD-DVD

You can read HD DVD-ROM, HD DVD-R and HD DVD-RW disks and burn data to HD DVD-R and HD DVD-RW disks.

Blu-Ray

You can read BD-ROM, BD-R and BD-RE disks and burn data to BD-R and BDRE disks.

Caution

■

Do not insert a cracked or scratched CD. Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.

■

When you clean a CD or DVD title, wipe with a soft cloth from inside to outside.

■

Do not eject a CD when the CD operating LED is on.

■

HD-DVD and Blu-Ray drives are provided for some models only.

Click the Eject button of the optical disk drive at the

side of the computer.

Inserting and Ejecting a CD

Status Indicator

Eject Button

Emergency Hole

If your computer has a writable CD drive, you can write data onto a CD or DVD or burn an audio CD.

CyberLink DVD Suite is supplied with the System Software Media (or an additional CD) so that you can

burn a CD using the program.

Install the provided software and use the software functions referring to the software help.

Burning a CD

When the CD tray pops out, insert a CD or DVD until

it clicks.

Push the CD tray inward until it clicks.

The CD drive status indicator is turned on.

Note

■

A CD drive’s reading and writing speed may differ depending on the condition and type of the media.

■

To eject a CD when the CD drive does not work or the computer is off, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

HD-DVD is a next generation storage media that can save more data then the existing DVD format. You can record and play better quality HD movies than the existing SD-grade DVD format.

Type HD DVD DVD CD

Logo

Storage Capacity 15 GB / 30 GB 4.7 GB / 8.5 GB 0.65 GB

Data Rate 36.55 Mbps 11.08 Mbps 7.8 Mbps

Supported Resolution 1920 X 1080(i) 720 X 480 320 X 240

* Date Rate: The amount of data that can be read or written onto a storage media per second.

Supported Disk Types

HD DVD supports the following disk types.

Type Function

HD DVD-ROM Reads HD DVD disks.

HD DVD-R Reads HD DVD disks and writes data onto HD DVD disks once.

HD DVD-RW Reads HD DVD disks and writes data onto HD DVD disks repeatedly.

HD DVD

About HD DVD

The CyberLink HD DVD Solution program is provided so that users can conveniently and easily record multimedia ﬁles and other data onto HD DVD disks.

Note

For a more detailed description of the functions, refer to the help section of the corresponding program.

Select Start > All Programs > CyberLink HD

DVD Solution > CyberLink HD DVD Solution.

Alternatively, double-click the CyberLink HD DVD

Solution ( ) icon on the Desktop.

A user registration screen appears. Enter information

such as your name, surname, e-mail address, etc.

and click the Register Now button. The CyberLink

HD DVD Solution screen appears.

Favorites

You can save functions for frequently used menus.

Movie Player

You can play DVD/HD DVD video ﬁles.

Data

You can format or write data onto CD/DVD disks.

Music

You can burn an audio CD or a data CD/DVD with MP3 and WMA ﬁles, and you can rip an audio CD.

Video&Photo

You can burn a VCD, SVCD and DVD title, edit videos and photos, create a Slide Show, and burn a DVD folder.

Copy&Backup You can copy DVD or CD data.

Utility

You can extract, burn or delete disk images, and print labels.

Menu Functions

Blu-Ray is a next generation storage media that can save approximately 5 to 10 times more data then the existing DVD format. You can record and play better quality HD movies than the existing SD-grade DVD format.

Type Blu-Ray DVD CD

Logo

Storage Capacity 25 GB / 50 GB 4.7 GB / 8.5 GB 0.65 GB

Data Rate 36 Mbps 11.08 Mbps 7.8 Mbps

Supported Resolution 1920 X 1080(i) 720 X 480 320 X 240

* Date Rate: The amount of data that can be read or written onto a storage media per second.

Supported Disk Types

Blu-Ray supports the following disk types.

Type Function

BD-ROM Reads Blu-Ray disks.

BD-R Reads Blu-Ray disks and writes data onto Blu-Ray disks once.

BD-RE Reads Blu-Ray disks and writes data onto Blu-Ray disks repeatedly.

Note

This only supports BD-R Ver 1.1 and BD-RE Ver 2.1 or later.

Blu-Ray

About Blu-Ray

The CyberLink BD Solution (hereafter CBDS) program is provided so that users can conveniently and easily record multimedia ﬁles and other data onto Blu-Ray disks.

Note

For a more detailed description of the functions, refer to the help section of the corresponding program.

Select Start > All Programs > CyberLink BD

Solution > CyberLink BD Solution. Alternatively,

double-click the CyberLink BD Solution ( ) icon on the Desktop.

A user registration screen appears. Enter information

such as your name, surname, e-mail address, etc.

and click the Register Now button. The CyberLink

BD Solution screen appears.

Favorites

You can save functions for frequently used menus.

Movie Player You can play DVD video ﬁles.

Data

You can format or write data onto CD/DVD Blu-Ray disks.

Music

You can burn an audio CD or a data CD/DVD with MP3 and WMA ﬁles, and you can rip an audio CD.

Video&Photo

You can burn a VCD, SVCD and DVD title, edit videos and photos, create a Slide Show, and burn a DVD folder.

Copy&Backup

You can copy Blu-Ray DVD or CD data.

Utility

You can extract, burn or delete disk images, and print labels.

Menu Functions

Multi Card Slot

Using the multi card slot, you can read and write data to a Memory Stick, Memory Stick Pro, SD card, MMC and xD card. You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc.

Before You Start!

■

A multi card slot is optional and is provided for some models only.

■

You have to additionally purchase a multi card with the necessary capacity depending on your requirements.

■

You can use a multi card just like any data storage device. A copyright protection function is not supported.

■

Since you can lose a card when moving the computer, keep the card separately.

Supported Cards

Memory Stick Memory Stick Pro

MMC

SD Card

xD Card

To Insert and Use a Memory Card

Insert a card into the slot according to the directions

printed on the slot.

The card drive appears. Click Open folder and view

ﬁles. If the window does not appear, click Start >

Computer.

Note

If a window asking to scan and change appears, click Continue Without Scanning. This will proceed to Step 2 above.

You can save, move and delete data by double-

clicking the corresponding drive.

Since you can only use the card after formatting it, if it is not formatted, format the card referring to the descriptions of “Formatting a card”. p. 55

Note

Using a Memory Stick Duo, Mini SD and RS-MMC

Since the above cards are too small, you cannot insert the cards into the slot directly.

Insert the card into the dedicated adapter and then insert the adapter into the multi card slot.

However, the Memory Stick Duo may not be recognized properly depending on the adapter status.

Example) SD Card

To remove a memory card

Push the tip of the card lightly.

If the card pops up with a clicking sound, remove the

card.

To format a memory card

You have to format a card ﬁrst to use it.

Caution

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

Click Start > Computer.

Right-click over a card drive with the touchpad and

select Format.

Click Start to the formatting.

Caution

To use a card to exchange data with a digital device such as a digital camera, formatting the data using the digital device is recommended.

When you try to use a card, which is formatted in the computer, in another digital device, you may have to format the card again in the device.

To insert a PC card

Insert a PC card into the PC card slot on the side of

the computer.

If you insert a card into the slot, Windows recognizes

the card autom a t i c a l l y or a me s s a g e te l l i n g

you to install a driver appears. If the card is not

automatically recognized, install the device driver

supplied with the card.

Note

If a window asking whether you wa nt to scan and change appears, click on Continue Without Scan

This will proceed to Step 2 above.

To remove a PC card

Double-click the Safely Remove Hardware icon ( )

on the taskbar.

Select the PC card to be removed and click Stop.

If the Stop a Hardware device window appears,

click the OK button.

Push the Eject button of the PC card slot lightly.

Then the Eject button pops up.

Press the Eject button fully to eject the card.

PC Card Slot

You can insert and use various PC cards using the PC card slot. This computer provides one PC card slot supporting the 16/32 bit type.

Before You Start!

■

Remove the dummy card installed to protect the PC card slot ﬁrst. Lightly push the Eject button of the PC card slot. The Eject button pops up. Press the Eject button fully to eject the dummy card.

■

The PC card slot does not support the ZV and PC card III types.

Example) PCMCIA Card

Eject Button

57

Connecting a Monitor

Using an external display device is useful when you are giving a presentation or watching a video or movie through your monitor.

Before You Start!

You have to buy a connection cable additionally.

Pull the cover forwards holding the groove at the side to open it and connect the monitor to the monitor port.

Connecting a Monitor Viewing Through a Monitor

You can switch the display device using the shortcut key.

Switching the Display Device using the Shortcut Key

Press the Fn + ( ) key combination once. Then the Easy Display Manager screen appears in which you can

select a display device.

Whenever you press the ( ) key while holding down the

Fn key, the selected option is changed.

Note

LCD: Notebook Screen

CRT: External Monitor Screen

LCD+CRT Clone : Notebook+ External Monitor

Screen

LCD+CRT DualView:

Notebook+ External Monitor

Screen in Dual View

What is Dual View?

Dual View is a function that enables you to view a computer screen over two display devices. It is convenient when you need a wide screen.

Example) Selecting LCD+CRT Dual View

Note

You can also connect a TV or projector supporting a monitor port (15-pin, D-Sub).

Adjusting the Volume using the Keyboard

Press the Fn + ( ) key combination or Fn + ( ) key combination to adjust the volume.

Press the Fn + ( ) key combination to turn the volume on or off.

Adjusting the Volume using the Volume Adjustment Program

Click the Volume icon ( ) on the taskbar and slide the volume control bar to adjust the volume.

Alternatively, right-click over the Volume

icon ( ) and

select Open Volume Mixer to adjust the volume.

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

Connect a microphone to the microphone jack.

Right-click over the Volume icon ( ) on the taskbar

and select Recording Device.

Check if the microphone is set as the default

recording device.

If this is the case, it is already set as the default

device. If not, right-click over the microphone and

select Set default.

Click Start > All Programs > Accessories > Sound

Recorder and click Start recording to start a

recording.

Adjusting the Volume

You can adjust the volume using the keyboard and the volume control program.

Mute

Using SRS

The SRS function enables you to experience more stereophonic sound using stereo speakers.

Right-click over the Volume icon ( ) in the Taskbar

and select Play Device (P).

Select Speaker in the Play tab and click Properties.

Select the SRS tab in the Speaker Properties

window. Select a mode and tick the Use checkbox

on the left. Click OK. You will be able to experience a

more stereophonic sound in the selected mode.

■ WOW HD (Music): Select to listen to music.

■ TruSurround XT (Movie/Video): Select to watch

a movie.

Note

The SRS function is only supported for a computer’s built-in speakers and headphones.

Using Digital Output (S/PDIF)

You can enjoy 5.1 channel surround sound by using the Headphone/S/PDIF jack.

Before You Start!

To listen to 5.1 channel surround sound, follow the procedures below.

■

Connect to a 5.1 channel speaker system using the Headphone/S/PDIF jack.

■

Select Digital Output (S/PDIF) in the DVD player program and play a DVD title.

What is Digital Output (S/PDIF)?

S/PDIF is a method to output digital sound and is also called Digital Output. If you connect a 5.1 channel speaker system to the S/PDIF jack, you can enjoy audio without distortion since the signal is transferred digitally.

5.1 channel surround sound consists of 6 speakers in total: center, front left/right, rear left/right, and woofer.

Since a woofer speaker is a special speaker for bass output only, we call the system a 5.1 channel system and a 6 channel system.

Digital Ampliﬁer

Sub Woofer

Front Right SpeakerFront Left Speaker

Computer

Center Speaker

Surround Right SpeakerSurround Left Speaker

Connecting 5.1 Channel Speakers

Connect the S/PDIF cable to the S/PDIF jack and connect the other end of the cable to the 5.1 channel speaker

system.

Note

■ Since the procedures to connect a 5.1 channel speaker system may differ depending on the system model, refer to the relevant product manual. A 5.1 channel speaker system consists of 6 speakers, an ampliﬁer, and a decoder.

■ If you have a S/PDIF optical cable with square connectors on both ends, you need to purchase an additional cable with round connector.

After connecting the speaker system, set the speaker’s input mode to Digital Output.

5.1 Channel Speakers

S/PDIF Cable

Decoder

Selecting Digital Output in the DVD Player Program.

Since the sound setting is set to Digital Output by default, you do not additionally need to conﬁgure it for digital output. You can conﬁrm your settings as follows.

If the CyberLink PowerDVD program is not installed, install the program using the system software media (or

additional CD depending on the computer model).

Launch CyberLink PowerDVD and click Conﬁgure.

Change the Speaker Environment value to Use S/PDIF in the Audio tab.

Insert and play a DVD title. You can listen to S/PDIF sound.

Note

For some DVD titles, you can listen to more realistic sound if you additionally select S/PDIF from the Setup menu of the DVD title.

Chapter 3.

The screen shots used in this chapter may differ from actual screens depending on the Windows Vista version and model.

Using Microsoft Windows Vista

About Microsoft Windows Vista 64

Welcome Center 64

Help and Support 6

Windows Vista Screen Layout 66

Desktop 66

Start Menu 6

Sidebar / Gadget 7

Window 7

Control Panel 76

Opening the Control Panel 76

User Accounts 7

Phishing Filter 8

User control function 8

Windows Mobile Center 8

In the Welcome Center, you can view brief descriptions of Windows Vista functions and run the functions directly.

Click Start > Welcome Center.

If you click on an item, information on the function is displayed in the description window.

For example, if you click View computer details, your computer information is displayed in the description window.

In addition, click on Show More details, for more detailed information.

Note

Windows Vista Demo

If you click Start > Welcome Center > Show all X items > Windows Vista Demo, you can watch the Windows Vista

introduction movie.

About Microsoft Windows Vista

Microsoft Windows Vista (hereafter Windows) is a computer operating system. Since you have to learn how to use

it in order to use the computer efﬁciently and effectively, use the Welcome Center and Windows Help and Support to learn about Windows Vista.

Note

The screen layout may differ depending on the computer model and the operating system.

Welcome Center

Description Window

Help and Support

Windows Help and Support provides information on Windows basic functions and usages.

Click Start > Help and Support.

You can ﬁnd help for frequently used basic functions using Find an Answer and you can search for help by entering a keyword in the Search box.

Windows Basics

Introduces the basic usage of the computer and the Windows operation system. You can learn tasks and tools necessary to use the computer.

Security and Maintenance

You can view help on computer protection and security.

Windows ONLINE HELP

If your computer is connected to the Internet, you can view the necessary information online.

Table of Contents

The help pages are arranged by subject so that users can easily ﬁnd the relevant information.

Troubleshooting

You can view possible problems that may occur while using Windows and solutions to the problems.

What’s new?

You can view help for new Windows Vista features.

Help Search

Find an Answer

Windows Vista Screen Layout

Desktop

If you turn the computer on, the Desktop screen appears. The desktop is the working area on the computer. It consists of a large workspace and a taskbar at the bottom as shown in the ﬁgure below.

Note

The screen layout may differ depending on the computer model and the operation system version.

1 Recycle

Bin

2 Shortcut

Icons

3 Start

8 Gadget

7 Sidebar

4 Start

Button

5 Taskbar

6 System

Tray with Clock

1 Recycle Bin

You can drop useless ﬁles and folders here.

2 Shortcut Icons

You can launch programs by clicking the shortcut icons on the Desktop.

3 Start Menu

The menu from which you can launch programs.

4 Start Button

Press the start button. The Start menu appears.

5 Taskbar

Currently running programs are displayed here.

6 System Tray with

Clock

Shows some running program icons. Icons not being used are hidden. If you click the arrow mark on the left, you can view hidden icons. This is a mini information program that appears on the Sidebar.

7 Sidebar

This is a vertical bar that appears at the side of the Desktop.

8 Gadget

This is a mini information program that appears on the Sidebar.

Note

Some item may not be provided depending on the Windows Vista version.

Start Menu

The menu from which you can launch programs.

Click Start ( ). The Start menu appears.

Alternatively, press the Windows key ( ) on the keyboard.

Fixed Programs

The program or search

result is displayed.

All Programs

You can search for ﬁles,

folders, etc.

Username

Computer

Control Panel

Help and Support

Power Menu Button

Lock Button

Power Button

Enables users to search for ﬁles and folders.

Computer

Shows storage devices such as hard disk drives, CD/DVD drives, network drives, etc. In addition, you can manage ﬁles and folders here.

Control Panel

Enables users to conﬁgure the appearance and settings of Windows such as the Desktop, window colors, hardware and software settings, security, etc.

Help and Support

Provides on-line help about functions and usage of Windows and troubleshooting. You can ﬁnd a solution to a problem by entering a keyword.

Power Button

Click the Power button to enter Sleep mode. However, what the power button does changes according to the power button setting.

p. 81

Lock Button

To lock the computer, click this button. If you lock your computer, no one can use the computer until you enter the password.

Power Menu Button

Click the Power Menu button to shut down, restart, and logoff from the computer.

Sidebar / Gadget

Sidebar is a vertical bar that appears at the side of the Desktop.

A mini program called Gadget runs over the Sidebar which shows information such as stocks, schedule, weather, etc. and provides frequently used tools.

You can download various Gadgets from the Internet other than the default Gadget.

Sidebar / Gadget Structure

If you launch Windows, the Sidebar is automatically launched and the Sidebar and Gadget appear at the side of the Desktop.

Note

■

If the Sidebar is not launched automatically when Windows starts, click Start > All Programs > Accessories > Windows Sidebar to launch it manually.

■

To always display the Sidebar, right-click over the Sidebar and select Properties and then select the Sidebar is always on top of Screen option in the Arrangement ﬁeld.

Sidebar

Gadget

Adding a Gadget

You can ﬁnd a gadget in the Gadget Gallery and add it to the Sidebar.

If you click the + at the top of the Sidebar, the Gadget Gallery opens.

If you double-click on a gadget, the gadget is added to the Sidebar.

Note

■

You can move a gadget to another location by dragging it with the mouse. Not only can you move a gadget onto the Sidebar but also out of the Sidebar.

■

If you place the mouse pointer over a gadget, the close and option buttons appear.

Exiting the Sidebar

Right-click on the Sidebar icon ( ) in the System Tray with the clock on the taskbar and select

Exit to exit the Sidebar.

Note

Closing the Sidebar

■

Even if you close the Sidebar, the Sidebar continues running in the System Tray in the clock area, though it is not displayed on the Desktop.

■

To close the Sidebar, right-click over the Sidebar on the Desktop and select Close Sidebar. To open the Sidebar again, right-click on the Sidebar icon (

) in the System Tray with the clock on the taskbar and select

Open.

Window

A window is the basic frame for a computer operation. As an example, let’s see the layout of a Pictures Window.

Click Start > Pictures.

Note

The items and names may differ depending on your computer model and the Windows Vista version.

Window Layout

1 Address Display Line

2 Move Button

3 Menu Bar

4 Toolbar

5 Search

Window

6 Window

Button

7 Search Box

8 Sort Order 9 Folder / File

10 Preview Window

11 Detailed

Information Window

1 Address Display Line

Shows the location of the currently selected folder or ﬁle.

2 Move Button

You can move to the previous or next page by clicking the Back or Next buttons.

Opens the previously opened page. Opens the next page, when you have returned to a previous page.

3 Menu Bar

Provides menus to run functions for the selected folder or ﬁle, etc.

4 Toolbar

Provides icons to quickly run frequently used functions.

5 Search Window

You can view the drive structure and the currently opened window location. You can move directly to a folder by clicking the folder in the Search window.

6 Window Button

Used to resize the window.

Minimizes the window. Maximizes the window.

Closes the window.

7 Search Box

You can search for ﬁles by specifying the text included in the ﬁlename or within the ﬁle or ﬁle attributes.

8 Sort Order

Used to change the sort order of the ﬁles.

9 Folder / File

The drives, folders and ﬁles included on the computer are displayed here.

10 Preview Window

You can preview a selected ﬁle before opening it. A preview function is not provided for drives and folders.

11 Detailed Information Window

Shows the general information of the selected ﬁle.

Note

■

What is a drive?

A storage device on which ﬁles and folders are saved to and read from.

■

What is a folder?

A folder is used to systematically group and manage ﬁles, and may include ﬁles in sub-folders. It is similar to a ﬁling cabinet.

■

What is a ﬁle?

A ﬁle is a document or various kinds of information generated as a result of a program operation. This is also called data.

Window View Functions

Note

If you have set up the Aero function, you can use the window view functions.

If you want to use the Aero function, click

Start > Control Panel > Appearance and Personalization > Window Color and Appearance. Select Window Aero from the color

schemes and click OK.

► Preview

If you move the mouse pointer over a window button on the Taskbar, you can preview the contents of the window without opening it.

► Switching between Windows

This function arranges multiple windows in 3D so that users can easily view the windows.

Press the Windows logo ( ) + Tab keys or click on Switch Windows ( ) at the bottom left of the Desktop, and the windows are displayed in 3D.

Control Panel

Tools for conﬁguring Windows are located in the Control Panel.

Opening the Control Panel

Click Start > Control Panel.

System and Maintenance

Using this function, you can conﬁgure Windows performance options.

Security

Using this function, you can check the current security status to protect the computer and conﬁgure the security settings for the ﬁrewall, spyware, etc.

Network and Internet

Using this function, you can check the network status and conﬁgure the settings. You can change the Internet connection settings.

Hardware and Sound

Using this function, you can add a printer and other hardware, change the settings, and update the device drivers.

Programs

Using this function, you can remove a program or Windows function and download a new program from the internet.

User Accounts and Family Safety

You can change the user account settings, passwords and conﬁgure the Parental Controls function.

Appearance and Personalize

Using this function, you can conﬁgure the Desktop style, theme or screen saver settings.

Clock, Language, and Region

Using this function, you can conﬁgure the date, time, language and regional settings.

Ease of Access

Using this function, you can select options for hearing and sight impaired persons as well as for challenged persons. You can conﬁgure the audio recognition settings.

Additional Options Using this function, you can conﬁgure other Control Panel item settings.

User Accounts

Using Windows Vista User Accounts, more than one user can easily share the same PC.

The procedures to add and delete a user account and to switch users are described below.

Adding User Accounts

Click Start > Control Panel> User Accounts and

Family Safety.

Click User Accounts > Manage another account.

Click Create a new account.

Enter a new username and select either Standard

User or Administrator.

Click Create a new account to add a new account.

Removing User Accounts

Note

■

If there is only one administrator account for the computer, you cannot delete the

administrator

account.

■

You can only delete another account when you are logged in as an administrator.

Click Start > Control Panel > User Accounts and

Family Safety > User Accounts.

Click Manage Another Account.

Click on the user account to be deleted.

Click Delete the Account in the Make changes to

user’s account menu.

A window appears asking whether you want to

save the desktop, documents, favorites, music ﬁles,

pictures and video folders as new folders on the

Desktop before deleting the account.

If you click Delete ﬁles, the account and all ﬁles belonging to the account are deleted.

If you click Keep ﬁles, only the account is deleted and the ﬁles belonging to the user are saved on the Desktop.

Switching User Accounts

Click Start ( ) on the taskbar and select Switch

User.

If you click on another username in the start screen,

you can login with that user account.

Changing the screen resolution and the color

The resolution refers to the number of pixels displayed on the screen. When increasing the resolution, the items on the Desktop become smaller and more items can be displayed on the screen. The higher the color quality, the more colors are displayed on the screen.

Click Start > Control Panel > Appearance and Personalization > Personalization > Display Settings.

Alternatively, right-click on the Desktop and select Personalization > Display Settings from the pop-up menu.

The Display Settings screen appears.

Change the resolution and color settings and click the OK button.

To change the color quality, click this button and select a particular quality.

To change the resolution,

slide the resolution sliding bar

to a particular resolution.

You can check the

graphics chipset.

Note

The following resolutions and color qualities are recommended according to the computer LCD panel type.

LCD Type Resolution Color Quality

WXGA 1280 x 800 Very High (32bit)

Conﬁguring the Start Menu Power Button

The Power button on the Start menu ( ) performs various operations depending on the settings.

Click Start > Control Panel > Hardware and

Sound > Power Options and then Change Battery

Settings.

Click on Change Plan Settings in the currently

selected power setting.

Click on Change Advanced Power Settings and

open Start Menu Power Button in the Power

Buttons and Lid item.

Select a power plan and click the OK button.

Type Description

Power Button Image after Setting Change

Sleep

Sets the computer to enter Sleep mode.

The screen and hard disk will be turned off to reduce the power consumption of the overall system. If you press the Power button on the computer, Sleep mode is deactivated and you can start working immediately.

Hibernate

Sets the computer to hibernate.

All work is automatically saved, the screen is turned off and the computer makes no noise. If you press the Power button of the computer main body, the work environment is restored and you can start working immediately.

Shut down

Shut down the computer.

You have to shut down the computer after closing all programs and opened folders.

Note

■

The Power button is set to Sleep mode by default.

■

If the computer is set to download Windows updates automatically, the update mark ( ) is displayed on the Power button when an update is ready. If you click this button, the update is installed and the computer is shut down when the update installation is complete.

Phishing Filter Settings

Launch Internet Explorer.

Select Tools from the menu and click Phishing Filter > Phishing Filter Settings.

Phishing Filter

Phishing is a method used by hackers to illegally collect personal information such as credit card numbers, passwords, other account numbers, etc. through emails or websites.

The Phishing Filter protects users from these phishing attempts.

If the current page is judged to be a suspicious website, the Phishing Filter displays a warning message with an alarm when the Phishing Filter is enabled. In addition, if a page that the user is currently trying to open is registered as a known Phishing website list, it displays a warning page instead.

The Internet Options window opens.

Locate the Phishing Filter item in the Settings ﬁeld. Select Turn on automatic website checking and click the OK

button to use the Phishing Filter.

To not use the Phishing Filter, select Turn off automatic website checking in the Settings ﬁeld in Step 3 above.

User control function

Using this function, you can control the content your children can access. You can determine for how long they can use the computer and the content they can access. When you have ﬁnished the settings, click OK to ﬁnish.

Conﬁguring Parental Controls

Click Start > Control Panel > User Accounts and Family Safety > Parental Controls.

Select a user to conﬁgure the Parental Controls for.

The User Controls window for that user opens.

Click Parental Controls > Use and conﬁgure the necessary settings in the Windows Settings at the bottom. If you

click OK, the Parental Controls setting is completed.

Using Activity Report

You can view and evaluate your children’s internet access through the Activity Report.

Open the User Controls window referring to the

descriptions of Parental Controls.

Set Activity Reporting to On.

To view the Activity Report, click on View Activity

Report on the right of the User Controls window.

If you click the View Activity Report, the following

window opens displaying a computer operating

summary.

Using Windows Mobile Center, you can easily conﬁgure computer settings such as the volume, the wireless network connection settings, the display settings, etc. all at the same time.

Note

Some functions may not be supported depending on the Windows Vista version.

Click Start > All Programs > Accessories > Windows Mobile Center.

Alternatively, click Start > Control Panel > Mobile PC > Windows Mobile Center.

Conﬁgure the volume, the battery status, the external display, the Sync center, etc. according to your requirements.

Note

■

Conﬁgurable items may differ depending on the installed Windows Vista version or programs.

■

If Easy Network Manager program is installed, you can see Easy Network Manager window.

■

If you turn the wireless LAN off in the Mobile Center, this is not reﬂected by the wireless LAN LED.

Volume Control

Easy Network Manager Window

Display Connection Settings

Battery Status Settings

Windows Mobile Center

Chapter 4.

Using the Network

Wired Network 89

Wireless Network 9

Connecting to a Wireless LAN 93

Using the Easy Network Manager 94

Network Settings 94

Using in Another Location 9

Diagnosing the Network Status 9

Connecting with a Modem 98

Bluetooth 9

Bluetooth Function 99

Using Bluetooth 10

Connect a LAN cable to the computer’s LAN port.

Click Start > Control Panel > Network and Internet

> Network and Sharing Center.

Click Manage Network Connections from the left

pane.

Right-click over the Local Area Connection and

select Properties.

Wired Network

A wired network is a network environment used for a company network or broadband internet connection at home.

Before You Start!

You can also conﬁgure the network settings using the Easy Network Manager. p. 94

Select Internet Protocol Version 4 (TCP/IPv4) from

the Networking tab and click Properties.

Note

■

The LAN device driver may differ depending on your LAN device model.

■

To add a network component, click Install in the screen shown in the ﬁgure above. You can add clients, services, and protocols.

Conﬁgure the IP settings.

When using DHCP, select Obtain an IP address

automatically. To use a static IP address, select

Use the following IP address, and set the IP

address manually.

Note

When not using DHCP, ask your network administrator for the IP address.

When you have completed the settings, click the OK

button.

The network settings have been completed.

Using both DHCP and a ﬁxed IP simultaneously

Using the Alternate Conﬁguration providing by Windows Vista, you can set both automatic and ﬁxed IP addresses and then you can select to use either of them to connect to the Internet.

Click Start > Control Panel > Network and Internet

> Network and Sharing Center and click Manage

Network Connections in the left pane.

Right-click over the Local Area Connection and

select Properties.

Select Internet Protocol Version 4 (TCP/IPv4) from

the Networking tab and select Properties.

Select the Alternate Conﬁguration tab, select User

conﬁgured and ﬁll in the corresponding ﬁelds.

When you have completed the settings, click the OK

button.

Wireless Network

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size ofﬁce through wireless LAN devices.

Before You Start!

■

The descriptions below are for computer models with a Wireless LAN card or device. You can also conﬁgure the wireless network settings using the Easy Network Manager.

p. 94

A Wireless LAN device is optional. To view the installed wireless LAN card, click Start > Control Panel > Hardware and Sound >

Device Manager > Network Adapter

and click the + symbol.

The ﬁgures in this manual may differ from the actual ones depending on your wireless LAN device model.

■

To use the wireless LAN, you have to turn the wireless LAN on ﬁrst by pressing the Fn + ( ) keys. If the wireless LAN is turned on, the Wireless LAN LED (

) is lit.

Wireless LAN Connections

Wireless network connections can be classified into 3 categories and this manual describes the connection procedures for connecting through an AP.

■ Access Point (AP)

You can connect to the Internet or another computer on the network through an AP.

Note

What is an Access Point (AP)?

An AP is a netw or k device that bridges wired a nd wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

■ Wireless Ad-Hoc Network Type

Th i s co n n ect s com p u t er s wit h wir e l e ss LA N communications capability. Communication is enabled by constructing an Ad-Hoc network via one computer and connecting another computer through a wireless connection.

For more detailed connection procedures, refer to the descriptions that appear when selecting Start > Help

and Support > Contents > Networking - Computer and Device Connection > Network Setting > AdHoc Network Setting.

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows Vista.

Right-click over the Network Connections ( ) icon

on the taskbar and click Connect to the Network.

Select an AP to connect to and click Connect. If

there is a conﬁgured network key for the AP to

connect to, the Enter Network Key window appears.

Enter the network key in the window and then click

the Connect button.

Note

Ask your network administrator for the network key, if necessary.

When Connected to the AP is displayed, click the

Close button.

You can access the network.

Checking the network connection status

Move the mouse pointer over the Wireless Network Connection ( ) icon on the taskbar, and the connection

status is displayed.

Using the Easy Network Manager

Easy Network Manager is a program that helps conﬁgure the network settings.

Easy Network Manager provides the following features.

 You can easily conﬁgure the network and printer settings. p. 94~95

 You can immediately use the network without having to deﬁne new network settings again after moving to

another location. p. 96 By conﬁguring the network settings (IP address, printer settings, etc.) for each location, you can immediately access the network without following the network setting procedures each time regardless of your location.

 You can diagnose the network status. p. 97

Network Settings

This section describes the procedures to connect to the Internet by setting up a network. The setting up procedures include procedures to add a printer to the network.

To use a wired LAN, connect the LAN cable to the

LAN port. To use the wireless LAN, you have to turn

the wireless LAN on ﬁrst by pressing the Fn +

( ) keys. If the wireless LAN is turned on, the

Wireless LAN LED lights up.

Click Start > All Programs > Samsung > Easy

Network Manager > Easy Network Manager.

Click the Add button.

Select a network location icon and enter the name of

the location (e.g. Home). Click the Next button.

Select Internet Direct Connection and click the

Next button.

Select the LAN device, setup the IP address and

click the Next button.

Click Add Printer and set up a printer according to

the wizard. When the printer has been added, click

the Refresh button, select the newly added printer

and then click the Finish button.

Note

To not add a printer, click the Finish button.

When the network settings are complete, the ’Do

you want to move to the newly added location

now?’ message appears. Click the No button.

An icon for the added location is created. The

network settings have been completed.

If you select ’Yes’, the network settings for the added

location are applied.

Note

To add a new location, repeat the procedures from Step 3 above.

Select Device

Select a device to be connected to the Internet. Select either Wired LAN or Wireless LAN.

IP Settings

To use a static IP address, ﬁll in the ﬁelds. For the IP address information, ask your network administrator.

Obtain an IP address automatically

Select DHCP to use this option (automatic IP setting).

Using in Another Location

By conﬁguring the network settings (IP address, printer setting, etc.) for each location, you can immediately access the network in one click, without performing the network setting procedures regardless of your location.

Click Start > All Programs > Samsung > Easy

Network Manager > Easy Network Manager when

connected to the Internet.

Select an icon that represents the corresponding

location from the Saved Locations window and then

click Move.

If the Internet connection is a wired LAN, you

can immediately load the settings for the new

location and the corresponding network connection

information is displayed in the Current Location

Information window.

If the Internet connection is a wireless LAN, you have to select an AP as follows.

 Click on the Network connection ( ) icon

on the Taskbar using the touchpad and select

Connect to the Network.

 Select an available AP and click the Connect

button. If a network key is required, ask your

network administrator for the key information.

Diagnosing the Network Status

You can diagnose the network state and ﬁnd solutions for why you cannot connect to the network.

Launch Easy Network Manager.

Select Management > Diagnose Status from the

menu.

The Network Connections window appears.

Click Start to start the network diagnosis.

When the diagnosis is complete, a device with a

problem is marked by an exclamation mark icon with

a description of the problem at the bottom of the

window.

Pull the cover forwards holding the groove at the side to open it and connect the landline to the modem port.

Take care to not connect a digital phone line to the modem port.

Connect to the Internet according to the instructions of your Internet service provider (ISP).

Note

If the Internet connection is terminated abnormally, the connection is not released and the corresponding cost can be accrued.

Connecting with a Modem

The procedures to connect to the Internet via a phone connection are described below.

Before You Start!

■

To connect to the Internet, you have to subscribe to an Internet connection service of an Internet service provider (ISP).

■

A modem port is optional and provided for some models only.

File Transmission

You can exchange ﬁles between two Bluetooth devices. You can exchange ﬁles with another Bluetooth device such as another computer, cell phone, PDA, etc.

Network Access

You can connect to another Bluetooth-installed computer in the same way as an Ad-Hoc mode in wireless LAN and connect to the network via an AP or an Internet connection sharing server.

Network Access through a Phone Connection

You can connect to the network via a Bluetooth cell phone.

Data Sync (Synchronization)

You can synchronize PIMS data (Outlook E-mail address data) with Bluetooth devices such as a cell phone, PDA, another notebook computer, etc.

Electronic Business Card (Vcard) Exchange

You can exchange business cards with Bluetooth devices such as a cell phone, PDA, another notebook computer, etc.

Sound Output You can output computer sound to another Bluetooth device or vice versa.

HID Connections You can connect and use Bluetooth peripherals such as a keyboard, mouse, joystick, etc.

Note

For more information about using the Bluetooth function, refer to the online help of the Bluetooth Device.

Bluetooth Function

Bluetooth

Bluetooth is wireless communications technology that allows access to nearby devices such as another computer, a cell phone, printer, keyboard, mouse, etc. without a cable connection. Using Bluetooth, you can exchange ﬁles, connect to the Internet, and construct a private network as well as communicate with a keyboard, mouse, printer, etc. without a cable connection.

Before You Start!

■

The Bluetooth supporting function is only available between devices (a computer, cell phone, PDA, printer, etc.) and the connection may be restricted according to the proﬁle of the corresponding device.

■

The Bluetooth function is optional and may not be supported depending on your model.

■

Compatibility to devices without the authentication or logo of Bluetooth is not guaranteed.

Samsung Q71 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Features

Before You Start

Contents

Safety Precautions

Proper Posture During Computer Use

Important Safety Information

Replacement Parts and Accessories

Regulatory Compliance Statements

WEEE SYMBOL INFORMATION

Overview

Front View

Status Indicators

Right View

Left View

Back View

Bottom View

Turning the Computer On and Off

Turning the computer on

Turning the computer off

Keyboard

Touchpad

CD Drive

Inserting and Ejecting a CD

Burning a CD

HD DVD

Blu-Ray

Multi Card Slot

PC Card Slot

57

Connecting a Monitor

Connecting a Monitor Viewing Through a Monitor

Adjusting the Volume

Using Digital Output (S/PDIF)

About Microsoft Windows Vista

Welcome Center

Help and Support

Windows Vista Screen Layout

Desktop

Start Menu

Sidebar / Gadget

Window

Control Panel

Opening the Control Panel

User Accounts

Phishing Filter

User control function

Windows Mobile Center

Wired Network

Wireless Network

Connecting to a Wireless LAN

Using the Easy Network Manager

Network Settings

Using in Another Location

Diagnosing the Network Status

Connecting with a Modem

Bluetooth Function

Bluetooth
