Samsung NP-Q1EX, Q1EX-71G, NP-Q1EX-FA01US Specifications

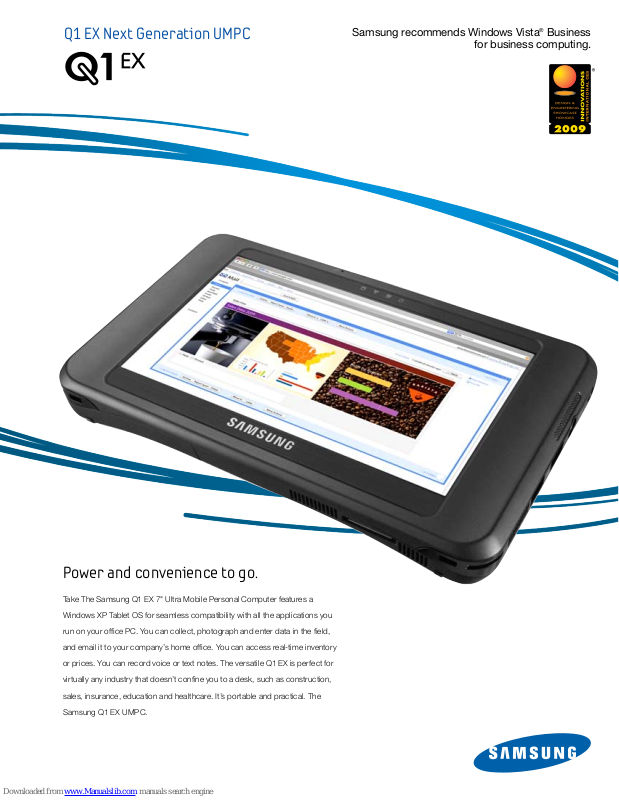

Q1 EX Next Generation UMPC

Ultra Premium UMPC

Samsung recommends Windows Vista® Business

for business computing.

Power and convenience to go.

Take The Samsung Q1 EX 7" Ultra Mobile Personal Computer features a

Windows XP Tablet OS for seamless compatibility with all the applications you

run on your office PC. You can collect, photograph and enter data in the field,

and email it to your company’s home office. You can access real-time inventory

or prices. You can record voice or text notes. The versatile Q1 EX is perfect for

virtually any industry that doesn’t confine you to a desk, such as construction,

sales, insurance, education and healthcare. It’s portable and practical. The

Samsung Q1 EX UMPC.

Samsung

Q1 EX Next Generation UMPC

Operating System

Model/Part Number

Processor

Graphics

Chipset

Memory

LCD

Audio

Storage

Communications

I/O Port

User Interface

Optional Accessories

Battery

Dimension

Weight

Warranty

Scroll /Click

Wheel

Power/H old

Button

Hand Str ap
Attachm ent

Genuine Microsoft Windows XP Tablet

Q1EX-71G/NP-Q1EX-FA01US

VIA Nano Processor U2500 (1.2GHz)

VIA Chrome 9 HC

VIA VX280

2GB DDR2 667MHz

7" WSVGA (1024 x 600), Touch Screen

H/P out, Stereo Speaker (1.0W x 2), Internal Mic.

60GB HDD

WLAN (802.11 b/g), Bluetooth 2.0 + EDR

USB 2.0 x 2, 3-in-1 card slot (MS, SD [SDIO], SDHC) Headphone Out, Internal Mic

Controls: Wheel Button (Menu, Scroll), CAD (Ctrl/Alt/Del), Power/Hold, Battery Indicator

Data Cable v2.0 (AA-EX2TSYN), Organizer (w/Keyboard, VGA, RJ45, Touch Pad) 1.54 lbs. (AA-EX6UORG), 40W AC Adapter
(AA-PA2N40W), 6-Cell Battery (AA-PL2UC6B), Super Multi USB External ODD (AA-ESON09B), Auto Adapter (AA-PCON90W)

4 Cell Lithium-Ion Battery (4.3 Hrs)

8.96" x 4.92" x 0.90"

1.43 lbs.

1 Year Standard Parts and Labor

3-in-1 (MS ,SD [SDIO], S DHC) Audio Jac k

Interna l Mic Status LE D

CAD Butto n
(Ctrl +Alt+Del )

AC Port

USB 2.0

USB 2.0

Features:

Powerful PC

With genuine Windows® XP Tablet OS,
you can run all the same applications as
your office computer.

Small and Light

The Q1 E X ultra-mobile personal
computer weighs just 1.43 lbs., and
measures just 8.9" W x 4.9" H x .9" D.

Easy Connectivity

Connect wirelessly via 802.11 b/g,
Bluetooth 2.0 + EDR, or plug into an
existing 10/100 BaseTX network. The
Q1 EX also features two USB ports,
an MS/SD (SDIO)/SDHC port, an audio
jack and an AC port.

Camera for Added Functionality

The integrated 1.3 megapixel camera
lets you take a picture or video, then
email it right away.

Optional Organizer

Dock with the optional organizer to
get a touch pad keyboard, mouse
button, and integrated VGA and LAN
connections, all in an integrated
carrying case.

Accessories :

6-Cell Battery
AA-PL 2UC6B

1.3M Camera

Multi-A ngle Stand Battery Indi cator

Product Information: 1-866-542-7214 samsung.com/notebook
Product Support: 1-800-SAMSUNG

©2009 Samsung Electronics America, Inc. Samsung is a registered mark of Samsung Electronics Corp., Ltd.
Specifications and design are subject to change without notice. See www.samsung.com for detailed information.
Printed in USA. COM-Q1EXDSHT-Mar09T

Organiz er Docking Port

Super Multi USB
External ODD
AA-ESON09B

40W AC Adapter
AA-PA2N40W

Organizer
AA-E X6UORG

Auto Adapter
AA-PCON90W

Data Cable 2.0
AA-E X2TSYN
