PDP-TELEVISION
(PLASMA DISPLAY PANEL)
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
Picture In Picture (PIP)
Energy Saving
TELETEXT (Option)
SRS TruSurround XT
Digital Natural Image engine
Register your product at www.samsung.com/global/register
Record your Model and Serial number here for future reference.
▪ Model _______________ ▪ Serial No. _______________
Page 2
English - 2
User Instructions
Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the
plasma monitor panel for more than 2 hours as it can cause screen image retention. This image
retention is also known as “screen burn”. To avoid such image retention, reduce the degree of
brightness and contrast of the screen when displaying a still image.
Height
The PDP can normally operate only under 2000m in height. It might abnormally function at a place
over 2000m in height so do not install and operate there.
Heat on the top of the PDP TV
The top side of the product may be hot after long period of use as heat dissipates from the panel
through the vent hole in the upper part of the product. This is normal and does not indicate any defect
or operation failure of the product. However, children should be prevented from touching the upper
part of the product.
The product is making a ‘cracking’ noise.
A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding
environment such as temperature or humidity. This is normal and not a defect of the unit.
Cell Defects
The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require
sophisticated technology to produce. However, there may be few bright or dark pixels on the screen.
These pixels will have no impact on the performance of the product.
Avoid operating the TV at temperatures below 5°C(41°F)
A still image displayed too long may cause permanent damage to the PDP Panel.
Afterimage on the Screen.
Displaying still images from Video games and PC for longer than a certain period of time may
produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when
displaying still images.
Warranty
- Warranty does not cover any damage caused by image retention.
- Burn-in is not covered by the warranty.
Installation
Be sure to contact an authorized service centre, when installing your set in a location with heavy
dust, high or low temperatures, high humidity, chemical substance and where it operates continually
such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.
Watching the PDP TV in 4:3 format for a long period of time may leave traces
of borders displayed on the left, right and centre of the screen caused by the
difference of light emission on the screen. Playing a DVD or a game console
may cause similar effect to the screen. Damages caused by the above effect are
not covered by the Warranty.
Any functions related to Digital TV (DVB) will only work in countries or areas where DVB-T (MPEG2)
digital terrestrial signals are broadcasted. Please confirm with your local dealer if you can receive
DVB-T signals. Although this TV set follows the DVB-T specification, maintaining compatibility with
the future coming DVB-T digital terrestrial broadcasts is not guaranteed. Several functions may not be
available in some countries.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.
Page 3
English - 3
Contents
General Information
User Instructions .............................................2
Checking Parts ................................................ 4
Using the Stand-Base
(PS-42E97HD/PS-50E97HD) .........................4
Control Panel .................................................5
Connection Panel ............................................ 6
Viewing the Remote Control ...........................8
Operation
Switching Your Television On and Off ............. 9
Viewing the Menus ........................................ 10
Plug & Play Feature ......................................10
Viewing an External Signal Sources ............. 12
Editing Device Names ................................... 13
Channel Control
Storing Channels Automatically .................... 13
Storing Channels Manually ...........................14
Adding / Locking Channels ...........................15
Sorting the Stored Channels ......................... 16
Assigning Names to Channels ...................... 16
Fine Tuning Channel Reception ....................17
Picture Control
Changing the Picture Standard ..................... 17
Customizing the Picture Settings .................. 18
Configuring Detailed Settings
on the Picture ................................................ 19
Selecting the Picture Size .............................20
Selecting the Screen Mode ........................... 20
Digital NR / Active Colour / DNIe ..................21
Freezing the Current Picture ......................... 21
Function Description
Time Features ............................................... 24
Language / Blue Screen / Melody / Light Effect /
Energy Saving / HDMI Black Leve
Using the Game Mode ..................................26
Wall- mount adjustment (Sold separately) .... 27
Viewing the Picture in Picture (PIP) .............. 28
Screen Burn Protection ................................. 29
l .................... 25
PC Display
Setting up Your PC Software
(Based on Windows XP) ............................... 30
Input Mode (PC) ............................................ 31
Setting the PC ............................................... 32
Setting the Home Theatre PC ....................... 33
Using the DTV Feature
Previewing the DTV Menu System ...............34
Displaying Programme Information ............... 35
Operating the DTV Menu ..............................36
Appendix
Teletext Feature (depending on the model) .. 46
Wall Mount Kit Specifications (VESA) ........... 48
Setting Up Your Remote Control ...................49
How to assemble the Stand-Base
(depending on the model) ............................ 54
Troubleshooting ............................................54
Specifications ................................................ 55
Sound Control
Sound Features ............................................ 22
Selecting the Sound Mode
(depending on the model) ............................. 23
Symbols
Press
☛ ➢
Important
Note
Page 4
English - 4
Checking Parts
Owner’s Instructions Remote Control/
Warranty Card/
Registration Card/
Safety Guide Manual
Antenna Cable Component Cables Audio Cables PC Cable
Scart Cable PC Audio Cable HDMI Cable HDMI/DVI Cable
Ferrite Core (Power Cord)
➢
The ferrite cores are used to shield the cables from
interference.
When connecting a cable, open the ferrite core and clip it
around the cable near the plug.
AAA Batteries
Cover-Bottom / Screws (2ea)
(Refer to page 54)
(PS-42E97HD/PS-50E97HD)
Sold Separately
Power Cord Cloth-Clean
Ferrite Core for Power Cord
(PS-42E97HD/
PS-50E97HD)
Using the Stand-Base (PS-42E97HD/PS-50E97HD)
Two or more people should carry
➢
the PDP. Never lay the PDP on the
floor because of possible damage
to the screen. Always keep the
PDP upright.
The PDP can rotate 20 degrees in
right and left directions.
-20° ~ 20°
Page 5
English - 5
Control Panel
7
Front (or Side) Panel
(PS-42C67HD/PS-50C67HD/PS-42C77HD/PS-50C77HD)
(PS-42E97HD/PS-50E97HD)
The product colour and shape may vary depending on the model.
➢
1
SOURCE
Displays a menu of all of the available input
sources (TV, Ext.1, Ext.2, Component, PC,
HDMI, and DTV).
2
MENU
Press to see the on-screen menu of your TV’s
features.
3
+−
Press to increase or decrease the volume.
In the on-screen menu, use the +−
buttons as you use the ◄ and ► buttons on
the remote control.
4
C/P.
Press to change channels. In the on-screen
menu, use the C/P. buttons as
you use the ▲ and ▼ buttons on the remote
control.
5
(ENTER)
Press to confirm a selection.
6
(Power) button
Press to turn the TV on and off.
Power Indicator
Blinks and turns off when the power is on and
lights up in stand-by mode.
Remote Control Sensor
Aim the remote control towards this spot on
the TV.
7
Speaker
Page 6
English - 6
Connection Panel
Rear Panel
1
0
or
Cable Television
Network
7
8
or
9
6
2
The product colour and shape may vary depending on the model.
➢
Whenever you connect an audio or video system to your set, ensure that all elements are
☛
switched off.
When connecting an external device, match the colour of the connection terminal to the cable.
1
POWER IN
Connect the supplied power cord.
2
Connecting external Audio Devices
Connect RCA audio signals from the TV to an
external source, such as Audio equipment.
3
EXT 1, EXT 2
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
Input/Output Specification
Connector
Video Audio(L/R) RGB Video + Audio(L/R)
EXT 1
✔ ✔ ✔
EXT 2
✔ ✔
3
Input Output
Only TV or DTV
output is available.
Output you can
4
choose.
5
4
COMPONENT IN
Audio (AUDIO L/R) and video (Y/PB/PR) inputs
for Component.
5
DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio Component.
6
SERVICE
− Connector for service.
− Connect the serial jack between the
electro-motion wall mount bracket and your
TV when you want to adjust the TV viewing
angle using your remote control.
7
PC IN / AUDIO
Connect to the video and audio output jack on
your PC.
Continued...
Page 7
English - 7
8
COMMON INTERFACE Slot
Insert CI (Common Interface) card into the slot.
(refer to page 45)
− When not inserting “CI CARD” in some
channels, “Scramble Signal” is displayed on
the screen.
− The pairing information containing a
telephone number, CI CARD ID, Host ID,
and other information will be displayed in
about 2~3 minutes. If an error message
is displayed, please contact your service
provider.
− When the channel information configuration
has finished, the message “Updating
Completed” is displayed, indicating that the
channel list is now updated.
Insert the CI-Card in the direction marked
➢
on it.
9
HDMI IN(DVI IN)
− Connect to the HDMI jack of a device with
HDMI output. These inputs can also be used
as a DVI connection with separate analog
audio inputs. An optional HDMI/DVI cable
will be necessary to make this connection.
When using the optional HDMI/DVI adapter,
the DVI analog audio inputs on your TV
allow you to receive left and right audio from
your DVI device. (Not compatible with PC)
− When connecting this product via HDMI or
DVI to a Set Top Box, DVD Player or Games
Console etc, make sure that it has been
set to a compatible video output mode as
shown in the table below. Failure to observe
this may result in picture distortion, image
breakup or no picture.
− Do not attempt to connect the HDMI/DVI
connector to a PC or Laptop Graphics Card.
(This will result in a blank screen being
displayed)
DVI IN AUDIO L/R
DVI audio outputs for external devices.
0
ANT IN
75Ω Coaxial connector for Aerial/Cable
Network.
Supported modes for HDMI and Component
HDMI/DVI 50Hz X X X O O O
HDMI/DVI 60Hz X O X X O O
Component O O O O O O
480i 480p 576i 576p 720p 1080i
Page 8
English - 8

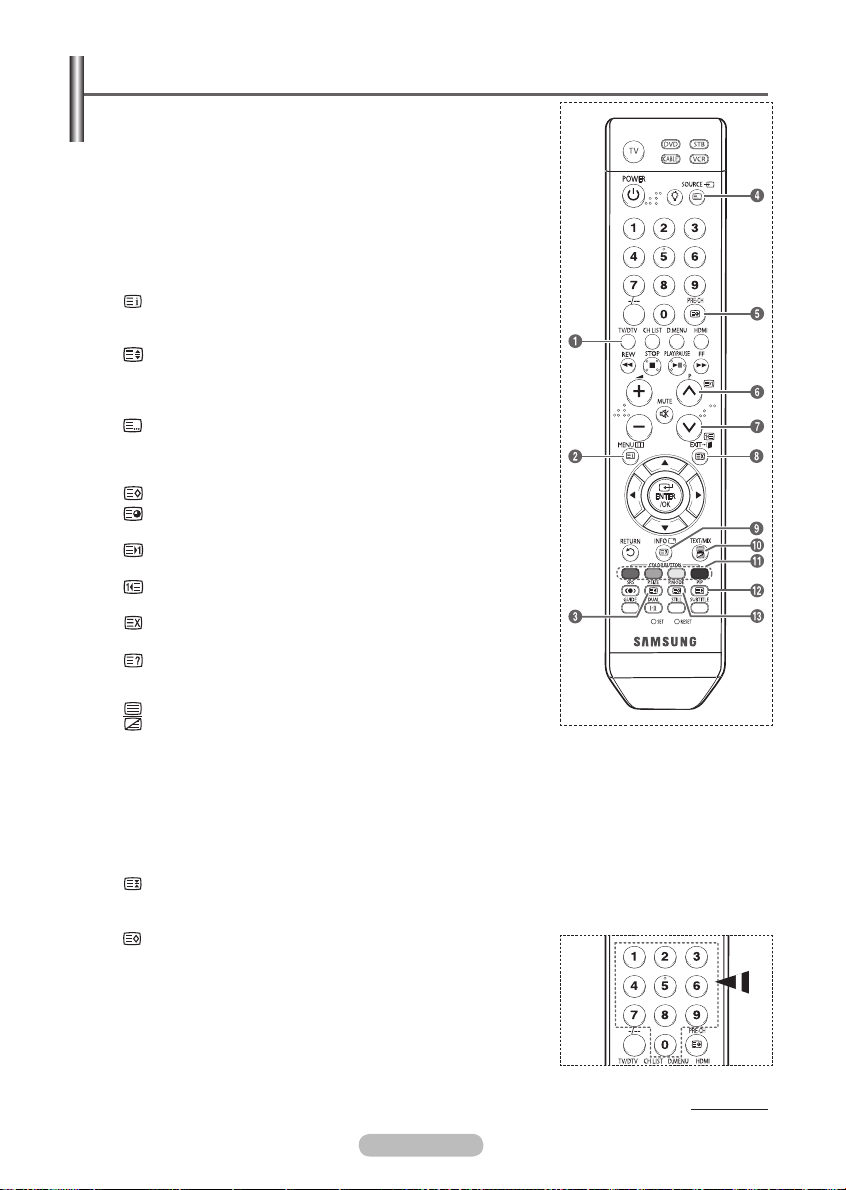

Viewing the Remote Control
This is a special remote control for the visually impaired persons, and has Braille points on the
➢
Power, Channel, Volume, STOP, and PLAY/PAUSE buttons.
The performance of the remote control may be affected by bright light.
1
POWER button
(turns the TV on and off)
2
Number buttons for direct
channel access
3
One/Two-digit channel
selection
4
Channel control button
(Refer to page 15)
5
Selects the TV and DTV
mode directly
6
Volume increase
Volume decrease
7
Temporary sound switch-off
8
Displays the main on-screen
menu
9
Returns to the previous
menu
!
TruSurround XT mode
button
@
Picture size selection
#
Electronic Program Guide
(EPG) display
$
Sound mode selection
%
Remote control setup
^
Selects a target device to be
controlled by the Samsung
remote control (TV, DVD,
STB, CABLE, VCR)
&
Press to backlight the VOL,
CH, and the active source
button (TV, DVD, CABLE,
STB, VCR) on the remote.
*
Available source selection
(
Previous channel
)
DTV menu display
a
Selects the HDMI mode
directly
b
VCR/DVD Function (Rewind,
Stop, Play/Pause, Fast/
Forward)
c
Next channel
Previous channel
d
Exit the on-screen menu
e
Control the cursor in the
menu
f
Use to see information on
the current broadcast
h
Picture-In-Picture On/Off
i
Picture effect selection
(Refer to page 17)
j
Digital subtitle display
k
Picture freeze
l
If your remote control is not
functioning properly, take out
the batteries and press the
reset button for about 2~3
seconds.
Re-insert the batteries and
try using the remote control
again.
Teletext Functions
(Refer to page 46)
5
Exit from the teletext display
(depending on the model)
8
Teletext index
0
Fastext topic selection
@
Teletext size
*
Teletext mode selection
(LIST/FLOF)
(
Teletext sub page
c
P :Teletext next page
P :Teletext previous page
d
Teletext cancel
f
Teletext reveal
g
Teletext display/mix both
teletext information and the
normal broadcast
h
Teletext hold
i
Teletext store
Continued...
Page 9
English - 9
Installing Batteries in the Remote Control
1 Lift the cover at the back of the remote control upward as
shown in the figure.
2 Install two AAA size batteries.
Make sure to match the “+” and “–” ends of the
➢
batteries with the diagram inside the compartment.
Do not mix battery types, i.e. alkaline and manganese.
3 Close the cover as shown in the figure.
Remove the batteries and store them in a cool and dry
➢
place if you won’t be using the remote control for a long
time. The remote control can be used up to about 23 feet
from the TV. (Assuming typical TV usage, the batteries last
for about one year.)
If the remote control doesn’t work! Check the following:
➢
1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power cut, or is the power cord unplugged?
5. Is there a special fluorescent light or a neon sign nearby?
Switching Your Television On and Off
The main lead is attached to the rear of the television.
1 Plug the main lead into an appropriate socket.
The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.
➢
2 Press the (Power) button (On/Off) on the front of the television or press the POWER button on the
remote control to switch the television on. The programme that you were watching last is re-selected
automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing
Channels Automatically” on page 13 or “Storing Channels Manually” on page 14.
If the television is initially powered on, several basic customer settings proceed automatically.
➢
Refer to “Plug & Play Feature” on page 10.
3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press
the POWER button on the remote control.
4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER
button or number buttons on the remote control.
Page 10
English - 10
Viewing the Menus
1 Press the MENU button.
The main menu is displayed on the screen.
Its left side has five icons: Picture, Sound, Channel, Setup,
and Input.
2 Press the ▲ or ▼ button to select one of the icons.
Press the ENTER/OK button to access the icon’s sub-menu.
3 Press the ▲ or ▼ button to move to items in the menu.
Press the ENTER/OK button to enter items in the menu.
4 Press the ▲/▼/◄/► button to change the selected items.
Press the RETURN button to return to the previous menu.
5 Press the EXIT button to exit from the menu.
Plug & Play Feature
When the television is initially powered on, several basic
customer settings proceed automatically and subsequently.
The following settings are available.
If you accidentally select the wrong country for your TV, the
☛
characters on the screen may be wrongly displayed.
Any functions related to Digital TV (DVB) will only work in
☛
countries or areas where DVB-T (MPEG2) digital terrestrial
signals are broadcasted. Please confirm with your local dealer if
you can receive DVB-T signals. Although this TV set follows the
DVB-T specification, maintaining compatibility with the future
coming DVB-T digital terrestrial broadcasts is not guaranteed.
Several functions may not be available in some countries.
1 If the television is in standby mode, press the POWER button
on the remote control. The message Start Plug & Play is
displayed. Press the ENTER/OK button.
2 The Language menu will automatically appear after several
seconds.
3 Select the appropriate language by pressing the ▲ or ▼ button.
Press the ENTER/OK button. The message Select Home
Mode when installing this TV at home. is displayed.
4 Press the ◄ or ► button to select Shop or Home, then press
the ENTER/OK button. The message to check the connected
status of the antenna is displayed.
The default selection is Home.
➢
We recommend setting the TV to Home mode for the best
➢
picture in your home environment.
Shop mode is only intended for use in retail environments.
➢
If the unit is accidentally set to Shop mode, and you want to
➢
return to Dynamic (Home) mode, press the Volume button
and then hold down the MENU button for five seconds on
the TV panel.
5 Make sure that the antenna is connected to the TV.
Press the ENTER/OK button. The Country menu is displayed.
T V
Mode :
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Language
Move
Select Home Mode
when installing this TV at home.
Move
Country
Move
Move
Plug & Play
Start Plug & Play.
OK
Enter
Plug & Play
English
Deutsch
Français
Italiano
▼
Enter
Plug & Play
Shop
Enter
Plug & Play
Check antenna input.
OK
Enter
Plug & Play
▲
United Kingdom
Austria
Eastern Europe
▼
Enter
Dynamic
Enter
Skip
Home
Skip
Exit
Continued...
Page 11
English - 11
6 Select your country or area by pressing the ▲ or ▼ button.
Press the ENTER/OK button.
The message Some DTV functions may not be available.
Digital Scan? is displayed.
If your country supports the DTV functions, the message is
not displayed. Then you can follow the instructions from step
12. When the local service provider does not support DTV
broadcasting but you choose a DTV supporting country, it
enters the DTV Plug & Play but DTV functions may not work
properly.When
No is selected, follow the instructions from step
7 to 10. When Yes is selected, follow the instructions from
step 11.
7 Select No pressing the ◄ or ► button, then press the
ENTER/OK button. Auto Store menu is displayed.
8 Press the ENTER/OK button to start search the channels.
The channel search will start and end automatically. After all the
available channels are stored, Clock Set menu is automatically
displayed. Press the ENTER/OK button.
To stop the search before it has finished, press the
➢
ENTER/OK button with Stop selected.
9 Press the ◄ or ► button to select Month, Day, Year, Hour, or
Minute. Set these by pressing the ▲ or ▼ button.
You can set the Month, Day, Year, Hour, or Minute
➢
directly by pressing the numeric buttons on the remote
control.
10 Press the ENTER/OK button to confirm your setting. The
message Enjoy your viewing is displayed. When you have
finished, press the ENTER/OK button.
Even if the ENTER/OK button is not pressed, the message
➢
will automatically disappear after several seconds.
11 Select Yes
pressing the ◄ or ► button, then press the
ENTER/OK button. Auto Store menu is displayed.
12 Press the ENTER/OK button to start search the analog
channels. The analog channel search will start and end
automatically. After all the available analog channels are stored,
the screen for searching digital channels is automatically
displayed.
To stop the search before it has finished, press the
➢
ENTER/OK button with Stop selected.
13 Press the ENTER/OK button to start search the digital
channels. The digital channel search will start and end
automatically. After all the available digital channels are stored,
the screen to select a time zone is displayed depending on the
country.
To stop the search before it has finished, press the
➢
ENTER/OK button with Stop selected.
If the DTV channel is updated, the Source in the source list
➢
of the Input menu is automatically changed to DTV.
For detailed descriptions about DTV channel update, refer
➢
to page 36 of this manual.
14 Press the ▲ or ▼ button to select required time zone, then
press the ENTER/OK button. The screen for setting the time is
displayed. Press the ENTER/OK button.
Plug & Play
Some DTV functions may not be available.
Digital Scan?
Enter
Start
Enter
Adjust
Start
Stop
12
No
Minute
:
-
Skip
Skip
00
Enter
Skip
Yes
Move
Plug & Play
P 1 C -- 40 MHz
0 %
Move
Plug & Play
2007
Plug & Play
Skip
Plug & Play
Skip
Plug & Play
Clock Set
Month Day Year Hour
01 01
0%
Services found: 0 Channel:
Scanning for digital services...
29%
Services found: 6 Channel: 35
The Iberian Peninsula and Balears Islands
Canarian Islands
Move Select
Continued...
Page 12
English - 12
15 Press the ◄ or ► button to select Month, Day, Year, Hour, or
Min. Set these by pressing the ▲ or ▼ button.
You can set the Month, Day, Year, Hour, or Minute
➢
directly by pressing the numeric buttons on the remote
control.
16 Press the ENTER/OK button to confirm your setting. The
message Enjoy your viewing is displayed. When you have
finished, press the ENTER/OK button.
Even if the ENTER/OK button is not pressed, the message
➢
will automatically disappear after several seconds.
If you want to reset this feature …
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ENTER/OK button again to select Plug & Play.
The message Start Plug & Play is displayed.
Viewing an External Signal Sources
Set the current time.
Adjust
T V
Plug & Play
Month Day Year
01
15
Hour Min
12 00
Move
Enjoy your viewing
OK
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
:
Wall-Mount Adjustment
Energy Saving : Off
More
Move
2007
Select
Setup
In Standby
Enter
Skip
Return
You can switch between viewing signals from connected
equipment, such as a VCR, DVD, Set-Top Box, and the TV
T V
source (broadcast or cable).
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the
ENTER/OK button.
3 Press the ENTER/OK button again to select Source List.
4 Press the ▲ or ▼ button to select the signal source, then press
the ENTER/OK button.
Available signal sources:
HDMI, DTV
You can select these options simply by pressing the SOURCE
➢
button on the remote control.
To watch television programme again, press the TV/DTV button
➢
and select the channel number required.
TV, Ext.1, Ext.2, Component, PC,
T V
Move
Move
Input
Source List
Enter
Enter
Return
Return
Source List : TV
Edit Name
TV
Ext.1 : −−−−
Ext.2 : −−−−
Component : −−−−
PC : −−−−
HDMI : −−−−
DTV : −−−−
Page 13
English - 13
Editing Device Names
You can give a name to the external source.
T V
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Input, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Edit Name, then press the
ENTER/OK button.
4 Press the ▲ or ▼ button to select the external source to be
edited, then press the ENTER/OK button.
5 Select the required device by pressing ▲ or ▼, then press the
ENTER/OK button.
Available device names:
VCR, DVD, D-VHS, Cable STB, HD
T V
STB, Satellite STB, AV Receiver, DVD Receiver, Game,
Camcorder, DVD Combo, DHR (DVD HDD Recorder), PC.
6 Press the EXIT button to exit.
Storing Channels Automatically
Not available in DTV or external input mode.
➢
You can scan for the frequency ranges available to you
(availability depends on your country).
Automatically allocated programme numbers may not
correspond to actual or desired programme numbers.
However you can sort numbers manually and clear any
channels you do not wish to watch.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ENTER/OK button again. The available countries are
listed.
4 Select your country by pressing the ▲ or ▼ button, then press
the ENTER/OK button.
Even though you have changed the country setting in this
➢
menu, the country setting for DTV is not changed. Use the
Plug & Play function to change the country setting for DTV.
(Refer to pages 10 to 12)
5 Press the ▲ or ▼ button to select Auto Store, then press the
ENTER/OK button.
6 Press the ENTER/OK button again to start the search.
The search will end automatically.
To stop the search before it has finished, press the MENU
➢
or the ENTER/OK button.
T V
T V
Input
Edit Name
Channel
Channel
Auto Store
Start
Enter
TV
Enter
−−−−
VCR
−−−−
DVD
D-VHS
Cable STB
HD STB
Satellite STB
AV Receiver
▼
Enter
Belgium
United Kingdom
France
Germany
Italy
Netherlands
Spain
Switzerland
United Kingdom
▼
Enter
United Kingdom
Enter
Return
Return
Return
Return
Return
Source List :
Edit Name
Move
Ext.1 : −−−−
Ext.2 :
Component : −−−−
PC : −−−−
HDMI : −−−−
Move
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
P 1 C -- 40 MHz
0 %
Page 14
English - 14
Storing Channels Manually
Not available in DTV or external input mode.
➢
You can store television channels, including those received via
cable networks.
When storing channels manually, you can choose:
Whether or not to store each of the channels found.
The programme number of each stored channel which you wish
to identify.
T V
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Channel
United Kingdom
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Manual Store, then press
T V
the ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
5 When you are satisfied with your setting, press the ENTER/OK
Move
Enter
P 1
Return
Manual Store
Programme :
Colour System : Auto
Sound System : BG
Channel : C 6
Search : 175 MHz
Store : ?
button.
6 Press the EXIT button to exit.
Move
Enter
Programme (Programme number to be assigned to a channel)
Return
− Press the ▲ or ▼ button until you find the correct number.
You can also select the channel number directly by pressing the numeric buttons (0~9).
➢
Colour System: Auto/PAL/SECAM/NTSC4.43
− Press the ▲ or ▼ button to select the required colour standard.
Sound System: BG/DK/I/L
− Press the ▲ or ▼ button to select the required sound standard.
Channel (When you know the number of the channel to be stored)
− Press the ▲ or ▼ button to select C (Air channel) or S (Cable channel).
− Press the ► button, then press the ▲ or ▼ button to select the required number.
You can also select the channel number directly by pressing the numeric buttons (0~9).
➢
If there is abnormal sound or no sound, re-select the sound standard required.
➢
Search (When you do not know the channel numbers)
− Press the ▲ or ▼ button to start the search.
− The tuner scans the frequency range until the first channel or the channel that you selected is
received on the screen.
Store (When you store the channel and associated programme number)
− Set to OK by pressing the ENTER/OK button.
Channel mode
☛
P (Programme mode): When completing tuning, the broadcasting stations in your area have
been assigned to position numbers from P00 to P99. You can select a channel by entering the
position number in this mode.
C (Air channel mode): You can select a channel by entering the assigned number to each air
broadcasting station in this mode.
S (Cable channel mode): You can select a channel by entering the assigned number for each
cable channel in this mode.
Page 15
English - 15
Adding / Locking Channels
Not available in DTV or external input mode.
➢
Using the Channel Manager, you can conveniently lock or add
T V
channels.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Channel Manager, then
press the ENTER/OK button.
Adding channels
Using the Channel List, you can add channels.
T V
4 Select Channel List by pressing the ENTER/OK button.
5 Move to the ( ) field by pressing the ▲/▼/◄/► buttons,
select a channel to be added, and press the ENTER/OK button
to add the channel.
If you press the ENTER/OK button again, the ( ) symbol
➢
next to the channel disappears and the channel is not
added.
Locking channels
This feature allows you to prevent unauthorized users, such as
children, from watching unsuitable programmes by muting out video
and audio.
6 Press the ▲ or ▼ button to select Child Lock, then press the
ENTER/OK button.
7 Select On by pressing the ▲ or ▼ button, then press the ENTER/OK
button.
8 Press the ▲ or ▼ button to select Channel List, then press the
ENTER/OK button.
9 Move to the ( ) field by pressing the ▲/▼/◄/► buttons, select a
channel to be locked, and press the ENTER/OK button.
If you press the ENTER/OK button again, the ( ) symbol next
➢
to the channel disappears and the channel lock is canceled.
A blue screen is displayed when Child Lock is activated.
➢
10 Press the EXIT button to exit.
You can select these options simply by pressing the CH LIST
➢
button on the remote control.
Channel
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
Channel List
Child Lock :
Move
P 1 C 6
Prog.
0 C 1
1 C 6
2 C 5
3 C 8
4 C 11
5 C 22
6 C 26
7 C 36
8 C 52
9 C 24
Add Lock
Move Enter
Page
United Kingdom
Enter
Channel Manager
Off
Enter
Channel List
Return
Return
Return
1 / 10
▲
▼
Page 16
English - 16
Sorting the Stored Channels
Not available in DTV or external input mode.
➢
This operation allows you to change the programme numbers
T V
of the stored channels.
This operation may be necessary after using the auto store.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Sort, then press the
ENTER/OK button.
4 Select the channel that you wish to move by pressing the
▲ or ▼ button, then press the ENTER/OK button.
T V
5 Select the number of the programme to which the channel is to
be moved by pressing the ▲ or ▼ button.
Press the ENTER/OK button. The channel is moved to its new
position and all other channels are shifted accordingly.
6 Repeat steps 4 to 5 until you have moved all the channels to
the required programme numbers.
7 Press the EXIT button to exit.
Assigning Names to Channels
Not available in DTV or external input mode.
➢
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed,
allowing you to assign new names.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Name, then press the
ENTER/OK button.
4 Press the ▲ or ▼ button to select the channel to be assigned
to a new name, then press the ENTER/OK button.
5 Press the ▲ or ▼ button to select a letter, a number, or a
symbol (Results in this sequence: A~Z, 0~9, +, -, *, /, blank).
Move on to the previous or next letter by pressing the ◄ or ►
button, then press the ENTER/OK button.
6 Repeat steps 4 to 5 for each channel to be assigned to a new
name.
7 Press the EXIT button to exit.
T V
T V
Channel
United Kingdom
Enter
Sort
Enter
Channel
United Kingdom
Enter
Name
Enter
Return
Return
Return
Return
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
Prog. Ch. Name
0 C- - −−−−−
1 C04 −−−−−
2 C05 −−−−−
3 C08 −−−−−
4 C09 −−−−−
5 C11 −−−−−
6 C13 −−−−−
7 C15 −−−−−
8 C17 −−−−−
9 C18 −−−−−
Move
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
Prog. Ch. Name
0 C- - −−−−−
1 C04 −−−−−
2 C05 −−−−−
3 C08 −−−−−
4 C09 −−−−−
5 C11 −−−−−
6 C13 −−−−−
7 C15 −−−−−
8 C17 −−−−−
9 C18 −−−−−
Move
Page 17
English - 17
Fine Tuning Channel Reception
Not available in DTV or external input mode.
➢
If the reception is clear, you do not have to fine tune the
T V
channel, as this is done automatically during the search and
store operation.
If the signal is weak or distorted, you may have to fine tune the
channel manually.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Fine Tune, then press the
ENTER/OK button.
4 To obtain a sharp, and clear picture and good sound quality,
press the ◄ or ► button until you reach the optimal setting.
Press the ENTER/OK button.
To reset the fine tuning to 0, select Reset by pressing the
➢
▲ or ▼ button. Press the ENTER/OK button.
5 Press the EXIT button to exit.
Fine Tune Store will change the colour of the Channel
➢
OSD (On Screen Display) from White to Red and add the
“*” mark.
P 1 *
Mono
Picture : Dynamic
Sound : Custom
SRS TS XT : Off
−−
Changing the Picture Standard
You can select the type of picture which best corresponds to
your viewing requirements.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button to select Picture.
3 Press the ENTER/OK button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available modes:
The settings values may vary depending on the input
➢
source. (ex. TV, Component, PC, or HDMI)
Dynamic, Standard, Movie
5 Press the EXIT button to exit.
You can select these options simply by pressing the P.MODE
➢
button on the remote control.
Choose Dynamic for viewing the TV during the day or
➢
when there is bright light in the room.
Choose Standard for general TV watching mode.
Choose Movie when viewing the movie.
T V
T V
Channel
Fine Tune
Reset
Save
Enter
Enter
Cool1
Enter
Country :
Auto Store
Manual Store
Channel Manager
Sort
Name
Fine Tune
Move
P 1
Adjust
:
−−
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Move
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone :
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Move
United Kingdom
Return
3
Return
Return
Dynamic
Standard
Movie
Return
Page 18
English - 18
Customizing the Picture Settings
Your television has several setting options that allow you to
control the picture quality.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button to select Picture.
3 Press the ENTER/OK button again to select Mode.
4 Select the required mode by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available modes:
Dynamic, Standard, Movie
5 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
6 When you are satisfied with your setting, press the ENTER/OK
button.
7 Press the EXIT button to exit.
Contrast – Brightness – Sharpness – Colour – Tint
In TV mode of the PAL system, you cannot use the Tint
➢
Function.
Contrast – Brightness – Colour Tone : PC Mode
Press the ◄ or ► button until you reach the optimal setting.
T V
Mode :
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone :
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Move
T V
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Move
Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2
When the picture mode is set to Dynamic or Standard, Warm1 and Warm2 cannot be selected.
➢
Reset: Cancel/OK
Select
OK. You can return to the factory defaults picture settings.
The reset function is set for each picture mode and colour tone.
➢
Dynamic
Cool1
Enter
Cool2
Cool1
Normal
Warm1
Warm2
Enter
Return
Return
Page 19
English - 19

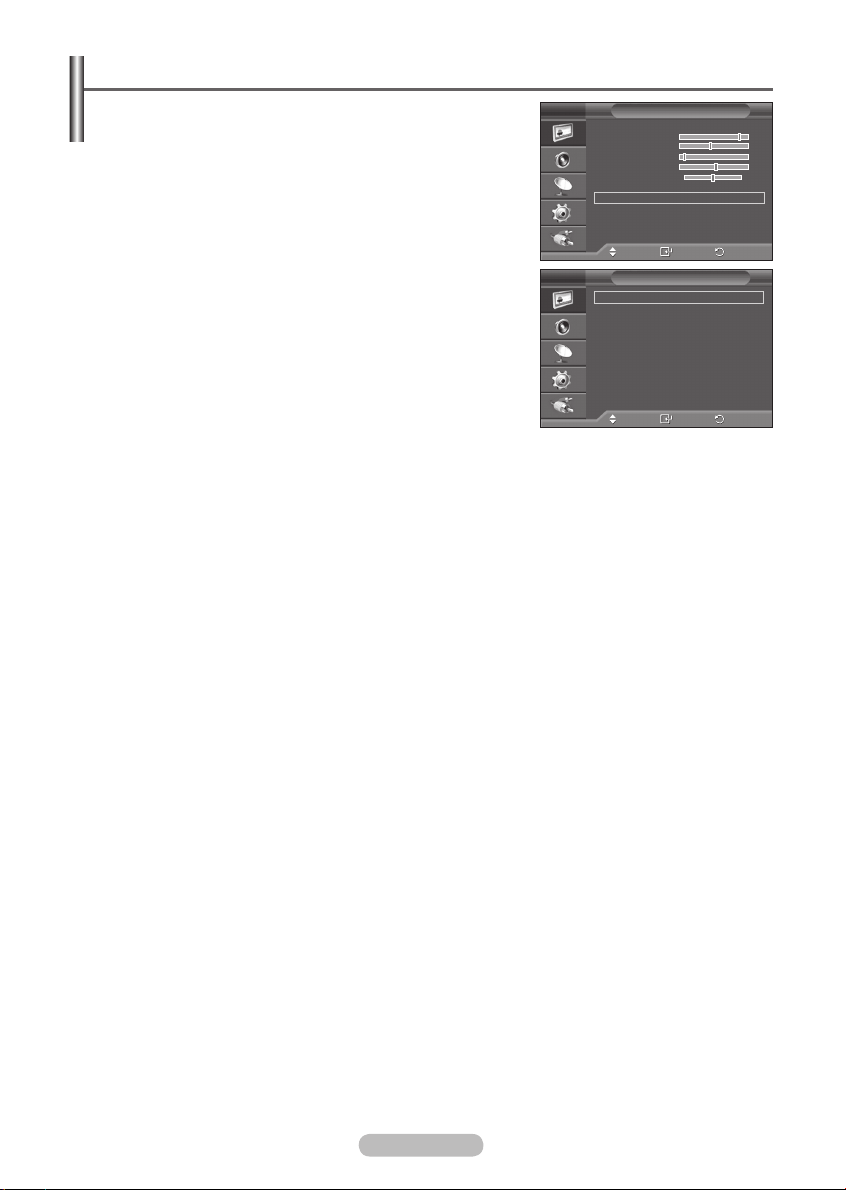

Configuring Detailed Settings on the Picture
You can set detailed picture settings.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button to select Picture.
3 Press the ▲ or ▼ button to select Detailed Settings, then
press the ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options: Black Adjust
, Dynamic Contrast, Gamma,
White Balance, My Colour Control, Edge Enhancement,
Colour Space
5 When you are satisfied with your setting, press the ENTER/OK
button.
6 Press the EXIT button to exit.
Detailed Settings is available in Standard or Movie mode.
➢
If DNIe is Off, the Detailed Settings cannot be selected when
T V
Mode :
Contrast 80
Brightness 45
Sharpness 10
Colour 53
Tint G50 R50
Colour Tone :
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
T V
Black Adjust : Off
Dynamic Contrast : Off
Gamma : 0
White Balance
My Colour Control
Edge Enhancement
Colour Space : Auto
Move
Detailed Settings
Movie
Warm2
Enter
: Off
the Picture mode is in Standard mode.
Move
Black Adjust: Off/Low/Medium/High
Enter
You can directly select the black level on the screen to adjust
the screen depth.
Dynamic Contrast: Off/Low/Medium/High
You can adjust the screen contrast so that the optimal contrast is provided.
Gamma: -3 ~ +3
You can adjust the middle brightness of pictures.
Press the ◄ or ► button until you reach the optimal setting.
White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset
You can adjust the color temperature for more natural picture colors.
R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the
adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press
the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted white balance will be reset to the factory defaults.
My Colour Control: Pink/Green/Blue/White/Reset
This setting can be adjusted to suit your personal preferences.
Pink/Green/Blue/White: Changing the adjustment value will refresh the adjusted screen.
Select the required option by pressing the ▲ or ▼ button, then press the ENTER/OK button. Press
the ◄ or ► button until you reach the optimal setting.
Reset: The previously adjusted colours will be reset to the factory defaults.
Edge Enhancement: Off/On
You can emphasize object boundaries.
Colour Space: Auto/Wide
You can set the colour reproduction space for the input signal to Auto or Wide.
Return
Return
Page 20
English - 20
Selecting the Picture Size
You can select the picture size which best corresponds to your
viewing requirements.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button to select Picture.
3 Press the ▲ or ▼ button to select Size, then press the
ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options: Auto Wide
, 16:9, Wide Zoom, Zoom, 4:3,
Just Scan
Auto Wide: Expanding and pulling up the picture from 4:3
to 16:9 ratio.
16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnify the size of the picture more than 4:3.
Move the screen up/down using the ▲ or ▼ button after
selecting the by pressing the ► or ENTER/OK button.
T V
Mode :
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone :
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
T V
Auto Wide
16:9
Wide Zoom
Zoom
4:3
Just Scan
Move
Dynamic
Cool1
Enter
Size
Return
Zoom: Magnify the size of the picture vertically on screen.
4:3: Sets the picture to 4:3 normal mode.
Just Scan: Displays the input scenes as they are without
Move
Enter
Return
any cutoff when HDMI 720p, 1080i signals are input.
With the HDMI Just Scan picture size, depending on
➢
the AV devices, the screen may be cut off or a specific
colour appears on the screen.
5 Press the EXIT button to exit.
You can change the picture size simply by pressing the
➢
P.SIZE button on the remote control.
Depending on the input source, the picture size options may vary.
➢
The items available may differ depending on the selected mode.
➢

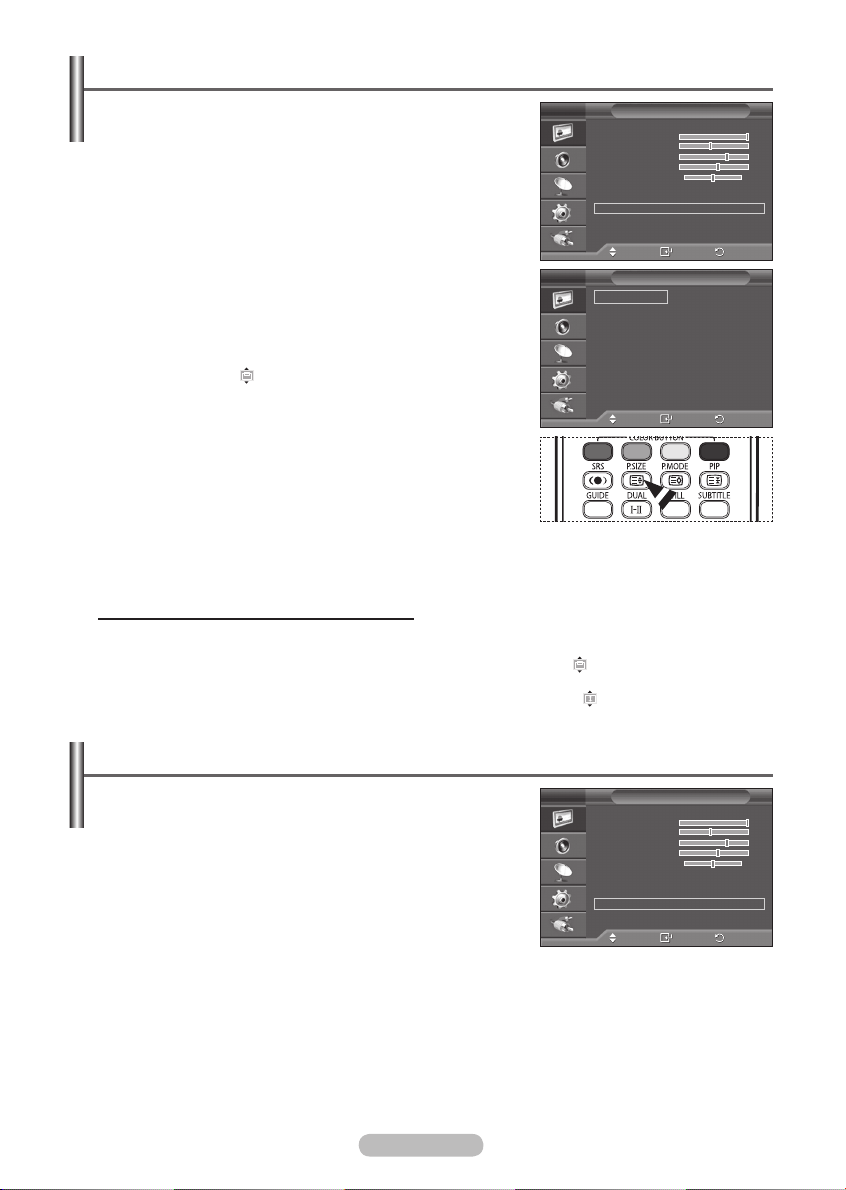

Positioning and Sizing the screen using Zoom
Resizing the screen using the Zoom enables the positioning and sizing of the screen to up/down
direction using the ▲ or ▼ button as well as the screen size.
Move the screen up/down using the ▲ or ▼ button after selecting the by pressing the ◄ or ►
button.
Resize the screen vertically using the ▲ or ▼ button after selecting the by pressing the ◄ or ►
button.
Selecting the Screen Mode
When setting the picture size to Auto Wide in a 16:9 wide TV,
you can determine the picture size you want to see the 4:3
WSS (Wide Screen Service) image or nothing. Each individual
European country requires different picture size so this
function is intended for users to select it.
1 Press the MENU button to display the menu.
2 Press the ENTER/OK button to select Picture.
3 Press the ▲ or ▼ button to select Screen Mode, then press
the ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
16:9, Wide Zoom, Zoom, 4:3
16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnify the size of the picture vertically on screen.
4:3: Sets the picture to 4:3 normal mode.
5 When you are satisfied with your setting, press the ENTER/OK button.
6 Press the EXIT button to exit.
T V
Move
Enter
Return
Mode : Dynamic
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone : Cool1
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Page 21
English - 21

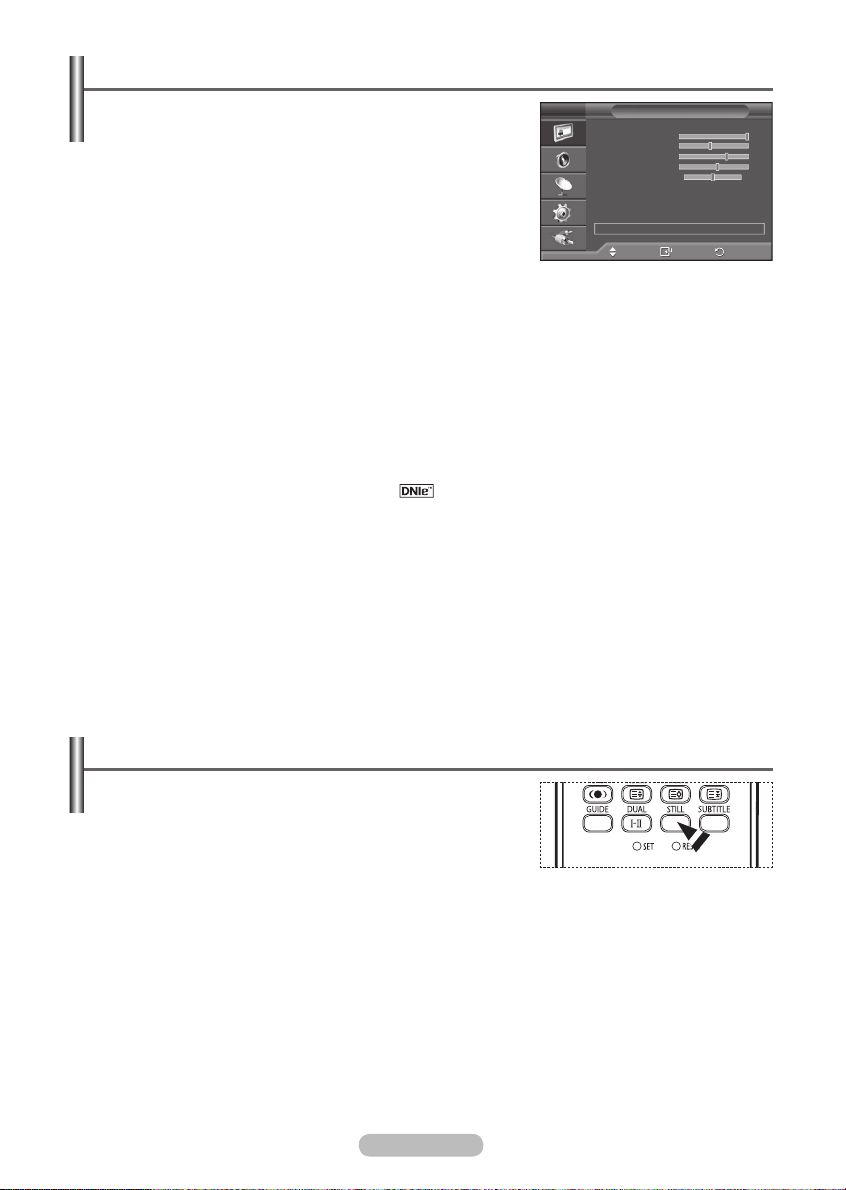

Digital NR / Active Colour / DNIe
1 Press the MENU button to display the menu.
T V
2 Press the ENTER/OK button to select Picture.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Digital NR, Active Colour, DNIe
4 When you are satisfied with your setting, press the ENTER/OK
button.
5 Press the EXIT button to exit.
Digital NR: Off/Low/Medium/High/Auto
Mode :
Contrast 100
Brightness 45
Sharpness 75
Colour 55
Tint G50 R50
Colour Tone :
Detailed Settings
Size : Auto Wide
Screen Mode : 16:9
Digital NR : Auto
More
Move
Dynamic
Cool1
Enter
Return
If the signal received by the television is weak, you can activate this feature to reduce any static and
ghosting that may appear on the screen.
Active Colour: Off/On
If you turn on this option, the colours of the sky and grass will be stronger and clearer for a more vivid
on-screen picture.
This function is not available in PC mode.
➢
This function is not available in Movie and Standard mode.
➢
DNIe: Off/Demo/On
This TV includes the DNIe function so as to provide a high visual quality. If you set DNIe to on, you
can view the screen with the DNIe feature activated. If you set the DNIe to Demo, you can view the
applied DNIe and normal pictures on the screen, for demonstration purposes. Using this function, you
can view the difference in the visual quality.
DNIeTM (Digital Natural Image engine)
➢
This feature brings you more detailed image with 3D noise reduction, detail enhancement,
contrast enhancement and white enhancement. New image compensation Algorithm gives
brighter, clearer, more detailed image to you. DNIeTM technology will fit every signal into your
eyes.
This function is not available in PC mode.
➢
This function is not available in Movie mode.
➢
Freezing the Current Picture
You can freeze the picture when watching a television
programme simply by pressing the “STILL” button. To return to
normal viewing, press it again.
This function will automatically cancel five minutes later.
➢
Page 22
English - 22

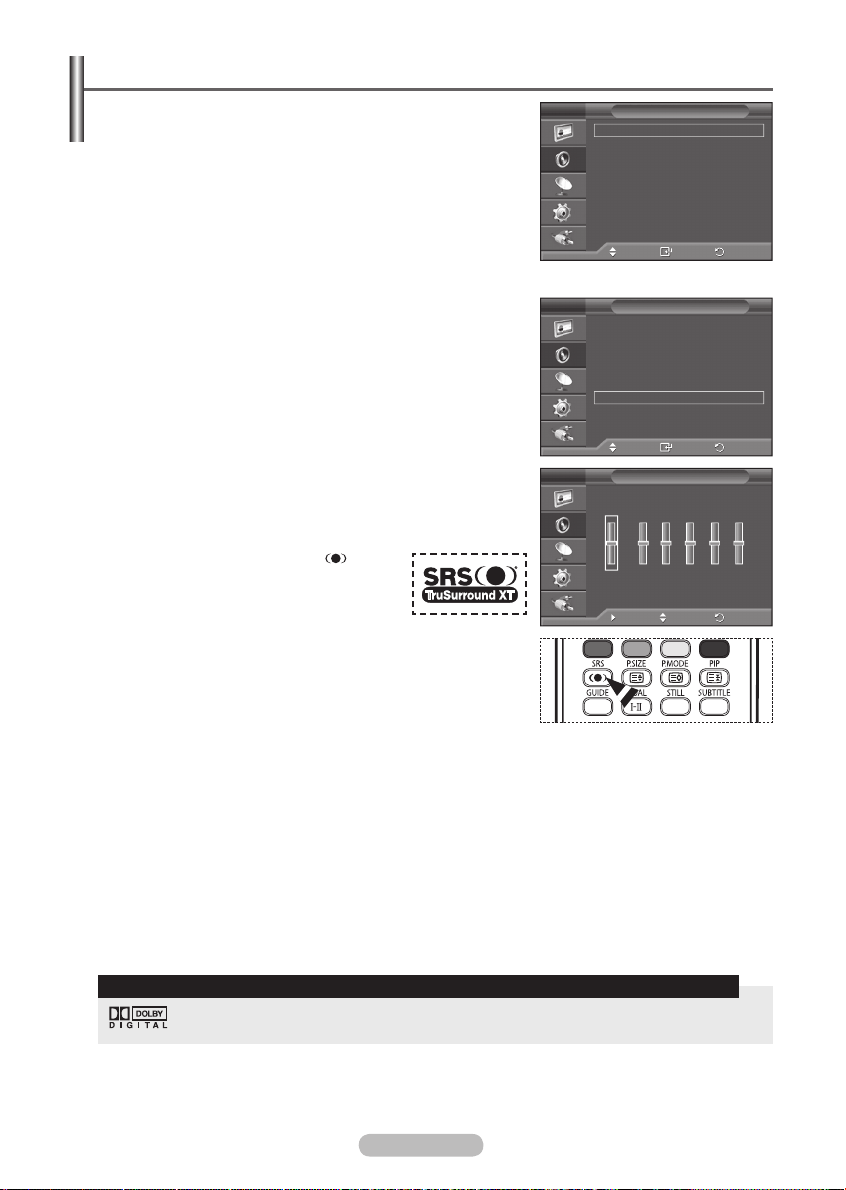

Sound Features
1 Press the MENU button to display the menu.
T V
2 Press the ▲ or ▼ button to select Sound, then press the
ENTER/OK button.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Mode, Equalizer, SRS TS XT, Auto Volume,
Mode :
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
Sound
Custom
Internal Mute, Sound Select, Reset
4 When you are satisfied with your setting, press the ENTER/OK
button.
5 Press the EXIT button to exit.
Mode: Standard/Music/Movie/Speech/Custom
You can select the type of special sound effect to be used when
watching a given broadcast.
Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz
The television has several settings which allow you to control
the sound quality.
If you make any changes to these settings, the sound mode
➢
is automatically switched to Custom.
SRS TS XT: Off/On
TruSurround XT is a patented SRS technology that solves
the problem of playing 5.1 multichannel content over two
speakers. TruSurround delivers a compelling, virtual surround
sound experience through any two-speaker playback system,
including internal television speakers. It is fully compatible with
all multichannel formats.
TruSurround XT, SRS and
➢
Symbol are trademarks of SRS Labs,
Inc. TruSurround XT technology is
incorporated under license from SRS
Labs, Inc.
You can select these options simply by pressing the SRS
➢
button on the remote control.
Move
< If Game Mode is On >
T V
Mode : Custom
Equalizer
SRS TS XT : Off
Auto Volume : Off
Internal Mute : Off
Sound Select : Main
Reset
T V
R
L
Balance 100Hz 300Hz 1kHz 3kHz 10kHz
Move
Move
+
0
-
Sound
Equalizer
Adjust
Enter
Enter
Return
Return
+
0
-
Return
Auto Volume: Off/On
Each broadcasting station has its own signal conditions, and
so it is not easy to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume
of the desired channel by lowering the sound output when the modulation signal is high or by raising
the sound output when the modulation signal is low.
Internal Mute: Off/On
If you want to hear the sound through separate speakers, cancel the internal amplifier.
The +, - and MUTE buttons do not operate when the Internal Mute is set to On.
➢
Sound Select: Main/Sub
When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.
− Main: Used to listen to the sound of the main picture.
− Sub: Used to listen to the sound of the sub picture.
Reset
If Game Mode is On, the Reset Sound function is activated. Selecting the Reset function after setting
the equalizer resets the equalizer setting to the factory defaults.
TRADEMARK & LABEL LICENSE NOTICE
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Page 23
English - 23

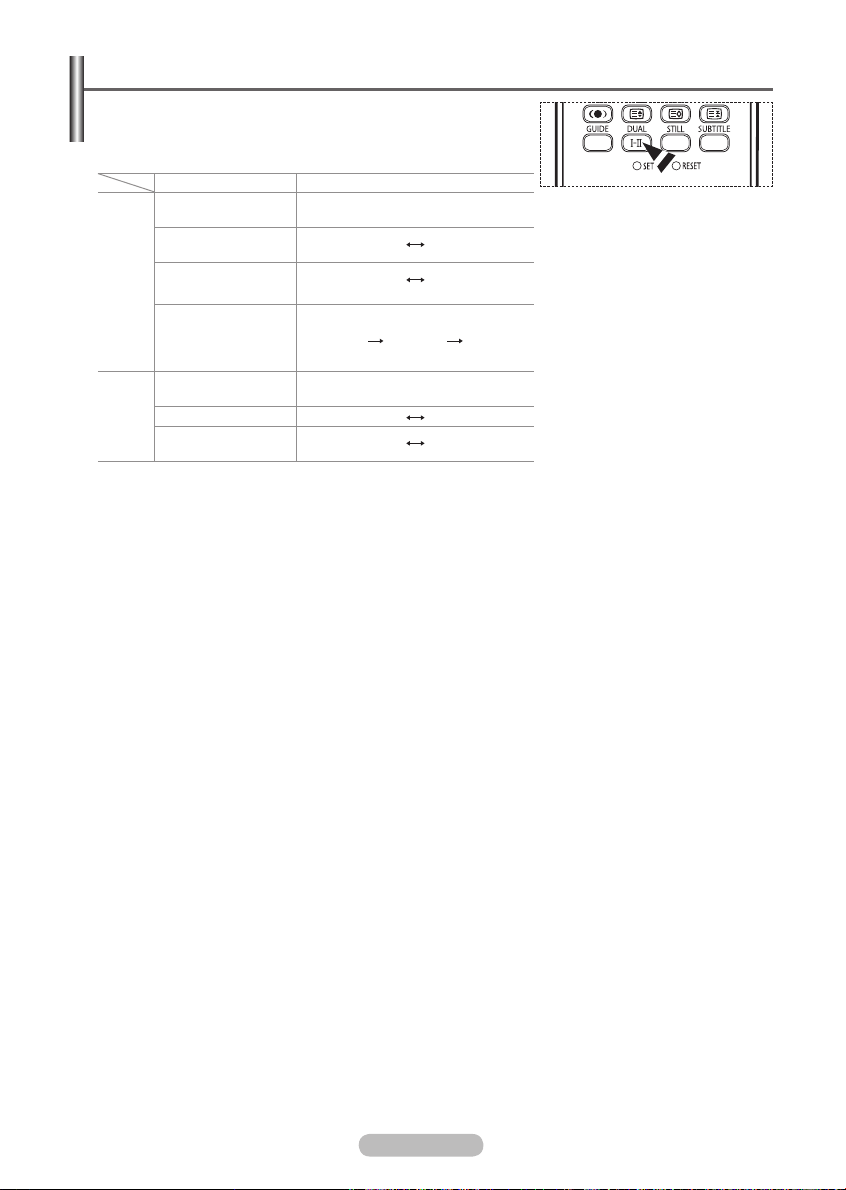

Selecting the Sound Mode (depending on the model)
The DUAL I-II button displays/controls the processing and
output of the audio signal. When power is switched on, the
mode is automatically preset to either “DUAL-I” or “Stereo”,
depending on the current transmission.
Type of broadcast On-screen indication
Regular broadcast
(Standard audio)
Regular + NICAM Mono NICAM
NICAM
Stereo
NICAM Stereo
Mono (Normal use)
NICAM
stereo
Mono
(Normal)
Mono
(Normal)
NICAM DUAL-I/II
Regular broadcast
A2
Stereo
➢
(Standard audio)
Bilingual or DUAL-I/II Dual I
Stereo Stereo
If the receiving conditions deteriorate, listening will be easier if the mode is set to Mono.
If the stereo signal is weak and automatic switching occurs, switch to Mono.
NICAM
dual-1
NICAM
dual-2
Mono (Normal use)
Mono
(Normal)
Dual II
Mono
(Forced mono)
Page 24
English - 24

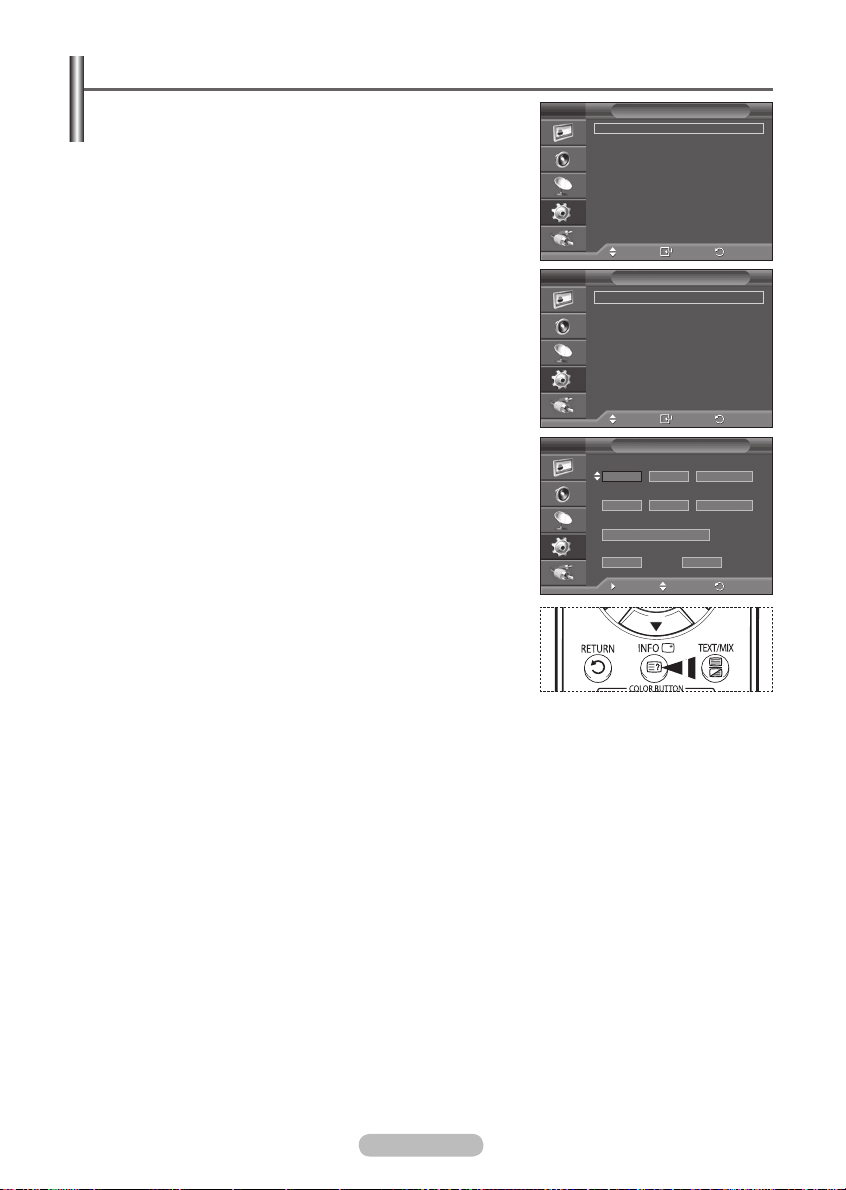

Time Features
1 Press the MENU button to display the menu.
T V
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Time, then press the
ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Clock Set, Sleep Timer, Timer 1, Timer 2,
Timer 3
5 When you are satisfied with your setting, press the ENTER/OK
T V
button.
6 Press the EXIT button to exit.
Clock Set
You can set the television clock so that the current time is
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
Wall-Mount Adjustment
Energy Saving : Off
More
Clock Set : 00 : 00
Sleep Timer : Off
Timer 1 : Off
Timer 2 : Off
Timer 3 : Off
Move
Setup
:
Enter
Time
In Standby
Return
displayed when pressing the INFO button on the remote control.
You must also set the time if you wish to use the automatic on
or off timers.
− Press the ◄ or ► button to select Month, Day, Year, Hour,
or Minute. Set these by pressing the ▲ or ▼ button.
You can set the Month, Day, Year, Hour, or Minute
➢
directly by pressing the numeric buttons on the remote
control.
In the event of a power interruption or the set being turned
➢
off at the supply, the settings for the Clock will be lost.
Sleep Timer
You can select a time period of between 30 and 180 minutes
after which the television automatically switches to standby
mode.
T V
Move
On Time
Off Time
Repeat
Volume Programme
Enter
Timer 1
:
00
00
00
00
Once
10
Move Adjust
1
Return
No
No
Return
− Select the preset time interval (Off, 30, 60, 90, 120, 150, or
180) for staying on by pressing the ▲ or ▼ button.
Timer 1 / Timer 2 / Timer 3
You can set the On/Off timers so that the television will switch
on or off automatically at the time you select.
You must set the clock first.
☛
− Press the ◄ or ► button to select the required item below.
Press the ▲ or ▼ button to adjust to the setting satisfied.
On Time : Select hour, minute, and No/Yes. (To activate timer with the setting satisfied, set to
Yes.)
Off Time : Select hour, minute, and No/Yes. (To activate timer with the setting satisfied, set to
Yes.)
Repeat : Select Once, Everyday, Mon~Fri, Mon~Sat, or Sat~Sun.
Volume : Select the required volume level.
Programme : Select the required channel.
You can set the hour, minute, directly by pressing the number buttons on the remote control.
➢
Auto Power Off
☛
When you set the timer “On”, the TV will eventually turn off, if no controls are operated for 3 hours
after the TV was turned on by timer. This function is only available in timer “On” mode and prevents
overheating, which may occur if a TV is on for too long time.
Page 25
English - 25
Language / Blue Screen / Melody / Light Effect /
Energy Saving / HDMI Black Level
1 Press the MENU button to display the menu.
T V
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Language, Blue Screen, Melody,
Light Effect, Energy Saving, HDMI Black Level
4 When you are satisfied with your setting, press the ENTER/OK
button.
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
Wall-Mount Adjustment
Energy Saving : Off
More
Move
Setup
:
Enter
In Standby
Return
5 Press the EXIT button to exit.
Language
It is variable depending on the model. When you start using the television for the first time, you must
select the language which will be used for displaying menus and indications.
Blue Screen: On/Off
If no signal is being received or the signal is very weak, a blue screen automatically replaces the
noisy picture background. If you wish to continue viewing the poor picture, you must set the Blue
Screen to Off.
Melody: Off/Low/Medium/High
The TV power on/off melody sound can be adjusted.
Light Effect: Off/In Standby/In Watching TV/Always
You can turn on/off the blue LED on the front of TV according to the situation. Use it for saving power
or when the LED dazzles your eyes.
− Off: The blue LED is always off.
− In Standby: The blue LED lights while in Standby mode and it turns off when your TV is turned on.
− In Watching TV: The blue LED lights when watching TV and it turns off when your TV is turned off.
− Always: The blue LED always lights.
Set the Light Effect to Off to reduce the power consumption.
➢
Energy Saving: Off/Low/Medium/High
This feature adjusts the screen brightness depending on the surrounding lighting conditions.
− Off: Switches off the Energy Saving mode.
− Low: Operates in standard mode regardless of the surrounding illumination.
− Medium: Enters Medium power saving mode regardless of the surrounding illumination.
− High: Enters maximum power saving mode regardless of the surrounding illumination.
HDMI Black Level: Normal/Low
Using this function, you can adjust the image quality when the screen burn (appearance of black
level, low contrast, low color, etc.) is encountered by the HDMI input for RGB limited range (16 to
235).
This function is active only when the externel input connects to HDMI(RGB signals).
➢
Page 26
English - 26
Using the Game Mode
When connecting to a game console such as PlayStationTM or
XboxTM, you can enjoy a more realistic gaming experience by
selecting game menu.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Game Mode, then press the
ENTER/OK button.
4 Select Off or On by pressing the ▲ or ▼ button, then press the
ENTER/OK button.
T V
Plug & Play
Language : English
Time
Game Mode : On
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
:
Wall-Mount Adjustment
Energy Saving : Off
More
Move
Setup
In Standby
Enter
5 Press the EXIT button to exit.
To disconnect the game console and connect another external device, cancel game mode in the
➢
setup menu.
If you display the TV menu in Game mode, the screen shakes slightly.
➢
Game Mode is not available in TV mode.
➢
If Game Mode is On :
➢
Picture Mode is automatically changed to Standard and users cannot change the mode.
Sound Mode in the Sound menu is deactivated. Adjust the sound using the equalizer.
The Reset Sound function is activated. Selecting the Reset function after setting the
equalizer resets the equalizer setting to the factory defaults.
Return
Page 27
English - 27

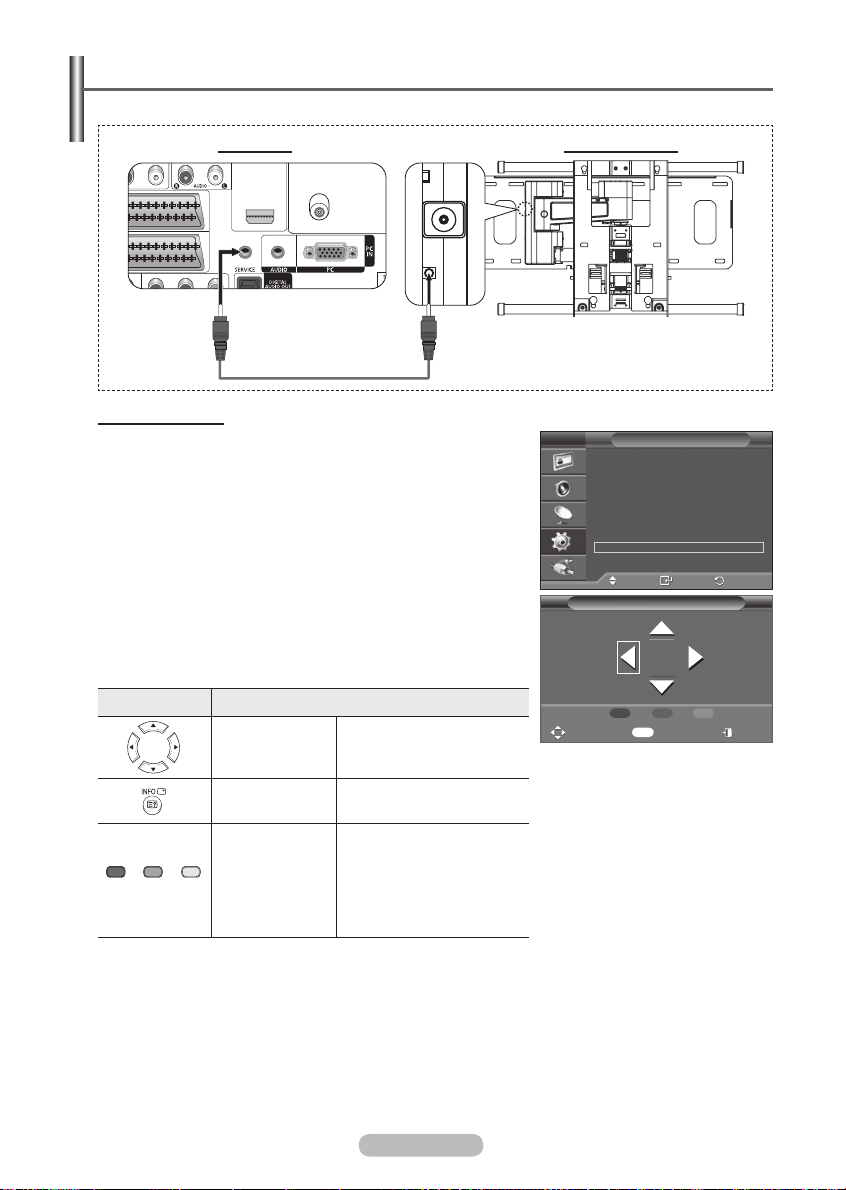

Wall- mount adjustment (Sold separately)
Once the wall mount is installed, the position of your TV can be easily adjustable.
Rear Panel Auto Wall-Mount
Serial Cable(1P to 1P)(Not supplied)
Entering the menu
1 Press the MENU button to display the menu.
Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
2 Press the ▲ or ▼ button to select Wall-Mount Adjustment,
then press the ENTER/OK button.
3 Adjust to the desired position using the ▲/▼/◄/► buttons.
Press the EXIT button to exit.
If you press an arrow button when no OSD is displayed on the
➢
TV screen, the Adjustment screen appears.
When you turn the power off, your TV moves to the initial
➢
installation position.When you turn the power on, your TV
T V
Plug & Play
Language : English
Time
Game Mode : Off
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
Wall-Mount Adjustment
Energy Saving : Off
More
Wall-Mount Adjustment
Position1
moves to the last remembered position you adjusted.
Using the remote Control Buttons
Button Operations
Wall-mount
angle
adjustment
Reset
Remembering
the position and
(Red) (Green) (Yellow)
moving to the
remembered
position
For installation, refer to the Installation Manual provided.
➢
For product installation and the installation and moving of the wall mount, make sure to consult a
➢
specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to
➢
other building materials, please contact your nearest dealer.
Tilt Up, Tilt Down, Move
right, Move left
Moves to the initial
installation position
Remembers 3 positions
with the Red, Green and
Yellow buttons.
Moves to the remembered
position using these 3 color
buttons.
Position
Adjust Center
Setup
:
Move
Enter
1 2 3
INFO
In Standby
Return
Exit
Page 28
English - 28

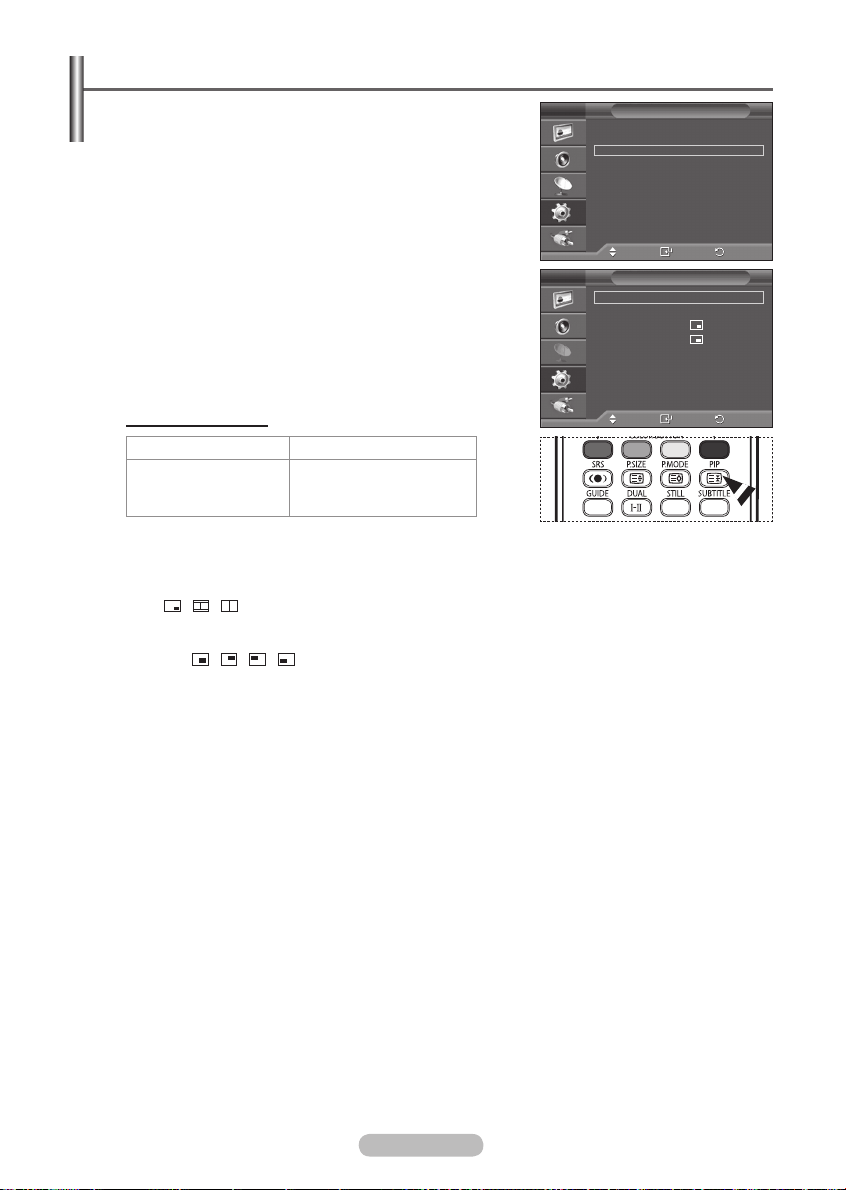

Viewing the Picture in Picture (PIP)
You can display a sub picture within the main picture. In this
way you can watch TV program or monitor the video input from
T V
any connected devices.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select PIP, then press the
ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
PIP(On/Off), Source, Size, Position,
T V
Programme
5 When you are satisfied with your setting, press the ENTER/OK
button.
6 Press the EXIT button to exit.
PIP: On/Off
Table of PIP Settings
Main picture Sub picture
Component
HDMI
PC
Analog TV broadcasts
Ext.1, Ext.2
You can activate or deactivate the PIP function.
You can select these options simply by pressing the PIP button on the remote control.
➢
Source: TV/Ext.1/Ext.2
You can select a source of the sub-picture.
Size:
/
/
You can select a size of the sub-picture.
If main picture is in PC and Component mode, Size is not available.
➢
Position:
/
/
/
You can select a position of the sub-picture.
Programme
You can select a channel of the sub-picture only when the Source is set to TV.
Move
Move
Setup
Enter
PIP
P 1
Enter
Return
Return
More
HDMI Black Level : Low
PIP
Screen Burn Protection
PIP : On
Source : TV
Size :
Position :
Programme :
Page 29
English - 29

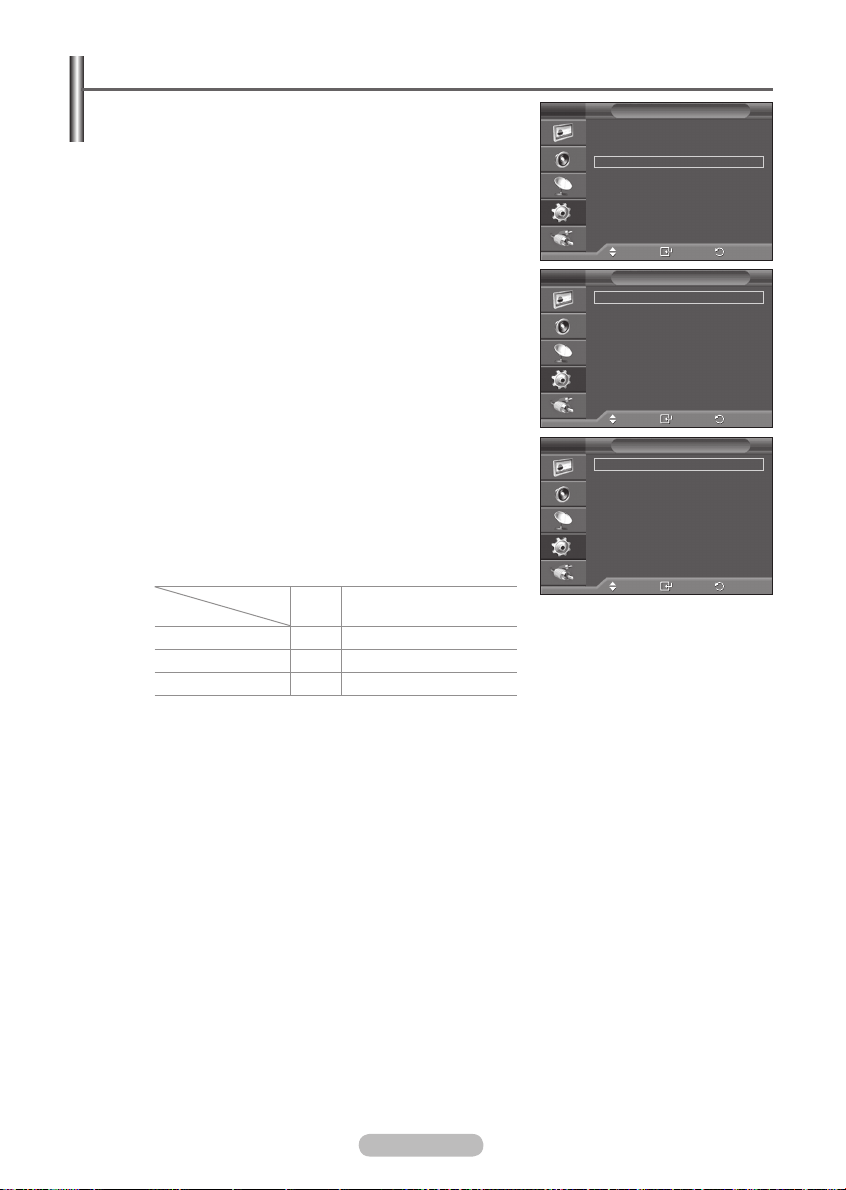

Screen Burn Protection
To reduce the possibility of screen burn, this unit is equipped
with screen burn prevention technology. This technology
enables you to set picture movement up/down (Vertical Line)
and side to side (Horizontal Dot). The Time setting allows
you to program the time between movement of the picture in
T V
More
HDMI Black Level : Low
PIP
Screen Burn Protection
Setup
minutes.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Screen Burn Protection,
then press the ENTER/OK button.
T V
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Pixel Shift, All White, Signal Pattern, Side
Move
Enter
Screen Burn Protection
Pixel Shift
All White
Signal Pattern
Side Gray :
Return
Dark
Gray
5 When you are satisfied with your setting, press the ENTER/OK
button.
6 Press the EXIT button to exit.
Pixel Shift: Using this function, you can minutely move pixels
on the PDP in horizontal or vertical direction to minimize after
image on the screen.
− Set Pixel Shift to On by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
T V
Move
Enter
Pixel Shift
Pixel Shift : On
Horizontal Dot :
Vertical Line :
Time :
Return
2
2
2
− Select the required option by pressing the ▲ or ▼ button,
then press the ENTER/OK button.
Available options: Horizontal Dot, Vertical Line, Time
Optimum condition for pixel shift;
➢
PC
TV/Ext/Component/
HDMI/DTV
Move
Enter
Return
Horizontal Dot 1 2
Vertical Line
1 2
Time (minute) 2 min 2 min
The Pixel Shift value may differ depending on the monitor size (inches) and mode.
➢
All White: This function helps remove after images on the screen by changing the colour of pixels to
white. Use this function when there are remaining after images or symbols on the screen especially
when you displayed a still image on the screen for a long time.
Signal Pattern: This function helps remove after images on the screen by moving all the pixels on
the PDP according to a pattern. Use this function when there are remaining after images or symbols
on the screen especially when you displayed a still image on the screen for a long time.
Side Gray: When you watch TV with the screen ratio of 4:3, the screen is prevented from any
damage by adjusting the white balance on both extreme left and right sides.
Dark: When you set the screen ratio to 4:3, it darkens the left and right sides.
Light: When you set the screen ratio to 4:3, it brightens the left and right sides.
To remove after images on the screen, use either All White or Signal Pattern function. Although
➢
both of the two functions remove after images on the screen, Signal Pattern is more effective.
The after image removal function has to be executed for a long time (approximately 1 hour) to
➢
effectively remove after images on the screen. If after image is not improved after the execution of the
function, repeat the function again.
Press any button on the remote control to cancel this feature.
➢
Page 30
English - 30

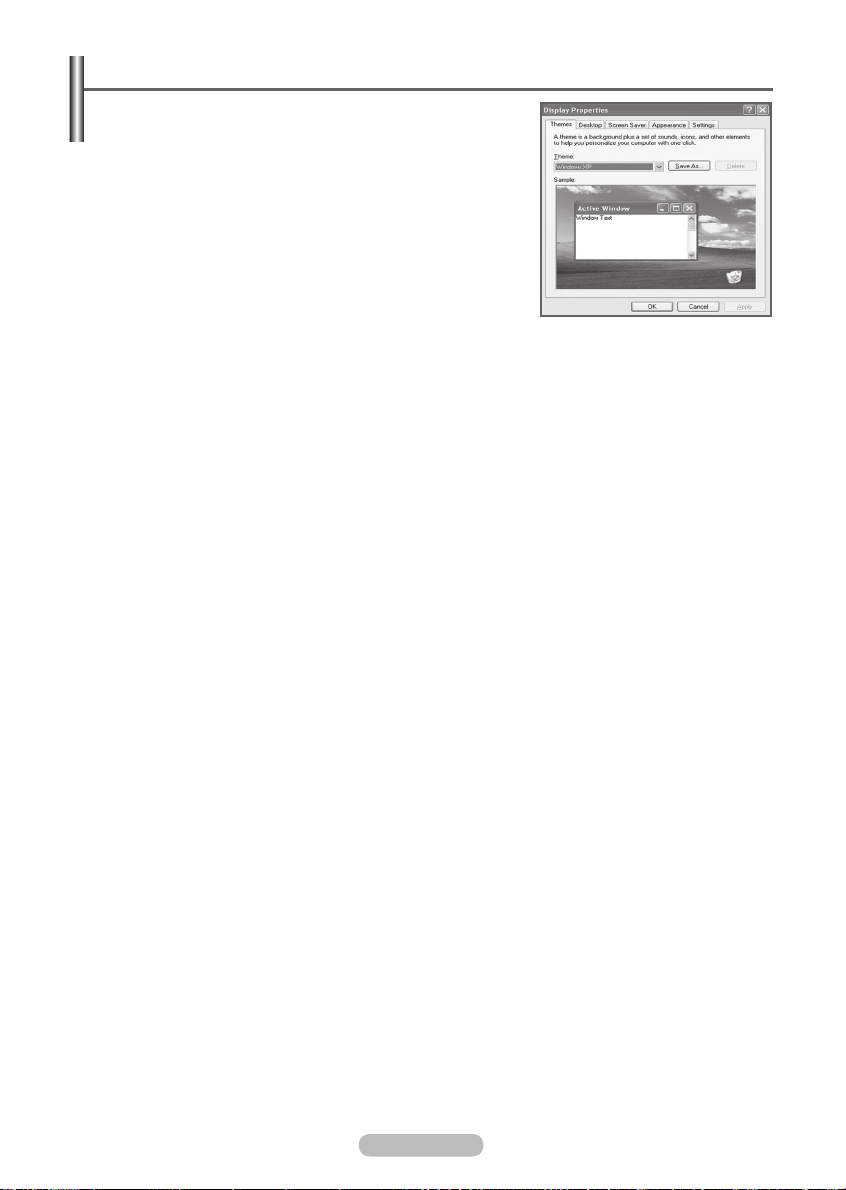

Setting up Your PC Software (Based on Windows XP)
The Windows display-settings for a typical computer
are shown below. But the actual screens on your PC will
probably be different, depending upon your particular
version of Windows and your particular video card. But even
if your actual screens look different, the same, basic set-up
information will apply in almost all cases. (If not, contact your
computer manufacturer or Samsung Dealer.)
1 Right click the mouse on the Windows Desktop, then click on
Properties.
The Display Properties will be displayed.
2 Click on Settings tab, then set the Display Mode with
reference to the Display Modes Table. You do not need to
change the Colours settings.
3 Click on Advanced. A new settings dialog box will be
displayed.
4 Click on the Monitor tab, then set the Screen refresh rate with reference to the Display Modes
Table. Set the Vertical Frequency and Horizontal Frequency individually if you can do so instead of
setting the Screen refresh rate.
5 Click on OK to close the window, then Click on OK button to the Display Properties window.
Automatic re-booting may commence at this moment.
Page 31
English - 31
Input Mode (PC)
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Video
Signal
IBM PC / AT
Compatible
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
480i/p, 576i/p, 720p, or 1080i is not available in PC mode.
For the PS-42C67HD/PS-42C77HD/PS-42E97HD, PC text quality is optimum in XGA mode(1024 x
768@60Hz).
For the PS-50C67HD/PS-50C77HD/PS-50E97HD, PC text quality is optimum in WXGA mode (1360
x 768@60Hz).
(The three pixels each on the left and right are grayed at the resolution setting of 1360 x 768@60Hz.
This is not a mechanical problem but a result caused by the pixel difference between the standard
resolution and the PDP panel.)
Resolution
(Dot X Line)
640 x 350 70.086 31.469 N P
720 x 400 70.087 31.469 P N
640 x 480
800 x 600
1024 x 768
1360 x 768 60.015 47.712 P P
Vertical
frequency
(Hz)
59.940 31.469 N N
70.000 35.000 N/P N/P
72.809 37.861 N N
75.000 37.500 N N
60.317 37.879 P P
70.000 43.750 N/P N/P
72.188 48.077 P P
75.000 46.875 P P
60.004 48.363 N N
70.069 56.476 N N
72.000 57.672 N/P N/P
75.029 60.023 P P
Horizontal
frequency
(kHz)
Vertical
polarity
Horizontal
polarity
PS-42C67HD
PS-42C77HD
PS-42E97HD
(N: Negative / P: Positive)
PS-50C67HD
PS-50C77HD
PS-50E97HD
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔ ✔
✔
Page 32
English - 32

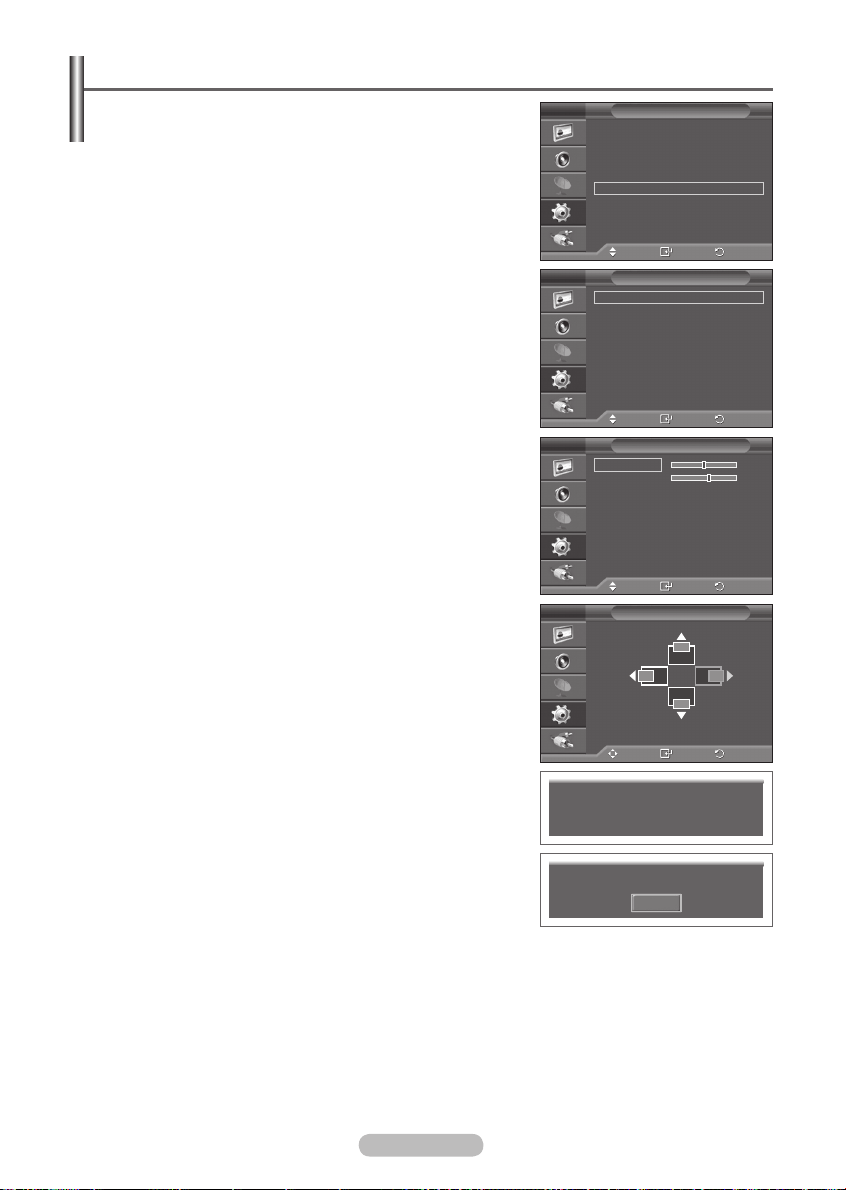

Setting the PC
Preset to the PC mode by pressing the SOURCE button.
➢
1 Press the MENU button to display the menu.
T V
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select PC, then press the
ENTER/OK button.
4 Select the required option by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Available options:
Image Reset
Image Lock, Position, Auto Adjustment,
T V
5 When you are satisfied with your setting, press the ENTER/OK
button.
6 Press the EXIT button to exit.
Image Lock: Coarse/Fine
The purpose of picture quality adjustment is to remove or
reduce picture noise.
If the noise is not removed by Fine-tuning alone, then adjust the
frequency as best as possible (coarse) and Fine-tune again.
After the noise has been reduced, re-adjust the picture so that it
is aligned on the center of screen.
T V
1 Press the ▲ or ▼ button to select Coarse or Fine, then
press the ENTER/OK button.
2 Press the ◄ or ► button to adjust the screen quality,
vertical stripes may appear or the picture may be blurry.
Press the ENTER/OK button.
Position
Adjust the PC’s screen positioning if it does not fit the TV
screen.
1 Adjust the position by pressing the ▲/▼/◄/► button.
2 Press the ENTER/OK button.
T V
Auto Adjustment
Auto adjustment allows the PC screen of set to self-adjust to the
incoming PC video signal.
The values of fine, coarse and position are adjusted
automatically.
Image Reset
You can replace all image settings with the factory default
values.
:
Move
Move
Move
Move
Please wait.
Setup
In Standby
Enter
PC
Enter
Image Lock
Enter
Position
Enter
Return
Return
Return
Return
Plug & Play
Language : English
Time
Game Mode : On
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
Wall-Mount Adjustment
Energy Saving : Off
More
Image Lock
Position
Auto Adjustment
Image Reset
Coarse 50
Fine 63
Auto Adjustment in Progress
Image Reset is completed.
OK
Page 33
English - 33
Setting the Home Theatre PC
You can view higher quality pictures by configuring the screen
settings in PC Mode.
If you set the Home Theatre PC function to On, you can
configure the Detailed Settings (when Picture Mode is set to
Standard or Movie) as in PC Mode.
1 Press the MENU button to display the menu.
2 Press the ▲ or ▼ button to select Setup, then press the
ENTER/OK button.
3 Press the ▲ or ▼ button to select Home Theatre PC, then
T V
Plug & Play
Language : English
Time
Game Mode : On
Blue Screen : Off
Melody : Medium
PC
Home Theatre PC : Off
Light Effect
:
Wall-Mount Adjustment
Energy Saving : Off
More
Move
press the ENTER/OK button.
4 Select Off or On by pressing the ▲ or ▼ button, then press the ENTER/OK button.
5 Press the EXIT button to exit.
This function is available only in PC mode.
➢
Setup
In Standby
Enter
Return
Page 34
English - 34

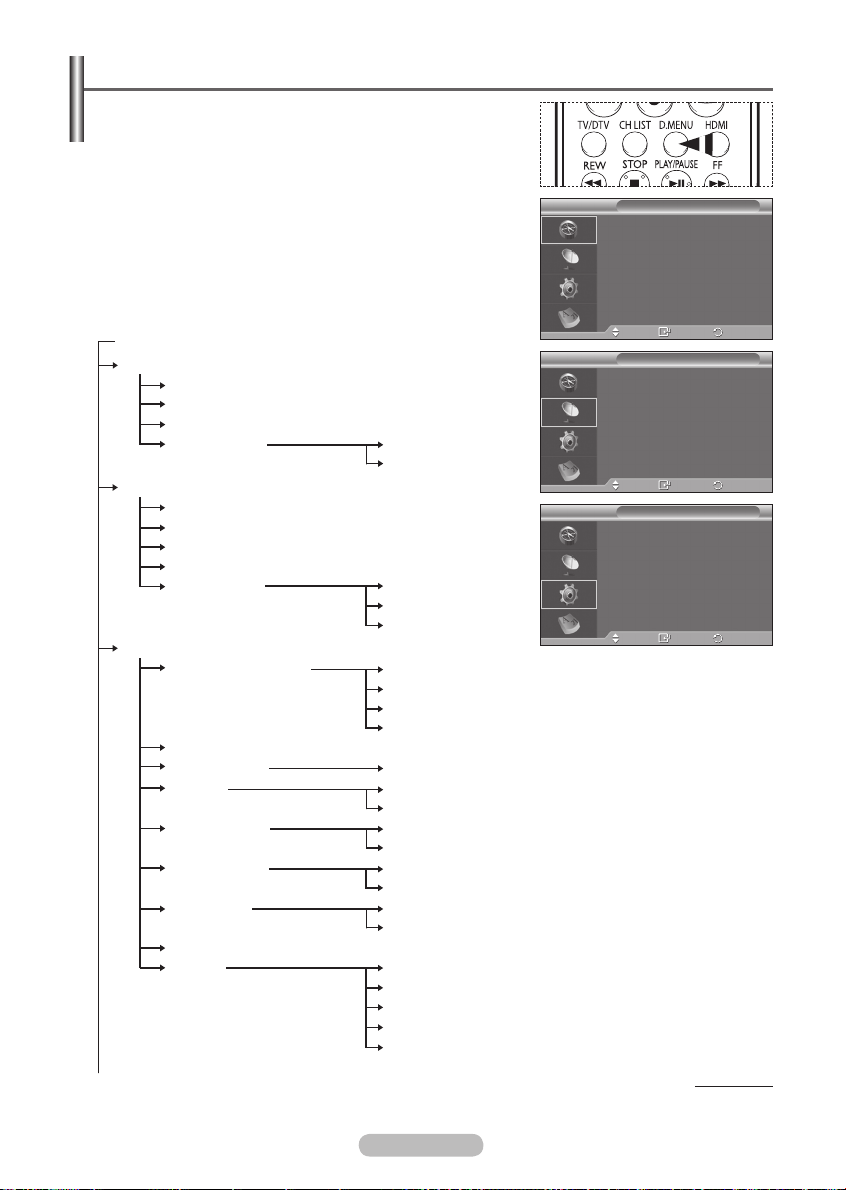

Previewing the DTV Menu System
The company does not guarantee the normal operation
➢
of the DTV menu for countries other than the 6 supported
countries (England, Germany, France, Italy, Spain, Austria)
because only these country standards are supported. In
addition, when the country of the broadcast stream differs
from the country selected by the current user, the string
appearing in the channel banner, Info, Guide, Channel List,
etc. may not be displayed properly.
Available in DTV mode. Preset to the DTV mode by using
the TV/DTV button on your remote control.
To help you navigate around the on-screen menu system
and adjust the various settings available, refer to the
following illustration.
Press the D.MENU button to display the menu.
Guide
Now & Next Guide
Full Guide
Scheduled List
Default Guide Now/Next
Full Guide
Channel
Country
Auto Store
Manual Store
Edit Favourite Channels
Channel List All
Favourites
Default
Setup
Menu Transparency High
Medium
Low
Opaque
Change PIN
Parental Lock Parental Rating
Subtitle Off
On
Subtitle Mode Normal
Hard of hearing
Audio Format PCM
Dolby Digital
Digital Text Disable
Enable
Time Zone
System Product Information
Signal Information
Software Upgrade
Common Interface
Reset
Guide
Now & Next Guide
Full Guide
Scheduled List
Default Guide :
Move
Country : Other
Auto Store
Manual Store
Edit Favourite Channels
Channel List
Move
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Full Guide
Enter
Channel
Enter
Setup
On
Normal
Enter
Exit
Exit
Exit
Continued...
Page 35
English - 35

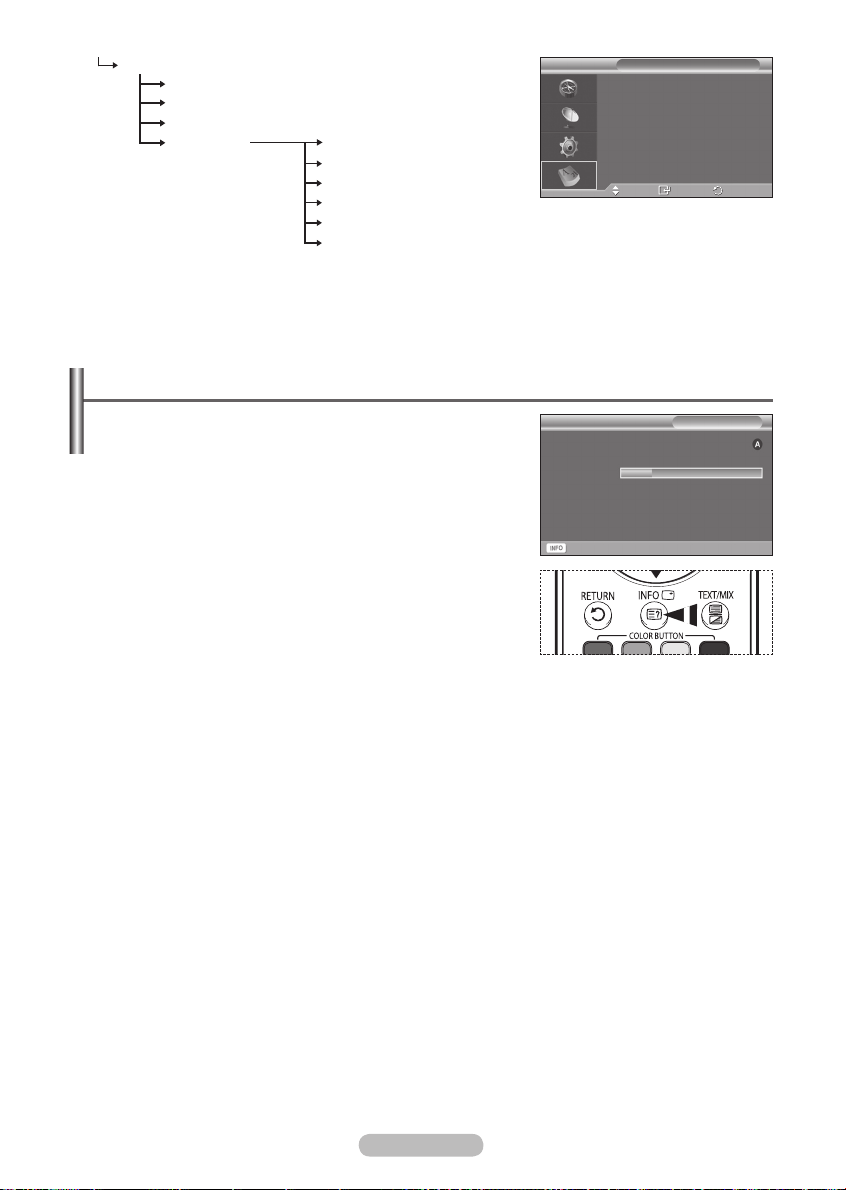

Language
Audio Language
Subtitle Language
Teletext Language
Preference Primary Audio Language
Language
Audio Language
Subtitle Language
Teletext Language
Preference
Secondary Audio Language
Primary Subtitle Language
Secondary Subtitle Language
Move
Enter
Primary Teletext Language
Secondary Teletext Language
The sub-items of the CI Menu may vary depending on the CAM model. (refer to page 45)
➢
Displaying Programme Information
Exit
While viewing a channel, additional information about the
current programme may be displayed.
While viewing a programme, press the INFO button.
The programme information is displayed.
The information is displayed:
➢
− Parental Rating
− Video Type: SD, HD, Radio
− Audio Type: Mono, Stereo, Dual, Dolby Digital
− Existence of Teletext or DVB Subtitle
− Audio Language
To exit from banner information, press the INFO button.
➢
1 AFDO, 16:9
AFDO, 16:9
No Block
SD
Stereo
Subtitle
English
Exit
21:49 Sat 1 May
All Channels
14:20 - 14:33
Contains video with AFD O; coded frame
is 16:9
Page 36
English - 36

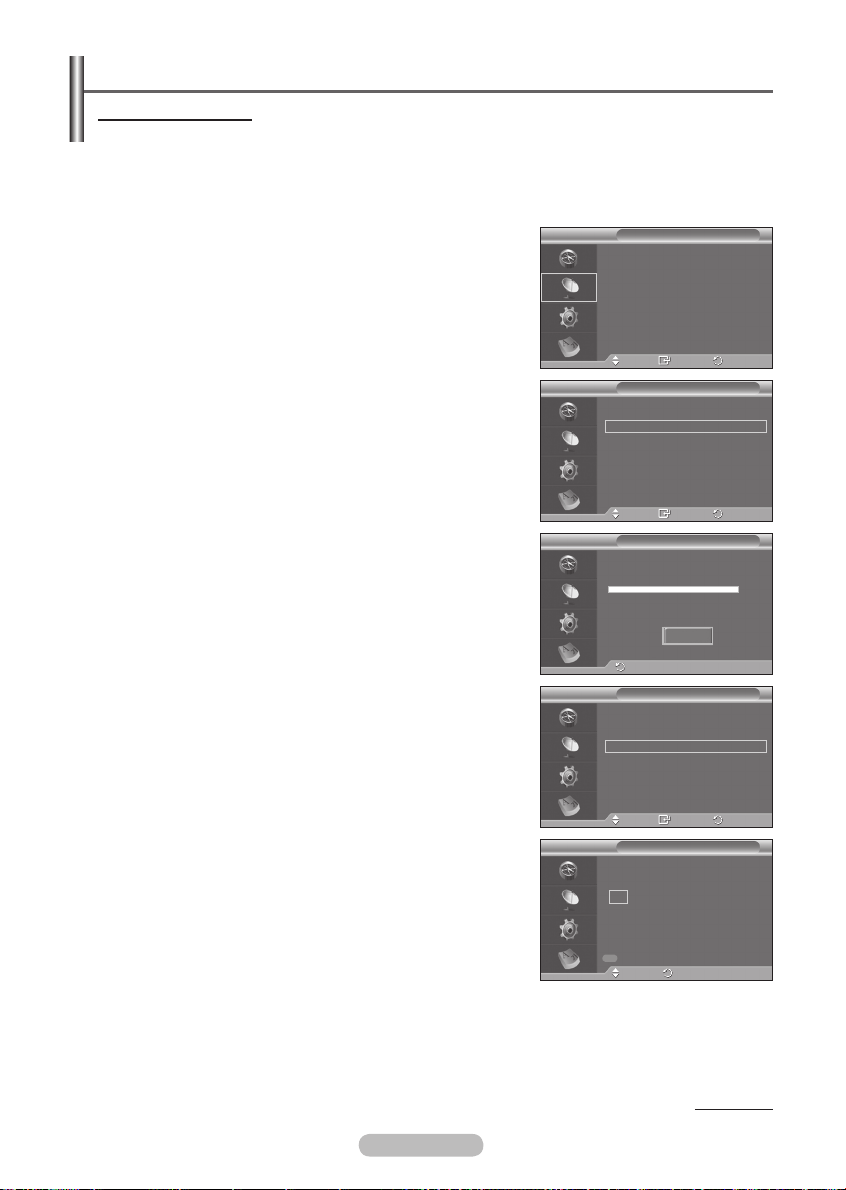

Operating the DTV Menu
Viewing the DTV Menu
After installing your antenna system and TV with appropriate connectors.
Plug in the AC main power and switch on the TV.
Press the D.MENU button to bring up the DTV menu.
The main menu appears on the screen. Its left side has four icons: Guide, Channel, Setup, and
Language.
1. Channel
This menu consists of 5 sub-menus:
Country, Auto Store, Manual Store, Edit Favourite
Channels, and Channel List.
Press the ▲ or ▼ button to select Channel, then press the
ENTER/OK button. The Channel menu is displayed.
1.1 Country
Press the ENTER/OK button. The Country menu is
displayed.
Select your country by pressing the ▲ or ▼ button, then
press the ENTER/OK button.
Even though you have changed the country setting
➢
in this menu, the country setting for Analog TV is not
changed.(Refer to page 13)
Channel
Country : Other
Auto Store
Manual Store
Edit Favourite Channels
Channel List
Move
Channel
Country : Other
Auto Store
Manual Store
Edit Favourite Channels
Channel List
Move
Auto Store
Enter
Enter
Exit
Return
1.2 Auto Store
You can update the channel list when the broadcaster adds new
services or if you move the TV to a new location.
Press the ENTER/OK button to select Auto Store. Press
the ENTER/OK button again to start the search. When
it has finished, the number of scanned services will be
displayed.
− The existing favourite channel list will not be deleted
when the channel list is updated.
− To stop the scan before it has finished, press the
ENTER/OK button with Stop selected.
If the signal status is poor, No service found! Check the
➢
aerial connection. message is displayed.
1.3 Manual Store
You can specify the channel for a fast channel search.
− Channel
Press the ▲, ▼ or numeric buttons (0~9) to select a
channel.
The available channels are 21~68. The corresponding
frequency for the selected channel is automatically set.
− Frequency
If you do not know the exact frequency, follow the above
step to select the frequency automatically using channel.
− Bandwidth
The available bandwidths are 7 and 8 MHz.
0%
Services found: 0 Channel:
Start
Return
Channel
Country : Other
Auto Store
Manual Store
Edit Favourite Channels
Channel List
Move
Channel Frequency Bandwidth
5 177500 KHz 7 MHz
Search
Adjust
Enter
Manual Store
Return
Return
Continued...
-
Page 37
English - 37
Press the red button to start the scan for digital services. When it has finished, channels are
updated in the channel list.
You can input by pressing the button on the remote control.
➢
You can not change only frequency and when changing a channel the Frequency will be
➢
automatically changed.

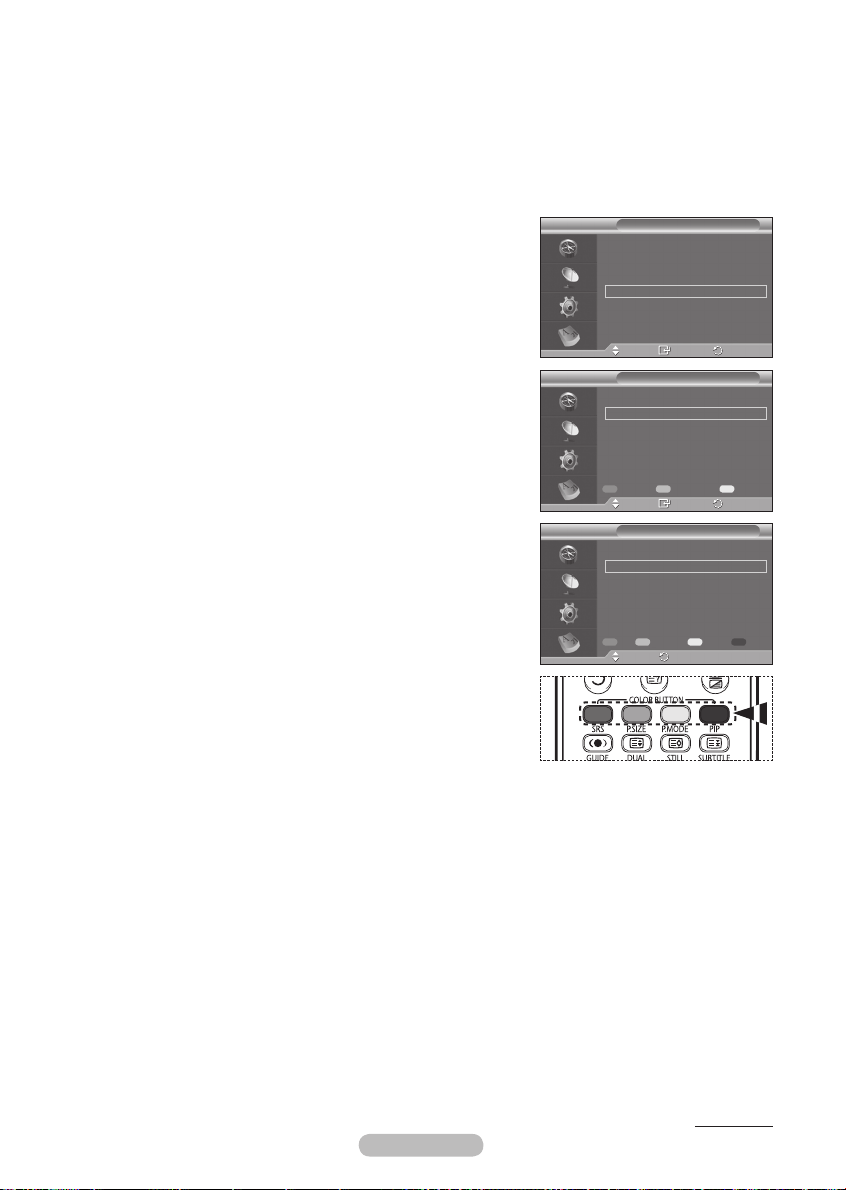

1.4 Edit Favourite Channels
You can edit your favourite channels using the colour buttons.
In the case of DTV mode, OK or Select can be used as the
➢
ENTER/OK button.
Press the red button in the Edit Favourite Channels menu
to display all currently stored channels.
Press the ▲ or ▼ button to select a channel you want.
Channel
Country : Other
Auto Store
Manual Store
Edit Favourite Channels
Channel List
Press the ENTER/OK button. A “” icon is shown next to
the selected channel and the channel will be added to the
favourites list.
To undo, press the ENTER/OK button again.
➢
Select AlI: Select all channels currently displayed.
Select None: Deselect all selected channels.
Preview: Displays (a) currently selected
channel(s).
If The Favourite Channels settings have been
➢
completed.
Add
You can use this function when one or more favourite
channels have been selected.
− Press the red button in the Edit Favourite Channels
menu. To add more channels, refer to the previous
section.
− To add all channels to the favourites channel list, press
Move
Enter
Select
Return
Return
Edit Favourite Channels
1 BBC TWO
2 Five
3 BBC THREE
4 abc1
5 QVC
Select All Select None Preview
Move
Edit Favourite Channels
1 BBC TWO
2 BBC THREE
3 abc1
the red button.
− To remove all channels, press the green button.
− Preview: Displays (a) currently selected channel(s).
− Press the CH LIST button to display the favourite
Add Renumber Preview Delete
Move
Return
channel list.
Renumber
− In the Edit Favourite Channels menu, press the ▲ or ▼
button to select the required channel.
− Press the green button.
The space for entering the number is a blank.
➢
− Enter the new channel number. Press ENTER/OK button to store or RETURN button to
cancel.
Press the ◄ button to delete an entered digit.
➢
If you enter a number already assigned to another channel, the number is assigned to the
➢
selected channel and the previous number assigned to the selected channel is assigned
to the other channel.
That is, the two numbers are exchanged.
The favorite channels are automatically sorted in ascending order of channel numbers.
➢
Preview
− In the Edit Favourite Channels menu, press the ▲ or ▼ button to select the channel to be
previewed.
− Press the yellow button. Displays currently selected channel.
Delete
− In the Edit Favourite Channels menu, press the ▲ or ▼ button to select the channel to be
deleted from the favourite channels list.
− Press the blue button. The selected channel and number will be deleted.
To add a deleted channel back in to the favourite channel list, see Add.
➢
Continued...
Page 38
English - 38

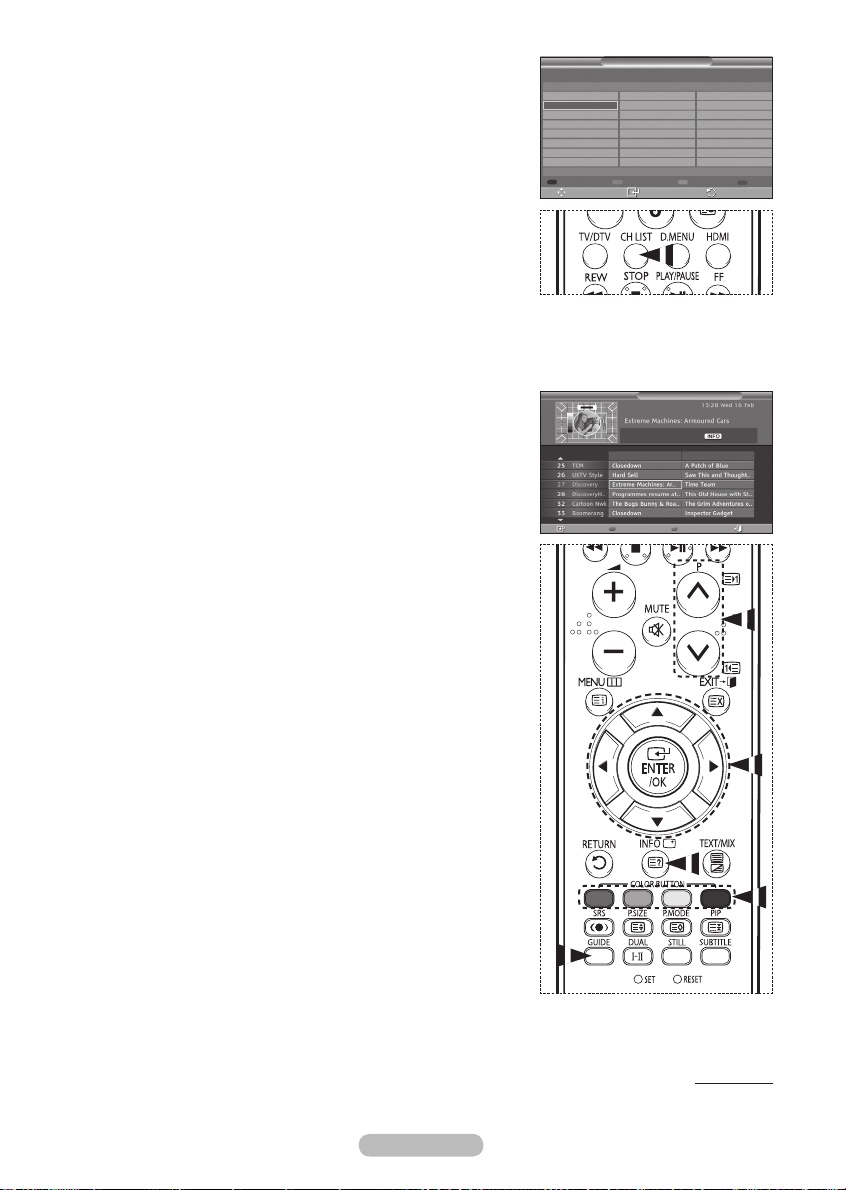

1.5 Channel List
You can display a list of all channels or your favourite channels.
Press the ▲ or ▼ button to select Channel List, then
press the ENTER/OK button.
It can be displayed simply by pressing the CH LIST
➢
button.
Press the yellow button to toggle between your favourite
channels and all channels.
Your favourite channels are only displayed if they were
previously set in the Edit Favourite Channels menu (refer
to page 37).
Press the red or green button to display the previous or
next channel list page.
Press the ▲ or ▼ button to select a channel to be tuned,
then press the ENTER/OK button.
The channel number, name and an icon are displayed in the top left corner while changing
➢
the channel. The channel number and name are displayed if the channel is one of the all
channels, and a icon if the channel is one of the favourite channels.
Press the blue or CH LIST button to exit from the channel list.
2. Guide
This menu consists of 4 sub-menus:
Now & Next Guide, Full Guide, Scheduled List, and Default
Guide.
2.1 Now & Next Guide / Full Guide
The EPG (Electronic Programme Guide) information is provided
by the broadcasters. Programme entries may appear blank or
out of date as a result of the information broadcast on a given
channel.
The display will dynamically update as soon as new information
becomes available.
− Now & Next Guide
For the six channels indicated in the left-hand column,
displays the Current programme and the Next programme
information.
− Full Guide
Displays the programme information as time ordered
30 minute segments. One and half hours of programme
information is displayed which may be scrolled forwards or
backwards in time.
Press the ▲ or ▼ button to select Now & Next Guide or
Full Guide. Press the ENTER/OK button. The selected
guide menu is displayed.
− Press the red button to toggle between Now & Next
Guide or Full Guide.
− Press the green button to display Favourites or All
Channels list.
− Press the yellow button to scrolls backwards quickly
(24 hours).
− Press the blue button to scrolls forwards quickly
(24 hours).
You can also display the guide menu simply by
➢
pressing the GUIDE button.
To watch a programme in the EPG list, press the
▲/▼/◄/► button to select a programme of your choice,
then press the ENTER/OK button.
If the next programme is selected, it is scheduled with the clock icon displayed. If the
➢
ENTER/OK button is pressed again, the scheduling is canceled with the clock icon gone.
For details about scheduling programmes, refer to the section.
BBC TWO All Channels-All
1. Test Card ‘M’...
2. BBC TWO
3. Vida003b
4. Vida004b
5. Vida005b
6. Vida006b
7. BBC THREE
30. CBBC Channel
Previous Page Next Page
Move
Watch Full Guide Favourites Exit
Channel List
40. BBC NEWS24
51. BBCi
800 ARD-MHP-DATA
801 ARD-OnLine-K..
802 BBC ONE
803 MDR FERNSE..
804 NDR FERNSEH..
805 Vida002b
Watch
Now & Next Guide
Now Next
806 arte
Favourites TV
Return
Continued...
Page 39
English - 39
To view programme information, press the ▲/▼/◄/► button to select a programme of your
choice, then press the INFO button.
Information such as the channel number, programme title and running time, status bar,
➢
and brief summary of the highlighted programme will be displayed in the top right corner
of the screen. If there is a lengthy summary, “…” will be displayed. Press the INFO button
for the full summary text.
Six channels are displayed. To scroll between channels, move to a channel using the ▲
or ▼ button. To display page by page, use the P or button.

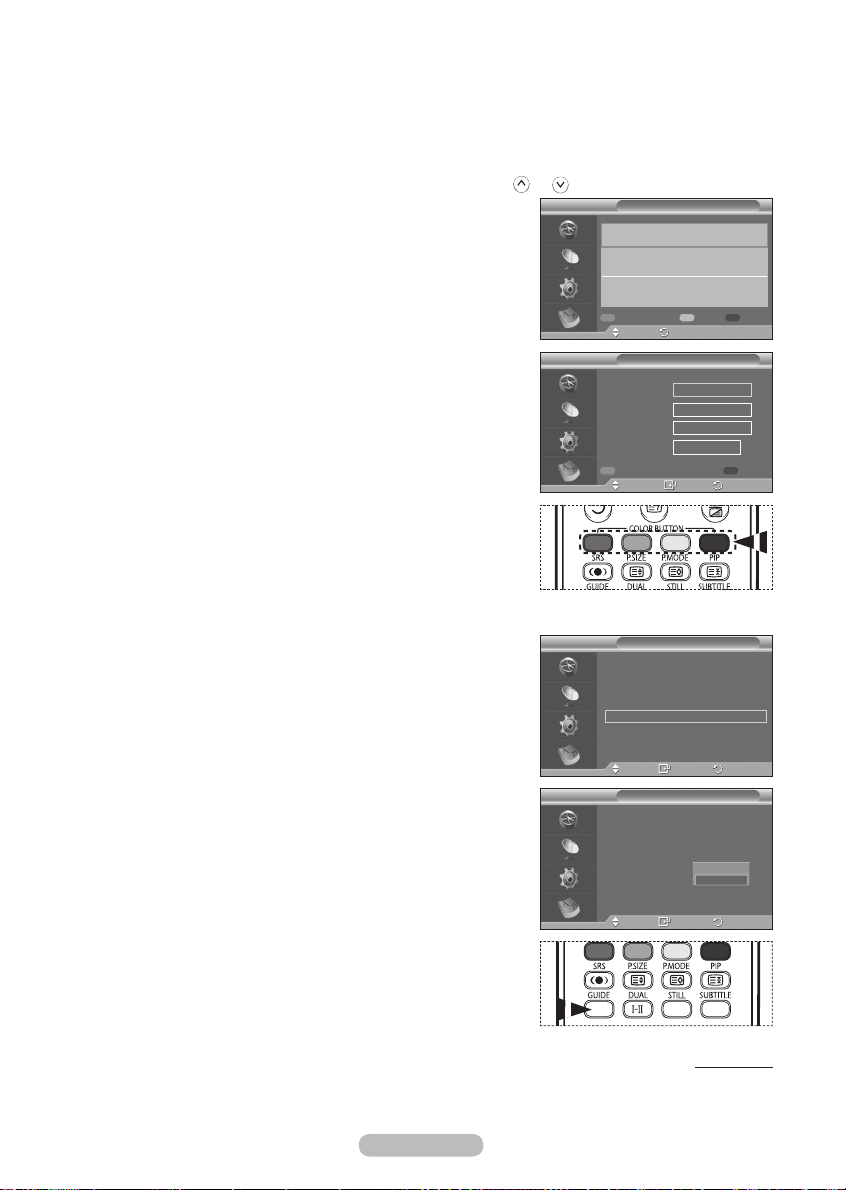

2.2 Scheduled List
If you make a scheduled viewing list of programs you may
like to see, the channel will be automatically switched to the
scheduled program at the scheduled time even if you are
watching another program.
Scheduled List
Thursday 22 Apr 15:30 ~ 18:00 Once
2 BBC TWO Animal Park
Thursday 22 Apr 20:00 ~ 21:00 Once
2 BBC TWO The Hairy Biker’s
Press the red button to add a new programme. The
menu for adding a programme is displayed with Channel
selected.
Press the ▲/▼ and ENTER/OK buttons to set the required
channel, time, date, and frequency. When you are satisfied
with your settings, save the adjusted schedule by pressing
the red button.
If you want to edit the scheduled programme, select a
programme by pressing the ▲ or ▼ button, then press the
green button. If necessary, select the programme to be
deleted by pressing the ▲ or ▼ button, then press the blue
button.
When watching analog TV, the reserved DTV channel
➢
cannot be changed. The channel is only changed
Add Programme Edit Delete
Move
Frequency
Return
Scheduled List
20 MOJO
19:00 - 21:00
Thu 6 Jan 2005
Enter
Once
Channel
Time
Date
Save Cancel
Adjust
Return
automatically to the reserved channel when you are
watching DTV.
Scheduling programme only functions with the
➢
television already turned on, and not from standby
mode. For details about switching the television on and
off automatically, refer to page 9.
2.3 Default Guide
You can preset the default guide style.
Press the ▲ or ▼ button to select the required option
(Now/Next or Full Guide), then press the ENTER/OK
button. The selected option for default guide is displayed on
the EPG menu and the channel list appears.
Now & Next Guide
Full Guide
Scheduled List
Default Guide :
Guide
Full Guide
Move
Now & Next Guide
Full Guide
Scheduled List
Default Guide :
Move
Enter
Guide
Now/Next
Full Guide
Full Guide
Enter
Continued...
Return
Return
Page 40
English - 40

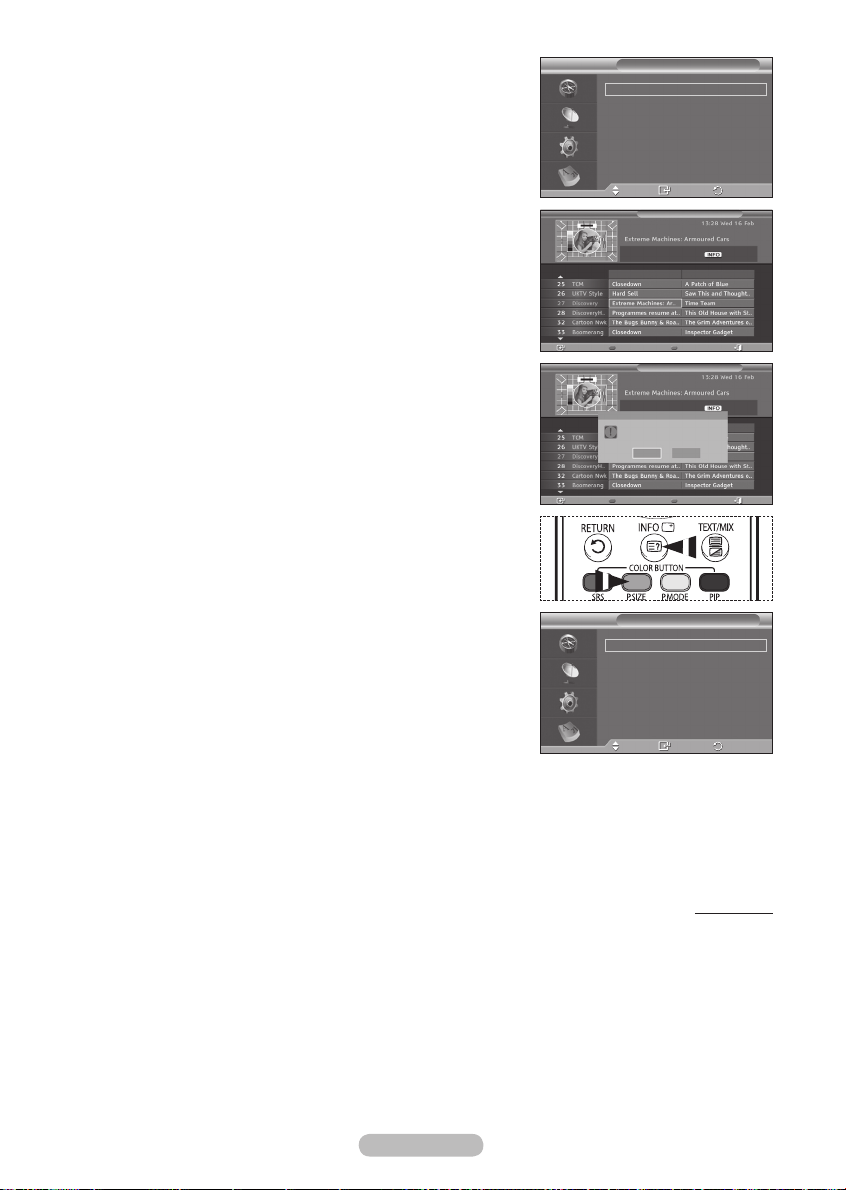

2.4 All Channels and Favorite Channels
In the EPG menu, you can display all channels or favourite
channels.
Press the green button repeatedly to toggle between the all
and favourite channels list.
When the favorite channel list has not been set up:
− The favorite list is empty. Would you like to choose
your favorite now? message is displayed.
− Select Yes. The Edit Favourite Channels menu is
displayed. If you select No, all channels will remain
unchanged.
− To edit the favourite channels, refer to page 37 for more
details.
All Channels is the list of channels that have been
➢
scanned by the channel list update. All channels
are displayed in the all channel mode.
Favourites (favourite channels) is the list of
channels that has been set in the Edit Favourite
Channels menu (refer to page 37).
When there is no channel information, the No Data
message will be displayed and you will not be
able to change the channel even if you press the
ENTER/OK button.
When the No Data message appears and you
cannot change the channel, press the channel
number directly using the numeric buttons.
Guide
Now & Next Guide
Full Guide
Scheduled List
Default Guide :
Move
Watch
Full Guide Favourites Exit
The favourites list is empty.
Would you like to choose your
favourites now?
Watch Full Guide Favourites Exit
Full Guide
Enter
Now & Next Guide
Now Next
Now & Next Guide
Yes No
Return
3. Language
This menu consists of 4 sub-menus:
Audio Language, Subtitle Language, Teletext Language,
and Preference.
Language
Audio Language
Subtitle Language
Teletext Language
Preference
Move
Enter
3.1 Audio Language / Subtitle Language / Teletext Language
You can change the default value for subtitle, audio and teletext languages.
Press the ▲ or ▼ button to select required menu (Audio Language, Subtitle Language, or
Teletext Language), then press the ENTER/OK button. The options of the selected menu are
displayed.
Return
Continued...
Page 41
English - 41

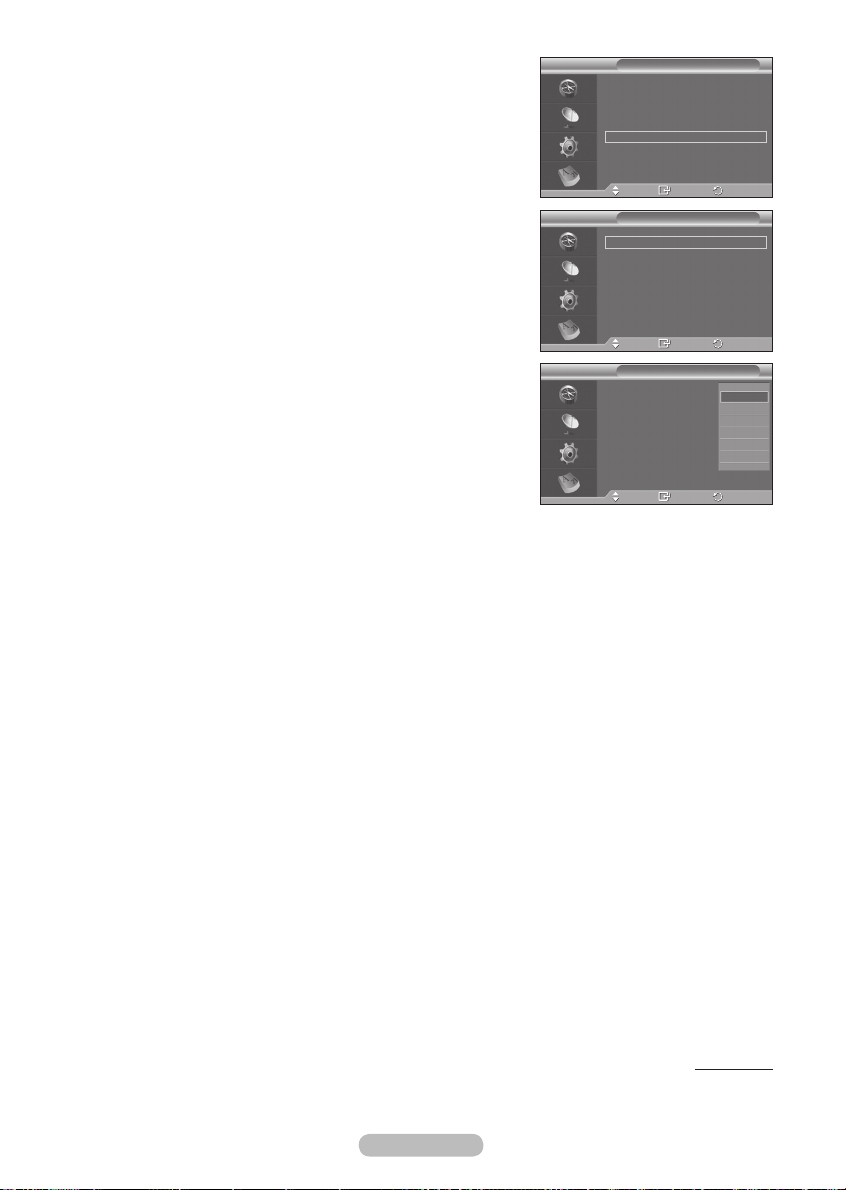

3.2 Preference
This menu consists of 6 sub-menus:
Primary Audio Language, Secondary Audio Language,
Primary Subtitle Language, Secondary Subtitle Language,
Primary Teletext Language, and Secondary Teletext
Language.
Using this feature, users can select one of the languages
(English, German, Italian, Swedish, French, Welsh, Gaelic,
Irish, Danish, Finnish, Norwegian, Spanish, Czech, and Greek).
The language selected here is the default when the user selects
a channel.
Press the ▲ or ▼ button to select required menu (Primary
Audio Language, Secondary Audio Language, Primary
Subtitle Language, Secondary Subtitle Language,
Primary Teletext Language, or Secondary Teletext
Language), then press the ENTER/OK button.
The options of the selected menu are displayed.
Press the ▲ or ▼ button to select required option (English,
German, Italian, Swedish, French, Welsh, Gaelic, Irish,
Danish, Finnish, Norwegian, Spanish, Czech, or Greek),
then press the ENTER/OK button.
If you change the language setting, the Audio
➢
Language, Subtitle Language, and the Teletext
Language of the Language menu (refer to page 40)
are automatically changed to the selected language.
The Audio Language, Subtitle Language, and the
Teletext Language of the Language menu show a
list of languages supported by the current channel and the selection is highlighted. If you
change this language setting, the new selection is only valid for the current channel. The
changed setting does not change the setting of the Primary Audio Language, Primary
Subtitle Language, or the Primary Teletext Language of the Preference menu.
Language
Audio Language
Subtitle Language
Teletext Language
Preference
Move
Primary Audio Language
Secondary Audio Language : English
Primary Subtitle Language
Secondary Subtitle Language : English
Primary Teletext Language
Move
Primary Audio Language
Secondary Audio Language : English
Primary Subtitle Language
Secondary Subtitle Language : English
Primary Teletext Language
Move
Enter
Preference
Enter
Preference
Enter
: English
: English
: English
: English
: English
: English
English
German
Italian
Swedish
French
Welsh
Return
Return
Return
Continued...
Page 42
English - 42
4. Setup
This menu consists of 8 sub-menus:
Menu Transparency, Parental Lock, Subtitle, Subtitle Mode,
Digital Text, Time Zone, Audio Format, and System.
4.1 Menu Transparency
You can set the translucency of the on-screen menu.
Press the ▲ or ▼ button to select required option (High,
Medium, Low, or Opaque), then press the ENTER/OK
button.
4.2 Parental Lock
This feature allows you to prevent unauthorized users, such
as children, from watching unsuitable programmes by a 4-digit
PIN (Personal Identification Number) code that is defined by
the user.
The on-screen menu will instruct you to assign a PIN code (you
can change it later, if necessary).
Enter your current 4-digit PIN code by using the numeric
buttons (0~9). The Parental Lock menu are displayed with
the Parental Rating selected.
The default PIN code for a new TV set is 0000.
➢
If you enter an invalid PIN code, the Invalid PIN
code. Please try again. message is displayed.
Press the ENTER/OK button. Press the ▲ or ▼ button to
select the age rating you want to lock out, then press the
ENTER/OK button.
If you want to change the PIN code, press the ▲ or ▼
button to select Change PIN, then press the ENTER/OK
button.
− Enter your new PIN code by using the numeric buttons
(0~9). The Confirm New PIN is displayed.
− Re-enter your new PIN code to confirm by using the
numeric buttons (0~9). The Your PIN code has been
changed successfully. message is displayed.
If you forget the PIN code, press the remote control buttons
➢
in the following sequence, which resets the PIN to 0-0-0-0:
POWER (Off) MUTE 8 2 4 POWER (On).
Setup
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Enter PIN
.. Enter PIN
Enter New PIN
.. Enter PIN
Enter
Setup
Enter
Setup
Enter
Parental Lock
Change PIN
On
Normal
High
Medium
Low
Opaque
On
Normal
On
Normal
Return
Return
Return
Return
Return
Continued...
Page 43
English - 43

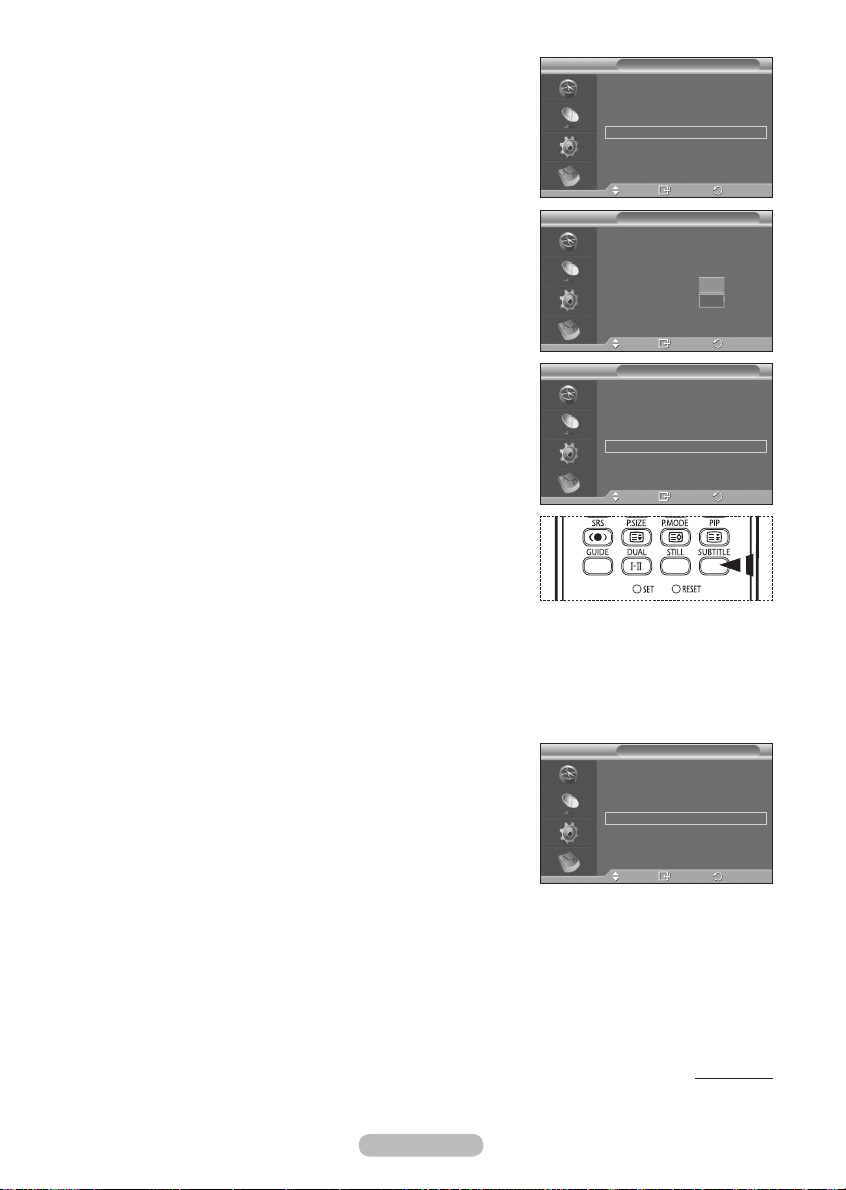

4.3 Subtitle / Subtitle Mode / Audio Format / Digital Text
You can use various settings to suit your personal preferences.
Press the ▲ or ▼ button to select required menu (Subtitle,
Subtitle Mode, Digital Text or Audio Format), then press
the ENTER/OK button. The options of the selected menu
are displayed.
Press the ▲ or ▼ button to select required option, then
press the ENTER/OK button.
− Subtitle : On / Off
You can select these options simply by pressing the
➢
SUBTITLE button on the remote control.
− Subtitle Mode : Normal (basic subtitle) / Hard of hearing
(subtitle for a hearing-impaired person)
If the programme you are watching does not support
➢
the Hard of hearing function, Normal automatically
activates even though Hard of hearing mode is
selected.
− Audio Format
You can only hear Dolby Digital sound through the audio
receiver connected through an optical cable. You can only
hear PCM sound through the main speaker.
When sound is emitted from both the main speaker and the
audio receiver, a sound echo may occur due to the decoding
speed difference between the main speaker and the audio
receiver. In this case, use the internal mute function.
Even if you have selected PCM or Dolby Digital in Audio
➢
Format, when the input signals are any format of PCM
and Dolby Digital, the input format is applied regardless
of the setting. If the input signals are not any of those,
the setting is not applied.
− Digital Text : Enable / Disable (UK only)
If the programme is broadcast with digital text, this
➢
feature is enabled.
MHEG (Multimedia and Hypermedia Information Coding Experts Group)?
➢
An International standard for data encoding systems used in multimedia and hypermedia.
This is at a higher level than the MPEG system which includes data-linking hypermedia such
as still images, character service, animation, graphic and video files as well as multimedia
data. MHEG is user runtime interaction technology and is being applied to various fields
including VOD (Video-On-Demand), ITV (Interactive TV), EC (Electronic Commerce), teleeducation, tele-conferencing, digital libraries and network games.
4.4 Time Zone (Spain only)
You can select the time zone where you are located.
This menu is only enabled when you select a country
➢
supported by the time zone.
Setup
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle : On
Subtitle Mode :
Move
Menu Transparency : Medium
Change PIN
Parental Lock
Subtitle :
Subtitle Mode :
Move
Audio Format :
Digital Text : Enable
Time Zone
System
On
Normal
Enter
Setup
Off
Normal
On
Enter
Setup
On
Normal
Enter
Setup
PCM
Return
Return
Return
Move
Enter
Return
Continued...
Page 44
English - 44

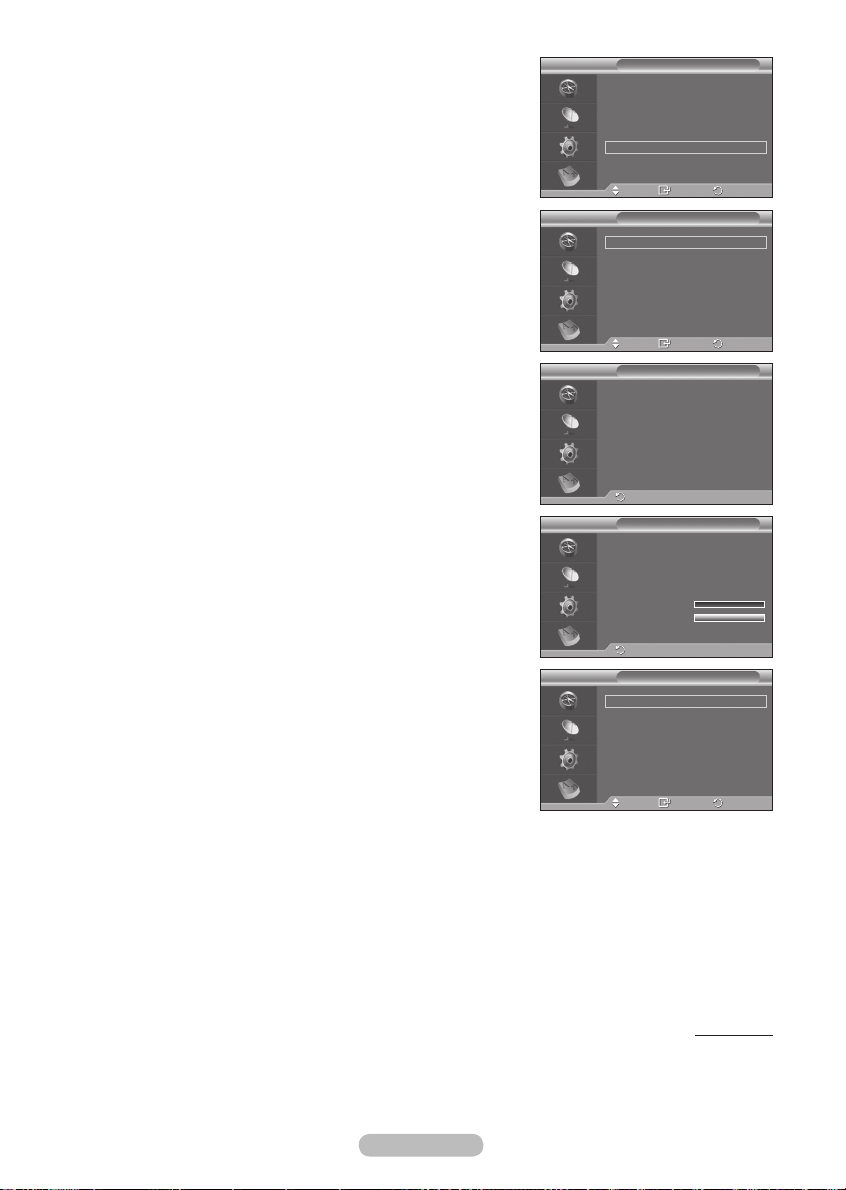

4.5 System
This menu consists of 5 sub-menus:
Product Information, Signal Information, Software Upgrade,
Common Interface, and Reset.
− Product Information
You can view your product information. For service or repair,
please contact a Samsung approved dealer.
Press the ENTER/OK button with Product Information
selected. The product information menu is displayed.
− Software Version / Firmware Version
− Signal Information
You can get information about the signal status.
Press the ENTER/OK button with Signal Information
selected. The technical information for signal status is
displayed.
− Service / Service ID / Multiplex / Network / Bit error
level / Signal Strength
− Software Upgrade (Option)
To keep your product up-to-date with new digital television
features then software upgrades are periodically broadcast
as part of the normal television signal. It will automatically
detect these signals and display the software upgrade
banner. You are given the option to install the upgrade.
Software Inforamtion
Press the ENTER/OK button, then the current software
version is shown. To display the software version
information, press the ENTER/OK button again.
Manual Upgrade
Press the ENTER/OK button to search for new software
from the currently broadcasting channels.
Standby Mode Upgrade : On / Off
Press the ENTER/OK button. To continue software
upgrade with master power on, Select On by pressing
the ▲ or ▼ button.
45 minutes after entering standby mode, a manual
upgrade is automatically conducted. Since the power
of the unit is turned on internally, the screen may be
on slightly for the PDP product. This phenomenon may
continue for more than 1 hour until the software upgrade
is completed.
Audio Format :
Digital Text : Enable
Time Zone
System
Product Information
Signal Information
Software Upgrade
Common Interface
Reset
Software Version: T_JSM22DEUC_0203
Firmware Version: T_EMMA2DEUB_0103
Service: ?
Service ID: 0000
Multiplex: ? (TSID 0000,ONID 0000)
Network: ? (ID 0000)
Bit error level: 10
Signal Strength: 0
Software Information
Manual Upgrade
Standby Mode Upgrade : On
Setup
Move
Enter
System
Move
Enter
Product Information
Return
Signal Information
Return
Software Upgrade
PCM
Return
Return
Move
Enter
Return
Continued...
Page 45
English - 45

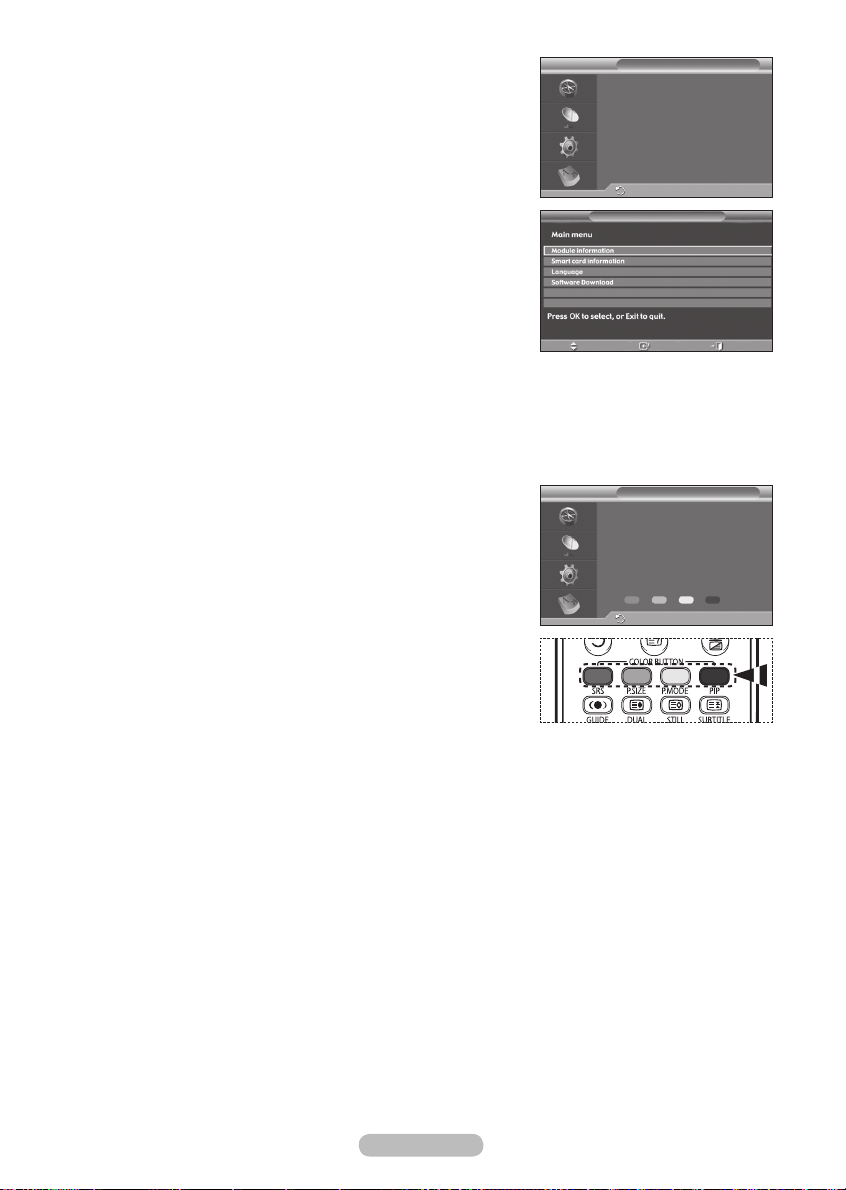

− Common Interface
Installing the CI Card
a. Purchase the CI CAM module by visiting your nearest
dealer or by phone.
b. Insert the CI CARD into the CAM in the direction of
Application Info.
Type: CA
Manufacturer: Canal Plus
Info: Top Up TV
the arrow until it fits.
c. Insert the CAM with the CI CARD installed into the
common interface slot.
Insert the CAM in the direction of the arrow, right
➢
up to the end so that it is parallel with the slot.
Return
CI Menu
d. Check if you can see a picture on a scrambled signal
channel.
You can install the CAM anytime whether the TV
➢
is ON or OFF.
Application Info.
This contains information on CAM inserted in the CI slot
and displays it.
− Press the ENTER/OK button to display the
Move Enter Exit
information for your application.
CI Menu
This helps the user select an item from the CAM-supported
menu.
− Press the ENTER/OK button. The options of the selected menu are displayed.
Press the ▲ or ▼ button to select the required option, then press the ENTER/OK button.
Select the CI Menu based on the PC Card menu.
− Reset
➢
You can reset the values stored to the factory default values.
The Reset operation deletes all channel information
➢
and user preferences returning all values to their default
factory state.
Press the ENTER/OK button with Reset selected.
Reset
WARNING: All channel settings and user
preferences will be lost and returned to the
factory defaults. It is recommended that a
reset is performed only when serious
problems are experienced.
The Enter PIN is displayed.
Enter your current 4-digit PIN code by using the numeric
buttons (0~9). The warning message is displayed. All
Return
values will be reset by pressing the coloured buttons
(red, green, yellow, and blue) in turn.
The default PIN of a new TV set is “0-0-0-0”.
➢
When PIN is changed in Child Lock, the PIN for
➢
resetting automatically changes.
When reset is complete, it operates DTV Plug & Play
(DTV Auto Store, Time Zone-depending on the country, Time Setting) and exits from the digital
TV mode without changing to the analog TV mode. (Refer to page 11)
Page 46
English - 46
Teletext Feature (depending on the model)
Most television stations provide written information services
via teletext. The index page of the teletext service gives you
information on how to use the service. In addition, you can select
various options to suit your requirements by using the remote
control buttons.
For teletext information to be displayed correctly, channel reception
☛
must be stable. Otherwise, information may be missing or some
pages may not be displayed.
1
TV/DTV
Exit from the teletext display (depending on the model)
2
(index)
Used to display the index (contents) page at any time while you are
viewing teletext.
3
(size)
Press to display the double-size letters in the upper half of the
screen. For lower half of the screen, press it again.
To display normal screen, press it once again.
4
(mode)
Press to select the teletext mode (LIST/FLOF).
If you press it in the LIST mode, it switches into the List save mode.
In the List save mode, you can save teletext page into list using the
(store) button.
5
(sub-page)
Used to display the available sub-page.
6
(page up)
Used to display the next teletext page.
7
(page down)
Used to display the previous teletext page.
8
(cancel)
Used to display the broadcast when searching for a page.
9
(reveal)
Used to display the hidden text (answers to quiz games, for
example). To display normal screen, press it again.
0
(teletext on/mix)
Press to activate teletext mode after selecting the channel providing
the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.
!
Coloured buttons (red/green/yellow/blue)
If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext
page are colour-coded and can be selected by pressing the coloured buttons. Press one of them
corresponding to the required. The page is displayed with other coloured information that can be
selected in the same way.
To display the previous or next page, press the corresponding coloured button.
@
(hold)
Used to hold the display on a given page if the selected page is linked with several secondary pages
which follow on automatically. To resume, press it again.
#
(store)
Used to store the teletext pages.
You can change teletext pages by pressing the numeric buttons on
➢
the remote control.
Continued...
Page 47
English - 47

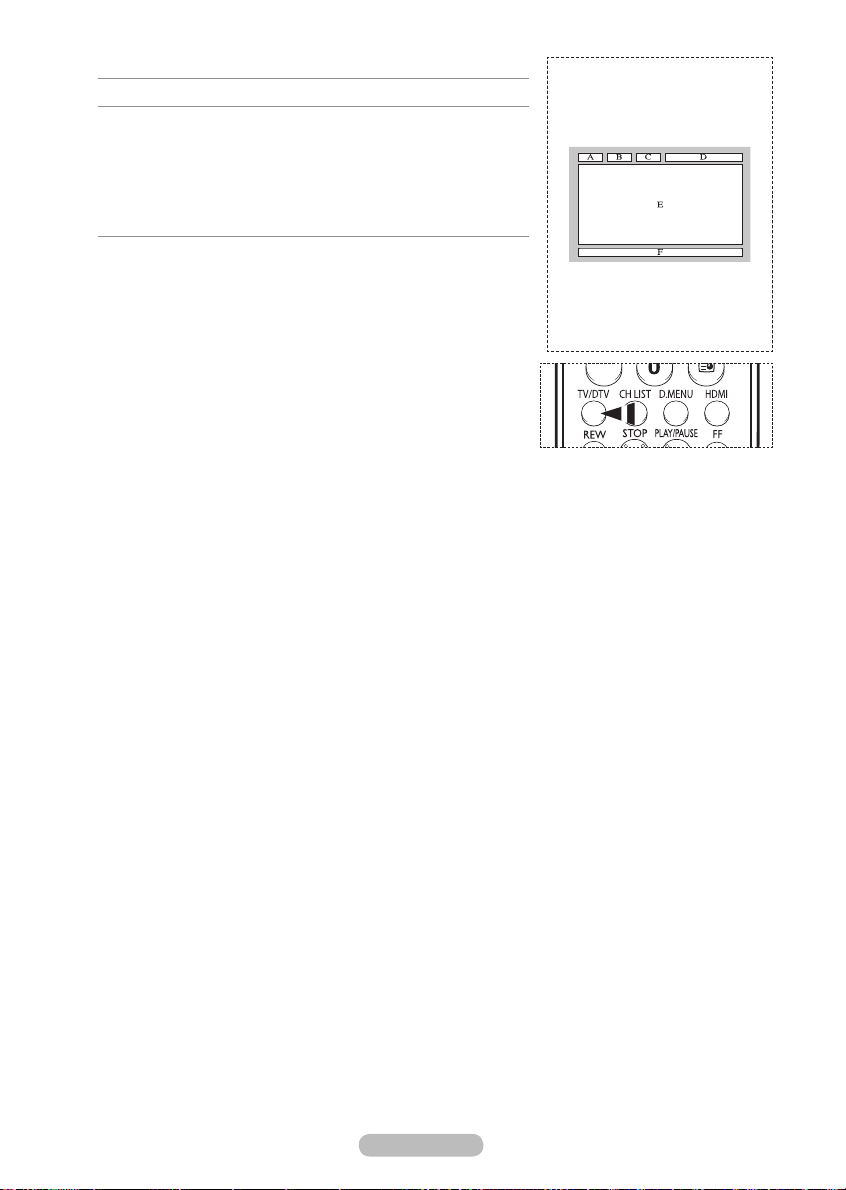

The teletext pages are organized according to six categories:
Part Contents
A
B
C
D
E
F
Teletext information is often divided between several pages
➢
displayed in sequence, which can be accessed by:
Entering the page number
Selecting a title in a list
Selecting a coloured heading (FASTEXT system)
Press the TV/DTV button to exit from the teletext display.
➢
Selected page number.
Broadcasting channel identity.
Current page number or search indications.
Date and time.
Text.
Status information.
FASTEXT information.
Page 48
English - 48

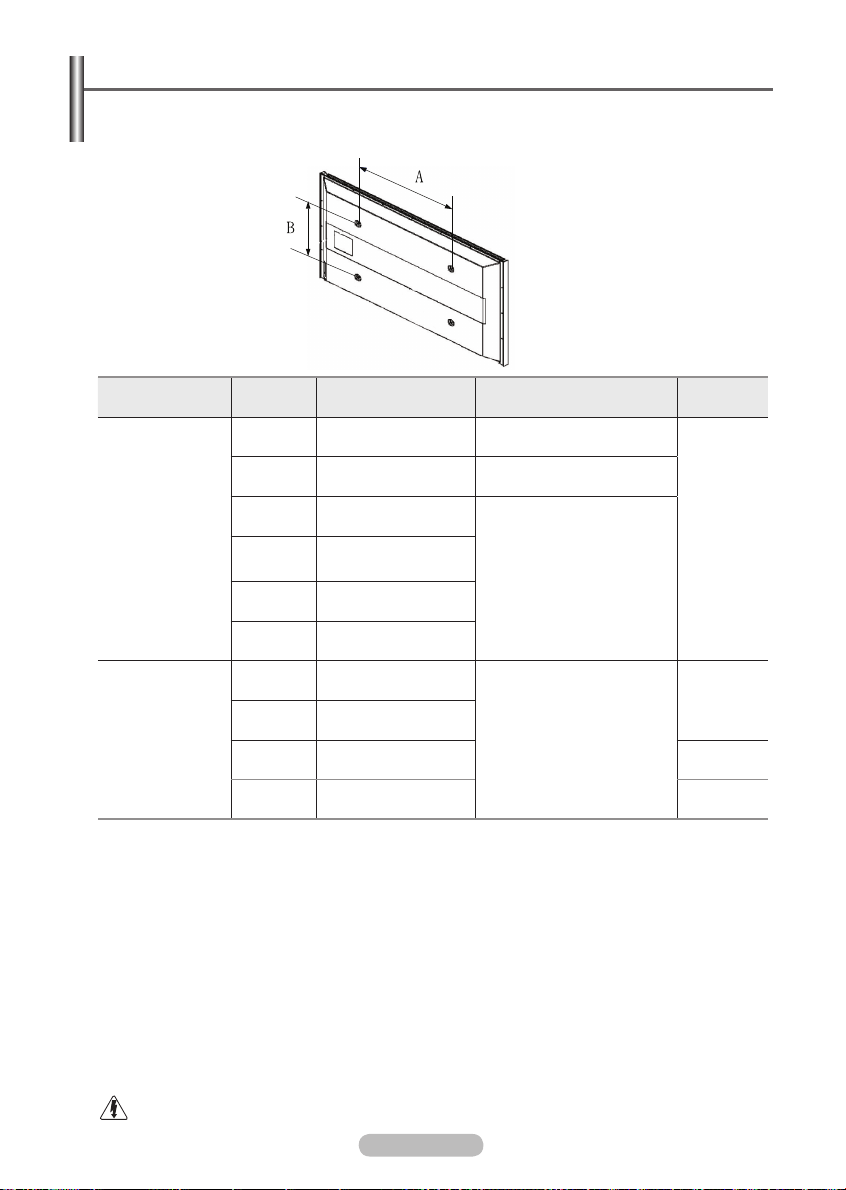

Wall Mount Kit Specifications (VESA)
Install your wall mount on a solid wall perpendicular to the floor.
When attaching to other building materials, please contact your nearest dealer.
If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.
Product Family inch VESA Spec. (A * B) Standard Screw Quantity
23 ~ 26 200 * 100 M4
32 ~ 40 200 * 200 M6
46 ~ 52 600 * 400
LCD-TV
57
57 ~ 70 800 * 400
80 ~ 1400 * 800
700 * 400
(No VESA)
M8
4
42 ~ 50 600 * 400
PDP-TV
We provided the standard dimensions for wall mount kits as shown in the table above.
➢
When purchasing our wall mount kit, a detailed installation manual and all parts necessary for
➢
assembly are provided.
Do not use screws longer than the standard dimension, as they may cause damage to the inside of
➢
the TV set.
For wall mounts that do not comply with the VESA standard screw specifications, the length of the
➢
screws may differ depending on their specifications.
Do not use screws that do not comply with the VESA standard screw specifications.
➢
Do not use fasten the screws too strongly, this may damage the product or cause the product to fall,
leading to personal injury. Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall
➢
mount is used or the consumer fails to follow the product installation instructions.
Our 57” and 63” models do not comply with VESA Specifications. Therefore, you should use our
➢
dedicated wall mount kit for this model.
Do not exceed 15 degrees tilt when mounting this TV.
➢
Do not install your Wall Mount Kit while your TV is turned on.
It may result in personal injury due to electric shock.
55 ~ 70 800 * 400
M8
63 No VESA 6
80 ~ 1400 * 800 4
4
Page 49
English - 49

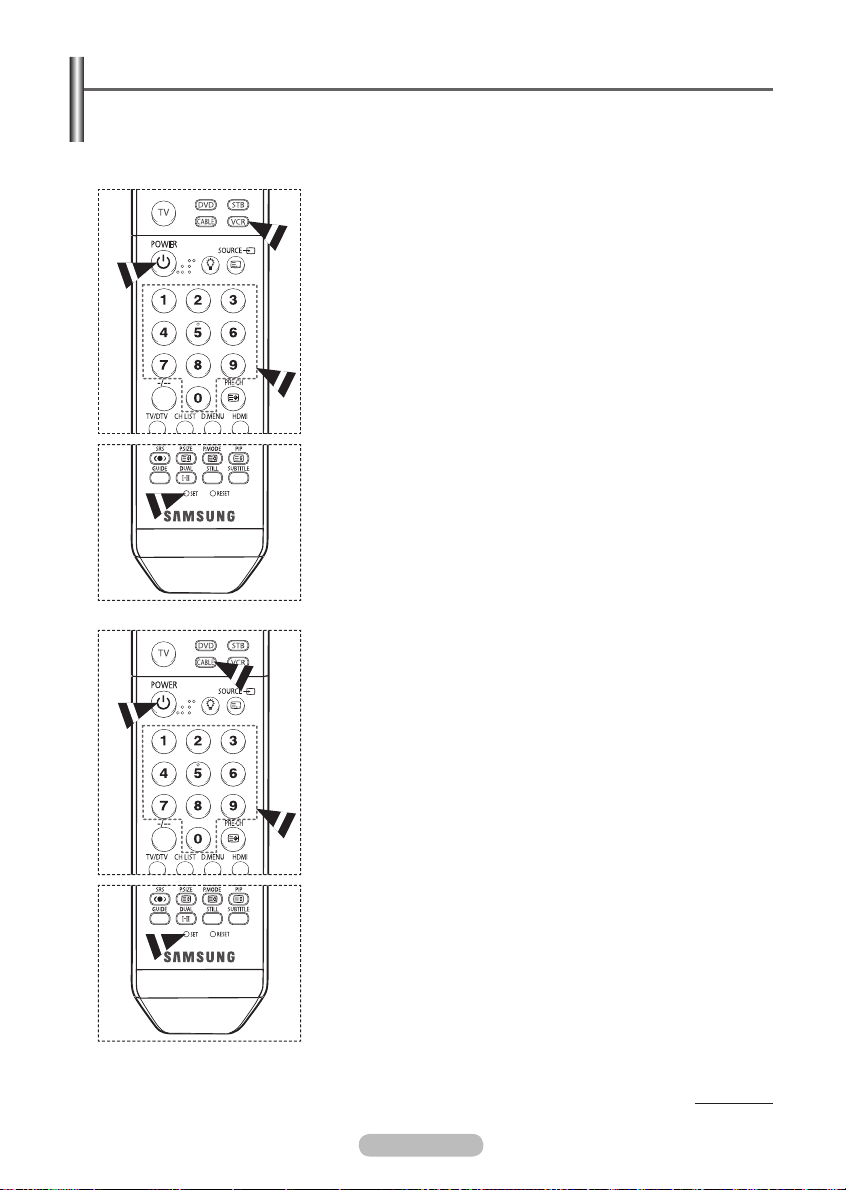

Setting Up Your Remote Control
After it has been set up properly, your remote control can operate in five different modes: TV, VCR,
Cable, DVD, or Set-Top Box. Pressing the corresponding button on the remote control allows you
to switch between these modes, and control whichever piece of equipment you choose.
The remote control might not be compatible with all DVD Players, VCRs, Cable boxes, and Set-Top
➢
Boxes.
Setting Up the Remote to Operate Your VCR
1 Turn off your VCR.
2 Press the VCR button on your TV’s remote control.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the VCR code listed on page 51 of this manual for your brand of
VCR. Make sure you enter three digits of the code, even if the first
digit is a “0”. (If more than one code is listed, try the first one.)
5 Press the POWER button on the remote control. Your VCR should
turn on if your remote is set up correctly.
If your VCR does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of VCR. If no
other codes are listed, try each VCR code, 000 through 080.
Note on Using Remote Control Modes: VCR
When your remote control is in VCR mode, the volume buttons still
control your TV’s volume.
Setting Up the Remote to Operate Your Cable Box
1 Turn off your cable box.
2 Press the CABLE button on your TV’s remote control.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the cable box code listed on page 52 of this manual for your
brand of cable box.
Make sure you enter three digits of the code, even if the first digit is
a “0”. (If more than one code is listed, try the first one.)
5 Press the POWER button on the remote control.
Your cable box should turn on if your remote is set up correctly.
If your cable box does not turn on after set-up, repeat steps 2, 3
and 4, but try one of the other codes listed for your brand of cable
box. If no other codes are listed, try each code, 000 through 046.
Note on Using Remote Control Modes: Cable Box
When your remote control is in CABLE mode, the volume buttons still
control your TV’s volume.
Continued...
Page 50
English - 50

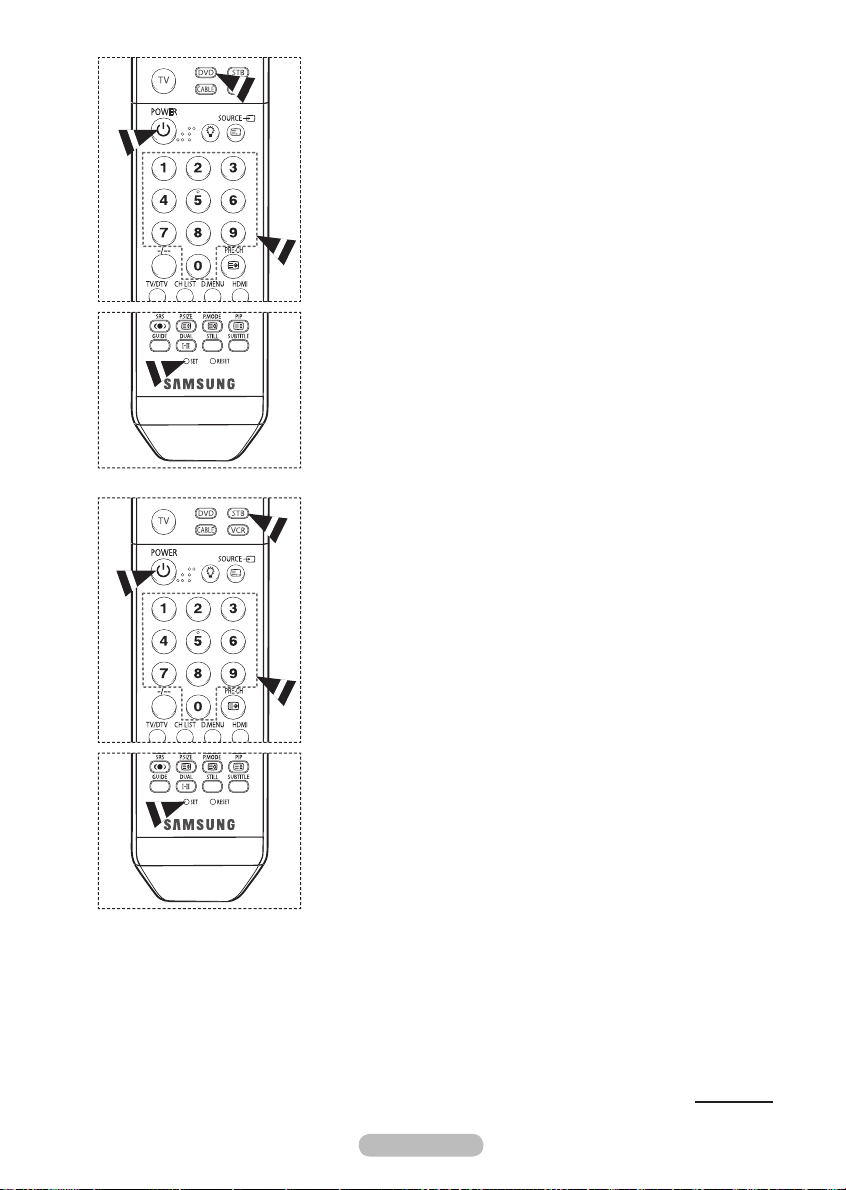

Setting Up the Remote to Operate Your DVD
1 Turn off your DVD.
2 Press the DVD button on your TV’s remote control.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the DVD code listed on page 53 of this manual for your brand of
DVD. Make sure you enter three digits of the code, even if the first
digit is a “0”. (If more than one code is listed, try the first one.)
5 Press the POWER button on the remote control.
Your DVD should turn on if your remote is set up correctly.
If your DVD does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of DVD. If no
other codes are listed, try each code, 000 through 141.
Note on Using Remote Control Modes: DVD
When your remote control is in DVD mode, the volume buttons still
control your TV’s volume.
Setting Up the Remote to Operate Your Set Top Box
1 Turn off your STB.
2 Press the STB button on your TV’s remote control.
3 Press the SET button on your TV’s remote control.
4 Using the number buttons on your remote control, enter three digits
of the STB code listed on page 52 of this manual for your brand of
STB. Make sure you enter three digits of the code, even if the first
digit is a “0”. (If more than one code is listed, try the first one.)
5 Press the POWER button on the remote control.
Your STB should turn on if your remote is set up correctly.
If your STB does not turn on after set-up, repeat steps 2, 3 and 4,
but try one of the other codes listed for your brand of STB. If no
other codes are listed, try each code, 000 through 074.
Note on Using Remote Control Modes: STB
When your remote control is in STB mode, the volume buttons still
control your TV’s volume.
Continued...
Page 51
English - 51
Remote Control Codes
VCR
Brand
SAMSUNG
ADMIRAL
AIWA
AKAI
AUDIO DYNAMICS
BELL&HOWELL
BROKSONIC
CANDLE
CANON
CITIZEN
COLORTYME
CRAIG
CURTIS MATHES
DAEWOO
DB
DIMENSIA
DYNATECH
ELECTROHOME
EMERSON
FISHER
FUNAI
GENERAL ELECTRIC
GO VIDEO
LG(Goldstar)
HARMAN KARDON
HITACHI
INSTANT REPLAY
JC PENNEY
JCL
KENWOOD
KLH
LIOYD
LOGIK
LXI
JVC
MAGNAVOX
MARANTZ
MARTA
KONIA
ORION
MEI
MEMOREX
MGA
MIDLAND
MINOLTA
Code
000 001 002 003 004 005 077 078 079
020
025
004 027 032
007 026
018
022
002 003 006 008 015 055
021 056
002 003 006 008 015 055
007
002 024
002 007 008 017 021 025 056 064 066
003 010 011 012 013 014 015 016
007 026
017
025
034
001 003 006 021 022 025 030 032 034
040 047 050 052 060 063 065 066 067
069 073
018 024 028 029 048 051 061
025
002 005 017 021 056
002
006 007 008 009 010
007
019 025 041 042 074
021
002 007 018 019 021 026 037 041
054 056
007 008 018 021 026 037
007 008 018 026 037
070
025
038
025
081 082 083
021 056 059
007 008 018 021 026 037 062
006
036
073 074 075 076
021
006 021 024 025
034
005
019 041 075
Brand
MITSUBISHI
MONTGOMERY WARD
MTC
MULTITECH
NEC
OPTIMUS
PANASONIC
PENTAX
PENTEX RESEARCH+
PHILCO
PHILIPS
PIONEER
PORTLAND
PROSCAN
QUARTZ
QUASAR
RADIO SHACK/
REALISTIC
RCA
SANSUI
SANYO
SCOTT
SEARS
SHARP
SHIMTOM
SIGNATURE
SONY
SYLVANIA
SYMPHONIC
TANDY
TASHIKA
TATUNG
TEAC
TECHNICS
TEKNIKA
TMK
TOSHIBA
TOTEVISION
UNITECH
VECTOR RESEARCH
VICTOR
VIDEO CONCEPTS
VIDEOSONIC
WARDS
YAMAHA
ZENITH
Code
019 034 041 046
020
002 025
002 005 025 038
007 008 018 026 037 062 064
020
021 056 071 072
019 041 075
008
021 056 059
021 080
019 026 039 053
015 049 055
017
018
021 056
006 018 020 021 024 025 029 034
048 056
002 017 019 021 035 041 043 057
068 076
026
018 024
003 047 052 067
006 018 019 024 028 029 041 048 051
020 034 045 015
027 033 038 058
025
027 033 044
021 025 056 059
025
018 025
006
037
025 037 068
021
006 021 025 031
066
003 019 029 051 052
002 006
002
007 026
026
007 026
002
002 003 006 019 020 021 024 025 034
038 041
007 008 018 026 037
023 027 033
Continued...
Page 52
English - 52
CABLE BOX
Brand
SAMSUNG
GI
HAMLIN
HITACHI
JERROLD
MACOM
MAGNAVOX
OAK
PANASONIC
PHILIPS
PIONEER
RCA
REGAL
Code
000 001 002 003 004 005 006 007
041
003 024 031
025 030
038 039
025 030
019 023 028
026
003 022 027 037 044
019 021 023 028
004 018 020 044
014 022 040
003
SAMSUNG SET-TOP BOX
Product
Ground wave STB
CABLE STB
Satellite STB
Code
000 001 002 008 013
000 004 008 013
000 003 008 013
SET-TOP BOX
Brand
ALPHASTAR
ANAM
CHANNEL MASTER
CROSSDIGITAL
CHAPARRAL
DIRECT TV
DAEWOO
DISH NETWORK SYSTEM
DISHPRO
DRAKE
DX ANTENNA
ECHOSTAR
EXPRESSVU
GOI
GE
GENERAL INSTRUMENT
HTS
HOME CABLE
HITACHI
HUGHES NETWORK
IQ
IQ PRISM
JANEIL
JERROID
JVC
Code
023
043
018 034
019
035
015 016 017 019 022 045 060
061 062 065 066 067 068
074
069 070
069
018 024 032
027
025 069 070 071
069
069
065
046 047 048 063 064
069
056
022
015 017
020
020
059
063
069 070
Brand
REGENCY
SA
SCIENTIFIC ATLAN
SPRUCER
STARGATE 2000
SYLVANIA
TEXSCAN
TOCOM
UNIVERSAL
VIEWSTAR
WARNER AMEX
ZENITH
Brand
LG(Goldstar)
MAGNAVOX
MEMOREX
MOTOROLA
MACOM
MITSUBISHI
NEXT LEVEL
PHILIPS
PRIMESTAR
PANASONIC
PAYSAT
PROSCAN
RCA
RADIOSHACK
REALISTIC
STS
STAR TRAK
SKY
SKY LIFE
SHACK
STAR CHOICE
SONY
TOSHIBA
ULTIMATE TV
UNIDEN
ZENITH
Code
015 023
042 043
042 043
022
036
016
016
032
033 034
019 021 023 028
046
017 029 035 037 045
Code
044 073
016 021 036 038 039 040 041 042
016
064
018
015
047 048 064
015 016 017 021 033 036 038 039
040 041 042 067
046 049 050 063
058 059 061 062
016
065 066
051 052 053 065 066
064
057
020 027
026
031
005 006 007
064
064
054 060
015 017 028 029 030 072
060 066
016 021 037 055 056 057
024 031 068
Continued...
Page 53
English - 53
SAMSUNG DVD
Product
DVD
DVDR
BD Record
VCR COMBO
VCR Record
DHR COMBO
DVD
Brand
ANAM
AUDIOVOX
AUDIOLOGIC
ANABA
APEX DIGITAL
AIWA
BROKSONIC
BLAUPUNKT
B&K
CURTIS MATHES
CYBER HOME
CLARION
CIRRUS
CINEVISION
DAEWOO
DENON
FARENHEIT
FISHER
GPX
GO VIDEO
GE
GREENHILL
HITACHI
HITEKER
HOYO
HARMAN / KARDON
IRT
INTEGRA
JBL
JVC
JATON
KENWOOD
KISS
KONKA
KLH
LG(Goldstar)
LOEWE
LASONIC
MOBILE AUTHORITY
MEMOREX
MALATA
MAGNAVOX
MINTEK
MONYKA
Code
000 001 002
003 004
005 006
007 008 009 010 011
012
013
Code
030
075
085
072
070 071 074 086 083 084 088
111 112
114
062
074
122 123
027
065 077 078 079 082
080 125
081
095
066
146
067 068
090
060
061 089 133 135
069 074
074
064 113
071
073
091 110
089
092
091
022 033 115 116
073
051 108 109
073
059 100 106 107
074 075
025 031
057
058
054
055
056
076 093
074 094
073
Product
Home Theater VCR COMBO
HDD Record COMBO
TWIN TRAY COMBO
STB DVD COMBO
DVD Receiver
AV Receiver
Brand
NORCENT
NEXT BASE
NEC
NANTAUS
NESA
OPTOMEDIA ELECTRONICS
OPTIVIEW
ONKYO
PHILCO
PRINCETON
PROSCAN
PANASONIC
PHILIPS
ROTEL
RIO
RCA
RAITE
ROWA
SAMPO
SONY
SHERWOOD
SVA
SYLVANIA
SHARP
SANSUI
SANYO
SHINSONIC
SANYO
THOMSON
TOSHIBA
TECHNICS
TVIEW
TOKAI
TEAC
TECHWOOD
TREDEX
URBAN CONCEPTS
VENTURER
VOCOPRO
YAMAHA
YAMAKAWA
XWAVE
ZENITH
Code
014 015 016
017
018
019
020
021
Code
048 049 050
052
053
144
074
105
072
076 092 119
044 045
046 047
023
024 034 124 134 136 137 138
036 076
117 118
120
023 035 074 075 131 132
073
038
104
026 029 126 127 128 129
130 141
039 041
042
043 093
140
062
062
094
090
145
028 062 076
139
072
073
096
097
098 099 101
076
075
102
032 063
040 073
103
076 121
Page 54
English - 54

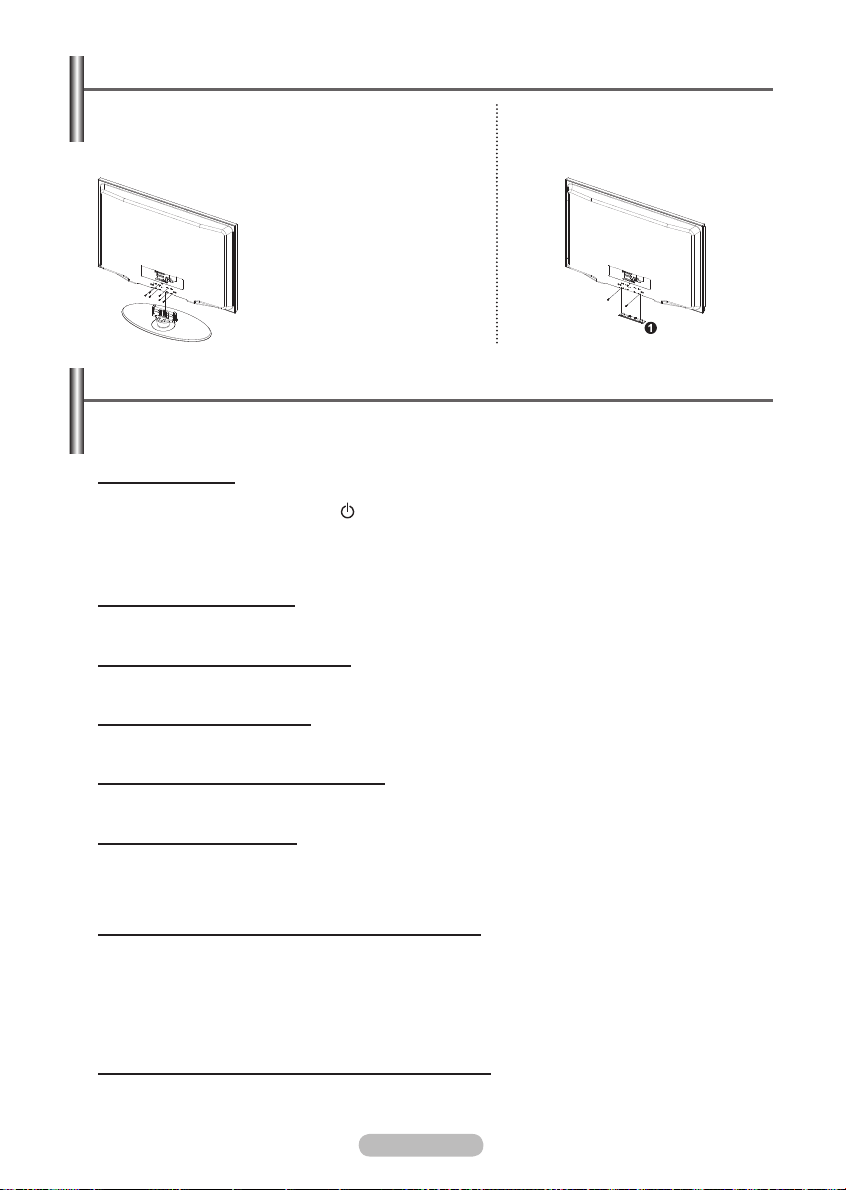

How to assemble the Stand-Base (depending on the model)
Using the 6 screws for securing the stand base and the
monitor, firmly attach the monitor to the stand base.
(The exterior of the set may be different than the picture.)
Warning
Firmly secure the stand to the TV
before moving it, as the stand may
fall and could cause serious injury.
Two or more people should carry
➢
the TV. Never lay the TV on the
floor because of possible damage
to the screen.
Always store the TV upright.
In case of installing your TV on the wall,
close the cover (1) on the stand-base
connection part using two screws for
hiding.
Troubleshooting
Before contacting the Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of
the television and contact your local dealer.
No sound or picture
Check that the mains lead has been connected to a wall socket.
Check that you have pressed the (Power) button (On/Off) on the front panel or press the POWER
button on the remote control.
Check the picture contrast and brightness settings.
Check the volume.
Check if Internal Mute is set to ON.
Normal picture but no sound
Check the volume.
Check whether the volume MUTE button on the remote control has been pressed.
No picture or black and white picture
Adjust the colour settings.
Check that the broadcast system selected is correct.
Sound and picture interference
Try to identify the electrical appliance that is affecting the television, then move it further away.
Plug the television into a different main socket.
Blurred or snowy picture, distorted sound
Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
Remote control malfunctions
Replace the remote control batteries.
Clean the upper edge of the remote control (transmission window).
Check that the “+” and “–” ends of the batteries are inserted correctly.
Check that the batteries are drained.
Screen is black and power indicator light blinks steadily
On your computer check; Power, Signal Cable.
The TV is using its power management system.
Move the computer’s mouse or press any key on the keyboard.
On your equipment check (STB, DVD, etc) ; Power, Signal Cable.
The TV is using its power management system.
Press the Source button on the panel or remote control.
Turn the TV off and on.
The damaged picture appears in the corner of the screen.
If Just Scan is selected in some external devices, the damaged picture may appear in the corner of
the screen. This symptom is caused by external devices, not TV.
Page 55
English - 55
Specifications
The descriptions and characteristics in this booklet are given for information purposes only and
are subject to modification without notice.
Model Name
Screen Size
(Diagonal)
PC Resolution 1024 x 768 @ 60 Hz 1360 x 768 @ 60 Hz
Sound (Output) 10 W + 10 W
Dimension
(WxHxD)
Body
With stand
Weight
Body
With stand
Environmental
Considerations
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
This device is a Class B digital apparatus.
➢
Design and specifications are subject to change without prior notice.
For the power supply and Power Consumption, refer to the label attached to the product.
PS-42C67HD
PS-42C77HD
42 inch 50 inch
1055x713x95 mm
1055x757x340 mm
31 kg
36 kg
PS-42E97HD
1055x700x95 mm
1055x759x316 mm
31 kg
34 kg
10 °C to 40 °C (50 °F to 104 °F)
10% to 80%, non-condensing
-20 °C to 45 °C (-4 °F to 113 °F)
5% to 95%, non-condensing
PS-50C67HD
PS-50C77HD
1227x802x96 mm
1227x845x341 mm
41 kg
46 kg
PS-50E97HD
1231x789x95 mm
1231x849x316 mm
41 kg
44 kg
Page 56
This page is intentionally
left blank.
Page 57
This page is intentionally
left blank.
Page 58
This page is intentionally
left blank.
Page 59
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its
working life.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types of
wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
Loading...
