Samsung PS-42E71HD, PS-42E7HD User Manual

PDP-TELEVISION (PLASMA

DISPLAY PANEL)

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

Picture In Picture (PIP)

Energy Saving

TELETEXT

SRS TruSurroundXT

Digital Natural Image engine

Digital Terrestrial Receiver

This device is a Class B digital apparatus.

(Option)

User Instructions

◆ Screen Image retention

Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the plasma monitor panel for more than 2 hours as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.

◆ Height

The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height so do not install and operate there.

◆ Heat on the top of the PDP TV

The top side of the product may be hot after long periods of use as heat dissipates from the panel through the vent hole in the upper part of the product. This is normal and does not indicate any defect or operation failure of the product. However, children should be prevented from touching the upper part of the product.

◆ The product is making a ‘cracking’ noise.

A ‘cracking’ noise may occur when the product contracts or expands due to a change of surrounding environment such as temperature or humidity. This is normal and not a defect of the unit.

◆ Cell Defects

The PDP uses a panel consisting of 1,230,000(SD-level) to 3,150,000(HD-level) pixels which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

◆ Avoid operating the TV at temperatures below 5°C(41°F)

◆ A still image displayed too long may cause permanent damage to the PDP Panel.

◆ Afterimage on the Screen.

Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the ‘brightness’ and ‘contrast’ when displaying still images.

◆ Warranty

- Warranty does not cover any damage caused by image retention.

- Burn-in is not covered by the warranty.

◆ Installation

Be sure to contact an authorized service centre, when installing your set in a location with heavy dust, high or low temperatures, high humidity, chemical substance and where it operates continually such as the airport, the train station etc. Failure to do so may cause a serious damage to your set.

Watching the PDP TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.

Checking Parts

Owner’s

Instructions

Remote Control/

AAA Batteries

Power Cord

Warranty Card/

Registration Card/

Safety Guide Manual

(Not available in all

locations)

S-VIDEO Cable

PC Cable

English - 2

Sold Separately

HDMI Cable

Scart Cable PC Audio Cable HDMI/DVI Cable

Antenna Cable

Component Cables

(RCA)

Contents

ENERAL INFORMATION

◆ G

■ User Instructions ................................................................................................... 2

■ Checking Parts...................................................................................................... 2

■ Control Panel (depending on the model) .............................................................. 5

■ Connection Panel (depending on the model) ....................................................... 5

■ Using the Stand-Base ........................................................................................... 7

■ Viewing the Remote Control (depending on the model)....................................... 7

■ Installing Batteries in the Remote Control ............................................................ 8

◆ OPERATION

■ Switching Your Television On and Off ................................................................... 8

■ Viewing the Menus................................................................................................ 8

■ Freezing the Current Picture................................................................................. 9

■ Plug & Play Feature .............................................................................................. 9

■ Viewing an External Signal Source....................................................................... 10

■ Editing Device Names........................................................................................... 10

◆ CHANNEL CONTROL (ANALOG TV)

■ Storing Channels Automatically ............................................................................ 10

■ Storing Channels Manually ................................................................................... 11

■ Adding / Locking Channels ................................................................................... 11

■ Sorting the Stored Channels................................................................................. 12

■ Assigning Names to Channels.............................................................................. 12

■ Fine Tuning Channel Reception............................................................................ 13

■ LNA (Low Noise Amplifier) .................................................................................... 13

◆ PICTURE CONTROL

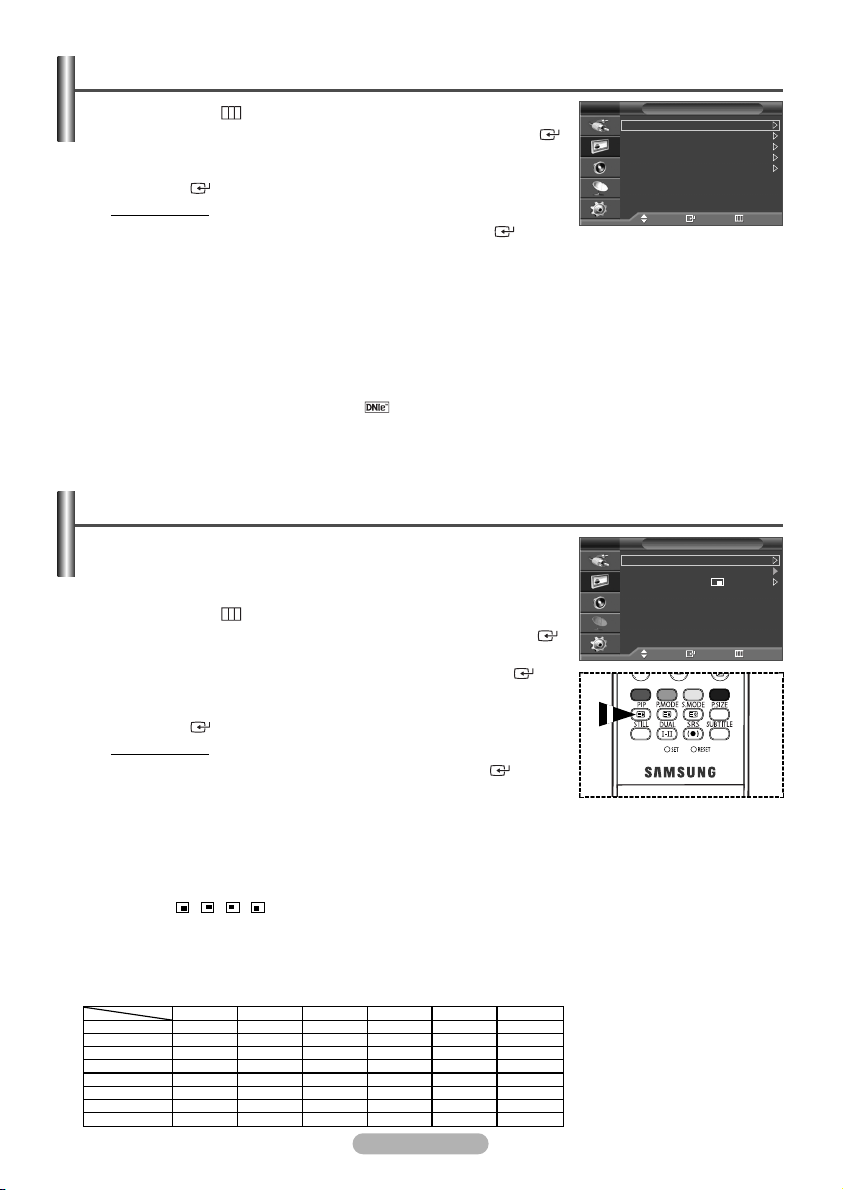

■ Changing the Picture Standard............................................................................. 13

■ Customizing the Picture Settings .......................................................................... 14

■ Selecting the Picture Size ..................................................................................... 14

■ Digital NR .............................................................................................................. 15

■ DNIe Demo ........................................................................................................... 15

■ Viewing the Picture in Picture (PIP)...................................................................... 15

OUND CONTROL

◆ S

■ Sound Features..................................................................................................... 16

UNCTION DESCRIPTION

◆ F

■ Time Features ....................................................................................................... 17

■ Language .............................................................................................................. 18

■ Blue Screen........................................................................................................... 18

■ Melody................................................................................................................... 18

■ Energy Saving....................................................................................................... 18

■ Using Game Mode ................................................................................................ 18

■ Screen Burn Protection......................................................................................... 19

◆ PC DISPLAY

■ Setting up Your PC Software (Based on Windows XP)........................................ 19

■ Input Mode (PC).................................................................................................... 20

■ Setting the PC....................................................................................................... 20

continued...

English - 3

Contents

SING THE DTV FEATURE

◆ U

■ Previewing the DTV Menu System (depending on the model)................................ 21

■ Updating the Channel Manager Automatically.......................................................... 22

■ Updating the Channel Manager Manually ................................................................ 22

■ Editing Your Favourite Channels........................................................................... 23

■ Viewing Channel Manager.................................................................................... 25

■ Displaying Programme Information....................................................................... 25

■ Viewing the EPG (Electronic Programme Guide) Information.............................. 26

■ Using the Scheduled List ...................................................................................... 27

■ Setting the Default Guide...................................................................................... 28

■ Viewing All Channels and Favourite Channels..................................................... 28

■ Setting the Preferred Languages ............................................................................. 29

■ Choosing Your Language........................................................................................ 29

■ Adjusting the Translucency Level............................................................................. 30

■ Setting up the Parental Lock ................................................................................... 30

■ Using the Preferred Features .................................................................................. 31

■ Checking the Product Information............................................................................ 31

■ Checking the Signal Information .............................................................................. 32

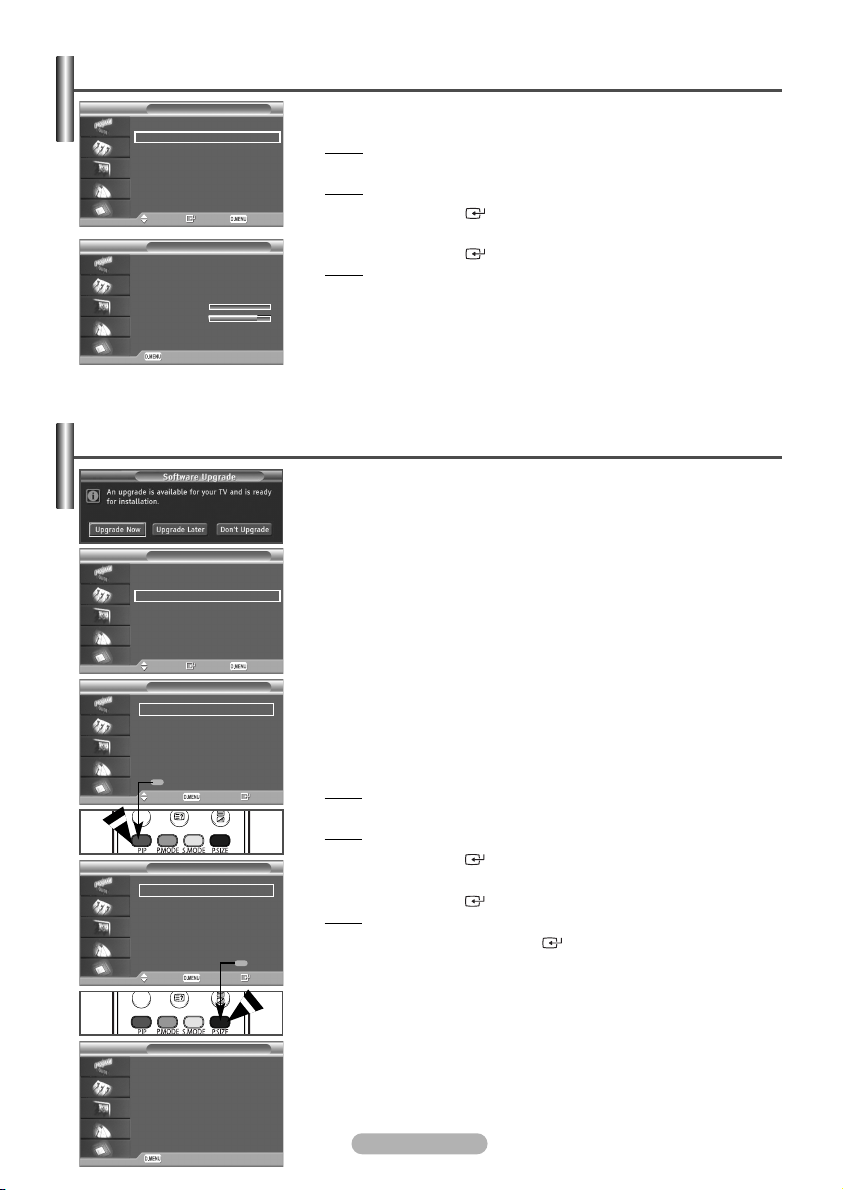

■ Upgrading the Software (Option) ............................................................................. 32

■ Viewing Common Interface ..................................................................................... 33

■ Selecting the CI (Common Interface) Menu ............................................................. 33

■ Resetting ................................................................................................................ 34

■ Freezing the Current Picture.................................................................................... 34

PPENDIX

◆ A

■ Teletext Feature (depending on the model) .......................................................... 35

■ How to Install the Wall Mount Bracket.................................................................. 36

■ Troubleshooting..................................................................................................... 38

Symbols

☛

➢

Press Important Note

English - 4

Control Panel

The product colour and shape may vary depending on the model.

➢

(depending on the model)

Front (or Side) Panel

PS-42E7HD

Speaker

PS-42E71HD

SOURCE

Displays a menu of all of the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI, DTV).

Press to see the on-screen menu of your TV’s features.

Press to decrease or increase the volume. In the on-screen menu, use the

buttons as you use the œ and

√ buttons on the remote control.

C/P.

Press to change channels. In the on-screen menu, use the C/P. buttons as you use the … and † buttons on the remote control.

(ENTER)

Press to confirm a selection.

(Power) button

Press to turn the TV on and off.

Power Indicator

- Power Off: Red

- Power On: Off

Remote Control Sensor

Aim the remote control towards this spot on the TV.

Speaker

Press the MENU button once in DTV mode, then the DTV menu is displayed.

➢

Connection Panel

The product colour and shape may vary depending on the model.

➢

(depending on the model)

Side Panel

continued...

English - 5

Œ S-Video or Video / Audio L/R

- Video (S-Video or Video) and audio inputs for external devices, such as a camcorder or VCR.

´ headphones jack

- You can connect a set of headphones to your television if you wish to watch a television programme without disturbing the other people in the room.

Prolonged use of headphones

➢

at a high volume may damage your hearing.

Connection Panel

The product colour and shape may vary depending on the model.

➢

Rear Panel

(depending on the model)

Cable Television

Network

Output

English - 6

’ HDMI/DVI IN

- Connect to the HDMI jack of a device with HDMI output. These inputs can also be used as a DVI connection with separate analog audio inputs. An optional HDMI/DVI cable will be necessary to make this connection. When using the optional HDMI/DVI adapter, the DVI analog audio inputs on your TV allow you to receive left and right audio from your DVI device. (Not compatible with PC)

- When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture distortion, image breakup or no picture.

- Do not attempt to connect the HDMI/DVI connector to a PC or Laptop Graphics Card. (This will result in a blank screen being displayed)

DVI AUDIO IN L/R

- DVI audio outputs for external devices.

˝ SERVICE

- Connector for service only.

Ô POWER IN

- Connect the supplied power cord.

Supported modes for HDMI/DVI and Component

➢

HDMI/DVI 50Hz HDMI/DVI 60Hz Component

480i

X X O

480p

O O O

576i

X X O

”’

∏

Whenever you connect an audio or video system to your set, ensure that all elements are switched off.

☛

When connecting an external device, match the colour of the connection terminal to the cable.

☛

Œ Common Interface Slot

- Insert CI (Common Interface) card into the slot.

´ ANT IN VHF/UHF (75Ω)

- 75Ω Coaxial connector for Aerial/Cable Network.

ˇ Connecting external Audio Devices

- Connect RCA audio signals from the TV to an external source, such as Audio equipment.

¨ DIGITAL AUDIO OUT (OPTICAL)

- Connect to a Digital Audio Component.

ˆ DTV SERVICE

- Connector for service only.

Ø COMPONENT IN

- Video (Y/P

∏ PC IN / AUDIO

- Connect to the video and audio output jack on your PC.

” EXT 1, EXT 2

- Inputs or outputs for external devices, such as VCR,

Input/Output Specification

Connector

EXT 1 EXT 2

B/PR) and audio (AUDIO L/R) inputs for

Component.

DVD, video game device or video disc players.

Input

Video

✔✔✔✔✔✔

✔

Video + Audio (L/R)S-Video RGBAudio (L/R)

Only TV or DTV output is available.

Output you can choose.

576p

O X O

720p

O O O

1080i

O O O

Using the Stand-Base

Two or more people should carry the PDP. Never lay the PDP on

➢

the floor because of possible damage to the screen. Always keep the PDP upright.

Pull the folded stand in the direction of the arrow.

➢

PS-42E7HD

Stand

Viewing the Remote Control

ŒŒ

POWER button (turns the TV on and off)

´´

Number buttons for direct channel access

ˇˇ

One/Two-digit channel selection

¨¨

Channel control button (Refer to page 11~12)

ˆˆ

Selects the TV and DTV mode directly

ØØ

Volume increase Volume decrease

∏∏

Temporary sound switch-off

””

Displays the main on-screen menu

’’

Electronic Program Guide (EPG) display

˝˝

Picture-In-Picture On/Off

ÔÔ

Picture effect selection (Refer to page 13)



Picture freeze

ÒÒ

Sound mode selection

ÚÚ

Remote control setup

ÆÆ

Selects a target device to be controlled by the Samsung remote control (TV, DVD, STB, CABLE, VCR)

ıı

Available source selection

˜˜

Previous channel

¯¯

DTV menu display

˘˘

Automatic Power-off

¿¿

VCR/DVD Function (Rewind, Stop, Play/Pause, Fast/Forward

¸¸

Next channel Previous channel

˛˛

Exit the on-screen menu

The performance of the remote control may be affected by bright light.

➢

This is a special remote control for the visually impaired, and has Braille points.

➢

◊◊ ±±

–– —— ÷÷

®® ∑∑ µµ

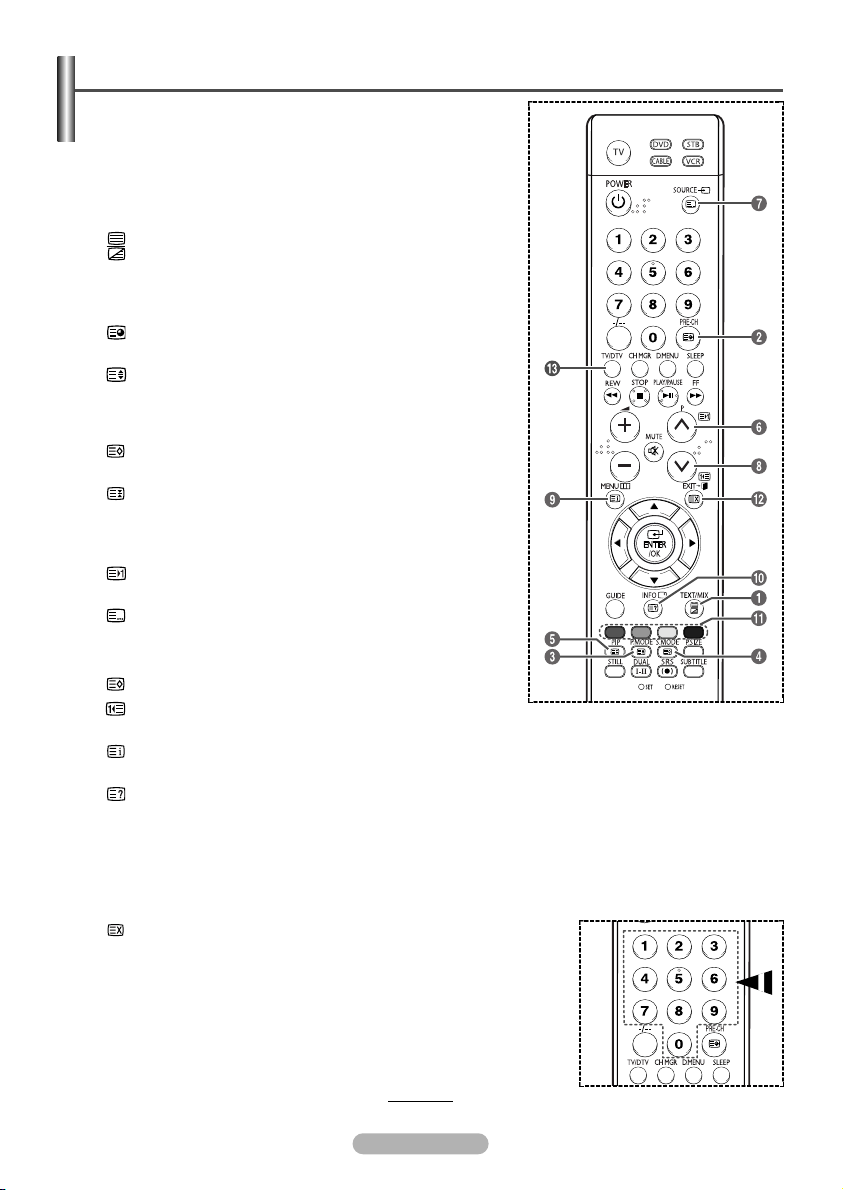

Teletext Functions

(Refer to page 35)

ˆˆ

”” ˝˝ ÔÔ ıı

˜˜ ¸¸

˛˛ ±± ≠≠

–– ÷÷

(depending on the model)

Control the cursor in the menu

Use to see information on the current broadcast

Fastext topic selection

Picture size selection

Sound effect selection (Refer to page 16)

Digital subtitle display

TruSurround XT mode button

If your remote control is not functioning properly, take out the batteries and press the reset button for about 2~3 seconds. Re-insert the batteries and try using the remote control again.

Exit from the teletext display (depending on the model)

Teletext index

Teletext hold

Teletext size selection

Teletext mode selection (LIST/FLOF)

Teletext sub page

P:Teletext next page P:Teletext previous page

Teletext cancel

Teletext reveal

Teletext display/mix both Pressing TEXT/MIX selects Teletext, Double, or Mix mode in sequence.

Fastext topic selection

Teletext store

English - 7

Installing Batteries in the Remote Control

1 Lift the cover at the back of the remote control upward as shown in the figure.

2 Install two AAA size batteries.

Make sure to match the “+” and “–” ends of the batteries with the diagram

➢

inside the compartment.

3 Close the cover as shown in the figure.

Remove the batteries and store them in a cool, dry place if you won’t be using

➢

the remote control for a long time. The remote control can be used up to about 23 feet from the TV. (Assuming typical TV usage, the batteries last for about one year.)

If the remote control doesn’t work! Check the following:

➢

1. Is the TV power on?

2. Are the plus and minus ends of the batteries reversed?

3. Are the batteries drained?

4. Is there a power cut, or is the power cord unplugged?

5. Is there a special fluorescent light or a neon sign nearby?

Switching Your Television On and Off

The mains lead is attached to the rear of the television.

1 Plug the mains lead into an appropriate socket.

The main voltage is indicated on the rear of the television and the frequency is 50 or 60Hz.

➢

2 Press the (Power) button (On/Off) on the front of the television or press the POWER ()button on the remote

control to switch the television on. The programme that you were watching last is re-selected automatically. If you have not yet stored any channels, no clear picture appears. Refer to “Storing Channels Automatically” on page 10 or “Storing Channels Manually” on page 11.

If the television is initially powered on, several basic customer settings proceed automatically.

➢

Refer to “Plug & Play Feature” on page 9.

3 To switch the television off, press the (Power) button (On/Off) on the front of the television or press the

POWER ()button on the remote control.

4 To switch the TV on, press the (Power) button (On/Off) on the front of the TV or press the POWER ()button

or number buttons on the remote control.

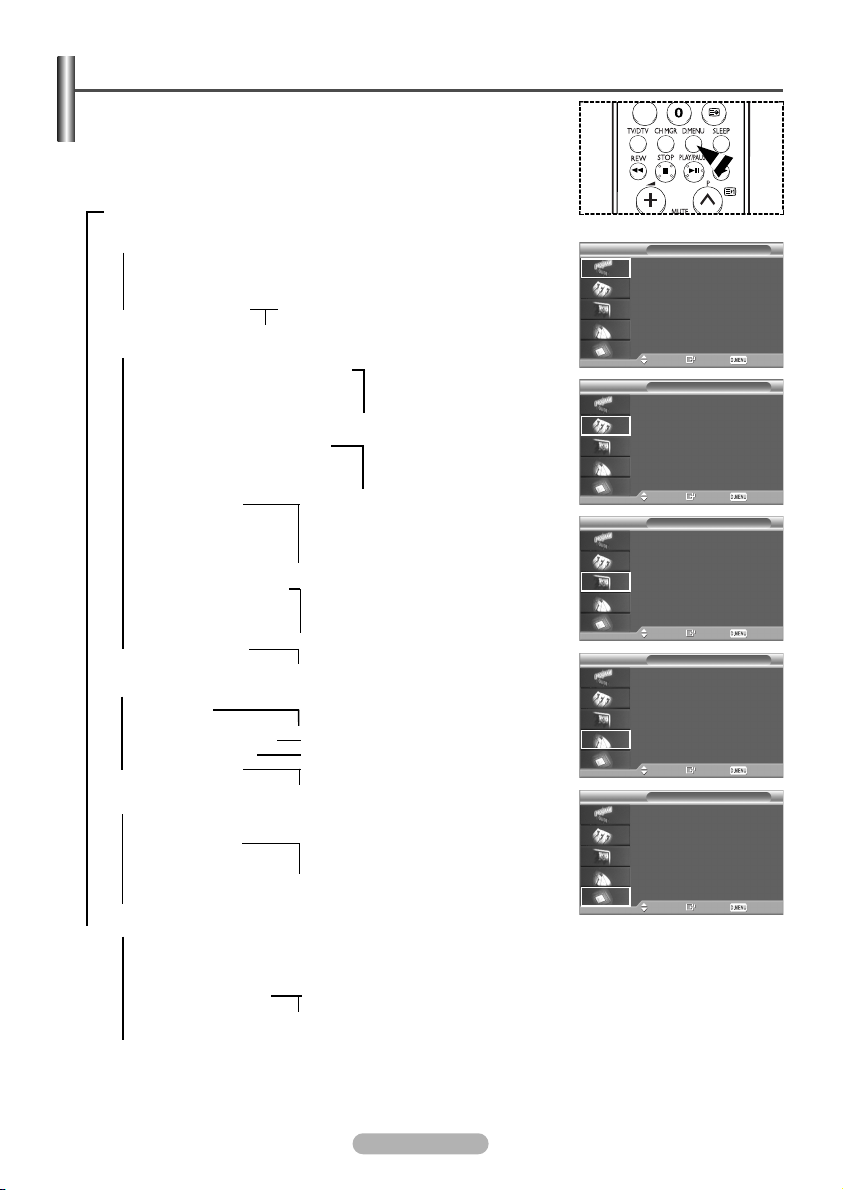

Viewing the Menus

Source List : TV Edit Name

Input

Move Enter Exit

1 Press the MENU ()button.

The main menu is displayed on the screen. Its left side has five icons: Input, Picture, Sound, Channel, and Setup.

2 Press the … or † button to select one of the icons.

Press the ENTER/OK ()button to access the icon’s sub-menu.

3 Press the … or † button to move to items in the menu.

Press the ENTER/OK ()button to enter items in the menu.

4 Press the …/†/œ/√ button to change the selected items.

Press the MENU ()button to return to the previous menu.

5 Press the EXIT button to exit from the menu.

English - 8

Freezing the Current Picture

You can freeze the picture when watching a television programme simply by pressing the “STILL” button. To return to normal viewing, press it again.

This function will automatically cancel five minutes later.

➢

Plug & Play Feature

When the television is initially powered on, several basic customer settings proceed automatically and subsequently. The following settings are available.

1 If the television is in standby mode, press the POWER () button

on the remote control. The message to start Plug & Play is displayed.

The Language menu will automatically appear after several seconds.

3 Select the appropriate language by pressing the

… or †

button.

Press the ENTER/OK () button. The message to check the connected status of the antenna is displayed.

4 Make sure that the antenna is connected to the TV.

Press the ENTER/OK () button. The Country menu is displayed.

… or †

5 Select your country or area by pressing the

button.

Press the ENTER/OK () button. The menu to select channels is displayed.

6 To start channel store, press the ENTER/OK () button.

The search will end automatically. The TV will begin memorizing all of the available channels. Press the ENTER/OK () button to set the clock.

7 Press the œ or √ button to select the hour or minute.

… or †

Set these by pressing the

You can enter the Hour, Minute by using the numeric buttons on the remote control.

➢

button.

8 Press the ENTER/OK () button to confirm your setting.

The DTV channel scan menu appears and the DTV channel is automatically updated.

If the DTV channel is updated, the Source in the source list of the Input menu is automatically changed to

➢

DTV.

For detailed descriptions about DTV channel update, refer to page 22 of this manual.

➢

Plug & Play

Start Plug & Play

Enter Exit

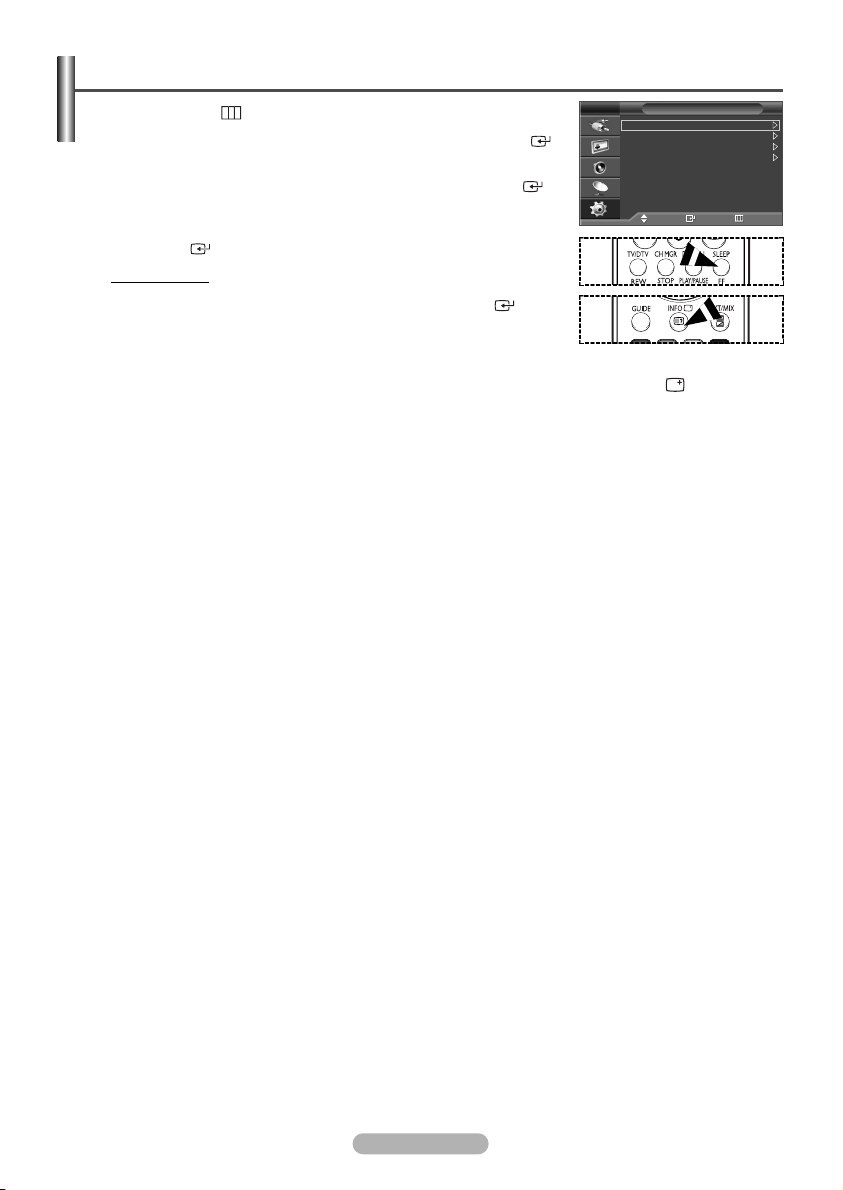

If you want to reset this feature …

1 Press the MENU () button to display the menu.

Press the … or † button to select Setup, then press the

button.

3 Press the ENTER/OK () button again to select Plug & Play.

The message to start Plug & Play is displayed.

ENTER/OK ()

English - 9

Plug & Play Language : English Time

Game Mode : Off

Blue Screen : Off Melody : Off

Move Enter Return

Setup

Viewing an External Signal Source

Source List

Ext.1 : Ext.2 : AV : S-Video : Component : PC : HDMI : DTV :

Move Enter Return

You can switch between viewing signal from connected equipment, such as a

----

VCR, DVD, Set-Top Box, and the TV source (air or cable).

1 Press the MENU () button to display the menu.

Press the

ENTER/OK ()

3 Press the ENTER/OK () button again.

4 Press the

… or †

ENTER/OK () button.

vailable signal source: TV, Ext.1, Ext.2, AV, S-Video, Component,

A PC, HDMI, DTV

You can select these options simply by pressing the SOURCE () button

➢

on the remote control.

To watch television programme again, press the TV/DTV button and

➢

select the channel number required.

Editing Device Names

Edit Name

Ext.1 :

Ext.2 : AV : S-Video : Component : PC : HDMI :

Move Enter Return

-----

----

-----

VCR

-----

DVD

-----

D-VHS

----

Cable STB

----

You can give a name to the external source.

1 Press the MENU () button to display the menu.

Press the

ENTER/OK ()

3 Press the … or † button to select Edit Name, then press the

ENTER/OK () button.

4 Press the

5 Select the required device by pressing

… or †

then press the ENTER/OK () button.

ENTER/OK () button.

vailable device names: VCR, DVD, D-VHS, Cable STB, HD STB,

Satellite STB, AV Receiver, DVD Receiver, Game, Camcorder, DVD Combo, DHR (DVD HDD Recorder), or PC.

6 Press the EXIT button to exit.

button to select Source List.

button to select the signal source, then press the

button.

button to select the external source to be edited,

… or †

, then press the

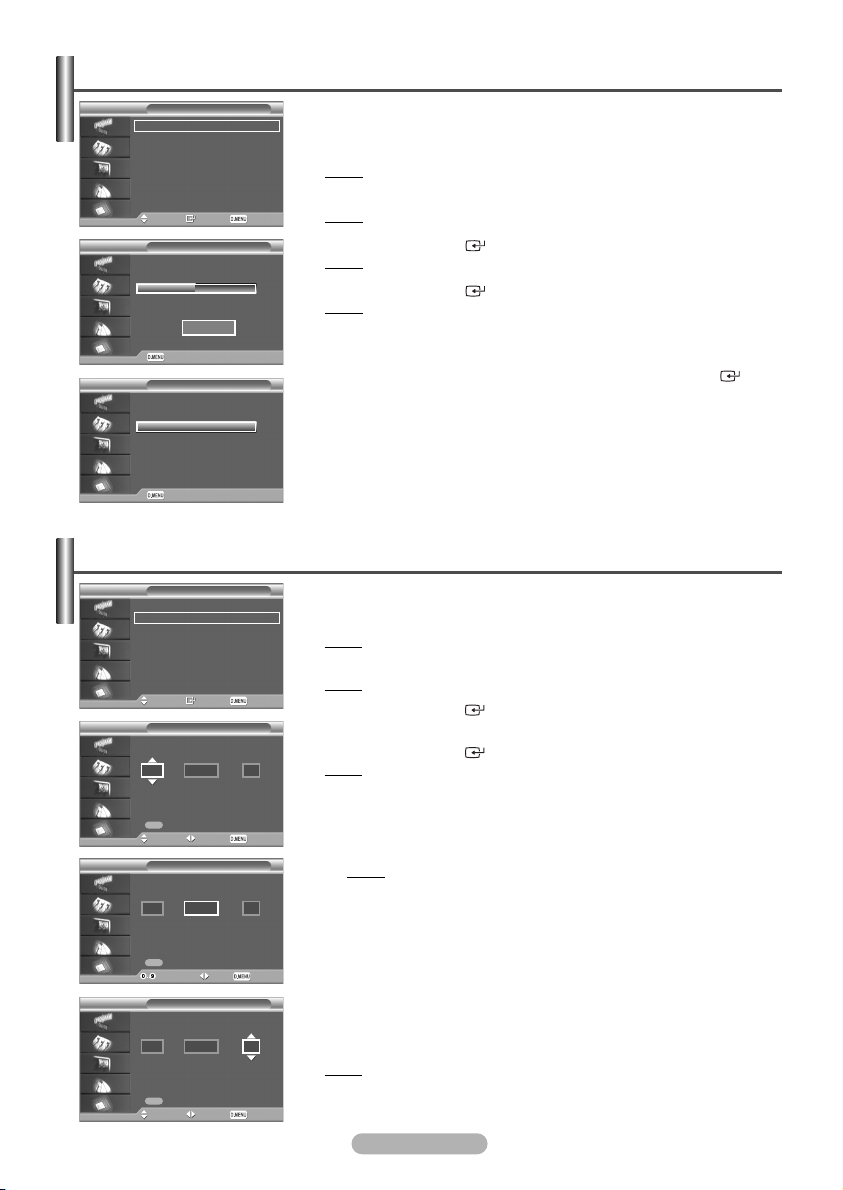

Storing Channels Automatically

Auto Store

P1 C

Enter Return

Start

40 MHz

0 %

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Channel, then press the ENTER/OK () button.

Press the

ENTER/OK ()

Select your country by pressing the … or † button, then press the

5 Press the … or † button to select Auto Store, then press the ENTER/OK () button.

Press the

ENTER/OK ()

To stop the search before it has finished, press the MENU () or the ENTER/OK () button.

➢

Not available in DTV or external input mode.

➢

You can scan for the frequency ranges available to you (availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However you can sort numbers manually and clear any channels you do not wish to watch.

button again. The available countries are listed.

ENTER/OK ()

button.

button again to start the search. The search will end automatically.

English - 10

Storing Channels Manually

Not available in DTV or external input mode.

➢

You can store television channels, including those received via cable networks. When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found.

◆ The programme number of each stored channel which you wish to identify.

1 Press the MENU () button to display the menu.

2 Press the … or † button to select Channel, then press the ENTER/OK () button.

… or †

3 Press the

4 Select the required option by pressing the

button to select Manual Store, then press the ENTER/OK ()button.

… or †

button, then press the ENTER/OK () button.

5 When you are satisfied with your setting, press the ENTER/OK () button.

6 Press the EXIT button to exit.

◆ Programme (Programme number to be assigned to a channel)

Press the

… or †

button until you find the correct number.

◆ Colour System: AUTO/PAL/SECAM/NTSC 4.43

Press the

… or †

button to select the required colour standard.

◆ Sound System: BG/DK/I/L

Press the

… or †

button to select the required sound standard.

◆ Channel (When you know the number of the channel to be stored)

Press the

Press the √ button, then press the

➢ ➢

… or †

button to select C (Air channel) or S (Cable channel).

… or †

button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0~9). If there is abnormal sound or no sound, re-select the sound standard required.

◆ Search (When you do not know the channel numbers)

Press the

The tuner scans the frequency range until the first channel or the channel that you selected is received

… or †

button to start the search.

on the screen.

◆ Store (When you store the channel and associated programme number)

Set to OK by pressing the ENTER/OK ()button.

Channel mode

☛

◆ P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned

to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.

◆ C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting

station in this mode.

◆ S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel

in this mode.

Manual Store

Programme : P 1 Colour System : AUTO Sound System : BG Channel : C 4 Search : 62 MHz Store : ?

Move Enter Return

Adding / Locking Channels

Not available in DTV or external input mode.

➢

Using the Channel Manager, you can conveniently lock or add channels.

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK () button.

3 Press the

… or †

button to select Channel Manager, then press the

ENTER/OK () button.

◆ Adding channels

Using the Channel Manager, you can add channels.

4 Select the Channel Manager by pressing the ENTER/OK () button.

5 Move to the

()

field by pressing the

…/†/œ/

√ buttons, select a channel to

be added, and press the ENTER/OK () button to add the channel.

If you press the ENTER/OK () button again, the

➢

the channel disappears and the channel is not added.

()

symbol next to

continued...

English - 11

Channel Manager

Channel Manager Child Lock : On

Move Enter Return

Channel Manager

P1 C 1

Prog.

0 C

1C 1 2C 3 3C 5 4C 8 5C 9 6C 10 7C 11 8C 12 9S 12

Add Lock

Move Enter Page Exit

1 / 10

Adding / Locking Channels

◆ Locking channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

4 Press the … or † button to select Child Lock, then press the ENTER/OK () button.

Select On by pressing the … or † buttons, then press the

6 Press the

7 Move to the

… or †

buttons to select the Channel Manager, then press the ENTER/OK () button.

()

field by pressing the

…/†/œ/

√ buttons, select a channel to be locked, and press the

ENTER/OK

() button.

ENTER/OK () button.

If you press the ENTER/OK () button again, the

➢

channel lock is canceled.

A blue screen is displayed when Child Lock is activated.

➢

()

symbol next to the channel disappears and the

8 Press the EXIT button to exit.

You can select these options simply by pressing the CH MGR button

➢

on the remote control.

Sorting the Stored Channels

Prog. Ch. Name

Press the … or † button to select Sort, then press the

4 Select the channel that you wish to move by pressing the

5 Select the number of the programme to which the channel is to be moved by pressing the

Press the ENTER/OK () button. The channel is moved to its new position and all other channels are shifted accordingly.

6 Repeat steps 4 to 5 until you have moved all the channels to the required programme numbers.

7 Press the EXIT button to exit.

Sort

1C 4

2C 74 3C 75 4S 1

Move Enter Return

Not available in DTV or external input mode.

➢

This operation allows you to change the programme numbers of stored channels. This operation may be necessary after using auto store.

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK () button.

ENTER/OK ()

… or †

button.

button, then press the ENTER/OK () button.

… or †

button.

Assigning Names to Channels

Press the … or † button to select Name, then press the

Press the … or † button to select

Press the … or † button to select a letter (A~Z), a number (0~9), or a symbol. Move on to the previous or next letter by pressing the

6 Repeat steps 4 to 5 for each channel to be assigned to a new name.

7 Press the EXIT button to exit.

Name

Prog. Ch. Name

-- -----

1C 4

2C 74 3C 75 4S 1

Move Adjust Return

-----

œ or √

Not available in DTV or external input mode.

➢

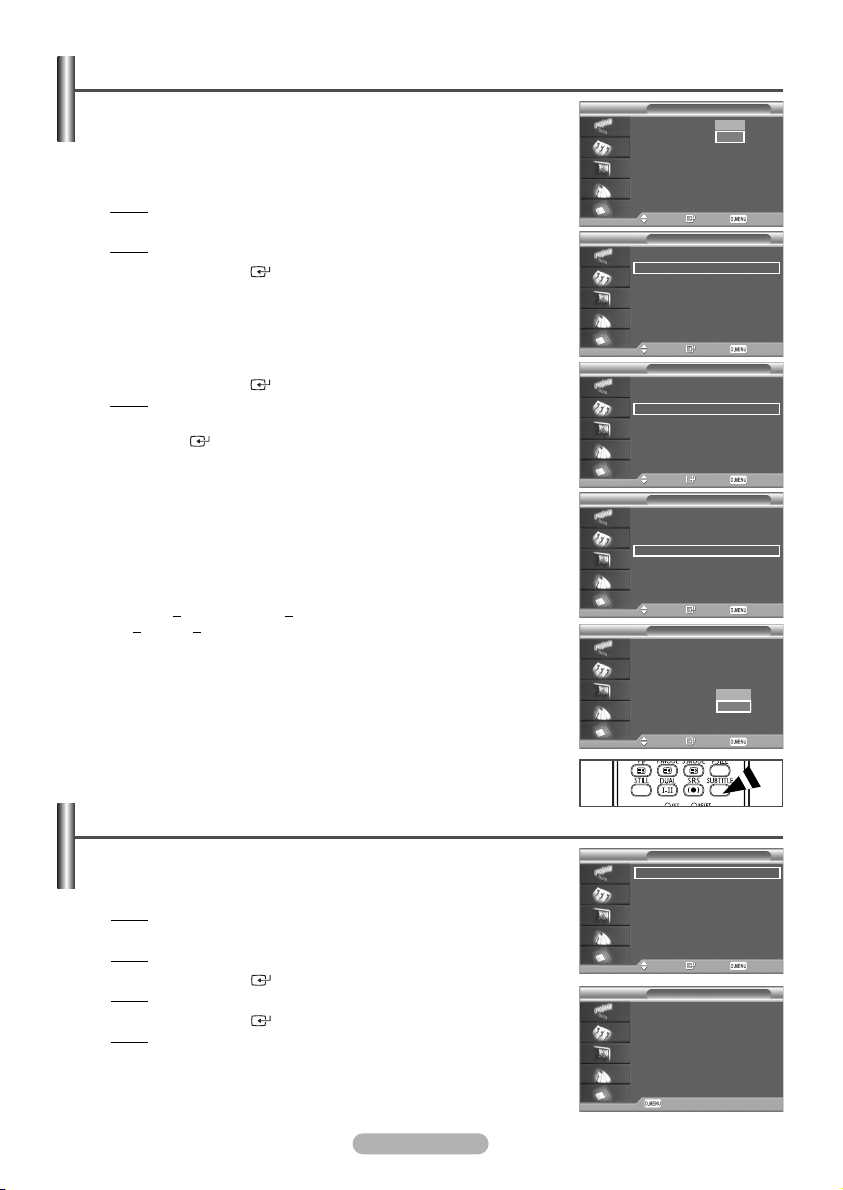

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1 Press the MENU () button to display the menu.

Press the … or † button to select Channel, then press the ENTER/OK () button.

button

, then press the

ENTER/OK ()

the channel to be assigned to a new name, then press the

ENTER/OK ()

English - 12

button.

ENTER/OK ()

button.

+ 28 hidden pages
