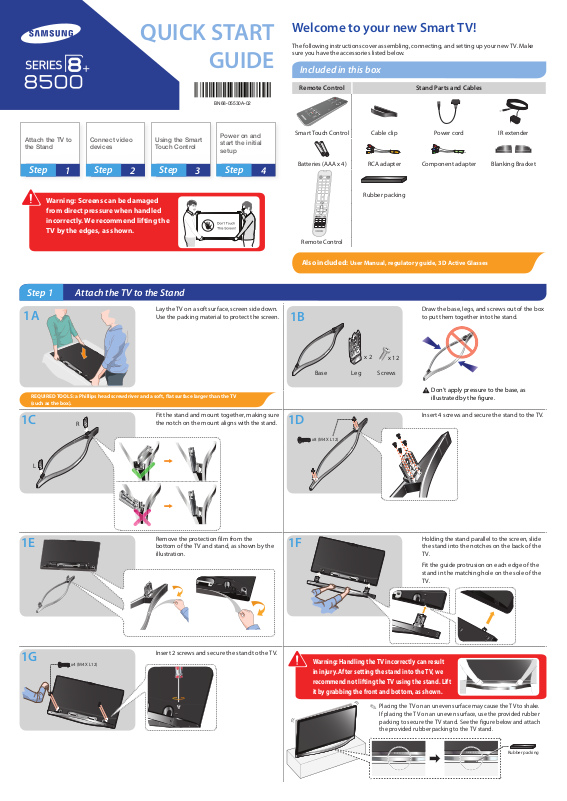

QUICK START

Welcome to your new Smart TV!

The following instructions cover assembling, connecting, and setting up your new TV. Make sure you have the accessories listed below.

Attach the TV to the Stand

Step

Warning: Screens can be damaged from direct pressure when handled incorrectly. We recommend lifting the TV by the edges, as shown.

Connect video devices

Step

GUIDE

BN68-05530A-02

Using the Smart Touch Control

Step

Power on and start the initial setup

Step

Included in this box

Remote Control Stand Parts and Cables

Smart Touch Control Cable clip Power cord IR extender

Batteries (AAA x 4) RCA adapter Component adapter Blanking Bracket

Rubber packing

Remote Control

Step 1 Attach the TV to the Stand

Lay the TV on a soft surface, screen side down.

REQUIRED TOOLS: a Phillips head screwdriver and a soft, flat surface larger than the TV (such as the box).

Use the packing material to protect the screen.

Fit the stand and mount together, making sure the notch on the mount aligns with the stand.

Also included:

Base

x8 (M4 X L12)

User Manual, regulatory guide, 3D Active Glasses

Draw the base, legs, and screws out of the box to put them together into the stand.

x 2

Leg Screws

x 12

Don’t apply pressure to the base, as

]

illustrated by the figure.

Insert 4 screws and secure the stand to the TV.

x4 (M4 X L12)

Remove the protection film from the bottom of the TV and stand, as shown by the illustration.

Insert 2 screws and secure the stand to the TV.

Warning: Handling the TV incorrectly can result in injury. After setting the stand into the TV, we recommend not lifting the TV using the stand. Lift it by grabbing the front and bottom, as shown.

Holding the stand parallel to the screen, slide the stand into the notches on the back of the TV.

Fit the guide protrusion on each edge of the stand in the matching hole on the sole of the TV.

Placing the TV on an uneven surface may cause the TV to shake.

✎

If placing the TV on an uneven surface, use the provided rubber packing to secure the TV stand. See the figure below and attach the provided rubber packing to the TV stand.

Rubber packing

Step 2 Connect video devices

We suggest using HDMI connections whenever possible for the best picture quality. Use the included AV adapter to connect older devices.

Please check the shape of the plugs to avoid inserting them upside down.

✎

The appearance of your TV may differ from the images below, depending on the model.

✎

TV Camera

Power Input

Plug in after you have made all other connections.

Good Connection: Component (Y, PB, PR) or AV (Composite)

Match the colors on your device's cables to the colors on the device's out ports. Connect the device's cables to the included adapters, and then connect the adapters to the appropriate ports on the TV as shown in the table below. Make sure the colors match. The Component connection is shown on the top. The AV connection is shown on the bottom.

Press the camera down to activate it. The camera enables voice recognition and motion control for your TV. Use the Scroll wheel on the back of the camera to adjust the camera's angle.

Best Connection : HDMI

We suggest using HDMI whenever possible.

Scroll wheel for camera angle adjustment

HDMI Cable

AV IN 1 Audio (L/R)

COMPONENT

AV IN 2

Video

Audio (L/R)

Video

Connect the cable from the antenna or cable TV outlet.

Wired Ethernet

IR OUT EX-LINK

LAN

HDMI IN 4

(MHL)

HDMI 1 is the default port for a cable

HDMI Port

or satellite set-top box.

HDMI IN 3

(ARC)

HDMI IN 2

(DVI)

HDMI IN 1

(STB)

DIGITAL

AUDIO OUT

(OPTICAL)

USB

(5V 0.5A)

USB

(5V 0.5A)

USB

(HDD 5V 1.0A)

ANT IN

AIR/CABLE

Use the other ports for Blu-ray players, game consoles, and other devices.

You can connect home theater systems to the OPTICAL or AUDIO OUT ports.

USB Connections

You can connect USB storage devices to the USB ports and enjoy personal photos, videos, and music.

Connect the IR extender to the IR Out port to control external devices connected to the TV using the Smart Touch Control. For more detailed information, refer to the “Universal Remote Control Setup” section in the User manual.

Step 3 Using the Smart Touch Control

Insert the batteries into the Smart Touch Control

Insert the tip of a credit card or similar item into the notch on the side of the Smart Touch Control, and then twist the card to open and remove the remote's back cover.

The notch’s location may vary depending on the type of Smart Touch Control provided.

✎

Step 4 Power on and start the initial setup

Information required:

• Wi-Fi network password (if you use one) • Zip code • Cable or satellite provider info

Plug in the TV. Press the power button on the remote to turn on the TV and start the initial set-up.

The TV must be connected to the Internet to use the Smart Features. If you have a wireless

✎

network, confirm that your network router is working before you start the initial setup. If you have a wired network, connect the TV to the network with a CAT 7 cable before you begin.

Troubleshooting

The stand is wobbly or crooked

Make sure the stand is properly assembled.

The TV won’t turn on

Using the touch pad

navigation selection scrolling

To control the highlight, move

your thumb across the pad.

To select an item, press the pad

until you hear a click.

Move your thumb along the ridges

to quickly scroll through items.

Pairing the Smart Touch Control

If you need to reestablish the connection between the TV and the Smart Touch Control, press the pairing button at the back of the Smart Touch Control, pointing at the remote control sensor of the TV.

Congratulations on your new Smart TV!

Make sure all cables are fully inserted, and that the remote has batteries installed.

I don’t know where to plug in <device>

Devices without HDMI may require the included A/V adapter.

I have extra parts

The TV includes some optional parts to help with wall mounting and cable routing.

If you experience issues, please do not take the TV back to the store.

In the United States of America, call us at 1-800-SAMSUNG (1-800-726-7864) or visit us at www. samsung.com or www.samsung.com/spsn for support and warranty service.

For other countries, refer to "Contact SAMSUNG WORLDWIDE" in the user guide.
