Samsung PN42A450PD, PN50A450PD User Manual
1-800-SAMSUNG (7267864)
($-)).
Samsung Electronics America, Inc.
105 Challenger Road Ridgefield Park, NJ 07660-0511
Samsung Electronics Canada Inc., Customer Service
55 Standish Court Mississauga, Ontario L5R 4B2
Call center hours of operation (Mon-Sun 9AM-12AM EST).
To register this product please visit
www.samsung.com/global/register.
Rear & Side Panel Jacks
PN42A450P1D/ PN50A450P1D
1
POWER IN
2
DIGITAL AUDIO OUT (OPTICAL)
3
AUDIO OUT (R/L)
4
PC IN[PC]/[AUDIO]
5
DVI IN (HDMI 2) (AUDIO-R/L)
6
HDMI IN 1, 2
7
ANT IN
8
SERVICE
9
3D SYNC OUT
0
COMPONENT IN 1, 2 / AV IN 1
!
EX-LINK
@
HDMI IN 3
Video Input Performance Comparison
/
/
HDMI/DVI Best
PC/COMPONENT Better
S-VIDEO Good
VIDEO Normal
English - 1
#
S-VIDEO (AV IN 2)
$
AV IN 2
%
HEADPHONE
Audio Output Performance Comparison
OPTICAL (Digital) Best
AUDIO (Analog) Normal
Remote Control Buttons
1
3
2
4
5
6
7
8
9
10
21
23
24
20
18
16
15
17
19
12
22
25
11
13
14
You can use the remote control up to a distance of about 23 feet from the TV.
1
POWER
Turns the TV on and off.
2
TV
Selects the TV mode directly.
3
NUMERIC BUTTONS
Press to directly select a channel.
4
–
Press to select additional channels
(digital and analog) being
broadcast by the same station. For
example, to select channel “54-3”,
press “54”, then press “–” and “3”.
5
MUTE
Press to temporarily cut off the
sound.
6
VOL
Press to increase or decrease the
volume.
7
CH LIST
Used to display Channel Lists on
the screen.
8
TOOLS
Use to quickly select frequently
used functions.
9
UP▲/DOWN▼/LEFT◄/ RIGHT►/
ENTER
Use to select on-screen menu
items and change menu values.
0
INFO
Press to display information on the
TV screen.
!
COLOR BUTTONS
Use these buttons in the Channel
@
list.
SRS
Selects SRS TruSurround XT
mode.
#
E.MODE
Press to select the preset display
and sound modes for sports,
cinema and games.
$
Use these buttons in the DMA and
Anynet+ modes.
( : This remote can be used
to control recording on Samsung
recorders with the Anynet+ feature)
%
SOURCE
Press to display all of the available
video sources.
^
PRE-CH
Tunes to the previous channel.
& CH
Press to change channels.
*
CC
Controls the caption decoder.
(
MENU
Displays the main on-screen menu.
)
RETURN
Returns to the previous menu.
a
EXIT
Press to exit the menu.
b
MTS
Press to choose stereo, mono or
Separate Audio Program (SAP
broadcast).
c
DMA (Digital Media Adapter)
Use this when connecting a
Samsung DMA device through an
HDMI interface and switching to
DMA mode.
For more information on the
operating procedures, refer to the
user manual of the DMA.
➢
This button is available when
“Anynet(HDMI-CEC)” is “On”.
(see page 65 of the owner's
manual)
d
FAV.CH
Press to switch to your favorite
channels.
e
P.SIZE
Press to change the screen size.
The performance of the remote control may be affected by bright light..
➢
English - 2
English - 3
Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via HDMI
Connecting to HDMI (High Definition Multimedia Interface)
Connect an HDMI Cable between
the HDMI IN(1, 2 or 3) jack on the
1
TV and the HDMI jack on the DVD
Player or Cable Box / Satellite
receiver (Set-Top Box).
Press the SOURCE button on the
remote control until you see the
2
DVD Player or Cable Box/Satellite
receiver (Set- Top Box)
“To Select the Source” on page 10)
➢
Each DVD Player or Cable Box /
Satellite receiver (Set-Top Box) has a
different back panel configuration.
➢
When connecting a DVD Player or
Cable Box / Satellite receiver (SetTop Box), match the color of the
connection terminal to the cable.
signal (see
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
HDMI Cable (Not supplied)
TV Rear Panel TV Side Panel
1
or
Connecting to DVI (Digital Visual Interface)
DVD Player or Cable Box /
Satellite receiver (Set-Top Box)
Audio Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
TV Rear Panel
2
1
Connect a HDMI/DVI Cable or DVIHDMI Adapter between the HDMI
1
IN 2 jack on the TV and the DVI jack
on the DVD Player or Cable Box/
Satellite receiver (Set- Top Box).
Connect Audio Cables between the
DVI IN (HDMI 2)
2
[R-AUDIO-L] jack on the TV and
the AUDIO OUT jacks on the
DVD Player or Cable Box/Satellite
receiver (Set-Top Box).
Press the SOURCE button on the
remote control until you see the
3
DVD Player or Cable Box/Satellite
receiver (Set- Top Box)
“To Select the Source” on page 10)
➢
When connecting a DVD Player or
Cable Box / Satellite receiver (SetTop Box), match the color of the
connection terminal to the cable.
➢
When using an HDMI / DVI cable
connection, you must use the HDMI IN
2 jack.
➢
Each DVD Player or Cable Box /
Satellite receiver (Set-Top Box) has a
different back panel configuration.
signal (see
Connecting a DVD Player or Cable Box / Satellite receiver (Set-Top Box) via Component cables
Connecting to Y, PB, PR
Connect Component Cables
between the COMPONENT IN (1 or
1
2) [Y, PB, PR] jacks on the TV and
the COMPONENT [Y, PB, PR] jacks
on the DVD Player or Cable Box /
Satellite receiver(Set-Top Box).
Connect Audio Cables between
the COMPONENT IN (1 or 2) [R-
2
AUDIO-L] jacks on the TV and the
AUDIO OUT jacks on the DVD
Player or Cable Box / Satellite
receiver (Set-Top Box).
Press the SOURCE button on the
remote control until you see the
3
DVD Player or Cable Box/Satellite
receiver (Set- Top Box)
“To Select the Source” on page 10)
➢
Component video separates the video
into Y (Luminance (brightness)), PB
(Blue) and PR (Red) for enhanced
video quality. Be sure to match
the component video and audio
connections. For example, if
connecting the video cable to
COMPONENT IN 1, connect the audio
cable to COMPONENT IN 1 also.
➢
Each DVD Player or Cable Box /
Satellite receiver (Set-Top Box) has a
different back panel configuration.
➢
When connecting a DVD Player or
Cable Box / Satellite receiver (SetTop Box), match the color of the
connection terminal to the cable.
signal (see
DVD Player or Cable Box/
Satellite receiver (Set-Top Box)
2
Audio Cable (Not supplied)
Component Cable (Not supplied)
1
TV Rear Panel
Connecting a Camcorder
1
Camcorder
or
2
S-Video Cable(Not supplied)
Video Cable (Not supplied)
Audio Cable (Not supplied)
English - 4
TV Side Panel
Connect a Video Cable
(or S-Video Cable) between the AV
1
IN 2 [VIDEO] (or S-VIDEO) jack on
the TV and the VIDEO OUT jack on
the Camcorder.
Connect Audio Cables between the
AV IN 2 [L-AUDIO-R] jacks on the
2
TV and the AUDIO OUT jacks on
the Camcorder.
Press the SOURCE button on the
remote control until you see the
3
Camcorder signal (see “To Select the
Source” on page 10)
➢
Each Camcorder has a different back
panel configuration.
➢
When connecting a Camcorder, match
the color of the connection terminal to
the cable.
English - 5
Connecting a VCR
Connecting to Video
Unplug the cable or antenna from
the back of the TV.
1
TV Rear Panel
VCR Rear Panel
Audio Cable
(Not supplied)
Video Cable (Not supplied)
Antenna Cable (Not supplied)
➢
When connecting a VCR, match the color of the connection terminal to the cable.
➢
If you have a “mono” (non-stereo) VCR, use a Y-connector (not supplied) to hook up to the right and left audio input jacks of the
TV. If your VCR is stereo, you must connect two cables.
➢
Each VCR has a different back panel configuration.
➢
When connecting to AV IN 1, the color of the AV IN 1 [Y/VIDEO] jack (Green) does not match the color of the video cable (Yellow).
12
TV Side Panel
Connect the cable or antenna to the
ANT IN terminal on the back of the
2
VCR.
Connect an Antenna Cable between
the ANT OUT terminal on the VCR
3
and the ANT IN terminal on the TV.
Connect a Video Cable between the
VIDEO OUT jack on the VCR and
4
the AV IN 1 [Y/VIDEO] or AV IN 2
[VIDEO] jack on the TV.
Connect Audio cables between the
AV IN 1 [R-AUDIO-L] jacks on the
5
TV and the AUDIO OUT jacks on
the VCR.
Press the SOURCE button on the
remote control until you see the VCR
6
signal (see “To Select the Source”
on page 10).
Connecting to S-Video
TV Rear Panel
VCR Rear Panel
Antenna Cable (Not supplied)
1
2
Audio Cable (Not supplied)
S-Video Cable (Not supplied)
➢
When connecting a VCR, match the color of the connection terminal to the cable.
➢
Each VCR has a different back panel configuration
TV Side Panel
To begin, follow steps 1–3 in the
previous section to connect the
1
antenna or cable to your VCR and
your TV.
Connect a S-Video cable between
the [S-VIDEO] jack on the TV and
2
the S-VIDEO OUT jack on the VCR.
Connect Audio cables between the
AV IN 2 [R-AUDIO-L] jacks on the
3
TV and the AUDIO OUT jacks on
the VCR.
Press the SOURCE button on the
remote control until you see the VCR
4
signal (see “To Select the Source”
on page 10).
Connecting a Digital Audio System
TV Rear Panel
Digital Audio System
1
Optical Cable (Not supplied)
Connect an Optical Cable
between the DIGITAL AUDIO OUT
1
(OPTICAL) jacks on the TV and the
Digital Audio Input (OPTICAL) jacks
on the Digital Audio System.
When a Digital Audio System is
connected to the DIGITAL AUDIO
OUT (OPTICAL) terminal:
Decrease the volume of the TV,
and adjust the volume level with the
system’s volume control.
➢
What is OPTICAL?
• Converts the electric signal into an
optical light signal, and transmits
it through glass fibers. S/PDIF is a
transmission system of digital audio
in the form of a light wave that uses
a glass conductor.
➢
5.1CH audio is possible when the TV
is connected to an external device
supporting 5.1CH.
➢
Each external input source device has
a different back panel configuration.
➢
When the COMPONENT IN or HDMI
IN jacks are connected, the Optical
jack on the TV outputs 2 channel audio
only. If you want to hear 5.1 channel
audio, connect the DIGITAL AUDIO
OUT (OPTICAL) jack on the DVD
player or Cable/Satellite Box directly to
an Amplifier or Home Theater, not the
TV.
Connecting an Analog Amplifier / DVD Home Theater
TV Rear Panel
Amplifier / DVD Home Theater
1
Audio Cable (Not supplied)
English - 6
Connect Audio Cables between the
AUDIO OUT [R-AUDIO-L] on the TV
1
and AUDIO IN [L-AUDIO-R] on the
Amplifier / DVD Home Theater.
When an audio amplifier is
connected to the AUDIO OUT [RAUDIO-L] jacks terminals: Decrease
the volume of the TV, and adjust
the volume level with the Amplifier’s
volume control.
➢
Each Amplifier / DVD Home
Theater has a different back panel
configuration.
➢
When connecting an Amplifier / DVD
Home Theater, match the color of the
connection terminal to the cable.
English - 7
Connecting a PC
Using the D-Sub Cable
PC
PC Audio Cable (Not supplied)
D-Sub Cable (Not supplied)
Using the HDMI/DVI Cable
PC
3.5 mm Stereo plug to 2 RCA Cable (Not supplied)
HDMI/DVI Cable (Not supplied)
Using the D-Sub Cable
TV Rear Panel
Connect a D-Sub Cable between
PC IN [PC] jack on the TV and the
1
PC output jack on your computer.
Connect a PC Audio Cable between
PC IN [AUDIO] jack on the TV and
2
the Audio Out jack of the sound card
on your computer.
Press the SOURCE button on the
remote control until you see the PC
3
signal (see “To Select the Source” on
page 10)
2
1
Using the HDMI/DVI Cable
TV Rear Panel
2
Connect a HDMI/DVI cable between
the HDMI IN 2 jack on the TV
1
and the PC output jack on your
computer.
Connect a 3.5mm Stereo/2RCA
Cable cable between the DVI IN
2
(HDMI IN 2) [R-AUDIO-L] jack on
the TV and the Audio Out jack of the
sound card on your computer.
Press the SOURCE button on the
remote control until you see the PC
3
signal (see To Select the Source” on
page 10)
1
➢
Each PC has a different back panel configuration.
➢
When connecting a PC, match the color of the connection terminal to the cable.
➢
When using an HDMI/DVI cable connection, you must use the HDMI IN 2 terminal.
Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the POWER button on the TV.
It may take a while before you see a full picture.
➢

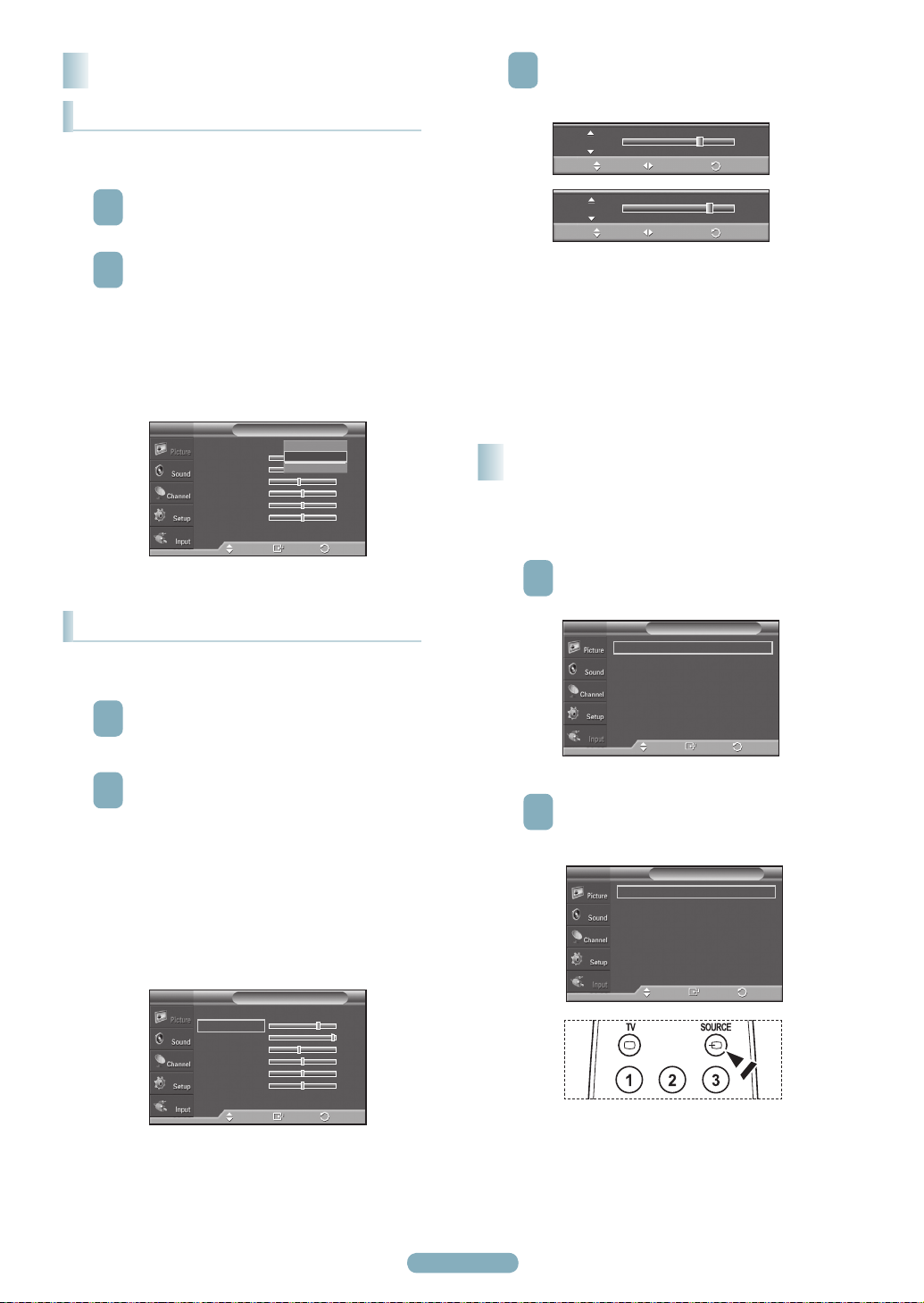

Viewing the Menus
With the power on, press the MENU button.
The main menu appears on the screen. Its left side
1
has five icons:
Picture, Sound, Channel, Setup, Input.
Press the ▲ or ▼ button to select one of the icons.
Then press the ENTER button to access the icon’s
2
sub-menu.
Press the EXIT button to exit.
3
➢
It takes about one minute until the on-screen
menu disappears.
Move
PictureT V
Enter
►
Exit
Mode : Standard
Cell Light 10
Contrast 100
Brightness 45
Sharpness 75
Color 55
Tint G 50 R 50
▼
More
Press the ENTER button to select Antenna.
Press the ▲ or ▼ button to select Air or Cable,
2
then press the ENTER button.
Press the EXIT button to exit.
ChannelT V
Move
Air
Cable
Enter
Return
Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List
Name
Fine Tune
Signal Strength
Storing Channels in Memory
(Automatic Method)
Press the MENU button to display the menu.
Press the ▲ or ▼ button to select Channel, then
1
press the ENTER button.
ChannelT V
Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List
Name
Fine Tune
Signal Strength
Move
Enter
Return
►
►
►
►
►
►
►
Memorizing the Channels
Your TV can memorize and store all of the available channels
for both “off-air” (air) and cable channels. After the available
channels are memorized, use the CH
to scan through the channels. This eliminates the need to
change channels by entering the channel digits. There are
three steps for memorizing channels: selecting a broadcast
source, memorizing the channels (automatic) and adding and
deleting channels (Channel Lists).
Selecting the Video Signal-source
Before your television can begin memorizing the available
channels, you must specify the type of signal source that is
connected to the TV (i.e. an Air or a Cable system).
Press the MENU button.
Press the ▲ or ▼ button to select Channel, then
1
press the ENTER button.
ChannelT V
Antenna : Air
Auto Program
Clear Scrambled Channel
Channel List
Name
Fine Tune
Signal Strength
Move
Enter
or CH
►
►
►
►
►
►
►
Return
button
English - 8

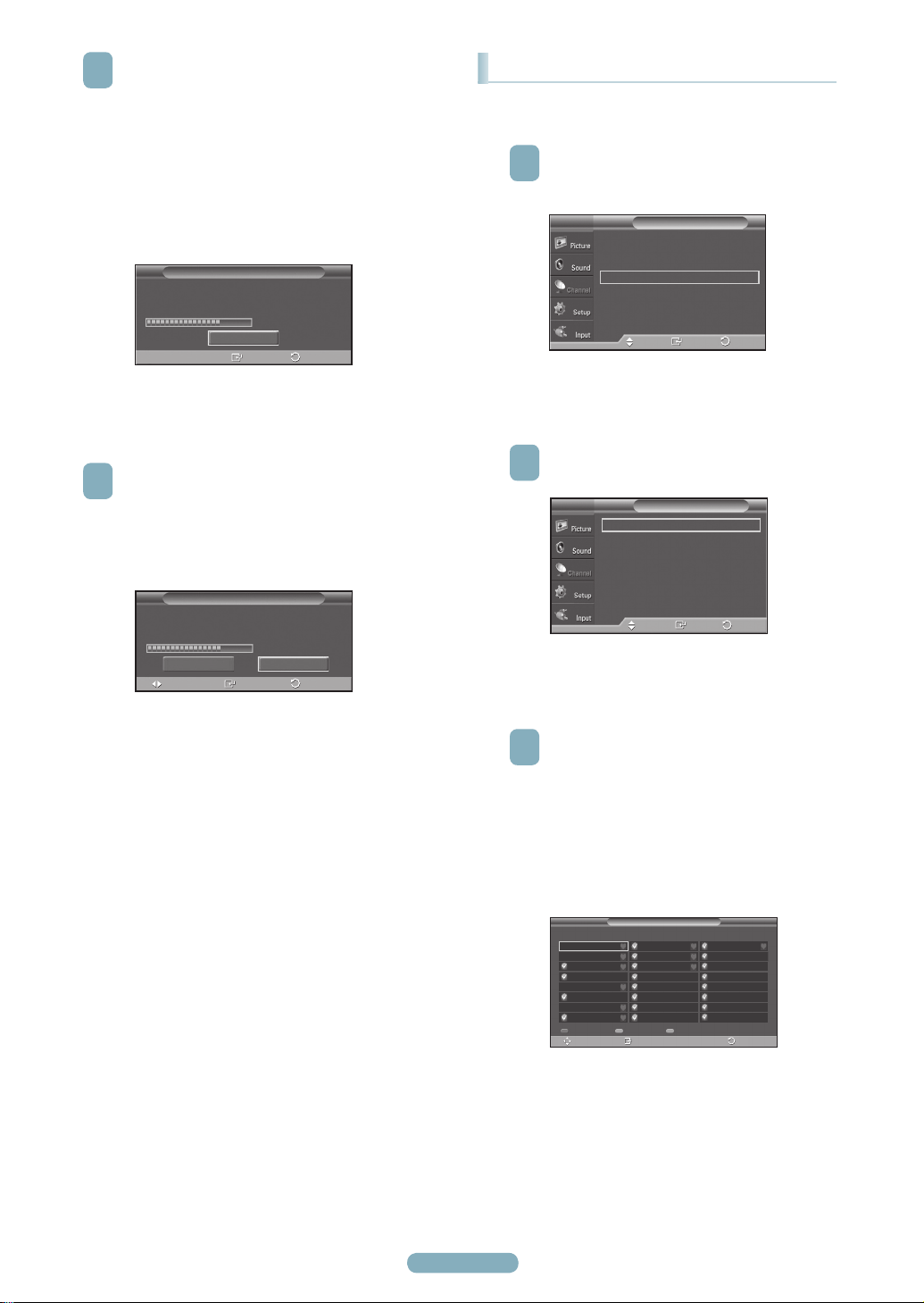

Press the ▲ or ▼ button to select Auto Program,
then press the ENTER button.
2
● Air
: Air antenna signal.
● Cable
: Cable antenna signal.
● Auto: Air and Cable antenna signals
Auto ProgramT V
Select the antenna to execute the Auto
Program function.
Air
Cable
Auto
Move
Press the ▲ or ▼ button to select the antenna
connection, then press the ENTER button.
3
Selects a cable signal type for your location.
Analog
STD
HRC
IRC
Digital
STD
HRC
IRC
Move
Start
Start
Start
Return
Enter
Auto ProgramT V
Start
Enter
Return
.
Loading...
