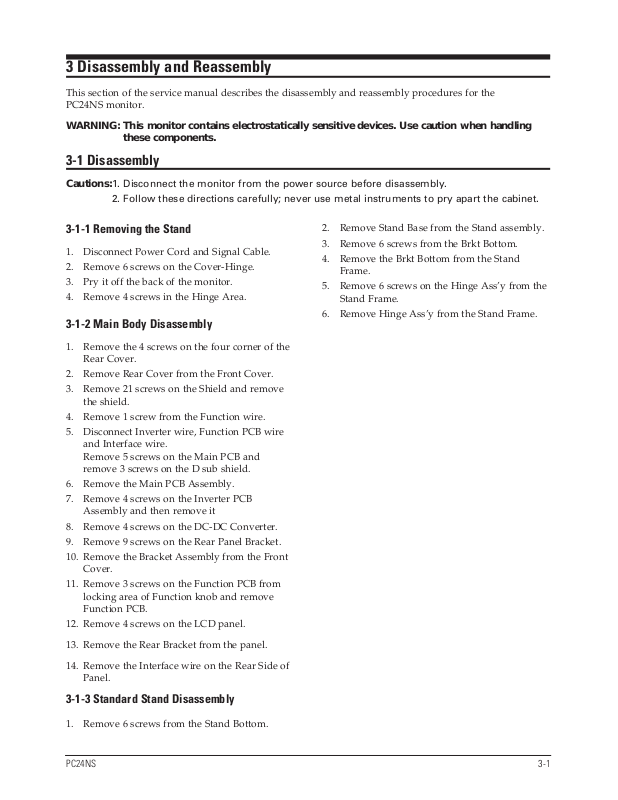

3 Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the
PC24NS monitor.

WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling

these components.

3-1 Disassembly

Cautions:1. Disconnect the monitor from the power source before disassembly.

2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.

3-1-1 Removing the Stand

1. Disconnect Power Cord and Signal Cable.

2. Remove 6 screws on the Cover-Hinge.

3. Pry it off the back of the monitor.

4. Remove 4 screws in the Hinge Area.

3-1-2 Main Body Disassembly

1. Remove the 4 screws on the four corner of the
Rear Cover.

2. Remove Rear Cover from the Front Cover.

3. Remove 21 screws on the Shield and remove
the shield.

4. Remove 1 screw from the Function wire.

5. Disconnect Inverter wire, Function PCB wire
and Interface wire.
Remove 5 screws on the Main PCB and
remove 3 screws on the D sub shield.

6. Remove the Main PCB Assembly.

7. Remove 4 screws on the Inverter PCB
Assembly and then remove it

8. Remove 4 screws on the DC-DC Converter.

9. Remove 9 screws on the Rear Panel Bracket.

10. Remove the Bracket Assembly from the Front
Cover.

11. Remove 3 screws on the Function PCB from
locking area of Function knob and remove
Function PCB.

12. Remove 4 screws on the LCD panel.

2. Remove Stand Base from the Stand assembly.

3. Remove 6 screws from the Brkt Bottom.

4. Remove the Brkt Bottom from the Stand
Frame.

5. Remove 6 screws on the Hinge Ass’y from the
Stand Frame.

6. Remove Hinge Ass’y from the Stand Frame.

13. Remove the Rear Bracket from the panel.

14. Remove the Interface wire on the Rear Side of
Panel.

3-1-3 Standard Stand Disassembly

1. Remove 6 screws from the Stand Bottom.

PC24NS 3-1

3 Disassembly and Reassembly

3-2 Replacement Order of Lamp Assemblies

1. Remove the lamp wire holding tape from
the metal chassis on the bottom side.

1-1. Taking out the lamp wire from

the lamp wire holder.

2. Unscrewing the screw.
Unscrewing force : 0.8 ~ 1Kg - f.cm

3. Pulling out the lamp Assembly with
stable Power and direction slowly.
Be careful, do not twist the lamp reflector
when pulling the lamp.
