3-1-1 Removing the Stand
1. Disconnect Power Cord and Signal Cable.
2. Remove 6 screws on the Cover-Hinge.
3. Pry it off the back of the monitor.
4. Remove 4 screws in the Hinge Area.
3-1-2 Main Body Disassembly
1. Remove the 4 screws on the four corner of the
Rear Cover.
2. Remove Rear Cover from the Front Cover.
3. Remove 21(21”:15) screws on the Shield and
remove the shield.
4. Remove 1 screw from the Function wire.
5. Disconnect Inverter wire, Function PCB wire
and Interface wire.
Remove 5 screws on the Main PCB and
remove 3 screws on the D sub shield.
6. Remove the Main PCB Assembly.
7. Remove 4 screws on the Inverter PCB
Assembly and then remove it
8. Remove 4 screws on the DC-DC Converter.
9. Remove 9 screws on the Rear Panel Bracket.
10. Remove the Bracket Assembly from the Front
Cover.
11. Remove 3 screws on the Function PCB from
locking area of Function knob and remove
Function PCB.
12. Remove 4 screws on the LCD panel.
13. Remove the Rear Bracket from the panel.
14. Remove the Interface wire on the Rear Side of
Panel.
3-1-3 Standard Stand Disassembly
1. Remove 6 screws from the Stand Bottom.
2. Remove Stand Base from the Stand assembly.
3. Remove 6 screws from the Brkt Bottom.
4. Remove the Brkt Bottom from the Stand
Frame.
5. Remove 6 screws on the Hinge Ass’y from the
Stand Frame.
6. Remove Hinge Ass’y from the Stand Frame.
SyncMaster 210T/240T 3-1

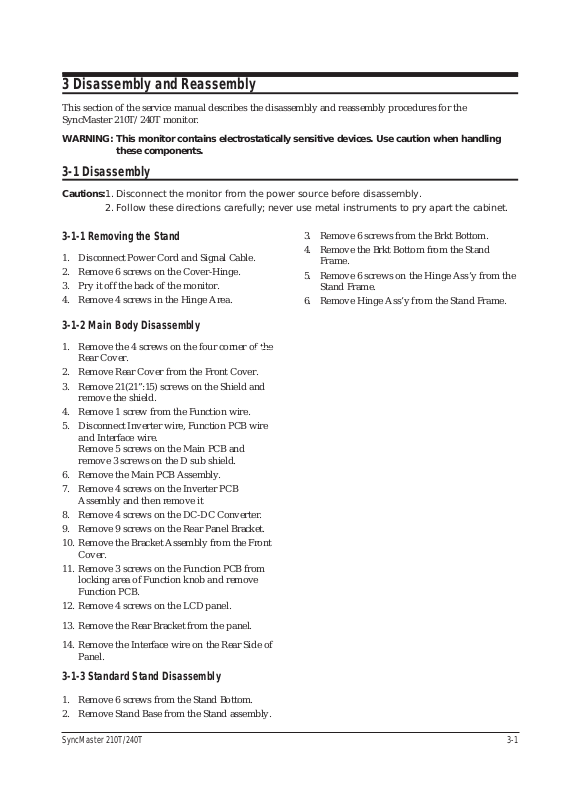

3 Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the
SyncMaster 210T/240T monitor.
WARNING: This monitor contains electrostatically sensitive devices. Use caution when handling
these components.
3-1 Disassembly
Cautions:1. Disconnect the monitor from the power source before disassembly.
2. Follow these directions carefully; never use metal instruments to pry apart the cabinet.
