Samsung PAL60 User Manual

PDP-TELEVISION
(PLASMA DISPLAY PANEL)

Owner’s Instructions

Before operating the unit,

please read this manual thoroughly,

and retain it for future reference.

ON-SCREEN MENUS

PICTURE IN PICTURE (PIP)

TELETEXT

ENG

Important !

◆ Screen Image retention

Do not display a still image (such as on a video game or when
hooking up a PC to this PDP) on the plasma monitor panel for more
than 2 hours as it can cause screen image retention. This image
retention is also known as “screen burn”.
To avoid such image retention, reduce the degree of brightness and
contrast of this screen when displaying a still image.

◆ Cell Defect

The plasma display panel consists of fine cells. Although the panels
are produced with more than 99.9 percent active cells, there may be
some cells that do not produce light or remain lit.

◆ Height

The PDP can normally operate only under 2000m in height. It might
abnormally function at a place over 2000m in height and do not
install and operate there.

◆ Warranty

-Warranty does not cover any damage caused by image retention.

-Burn-in is not covered by the warranty.

2

Checking Parts

ENG

Sold Separately

Owner’s Instructions

Power Cord

Ferrite Core for

Speaker Wire

Remote Control/

AAA Batteries

Antenna Cable

Speaker Wires

S-VIDEO Cable

Component Cables

(RCA)

Scart Cable PC Audio Cable

DVI Cable

PC Cable

3

ENG

Contents

◆ FOREWORD

■ Important ! ..................................................................................................... 2

■ Checking Parts .............................................................................................. 3

◆ CONNECTING AND PREPARING YOUR DISPLAY

■ Your New Plasma Display Panel................................................................... 6

■ Infrared Remote Control ................................................................................ 8

■ Inserting the Batteries in the Remote Control................................................ 9

■ Assembling the Stand-Base .......................................................................... 9

■ Installing the Display on the Wall Attachment Panel ..................................... 10

■ Connecting Speakers .................................................................................... 12

■ Connecting to an Aerial or Cable Television Network ................................... 14

■ Connecting a Satellite Receiver or Decoder.................................................. 14

■ Switching On and Off..................................................................................... 15

■ Placing in Standby Mode............................................................................... 15

■ Becoming Familiar with the Remote Control ................................................. 16

■ Plug & Play Feature....................................................................................... 17

■ Choosing Your Language.............................................................................. 18

◆ SETTING THE CHANNELS

■ Storing Channels Automatically..................................................................... 19

■ Storing Channels Manually............................................................................ 20

■ Skipping Unwanted Channels ....................................................................... 22

■ Sorting the Stored Channels ......................................................................... 23

■ Assigning Names to Channels ...................................................................... 24

■ Activating the Child Lock ............................................................................... 25

■ Displaying Information ................................................................................... 26

■ Using the LNA (Low Noise Amplifier) Feature............................................... 38

◆ USING YOUR DISPLAY (continued)

■ Changing the Picture Standard ..................................................................... 26

■ Adjusting the Picture Settings........................................................................ 27

■ Adjusting the Picture Settings (PC or DVI Mode) .......................................... 28

■ Setting the Picture (PC Mode)....................................................................... 29

■ Using the Fine Tune ...................................................................................... 31

■ Viewing the Channel Scan Picture ................................................................ 32

■ Freezing the Current Picture ......................................................................... 32

■ Selecting the Picture Size.............................................................................. 33

■ Selecting the Film Mode ................................................................................ 34

■ DNIe

■ Setting the Blue Screen................................................................................. 35

■ Setting the Melody Sound ............................................................................. 35

■ Viewing the Picture In Picture (PIP) .............................................................. 36

■ Using the Digital NR (Digital Noise Reduction) Feature ................................ 38

■ Changing the Sound Standard ...................................................................... 39

TM

(Digital Natural Image engine ) ............................................... 34

4

Contents (continued)

◆ USING YOUR DISPLAY

■ Adjusting the Sound Settings ........................................................................ 40

■ Adjusting the Volume Automatically .............................................................. 40

■ Setting the TruSurround XT........................................................................... 41

■ Selecting the Internal Mute............................................................................ 41

■ Selecting the Sound Mode (depending on the model) .................................. 42

■ Setting the Sleep Timer ................................................................................. 43

■ Setting and Displaying the Current Time....................................................... 44

■ Switching the Television On and Off Automatically ....................................... 45

■ Viewing an External Signal Source ............................................................... 46

■ Redirecting an Input to the External Output .................................................. 47

◆ USING THE TELETEXT FEATURE

■ Teletext Feature ............................................................................................ 48

■ Displaying the Teletext Information ............................................................... 49

■ Selecting Display Options.............................................................................. 50

■ Selecting a Teletext Page.............................................................................. 51

ENG

◆ ADDITIONAL INFORMATION AND CONNECTIONS

■ Connecting to the External Devices .............................................................. 52

■ Connecting to the S-Video Input.................................................................... 53

■ Connecting to the DVI Input .......................................................................... 54

■ Connecting to the PC Input ........................................................................... 54

■ Connecting to the Component Input.............................................................. 55

■ Connecting and Using the Home Theater System ........................................ 56

■ Setting up Your PC Software (Windows only) ............................................... 57

■ Input Mode (PC/DVI) ..................................................................................... 58

■ Pin Configurations ......................................................................................... 59

◆ RECOMMENDATIONS FOR USE

■ Troubleshooting: Before Contacting Service Personnel................................ 60

Symbols

Press Important Note

☛

➢

5

ENG

Your New Plasma Display Panel

The actual configuration on your PDP may be different,

➢

depending on your model.

Front Panel

a

SOURCE

External input selection.
When the Main menu is displayed on screen, the
Main menu is not operated with source key.

MENU

Menu display and exit.

-

+

Volume adjustment.

C/P.

Channel selection. Auto power On.

I /

Press to turn the PDP on and off.

a

b

b

Power Indicator

- Power Off: Red

- Power On: Off

- Timer On: Green

Remote Control Signal Receiver

Aim the remote control towards this spot on the
PDP.

6

Your New Plasma Display Panel (continued)

The actual configuration on your PDP may be different,

➢

depending on your model.

Rear Panel

For further details about connection, refer to pages 52~56.

➢

ENG

a) DVI INPUT

Connect to digital video output jack for device
with DVI output.

b) MONITOR OUT (VIDEO / L-AUDIO-R)

Outputs for external devices

c) Ext.1, Ext.2

Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.

d) PC INPUT (RGB IN / AUDIO)

Connect to the video and audio output jack on
your PC.

e) ONLY FOR SERVICE

Connector for service only.

f) S-VIDEO

Video and audio inputs for external devices with
an S-Video output, such as a camcorder or VCR.

g) AV (VIDEO / L-AUDIO-R )

Video and audio inputs for external devices, such
as a camcorder or VCR.

h) COMPONENT

Video (Y/Pb/Pr) and audio (L-AUDIO-R) inputs for
Component.

i) ANT IN VHF/UHF (75Ω)

75Ω Coaxial connector for Aerial/Cable Network.

j) EXT SPEAKER(8Ω)

Connectors for external speakers.

K) POWER IN

Connect the supplied power cord.

7

ENG

Infrared Remote Control

TURNS THE PDP ON AND OFF

DIRECT CHANNEL SELECTION

EXTERNAL INPUT SELECTION/

TELETEXT PAGE HOLD

VOLUME INCREASE

TEMPORARY SOUND SWITCH-OFF

VOLUME DECREASE

AUTOMATIC SWITCH-OFF/

(DEPENDING ON THE MODEL)

TELETEXT STORE

MENU DISPLAY/

TELETEXT INDEX

MOVE TO THE REQUIRED

ADJUST AN OPTION VALUE

MENU OPTION/

RESPECTIVELY

TUNES TO THE PREVIOUS CHANNEL

NEXT CHANNEL/
TELETEXT NEXT PAGE

PRESS TO SELECT ALL OF THE
AVAILABLE VIDEO SOURCES/
TELETEXT MODE (LIST/FLOF)
SELECTION (DEPENDING ON THE MODEL)

PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE

INFORMATION DISPLAY/
TELETEXT REVEAL

TV MODE SELECTION
EXIT TELETEXT
(DEPENDING ON THE MODEL)

CONFIRM YOUR CHOICE
(STORE OR ENTER)

SOUND MODE SELECTION/

TELETEXT SUB-PAGE

MIX BOTH TELETEXT INFORMATION

AND THE NORMAL BROADCAST

TELETEXT DISPLAY/

The performance of the remote control may be affected by bright light.

➢

8

PICTURE SIZE/
TELETEXT SIZE SELECTION

PICTURE STILL/
TELETEXT CANCEL

SOUND EFFECT SELECTION

PICTURE EFFECT SELECTION

Inserting the Batteries in the Remote Control

You must insert or replace the batteries in the remote control when
you:

◆ Purchase the PDP

◆ Find that the remote control is no longer operating

correctly

1 Remove the cover on the rear of the remote control by pressing

the symbol ( ) downwards and then pulling firmly to remove it.

2 Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking

care to respect the polarities:

◆-on the battery against -on the remote control

◆+on the battery against +on the remote control

3 Replace the cover by aligning it with the base of the remote

control and pressing it back into place.

ENG

Assembling the Stand-Base

1 Assemble two support pins with the stand base and firmly secure

both sides of the support pins using 8 screws provided.

2 Assemble the PDP with the stand and firmly secure the PDP using

4 screws provided.

◆

➢

Two or more people should carry the PDP. Never lay the
PDP on the floor because of possible damage to the screen.
Always store the PDP upright.

9

ENG

Installing the Display on the Wall Attachment Panel

Installation Notes

◆

Do not install the PDP on any place other than vertical walls.

◆

To protect the performance of the PDP and prevent troubles, avoid the followings:

-

Do not install next to smoke and fire detectors.

-

Do not install in an area subjected to vibration or high voltage.

-

Do not install near or around any heating apparatus.

◆

Use only recommended parts and components.

Mounting Kits

Wall Mount Bracket

How to Adjust Mounting Angle

(depending on your model)

Plastic Hanger Screws

4 EA 4 EA

1 Secure the PDP to the wall mount bracket.

(Please refer to the following instructions.)

The wall mount bracket is delivered
separately. Please tighten the captive
screw in the direction of the arrow after
assembling the bracket.

10

2 Set the angle by pulling the upper end of the

PDP attached to bracket in the direction of the
arrow.

3 The angle can be adjusted from 0° to 15° by

±2°.

Installing the Display on the Wall Attachment Panel (continued)

The exterior of the PDP may be different than the picture.

➢

(Assembly and installation of the plastic hanger is the same.)

ENG

1 Remove the screws from the back of the PDP.

3 Tighten the screws of the plastic hanger to the

back side of the PDP.

2 Use the screws and assemble the plastic

hanger.

◆ Please ask the installers to install the

☛

wall mount bracket.

◆ Please be sure to check if the plastic
hanger is completely secured on both
the left and right side after hanging
the PDP on the wall mount bracket.

◆ Please avoid catching your fingers
while installing and adjusting the
angle.

◆ Please tightly secure the wall mount
bracket to the wall to avoid injury
from a falling PDP.

4 Put the 4 pegs on the PDP in the grooves of the wall mount bracket and pull down on the PDP (!) to

secure it to the wall mount bracket (
separated from wall mount bracket.

@). Tighten the screws as shown (#) so that the PDP cannot be

PDP panel

Wall

Wall attachment panel bracket

Connecting External Devices to the PDP

◆

To connect external devices such as a DVD or a Home Theater System to the PDP, please refer
to following instructions:

1 Be sure to remove the safety pins underneath the PDP.

◆ If the safety pins are not removed, the angle cannot be adjusted.
Any attempt to do so may cause damage to the PDP.

2 Pull out the bottom of the PDP (which has been attached to the Wall

Mount Bracket) in the direction indicated by the arrows (refer to
the illustration) until it clicks.

◆ Using the PDP After Connecting External Devices.
Be sure to secure the PDP by inserting the 2 safety pins after
readjusting the angle of the PDP to 0

◆ For safety, be sure to secure the PDP using the safety pins.
If the safety pins are not used, the PDP may fall, causing serious
injury.

o

.

11

ENG

Connecting Speakers

1 Remove the screws on the rear of the PDP.

2 Hang the two “T” shaped hangers

on the square holes on the rear of
the PDP.

3 Tighten the PDP and the speaker bracket using the screws removed from the PDP.

When moving your PDP, do NOT hold the speaker connected to your PDP. It may damage the

➢

bracket clamping the speaker and your PDP together and result in a drop of your PDP and a risk of
personal damage and injury.

12

Connecting Speakers (continued)

Connect the speaker audio cable to the external speaker output jack on the rear of the PDP matching
the “+” and “

-

” ends of the cable with the diagram on the PDP.

ENG

◆ The speakers MUST have to a power handling capability of 10 watts minimum (impedance 8Ω).

➢

◆ When you connect the speaker wire to the external speaker out connector, first bind the speaker wire

round the ferrite core to secure it.

Before connecting the speaker wire to the PDP, turn off your PDP.

➢

Ferrite Cores

The ferrite cores are used to attenuate undesired signals.
When connecting cables, attach one of these ferrite cores to
the cable near the connector.

13

ENG

Rear of the PDP

Connecting to an Aerial or Cable Television Network

To view television channels correctly, a signal must be received by
the set from one of the following sources:

◆ An outdoor aerial

◆ A cable television network

◆ A satellite network

1 In the first three cases, connect the aerial or network input cable to

the 75Ω coaxial socket on the rear of the PDP.

2 If you are using an indoor aerial, you may need to turn it when

tuning your PDP until you obtain a picture that is both sharp and

or

Cable Television

Network

clear.
For further details, refer to:

◆ “Storing Channels Automatically” on page 19

◆ “Storing Channels Manually” on page 20

When installing or re-installing your PDP, be sure to use the

➢

supplied coaxial antenna cable. If you connect using a different
coaxial cable, there is risk of noise or interference to the screen
image. (You must not use another general purpose cable.)

Connecting a Satellite Receiver or Decoder

In order to watch television programmes broadcast via a satellite
network, you must connect a satellite receiver to the rear of the

Rear of the PDP

Satellite receiver/

Decoder

PDP. Also, in order to descramble a coded transmission signal, you
must connect a decoder to the rear of the PDP.

Using a Coaxial cable

Connect a coaxial cable to the:

◆ Receiver (or Decoder) output socket.

◆ Television aerial input socket.

If you wish to connect both a satellite receiver (or decoder)

➢

and a VCR, you should connect the:

◆ Receiver (or Decoder) to the VCR

◆ VCR to the PDP

Otherwise, connect the receiver (or decoder) directly to the
PDP.

14

Switching On and Off

The mains lead is attached to the rear of your PDP.

ENG

1 Plug the mains lead into an appropriate socket.

Result

: The Standby indicator on the front of the PDP lights up.

The main voltage is indicated on the rear of the PDP and

➢

the frequency is 50 or 60Hz.

2 Press the “ I / ” button on the front of the PDP (or POWER ()

button on the remote control) to switch the PDP on.

Result

: The programme that you were watching last is re-

selected automatically.

If you have not yet stored any channels, No clear picture

➣

appears. Refer to “Storing Channels Automatically” on page
19 or “Storing Channels Manually” on page 20.

3 To switch your PDP off, press the “ I / ” button again.

Placing in Standby Mode

Front of the PDP

Your PDP can be placed in Standby mode, in order to reduce the
Power consumption.

The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).

1 Press the POWER () button on the remote control.

Result

: The screen is turned off and the Standby indicator on

the front of the PDP lights.

2 To switch the PDP back on, simply press the POWER () button

again or a numeric button.

You can also switch on by pressing the P or button.

➣

15

ENG

Becoming Familiar with the Remote Control

The remote control is used mainly to:

◆ Change channels and adjust the volume

◆ Display the on-screen menu system

The following table presents the most frequently used buttons and
their functions.

Button Viewing Function Menu Function

Used to display the next
stored channel.

Used to display the
previous stored channel.

to Used to display the corresponding channels.

For double digit channels, the second digit must be

➢

pushed immediately after the first. Failure to do this will
result in a single digit channel being displayed.

SLEEP Used to select a preset time interval (off - 30 - 60 - 90 - 120 -

MUTE Used to switch the sound off temporarily.

MENU Used to display the Used to return to the previous

150-180).

Used to increase the
volume.

Used to decrease the
volume.

To turn the sound back on, press this button again, or

➣

press the or button.

on-screen menu system. menu or normal viewing.

-

-

-

-

-

Used to:

◆ Display a submenu
containing selections for
the current menu option

◆ Increase/decrease a
menu option value

16

EXIT

-

-

Used to confirm your choice.

Used to exit from the menu
system and return to normal
viewing directly.

Plug & Play Feature

When the television is initially powered ON, several basic customer
settings proceed automatically and subsequently. The following
settings are available.

1 If the television is in Standby mode, press the POWER () button

on the remote control.

Result

: The message Plug & Play is displayed. It flickers for

a little while, and then the
automatically displayed.

2 Select the appropriate language by pressing the † or … button.

3 Press the ENTER () button to confirm your choice.

Result

: The message Antenna input check is displayed.

Language menu is

ENG

Plug & Play

Press ENTER to Start Plug & Play

Start

Enter Exit

Language

Move Enter

4 Make sure that the antenna is connected to the TV, and then

press the

Result

ENTER () button.

: The Country menu is displayed.

5 Select your country by pressing the † or … button.

6 Press the ENTER () button to confirm your choice.

Result

: The Auto Store menu is displayed.

7 To start the search, press the ENTER () button.

Result

: The search will end automatically. Channels are sorted

and stored in an order which reflects their position in
the frequency range (with lowest first and highest last).
When it has finished, the Clock Set menu is displayed.

➢ To stop the search before it has finished or return to normal

viewing, press the

8 Press the ENTER

Press the
Set the hour or minute by pressing the

œ or √ button to move to the hour or minute.

9 When it has finished, the message Enjoy Your Watching is

displayed, and then the channel which has been stored will be
activated.

MENU () button.

()

button to set the Clock.

† or … button.

Plug & Play

Antenna Input Check

Country

Country

Austria

Belgium

Croatia

Denmark

Finland
France

Germany

▼ More

Move Enter

Press ENTER to start channel memory

Channel store in process.
Storing.

Auto Store

40 MHz

Start

Enter Stop

Auto Store

57 MHz

Stop

Enter Stop

0%

1%

Clock

Hour Min

01 00

Adjust Move Stop

Enjoy Your Watching

17

ENG

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Melody : Off

Plug & Play

Blue Screen : Off

Move Enter Return

Plug & Play Feature (continued)

If you want to reset this feature...

Setup

√√
√√
√√
√√
√√

√√

Miscellaneous

√√
√√
√√

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Setup.

: The options available in the Setup group are displayed.

Result

3 Press the ENTER () button.

4 Press the † or … button to select Miscellaneous. Press the

ENTER () button.

: The options available in the Miscellaneous group are

Result

displayed.

5 Press the † or … button to select Plug & Play. Press the

ENTER () button.

Result

: The message Plug & Play is displayed.

6 For further details on how to set, refer to the opposite page.

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

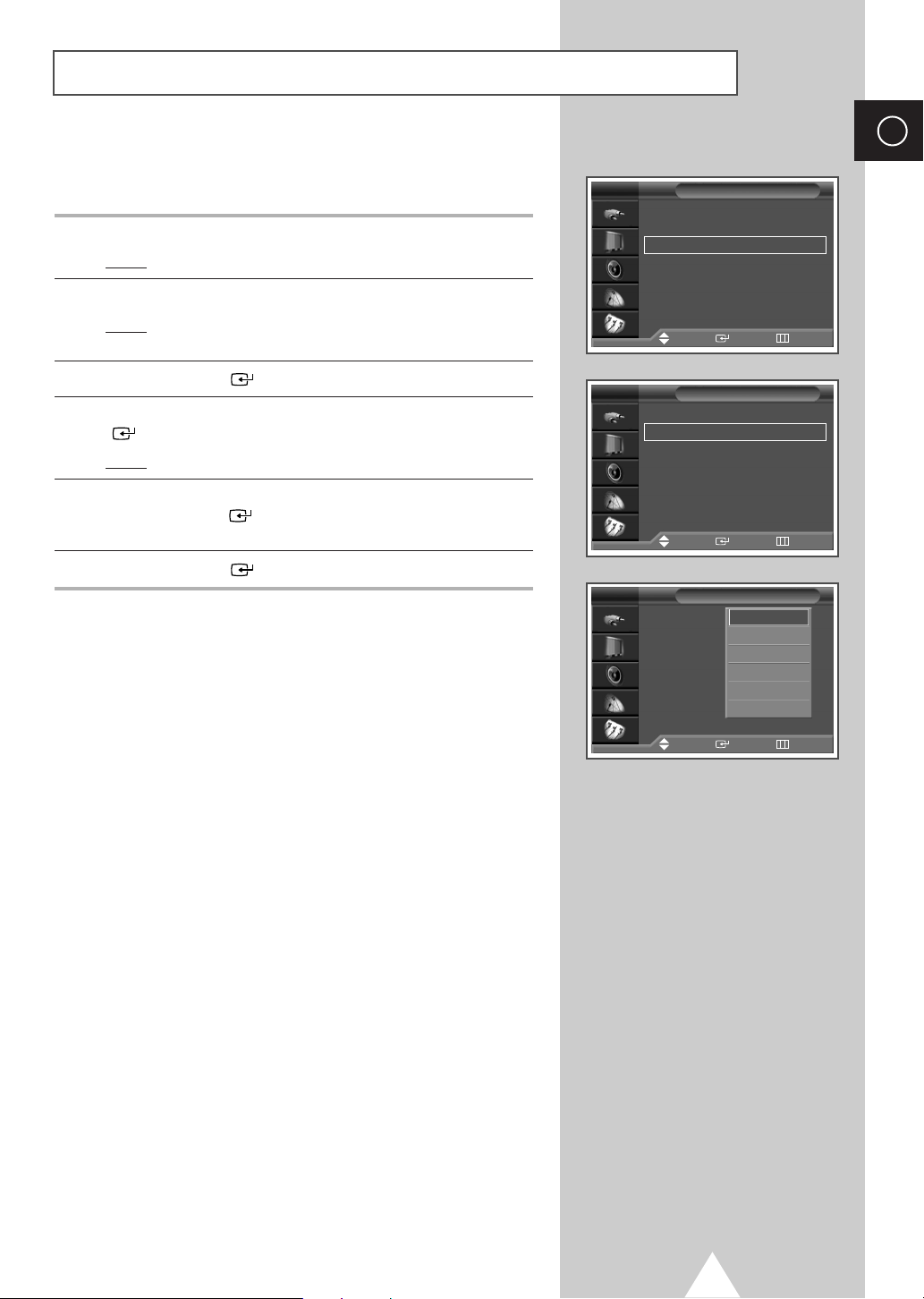

Choosing Your Language

When you start using your television for the first time, you must

Setup

√√
√√
√√
√√
√√

√√

Setup

√√
√√

√√

√√

select the language which will be used for displaying menus and
indications.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Setup.

: The options available in the Setup group are displayed.

Result

3 Press the ENTER () button

4 Press the † or … button to select Language. Press the ENTER

() button.

: The languages available are listed.

Result

5 Select the appropriate language by pressing the † or … button.

6 Press the ENTER () button to confirm your choice.

7 When you are satisfied with your choice, press the EXIT ()

button to return to normal viewing.

18

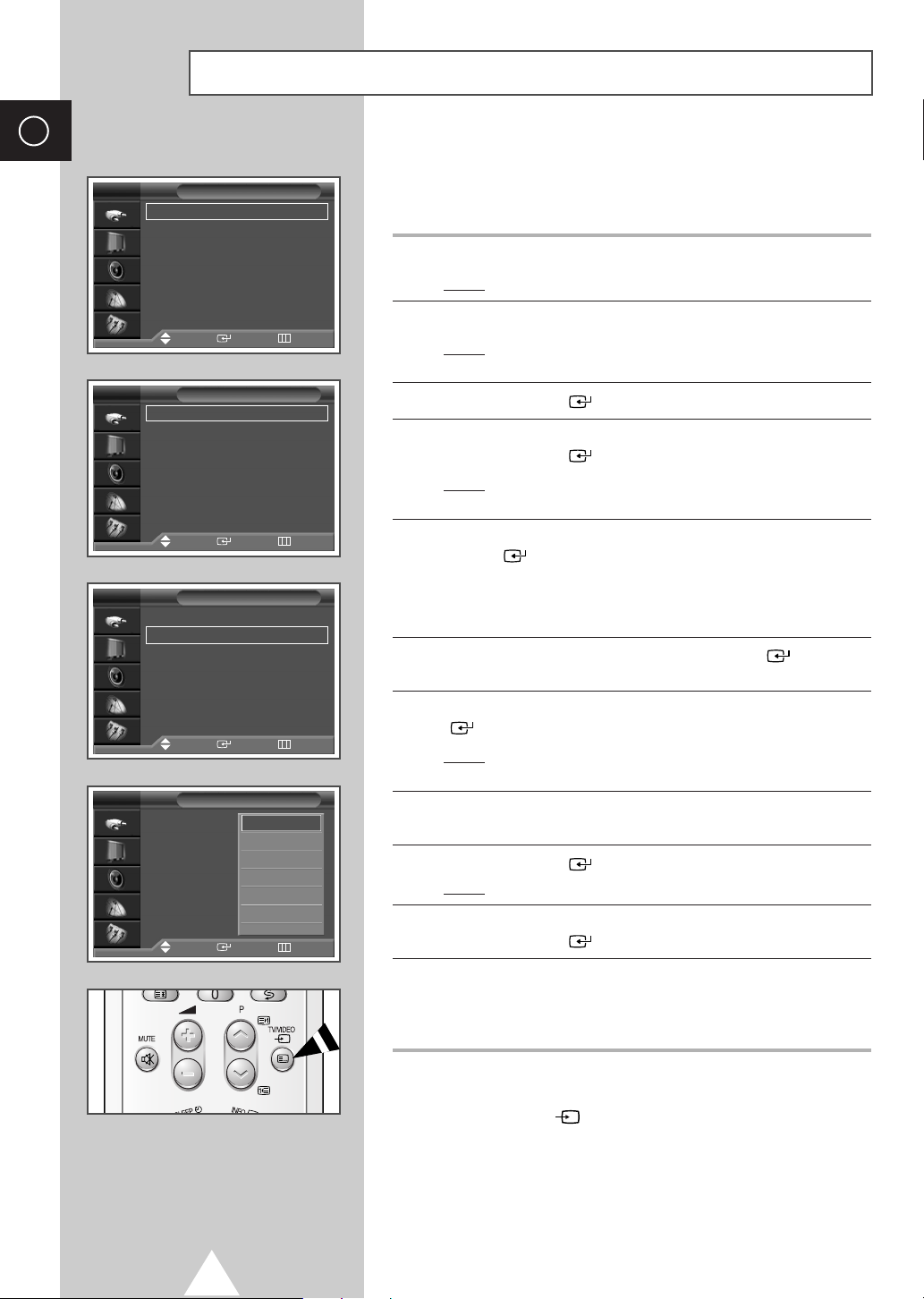

Storing Channels Automatically

You can scan for the frequency ranges available to you, (availability
depends on your country). Automatically allocated programme
numbers may not correspond to actual or desired programme
numbers. However you can sort numbers manually and clear any
channels you do not wish to watch.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the
displayed

.

3 Press the ENTER () button.

4 Press the † or … button to select Country. Press the ENTER

() button.

Result

: The countries available are listed.

5 Select your country (or area) by pressing the † or … button.

➢ If you have selected the Others option but do not wish to

scan the PAL frequency range, store the channels manually
(see page 21).

6 Press the ENTER () button to confirm your choice

7 Press the † or … button to select Auto Store. Press the ENTER

() button.

Result

: The Auto Store menu is displayed.

8 Press the ENTER () button to start the search.

Result

: The search will end automatically. Channels are sorted

and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.

➢ To stop the search before it has finished, press the

MENU () button.

Channel

group are

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

Channel store in process.
Storing.

Auto Store

Stop

Enter Return

Channel

Channel

Channel

57 MHz

1%

ENG

√√
√√
√√
√√
√√
√√

Austria

Belgium

Croatia

Denmark

Finland

France

†

√√
√√
√√
√√
√√
√√

9 When the channels have been stored, you can:

◆ Sort them in the order required (see page 23)

◆ Clear a channel (see page 22)

◆ Fine-tune channel reception if necessary (see page 31)

◆ Assign a name to the stored channels (see page 24)

◆ Activate/deactivate the Digital Noise Reduction feature

(see page 38)

19

ENG

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Storing Channels Manually

You can store up to 100 television channels, including those

Channel

√√
√√
√√
√√
√√
√√

received via cable networks.

When storing channels manually, you can choose:

◆ Whether or not to store each of the channels found

◆ The programme number of each stored channel which

you wish to identify

Move Enter Return

Manual Store

Prog. Colour Sound

Channel Search Store

C

√√

Move Adjust Return

Prog. Colour Sound

Channel Search Store

C

œœ √√

Move Adjust Return

Prog. Colour Sound

Channel Search Store

C00 245MHz ?

System System

9 Auto BG

--

245MHz ?

Manual Store

System System

9 Auto BG

--

245MHz ?

Manual Store

System System

9 Auto BG

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the

Channel

group are

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Manual Store.

Press the

Result

ENTER () button.

: The Manual Store menu is displayed.

5 If necessary, select the broadcasting standard required. Press the

œ or √ button to select Colour System and press the † or …
button. The colour standards are displayed in the following order.
(depending on the model).

Auto- PAL- SECAM
Auto

- NT3.58 - NT4.43 - PAL60

or

6 Press the œ or √ button to select Sound System and press the †

or … button. The sound standards are displayed in the following
order. (depending on the model).

BG- DK- I- L

œœ √√

Move Adjust Return

20

Storing Channels Manually (continued)

ENG

7 If you know the number of the channel to be stored, see the

following steps.

◆

Press the œ or √ button to select Channel.

◆

Press the † or … button to select C (Air channel) or S (Cable
channel).

◆

Press the √ button.

◆

Press the numeric buttons (0~9) to select indicate the required
number.

If no sound or abnormal sound, re-select the sound standard

➣

required.

8 If you do not know the channel numbers, select the Search by

pressing the
search.

Result

œ or √ button. Press the † or … button to start the

: The tuner scans the frequency range until the first

channel or the channel that you selected is received on
your screen.

9 To assign a programme number to a channel, select the Prog. by

pressing the
the correct number.

œ or √ button. Press the † or … button until you find

10 To store the channel and associated programme number, select

the

Store by pressing the œ or √ button. Press the ENTER ()

button.

Manual Store

Prog. Colour Sound

9 Auto BG

Channel Search Store

C

œœ √√

Move Adjust Return

Prog. Colour Sound

9 Auto BG

Channel Search Store

C 04 245MHz ?

œœ √√

Move Adjust Return

Prog. Colour Sound

9 Auto BG

Channel Search Store

C04 245MHz ?

œœ √√

Move Adjust Return

--

Manual Store

Manual Store

System System

245MHz ?

System System

System System

11 Repeat Steps 7 to 10 for each channel to be stored.

Channel mode

☛

◆ C (Real channel mode):

entering the assigned number to each air broadcasting station
in this mode.

◆ S (Cable channel mode):

entering the assigned number for each cable channel in this
mode.

You can select a channel by

You can select a channel by

Manual Store

Prog. Colour Sound

9 Auto BG

Channel Search Store

C15 245MHz OK

œœ √√

Move Enter Return

System System

21

ENG

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

Skipping Unwanted Channels

◆ Skipping unwanted channels

Channel

√√
√√
√√
√√
√√
√√

You can exclude the channels of your choice from the channel
scan operation. When you scan through the stored channels,
those that you have chosen to skip are thus not displayed. All
channels that you do not specifically choose to skip are
displayed during scanning.

1 Press the MENU button.

Result

: The main menu is displayed.

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

Move Enter Return

TV

Prog.

1
2
3
4
5

Move Enter Return

TV

Prog.

1
2
3
4
5

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

Edit

Add/Delete

✽
✽
✽
✽
✽

Add/Delete

✽
✽
✽
✽
✽

Added
Deleted
Deleted
Deleted
Deleted

Added
Deleted

Deleted

Deleted
Deleted

2 Press the † or … button to select Channel.

Result

√√
√√
√√
√√
√√

3 Press the ENTER () button.

: The options available in the

displayed.

Channel group are

4 Press the † or … button to select Edit. Press the ENTER ()

button.

Result

: The Edit menu is displayed.

5 Press the † or … button to select Add/Delete. Press the ENTER

() button.

Result

: The Add/Delete menu is displayed with the current

channel automatically is selected.

6 Press the † or … button to select the channel to be deleted.

7 Press the ENTER () button.

8 To add or delete the channel, select Added or Deleted by

pressing the
confirm.

† or … button. Press the ENTER () button to

Adjust Enter Return

22

Sorting the Stored Channels

This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using ATM.
You can delete those channels you do not want to keep.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the
displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Edit. Press the ENTER ()

button.

Result

: The Edit menu is displayed.

Channel

group are

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

ENG

Channel

√√
√√
√√
√√
√√
√√

Edit

√√
√√
√√
√√
√√

5 Press the † or … button to select Sort. Press the ENTER ()

button.

Result

: The Sort menu is displayed.

6 Select the channel that you wish to move by pressing the † or …

button. Press the ENTER () button.

7 Select the number of the programme to which the channel is to be

moved by pressing the
button.

Result

: The channel is moved to its new position and all other

channels are shifted accordingly.

† or … button. Press the ENTER ()

8 Repeat Steps 6 to 7 until you have moved all the channels to the

required programme numbers.

Move Enter Return

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

Sort

✽
✽
✽
✽
✽

Sort

-----

✽

✽
✽
✽
✽

✽

TV

Prog.

2
3
4
5
6

Move Enter Return

TV

Prog.

2

3
4
5
6

Move Enter Return

23

ENG

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

Move Enter Return

TV

Prog. Name

-----

2

-----

3

-----

4

-----

5

-----

6

Move Enter Return

Assigning Names to Channels

Channel names will be assigned automatically when channel

Channel

Edit

Name

√√
√√
√√
√√
√√
√√

√√
√√
√√
√√
√√

✽
✽
✽
✽
✽

information is broadcast. These names can be changed, allowing
you to assign new names.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the
displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Edit. Press the ENTER ()

button.

Result

: The Edit menu is displayed.

5 Press the † or … button to select Name. Press the ENTER ()

button.

Result

: The Name menu is displayed with the current channel

automatically is selected.

6 If necessary, select the channel to be assigned a new name by

pressing the

Result

† or … button. Press the ENTER () button.

: Arrow indications are displayed around the name box.

7 Press the † or … button to select a letter (A~Z), a number (0~9)

or a symbol (
pressing the

-

, space). Move on the previous or next letter by

œ or √ button.

Channel

group are

TV

Prog. Name

-----

2

-----

3

-----

4

-----

5

-----

6

Adjust Enter Return

24

Name

8 When you have finished entering the name, press the ENTER

() button to confirm the name.

✽
✽
✽
✽
✽

Activating the Child Lock

◆ Activating the child lock

This feature allows you to lock selected channels so that they
cannot be viewed. This can be used to prevent unauthorised
viewing of unsuitable programmes.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the
displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Edit. Press the ENTER ()

button.

Result

: The Edit menu is displayed.

Channel

group are

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

ENG

Channel

√√
√√
√√
√√
√√
√√

Edit

√√
√√
√√
√√
√√

5 Press the † or … button to select Child Lock. Press the ENTER

() button.

Result

: The Child Lock menu is displayed with the current

channel automatically is selected.
Blue Screen is displayed when the

Child Lock is

activated.

6 Press the † or … button to select the channel to be locked.

7 Press the ENTER () button. To lock the channel, select

Locked by pressing the † or … button (to unlock the channel,
select

Unlocked). Press the ENTER () button to confirm.

Move Enter Return

TV

Prog.

TV

Prog.

Child Lock

-----

2

✽
✽
✽
✽
✽

Child Lock

✽
✽
✽
✽
✽

Unlocked
Unlocked
Unlocked
Unlocked
Unlocked

Unlocked
Unlocked

Locked

Unlocked
Unlocked

-----

3

-----

4

-----

5

-----

6

Move Enter Return

-----

2

-----

3

-----

4

-----

5

-----

6

Adjust Enter Return

25

ENG

Displaying Information

You can view the channel information and setting status you select
by pressing the “INFO

()

” button on the remote control.

P 1 ✽

Picture : Dynamic
Sound : Music
00 : 00

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

TV

Mode : Dynamic

Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

Mono

Changing the Picture Standard

You can select the type of picture which best corresponds to your


√√
√√
√√

√√

√√
√√
√√
√√


Dynamic

Standard

Movie

Custom

viewing requirements.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Picture.

:

Result

The options available in the
displayed.

3 Press the ENTER () button.

: The Mode is selected

Result

4 Press the ENTER () button again.

:

Result

The options available are listed.

5 Select the option by pressing the † or … button.

: The following modes are available depending on the

Result

input source.

◆ Dynamic - Standard - Movie - Custom

◆ High - Middle - Low - Custom

(PC or DVI Mode)

.

.


group are

26

6 Press the ENTER () button to confirm.

You can also set these options simply by pressing the

➣

P.MODE (: Picture Mode) button.

Adjusting the Picture Settings

Your television has several settings which allow you to control
picture quality.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Picture.

Result

:

The options available in the
displayed.


group are

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

ENG


√√
√√
√√

√√

√√
√√
√√
√√

3 Press the ENTER () button.

4 Select the required option (Custom , Colour Tone) pressing the

† or … button.

5 Press the † or … button to select Custom.

Press the

Result

ENTER () button.

:

The

Custom

menu is displayed.

6 Press the ENTER () button to change the setting.

The options are displayed in the following order.

◆ Custom : Contrast, Brightness, Sharpness, Colour ,

Tint(NTSC ONLY)

Custom Options available in PC, DVI Mode: Contrast,

➣

Brightness, Sharpness.

The horizontal bar is displayed. Move the horizontal bar’s

➣

cursor left or right by pressing the

When the Picture Mode is set to Custom, the settings values

➣

may vary depending on the input source.

œ or √ button.

(ex. RF, Video, Component, PC or DVI)

If you make any changes to these settings, the picture

➣

standard is automatically switched to the

Custom

◆ Colour Tone : Cool2, Cool1, Normal, Warm1, Warm2

7 When you are satisfied with the settings, press the EXIT ()

button to return to normal viewing.

TV

Contrast 70

Brightness 50

Sharpness 70

Colour 50

Tint G50 R50

Contrast 70

TV

Mode : Dynamic
Custom

Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Custom

Move Enter Return


Cool2

Cool1

Normal

Warm1

Warm2

Move Enter Return

If you make any changes to these settings, the picture

➣

standard is automatically switched to the

Custom.

27

ENG

Adjusting the Picture Settings (PC or DVI Mode)

Preset to the PC or DVI mode by using the TV/VIDEO button.(or

➢

SOURCE button on the front of the PDP)

TV

Mode : Middle
Custom
Colour Tone : Custom
Colour Control

Film Mode : Off

Size : 16 : 9
DNIe : On
PIP

Move Enter Return

TV

Contrast 70

Brightness 50

Sharpness 70

Colour 50

Tint G50 R50

Move Enter Return

TV

Mode : Middle
Custom

Colour Tone : Normal

Colour Control

Film Mode : Off

Size : 16 : 9
DNIe : On
PIP

Move Enter Return

TV

R70

G50

B70


√√
√√
√√
√√

√√

√√
√√
√√

Custom


Custom

Colour1

Colour2

Colour3

Colour Control

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Picture.

Result

:

The options available in the


group are

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Custom. Press the ENTER

() button.

Result

: The Custom menu is displayed.

5 Press the † or … button to select the option (Contrast ,

Brightness, Sharpness) to be adjusted. Press the ENTER ()

button.

Result

: The horizontal bar is displayed. Move the horizontal

bar’s cursor left or right by pressing the

œ or √ button.

6 Press the MENU button to confirm your choice.

7 Press the MENU button.

Result

: The options available in the Picture group are

displayed again.

8 Press the † or … button to select Colour Tone. Press the

ENTER () button.

9 Select the option by pressing the † or … button.

The colour tones are displayed in the following order.

Custom (PC mode only)- Colour1- Colour2- Colour3

10 Press the MENU button.

Result

: The options available in the Picture group are

displayed again.

Move Enter Return

28

11 Press the † or … button to select Colour Control.

Press the

Result

ENTER () button.

: The

Colour Control menu is displayed.

12 Press the † or … button to select the option (R, G, B) to be

adjusted. Press the

Result

: The horizontal bar is displayed. Move the horizontal

The Colour Control is not available in the DVI Mode.

➣

ENTER () button.

bar’s cursor left or right by pressing the

œ or √ button.

Setting the Picture (PC Mode)

Preset to the PC mode by using the TV/VIDEO button.(or SOURCE

➢

button on the front of the PDP)

ENG

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Setup.

Result

: The options available in the Setup group are

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select PC Setup. Press the ENTER

() button.

Result

: The options available in the PC Setup group are

displayed.

5 Press the † or … button to select Image Lock. Press the ENTER

() button.

Result

: The options available in the Image Lock group are

displayed.

6 Press the † or … button to select the option (Coarse , Fine) to be

adjusted. Press the

Result

: The horizontal bar is displayed. Move the horizontal

ENTER () button.

bar’s cursor left or right by pressing the

œ or √ button.

Adjust for best picture.

7 Press the MENU button to confirm your choice

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Image Lock

Position

Information

Auto Adjustment

TV

Coarse 50

Fine 20

PC Setup

Move Enter Return

Image Lock

Setup

√√
√√
√√
√√
√√
√√

√√
√√
√√
√√

8 Press the MENU button.

Result

: The options available in the PC Setup group are

displayed again.

9 Press the † or … button to select Position.

Press the

Result

ENTER () button.

: The options available in the

Position group are

displayed.

10 Adjust the position by using the †, …, œ, or √ button.

11 Press the MENU () button to confirm your choice.

Coarse

TV

TV

Move Enter Return

PC Setup

Image Lock

Position

Information

Auto Adjustment

Move Enter Return

Position

œœ √√

Move

Move Return

50

√√
√√
√√
√√

29

ENG

Setting the Picture (PC Mode) (continued)

Preset to the PC mode by using the TV/VIDEO button.(or SOURCE

➢

button on the front of the PDP)

TV

Image Lock

Position

Information

Auto Adjustment

Move Enter Return

TV

Resolution : 1024 ✻ 768

H Frequency : 48.5KHz

V Frequency : 60.2Hz

TV

Image Lock

Position

Information

Auto Adjustment

PC Setup

Information

PC Setup

√√
√√
√√
√√

Return

√√
√√
√√
√√

12 If you get the PC information, select the Information by pressing

the

† or … button. Press the ENTER () button.

Result

: The resolution, horizontal and vertical frequency are

displayed.

13 Press the MENU button.

Result

: The options available in the PC Setup group are

displayed again.

14 Press the † or … button to select Auto Adjustment. Press the

ENTER () button.

Result

: The screen quality and position are automatically reset

with the

Auto Adjusting displayed.

15 When you are satisfied with the settings, press the MENU ()

button repeatedly to return to the normal viewing.

Move Enter Return

TV

Auto Adjustment

Auto Adjusting

30

Using the Fine Tune

If reception is weak, you can fine tune a channel manually.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Channel.

Result

:

The options available in the
displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Fine tune. Press the ENTER

() button.

Result

: The horizontal bar is displayed. Move the horizontal

bar’s cursor left or right by pressing the
to reach the required setting.

Channel

group are

œ or √ button

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

P 1

Reset

Move

Channel

Fine Tune

Return

œœ √√

Adjust Store

ENG

√√
√√
√√
√√
√√
√√

0

5 Press the œ or √ button until the picture and sound are both clear

and sharp.

If you are unable to fine tune a channel, check that the

➣

Colour System

Fine tune Store will change the colour of the Channel

➣

OSD(On Screen Display) from White to Red.

To reset the fine tuning to “0”, press the †button to

➣

select “Reset”, then press the

and

Sound System

settings are correct.

ENTER button.

P 1

Move

P 1 is fine tuned

Move

P1 C11

Fine Tune

Reset

œœ √√

Adjust Store

Fine Tune

Reset

œœ √√

Adjust Store

3

Return

3

Return

31

ENG

Viewing the Channel Scan Picture

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

Ch. Scan

P 1 ✽

Channel

Return

1 Press the MENU button.

Result

√√
√√
√√
√√
√√
√√

2 Press the † or … button to select Channel.

: The main menu is displayed.

Result

:

The options available in the
displayed.

Channel

group are

3 Press the ENTER () button.

4 Press the † or … button to select Ch. Scan. Press the ENTER

() button.

Result

: You can view every memorized channel in order.

Freezing the Current Picture

You can freeze the picture when watching a television programme
simply by pressing the “STILL” button. To return to normal viewing,
press it again.

In the PIP mode, the main and sub pictures are stilled at

➣

the same time.

This function will automatically cancel after 5 minutes.

➣

32

Selecting the Picture Size

You can select the picture size which best corresponds to your
viewing requirements.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Picture.

Result

:

The options available in the
displayed.


group are

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

ENG


√√
√√
√√

√√

√√
√√
√√
√√

3 Press the ENTER () button.

4 Press the † or … button until the Size is selected. Press the

ENTER () button

5 Press the † or … button to change the setting.

◆ Auto Wide : Expanding and pulling up the picture from 4:3 to

◆ 16:9 : Sets the picture to 16:9 wide mode.

◆ Panorama : Use this mode for the wide aspect ratio of a

◆ Zoom : Magnify the size of the picture vertically on

◆ 14:9 : Magnify the size of the picture more than 4:3.

◆ 4:3 : Sets the picture to 4:3 normal mode.

16:9 ratio.

panoramic picture.

screen.

6 Press the ENTER () button to confirm.

◆ You can select these options by simply pressing the

➣

Positioning and Sizing the screen using Zoom

➣

P.SIZE button on the remote control.

◆ The picture size can not be changed in the PIP mode.

◆ Depending on the input source, the P.SIZE options

may vary.

◆ Resizing the screen using the Zoom enables the
positioning and sizing of the screen to up/down
direction using the

†or…

button as well as the

screen size.

◆ Move the screen up/down using the †or…button
after selecting the by pressing the

†or…

button.

◆ Resize the screen vertically using the †or…button
after selecting the by pressing the

†or…

button.

◆ Screen enlargement operates only in TV/Video/S­Video/Component input modes.

◆ PC/DVI modes prevents the screen enlargement
function.

TV

Auto Wide

16:9

Panorama

Zoom

14:9

4:3

Move Enter Return

PC to DVI Mode

TV

Auto Wide

16:9

Panorama

Zoom

14:9

4:3

Move Enter Return

Size

Size

33

ENG

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

Selecting the Film Mode

You can automatically sense and process film signals from some


√√
√√
√√

√√

√√
√√
√√
√√

sources and adjust the picture for optimum quality.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Picture.

: The options available in the Picture group are displayed.

Result

3 Press the ENTER () button.

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off

Size : 16 : 9
DNIe : On
PIP

Move Enter Return

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return


4 Press the † or … button to select Film Mode. Press the ENTER

() button.

5 Press the † or … button to change the setting. (Off or On).

Off

On

◆ On : Automatically senses and processes film signals from
some sources and adjusts the picture for optimum quality.

◆ Off : Switches off the Film Mode.

◆

➢

Not available in the PC, Component (480p, 576p, 720p,
1080i) or DVI modes.

◆

Mode discrepancies, such as turning off Film Mode while
viewing a film source or turning on Film Mode while viewing
non-film sources, may affect the picture quality.

DNIeTM(Digital Natural Image engine)

This feature bring you more detailed image with 3D noise reduction, detail


√√
√√
√√

√√

√√
√√
√√
√√

enhancement, contrast enhancement and white enhancement. New image
compensation Algorithm gives brighter, clearer, much detailed image to you.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button until the Picture is selected.

Result

: The options available in the Picture group are

displayed.

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9

DNIe :On

PIP

Move Enter Return

34


On

Off

Demo

3 Press the ENTER () button.

4 Press the † or … button until the DNIe is selected. Press the

ENTER () button.

5 Press the † or … button to change the setting.

◆ On : Switches on the DNIe mode.

◆ Off: Switches off the DNIe mode.

◆ Demo (Option): The screen before applying DNIe appears on

the right and the screen after applying DNIe
appears on the left.

Setting the Blue Screen

If no signal is being received or the signal is very weak, a blue screen automati­cally replaces the noisy picture background. If you wish to continue viewing the
poor picture, you must set the “

Blue Screen“ mode to “Off “.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Setup.

Result

: The options available in the Setup group are displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Miscellaneous. Press the

ENTER () button.

Result

: The options available in the Miscellaneous group are

displayed.

5 Press the † or … button to select Blue Screen. Press the

ENTER () button.

6 Press the † or … button to change the setting. (On or Off).

◆ Blue Screen is displayed while no signal from the external

➣

device in the External Mode, regardless of the Blue Screen
Setting.

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Melody : Off

Plug & Play

Blue Screen : Off

Move Enter Return

TV

Melody : Off

Plug & Play

Blue Screen : Off

Move Enter Return

Setup

Miscellaneous

Miscellaneous

Off

On

√√
√√
√√
√√
√√

√√

√√
√√
√√

ENG

Setting the Melody Sound

A melody sounds when the television is powered on or off.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Setup.

: The options available in the

Result

3 Press the ENTER () button.

4 Press the † or … button to select Miscellaneous. Press the

ENTER () button.

Result

: The options available in the Miscellaneous group are

displayed.

5 Press the † or … button to select Melody.

Press the ENTER () button.

6 Press the † or … button to change the setting. (On or Off).

Setup group are displayed.

TV

Melody : Off

Plug & Play

Blue Screen : Off

TV

Melody : Off

Plug & Play

Blue Screen : Off

Miscellaneous

√√
√√
√√

Move Enter Return

Miscellaneous

Off

On

Move Enter Return

35

ENG

TV

Mode : Dynamic
Custom
Colour Tone : Normal

Colour Control

Film Mode : Off
Size : 16 : 9
DNIe : On
PIP

Move Enter Return

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P8

Move Enter Return

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P08

Move Enter Return

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P8

Move Enter Return

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P08

Move Enter Return

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of TV


PIP

:

:

PIP

:

:

S-Video

Component

PIP

:

:

PIP

:

:

√√
√√
√√

√√

√√
√√
√√
√√

Off

On

TV

Ext.1

Ext.2

AV

†

√√
√√
√√
√√
√√
√√

program or external A/V devices.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Picture.

: The options available in the Picture group are

Result

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select PIP. Press the ENTER ()

button.

Result

: The options available in the PIP group are displayed.

5

Press the

ENTER ()

† or … button. Press the

Press the † or … button to select Source and press the

6

button. Select a source of the sub picture by pressing the

()
ENTER ()

: The sources are displayed in the following order:

Result

button.

TV - Ext.1 - Ext.2 - AV - S-Video ­Component - PC - DVI

➣

Press the † or … button to select Swap. Press the

7

button.

Result

: The main picture and sub picture are interchanged.

Press the † or … button to select Size. Select a size of the sub

8

picture by pressing the

Result

: The sizes are displayed in the following order:

(Large)

➣

Table of PIP Settings

TV Video S-VHS Comp576i Comp480p~ DVI PC

TV

Video XX X X O OO

S-VHS XX X X O OO

Comp576i XX X X X XX

Comp480p~ OO O X X XX

DVI OO O X X XX

PC OO O X X XX

XX X X O OO

button, set the
ENTER ()

◆ The PC can not be selected in DVI mode.

◆ The DVI can not be selected in PC mode.

ENTER ()

-

(Small) -(Double1) -(Double2)

Select a size of the sub picture by pressing the
† or … button. Press the

X - This PIP combination is not available.
O - This PIP combination is available.

PIP to on by pressing the

button.

ENTER

ENTER ()

button.

ENTER ()

button.

36

Viewing the Picture In Picture (PIP) (continued)

ENG

9 Press the † or … button to select Position. Press the ENTER

() button.

Result

: The positions available are displayed.

---

Select a position of the sub picture by pressing the † or …

➣

button. Press the ENTER () button.

10 Press the † or … button to select Prog.. Select the channel that

you want to view through sub picture by pressing the
button.

If the sub picture is no signal and the main picture is

➣

output from a Component, PC or DVI signal, the sub
picture will be blue. If the main picture is output from a
Video signal, the sub picture will be black.

ENTER ()

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P08

TV

PIP : On

Source : TV

Swap

Size

Position

Prog. : P08

PIP

:

:

Move Enter Return

PIP

:

:

P 1

Move Enter Return

37

ENG

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Using the Digital NR (Digital Noise Reduction) Feature

Setup

√√
√√
√√
√√
√√

√√

If the signal received by your television is weak, you can activate
this feature to help reduce any static and ghosting that may appear
on the screen.

1 Press the MENU button.

: The main menu is displayed.

Result

Move Enter Return

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Country : Austria

Auto Store

Manual Store

Edit

Fine Tune

Ch. Scan

Move Enter Return

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

Move Enter Return

TV

Add/Delete

Sort

Name

LNA : Off

Child Lock

Move Enter Return

2 Press the ▼ or ▲ button until the Setup is selected.

Setup

Result

The options available in the

Setup

group are displayed.

:

3 Press the ENTER () button.

Off

On

4 Press the ▼ or ▲ button until the Digital NR is selected.

Press the

ENTER () button.

5 Select Off or On by pressing the ▼ or ▲ button.

Press the

ENTER () button to confirm.

Using the LNA (Low Noise Amplifier) Feature

Channel

√√
√√
√√
√√
√√
√√

Edit

√√
√√
√√
√√
√√

Edit

Off

On

This function is very useful in the situation that the TV is used in
weak signal. LNA amplifies the TV signal in the weak signal area,
but not noise.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Channel.

:

Result

The options available in the

Channel

group are

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Edit.

Press the

Result

ENTER () button.

: The Edit menu is displayed.

5 Press the † or … button to select LNA.

Press the

Result

ENTER () button.

: The options available are listed.

6 Select On or Off by pressing the † or … button.

ENTER () button to confirm.

If the picture is noisy with the LNA set to On, select Off.

LNA setting is to be made for each channel.

Depending on areas, factory mode of LNA will be set up

On or Off.

as

➢

Press the

◆

◆

◆

38

Changing the Sound Standard

You can select the type of special sound effect to be used when
watching a given broadcast.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Sound.

Result

:

The options available in the

3 Press the ENTER () button.

Result

: The Mode is selected.

4 Press the ENTER () button again.

5 Select the option by pressing the † or … button. The sound

effects are displayed in the following order.

Standard- Music- Movie- Speech- Custom.

Sound

group are displayed.

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

ENG

Sound

√√
√√
√√
√√
√√

Sound

Standard

Music

Movie

Speech

Custom

6 Press the ENTER () button to confirm.

You can also set these options simply by pressing the

➣

S.MODE (: Sound Mode) button.

Move Enter Return

39

ENG

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Adjusting the Sound Settings

The sound settings can be adjusted to suit your personal preferences.

Sound

√√
√√
√√
√√
√√

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Sound.

:

Result

The options available in the

Sound

group are displayed.

Move Enter Return

TV

0

R

L

Adjust√√Move Return

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

3 Press the ENTER () button.

4 Press the † or … button to select Equalizer. Press the ENTER

Equalizer

() button.

: The Equalizer menu is displayed with the current

Result

option.

5 Select the option (volume, balance, equalizer) to be adjusted by

pressing the
required setting.

100 300 1K 3K 10K

œ or √ button. Press the † or … button to reach the

6 When you are satisfied with the settings, press the MENU ()

button to store them.

If you make any changes to the equalizer settings, the

➣

sound standard is automatically switched to the

Adjusting the Volume Automatically

Each broadcasting station has its own signal conditions, and so it

Sound

√√
√√
√√
√√
√√

Sound

Off

On

is not easy for you to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume of
the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the
modulation signal is low.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the † or … button to select Sound.

The options available in the

:

Result

3 Press the ENTER () button.

4 Press the † or … button to select Auto Volume. Press the

ENTER () button.

Sound

group are displayed.

Custom.

Move Enter Return

40

5 Select the option (Off or On) by pressing the † or … button.

Setting the TruSurround XT

TruSurround XT is a patented SRS technology that solves the
problem of playing 5.1 multichannel content over two speakers.
Trusurround delivers a compelling, virtual surround sound
experience through any two-speaker playback system, including
internal television speakers. It is fully compatible with all
multichannel formats.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button until the Sound is selected.

Result

3 Press the ENTER () button.

4 Press the † or … button until the SRS TSXT is selected. Press the

ENTER () button.

5 Press the † or … button to change the setting. (Off

Stereo).

➢

The options available in the

:

Sound

TruSurround XT, SRS and ( ) Symbol
are trademarks of SRS Labs, Inc.
TruSurround XT technology is
incorporated under license from SRS
Labs, Inc.

group are displayed.

,

3D Mono or

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

ENG

Sound

√√
√√
√√
√√
√√

Sound

Off

3D Mono

Stereo

Selecting the Internal Mute

If you want to hear the sound through separate speakers, cancel the
internal amplifier.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Sound.

Result

3 Press the ENTER () button.

4 Press the † or … button to select Internal Mute. Press the

ENTER () button.

5 Press the † or … button to change the setting. (On or Off).

The options available in the

:

Sound

group are displayed.

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

TV

Mode : Standard

Equalizer

Auto Volume : Off

SRS TSXT : Off

Internal Mute : Off

Move Enter Return

Sound

√√
√√
√√
√√
√√

Sound

Off

On

41

ENG

Selecting the Sound Mode (depending on the model)

The “DUAL I-II” button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “Dual-I ” or “Stereo”, depending on
the current transmission.

Type of broadcast

Regular broadcast

(Standard audio)

Regular +

NICAM

Stereo

A2

Stereo

◆ If the receiving conditions deteriorate, listening will be

➣

◆ If the stereo signal is weak and an automatic switching

◆ When receiving a mono sound in the AV mode, connect

NICAM Mono

NICAM Stereo

NICAM Dual-I/II

Regular broadcast

(Standard audio)

Bilingual or Dual-I/II

Stereo

easier if the mode is set to the

occurs, then switch to the

to the “AUDIO-L” input connector on the side of the
television. If the mono sound comes out only from left
speaker, press the

Dual I-II button.

On-screen indication

(Normal use)

Mono

NICAM Mono↔Mono

NICAM Stereo↔Mono

NICAM Dual-I

NICAM Dual-II

Mono

Mono

Dual-

I↔Dual-II

Stereo↔Mono

Mono.

Mono.

(Forced mono)

→

→

(Forced mono)

42

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Setup.

Result

: The options available in the Setup group are

displayed.

3 Press the ENTER () button.

4 Press the † or … button to select Time. Press the ENTER ()

button.

Result

: The options available in the Time group are displayed.

5 Press the † or … button to select Sleep Timer. Press the

ENTER () button.

Result

: The Sleep Timer menu is displayed with the Min is

selected.

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Clock 07 : 05

Sleep Timer Off

On Timer Off

Off Timer Off

Move Enter Return

ENG

Setup

√√
√√
√√
√√
√√

√√

Time

√√
√√
√√
√√

6 Select the preset time intervals (Off, 30 , 60 , 90, 120, 150, 180 ) by

pressing the
Press the

† or … button.

œ or √ button to move to the Activation.

7 When you are satisfied with the settings, select Activation to

Yes or No by pressing the † or … button.

8 Press the ENTER () button to confirm your selection.

◆

➣

You can also set these options simply by pressing the
SLEEP button.

◆

If the sleep timer is not yet set,

Off

is displayed.
If the sleep timer is already set, the remaining time
before which the television switches to Standby mode
is displayed.

TV

TV

Sleep Timer

Min Activation

--

Adjust√√Move Return

Min Activation

30 Yes

Adjust

No

Sleep Timer

œœ √√

Move Return

43

Off

ENG

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Clock 07 : 05

Sleep Timer Off

On Timer Off

Off Timer Off

Move Enter Return

TV

Setting and Displaying the Current Time

You can set the television’s clock so that the current time is displayed

Setup

√√
√√
√√
√√
√√

√√

Time

√√
√√
√√
√√

Clock

by pressing the “INFO ( )” button. You must also set the time if
you wish to use the automatic on or off timers.

When pressing the “I / ” button (On/Off) on the front of

➣

the television, the clock setting will be reset.

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the ▼ or ▲ button to select Setup .

: The options available in the Setup group are

Result

displayed.

3 Press the ENTER () button.

4 Press the ▼ or ▲ button to select Time . Press the ENTER ()

button.

: The options available in the Time group are displayed

Result

with

Clock is selected.

5 Press the ENTER () button.

6 Press the ▼ or ▲ button to move to the hour or minute.

Set the hour or minute by pressing the

▼ or ▲ button.

Hour Min

07 05

Adjust√√Move Return

7 When you have finished, press the EXIT () button to exit.

8 Press the INFO () button to display the current time.

44

Switching the Television On and Off Automatically

You can set the television’s clock and set the On or Off timers so that
the television will:

◆ Switch on automatically and tune to the channel of your
choice at the time you select

◆ Switch off automatically at the time you select

The first step is to set the television’s clock (refer to

➣

“Setting and Displaying the Current Time” on the
previous page).

1 Press the MENU button.

: The main menu is displayed.

Result

2 Press the ▼ or ▲ button to select Setup.

: The options available in the Setup group are

Result

displayed.

3 Press the ENTER () button.

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

TV

Clock 07 : 05

Sleep Timer Off

On Timer Off

Off Timer Off

ENG

Setup

√√
√√
√√
√√
√√

√√

Time

√√
√√
√√
√√

4 Press the † or … button to select Time. Press the ENTER ()

button.
Result

: The options available in the Time group are displayed.

5 Press the ▼ or ▲ button to select On Timer. Press the ENTER

() button.
Result: The options available in the On Timer group are

displayed.

6 Select the Hour, Min , Prog., Volume by pressing the œ or √

button.
Set these by pressing the

† or … button.

7 When you are satisfied with the settings, select Activation to

Yes or No by pressing the † or … button.

8 Press the MENU button.

: The options available in the Time group are displayed

Result

again.

9 Press the † or … button to select Off Timer . Press the ENTER

() button.
Result: The Off Timer menu is displayed.

10 Select the Hour , Min or Activation by pressing the œ or √

button.
Set these by pressing the

Absent Power Off

➣

When you set the timer “On”, your television will
eventually be turned off, if you do not operate any controls
during the 3 hours after the TV is turned on by timer.
This function is available in only the timer “On” mode and
will prevent a leakage accident or overheating, caused by
your TV left on for a long time due to the timer “On”
(when you are away on holiday, for example).

† or … button.

Move Enter Return

TV

TV

On Timer

Hour Min Prog.

12 00 1

Volume Activation

10 No

Adjust√√Move Return

Off Timer

Hour Min

12 00

Activation

No

Adjust√√Move Return

45

ENG

TV

Source List : TV

Edit Name

Viewing an External Signal Source

Use the remote control to switch between viewing signal from

Input

√√
√√

connected equipment, such as VCR, DVD, Set-Top-boxs and the TV
source (broadcast or cable)

1 Press the MENU button.

Result

: The main menu is displayed.

TV

TV
Ext.1
Ext.2
AV
S-Video
Component
PC
DVI

TV

Source List : TV

Edit Name

TV

Ext.1 :

Ext.2
AV :
S-Video :
Component :
PC :
DVI :

Move Enter Return

Source List

----

----

----

----

----

----

----

Move Enter Return

Input

√√
√√

Move Enter Return

Edit Name

----

:

VCR

DVD

Cable STB

HD STB

Satellite STB

†

Move Enter Return

2 Press the ▼ or ▲ button to select Input .

Result

: The options available in the Input group are

displayed.

3 Press the ENTER () button.

4 Press the ▼ or ▲ button to select Source List.

Press the

Result

ENTER () button.

: The options available in the Source List group are

displayed.

5 Press the ▼ or ▲ button to select signal source, then press the

ENTER () button.

➢ When you connect equipment to the TV, you can choose

between the following sets of jacks :
S-Video, Component, PC or DVI on the TV’s rear panel.

6 Press the MENU button again, press the ENTER () button

to select

Input.

7 Press the ▼ or ▲ button to select Edit Name . Press the ENTER

() button.

Result

: The options available in the Edit Name group are

displayed.

8 Press the ▼ or ▲ button to select external device :

Ext.1 - Ext.2 - AV - S-Video - Component - PC - DVI

9 Press the ENTER () button.

:

The

Result

Edit Name

available are listed

10 Select the name by pressing the † or … button.

Press the

ENTER () button.

Ext.1, Ext.2 , AV ,

.

46

11 Set other signal sources (VCR, DVD , Cable STB, HD STB,

Satellite STB, AV Receiver, DVD Receiver, Game ,
Camcorder, DVD Combo, DHR or PC ) using the same method as

listed above.

You can also set these options simply by pressing the

➣

TV/VIDEO ()button. If you change the external source
while viewing, pictures might take a short period of time to
be switched.

DHR : DVD HDD Recorder

➣

Redirecting an Input to the External Output

Your television enables you to choose which audio/video signals
are output to the external connector.

1 Press the MENU button.

Result

: The main menu is displayed.

2 Press the † or … button to select Setup.

Result

: The options available in the Setup group are

displayed.

TV

Time

Language : English

AV Setup

Digital NR : On

Miscellaneous

PC Setup

Move Enter Return

ENG

Setup

√√
√√
√√
√√
√√

√√

3 Press the ENTER () button.

4 Press the † or … button to select AV Setup. Press the ENTER

() button.

Result

: The AV Setup menu is displayed.

5 Press the † or … button to select required input (Ext.2), then

press the
to the output by pressing the

ENTER () button. Select the source to be directed

† or … button.

6 Press the ENTER () button to confirm the change.

TV

TV

AV Setup

Ext.1 : TV

Ext.2 : TV

Move Enter Return

AV Setup

Ext.1 : TV

Ext.2 : TV

Move Enter Return

TV

Ext.1

Ext.2

AV

S-Video

Monitor Out

√√

√√

47

ENG

Teletext Feature

Most television channels provide written information services via
teletext. Information provided includes:

This information is divided into numbered pages (see diagram).

◆

Television programme times

◆

News bulletins and weather forecasts

◆

Sports results

◆

Travel information

Part Contents

A Selected page number.

B Broadcasting channel identity.

C Current page number or search indications.

D Date and time.

EText.

F Status information.

FASTEXT information.

Teletext information is often divided between several

➣

pages displayed in sequence, which can be accessed by:

◆ Entering the page number

◆ Selecting a title in a list

◆ Selecting a coloured heading (FASTEXT system)

48

Displaying the Teletext Information

You can display Teletext information at any time on your television

For Teletext information to be displayed correctly,

☛

channel reception must be stable; otherwise:

◆ Information may be missing

◆ Some pages may not be displayed

1 Select the channel providing the Teletext service by pressing the

P or button.

2 Press the TTX/MIX () button to activate the teletext mode.

Result

:

The contents page is displayed. It can be redisplayed
at any time by pressing the (index) button.

3 Press the TTX/MIX () button again.

:

Result

4 If you wish to display the actual broadcast and teletext information

on a single screen, press the

5 To exit from the teletext display, press the EXIT () button.

The screen will be split into two. This Double Teletext
feature lets you view the
information separately on the screen.

actual broadcast

TTX/MIX ()button again.

and teletext

ENG

49

ENG

Selecting Display Options

When you have displayed a Teletext page, you can select various
options to suit your requirements.

To display... Press the...

◆ Hidden text (reveal)
(answers to quiz games, for example)

◆ The normal screen (reveal) again

◆ A secondary page by entering its number (sub-page)

◆ The broadcast when searching for a page (cancel)

◆ The next page (page up)

◆ The previous page (page down)

◆ Double-size letters in the: (size)

• Upper half of the screen • Once

• Lower half of the screen • Twice

◆ The normal screen • Three times

50

Selecting a Teletext Page

You can enter the page number directly by pressing the numeric
buttons on the remote control.

1 Enter the three-digit page number given in the content by

pressing the corresponding numeric buttons.

Result

: The current page counter is incremented and the

page is then displayed. If the selected page is linked
with several secondary pages, the secondary pages
are displayed in sequence. To freeze the display on a
given page, press the (hold). Press it again to
resume.

2 If the FASTEXT system is used by the broadcasting company,

the different topics covered on a Teletext page are colour-coded
and can be selected by pressing the coloured buttons on the
remote control.
Press the coloured button corresponding to the topic that you wish
to select; the available topics are given on the status line.

Result

: The page is displayed with other coloured information

that can be selected in the same way.

3 To display the previous or next page, press the corresponding

P or button.

ENG

4 To display the subpage, see the following steps.

◆

Press the (sub-page) button.
Result

: The available subpages appear.

◆

Select the required sub-page. Sub-pages can be scrolled by
pressing the or button.

5 When you have finished, press the EXIT () button to return to

your normal broadcast.

51

ENG

Connecting to the External Devices

“MONITOR OUT” are used for the equipment with an RGB output, such as
video game devices or video disc players.

Rear of the TV

(Input/Output)

①

This end can be fitted with:

◆ A SCART connector

◆ Three RCA connectors (VIDEO + AUDIO-L/R)

Input/Output Specification

①

or

②

③

VCR

DVD

Decoder /

Video game device

Video disc player

Satellite receiver

Connector

Video Audio (L/R) S-Video RGB Video + Audio (L/R)

Ext.1 ✔✔ ✔✔ Only TV output is available.

Ext.2 ✔✔ ✔ Output you can choose.

Input Output

Rear of the TV

(Input/Output)

Camcorder

Video disc player

Video game device

52

Connecting to the S-Video Input

The S-VIDEO and RCA (AUDIO-L/R) connectors are used for equipment with an S-Video output,
such as a camcorder or VCR.

Rear of the TV

①

Camcorder

and

VCR

ENG

①

To play picture and sound, both the S-VIDEO and RCA connectors must be used.

Whenever you connect an audio or video system to your television,

☛

ensure that all elements are switched off. Refer to the documentation
supplied with your equipment for detailed connection instructions
and associated safety precautions.

53

ENG

Connecting to the DVI Input

The “DVI” (video) and “L-AUDIO-R” connectors are used for equipment with a DVI output.

Rear of the TV

and

Connecting to the PC Input

Personal Computer

The “RGB” (video) and “AUDIO” connectors are used for interfacing with your PC.

Rear of the TV

and

54

Personal Computer

Connecting to the Component Input

Rear of the TV

①

DVD

or

DTV receiver

The “COMPONENT” connectors are
used for DTV receiver or DVD.
(480i,p/576i,p/720p/1080i)

ENG

55

ENG

Connecting and Using the Home Theater System

Use the Monitor Out ports of the PDP for Home Theater System Connections.

Rear of the TV

Connecting the Home Theater System

①

Connect the monitoring audio out L, and
R jacks of the MONITOR OUT on the
rear-side connection panel of the PDP
TV to the AUDIO IN jacks of the DVD
Home Theater System (or AV Receiver)
using the audio cable.

②

Press the TV/VIDEO button to select the
desired external device connected to the
PDP TV.

③

If you want to hear the sound through
separate speakers, cancel the internal
amplifier.

①

DVD Home Theater

◆ Refer to corresponding user’s manual from the manufacturer for wiring the

☛

To Display the DVD Home Theater

!

Turn the PDP on and press the TV/VIDEO button to select the Ext.1 (or Ext.2).

@

Be sure to connect the video cable properly if desired external input (Ext.1 or Ext.2) cannot be
selected.

#

Play the DVD after activating the DVD Home Theater System.

$

Use the volume control of the Home Theater System while watching the PDP using the DVD
Home Theater, where the PDP TV does not produce the audio.

speakers to the DVD Home Theater System (or AV Receiver).

◆ Disable the PDP TV internal speaker to enjoy the rich sound through the
speakers of your Home Theater System.

◆ In this case, enjoy the sound from the Home Theater System while the PDP TV
does not produce the audio.

②

AV Receiver Amplifier

56

Setting up Your PC Software (Windows only)

The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

On the windows screen, select in the following
sequence:

Start ➞ Settings ➞ Control Panel.

ENG

When the control panel screen appears, click on
Display and a display dialog-box will appear.

Select the Settings tab in the display dialog-box.

The two key variables that apply the television-PC
interface are “Resolution” and “Colours”.
The correct settings for these two variables are:

◆ Size (sometimes called “Resolution”)

-

640 x 480 pixels (PS42D4S)

◆ Colour
24-bit colour (might also be expressed as “16
million colours”)
Shown at left is a typical screen for “Display”
dialog box.

If a vertical-frequency option exists on your display
settings dialog box, the correct value is
Otherwise, just click

OK and exit the dialog box.

60 Hz.

57

ENG

Input Mode (PC/DVI)

Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:

Video Signal

IBM PC / AT

Compatible

◆ The interlace mode is not supported.

◆ The television might operate abnormally if a non-standard video format is selected.

Dot x Line

640 x 350

640 x 400
720 x 400

640 x 480

800 x 600

848 x 480

1024 x 768

Vertical

frequency (Hz)

70.086

85.080

85.080

70.087

85.039

59.940

72.809

75.000

85.008

56.250

60.317

72.188

75.000

85.061

60.000

72.000

75.000

60.004

70.069

75.029

84.997

Horizontal

frequency (kHz)

31.469

37.861

37.861

31.469

37.927

31.469

37.861

37.500

43.269

35.156

37.879

48.077

46.875

53.674

29.838

36.072

37.650

48.363

56.476

60.023

68.677

Vertical
polarity

N
N

P
P

P
N
N
N
N

N/P

P

P

P

P

nVidia chipset

N
N

P

P

(N: Negative / P: Positive)

Horizontal

polarity

P

P
N
N
N
N
N
N
N

N/P

P

P

P

P

N
N

P

P

Notes

◆ The PC text quality for PS42D4S is optimum in VGA mode (848 x 480@60Hz).

◆ When this television is used as a PC display, 24-bit colour is supported (over 16 million colours).

◆ Your PC display screen might appear different depending on the manufacturer (and your particular version of

Windows). Check your PC instruction book for information about connecting your PC to a television.

◆ If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the
that the PC is connected.

◆ When connecting a notebook PC to the television, make sure that the PC screen is displayed through only the
television (Otherwise, random signals might appear).

◆ When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.

◆ The Display Settings Table above complies to the IBM/VESA standards, and based on the analog input.

◆ The DVI support mode is regarded as same to the PC support mode.

◆ The best timing for the vertical frequency to each mode is 60Hz.

58

TV/VIDEO button to enter the Video mode. Also, make sure

Pin Configurations

SCART Connector (Ext1,Ext2)

Pins 5, 7, 9, 11, 13, 15 and 16 are used for RGB processing and are

➢

only wired on the

EXT1 or EXT2 connector.

ENG

Pin Signal

1 Audio output R
2 Audio input R
3 Audio output L
4 Audio chassis return
5 Video chassis return (RGB blue)
6 Audio input L
7 RGB blue input (EXT1)
8 Switching voltage

9 Video chassis return (RGB green)
10 AV-Link (EXT1)
11 RGB green input (EXT1)

PC Input Connector
(15Pin)

Pin PC IN

1 Red (R)

2 Green (G)

3 Blue (B)

4 Grounding

5 Grounding (DDC)

6 Red (R) Grounding

7Green (G) Grounding

8 Blue (B) Grounding

9 Reserved
10 Sync Grounding
11 Grounding
12 Data (DDC)
13 Horizontal sync.
14 Vertical sync.
15 Clock (DDC)

Pin Signal

12 ­13 Video chassis return (RGB red)
14 ­15 RGB red (EXT1) or chroma input
16 Blanking signal (RGB switching)
17 Video chassis return
18 Blanking signal ground
19 Video output
20 Video or Luminance input
21 Screening/chassis return

DVI Input Connector
(24Pin)

Pin Signal

1T.M.D.S. Data2­2 T.M.D.S. Data2+
3 T.M.D.S. Data2/4 Shield
4T.M.D.S. Data4­5 T.M.D.S. Data4+
6 Clock (DDC)
7Data (DDC)
8 Not Connected

9T.M.D.S. Data1­10 T.M.D.S. Data1+
11 T.M.D.S. Data1/3 Shield
12 T.M.D.S. Data3­13 T.M.D.S. Data3+
14 +5V Power
15 5V Grounding
16 Hot Plug Detect
17 T.M.D.S. Data0­18 T.M.D.S. Data0+
19 T.M.D.S. Data0/5 Shield
20 T.M.D.S. Data5­21 T.M.D.S. Data5+
22 T.M.D.S. Clock Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock-

59

ENG

Troubleshooting: Before Contacting Service Personnel

Before contacting Samsung after-sales service, perform the following simple checks.

If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.

No sound or picture

Normal picture but no sound

No picture or black and white picture

Sound and picture interference

Blurred or snowy picture,

distorted sound

Remote control malfunctions

◆ Check that the mains lead has been connected to a wall socket.

◆ Check that you have pressed the “ I ” button (On/Off) and the

POWER () button.

◆ Check the picture contrast and brightness settings.

◆ Check the volume.

◆ Check the volume.

◆ Check whether the volume MUTE () button on the remote control

has been pressed.

◆ Adjust the colour settings.

◆ Check that the broadcast system selected is correct.

◆ Try to identify the electrical appliance that is affecting the television,

then move it further away.

◆ Plug your television into a different mains socket.

◆ Check the direction, location and connections of your aerial.

This interference often occurs due to the use of an indoor aerial.

◆ Replace the remote control batteries.

◆ Clean the upper edge of the remote control (transmission window).

◆ Check the battery terminals.

60

Memo

ENG

61

-

AFTER SALES SERVICE

-

Do not hesitate to contact your retailer or service agent
if a change in the performance of your product indicates
that a faulty condition may be present.

ELECTRONICS

BN68-00699A-00
