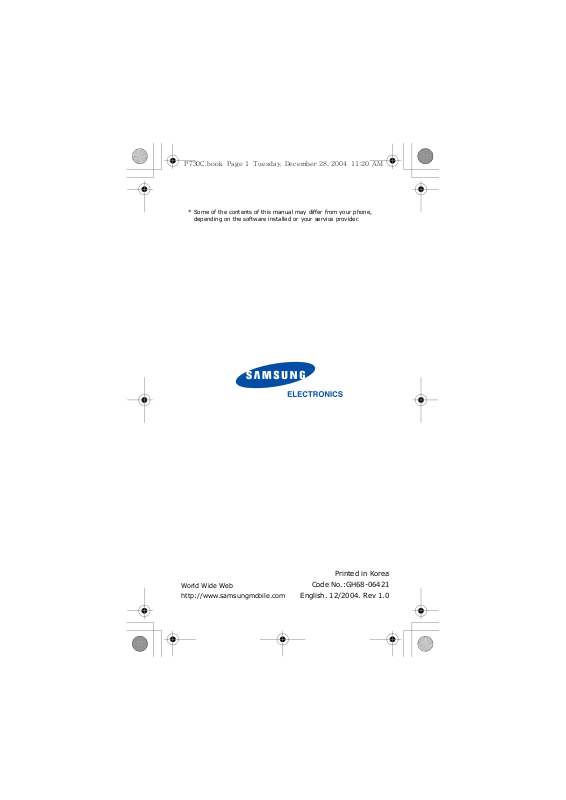

Samsung P730 User Manual

* Some of the contents of this manual may differ from your phone,
depending on the software installed or your service provider.
World Wide Web http://www.samsungmobile.com
Printed in Korea
Code No.:GH68-06421
English. 12/2004. Rev 1.0
SGH-P730C
Contents
Important safety precautions........................... 7
Unpacking ........................................................ 9
Your phone..................................................... 10
Phone layout ........................................................... 10
Display................................................................... 13
Service light............................................................ 16
Camera .................................................................. 16
Getting started ............................................... 17
Installing the SIM card ............................................. 17
Charging the battery ................................................ 19
Using the memory card ............................................ 21
Switching on or off the phone.................................... 22
Call functions ................................................. 23
Making a call ........................................................... 23
Adjusting the volume ............................................... 28
Answering a call ...................................................... 29
Viewing missed calls ................................................ 30
Quickly switching to Silent mode................................ 32
Selecting functions and options...................... 33
Using the soft keys .................................................. 33
Selecting options ..................................................... 34
Entering text .................................................. 35
Changing the text input mode ................................... 36
Using Chinese Pinyin mode ....................................... 38
Using Chinese Stroke modes ..................................... 41
Using Quick English mode ......................................... 44
Using English mode.................................................. 46
Using Malay mode.................................................... 47
Using Number mode................................................. 47
Using Symbolic mode ............................................... 48
Using My words mode .............................................. 48
Using Help mode ..................................................... 50
3
Contents
Options during a call ...................................... 51
Putting a call on hold................................................ 51
Using the menu functions ......................................... 52
Switching off the microphone (Mute) .......................... 53
Muting or sending key tones...................................... 54
Sending a sequence of DTMF tones ............................ 54
Searching for a number in Phonebook ........................ 55
Call waiting............................................................. 56
Making a multi-party call .......................................... 56
Using the menus ............................................ 59
Accessing a menu function by scrolling ....................... 59
Using shortcuts ....................................................... 60
List of menu functions .............................................. 61
Call records .................................................... 66
Missed calls Received calls Dialled calls Delete all Call time Call cost
(Menu 1.1)
(Menu 1.2)
(Menu 1.3)
(Menu 1.4)
(Menu 1.5)
(Menu 1.6)
............................................. 66
.......................................... 67
............................................ 67
................................................ 68
................................................. 69
.................................................. 70
Phonebook ..................................................... 71
Search
(Menu 2.1)
New entry Group search Group edit Speed dial Delete all Memory status Own number
SDN (Service dialling numbers) ................................. 80
.................................................... 71
(Menu 2.2)
(Menu 2.4)
(Menu 2.5)
(Menu 2.6)
............................................... 74
(Menu 2.3)
........................................... 75
............................................... 76
.............................................. 77
................................................ 78
(Menu 2.7)
(Menu 2.8)
......................................... 79
............................................ 79
Applications ................................................... 81
MP3 player Voice memo SIM AT
(Menu 3.1)
(Menu 3.2)
(Menu 3.3)
.............................................. 81
............................................. 84
..................................................... 86
Browser.......................................................... 87
Home
(Menu 4.1)
Bookmarks http://
(Menu 4.3)
WAP profile Clear cache
4
...................................................... 87
(Menu 4.2)
.............................................. 90
.................................................... 91
(Menu 4.4) (Menu 4.5)
.............................................. 91
.............................................. 92
Contents
Messages........................................................ 93
Text messages Multimedia messages Push messages Voice mail Broadcast messages
(Menu 5.1)
(Menu 5.3)
(Menu 5.4)
......................................... 93
(Menu 5.2)
.............................. 102
...................................... 115
............................................. 116
(Menu 5.5)
............................... 116
Funbox ......................................................... 118
Games
(Menu 6.1)
Sounds
(Menu 6.2)
Images
(Menu 6.3)
Videos
(Menu 6.4)
Delete all Memory status
.................................................. 118
................................................. 124
................................................. 125
.................................................. 125
(Menu 6.5)
.............................................. 126
(Menu 6.6)
....................................... 127
Organiser ..................................................... 128
Alarm
(Menu 7.1)
Calendar To do list Calculator Currency converter
................................................... 128
(Menu 7.2)
(Menu 7.3) (Menu 7.4)
............................................... 130
............................................... 132
.............................................. 134
(Menu 7.5)
................................. 135
Camera......................................................... 136
Taking a photo ...................................................... 136
Photos
(Menu 8.1)
Videos
(Menu 8.2)
My album Delete all Memory status Select memory location
.................................................. 142
.................................................. 142
(Menu 8.3)
(Menu 8.4)
.............................................. 146
............................................... 149
(Menu 8.5)
....................................... 149
(Menu 8.6)
........................... 150
Settings........................................................ 151
Time & Date Phone settings Display settings Sound settings Network services Security Reset settings
(Menu 9.1)
(Menu 9.2)
(Menu 9.3)
(Menu 9.4)
(Menu 9.6)
(Menu 9.7)
.......................................... 151
....................................... 153
...................................... 156
....................................... 158
(Menu 9.5)
.................................... 162
................................................ 170
........................................ 173
5
Contents
Solving problems.......................................... 174
Access codes ................................................ 177
Phone password .................................................... 177
PIN ...................................................................... 178
PUK ..................................................................... 178
PIN2 .................................................................... 179
PUK2 ................................................................... 179
Barring password................................................... 180
Health and safety information ...................... 181
SAR certification information ................................... 181
Precautions when using batteries ............................. 182
Road safety .......................................................... 184
Operating environment........................................... 184
Electronic devices .................................................. 185
Potentially explosive environments........................... 187
Emergency calls .................................................... 188
Other important safety information .......................... 189
Care and maintenance............................................ 190
Glossary ....................................................... 192
Qnuick reference card .................................. 198
6

Important safety precautions

Read these guidelines before using your wireless phone. Failure to comply with them may be dangerous or illegal.
Road safety at all times
Do not use a hand-held phone while driving; park the vehicle first.
Switching off when refuelling
Do not use the phone at a refuelling point (service station) or near fuels or chemicals.
Switching off in an aircraft
Wireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.
Switching off near all medical equipment
Switch off your phone near the medical equipment. Hospitals or health care facilities may be using equipment that could be sensitive to external RF energy. Follow any regulations or rules in force.
Interference
All wireless phones may be subject to interference, which could affect their performance.
Special regulations
Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example).
Water resistance
Your phone is not water-resistant. Keep it dry.
7
Important safety precautions
Sensible use
Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on, especially when the phone is in service.
Emergency call
Key in the emergency number for your present location, then press the key. Give all necessary information as accurately as possible. Do not end the call until given permission to do so.
Keeping small children away from your phone
Keep the phone and all its parts including accessories out of the reach of small children.
Accessories and batteries
Use only Samsung-approved accessories. Use of any unauthorised accessories could damage your phone and may be dangerous.
Use only Samsung-approved batteries and recharge your battery only with Samsung-approved chargers.
Qualified service
Only qualified service personnel may install or repair your phone.
For more detailed safety information, see “Health and safety information” on page 181.
CAUTION
RISK OF EXPLOSION IF A BATTERY IS REPLACED
BY AN INCORRECT TYPE.
DISPOSE USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
8

Unpacking

Your package contains the following items:
Handset
Batteries
PC data link cable
Memory card
Note
: The items supplied with your phone and
Travel Charger
User’s Manual
Easy studio CD
available accessories may be different, depending on your country or service provider.
9

Your phone

Phone layout

The following illustrations show the main elements of your phone:
Earpiece
Display
Navigation (Up/ Down/Left/Right) keys
WAP bro wser key
Camera key
Soft key (right)
Soft key (left)
Volu me/ men u
browse keys
Dial key
IrDA port
Special function
keys
Power on/off/ menu exit key
Cancel/ correction key
Alphanumeric keys
Microphone
External display
Service light
10
Antenna
Camera Microphone
for camcorder
Headset jack
Camera key
Memory card slot
Key
(s)
(soft keys)
Your phone
Description
Performs the functions indicated by the screen text above them, on the bottom line of the display.
In Menu mode, scrolls through the menu options and Phonebook.
In Idle mode, allows you to access your favourite menu options directly. For further details about shortcuts, see page 154.
When entering text, moves the cursor to the left or right, depending on which side you push.
In Idle mode, allows you to access your favourite menu options directly. For further details about shortcuts, see page 154.
In Idle mode, allows you to quickly access the Wireless Web or Samsung Fun Club. You can also launch the WAP browser when held down.
In Menu mode, selects the highlighted the main menu.
Deletes characters from the display.
In Menu mode, returns you to the previous menu level.
Makes or answers a call.
In Idle mode, recalls the last number dialled or received when held down.
11
Your phone
Key
(s)
Description
(continued)
Ends a call. Also switches the phone on and off when held down.
In Menu mode, cancels your input and returns the phone to Idle mode.
In Idle mode, accesses your voice mail when held down.
Enters numbers, letters, and some special characters.
Enters special characters. Performs various functions.
12
In Idle mode, accesses the
Camera
menu to allow you to use the camera application. Turns the camera on when held down.
In Capture mode, takes a photo.
(on the left side of the phone) During a call, adjusts the earpiece volume.
In Idle mode, with the phone open, adjusts the keypad tone volume. With the phone closed, turns on the external display when held down.
In Menu mode, scrolls through menu options.
(on the right side of the phone) When the phone is reversed, allows you to take a photo.

Display

Display layout
The display has 3 areas:
Icons
Tex t a n d graphics area
Your phone
Menu Phonebook
Soft key function indicators
Area Description
First line Displays various icons. See
page 14.
Middle Displays messages, instructions,
and any information that you enter, such as the number you are dialling.
Last line Shows the current functions
assigned to the two soft keys.
13
Your phone
Icons
Icon Description
Shows the received signal strength. The greater the number of bars, the stronger the signal.
Appears when a call is in progress.
Appears when you are out of your service area. When it displays, you cannot make or receive a call.
Appears when you are connected to the GPRS network.
Appears when you are out of your home area and have logged onto a different network; for example, when travelling in other countries.
Appears when the Call Diverting feature is activated.
Appears when a new text message has been received.
14
Appears when a new voice mail message has been received.
Appears when a new multimedia message has been received.
Appears when a memory card is inserted into the phone.
Appears when you set an alarm to ring at a specified time.
Your phone
Icon Description
(continued)
Appears when Silent mode is active or you set the phone to vibrate when you receive a call. You set this option in the menu (
Menu 9.4.3
). For further details,
Alert type
see page 32 and page 159 respectively.
Appears when the IrDA port is active. For details, see page 153.
Appears when Mute mode is active.
Shows the level of your battery. The more bars you see, the more power you have remaining.
Backlight
The backlight illuminates the display and the keypad. When you press any key or open the phone, the backlight comes on. It goes off when no keys are pressed within a given period of time, depending on the setting in the (
Menu 9.3.5
). The display turns off after one
minute to conserve battery power.
To specify the length of time the backlight is active, set the
Back light
menu. See page 157 for further
details.
Back light
menu
15
Your phone
External display
Your phone has an external display on the front of the phone. It indicates when you have an incoming call or a message. It also alerts you at a specified time when you have set an alarm. The backlight turns on and the corresponding icon appears on the display.
You can select the image to be displayed in the
LCD
menu (
details.
To turn on the display when the phone is closed, press and hold either of the Volume keys on the left side of the phone.
Menu 9.3.2
). See page 157 for further
Sub

Service light

The service light is on the front of the phone. It flashes when services are available on the phone.
To activate or deactivate the service light, use the
Service light
for further details.
menu (
Menu 9.3.6
). See page 157

Camera

The camera module on the back of your phone allows you to take a photo and record a video while on the move.
For further details about the Camera feature, see page 136.
16

Getting started

Installing the SIM card

When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available, and so on.
Important!
1. If necessary, switch off the phone by holding down the key until the power-off image displays.
2. Remove the battery. To do so:
The plug-in SIM card and its contacts
can be easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card.
Keep all SIM cards out of the reach of small children.
Press the catch above the battery and hold it in that position.
Slide the battery and lift it away, as shown.
17
Getting started
3. Slide the SIM card into the SIM card socket, as shown, so that the card locks into position.
Make sure the gold coloured contacts of the card face into the phone.
Note
: When you need to remove the SIM card,
slide it upwards, as shown, and take it out of the socket.
4. Place the battery, taking care to match the tabs on the battery with the grooves on the phone.
18
Getting started
5. Slide the battery towards the top of the phone until it clicks into place. Make sure that the battery is properly installed before switching the power on.

Charging the battery

Your phone is powered by a rechargeable Li-ion battery. A travel charger comes with your phone for charging the battery. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.
The travel charger allows you to use the phone while the battery is charging, but this causes the phone to charge more slowly.
Note
: You must fully charge the battery before using
your phone for the first time. A discharged battery recharges fully in approximately 200 minutes.
1. With the battery in position on the phone, plug the connector of the travel charger into the jack at the bottom of the phone.
19
Getting started
2. Plug the charger into a standard AC wall outlet.
The LED on the travel charger indicates the charging progress by the following colors:
• Red : the battery in being charged.
• Green : the battery in completely charged.
3. When charging is finished, unplug the charger from the power outlet and disconnect it from the phone by pressing the buttons on both sides of the connector and pulling out the connector.
Note
: You must unplug the charger before removing
the battery from the phone during charging; otherwise, the phone could be damaged.
Low battery indicator
When the battery is weak and only a few minutes of talk time remain, a warning tone sounds and the “Warning Low Battery” message repeats at regular intervals on the display. In this case, your phone turns off the backlight to conserve the remaining battery power.
If the battery level becomes too low, the phone automatically turns off.
20
Getting started

Using the memory card

You can save images, sounds, videos, and MP3 files downloaded from the computer on a memory card. You can also save photos on the memory card.
To install a memory card, slide the memory card into the slot located on the right side of the phone.
To remove the memory card, press and release the card so that it is disengaged from the slot. Then slide it out.
Notes
:
• When you insert a memory card via a card reader
into the USB port of your computer, the SAMSUNG folder automatically appears in the appropriate directory. To enable the phone to read files, you need to copy those files into the SAMSUNG folder.
• You can delete all of the files stored in the memory
card only using the FAT format.
• After inserting your memory card, close the card
slot cover. Your memory card may be ejected from the card slot if the card slot cover is not properly closed.
21
Getting started

Switching on or off the phone

1. Open the phone.
2. Press and hold the key until the phone switches on.
3. If the phone asks you to enter a password, enter the password and press the key. The password is preset to “00000000” at the factory. For further details, see page 177.
4. If the phone asks for a PIN, enter the PIN and press the page 178.
The phone searches for your network and, after finding it, the idle screen appears on the display. Now, you can dial or receive calls.
Note
5. When you wish to switch off the phone, press and hold the key until the power-off image displays.
OK
soft key. For further details, see
: The display language is preset to English at
the factory. To change the language, use the
Language
further details, see page 153.
menu (
OK
soft key or
Menu 9.2.1
). For
WARNING!
Do not switch on the phone when mobile phone use is prohibited or when it may cause interference or danger.
22

Call functions

Making a call

When the idle screen displays, enter the area code and phone number, then press the key.
Note
: When you activate the
the
Extra settings
phone will automatically redial up to ten times if the person does not answer the call or is already on the phone. See page 155 for further details.
Making an international call
1. Press and hold the 0 key. The
+
character appears.
2. Enter the country code, area code, and phone number and press the key.
Correcting the number
T
o clear Press the
the last digit displayedC key.
any other digit in the number
the whole display
Auto redial
menu (
Left or Right key until the cursor is immediately to the right of the digit to be cleared. Press the You can also insert a missing digit.
C
key and hold it for more
than one second.
option in
Menu 9.2.5
C
), the
key.
23
Call functions
Ending a call
When you want to end your call, briefly press the
key or close the phone.
Redialling the last number
The phone stores the numbers of the calls you’ve dialled, received, or missed, if the call recipients or caller is identified. See “Call records” on page 66 for further details.
To recall any of these numbers:
1. If you have typed characters on the display, press the key to return to Idle mode.
2. Press the key to display a list of the most recent numbers used, in the order you dialled or received them.
3. Press the Up or Down key to scroll through the numbers until the number you want highlights.
4.
T
o Press the
dial the number key.
edit the number
delete the number
delete all of the numbers on the Call log list
Options
key and select Change the number, referring to “Correcting the number” on page 23.
Options
key and select
Options
key and select For details, see page 68.
soft key or
Edit
.
soft key or
Delete
soft key or
Delete all
.
.
24
Call functions
Making a call from Phonebook
You can store phone numbers that you use regularly on the SIM card or in the phone’s memory. These entries are collectively called Phonebook.
Once you have stored a number in Phonebook, you can dial it by pressing a few keys. You can also assign your most frequently-used numbers to number keys using the Speed Dial feature.
For further details about the Phonebook feature, see page 71.
Storing a number in Idle mode
As soon as you start to enter a number, appears above the left soft key to allow you to store the number in Phonebook.
1. Enter the number you want to store.
Note
: If you make a mistake while entering a
number, correct it using the further details, see page 23.
2. When you are sure that it is correct, press the
Save
soft key or key.
Save
C
key. For
3. Select an icon to identify the category in which the number is to be stored. 3 categories are available:
: Mobile phone number
• : Office number
• : Home number
To select the category, press the Left or Right key and press the
Select
soft key or key.
25
Call functions
4. Select a memory location, either
SIM
or
Phone
by pressing the Up or Down key and press the
Select
soft key or key.
Note
: When you change phones, any numbers
stored in your SIM card memory are automatically available with the new phone, whereas any numbers stored in the phone’s memory will need to be reentered.
5. Enter a name and press the OK soft key or key.
For further details about how to enter characters, see page 35.
6. If you do not want to save the number and name in the suggested location, press the
C
key to clear the location number and enter another location by pressing the number keys.
7. Press the
OK
soft key or key to confirm the
name.
8. Press the
OK
soft key or key to store the
name and number.
After storing, the phone displays the Phonebook number or name you just stored.
9.
To Press the
use the entry options
Options
soft key or key. For further details, see page 72.
return to the idle
key twice.
screen
,
26
Call functions
Dialling a number from Phonebook
Once you have stored phone numbers in Phonebook, you can dial them easily and quickly by using the location numbers that were assigned to them in Phonebook.
Note
: If you cannot remember a location number, you
must go into the
Search
menu (
Menu 2.1
) to search for the entry by name. For details, see page 71.
To dial a number from the SIM card:
1. In Idle mode, enter the location number for the phone number you want to dial and press the key.
The list of entries in the SIM card appears.
2. You can press the Up or Down key to find other numbers on the list.
3. Press the
Dial
soft key or key when you
have selected the number you want.
To dial a number from the phone’s memory:
1. In Idle mode, press and hold the
0
key. A +
appears.
2. Enter the location number of the phone number you want and press the key.
The list of entries in the phone’s memory appears.
3. You can press the Up or Down key to find other numbers on the list.
4. Press the
Dial
soft key or key when you have
selected the number you want.
27
Call functions

Adjusting the volume

During a call, if you want to adjust the earpiece volume, use the Volume keys on the left side of the phone.
Press the key to increase the volume level and the key to decrease the level.
In Idle mode, you can also adjust the keypad tone volume using these keys.
28
Call functions

Answering a call

When somebody calls you, the phone rings and displays the incoming call image.
The caller’s phone number or name, if stored in Phonebook, displays.
1. If necessary, open the phone. Press the key or the
Accept
soft key to answer the incoming
call.
When the
settings
can press any key to answer a call except for the
When
settings
can answer the call simply by opening the phone. See
Note
2. End the call by closing the phone or pressing the key.
Anykey answer
menu (
key and the
the
menu (
: To reject the call, press and hold one of the
Volume keys before opening the phone, or press the
Menu 9.2.5
Reject
Active folder
Menu 9.2.5
page 155
Reject
option in the
) is activated, you
soft key. See
option in the
) is activated, you
.
soft key or
Extra
page 155
Extra
key.
.
Note
: You can answer a call while using Phonebook or
menu features. After ending the call, the display returns to the function screen you were using.
29
Call functions

Viewing missed calls

When you are unable to answer a call for any reason, you can find out who called you so that you can call the person back.
The number of calls you have missed displays on the idle screen immediately after a call is missed.
To view a missed call immediately:
1. If the phone is closed, open the phone.
2. Press the
The number for the most recent missed call displays, if available.
To Press the
3.
scroll through the missed calls
call the number displayed
edit or delete a missed call number
View
soft key or key.
Up or Down key.
key.
Select
soft key or
key. See below.
Editing a missed call number
Note
: When the number for the missed call is not
available, the
1. Press the
2. Press the Up or Down key to highlight the option.
3. Press the
30
Edit
Options
Select
soft key or key.
soft key or key.
option does not display.
Edit
Loading...
+ 169 hidden pages
