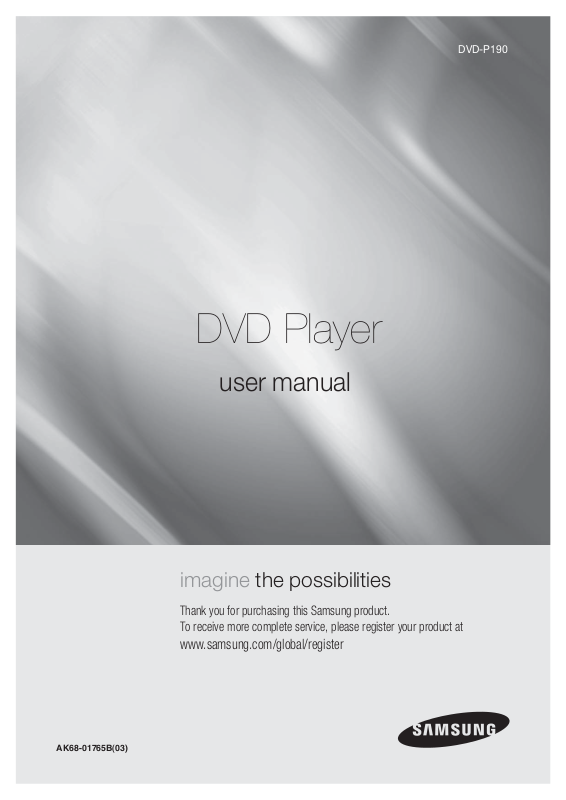

Samsung P190, AK68-01765B User Manual

DVD-P190
DVD Player
user manual
imagine the possibilities
Thank you for purchasing this Samsung product. To receive more complete service, please register your product at
AK68-01765B(03)
www.samsung.com/global/register

getting started

Important Safety Instructions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with a dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers,stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched; particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long peroids of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus. Service is also required if the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.

Precautions

RISK OF ELECTRIC SHOCK
DO NOT OPEN
GETTING STARTED
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.
Do not install this equipment in a confined space such as a bookcase or similar unit.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.
Note to CATV system installer : This reminder is provided to call CATV system installer’s attention to Article 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical. Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user’s authority to operate it.
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• If this power supply is used at 240V ac, a suitable plug adapter should be used.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. This class B digital apparatus meets all requirements of the Canadian Interference
Causing Equipment Regulations.
CALIFORNIA USA ONLY :
This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA “Perchlorate Material - special handling may apply" , See www. dtsc.ca.gov/hazardouswaste/perchlorate.
CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1
English _3
getting started
CAUTION
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Note:
• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This DVD player is designed and manufactured to respond to the Region Management Information. If the Region number of a DVD disc does not correspond to the Region number of this DVD player, the DVD player cannot play the disc.
• The product unit accompanying this user manual is licensed under certain intellectual property rights of certain third parties. In particular, this product is licensed under the following US patents: 5,060,220 5,457,669 5,561,649 5,705,762 5,987,417 6,043,912 6,222,983 6,272,096 6,377,524 6,377,531 6,385,587 6,389,570 6,408,408 6,466,532 6,473,736 6,477,501 6,480,829 6,556,520 6,556,521 6,556,522 6,578,163 6,594,208 6,631,110 6,658,588 6,674,697 6,674,957 6,687,455 6,697,307 6,707,985 6,721,243 6,721,493 6,728,474 6,741,535 6,744,713 6,744,972 6,765,853 6,765,853 6,771,890 6,771,891 6 775,465 6,778,755 6,788,629 6,788,630 6,795,637 6,810,201 6,862,256 6,868,054 6,894,963 6,937,552.
This license is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for commercial use. The license does not cover any product unit other than this product unit and the license does not extend to any unlicensed product unit or process conforming to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with this product unit. The license only covers the use of this product unit to encode and/or decode audio files conforming to the ISO/IEC 11172-3 or ISO/IEC 13818-3. No rights are granted under this license for product features or functions that do not conform to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
Handling Cautions
• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
• The Main plug is used as a disconnect device and shall stay readily operable at any time.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.

Before you start

Accessories
GETTING STARTED
Remote Control
(AK59-00103C)
Install Batteries in the Remote control
1
Open the battery cover on the back of the remote control.
2
Insert two AAA batteries. Make sure that the polarities (+ and -) are aligned correctly.
User’s Manual
(AK68-01765B)
Video/Audio
Cable
(AC39-22017Z & AC39-42001U)
3
Replace the battery cover.
If the remote control doesn’t operate properly:
- Check the polarity + - of the batteries.
- Check if the batteries are drained.
- Check if the remote control sensor is blocked by obstacles.
- Check if there is any fluorescent lighting nearby.
English _5
getting started
GETTING STARTED
2
CONNECTIONS
12
BASIC FUNCTIONS
15
ADVANCED FUNCTIONS
22
2 Important Safety Instructions 3 Precautions 5 Before you Start 7 General features 8 Disc Type and Characteristics 9 Description 11 Tour of the Remote Control
12 Choosing a Connection 13 Connecting to an Audio System (2 Channel
Amplifi er)
14 Connecting to an Audio System (Dolby
Digital, MPEG2 or DTS Amplifi er)
15 Playing a Disc 17 Using the Search and Skip Functions 18 Using the Display Function 19 Using the Disc and Title Menu 20 Repeat Play 21 Slow Play
22 Adjusting the Aspect Ratio (EZ View) 24 Selecting the Audio Language 25 Selecting the Subtitle Language 26 Changing the Camera Angle 27 Using the Bookmark Function 29 Using the Zoom Function 30 Clips Menu for MP3/WMA/JPEG/CD Audio 30 Folder Selection 31 MP3/WMA/CD Audio Playback 33 Picture CD Playback
NAVIGATING THE SETUP MENU
35
REFERENCE
46
35
Using the Setup Menu 36 Setting Up the Language Features 40 Setting Up the Audio Options 42 Setting Up the Display Options 44 Setting Up the Parental Control
46
Firmware Upgrade 47
Troubleshooting 48
Specifications

General Features

Excellent Sound
Dolby Digital, a technology developed by Dolby
Laboratories, provides crystal clear sound
reproduction.
Screen
Both regular and widescreen(16:9) pictures can be
viewed.
Slow Motion
An important scene can be viewed in slow motion.
Parental Control (DVD)
The parental control allows users to set the level
necessary to prohibit children from viewing harmful
movies such as those with violence, adult subject
matter, etc.
Various On-Screen Menu Functions
You can select various languages (Audio/Subtitle)
and screen angles while enjoying movies.
EZ VIEW (DVD)
Easy View enables picture adjustment to match your
TV's screen size (16:9 or 4:3).
Digital Photo Viewer (JPEG)
You can view Digital Photos on your TV.
Note
- Discs which cannot be played with this player.
• DVD-ROM • DVD-RAM
• CD-ROM • CDV
• CDI • CVD
• Super Audio CD(except CD layer)
• CDGs play audio only, not graphics.
- Ability to play back may depend on
recording conditions.
• DVD-R, +R
• CD-RW
• DVD+RW, -RW (V mode)
- The unit may not play certain CD-R, CD- RW
and DVD-R due to the disc type or
recording conditions.
COPY PROTECTION
Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
GETTING STARTED
Repeat
You can repeat a song or movie simply by pressing
the REPEAT button.
MP3/WMA
This unit can play discs created from MP3/WMA
files.
English _7
getting started

Disc Type and Characteristics

This DVD player is capable of playing the following types of discs with the corresponding logos:
Disc Types (Logos)
DVD
AUDIO-CD
Disc Markings
~
NTSC
STEREO
DIGITAL
SOUND
Play Region Number
NTSC broadcast system in U.S.A, Canada, Korea, Japan, etc.
®
Dolby Digital disc
Stereo disc
Digital Audio disc
Recording Types Disc Size Max. Playing Time
Single-sided 240 min.
Double-sided 480 min.
Single-sided 80 min.
Double-sided 160 min.
74 min.
20 min.
Audio
+
Video
Audio
12 Cm
8 Cm
12 Cm
8 Cm
Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
Characteristics
- DVD contains excellent sound and video due to Dolby Digital and MPEG-2 system.
- Various screen and audio functions can be easily selected through the on-screen menu.
- CD is recorded as a Digital Signal with better audio quality, less distortion and less deterioration of audio quality over time.
DTS disc
MP3 disc
You must only insert one DVD disc at a time. Inserting two or more discs will not allow playback and may cause damage to the DVD player.

Description

Front Panel Controls
2
1
1. POWER ON/OFF ( )
Turn On/Off and the player is turned On/Off.
2. DISC TRAY
Place the disc here.
3. DISPLAY
Operation indicators are displayed here.
Front Panel Display
3
4. OPEN/CLOSE ( Press to open and close the disc tray/ Stops disc play.
5. PLAY/PAUSE ( )
Begin or pause disc play.
4
5
)/ STOP
GETTING STARTED
Displays the Total playing time and various messages concerning operations such as PLAY, STOP, LOAD...
NOdISC: No disc loaded.
OPEn: The disc tray is open.
LOAd: Player is loading disc information.
English _9
getting started
Rear Panel
3
1
2
1. AUDIO OUT JACKS
Use audio cables to connect to the Audio input jacks of
your television or audio/video receiver
2. VIDEO OUT JACK
- Use a video cable to connect to the Video input jack on your television.
3. DIGITAL AUDIO OUT JACKS
- Use either an coaxial digital cable to connect to a compatible Dolby Digital receiver.
- Use a coaxial digital cable to connect to an A/V Amplifier that contains a Dolby Digital, MPEG2 or DTS decoder.
Note
- See pages 42 ~ 43 to get more information on how to use the setup menu.
10_ getting started

Tour of the Remote Control

1 2
3
4
5
6
7
8
9
10
11
12
13
14 15
16
17 18
19
20
1. DVD Power Button
Turns the power on/off.
2. REPEAT Button
Allows you to repeat play a title, chapter, track, or disc.
Returns to a previous menu.
3. DISC MENU Button
Brings up the Disc menu.
4. BOOKMARK Button
Quickly find bookmark sections of a DVD.
5. STOP Button ( )
Use to stop playback.
6. SKIP Buttons (
Use to skip the title, chapter or track.
7. MENU Button
Brings up the DVD player’s menu.
8. ENTER/π/,√/® Buttons
This button functions as a toggle switch.
9. AUDIO Button
Use this button to access various audio functions on a disc.
10. INFO Button
Displays the current disc mode.
11. OPEN/CLOSE ( ) Button
To open and close the disc tray
12. REPEAT A-B Button
Allows you to repeat A-B disc.
13. ZOOM Button
Enlarge DVD Picture
14. VIDEO SEL.Button
This function is not available for this DVD player
15. SEARCH Buttons (
Allow you to search forward/backward through a disc.
16. PLAY/PAUSE Button ( )
Begin/Pause disc play.
17. SUBTITLE Button
Use to change subtitle.
18. RETURN Button
Returns to a previous menu.
19. TITLE MENU Button
Brings up the Title menu.
20. CANCEL Button
Use to remove menus or status displays from the screen.
)
/
)
/
GETTING STARTED
English _11

connections

Choosing a Connection

The following shows examples of connections commonly used to connect the DVD player with a TV and other components.
Before Connecting the DVD Player
- Always turn off the DVD player, TV, and other devices before you connect or disconnect any cables.
- Refer to the user’s manual of the additional devices (such as a TV) you are connecting formore information on those particular devices.
Connecting to a TV (
For Video
)
1
Using video cables(not included), connect the VIDEO OUT jacks on the rear of the DVD player to the VIDEOT IN jacks of your TV.
2
Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD player to the AUDIO (red and white) IN jacks of your TV.
Turn on the DVD player and TV.
3
Press the input selector button on your TV remote control until the Component signal from the DVD player appears on the TV screen.
Audio Cable
RED
WHITE
RED
WHITE
Video Cable
(not included)
Note
- Noise may be generated if the audio cable placed too close to the power cable.
- If you want to connect to an Amplifier, please refer to the Amplifier connection page. (See pages 13 to 14)
- The number and position of the jacks may vary depending on your TV set. Please refer to the user's manual of your TV.
- If there is one audio input terminal on the TV, connect it to the [AUDIO OUT][left] (white) jack of the DVD player.
12_ connections

Connecting to an Audio System (2 Channel Amplifier)

1
Using the audio cables, connect the AUDIO (red and white) OUT jacks on the rear of the DVD player to the AUDIO (red and white) IN jacks of the Amplifier.
CONECTIONS
RED
2
Using the video signal cable(s), connect the VIDEO jacks on the rear of the DVD player to the VIDEO jacks of your TV as described on pages 12 to 16.
3
Turn on your DVD player, TV, and Amplifier.
4
Press the input select button of the Amplifier to select the audio input your DVD player is connected to in order to hear sound. Refer to your Amplifier's user manual to set the Amplifier's audio input.
WHITE
RED
WHITE
Audio Cable
(not included)
Note
- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
- Please set the audio in the menu screen according to the Amplifier.(See pages 40 to 41)
- The position of jacks may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.
English _13
connections

Connecting to an Audio System (Dolby digital, MPEG2 or DTS Amplifier)

1
If using a Coaxial cable(not included), connect the DIGITAL AUDIO OUT (COAXIAL) jack on the rear of the DVD player to the DIGITAL AUDIO IN (COAXIAL) jack of the Amplifier.
2
Using the video signal cable(s), connect the VIDEO jacks on the rear of the DVD player to the VIDEO jacks of your TV as described on pages 12 to 14.
Coaxial Cable (not included)
3
Turn on your DVD player, TV, and Amplifier.
4
Press the input select button of the Amplifier to select the audio input your DVD player is connected to in order to hear sound. Refer to your Amplifier's user manual to set the Amplifier's audio input.
Note
- Please turn the volume down when you turn on the Amplifier. Sudden loud sound may cause damage to the speakers and your ears.
- Please set the audio in the menu screen according to the Amplifier you have connected. (See pages 40 to 41)
- The position of jacks may vary depending on the Amplifier. Please refer to the user's manual of the Amplifier.
14_ connections

basic functions

Playing a Disc

Before Play
- Turn on your TV and set it to the Video Input your DVD player is connected to with your TV’s remote control.
- If you connected the DVD player to an external Audio System, turn on your Audio System and set it to the correct Audio Input.
After plugging in the player, the first time you press the DVD POWER button, the screen to the right appears: If you want to select a language, press a π/ button. (This screen will only appear when you plug in the player for the first time.) If the language for the startup screen is not set, the settings may change whenever you turn the power on or off. Therefore, make sure that you select the language you want to use. Once you select a menu language, you can change it by pressing the front panel of the unit for more than 5 seconds with no disc in the unit. Then the SELECT MENU LANGUAGE window appears again where you can reset your preferred language.
Playback
button on the
English
Français
Deutsch
Español
Italiano
Nederlands
1
Press the OPEN/CLOSE (
) button.
BASIC FUNCTIONS
BASIC FUNCTIONS
2
Place a disc gently into the tray with the disc’s label facing up.
3
Press the PLAY/PAUSE ( ) button or OPEN/CLOSE
(
) button to close the disc
tray.
RESUME function
When you stop disc play, the player
remembers where you stopped, so when you press the PLAY/PAUSE ( will pick up where you left off.
) button again, it
English _15
English _15
basic functions
4
Stopping Play
Press the STOP ( during play.
5
Removing the Disc Press the OPEN/CLOSE (
) button.
6
Pausing Play Press the PLAY/PAUSE (
) button on the remote
control during play.
) button
Note
- If the player is left in the stop mode for more than one minute without pressing any buttons, a screen saver will be activated. Press the PLAY/PAUSE ( play.
- If the player is left in the stop mode for more than 30 minutes, the power will automatically turn off.
Screen stops, no sound. To resume, press the PLAY/PAUSE (
button once again.
Note
If the player is left for about 5 minutes in pause mode, it will stop.
) button to resume normal
)
7
Slow Motion Play
Press the SEARCH ( button to choose the play speed between 1/2, 1/4 and 1/8 of normal speed during PAUSE or STEP mode.
)
/
No sound is heard during slow mode. Press the PLAY/PAUSE (
normal play.
Note
- The (
- This player does not play HD DVDs or Blu-Ray
discs.
) icon indicates an invalid button press.
) button to resume
16_ basic functions

Using the Search and Skip Functions

During play, you can search quickly through a chapter or track, and use the skip function to jump to the next selection.
Searching through a Chapter or Track
During play, press the SEARCH ( on the remote control for more than 1 second.
Skipping Tracks
During play, press the SKIP
or
(
or ) button
) button.
If you want to search at a faster speed on the
DVD or CD, press and hold the button
DVDCD2X, 4X, 64X, 128X
2X, 4X, 8X
Note
- The speed marked in this function may be different from the actual playback speed.
- No sound is heard during search mode (Except CD).
Note
- The speed marked in this function may be different from the actual playback speed.
- No sound is heard during search mode (Except CD).
.
BASIC FUNCTIONS
- When playing a DVD, if you press the SKIP ( ) button, it moves to the next chapter. If you press the SKIP (
) button, it moves to the beginning of the chapter. Pressing the Skip button twice makes the DVD move to the beginning of the previous chapter.
- When playing a CD, if you press the SKIP (
) button, it moves to the next track. If you press the SKIP (
) button, it moves to the beginning of the track. Pressing the Skip button twice makes the DVD move to the beginning of the previous track.
English _17
basic functions

Using the Display Function

When Playing a DVD
1
During play, press the INFO button on the remote control.
2
Press the π/ buttons to select the desired item.
3
Press the /® buttons to make the desired setup and then press the ENTER button.
4
To make the screen disappear, press the RETURN button again.
18_ basic functions
Note
Title
Chapter
Time
Audio
Subtitle
Shortcut
To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified.
Most DVD discs are recorded in chapters so that you can quickly find a specific passage (similar to tracks on an audio CD).
Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.
Refers to the film's soundtrack language. A DVD disc can have up to eight different soundtracks.
Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD disc can have up to 32 different subtitles.
To access the desired Bookmark, Angle or EZ View function. Some DVD discs are have more than one recorded angle. The Bookmark function lets you quickly and easily find a track or chapter on a DVD. The EZ View function is used to change the aspect ratio on a DVD.
BASIC FUNCTIONS

Using the Disc and Title Menu

Using the Disc Menu
1
With the unit in Stop mode, press the MENU button on the remote control.
2
Press the π/ buttons to select Disc Menu, then press the ® or ENTER button.
Press ENTER key for Disc Menu
Note
- Depending on a disc, the Disc Menu may not work.
- You can also select the Disc Menu, using the DISC MENU button on the remote control.
English _19
basic functions
Using the Title Menu
1
With the unit in Stop mode, press the MENU button on the remote control.
2
Press the π/ buttons to select Title Menu, then press the ® or ENTER button.
Press ENTER key for Title Menu
Note
-
Depending on a disc, the Title Menu may not work.
- Title Menu will only be displayed if there are at least two titles in the disc.

Repeat Play

Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.
When playing a DVD
1
Press the REPEAT button on the remote control. Repeat screen appears.
2
Press the REPEAT buttons to select Chapter, Title.
20_ basic functions
Repeat : Chapter
Repeat : Title
Repeat : Off
A DVD repeats play by chapter or title.
Chapter : repeats the chapter that is playing.
Title : repeats the title that is playing.
Using the A-B Repeat function
1. Press the REPEAT A-B button at the point where you want repeat play to start (A).
2. Press the REPEAT A-B button at the point where you want the repeat play to stop (B).
- To return to normal play, press the CANCEL button.
Note
A-B REPEAT does not allow you to set point (B) until at least 5 seconds of playback time has elapsed after point (A) has been set.
3
To return to normal play, press CANCEL button.
DVD
Repeat A-
Repeat A-B
Note
- Depending on the disc, the Repeat function may not work.

Slow Play

This feature allows you slowly to repeat scenes containing sports, dancing, musical instruments being played etc., so you can study them more closely.
When playing a DVD
BASIC FUNCTIONS
1
During play, press the
PLAY/PAUSE (
) button.
2
Press the SEARCH ( / ) button to choose the play speed between 1/2, 1/4 and 1/8 of normal speed during PAUSE or STEP mode.
English _21

advanced functions

Adjusting the Aspect Ratio (EZ View)

The Aspect ratio is the relation between the width and height of a picture. The two most common are 4:3 (Standard) and 16:9 (Widescreen). Follow the instructions below for the best aspect ratio setting for your TV.
Changing the aspect ratio (DVD)
- During play, press the
INFO button on the remote control.
- Press the
to select Shortcut.
- Press the
to select EZ VIEW , then press the ENTER button.
- Press the
to select the desired item.
π/
/®
/®
buttons
buttons
buttons
WIDE SCREEN
EZ VIEW
To make the aspect ratio bar disappear, press the CANCEL button.
If you are using a 16:9 TV
For 16:9 aspect ratio discs
- WIDE SCREEN Displays the content of the DVD title in 16:9 aspect ratio.
- SCREEN FIT
The top and bottom portions of the screen are cut off.
When playing a 2.35:1 aspect ratio disc, the black bars at the top and bottom of the screen will disappear. The picture will look vertically stretched. (Depending on a type of disc, the black bars may not disappear completely.)
- ZOOM FIT
The top, bottom, left and right of the screen are cut off and
the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
- Normal Wide
Displays the content of the DVD title in 16:9 aspect ratio.
The picture will look horizontally stretched.
- SCREEN FIT
The top and bottom portions of the screen are cut off and
the full screen appears.
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right portions of the screen are
cut off and the central portion of the screen is enlarged.
- Vertical Fit
When a 4:3 DVD is viewed on a 16:9 TV, black bars
will appear at the left and right of the screen in order to prevent the picture from looking horizontally stretched.
22_ advanced functions
If you are using a 4:3 TV
For 16:9 aspect ratio discs
- 4:3 Letter Box
Displays the content of the DVD title in 16:9 aspect ratio.
The black bars will appear at the top and bottom of the screen.
- 4:3 Pan&Scan
The left and right portions of the screen are cut off and the
central portion of the 16:9 screen is displayed.
- SCREEN FIT
The top and bottom portions of the screen are cut off and a
full screen appears.
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right of the screen are cut off and
the central portion of the screen is enlarged.
For 4:3 aspect ratio discs
- Normal Screen
Displays the content of the DVD title in 4:3 aspect ratio.
- SCREEN FIT
The top and bottom portions of the screen are cut off and
The picture will look vertically stretched.
- ZOOM FIT
The top, bottom, left and right portions of the screen are cut
Note
This function may behave differently depending on the type of disc.
ADVAVCED FUNCTIONS
the full screen appears.
off and the central portion of the screen is enlarged.
English _23
advanced functions

Selecting the Audio Language

You can select a desired audio language available on a disc quickly and easily with the
/
button.
Using the AUDIO button (DVD)
1
Press the √ / button. The Audio changes when the button is pressed repeatedly.
- The audio languages are represented by abbreviations.
AUDIO
DVD
ENG
DOLBY DIGITAL 5.1CH
AUDIO
2
To remove the AUDIO icon from the screen, press the CANCEL or
RETURN button.
Note
- This function depends on audio languages that are encoded on the disc. This function may not work with all DVDs.
- A DVD disc can contain up to 8 audio languages.
- To have the same audio language come up whenever you play a DVD; Refer to “Using the Audio Language” on page 38.
AUDIO
24_ advanced functions

Selecting the Subtitle Language

You can select a desired subtitle quickly and easily with the
Using the SUBTITLE button (DVD)
1
Press the button. The subtitle changes when the pressed. The subtitle languages are represented by abbreviations.
π /
SUBTITLE
/®
button are
DVD
SUBTITLE
Off
2
To remove the SUBTITLE icon from the screen, press the CANCEL or
RETURN button.
Note
- Depending on the DVD, you may have to select the desired subtitle in the DVD’s Disc Menu. Press the DISC MENU button.
- This function depends on what subtitles are encoded on the disc. This function may not work with all DVDs.
- A DVD disc can contain up to 32 subtitle languages.
- To have the same subtitle language come up whenever you play a DVD; Refer to “Using the Subtitle Language” on page 39.
/
SUBTITLE button.
ADVANCED FUNCTIONS
English _25
advanced functions

Changing the Camera Angle

When a DVD contains multiple angles of a particular scene, you can use the ANGLE function.
Using the ANGLE function (DVD)
If the disc contains multiple angles, the ANGLE mark appears on the screen.
1
During play, press the INFO button on the remote control.
2
Press the buttons to select Shortcut.
π/
3
Press the select Angle , then press the ENTER button.
/®
buttons to
4
Press the on the remote control to select the desired angle.
/®
buttons
4/6
Note
- If the disc has only one angle, this feature won’t work. Currently, very few discs have this feature.
26_ advanced functions

Using the Bookmark Function

This feature lets you bookmark sections of a DVD, so you can quickly find them at a later time.
Using the Bookmark Function (DVD)
1
During play, press the INFO button on the remote control.
2
Press the select Shortcut.
π/
buttons to
ADVANCED FUNCTIONS
3
Press the to select Bookmark, then press the ENTER button.
/®
buttons
4
When you reach the scene you want to mark, press the ENTER button. Up to three scenes may be marked at a time.
Shortcut
Bookmark
Enter
CANCEL
Note
- Depending on the disc, the Bookmark function may not work.
English _27
advanced functions
Recalling a Marked Scene
1~3
The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 27.
4
Press the select a marked scene.
/®
buttons to
5
Press the PLAY/PAUSE (
) button to skip to
the marked scene.
Clearing a Bookmark
1~3
The first 1~3 steps are the same as those for “Using the Bookmark Function” on page 27.
CANCEL
4
Press the select the bookmark number you want to delete.
/®
buttons to
5
Press the CANCEL button to delete a bookmark number.
28_ advanced functions
CANCEL

Using the Zoom Function

Using the Zoom Function (DVD)
1
During play or pause mode, press the ZOOM button on the remote control. Press the ENTER button.
2
Press the buttons to select the part of the screen you want to zoom in on.
π/
or
/®
2x
ADVANCED FUNCTIONS
During DVD play, press ENTER to zoom in the
following order. 2X k 4X k 2X k Normal.
English _29
advanced functions

Clips Menu for MP3/WMA/JPEG/CD Audio

CD Audio or discs with MP3/WMA/JPEG contain individual songs and/or pictures that will be organized into folders on this unit as shown below. They are similar to how you use your computer to put files into different folders.
Open the disc tray.
Stop
Off
Place the disc on the tray. Close the tray. The tray closes and this screen displays.
-
-
-
: Name of currently playing file.
: Current Playback Time.
: Current Playback Mode : There are four
modes. They can be selected in order by pressing the REPEAT button.
- Off: Normal Playback
- Track: Repeats the current track.
- Folder: Repeats the current folder.
- Random: Files in the disc will be played in random order.
-
: MP3 file icon.
Off
-
-
-
-
-
: WMA file icon.
: JPEG file icon.
: CD Audio file icon.
: Folder icon.
: Current Folder icon.

Folder Selection

The folder can be selected in Stop or Play mode.
- To select the Parent Folder
Press the RETURN button to go to the parent folder,
or press the press ENTER to go to the parent folder.
- To select the Peer Folder
Press the
then press ENTER.
- To select the Sub-Folder
Press the
then press ENTER.
π/
buttons to select “..” and
π/
buttons to select the desired folder,
π/
buttons to select the desired folder,
Root
WMA
JPEG
MP3
SONG FILE 3
Parent Folder
MUSIC
1st
2nd
SONG FILE 1
SONG FILE 2
Current Folder
Sub-Folders
Peer Folders
30_ advanced functions

MP3/WMA/CD Audio Playback

1
Open the disc tray. Place the disc on the tray. Close the tray.
2
Press the select a song file. Press ENTER to begin playback of the song file.
π/
buttons to
Stop
Play
Because You
Because You
Cactus
Sad Dayu
Wonderful
Off
ADVANCED FUNCTIONS
Off
00:00:23
T
Return
T
REPEAT
Repeat
...
Enter
Repeat/Random playback
1
Press the REPEAT button to change the playback mode. There are four modes; Off, Track, Folder and Random.
- Off: Normal Playback
- Track: Repeats the current song file.
- Folder: Repeats the song files which have the same extension in the current folder.
- Random: Song files which have the same extension will be played in random order.
To resume normal play, press the CANCEL button.
English _31
advanced functions
CD-R MP3/WMA file
When you record MP3 or WMA files on a CD-R for playback in this unit, please refer to the following.
- Your MP3 or WMA files should be ISO 9660 or JOLIET format.
ISO 9660 format and Joliet MP3 or WMA files are
compatible with Microsoft's DOS and Windows, and with Apple's Mac. This format is the most widely used.
- When naming your MP3 or WMA files, do not exceed 8 characters, and enter “.mp3, .wma” as the file extension.
General name format : Title.mp3. or Title.wma. When
composing your title, make sure that you use 8 characters or less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).
- Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate
of compression/decompression you choose. Getting CD audio sound requires an analog/digital sampling rate, that is conversion to MP3 format, of at least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192
Kbps or more, only rarely give better sound quality. Conversely, files with decompression rates below 128 Kbps
will not be played properly.
- Use a decompression transfer rate of at least 64Kbps when recording WMA files.
Sound quality with WMA files basically depends on the rate
of compression/decompression you choose.
Getting CD audio sound requires an analog/digital sampling
rate, that is conversion to WMA format, of at least 64Kbps and up to 192Kbps.
Conversely, files with decompression rates below 64Kbps
or over 192Kbps will not be played properly.
The sampling rate that can be supported for WMA files is
>30-Khz
- Do not try recording copyright protected MP3 files.
Certain "secured" files are encrypted and code protected
to prevent illegal copying. These files are of the following types: Windows Media (registered trade mark of Microsoft Inc) and SDMI (registered trade mark of The SDMI Foundation). You cannot copy such files.
- Important:
The above recommendations cannot be taken as a
guarantee that the DVD player will play MP3 recordings, or as an assurance of sound quality. You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal playback of these files on your DVD player (degraded sound quality and in some cases, inability of the player to read the files).
- This unit can play a maximum of 500 files and 500 folders per disc.
32_ advanced functions

Picture CD PlaybackPicture CD Playback

1
Select the desired folder.
2
Press the select a Picture file in the clips menu and then press the ENTER button.
π/
buttons to
3
Press the INFO button to display the menu. Press the /® buttons to select the menu you want to view, then press the ENTER button.
Stop
Stop
Off
00:00:00
ADVANCED FUNCTIONS
Off
ENTER RETURN
Menu
00:00:00
Menu
Note
ReturnEnter
1
...
ReturnEnter
- Press the STOP button to return to the clips menu.
- When playing a Kodak Picture CD, the unit displays the Photo directly, not the clips menu.
Rotation
: The pictures change automatically with about a 6
: Each time the ENTER button is pressed, the
picture rotates 90 degrees clockwise.
second interval.
: The pictures change automatically with
about a 12 second interval.
Zoom
: Press the
π/
buttons to select the part of the screen
: The pictures change automatically with
• about a 18 second interval.
you want to zoom in on.
Press the ENTER button. Each time the ENTER
TIMER:
ENTER
RETURN
button is pressed, the picture is enlarged up to 2X.
Slide Show
: The unit enters slide show mode.
• Before beginning the Slide Show, the picture interval must be set.
Note
- Depending on the file size, the amount of time between each picture may be different from the set interval time.
- If you don’t press any button, the slide show will start automatically in about 10 seconds by default.
English _33
advanced functions
CD-R JPEG Discs
- Only files with the “.jpg” and “.JPG” extensions can be played.
- If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
- The name of the JPEG file may not be longer than 8 characters and should contain no blank spaces or special characters (. / = +).
- Only a consecutively written multi-session disc can be played. If there is a blank segment in the multi-session disc, the disc can be played only up to the blank segment.
- A maximum of 500 images can be stored on a single CD.
- Kodak Picture CDs are recommended.
- When playing a Kodak Picture CD, only the JPEG files in the pictures folder can be played.
- Kodak Picture CD: The JPEG files in the pictures folder can be played automatically.
- Konica Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
- Fuji Picture CD: If you want to see the Picture, select the JPEG files in the clips menu.
- QSS Picture CD: The unit may not play QSS Picture CD.
- If the number of files in 1 Disc is over 500, only the first 500 JPEG files can be played.
- If the number of folders in 1 Disc is over 500, only the first JPEG files in 500 folders can be played.
34_ advanced functions

navigating the setup menu

Using the Setup Menu

The Setup menu lets you customize your DVD player by allowing you to select various language preferences, set up a parental level, and even adjust the player to the type of television screen you have.
1
With the unit in Stop mode, press the MENU button on the remote control. Press the select Setup, then press the
Language Setup : Setup of the Language.
❶ ❷
Audio Setup : Setup of the Audio Options.
Display Setup :Setup of the Display Options. Use to select which type of screen you want to
π/
buttons to
®
or ENTER button.
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
®
watch and several display options.
Parental Setup : Setup of the Parental Level. Allows users to set the level necessary to prevent
children from viewing unsuitable movies such as those with violence, adult subject matter, etc.
NAVIGATING THE SETUP MENU
2
Press the access the different features. Press the ENTER button to access the sub features.
π/
buttons to
®
or
3
To make the setup screen disappear after setting up, press the MENU button again.
Note
Depending on the disc, some Setup menu selections may not work.
English _35
navigating the setup menu

Setting Up the Language Features

If you set the player menu, disc menu, audio and subtitle language in advance, they will come up automatically every time you watch a movie.
Using the Player Menu Language
1
With the unit in Stop mode, press the MENU button.
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the select Language Setup, then press the ENTER button.
π/
buttons to
®
or
4
Press the select Player Menu, then press the button.
π/
buttons to
®
or ENTER
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
LANGUAGE SETUP
Player Menu : English
Disc Menu : English Audio : English Subtitle : Automatic
®
®
5
Press the select the desired language, then press the
®
π/
buttons to
or ENTER button.
36_Navigating the Setup Menu
LANGUAGE SETUP
- The language is selected and the screen returns to the Language Setup menu.
- To make the setup menu disappear, press the MENU button.
Using the Disc Menu Language
This function changes the text language only on the disc menu screens.
1
With the unit in Stop mode, press the MENU button.
NAVIGATING THE SETUP MENU
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the select Language Setup, then press the ENTER button.
π/
buttons to
®
or
4
Press the to select Disc Menu, then press the button.
π/
buttons
®
or ENTER
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
LANGUAGE SETUP Player Menu : English
Disc Menu : English
Audio : English Subtitle : Automatic
®
®
5
Press the select the desired language, then press the
®
π/
buttons to
or ENTER button.
LANGUAGE SETUP
- If the selected language is not recorded on the disc, the original pre-recorded language is selected.
- The language is selected and the screen returns to the Language Setup menu.
- To make the setup menu disappear, press the MENU button.
English _37
navigating the setup menu
Using the Audio Language
1
With the unit in Stop mode, press the MENU button.
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the select Language Setup, then press the ENTER button.
π/
buttons to
®
or
4
Press the select Audio, then press the
π/
buttons to
®
or ENTER button.
5
Press the select the desired language, then press the
®
π/
buttons to
or ENTER button.
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
LANGUAGE SETUP Player Menu : English Disc Menu : English
Audio : English
Subtitle : Automatic
LANGUAGE SETUP
®
®
- Select “Original” if you want the default soundtrack language to be the original language the disc is recorded in.
- If the selected language is not recorded on the disc, the original pre-recorded language is selected.
- The language is selected and the screen returns to the Language Setup menu.
- To make the setup menu disappear, press the MENU button.
38_Navigating the Setup Menu
Using the Subtitle Language
1
With the unit in Stop mode, press the MENU button.
NAVIGATING THE SETUP MENU
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the select Language Setup, then press the ENTER button.
π/
buttons to
®
or
4
Press the select Subtitle, then press the
π/
buttons to
®
or ENTER button.
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
LANGUAGE SETUP
Player Menu : English Disc Menu : English Audio : English
Subtitle : Automatic
®
®
5
Press the select the desired language, then press the
®
π/
buttons to
or ENTER button.



LANGUAGE SETUP
- Select “Automatic” if you want the subtitle language to be the same as the language selected as the audio language.
- Some discs may not contain the language you select ; in that case the disc will use its original language setting.
- The language is selected and the screen returns to the setup menu.
- To make the setup menu disappear, press the MENU button.
English _39
navigating the setup menu

Setting Up the Audio Options

Audio Options allow you to setup the audio device and sound status settings depending on the audio system in use.
1
With the unit in Stop mode, press the MENU button.
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the select Audio Setup, then press the button.
π/
buttons to
®
or ENTER
4
Press the to select the desired item, then press the ENTER button.
π/
buttons
®
or
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Dolby Digital Out : PCM
MPEG-2 Digital Out : PCM Dynamic Compression : On PCM Down Sampling : On Power On Music : On
®
®
AUDIO SETUP
To make the setup menu disappear, press the MENU button.
40_Navigating the Setup Menu
The following describes each option found in the Audio Setup Menu.
Dolby Digital Out
- PCM : Converts to PCM(2CH) audio.
- Bitstream : Outputs Dolby Digital via digital output. Select Bitstream when connecting to a Dolby Digital Decoder.
Note
• There is analog audio output when you play a DTS sound disc
MPEG-2 Digital Out
- PCM : Converts to PCM(2CH) audio.
- Bitstream : Converts to MPEG-2 Digital Bitstream (5.1CH). Select Bitstream when using the
Digital Audio Output.
Dynamic Compression
- On : To select dynamic compression.
- Off : To select the standard range.
PCM Down Sampling
- On : Select this when the Amplifier connected to the player is not 96KHz compatible.
In this case, the 96KHz signals will be down converted to 48KHZ.
- Off : Select this when the Amplifier connected to the player is 96KHz compatible. In this case,
all signals will be output without any changes.
Power On Music
- On : To turn On Start up music.
- Off : To turn Off Start up music.
NAVIGATING THE SETUP MENU
Note
Even when PCM Down sampling is Off
• Some discs will only output down-sampled audio through the digital outputs.
• To make the Setup menu disappear, press the MENU button.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
English _41
navigating the setup menu

Setting Up the Display Options

Display options enable you to set various video functions of the player.
1
With the unit in Stop mode, press the MENU button.
2
Press the select Setup, then press the
π/
buttons to
®
or ENTER button.
3
Press the to select Display Setup, then press the ENTER button.
π/
buttons
®
or
4
Press the to select the desired item, then press the ENTER button.
π/
buttons
®
or
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
TV Aspect : 16:9 Wide
Screen Messages : On Black Level : Off
®
®
DISPLAY SETUP
To make the setup menu disappear, press the MENU button.
42_Navigating the Setup Menu
The following describes each option found in the Display Setup Menu.
TV Aspect
Depending on a type of television you have, you may want to adjust the screen setting (aspect ratio).
- 4:3 Letter Box : Select when you want
to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.
- 4:3 Pan&Scan : Select this for conventional
size TVs when you want to see the central portion of the 16:9 screen. (Extreme left and right side of movie picture will be cut off.)
- 16:9 Wide : You can view the full 16:9
picture on your wide screen TV.
DISPLAY SETUP
TV Aspect

Screen Message Black Level :
4:3 Letter Box 4:3 Pan&Scan 16:9 Wide
NAVIGATING THE SETUP MENU
Screen Messages
Use to turn on-screen messages On or Off.
Black Level
Adjust the brightness of the screen. (On or
Off) It does not function in PAL or Auto mode.
English _43
navigating the setup menu

Setting Up the Parental Control

The Parental Control function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.
Setting Up the Rating Level
1
With the unit in Stop mode, press the MENU button.
2
Press the to select Setup, then press the button.
π/
buttons
®
or ENTER
3
Press the to select Parental Setup, then press the ENTER button.
π/
buttons
®
or
4
Press the to select Rating Level, then press the ENTER button.
π/
buttons
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Rating Level : Kids Safe
Change Password
®
®
PARENTAL SETUP
5
Enter your password. Press the
π/
buttons then press the ENTER button. By default, the password is set to 0000. Please change the password to other than 0000 to activate the parental control function.
44_Navigating the Setup Menu
Rating Level : Kids Safe
Change Password
PARENTAL SETUP
Enter Password
0
MenuReturnEnter
6
Press the
π/
buttons
Rating Level
Change Passwor
to select the Rating Level you want, then press the
®
or ENTER button.
e.g) Setting up in Kids
Safe.
Changing the Password
1
With the unit in Stop mode, press the MENU button.
2
Press the
π/
buttons to
select Setup, then press the
®
or ENTER button.
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
PARENTAL SETUP
Kids Safe Level 2 Level 3 Level 4 Level 5 Level 6
®
To make the setup menu disappear, press the
MENU button.
For example, if you select the Kids Safe level,
discs that contain level 2 or higher will not play.
NAVIGATING THE SETUP MENU
3
Press the to select Parental Setup, then press the ENTER button.
π/
buttons
®
or
4
Press the select Change Password, then press the ENTER button. Enter your new password. Re­enter the new password again.
π/
button to
®
or
Language Setup ®
Audio Setup ®
Display Setup ®
Parental Setup :
Rating Level : Kids Safe
Change Password
Rating Level : Kids Safe
Change Password
Enter Password
0
®
PARENTAL SETUP
PARENTAL SETUP
MenuReturnEnter
To make the setup menu disappear, press the MENU button.
PARENTAL SETUP
Rating Level : Kids Safe
Change Password
Enter New Password
0
Note
If you have forgotten your password, see
MenuReturnEnter
“Forgot Password” in the Troubleshooting Guide.
English _45

reference

Firmware upgrade

2. Press the /® buttons to select Total, then press the ENTER button.
Introduction
Upgrading the Firmware will keep your DVD player up to date.
The latest firmware version for this unit is provided on the Samsung Website.(www.samsung.com).
How to make an upgrade disc
You must burn the latest firmware version onto a
blank CD-R or CD-RW disc:
1. You have to download a new file through Samsung's Download Center. (www.samsung.com).
2. Write the file to Disc using the CD-RW drive of your computer.
- During the firmware upgrade process, the tray will open. Please remove the disc and wait for about
2 minutes.
- If the DVD player was successfully updated, the disc tray will close and the unit will turn off and on.
Note
The CD should be burned following specs below.
- File System CD-ROM ISO Level.
- Character set ISO 9660.
- The burned CD has to be Finalized.
When the unit turns on, the Select Menu Language screen will appear.
3. Press the number buttons to select the desired
language.
- Please burn the CD at a low speed.
Upgrade procedure
1. Open the disc tray of your DVD-P190. Place the burned disc on the tray. Close the tray. The Firmware upgrade screen will appear.
Note
- If the “Select Menu Language” doesn’t appear, please contact Samsung Customer Service. (see page 49)
- Do not press any button or unplug the power cord during the upgrade.
- The upgrade procedure may change, refer
Firmware upgrade
menu appears
to the web site (www.samsung.com).
Firmware upgrade starts
English
Français
Deutsch
Español
Italiano
Nederlands
46_ reference

Troubleshooting

Before requesting service, please check the following.
Problem Page
No operations can be performed with the remote control.
Disc does not play.
The icon appears on screen.
Disc Menu doesn’t appear.
Play mode differs from the Setup Menu selection.
The screen ratio cannot be changed.
No audio.
The screen is blocked
• Check the batteries in the remote control. They may need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several minutes to drain the microprocessor inside the remote control to reset it. Reinstall batteries and try to operate the remote control again.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is out of
range.
• Check if the disc has a Menu.
• Some of the functions selected in the Setup Menu may not work properly if the disc is not encoded with the corresponding function.
• The Screen Ratio is fixed on your DVDs.
• Make sure you have selected the correct Digital Output in the Audio Options Menu.
• Press the disc inside. All settings will revert to the factory settings.
button (on the front panel) for more than 5 seconds with no
Action
REFERENCE
P5
P8
P35
P42~43
P40~41
P15
Forgot password
If you experience other problems.
The picture is noisy or distorted
• Press the inside. All settings including the password will revert to the factory settings. Don't use this unless absolutely necessary.
• Go to the contents and find the section of the instruction book that contains the explanations regarding the current problem, and follow the procedure once again.
• If the problem still cannot be solved, please contact your nearest Samsung authorized service center.
• Make sure that the disc is not dirty or scratched. Clean the disc.
button (on the panel) for more than 5 seconds with no disc
P44
P4
English _47
advanced functions

Specifications

General
Disc
Video Output
Audio Output
Power Requirements
Power Consumption
Weight
Dimensions
Operating Temperature Range
Operating Humidity Range
DVD
(DIGITAL VERSATILE DISC)
CD : 5"
(COMPACT DISC)
CD : 3 1/2"
(COMPACT DISC)
Composite Video
2 Channel
* Maximum Output level
Output Terminal
Digital Audio output
*Frequency Response
AC 120 V ~ 60 Hz
8 W
2.9 lbs
14,4” (W) X 8”(D) X 1,48” (H)
+41°F to +95°F
10 % to 75 %
Reading Speed : 3.49 ~ 4.06 m/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 74 min.
Reading Speed : 4.8 ~ 5.6 m/sec.
Maximum Play Time : 20 min.
1 channel : 1.0 Vp-p (75 Ω load)
L(1/L), R(2/R)
2 Vrms
RCA
Coaxial (S/PDIF)
20Hz ~ 20Khz
*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications with out notice.
- Weight and dimensions are approximate.
48_ advanced functions
Contact SAMSUNG WORLDWIDE
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care center.
customer care centre.
Region Country Contact Center Web Site
CANADA 1-800-SAMSUNG(726-7864) www.samsung.com/ca
North America
Latin America
Europe
CIS
Asia Pacifi c
Middle East &
Africa
MEXICO 01-800-SAMSUNG(726-7864) www.samsung.com/mx U.S.A 1-800-SAMSUNG(726-7864) www.samsung.com/us ARGENTINE 0800-333-3733 www.samsung.com/ar BRAZIL 0800-124-421, 4004-0000 www.samsung.com/br CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl NICARAGUA 00-1800-5077267 www.samsung.com/latin HONDURAS 800-7919267 www.samsung.com/latin COSTA RICA 0-800-507-7267 www.samsung.com/latin ECUADOR 1-800-10-7267 www.samsung.com/latin EL SALVADOR 800-6225 www.samsung.com/latin GUATEMALA 1-800-299-0013 www.samsung.com/latin JAMAICA 1-800-234-7267 www.samsung.com/latin PANAMA 800-7267 www.samsung.com/latin PUERTO RICO 1-800-682-3180 www.samsung.com/latin REP. DOMINICA 1-800-751-2676 www.samsung.com/latin TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) www.samsung.com/latin VENEZUELA 0-800-100-5303 www.samsung.com/latin COLOMBIA 01-8000112112 www.samsung.com.co BELGIUM 02 201 2418 www.samsung.com/be CZECH REPUBLIC 800-726-786 (800 - SAMSUNG) www.samsung.com/cz DENMARK 70 70 19 70 www.samsung.com/dk FINLAND 030-6227 515 www.samsung.com/fi
FRANCE
GERMANY 01805 - SAMSUNG(726-7864 € 0,14/Min) www.samsung.de HUNGARY 06-80-SAMSUNG(726-7864) www.samsung.com/hu ITALIA 800-SAMSUNG(726-7864) www.samsung.com/it LUXEMBURG 02 261 03 710 www.samsung.com/lu NETHERLANDS 0900-SAMSUNG (726-7864 € 0,10/Min) www.samsung.com/nl NORWAY 815-56 480 www.samsung.com/no POLAND 0 801 801 881, 022-607-93-33 www.samsung.com/pl PORTUGAL 80820-SAMSUNG(726-7864) www.samsung.com/pt SLOVAKIA 0800-SAMSUNG(726-7864) www.samsung.com/sk SPAIN 902-1-SAMSU(72678) www.samsung.com/es SWEDEN 0771-400 200 www.samsung.com/se U.K 0845 SAMSUNG (7267864) www.samsung.com/uk EIRE 0818 717 100 www.samsung.com/ie AUSTRIA 0800-SAMSUNG(726-7864) www.samsung.com/at SWITZERLAND 0800-SAMSUNG(726-7864) www.samsung.com/ch RUSSIA 8-800-555-55-55 www.samsung.ru KAZAKHSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/kz_ru KYRGYZSTAN 00-800-500-55-500 TADJIKISTAN 8-10-800-500-55-500 UKRAINE 8-800-502-0000 www.samsung.ua LITHUANIA 8-800-77777 www.samsung.lt LATVIA 8000-7267 www.samsung.com/lv ESTONIA 800-7267 www.samsung.ee AUSTRALIA 1300 362 603 www.samsung.com/au NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com/nz CHINA 800-810-5858, 400-810-5858, 010-6475 1880 www.samsung.com/cn HONG KONG 3698-4698 www.samsung.com/hk INDIA 3030 8282, 1800 110011, 1-800-3000-8282 www.samsung.com/in INDONESIA 0800-112-8888 www.samsung.com/id JAPAN 0120-327-527 www.samsung.com/jp MALAYSIA 1800-88-9999 www.samsung.com/my PHILIPPINES 1800-10-SAMSUNG(726-7864) www.samsung.com/ph SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg THAILAND 1800-29-3232, 02-689-3232 www.samsung.com/th TAIWAN 0800-329-999 www.samsung.com/tw VIETNAM 1 800 588 889 www.samsung.com/vn TURKEY 444 77 11 www.samsung.com/tr SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com/za U.A.E 800-SAMSUNG (726-7864), 8000-4726 www.samsung.com/ae
3260 SAMSUNG (€ 0,15/Min) 08 25 08 65 65 (€ 0,15/Min)
www.samsung.com/fr
Warranty
LIMITED WARRANTY TO ORIGINAL PURCHASER
This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAM-
SUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG
against manufacturing defects in materials and workmanship for the following limited warranty period:
One (1) Year Parts / Ninety days (90) Labor
This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in
the United States, and does not include transportation, installation, removal or reinstallation. Warranty repairs must
be performed by SAMSUNG’s authorized service center. To receive warranty service, the original dated bill of sale
must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center.
Transportation to and from the service center is the responsibility of the purchaser.
SAMSUNG will repair or replace this product, at our option and at no charge with new or reconditioned parts, if found
to be defective during the limited warranty period specified above. The product must be returned during the warranty
period with transportation charges prepaid to SAMSUNG’s designated service center. Prior to returning any product
for warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures.
SAM-SUNG does not warrant uninterrupted or error-free operation of the product. All replaced parts and products
become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume
the remaining original warranty, or ninety (90) days, whichever is longer.
This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncom-
mercial use of this product and shall not apply to the following, including, but not limited to: damage which occurs
in shipment; applications and uses for which this product was not intended; failures or problems which are caused
by products or equipment not supplied by SAMSUNG; accidents, misuse, abuse, neglect, misapplication, fire,
water, light-ning or other acts of nature; incorrect electrical line voltage, fluctuations or surges; damage caused by
improper or faulty installation; improper connection with any peripheral; product alteration or modification; improper
or unauthorized repair; cosmetic damage or exterior finish; product with altered serial numbers; failure to follow
operating instructions, customer adjustments, maintenance and environmental instructions that are covered and
prescribed in the instruction book; use of non-SAMSUNG or unauthorized parts, supplies, accessories or equipment
which damage this product or result in service problems; failures or problems due to incompatibility with other
equipment.
Contact SAMSUNG WORLDWIDE
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
1-800-SAMSUNG (7267864)/www.samsung.com
Samsung Electronics America,Inc.
105 Challenger Road
Ridgefield Park,NJ 07660-0511
1-800-SAMSUNG (7267864)
www.samsung.com
US
AK68-01765B(03)
Loading...
