Page 1
User Manual
The colour and the appearance may differ depending on the
product, and the specifications are subject to change without
prior notice to improve the performance.
OH24E OM24E
Page 2
Table of contents
Before Using the Product
Copyright 6
Safety Precautions 7
Symbols 7
Cleaning 7
Storage 8
Electricity and Safety 8
Installation 9
Operation 11
Preparations
Checking the Components 14
Components 14
Parts 15
Control Panel 15
Reverse Side 16
Anti-theft Lock 17
Remote Control 18
Before Installing the Product
(Installation Guide) 20
Tilting Angle and Rotation 20
Ventilation 21
Dimensions 22
Installing the Wall Mount 23
Installing the Wall Mount Kit 23
Wall Mount Kit Specifications (VESA) 23
Remote Control (RS232C) 24
Cable Connection 24
Connection 27
Control Codes 28
Connecting and Using a Source
Device
Before Connecting 37
Pre-connection Checkpoints 37
Before connecting cables 38
Connecting to a PC 39
Connection using the D-SUB cable
(Analogue type) 39
Connection Using an HDMI-DVI Cable 39
Connection Using an HDMI Cable 40
Connecting to a Video Device 41
Connection Using an HDMI-DVI Cable 41
Connection Using an HDMI Cable 41
Connecting to an Audio System 42
Connecting the LAN Cable 42
Changing the Input source 43
Source 43
Using MDC
MDC Programme Installation/Uninstallation 44
Installation 44
Uninstallation 44
Connecting to MDC 45
Using MDC via RS-232C
(serial data communications standards) 45
Using MDC via Ethernet 46
Home feature
Player 47
Approving a connected device from the server 48
Network Channel 52
Local Channel 52
Published Content 52
Network File 52
My Templates 52
Available features in the Player page 53
Player page Settings menu 54
When Content is Running 56
File Formats Compatible with Player 58
File Formats Compatible with Video Wall 63
Schedule 65
Available features in the Schedule page 65
Template 67
Clone Product 70
2
Page 3
Table of contents
ID Settings 71
Device ID 71
PC Connection Cable 71
Video Wall 72
Video Wall 72
Network Status 74
Picture Mode 75
On/Off Timer 76
On Timer 76
Off Timer 77
Holiday Management 77
Ticker 78
More settings 78
URL Launcher 79
Screen Adjustment
Picture Mode 80
Backlight / Contrast / Brightness /
Sharpness / Colour / Tint (G/R)
81
Colour Temperature 82
White Balance 83
2 Point 83
10 Point 83
Gamma 84
Calibrated value 84
Advanced Settings 85
Dynamic Contrast 86
Black Tone 86
Flesh Tone 86
RGB Only Mode 86
Colour Space 86
Motion Lighting 86
Picture Options 87
Colour Tone 88
Digital Clean View 88
MPEG Noise Filter 88
HDMI Black Level 89
Film Mode 89
Dynamic Backlight 89
Picture Size 90
Picture Size 90
Position 91
Zoom/Position 91
Resolution 92
Auto Adjustment 93
PC Screen Adjustment 93
Picture Off 94
Reset Picture 94
OnScreen Display
PIP 95
PIP Settings 95
Display Orientation 96
Onscreen Menu Orientation 96
Source Content Orientation 96
Aspect Ratio 96
Screen Protection 97
Auto Protection Time 97
Screen Burn Protection 97
Message Display 100
Source Info 100
No Signal Message 100
MDC Message 100
Download Status Message 100
Menu Language 101
Reset OnScreen Display 101
Sound Adjustment
Sound Mode 102
Sound Effect 103
Virtual Surround 103
Dialog Clarity 103
Equaliser 103
HDMI Sound 104
3
Page 4
Table of contents
Sound on Video Call 104
Dolby Digital Comp 105
Speaker Settings 105
Sound Output 105
Auto Volume 106
Reset Sound 106
Network
Network Status 107
Network Settings 107
Network type 107
Network Settings (Wired) 108
Network Setting (Wireless) 110
WPS(PBC) 112
Wi-Fi Direct 113
Multimedia Device Settings 113
Screen Mirroring 114
Screen Mirroring 114
Server Network Settings 114
Connect to server 114
MagicInfo Mode 114
Server Access 114
FTP Mode 114
Device Name 115
System
Accessibility 116
Menu Transparency 116
High Contrast 116
Enlarge 116
Setup 117
Initial settings (System) 117
Time 118
Clock Set 118
DST 118
Sleep Timer 118
Power On Delay 118
Auto Source Switching 119
Auto Source Switching 119
Primary Source Recovery 119
Primary Source 119
Secondary Source 119
Power Control 120
Auto Power On 120
Max. Power Saving 120
Standby Control 120
Power Button 121
Network Standby 121
Eco Solution 122
Brightness Limit 122
Energy Saving 122
Eco Sensor 122
Screen Lamp Schedule 123
No Signal Power Off 123
Auto Power Off 123
Fan and Temperature 124
Fan Control 124
Fan Speed Setting 124
Outdoor Mode 124
Temperature Control 124
Device Manager 125
Keyboard Settings 125
Mouse Settings 126
Play via 127
Change PIN 127
Security 128
Safety Lock 128
Button Lock 128
USB Auto Play Lock 129
Mobile Connection Lock 129
General 130
Smart Security 130
BD Wise 131
Anynet+ (HDMI-CEC) 132
HDMI Hot Plug 136
DivX® Video On Demand 136
Game Mode 136
Reset System 137
4
Page 5
Table of contents
Support
Software Update 138
Update now 138
Auto update 138
Contact Samsung 138
Go to Home 138
Reset All 138
Playing photos, videos and music
(Media Play)
Read the following before using media play
with a USB device 139
Using a USB device 141
Playing media content from a PC/mobile device 142
Features provided in the media content list
page 143
Menu items in the media content list page 144
Available buttons and features during
photo playback 145
Available buttons and features during
video playback 146
Available buttons and features during
music playback 147
Supported Subtitle and Media play file
formats 148
Subtitle 148
Supported image resolutions 148
Supported music file formats 149
Supported Video Formats 149
Troubleshooting Guide
Requirements Before Contacting
Samsung Customer Service Centre 151
Testing the Product 151
Checking the Resolution and Frequency 151
Check the followings. 152
Q & A 157
Specifications
General 159
PowerSaver 161
Preset Timing Modes 162
Appendix
Responsibility for the Pay Service
(Cost to Customers) 164
Not a product defect 164
A Product damage caused by customer's fault 164
Others 164
Optimum Picture Quality and Afterimage
Burn-in Prevention 165
Optimum Picture Quality 165
Prevention of Afterimage Burn-in 165
Licence 167
Terminology 168
5
Page 6
6
Before Using the Product
Copyright
The contents of this manual are subject to change without notice to improve quality.
© 2015 Samsung Electronics
Samsung Electronics owns the copyright for this manual.
Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited.
Microsoft, Windows are registered trademarks of Microsoft Corporation.
VESA, DPM and DDC are registered trademarks of the Video Electronics Standards Association.
Ownership of all other trademarks is attributed to their due owner.
•
An administration fee may be charged if either
-
(a) an engineer is called out at your request and there is no defect in the product
(i.e. where you have failed to read this user manual).
-
(b) you bring the unit to a repair Centre and there is no defect in the product
(i.e. where you have failed to read this user manual).
•
The amount of such administration charge will be advised to you before any work or home visit is carried out.
Chapter 01
Page 7
7
Safety Precautions
Caution
RISK OF ELECTRIC SHOCK DO NOT OPEN
Caution : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. (OR BACK)
THERE ARE NO USER SERVICEABLE PARTS INSIDE.
REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high voltage is present inside.
It is dangerous to make any kind of contact with any internal part of this product.
This symbol alerts you that important literature concerning operation and maintenance has been
included with this product.
Symbols
Warning
A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions are not followed.
Activities marked by this symbol are prohibited.
Instructions marked by this symbol must be followed.

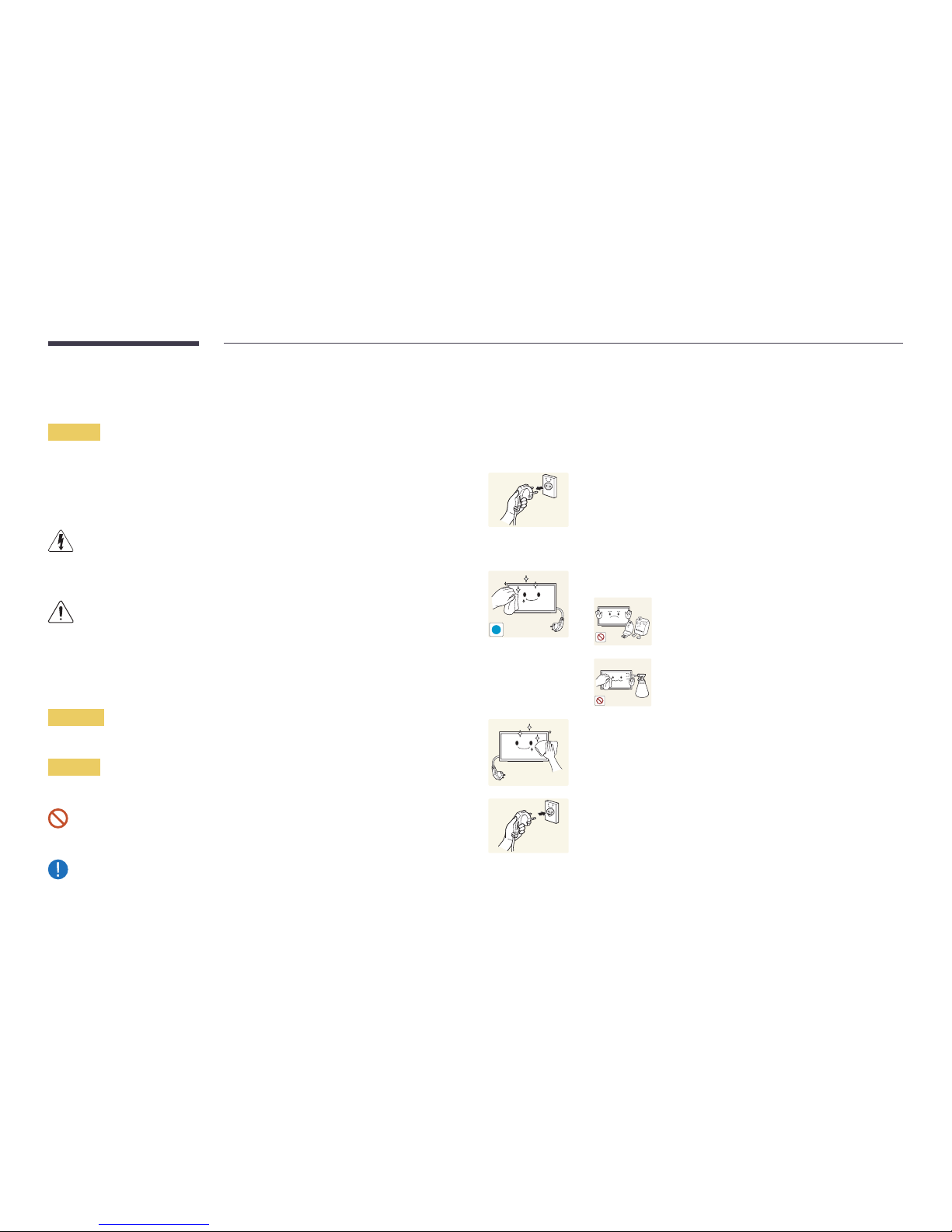

Cleaning
―
Exercise care when cleaning as the panel and exterior of advanced LCDs are easily scratched.
―
Take the following steps when cleaning.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
1
Power off the product and computer.
2
Disconnect the power cord from the product.
―
Hold the power cable by the plug and do not touch the cable with wet
hands. Otherwise, an electric shock may result.
!
3
Wipe the product with a clean, soft and dry cloth.
•
Do not use detergents that contain alcohol, solvent or
surface-active agents.
•
Do not spray water or detergent directly on the product.
4
Wet a soft and dry cloth in water and wring thoroughly to clean the
exterior of the product.
5
Connect the power cord to the product when cleaning is finished.
6
Power on the product and computer.
Page 8
8
Storage
Due to the characteristics of high-glossy products, using a UV humidifier nearby may create whitecoloured stains on the product.
―
Contact Customer Service Centre if the inside of the product needs cleaning (service fee will be
charged).

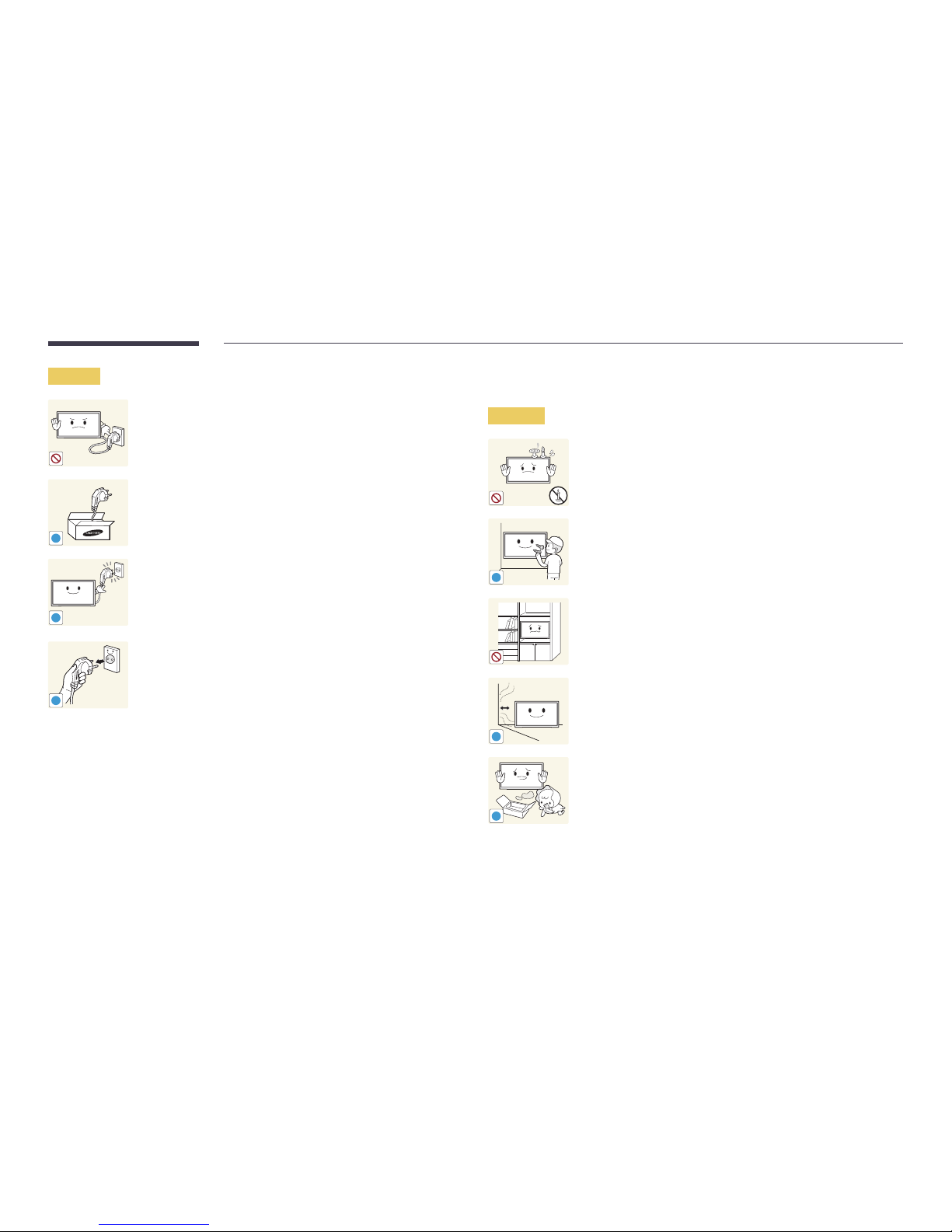

Electricity and Safety
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
Warning
Do not use a damaged power cord or plug, or a loose power socket.
•
An electric shock or fire may result.
Do not use multiple products with a single power socket.
•
Overheated power sockets may cause a fire.
Do not touch the power plug with wet hands. Otherwise, an electric shock
may result.
!
Insert the power plug all the way in so it is not loose.
•
An unsecure connection may cause a fire.
!
Connect the power plug to a grounded power socket (type 1 insulated
devices only).
•
An electric shock or injury may result.
Do not bend or pull the power cord with force. Be careful not to leave the
power cord under a heavy object.
•
Damage to the cord may result in a fire or electric shock.
Do not place the power cord or product near heat sources.
•
A fire or electric shock may result.
!
Clean any dust around the pins of the power plug or the power socket with
a dry cloth.
•
A fire may result.
Page 9
9
Caution
Do not disconnect the power cord while the product is being used.
•
The product may become damaged by an electric shock.
!
Only use the power cord provided with your product by Samsung. Do not
use the power cord with other products.
•
A fire or electric shock may result.
!
Keep the power socket where the power cord is connected unobstructed.
•
The power cord must be disconnected to cut off power to the product
when an issue occurs.
•
Note that the product is not completely powered down by using only
the power button on the remote.
!
Hold the plug when disconnecting the power cord from the power socket.
•
An electric shock or fire may result.
Installation
Warning
DO NOT PLACE CANDLES, INSECT REPELLANTS OR CIGARETTES ON TOP OF
THE PRODUCT. DO NOT INSTALL THE PRODUCT NEAR HEAT SOURCES.
•
A fire may result.
!
Have a technician install the wall-mount hanger.
•
Installation by an unqualified person can result in an injury.
•
Only use approved cabinets.
Do not install the product in poorly ventilated spaces such as a bookcase or
closet.
•
An increased internal temperature may cause a fire.
!
Install the product at least 10 cm away from the wall to allow ventilation.
•
An increased internal temperature may cause a fire.
!
Keep the plastic packaging out of the reach of children.
•
Children may suffocate.
Page 10
10
Do not install the product on an unstable or vibrating surface (insecure shelf,
sloped surface, etc.)
•
The product may fall and become damaged and/or cause an injury.
•
Using the product in an area with excess vibration may damage the
product or cause a fire.
Do not install the product within the reach of young children.
•
The product may fall and injure children.
•
As the front is heavy, install the product on a flat and stable surface.
Edible oil, such as soybean oil, can damage or deform the product. Do not
install the product in a kitchen or near a kitchen counter.
Caution
!
Do not drop the product while moving.
•
Product failure or personal injury may result.
Do not set down the product on its front.
•
The screen may become damaged.
When installing the product on a cabinet or shelf, make sure that the
bottom edge of the front of the product is not protruding.
•
The product may fall and become damaged and/or cause an injury.
•
Install the product only on cabinets or shelves of the right size.
!
Set down the product gently.
•
Product failure or personal injury may result.
SAMSUNG
!
Installing the product in an unusual place (a place exposed to a lot of fine
dust, chemical substances, extreme temperatures or a significant presence
of moisture, or a place where the product will operate continuously for an
extended period of time) may seriously affect its performance.
•
Be sure to consult Samsung Customer Service Centre if you want to
install the product at such a place.
Page 11
11
Operation
Warning
There is a high voltage inside the product. Never disassemble, repair or
modify the product yourself.
•
A fire or electric shock may result.
•
Contact Samsung Customer Service Centre for repairs.
!
Before moving the product, turn off the power switch and disconnect the
power cable and all other connected cables.
•
Otherwise, the power cord may be damaged and a fire or electric
shock may result.
!
If the product generates abnormal sounds, a burning smell or smoke,
disconnect the power cord immediately and contact Samsung Customer
Service Centre.
•
An electric shock or fire may result.
Do not let children hang from the product or climb on top of it.
•
Children may become injured or seriously harmed.
If the product is dropped or the outer case is damaged, turn off the power
switch and disconnect the power cord. Then contact Samsung Customer
Service Centre.
•
Continued use can result in a fire or electric shock.
Do not leave heavy objects or items that children like (toys, sweets, etc.) on
top of the product.
•
The product or heavy objects may fall as children try to reach for the
toys or sweets resulting in a serious injury.
!
During a lightning or thunderstorm, power off the product and remove the
power cable.
•
A fire or electric shock may result.
!
Do not drop objects on the product or apply impact.
•
A fire or electric shock may result.
Do not move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
!
GAS
If a gas leakage is found, do not touch the product or power plug. Also,
ventilate the area immediately.
•
Sparks can cause an explosion or fire.
Do not lift or move the product by pulling the power cord or any cable.
•
Product failure, an electric shock or fire may result from a damaged
cable.
!
Do not use or keep combustible spray or an inflammable substance near
the product.
•
An explosion or fire may result.
Page 12
12

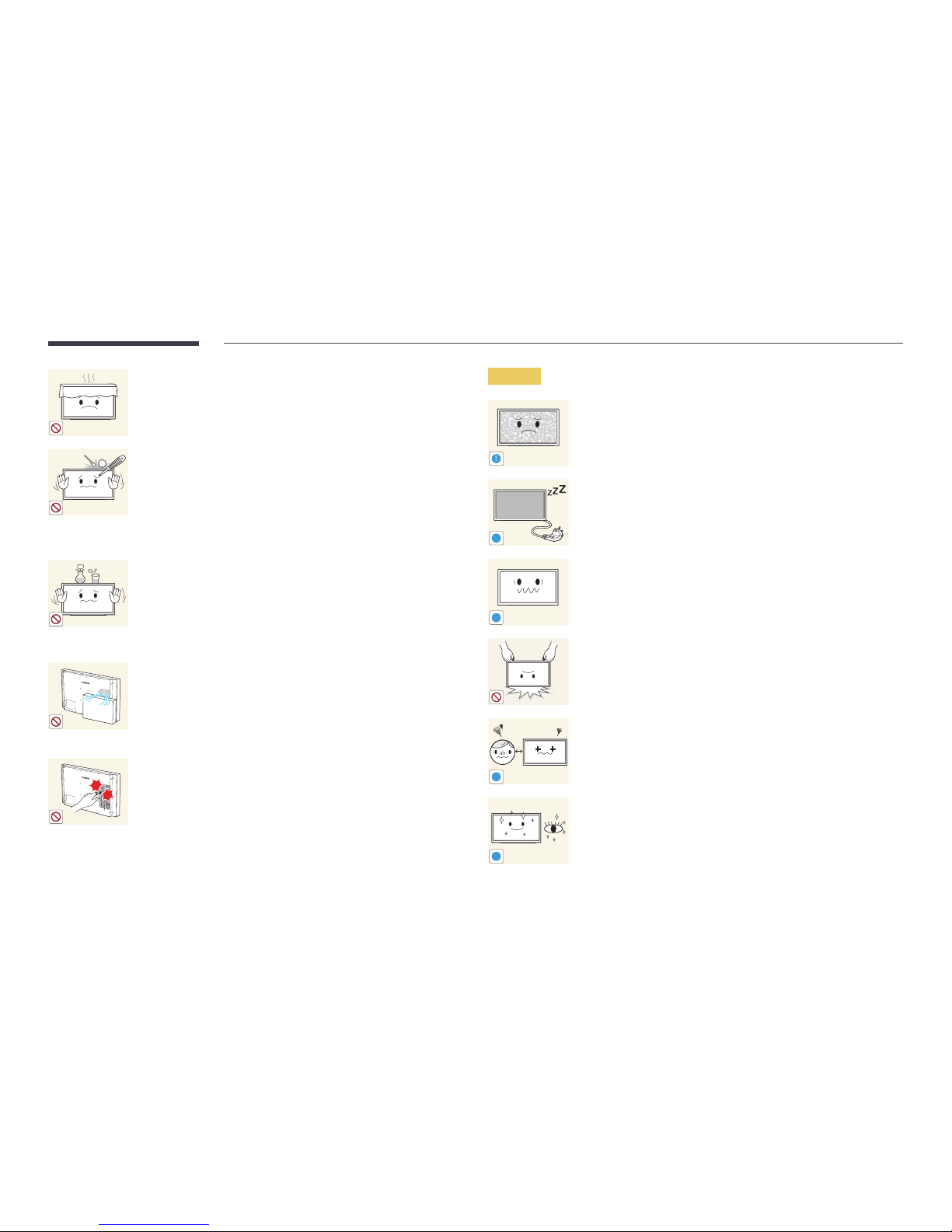

Ensure the vents are not blocked by tablecloths or curtains.
•
An increased internal temperature may cause a fire.
100
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects
that burn easily (paper, matches, etc) into the product (via the vent or input/
output ports, etc).
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Centre.
•
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or metallic
objects on top of the product.
•
Be sure to power off the product and disconnect the power cord
when water or other foreign substances have entered the product.
Then contact Samsung Customer Service Centre.
•
Product failure, an electric shock or fire may result.
Do not block the vent on the product. The product may not function
properly due to potential overheating.
―
Model OH24E is only supported.
Do not attempt to insert your fingers or objects into the vents.
•
Product failure or personal injury may result.
―
Model OH24E is only supported.
Caution
!
Leaving the screen fixed on a stationary image for an extended period of
time may cause afterimage burn-in or defective pixels.
•
Activate power-saving mode or a moving-picture screen saver if you
will not be using the product for an extended period of time.
-_-
!
Disconnect the power cord from the power socket if you do not plan on
using the product for an extended period of time (vacation, etc).
•
Dust accumulation combined with heat can cause a fire, electric shock
or electric leakage.
!
Use the product at the recommended resolution and frequency.
•
Your eyesight may deteriorate.
Do not hold the product upside-down or move it by holding the stand.
•
The product may fall and become damaged or cause an injury.
!
Looking at the screen too close for an extended period of time can
deteriorate your eyesight.
!
Rest your eyes for more than 5 minutes for every 1 hour of product use.
•
Eye fatigue will be relieved.
Page 13
13

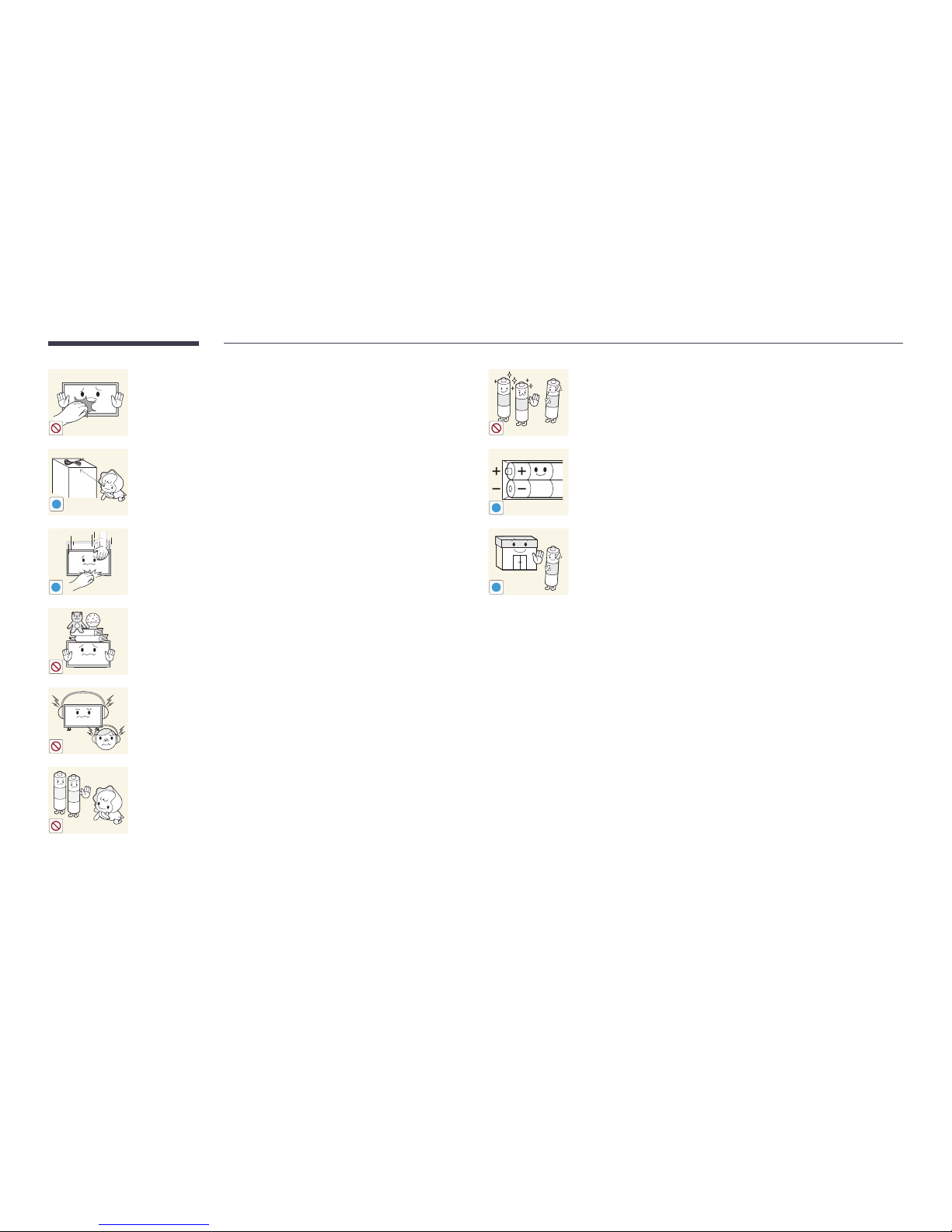

Do not touch the screen when the product has been turned on for an
extended period of time as it will become hot.
!
Store small accessories out of the reach of children.
!
Exercise caution when adjusting the product angle or stand height.
•
Your hand or finger may get stuck and injured.
•
Tilting the product at an excessive angle may cause the product to fall
and an injury may result.
Do not place heavy objects on the product.
•
Product failure or personal injury may result.
When using headphones or earphones, do not turn the volume too high.
•
Having the sound too loud may damage your hearing.
Be careful that children do not place the battery in their mouths when
removed from the remote control. Place the battery in a location that
children or infants cannot reach.
•
If children have had the battery in their mouths, consult your doctor
immediately.
When replacing the battery, insert it with the right polarity (+, -).
•
Otherwise, the battery may become damaged or it may cause fire,
personal injury or damage due to leakage of the internal liquid.
!
Use only the specified standardized batteries, and do not use a new battery
and a used battery at the same time.
•
Otherwise, the batteries may be damaged or cause fire, personal injury
or damage due to a leakage of the internal liquid.
!
The batteries (and rechargeable batteries) are not ordinary refuse and must
be returned for recycling purposes. The customer is responsible for returning
the used or rechargeable batteries for recycling.
•
The customer can return used or rechargeable batteries to a nearby
public recycling Centre or to a store selling the same type of the
battery or rechargeable battery.
Page 14
14
-
Contact the vendor where you
purchased the product if any
components are missing.
-
The pictures may look different from the
actual components.
-
A stand is not provided with the product.
To install a stand, you can purchase one
separately.

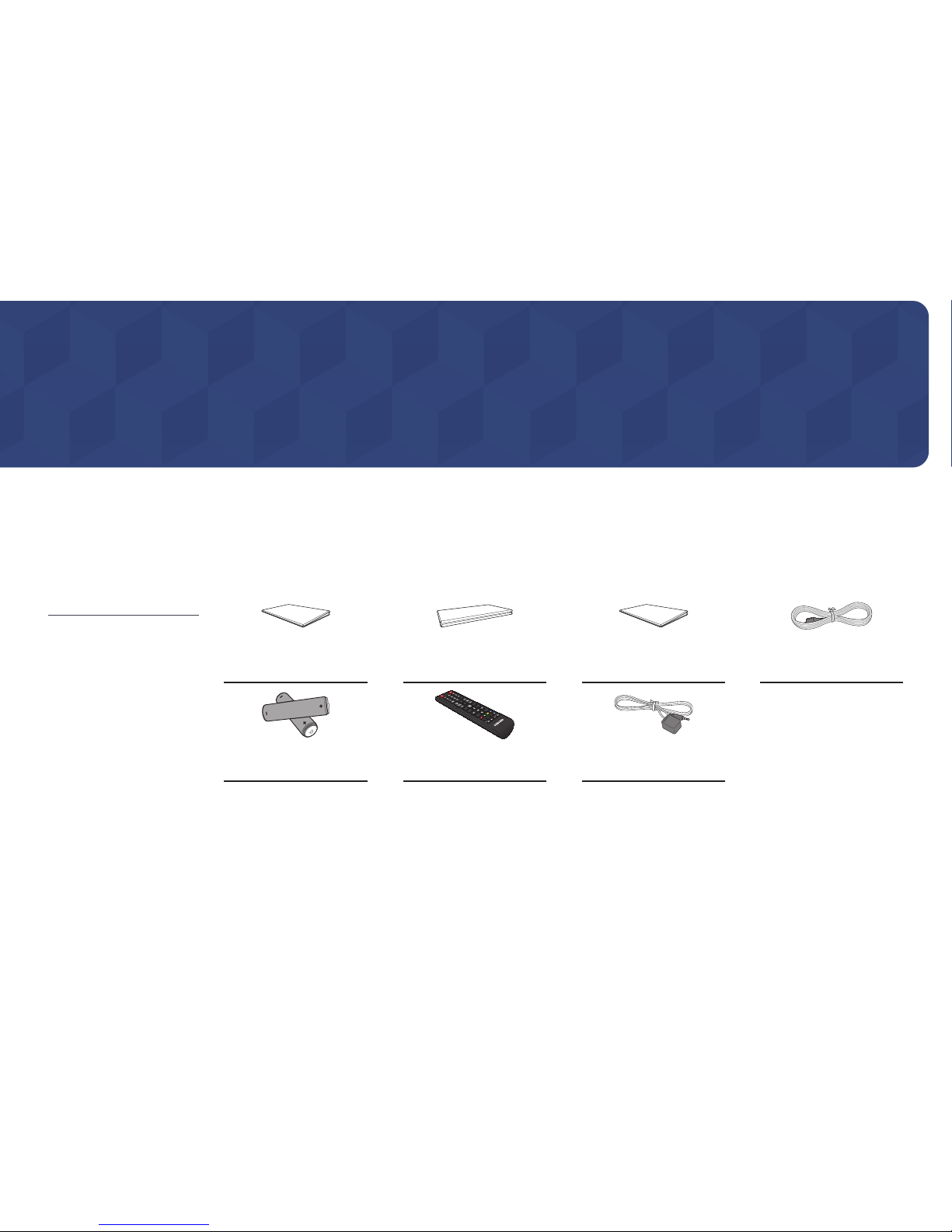

Checking the Components
Components
Quick Setup Guide
Warranty card
(Not available in some locations)
Regulatory guide Power cord
+
+
-
-
Batteries
(Not available in some locations)
Remote Control
Light sensor
(Model OM24E is only supported.)
Preparations
Chapter 02
Page 15
15
Parts
Control Panel
Speaker
OH24E
OM24E
POWER
OH24E OM24E
A
Remote sensor Spacer logo
―
The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice to
improve quality.
Buttons Description
Power button
Use this button for turning the Display on and off.
―
Model OM24E is only supported.
Source button
Select the connected input source.
―
Model OM24E is only supported.
Spacer logo
Do not pull on the spacer logo using force. The logo may tear or break off.
―
Model OM24E is only supported.
Remote sensor
Press a button on the remote control pointing at the sensor on the front of the product
to perform the corresponding function.
―
Using other display devices in the same space as the remote control of this product
can cause the other display devices to be inadvertently controlled.
OH24E: Use the remote control within 7 m to 10 m from the sensor on the product at an angle of 30
from the left and right.
OM24E: Use the remote control within 1 m to 3 m from the sensor on the product at an angle of 30 from the left and right.
―
On the OM24E, the remote control sensor is built into the position marked A.
―
Store used batteries out of reach of children and recycle.
―
Do not use a new and used battery together. Replace both batteries at the same time.
―
Remove batteries when the remote control is not to be used for an extended period of time.
Page 16
16
Reverse Side
―
The colour and shape of parts may differ from what is shown. Specifications are
subject to change without notice to improve quality.
OH24E
OM24E
OM24E
OH24E OM24E
RJ45
RS232C
IN
HDMI IN
AUDIO
OUT
USB
AMBIENT
SENSOR IN
RGB /
HDMI /
AUDIO IN
RGB IN
USB
Port Description
AMBIENT SENSOR IN
Supplies power to the external sensor board or receives the light sensor signal.
―
Model OM24E is only supported.
RGB / HDMI / AUDIO IN
Receives sound from a PC via an audio cable.
―
Model OM24E is only supported.
RGB IN
Connects to a source device using a D-SUB cable.
―
Model OM24E is only supported.
USB
Connect to a USB memory device.
HDMI IN
Connects to a source device using an HDMI cable.
RJ45
Connects to MDC using a LAN cable.
RS232C IN
Connects to MDC using an RS232C adapter.
AUDIO OUT
Connects to the audio of a source device.
―
Because the OH24E is a waterproof product, there is not enough space for cable storage. A cored or thick HDMI cable is
difficult to store and may cause issues when you use the product.
Page 17
17

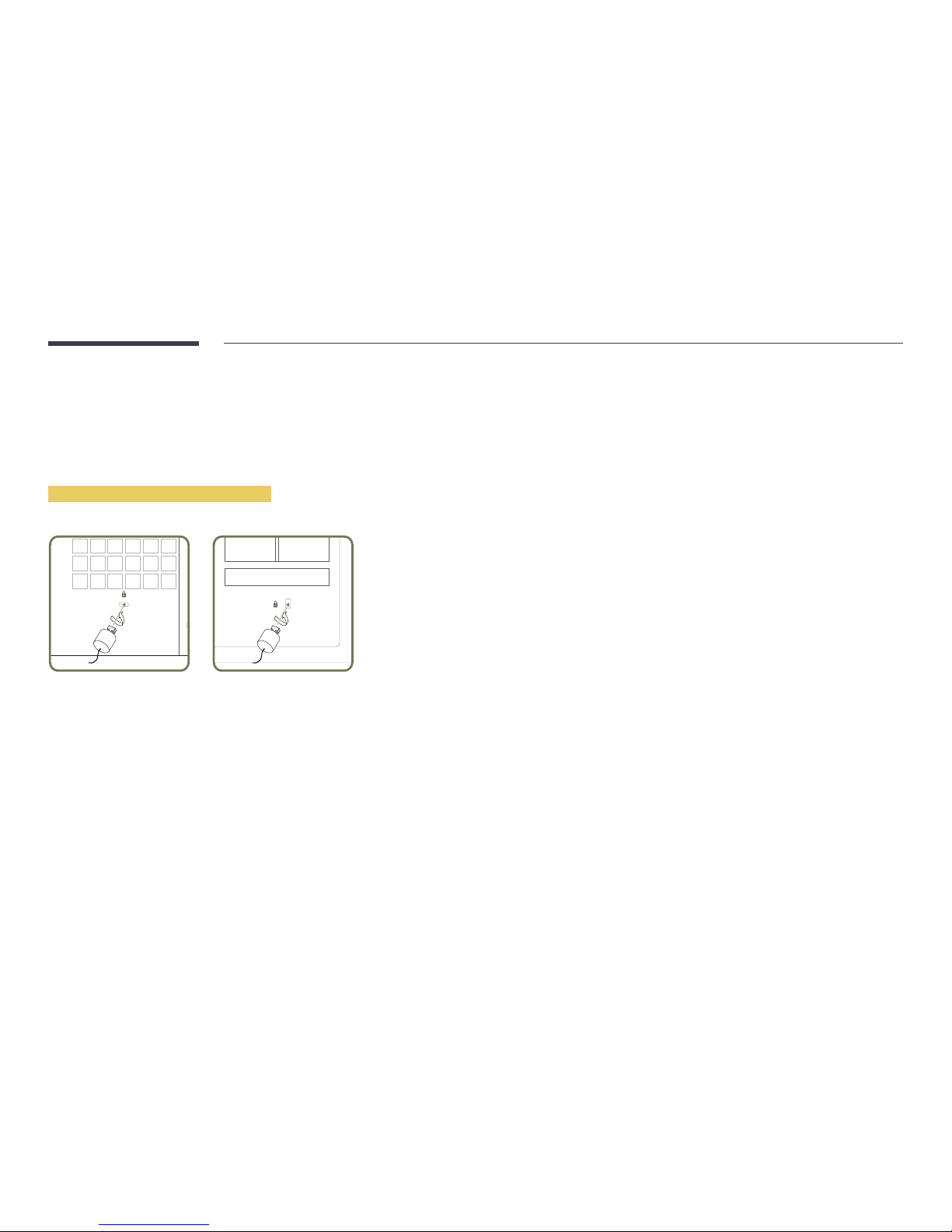

Anti-theft Lock
―
An anti-theft lock allows you to use the product securely even in public places.
―
The locking device shape and locking method depend on the manufacturer. Refer to the user guide
provided with your anti-theft locking device for details.
―
The following images are for reference only. Real-life situations may differ from what is shown in the
images.
To lock an anti-theft locking device:
OH24E OM24E
1
Fix the cable of your anti-theft locking device to a heavy object such as a desk.
2
Put one end of the cable through the loop on the other end.
3
Insert the locking device into the anti-theft lock slot at the back of the product.
4
Lock the locking device.
-
An anti-theft locking device can be purchased separately.
-
Refer to the user guide provided with your anti-theft locking device for details.
-
Anti-theft locking devices can be purchased at electronics retailers or online.
Page 18
18
-

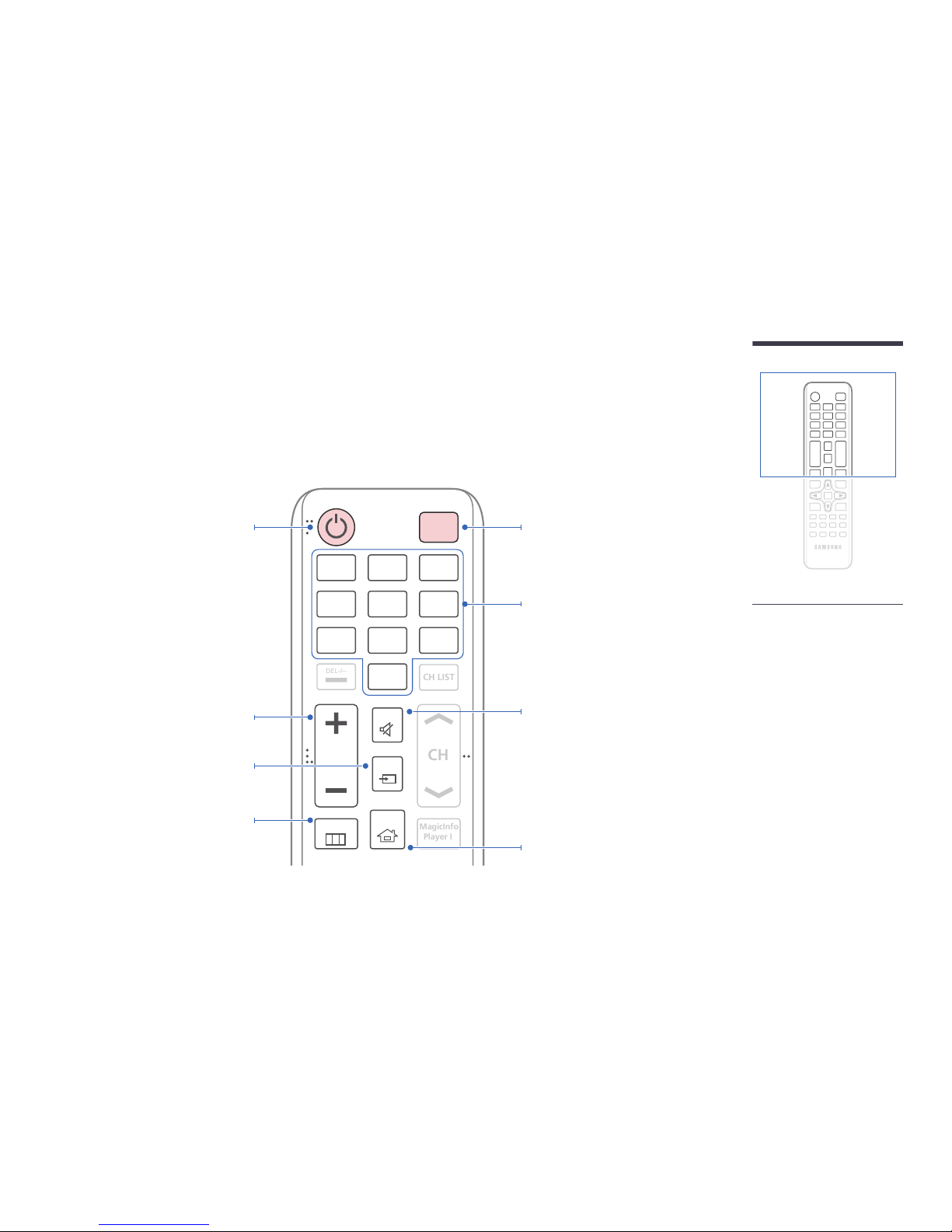

Remote control button functions may
differ for different products.
-
Remove batteries when the remote
control is not to be used for an extended
period of time.
Remote Control
―
Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
―
A button without a description in the image below is not supported on the product.
HOME
MENU
POWER
OFF
VOL
MagicInfo
Player I
.QZ
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
SYMBOL
0
PRS
7
TUV
8
WXY
9
MUTE
SOURCE
CH
DEL-/--
CH LIST
Power off the product.
Number buttons
Enter the password in the OSD menu.
Mute the sound.
Unmuting the sound: Press MUTE again or press
the volume control(+ VOL -) button.
Go to Home Launch Button.
Power on the product.
Adjust the volume.
Change the input source.
Display or hide the onscreen display menu, or
return to the previous menu.
Page 19
19

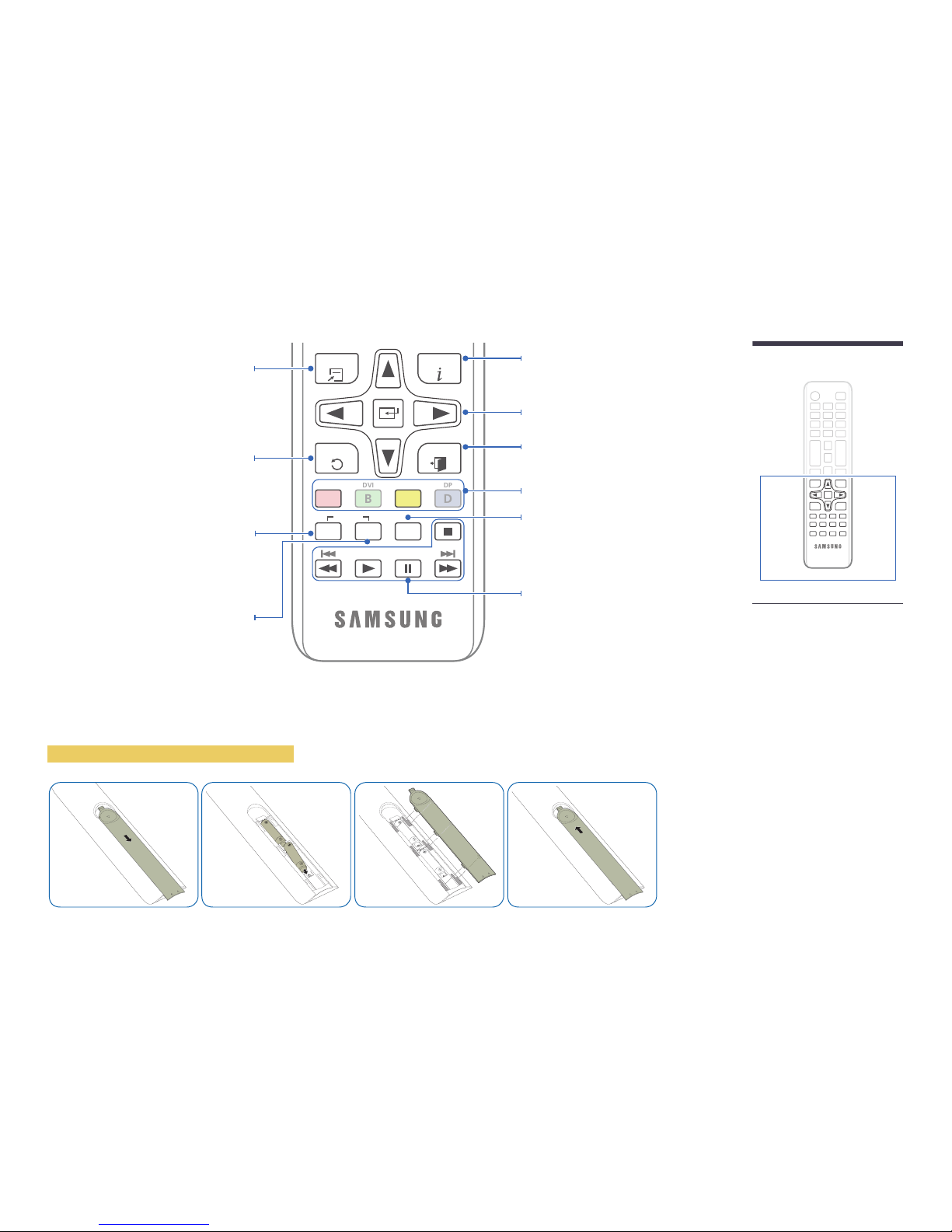

TOOLS INFO
SET
UNSET
LOCK
PC
A
DVI
B
HDMI
C
DP
D
EXITRETURN
IR control
Display information about the current input
source.
Move to the upper, lower, left or right menu, or
adjust an option's setting.
Confirm a menu selection.
Exit the current menu.
OH24E : Manually select a connected input
source from HDMI.
OM24E : Manually select a connected input
source from PC and HDMI.
It sets safe lock function.
Used in Anynet+ mode and multimedia mode.
Quickly select frequently used functions.
Return to the previous menu.
If multiple products are connected through the
Video Wall feature, press the SET button and
enter a product ID using the number buttons.
Control the product using the remote control.
Cancel a value that has been set using the SET
button and control all connected products using
the remote control.
-
Remote control button functions may
differ for different products.
To place batteries in the remote control
Page 20
20
Before Installing the Product
(Installation Guide)
15˚
15˚
OM24E
OH24E
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
•
Ensure that an authorized installation company installs the wall mount.
•
Otherwise, it may fall and cause personal injury.
•
Make sure to install the specified wall mount.

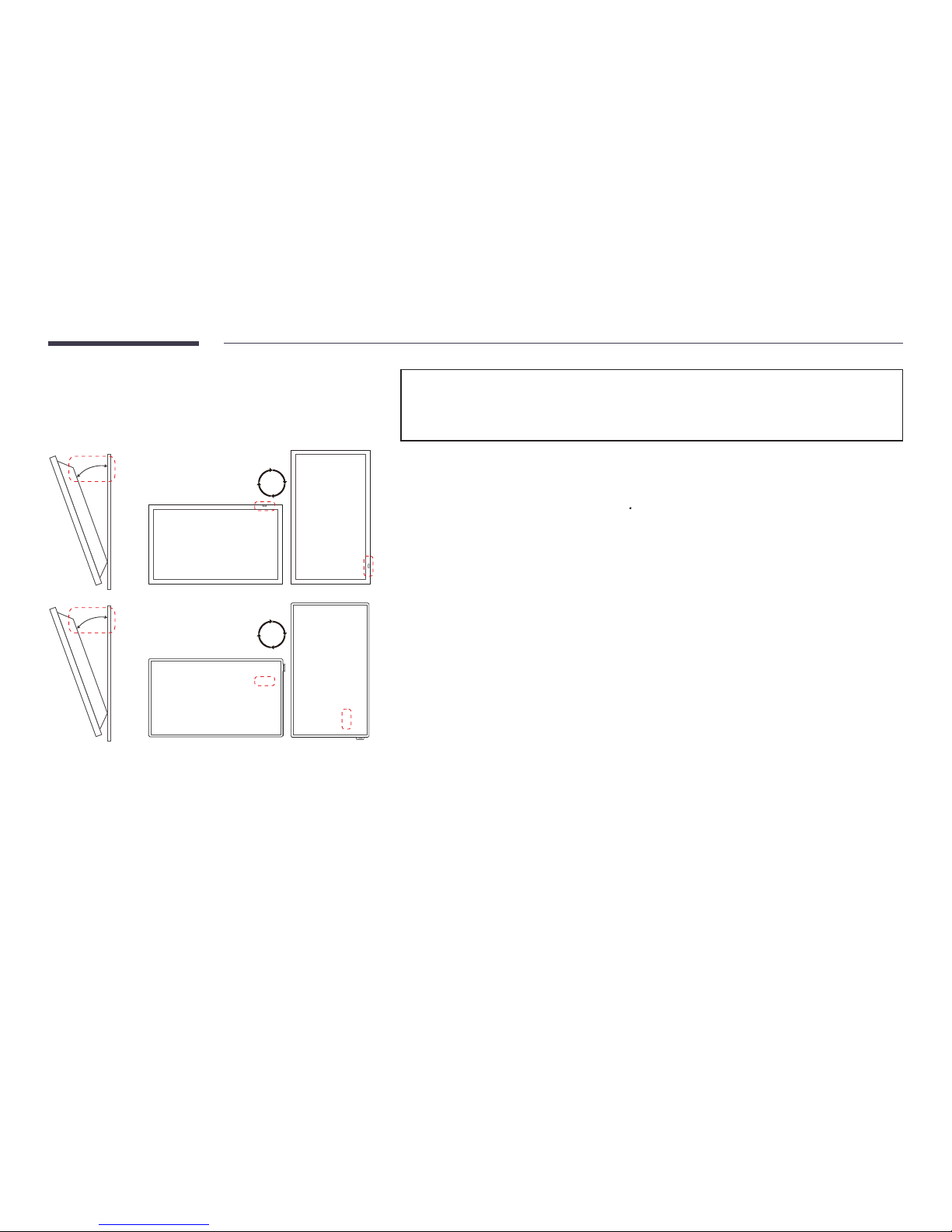

Tilting Angle and Rotation
―
Contact Samsung Customer Service Centre for further details.
•
The product can be tilted at a maximum angle of 15
from a perpendicular wall surface.
•
To use the product vertically (portrait), turn it clockwise so that the LED is pointing down.
Page 21
21
A
B
OH24E
Aerial vent
Aerial intake
Figure 1.1 Side view
Ventilation
Installation on a Perpendicular Wall
A Minimum 40 mm
B Ambient temperature: Under 50
C
•
When installing the product on a perpendicular wall, allow at least 40 mm of space between the product and wall surface
for ventilation and ensure that the ambient A temperature is kept below 50
C.
―
Do not block the vent on the product. (Model OH24E is only supported.)
A
B
B
C
Figure 1.3 Side view
B B
Figure 1.2 Side view
Installation on an Indented Wall
―
Contact Samsung Customer Service Centre for further details.
Plane view
A Minimum 40 mm
B Minimum 40 mm
C Ambient temperature: Under 50
C
―
When installing the product on an indented wall, allow at least the space specified above between the product and wall for
ventilation and ensure that the ambient temperature is kept below 50
C.
Page 22
22

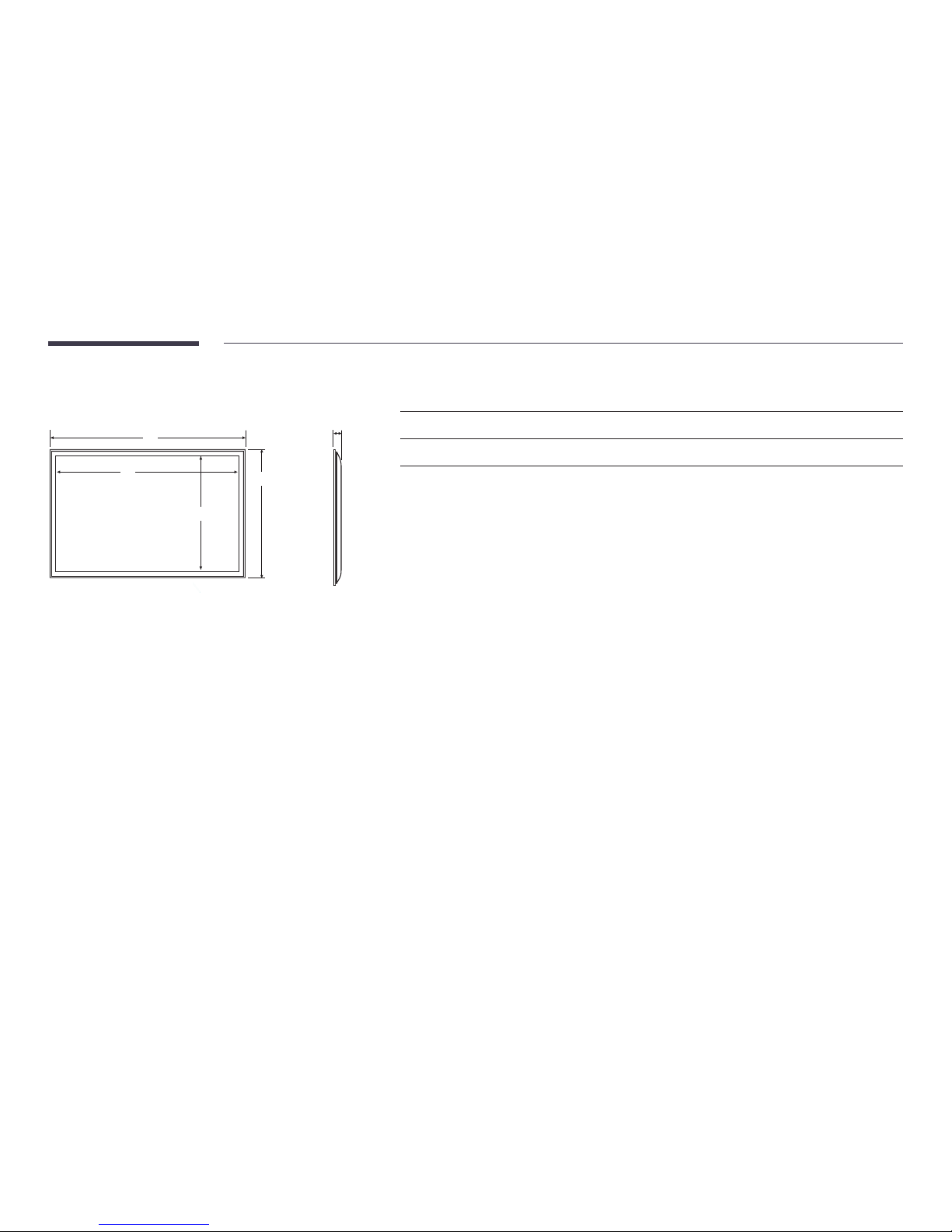

Dimensions
1
2
3
4
5
Unit: mm (inches)
Model name
1
2
3 4
5
OH24E 563.2 (22.2) 526.4 (20.7) 296.4 (11.7) 333.2 (13.1) 66.5 (2.6)
OM24E 549.8 (21.6) 528.2 (20.8) 298.2 (11.7) 319.7 (12.6) 58.0 (2.3)
―
All drawings are not necessarily to scale. Some dimensions are subject to change without prior notice.
Refer to the dimensions prior to performing installation of your product. Not responsible for typographical or printed errors.
Page 23
23
Installing the Wall Mount
Installing the Wall Mount Kit
The wall mount kit (sold separately) allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the wall mount on your own.
Wall Mount Kit Specications (VESA)
―
Install your wall mount on a solid wall perpendicular to the floor. Before
attaching the wall mount to surfaces other than plaster board, please contact
your nearest dealer for additional information.
If you install the product on a slanted wall, it may fall and result in severe
personal injury.
•
Samsung wall mount kits contain a detailed installation manual and all parts necessary for assembly are provided.
•
Do not use screws that are longer than the standard length or do not comply with the VESA standard screw
specifications. Screws that are too long may cause damage to the inside of the product.
•
For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ
depending on the wall mount specifications.
•
Do not fasten the screws too firmly. This may damage the product or cause the product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
•
Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the
consumer fails to follow the product installation instructions.
•
Do not mount the product at more than a 15 degree tilt.
•
Always have two people mount the product on a wall.
•
Standard dimensions for wall mount kits are shown in the table below.
Unit: mm (inches)
Model name VESA screw hole specs
(A * B) in millimeters
Standard Screw Quantity
OH24E / OM24E 100 x 100 (3.9 x 3.9) M4 / L8 - L10 4
―
Do not install your Wall Mount Kit while your product is turned on. It may result in personal injury due to electric shock.
Page 24
24
Remote Control (RS232C)
Cable Connection
RS232C Cable
Interface
RS232C (9 pins)
Pin
TxD (No.2), RxD (No.3), GND (No.5)
Bit rate
9600 bps
Data bits
8 bit
Parity
None
Stop bit
1 bit
Flow control
None
Maximum length
15 m (only shielded type)
•

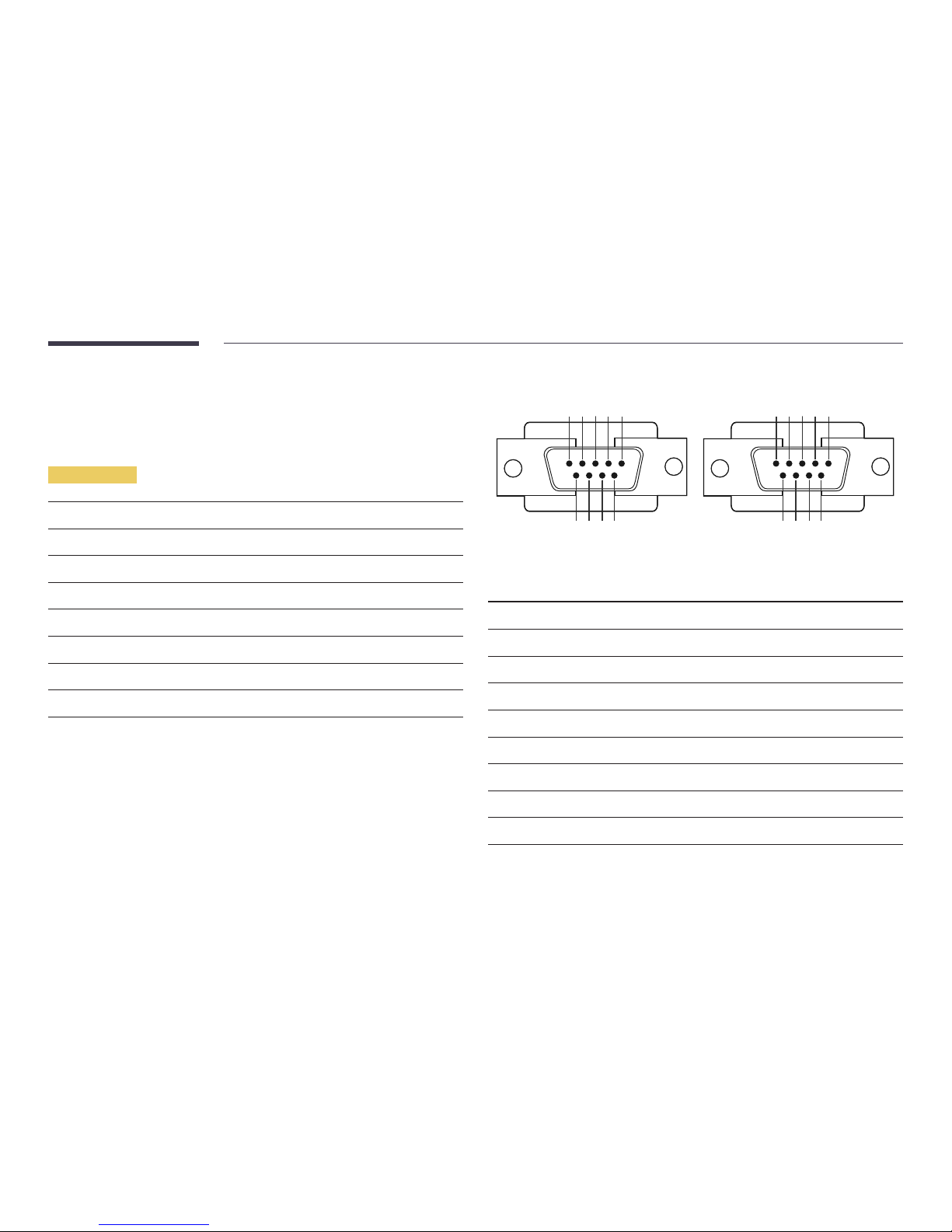

Pin assignment
1 2 3 4 5
6 7 8 9
5 4 3 2 1
9 8 7 6
<Male type> <Female type>
Pin Signal
1
Detect data carrier
2
Received data
3
Transmitted data
4
Prepare data terminal
5
Signal ground
6
Prepare data set
7
Send request
8
Clear to send
9
Ring indicator
Page 25
25
•
RS232C cable
Connector: 9-Pin D-Sub to Stereo Cable
1
59
6
-P2-
1
2
3
-P1-
-P1- -P1- -P2- -P2-
Female Rx
Tx
Gnd
2
3
5
-------->
<--------
----------
1
2
3
Tx
Rx
Gnd
STEREO
PLUG
(3.5ø)
LAN Cable
•
Pin assignment
1 2 3 4 5 6 7 8
Pin No Standard Colour Signal
1 White and orange TX+
2 Orange TX-
3 White and green RX+
4 Blue NC
5 White and blue NC
6 Green RX-
7 White and brown NC
8 Brown NC
Page 26
26
•
Connector : RJ45
Direct LAN cable (PC to HUB)
RJ45 RJ45 MDC
HUB
P1
P1P2
P2
Signal
P1 P2 Signal
TX+
1 <--------> 1 TX+
TX-
2 <--------> 2 TX-
RX+
3 <--------> 3 RX+
RX-
6 <--------> 6 RX-
Cross LAN cable (PC to PC)
RJ45
P1 P2
Signal
P1 P2 Signal
TX+
1 <--------> 3 RX+
TX-
2 <--------> 6 RX-
RX+
3 <--------> 1 TX+
RX-
6 <--------> 2 TX-
Page 27
27

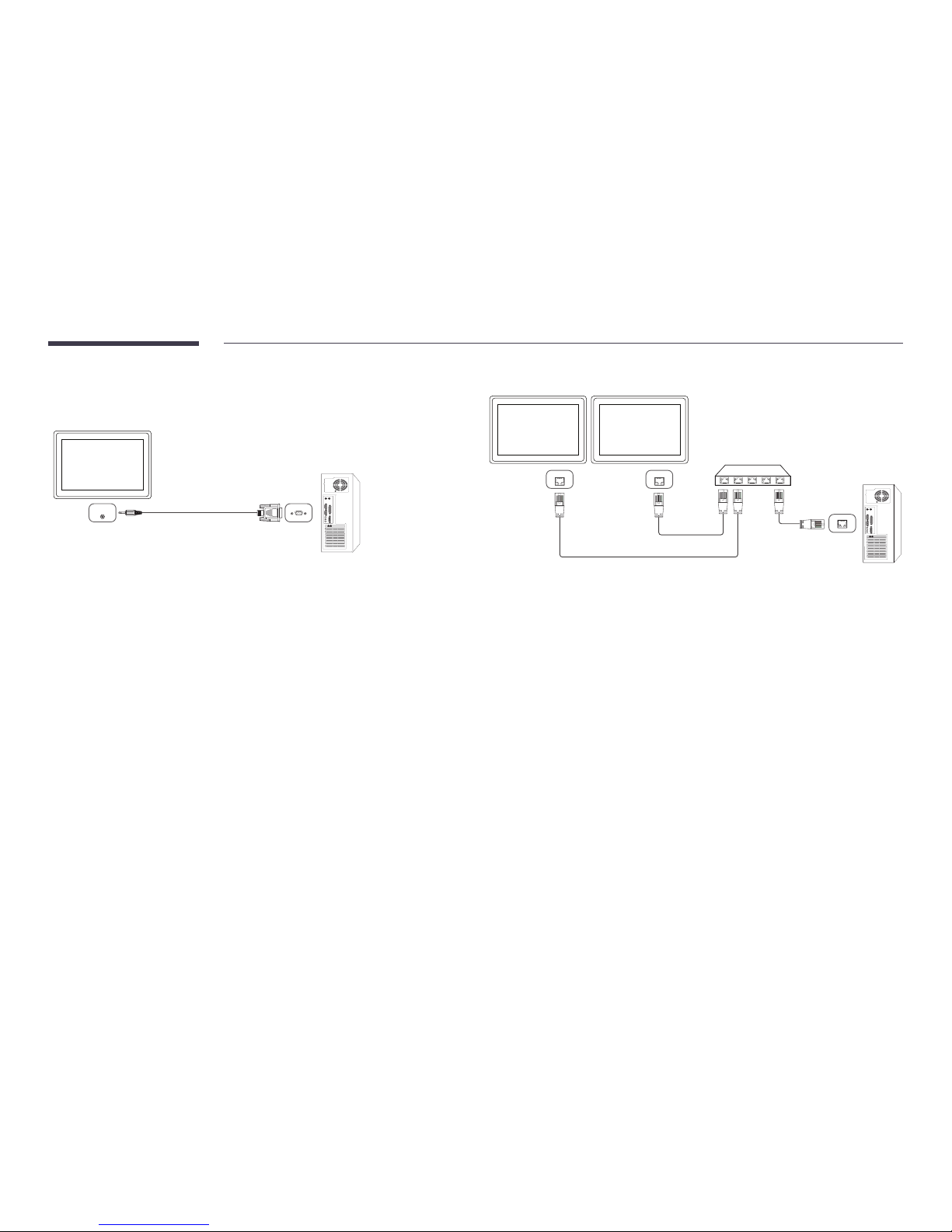

Connection
•
Connection 1
RS232C IN
•
Connection 2
RJ45 RJ45
Page 28
28
Control Codes
Viewing control state (Get control command)
Header Command ID Data length Checksum
0xAA Command type 0
Controlling (Set control command)
Header Command ID Data length Data Checksum
0xAA Command type 1 Value
Command
No. Command type Command Value range
1
Power control 0x11 0~1
2
Volume control 0x12 0~100
3
Input source control 0x14 -
4
Screen mode control 0x18 -
5
Screen size control 0x19 0~255
6
PIP on/off control 0x3C 0~1
7
Auto adjustment control (PC and
BNC only)
0x3D 0
8
Video wall mode control 0x5C 0~1
9
Safety Lock 0x5D 0~1
No. Command type Command Value range
10
Video Wall On 0x84 0~1
11
Video Wall User Control 0x89 -
•
All communications take place in hexadecimals. The checksum is calculated by adding up all
values except the header. If a checksum adds up to be more than 2 digits as shown below
(11+FF+01+01=112), the first digit is removed.
E.g. Power On & ID=0
Header Command ID Data length Data 1 Checksum
0xAA 0x11 1 "Power"
Header Command ID Data length Data 1 12
0xAA 0x11 1 1
•
To control all devices connected by a serial cable simultaneously irrespective of IDs, set the ID as
"0xFE" and transmit commands. Commands will be executed by each device but ACK will not
respond.
Page 29
29
Power control
•
Function
A product can be powered on and off using a PC.
•
Viewing power state (Get Power ON / OFF Status)
Header Command ID Data length Checksum
0xAA 0x11 0
•
Setting power ON/Off (Set Power ON / OFF)
Header Command ID Data length Data Checksum
0xAA 0x11 1 "Power"
"Power": Power code to be set on a product.
1: Power ON
0: Power OFF
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x11 "Power"
"Power": Power code to be set on a product.
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x11 "ERR"
"ERR" : A code showing what error has occurred.
Volume control
•
Function
The volume of a product can be adjusted using a PC.
•
Viewing volume state (Get Volume Status)
Header Command ID Data length Checksum
0xAA 0x12 0
•
Setting the volume (Set Volume)
Header Command ID Data length Data Checksum
0xAA 0x12 1 "Volume"
"Volume": Volume value code to be set on a product. (0-100)
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x12 "Volume"
"Volume": Volume value code to be set on a product. (0-100)
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x12 "ERR"
"ERR" : A code showing what error has occurred.
Page 30
30
Input source control
•
Function
The input source of a product can be changed using a PC.
•
Viewing input source state (Get Input Source Status)
Header Command ID Data length Checksum
0xAA 0x14 0
•
Setting the input source (Set Input Source)
Header Command ID Data length Data Checksum
0xAA 0x14 1 "Input Source"
"Input Source": An input source code to be set on a product.
0x14 PC
0x0C Input source
0x20 MagicInfo
0x30 RF( TV)
0x40 DT V
0x21 HDMI
0x22 HDMI_PC
―
HDMI_PC cannot be used with the Set command. They only respond to "Get" commands.
―
This model does not support HDMI and HDMI_PC ports.
―
MagicInfo is only available with models that contain the MagicInfo function.
―
RF(TV), DTV are only available with models that include a TV.
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x14 "Input
Source"
"Input Source": An input source code to be set on a product.
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x14 "ERR"
"ERR" : A code showing what error has occurred.
Page 31
31
Screen mode control
•
Function
The screen mode of a product can be changed using a PC.
Screen mode cannot be controlled when the Video Wall function is enabled.
―
This control can only be used on models that include a TV.
•
Viewing screen status (Get Screen Mode Status)
Header Command ID Data length Checksum
0xAA 0x18 0
•
Setting the picture size (Set Picture Size)
Header Command ID Data
length
Data Checksum
0xAA 0x18 1 "Screen Mode"
"Screen Mode": A code that sets the product status
0x01 16 : 9
0x04 Zoom
0x31 Wide Zoom
0x0B 4 : 3
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x18 "Screen
Mode"
"Screen Mode": A code that sets the product status
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x18 "ERR"
"ERR": A code showing what error has occurred
Screen size control
•
Function
The screen size of a product can be changed using a PC.
•
Viewing the screen size (Get Screen Size Status)
Header Command ID Data length Checksum
0xAA 0x19 0
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x19 "Screen Size"
"Screen Size": product screen size (range: 0 – 255, unit: inch)
•
Nak
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x19 "ERR"
"ERR": A code showing what error has occurred
Page 32
32
PIP On/Off control
•
Function
The PIP mode of a product can be turned on or off using a PC.
―
Only available on models that have the PIP function.
―
The mode cannot be controlled if Video Wall is set to On.
―
This function is not available in MagicInfo.
•
Viewing PIP on/off state (Get the PIP ON / OFF Status)
Header Command ID Data length Checksum
0xAA 0x3C 0
•
Setting PIP on/off (Set the PIP ON / OFF)
Header Command ID Data length Data Checksum
0xAA 0x3C 1 "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
1: PIP ON
0: PIP OFF
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x3C "PIP"
"PIP": A code used to turn the PIP mode of a product on or off
•
Nak
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x3C "PIP"
"ERR": A code showing what error has occurred
Auto adjustment control (PC and BNC only)
•
Function
Automatically adjust the PC system screen using a PC.
•
Viewing auto adjustment state (Get Auto Adjustment Status)
None
•
Setting auto adjustment (Set Auto Adjustment)
Header Command ID Data length Data Checksum
0xAA 0x3D 1 "Auto
Adjustment"
"Auto Adjustment" : 0x00 (at all times)
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x3D "Auto
Adjustment"
•
Nak
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x3D "ERR"
"ERR": A code showing what error has occurred
Page 33
33
Video Wall Mode Control
•
Function
Video Wall mode can be activated on a product using a PC.
This control is only available on a product whose Video Wall is enabled.
•
Viewing video wall mode (Get Video Wall Mode)
Header Command ID Data length Checksum
0xAA 0x5C 0
•
Setting the video wall (Set Video Wall Mode)
Header Command ID Data length Data Checksum
0xAA 0x5C 1 "Video Wall Mode"
"Video Wall Mode": A code used to activate Video Wall mode on a product
1: Full
0: Natural
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x5C "Video Wall
Mode"
"Video Wall Mode": A code used to activate Video Wall mode on a product
•
Nak
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x5C "ERR"
"ERR": A code showing what error has occurred
Safety Lock
•
Function
PC can be used to turn the Safety Lock function on or off on a product.
This control is available regardless of whether or not the power is turned on.
•
Viewing the safety lock state (Get Safety Lock Status)
Header Command ID Data length Checksum
0xAA 0x5D 0
•
Enabling or disabling safety lock (Set Safety Lock Enable / Disable)
Header Command ID Data length Data Checksum
0xAA 0x5D 1 "Safety Lock"
"Safety Lock": Safety lock code to be set on a product
1: ON
0: OFF
•
Ack
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x5D "Safety Lock"
"Safety Lock": Safety lock code to be set on a product
•
Nak
Header Command ID Data
length
Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x5D "ERR"
"ERR": A code showing what error has occurred
Page 34
34
Video Wall On
•
Function
Turn Video Wall on or off on the product from your computer.
•
Get Video Wall On/Off Status
Header Command ID Data length Checksum
0xAA 0x84 0
•
Set Video Wall On/Off
Header Command ID Data length Data Checksum
0xAA 0x84 1 V.Wall_On
•
V.Wall_On: Video Wall code to be assigned to the product
1: Video Wall ON
0: Video Wall OFF
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'A' 0x84 V.Wall_
On
V.Wall_On : Same as above
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x84 ERR
"ERR": A code showing what error has occurred
Video Wall User Control
•
Function
Turn the Video Wall function on or off on the product from your computer.
•
Get Video Wall Status
Header Command ID Data length Checksum
0xAA 0x89 0
•
Set Video Wall
Header Command ID Data length Val1 Val2 Checksum
0xAA 0x89 2 Wall_Div Wall_SNo
Wall_Div: Video Wall Divider code assigned to the product
Page 35
35
10x10 Video Wall Model
1 2 3 4 5 6 7 8 9 10 11 12 13 14
15
O
0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
0x00
1
0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1A 0x1B 0x1C 0x1D 0x1E
0x1F
2
0x21 0x22 0x23 0x24 0x25 0x26 0x27 0x28 0x29 0x2A 0x2B 0x2C 0x2D 0x2E
0x2F
3
0x31 0x32 0x33 0x34 0x35 0x36 0x37 0x38 0x39 0x3A 0x3B 0x3C 0x3D 0x3E
0x3F
4
0x41 0x42 0x43 0x44 0x45 0x46 0x47 0x48 0x49 0x4A 0x4B 0x4C 0x4D 0x4E
0x4F
5
0x51 0x52 0x53 0x54 0x55 0x56 0x57 0x58 0x59 0x5A 0x5B 0x5C 0x5D 0x5E
0x5F
6
0x61 0x62 0x63 0x64 0x65 0x66 0x67 0x68 0x69 0x6A 0x6B 0x6C 0x6D 0x6E
0x6F
7
0x71 0x72 0x73 0x74 0x75 0x76 0x77 0x78 0x79 0x7A 0x7B 0x7C 0x7D 0x7E
N/A
8
0x81 0x82 0x83 0x84 0x85 0x86 0x87 0x88 0x89 0x8A 0x8B 0x8C N/A N/A
N/A
9
0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 0x9A 0x9B N/A N/A N/A
N/A
10
0xA1 0xA2 0xA3 0xA4 0xA5 0xA6 0xA7 0xA8 0xA9 0xAA N/A N/A N/A N/A
N/A
11
0xB1 0xB2 0xB3 0xB4 0xB5 0xB6 0xB7 0xB8 0xB9 N/A N/A N/A N/A N/A
N/A
12
0xC1 0xC2 0xC3 0xC4 0xC5 0xC6 0xC7 0xC8 N/A N/A N/A N/A N/A N/A
N/A
13
0xD1 0xD2 0xD3 0xD4 0xD5 0xD6 0xD7 N/A N/A N/A N/A N/A N/A N/A
N/A
14
0xE1 0xE2 0xE3 0xE4 0xE5 0xE6 0xE7 N/A N/A N/A N/A N/A N/A N/A
N/A
15
0xF1 0xF2 0xF3 0xF4 0xF5 0xF6 N/A N/A N/A N/A N/A N/A N/A N/A
N/A
Page 36
36
Wall_SNo: Product Number code assigned to the product
10x10 Video Wall Model : ( 1 ~ 100)
Set Number
Data
1 0x01
2 0x02
... ...
99 0x63
100 0x64
•
Ack
Header Command ID Data length Ack/Nak r-CMD Val1 Val2 Checksum
0xAA 0xFF 4 'A' 0x89 Wall_Div Wall_SNo
•
Nak
Header Command ID Data length Ack/Nak r-CMD Val1 Checksum
0xAA 0xFF 3 'N' 0x89 ERR
"ERR": A code showing what error has occurred
Page 37
37
Connecting and Using a Source Device
Before Connecting
Pre-connection Checkpoints
―
Before connecting a source device, read the user manual provided with it.
The number and locations of ports on source devices may differ from device to device.
―
Do not connect the power cable until all connections are completed.
Connecting the power cable during connection may damage the product.
―
Connect the sound ports correctly: left = white and right = red.
―
Check the types of ports at the back of the product you want to connect.
Chapter 03
Page 38
38

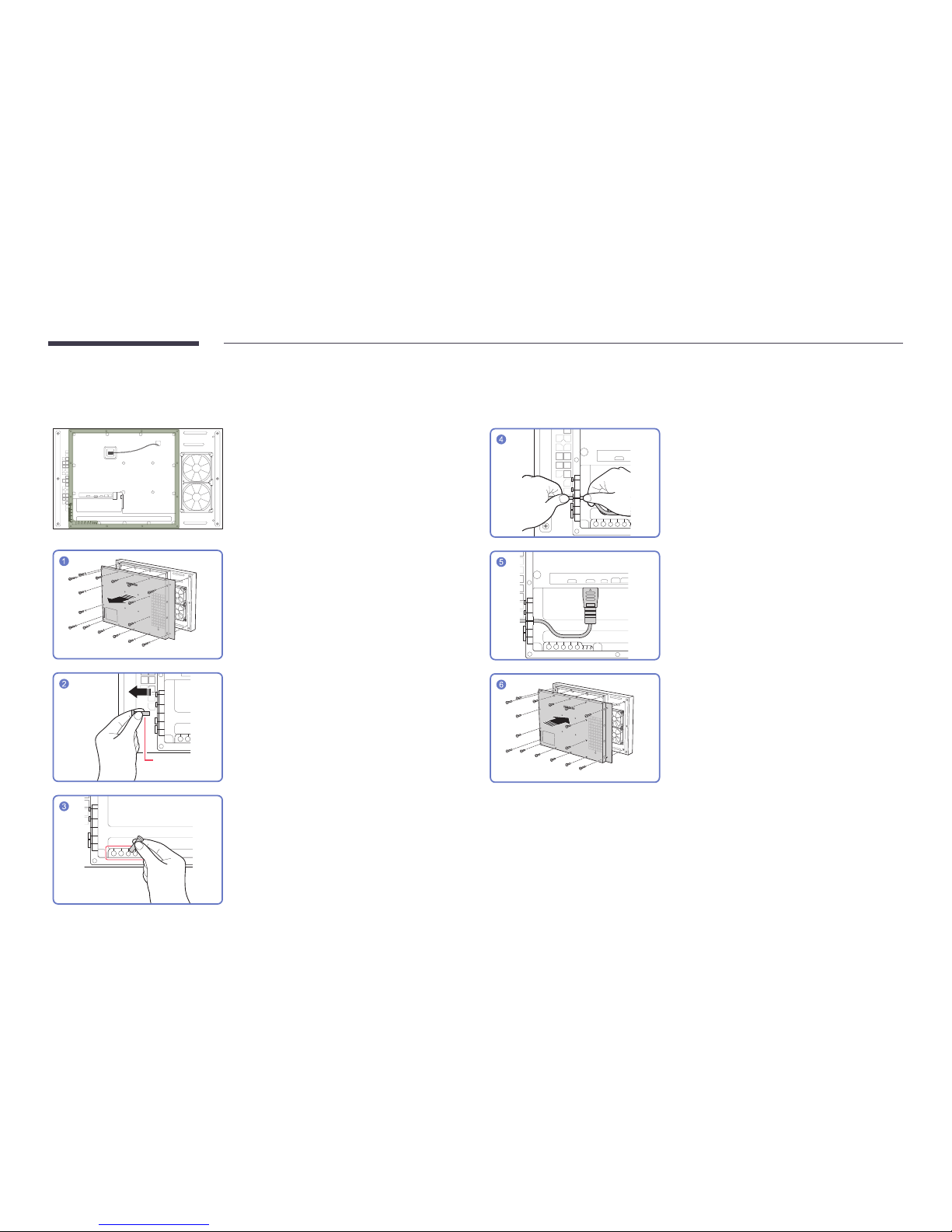

Before connecting cables
―
Model OH24E is only supported.
Unfasten the screws, then remove the cover.
Silicone-Bar
Remove the appropriate silicon bar for the
thickness of the cable to connect.
Different hole sizes and corresponding cable
thickness for each:
―
7 Ø hole x 1: Insert the 7 Ø cable
―
5.5 Ø hole x 2 : Insert the 5.5 Ø cable
―
3 Ø hole x 2 : Insert the 3 Ø cable
Insert and keep the removed Silicone-Bar in the
marked area to ensure it is not lost.
Insert the appropriate cable into the hole from
which the Silicone-Bar was removed.
The cable should be connected as shown.
Close the cover, then fasten the screws.
―
After all the cables are connected, make sure to
close the cover and fasten the screws to ensure
it is water tight.
―
Recommended torque : 7 - 8 kgf.cm
Page 39
39
Connecting to a PC
•
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
•
A PC can be connected to the product in a variety of ways.
Select a connection method suitable for your PC.
―
Connecting parts may differ in different products.

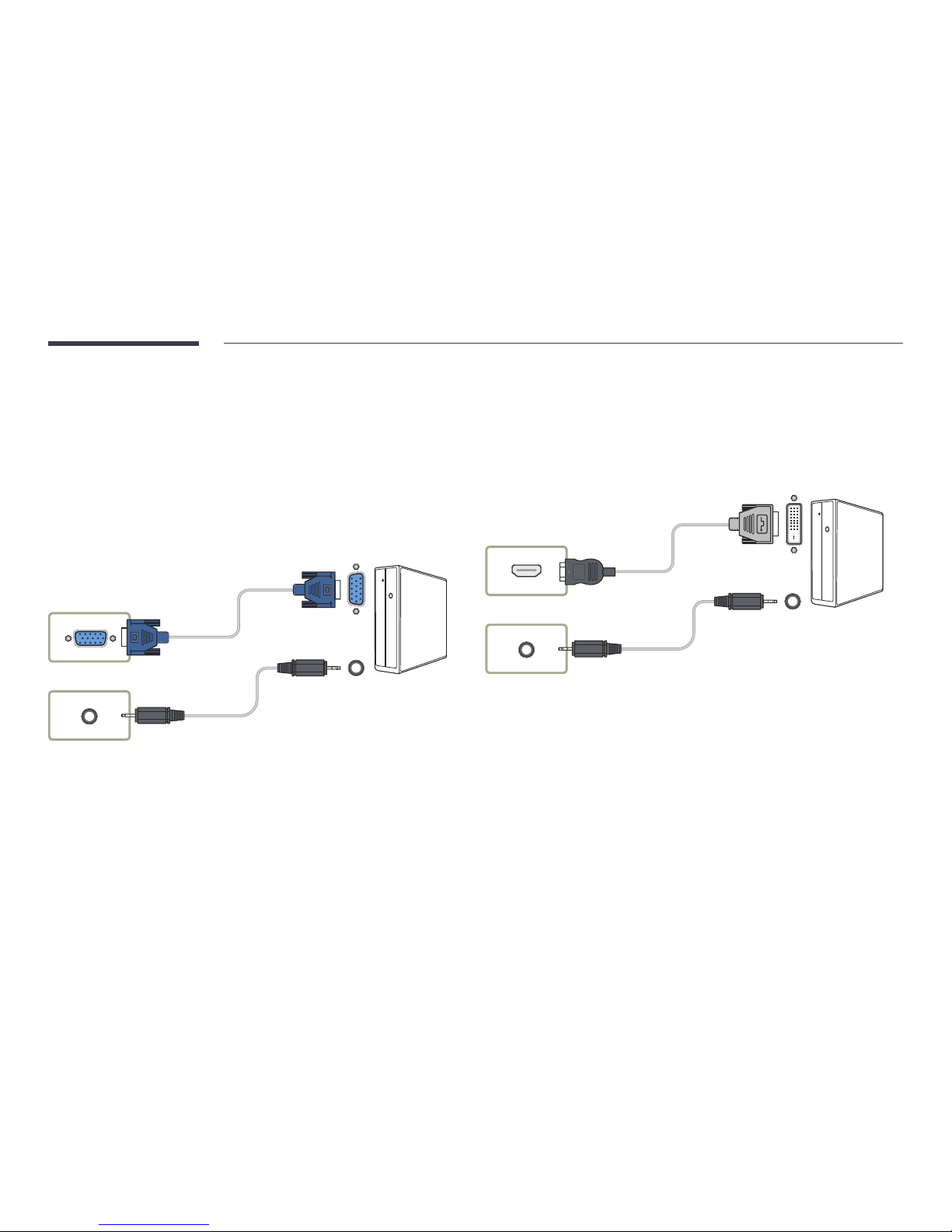

Connection using the D-SUB cable (Analogue type)
―
Model OM24E is only supported.
RGB IN
RGB / HDMI / AUDIO IN
Connection Using an HDMI-DVI Cable
After connecting a computer to the product with an HDMI-DVI cable, make sure to configure the settings
as shown below to enable the video and audio from the computer.
•
Sound → set HDMI Sound to PC(DVI) (Model OM24E is only supported.)
•
Picture → set each screen mode to Tex t under Picture Mode
•
System → General → set HDMI Hot Plug to Off
HDMI IN
RGB / HDMI / AUDIO IN
(Model OM24E is only supported.)
Page 40
40

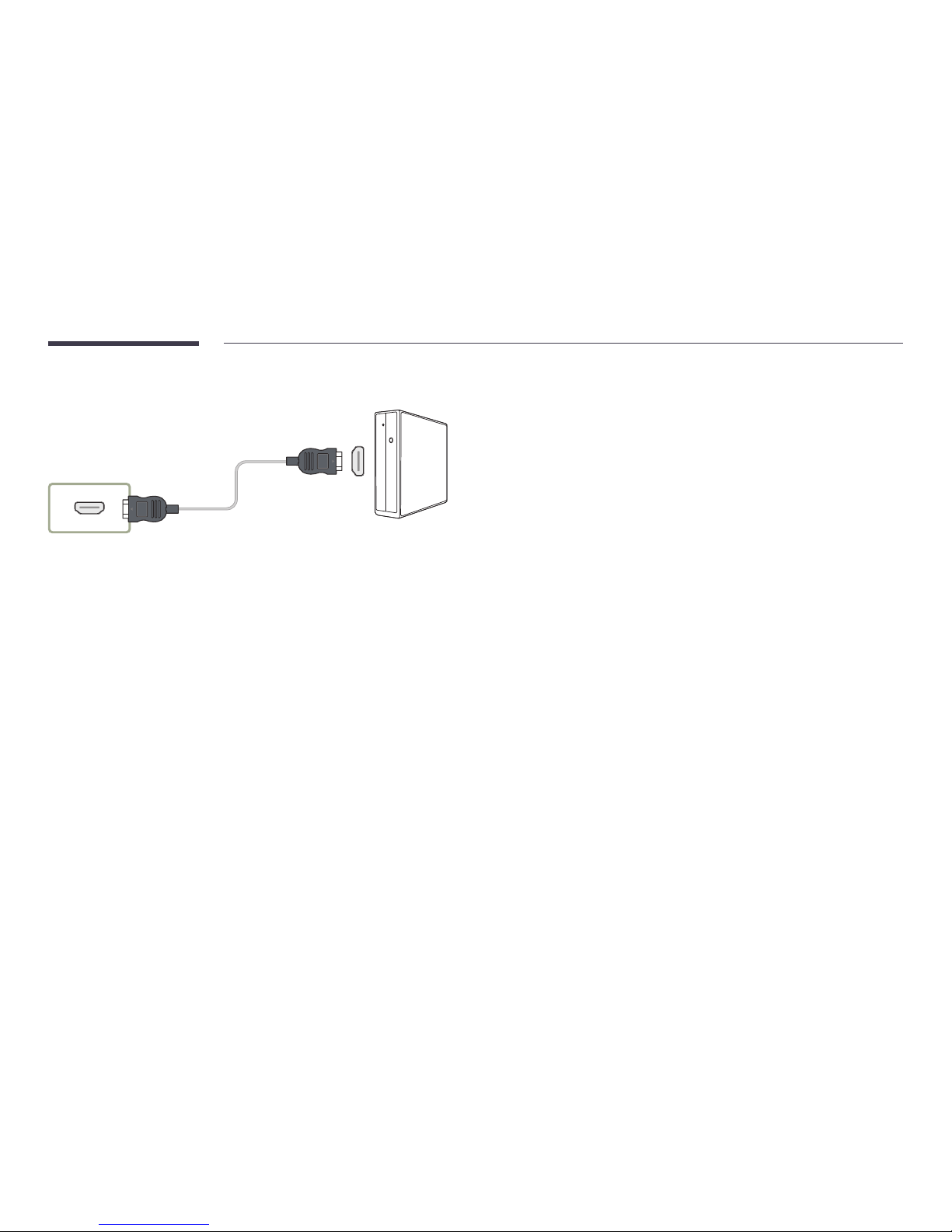

Connection Using an HDMI Cable
HDMI IN
Page 41
41
Connecting to a Video Device
•
Do not connect the power cable before connecting all other cables.
Ensure you connect a source device first before connecting the power cable.
•
You can connect a video device to the product using a cable.
―
Connecting parts may differ in different products.
―
Press the SOURCE button on the remote control to change the source.

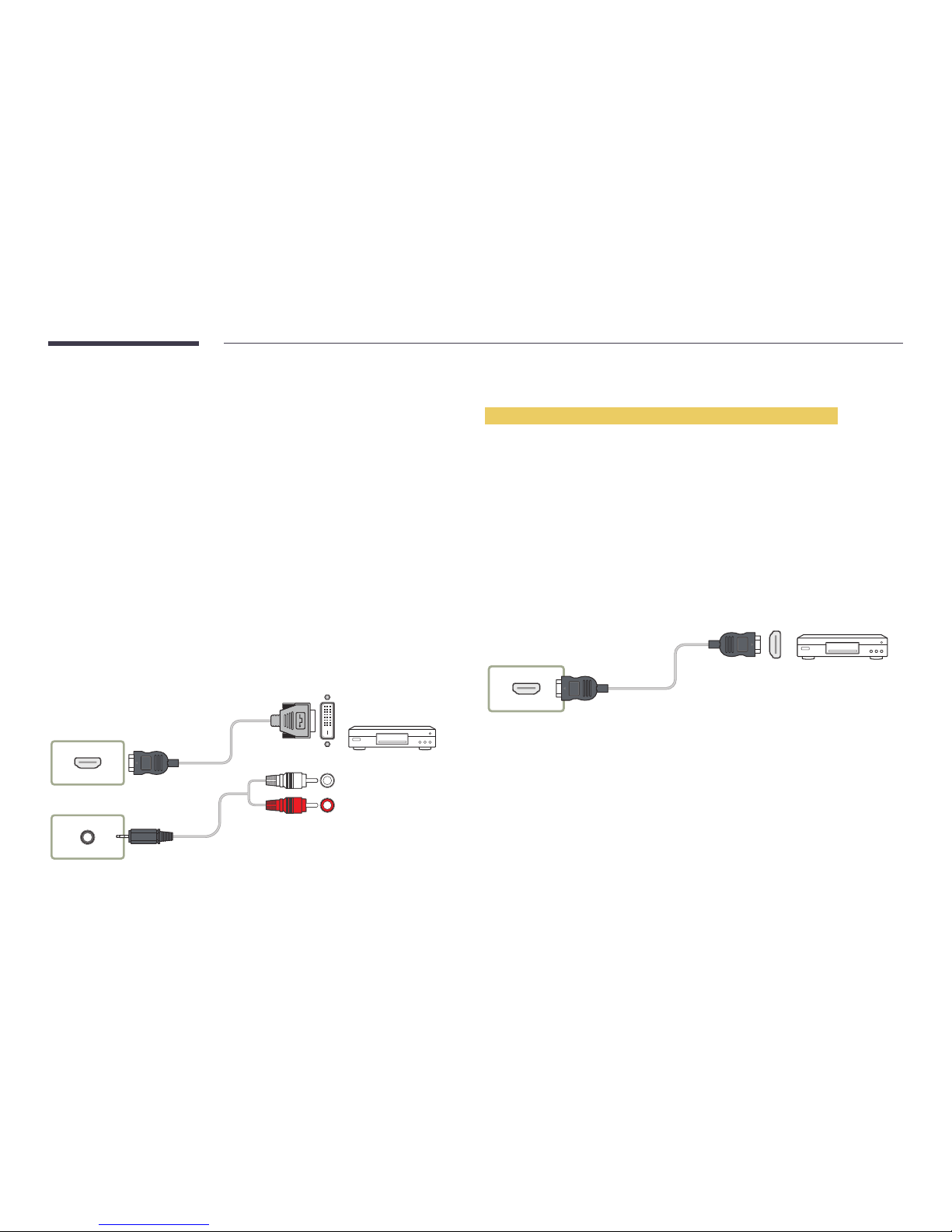

Connection Using an HDMI-DVI Cable
―
Audio will not be enabled if the product is connected to a video device using an HDMI-DVI cable. To
resolve this, additionally connect an audio cable to the audio ports on the product and video device.
―
After connecting a video device to the product with an HDMI-DVI cable, make sure to configure the
settings as shown below to enable the video and audio from the video device.
―
Sound → set HDMI Sound to AV(HDMI) (Model OM24E is only supported.)
―
Picture → set each screen mode to Videos/Images under Picture Mode
―
System → General → set HDMI Hot Plug to On
―
Supported resolutions include 1080p (50/60Hz), 720p (50/60Hz), 480p, and 576p.
HDMI IN
RGB / HDMI / AUDIO IN
(Model OM24E is only supported.)
Connection Using an HDMI Cable
Using an HDMI cable or HDMI to DVI Cable (up to 1080p)
•
For better picture and audio quality, connect to a digital device using an HDMI cable.
•
An HDMI cable supports digital video and audio signals, and does not require an audio cable.
-
To connect the product to a digital device that does not support HDMI output, use an HDMIDVI and audio cables.
•
The picture may not display normally (if at all) or the audio may not work if an external device that
uses an older version of HDMI mode is connected to the product. If such a problem occurs, ask the
manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
•
Be sure to use an HDMI cable with a thickness of 14 mm or less.
•
Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection
error may occur.
•
A basic high-speed HDMI cable or one with ethernet is recommended.
This product does not support the ethernet function via HDMI.
HDMI IN
Page 42
42

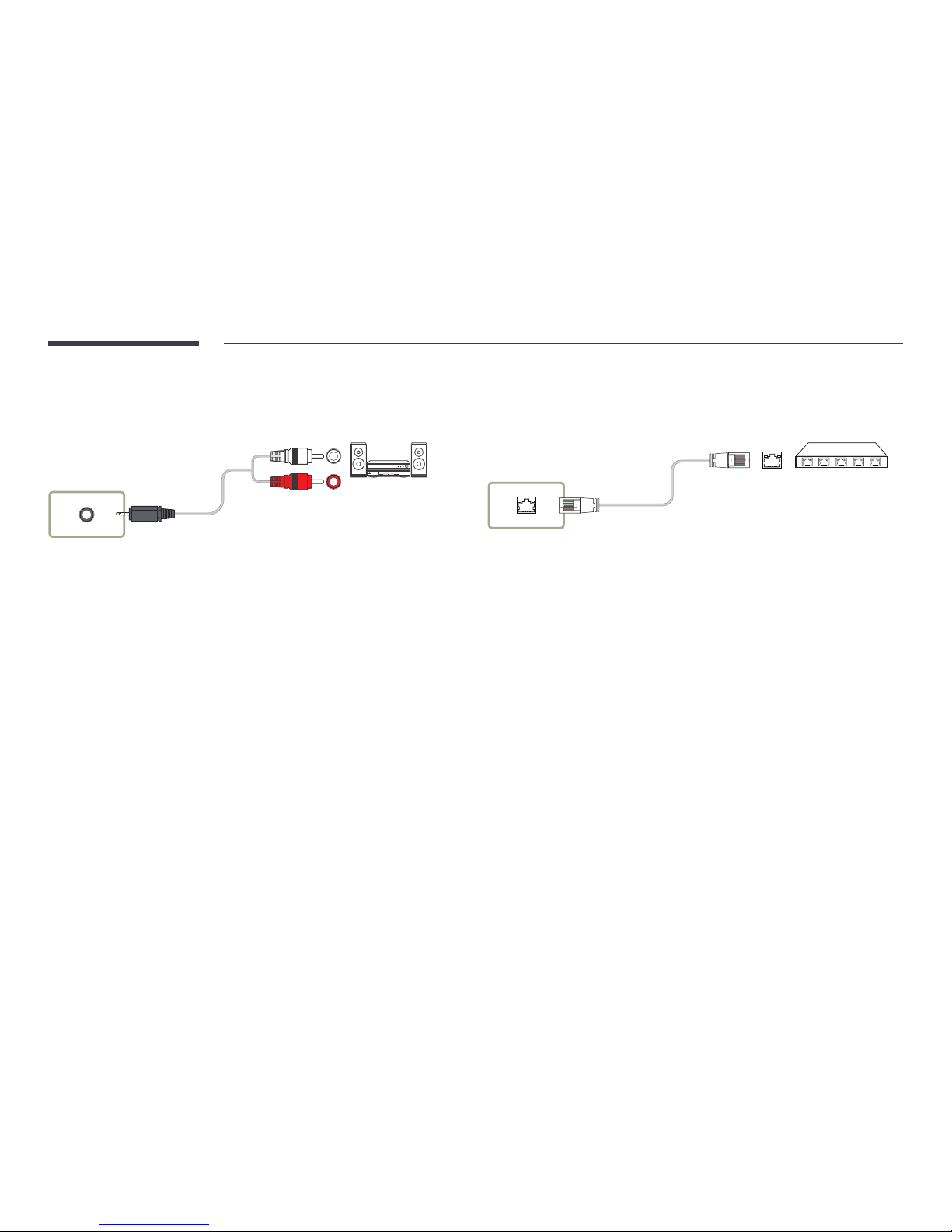

Connecting to an Audio System
―
Connecting parts may differ in different products.
AUDIO OUT
Connecting the LAN Cable
―
Connecting parts may differ in different products.
RJ45
•
Use Cat7(*STP Type) cable for the connection.
*Shielded Twist Pair
Page 43
43
Changing the Input source
Source
SOURCE → Source
Source
MagicInfo S
HDMI
----
USB
To go to Options, press and hold the Enter button.
-
The displayed image may differ depending on the model.
Source allows you to select a variety of sources and change source device names.
You can display the screen of a source device connected to the product. Select a source from source list to display the screen
of the selected source.
―
The input source can also be changed by using the SOURCE button on the remote control.
―
The screen may not display correctly if an incorrect source is selected for the source device you want to convert to.
―
To view detailed information about connected source devices, press the TOOLS button from the Source page.
Edit Name
SOURCE → Source → TOOLS → Edit Name → ENTER E
Customize the name of a connected external device.
―
The list can include the following source devices. Source devices on the list differ depending on the selected source.
PC / Cable STB / Satellite STB / PVR STB / Game / Blu-ray / DVD / VCR / AV Receiver / Camcorder / DVI PC / DVI
Devices / TV / IPTV / HD DVD / DMA
Information
SOURCE → Source → TOOLS → Information → ENTER E
You can see detailed information about the selected external device.
Page 44
44
Using MDC
MDC Programme Installation/Uninstallation
Installation
―
MDC installation can be affected by the graphics card, mother board and network conditions.
1
Click the MDC Unified installation programme.
2
Select a language for installation. Next, click "OK".
3
When the "Welcome to the InstallShield Wizard for MDC_Unified" screen appears, click "Next".
4
In the "License Agreement" window displayed, select "I accept the terms in the license
agreement" and click "Next".
5
In the displayed "Customer Information" window, fill out all the information fields and click
"Next".
6
In the displayed "Destination Folder" window, select the directory path you want to install the
programme in and click "Next".
―
If the directory path is not specified, the programme will be installed in the default directory
path.
7
In the displayed "Ready to Install the Program" window, check the directory path to install the
programme in and click "Install".
8
Installation progress will be displayed.
9
Click "Finish" in the displayed "InstallShield Wizard Complete" window.
―
Select "Launch MDC Unified" and click "Finish" to run the MDC programme immediately.
10
The MDC Unified shortcut icon will be created on the desktop after installation.
―
The MDC execution icon may not be displayed depending on the PC system or product
specifications.
―
Press F5 if the execution icon is not displayed.
Uninstallation
1
Select Settings > Control Panel on the Start menu and double-click Add/Delete Program.
2
Select MDC Unified from the list and click Change/Remove.
Multiple display control "MDC" is an application that allows you to easily control multiple display devices simultaneously using a PC.
- For details on how to use the MDC programme, refer to Help after installing the programme. The MDC programme is available on the website.
Chapter 04
Page 45
45
Connecting to MDC
Using MDC via RS-232C (serial data communications standards)
An RS-232C serial cable must be connected to the serial ports on the PC and monitor.
RS232C IN
Computer
Page 46
46
Using MDC via Ethernet
Enter the IP for the primary display device and connect the device to the PC. Display devices can be connected to each other using a LAN cable.

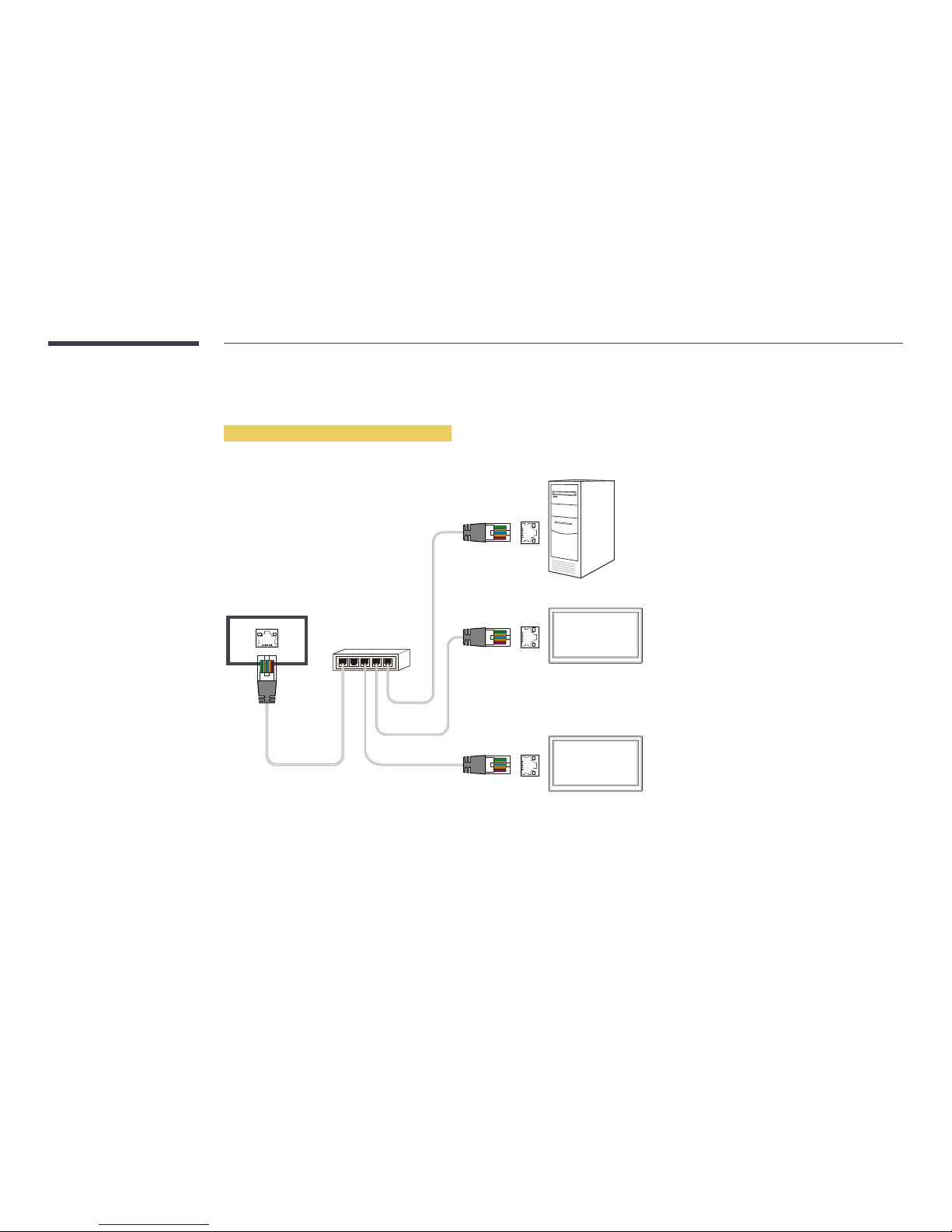

Connection using a direct LAN cable
―
Multiple products can be connected using the RJ45 port on the product and the LAN ports on the HUB.
RJ45
HUB
Monitor 1
Monitor 2
Computer
Page 47
47

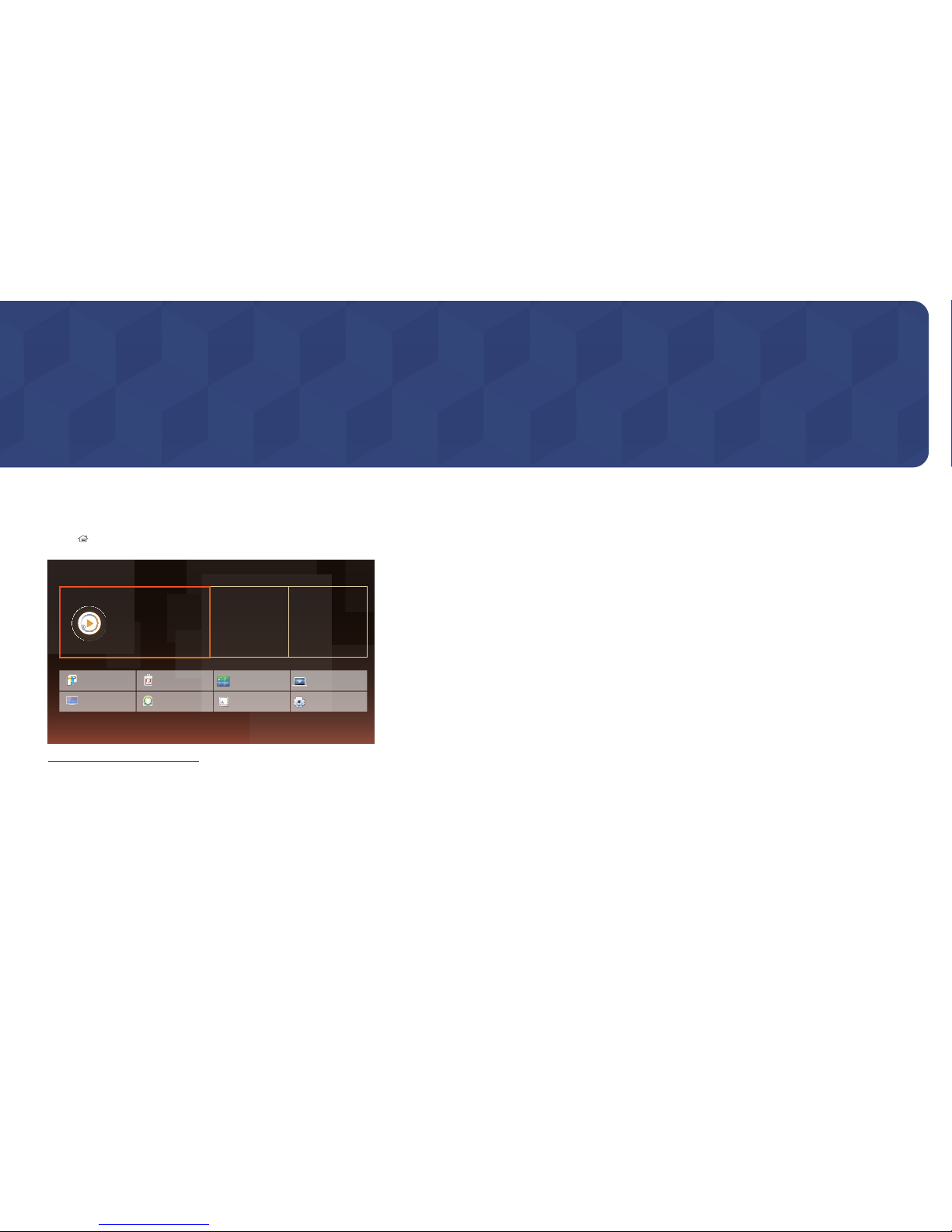

Home feature
―
To use the Player feature, set Play via to MagicInfo in System.
Play a range of content such as channels with schedules assigned, templates or files.
Play channels or content using any of the following methods.
•
Network Channel: Play content using the server.
―
To run Network Channel, make sure the product is connected to the server.
•
Local Channel: Play content in internal memory or from external memory.

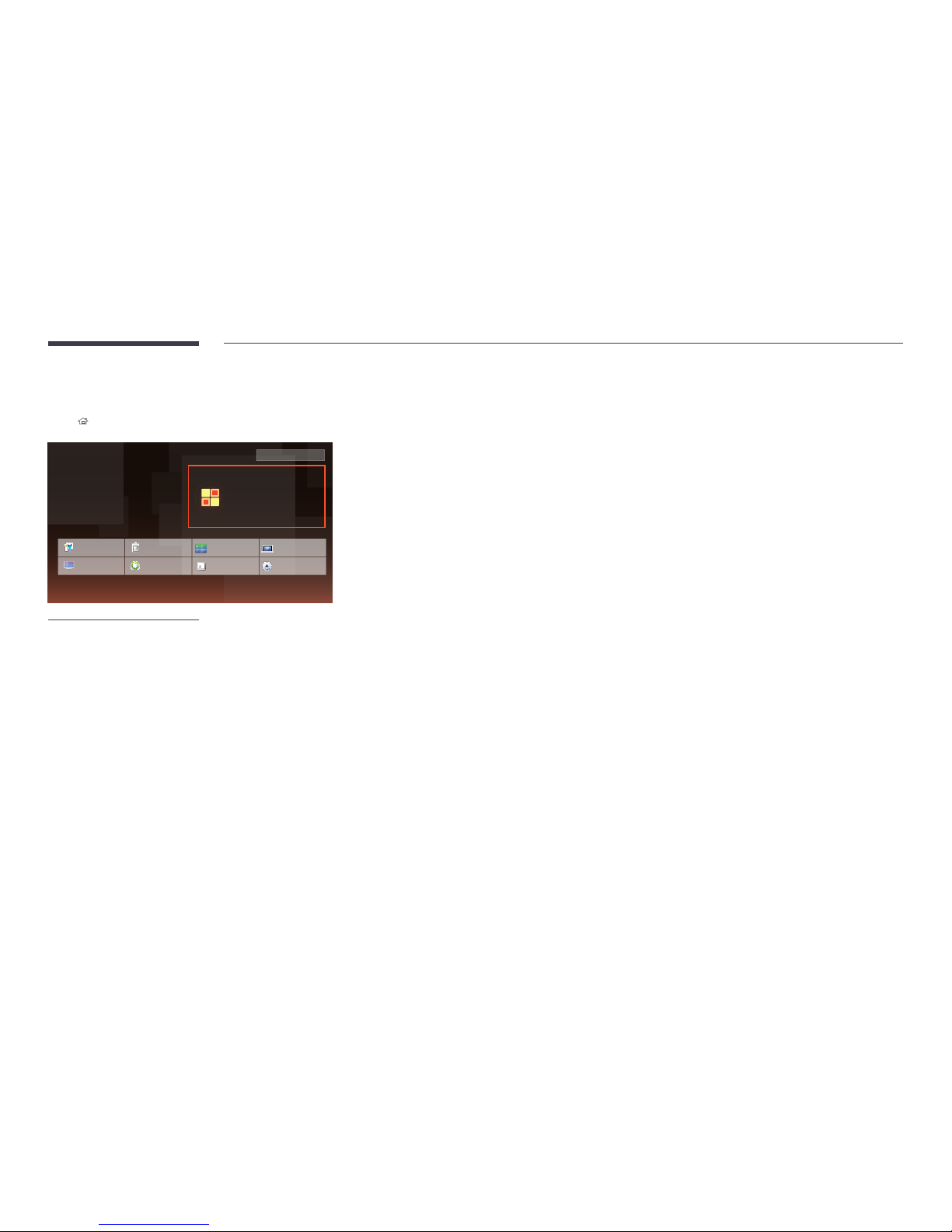

Player
HOME → Player → ENTER E
MagicInfo Player S3
Player
Play a variety of content, such as
scheduled channels, templates or files.
Clone Product
Picture Mode
ID Settings
On/Off Timer
Video Wall
Ticker
Network Status
More settings
Schedule Template
-
The displayed image may differ depending on the model.
This feature is provided in Support → Go to Home.
Accessible using the HOME button on the remote control.
Chapter 05
Page 48
48

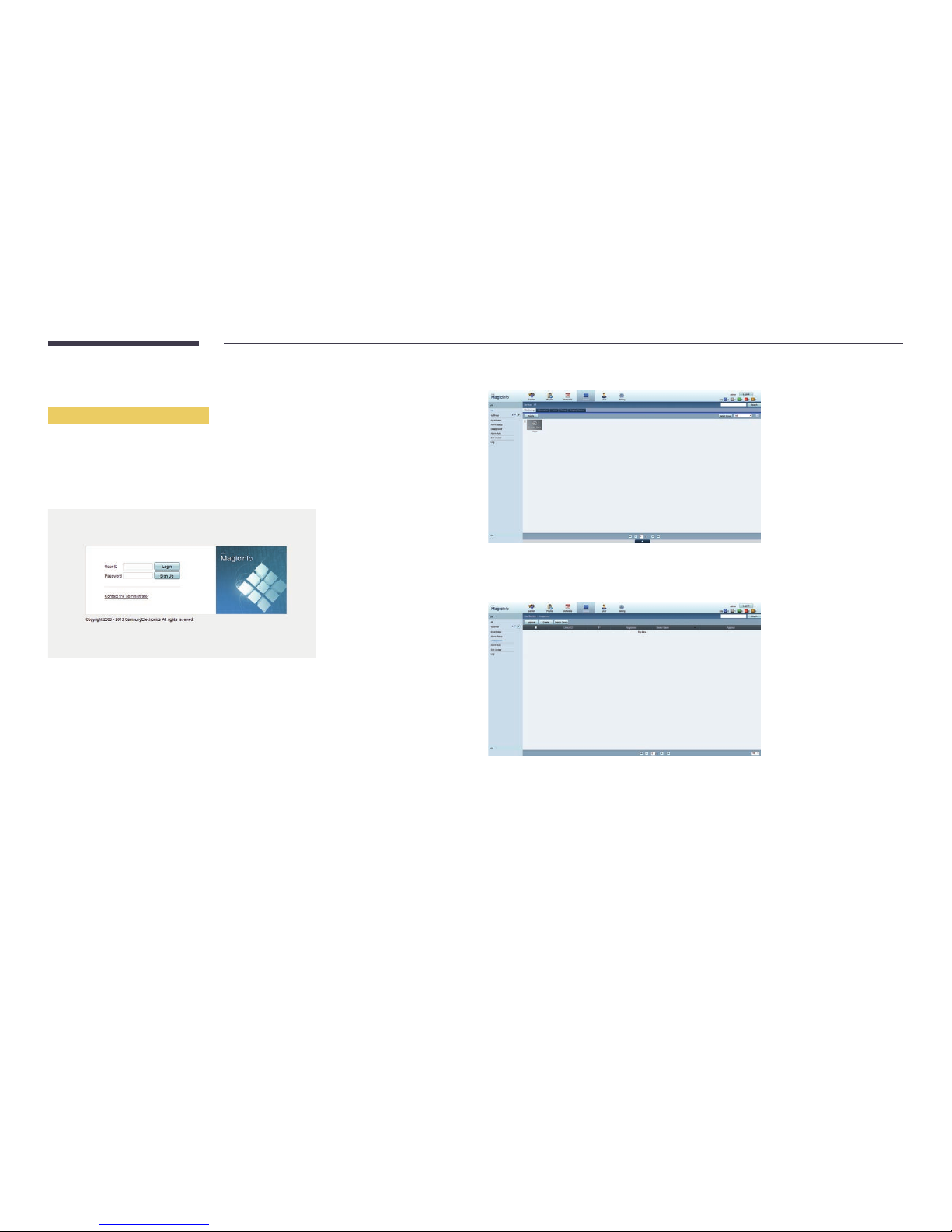

Approving a connected device from the server
Approving the Lite server
•
Set MagicInfo Mode to Lite in Server Network Settings.
Approve and use the Lite server now.
―
First configure the server Network Settings before device approval.
1
Access the server you have assigned to your device.
2
Enter your ID and password to log in.
3
Select Device from the top menu bar.
4
Select Lite from the menus on the left.
5
Select Unapproved from the sub-menus of Lite.
6
Select the Approve button for your device from the list of unapproved Lite devices.
Page 49
49
7
Enter the information required to approve the device.
•
Device Name: Enter the device name.
•
Device Group: Select
to specify the group.
•
Location: Enter the current location of the device.
―
Pressing the INFO button on the remote when a network schedule is running will display the details of
the schedule. Check that the correct device has been selected by viewing the device ID in the details.
8
Select the All menu to check that the device has been registered.
9
When the device is approved by the server, the schedule registered in the selected group will be
downloaded to the device. The schedule will run after it is downloaded.
―
For further details on how to configure a schedule, refer to the <MagicInfo Lite Server user's manual>.
―
If a device is deleted from the list of devices approved by the server, the device will reboot to reset its
settings.
Setting the current time
A schedule may not run if the time set on the device is different from the server's current time.
1
Go to the tabs Device → Time.
2
Select your device.
3
Select Clock Set, and sync the time with the server.
•
When connecting to the server for the first time, the time on the product is set using the GMT time
of the region where the server is installed.
•
The time on the product can be changed from the server as shown in step 3.
•
Turning the product off and then on again will restore the time setting on the product to the last
time that was set from the server.
―
For further details on how to manage the time (scheduling, holiday management, etc.), refer to the
<MagicInfo Lite Server user's manual>.
Page 50
50
Approving the Premium server
•
Set MagicInfo Mode to Premium in Server Network Settings.
Approve and use the Premium server now.
―
First configure the server Network Settings before device approval.
1
Access the server you have assigned to your device.
2
Enter your ID and password to log in.
3
Select Device from the top menu bar.
4
Select Premium from the menus on the left.
5
Select Unapproved from the sub-menus of Premium.
6
Select the Approve button for your device from the list of unapproved Premium devices.
Page 51
51
7
Enter the information required to approve the device.
•
Device Name: Enter the device name.
•
Device Group: Select
to specify the group.
•
Location: Enter the current location of the device.
―
Pressing the INFO button on the remote when a network schedule is running will display the details of
the schedule. Check that the correct device has been selected by viewing the device ID in the details.
8
Select the All menu to check that the device has been registered.
9
When the device is approved by the server, the schedule registered in the selected group will be
downloaded to the device. The schedule will run after it is downloaded.
―
For further details on how to configure a schedule, refer to the <MagicInfo Premium Server user's
manual>.
―
If a device is deleted from the list of devices approved by the server, the device will reboot to reset its
settings.
Setting the current time
A schedule may not run if the time set on the device is different from the server's current time.
1
Go to the tabs Device → Time.
2
Select your device.
3
Select Clock Set, and sync the time with the server.
•
When connecting to the server for the first time, the time on the product is set using the GMT time
of the region where the server is installed.
•
The time on the product can be changed from the server as shown in step 3.
•
Turning the product off and then on again will restore the time setting on the product to the last
time that was set from the server.
―
For further details on how to manage the time (scheduling, holiday management, etc.), refer to the
<MagicInfo Premium Server user's manual>.
Page 52
52
Network Channel
Play content, templates and schedules configured on the server.
•
You can view whether the server is connected (approval) in the Player menu screen.
To view whether the server is connected when a Network Channel is running, press INFO on the remote.
1
Select Network Channel from the Player menu.
―
The No channels message appears if no channel has been registered in Network Channel.
2
Network Channel will run.
Local Channel
Play a schedule or channel that was configured in the product.
1
Select Local Channel from the Player menu.
―
The No channels message appears if no channel has been registered in Local Channel.
2
Local Channel will run.
Published Content
Play a template stored on a connected USB device.
―
The Published Content feature appears only when a USB device containing templates is connected.
―
Play scheduled content.
Network File
Content files included in schedules that have been downloaded through MagicInfo Server are displayed.
My Templates
Play a template in My Templates stored in the internal memory of the product.
Player
Device : All Content : All Sort by : File Name
Options
1 / 4 item(s)
Browse and play content stored on the selected device.
No channels
Network Channel
Local Channel
Network File
My Templates
Published Content
No channels
-
The displayed image may differ depending on the model.
Page 53
53
Available features in the Player page
The Player list page provides the following features.
•
Device
Select either Internal or USB to search for a desired device list.
-
All / Internal / USB
•
Content
Select a content type as criterion to search for a desired content list.
-
All / Video / Image / PDF / Flash / Office / My Templates
•
Sort by
Specify the content sort criterion.
-
File name / Recently played
•
Options
Menu items in the Player page
Option Name Operations
Play Selected
Select and play desired content.
Send
Copy content to another storage device.
Delete
Delete desired content.
Settings
Configure detailed properties of content.
―
See the following page for details on the Settings feature.
Page 54
54
Player page Settings menu
Settings
Settings
Default Storage
Picture Size
Display Duration
Transition Effect
Content Orientation
Internal
Random
Landscape
Select the storage location that you want to download scheduled
channels from the network to.
Close
-
The displayed image may differ depending on the model.
Default Storage
Select the storage location that you want to download scheduled channels from the network to.
•
Internal / USB
Picture Size
Set the screen size for content.
If Picture Size is set to Video or Image
•
Full Screen / Original Size / Fit to Screen
If Picture Size is set to PDF or Office
•
Full Screen / Original Size
―
This feature is only available for Video, Image, PDF and Office files.
Display Duration
Set the duration for each page in a slideshow.
―
This feature is only available for Image, PDF, Flash and Office files.
Transition Eect
Configure transition effects between pages or scenes in a slideshow or video file.
•
None / Fade1 / Fade2 / Blind / Spiral / Checker / Linear / Stairs / Wipe / Random
―
This feature is only available for Image files.
Content Orientation
Switch the orientation of playing content to Landscape or Portrait mode.
•
Landscape / Portrait
―
If Content Orientation is Portrait view, it does not support VP8 video codec.
―
Source is not available when Content Orientation is set to Portrait.
Page 55
55
Default content
This default content will be displayed if you run a channel while no programmes are scheduled on the channel.
•
None / My Templates
Safely Remove
Safely removes USB memory
Reset
Restore all the values under Settings to the default when the product was purchased.
Page 56
56
When Content is Running
Viewing the details of the content that is running
No Schedule to download
Information
Current Time:
Type:
CH Number:
CH Name:
Software Version:
00:00pm
Network Channel
No channels selected
No channels selected
B2B-EP-APP-5561-GolfS....
OK
-
The displayed image may differ depending on the model.
Press the INFO button on the remote control.
•
Current Time
•
Type: Type of channel currently playing
―
Only applicable during Network Channel / Local Channel playback.
•
CH Number: Number assigned to the channel currently playing
―
Only applicable during Network Channel / Local Channel playback.
•
CH Name: Name of the channel currently playing
―
Only applicable during Network Channel / Local Channel playback.
•
Software Version: Displays the software version of a device
•
MAC ID: Displays the original identification number of a device
•
Tags: Tag settings assigned to a device from the server
―
Only applicable during Network Channel / Local Channel playback.
•
Server: Displays the connection status (Connected, Not connected or Not approved) of the server
•
USB: Displays the connection status of a USB device
Page 57
57
Changing the settings for the content that is running
Music
Playlist Picture Mode Sound Mode Repeat
-
The displayed image may differ depending on the model.
Press the TOOLS button on the remote control during content playback to configure settings such as Picture Mode and
Sound Mode.
•
Playlist
View a list of content items currently playing.
•
Music
Set the background music for the content currently playing.
•
Picture Mode
Customizes the screen settings for the content currently playing
-
Shops & Shopping Centres / Offices & Schools / Terminals & Stations / Video Wall / Calibration
•
Sound Mode
―
Model OM24E is only supported.
Customizes the audio settings for the content currently playing
-
Standard / Music / Movie / Clear Voice / Amplify
•
Repeat
Set the repeat mode.
-
One / All
Page 58
58
File Formats Compatible with Player
•
Supported file systems include FAT32 and NTFS.
•
A file with a vertical and horizontal resolution larger than the maximum resolution cannot be
played.
Check the vertical and horizontal resolution of the file.
•
Check the supported video and audio Codec types and Versions.
•
Check the supported file versions.
-
Flash player 11.0 and older and Flash Air 3.0 and older versions are supported.
-
PowerPoint version up to 97 – 2007 is supported
•
Only the last USB device that was connected is recognized.
Network Schedule Multiframe
Playback restrictions
•
A maximum of two video files (Video) can be played simultaneously.
•
For video files with vertical dimensions of 1080p or larger, only one file can be played at a time.
•
The maximum number of 4096 x 4096-dimension image files that can be played simultaneously
from a media slide is four.
•
More than one Flash file cannot be played.
•
If an input source element is included, only one video file or media slide can be played
simultaneously.
•
In a combination of "video files + Flash files + input source elements," supported combinations of
different content files that can simultaneously play are as follows:
-
Video + Flash
-
Video + input source element
-
Flash + input source element
•
For Office files (PPT and Word files) and PDF files, only one file type is supported at a time.
•
LFD(.lfd) files are not supported.
Sound output restrictions
•
More than one sound output cannot be used.
•
Playback priority: Flash file > network BGM > local BGM > video file in the main frame selected
by the user
―
Network BGM: Settings can be configured in step 1 when creating a server schedule.
―
Local BGM: BGM settings can be configured using the tools displayed after the TOOLS button
is pressed during Player playback.
―
User-selected main frame: Main frame settings can be configured in step 2 when creating a
server schedule.
Template files and LFD(.lfd) files
Restrictions
•
Ensure a distributed folder (content / schedules) exists in Internal / USB memory.
Playback restrictions
•
A maximum of two video (Video) files can be played.
•
More than one Flash file cannot be played.
•
For Office files (PPT and Word files) and PDF files, only one file type is supported at a time.
•
Multiple videos (Video) cannot be played on a single display of a video wall simultaneously.
Sound output restrictions
•
More than one sound output cannot be used.
•
Playback priority: Flash file > network BGM > local BGM > video file in the main frame selected
by the user
Page 59
59
Contents
File Extension Container Video Codec Resolution Frame rate
(fps)
Bit rate
(Mbps)
Audio Codec
*.avi
*.mkv
*.asf
*.wmv
*.mp4
*.mov
*.3gp
*.vro
*.mpg
*.mpeg
*.ts
*.tp
*.trp
*.v
*.vob
*.svi
*.m2ts
*.mts
*.divx
AVI
MKV
ASF
MP4
3GP
VRO
VOB
PS
TS
DivX 3.11 / 4.x / 5.x / 6.x 1920 x 1080 6~30 30
AC3
LPCM
AAC
HE-AAC
WMA
DD+
MPEG(MP3)
DTS Core
G.711(ALaw,μ-Law)
MPEG4 SP / ASP
H.264 BP / MP / HP
Motion JPEG
Window Media Video v9
MPEG2
MPEG1
VP6 640 x 480 4
Page 60
60
Video Audio Image
•
3D video is not supported.
•
Content with a resolution larger than the
resolution specified in the table above is not
supported.
•
Video content with a Bit rate or Frame rate larger
than the rate specified in the table above can
cause choppy video during playback.
•
Video content will not play, or not play correctly,
if there is an error in the content or the container.
•
Some USB/digital camera devices may not be
compatible with the player.
•
Supports up to H.264, Level 4.1
•
H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and
AVCHD are not supported.
•
For all Video codecs except MVC, VP8, VP6:
-
Below 1280 x 720: 60 frame max
-
Above 1280 x 720: 30 frame max
•
GMC 2 or higher is not supported.
•
Supports only BD MVC Spec.
•
Only one video file can play at a time if video files
on the monitor use incompatible codecs or the
resolution is 1080 x 1920.
•
When a single video file is playing, Seamless
mode is not supported under the following
conditions:
-
Incompatible codec (MVC, VP3, MJPEG) ↔
Incompatible codec
-
Incompatible codec ↔ Compatible codec
-
The resolution is different from that of the
monitor
-
The frequency is different from that of the
monitor
•
Audio content with a Bit rate or Frame rate
larger than the rate specified in the table above
can cause choppy audio during playback.
•
Video content will not play, or not play
correctly, if there is an error in the content or
the container.
•
Some USB/digital camera devices may not be
compatible with the player.
•
Supports up to WMA 10 Pro 5.1 channel. WMA
lossless audio is not supported.
•
QCELP, AMR NB/WB are not supported.
•
Compatible image file format : JPEG, PNG, BMP
―
32-bit, 24-bit and 8-bit BMP files are
supported.
•
Supported maximum resolution : 4096 x 4096
•
Supported maximum file size: 20MB
•
Supported image effects : 9 effects
(Fade1, Fade2, Blind, Spiral, Checker, Linear,
Stairs, Wipe, Random)
Page 61
61
Flash Power Point PDF
•
Flash player 11.0 and older and Flash Air 3.0 and
older versions are supported.
•
Flash Animation
-
Compatible file format : SWF
•
Recommended resolution : 1280 x 720
-
Caution
Performance comparable to Flash Player
on a Windows operating system cannot be
guaranteed
Optimization is needed during content
creation
•
Flash Video
-
Compatible file format : FLV
-
Video
Codec : H.264 BP
Resolution : 1920 x 1080
-
Audio
Codec : H.264 BP
-
Caution
F4V file format is not supported
Screen Video is not supported
•
Compatible document file formats
-
Extension : ppt, pptx
-
Version : Office 97 ~ Office 2007
•
Functions not supported
-
Animation effect
-
3D shapes (which will be displayed in 2D)
-
Header and footer (some subitems are not
supported)
-
Word Art
-
Align
A group alignment error may occur
-
Office 2007
SmartArt is not fully supported. 97 out of
115 subitems are supported.
-
Object insertion
-
Half-width characters
-
Letter spacing
-
Charts
-
Vertical text
some subitems are not supported
-
Slide notes and handout
•
Compatible document file formats
-
Extension : pdf
•
Functions not supported
-
Content less than 1 pixel not supported
because of performance degradation issue.
-
Masked Image, Tiled Image content not
supported.
-
Content with Rotated Text, not supported.
-
3D Shadow Effects not supported.
-
Some characters not supported
(Special characters may be corrupted)
Page 62
62
WORD Template les LFD Streaming
•
Compatible document file
formats
-
Extension : .doc, .docx
-
Version : Office 97 ~ Office
2007
•
Functions not supported
-
Page background effect
-
Some paragraph styles
-
Word Art
-
Align
A group alignment error may
occur
-
3D shapes (which will be
displayed in 2D)
-
Office 2007
SmartArt is not fully
supported. 97 out of 115
subitems are supported.
-
Charts
-
Half-width characters
-
Letter spacing
-
Vertical text
some subitems are not
supported
-
Slide notes and handout
•
Creation/editing/playback are
only available in Template.
•
Supported in Network Channel
and Local Channel
•
Compatible document file
formats
-
Extension : .lfd
•
Supported streaming protocols:
mms, RTP, HTTP
•
Only video content is supported
Page 63
63
File Formats Compatible with Video Wall
―
Refer to the <MagicInfo Server user's manual> for further details.
Video Image
•
3D video is not supported.
•
Content with a resolution larger than the resolution specified in the table
above is not supported.
•
Video content with a Bit rate or Frame rate larger than the rate specified in
the table above can cause choppy video during playback.
•
Video content will not play, or not play correctly, if there is an error in the
content or the container.
•
Some USB/digital camera devices may not be compatible with the player.
•
Supports up to H.264, Level 4.1
•
H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.
•
For all Video codecs except MVC, VP8, VP6:
-
Below 1280 x 720: 60 frame max
-
Above 1280 x 720: 30 frame max
•
GMC 2 or higher is not supported.
•
Supports only BD MVC Spec.
•
Some codecs may not be supported in portrait playback mode.
•
Compatible image file format : Jpeg, bmp, png
•
Supported maximum resolution : 15,360 x 8,640
―
A higher resolution image may take longer to display on the screen.
Page 64
64

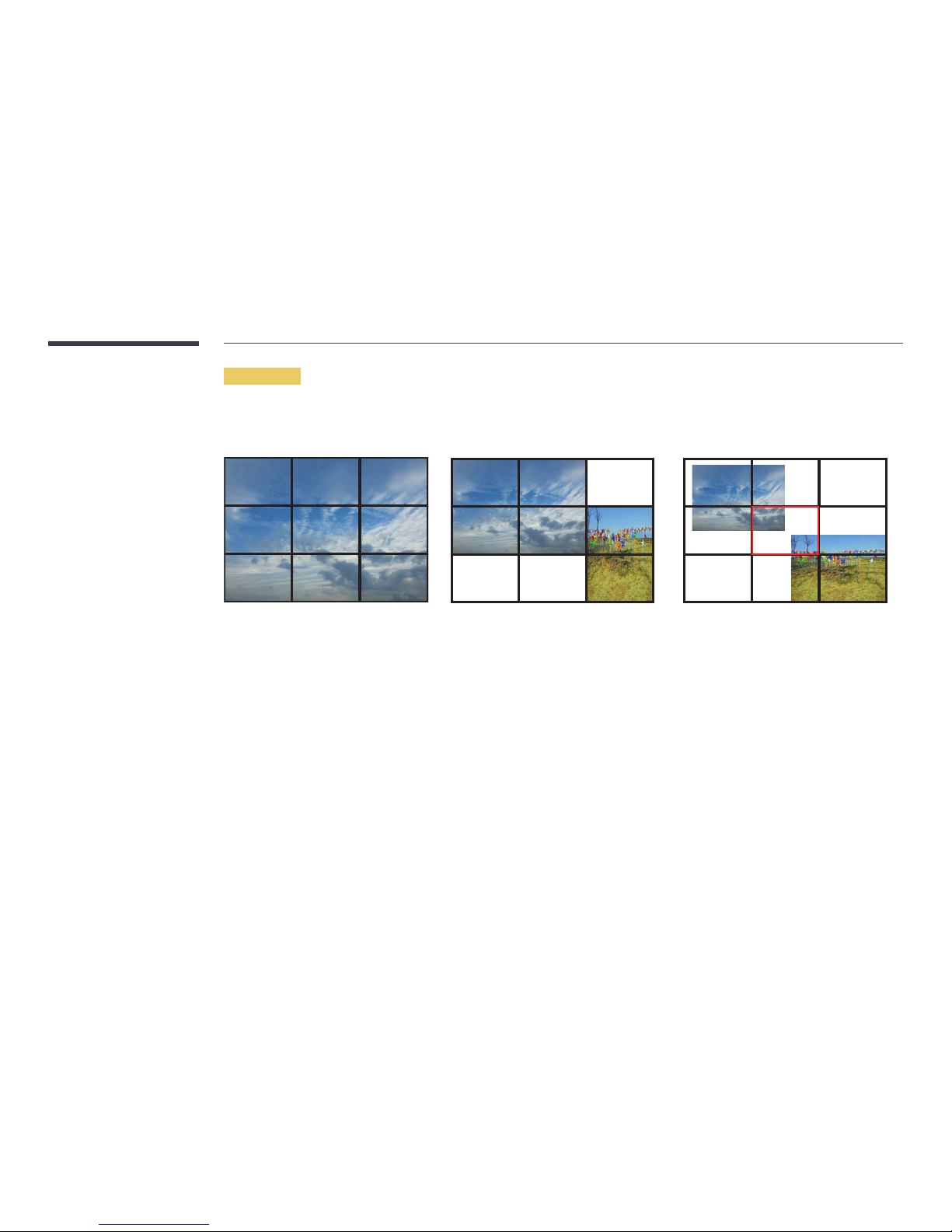

Restrictions
•
Only one video (Video) file can be played per client.
―
Different content files can be played on the displays of a video wall.
Two video (Video) files cannot be played on a single display of a video wall.
Available
Available Not available
Page 65
65

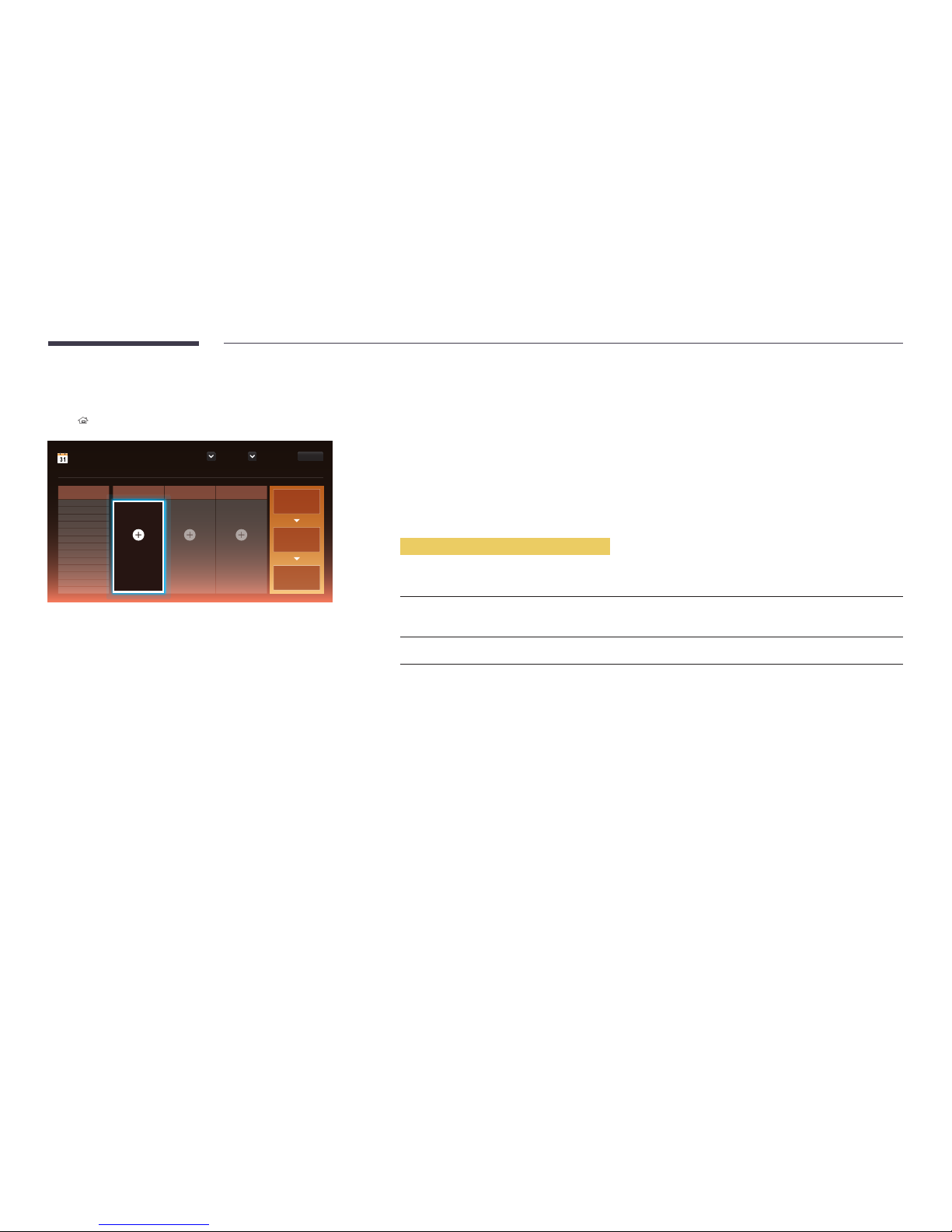

Schedule
HOME → Schedule → ENTER E
[CH1]Channel 1 [CH2]Channel 2 [CH3]Channel 3
12:00 am
12:30 am
01:00 am
01:30 am
02:00 am
02:30 am
03:00 am
03:30 am
04:00 am
04:30 am
05:00 am
05:30 am
06:00 am
Add content to create
a programme on the
channel.
Configure the display
duration to set how
long each item of
content will play for.
Set a start time and
a stop time for the
programme.
Playing Time
OptionsType : Local Device : Internal
Schedule your content on a local channel or edit existing channels.
Schedule
+ Add Programme Schedule your content on
CH 2.
Schedule your content on
CH 3.
Available features in the Schedule page
The Schedule page provides the following features.
•
Type
-
Local: Add or edit schedules.
-
Network: View the network schedule configured on the server.
•
Device
-
Display the name of a connected storage device.
―
This option only activates if Type is set to Local in Device.
•
Options
Menu items in the Schedule page
Option Name Operations
Send
Send configured schedules to another storage device. This is similar to the "copy" feature
on PCs.
Delete
Delete schedules.
Page 66
66
Configuring channel schedules
Play media content such as videos, photos and music at a desired time.
1
Select a channel to configure.
2
Select video, music and photo content you want to apply to the channel schedule.
3
Set the time to play the schedule. (Start Time ~ Stop Time)
4
Change the channel schedule name, and then select a destination folder to save to.
5
Press the Save button.
―
Only applicable when Type is set to Local.
Editing a channel schedule.
Change settings for a configured channel schedule such as content, the duration and the schedule name.
1
Select a channel to edit.
2
Select video, photo or music content to edit in the channel schedule.
-
Deleting content: Place the cursor over the desired content and then press the E button to delete it.
-
Move to the far right end of the content list. Click the + button to add content or change the playback order of content items.
3
Set the time to play the schedule. (Start Time ~ Stop Time)
4
Change the channel schedule name, and then select a destination folder to save to.
5
Press the Save button.
―
Only applicable when Type is set to Local.
Page 67
67
Template
HOME → Template → ENTER E
Market : All
Orientation : Landscape
1 / 64 item(s)
Select a template to customise.
Template
My Templates
-
The displayed image may differ depending on the model.
Available features in the Template page
Create unique content using templates. It is easy to create content. Simply change images and text in a
template.
Sort the template list using the following criteria.
•
Market
•
Orientation
-
Landscape: Select this mode when using the product in landscape orientation.
-
Portrait: Select this mode when using the product in portrait orientation.
1
Select a template from the provided sample templates.
New town
interior design
Sustainble evolution unfolods tomorrw’s design
bg_co...
Background Screen Background Music
Select in the editable zone to add content or edit the existing text.
Create Template
Preview
Save
Cancel
2
Organize a template by inserting text, video, photo, or PDF files as desired.
Page 68
68

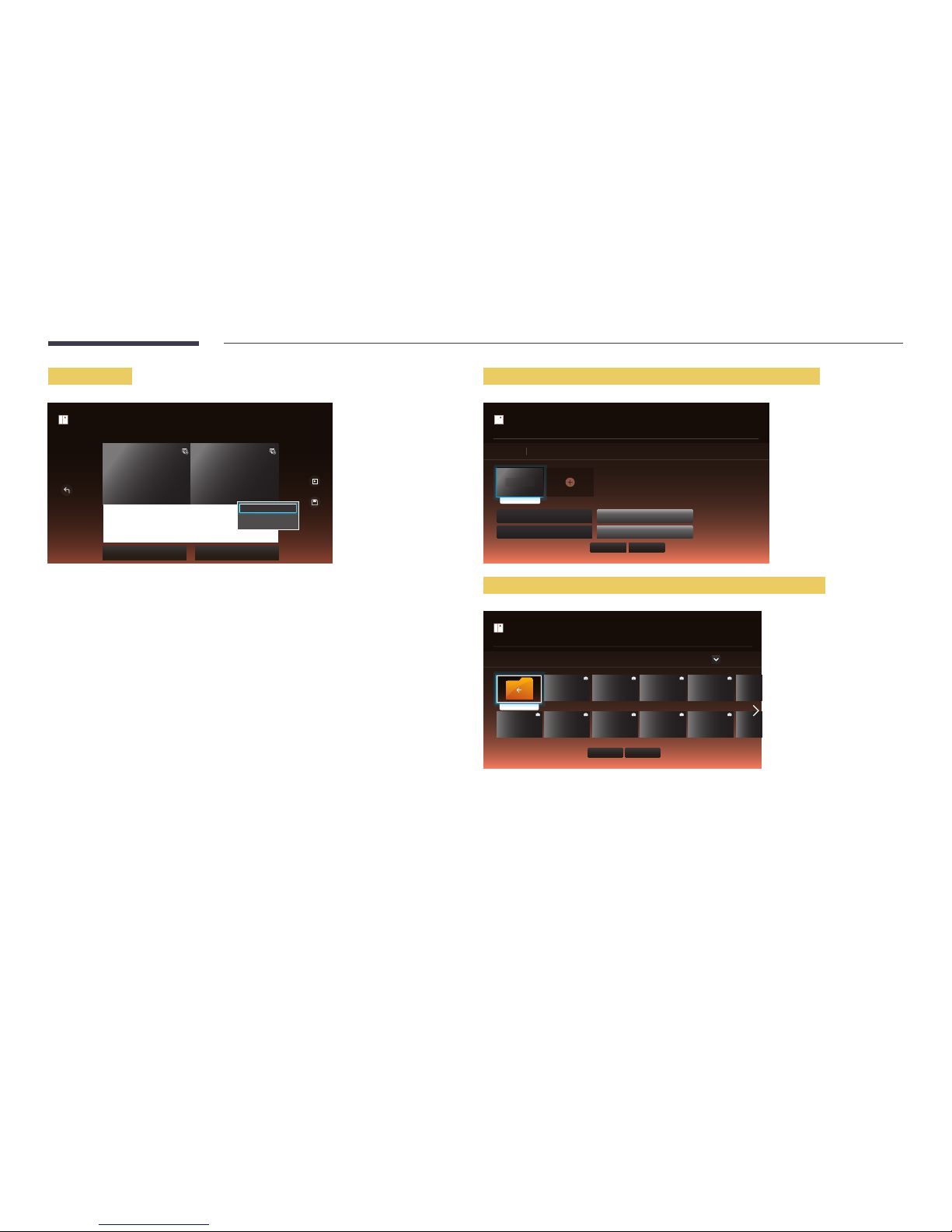

Entering text
New town
interior design
Sustainble evolution unfolods tomorrw’s design
bg_co...
Aa
Background Screen Background Music
Select in the editable zone to add content or edit the existing text.
Create Template
Preview
Save
Edit Text
Font options
Cancel
Press the volume button on the remote to
change the font size.
Edit Text
Select the Edit Text window to enter text.
Font options
Font Size: Specify the text size for the message.
Font Colour: Specify the text colour for the message.
Background colour: Specify the background colour for the message.
Background opacity: Specify the background transparency for the message.
Alignment: Select a message alignment mode.
Scroll: Specify the scroll direction/speed for the message.
Hide Element: Display or hide a message.
―
Selecting Hide does not reset the message settings.
Reset: Reset all settings in Font options to default settings.
Inserting content such as videos, photos and PDF files
Edit
Default content duration
Hide Element Show Aspect Ratio
Mute
Item(s) selected
Select item to delete
Select in the editable zone to add content or edit the existing text.
Create Template
Done Cancel
00:00:05
Configuring the background image/background music
..
bg_common_02.jpg bg_common_04.jpg bg_common_06.jpg bg_common_10.jpg bg_commo
bg_common_03.jpgbg_common_01.jpg bg_common_05.jpg bg_common_07.jpg bg_common_11.jpg bg_commo
Background Screen
Device : All
Done
Cancel
Select in the editable zone to add content or edit the existing text.
Create Template
Page 69
69
Preview
New town
interior design
Sustainble evolution unfolods tomorrw’s design
Template preview is running. It will stop after 20
seconds.
1
Preview the created template using the Preview feature.
2
To save the template, press the Save button.
3
Configure Template Name and Storage.
Save
Duration
Template Name
Storage
23:59:59
Template01
Internal
Save Cancel
4
Press the Save button to finish creating the content.
Page 70
70
Clone Product
HOME → Clone Product → ENTER E
Clone Product
-
The displayed image may differ depending on the model.
Export settings on the product to an external storage device. You can also import settings from an external storage device.
This option is useful when assigning the same settings to several products.
When a duplicate le is not found on the external storage device
1
Connect the external storage device, then run the Clone Product function.
2
The No cloning file found on the external storage device. Export this device's settings to the external storage
device? message appears.
When a duplicate le is found on the external storage device
1
Connect the external storage device, then run the Clone Product function.
2
The Settings file found on the external storage device. Please select an option. message appears.
Run the Import from External Storage or Export to External Storage function.
-
Import from External Storage: Copy settings saved on an external storage device to the product.
-
Export to External Storage: Copy settings on the product to an external storage device.
―
After configuration is complete, the product is rebooted automatically.
Page 71
71
ID Settings
HOME → ID Settings → ENTER E
ID Settings
-
The displayed image may differ depending on the model.
Assign an ID to a set.
Device ID
Enter the ID number of the product connected to the input cable for input signal reception. (Range: 0~224)
―
Press u/d to select a number, and press E.
―
Enter the number you want using the number buttons on the remote control.
PC Connection Cable
Select a method to connect to MDC to receive the MDC signal.
•
RS232C cable
Communicate with MDC via the RS232C-stereo cable.
•
RJ-45 (LAN)/Wi-Fi Network (OM24E) / RJ45(LAN) cable (OH24E)
Communicate with MDC via the RJ45 cable.
Page 72
72
Video Wall
HOME → Video Wall → ENTER E
Video Wall
-
The displayed image may differ depending on the model.
Customize the layout of multiple displays that are connected to form a video wall.
In addition, display part of a whole picture or repeat the same picture on each of the connected multiple displays.
To display multiple images, refer to MDC Help or the MagicInfo user guide. Some models may not support the MagicInfo
function.
Video Wall
You can activate or deactivate Video Wall.
To organize a video wall, select On.
•
Off / On
Horizontal x Vertical
This feature automatically splits a videowall display based on a videowall matrix configuration.
Enter the videowall matrix.
The videowall display is split based on the configured matrix. The number of vertical or horizontal display devices can be set
within the range 1 and 15.
―
A videowall display can be split into a maximum of 100 screens.
―
The Horizontal x Vertical option is only enabled when Video Wall is set to On.
Screen Position
To rearrange split screens, adjust the number for each product in the matrix using the Screen Position feature.
Selecting Screen Position will display the videowall matrix with the numbers assigned to the products that form the videowall.
To rearrange products, use the direction buttons on the remote control to move a product to another desired number. Press
the E button.
―
Screen Position allows you to split the screen into a maximum of 100 views (15x15). The maximum number of views that
can be split when products are connected via DP Loopout is also 100.
―
The Screen Position option is only enabled when Video Wall is set to On.
―
To use the function, make sure Horizontal x Vertical is configured.
Page 73
73
Format
Select how to display images on the videowall display.
•
Full: Display images in full screen with no margin.
•
Natural: Display images in the original aspect ratio without enlarging or reducing the size.
―
The Format option is only enabled when Video Wall is set to On.
Page 74
74
Check the current network and Internet connection.
Network Status
HOME → Network Status → ENTER E
Network Status
-
The displayed image may differ depending on the model.
Page 75
75

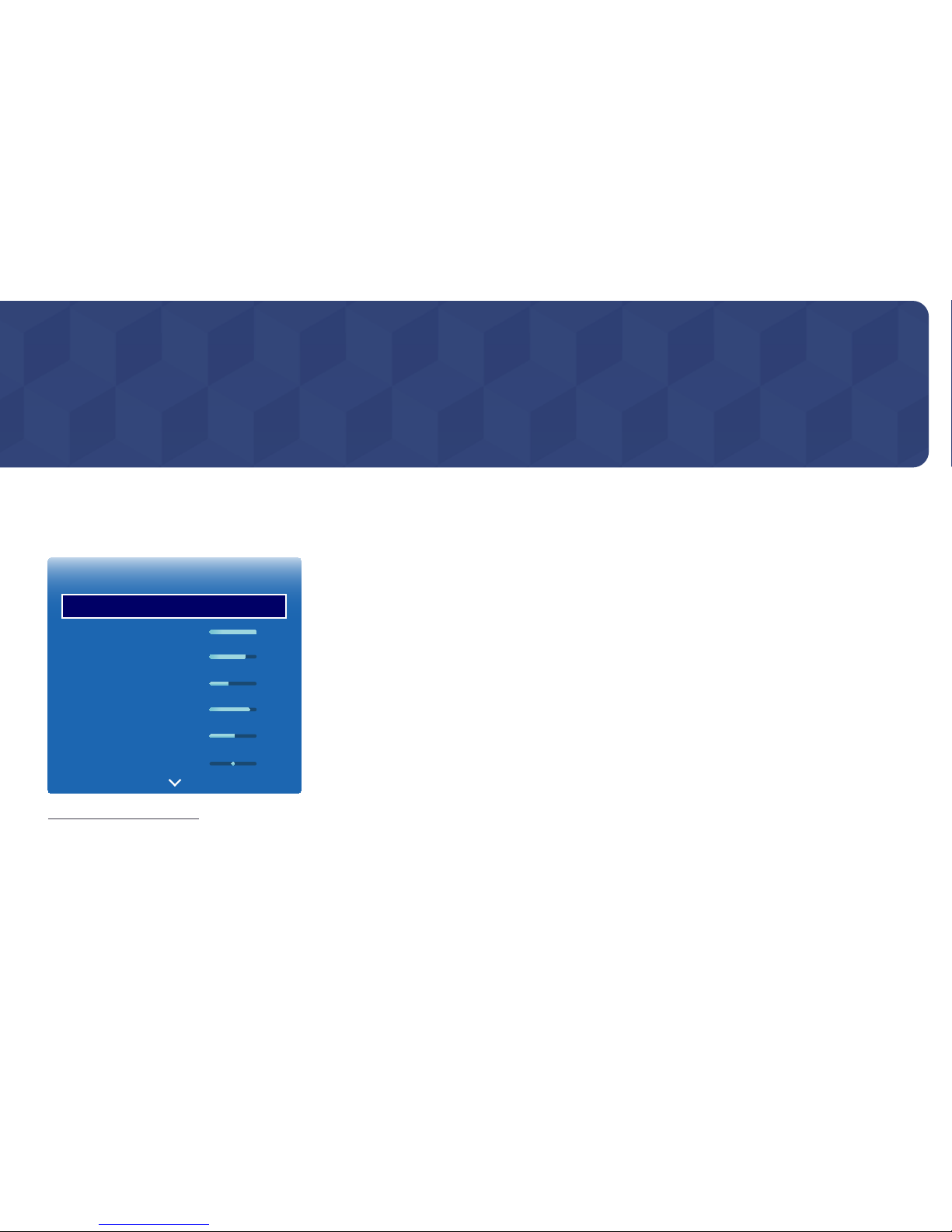

Picture Mode
HOME → Picture Mode → ENTER E
Picture Mode
-
The displayed image may differ depending on the model.
Select a picture mode (Picture Mode) suitable for the environment where the product will be used.
Videos/Images mode improves the picture quality of the video device. Tex t mode improves the picture quality of the
computer.
•
Shops & Shopping Centres
Suitable for shopping malls.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Offices & Schools
Suitable for offices and schools.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Terminals & Stations
Suitable for bus terminals and train stations.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Video Wall
Suitable for environments where videowall display are used.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Calibration
In this mode, the brightness, colour, gamma and uniformity settings customized using the colour calibration programme
Advanced Color Management are applied.
-
To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness,
colour, gamma and uniformity, using the colour calibration programme Advanced Color Management.
-
To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions.
•
BD Wise
Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise.
When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.
-
Available when you connect Samsung products that support BD Wise through an HDMI cable to the product.
-
The BD Wise function is enabled only when a source device with the BD Wise function is connected.
Page 76
76
On/O Timer
HOME → On/Off Timer → ENTER E
On/Off Timer
-
The displayed image may differ depending on the model.
―
You must set Clock Set before you can use this feature.
On Timer
Set On Timer so that your product turns on automatically at a time and on a day of your choosing.
The power is turned on with the specified volume or input source.
On Timer: Set the on timer by making a selection from one of the seven options. Ensure you set the current time first.
(On Timer 1 ~ On Timer 7)
•
Setup: Select Off, Once, Ever yday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.
If you select Manual, you can choose the days you want On Timer to turn on your product.
-
The check mark indicates days you’ve selected.
•
Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left
and right arrow buttons to change entry fields.
•
Volume: Set the desired volume level. Use the left and right arrow buttons to change the volume level.
•
Source: Select the input source of your choice.
•
Content (when the Source is set to Internal/USB): From the USB device or internal memory device, select a folder
containing content you want to play when the product turns on. Content can include music, photo or video files.
―
This function is available only when a USB device is connected.
―
If there is no music file on the USB device or you don’t select a folder containing a music file, the Timer function does not
operate correctly.
―
If there is only one photo file in the USB, the Slide Show will not play.
―
If a folder name is too long, the folder cannot be selected.
―
Each USB you use is assigned its own folder. When using more than one of the same type of USB, make sure the folders
assigned to each USB have different names.
―
We recommend that you use a USB memory stick and a multi card reader when using On Timer.
―
The On Timer function may not work with USB devices with a built-in battery, MP3 players, or PMPs made by some
manufacturers because the product can take too long to recognize these devices.
Page 77
77
O Timer
Set the off timer (Off Timer) by making a selection from one of the seven options. (Off Timer 1 ~ Off Timer 7)
•
Setup: Select Off, Once, Ever yday, Mon~Fri, Mon~Sat, Sat~Sun or Manual.
If you select Manual, you can choose the days you want Off Timer to turn off your product.
-
The check mark indicates days you’ve selected.
•
Time: Set the hour and minute. Use the number buttons or the up and down arrow keys to enter numbers. Use the left
and right arrow buttons to change entry fields.
Holiday Management
Timer will be disabled during a period specified as a holiday.
•
Add Holiday: Specify the period you want to add as a holiday.
Select the start and end dates of the holiday you want to add using the u/d buttons, and click the Save button.
The period will be added to the list of holidays.
-
Start: Set the start date of the holiday.
-
End: Set the end date of the holiday.
―
Delete: Delete selected items from the list of holidays.
―
Edit: Select a holiday item and then change the date.
•
Set Applied Timer: Set the On Timer and Off Timer to not activate on public holidays.
-
Press E to select the On Timer and Off Timer settings you do not want to activate.
-
The selected On Timer and Off Timer will not activate.
Page 78
78
Ticker
HOME → Ticker → ENTER E
Ticker
-
The displayed image may differ depending on the model.
Input text while a video or image is displayed and display the text on the screen.
•
Off / On
•
Message: Enter a message to display on the screen.
•
Time: Set the Start Time and End Time to display a Message.
•
Font options: Specify the text font and colour for the message.
•
Position: Select an orientation to display a Message.
•
Scroll: Specify the scroll Direction and Speed for the message.
•
Preview: Preview configured caption settings.
More settings
HOME → More settings → ENTER E
More settings
-
The displayed image may differ depending on the model.
The picture settings menu appears.
Page 79
79
URL Launcher
HOME → URL Launcher → ENTER E
SSSP 3.0
URL Launcher
12:00
Change URL
pm
January 1 2015
Clone Product
Picture Mode
ID Settings
On/Off Timer
Video Wall
Ticker
Network Status
More settings
-
The displayed image may differ depending on the model.
For details on how to use the URL Launcher feature, contact the dealer the product was purchased from.
―
To use the URL Launcher feature, set Play via to URL Launcher in System.
Page 80
80
Screen Adjustment
Configure the Picture settings (Backlight, Colour Tone, etc.).
The layout of the Picture menu options may vary depending on the product.
Picture Mode
MENU m → Picture → Picture Mode → ENTER E
·
·
·
·
·
·
Picture Mode
Backlight
Contrast
Brightness
Sharpness
Colour
Tint (G/R)
100
70
45
80
50
G50 R50
-
The displayed image may differ depending on the model.
Select a picture mode (Picture Mode) suitable for the environment where the product will be used.
Videos/Images mode improves the picture quality of the video device. Tex t mode improves the picture quality of the
computer.
•
Shops & Shopping Centres
Suitable for shopping malls.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Offices & Schools
Suitable for offices and schools.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Terminals & Stations
Suitable for bus terminals and train stations.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Video Wall
Suitable for environments where videowall display are used.
-
Select either Videos/Images or Tex t depending on the picture mode.
•
Calibration
In this mode, the brightness, colour, gamma and uniformity settings customized using the colour calibration programme
Advanced Color Management are applied.
-
To apply the Calibration mode properly, make sure you configure the picture quality settings, such as brightness,
colour, gamma and uniformity, using the colour calibration programme Advanced Color Management.
-
To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions.
•
BD Wise
Provides the optimal picture quality for Samsung DVD, Blu-ray and Home Theatre products which support BD Wise.
When BD Wise is turned On, the picture mode is automatically changed to the optimal resolution.
-
Available when you connect Samsung products that support BD Wise through an HDMI cable to the product.
-
The BD Wise function is enabled only when a source device with the BD Wise function is connected.
Chapter 06
Shops & Shopping Centres
Page 81
81
Backlight / Contrast / Brightness /
Sharpness / Colour / Tint (G/R)
MENU m → Picture → ENTER E
·
·
·
·
·
·
Picture Mode
Backlight
Contrast
Brightness
Sharpness
Colour
Tint (G/R)
100
70
45
80
50
G50 R50
-
The displayed image may differ depending on the model.
Your product has several options for adjusting picture quality.
Picture Mode Picture Mode settings Adjustable options
Shops & Shopping Centres,
Offices & Schools, Terminals
& Stations, Video Wall
Videos/Images Back light / Contrast / Brightness / Sharpness /
Colour / Tint (G/R)
Tex t Backlight / Contrast / Brightness / Sharpness
Calibration Backlight
BD Wise Backlight / Contrast / Brightness / Sharpness /
Colour / Tint (G/R)
―
When you make changes to Backlight, Contrast, Brightness, Sharpness, Colour or Tint (G/R), the OSD will be adjusted
accordingly.
―
You can adjust and store settings for each external device you have connected to an input on the product.
―
Lowering picture brightness reduces power consumption.
Shops & Shopping Centres
Page 82
82
Colour Temperature
MENU m → Picture → Colour Temperature → ENTER E
Colour Temperature 16000K
-
The displayed image may differ depending on the model.
Adjust the colour temperature (Red / Green / Blue). (Range: 2800K–16000K)
―
Enabled when Colour Tone is set to Off.
―
Colour Temperature is disabled if Picture Mode is set to Calibration or BD Wise.
Page 83
83
White Balance
MENU m → Picture → White Balance → ENTER E
White Balance
-
The displayed image may differ depending on the model.
2 Point
Adjust the colour temperature for a more natural picture.
•
R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.
•
R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.
•
Reset: Suitable for environments where videowall display are used.
10 Point
Controls the white balance in 10 point interval by adjusting the red, green, and blue brightness.
•
Off / On
Level: Select interval to adjust.
Red: Adjust the red level.
Green: Adjust the green level.
Blue: Adjust the blue level.
Reset: Suitable for environments where videowall display are used.
―
Some external devices may not support this function.
―
Enabled when Picture Mode is set to Offices & Schools (Videos/Images).
Page 84
84
Gamma
MENU m → Picture → Gamma → ENTER E
Gamma 0
-
The displayed image may differ depending on the model.
Adjust the primary colour intensity.
―
If Picture Mode is set to Calibration, Gamma is disabled.
Calibrated value
MENU m → Picture → Calibrated value → ENTER E
Calibrated value
-
The displayed image may differ depending on the model.
Select whether to apply the brightness, colour, gamma and uniformity settings customized using the colour calibration
programme Advanced Color Management to the Information and Advertisement modes.
•
Don't apply / Apply
―
To download the Advanced Color Management programme, visit www.samsung.com/displaysolutions.
―
If Picture Mode is set to Calibration, Calibrated value is disabled.
Don't apply
Page 85
85
Advanced Settings
MENU m → Picture → Advanced Settings → ENTER E
Advanced Settings
Dynamic Contrast
Black Tone
Flesh Tone
RGB Only Mode
Colour Space
Motion Lighting
High
Darkest
0
O
Native
On
-
The displayed image may differ depending on the model.
Picture Mode Picture Mode settings Adjustable options
Shops & Shopping Centres,
Offices & Schools, Video Wall
Videos/Images Dynamic Contrast / Black Tone / Flesh Tone / RGB
Only Mode / Colour Space
Tex t D ynamic Contrast / Black Tone
Terminals & Stations Videos/Images Dynamic Contrast / Black Tone / Flesh Tone / RGB
Only Mode / Colour Space / Motion Lighting
Tex t D ynamic Contrast / Black Tone
BD Wise
Dynamic Contrast / Black Tone / Flesh Tone /
RGB Only Mode / Colour Space
―
If Picture Mode is set to Calibration, Advanced Settings is disabled.
Page 86
86
Advanced Settings
Dynamic Contrast
Black Tone
Flesh Tone
RGB Only Mode
Colour Space
Motion Lighting
High
Darkest
0
O
Native
On
-
The displayed image may differ depending on the model.
Dynamic Contrast
Adjust the screen contrast.
•
Off / Low / Medium / High
Black Tone
Select the black level to adjust the screen depth.
•
Off / Dark / Darker / Darkest
Flesh Tone
Emphasize pink Flesh Tone.
RGB Only Mode
Displays the Red, Green and Blue colour for making fine adjustments to the hue and saturation.
•
Off / Red / Green / Blue
Colour Space
Adjusts the range and variety of colours (the colour space) available to create images.
•
Auto / Native / Custom
―
To adjust Colour, Red, Green, Blue and Reset, set Colour Space to Custom.
Motion Lighting
Reduces power consumption by reducing screen brightness when the picture on the screen is in motion.
•
Off / On
―
Enabled when Picture Mode is set to Terminals & Stations (Videos/Images).
Page 87
87
Picture Options
MENU m → Picture → Picture Options → ENTER E
Picture Options
Colour Tone
Digital Clean View
MPEG Noise Filter
HDMI Black Level
Film Mode
Dynamic Backlight
O
Medium
Medium
Auto
O
O
-
The displayed image may differ depending on the model.
Picture Mode Picture Mode settings Adjustable options
Shops & Shopping Centres,
Offices & Schools, Terminals
& Stations, Video Wall
Videos/Images Colour Tone / Digital Clean View / MPEG Noise
Filter / Film Mode / HDMI Black Level / Dynamic
Backlight
Tex t Colour Tone / HDMI Black Level / Film Mode /
Dynamic Backlight
Calibration HDMI Black Level / Dynamic Backlight
BD Wise
Colour Tone / Digital Clean View / MPEG Noise
Filter / HDMI Black Level / Film Mode / Dynamic
Backlight
Page 88
88
Picture Options
Colour Tone
Digital Clean View
MPEG Noise Filter
HDMI Black Level
Film Mode
Dynamic Backlight
O
Medium
Medium
Auto
O
O
-
The displayed image may differ depending on the model.
Colour Tone
If Picture Mode is set to Tex t
•
Off / Cool / Standard / Warm
If Picture Mode is set to Videos/Images
•
Off / Cool / Standard / Warm1 / Warm2
―
If Picture Mode is set to Calibration, Colour Tone is disabled.
―
Settings can be adjusted and stored for each external device connected to an input on the product.
Digital Clean View
If the broadcast signal received by your product is weak, you can activate the Digital Clean View feature to reduce any static
and ghosting that may appear on the screen.
•
Off / Low / Medium / High / Auto
―
Received signal intensity is the strongest when the bar is green.
―
When the signal is weak, try all the options until the the product displays the best picture.
MPEG Noise Filter
Reduces MPEG noise to provide improved picture quality.
•
Off / Low / Medium / High / Auto
Page 89
89
Picture Options
Colour Tone
Digital Clean View
MPEG Noise Filter
HDMI Black Level
Film Mode
Dynamic Backlight
O
Medium
Medium
Auto
O
O
-
The displayed image may differ depending on the model.
HDMI Black Level
Selects the black level on the screen to adjust the screen depth.
•
Auto / Low / Normal
―
Available only in HDMI mode (AV Timing : 480p, 576p, 720p, 1080i, 1080p).
Film Mode
This mode is suitable to view movies.
Sets the product to automatically sense and process film signals from all sources and adjust the picture for optimum quality.
•
Off / Auto1 / Auto2
―
Available in HDMI (1080i).
Dynamic Backlight
Automatically adjust the backlight to provide the best possible screen contrast under the current conditions.
•
Off / On
Page 90
90
Picture Size
MENU m → Picture → Picture Size → ENTER E
·
Picture Size
Picture Size 16:9
Position
Resolution O
-
The displayed image may differ depending on the model.
choose size and aspect ratio picture displayed on screen.
Picture Size
―
Different screen adjustment options are displayed depending on the current input source.
•
16:9: Sets the picture to 16:9 wide mode.
•
Zoom1: Use for moderate magnification. Cuts off the top and sides.
•
Zoom2: Use for a stronger magnification.
•
Smart View 1: Reduces the 16:9 picture by 50%.
•
Smart View 2: Reduces the 16:9 picture by 25%.
•
Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
•
4:3: Sets the picture to basic (4:3) mode.
―
Do not set your product to 4:3 format for a long time.
The borders displayed on the left and right, or top and bottom of the screen may cause image retention (screen burn)
which is not covered by the warranty.
•
Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) signals are inputted.
•
Custom: Changes the resolution to suit the user's preferences.
•
Original ratio: If the input source is HDMI (PC connection), the video will display in the original aspect ratio.
―
Available ports may differ depending on the model.
Page 91
91
Zoom/Position
·
Picture Size
Picture Size Custom
Zoom/Position
Resolution O
-
The displayed image may differ depending on the model.
Adjusts the picture zoom and position. This option is available when the input source is set to HDMI (1080i/1080p). Picture
Size must be set to Custom for the option to be available.
1
Press the d button to select Zoom/Position. Press the E button.
2
Select the Zoom or Position. Press the E button.
3
Press the u/d/l/r button to move the picture.
4
Press the E button.
―
If you want to reset the picture to its original position, select Reset in the Zoom/Position screen.
The picture will be set to its default position.
Position
·
Picture Size
Picture Size Custom
Position
Resolution O
-
The displayed image may differ depending on the model.
Adjusts the picture position. Position is only available if Picture Size is set to Zoom1, Zoom2, Wide Fit, Screen Fit or Custom.
―
To use the Position function after selecting Zoom1, Zoom2, Wide Fit, Screen Fit or Custom, follow these steps.
1
Press the d button to select Position. Press the E button.
2
Press the u or d button to move the picture up or down.
3
Press the E button.
Page 92
92
Resolution
If the picture is not normal even when the resolution of the graphics card is one of the following, you can optimize the picture
quality by selecting the same resolution for the product as the PC using this menu.
Available resolutions: Off / 1024x768 / 1280x768 / 1360x768 / 1366x768
―
Model OM24E is only supported.
Page 93
93
PC Screen Adjustment
MENU m → Picture → PC Screen Adjustment → ENTER E
PC Screen Adjustment
-
Available in PC mode only.
-
The displayed image may differ depending on the model.
•
Coarse / Fine
Removes or reduces picture noise.
If the noise is not removed by Fine-tuning alone, use the Coarse function to adjust the frequency as best as possible
(Coarse) and Fine-tune again. After the noise has been reduced, re-adjust the picture so that it is aligned with the centre
of screen.
•
Position
To adjust the PC’s screen position if it is not centred or does not fit the product screen.
Press the ▲ or ▼ button to adjust the Vertical Position. Press the ◄ or ► button to adjust the Horizontal Position.
•
Image Reset
Resets the image to the default settings.
Auto Adjustment
MENU m → Picture → Auto Adjustment → ENTER E
Auto Adjustment
-
Available in PC mode only.
-
The displayed image may differ depending on the model.
Adjust frequency values/positions and fine tune the settings automatically.
Page 94
94
Reset Picture
MENU m → Picture → Reset Picture → ENTER E
Reset Picture
-
The displayed image may differ depending on the model.
Resets your current picture mode to its default settings.
Picture O
MENU m → Picture → Picture Off → ENTER E
Picture O
-
The displayed image may differ depending on the model.
Selecting Picture Off switches off the screen. The volume is not disabled.
To switch the screen on, press any button other than the volume button.
Page 95
95

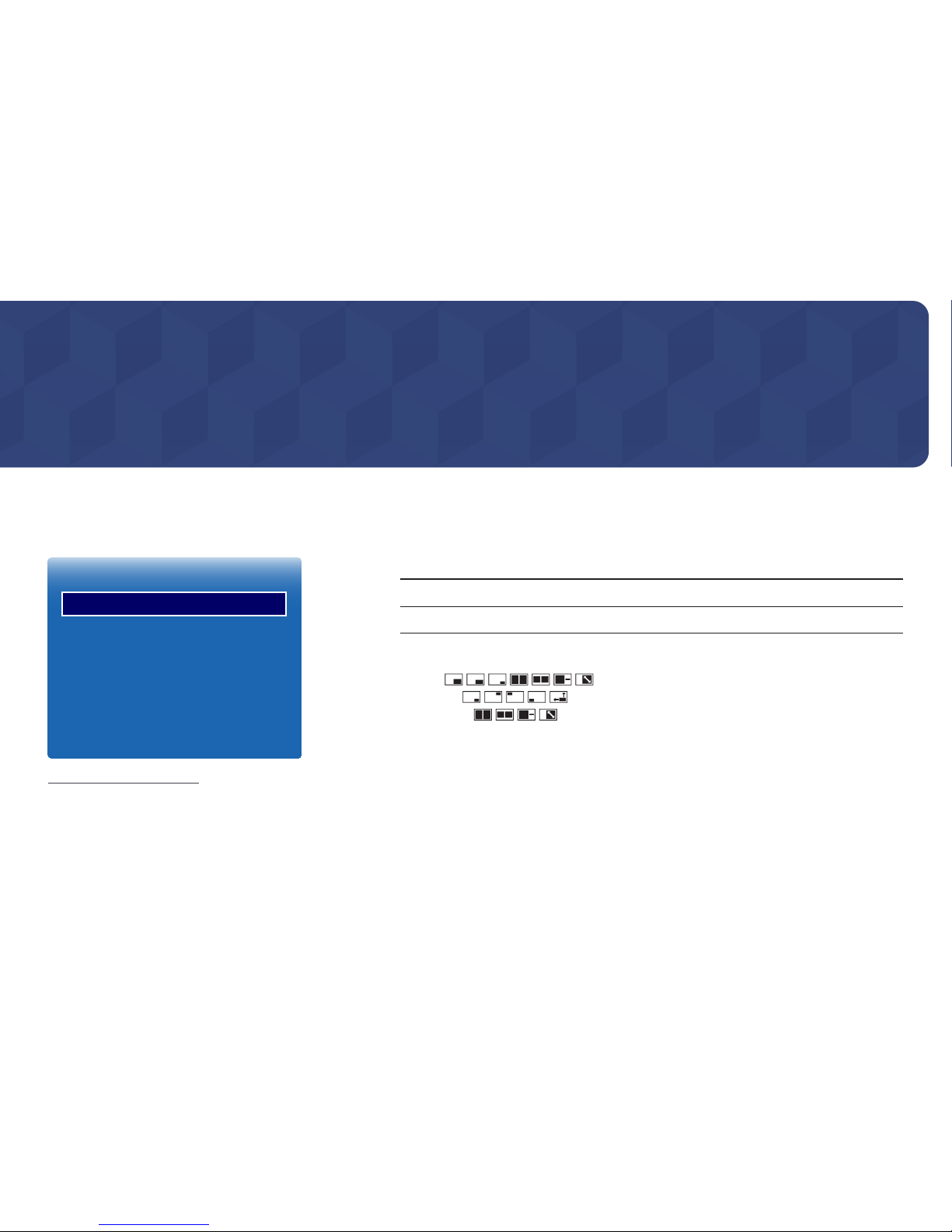

OnScreen Display
PIP
MENU m → OnScreen Display → PIP → ENTER E
OnScreen Display
PIP
Display Orientation
Screen Protection
Message Display
Menu Language
Reset OnScreen Display
English
-
The displayed image may differ depending on the model.
-
For PIP sound, refer to the Sound Select instructions.
-
If you turn the product off while watching in the PIP mode, PIP mode will remain after power
Off/On.
-
You may notice that the picture in the PIP screen becomes slightly unnatural when you use
the main screen to view a game or karaoke.
-
Model OM24E is only supported.
PIP Settings
The picture from the external video source will be in the main screen and the picture from the product will be in the PIP subpicture screen.
Main picture Sub picture
PC HDMI
HDMI PC
•
PIP (Off / On): Activate or deactivate the PIP function.
•
Source: You can select a source of the sub picture.
•
Size (
, , , , , , ): Select a size for the subpicture.
•
Position (
, , , , ): Select a position for the sub-picture.
―
In double ( , , , ) mode, you cannot select Position.
•
Sound Select (Main / Sub): You can choose to listen to the sound from the Main picture or the Sub picture.
―
If Source Content Orientation is set to Portrait, PIP is disabled.
Chapter 07
Page 96
96
Display Orientation
MENU m → OnScreen Display → Display Orientation → ENTER E
Display Orientation
Onscreen Menu Orientation
Source Content Orientation
Aspect Ratio
Landscape
Landscape
Full Screen
-
The displayed image may differ depending on the model.
Onscreen Menu Orientation
Configure the menu screen.
•
Landscape: Display the menu in landscape mode (default).
•
Portrait: Display the menu in portrait mode on the right side of the product screen.
Source Content Orientation
Rotate the product screen orientation.
•
Landscape: Display the screen in landscape mode (default).
•
Portrait: Display the screen in portrait mode.
Aspect Ratio
Set the rotated screen to be either full screen or original.
•
Full Screen: Display the rotated screen in full screen.
•
Original: Display the rotated screen in the original aspect ratio.
―
Available only when Source Content Orientation is set to Portrait.
Page 97
97
Screen Protection
MENU m → OnScreen Display → Screen Protection → ENTER E
Screen Protection
Auto Protection Time
Screen Burn Protection
O
-
The displayed image may differ depending on the model.
Auto Protection Time
If the screen displays a still image for a certain period of time you define, the product activates the screen saver to prevent the
formation of burnt in ghost images on the screen.
•
Off / 2 hours / 4 hours / 8 hours / 10 hours
Screen Burn Protection
To reduce the possibility of screen burn, this unit is equipped with Screen Burn Protection screen burn prevention
technology.
Screen Burn Protection moves the picture slightly on the screen.
The Screen Burn Protection Time setting allows you to programme the time between movements of the picture in minutes.
Pixel Shift
Minimize image retention by finely moving pixels horizontally or vertically.
•
Pixel Shift (Off / On)
―
Horizontal, Vertical and Time are enabled only when Pixel Shift is set to On.
•
Horizontal: Sets how many pixels the screen moves horizontally.
•
Vertical: Sets how many pixels the screen moves vertically.
•
Time: Set the time interval for performing the horizontal or vertical movement, respectively.
Available Pixel Shift Settings and Optimum Settings.
Available Settings Optimum Settings
Horizontal (pixels) 0 ~ 4 4
Vertical (pixels) 0 ~ 4 4
Time (minute) 1 min ~ 4 min 4 min
―
The Pixel Shift value may differ depending on the product size (inches) and mode.
―
Displaying a still image or a 4:3 output for an extended period of time may cause image retention. This is not a defect in the
product.
―
If Picture Size is set to Screen Fit, Pixel Shift is disabled.
Page 98
98
Screen Burn Protection
Pixel Shift
Timer
Immediate display
Side Grey
O
O
-
The displayed image may differ depending on the model.
Timer
You can set the timer for Screen Burn Protection.
The Screen Burn Protection feature stops automatically after a specified period of time.
Timer
Off
Repeat: Display the image retention-preventive pattern set in Mode at specified time intervals(Period).
Interval: Display the image retention-preventive pattern set in Mode for a specified period of time (from Start Time to End
Time).
―
Mode, Period, Time, Start Time and End Time are enabled only when Timer is set to Repeat or Interval.
•
Mode: Select a screen protective pattern to display.
-
Pixel: Pixels on the screen alternate black continuously.
-
Rolling bar: A vertical bar moves left to right.
-
Fading screen: The entire screen becomes brighter, then darker.
―
The Rolling bar and Fading screen patterns appear only once regardless of the specified repeat period or time.
•
Period: Specify the time interval to activate the Screen Burn Protection function.
―
The option is enabled when Repeat is selected for Timer.
•
Time: Specify the duration to keep the Screen Burn Protection function on.
―
Enabled when Timer is set to Repeat and Mode is set to Pixel.
•
Start Time: Set the start time to activate the screen protection function.
―
The option is enabled when Interval is selected for Timer.
•
End Time: Set the end time to deactivate the screen protection function.
―
The option is enabled when Interval is selected for Timer.
Page 99
99
Screen Burn Protection
Pixel Shift
Timer
Immediate display
Side Grey
O
O
-
The displayed image may differ depending on the model.
Immediate display
Select the screen saver you want to display immediately.
•
Off / Pixel / Rolling bar / Fading screen
Side Grey
When the screen is set to 4:3 aspect ratio, adjust the brightness of white margins on sides to protect the screen.
•
Off / Light / Dark
Page 100
100
Message Display
MENU m → OnScreen Display → Message Display → ENTER E
Message Display
Source Info
No Signal Message
MDC Message
Download Status Message
On
On
On
O
-
The displayed image may differ depending on the model.
Source Info
Select whether to display the source OSD when the input source changes.
•
Off / On
No Signal Message
Select whether to display the no-signal OSD when no signal is detected.
•
Off / On
MDC Message
Select whether to display the MDC OSD when the product is controlled by the MDC.
•
Off / On
Download Status Message
Select to display the status when downloading content from a server or other device.
•
Off / On
