Page 1
User Guide
SAMSUNG
RV408/RV508
Page 2
Page 3
Contents
Chapter 1. Getting Started
Cautions Regarding OS Support 6
Before You Start
Safety Precautions
Proper Posture During Computer Use 2
Important Safety Information 2
Replacement Parts and Accessories 2
Regulatory Compliance Statements 2
WEEE SYMBOL INFORMATION 4
Basic Items 4
Overview 4
Front View 43
Status Indicators 4
Right View 4
Left View 4
Back View 4
Bottom View 4
Turn on the computer 49
Attaching the Battery 49
Connect the AC adapter 4
Turn on the computer 5
Using Sleep Mode 51
Chapter 3. Settings and
Upgrade
LCD Brightness Control 66
7
BIOS Setup 6
9
1
4
6
8
1
2
3
4
5
6
7
8
Entering the BIOS Setup 67
The BIOS Setup Screen 6
Setting a Boot Password 70
Changing the Boot Priority 7
Upgrading Memory 7
Battery 7
Installing/Removing the Battery 75
Charging the Battery 7
Measuring the Remaining
Battery Charge 7
Extending the Battery Usage Time 7
Using the Security Lock Port 79
Chapter 4. Appendix
Product Specications 82
9
0
7
8
2
3
5
6
6
7
Chapter 2. Using the computer
Keyboard 54
Touchpad 5
CD Drive (ODD, Optional) 5
Inserting and Ejecting a CD 59
Multi Card Slot (Optional) 61
Adjusting the Volume 6
8
9
3
3
Page 4
4
Page 5
5
Chapter 1.
Getting Started
Cautions Regarding OS Support 6
Before You Start 7
Safety Precautions 9
Proper Posture During Computer Use 21
Important Safety Information 24
Replacement Parts and Accessories 26
Regulatory Compliance Statements 28
WEEE SYMBOL INFORMATION 41
Basic Items 42
Overview 43
Front View 43
Status Indicators 44
Right View 45
Left View 46

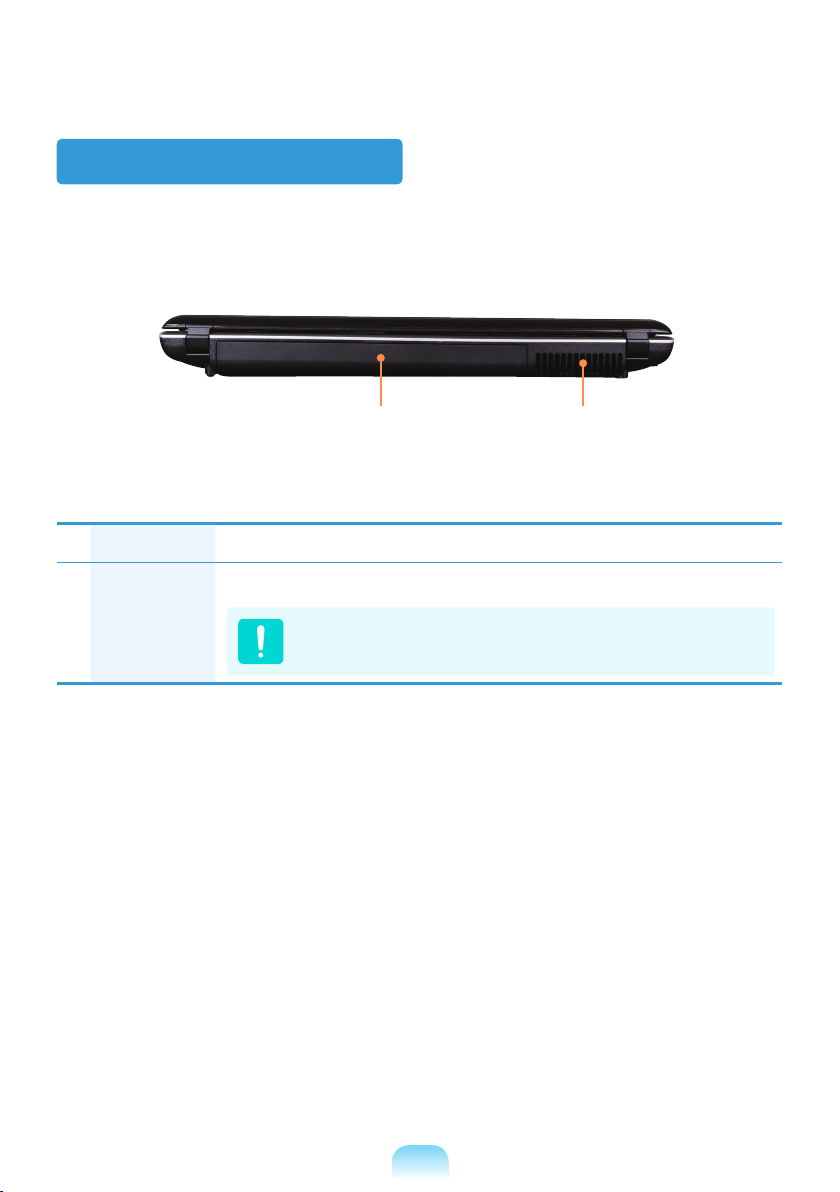

Back View 47
Bottom View 48
Turn on the computer 49
Attaching the Battery 49
Connect the AC adapter 49
Turn on the computer 50
Using Sleep Mode 51
Page 6
Cautions Regarding OS Support
z Windows is neither installed nor supplied with this computer.
x Therefore, customers should purchase a Windows XP/Windows Vista/Windows 7 software
license and install the software. Do not install an illegal copy or a copy that has already
been installed on another PC.
c For the installation procedures and any issues with the operating systems or applications
not supplied by Samsung Computer, contact the corresponding software company.
v The company will not provide a replacement or refund due to the reason x, c and if our
service engineer visits you due to this problem, a service charge will be applied.
Charge the battery fully when using the computer for the rst time.
6
Page 7
Before You Start
Before reading the User Guide, rst check the following information.
Safety Precaution Notations
Icon Notation Description
Warning
Caution
Failing to follow instructions marked with this symbol, may
cause personal injury and or fatality.
Failing to follow instructions marked with this symbol, may
cause slight injury to yourself or damage your property.
Text Notations
Icon Notation Description
Before You Start
Caution
Note
Content included in this section includes information
required before using a function.
Content included in this section includes information
required about the function.
Content included in this section includes helpful information
to use the function.
Copyright
©
Samsung Electronics Co., Ltd. 2010
Samsung Electronics Co., Ltd. owns the copyright of this manual.
No part of this manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.
The information in this document is subject to change without notice due to improving the
performance of the product.
Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any
important data and backup your data to prevent any such data loss.
7
Page 8
About the Product Capacity Representation Standard
About HDD Capacity Representation
The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that
1KB=1,000 Bytes.
However, the operating system (Windows) calculates the storage device capacity assuming
that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is
smaller than the actual capacity due to the difference in capacity calculation.
(E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000
byte/(1,024x1,024x1,024)byte = 74.505GB)
In addition, the capacity representation in Windows may be even smaller because some
programs such as Recovery Solution may reside in a hidden area of the HDD.
About Memory Capacity Representation
The memory capacity reported in Windows is less than the actual capacity of memory.
This is because BIOS or a video adapter uses a portion of memory or claims it for further use.
(E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or
less)
8
Page 9
Safety Precautions
For your security and to prevent damage, please read the following safety instructions
carefully.
Since this is commonly applied to Samsung Computers, some pictures may differ from
actual products.
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Installation Related
Do not install the product in
places exposed to humidity
such as a bathrooms.
There is a danger of electric
shock. Use the product within
the operating conditions
specied in the Manufacturers
User Guide.
Keep the plastic bags out of
the reach of children.
There is a danger of
suffocation.
Keep a distance of 15cm or
more between the computer
and the wall and do not place
any objects between them.
This may increase the internal
temperature of the computer
and may cause an injury.
Do not install the computer
on a slant or a place prone to
vibrations, or avoid using the
computer in that location for
a long time.
This increases the risk that a
malfunction or damage to the
product will occur.
Avoid exposing any part of
your body to the heat from
the computer vent or AC
adapter for a long time when
the computer is on.
Exposing a part of your body
close to the heat from the vent
or AC adapter for long periods
of time may cause a burn.
Avoid blocking the vent at
the bottom or side of the
computer when using it on a
bed or cushion.
If the vent is blocked, there
is a danger of damaging the
computer or overheating the
inside of the computer.
NP Ver2.4
9
Page 10
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Power Related
The power plug and wall outlet gures may differ depending on the country specications and
the product model.
Do not touch the main plug or
power cord with wet hands.
There is a danger of electric
shock.
Do not exceed the standard
capacity (voltage/current) of
a multiplug or power outlet
extension when using it for
the product.
There is a danger of electric
shock or re hazard.
If the power cord or power
outlet makes a noise,
disconnect the power cord
from the wall outlet and
contact a service center.
There is a danger of electric
shock or re hazard.
Do not use a damaged or
loose main plug or power
cord or power outlet.
There is a danger of electric
shock or re hazard.
Plug the power cord rmly
into the power outlet and AC
adapter.
Failing to do so may cause re
hazard.
Do not unplug the power cord
out by pulling the cable only.
If the cord is damaged, it may
cause electric shock.
Do not bend the power cord
excessively or do not place
a heavy object over the
power cord. It is especially
important to keep the power
cord out of reach of infants
and pets.
If the cord is damaged, it may
cause electric shock or re.
Connect the power cord to
an outlet or multiple power
plug (extended cable) with a
ground terminal.
Failing to do so may result in
electric shock.
10
Page 11
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
If water or another
substance enters the power
input jack, AC adapter or the
computer, disconnect the
power cord and contact the
service center.
Damage to the device within
the computer may cause
electric shock or re hazard.
Keep the power cord or
outlet clean so that they are
not covered with dust.
Failing to do so may result
in re.
AC Adapter Usage Precautions
Connect the power cord to
the AC adapter rmly.
Otherwise, there is a danger
of re due to an incomplete
contact.
Use only the AC adapter
supplied with the product.
Using another adapter may
cause the screen to icker.
Do not place heavy objects
or step onto the power
cord or AC adapter to avoid
damaging the power cord or
AC adapter.
If the cord is damaged, there
is a danger of electric shock
or re.
11
Page 12
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Battery Usage Related
Keep the battery out of the
reach of infants and pets, as
they could put the battery
into their mouths.
There is a danger of electric
shock or choking.
Authorized
Parts
Use an authorized battery
and AC adapter only.
Please use an authorized
battery and adapter approved
by Samsung Electronics.
Unauthorized batteries and
adapters may not meet the
proper safety requirements
and may cause problems or
malfunctions and result in an
explosion or re.
Do not use the computer in
a badly ventilated location
such as on bedding, on a
pillow or cushion, etc, and do
not use it in a location such
as room with oor heating as
it may cause the computer to
overheat.
Take care that the computer
vents (on the side or the
bottom) are not blocked
especially in these
environments. If the vents are
blocked, the computer may
overheat and it may cause a
computer problem, or even an
explosion.
Do not use the computer in
a humid location such as a
bathroom or sauna.
Please use the computer
within the recommended
temperature and humidity
range (10~32ºC, 20~80%
RH).
Power Off
Do not close the LCD panel
and put the computer into
your bag to move it when it is
still turned on.
If you put the computer into
your bag without turning it off,
the computer may overheat
and there is a danger of re.
Shut the computer down
properly before moving it.
12
Page 13
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Never heat the battery or put
the battery into a re. Do not
put or use the battery in a
hot location such as a sauna,
inside a vehicle exposed to
the heat, and so on.
There is a danger of an
explosion or re.
Take care not to allow metal
objects such as a key or clip
to touch the battery terminal
(metal parts).
If a metal object touches
the battery terminals, it may
cause excessive current
ow and it may damage the
battery, or result in a re.
If liquid leaks out of the
battery or there is a funny
smell coming from the
battery, remove the battery
from the computer and
contact a service center.
There is a danger of an
explosion or re.
To use the computer safely,
replace a dead battery with a
new, authorized battery.
Please charge the
battery fully before
using the computer
for the rst time.
Usage Related
Disconnect all cables
connected to the computer
before cleaning it. If you
are cleaning a notebook
computer, remove the
battery.
There is a danger of electric
shock or damage to the
product.
Do not connect a phone line
connected to a digital phone
to the modem.
There is a danger of a
electric shock, re or
damage to the product.
13
Page 14
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Do not place any container
lled with water or chemicals
over or near the computer.
If water or chemicals enter
the computer, this may cause
re or electric shock.
If the computer is broken
or dropped, disconnect the
power cord and contact a
service center for a safety
check.
Using a broken computer may
cause electric shock or re
hazard.
Avoid direct sunlight when
the computer is in an airtight location such as inside
a vehicle.
There is a danger of a re
hazard. The computer may
overheat and also present
opportunity to thieves.
Do not use your notebook
PC for long periods of time
while a part of your body is
making direct contact with
it. The temperature of the
product may increase during
normal operation.
This may result in harming or
burning your skin.
Upgrade Related
Never disassemble the
power supply or AC adapter.
There is a danger of electric
shock.
When removing the RTC
(Real Time Clock) battery,
keep it out of the reach of
children as they could touch
and/or swallow it.
There is a danger of choking.
If a child has swallowed it,
contact a doctor immediately.
14
Page 15
Warning
Failing to follow instructions marked with this symbol may cause personal injury and even fatality.
Use only authorized
parts (multi-plug, battery
and memory) and never
disassemble parts.
There is a danger of
damaging the product,
electric shock or re hazard.
Shut down the computer
and disconnect all cables
before disassembling
the computer. If there is
a modem, disconnect
the phone line. If you are
disassembling notebook
computer, make sure to
remove the battery.
Failing to do so, may cause
electric shock.
Custody and Movement Related
Follow the instructions
for the relevant location
(e.g. airplane, hospital,
etc.) when using a wireless
communication device
(wireless LAN, Bluetooth,
etc.).
Avoid exposing a drive to
magnetic elds. Security
devices with magnetic elds
include airport walk-through
devices and security wands.
The airport security devices
that check carry-on luggage,
such as conveyor belts, use
x-rays instead of magnetism
and will not damage a drive.
When carrying the notebook
computer with other items,
such as the adapter, mouse,
books etc, take care not to
press anything against the
notebook computer.
If a heavy object is pressed
against the notebook
computer, a white spot or
stain may appear on the LCD.
Therefore, take care not to
apply any pressure to the
notebook.
In this case, place the
notebook computer in a
separate compartment away
from the other objects.
15
Page 16
Caution
Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.
Installation Related
Do not block the ports
(holes), vents, etc. of the
product and do not insert
objects.
Damage to a component
within the computer may
cause electric shock or re.
When using the computer
with it lying on its side,
place it so that the vents
face upwards.
Failing to do so, may cause
the internal temperature of
the computer to rise and the
computer to malfunction or
halt.
Do not place a heavy object
over the product.
This may cause a problem
with the computer. In
addition, the object may fall
and cause injury, or damage
the computer.
Battery Usage Related
Dispose of worn-out
batteries properly.
There is a danger of re or
explosion.
The battery disposal
method may differ
depending on your country
and region. Dispose of
the used battery in an
appropriate way.
Do not throw or disassemble
the battery and do not put it
into water.
This may cause an injury, re
or explosion.
Use only a battery
authorized by Samsung
Electronics.
Failing to do so may cause an
explosion.
Avoid contact with metal
objects such as car keys
or clips when keeping or
carrying a battery.
Contact with a metal may
cause excessive current and
a high temperature and may
damage the battery or cause
a re.
Charge the battery according
to the instructions in the
manual.
Failing to do so, may cause
an explosion or re from
damage to the product.
Do not heat the battery
or expose it to heat (e.g.
inside a vehicle during the
summer).
There is a danger of
explosion or re.
16
Page 17
Caution
Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.
Usage Related
Do not place a candle, light
cigar, etc. over or on the
product.
There is a danger of re.
Use a wall outlet or multiplug with a grounding part.
Failing to do so may cause
electric shock hazard.
Make sure to have the
product tested by a safety
service engineer after
repairing the product.
Authorized Samsung Repair
Centers will carry out safety
checks after a repair. Using
a repaired product without
testing it for safety may cause
an electric shock or re.
In case of lightning,
immediately turn the system
off, disconnect the power
cord from the wall outlet and
phone line from modem. Do
not use a modem or phone.
There is a danger of electric
shock or re.
Do not use your computer
and AC-Adapter on your lap
or soft surfaces.
If the computer temperature
increases, there is a danger of
burning yourself.
Connect only permitted
devices to the connectors or
ports of the computer.
Failing to do so, may cause
electric shock and re.
Close the LCD panel
only after checking if the
notebook computer is turned
off.
The temperature may rise and
it may cause overheating and
deformation of the product.
Do not press the Eject Button
while the Floppy Disk/CDROM drive is in operation.
You might lose data and
the disk might be suddenly
ejected and could cause an
injury.
Take care not to drop the
product while using it.
This may cause personal
injury or loss of data.
Do not touch the antenna
with electricity facility such
as the power outlet.
There is a danger of electric
shock.
When handling computer
parts, follow the instructions
on the manual supplied with
the parts.
Failing to do so, may cause
damage to the product.
If the computer emits smoke,
or there is a burning smell,
disconnect the power plug
from the wall outlet and
contact a service center. If
your computer is a notebook
computer, make sure to
remove the battery.
There is a danger of re.
Do not use a damaged or
modied CD/Floppy Disk.
There is a danger of damaging
the product or personal injury.
Do not insert your ngers
into the PC Card Slot.
There is a danger of injury or
electric shock.
17
Page 18
Caution
Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.
Use recommended
computer cleansing
solution when cleaning
the product and only use
the computer when it is
completely dried.
Failing to do so may cause
electric shock or re.
Emergency disk eject
method using paperclip
should not be used while
the disk is in motion. Make
sure to use the emergency
disk eject method only
when the Optical Disk Drive
is stopped.
There is a danger of injury.
Do not place your face close
to the Optical Disk Drive
tray when it is operating.
There is a danger of injury
due to an abrupt ejection.
Check CDs for cracks and
damage prior to use.
It may damage the disc and
cause disorder of device and
injury of user.
Upgrade Related
Take care when touching the
product or parts.
The device may be damaged
or you may be injured.
Take care not to throw or
drop a computer part or
device.
This may cause injury or
damage to the product.
Make sure to close the
computer cover before
connecting the power after a
reassembly.
There is a danger of electric
shock if your body touches an
internal part.
Use parts authorized by
Samsung Electronics only.
Failing to do so, may cause
re or damage the product.
Never disassemble or repair
the product by yourself.
There is a danger of electric
shock or re.
To connect a device that
is not manufactured or
authorized by Samsung
Electronics, enquire at
your service center before
connecting the device.
There is a danger of
damaging the product.
18
Page 19
Caution
Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.
Custody and
Movement Related
When moving the product,
turn the power off and
separate all connected
cables rst.
The product might be
damaged or users may trip
over the cables.
For long periods of not
using the notebook
computer, discharge the
battery and preserve as it is
detached.
The battery will be preserved
at its best condition.
Do not operate or watch the
computer while driving a
vehicle.
There is a danger of a trafc
accident. Please concentrate
on driving.
Cautions on Preventing Data Loss
(Hard Disk Management)
Take care not to damage the data on a hard disk drive.
A hard disk drive is so sensitive to external impact that an
external impact may cause loss of data on the surface of the
disk.
Take extra care, because moving the computer or an impact
on the computer when it is turned on may damage the data
of the hard disk drive.
The company is not liable for any loss of any data caused
by a customer’s careless usage or bad environmental
conditions.
Causes that may damage the data of a hard disk drive and the
hard disk drive itself.
The data may be lost when an external impact is applied to
the disk while disassembling or assembling the computer.
The data may be lost when the computer is turned off
or reset by a power failure while the hard disk drive is
operating.
The data may be lost and irrecoverable due to a computer
virus infection.
The data may be lost if the power is turned off while running
a program.
Moving or causing an impact to the computer while the hard
disk drive is operating, may cause les to be corrupted or
bad sectors on the hard disk.
To prevent data loss due to damage to the hard disk drive,
please backup your data frequently.
19
Page 20
Caution
Failing to follow instructions marked with this symbol may cause slight injury or damage to the product.
Using the power supply in an airplane
Since the power outlet type differs depending
on the type of airplane, connect the power
appropriately.
When using the AC power plug
Connect the power plug pins perpendicular
into the center of the power outlet.
I
f the plug pins are not inserted into the
center of the holes, the plug pins are only
inserted up to half their length. In this case,
reconnect the power plug.
Y
ou have to insert the power plug into the
outlet when the power indicator (LED) of
the power outlet is lit green. If the power
is connected properly, the power indicator
(LED) remains green.
Otherwise, the power indicator (LED) is
turned off. In this case, unplug the power,
check if the power indicator (LED) is green,
and then reconnect the power plug.
Power Indicat or
(LED)
Center Holes
220V Power Plug 110V Power Plug
Good Example
When using the auto adapter
When the cigar socket is provided, you have to
use the auto adapter (optional). Insert the cigar
plug of the auto adapter into the cigar socket
and connect the DC plug of the auto adapter to
the power input port of the computer.
Auto Adapter
Cigar PlugDC Plug In- ight Cigar Socket
When using the Airplane Charging Converter
Depending on the airplane, you have to use
the auto adapter and charging converter.
Connect the airplane charging converter
(optional) to the auto adapter (optional) and
then insert the airplane power input jack into
the power outlet.
Connect this
1
end to the
auto adapter.
Charging
Convert er
Connect the airplane
2
power input jack to
the power outlet of the
airplane.
Wrong Example
20
Page 21
Proper Posture During Computer Use
Maintaining a proper posture during computer use is very important to prevent physical
harm.
The following instructions are about maintaining a proper posture during computer use
developed through human engineering. Please read and follow them carefully when using
the computer.
Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may
increase and serious physical harm may be caused.
The instructions in this manual have been prepared so that they can be applied
within the coverage of general users.
If the user is not included in the coverage, the recommendation is to be applied
according to the user’s needs.
Proper Posture
Adjust the heights of desks and chairs
appropriate to your height.
The heights are to be adjusted so that your
arm forms a right angle when you place your
hand over the keyboard while sitting down on
a chair.
Adjust the height of chair so that your heel is
comfortably placed on the oor.
Do not use the computer while you are
lying down, but only while you are sitting
down.
Do not use the computer on your lap.
If the computer temperature increases,
there is a danger of burning yourself.
Work while keeping your waist straight.
Use a chair with a comfortable back.
Keep the center of your leg weight not on
the chair but on your feet when you are
sitting on a chair.
To use the computer while talking over
the telephone, use a headset. Using
the computer with the phone on your
shoulder is bad for posture.
Keep frequently used items within a
comfortable work range (where you can
reach them with your hands).
21
Page 22
Eye Position
Hand Position
Keep the monitor or LCD away from your
eyes by at least 50cm.
50cm
Adjust the height of the monitor and the
LCD screen so that its top height is equal
to or lower than your eyes.
Avoid setting the monitor and LCD
excessively bright.
Keep the monitor and LCD screen clean.
If you wear glasses, clean them before
using the computer.
When entering contents printed on a
paper into the computer, use a static
paper holder so that the height of the
paper is almost equal to that of the
monitor.
Keep your arm at a right angle as shown by
the gure.
Keep the line from your elbow to your
hand straight.
Do not place your palm over the keyboard
while typing.
Do not hold the mouse with excessive
force.
Do not press the keyboard, touchpad or
mouse with excessive force.
It is recommended connecting an
external keyboard and mouse when using
the computer for long periods of time.
22
Page 23
Volume Control
(Headphones and Speakers)
Check your volume rst to listen to music.
Use Time (Break Time)
Take a break for 10 minutes or more after
a 50-minute period when working for
more than one hour.
Illumination
Check your
volume!
Check if the volume is too loud before
using headphones.
It is not recommended using headphones
for long periods of time.
Any deviation from the equalizer default
setting could cause hearing impairment.
The default setting can be changed
through software and driver updates
without your intervention. Please check
the equalizer default setting before rst
usage.
Do not use the computer in dark
locations. The illumination level for
computer use must be as bright so for
reading a book.
Indirect illumination is recommended.
Use a curtain to prevent reection on the
LCD screen.
Operation Condition
Do not use the computer in hot and
humid locations.
Use the computer within the allowed
temperature and humidity range specied
in the User Guide.
23
Page 24
Important Safety Information
Safety Instructions
Your system is designed and tested to meet
the latest standards for safety of information
technology equipment. However, to ensure
safe use of this product, it is important that
the safety instructions marked on the product
and in the documentation are followed.
Always follow these instructions to
help guard against personal injury
and damage to your system.
Setting Up your System
Read and follow all instructions marked
on the product and in the documentation
before you operate your system. Retain
all safety and operating instructions for
future use.
Do not use this product near water or a
heat source such as a radiator.
Set up the system on a stable work
surface.
The product should be operated only with
the type of power source indicated on the
rating label.
Ensure that the electrical outlet you are
using to power your equipment is easily
accessible in case of re or short circuit.
If your computer has a voltage selector
switch, make sure that the switch is in the
proper position for your area.
Openings in the computer case are
provided for ventilation. Do not block
or cover these openings. Make sure
you provide adequate space, at least 6
inches (15 cm), around the system for
ventilation when you set up your work
area. Never insert objects of any kind into
the computer ventilation openings.
Ensure that the fan vents on the bottom
of the casing are clear at all times. Do
not place the computer on a soft surface,
doing so will block the bottom vents.
If you use an extension cord with this
system, make sure that the total power
rating on the products plugged into the
extension cord does not exceed the
extension cord power rating.
For Notebooks with glossy display bezels
the user should consider the placement
of the Notebook as the bezel may cause
disturbing reections from surrounding
light and bright surfaces.
24
Page 25
Care During Use
Do not walk on the power cord or allow
anything to rest on it.
Do not spill anything on the system. The
best way to avoid spills is to not eat or
drink near your system.
Some products have a replaceable
CMOS battery on the system board.
There is a danger of explosion if the
CMOS battery is replaced incorrectly.
Replace the battery with the same or
equivalent type recommended by the
manufacturer.
Dispose of batteries according to the
manufacturers instructions. If the CMOS
battery requires replacement insure that
a qualied technician performs the task.
When the computer is turned off, a small
amount of electrical current still ows
through the computer.
To avoid electrical shock, always unplug
all power cables, remove the battery
and modem cables from the wall outlets
before cleaning the system.
Unplug the system from the wall outlet
and refer servicing to qualied personnel
if:
– The power cord or plug is damaged.
– Liquid has been spilled into the system.
– The system does not operate properly
when the operating instructions are
followed.
– The system was dropped or the casing
is damaged.
– The system performance changes.
The Instruction On Safety Operation
of NotePC
z When installing and operating devices
please refer to safety requirements in the
user guide.
x Devices can be used only with the
equipment specied in the technical
specications of the devices.
c If any smell of burning or smoke is
detected from the computer the unit
should be switched off and battery
removed. The unit should be checked by
a qualied technician before reuse.
v Service and repair of devices should
be carried out by authorized service
centers.
b Do not allow your portable computer to
operate with the base resting directly
on exposed skin for extended periods
of time. The surface temperature of the
base will rise during normal operation
(particularly when AC Power is present).
Allowing sustained contact with exposed
skin can cause discomfort or eventually
a burn.
25
Page 26
Replacement Parts and Accessories
Use only replacement parts and accessories recommended by manufacturer.
To reduce the risk of re, use only No. 26 AWG or larger telecommunications line cord.
Do not use this product in areas classied as hazardous. Such areas include patient
care areas of medical and dental facilities, oxygen rich environments, or industrial
areas.
Battery Disposal
Do not put rechargeable batteries
or products powered by nonremovable rechargeable batteries
in the garbage.
Contact the Samsung Helpline for
information on how to dispose of batteries
that you cannot use or recharge any longer.
Follow all local regulations when disposing of
old batteries.
THERE IS A RISK OF
EXPLOSION IF BATTERY IS
REPLACED BY AN INCORRECT
TYPE.
DISPOSE OF USED BATTERIES
ACCORDING TO THE
INSTRUCTIONS.
Laser Safety
All systems equipped with CD or DVD
drives comply with the appropriate safety
standards, including IEC 60825-1. The laser
devices in these components are classied
as “Class 1 Laser Products” under a US
Department of Health and Human Services
(DHHS) Radiation Performance Standard.
Should the unit ever need servicing, contact
an authorized service location.
Laser Safety Note:
Use of controls or adjustments
or performance of procedures
other than those specied
in this manual may result in
hazardous radiation exposure.
To prevent exposure to laser
beams, do not try to open the
enclosure of a CD or DVD drive.
Class 1M laser radiation when
operating part is open.
Do not view directly with optical
instruments.
Class 3B invisible laser
radiation when open.
Avoid exposure to the beam.
26
Page 27
Connect and Disconnect
the AC adapter
The socket-outlet shall be installed near the
equipment and shall be easily accessible.
Do not unplug the power cord out by pulling
the cable only.
Power Cord Requirements
The power cord set (wall plug, cable and
AC adapter plug) you received with your
computer meets the requirements for use
in the country where you purchased your
equipment.
Power cord sets for use in other countries
must meet the requirements of the country
where you use the computer. For more
information on power cord set requirements,
contact your authorized dealer, reseller, or
service provider.
General Requirements
The requirements listed below are
applicable to all countries:
All power cord sets must be approved
by an acceptable accredited agency
responsible for evaluation in the country
where the power cord set will be used.
The power cord set must have a
minimum current capacity of 7 A and a
nominal voltage rating of 125 or 250 volts
AC, as required by each country’s power
system. (USA ONLY)
The appliance coupler must meet the
mechanical conguration of an EN 60
320/IEC 320 Standard Sheet C7 (or C5)
connector, for mating with appliance inlet
on the computer.
27
Page 28
Regulatory Compliance Statements
Wireless Guidance
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices),
operating in the 2.4GHz/5GHz Band, may be present (embedded) in your notebook system.
The following section is a general overview of considerations while operating a wireless device.
Additional limitations, cautions, and concerns for specic countries are listed in the specic
country sections (or country group sections). The wireless devices in your system are only
qualied for use in the countries identied by the Radio Approval Marks on the system rating
label. If the country you will be using the wireless device in, is not listed, please contact your
local Radio Approval agency for requirements. Wireless devices are closely regulated and use
may not be allowed.
The RF eld strength of the wireless device or devices that may be embedded in your notebook
are well below all international RF exposure limits as known at this time. Because the wireless
devices (which may be embedded into your notebook) emit less energy than is allowed in radio
frequency safety standards and recommendations, manufacturer believes these devices are
safe for use. Regardless of the power levels, care should be taken to minimize human contact
during normal operation.
As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the
body, for use of a wireless device near the body (this does not include extremities) is typical.
This device should be used more than 20 cm (8 inches) from the body when wireless devices
are on and transmitting.
Some circumstances require restrictions on wireless devices. Examples of common restrictions
are listed on the next page:
28
Page 29
Radio frequency wireless communication can interfere with equipment on
commercial aircraft. Current aviation regulations require wireless devices to be
turned off while traveling in an airplane.
802.11ABGN (also known as wireless Ethernet or Wi) and Bluetooth communication
devices are examples of devices that provide wireless communication.
In environments where the risk of interference to other devices or services is harmful
or perceived as harmful, the option to use a wireless device may be restricted or
eliminated. Airports, Hospitals, and Oxygen or ammable gas laden atmospheres
are limited examples where use of wireless devices may be restricted or eliminated.
When in environments where you are uncertain of the sanction to use wireless
devices, ask the applicable authority for authorization prior to use or turning on the
wireless device.
Every country has different restrictions on the use of wireless devices. Since your
system is equipped with a wireless device, when traveling between countries with
your system, check with the local Radio Approval authorities prior to any move or trip
for any restrictions on the use of a wireless device in the destination country.
If your system came equipped with an internal embedded wireless device, do not
operate the wireless device unless all covers and shields are in place and the system
is fully assembled.
Wireless devices are not user serviceable. Do not modify them in any way.
Modication to a wireless device will void the authorization to use it. Please contact
manufacturer for service.
Only use drivers approved for the country in which the device will be used. See the
manufacturer System Restoration Kit, or contact manufacturer Technical Support for
additional information.
29
Page 30
United States of America
USA and Canada Safety
Requirements and Notices
Do not touch or move antenna while the unit
is transmitting or receiving.
Do not hold any component containing
the radio such that the antenna is very
close or touching any exposed parts of the
body, especially the face or eyes, while
transmitting.
Do not operate the radio or attempt
to transmit data unless the antenna is
connected; if not, the radio may be damaged.
Use in specic environments:
The use of wireless devices in hazardous
locations is limited by the constraints posed
by the safety directors of such environments.
The use of wireless devices on airplanes
is governed by the Federal Aviation
Administration (FAA).
The use of wireless devices in hospitals
is restricted to the limits set forth by each
hospital.
Use On Aircraft Caution
Regulations of the FCC and FAA
prohibit airborne operation of
radio-frequency wireless devices
because their signals could
interfere with critical aircraft
instruments.
Other Wireless Devices
Safety Notices for Other Devices in
the Wireless Network:
documentation supplied with wireless
Ethernet adapters or other devices in the
wireless network.
The Part 15 radio device operates
on a non-interference basis
with other devices operating at
this frequency. Any changes or
modication to said product not
expressly approved by Intel could
void the user’s authority to operate
this device.
Refer to the
Explosive Device Proximity
Warning
Do not operate a portable
transmitter (such as a wireless
network device) near unshielded
blasting caps or in an explosive
environment unless the device has
been modied to be qualied for
such use.
30
Page 31
Unintentional Emitter per FCC Part
15
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:(1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
This equipment has been tested
and found to comply with the
limits for a Class B digital device
pursuant to Part 15 of the FCC
Rules. These limits are designed
to provide reasonable protection
against harmful interference in
a residential installation. This
equipment generates, uses,
and can radiate radio frequency
energy. If not installed and used in
accordance with the instructions,
it may cause harmful interference.
If this equipment does cause
harmful interference to radio or
television reception, which can
be determined by turning the
equipment off and on, the user is
encouraged to try to correct the
interference by one or more of the
following measures:
Reorient or relocate the
receiving antenna.
Increase the separation
between the equipment and
receiver.
Connect the equipment into an
outlet on a circuit different from
that to which the receiver is
connected.
Consult the dealer or an
experienced radio/TV
technician for help.
If necessary, the user should consult the
dealer or an experienced radio/television
technician for additional suggestions. The
user may nd the following booklet helpful:
“Something About Interference.”
This is available at FCC local regional
ofces. Our company is not responsible
for any radio or television interference
caused by unauthorized modications of this
equipment or the substitution or attachment
of connecting cables and equipment other
than those specied by our company. The
correction will be the responsibility of the
user. Use only shielded data cables with this
system.
31
Page 32
Intentional emitter per FCC Part 15
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio
frequency (RF) wireless communication
devices), operating in the 2.4GHz/5GHz
Band, may be present (embedded) in your
notebook system. This section is only
applicable if these devices are present. Refer
to the system label to verify the presence of
wireless devices.
Wireless devices that may be in your system
are only qualied for use in the United States
of America if an FCC ID number is on the
system label.
This device is restricted to indoor use due
to its operation in the 5.15 to 5.25 GHz
frequency range. FCC requires this product
to be used indoors for the frequency range
5.15 to 5.25 GHz to reduce the potential for
harmful interference to co-channel Mobile
Satellite systems. High power radars are
allocated as primary users of the 5.25 to 5.35
GHz and 5.65 to 5.85 GHz bands. These
radar stations can cause interference with
and /or damage this device.
The FCC has set a general guideline of
20 cm (8 inches) separation between the
device and the body, for use of a wireless
device near the body (this does not include
extremities). This device should be used
more than 20 cm (8 inches) from the body
when wireless devices are on. The power
output of the wireless device (or devices),
which may be embedded in your notebook, is
well below the RF exposure limits as set by
the FCC.
This transmitter must not be collocated
or operate in conjunction with any other
antenna or transmitter except the installed
Bluetooth transmitter.
Operation of this device is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Wireless devices are not user
serviceable. Do not modify them in
any way.
Modication to a wireless device
will void the authorization to use it.
Contact manufacturer for service.
FCC Statement for Wireless LAN
use:
“While installing and operating
this transmitter and antenna
combination the radio frequency
exposure limit of 1mW/cm2 may
be exceeded at distances close to
the antenna installed. Therefore,
the user must maintain a minimum
distance of 20cm from the antenna
at all times.
This device can not be colocated
with another transmitter and
transmitting antenna.”
32
Page 33
FCC Part 68
(If tted with a modem device.)
This equipment compiles with part of the
FCC rules. On the back of this equipment
is a label that contains, among other
information, the FCC registration number
and ringer equivalence number (REN) for
this equipment. If requested, this information
must be provided to the telephone company.
This equipment uses the following USOC
jacks : RJ11C
An FCC compliant telephone cord and
modular plug is provided with this equipment.
This equipment is designed to be connected
to the telephone network or promises
wiring using a compatible modular jack
which is Part 68 compliant. See Installation
Instructions for details.
The REN is used to determine the quantity
of devices which may be connected to
telephone line. Excessive RENs on the
telephone line may result in the devices not
ringing in response to an incoming call. In
most, but not all areas, the sum of RENs
should not exceed ve (5.0). To be certain
of the number of devices that may be
connected to a line, as determined by total
RENs, contact the local telephone company
to determine the maximum REN for the
calling area.
If the terminal equipment causes harm to the
telephone network, the Telephone Company
will notify you in advance that temporary
discontinuance of service may be required.
But if advance notice is not practical, the
telephone company will notify the customer
as soon as possible. Also, you will be
advised of your right to le a complaint with
the FCC if you believe it is necessary.
The telephone company may make changes
in its facilities, equipment, operations, or
procedures that could affect the operation
of the equipment. If this happens, the
telephone company will provide advanced
notice in order for you to make necessary
modications to maintain uninterrupted
service.
If trouble is experienced with this equipment
(Modem) for repair or warranty information,
please contact your local distributor. If the
equipment is causing harm to the telephone
network, the telephone company may
request that you disconnect the equipment
until the problem is resolved.
The user must use the accessories and
cables supplied by the manufacturer to get
optimum performance from the product.
No repairs may be done by the customer.
This equipment cannot be used on public
coin phone service provided by the
telephone company. Connection to party line
service is subject to state tariffs.
The Telephone Consumer Protection Act
of 1991 makes it unlawful for any person
to use a computer or other electronic
device, including fax machines, to send
any message unless such message clearly
contains in a margin at the top or bottom of
each transmitted page or on the rst page
of the transmission, the date and time it is
sent and an identication of the business
or other entity, or other individual sending
the message and the telephone number
of the sending machine or such business,
other entity, or individual. (The telephone
number provided may not be any number for
which charges exceed local or long-distance
transmission charges.)
In order to program this information into your
fax machine, refer to your communications
software user manual.
33
Page 34
Canada
Unintentional Emitter per ICES-003
This digital apparatus does not exceed the
Class B limits for radio noise emissions
from digital apparatus as set out in the radio
interference regulations of Industry Canada.
Le présent appareil numérique n’émet pas
de bruits radioélectriques dépassant les
limitesapplicables aux appareils numériques
de Classe B prescrites dans le règlement
sur le brouillage radioélectrique édicté par
Industrie Canada.
Intentional Emitter per RSS 210
(If tted with 2.4G band or 5G band)
Low power, Radio LAN type devices (radio
frequency (RF) wireless communication
devices), operating in the 2.4GHz/5GHz
Band, may be present (embedded) in your
notebook system. This section is only
applicable if these devices are present. Refer
to the system label to verify the presence of
wireless devices.
Wireless devices that may be in your system
are only qualied for use in Canada if an
Industry Canada ID number is on the system
label.
When using IEEE 802.11a wireless LAN, this
product is restricted to indoor use due to its
operation in the 5.15- to 5.25-GHz frequency
range. Industry Canada requires this product
to be used indoors for the frequency range of
5.15 GHz to 5.25 GHz to reduce the potential
for harmful interference to co-channel
mobile satellite systems. High power radar is
allocated as the primary user of the 5.25- to
5.35-GHz and 5.65 to 5.85-GHz bands.
These radar stations can cause interference
with and/or damage to this device.
The maximum allowed antenna gain for use
with this device is 6dBi in order to comply
with the E.I.R.P limit for the 5.25- to 5.35 and
5.725 to 5.85 GHz frequency range in point-
to-point operation.
As a general guideline, a separation of 20 cm
(8 inches) between the wireless device and
the body, for use of a wireless device near
the body (this does not include extremities)
is typical. This device should be used more
than 20 cm (8 inches) from the body when
wireless devices are on.
The power output of the wireless device (or
devices), which may be embedded in your
notebook, is well below the RF exposure
limits as set by Industry Canada.
This transmitter must not be collocated
or operate in conjunction with any other
antenna or transmitter except the installed
Bluetooth transmitter.
Operation of this device is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
To prevent radio interference to
licensed service, this device is
intended to be operated indoors
and away from windows to provide
maximum shielding. Equipment (or
its transmit antenna) that is installed
outdoors is subject to licensing.
Wireless devices are not user
serviceable. Do not modify them in
any way. Modication to a wireless
device will void the authorization
to use it. Contact manufacturer for
service.
34
Page 35
Telecommunications per DOC notice
(for products tted with an IC-
compliant modem)
The Industry Canada label identies certied
equipment. This certication means that the
equipment meets certain telecommunications
network protective, operation, and safety
requirements. The Department does not
guarantee the equipment will operate to the
users’ satisfaction.
Before installing this equipment, users
should make sure that it is permissible
to be connected to the facilities of the
local telecommunications company. The
equipment must also be installed using
an acceptable method of connection. In
some cases, the inside wiring associated
with a single-line individual service may be
extended by means of a certied connector
assembly. The customer should be aware
that compliance with the above conditions
may not prevent degradation of service in
some situations.
Repairs to certied equipment should
be made by an authorized Canadian
maintenance facility designated by
the supplier. Any repairs or alterations
made by the user to this equipment, or
equipment malfunctions, may give the
telecommunications company cause
to request the user to disconnect the
equipment.
Users should make sure, for their own
protection, that the electrical ground
connections of the power utility, telephone
lines, and internal metallic water pipe system,
if present, are connected together. This
precaution may be particularly important in
rural areas.
To avoid electrical shock or
equipment malfunction do not
attempt to make electrical ground
connections by yourself. Contact
the appropriate inspection authority
or an electrician, as appropriate.
The
Ringer Equivalence Number
assigned to each terminal device provides
an indication of the maximum number of
terminals allowed to be connected to a
telephone interface. The termination on an
interface may consist of any combination of
devices subject only to the requirement that
the sum of the Ringer Equivalence Numbers
of all the devices does not exceed 5.
(REN)
Brazil
Este equipamento opera em caráter
secundário, isto é, não tem direito a proteção
contra interferência prejudicial, mesmo
de estações do mesmo tipo, e não pode
causar interferência a sistemas operando em
caráter primário.
35
Page 36
European Union
European Union CE Marking and
Compliance Notices
Products intended for sale within the
European Union are marked with the
Conformité Européene (CE) Marking, which
indicates compliance with the applicable
Directives and European standards
and amendments identied below. This
equipment also carries the Class 2 identier.
The following information is only applicable
to systems labeled with the CE mark .
European Directives
This Information Technology Equipment has
been tested and found to comply with the
following European directives:
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
R&TTE Directive 1999/5/EC
Manufacturer Information
European Radio Approval
Information
EU-approved radio devices)
This Product is a Notebook computer;
low power, Radio LAN type devices (radio
frequency (RF) wireless communication
devices), operating in the 2.4GHz/5GHz
band, may be present (embedded) in your
notebook system which is intended for home
or ofce use. This section is only applicable
if these devices are present. Refer to the
system label to verify the presence of
wireless devices.
Wireless devices that may be in your system
are only qualied for use in the European
Union or associated areas if a CE mark
with a Notied Body Registration Number
and the Alert Symbol is on the system label.
The power output of the wireless device
or devices that may be embedded in you
notebook is well below the RF exposure
limits as set by the European Commission
through the R&TTE directive.
The low band 5.15 - 5.35 GHz is for indoor
use only.
(for products tted with
Samsung Electronics Co., Ltd.
416, Maetan-3Dong, Yeongtong-Gu, SuwonCity, Gyeonggi-Do, 443-742, Korea
Samsung Electronics Suzhou Computer
Co., Ltd.
No. 198, Fangzhou Road, Suzhou Industrial
Park, Jiangsu Province, 215021, China
Tel:+86-512-6253-8988
For the web or the phone number of
Samsung Service Centre, see the Warranty
or contact the retailer where you purchased
your product.
See 802.11b and 802.11g
restrictions for specic countries or
regions within countries under the
heading “European Economic Area
Restrictions” below.
36
Page 37
37
EU R&TTE Compliance Statements
Česky
[Czech]
Samsung tímto prohlašuje, že tento Notebook PC je ve shodě se
základními požadavky a dalšími příslušnými ustanoveními směrnice
1999/5/ES.
Dansk
[Danish]
Undertegnede Samsung erklærer herved, at følgende udstyr Notebook
PC overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF.
Deutsch
[German]
Hiermit erklärt Samsung, dass sich das Gerät Notebook PC in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG be ndet.
Eesti
[Estonian]
Käesolevaga kinnitab Samsung seadme Notebook PC vastavust direktiivi
1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele
asjakohastele sätetele.
English
Hereby, Samsung, declares that this Notebook PC is in compliance with
the essential requirements and other relevant provisions of Directive
1999/5/EC.
Español
[Spanish]
Por medio de la presente Samsung declara que el Notebook PC
cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Samsung ΔΗΛΩΝΕΙ ΟΤΙ Notebook PC
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ
ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Samsung déclare que l’appareil Notebook PC est
conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Samsung dichiara che questo Notebook PC è conforme
ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.
Latviski
[Latvian]
Ar šo Samsung deklarē, ka Notebook PC atbilst Direktīvas 1999/5/EK
būtiskajām prasībām un citiem ar to saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Samsung deklaruoja, kad šis Notebook PC atitinka esminius
reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Samsung dat het toestel Notebook PC in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Page 38
38
Malti
[Maltese]
Hawnhekk, Samsung, jiddikjara li dan Notebook PC jikkonforma mal-
ħtiāijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm d-
Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Samsung nyilatkozom, hogy a Notebook PC megfelel a
vonatkozó alapvetõ követelményeknek és az 1999/5/EC irányelv egyéb
elõírásainak.
Polski
[Polish]
Niniejszym Samsung oświadcza, Ŝe Notebook PC jest zgodny z
zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Português
[Portuguese]
Samsung declara que este Notebook PC está conforme com os
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
Slovensko
[Slovenian]
Samsung izjavlja, da je ta Notebook PC v skladu z bistvenimi zahtevami
in ostalimi relevantnimi določili direktive 1999/5/ES.
Slovensky
[Slovak]
Samsung týmto vyhlasuje, že Notebook PC spĺňa základné požiadavky a
všetky príslušné ustanovenia Smernice 1999/5/ES.
Suomi
[Finnish]
Samsung vakuuttaa täten että Notebook PC tyyppinen laite on direktiivin
1999/5/EY oleellisten vaatimusten ja sitä koskevien direktiivin muiden
ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Samsung att denna Notebook PC står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Íslenska
[Icelandic]
Hér með lýsir Samsung y r því að Notebook PC er í samræmi við
grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Norsk
[Norwegian]
Samsung erklærer herved at utstyret Notebook PC er i samsvar med de
grunnleggende krav og øvrige relevante krav i direktiv 1999/5/EF.
Türkiye
[Türkçe]
Bu belge ile, Samsung bu Notebook PC’nin 1999/5/EC Yönetmeliğinin
temel gerekliliklerine ve ilgili hükümlerine uygun olduğunu beyan eder.
To view the EU Declaration of Conformity for this product (in English only), go to: http://www.
samsung.com/uk/support/download/supportDownMain.do then search the model number of
the product.
If the Declaration of Conformity for the model you are interested in is not available on our website, please contact your distributor.
Page 39
European Economic Area
Restrictions
Local Restriction of 802.11b/802.11g Radio
Usage
[Note to integrator: The following statements
on local restrictions must be published in all
end-user documentation provided with the
system or product incorporating the wireless
product.]
Due to the fact that the frequencies
used by 802.11b/802.11g wireless
LAN devices may not yet be
harmonized in all countries,
802.11b/802.11g products are
designed for use only in specic
countries or regions, and are not
allowed to be operated in countries
or regions other than those of
designated use.
As a user of these products, you
are responsible for ensuring that
the products are used only in the
countries or regions for which they
were intended and for verifying that
they are congured with the correct
selection of frequency and channel
for the country or region of use.
Any deviation from permissible
settings and restrictions in the
country or region of use could be
an infringement of local law and
may be punished as such.
The European variant is intended for use
throughout the European Economic Area.
However, authorization for use is further
restricted in particular countries or regions
within countries, as follows:
General
European standards dictate maximum
radiated transmit power of 100 mW effective
isotropic radiated power (EIRP) and the
frequency range 2400 – 2483.5 MHz.
The low band 5.15 - 5.35 GHz is for indoor
use only.
Belgium
The product may be used outdoors, but for
outdoor transmissions over a distance of
300m or more, a license from the BIPT is
required.
This restriction should be indicated in the
manual as follows:
Dans le cas d’une utilisation privée, à
l’extérieur d’un bâtiment, au-dessus d’un
espace public, aucun enregistrement n’est
nécessaire pour une distance de moins
de 300m. Pour une distance supérieure à
300m un enregistrement auprès de l’IBPT
est requise. Pour une utilisation publique
à l’extérieur de bâtiments, une licence de
l’IBPT est requise. Pour les enregistrements
et licences, veuillez contacter l’IBPT.
France
For Metropolitan departments:
2.400 - 2.4835 GHz for indoor use.
2.400 - 2.454 GHz (channels 1 to 7) for
outdoor use.
For Guadeloupe, Martinique, St Pierre et
Miquelon, Mayotte:
2.400 - 2.4835 GHz for indoor and outdoor
use.
For Reunion, Guyane:
2.400 - 2.4835 GHz for indoor use.
2.420 - 2.4835 GHz for outdoor use
(channels 5 to 13)
The low band 5.15 - 5.35 GHz is for indoor
use only.
39
Page 40
European Telecommunication
Information (for products tted with
EU-approved modems)
Marking by the symbol indicates
compliance of this equipment to the Radio
and Telecom Terminal Equipment Directive
1999/5/EC. Such marking is indicative
that this equipment meets or exceeds the
following technical standards:
CTR 21 - Attachment requirements for
pan-European approval for connection to
the analogue Public Switched Telephone
Networks (PSTNs) of TE (excluding TE
supporting voice telephony services) in
which network addressing, if provided, is by
means of Dual Tone Multi-Frequency (DTMF)
signaling.
Although this equipment can use
either loop disconnect (pulse)
or DTMF (tone) signaling, only
the performance of the DTMF
signaling is subject to regulatory
requirements for correct operation.
It is therefore strongly
recommended that the equipment
is set to use DTMF signaling
for access to public or private
emergency services. DTMF
signaling also provides faster call
setup.
This equipment has been approved to
Council Decision 98/482/EEC - “CTR 21” for
Pan-European single terminal connection
to the Public Switched Telephone Network
(PSTN).
However, due to differences between the
individual PSTNs provided in different
countries, the approval does not, of
itself, give an unconditional assurance
of successful operation on every PSTN
termination point. In the event of problems,
you should contact manufacturer Technical
Support.
40
Page 41
WEEE SYMBOL INFORMATION
Correct disposal of this product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate
collection systems.)
This marking on the product, accessories or literature indicates that the product and its
electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other
household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other
types of waste and recycle them responsibly to promote the sustainable reuse of material
resources.
Household users should contact either the retailer where they purchased this product, or
their local government ofce, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should not be mixed with other
commercial wastes for disposal.
Correct disposal of batteries in this product
Pb
This marking on the battery, manual or packaging indicates that the batteries in this product
should not be disposed of with other household waste at the end of their working life. Where
marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury,
cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not
properly disposed of, these substances can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from
other types of waste and recycle them through your local, free battery return system.
(Applicable in the European Union and other European countries with separate
battery return systems.)
USA ONLY
This Perchlorate warning applies only to primary CR (Maganese Dioxide) Lithium coin cells in
the product sold or distributed ONLY in California USA.
“Perchlorate Material- special handling may apply, See www.dtsc.ca.gov/hazardouswaste/
perchlorate.”
41
Page 42
Basic Items
The items included in the package may vary depending on your selection of the optional
items. Some items may be replaced with similar products and the color of some items
may differ from that in this document.
Computer
Power Cable
Charge the battery fully when using the computer for the rst time.
Standard Battery
AC Adapter
42
Page 43
Overview
Before You Start!
Optional items may be changed or may not be provided depending on the computer
model.
The actual color and appearance of the computer may differ from the pictures used
in this guide.
Front View
1
2
3
4
5
6
Camera Lens (Optional)
1
LCD
2
Speaker (Optional)
3
Power Button
4
Keyboard
5
Touchpad/
6
Touchpad Buttons
Status Indicators
7
8
Multi Card Slot (Optional)
Microphone (Optional)
9
7
9
Using this lens, you can take still pictures and record video.
The screen images are displayed here.
A device used to generate sound.
Turns the computer on and off.
A device to enter data by pressing the keys.
The touchpad and touchpad buttons provide functions
similar to the mouse ball and buttons.
Shows the operating status of the computer.
The corresponding operating LED is lit when the
corresponding function operates.
A card slot that supports SD Card, SDHC, MMC cards and
SDXC cards.
You can use the built-in microphone.
8
43
Page 44
44
Status Indicators
1
Caps Lock
This turns on when the Caps Lock key is pressed allowing capital letters to
be typed without holding the Shift button down.
2
HDD/ODD
This tuns on when the hard disk or ODD is being accessed.
3
Wireless LAN
This turns on when the wireless LAN is operating.
4
Charge Status
This shows the power source and the battery charge status.
Green:
When the battery is fully charged or the battery is not installed.
Amber:
When the battery is being charged.
Off:
When the computer is running on battery power without being
connected to AC adapter.
5
Power
This shows the computer operating status.
On:
When the computer is operating.
Blinks:
When the computer is in Sleep mode.
1 2 3 4 5
Page 45
Right View
1 2 3
CD Drive(ODD) (Optional)
1
2
USB Port
3
Security Lock Port
(Optional)
Plays CD or DVD titles. Since an ODD(Optical Disk Drive) is
optional, the installed drive depends on the computer model.
You can connect USB devices to the USB port such as a
keyboard/mouse, digital camera, etc.
You can connect a Kensington lock to the Security Lock Port to
prevent the computer from being stolen.
45
Page 46
Left View
► For 14 inch models
1 2 3 4 5 6
1
DC Jack
2
Wired LAN Port
3
Monitor Port
USB Port
4
5
Microphone Jack
6
Headphone Jack
► For 15.6 inch models
2 31 4 5 6 7
1
Security Lock Port
2
DC Jack
3
Monitor Port
4
Wired LAN Port
USB Port
5
6
Microphone Jack
A jack to connect the AC adapter that supplies power to the computer.
Connect the Ethernet cable to this port.
A port used to connect a monitor, TV or projector supporting a 15pin
D-SUB interface.
You can connect USB devices to the USB port such as a keyboard/
mouse, digital camera, etc.
A jack used to connect the microphone.
A jack used to connect the headphones.
You can connect a Kensington lock to the Security Lock Port to
prevent the computer from being stolen.
A jack to connect the AC adapter that supplies power to the computer.
A port used to connect a monitor, TV or projector supporting a 15pin
D-SUB interface.
Connect the Ethernet cable to this port.
You can connect USB devices to the USB port such as a keyboard/
mouse, digital camera, etc.
A jack used to connect the microphone.
7
Headphone Jack
A jack used to connect the headphones.
46
Page 47
Back View
21
1
2
Battery
Fan Vents
This is a Lithium-Ion rechargeable battery that supplies power to the computer.
The internal heat of the computer is emitted through these holes.
If the vents are blocked the computer may overheat.
Avoid blocking the vents as this may be dangerous.
47
Page 48
Bottom View
► For 14 inch models
Battery Latches
1
1
2
3
A latch used to remove or install the battery.
Memory Compartment Cover/
2
Hard Disk Drive Compartment Cover
Speaker
3
► For 15.6 inch models
Battery Latches
1
Hard Disk Drive Compartment Cover
2
Memory Compartment Cover
3
The main memory and hard disk drive is installed inside
the cover.
A device used to generate sound.
1
2
A latch used to remove or install the battery.
The main memory and hard disk drive is installed inside
the cover.
The main memory is installed inside the cover.
3
48
Page 49
49
Turn on the computer
Attaching the Battery
1
Battery preparation.
2
Attaching the Battery.
Connect the AC adapter
1
Connect the AC adapter.
2
Connect the power cable.
Charge the battery fully when using the computer for the rst time.
When using the power cable, insert the power cable completely into the AC adapter.
Some items may be replaced with similar products and the color of some items may
differ from that in this document.
x
AC Adapter
Power
Cable
z
DC-in Jack
Page 50
50
Turn on the computer
Charge the battery fully when using the computer for the rst time.
1
Lift up the LCD panel.
2
Press the Power button to turn the computer on.
3
Power button LED is lit while the computer is turned on. (For 15.6 inch models)
Press the Fn+ key to increase the LCD brightness.
You can only use this function after installing Windows XP/Windows Vista/Windows 7
and installing the Easy Display Manager program with the system software media
disk.
z
x
LED
Page 51
Using Sleep Mode
You can use the Sleep mode after installing Windows XP/Windows Vista/Windows 7.
Sleep mode enables switching the computer to Standby mode in order to minimize power
consumption and enables users to use the computer instantly by pressing any key on the
mouse or keyboard.
Using Sleep Mode in Windows Vista/7
Click
Start
> >
Using Stand by Mode in Windows XP
Click
Start
>
Sleep
.
Turn Off Computer
>
Stand By
.
51
Page 52
52
Page 53
53
Chapter 2.
Using the
computer
Keyboard 54
Touchpad 58
CD Drive (ODD, Optional) 59
Inserting and Ejecting a CD 59
Multi Card Slot (Optional) 61
Adjusting the Volume 63
Page 54
54
Keyboard
Shortcut key functions and procedures are discussed in the following sections.
The keyboard image may differ from the actual keyboard.
The keyboard may differ depending on your country. The following mainly describes
the shortcut keys.
You can only use the hot keys and the pre-determined shortcut keys (Windows key,
application key, volume key, etc.) after installing Windows XP/Windows Vista/
Windows 7.
Some model is not supplied System Software Media depending on your computer
model.
Shortcut Keys
You can use the following functions by pressing the keys below with the Fn key.
Fn+ Name Function
Pressing the key switches the computer to power-saving (Standby)
REST
(Sleep Mode)
mode. To use the computer in this state, press the Power button.
You can use this button after installing Windows XP/Windows
Vista/Windows 7.
Gauge
Euro
CRT/LCD
Shows the remaining battery charge.
You can only use this function after installing Windows XP/
Windows Vista/Windows 7 and installing the
program with the
Enters the Euro monetary unit symbol.
This key may not be provided depending on the keyboard type.
Switches the screen output to the LCD or external monitor when an
external monitor (or TV) is connected to the computer.
You can only use this function after installing Windows XP/
Windows Vista/Windows 7 and installing the
program with the
system software media disk
system software media disk
Easy Display Manager
.
Easy Display Manager
.
Page 55
Fn+ Name Function
Backlit
Mute
Samsung
Support
Center
Easy
SpeedUp
Manager
You can turn the LCD on or off after installing Windows XP/
Windows Vista/Windows 7.
You can turn the sound on or off after installing Windows XP/
Windows Vista/Windows 7.
System diagnosis, recovery and Internet consultation program,
Samsung Support Center, will be launched. (Optional)
You can only use this function after installing Windows XP/
Windows Vista/Windows 7 and installing the
Doctor
program with the
For some models,
launched.
You can select operation mode when you need maximum system
performance or low-noise/low power consumption with one-click.
You can only use this function after installing Windows XP/
Windows Vista/Windows 7 and installing the
Manager
program with the
Silent
: Low-noise and low power consumption mode
Normal
: Normal Mode
Speed
: Maximum performance mode. The system operates in
its maximum performance, and system resources are allocated
to the currently active program with priority for maximum
performance.
Speed Boot
booting when the booting process has slowed down because
multiple programs have been installed. You can boot up the
computer more quickly by setting the time to execute the SW in
the Advanced menu.
: Quick booting mode. This mode enables quick
system software media disk
Samsung Magic Doctor
system software media disk
Samsung Magic
. (Optional)
is
Easy SpeedUp
.
If you don’t want fan noise turning ON and OFF in the
Silent mode, select the
Mode > Low
ON and works in Low noise mode.
in the BIOS Setup. The fan keeps turning
Advanced
menu
> Fan Silent
55
Page 56
56
Fn+ Name Function
Turns on or off wireless network device in a model equipped with
wireless network device.
Wireless
network
Touchpad
Num Lock
(Optional)
Scroll Lock
You can only use this function after installing Windows XP/
Windows Vista/Windows 7 and installing the
program and the wireless LAN driver with the
media disk
You can turn the Touchpad function on or off by pressing this button
after installing Windows XP/Windows Vista/Windows 7.
When using an external mouse only, you can turn the Touchpad off.
You can use some of the character keys as numeric keys by turning
the Num Lock on, after installing Windows XP/Windows Vista/
Windows 7.(For 14 inch models)
For 15.6-inch models, once the Num Lock is on, the numeric
keypad in the right side of the keyboard is enabled.
You can scroll up or down the screen while maintaining the cursor
position by turning on Scroll Lock, after installing Windows XP/
Windows Vista/Windows 7.
.
Magic Keyboard
system software
Page 57
Screen Brightness Control
To adjust the LCD brightness press the Fn + key combination or the Fn + key
combination.
The changed screen brightness is displayed at the center of the screen for a moment.
You can use the screen brightness control keys after installing Windows and Easy
Display Manager.
Volume Control
To control the volume, press the Fn + key combination or the Fn + key
combination.
You can mute the sound or cancel the mute function by clicking the Fn + key
combination.
You can use the volume and numeric keys after installingWindows XP/Windows Vista/
Windows 7.
Numeric Key (For 15.6 inch models)
The numbers are printed in blue on the numeric keys.
If Num Lock is turned on by pressing the Fn + key combination, you can use the numeric
keys to enter digits.
You can use the numeric keys after installing Windows XP/Windows Vista/Windows 7.
57
Page 58
58
Touchpad
The touchpad provides the same function as a mouse and the left and right buttons of the
touchpad plays the role of the left and right buttons of a mouse.
Before You Start!
Use the Touchpad with your ngers. Using a sharp object may damage the
Touchpad.
If you touch the Touchpad or press the Touchpad buttons while booting up, the
Windows boot time may be extended.
The images used for the illustration are of a representative model, therefore the
images may differ from the the actual product.
Scroll Area
Touch Area
Used to move the
cursor.
This corresponds to the wheel
of the mouse and can be
moved up, down, left or right.
Touchpad Left Button
You can select or run a
program using this button.
Touchpad Right Button
Plays the role of the right
mouse button.
Page 59
CD Drive (ODD, Optional)
An optical disk drive is optional and may differ depending on your computer model.
For detailed specications, refer to the catalogue.
Do not insert a cracked or scratched CD. Otherwise, the CD may break and damage
the optical disk drive when the CD rotates at a high speed.
When you clean a CD or DVD title, wipe with a soft cloth from inside to outside.
Insert a Mini CD into the center of the CD drive.
The images used for the illustration are of a representative model, therefore the
images may differ from the the actual product.
Using a CD that is not in the shape of a circle is not recommended.
Inserting and Ejecting a CD
Click the Eject button of the optical disk drive at the side of the computer.
1
Status Indicator
Eject Button
59
Emergency Hole
Page 60
60
When the CD tray pops out, insert a CD or DVD until it clicks.
2
Push the CD tray inward until it clicks. The CD drive status indicator is turned on.
3
A CD drive’s reading and writing speed may differ depending on the condition and
type of the media.
To eject a CD when the CD drive does not work or the computer is off, place the end
of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.
Page 61
Multi Card Slot (Optional)
Using the multi card slot, you can read and write data to a SD, SDHC, MMC And SDXC
cards.
You can use a card as a removable disk and conveniently exchange data with digital
devices such as a digital camera, digital camcorder, MP3, etc.
You can only use it after installing Windows XP/Windows Vista/Windows 7.
Before You Start!
You have to additionally purchase a multi card with the necessary capacity
depending on your requirements.
You can use a multi card just like any data storage device. A copyright protection
function is not supported.
Since you can lose a card when moving the computer, keep the card separately.
Before using the slot, remove the dummy card from the slot.
(Only models supplied with a dummy card).
Supported Cards : SD Card, SDHC card, MMC Card, SDXC Card
The images used for the illustration are of a representative model, therefore the
images may differ from the the actual product.
To Insert and Use a Memory Card
Insert the card into the multi card slot in the indicated direction.
Example) SD Card
61
Page 62
62
Using a Mini SD snd RS-MMC
Since the above cards are too
small, you cannot insert the cards
into the slot directly.
Insert the card into the dedicated
adapter (available from most
electronic retailers) and then insert
the adapter into the multi card slot.
However, depending on the
adapter’s body material, some RS-
MMC cards may not be recognized
properly.
Samsung recommend that you
check the card is recognized
correctly prior to purchasing.
To remove a memory card
To format a memory card
When using a memory card for the rst time,
you must format the card before using it.
Formatting a card deletes all data
saved on the card. If the card
includes data, backup the data
before formatting it.
Click
1
Right-click over a card drive with the
2
Start
>
My computer
touchpad and select
Format
.
.
Take hold of the end of the card and remove
the card.
Click
3
Start
to the formatting.
To use a card to exchange data
with a digital device such as a
digital camera, formatting the
data using the digital device is
recommended.
When you try to use a card,
which is formatted in the
computer, in another digital
device, you may have to format
the card again in the device.
You cannot format, write or
delete data from a SD, or SDHC
card with a write protection tab
when it is in the Lock position.
Inserting and removing a
memory card repeatedly may
damage the memory card.
Page 63
Adjusting the Volume
You can adjust the volume using the keyboard and the volume control program.
Adjusting the Volume using the
Keyboard
Press the
Press the Fn + key combination to turn
the volume on or off.
Fn
+ key combination or Fn +
key combination to adjust the volume.
You can only use it after installing
Windows XP/Windows Vista/
Windows 7.
Adjusting the Volume using the
Volume Adjustment Program
You can only use it after installing
Windows XP/Windows Vista/
Windows 7.
The following are the procedures
to control the volume in Windows
7/Vista. For the Windows XP
procedures, refer to the following
as the procedures are similar.
Alternatively, right-click over the
and select
the volume.
Open Volume Mixer
Volume
to adjust
icon
Click the
slide the volume control bar to adjust the
volume.
Volume
icon on the taskbar and
Mute
63
Page 64
64
Page 65
Chapter 3.
Settings and
Upgrade
LCD Brightness Control 66
BIOS Setup 67
Entering the BIOS Setup 67
The BIOS Setup Screen 68
Setting a Boot Password 70
Changing the Boot Priority 72
Upgrading Memory 73
Battery 75
Installing/Removing the Battery 75
Charging the Battery 76
Measuring the Remaining Battery Charge 76
Extending the Battery Usage Time 77
Using the Security Lock Port 79
Page 66
66
LCD Brightness Control
You can adjust the LCD brightness in 8 levels.
Before You Start!
The LCD brightness is the brightest (Level 8) when the computer is running on AC
power, and it becomes dimmer when running on battery power.
Controlling the Brightness Using the Keyboard
You can use the screen brightness control keys after installing Windows and Easy Display
Manager.
Adjust the LCD brightness by pressing the Fn +( ) key or the Fn +( ) key.
The LCD brightness can change up to 8 levels and the brightness increases by 1 level when
pressing the Fn +( ) key once.
Maintaining the changed LCD brightness even after turning the computer on again
To maintain the LCD brightness set by using the brightness control keys or through
the Power Options, follow the procedures below.
1.
Turn the computer on and press the F2 key when the SAMSUNG logo appears on
the screen to enter the BIOS Setup.
2.
Select the
3.
Press the
Boot
menu and set the
F10
key to save the settings and exit Setup.
Brightness Mode Control
item to
User Control
.
LCD bad pixels principle of laptop computer
Samsung observes the specications regarding strict quality and reliability of LCD
But in spite of that, it is inevitable that there might be a small number of bad pixels. A
large number of bad pixels can cause problems in appearance, but a small number
of pixels doesn't affect the computer performance.
Therefore Samsung observes and manages the following dot principles:
- Bright dot : 2 or less
- Black dot : 4 or less
- Combination of Bright and Dark : 4 or less
Instructions for Cleaning the LCD
Clean the LCD panel with a soft cloth lightly moistened with computer cleansing
detergent moving in one direction.
Cleaning the LCD panel with excessive force can damage the LCD.
Page 67
BIOS Setup
The BIOS Setup enables you to congure your computer hardware according to your
needs.
Before You Start!
Use the BIOS setup to dene a boot password, change the booting priority, or add a
new device.
Since incorrect settings may cause your system to malfunction or crash, take care
when conguring the BIOS.
The functions of the BIOS setup are subject to change for product function
enhancement purposes.
The BIOS Setup menus and items may differ depending on your computer model.
Entering the BIOS Setup
Turn the computer on.
1
When the booting screen (SAMSUNG logo) appears, press the F2 key to enter the BIOS
2
Setup.
Press the
try to boot from the network.
After a moment, the BIOS setup screen appears.
3
The items in the BIOS setup may differ depending on the product.
F12
key while the booting screen(SAMSUNG logo) appears, the system will
67
Page 68
68
The BIOS Setup Screen
XXXXXXXX
Setup Menu Description
Setup Menu
Help
Help for the selected item
appears automatically.
Setup Items
Main
Advanced
Security
Boot
Exit
Used to change the basic system and environment settings.
Used to congure advanced functions on your computer for devices and chipsets.
Used to congure security functions, including passwords.
Used to set the boot priority and other boot options.
Used to exit the Setup either saving the changes or not.
Page 69
System Setup Keys
In the Setup, you have to use the keyboard.
F1
Up & Down Keys
F5/F6
F9
ESC
Left & Right Keys
Enter
F10
The keyboard image may differ from the actual keyboard.
Press to view the Setup Help.
Press to move up and down.
Press to change the item value.
Press to load the default Setup settings.
Press to return to a higher level menu or to move to
the Exit menu.
Press to move to another menu.
Press to select an item or to enter a sub menu.
Press to save the changes and exit Setup.
69
Page 70
70
Setting a Boot Password
When setting a password, you have to enter a password to use the computer or enter the
BIOS Setup.
By conguring a password, you can restrict system access to authorized users only and
protect data and les saved on the computer.
Before You Start!
Do not lose or forget your password.
If you have forgotten your password, contact a Samsung service center.
In this case, a service fee will be charged.
Setting a Supervisor Password
A Supervisor Password is required to turn
the computer on or to start the System
Setup.
When setting a Supervisor Password, users
other than a supervisor cannot use the
computer.
Select the
1
Setup.
In the
2
press <
Security
Set Supervisor Password
Enter
menu in the BIOS
>.
item,
Enter a password, press <
3
enter the password for conrmation,
and press <
password can be up to 8 alphanumeric
characters. Special characters are not
allowed.
When a message conrming the
4
password conguration appears in the
[
Setup Notice
The supervisor password has been set.
The supervisor password is required to
turn the computer on or to enter the
BIOS Setup.
Enter
> again. The
] window, press <
Enter
>, re-
Enter
Setting a User Password
Users can start the system with a user
password, but cannot enter the System
Setup. By doing this, you can prevent other
users from entering Setup.
>.
Page 71
Before conguring a user password, a
supervisor password must have been
congured. Deactivating the supervisor
password also deactivates the user
password.
In the
Set User Password
<
Enter
> and complete the procedures from
Step 3 of Setting a Supervisor Password.
item, press
Setting Up a Boot Password
To setup a boot password, the administrator
password (Set Supervisor Password) should
be set in advance.
Set the
Password on boot
Once a boot password is set, you have to
enter a password to boot up the computer.
item to Enabled.
Setting up a Hard Disk Drive
Password (Optional)
A supervisor password must be set using the
Set Supervisor Password menu.
If you set a password for a hard disk drive, it
cannot be accessed from another computer.
Press Enter in the
and dene a password as described in Step
3 of the Setting up the Supervisor Password.
The hard disk drive password
setting function is not provided for
some models.
Changing the hard disk drive
password
For security purposes, you can
only change a hard disk drive
password after restarting the
computer by pressing the computer
Power
If you cannot change the hard
disk drive password or the
Password Frozen
appears when entering the BIOS
Setup and then selecting
> HDD Password
button to turn the computer on
again.
Set HDD Password
button.
message
, press the Power
item
HDD
Security
Deactivating the Password
Press <
1
In the
2
Leave the
3
Leave the
4
In the [
5
Enter
deactivated. For example, to deactivate
a supervisor password in the
Supervisor Password
<
Enter
enter the currently congured password
and press <
eld empty, and press <
empty, and press <
<
Enter
The password is deactivated.
> on the password to be
item, press
>.
Enter Current Password
Enter
>.
Enter New Password
Enter
Conrm New Password
Enter
>.
Setup Notice
>.
] window, press
Set
item,
item
>.
eld
71
Page 72
72
Changing the Boot Priority
XXXXXXXX
Boot Device Priority
[Boot priority order]
1. AHCI CD : N/A
2. AHCI HDD : XXXXXXXXXXXXXXXX
3. USB KEY : N/A
4. USB CD : XXXXXXXXXXXXXX
5. USB FDD : N/A
6. USB HDD : N/A
7. PCI BEV : N/A
8.
- IDE HDD : N/A
- IDE CD : N/A
- PCI SCSI : N/A
- USB ZIP : N/A
- USB LS120 : N/A
[Excluded from boot order]
The default boot priority of your computer is the CD-ROM rst, then a removable device
and then the hard disk drive in this order.
By default, the highest boot priority device is set to the CD-ROM/DVD drive. As an
example, the procedures to change the highest boot priority device to the hard disk drive
are described below.
Select the
1
Setup.
Press <
2
Priority
Boot
Enter
item.
menu in the BIOS
> on the
Boot Device
Press the down key (↓) to move to the
3
AHCI HDD item and press the
F6
move up to the top item.
Press the
4
and exit Setup. The highest boot
F10
key to save the settings
priority device is now set to the Hard
Drive.
key to
Page 73
Upgrading Memory
One or more memory modules are installed on the computer.
There are 2 memory slots and users can replace the installed memory or add new
memory.
Before You Start!
Replace new memory only after shutting the computer down completely.
Do not replace memory when the computer is in Sleep mode.
Disconnect main power plug and remove the battery before continuing.
To utilize the dual channel feature, using memory modules with the same
specications (of the same capacity and from the same manufacturer) is
recommended.
Only use the same type of memory as specied in the Product Specication.
The images used for the illustration are of a representative model, therefore the
images may differ from the the actual product.
Adding or Replacing Memory
Modules
Remove the screw on the memory
1
compartment cover at the bottom of
the computer using a screw driver.
Fixing Screw
Insert a new memory module into
2
the memory slot at an angle of
approximately 30 degrees aligning it to
the angle of the memory slot.
Memory Slot
73
Page 74
74
Push the memory module down so that
3
it is completely xed. If the memory
does not t easily, push the memory
module down while pulling the memory
module latches outward.
Close the memory compartment cover
4
and fasten the screw.
Removing a memory module
Pull the memory module latches
outward.
The memory module will pop up.
Remove the memory module out at
an angle of 30 degrees.
Page 75
Battery
Please refer to the following instructions when running the computer on battery power
without connecting the AC power.
A Lithium-Ion smart battery is supplied with this computer.
Before You Start!
Carefully read and follow the precautions printed on the battery before using the
battery.
Before using your computer for the rst time after purchasing it, charge the battery
completely.
Precautions
Use only chargers specied in the User Manual.
Never heat the battery pack, put it near or in a re or use at a temperature higher
than 60°C, as this may cause re.
Never cause a short circuit between the battery pack terminals or disassemble the
battery pack.
Carefully read and follow the precautions printed on the battery and the safety
instructions in the User Manual before using the battery.
Please refer to the system operation environment of this manual and operate and
store the battery at room temperature.
Installing/Removing the Battery
Shutdown the system, close the LCD
1
panel and place the computer upside
down on a at surface.
Pull the two battery latches
2
, then remove the battery.
outwards
75
Page 76
76
3
To install the battery again, slide the
battery into the system.
The battery latches move inwards and
x the battery automatically.
Check if the battery latch has been
moved inwards.
Charging the Battery
1
Attach the battery and connect the
AC adapter to the DC-in jack of the
computer. The battery will then start
charging.
2
When charging is complete, the Charge
LED turns red.
Status Charge LED
Charging Red
or
Orange
Charging complete Green
or
Blue
AC adapter not
connected
Off
Measuring the Remaining
Battery Charge
You can view the battery charge status by
completing the following procedures.
To use the shortcut key to view
You can only use this function after installing
Windows XP/Windows Vista/Windows 7 and
installing the
Easy Display Manager
program
with the
system software media disk
. (Only
for Windows XP/Windows Vista/Windows 7)
Press the Fn + keys on the keyboard.
The remaining battery charge (%) will
displayed for a moment.
Battery Usage Time Information
A battery is an expendable supply, so when
using it over a long time, the capacity/battery
life is shortened. If the battery life is reduced
to under half of its initial time, we recommend
purchasing a new battery.
For long periods of not using the battery,
keep the battery after discharging it. This
extends the battery life time.
Page 77
Extending the Battery Usage
Time
Decreasing the LCD Brightness
Press the Fn + keys on the keyboard
to decrease the LCD brightness to extend the
battery usage time.
You can only use this function
after installing Windows XP/
Windows Vista/Windows 7 Vista
and installing the
Manager
software media disk
(Only for Windows XP/Windows
Vista/Windows 7)
Easy Display
program with the s
.
ystem
77
Page 78
78
Using the Battery Calibration
Function
When charging/discharging the battery
repeatedly for a short time only, the battery
usage time may be reduced by the difference
between the actual battery charge and the
remaining charge display.
In this case, the actual battery charge and
the remaining charge display will be the
same by discharging the battery completely
using the Battery Calibration function, and
then recharging it again.
Disconnect the AC power adapter after
1
turning off the computer.
Move to the
3
Calibration
keys and press <
Boot > Smart Battery
item using the direction
Enter
>.
Restart your computer and press the
2
F2
button when the Samsung logo
appears, to start the BIOS Setup.
Highlight
4
Conrmation
<
Enter
The Battery Calibration function is
activated and the battery is forcefully
discharged. To stop the operation, press
the (
This operation requires 3~5 hours
depending on the battery capacity and
the remaining battery charge.
>.
Esc
Yes
in the
Battery Calibration
window and press
) button.
Page 79
Using the Security Lock Port
You can connect a Kensington lock to the Security Lock port to prevent your computer
from being stolen when you have to use the computer in a public place.
To use this feature, you have to purchase the Kensington lock additionally. To use the
Kensington lock, refer to the product manual.
Tie the Kensington lock cable to a xed object and install the other end of the cable to the
Security Lock port.
79
Page 80
80
Page 81
Chapter 4.
Appendix
Product Speci cations 82
Page 82
82
Product Specications
The system specications may differ depending on the derived models. For detailed
system specications, refer to the product catalogue.
NP-RV408/RV508
CPU (Optional)
Main Memory (Optional)
Main Chipset (Optional)
Hard Disk Drive (Optional)
Graphics (Optional)
Operating Environment
Operating Voltage
Frequency
Output Power (Optional)
Output Voltage (Optional)
Optional components may not be provided or different components may be provided
depending on the computer model.
The system specications are subject to change without notice.
Intel Celeron / Pentium Dual Core Processor
Memory type: DDR3 SODIMM
Intel GL40
Intel PM45
9.5mmH SATA HDD
Intel GMA 4500M (Internal)
ATI Radeon HD 545v (External)
ATI Radeon HD 5470 (External)
Temperature : -5~40°C for storage, 10~32°C when operating
Humidity : 5~90% for storage, 20~80% when operating
100 - 240VAC
50/60Hz
40W/60W
19V 2.1A(40W)/19V 3.16A(60W)
Page 83
Registered Trademarks
Samsung is a registered trademark of Samsung Co., Ltd.
Intel, Pentium/Celeron are registered trademarks of the Intel Corporation.
Microsoft, MS-DOS, and Windows are registered trademarks of the Microsoft Corporation.
All other product or company names mentioned herein are registered trademarks of their
respective companies.
ENERGY STAR® Partner
As an ENERGY STAR® Partner, SAMSUNG has determined that this product
meets the ENERGY STAR® guidelines for energy efciency.
83
Page 84
84
Page 85
Page 86
BA81-11280A10 1008 31
Loading...
