Samsung NP-R40 Specification

- This Document can not be used without Samsung's authorization -

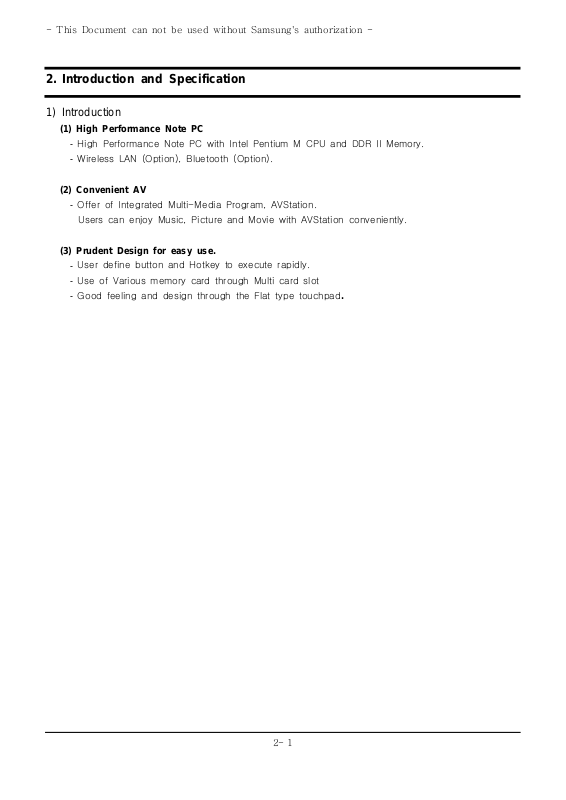

2. Introduction and Specification

1) Introduction

(1) High Performance Note PC

High Performance Note PC with Intel Pentium M CPU and DDR II Memory.

-

Wireless LAN (Option), Bluetooth (Option).

-

(2)ConvenientAV

Offer of Integrated Multi-Media Program, AVStation.

-

Users can enjoy Music, Picture and Movie with AVStation conveniently.

(3) Prudent Design for easy use.

User define button and Hotkey to execute rapidly.

-

Use of Various memory card through Multi card slot

-

Good feeling and design through the Flat type touchpad

-

.

2- 1

- This Document can not be used without Samsung's authorization -

2. Introduction and Specification

2) Specification

Processor and Motherboard P50 / R65

CPU

Speed

Cache 2MB L2 cache
Chipset RC410MD/ME + SB450
BIOS 8 Mbit, Flash upgradable
Thermal Design Performance MAX. 34W

Memory

Memory/Max.Memory 256MB / Max.2GB

Memory type
Memory Modules 256MB, 512MB, 1GB SODIMM

Sockets 2-slot SODIMM's

Intel® Celeron M (FSB 533MHz)
Intel® Dual Core™ Processor (FSB 667MHz)

Intel Celeron M (Yonah)+ RC410MD
Intel Dual Core processor (Yonah)+ RC410ME

Intel Celeron M Processor (1.60GHz)
Intel Dual Core Processor T2300(1.66GHz) ~ T2700(2.33GHz)

PC2-3200(400MHz) / PC2-4200(533MHz) / PC2-5300(667MHz)
DDR2 SODIMM

Display and Graphics

LCD 15.4" WXGA (Glare/Non-Glare)

LCD Vendor

15.4" WXGA

LCD Size

LCD Viewable Area 331.2 x 207.0mm (HxV)
LCD Resolution 1,280 x 800 x 262,144 color (32bit)
Dot Pitch 0.25875 x 0.25875mm (HxV)

Contrast Ratio
Brightness
Weight
Response time

Samsung AMLCD (LTN154X3-L03)
CMO LCD (N154I2_L02)

344x222x6.2mm(HxVxT)

typ. 300:1
typ. 200 (cd/m2)
typ. 550g
typ. 25msec

2- 2

- This Document can not be used without Samsung's authorization -

2. Introduction and Specification

Graphics Controller
ATI RC410MD/ME

Video Memory 64MB / 128MB
Max.Resolution for LFP LVDS 1,280 x 800 x 32Bits color (WXGA)
Max.Resolution for External
Monitor
Max.Resolution for LFP LVDS 1400 * 1050 x 32Bits color (SXGA+)

Audio

Sound Azalia

Controller Realtek ALC262C
Conversion Built-in high performance 20-bit ADC & 24-bit DAC
Internal Interfaces Embedded 2 stereo speakers
Speaker Power Rating 2 Speakers x 2 Watt with enclosure each
External Interfaces Microphone, Headphone
Controls Keyboard volume control, EDS enable / disable

Storage

Hard Disk Drive 9.5mmH 2.5" HDD, Removable

Supports SMART UltraDMA-33/66/100 support
Average Access Time 13m sec.

Speed

Capacity

Optical Disk Drive CD / Combo / Super Multi (12.7mm)

Type Fixed type (Factory Option)
S/W supplied Power DVD Player , Burning function in Windows XP
Security RPC-II Regional Encoding

ATI Radeon Xpress300M (6th Generation IGP)

1,920 x 1,440 (CRT)

5400rpm
PATA, SATA (ready)
60GB : Hitachi, Fujitsu
5400rpm

Optical Driver Modules

CD-ROM Drive 1 Factory Option

Module type Fixed 12.7mm Slim
Speed 24x CD :
Average Access Time CD 110ms Typ
Weight 165g or less

TEAC, CD-224EN

2- 3

- This Document can not be used without Samsung's authorization -

2. Introduction and Specification

Combo Drive 2 Factory Option

Module type Fixed 12.7mm Slim
Speed 8x DVD-ROM, 24x RW, 24x CD-R, 24x CD :
Average Access Time DVD 110ms Typ., CD 90ms Typ.
Weight 190g or less
S/W supplied Power DVD Player (5.0), Nero Burning or equivalent S/W
Security RPC-II Regional Encoding

Super Multi Dual Layer 1 Factory Option

Module type Fixed 12.7mm Slim
Speed
Average Access time DVD 130ms Typ., CD 130ms Typ.

Weight 190g or less
S/W supplied Power DVD Player (5.0), Nero Burning or equivalent S/W
Security RPC-II Regional Encoding

Super MultiDual Layer 2 Factory Option

Module type Fixed 12.7mm Slim
Speed
Average Access Time DVD 180ms Typ., CD 150ms Typ.

Weight 190g
S/W supplied Power DVD Player (5.0), Nero Burning or equivalent S/W
Security RPC-II Regional Encoding

5x DVD-RAM, 8x DVD

16x CD-RW, 8x DVD, 24x CD : TEAC DV-W28EA

5x DVD-RAM, 8x DVD

10x CD-RW, 8x DVD, 24x CD : Matsubshita UJ-840B

±10g

±R 2.4x DVD+R DL, 4x DVD±RW,24x CD-R,

±R 2.4x DVD+R DL, 4x DVD±RW,24x CD-R,

Teac, DW-224E-C

Network Tools

Fax/Modem 56Kbps / V.92 Azalia Modem

Chipset SV92A1
Features RJ11 Output

LAN 10/100 Ethernet UTP (Factory option)

Chipset Broadcom BCM4401
Features RJ45 Output

802.11bg Wireless LAN Atheros

Type Minicard
Chipset Atheros
Antenna Integrated 1 Antenna

Bluetooth BCM92045NMD : Factory Option

Type USB daughter card with integrated PIFA antenna
Chipset Broadcom BCM2045
Standard version 2.0

2- 4
