Before You Start

Chapter 1

Getting Started

Before reading the User Guide, rst check the following information.

Optional items, some devices and software referred to in • the User Guide may not be provided and/or changed by upgrade. Note that the computer environment referred in the User Guide may not be the same as your own environment.

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series and may dier from the actual appearance of the product.

This guide decribes procedures for using both the mouse • and the touchpad.

This manual has been written for the Windows 8 operating • system. The descriptions and gures may dier depending on the installed operating system.

Using the software

From the • Start Screen, right-click any area and select All apps in the bottom right corner.

Then, click a desired program.

Or you can simply launch Quick Starter to do the same.

You can install • Quick Starter from SW Update.

The User guide supplied with this computer may vary • depending on your model.

Page 5

Chapter 1

Getting Started

Before You Start

Safety Precaution Notations

Icon Notation Description

Failure to follow instructions marked with

Warning

Caution

this symbol, may cause personal injury and or fatality.

Failure to follow instructions marked with this symbol, may cause slight injury to yourself or damage your property.

Text Notations

Samsung Electronics Co., Ltd. owns the copyright of this manual. No part of this manual may be reproduced or transmitted in any

form or by any means, electronic or mechanical, without the consent of Samsung Electronics Co., Ltd.

The information in this document is subject to change without notice due to improving the performance of the product.

Samsung Electronics shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

OS and Software Support

Icon Notation Description

Content included in this section includes

Caution

information required about the function.

Content included in this section includes

Note

helpful information to use the function.

If you change the product’s factory OS (Operating System) to another OS or if you install software which is not supported by the product’s original factory OS, you will not receive any technical support, product exchange or refund. And a fee will be charged when requesting a service.

Please use your computer with the original factory OS. If you install an OS other than the factory OS, data may be deleted or the computer may not start.

Page 6

Chapter 1

Getting Started

Before You Start

About the Product Capacity Representation Standard

About the capacity representation of the storage

The capacity of the storage device (HDD, SSD) of the manufacturer is calculated assuming that 1KB=1,000 Bytes.

However, the operating system (Windows) calculates the storage device capacity assuming that 1KB=1,024 Bytes, and therefore the capacity representation of the HDD in Windows is smaller than the actual capacity due to the dierence in capacity calculation. (E.g. For a 80GB HDD, Windows represents the capacity as 74.5GB, 80x1,000x1,000x1,000 byte/(1,024x1,024x1,024)byte = 74.505GB)

In addition, the capacity representation in Windows may be even smaller because some programs such as Recovery may reside in a hidden area of the HDD.

About Memory Capacity Representation

The memory capacity reported in Windows is less than the actual capacity of memory.

This is because BIOS or a video adapter uses a portion of memory or claims it for further use. (E.g. For 1GB(=1,024MB) memory installed, Windows may report the capacity as 1,022MB or less)

Page 7

Chapter 1

Getting Started

Safety Precautions

For your security and to prevent damage, please read the following safety instructions carefully.

Since this is commonly applied to Samsung Computers, some pictures may dier from actual products.

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Installation Related

Do not install the computer on a slant or a place prone to vibrations, or avoid using the computer in that location for a long time.

This increases the risk that a malfunction or damage to the product will occur.

Be careful that people are not exposed to the computer’s ventilator, adapter, etc., as they generate heat over a long period of time when your PC is powered on.

Do not install the product in places exposed to humidity such as a bathrooms.

There is a danger of electric shock. Use the product within the operating conditions specied in the Manufacturers User Guide.

Keep the plastic bags out of the reach of children.

There is a danger of suocation.

Keep a distance of 15cm or more between the computer and the wall and do not place any objects between them.

This may increase the internal temperature of the computer and may cause an injury.

Exposing a part of your body close to the heat from the vent or AC adapter for long periods of time may cause a burn.

Avoid blocking the vent at the bottom or side of the computer when using it on a bed or cushion.

If the vent is blocked, there is a danger of damaging the computer or overheating the inside of the computer.

Ver 3.2

Page 8

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Power Related

The power plug and wall outlet gures may dier depending on the country specications and the product model.

Do not touch the main plug or power cord with wet hands.

There is a danger of electric shock.

Do not exceed the standard capacity (voltage/current) of a multiplug or power outlet extension when using it for the product.

There is a danger of electric shock or re hazard.

If the power cord or power outlet makes a noise, disconnect the power cord from the wall outlet and contact a service center.

There is a danger of electric shock or re hazard.

Do not use a damaged or loose main plug or power cord or power outlet.

There is a danger of electric shock or re hazard.

Plug the power cord rmly into the power outlet and AC adapter.

Failure to do so may cause re hazard.

Do not unplug the power cord by pulling the cable only.

If the cord is damaged, it may cause electric shock.

Do not bend the power cord excessively or do not place a heavy object over the power cord. It is especially important to keep the power cord out of reach of infants and pets.

If the cord is damaged, it may cause electric shock or re.

Page 9

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Connect the power cord to an outlet or multiple power plug (extended cable) with a ground terminal.

Failure to do so may result in electric shock. When the power supply is ungrounded, the

current may leak resulting in electric shock.

If water or another substance enters the power input jack, AC adapter or the computer, disconnect the power cord and contact the service center.

If the notebook computer has an external type (removable) battery, separate the battery also.

Damage to the device within the computer may cause electric shock or re hazard.

Keep the power cord or outlet clean so that they are not covered with dust.

Failure to do so may result in re.

AC Adapter Usage Precautions

Connect the power cord to the AC adapter rmly.

Otherwise, there is a danger of re due to an incomplete contact.

Use only the AC adapter supplied with the product.

Using another adapter may cause the screen to icker.

Do not place heavy objects or step onto the power cord or AC adapter to avoid damaging the power cord or AC adapter.

If the cord is damaged, there is a danger of electric shock or re.

Unplug the wall-mount AC adapter (adapter and plug intergrated type) from the wall outlet while holding the body and pulling it in the direction of the arrow.

If you unplug the adapter by holding and pulling the cable, the adapter may be damaged and an electric shock, explosive sound or spark may occur as a result.

Page 10

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Battery Usage Related

Please charge the battery fully before using the computer for the rst time.

Keep the battery out of the reach of infants and pets, as they could put the battery into their mouths.

There is a danger of electric shock or choking.

Use an authorized battery and AC adapter only.

Please use an authorized battery and adapter approved by Samsung Electronics.

Unauthorized batteries and adapters may not meet the proper safety requirements and may cause problems or malfunctions and result in an explosion or re.

Do not use the computer in a badly ventilated location such as on bedding, on a pillow or cushion, etc, and do not use it in a location such as room with oor heating as it may cause the computer to overheat.

Take care that the computer vents (on the side or the bottom) are not blocked especially in these environments. If the vents are blocked, the computer may overheat and it may cause a computer problem, or even an explosion.

Do not use the computer in a humid location such as a bathroom or sauna.

Please use the computer within the recommended temperature and humidity range (10~32ºC, 20~80% RH).

Do not close the LCD panel and put the computer into your bag to move it when it is still turned on.

If you put the computer into your bag without turning it o, the computer may overheat and there is a danger of re. Shut the computer down properly before moving it.

Page 11

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Never heat the product(or battery) or put the product(or battery) into a re. Do not put or use the product(or battery) in a hot location such as a sauna, inside a vehicle exposed to the heat, and so on.

There is a danger of an explosion or re.

Take care not to allow metal objects such as a key or clip to touch the battery terminal (metal parts).

If a metal object touches the battery terminals, it may cause excessive current ow and it may damage the battery, or result in a re.

If liquid leaks out of the product(or battery) or there is a funny smell coming from the product(or battery), remove the the product(or battery) the computer and contact a service center.

There is a danger of an explosion or re.

To use the computer safely, replace a dead battery with a new, authorized battery.

Cutting the power to the internal battery (for corresponding models only.)

For products with built-in batteries, customers cannot remove • the battery.

In the case of ooding, lightning or explosions, you can cut • the battery power by inserting an object such as a paper clip into the [Emergency Hole] at the bottom of the computer.

Disconnect the AC adapter and insert an object such as a • paper clip into the hole at the bottom of the computer to cut the battery power.

In the case of ooding, lightning or explosions, cut the battery power, do not reconnect the AC adapter, and immediately contact Samsung Electronics so that the appropriate countermeasures can be taken.

Page 12

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Thereafter, if you connect the AC adapter, the battery power • will be supplied again.

Do not cut the battery power under normal • conditions.

This may result in data loss or a product • malfunction.

The location of the Emergency Hole may dier depending on the model.

Usage Related

Disconnect all cables connected to the computer before cleaning it. If your notebook is external & removable battery type, remove the external battery.

There is a danger of electric shock or damage to the product.

Do not connect a phone line connected to a digital phone to the modem.

There is a danger of a electric shock, re or damage to the product.

Do not place any container lled with water or chemicals over or near the computer.

If water or chemicals enter the computer, this may cause re or electric shock.

If the computer is broken or dropped, disconnect the power cord and contact a service center for a safety check.

If the notebook computer has an external type (removable) battery, separate the battery also.

Using a broken computer may cause electric shock or re hazard.

Page 13

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Avoid direct sunlight when the computer is in an air-tight location such as inside a vehicle.

There is a danger of a re hazard. The computer may overheat and also present opportunity to thieves.

Do not use your computer for long periods of time while any part of your body is making direct contact with it. The temperature of the product may increase during normal operation.

This may result in harming or burning your skin.

Upgrade Related

Never disassemble the power supply or AC adapter.

There is a danger of electric shock.

When removing the RTC (Real Time Clock) battery, keep it out of the reach of children as they could touch and/or swallow it.

There is a danger of choking. If a child has swallowed it, contact a doctor immediately.

Use only authorized parts (multiplug, battery and memory) and never disassemble parts.

There is a danger of damaging the product, electric shock or re hazard.

Shut down the computer and disconnect all cables before disassembling the computer. If there is a modem, disconnect the phone line. If your notebook is external & removable battery type, remove the external battery.

Failure to do so, may cause electric shock.

Page 14

Chapter 1

Getting Started

Safety Precautions

Warning

Failure to follow instructions marked with this symbol may cause personal injury and even fatality.

Security and Movement Related

Follow the instructions for the relevant location (e.g. airplane, hospital, etc.) when using a wireless communication device (wireless LAN, Bluetooth, etc.).

Avoid exposing a drive to magnetic elds. Security devices with magnetic elds include airport walk-through devices and security wands.

When carrying the notebook computer with other items, such as the adapter, mouse, books etc, take care not to press anything against the notebook computer.

If a heavy object is pressed against the notebook computer, a white spot or stain may appear on the LCD. Therefore, take care not to apply any pressure to the notebook.

In this case, place the notebook computer in a separate compartment away from the other objects.

The airport security devices that check carry-on luggage, such as conveyor belts, use x-rays instead of magnetism and will not damage a drive.

Page 15

Chapter 1

Getting Started

Safety Precautions

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Installation Related

Do not block the ports (holes), vents, etc. of the product and do not insert objects.

Damage to a component within the computer may cause electric shock or re.

When using the computer with it lying on its side, place it so that the vents face upwards.

Failure to do so, may cause the internal temperature of the computer to rise and the computer to malfunction or halt.

Do not place a heavy object over the product.

This may cause a problem with the computer. In addition, the object may fall and cause injury, or damage the computer.

Battery Usage Related

Dispose of worn-out batteries properly.

There is a danger of re or explosion.• The battery disposal method may dier depending on •

your country and region. Dispose of the used battery in an appropriate way.

Do not throw or disassemble the battery and do not put it into water.

This may cause an injury, re or explosion.

Use only a battery authorized by Samsung Electronics.

Failure to do so may cause an explosion.

Avoid contact with metal objects such as car keys or clips when keeping or carrying a battery.

Contact with a metal may cause excessive current and a high temperature and may damage the battery or cause a re.

Charge the battery according to the instructions in the manual.

Failure to do so, may cause an explosion or re from damage to the product.

Do not heat the product(or battery) or expose it to heat (e.g. inside a vehicle during the summer).

There is a danger of explosion or re.

Page 16

Chapter 1

Getting Started

Safety Precautions

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Usage Related

Do not place a candle, light cigar, etc. over or on the product.

There is a danger of re.

Use a wall outlet or multi-plug with a grounding part.

Failure to do so may cause electric shock hazard.

Make sure to have the product tested by a safety service engineer after repairing the product.

Authorized Samsung Repair Centers will carry out safety checks after a repair. Using a repaired product without testing it for safety may cause an electric shock or re.

Connect only permitted devices to the connectors or ports of the computer.

Failure to do so, may cause electric shock and re.

Close the LCD panel only after checking if the notebook computer is turned o.

The temperature may rise and it may cause overheating and deformation of the product.

Do not press the Eject Button while the CD-ROM drive is in operation.

You might lose data and the disk might be suddenly ejected and could cause an injury.

Take care not to drop the product while using it.

This may cause personal injury or loss of data.

Do not touch the antenna with electricity facility such as the power outlet.

In case of lightning, immediately turn the system o, disconnect the power cord from the wall outlet and phone line from modem. Do not use a modem or phone.

There is a danger of electric shock or re.

Do not use your computer and AC-Adapter on your lap or soft surfaces.

If the computer temperature increases, there is a danger of burning yourself.

There is a danger of electric shock.

When handling computer parts, follow the instructions on the manual supplied with the parts.

Failure to do so, may cause damage to the product.

Page 17

Chapter 1

Getting Started

Safety Precautions

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

If the computer emits smoke, or there is a burning smell, disconnect the power plug from the wall outlet and contact a service center immediately. If your notebook is external & removable battery type, remove the external battery.

There is a danger of re.

Do not use a damaged or modied CD.

There is a danger of damaging the product or personal injury.

Do not insert your ngers into the PC Card Slot.

There is a danger of injury or electric shock.

Use recommended computer cleansing solution when cleaning the product and only use the computer when it is completely dried.

Do not place your face close to the Optical Disk Drive tray when it is operating.

There is a danger of injury due to an abrupt ejection.

Check CDs for cracks and damage prior to use.

It may damage the disc and cause disorder of device and injury of user.

Failure to do so may cause electric shock or re.

Emergency disk eject method using paperclip should not be used while the disk is in motion. Make sure to use the emergency disk eject method only when the Optical Disk Drive has stopped.

There is a danger of injury.

Page 18

Chapter 1

Getting Started

Safety Precautions

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Upgrade Related

Take care when touching the product or parts.

The device may be damaged or you may be injured.

Take care not to throw or drop a computer part or device.

This may cause injury or damage to the product.

Make sure to close the computer cover before connecting the power after a reassembly.

There is a danger of electric shock if your body touches an internal part.

Security and Movement Related

When moving the product, turn the power o and separate all connected cables rst.

The product might be damaged or users may trip over the cables.

For long periods of not using the notebook computer, discharge the battery and preserve as it is detached. (For external & removable battery type)

The battery will be preserved at its best condition.

Do not operate or watch the computer while driving a vehicle.

There is a danger of a trac accident. Please concentrate on driving.

Use parts authorized by Samsung Electronics only.

Failure to do so, may cause re or damage the product.

Never disassemble or repair the product by yourself.

There is a danger of electric shock or re.

To connect a device that is not manufactured or authorized by Samsung Electronics, enquire at your service center before connecting the device.

There is a danger of damaging the product.

Page 19

Chapter 1

Getting Started

Safety Precautions

Caution

Failure to follow instructions marked with this symbol may cause slight injury or damage to the product.

Cautions on Preventing Data Loss (Hard Disk Management)

Take care not to damage the data on a hard disk drive.

A hard disk drive is so sensitive to external impact that an •

external impact may cause loss of data on the surface of the disk.

Take extra care, because moving the computer or an impact •

on the computer when it is turned on may damage the data of the hard disk drive.

The company is not liable for any loss of data on the hard disk •

drive.

Causes that may damage the data of a hard disk drive and the hard disk drive itself.

The data may be lost when an external impact is applied to the •

disk while disassembling or assembling the computer.

The data may be lost when the computer is turned o or reset •

by a power failure while the hard disk drive is operating.

The data may be lost and irrecoverable due to a computer virus •

infection.

The data may be lost if the power is turned o while running a •

program.

Sudden impact or movement to the computer while the hard •

disk drive is operating, may cause les to be corrupted or bad sectors on the hard disk.

To prevent data loss due to damage to the hard disk drive, please backup your data frequently.

Page 20

Chapter 1

Getting Started

Safety Precautions

Using the power supply in an airplane

Since the power outlet type diers depending on the type of airplane, connect the power appropriately.

Since the representative gures of the power plug and the auto adapter are used, they may dier from the actual parts.

When using the AC power plug

Connect the power plug pins perpendicular into the center of the power outlet.

If the plug pins are not inserted into the center of the holes, the •

plug pins are only inserted up to half their length. In this case, reconnect the power plug.

You have to insert the power plug into the outlet when the •

power indicator (LED) of the power outlet is lit green. If the power is connected properly, the power indicator (LED) remains green. Otherwise, the power indicator (LED) is turned o. In this case, unplug the power, check if the power indicator (LED) is green, and then reconnect the power plug.

Power Indicator (LED)

Center Holes

220V Power Plug 110V Power Plug

Good Example

Wrong Example

Page 21

Chapter 1

Getting Started

Safety Precautions

When using the auto adapter

When the cigar socket is provided, you have to use the auto adapter (optional). Insert the cigar plug of the auto adapter into the cigar socket and connect the DC plug of the auto adapter to the power input port of the computer.

Auto Adapter

In-ight Cigar SocketCigar PlugDC Plug

When using the Airplane Charging Converter

Depending on the airplane, you have to use the auto adapter and charging converter. Connect the airplane charging converter (optional) to the auto adapter (optional) and then insert the airplane power input jack into the power outlet.

Charging

Converter

Connect the airplane power

input jack to the power

outlet of the airplane.

Connect this end to

the auto adapter.

Page 22

Chapter 1

Getting Started

Proper Posture During Computer Use

Maintaining a proper posture during computer use is very important to prevent physical harm.

The following instructions are about maintaining a proper posture during computer use developed through human engineering. Please read and follow them carefully when using the computer.

Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.

The instructions in this manual have been prepared so that • they can be applied within the coverage of general users.

If the user is not included in the coverage, the • recommendation is to be applied according to the user’s needs.

Proper Posture

Do not use the computer while you are lying down, but only • while you are sitting down.

Do not use the computer on your lap. If the computer • temperature increases, there is a danger of burning yourself.

Work while keeping your waist straight.• Use a chair with a comfortable back.• Keep the center of your leg weight not on the chair but on •

your feet when you are sitting on a chair. To use the computer while talking over the telephone, use a •

headset. Using the computer with the phone on your shoulder is bad for posture.

Keep frequently used items within a comfortable work range • (where you can reach them with your hands).

Adjust the heights of desks and chairs appropriate to your height.

The heights are to be adjusted so that your arm forms a right angle when you place your hand over the keyboard while sitting down on a chair.

Adjust the height of chair so that your heel is comfortably placed on the oor.

Page 23

Chapter 1

Getting Started

Proper Posture During Computer Use

Eye Position

Keep the monitor or LCD away from your eyes by at least 50cm.

Hand Position

Keep your arm at a right angle as shown by the gure.

Adjust the height of the monitor and the LCD screen so that its • top height is equal to or lower than your eyes.

Avoid setting the monitor and LCD excessively bright.• Keep the monitor and LCD screen clean.• If you wear glasses, clean them before using the computer.• When entering contents printed on a paper into the computer, •

use a static paper holder so that the height of the paper is almost equal to that of the monitor.

Keep the line from your elbow to your hand straight.• Do not place your palm over the keyboard while typing.• Do not hold the mouse with excessive force.• Do not press the keyboard, touchpad or mouse with excessive •

force. It is recommended connecting an external keyboard and •

mouse when using the computer for long periods of time.

Page 24

Chapter 1

Getting Started

Proper Posture During Computer Use

Volume Control (Headphones and Speakers)

Check your volume rst to listen to music.

Check your

volume!

Check if the volume is too loud before using headphones.• It is not recommended using headphones for long periods of •

time. Any deviation from the equalizer default setting could cause •

Use Time (Break Time)

Take a break for 10 minutes or more after a 50-minute period • when working for more than one hour.

Illumination

Do not use the computer in dark locations. The illumination • level for computer use must be as bright so for reading a book.

Indirect illumination is recommended. Use a curtain to prevent • reection on the LCD screen.

Operation Condition

Do not use the computer in hot and humid locations.• Use the computer within the allowed temperature and •

humidity range specied in the User Guide.

hearing impairment. The default setting can be changed through software and •

driver updates without your intervention. Please check the equalizer default setting before rst usage.

Page 25

Chapter 1

Getting Started

Overview

Front View

The pictures used for the cover and the main body in the • User Manual are those of the representative model of each series. Therefore the colors and appearance of the pictures may dier from the actual appearance of the product depending on the model.

The actual color and appearance of the computer may • dier from the pictures used in this guide.

Using this camera, you can take still pictures and record video.

1 Camera (Optional)

You can take a picture or make a movie using the Charms > Start > Camera.

Camera operating

indicator

3 LCD The screen images are displayed here.

Status indicators and

sensors (Optional)

Power Button /

Power Button LED

6 Keyboard

This indicates the camera operating status.

Shows the operating status of the computer.

The corresponding operating LED is lit when the corresponding function operates.

Turns the computer on and o. When the computer is on, the power

button LED is lit.

A device to enter data by pressing the keys.

Touchpad/

Touchpad Buttons

The touchpad and touchpad buttons provide functions similar to the mouse ball and buttons.

Page 26

Chapter 1

Getting Started

Overview

Status indicators and sensors (Optional)

Charge Status

This shows the power source and the battery charge status.

Green: When the battery is fully charged or

the battery is not installed.

/ Red or orange: When the battery is being

charged.

O: When the computer is running on

battery power without being connected to AC adapter.

1 2

Illumination

Sensor (Optional)

This sensor detects the ambient illumination of the PC.

If the ambient illumination becomes dark, the LCD becomes dimmer and the keyboard backlight is lit.

On the contrary, if the ambient illumination becomes brighter, the LCD becomes brighter and the keyboard backlight is turned o.

Turning the illumination sensor on or o

Select Settings > Display > Screen

Brightness and select or unselect the Use the auto brightness control depending on the ambient illumination option to

turn the illumination sensor on or o.

Page 27

Chapter 1

Getting Started

Overview

Right View

For 13.3 inch models

►

For 15 inch models

►

Multi Card Slot

Microphone You can use the built-in microphone.

Monitor Port

Ear-set / headset

Jack

USB Port

A card slot supports multi cards.

A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.

You can connect a VGA adapter

(optional).

This is the jack for connecting an ear-set or headset.

You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

51 32 4

Multi Card Slot

Monitor Port

USB 3.0 Port

A card slot supports multi cards.

A port used to connect a monitor, TV or projector supporting a 15pin D-SUB interface.

You can connect a VGA adapter

(optional).

You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.

For Windows XP, the USB 3.0 feature

may be restricted.

1 32

Page 28

Chapter 1

Getting Started

Overview

Left View

For 13.3 inch models

►

41 2 3

What is a chargeable USB port?

USB device accessing and charging functions are • supported.

The USB charging function is supported regardless of • whether the power is turned on or o.

Charging a device through a chargeable USB port may take • longer than general charging.

1 DC Jack

Chargeable USB 3.0

Port

Micro Digital Video / Audio Port

(Micro HDMI) (Optional)

A jack to connect the AC adapter that supplies power to the computer.

This is a chargeable USB port that can be used to connect and charge a USB device.

When the AC adapter is connected, it

may be inconvenient to use the USB port. In this case, purchase and use a USB 3.0 extension cable or use the USB ports on the right side.

For Windows XP, the USB 3.0 feature may be restricted.

This is the port for a micro HDMI. You can enjoy digital video and audio by

connecting the computer to a TV.

Connect the Ethernet cable to this port.

Using the Chargeable USB function when the computer is • running on battery power reduces the battery usage time.

The user cannot evaluate the charging status of the USB • device from the computer.

This may not be supported for some USB devices.• You can turn the Chargeable USB function • ON/OFF by

selecting the Settings > Power Management > USB

Charging option. (Optional)

Wired LAN Port

You can use wired LAN by using the

LAN adapter (Optional).

Page 29

Chapter 1

Getting Started

Overview

Left View

For 15 inch models

►

4 5 61 2 3

What is a chargeable USB port?

USB device accessing and charging functions are • supported.

The USB charging function is supported regardless of • whether the power is turned on or o.

Charging a device through a chargeable USB port may take • longer than general charging.

1 DC Jack

Chargeable USB 2.0

Port

Ear-set / headset

Jack

Micro Digital Video / Audio Port

(Micro HDMI) (Optional)

A jack to connect the AC adapter that supplies power to the computer.

This is a chargeable USB port that can be used to connect and charge a USB device.

When the AC adapter is connected, it

may be inconvenient to use the USB port. In this case, purchase and use a USB extension cable or use the USB ports on the right side.

This is the jack for connecting an ear-set or headset.

This is the port for a micro HDMI. You can enjoy digital video and audio by

connecting the computer to a TV.

Using the Chargeable USB function when the computer is • running on battery power reduces the battery usage time.

The user cannot evaluate the charging status of the USB • device from the computer.

This may not be supported for some USB devices.• You can turn the Chargeable USB function • ON/OFF by

selecting the Settings > Power Management > USB Charging option. (Optional)

Connect the Ethernet cable to this port.

Wired LAN Port

6 Microphone You can use the built-in microphone.

You can use wired LAN by using the

LAN adapter (Optional).

Page 30

Chapter 1

Getting Started

Overview

Bottom View

For 13.3 inch models

►

This hole is to cut the power supply to the battery. Insert and press one end of an unfolded paper clip into the hole it to cut the power to the battery.

For more information, refer to About

Battery Emergency

Hole

the function to cut the power supply to the internal battery in the Safety

Precautions.

The location of the Emergency

Battery Hole may dier depending on the model.

For 15 inch models

►

Speaker A device used to generate sound.

If you replace the bottom of the product, the model name, serial number and some logos etched into the bottom of the product will no longer be there.

For more information, please ask for assistance from the

service center.

Page 31

Chapter 1

Getting Started

Turning the Computer On and O

검색

시작

장치

Turning the computer on

Connect the AC adapter.

Lift the LCD panel up.

Press the Power button to turn the computer on.

Power button LED is lit while the computer is turned on.

About Windows Activation

When you turn the computer on for the rst time, the Windows activation screen appears.

Follow the activation procedures according to the instructions on the screen to use the computer.

Adjusting the screen brightness

When the computer runs on battery power, the LCD brightness is automatically set to low.

Press the + key combination to increase the screen

brightness.

The Charms menu appears when you place your mouse

pointer at the edge of the top or bottom right of the screen.

LED

Alternatively, if you place your nger on the right edge of the touchpad and drag your nger toward the center, the Charms menu appears.

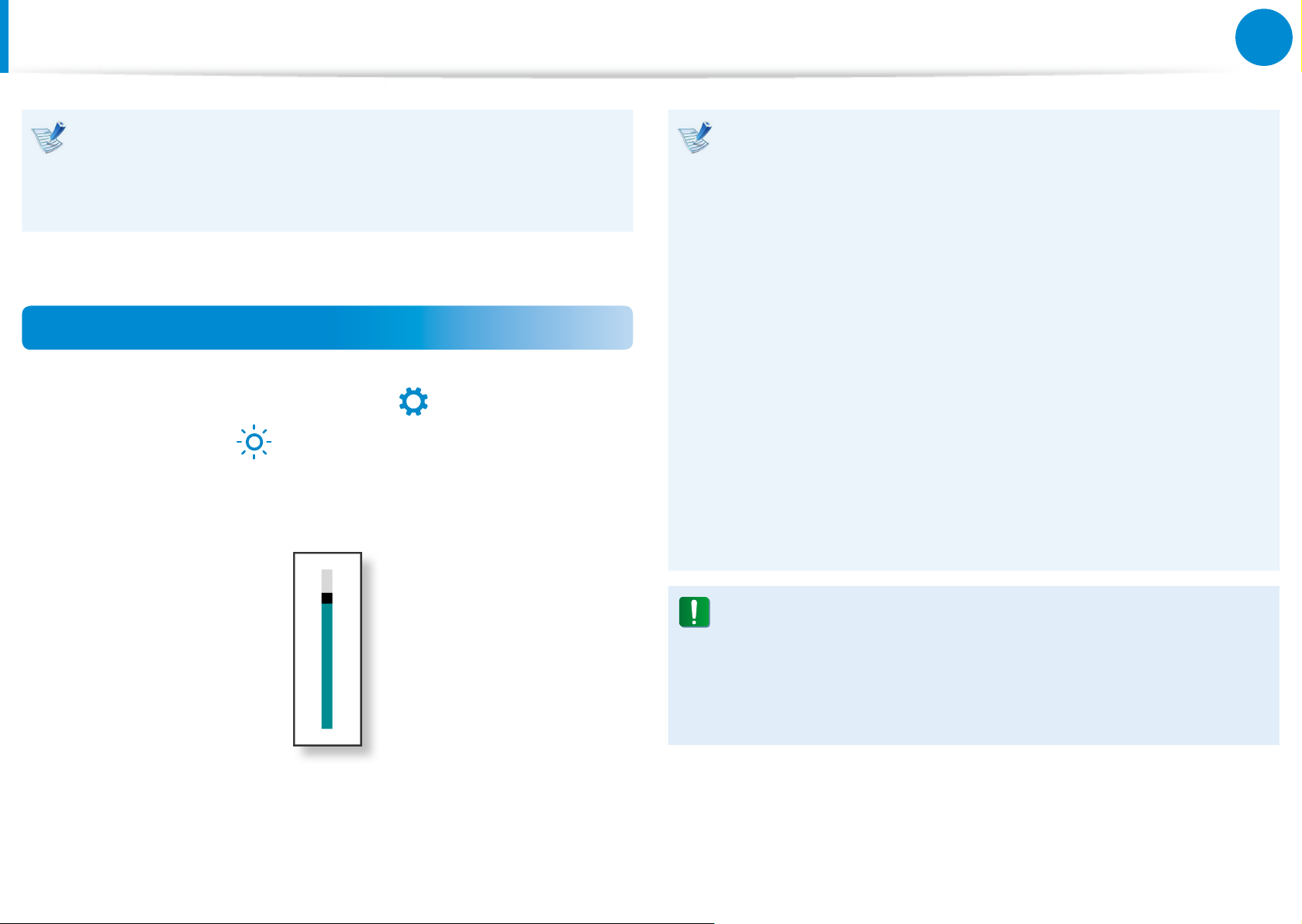

Increase the bar by pressing the Settings

Brightness

Page 32

Chapter 1

Getting Started

검색

시작

장치

Turning the Computer On and O

Turning the computer o

Since the procedures to turn the computer o may dier • depending on the installed operating system, please turn the computer o according to the procedures for the purchased operating system.

Save all your data before clicking on • Shut down.

The Charms menu appears when you place your mouse

pointer at the edge of the top or bottom right of the screen.

Click Settings

> Power

> Shutdown.

If you want to power o your computer when you are logged out, unlock the screen and click Power

> Shutdown.

Page 33

Chapter 2. Using Windows 8

What is Microsoft Windows 8? 33

Screen At a Glance 34

Using the Charms 36

Using Apps 38

Windows Hot Key Function 41

Page 34

What is Microsoft Windows 8?

Microsoft Windows 8 (hereafter referred to as Windows) is an operating system that is required for operating a computer.

To use your computer optimally, you need to know how to use it properly. Therefore, It is better to learn how to use Windows by utilizing Windows Help and Support.

The screen may appear somewhat dierent depending on • the model and the operating system.

Since this guide has been prepared based on Windows • 8, some of the instructions may dier depending on the version. It may also be modied without prior notice.

Chapter 2

Using Windows 8

Searching for Help

Displaying Help

Press the F1 Key on the keyboard to display the Help. Alternatively, place your mouse cursor over the end of the top or

bottom right area on the screen to display the Charms menu. Click Charms menu > Settings > Help.

If you are connected to the internet, you can access the most recent online Help.

Get Started

Internet & networking

Security, privacy, & accounts

You can view basic instructions on how to use your computer including new function(s) for the Windows OS.

After connecting to the network, you can check the Help section required to use the internet.

You can check the Help information required to protect your computer and personal information.

Page 35

Chapter 2

Using Windows 8

Screen At a Glance

Windows 8 provides both the new Start screen mode and the Desktop mode of the existing OS.

1 Start Screen

Refers to the default Start screen of Windows 8.

Start Screen Desktop

Start Screen

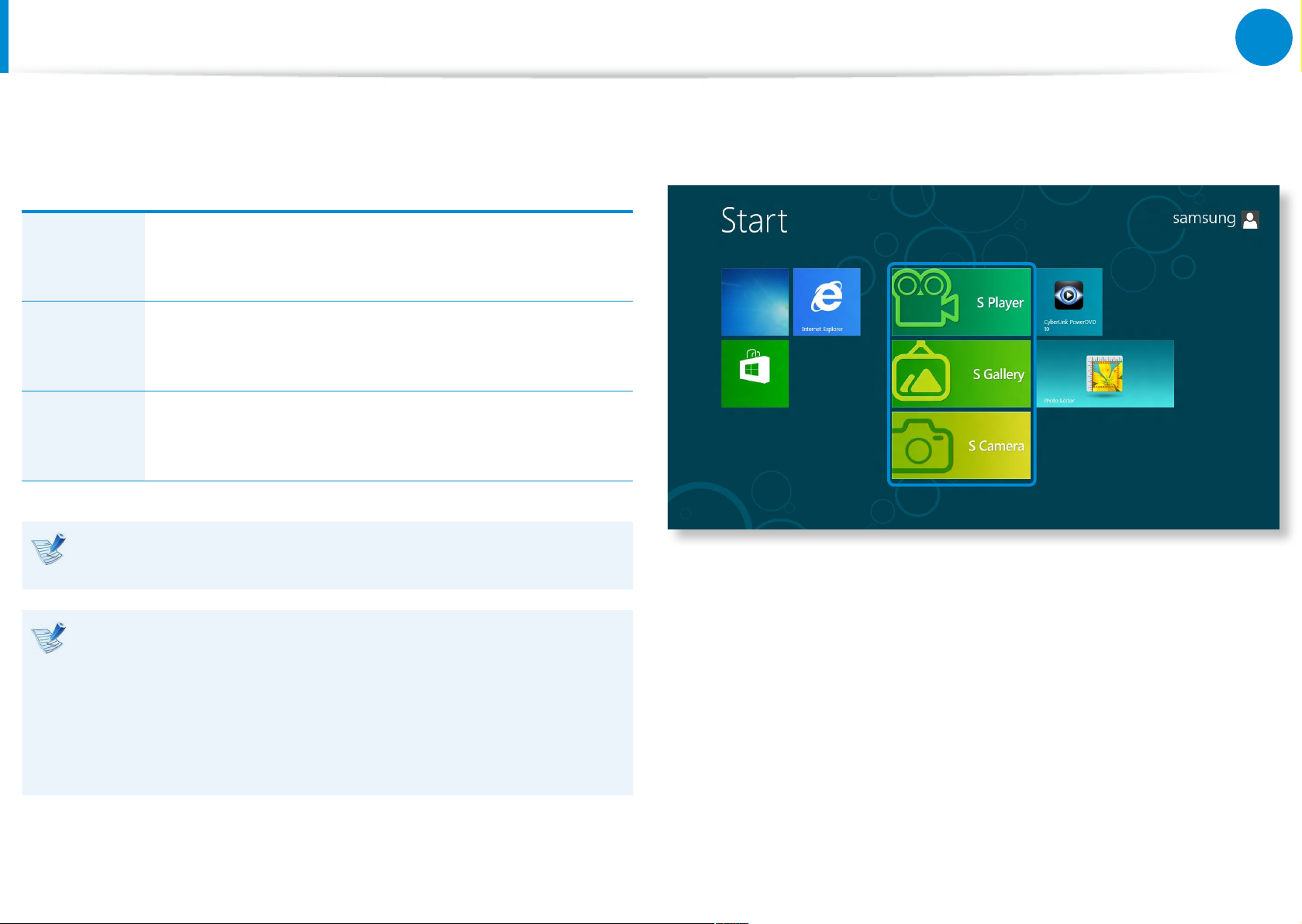

When you turn on the computer, the Start screen is displayed, which allows you to use the applications (Application, App, hereafter referred to as an App) at the same location.

2 3

2 App

Displaying the

Charms

4 User Account

5 Charms

Refers to the apps that are currently installed.

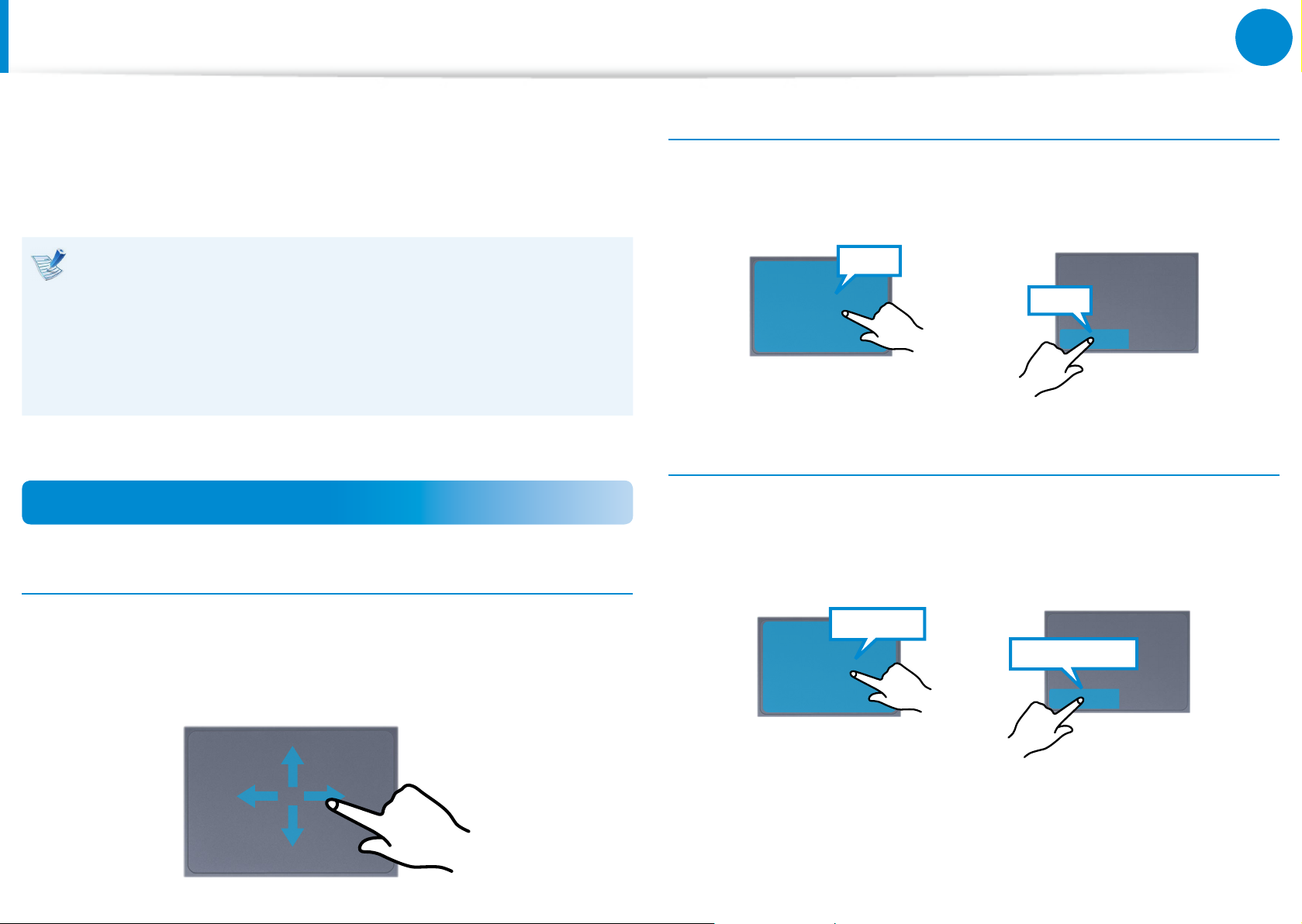

The Charms is hidden at the right of the screen. Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.

Or you place your nger on the right edge of the touch pad and drag your nger toward the center, the Charms menu appears.

This refers to the currently used user account.

This refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.

6 Desktop Switches to Desktop mode.

7 Camera Allows you to take pictures or make a movie.

6 7

Page 36

Chapter 2

Using Windows 8

Screen At a Glance

Desktop

This provides similar functions to those provided by the Desktop in prior Windows versions.

1 2

1 Desktop Refers to the Desktop.

The Charms is hidden at the right of the screen.

Displaying the

Charms

Place your mouse pointer at the edge of the top or bottom right of the screen to display the Charms.

Displaying Documents and Files

Click Windows Explorer in the taskbar on the Desktop to search for documents and les.

3 Charms

Switching

to the Start

Screen

This refers to the menu that allows you to use functions such as Search, Share, Start, Device and Settings.

Click the corner of the bottom left of the screen to switch to the Start screen.

Page 37

Chapter 2

Using Windows 8

Start

Device

Start

Device

Settings

Using the Charms

The Charms is a new type of menu that combines the Start menu with the Control Panel of existing Windows.

The Charms allows you to quickly congure the device(s) connected to your computer, search for App(s)/le(s), and use the sharing function, etc.

Activating the Charms

If you move your mouse pointer to the top or bottom right corner

If you want to search for a program or le in the App(s)/ Settings/File(s), simply enter a keyword in the Search charm and start Search.

You can also search within an App or on the Web.

You can use this menu to transfer a picture or le to another user. You can easily share pictures or les with other users simply by associating multiple Apps with the Share charm.

of the screen, the Charms appears.

Displaying the Charms Menu

Charms

Displaying the Charms Menu

You can move to the Start screen.

As this allows you to move directly to a desired device, you can handle tasks such as importing pictures from a digital camera, streaming a video to your TV or transferring les to a device on the current screen.

The Settings charm allows you to perform basic tasks such as adjusting the volume, turning o the PC, etc. If you select the Settings charm while a specic App is running, the settings for the currently running App are displayed.

Page 38

Chapter 2

Using Windows 8

Using the Charms

ENG

Changing the Settings

Frequently used Windows menus are collected. Click the Charms > Settings.

Icon Name Function Description

Wireless

Network

Adjusting the

Volume

Screen

Brightness

Notice

Power

Language You can set the Language.

You can connect to a wireless network. Select a wireless network to connect to.

You can adjust the volume or mute the sound.

You can adjust the screen brightness.

You can set the interval at which an App sends notices.

You can turn o your computer or select the Power Options.

Change PC settings

You can change more settings.

Page 39

Chapter 2

Using Windows 8

Using Apps

An App refers to an application program (hereafter referred to as an App). In a larger sense, it refers to all the software programs installed on the operating system.

Windows 8 provides basic Apps for frequently performed tasks.

Starting/Exiting an App

Click on an App in the Start screen to activate it.

To exit the App

Move your mouse pointer to the top of the screen.

Your mouse pointer changes to a hand shape.

Click and hold your mouse button and then drag it to the

bottom of the screen. The App moves downward and disappears and exits.

Using Apps

Displaying Currently Running App(s)

Move your mouse pointer to the top left corner of the screen

to display the last run App.

Then, move your mouse pointer down to display a list of the

currently running Apps in order.

Click on an App in that list or drag it to the center of the

screen. Now, you can check the selected App which is currently running.

Right-click over the App in the list and click Close to exit the App.

Page 40

Chapter 2

Using Windows 8

Using Apps

Running Two Apps at the Same Time

Select the Apps in the Start screen.

Move your mouse pointer to the top of the screen. Your

mouse pointer changes to a hand shape.

If you click and hold your mouse button and move left or

right, you can split the screen to display multiple Apps.

Move the Screen Split Bar to change the screen split ratio.

Supported screen split ratios are 3:7 or 7:3.

Weather

App

Screen

Split Bar

Store App

Adding/Removing an App to/from the Start Screen

Click Start screen > right-click your mouse button. Click All Apps at the bottom of the screen to display all the Apps that are currently installed.

If you right-click over the App to be added, the relevant menu

is activated at the bottom of your screen.

Click Pin to start or Unpin from Start .

Ex) When removing an App in the Start screen

Ex) If you run the Weather App and Store App at the

same time

Page 41

Chapter 2

Using Windows 8

Using Apps

Using the Windows Store

If you run the App Store in the Start screen, the Apps in the Windows Store are displayed.

However, a Microsoft account is required to purchase App(s) in the Windows Store.

Continue after registering your Microsoft Account in the Charms.

Conguring your Microsoft Account

A Microsoft Account allows you to synchronize your settings with other device(s) running Windows 8 online allowing you to share le(s) or settings.

You should register a Microsoft Account to download or purchase App(s) from the Store.

Run the Charms and click Settings > Change PC Settings.

Click Users > Your account > Switch to a Microsoft

account.

procedures.

Samsung cannot solve errors occuring with other apps installed from the Windows Store. Contact customer support for the app directly.

Page 42

Chapter 2

Using Windows 8

Windows Hot Key Function

You can use the following convenient hot keys in Windows 8.

Function Hot Keys Function Description

Displaying the

Start Screen

Displaying the

Desktop

Running the

Charms

Locking the

Screen

Opening the

Ease of Access

Center

Opening the

Second Screen

Settings

Windows Key Switches to Start mode.

Switches to Desktop

Windows Key + D

mode.

Windows Key + C Activates the Charms.

Windows Key + L Locks the screen.

Opens the Ease of Access

Windows Key + U

Center conguration.

Opens the External

Windows Key + P

Monitor Settings menu.

Opening the

Advanced

Windows Key + X

Management

Too l

Exit App Alt + F4

Opens the Advanced Management Tool.

Exits the currently running App.

Page 43

Chapter 3. Using the computer

Keyboard 43

Touchpad 46

External-type CD drive (ODD, To be purchased) 50

Multi Card Slot (Optional) 52

Connecting an External Display Device 54

Adjusting the Volume 58

LCD Brightness Control 60

Wired Network 61

Wireless Network (Optional) 65

Using the TPM Security Device (Optional) 67

Using the Multimedia App (Optional) 76

Samsung Software Update 80

Diagnosing the Computer Status and Troubleshooting 81

Page 44

Keyboard

Shortcut key functions and procedures are discussed in the following sections.

The keyboard image may dier from the actual keyboard.• The keyboard may dier depending on your country. The following mainly describes the shortcut keys.•

Shortcut Keys

Press both the Fn key and hot key at the same time. Alternatively, press the Fn Lock key as well as a hot key to use the hot key functions more easily.

Method 1

►

Chapter 3.

Using the computer

Method 2

►

Shortcut Keys

Fn Lock On: The Blue LED is turned On

Shortcut Keys

Page 45

Chapter 3.

Using the computer

Keyboard

Shortcut Keys Name Function

Settings The Samsung software control program, the Settings, is launched.

Screen Brightness

Control

LCD/External Monitor

Touchpad

Mute Press this button to turn the audio on or o.

Volume Control Controls the volume.

Controls the screen brightness.

Switches the screen output to the LCD or external monitor when an external monitor (or TV) is connected to the computer.

Turns the Touchpad function on or o. When using an external mouse only, you can turn the Touchpad o.

When it is dark or when the illumination sensor is turned o, you can manually control the brightness of the keyboard backlight.

Keyboard Backlight

Brightness Control

Silent Mode Reduces the Fan noise so that users can use the computer without hearing noise.

If you use the buttons in a bright location, the “The keyboard backlight brightness cannot • be changed due to too bright ambient illumination” message appears.

When it is bright or the illumination sensor is turned on, select • Settings > General > Keyboard Backlight and adjust the backlight brightness.

Page 46

Chapter 3.

Using the computer

Keyboard

Shortcut Keys Name Function

Airplane Mode

Turns all wireless network devices on or o. (Only for models with a wireless network device.)

Other Function Keys (Optional)

Performs the right-click mouse function (touchpad).•

If you press the • Fn Lock key, you can use the hot key functions without pressing the Fn key.

If the hot keys do not work properly, you have to install the

Settings.

Page 47

Chapter 3.

Using the computer

Touchpad

The touchpad provides the same function as a mouse and the left and right buttons of the touchpad plays the role of the left and right buttons of a mouse.

Touch the touchpad with your ngers only. • Anything other than your ngers, such as a ball-point pen, will not be recognized by the touchpad.

If you touch the Touchpad or press the Touchpad buttons • while booting up, the Windows boot time may be extended.

Basic Touchpad Functions

Moving the cursor on the screen

Click Function

Place a nger on the touchpad and click on an item once. Alternatively, press the left button once quickly and release it.

Tap

Click

Double-Click Function

Put your nger on the touchpad and quickly tap twice with your nger on an item you want.

Alternatively, press the left touchpad button twice quickly.

Place your nger on the touchpad slightly and move your nger. The mouse cursor will move accordingly. Move your nger in the

direction you wish to move the cursor.

TapTa p

ClickClick

Page 48

Chapter 3.

Using the computer

검색

시작

장치

Touchpad

Right Button Function

This corresponds to clicking the right mouse button. Press the right touchpad button once. The corresponding pop-up

menu appears.

Click

Drag Function

Dragging refers to moving an item to another place after selecting it.

Press and hold down the left touchpad button over an item you want to drag and move the item to the new location.

The Gesture Function of the Touchpad (Optional)

The Touchpad Gesture function may not be provided and the version of the function may dier depending on the model. Some usage procedures may dier depending on the version.

Conguring the Gesture Function

Some gesture functions may not be congured. In this case, you can congure them using the following path.

On the Desktop, click the Charms menu > Settings

Control Panel > Hardware and Sound > Touchpad icon.

When the Touchpad Settings window appears, click the

corresponding item in the Select an Item to Congure setting to select the checkbox for the corresponding item.

Holding down the left

touchpad button

Move

To cancel the Gesture function, deselect the checkbox for the corresponding item in the Touchpad Settings window.

Page 49

Chapter 3.

Using the computer

Touchpad

The Scroll Function

This function is the same as the scroll area of the Touchpad. If you place two ngers over the Touchpad and move them up,

down, left or right, the screen is scrolled up, down, left or right accordingly.

Zoom Functions

Charms Menu Activating Function

If you place your nger on the right edge of the touch pad and drag your nger toward the center, the Charms menu appears.

Displaying Additional Menu(s) of a Currently Running App

Place your nger at the edge of the top area on the touch pad and drag your nger toward the center, and the menu of the currently

If you place two ngers over the Touchpad together or apart, the current image or text is zoomed in or out.

Zoom-in

Zoom-out

running App appears.

Page 50

Chapter 3.

Using the computer

Touchpad

Last Run Window Opening Function

Place your nger on the left edge of the touch pad and drag your nger towards the center to activate a previously operating program from among the currently running programs.

Touchpad On/O Function

Locking with shortcut keys

If you want to use the mouse only without using the touchpad, you can turn the touchpad o.

To lock the touchpad function, press the

Alternatively, press the key and then press the key to turn the touchpad function o.

You can set the touchpad and touchpad button settings in the tabs that appear when clicking Charms menu on the

Desktop > Settings > Control Panel > Hardware and Sound > Touchpad.

+ keys.

Auto-locking when connecting USB mouse

If an external USB pointing device is connected in the Charms menu in Desktop > Settings > Control Panel > Hardware and Sound > Touchpad, check Disabled to disable the touchpad

feature when connecting to the USB mouse.

This auto-locking function is not provided for some models.

Page 51

Chapter 3.

Using the computer

External-type CD drive

(ODD, To be purchased)

This computer supports an external USB CD-ROM drive (can be additionally purchased).

Check if the interface type of the external CD-ROM drive is a USB type. For detailed specications, refer to the catalog.

Do not insert a cracked or scratched CD. • Otherwise, the CD may break and damage the optical disk drive when the CD rotates at a high speed.

When you clean a CD or DVD title, wipe with a soft cloth • from inside to outside.

Do not eject a CD when the CD operating LED is on.• The gures used for the description are of a representative •

model. Therefore the gures may dier from the real ones. Using a CD that is not in the shape of a circle is not •

recommended.

Connecting the CD Drive

Connect the CD drive to the USB port.

USB port

Page 52

Chapter 3.

Using the computer

External-type CD drive

Inserting and Ejecting a CD

Press the Eject button of the CD drive.

(ODD, To be purchased)

Status Indicator

Eject Button

When the CD tray opens, insert a CD or DVD and push the

tray in until it clicks.

Push the CD tray inward until it clicks.

Emergency Hole

The CD drive status indicator is turned on.

A CD drive’s reading and writing speed may dier • depending on the condition and type of the media.

To eject a CD when the CD drive does not work or the • computer is o, place the end of a paper clip ( ) into the Emergency Hole until the CD tray is ejected.

Page 53

Chapter 3.

Using the computer

Multi Card Slot

(Optional)

Using the multi card slot, you can read and write data to cards.

You can use a card as a removable disk and conveniently exchange data with digital devices such as a digital camera, digital camcorder, MP3, etc..

Supported Cards : SD Card, SDHC Card, SDXC Card• You have to additionally purchase a multi card with the •

necessary capacity depending on your requirements. You can use a multi card just like any data storage device. •

A copyright protection function is not supported. Since you can lose a card when moving the computer, •

keep the card separately. The gures used for the description are of a representative •

model. Therefore the gures may dier from the real ones.

Using the card

Insert the card into the multi card slot in the indicated

direction.

Example) SD Card

If a slot protection dummy card is inserted into your • computer, remove the dummy card before using the computer.

These descriptions are written based on Windows 8, the • latest operating system. Therefore, some descriptions and gures may dier from your operating system. But as the usage is similar to other Windows operating systems, you can use these descriptions for reference.

The following message appears on the top right. Click to

open the folder and click View Files.

If a message appears to notify you of any problem, click the corresponding window > Continue without Scanning. You can perform the following process described in No. 3.

Page 54

Chapter 3.

Using the computer

Multi Card Slot

(Optional)

Windows Explorer runs on the Desktop. You can save, move

and delete data on the corresponding drive.

Using a Mini SD

Since the above cards are too small, you cannot insert the cards into the slot directly.

Insert the card into the dedicated adapter (available from most electronic retailers) and then insert the adapter into the multi card slot.

To remove a memory card

Take hold of the end of the card and remove the card.

To format a memory card

When using the memory card for the rst time, you must format the card before using it.

Formatting a card deletes all data saved on the card. If the card includes data, backup the data before formatting it.

Click the Windows Explorer icon in the taskbar on the

Desktop.

Right-click over a card drive with the touchpad and select

Format.

Click Start to the formatting.

To use a card to exchange data with a digital device such • as a digital camera, formatting the data using the digital device is recommended.

When you try to use a card, which is formatted in the • computer, in another digital device, you may have to format the card again in the device.

You cannot format, write or delete data from a SD, or SDHC • card with a write protection tab when it is in the Lock position.

Inserting and removing a memory card repeatedly may • damage the memory card.

Page 55

Chapter 3.

Using the computer

Connecting an External Display Device

If you connect an external display device such as a monitor, TV, projector, etc., you can view the picture on the wider screen of the external device when you give a presentation or watch a video or movie.

There is an analog monitor port (D-SUB) and a micro digital video and audio port (Micro HDMI).

Since the visual quality is higher for Micro HDMI than D-SUB, if more than one port is available, connect the port that provides the higher visual quality.

Before you start, check the port and cable of the external display device and then connect the display device to the computer.

About the connection cable

Connecting to the monitor port (Optional)

You can experience a wider screen by connecting the computer to a monitor, TV or projector with a monitor port.

You can give better presentations by connecting the computer to a projector.

The VGA adapter is optional and to be be purchased.

Connect the VGA adapter to the monitor port of the

computer. Connect the VGA cable (15-pin) to the connected VGA

adapter and then connect the other end of the VGA cable to the D-SUB port of the monitor or the TV.

Users should additionally purchase the necessary connection cables.

Analog Monitor (D-SUB) Cable

HDMI to micro HDMI Cable

VGA

Adapter

External Monitor

Projector

Page 56

Chapter 3.

Using the computer

3&୘ִփ

ـࢿ

3&୘ִփ

ـࢿ

୙ࢠ

3&୘ִփ

ـࢿ

୙ࢠ

ѿء୘ִփ

Connecting an External Display Device

Connect the power cord of the connected monitor, TV or

projector and turn the power on.

Change your TV to external device mode when connecting to the TV.

Press the + key once to display a window to select

the monitor mode. Select a mode.

PC screen only

The contents are only displayed on the PC monitor (current device).

Duplicate

The contents of the current device are displayed on the external device as well.

Alternatively, to set up dual view:

Open the Display Settings window in the Control Panel, select Monitor 2 and select the Expand to t to this monitor checkbox to set dual view. For more detailed information, refer to the Windows online help.

Connecting through the Micro HDMI port (Optional)

By connecting the computer to a TV with a HDMI port, you can enjoy both a high visual quality and a high sound quality.

After connecting a TV through HDMI, you have to congure the screen and sound.

You have to additionally purchase the HDMI to micro HDMI cable.

Extend

The screen of the current device is expanded to the external device.

Second screen only

The contents are displayed only on the screen of the external device.

Page 57

Chapter 3.

Using the computer

3&୘ִփ

ـࢿ

3&୘ִփ

ـࢿ

୙ࢠ

3&୘ִփ

ـࢿ

୙ࢠ

ѿء୘ִփ

Connecting an External Display Device

Connect the HDMI to micro HDMI cable to the HDMI port of

the TV.

External Monitor

HDMI to

micro HDMI

This is only supported for models that support a TV output • port (HDMI).

Projector

Press the + key once to display a window to select

the monitor mode. Select a mode.

PC screen only

The contents are only displayed on the PC monitor (current device).

Duplicate

The contents of the current device are displayed on the external device as well.

Extend

The screen of the current device is expanded to the external device.

When a TV provides more than one HDMI port, connect • the computer to the DVI IN port.

When connecting the computer to a TV, switch the • external input mode of the TV to HDMI.

Second screen only

The contents are displayed only on the screen of the external device.

External Monitor / TV is not supported in the DOS • Command Prompt window.

Simultaneous output to all 3 (LCD + CRT + HDMI) is not • supported.

Page 58

Chapter 3.

Using the computer

Connecting an External Display Device

Using multiple displays (Optional)

You can connect and use two displays devices by connecting them to the monitor and the Micro HDMI ports respectively.

This function is supported for 13.3 inch Intel® HD Graphics 4000 models.

You can check if this feature is available by selecting

Computer > System Properties > Device Manager > Display adapters and conrming that the display adapter is

an Intel® HD Graphics 4000.

Connect the display devices to the monitor and the Micro

HDMI ports.

Right-click on the Desktop and select Graphics Properties >

Display > Multiple Displays from the popup menu.

Congure the settings and click Apply.

Select either Clone or Extended Desktop.

Select the number of displays (3)

Congure display devices 1 to 3.

Specify the locations of the devices.

Page 59

Chapter 3.

Using the computer

Adjusting the Volume

검색

시작

장치

검색

You can adjust the volume using the keyboard and the volume control program.

Adjusting the Volume using the Keyboard

+ o

Alternatively, press the + key combination to

turn the volume on or o.

Adjusting the Volume using the Volume Adjustment Program

Using the Sound Recorder

The procedures to record sound using the Windows Recorder are described below.

Connect a microphone to the microphone jack.

You can also use the internal MIC.

Right-click over the Volume icon on the taskbar and select

Recording Device.

Check if the microphone is set as the default recording

device. If this is the case, it is already set as the default device. If not,

right-click over the microphone and select Set default.

Click the Charms menu > Settings bar.

Mute

to adjust the control

Right-click over the Charms menu > Start

Apps

record.

> Sound Recorder. Then press Start Recording to

to click All

Page 60

Chapter 3.

Using the computer

검색

시작

장치

Adjusting the Volume

Using SoundAlive (Optional)

The SoundAlive function enables you to experience more stereophonic sound using stereo speakers.

SoundAlive is only supported in Windows 8.• The software programs provider may vary, depending on •

your computer model. In addition, some pictures may dier from actual product •

depending on the computer model and software version.

Right-click over the Volume in the taskbar on the Desktop

and click Play Device. (Alternatively, click the Charms menu on the Desktop >

Settings Sound.)

Right-click over the Speakers and select Properties.

> Control Panel > Hardware and Sound >

Select the SoundAlive tab and select one of the modes.

Page 61

Chapter 3.

Using the computer

LCD Brightness Control

검색

시작

장치

The screen brightness is automatically set to the brightest level when AC power is connected and the brightness is automatically set dimmer when the computer runs on battery power to extend the battery use time.

Controlling the Brightness Using the Keyboard

Click the Charms menu > Settings

> Screen

Adjustment icon

Adjust the brightness with the screen brightness control bar.

Saving battery power consumption•

Decreases the LCD brightness when the computer

is running on battery power to save battery power consumption.

LCD bad pixels principle of computer•

Samsung observes the specications regarding strict

quality and reliability of LCD. But in spite of that, it is inevitable that there might be a small number of bad pixels. A large number of bad pixels can cause problems in appearance, but a small number of pixels doesn’t aect the computer performance.

Therefore Samsung observes and manages the following

dot principles:

- Bright dot : 2 or less

- Black dot : 4 or less

- Combination of Bright and Dark : 4 or less

Instructions for Cleaning the LCD

Clean the LCD panel with a soft cloth lightly moistened with computer cleansing detergent moving in one direction.

Cleaning the LCD panel with excessive force can damage the LCD.

Page 62

Chapter 3.

Using the computer

Wired Network

검색

시작

장치

A wired network is a network environment used for a company network or broadband internet connection at home.

You can use wired LAN by using the LAN adapter (Optional).• Since these descriptions are written on the basis of the •

latest operating system, Windows 8, some of the content and the gures of the descriptions may dier depending on the operating system. Since the procedures for other Windows operating systems are similar, use the computer referring to these descriptions.

The gures used for the description are of a representative • model. Therefore the gures may dier from the real ones.

Connecting to the Wired LAN

Connect the LAN cable to the connected LAN adapter.

Click Charms menu on the Desktop > Settings

Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in

LAN

adapter

Connect the LAN adapter to the wired LAN port.

the left menu pane.

Page 63

Chapter 3.

Using the computer

Wired Network

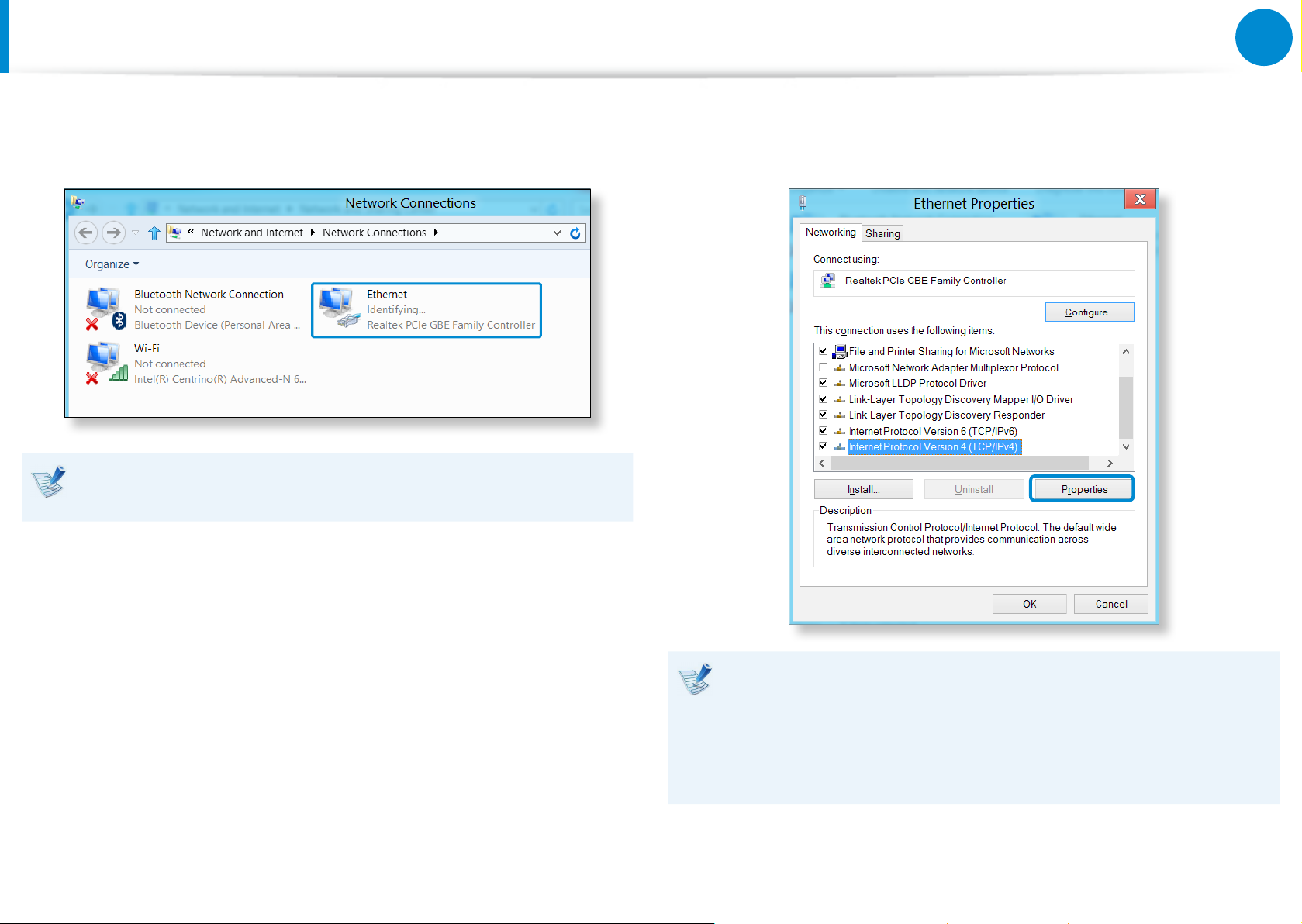

Select Ethenet and click the right button of the touch pad

and select Properties.

The LAN Device name may dier depending on your computer’s Network Device.

Select Internet Protocol Version 4(TCP/IPv4) from the list

of Network Components and click Properties.

The Network Component name may dier depending on • the Operating System Installed.

To add a network component, click Install in the screen • shown in the gure above. You can add clients, services, and protocols.

Page 64

Chapter 3.

Using the computer

Wired Network

검색

시작

장치

Congure the IP settings.

When using DHCP, select Obtain an IP address automatically. To use a static IP address, select Use the following IP address, and set the IP address manually.

Using the WOL (Wake On LAN) function

<Wake On LAN> is a function that activates the system from Sleep mode when a signal (such as a ping or magic packet command) arrives over the network (wired LAN).

Click Charms menu on the Desktop > Settings

Control Panel > Network and Internet > Network and Sharing Center and click on Change adapter settings in

the left menu pane.

Right-click on the Wired Ethernet Connection and select

Properties.

Click Congure > Power Management tab. Select Allow

this device to wake the computer, then click OK. Restart

When not using DHCP, ask your network administrator for the IP address.

When you have completed the settings, click the OK button.

The network settings have been completed.

the system.

- If the system wakes up from Sleep mode even though there is no received signal, use the system after disabling the <Wake On LAN> function.

Connecting a wired LAN while using a wireless LAN may not

activate the

to Disable to use the <Wake On LAN> function.

- <Wake On LAN> feature may not work while using Hybrid power saving feature. Hybrid sleep mode can be disabled from Power Options under Control Panel.

<Wake On LAN> function. Set the Wireless LAN

Page 65

Chapter 3.

Using the computer

Wired Network

For Windows 8, Wake On LAN is not supported by Ping.

When connected to a 100Mbps/1Gbps wired LAN and the computer exits Sleep/hibernation mode, a message appears informing you of a connection to a 10Mbps/100Mbps wired LAN. This happens because when the computer exits standby/hibernate mode, restoring the network takes about 3 seconds. When the network is restored, it operates at 100Mbps/1Gbps.

When system is running on battery, some time it may take a few second extra after inserting LAN cable to be able to connect to internet. This symptom happen as a result of power saving feature to reduce battery consumption.

When system is running on battery, the Wired LAN speed is decreased automatically to reduce battery consumption. In such case, a 1Gbps /100Mbps LAN would function at 100Mbps/10Mbps speed.

Page 66

Chapter 3.

Using the computer

Wireless Network

(Optional)

A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple computers at home or a small-size oce through wireless LAN devices.

The screen gures and terms may dier depending on the • model.

Depending on the program version, some functions may • not be provided or dierent functions may be provided.

The descriptions below are for computer models with • a Wireless LAN card or device. A Wireless LAN device is optional. The pictures in this manual may dier from the actual product depending on your wireless LAN device model.

What is an Access Point (AP)?

An AP is a network device that bridges wired and wireless LANs, and corresponds to a wireless hub in a wired network. You can connect multiple wireless LAN installed computers to an AP.

Page 67

Chapter 3.

Using the computer

Wireless Network

검색

시작

장치

(Optional)

Connecting to a Wireless LAN

If there is an AP, you can connect to the Internet via the AP using the Wireless LAN connection method provided by Windows.

If you click the Charms menu > Settings

Connections icon, a list of available APs appears. If you select an AP to connect to, the Connect button

appears.

> Network

Click Connect.

If a network key is set for the AP, enter the network key and then click OK.

For the network key, please ask your network administrator.

AP List

When the AP connection is completed, Connected is

displayed next to the corresponding AP. You can now you can use the wireless network.

Page 68

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

A TPM (Trusted Platform Module) security device is a security solution that protects your personal information by saving the user authentication data on the TPM chip installed on the computer.

To use the TPM security device, you have to initialize the TPM chip in the BIOS Setup, initialize the TPM program, and then register the user.

This function is only supported for models with TPM • (security chip).

For more information, refer to the online help for the • program.

The program version described in this manual is subject to • change and the screenshots and terms used in this manual may dier from the actual product.

Setting Up the TPM

To use the TPM function, you have to complete the following steps.

Initializing the TPM chip

Initializes the authentication information saved on the TPM chip.

Installing the TPM program

Installs the TPM program.

Registering the TPM program

Registers the TPM program.

If you complete the steps above, you can use the TPM function.

Page 69

Chapter 3.

Using the computer

Aptio Setup Utility

SysInfo

Supervisor Password User Password HDD Password

Set Supervisor Password Set User Password Set HDD Password

Password on Boot

Advanced Security Boot

Clear Clear Clear

[Enter] [Enter] [Enter]

[Enabled]

▶ TPM Conguration

Exit

Aptio Setup Utility

TPM Conguration

TPM Support

Change TPM Status

Security Chip State

Security

[Enabled] [No Change] Disabled and Deactivated

No Change

Clear

Enable and Activate Disable and Deactivate

Using the TPM Security Device

(Optional)

Initializing the TPM chip

When you use the TPM function for the rst time or you want to register the user again, you have to initialize the TPM chip.

Initializing the TPM chip erases all authentication • information saved on the TPM chip. Any decision to initialize must be taken carefully.

To initialize the TPM chip again while the TPM function is • in use, you have to decrypt any existing les and folders encrypted by the TPM function rst. Otherwise, you will not be able to access the les and folders after reinitialization.

Restart the computer.

When the Samsung logo screen appears, press the F2 key

If the BIOS screen appears, select the Security > TPM

Conguration item and press Enter.

Set the TPM Support item to Enabled and set the Change

TPM Status to Clear.

repeatedly.

Press the F10 key to save the changes.

Page 70

Chapter 3.

Using the computer

Aptio Setup Utility

TPM Conguration

TPM Support

Change TPM Status

Security Chip State

Security

[Enabled] [No Change] Disabled and Deactivated

No Change Clear

Enable and Activate

Disable and Deactivate

Using the TPM Security Device

(Optional)

When the system reboots, press the corresponding key(s) by

following the onscreen instructions.

When the computer restarts automatically and the Samsung

logo screen appears, press the F2 key repeatedly.

Select the Security > TPM Conguration > Change TPM

Status item and set the item to Enable and Activate.

Installing the TPM program

You can install the TPM program as follows. Install the program according to the procedures below.

This program is only provided for models with Recovery and the TPM function.

Run Recovery and click on System Software.

Click on System Software Installation.

The SW Update program will be launched.

Select TPM Host SW and click Install Now.

Press the F10 key to save the changes.

When the system reboots, press the corresponding key(s) by

following the onscreen instructions.

Press the F10 key to save the changes. The computer

automatically restarts. Initialization of the TPM chip has been completed. Now, install the TPM program and register the TPM program.

If the system software media is supplied with the product, you can install the program by using the system software media (only when supplied.)

After the installation, if you click OK, the computer restarts.

Page 71

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

Registering the TPM program

From the Start Screen, right-click any area and select

All apps in the bottom right corner. Then, click Inneon Security Platform Solution > Security Platform

Management > User Settings. (with administrator authority)

Alternatively, double-click the icon on the Taskbar and run initialization with administrator authority.

The security authentication settings begin with the

Initialization Wizard. When the Initialization Wizard appears, click Next.

Select a Security Platform Feature and set a basic user

password.

Complete the registration according to the instructions.

The user registration for the TPM program has been

completed. You can encrypt les and folders by using the encryption le system, and use les and folders to be encrypted by creating or copying them to the virtual drive.

The virtual drive is created in the following location.

If the status not initialized message appears, click Yes . If you backup the emergency recovery le to an external

storage device according to the instructions of the Initialization Wizard, you can use the TPM security device more safely.

Page 72

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

Using the TPM program

For more information about using the TPM program, refer to the online help for the program.

Encrypting a le (folder)

This function enables encrypting les and folders. You can safely protect documents through the Encrypt File System (EFS).

The Encrypt File System(EFS) function is supported by the following operating systems.

Windows XP Professional • Windows Vista Business / Enterprise / Ultimate• Windows 7 Professional / Enterprise / Ultimate • Windows 8 Pro / Enterprise•

If the Conrm Attribute Changes window appears, select

the range to apply the encryption to and click OK. (This dialog box only appears when the folder is encrypted.)

If the current operating system is Windows 8/7/Vista, the user account control window appears. In this case, click Continue.

Right-click over the folder (or le) to be encrypted, and select

Encrypt from the pop-up menu.

Page 73

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

In the user authentication window, enter the Basic user

password you entered when registering the user and click OK.

You will be able to conrm that the color of the folder (le)

name in the encrypted folder has been changed to green.

Opening an encrypted folder (le)

Double-click an encrypted folder (le).

If the user authentication window appears, enter the basic

user password you entered when registering the user and click OK.

The folder (le) opens.

Page 74

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

Decrypting an encrypted folder (le)

Right-click over an encrypted folder (le) and select Decrypt

from the pop-up window.

If the user authentication window appears, enter the basic

user password you entered when registering the user and click OK.

The folder (le) is decrypted.

Using the virtual drive (Personal Secure Drive: PSD)

The virtual drive (PSD) is a virtual space to save and manage condential data. In the created virtual drive (PSD), you can create les and folders as with a normal drive (e.g. drive C:) and you can use condential data saved on another drive by copying the data to the virtual drive (PSD).

When the virtual drive (PSD) does not appear

You can only use the virtual drive (PSD) when you have selected the Personal Secure Drive (PSD) option during the program registration.

If you have not selected the option during the registration, complete the following steps.

From the Start Screen, right-click any area and select

All apps in the bottom right corner.

Then, click Inneon Security Platform Solution > Security

Platform Management > User Settings tab > Congure Security Platform Features.

When the Initialization Wizard appears, select Personal

Secure Drive (PSD) and enter the user password.

Click Next several times according to the instructions of the

Initialization Wizard to nish the wizard.

Page 75

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

When the virtual drive (PSD) is not loaded

To use the virtual drive (PSD), the virtual drive (PSD) should be loaded rst. If it is not loaded, you can load it according to the procedures below.

Right-click over the Security Platform icon in the system

tray of the Taskbar and select Personal Secure Drive > Load from the pop-up menu.

In the load window, enter the basic user password and click

OK.

If you click Start > Computer, you will be able to conrm that

the Personal Secure Drive is created.

When you have to register again (to erase the authentication information on the TPM chip)

To register a user again, you need to delete the existing authentication information saved on the TPM chip and then clear the TPM chip.

Delete the virtual drive.

Delete the existing authentication information saved on the

TPM chip.

Note that when you have copied condential data to the PSD, the original data les are not encrypted.

Page 76

Chapter 3.

Using the computer

Using the TPM Security Device

(Optional)

Deleting the virtual drive

If a virtual drive has been created, you have to delete the virtual drive before deleting the existing authentication information saved on the TPM chip.

Right-click over > and click Personal Secure Drive >

Create/Manage.

Click Next.

Enter the password that you entered when registering the

TPM program and click Next.

Select Delete selected PSD and click Next.

Deleting the existing authentication information saved on the TPM chip.

On the desktop, select the Charms menu > Settings >

Control Panel > Programs > Uninstall a program > Inneon TPM Professional Package. Then click Uninstall.

If the message window appears, click Yes to remove the

program.

If the Inneon Security Platform message appears, click No.

Click the Windows Explorer icon in the taskbar on the

Desktop.

Select “I want to permanently delete my Personal

Secure Drive without saving an unencrypted copy of its contents.” and click Next.

Click Next and then Finish.

Now the virtual drive has been deleted.

In View > Options > Folder Options > View > Hidden les

and folders item, select the Show hidden les, folders, and drives option and click OK.

Click the Start > Computer > Drive C: > ProgramData

folder and delete the Inneon folder.

Now the TPM Program has been deleted.

To use the TPM function, please repeat the procedures of the

TPM chip initialization process.

Page 77

Chapter 3.

Using the computer

Using the Multimedia App

(Optional)

You can enjoy photo, video and music les with the S Camera, S Gallery and S Player apps.

You can take photos and record videos with the S

S Camera

Camera app, and view them directly in this app.

Only photos or videos recorded with the S Camera

S Gallery

app can be viewed with the S Camera app.

You can view the photo, video and music les saved

S Player

on the computer.

Depending on the version of the program, some functions may not be provided or dierent functions may be provided.

You can launch an app in the Start screen.

Third-party software related services

For descriptions about and service requests for third-party • software, please contact the relevant manufacturer.

Some troubleshooting actions in response to service • requests may not work depending on the software manufacturer.

Page 78

Chapter 3.

Using the computer

Using the Multimedia App

검색

(Optional)

Using the S Camera app

Tap Charm menu > Start

> S Camera.

Camera mode (Photo

, Video )

To take a picture, slide the camera mode bar into the Photo

position.

To make a video recording, slide the camera mode bar to the Video position.

Tap on Take a picture/Record a video to take a picture

or record a video.

You can view the picture or video using the Picture preview

or S Gallery app.

The S Camera app is not available in Desktop mode.

Precautions while taking a picture or video

Zoom in/out

Photo settings

Take a picture/

Record a video


preview

Do not take a picture or video of others without their • consent.

Do not take a picture or video in locations where this is not • allowed.

Do not take picture or videos in locations where you may • infringe on others’ privacy or condential information may be exposed.

Page 79

Chapter 3.

Using the computer

Using the Multimedia App

검색

(Optional)

Using the S Gallery app

Tap Charm menu > Start

> S Gallery.

You can view the pictures and videos taken by the S Camera.

In addition, you can apply special eects to the pictures using the photo editing function.

You can take a picture in the S Gallery app by tapping the Camera icon.

Editing a photo

Select Picture preview.

Drag it upward slightly from the bottom center.

If the options menu appears, select Edit .

Page 80

Chapter 3.

Using the computer

Using the Multimedia App

검색

(Optional)

Select an eect to be applied to the photo.

E.g. If you select Draw

Color

Using the S Player app

Tap Charm menu > Start

> S Player.

UndoLine preview

My Music

My Photos

My Videos

Erase/Draw

Line thickness Save

Frame

Draw

Stamp

Music playlist Slideshow

Select a menu to enjoy photo, video and music les.

My photo list

Some les may not be played depending on their format.

Page 81

Chapter 3.

Using the computer

Samsung Software Update

SW Update is a software program that searches for Samsung software programs and drivers installed when you purchased the computer and helps you update any drivers or programs.

You can check updatable les before performing the • update only when you are connected to the internet.

SW Update does not provide any updates for device drivers • or software programs installed separately by the user.

From the Start Screen, right-click any area and select

All apps in the bottom right corner.

Then, click SW Update.

If the program is running for the rst time, the User

Agreement for personal information use appears.

The SW Update program runs.

Select the items that you want to update before proceeding with the update process.

Software List

Software

Update

Click Agree.

Page 82

Chapter 3.

Using the computer

Diagnosing the Computer Status and Troubleshooting

The Support Center program, which is Samsung’s computer’s troubleshooting guide, supports diagnosing the system and has a FAQ for frequently occurring problem(s).

Support Center may not be provided or may be a dierent version depending on the model.

From the Start Screen, right-click any area and select

All apps in the bottom right corner.

Then, click Support Center.

Support Center is activated and starts diagnosing your

computer. After the diagnosing process is nished, the System Status

menu displays a list of the current problems to be solved as shown.

Searching for

computer’s problems

Diagnosing

Computer and

Troubleshooting

FAQ for

computer’s

major problems

You can solve a problem by clicking the Troubleshoot button

for the problem.

Page 83

Chapter 4. Settings and Upgrade

BIOS Setup 83

Setting a Boot Password 85

Changing the Boot Priority 88

Battery 89

Page 84

BIOS Setup

Chapter 4.

Settings and Upgrade

The BIOS Setup enables you to congure your computer hardware according to your needs.

Use the BIOS setup to dene a boot password, change the • booting priority, or add a new device.

Since incorrect settings may cause your system to • malfunction or crash, take care when conguring the BIOS.

The functions of the BIOS setup are subject to change for • product function enhancement purposes.

The BIOS Setup menus and items may dier depending on • your computer model.

Entering the BIOS Setup

Turn the computer on.

Immediately press the F2 key several times.

After a moment, the BIOS setup screen appears.

The items in the BIOS setup may dier depending on the product.

Page 85

Chapter 4.

Settings and Upgrade

BIOS Setup

The BIOS Setup Screen

The BIOS Setup menus and items may dier depending on your computer model.

Setup Menu

Help

Help for the selected item appears automatically.

Setup Items

Setup Menu Description

SysInfo

Advanced

Security

This is a description about the basic specications of the computer.

Using this menu, you can congure the major chipsets and additional functions.

Used to congure security functions, including passwords.

System Setup Keys

In the Setup, you have to use the keyboard.

F1 Press to view the Setup Help.

Up & Down

Keys

F5/F6

ESC

Left & Right

Keys

Enter

F10

Press to move up and down.

Press to change the item value.

Press to load the default Setup settings.

Press to return to a higher level menu or to move to the Exit menu.

Press to move to another menu.

Press to select an item or to enter a sub menu.

Press to save the changes and exit Setup.

Boot

Exit

This menu enables you to congure peripherals and booting related settings such as the boot priority.

Used to exit the Setup either saving the changes or not.

The keyboard image may dier from the actual keyboard.

Page 86

Chapter 4.

Settings and Upgrade

Setting a Boot Password

XXXXXXXX

If you set a password, you have to enter the password when you turn the computer on or enter the BIOS Setup.

By conguring a password, you can restrict system access to authorized users only and protect data and les saved on the computer.

The password setting provides the following 3 sub menus.• (Supervisor Password, User Password and HDD Password)

Do not lose or forget your password. • Do not let others know your password.• If you forget the Supervisor Password or HDD Password, •

you will need to request assistance from the service center. In this case, a service fee will be charged.

When you forget the User Password, you can disable • the Supervisor Password, and the User Password is also automatically disabled.

The screen images and terms may dier from actual • product depending on the computer model and driver version.

Select the Security menu in the BIOS Setup.

In the Set Supervisor Password item, press <Enter>.

Enter a password, press <Enter>, re-enter the password for

conrmation, and press <Enter> again. The password can be up to 8 alphanumeric characters.

Special characters are not allowed.

Setting a Supervisor Password

If you set a Supervisor Password, you need to enter the password when you turn the computer on or enter the BIOS Setup.

Setting only the Supervisor Password and User Password is not very secure. You can use an HDD Password as well to increase the security level.

The supervisor password has been set.

The supervisor password is required to turn the computer on or to enter the BIOS Setup.

For some models, if the password entered message appears in the Setup Notice window, the settings are not complete until the <Enter> key is pressed.

Page 87

Chapter 4.

Settings and Upgrade

Setting a Boot Password

Setting a User Password

Using the User Password, you can turn the computer on but you cannot change the major settings of the BIOS Setup because you cannot enter the BIOS Setup.

This helps prevent unauthorized access to the major settings in the BIOS Setup menu.

Before conguring a user password, a supervisor password must have been congured. Deactivating the supervisor password also deactivates the user password.

In the Set User Password item, press <Enter> and complete the procedures from Step 3 of Setting a Supervisor Password.

Setting Up a Boot Password

To setup a boot password, the administrator password (Set Supervisor Password) should be set in advance.

Set the Password on boot item to Enabled.

Setting up a Hard Disk Drive Password (Optional)

If you set a password for a hard disk drive, it cannot be accessed from another computer.

Press <Enter> in the Set HDD Password item and dene a password as described in Step 3 of the Setting up the Supervisor Password.

The hard disk drive password setting function is not • provided for some models.

Changing the hard disk drive password•

For security purposes, you can only change a hard disk

drive password after restarting the computer by pressing the computer Power button.

If you cannot change the hard disk drive password or the

HDD Password Frozen message appears when entering the BIOS Setup and then selecting Security > HDD Password, press the Power button to turn the computer on again.

Once a boot password is set, you have to enter a password to boot up the computer.

Be sure to remember the password for later use.

Page 88

Chapter 4.

Settings and Upgrade

Setting a Boot Password

Deactivating the Password

Press <Enter> on the password to be deactivated. For

example, to deactivate a supervisor password in the Set Supervisor Password item, press <Enter>.

In the Enter Current Password item, enter the currently

congured password and press <Enter>.

Leave the Enter New Password item eld empty, and press

<Enter>.

Leave the Conrm New Password eld empty, and press

<Enter>. The password is deactivated.

For some models the password is only canceled if the <Enter> key is pressed in the Setup Notice window.

Page 89

Chapter 4.

Settings and Upgrade

Changing the Boot Priority

XXXXXXXX

0WO.QEM =1HH? 'PCDNG-G[RCF =$[0WO.QEM? 6QWEJ2CF/QWUG ='PCDNGF?

+PVGTPCN.#0 ='PCDNGF? 2:'1241/ =&KUCDNGF?

5OCTV$CVVGT[%CNKDTCVKQP

Boot Menu

[Boot Priority Order]

1. SATA CD : XXXXXXXXXXXX

2. SATA HDD : XXXXXXXXXXXX

3. USB CD : N/A

4. USB FDD : N/A

5. USB HDD : N/A

6. NETWORK : N/A

As an example, the procedures to change the highest boot priority device to the hard disk drive are described below.

The screen images and terms may dier from actual product depending on the computer model and driver version.

Select the Boot menu in the BIOS Setup.

Press <Enter> on the Boot Device Priority item.

Press the down key (↓) to move to the SATA HDD item and

press the F6 key to move up to the top item.

Press the F10 key to save the settings and exit Setup.

The highest boot priority device is now set to the Hard Drive.

If you need to boot to DOS using a USB device, enter the BIOS Setup, select the Advanced menu and set the Fast

BIOS Mode item to Disabled.

Page 90

Chapter 4.

Settings and Upgrade

Battery

Please refer to the following instructions when running the computer on battery power without connecting the AC power.

This computer is equipped with an internal battery.

Precautions

Users cannot remove or replace the internal battery. • To remove or replace the battery, use an authorized •

service center in order to protect the product and users. You will be charged for this service.

Use only chargers specied in the User Manual.• Never heat the battery pack, put it near or in a re or use at •

a temperature higher than 60°C, as this may cause re. Please refer to the system operation environment of •

this manual and operate and store the battery at room temperature.

Before using the computer for the rst time, make sure to • connect the AC adapter and charge the battery completely.

The images used for the illustration are of a representative • model, therefore the images may dier from the the actual product.

Charging the Battery

An internal battery is embedded. Connect the AC adapter to

the power input jack of the computer. The battery will start charging.

When charging is complete, the Charge LED turns green.

Status Charge LED

Charging Red or orange

Charging complete Green

AC adapter not

connected

O

The location of the

internal battery

Page 91

Chapter 4.

Settings and Upgrade

Battery

검색

시작

장치

Measuring the Remaining Battery Charge

You can view the battery charge status by completing the following procedures.

Conrming the battery charge in the Taskbar

Disconnect the AC adapter and move the mouse cursor over the battery icon in the system tray of the Taskbar to conrm the remaining battery charge.

Battery Usage Time Information

Extending the Battery Usage Time

Decreasing the LCD Brightness

Click the Charms menu > Settings

> Screen

Adjustment icon

Adjust the brightness with the screen brightness control bar.

The battery life will be extended.

A battery is an expendable supply, so when using it over a long time, the capacity/battery life is shortened. If the battery life is reduced to under half of its initial time, we recommend purchasing a new battery.

When not using the battery for a long time, store the battery after charging it to 30-40% of its capacity. This extends the battery life time.

Page 92

Chapter 4.

Settings and Upgrade

Battery

검색

시작

장치

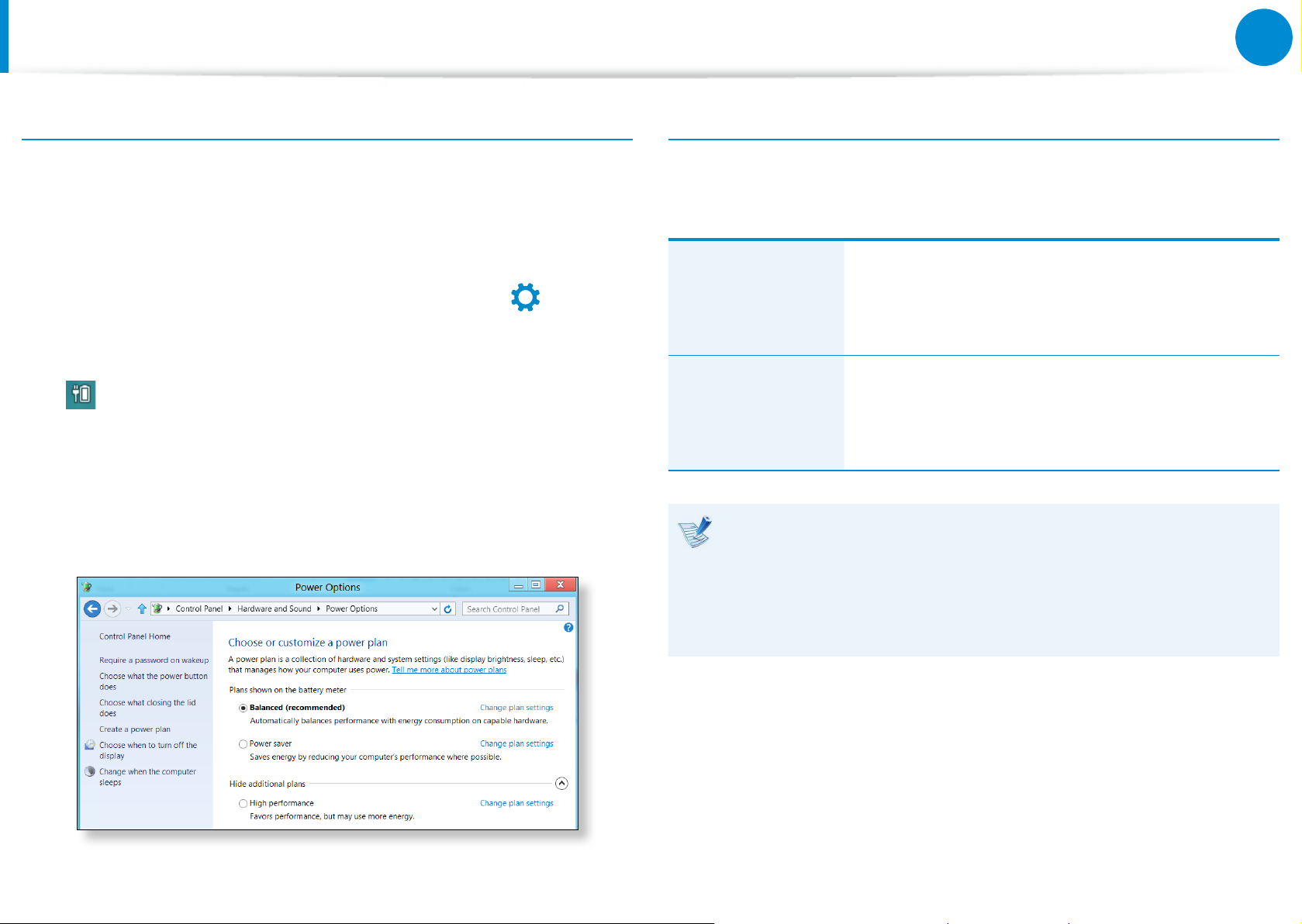

Using the power management program

This program helps you use the battery more eciently and supports the power mode optimized for the operating environment.

Click Charms menu on the Desktop > Settings

Control Panel > Hardware and Sound > Power Options. Alternatively, right-click the power measuring device icon

in the notication area of the taskbar and select Power

Options.

If the following screen appears, select one of the modes.

Extending the Battery Life (Optional)

In the Settings program, click Power Management and set the Battery Life Extender to ON or OFF.

This mode maintains 100% of the battery charge when using the computer on AC power.

OFF

In this case, although the battery use time increases, the battery life is reduced.

This mode maintains 80% of the battery charge when using the computer on AC power. In this

case, although the battery use time decreases, the battery life is extended.

Alternatively, to extend the battery life

Press the F2 key when the Samsung logo appears in the booting sequence to enter the BIOS Setup, select Advanced > Battery Life Cycle Extension, and set it to Enable. Then you can use the battery life cycle extension mode.

Page 93

Battery

XXXXXXXX

0WO.QEM =1HH? 'PCDNG-G[RCF =$[0WO.QEM? 6QWEJ2CF/QWUG ='PCDNGF?

+PVGTPCN.#0 ='PCDNGF? 2:'1241/ =&KUCDNGF?

5OCTV$CVVGT[%CNKDTCVKQP

Chapter 4.

Settings and Upgrade

Using the Battery Calibration Function

When charging/discharging the battery repeatedly for a short time only, the battery usage time may be reduced by the dierence between the actual battery charge and the remaining charge display.

In this case, the actual battery charge and the remaining charge display will be the same by discharging the battery completely using the Battery Calibration function, and then recharging it again.

The screen images and terms may dier from actual product depending on the computer model and driver version.

Disconnect the AC power adapter after turning o the

computer.

Move to the Boot > Smart Battery Calibration item using

the direction keys and press <Enter>.

Highlight Yes in the Battery Calibration Conrmation

window and press <Enter>. The Battery Calibration function is activated and the battery

is forcefully discharged. To stop the operation, press the <Esc> button.

Turn the computer back on, and press the F2 key to enter the

Setup screen.

This operation requires 3~5 hours depending on the battery capacity and the remaining battery charge.

Page 94

Chapter 5. Troubleshooting

Recovering/Backing up the Computer (Optional) 94

Reinstalling Windows (Optional) 101

Q&A 104

Page 95

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

(Optional)

If a problem occurs with your computer, Recovery (recovery program) allows you to easily restore your computer to the default (factory) settings. Alternatively, you can back up your computer so that you can restore it to your preferred state at any time.

Recovery Introduction

Back Up Recover

Recovery may not be provided or may be a dierent • version depending on the model.

For models whose hard disk or SSD capacity is less than 64 • GB, the Recovery program is not provided.

The instructions are provided based on Recovery 6.0 • version. Some functions may dier slightly or be excluded depending on the version. Refer to the program's Help section for more information.

An ODD (CD/DVD drive, etc.) is not supported by the • Recovery program.

Help

Function Description

Back Up You can back up your entire Windows drive.

Recover Restores the entire Windows drive.

Page 96

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

Recovering

(Optional)

You can recover your computer to the default (factory) status when your computer does not boot up.

- If Windows does not start

Turn your computer on and press the F4 key.

Run recovery mode.

- If Windows is running From the Start Screen, right-click any area and select

All apps in the bottom right corner. Then, click Recovery.

If the program is running for the rst time, you need to agree

to the User Agreement.

If the initial menu screen appears, click Recover.

Select a recovery point and click Recover.

Factory Default Point

Restores your computer to the factory default status.

User's Backup Point

Restores your computer to a previously backed up status.

Recover is performed based on the screen instructions.

If the recover is completed, you can use your computer normally.

If you set the User Data Maintenance to ON, the computer is restored while maintaining the current user data.

Page 97

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

Recovering after a Backup

You can recover your computer after you have backed up your computer to a separate drive or external storage device.

(Optional)

Backing up

To back up your computer to an external storage device,

connect the external storage device and select the relevant drive.

Click Backup in the Recovery Home screen.

Select the drive to save and click Backup.

You cannot select a DVD drive.

Select the drive to save to.

The backup process is performed based on the instructions.

Page 98

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

(Optional)

Recovering

You can recover your computer using the backup from the above process.

If the backup image is saved to an external storage device,

connect the device.

Start Recovery and click Recover.

Select a Recover Option and click Recover.

Select a point to recover.

The recover is performed based on the screen instructions.

You can use your computer after the recover is completed.

Page 99

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

To copy the external storage disk

When you replace a storage device such as the HDD, SSD, etc. (hereafter referred to as a hard disk) built into your computer, you can move your existing data to the new storage device easily and safely.

The new storage device must have sucient capacity to save your existing data.

You need to purchase an external hard USB connector separately to connect the hard disk and your computer.

(Optional)

You need to purchase an external hard USB connector

separately to connect the hard disk and your computer.

Start Recovery and click Disk copy.

Select an option in Disk recovery Point and click Disk copy.

The data on the current hard disk is saved to the new hard

disk.

If the data is completely saved, open the hard disk cover at

the bottom of your computer and replace the existing hard disk with the new one.

If you cannot open the cover at the bottom of the computer, contact the Samsung Service Center to request assistance.

In this case, you may be charged for the relevant service.

Your computer is now equipped with a new hard disk.

You can use your computer with a larger hard disk capacity with the same conguration as the old one.

Page 100

Chapter 5.

Troubleshooting

Recovering/Backing up the Computer

Export Disk Image Function

If you frequently recover your computer to the default (factory) settings, you can conveniently recover your computer after exporting the default (factory) status disk image to an external storage device.

Connect the external storage device, and then select a drive

to save to.

Click Run.

(Optional)

Perform the process by following the instructions to

completely save the default (factory) status disk image to the external storage device.

Now disconnect the saved external storage device and store it separately.

If your computer needs to be restored to the default (factory)

settings, connect the external storage device with the saved image.

Start Recovery and click Recover. Select Factory Default

Point and click Recover. The Recover process is started. When the recover process is nished, you can use your

computer with the default (factory) settings.

Samsung NP900X4C-A05, NP900X4D, NP900X4C-A01CA, NP900X4C, NP900X4C-A06 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

User Guide

Contents

Chapter 1. Getting Started

Before You Start

Safety Precautions

Proper Posture During Computer Use

Overview

Chapter 2. Using Windows 8

What is Microsoft Windows 8?

Screen At a Glance

Using the Charms

Using Apps

Windows Hot Key Function

Chapter 3. Using the computer

Keyboard

Touchpad

Connecting an External Display Device

Adjusting the Volume

LCD Brightness Control

Wired Network

Samsung Software Update

Diagnosing the Computer Status and Troubleshooting

Chapter 4. Settings and Upgrade

BIOS Setup

Setting a Boot Password

Changing the Boot Priority

Battery

Chapter 5. Troubleshooting
