Page 1

MX-HS6000 MX-HS7000

PREMIUM HI-FI Component

System

(MP3/WMA/CD-DA Playback with CD/USB)

user's manual

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

This Nanum Gothic Eco font is provided by NAVER.

Page 2

Safety Information

Warning

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

WARNING

To reduce the risk of fire or electric shock, do

•

not expose this appliance to rain or moisture. This product contains chemicals known to

•

the State of California to cause cancer and reproductive toxicity.

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

DANGER :

VISIBLE AND INVISIBLE LASER RADIATION

•

WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR)

CAUTION :

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product.

CLASS 3B VISIBLE AND INVISIBLE LASER

•

RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. (IEC 60825-1)

THIS PRODUCT UTILIZES A LASER. USE

•

OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN THE COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1

WARNING

TO PREVENT THE SPREAD

•

OF FIRE, KEEP CANDLES AND OTHER ITEMS WITH OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

2 English

Page 3

FCC NOTES (for U.S.A)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. If interference is present, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

•

Increase the separation between the

•

equipment and receiver. Connect this equipment to an outlet that is

•

on a circuit that is different than the circuit the receiver is connected to.

Consult the dealer or an experienced

•

radio/TV technician for help.

This class B digital product meets all requirements of the Canadian Interference Causing Equipment Regulations.

Important Safety Instructions

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

Read these instructions.

Keep these Instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with a dry cloth.

Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

Do not install near any heat sources such

as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

Do not defeat the safety purpose of

the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked

10.

on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

Only use attachment/accessories specified

11.

by the manufacturer. Use only with the cart,

12.

stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lightning

13.

storms or when it will be unused for long periods of time.

Refer all servicing to qualified service

14.

personnel. Servicing is required when the apparatus has been damaged in any way, such as when the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

01 Safety Information

3 English

Page 4

Safety Information

Precautions

Ensure that the AC power supply in your

•

house complies with the identification sticker located on the back of your product.

Install your product horizontally, on a

•

suitable base (furniture), with enough space around it for ventilation (3 - 4 inches/7.5 10 cm).

Do not place the product on amplifiers or

•

other equipment which may become hot. Make sure the ventilation slots are not covered.

Do not stack anything on top of the product.

•

Before moving the product, ensure the Disc

•

Insert Slot is empty.

The mains plug or appliance coupler

•

shall remain readily operable.

To turn off the productcompletely, disconnect

•

the AC plug from the wall outlet. Disconnect the AC plug from the wall outlet if you will leave the device unused for a long period of time.

During thunderstorms, disconnect the AC

•

plug from the wall outlet. Voltage peaks due to lightning could damage the product.

Do not expose the product to direct sunlight

•

or other heat sources. This could cause the product to overheat and malfunction.

Protect the product from moisture, and

•

excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).

Disconnect the power cable from the AC

•

supply if the product malfunctions. Your product is not intended for industrial

•

use. It is for personal use only. Condensation may occur if your product or

•

disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.

The batteries used with this product

•

contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Place the loudspeakers at a reasonable

•

distance on either side of the system to ensure good stereo sound.

Direct the loudspeakers towards the listening

•

area.

Do not expose this apparatus to

•

dripping or splashing. Do not place objects filled with liquids, such as vases, on the apparatus.

To turn this apparatus off completely,

•

you must disconnect it from the wall outlet. Consequently, the wall outlet and power plug must be readily accessible at all times.

Use only a properly grounded plug and

•

receptacle.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

Disc Storage & Management

Holding Discs

•

- Fingerprints or scratches on a disc may reduce sound and picture quality or cause skipping.

- Avoid touching the surface of a disc where data has been recorded.

- Hold the disc by the edges so that fingerprints will not get on the surface.

- Do not stick paper or tape on the disc.

Cleaning Discs

•

- If you get fingerprints or dirt on a disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc.

Disc Storage

•

`Do not keep in direct sunlight. `Keep in a cool ventilated area. `Keep in a clean, protective jacket and

store vertically.

4 English

Page 5

Condensation may form if warm air comes

•

into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

Disc and Format Compatibility

This product does not support Secure (DRM) Media files.

CD-R Discs

Some CD-R discs may not be playable

•

depending on the disc recording device (CDRecorder or PC) and the condition of the disc.

Use 650MB/74 minute CD-R discs.

•

Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

Some CD-RW (Rewritable) media may not

•

be playable. Only CD-Rs that are properly "closed" can be

•

fully played. If the session is closed, but the disc is left open, you may not be able to fully play the disc.

A maximum of 999 files can be played per

•

CD.

Supported Audio Formats

File

Extension

*.mp3

*.wma

| NOTES |

✎Does not support WMA Professional codec.

Audio Codec

MPEG 1

Layer3

MPEG 2

Layer3

MPEG 2.5

Layer3

Wave_Format_

MSAudio1

Wave_Format_

MSAudio2

Sampling

Rate

16KHz ~

48KHz

16KHz ~

48KHz

16KHz ~

48KHz

16KHz ~

48KHz

16KHz ~

48KHz

Bit Rate

80Kbps ~

320Kbps

80Kbps ~

320Kbps

80Kbps ~

320Kbps

56Kbps ~

128Kbps

56Kbps ~

128Kbps

01 Safety Information

MP3-CD Discs

Only CD-R discs with MP3 files in ISO 9660

•

or Joliet format can be played. MP3 file names should contain no blank

•

spaces or special characters (. / = +). Use discs recorded with a compression/

•

decompression data rate greater than 128Kbps.

Only a consecutively written multisession disc

•

can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

If the disc is not closed, it will take longer to

•

begin playback and not all of the recorded files may play.

For files encoded in the Variable Bit Rate

•

(VBR) format,( i.e. files encoded in both low bit rate and high bit rate - 32Kbps ~ 320Kbps), the sound may skip during playback.

5 English

Page 6

Contents

SAFETY INFORMATION

2 Warning 4 Precautions 4 Disc Storage & Management 5 Disc And Format Compatibility

GETTING STARTED

7 Front Panel 8 Rear Panel 9 Remote Control 10 Accessories 10 Connecting the Speakers 10 Attaching the speaker foot 11 Attaching the Toroidal Ferrite Core to the

Cord of the Subwoofer

FUNCTIONS

12 The Display function 12 Playing a CD 12 Loading a Compact Disc 12 CD/MP3/CD-R Playback 13 Selecting a Track 13 Searching for a Specific Music Passage

on a CD

13 Repeat One or All Tracks on a CD 14 Playing USB Devices 14 USB Device Playback 14 To Select a File from a USB Device 15 To Use High Speed Search 15 To Delete a File 15 To Move to the Next/Previous Folder 15 To safely remove a USB device 15 Read Before Connecting USB Storage

Devices 16 Searching for a Track Quickly 16 Using the Program Function 16 Viewing or Editing Programmed Tracks 17 Bluetooth 17 What is Bluetooth? 17 To connect the Hi-Fi Component to a

Bluetooth device

18 To disconnect the Bluetooth device from

the Hi-Fi Component

18 To disconnect the Hi-Fi Component

from the Bluetooth device

18 Using the Bluetooth Power On 19 TV SoundConnect 19 To connect the Hi-Fi Component to a

SoundConnect Compatible Samsung TV

19 To disconnect the TV from the Hi-Fi

Component

19 To disconnect the Hi-Fi Component

from the TV

20 Using My Karaoke 20 Auto Change Function 20 Listening to the Radio 20 To Store the Stations You Want 21 Selecting a Stored Station 21 Timer Function 21 Setting the Clock 21 Setting the Timer 23 Cancelling the Timer 23 The Recording Function 23 Basic Recording 24 Recording Speed 25 Special Sound Effect 25 Selecting EQ Mode 25 FOOTBALL MODE function 25 GOAL Function 26 GIGA SOUND Function 26 BEAT WAVING Function 26 DJ BEAT Function 27 +PANNING Function 27 NON-STOP MUSIC RELAY Function 27 DANCE TIME Function 27 TEMPO Function

APPENDIX

28 Troubleshooting 29 Specifications

6 English

Page 7

Getting Started

Front Panel

g f

REMOTE CONTROL SENSOR

FORWARD SEARCH/SKIP button

PLAY/PAUSE button

TUNER/AUX button

DISPLAY / DEMO button

TV SOUND CONNECT button

EQ button

FOOTBALL MODE button

GIGA SOUND BEAT button

POWER button

(

Press this button to switch your

•

product on or off.

REPEAT button

SEARCH button

VOLUME / SEARCH JOG

OPEN/CLOSE button

ENTER button

PROGRAM button

DISC slot

Display Panel

BEAT WAVING button

k 56c7

)

1 43

2m n

*d (

)

MIC jack

AUX IN 1 jack Connecting an external device such as

an MP3 player.

Connect AUX IN 1 on the front panel

•

of the product to the Audio Out of an external device/MP3 player.

Press the TUNER/AUX button to

•

select AUX1.

USB REC button

USB button

USB 2 jack for Playing and USB Recording

USB 1 jack for Playback only.

TEMPO button

NON-STOP MUSIC RELAY button

DANCE TIME button

DJ JOG

+PANNING button

DJ BEAT button

CD/ Bluetooth button

STOP button

BACKWARD SEARCH/SKIP button

8a9

02 Getting Started

@ #

7 English

Page 8

Getting Started

Rear Panel

MX-HS6000

MX-HS7000

Cooling fan

The fan operates while the unit is powered

•

on.

If you set the unit to the minimum volume, the fan won't operate. Secure a minimum of 6 inches (15 cm) of clear space on all sides of the fan when installing the product.

AUX IN 2 Terminals

Use an Audio Cable (not supplied) to

connect AUX IN 2 on the product to Audio Out on an external analog output device.

Be sure to match connector colors.

•

If the external analog output device has

•

only one Audio Out jack, connect either left or right terminal.

Press the TUNER/AUX button to select

•

AUX 2. If the product is in AUX mode for more

•

than eight hours and no buttons on the front panel or remote are pushed, the system will turn off.

2 3

8 English

FM Antenna Terminals

Connect the FM antenna to the FM

antenna connector terminal. Slowly move the antenna wire until you find a

location where reception is good, then fasten it to a wall or other rigid surface.

If reception is poor, you may need to install

an outdoor antenna. To do so, connect an outdoor FM antenna to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).

LED Terminals for Speaker Beat Waving.

ONLY FOR SERVICE

This jack is just for testing, please don't use

•

it.

POWER

Insert only provided power cable.

•

2.1 CH Speaker Terminals (MX-HS6000)

2.2 CH Speaker Terminals (MX-HS7000)

To achieve the correct sound quality,

when you connect the speakers, match the color of the speaker plugs to the color of the speaker jacks. See below.

LEFT channel (marked ).

•

RIGHT channel (marked ).

•

Don't force the Purple SUBWOOFER

•

connector into the White or Red speaker jack.

Page 9

Remote Control

TUNING MODE

NON-STOP MUSIC RELAY

Power

Bluetooth

USB

TUNER/AUX

02 Getting Started

MUTE (Turn off the sound temporarily. Press again to turn the sound back on.)

BEAT WAVING

TV SoundConnect USB REC

REC SPEED

MO/ST

+PANNING DJ BEAT

TEMPO

SKIP

PLAY/PAUSE

STOP

FOOTBALL

VOLUME (–, +)

PROGRAM

TIMER SET

TIMER ON/OFF

DISPLAY

MY KARAOKE

Installing Batteries In The Remote Control

EFFECT LEVEL

REPEAT

GIGA SOUND BEAT GOAL

DANCE TIME

TUNING/ALBUM ,,

DELETE

SLEEP (Set a sleep time to shut off the product.)

AUTO CHANGE

MIC VOLUME –, +

Place batteries in the remote control so they

•

match the of the illustrations in the battery compartment. : (+) to (+) and (–) to (–).

Do not dispose of batteries in a fire.

•

Do not short circuit, disassemble, or overheat

•

the batteries. Danger of explosion if the battery is replaced

•

with the wrong battery type. Replace only with the same or equivalent type.

The remote control can be used up to

•

approximately 23 feet (7 meters) in a straight line from the system.

9 English

Page 10

Getting Started

Accessories

Check for the supplied accessories below.

User Manual

(AH68-02680D)

Power Cable

(3903-000467)

Figures and illustrations in this user's manual are provided for reference only and may differ

•

from actual product appearance.

Remote Control / Batteries

(AH59-02613A/4301-000116)

Rubber Foot (8ea)

(AH81-05916L)

FM Antenna

(AH42-00021A)

(For Subwoofer power cable 1EA)

Toroidal ferrite core

(3301-001201)

Connecting the Speakers

Recommended speaker setup.

| IMPORTANT |

✎The product may not operate properly if it is subject to shaking or external

shocks or if the speakers are not installed as recommended. ✎Do not stretch the speaker wires or place a heavy object on them. ✎Please place these subwoofers separately and keep a distance at least 2

inches /5cm for each other.(only for MX-HS7000)

(MX-HS7000)

Attaching the speaker foot

Attach the supplied speaker feet to the bottom rear corners of each speaker as shown in the illustration to stabilize the speakers and prevent them from slipping.

(MX-HS6000)

Rubber Foot

10 English

Page 11

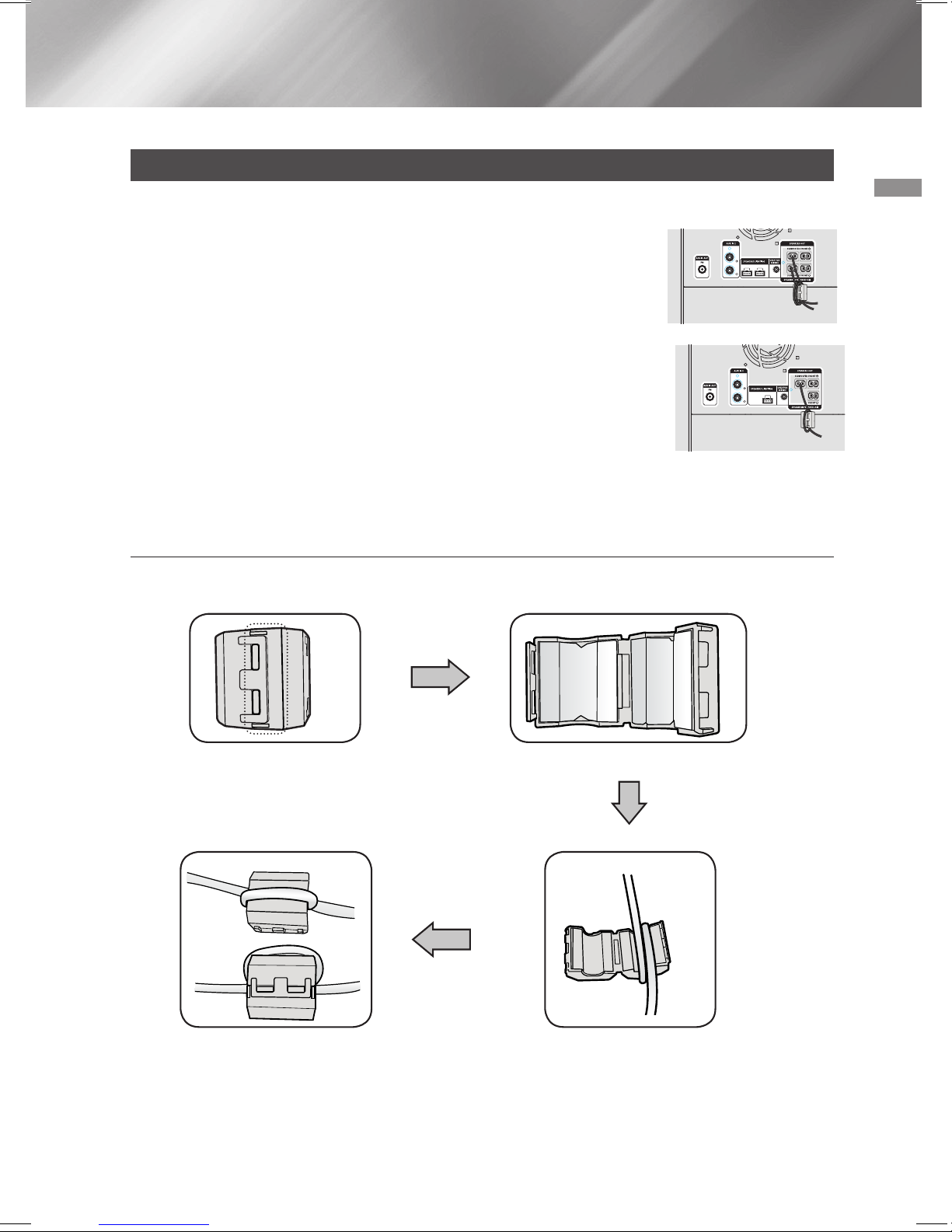

Attaching the Toroidal Ferrite Core to the Cord of the Subwoofer

Attaching the Toroidal ferrite core to the cord of the subwoofer helps prevent RF interference from radio signals.

1. Pull the fixing tab of the Toroidal ferrite core to open it.

2. Make one loops around the core with the cable of the subwoofer.

Attach the Toroidal ferrite core to the Subwoofer cord as the

(MX-HS7000)

figure shows, and then press it until it clicks.

(MX-HS6000)

LOOPING THE CABLE AROUND THE TOROIDAL CORE

02 Getting Started

Lift up to release the lock and open the core.

Close the lock.

Make one loops around the core with the cable.

(Start winding 2 to 4 inches [5-10 cm]

away from the core).

11 English

Page 12

Functions

The Display function

You can view functions available on the display, adjust the brightness of the display, and set the Display/LED either on or off.

Changing Display mode

Press the DISPLAY/DEMO button on the product. Each time you press this button, the mode will

change as follows:

The DEMO function

•

All functions available on the system appear on the front panel display.

The Dimmer function

•

The Dimmer function is selected and the display darkens.

LED OFF

•

The LED is turned off while the dimmer function is working.

Clock ON

•

The Clock you set is displayed.

Display/LED ON

•

All displays and the LED are turned on.

The DEMO function

Press the DISPLAY/DEMO button on the product or the DISPLAY button on the remote control for 5 seconds to turn on the Demo mode.

Each time you press this button, the mode will change as follows:

DIMMER ; LED Off (unit/speaker) ; --:-- [time display] ; LED On (unit/speaker) ;DEMO

Playing a CD

Loading a Compact Disc

You can play standard compact discs that require no adapter.

Insert a disc gently into the disc slot with

the disc's label facing up. The disc will be played automatically.

You can load or unload compact discs

•

when the radio, USB, or auxiliary source function is selected. When you press the OPEN/CLOSE button, the unit will exit the current function and enter CD mode.

If no buttons are pressed on the product

•

or remote control for more than 3 minutes when the product is in Pause mode, it will change to Stop mode.

If no buttons are pressed on the product

•

or remote control for more than 25 minutes when the product is in Stop mode, the product will turn off.

CD/MP3/CD-R Playback

| IMPORTANT |

✎This product is designed to play the

following audio disc types: CD, CD-R, CDRW.

To cancel the Demo mode

Press the DISPLAY/DEMO button on the product

•

or DISPLAY on the remote control for 5 seconds again.

The current mode is cancelled and the product is turned off.

Press the TUNER/AUX, CD/Bluetooth, or USB

•

button on the product.

The current mode is canceled and the mode is changed to the mode you selected.

| NOTES |

When the Demo mode is on, only the POWER

✎

( ) button, VOL buttons, and the buttons mentioned above work.

If you connect a speaker to AUX1 while Demo

✎

mode is on, sound is produced through AUX1 and you can use the VOL and buttons on the product.



Track Indicator

12 English

Insert a disc gently into the disc slot with the disc's label facing up.

The disc will be played automatically.

For MP3/WMA file, it may take several

•

minutes for the product to finish scanning the disc tracks.

If you play a file with an English title, the

•

song title will be shown in the display. (Titles in other languages can not be displayed.)

An English-titled track containing a

•

special character (@, $, *, etc.) will not be displayed.

1 0:19

Playtime Indicator

Page 13

To adjust the volume:

Turn the VOLUME control on the

•

product. Press the VOL+ or VOL- button on the

•

remote control. The volume level can be adjust in 31 steps (VOLUME MIN, VOLUME 01 ~ VOLUME 29, and VOLUME MAX).

Pausing playback Main Unit

To pause playback temporarily, press the

button. Press again to continue playing the disc.

Remote control

To pause playback temporarily, press the

button. Press the button to continue playing the disc.

To end playing, press the 5 button.

| NOTES |

✎If no CD is in the disc slot, “NO DISC”

appears on the display.

✎The quality of MP3/CD-R playback may vary

depending on the condition of the disc or the condition of the recorder used to create the disc.

✎If a disc contains different types of files or

unnecessary folders, you will have problems with playback.

✎Gently insert a CD into the disc slot. Do not

apply excessive force.

- Do not apply force to the product or place a heavy object on the product.

- Do not insert an out-of-spec or oddly shaped CD (heart shaped, octangular, etc.). You can damage the product.

- Carefully maintain your CDs.

Selecting a Track

You can select a desired track while the disc is being played.

To play the previous track

Press the 1 button within 3 seconds after the current track has started playing.

Press the 1 button twice, 3 seconds or more after the current track starts playing.

To play the next track

Press the 2 button.

To play the current track from the beginning

Press the 1 button, 3 seconds after the current track started playing.

To play the track of your choice

Press the 1 or 2 button to move to a desired track.

Searching for a Specific Music Passage on a CD

When listening to a CD, you can quickly search for a specific music passage on a track.

Forward Search ...................

Backward Search .................

You can also press and hold the 1, 2 buttons on the product to automatically scan for a track.

3 4

Repeat One or All Tracks on a CD

You can play a CD or tracks on a CD repeatedly.

Press the REPEAT button.

Each time you press this button, the mode changes as follows:

MP3 : OFF ; TRACK ; DIR ; ALL ; RANDOM CD : OFF ; TRACK ; ALL ; RANDOM

03 Functions

13 English

Page 14

Functions

When you want to stop the repeat

function, press the REPEAT button until "OFF" is displayed.

OFF : Cancels repeat playback.

•

TRACK : Repeatedly plays the selected

•

track. DIR (DIRECTORY) : Repeatedly plays all

•

tracks in the selected folder. ALL : Repeatedly plays the entire disc.

•

RANDOM : Plays tracks in random order.

•

Playing USB Devices

To Select a File from a USB Device

You can select an MP3 file while the product is playing.

| NOTES |

✎ If you want to move to the previous/next

track, press the 1, 2 buttons briefly.

- The unit moves to the previous/next file within the directory.

- If you press the 1, 2 buttons more times than the number of the files in the directory, the unit moves to the next directory.

Connect an external storage device such as a USB flash memory or external HDD (Hard Disk Drive) to the product. You can play files in MP3/WMA format.

USB Device Playback

Connect the external USB storage device

to your product. Select the USB mode by pressing the USB

button on the product or the USB button on the remote control.

The first file of the first directory plays

automatically. To stop playing

Press the 5 button to stop playing.

| NOTES |

✎To remove the USB device

- If you press the 5 button again, you can remove the USB device safely.

| IMPORTANT |

✎Do not connect a USB recharger to the USB

port of this product. You can damage the product.

To repeat

Press the REPEAT button.

Each time you press this button, the mode changes as follows:

OFF ; TRACK ; DIR ; ALL ; RANDOM

When you want to stop the repeat

function, press the REPEAT button until "OFF" is displayed.

OFF : Cancels repeat playback.

•

TRACK : Repeatedly plays the selected

•

file. DIR (DIRECTORY) : Repeatedly plays all

•

files in the selected folder. ALL : Repeatedly plays all files.

•

RANDOM : Plays files in random order.

•

| NOTES |

✎For Random play: If the file you selected to

play is located in a folder, all the files in that folder are played in random order. If the file you selected is located in the root folder, all files in the root folder will be played in random order.

14 English

Page 15

To Use High Speed Search

You can search a desired section quickly while the product is playing.

Press the 3, 4 button.

Each time you press the button, you move

•

forward/backward quickly through the section.

| IMPORTANT |

✎The product does not output sound during

a high speed search.

To Delete a File

You can delete a file from your USB device.

Select a file you want to delete.

Press the DELETE button on the remote

control. "DEL N" is displayed. Press the DELETE button on the remote

control and “DEL Y” is displayed. Press the ¬ button. “DELETE END”

appears and deletion is completed.

To Move to the Next/Previous Folder

Press the TUNING/ALBUM . / , button on the remote control to move to the previous/ next folder.

| NOTES |

✎When sound files are stored in the root

directory rather than in a folder, press the TUNING/ALBUM , / . button to go to the first TRACK.

To safely remove a USB device

Press the 5 button twice while the USB is

playing or press the 5 button once when play has stopped.

When the REMOVE message appears on

the display, remove the USB device.

Read Before Connecting USB Storage Devices

Some USB devices may not work properly

•

with this product. This product only supports external HDD`s

•

that are formatted in the FAT file system. USB 2.0 HDDs should be connected to a

•

separate power source. Otherwise, the USB

2.0 HDDs will not work. If multiple USB external storage devices are

•

connected together, only the MP3 files in the first HDD will be played.

Files with DRM are not supported. Digital

•

Right Management (DRM) restricts unauthorized access to a DRM file so that the file is protected from piracy.

Even if a file has an .mp3 extension, the file

•

cannot be played if it is formatted in MPEG layer 1 or 2.

Do not use an unrecognized USB hub.

•

Only the first 15 characters of an audio file

•

name are shown on the product's display. Only removable HDDs with less than 160GB

•

are supported. Depending on the device, a 160GB- or more removable HDD may not be supported.

It can take several minutes for the product to

•

recognize the files on some USB devices. Some USB devices (USB HDDs, in particular)

•

may cause a delay when moving from track to track.

With USB storage devices supporting

•

USB VER1.1 only, the product may access files slowly or may not recognize the file properties.

The maximum electrical current provided by

•

each USB port to connected USB devices is

0.5A (based on DC 5V). If there is no USB connection or STOP mode

•

lasts for more than 25 minutes, the product will automatically turn off.

Some USB devices, digital cameras, USB card

•

readers, iPods, iPhones, and Smart Phones may not be supported.

03 Functions

15 English

Page 16

Functions

Searching for a Track Quickly

You can select a track directly without the 1,

button.

CDDA/MP3-CD/USB

Press the SEARCH button.

After pressing the SEARCH button, turn the VOLUME/SEARCH JOG control on the product to the left or right to select a desired track.

You can move to the selected track

•

directly.

When searching is done, the track will

automatically start playing.

Selected Track

Indicator

0 12 0 25

Total track

Indicator

To select another track, follow Steps 3 and

4 above. Press the button to play the

programmed tracks. Press the 5 button to stop playing the

programmed tracks, Press the 5 button again to cancel playing the programmed tracks.

If you eject the disc, CD programming is

•

cancelled. If you turn off the product, CD/USB programming is cancelled.

If you switch to another mode,CD/USB

•

programming is maintained. In Program mode, if you press the USB

•

REC, DELETE, or buttons, these functions will not work, and the unit will display "PROG".

TUNING/ALBUM

,,.

Viewing or Editing Programmed Tracks

Using the Program Function

This function is not available during playback of an MP3-CD/USB.

You can program the playback order of up

•

to 99 tracks of your choice. However, you must stop playing the CD/USB

•

before selecting tracks.

While in CD/USB playback mode, press the

button to stop playing the CD/USB.

Press the PROGRAM button to display the

message below:

P0 1 --

0 1 ---

(01= program number, -- or ---= track number)

Use the 1 or 2 button or the VOLUME/

SEARCH JOG to move to a desired track.

Press 1 to move to the previous track.

•

Press 2 to move to the next track.

•

Press the ¬ button to confirm your

selection. The selection is stored and

P0 2 --

0 2 ---

is displayed.

You can view and edit a list of programmed tracks.

If a programmed track is being played,

press the 5 button once. Press the PROGRAM button twice to

display the message below:

C0 1 02

(01= program number, 02 or 002 = track

Repeatedly press the ¬ button until the

desired track is displayed. Press the 1 or 2 button to select a

different track. Press the ¬ button to confirm your

selection. To play the programmed tracks, press the

button.

number)

0 1 002

To repeat

Press the REPEAT button.

Each time you press this button, the mode will change as follows:

OFF ; TRACK ; ALL

16 English

Page 17

Bluetooth

You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!

What is Bluetooth?

Bluetooth is a technology that enables Bluetooth compliant devices to interconnect easily with each other using a short, wireless connection.

A Bluetooth device may cause noise or

•

malfunction, depending on usage, when:

- A part of your body is in contact with

the receiving/transmitting system of the Bluetooth device or the Hi-Fi Component.

- It is subject to electrical variation from

obstructions caused by a wall, corner, or office partitioning.

- It is exposed to electrical interference from

same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.

Pair the Hi-Fi Component with the Bluetooth

•

device while they are close together. The greater the distance between the Hi-Fi

•

Component and the Bluetooth device, the worse the quality. If the distance exceeds the Bluetooth operational range, the connection is lost.

In poor reception areas, the Bluetooth

•

connection may not work properly. The Bluetooth connection only works

•

when the Bluetooth device and the HiFi Component are close together. The connection will be automatically cut off if the Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as walls or doors.

This wireless device may cause electric

•

interference during its operation.

To connect the Hi-Fi Component to a Bluetooth device

Press the CD/Bluetooth button of the Hi-Fi

Component to display the BT message.

You will see WAIT for a short period of

•

time and then BT READY on the front display of the Hi-Fi Component.

Select the Bluetooth menu on the

Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.)

Select the Stereo headset menu on the

Bluetooth device.

You will see a list of scanned devices.

•

Select "[Samsung] HI-FI XXXXXX" from

the list.

When the product is connected to the

•

Bluetooth device, it will display Device name ; BT on the front display.

If the Bluetooth device has failed to pair

•

with the product, delete the previous “[Samsung] HI-FI XXXXXX” found by the Bluetooth device and have it search for the product again.

You can listen to the music playing on the

connected Bluetooth device over the Hi-Fi Component system.

In Bluetooth mode, some model's

•

Play/Stop/Next/Back functions are not available.

| NOTES |

The product only supports Middle Quality SBC data (up to 237kbps@48kHz), and does not support High Quality SBC data ([email protected]).

✎The AVRCP feature is not supported. ✎ Connect only to a Bluetooth device that

supports the A2DP (AV) function.

✎ You cannot connect to a Bluetooth device

that supports only the HF (Hands Free) function.

03 Functions

Before you begin, confirm that your Bluetooth device supports the Bluetooth-compliant stereo headset function.

17 English

Page 18

Functions

✎Only one Bluetooth device can be paired at

a time.

✎Once you have turned off the Hi-Fi

Component and the pairing is disconnected, the pairing will not be restored automatically. To reconnect, you must pair the device again.

✎The Hi-Fi Component system may not search

or connect properly in the following cases:

- If there is a strong electrical field around the Hi-Fi Component.

- If several Bluetooth devices are simultaneously paired with Hi-Fi Component.

- If the Bluetooth device is turned off, not in place, or malfunctions.

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.

To disconnect the Bluetooth device from the Hi-Fi Component

You can disconnect the Bluetooth device from the Hi-Fi Component. For instructions, see the Bluetooth device's user manual.

The Hi-Fi Component will be disconnected.

•

When the Hi-Fi Component is disconnected

•

from the Bluetooth device, the Hi-Fi Component will display BT DISCONNECTED

BT READY on the its display.

;

To disconnect the Hi-Fi Component from the Bluetooth device

Press the CD/Bluetooth button on the front panel of the Hi-Fi Component to switch from Bluetooth mode to another mode or turn off the Hi-Fi Component. The currently connected device is disconnected.

| NOTES |

✎The connected Bluetooth device will wait a

certain amount of time for a response from the Hi-Fi Component before terminating the connection.(Disconnection time may differ, depending on the Bluetooth device)

✎ In Bluetooth connection mode, the

Bluetooth connection will be lost if the distance between the Hi-Fi Component and the Bluetooth device exceeds 16.25 feet (5 meters).

✎If the Bluetooth device comes back into the

effective range after disconnecting, you can restart the Hi-Fi Component to restore the pairing with the Bluetooth device.

✎The Hi-Fi Component automatically turns

off after 25 minutes in the Ready mode.

✎When a Bluetooth device is connected

to the Hi-Fi Component system, the Component system automatically switches to the Bluetooth mode if it is in a different mode (except when it is displaying "REQUEST" in the TV SoundConnect mode).

Using The Bluetooth Power On

When the product is turned off, you can connect your smart device to the product via a Bluetooth connection to turn it on.

Turn on the product,press and hold the

Bluetooth button on the remote to set the Bluetooth Power On function on. Bluetooth Power On appears on the display.

When the product is off, connect

your smart device to the product via Bluetooth. (For information on Bluetooth connections, refer to your smart device’s manual.)

The Bluetooth device paired with your

•

product before.

When the connection is complete, the

product turns itself on automatically in Bluetooth mode.

Select the desired music to play from

•

your smart device.

| NOTES |

✎Press and hold the Bluetooth button on the

remote control to turn the Bluetooth Power On function on or off. Each time you press and hold this button, the Hi-Fi Component displays BLUETOOTH POWER ON ; BLUETOOTH POWER OFF on its display.

18 English

Page 19

TV SoundConnect

You can listen to the sound from your SoundConnect Compatible Samsung TV through the Hi-Fi Component by using the TV SoundConnect function.

To connect the Hi-Fi Component to a SoundConnect Compatible Samsung TV

Before activating this function, be sure to activate the Samsung TV's SoundConnect or SoundShare mode.

Press the TV SoundConnect button of

the Hi-Fi Component to display the TV SOUNDCONNECT message.

WAIT ; SEARCH ; REQUEST

Set Add New Device to On in the TV's

SoundConnect Settings menu. (Refer to the TV's user manual for details.)

When the Hi-Fi Component is connected

to the TV, it will display [TV] Name

CONNECTED ; TV on the front display.

;

The audio from the connected TV plays

over the Hi-Fi Component system.

| NOTES |

✎In TV SoundConnect mode, some model's

Play/Repeat/Stop/Next/Back functions are not available.

✎The SoundConnect feature is available on

some Samsung TVs released since 2012. Check whether your TV supports the SoundShare or SoundConnect function. (For further details, refer to the TV's user's manual.)

✎If you unplug the Hi-Fi Component, the TV

SoundConnect connection is terminated. To re-establish the connection, plug the Hi-Fi Component into an outlet, and then set the TV SoundConnect connection again.

✎Only one Hi-Fi Component at a time can be

connected to a TV via TV SoundConnect.

✎To connect to another TV in TV

Soundconnect mode, press the button for more than 5 seconds, and then connect to the other TV by following the directions above.

To disconnect the TV from the Hi-Fi Component

You can disconnect the TV from Hi- Fi Component. For instructions, see the TV's user manual.

When the Hi-Fi Component is disconnected

•

from the TV, the Hi-Fi Component will display TV DISCONNECTED ; REQUEST on its display.

To disconnect the Hi-Fi Component from the TV

Press another mode button on the front panel of the Hi-Fi Component to switch from TV SoundConnect mode to another mode or turn off the Hi-Fi Component. The currently connected device is disconnected.

| NOTES |

✎The connected TV will wait a certain

amount of time for a response from the Hi-Fi Component before terminating the connection.(Disconnection time may differ, depending on the TV)

✎The connection may be lost or sound may

stutter if the distance between the TV and the Hi-Fi Component exceeds 6.5 feet (2 m).

✎Instability in the network environment may

cause the connection to be lost or sound to stutter.

✎The Hi-Fi Component automatically turns

off after 25 minutes if the product is not connected to a TV.

03 Functions

19 English

Page 20

Functions

Using My Karaoke

You can use the MY Karaoke function to sing along with your favorite CDs and USB tracks.

Connect the microphone to the MIC jack

on the front of the product.

If your microphone plug is smaller than

•

the 6.3mm (0.25 in) MIC jack, you need a Connector-Adaptor (not supplied) to complete the connection.

- First, connect the Connector-Adaptor to the MIC jack on the front of the product,

- Second, connect the microphone (with larger jack) to the Connector-Adaptor.

Press the MIC VOL-, + button on the

remote control to adjust the volume of the microphone.

Press the MY KARAOKE button on the

remote control to suppress the vocal if you need to. Each time the button is pressed, the selection is changed as follows:

ON ; OFF

If you hear strange noises (squealing or howling)

•

while using the Karaoke feature, move the microphone away from the speakers. Turning down the microphone's volume or the speaker volume is also effective. Do not aim the MICROPHONE towards the SPEAKERS.

The microphone does not operate in the AUX

•

and TUNER mode.

If you connect a microphone, GIGA SOUND

•

automatically turns off. To turn Giga Sound back on you must remove the microphone, and then press the GIGA SOUND BEAT button.

When My Karaoke is on, GIGA SOUND BEAT

•

does not work.

When you turn My Karaoke off, all My

•

Karaoke settings are lost.

My Karaoke is only available when a

•

microphone is connected to the Hi-Fi Component.

MY KARAOKE does not operate in the

•

Bluetooth, TV SoundConnect, FM, and AUX mode.

Auto Change Function

You can play a disc followed by a USB device connected to USB1 and/or USB2 continuously.

1. Press the setting, and then press

AUTO CHANGE



button to select a



to apply your



selection.

If Program Play has not been set in CD/USB

•

mode, the settings change as follows:

AUTO CHANGE OFF ; AUTO CHANGE ALL

If Program Play has been set in CD/USB mode,

•

the settings change differently:



AUTO CHANGE OFF ; AUTO CHANGE ALL; AUTO CHANGE PROGRAM

- When theAUTO CHANGE



Hi-Fi Component will play music from DISC, USB1, and USB2 continuously.

- When the auto change mode is



"PROGRAM",the Hi-Fi Component will play a disc in the disc slot, then play files on a USB device connected to USB1, and then play files on a USB device connected to USB2. The files will be played continuously.

- If you press thePOWER button, another



function button, theAUTO CHANGEfunction automatically switches to"OFF"mode.

- When the Auto Change mode is "ALL or



PROGRAM", the main unit cannot record.

- When the Auto Change mode is "ALL or



PROGRAM", the REPEAT and SLEEP functions automatically switch to OFF.

When the Auto Change mode is "ALL or



PROGRAM", the REC SPEED, USB REC, REPEAT, DELETE, and SLEEP functions do not work, and the unit displays AUTO CHANGE

When the DISC play ends, if there's no device



connected to USB1 and/or USB2, the unit will continue to play the disc.

When USB play ends, if there's no disc in the



unit, the unit will continue to play music from USB1 and/or USB2.

or theOPEN/CLOSEbutton,

mode is"ALL",the

mode

Listening to the Radio

To Store the Stations You Want

You can store up to: 15 FM stations.

Select FM by pressing the TUNER/AUX

button. To search for a station, press the TUNING

MODE button on the remote control or the STOP button on the product one or more

times until MANUAL is displayed.

20 English

Page 21

Select a station by:

Pressing and holding the TUNING/

•

ALBUM , or . button on the remote control to automatically search for active broadcasting stations.

Press the MO/ST button to switch between

stereo and mono.

In a poor reception area, select MONO

•

for a clear, interference-free broadcast. This applies only when listening to an

•

FM station.

If you do not want to store the radio station

found, go back to Step 3 and search for another station.

Otherwise:

Press the ¬ button.

Or, press the TUNING/ALBUM button

on the remote control to select a program number in the PRESET mode.

Press the ¬ button to save the preset.

To store any other radio frequencies

required, repeat Steps 3 to 5.

| NOTES |

✎In Tuner mode

- In the Manual mode, you can use the or

button or the DJ JOG control.



- In the Preset mode, you can use the or

button or the DJ JOG control on



the product to search for a stored radio station.



Selecting a Stored Station

To listen to a stored station, follow these steps:

Select FM by pressing the TUNER/AUX

button on the product or remote control. Press the TUNING MODE button on the

remote control until “PRESET” is displayed. Press 1, 2 button on the main unit or

TUNING/ALBUM ,, . on the remote control to select a preset number. or Turn the DJ JOG control left or right on the main unit to select the stored station.

Timer Function

Setting the Clock

For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.

Press the TIMER SET button on the remote

control twice. "CLOCK " is displayed. Press the ¬ button on the remote

control. The hour flashes.

o increase the hours: TUNING/ALBUM

•

To decrease the hours: TUNING/ALBUM

•

When the correct hour is displayed, press

the ¬ button, and then the minutes flash.

To increase the minutes: TUNING/

•

ALBUM To decrease the minutes: TUNING/

•

ALBUM

When the correct minute is displayed,

press the ¬ button, and then " TIME" appears in the display.

Setting the Timer

The timer enables you to set the product to switch on or off at specific times automatically.

Before setting the timer, check that the

•

current time is correct. For each step, you have a few seconds to set

•

the required options. If you exceed this time, you must start again.

If you no longer want the product to be

•

switched on or off automatically, you must cancel the timer by pressing the TIMER

ON/OFF button.

Example: You want to wake up to music every morning.

Press the TIMER SET button until TIME

is displayed. Press the ¬ button.

Result: ON is displayed for a few seconds. You can set the timer switch-on time.

03 Functions

21 English

Page 22

Functions

Set the timer switch-on time.

Press the TUNING/ALBUM , or .

button to set the hours. Press the ¬ button.

Result: The minutes flash. Press the TUNING/ALBUM , or .

button to set the minutes. Press the ¬ button.

Result: OFF is displayed for a few seconds. You can now set the timer switch-off time.

Set the timer switch-off time.

Press the TUNING/ALBUM , or .

button to set the hours. Press the ¬ button.

Result: The minutes flash. Press the TUNING/ALBUM , or .

button to set the minutes. Press the ¬ button.

Result: VOL XX is displayed, where XX corresponds to the volume already set.

Press the TUNING/ALBUM , or . button

to adjust the volume level and press the

button.

Result: The source to be selected is displayed.

Press the TUNING/ALBUM , or . button

to select the source the Hi-Fi Component will play when it switches on.

If you select You must also

FM (radio)

MP3/CD (compact disc)

USB Connect a USB device.

Press the ¬ button.

Result: CHKREC (Do you want to record?) is displayed.

Press the ¬ button.

Select a preset

station by pressing the TUNING/ALBUM

or . button.

Load a compact disc.

Press the ¬ button.

Result: REC N is displayed. You can press the TUNING/ALBUM , or . button to select REC Y or REC N, and then press ¬ button.

If you select REC N, it will cancel tuner

timer recording and any currently set tuner timer recording. Note that selecting REC N does not cancel the Timer setting.

If you select REC Y, you can set the

tuner timer recording on and off times.

Press the ¬ button.

Result: ON is displayed for a few seconds. You can set the tuner timer recording switch-on time.

Press the ¬ button.

Result: OFF is displayed for a few seconds. You can set the tuner timer recording switch-off time.

| NOTES |

✎Tuner timer recording On/Off times can

differ from Timer On/Off times.

✎If the timer switch on and off times are

identical, the word ERROR is displayed.

✎You can use the 1, 2 buttons on the

product instead of the TUNING/ALBUM , or . button to make adjustments in Steps 3 through 8.

✎If the switch-on or -off time is the same as

the timer recording time, only the switchon or -off time is effective, and the timer recording is not applied.

✎When you use the auto timer, you may

need an additional step to use a CD or USB device with it, depending on the disc (or device). Consequently, it is easier to use the tuner instead.

✎If you select MP3/CD or USB mode when

there is no disc or no USB in the product, it will automatically change to TUNER.

22 English

Page 23

Cancelling the Timer

After you have set the timer, it will start automatically.If you no longer want to use the timer, you must cancel it.

To cancel the timer, Press the TIMER ON/OFF

•

button once. To restart the timer, Press the TIMER ON/OFF

•

button once again.

| NOTES |

✎When you select the TIMER OFF mode, the

TIMER RECORDING and TIMER function are not available.

The Recording Function

Basic Recording

You can record from a CD, radio broadcast, or an external source to a USB storage device.

1. Connect an external USB storage device to the

USB 2 (

2. Play a disc, tune to a station, or connect an external source to your product.

• Press the CD/Bluetooth button on the main unit to select the MP3/CD function.

• Press the OPEN/CLOSE button to open the disc tray.

• Insert a CD and press the OPEN/CLOSE button to close the disc tray.

• Use the CD selection buttons ( [ or to select the desired song.

Tuner

• Select TUNER by pressing the TUNER/AUX button.

• Tune to a station you want to record.

External Source

• Connect an External Component/MP3 player to your product.

• Press the TUNER/AUX button to select <AUX> input.

• Play a song from the external device.

)

jack on your product.

]

)

USB 1

• Connect a USB device to USB 1 jack of your product

• Press the USB button to select USB 1.

• Play a song from USB 1.

Press the USB REC button on the remote control or the USB REC button on the main unit to start recording.

• “TRACK RECORDING” is displayed and CD

recording starts.

•

Press and hold the USB REC button on the remote control or press and hold the USB REC button on the main unit

to start recording all tracks on the disc. "FULL CD RECORDING" is displayed.

CD-ROM, USB 1

Press the USB REC button. The currently

• playing file is copied onto the USB2 device.

Press and hold the USB REC button. All

• the files in the current folder are copied

onto the USB2 device.

• If you connect a microphone and press the USB REC button, the currently playing mp3 file and the sound from the microphone is recorded onto the USB2 device. MP3 RECORDING: "MP3 RECORDING""RECORD" COPY: “CHECK”“START”“COPY XX”“COPY END”

is displayed. When the recording is done,

“STOP” will be displayed.

• If there is a duplicate file name, "FILE EXIST" is displayed, and the function is canceled.

Tuner /External Source

• RECORD is displayed.

To stop recording, press the STOP (@) button. The unit automatically creates and saves recorded files in .MP3 format (SAM-XXXX.MP3).

5. After recording, a directory named “RECORDING(DISCxxxx)”(FULL CD RECORDING), “RECORDING”(TRACK RECORDING), “COPY”(CD-ROM/USB), “MP3 RECORDING”(CD-ROM/USB), “TUNER RECORDING” or “AUX RECORDING” is created on your USB device.

03 Functions

23 English

Page 24

Functions

| NOTES |

✎Do not disconnect the USB device or the

AC Cord during recording as this may cause damage to the file.

✎WMA/MP2 files can be copied but not

recorded.

✎If you disconnected the USB device during a

recording, the main unit powers off and you will not be able to delete the recorded file from your USB device. If this occurs, please connect the USB device to a PC, backup the USB data to the PC, and then format the USB device.

✎When the USB memory has insufficient

free space, the system will display “NOT ENOUGH MEMORY”.

✎The USB device or HDD you are recording to

must be formatted in the FAT file system. The NTFS file system is not supported.

✎When you use the CD high speed search

function, CD recording is not available.

✎The recording time may be longer with

some USB devices.

✎In the program mode, you can't use the CD

recording function.

✎The equalizer is set to "OFF" automatically

and is not available during a CD recording.

✎The GIGA SOUND BEAT function is set to

"OFF" automatically and is not available during a CD recording.

✎The REPEAT function is set to "OFF"

automatically and is not available during a CD recording.

✎If you use the MIC function during a CD

recording, the sound from the microphone will be recorded.

✎You cannot record the radio when searching

or if no stations are available in the Tuner mode.

✎Note that setting the input level too loud

when recording music from an external device through the AUX or USB channel may cause noise in the recording. If this occurs, lower the external device’s volume level.

✎The maximum TUNER/AUX recording time

is 5 hours.

Recording Speed

Each time you press the REC SPEED button on the remote control, the recording speed will change as follows:

RECORD SPD x 1 ; RECORD SPD x 4

When you record from the tuner or an

•

external source, you cannot change the recording speed.

If you select RECORD SPD X 4, sound is not

•

produced during the recording. If you connect the microphone, you have

•

one recording speed mode available: RECORD SPD X1.

During recording, if you disconnect the

•

microphone, the recording will stop. If you reconnect the microphone, the recording will not restart.

24 English

Page 25

Special Sound Effects

Selecting EQ Mode

Your Hi-Fi Component system provides predefined equalizer settings that are optimized for particular music genre. You can also adjust the bass, middle, and treble levels manually.

Press the EQ button.

Each time you press the EQ button or press the EQ button first and then turn the VOLUME/SEARCH JOG control on the product, the mode will change as follows:

OFF ; FLAT ; RANCHERA ;CUMBIA

REGGAE ; MERENGUE ; SALSA ;

;

REGGATON ; FOLKLORE ; PARTY ; POP

HIP HOP ; ROCK ; JAZZ ; CLASSIC ;

;

ELECTRONIC ; MP3 ENHANCER ; VIRTUAL

SOUND ; U B 0

To set the BASS, MID (Middle), and TREB

(Treble) levels manually, select U B 0, and then press the ¬ button.

Result: The BASS level (left numeric) flashes. Press the 1 or 2 button on the product or TUNING/ALBUM ,, . button to select a level: -6,-4,-2, 0, +2, +4, or +6. Then, press the ¬ button.

Result: The MIDDLE level (middle numeric) flashes. Press the 1 or 2 button on the product or TUNING/ALBUM ,, . button to select a level: -6,-4, -2, 0, +2, +4 ,or +6. Then, press the ¬ button.

Result: The TREBLE level (right numeric) flashes. Press the 1 or 2 button on the product or TUNING/ALBUM ,, . button to select a level: -6, -4, -2, 0,+2, +4, or +6. Then, press the ¬ button.

✎If no buttons are pressed within 8 seconds,

your settings will automatically be cancelled and the previous settings will be saved.

✎The EQ mode may be different depending

on your region.

✎Use the VOLUME/SEARCH JOG to alter the

EQ mode. The selected EQ mode will be applied after about 2 seconds.

✎Use the VOLUME/SEARCH JOG to alter

the EQ mode, and then press ¬. The EQ screen disappears.

FOOTBALL MODE function

The football mode brings greater realism to sports broadcasts.

Press the FOOTBALL MODE button on the

product. Each time you press this button, the mode changes as follows:

ANNOUNCER ; STADIUM; OFF

To cancel this function, press the

FOOTBALL MODE button until “OFF” is displayed.

| NOTES |

✎The FOOTBALL mode may be different

depending on your region.

GOAL Function

Press this button to add the sound of cheering while watching a football game.

Press the GOAL button on the remote

control. Each time you press this button, the mode changes as follows:

GOAL ON ; GOAL OFF

To cancel this function, press the GOAL

button until “GOAL OFF” is displayed.

03 Functions

Result: Setting is complete.

| NOTES |

✎When the Hi-Fi Component is recording,

the EQ function is turned off automatically and is unavailable.

25 English

Page 26

Functions

| NOTES |

✎Press the GOAL button to output the

currently playing sound file mixed with the

GOAL sound.

GIGA SOUND Function

The GIGA SOUND function amplifies the bass sound and provides twice the bass for powerful, realistic sound.

Press the GIGA SOUND BEAT button on

the main unit or the GIGA button on the remote control. Each time you press this button, the mode changes as follows:

GIGA SOUND BEAT ; GIGA SOUND OFF

To cancel this function, press the GIGA

SOUND BEAT button until “GIGA SOUND OFF” is displayed.

| NOTES |

✎The GIGA SOUND mode may be different

depending on your region.

BEAT WAVING Function

The Beat Waving function lets you change the Speaker LED display mode.

Press the BEAT WAVING button on the

product or on the remote control. Each time you press this button, the mode changes as follows:

STARDUST ; EMERALD MOON ; STAR ;

PARTY ; FUN ; PURE ; FRESH ; LOVE ; JOY

SUNSET ; SUNRISE ; NATURE 1 ; NATURE

;

2 ; WAVE 1 ; WAVE 2 ; OFF

| NOTES |

✎If you select Beat Waving OFF, all the

speaker LED displays are turned off.

| IMPORTANT |

✎The set scope is [-15 ~ +15] and the initial

set up value are all 0.

FLANGER : Creates an effect similar to the

•

sound of a jet engine revving up and down. CHORUS : Creates an effect similar to a

•

singing chorus. WAHWAH : Creates a 'Wah~ Wah~' effect.

•

TREMOLO : Repeatedly and rapidly turns the

•

volume up and down. FUZZ : Distorts the original sound to make it

•

harder and harsher. PHASER : Alters the original sound from

•

clear to dull. SLAPBACK : Creates the effect of a slapback

•

echo following the original sound. DJ BEAT OFF : Turns off this function.

•

| NOTES |

✎You can control the intensity of the effect

with the DJ Jog.

✎To cancel an effect, press the effect's button

again.

✎You can also control the effect using

the EFFECT LEVEL button on the remote control.

✎Use the DJ Jog to control the intensity of the

effect that was activated last. For example, if you activated the WahWah effect and then the Panning effect, the DJ Jog will control the Panning effect.

✎To control the intensity of the effect you

applied first, press the button of the effect that you applied last to turn it off. Then, you can use the DJ Jog to control the intensity of the first effect.

DJ BEAT Function

The DJ Beat function lets you turn on the DJ sound effect functions. The level of each effect is adjustable.

Press the DJ BEAT button on the remote control or on the product. Each time you press this button, the mode changes as follows:

26 English

Page 27

+PANNING Function

Increases the left and right speaker's output in turn and makes it seem as if the sound is moving from side to side.

| NOTES |

✎You can apply the PANNING effect to the

FLANGER, CHORUS, WAHWAH, TREMOLO, FUZZ,PHASER, or SLAPBACK effect.

✎To apply the PANNING effect to another

effect, press the +PANNING button when the other effect is active or press another effect button when the PANNING effect is active.

| NOTES |

✎When the DANCE TIME sound file finishes

playing, the DANCE TIME mode changes to DANCE TIME OFF.

✎When DANCE TIME mode is switched ON,

the BT, TV SoundConnect, TUNER, and AUX sources enter Mute mode.

✎When playing a DANCE TIME sound file,

you can change the dance music by pressing the SKIP button.

✎If you set DANCE TIME to OFF during

playback of a CD or USB, playback of the CD or USB starts again from the beginning of the current track.

03 Functions

NON-STOP MUSIC RELAY Function

The NON-STOP MUSIC RELAY function plays music continuously without an interval between tracks/files. If there were two mp3 files, it skips to the next file’s 10 seconds from start position when the previous track reaches its 10 seconds before end position.

Press the NON-STOP MUSIC RELAY button on the product or NON-STOP RELAY button on the remote control.

Each time you press this button, the mode changes as follows:

NON-STOP MUSIC RELAY ON ; NON-STOP

MUSIC RELAY OFF

DANCE TIME Function

Press the DANCE TIME button on the remote control when playing music to play the dance music stored in the product.

Use this function to enjoy exciting music.

Press the DANCE TIME button on the

remote control or on the product. Each time you press this button, the mode changes as follows:

DANCE TIME ON ; DANCE TIME OFF

TEMPO Function

Use this to change the TEMPO (-10 ~ +10) while music is playing.

During playback (CDDA/ MP3/ WMA),

press the TEMPO button on the remote control or on the product.

Select the desired TEMPO by using the

EFFECT LEVEL button on the remote control or DJ JOG button on the product.

• High speed search does not work on TMEPO mode.

| NOTES |

✎TEMPO Function does not operate in the

Bluetooth, TV SoundConnect, FM and AUX mode.

✎When you turn TEMPO off, all TEMPO

settings are lost.

To cancel this function, press the DANCE

TIME button until "DANCE TIME OFF" is displayed.

27 English

Page 28

Appendix

Troubleshooting

Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom Check/Remedy

I cannot eject the disc.

Playback does not start immediately when the Play/Pause button is pressed.

Sound is not produced.

The remote control does not work.

The product is not working. (Example: The power goes out or the front panel buttons don't work, or you hear a strange noise.)

The product is not working normally.

Is the power cord plugged securely into the outlet?

•

Turn off the power and then turn it back on.

•

Are you using a deformed disc or a disc with scratches

•

on the surface? Wipe the disc clean.

•

No sound is heard during fast playback, slow playback,

•

and step motion playback. Are the speakers connected properly? Is the speaker

•

setup correctly customized? Is the disc severely damaged?

•

Is the remote control being operated within its

•

operational angle and distance range? Are the batteries drained?

•

Press the @ button (on front panel) for more than 5

•

seconds with no disc inside. The initialization message appears on the screen, and the power will turn off automatically. When you turn your product on again, all the settings will be reset. Don't use this unless absolutely necessary.

Can't receive radio broadcast.

If you contact us to repair your Component System, an administration fee may be charged if either:

•

1. An engineer is called out to your home at your request and there is no defect in the product.

2. You bring the unit to a repair center and there is no defect in the product.

We will provide you with the amount of the administration fee before we make a home visit or

•

begin any work on your player.

We recommend you read this manually thoroughly, search for a solution on line at

•

www.samsung.com, or contact Samsung Customer Care at 1-800-SAMSUNG (726-7864) before seeking to repair your player.

Is the antenna connected properly?

•

If the antenna's input signal is weak, install an external

•

FM antenna in an area with good reception.

28 English

Page 29

Specifications

04 Appendix

Power Requirements AC120V ~ 60Hz

Power Consumption 165W

Main unit 10.6 lbs

Weight

General

Dimensions

Operating Temperature Range +41°F to +95°F

Operating Humidity Range 10 % to 75 %

Signal/Noise ratio 55 dB

FM Tuner

CD Disc CD : 12 cm (COMPACT DISC)

Amplifier

Usable sensitivity 10 dB

Total harmonic distortion 1 %

Front speaker output(MX-HS7000) 575W/CH (4Ω)

Front speaker output(MX-HS6000) 567W/CH (4Ω)

Subwoofer output (MX-HS7000) 575W/CH (4Ω)

Subwoofer output (MX-HS6000) 567W/CH (4Ω)

Frequency range 22Hz~20KHz

Front speaker 13.6 lbs

Subwoofer 25.4 lbs

Main unit 17.8 (W) x 8.7 (H) x 12.0 (D) inches

Front speaker 17.7 (W) x 8.9 (H) x 12.1 (D) inches

Subwoofer 17.7 (W) x 17.7 (H) x 12.6 (D) inches

Reading Speed : 4.8 ~ 5.6 m/sec.

Maximum Play Time : 74 min.

S/N Ratio 65 dB

Channel separation 50 dB

Input sensitivity AUX IN1 1.2V, AUX IN2 2V

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- Design and specifications are subject to change without prior notice.

- For information on the power supply and power consumption, refer to the label attached to the product.

29 English

Page 30

LIMITED WARRANTY TO ORIGINAL PURCHASER

This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of:

One (1) Year Parts and Labor*

(*90 Days Parts and Labor for Commercial Use)

This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG's authorized service center. Transportation of the product to and from the service center is the responsibility of the purchaser.

SAMSUNG will repair or replace this product, at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

SAMSUNG’s obligations with respect to software products distributed by SAMSUNG under the SAMSUNG brand name are set forth in the applicable end user license agreement. Non-SAMSUNG hardware and software products, if provided, are on an “AS IS” basis. Non-SAMSUNG manufacturers, suppliers, publishers, and service providers may provide their own warranties.

This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, and except to the extent otherwise expressly provided for in this statement, noncommercial use of this product, and shall not apply to the following, including, but not limited to: damage which occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning or other acts of nature; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied and authorized by SAMSUNG, or which damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, cleaning, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal or reinstallation; reception problems and distortion related to noise, echo, interference or other signal transmission and delivery problems. SAMSUNG does not warrant uninterrupted or error-free operation of the product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE, AND NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY AFTER THE EXPRESS WARRANTY PERIODS STATED ABOVE, AND NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THIS PRODUCT SOLD BY SAMSUNG NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF SAMSUNG. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

The benefits of this Limited Warranty extend only to the original purchaser of Samsung products from an authorized Samsung reseller. THIS LIMITED WARRANTY SHALL NOT APPLY TO ANY SAMSUNG PRODUCTS PURCHASED FROM UNAUTHORIZED RESELLERS OR RETAILERS, EXCEPT IN STATES WHERE SUCH RESTRICTION MAY BE PROHIBITED. For a list of Samsung authorized retailers, please go to: http://www.samsung.com/us/peaceofmind/authorized_resellers.html.

To obtain warranty hardware service, please contact SAMSUNG customer care center.

Page 31

QUESTIONS OR COMMENTS?

Area CALL OR VISIT US ONLINE AT WRITE

IN THE US

1-800-SAMSUNG

(726-7864)

www.samsung.com/us/

support

Samsung Electronics America, Inc.

85 Challenger Road Ridgefield Park,

NJ 07660

AH68-02680D-00
