WHAT’S INCLUDED

Check for the supplied accessories below.

POWER

DISPLAY

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC SPEED

FM Antenna

User's Manual

Remote Control/Batteries(optional) AM Antenna (Optional)

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

CAUTION :

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This symbol indicates important instructions accompanying the product.

WARNING

To reduce the risk of ﬁre or electric shock, do not

•

expose this appliance to rain or moisture.

CAUTION

Apparatus shall not be exposed to dripping or splashing and

•

no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay

•

readily operable at any time. This apparatus shall always be connected to a AC outlet with

•

a protective grounding connection. To disconnect the apparatus from the mains, the plug must be

•

pulled out from the mains socket, therefore the mains plug shall be readily operable.

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classiﬁed as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those speciﬁed herein may result in hazardous radiation exposure.

CAUTION

INVISIBLE LASER RADIATION WHEN OPEN AND

•

INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.• An administration fee may be charged if either•

a. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual) b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual). The amount of such administration charge will be advised to you before any work or home visit is carried out.

•

Page 3

ENG

Thank you for buying this SAMSUNG mini-compact system.

Please take time to read these instructions. They will allow you to operate your system with ease and take full advantage of its features.

SA f E T y WA R n i n g S ..................................................................................................................................................................................... 2

in S T A L L i n g yO U R Mi n i -CO M P A C T Sy S T E M

Front Panel View ...................................................................................................................................................................................... 4

Rear Panel View (MX-D730) .................................................................................................................................................................... 5

Rear Panel View (MX-D750) .................................................................................................................................................................... 5

Where to Install Your Mini-Compact System ............................................................................................................................................. 5

Remote Control ........................................................................................................................................................................................ 6

Inserting Remote Control Batteries ........................................................................................................................................................... 6

Connecting your System to the Power Supply ......................................................................................................................................... 7

Connecting the Speakers ......................................................................................................................................................................... 7

Connecting to an External Source ............................................................................................................................................................. 7

Display Function ....................................................................................................................................................................................... 7

Connecting the FM Antenna ..................................................................................................................................................................... 8

Connecting the AM Antenna (Optional) ..................................................................................................................................................... 8

Setting the Clock ....................................................................................................................................................................................... 8

CD/MP3/WMA-CD-PL A y E R

To replay the CD/MP3/WMA-CD ............................................................................................................................................................ 9

Selecting a Track ...................................................................................................................................................................................... 9

Searching for a Specific Music Passage on a CD ..................................................................................................................................... 1 0

Repeating One or All Tracks on the Compact Discs ................................................................................................................................. 1 0

A-B Repeat Playback ............................................................................................................................................................................... 1 0

Function to skip through 10 tracks at a time ........................................................................................................................................... 1 0

Programming the Order of CD Playback .................................................................................................................................................. 1 1

Checking or Changing Programmed CD Tracks ....................................................................................................................................... 1 1

US b

Playing USB ............................................................................................................................................................................................ 1 2

Selecting a Track from USB Device .......................................................................................................................................................... 1 2

Searching a Folder Quickly ....................................................................................................................................................................... 1 2

To use high speed search ......................................................................................................................................................................... 1 3

To repeat .................................................................................................................................................................................................. 1 3

To skip next 10 tracks .............................................................................................................................................................................. 1 3

To delete a file .......................................................................................................................................................................................... 1 3

TU n E R

Searching for and Storing the Radio Stations .......................................................................................................................................... 1 4

Selecting a Stored Station ........................................................................................................................................................................ 1 4

Improving Radio Reception ..................................................................................................................................................................... 1 4

OT h E R fU n C T i O n S

Recording Function .................................................................................................................................................................................. 1 5

Recording Speed ..................................................................................................................................................................................... 1 5

Timer Function ......................................................................................................................................................................................... 1 6

Cancelling the Timer ................................................................................................................................................................................. 1 6

Selecting EQ Mode .................................................................................................................................................................................. 1 7

Selecting USER EQ Mode ........................................................................................................................................................................ 1 7

Using the Stadium Mode .......................................................................................................................................................................... 1 7

Using the DYNAMIC SPOT Mode ............................................................................................................................................................. 1 8

GIGA SOUND Function ............................................................................................................................................................................ 1 8

Party Function .......................................................................................................................................................................................... 1 8

Mute Function .......................................................................................................................................................................................... 1 8

Setting the System to Switch off Automatically ......................................................................................................................................... 1 8

Connecting Headphones .......................................................................................................................................................................... 19

Connecting Microphone ........................................................................................................................................................................... 1 9

RE C O M M E n D A T i O n S f O R US E

Safety Precautions.................................................................................................................................................................................... 1 9

Cleaning Your Mini-Compact System ....................................................................................................................................................... 2 0

Precautions When Using Compact Discs ................................................................................................................................................. 2 0

Before Contacting the After-Sales Service ................................................................................................................................................ 2 0

Technical Specifications ............................................................................................................................................................................ 2 1

Contents

Symbols

Important Note

Page 4

ENG

Window Display1. POWER button2. PARTY button3. MASTER VOLUME control4. EQ button5. Search/Skip button6. STOP/Tuning Mode button7. RETURN button8. AUX button9. MP3/CD button10. USB 1 button11.

12.

TUNER button

Compact DISC Compartment13. USB 1 jack14. MIC jack15. AUX IN 1 jack16.

PHONE jack17. USB 2 jack18. USB 2 REC button19. REC SPEED button20. USB 2 button21. OPEN/CLOSE button22. DELETE button23. ENTER button24. PLAY/PAUSE button25. Search/Skip button26. USER EQ button27. DYNAMIC SPOT button28. STADIUM button29.

30.

GIGA SOUND PRO button

Front Panel View

14 15 16 17 18

Page 5

ENG

2.0CH Speaker Connector Terminals1. ONLY FOR SERVICE (This jack is just 2.

for testing, please don't use it) AUX IN 2 jack3. AM Antenna Connector Terminal 4.

(Optional) This product may not support the AM ☛

function depending on your region. FM Antenna Connector Terminal5.

2.1CH Speaker Connector Terminals1. ONLY FOR SERVICE (This jack is just 2.

for testing, please don't use it) AUX IN 2 jack3. AM Antenna Connector Terminal 4.

(Optional) This product may not support the AM ☛

function depending on your region. FM Antenna Connector Terminal5.

Rear Panel View(MX-D730)

Where to Install Your Mini-Compact System

To take full advantage of your new mini-compact system, follow these installation instructions before connecting the unit.

Install the system on a flat, stable surface.

◆

Never place this unit on carpeting.

◆

Never place this unit in an outdoor area.

◆

Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.

◆

Make sure that you have enough room to open the compact disc compartment easily.

◆

Place the Speakers at a reasonable distance on either side of the system to ensure good stereo sound.

◆

Direct the Speakers towards the listening area.

◆

For optimum performance, make sure that both speakers are placed at an equal distance above the floor.

◆

Rear Panel View(MX-D750)

All those pictures of the Rear panel are

➣

based on MODEL: MX-D730

Page 6

ENG

Insert or replace remote control batteries when you:

Purchase the mini-compact system

◆

Find that the remote control is no longer operating correctly

◆

When replacing the batteries, use a new set of batteries and never mix

☛

alkaline and manganese batteries.

Place your thumb on the position marked

+ on the battery compartment cover (rear of the remote control) and pull the cover in the direction of the arrow.

Insert two AAA, LR03 or equivalent batteries, taking care to respect the

polarities:

+ on the battery on + in the battery compartment

◆

– on the battery on – in the battery compartment

◆

Replace the cover by sliding it back until it clicks into position.

If you will not be using the remote control for a long time, remove

◆

the batteries to prevent corrosion.

The remote control can be used up to approximately 7 meters in a

◆

straight line. It can also be operated at a horizontal angle of up to 30° from the remote control sensor.

Inserting Remote Control Batteries

POWER

DISPLAY

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

POWER1. CD REC SPEED2. DISPLAY 3.

4. TIMER ON/OFF REPEAT 5. +106. MUTE 7. DELETE8. Skip 9.

Fast-Rewind 10. STOP11.

12. SOUND ENTER13. VOLUME -14. MO/ST15.

16.

TUNING/ALBUM

TUNING17.

MODE

VOLUME +18.

19.

TUNING/ALBUM

EQ20. PLAY21. Fast-Forward 22.

PAUSE23.

24. MIC VOL +, - REPEAT A-B25. SLEEP26. TIMER/CLOCK27. DISC SKIP *28. USB REC29.

FUNCTION30.

Remote Control

2 3

10 11

This product is not used the * RDS PTY and RDS DISPLAY function printed the [, ] button above. This product is not used the * DISC SKIP function printed the CD button above.

Page 7

ENG

Before plugging your system into a main socket, you must check the

☛

voltage.

Plug the main lead into an appropriate socket.

Press the 2 POWER ( ) button to switch your mini-compact system.

The Speakers connector terminals are located on the rear of the system.

Left speaker (marked L)

◆

Right speaker (marked R)

◆

To achieve the correct sound quality, insert those speaker connector cables to the speaker connector terminals of the system.

Speaker (R)

Speaker (L)

Speaker (R)

Speaker (L)

SUBWOOFER

Connecting the Speakers

Connecting your System to the Power Supply

Connecting to an External Source

MX-D730

MX-D750

Connecting an External Component/MP3 player

Components such as an MP3 Player

Connect 1 AUX IN 1 on the front panel of the MINI COMPACT to the

Audio Out of the external component/MP3 player.

Press the AUX button to select the AUX 1 input.

You can select AUX 1 by pressing the FUNCTION button on the remote control.

Audio Cable

(not supplied)

AUDIO OUT

AUX IN 1 : Front Panel

Connecting an External Analog Component

Example: Analog signal components such as a VCR, Camcorder, and TV.

Connect 1 AUX IN 2 on the player to Audio Out on the external analog

component.

 •Be suretomatchconnectorcolors.

Press the AUX button to select the AUX 2 input.

You can select AUX 2 by pressing the FUNCTION button on the remote control.

Audio Cable

If the external analog component has only one Audio Out, connect

either left or right.

(not supplied)

AUX IN 2 : Rear Panel

POWER

TIMER

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

POWER

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

You can view all functions available on the display, adjust the brightness of the display and select the Display/LED either on or off.

Each time you press the DISPLAY button on the remote control, the display mode will change as follows:

The Demo function

◆

All functions available on the system appear on the front panel display.

The Dimmer function

◆

The Dimmer function is selected and the display darkens.

LED OFF

◆

The LED is turned off while the dimmer function is working.

Clock ON

◆

The Clock you set is displayed.

LED/Display ON

◆

All Display and LED are turned on.

DISPLAY function

Page 8

ENG

How to connect a COAXIAL TYPE antenna.

Connect an antenna to the ◆FM antenna terminal. Plug the connector on the ◆FM antenna supplied into the coaxial socket

marked FM on the rear of the system.

Follow the instructions given on ◆Page 14 to tune into a radio station, and

determine the best position for the antenna.

Connecting the FM Antenna

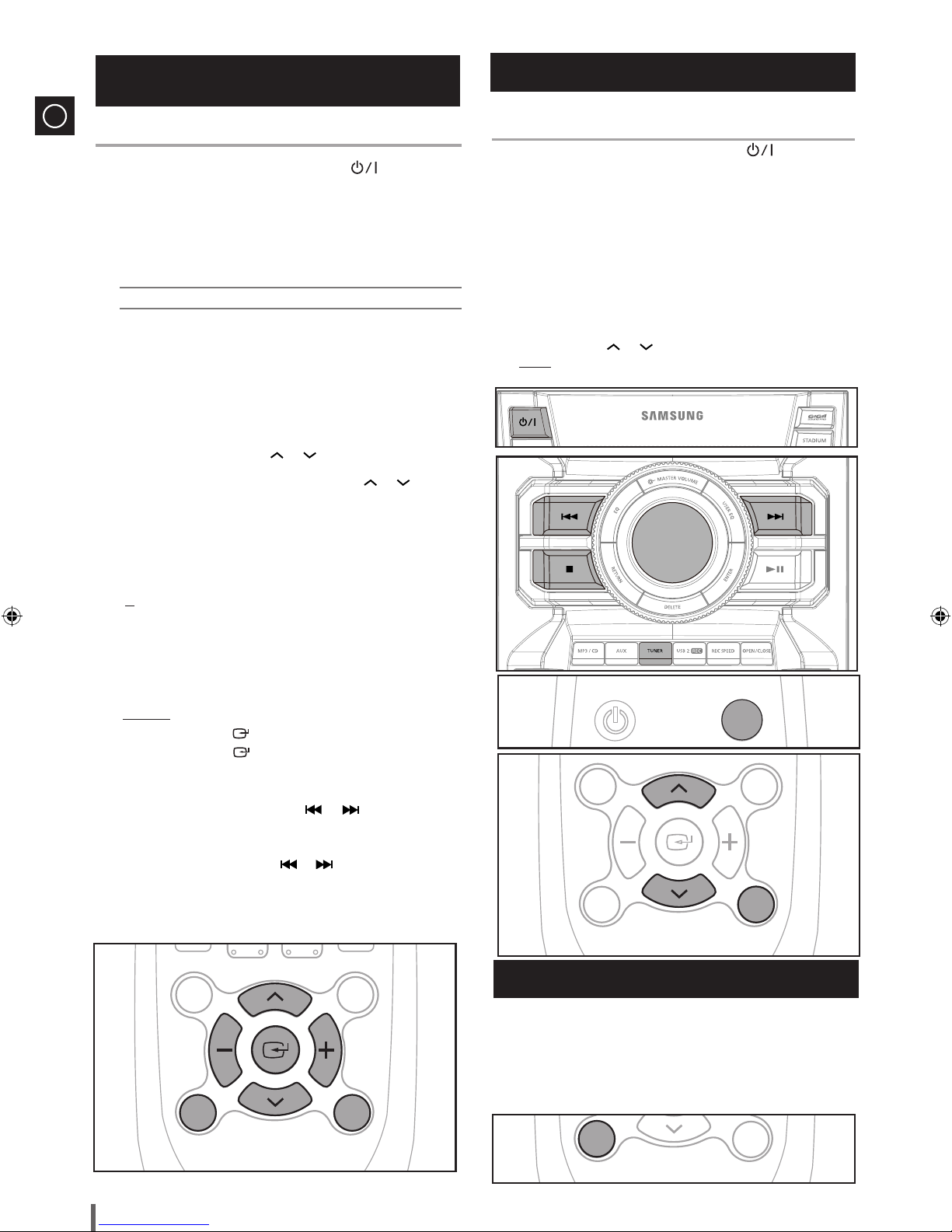

Your system is equipped with a clock which allows you to turn it on and off automatically. You should set the clock:

When you first purchase the mini-compact system

◆

After a power failure

◆

After unplugging the unit

◆

For each step, you have a few seconds to set the required

☛

options.

If you exceed this time, you must start again.

Switch the system on by pressing the

POWER ( ) button.

Press the

TIMER/CLOCK button twice.

Result: CLOCK is displayed.

Press the

ENTER ( ) button.

Result: The hour flashes.

To..

Press the TUNING/ALBUM button

Increase the hours .......................

Decrease the hours .....................

When the correct hour is displayed, press

the ENTER ( ) button.

Result: The minutes flash.

To..

Press the TUNING/ALBUM button

Increase the minutes Decrease the minutes

When the correct time is displayed, press

the ENTER ( ) button.

Result: The clock starts and is displayed.

You can display the time, even when you are using another function,

◆

by pressing TIMER/CLOCK once.

You can also use

◆

, buttons on the main unit to instead of

TUNING/ALBUM button

or in step 4, 6.

For more information of the TIMER function, please refer to the page

◆

16.

Setting the Clock

FM Antenna (supplied)

COAXIAL CABLE (not supplied)

If reception is poor, you may need to install an outdoor antenna.

◆

To do so, connect an outdoor FM antenna to the FM socket on the rear of the system using a 75Ω coaxial cable (not supplied).

POWER

TIMER

ON/OFF

REPEAT REPEAT

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

Connecting the AM Antenna (Optional)

Plug the connector on the AM antenna into the AM Terminal on the rear of the system.

AM Antenna (Optional)

Page 9

ENG

This is a player that enables the playback of audio CD, CD-R, CD-RW and MP3/WMA-CD.

You can play 12 cm or 8 cm compact discs without using an adapter.

Never force the compact disc ◆compartment when opening and closing the disc compartment. Never press down or place objects on the tray.

◆

Do not use CDs of irregular shapes like heart or octagon shapes.

◆

The performance of the player may be degraded. Always treat your compact discs with care; refer, if necessary, to the section

◆

entitled “Precautions When Using Compact Discs” on page 20 .

Switch the system on by pressing the 1 POWER ( ) button.

Press the

OPEN/CLOSE button on the main unit.

Result: The compartment opens.

Place your disc in the compartment, with the label on the disc

facingupwards.

Close the 4 compartment

by pressing the OPEN/CLOSE button again.

Result: Playback starts automatically.

Your CD Player will take a few moments to scan through all the tracks

◆

recorded on a particular MP3/WMA-CD. The English name of the song may be indicated on the display only if directly

◆

downloaded from the PC or if the purchased MP3/ WMA-CD is sorted according to titles(directory). (Other languages besides English may not be indicated.) The English name of the track may not be indicated depending on the

◆

characteristics of the MP3/WMA-CD.

Adjust the volume according to needs with the following procedures.

Tuning the ◆VOLUME knob. Press the ◆VOL + or

–

button of the remote control. The volume level can be adjust in 31 steps(VOLUME MIN, VOLUME 01- VOLUME 29, and VOLUME MAX).

Main Unit

To pause playback temporarily, press the p button. Press p again to continue playing the disc.

Remote control To pause playback temporarily, press the PAUSE(

) button.

Press PLAY(

) button to continue playing the disc.

To stop playback, press the

STOP ( ) button.

If there is not one CD inserted in the DISC ◆compartment, it is indicated as “NO DISC”. The quality of MP3/WMA-CD playback may vary depending on the

◆

condition of the disc containing the music files or the condition of the recorder with which the disc was created. If different types of files or unnecessary folders are on the same disc,

◆

you will have problems with playback. Keep the tray closed whenever you are not using it, to prevent dust

◆

from entering. You can load or unload compact disc when the radio, usb or auxiliary

◆

source function is selected, and when you press the OPEN/CLOSE button, all of the other functions will be changed to MP3-CD mode.

A maximum of 999 tracks can be played per MP3-CD.

◆

When the Compact Disc Compartment is opened or closed, if you

◆

press and hold the OPEN/ClOSE button on the main unit over 5 seconds until “LOCK” is on the display, the Compact Disc Compartment will be locked. In the case, you should press and hold the OPEN/ClOSE button once again on the main unit until “UNLOCK” is on the display, the Compact Disc Compartment will be unlocked.

To replay the CD/MP3/WMA-CD

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

RDS DISPLAY

USB REC

DISC SKIP

FUNCTION

MIC VOL

RDS DISPLAY

USB REC

DISC SKIP

FUNCTION

MIC VOL

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

Track Indicator

Playtime Indicator

You can select the track you wish to listen to when a disc is playing.

To play the previous track

Press the button within 3 seconds after the current track started playing. Press the button twice 4 seconds or later after the current track started playing.

To play the next track

Press the

button.

To play the current track

Press the button 4 seconds or later after the current track started playing.

To play the track of your choice

Press the

or button the appropriate number of times.

You can also use the

◆

, button on the remote control to

select a track.

Selecting a Track

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

RDS DISPLAY

DISC SKIP

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

Page 10

ENG

Searching for a Specific Music Passage on a CD

When listening to a compact disc, you can quickly search for a specific music passage on a track.

To search through the tracks... Press ...

Forwards Backwards

You can also press and hold the

, button on the main unit to auto

search through the tracks.

What is WMA?

➣

WMA means Windows Media Audio, the global standard for audio

◆ signal compression technology.

What is MP3?

➣

MP3 means MPEG1 Layer 3, the global standard for audio

◆ signal compression technology. It uses digital compression

technology to compress original sound data by up to 12 times without sound quality degradation.

File Compatibility

➣

The unit will playback files created in MP3 format

◆ (Mpeg1.Layer3) with *.mp3 as their extension,and some WMA

files with.WMA extension can’t be playback. Playback will be impossible for the file of MP2 or 22KHz.

◆

How many MP3 files can a CD-R or CD-RW disc record?

➣

The maximum capacity of one CD-R or CD-RW disc is 680MB.

◆ Normally, one MP3 file has a capacity of 4MB, therefore

◆ approximately 170 files can be recorded on a single disc.

Regarding the playback of CD-R/RW

➣

In the case of an original CD-R(Recordable) recorded in audio

◆ CD format, CD-RW(Rewritable) and editing by the user,

playback is processed on the respective completed status. (The player may not be played back according to the characteristics of the CD or recorded status.) The CD-RW is comparably less reflexive than CD which

◆ causes more time delay to read.

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

RDS DISPLAY

DISC SKIP

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

You can repeatedly play back a designated section of a CD.

Press the 1 REPEAT A-B button at the beginning of desired part.

RPT ◆ A- will be displayed.

Press the

REPEAT A-B button at the ending of desired part.

RPT ◆ A-B will be displayed.

To cancel REPEAT A-B function, press

REPEAT A-B button again.

RPT

OFF' will be displayed.

REPEAT A-B function is available within a track.

➣

You can repeat indefinitely:

A specific track on a compact disc.

◆

All tracks on the compact disc selected.

◆

All discs loaded in the carrousel

◆

Press the

REPEAT button.

Each time you press the REPEAT button, the repeat mode will change as follows:

MP3:

RPT OFF ➝ RPT TRACK ➝ RPT DIR ➝ RPT ALL ➝ RANDOM

CD:

RPT OFF ➝ RPT TRACK ➝ RPT DISC ➝ RANDOM

When you wish to stop the Repeat function, press the 2 REPEAT button

until RPT OFF is displayed.

RPT ◆ OFF: Cancels Repeat Playback. RPT TRACK ◆: Repeatedly plays the selected track. RPT ◆ DIR: Repeatedly plays all tracks in the selected folder. RPT ◆ DISC: Repeatedly plays the entire disc. RPT ◆ ALL: Repeatedly plays all tracks.

RANDOM: ◆Plays tracks in random order.

Repeating One or All Tracks on the Compact Discs

A-B Repeat Playback

Function to skip through 10 tracks at a time

Press the +10 button briefly while playing back a CD and MP3/WMA-CD . The track 10 after the current one will then be played back.

Example:

If you want to select track 43 during playback of track 5,

press the +10 button four times, and then press the button two times .

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

CD REC

SPEED

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

Page 11

ENG

Programming the Order of CD Playback

(This function is not available during playback of an MP3/WMA-CD.)

You can decide:

The order of the track desired to listen

◆

The track not desired to listen

◆

You can program up to 24 tracks.

◆

You must stop the compact disc player before selecting the tracks.

◆

If the CD function is selected, stop the player by pressing the 1 STOP (@)

button.

Press the

ENTER ( ) button.

Result: The following indications are displayed:

(01 = Program no., -- -- = Track no. on the disc)

Select the required track by pressing the

, button:

Press the

◆

button to move back through the tracks.

Press the

◆

button to move forward through the tracks.

Press

the ENTER ( ) button to confirm your selection.

Result: The selection is stored and

is displayed.

To select other tracks, repeat Steps

3 to 4.

Press

PLAY ( ) to listen to the track selection in the order

programmed.

When press

the STOP (@) button one time , compact disc player is

stopped, and press the STOP (@) button again to cancel the selection.

If you open the compartment or turn off the power or change

➣

function, the selection is cancelled.

You can check or change your selection of tracks at any time.

Press

the STOP (@) button once if you have started listening to the

selection.

Press

the ENTER ( ) button.

Result: The following indications are displayed:

(CH = Check, 01=Program No, -- -- = Track No on the disc)

If you have already programmed 24 tracks, ➣CH is displayed

instead of PROG when you press the ENTER (

) button.

Press 3 the ENTER ( ) button

once or more times until the track to be

changed is displayed.

Press4 or button to select a different track.

Press

the ENTER ( ) button to confirm your change.

Press

the PLAY ( ) button to start listening to the selection.

Result: The first track selected is played.

Checking or Changing Programmed CD Tracks

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

Page 12

ENG

You can play MP3/WMA files by connecting to various external USB storage devices such as USB flash memory or HDD(Hard Disc drives).

Connect the external USB storage device to the USB jack 1 or the USB

jack 2 of the main unit.

Select the USB mode by pressing the

USB1 or USB 2 button on the

main unit. You can select USB1 or USB2 by pressing the FUNCTION button on the remote control.

The first track of the first directory plays automatically.

◆

The play order is as below:

◆

If you select USB1, USB1

;

STOP.

If you select USB2, USB2

;

STOP.

To stop playing

➣

Press the STOP (@) button to stop playing.

To remove the USB device

➣

If you press the STOP (@) button once again, you can remove the USB device safely.

Playing USB

POWER

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

FUNCTION

Please be aware of the following before using USB.

Some external USB storage devices may not be compatible with this player.

◆

With external HDD, FAT format can be played.

◆

With USB 2.0 HDD, connect to a separate power source.

◆

If it’s not connected to a separate power source, it may not work. If memory of an external USB storage device is segmented into several

◆

parts, MP3 files of only the first hard disk drive can be played. DRM applied files are not played.

◆

Digital Rights Management (DRM): Technology and service that protect the profit and rights of copyright owners by disallowing unauthorised use of digital contents. Even if the file name ends with .mp3, the file does not play if actual file

◆

format is MPEG layer 1 or 2. Do not use a USB hub as it will not be recognized.

◆

Up to 16 letters of MP3/WMA file name will be shown.

◆

Do not connect a USB charging device to the USB connection port on ☛

the player, because it may cause damage to the product.

Selecting a Track from USB Device

You can select an MP3 file during the play. Before you begin!  Connect the external USB storage device to the USB jack

1 or the USB jack 2 of the main unit.

 Select the USB mode by pressing the USB1 or USB 2

button on the main unit.

If you want to move the next/previous(track), press the ➣[,] button

shortly.

It moves the next/previous file within the directory.

◆

If you press the ◆[,] button more times than the number of the files in the directory, it will move over to the next directory.

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

Delay

When selecting USB function, file reading (READ-IN) may take several

◆

minutes.

When playing a USB device, there may be a delay then advancing to the

◆

next track, especially with HDD. The operation time of external USB storage devices will vary; even when they are of the same capacity.

If the external USB storage device supports only USB VER1.1 and the

◆

access speed is slow,the file may not property.

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

Searching a Folder Quickly

Press the 1 TUNING/ALBUM button on the remote control to move to

the previous/next folder.

When the searching is done, you will see the previous/next folder name.

The track will start playing.

Page 13

ENG

To skip next 10 tracks

Before you begin!  Connect the external USB storage device to the USB jack

1 or the USB jack 2 of the main unit.

 Select the USB mode by pressing the USB1 or USB 2

button on the main unit.

Press the ➣+10 button on the remote control shortly during the play.

Example:

If you want to select 43rd track while 15th track is playing,

press the +10 button 3 times, and then press the button 2 times .

To repeat

Before you begin!  Connect the external USB storage device to the USB jack

1 or the USB jack 2 of the main unit.

 Select the USB mode by pressing the USB1 or USB 2

button on the main unit.

Press the 1 REPEAT button.

Each time you press the REPEAT button, the repeat mode will change as follows:

RPT OFF

;

RPT TRACK

;

RPT DIR

;

RPT ALL

;

RANDOM

When you wish to stop the Repeat function, press the 2 REPEAT button

until RPT OFF is displayed.

RPT ◆ OFF: Cancels Repeat Playback. RPT TRACK ◆: Repeatedly plays the selected track. RPT ◆ DIR: Repeatedly plays all tracks in the selected folder. RPT ◆ ALL: Repeatedly plays all tracks.

RANDOM: ◆Plays tracks in random order.

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

CD REC

SPEED

Playing USB(continue)

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

To use high speed search

Before you begin!  Connect the external USB storage device to the USB jack

1 or the USB jack 2 of the main unit.

 Select the USB mode by pressing the USB1 or USB 2

button on the main unit.

You can search the desired section quickly during the play.

Press the ➣(, ) button.

Whenever you press the button, you can search backward or

◆

forward quickly.

When you use the high speed search function, there is no sound.

☛

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

RDS DISPLAY

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

To delete a file

You can delete a ﬁle on your USB device. Before you begin!  Connect the external USB storage device to the USB jack

1 or the USB jack 2 of the main unit.

 Select the USB mode by pressing the USB1 or USB 2

button on the main unit.

Play a file you want to delete.

Press the

DELETE button.

P3 ress [,] button on the remote control to select YES.

To cancel the selection, press the RETURN button on the main unit.

Press the

ENTER button on the remote control.

The selected file will be deleted.

The NTFS file system is not supported.

☛

Page 14

ENG

You can listen to a stored radio station as follows:

Switch the system on by pressing the

POWER ( ) button.

Select TUNER by pressing the

TUNER button on the main unit.

You can select TUNER by pressing the FUNCTION button on the remote control.

Select FM or AM by pressing

TUNER button again in the TUNER mode

on the main unit.

Press the

TUNING MODE button on the remote control until “PRESET”

is displayed.

Press

[ or ] to select the desired station.

Select the desired station by pressing the TUNING/ALBUM

or button on the remote control.

Result: The desired station is now received.

Searching for and Storing the Radio Stations

You can store up to: 15 FM stations, 15 AM stations.

Switch the system on by pressing the

POWER ( ) button.

Select TUNER by pressing the

TUNER button on the main unit.

You can select TUNER by pressing the FUNCTION button on the remote control.

Select FM or AM by pressing the

TUNER button again in the TUNER

mode on the main unit.

To search for a station Press

TUNING MODE button

Preset ............................ Once or more times until PRESET is displayed.

You can search the stored frequencies in the Preset mode.

Manually .......................

Once or more times until MANUAL is displayed.

You can

search the frequencies one by one in the

Manual mode.

Select the station to be stored by:

Pressing ◆TUNING/ALBUM or on the remote control. To scroll through the frequencies faster when searching ◆ manually, press and hold the TUNING/ALBUM

or on the remote control. The automatic search procedure may stop on a frequency that does

◆

not correspond to a radio station. If this happens, use the manual search mode.

Adjust the volume by:

Turning the ◆VOLUME knob on the front panel

Pressing the ◆VOL + or – buttons on the remote control

Select the FM stereo or mono mode by pressing

MO/ST.

In the AM Radio, the MO/ST button does not work.

◆

If you do not want to store the radio station found, revert to Step

4 and

search for another station. Otherwise:

a Press the ENTER (

) button.

b Press the ENTER (

) button to store the radio station.

To store any other radio frequencies required, repeat Steps

3 to 7.

In Tuner mode

➣

In the Manual mode, you can use ◆ or button on the main unit to manual search a radio station.

◆

During the Auto Searching mode, press STOP(@) button on the main unit to stop auto searching.

In the Preset mode, you can use ◆ or button on the main unit to search a stored radio station.

Selecting a Stored Station

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

MODE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

You can improve the quality of radio reception by:

Rotating the FM antenna

◆

Testing the positions of the FM antenna before fixing them permanently

◆

If reception from a specific FM radio station is poor, press the ◆MO/ST

button to switch from stereo mode to mono. The quality of the sound will be improved.

In the AM Radio, the ◆MO/ST button does not work.

Improving Radio Reception

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

FUNCTION

CD REC

FUNCTION

Page 15

ENG

You can record sound of the CD, the Radio Broadcasting or sound from the external source into the USB storage device.

Switch the system on by pressing the

POWER ( ) button.

Connect the external USB storage device you want to record to the

USB jack 2 (

) of the main unit.

Play a Disc, adjust the Radio frequency or connect the external source

to the main unit.

CD (See page 9)

Press the ◆MP3/CD button on the main unit to select the CD function

. Press the ◆OPEN/CLOSE button to open the Compact Disc Compartment. Insert a CD and press the ◆OPEN/CLOSE button to close the Compact Disc Compartment. Use the ◆[ or ] button to select the desired song.

Tuner (See page 14)

Press the ◆TUNER button on the main unit to select the Radio function. Adjust the Radio frequency you want to record.

◆

External Source (See page 7)

Connect an External Component/MP3 player to the main unit.

◆

Press the ◆AUX button to select the AUX input. Play a song from the external device.

◆

Press the

USB REC button on the remote control or the USB 2 REC

button on the main unit to start recording.

“TRACK RECORDING” is displayed and CD recording starts.

◆

Press and hold the ◆USB 2 REC button on the main unit or press and hold the USB REC button on the remote control to start recording the all tracks of Disc. "RECORDING" is displayed. If you record the MP3 CD, the file is copied into the USB device

◆

totally.

“CHECK FILE”“COPY”“COMPLETE” is displayed. When the

recording is done, “STOP” will be displayed. If there is the same file name, "FILE EXISTED" is displayed, and the

◆

function is canceled.

Tuner /External Source

RECORDING is displayed.

◆

To stop recording, press the

STOP (@) button and then automatically

create and save as the MP3 file.

To remove the USB device safely, press the STOP (@) button once again.

After the recording, a directory named “RIPPING”(CD), “CD

◆

COPY”(MP3 CD/USB), “TUNER RECORDING” or “AUX RECORDING” will be created in your device.

Recording Function

Recording Speed

Do not disconnect the USB or the AC Cord during the recording as this

◆

may cause file damage. If you disconnected USB device during the recording, the main unit will

◆

be power off and you may not delete the recorded file, In this case, please connect the USB device to the PC and backup the USB data on the PC first and then format the USB device. When the USB memory is not enough, it will be displayed “NOT

◆

ENOUGH MEMORY”. The recording works if the USB device or the HDD is formatted in the FAT

◆

file system. (The NTFS file system is not supported.) When you use CD high speed search function, the CD recording can’t

◆

work. Sometimes, the recording time may be longer with some USB devices.

◆

(See page 12) In the program mode, you can't use the CD recording function. (See

◆

page 11) When the CD recording, the EQ and GIGA SOUND functions can not

◆

work and automatically change to OFF.

POWER

TIMER

ON/OFF

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

POWER

TIMER

ON/OFF

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

USB REC

DISC SKIP

FUNCTION

USB REC

DISC SKIP

FUNCTION

CD REC

SPEED

Each time you press the CD REC SPEED button on the remote control or the REC SPEED on the main unit, the recording speed will change as follows:

RECORD x 1RECORD x 4

While the Tuner or External Source is recording, the recording speed

◆

does not supported. When you select ◆RECORD x 4, the audio sound will not be output.

When the CD recording, the REPEAT function can not work and

◆

automatically changes to OFF. If you use the MIC function during the CD recording, the voice from the

◆

microphone will be recorded. You can not record the radio when searching or no available frequencies

◆

in the Tuner mode. Note that setting the input level too loud when recording music from an

◆

external device through the AUX and USB channel may introduce noise into the recording. In that case, lower the external device’s volume level.

Page 16

ENG

The timer enables you to switch the system on or off at specific times automatically.

Example: You wish to wake up to music every morning.

Before setting the timer, check that the current time is correct.

◆

For each step, you have a few seconds to set the required options.

◆

If you exceed this time, you must start again.

If you no longer want the system to be switched on or off

➣

automatically, you must cancel the timer by pressing the TIMER ON/OFF button.

Switch the system on by pressing the 1 POWER ( ) button.

Press the

TIMER/CLOCK button until TIMER is displayed.

Press

the ENTER ( ) button.

Result: ON TIME is displayed for a few seconds, you can set the timer

switch-on time.

Set the timer switch-on time.

a Press the TUNING/ALBUM or button to set the hours. b Press the ENTER ( ) button.

Result: The minutes flash. c Press the TUNING/ALBUM

or button to set the minutes.

d Press the ENTER ( ) button.

Result: OFF TIME is displayed for a few seconds, you can now set the

timer switch-off time.

Set the timer switch-off time.

a Press the TUNING/ALBUM or button to set the hours. b Press the ENTER ( ) button.

Result: The minutes flash. c Press the TUNING/ALBUM

or button to set the minutes.

d Press the ENTER ( ) button.

Result: VOL XX is displayed, where XX corresponds to the

volume already set.

Press the

TUNING/ALBUM or button to adjust the volume

level and press the ENTER ( ) button.

Result: The source to be selected is displayed.

Press the

TUNING/ALBUM or button to select the desired

source to be played when the system switches on.

If you select... You must also...

FM/AM (radio) ..................... a Press the ENTER (

) button.

b Select a preset station by pressing the

TUNING/ALBUM

or button.

CD/MP3 (compact disc) ..... Load one compact disc.

USB1 ................................... Connect the USB device.

USB2 ................................... Connect the USB device.

Press the

ENTER ( ) button.

Result: CHECK REC (Do you want to record?) is displayed.

Press the

ENTER ( ) button.

Result: RECORD N is displayed, you can press the TUNING/ALBUM

or button to select the RECORD Y or RECORD N, and then

press ENTER button.

If you select the RECORD N, it will

1).

cancel tuner timing recording even if you have already set the tuner timing recording. If you select the RECORD Y, you can set the

2).

tuner timing recording.

Press the

ENTER (

) button.

Result: ON is displayed for a few seconds, you can set the tuner timing recording switch-on time.

Press the

ENTER (

) button.

Result: OFF is displayed for a few seconds, you can set the tuner timing recording switch-off time.

After having set the timer, it will start automatically as shown by the TIMER indication on the display. If you no longer wish to use the timer, you must cancel it.

To... Press the TIMER ON/OFF button....

Cancel the timer ........................ Once.

Result:

is no longer displayed.

Restart the timer ........................ Twice.

Result:

is displayed again.

Cancelling the Timer

Timer Function

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

POWER

TIMER

ON/OFF

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

CD REC

SPEED

The maximal tuner timing recording time is 5 hours.

◆

If the timer switch on and off times are identical, the word ◆ERROR is displayed. You may use ◆[, ] buttons on the main unit to instead of the TUNING/ALBUM

or button to adjust in step 5 to 9.

If the switch-on or -off time is the same as the timing recording time,

◆

only the switch-on or -off time is effective, and the timing recording time is not applied.

Page 17

ENG

You can directly select the Stadium mode for your

music listening

Press the

STADIUM button on the main unit.

Each time you press this button, the mode

will switch as follows:

STADIUM  OFF

Selecting USER EQ Mode

Using the Stadium Mode

Selecting EQ Mode

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

VOL VOL

TUNING /ALBUM

MO/ST TUNING

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

MP3-CD/CD

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

A-B

+10

MIC VOL

CD REC

SPEED

Your mini-compact system is equipped with a preset equalizer that allows you to choose the most appropriate balance between treble and bass frequencies, according to the type of music you are listening to.

Press the

EQ button until the required option is selected.

Select... To obtain a...

OFF ......................Normal balance (linear)

RANCHERA .......... Banlace suitable for Ranchera Music.

SAMBA .................Banlace suitable for Samba Music.

CUMBIA ...............Banlace suitable for Cumbia Music.

HABANERA .......... Banlace suitable for Habanera Music.

BOOM BA ............Banlace suitable for Boom Ba Music.

REGGAE ............... Balance suitable for Reggae Music

PARTY .................. Balance suitable for Party Music

POP ......................Balance suitable for Pop Music

HIP HOP ............... Balance suitable for Hip Hop Music

ROCK ................... Balance suitable for Rock Music

JAZZ .....................Balance suitable for Jazz Music

CLASSIC ..............Balance suitable for Classic Music

FLAT ..................... Balance suitable for Flat Music

STADIUM EQ ........ Banlace suitable for Stadium EQ Music.

DYNAMIC.S .......... Banlace suitable for Dynamic Spot Music.

MP3 ENHANCER

..... Banlace suitable for MP3 Enhancer Music.

VIRTUAL SOUND

.... Banlace suitable for Virtual Sound Music.

U1 + 0 +0 +0........Banlace suitable for User EQ 1 mode Music.

U2 + 0 +0 +0........Banlace suitable for User EQ 2 mode Music.

U3 + 0 +0 +0........Banlace suitable for User EQ 3 mode Music.

Set the BASS (left numeric), MIDDLE (middle numeric), TREBLE (right

numeric) level.

Press the ENTER button when you select the U1 + 0 +0 +0/U2 + 0 +0 +0/U3 + 0 +0 +0. Result: The BASS level(left numeric) flash. Press the TUNING/ALBUM or button to select from -06 to 06. Press the ENTER button. Result: The MIDDLE level(middle numeric) flash. Press the TUNING/ALBUM or button to select from -06 to 06. Press the ENTER button. Result: The TREBLE level(right numeric) flash. Press the TUNING/ALBUM or button to select from -06 to 06. Press the ENTER button. Result: setting is completed.

When CD Recording, the EQ function can't work and the EQ ` automatically switches to "OFF" mode.

If no buttons is pressed within 8 seconds, your settings will ` automatically be cancelled and the previous settings will be saved.

You can use the `

[ or ] to instead of the TUNING/ALBUM or

button to select the level.

You can directly select the User EQ mode by press the USER EQ button.

Press the

USER EQ button on the main unit until the required option is

selected.

Select... To obtain a...

U1 + 0 +0 +0........Banlace suitable for User EQ 1 mode Music.

U2 + 0 +0 +0........Banlace suitable for User EQ 2 mode Music.

U3 + 0 +0 +0........Banlace suitable for User EQ 3 mode Music.

Set the BASS (left numeric), MIDDLE (middle numeric), TREBLE (right

numeric) level.

When CD Recording, the EQ function can't work and the EQ ` automatically covery to "OFF" mode.

If no buttons is pressed within 8 seconds, the setting will automatically ` be cancelled. and the anterior setting will be saved.

You can use the `

[ or ] to instead of the TUNING/ALBUM or

button to select the level.

Page 18

ENG

You can turn the sound off temporarily on your system. Example: You wish to answer a telephone call.

Press the

MUTE button.

To switch the sound back on , press the

MUTE button again or the

VOLUME buttons.

Mute Function

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

Your mini-compact system is equipped with the function of GIGA SOUND mode . The function of GIGA SOUND mode amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

Press the 1 GIGA SOUND PRO button on the main unit or the SOUND

button on the remote control. Each time press this button, the sound

will switch as follows:

GIGA SOUND  GIGA LOUD  OFF

To cancel this function, press the2 GIGA SOUND PRO button until the

“OFF” is displayed.

GIGA SOUND function

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

MP3-CD/CD

SOUND

TUNING /ALBUM

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

You can directly select the Dynamic spot mode for your listening music.

Press the 1 DYNAMIC SPOT button on the main unit.

Each time you press this button, the sound mode

will switch as follows:

DYNAMIC.S  OFF

Using the DYNAMIC SPOT Mode

While listening to music, you can set the system to switch off automatically. Example: You wish to go to sleep while listening to music.

Press 1 SLEEP.

Result: playback starts and the following indications are displayed:

SLEEP90MIN

Press 2 SLEEP once or more times to indicate how long the

system should continue playing before it switches off:

SLEEP90MIN ; SLEEP60MIN; SLEEP45MIN ; SLEEP30MIN ;

SLEEP15MIN ; SLEEPOFF

At any time, you can:

➣

Check the remaining time by pressing ◆SLEEP. Change the remaining time by repeating steps ◆1 and 2.

To cancel SLEEP function, press

SLEEP once or more times until

SLEEPOFF is display.

Setting the System to Switch off Automatically

POWER

TIMER

ON/OFF

REPEAT REPEAT

MUTE

RDS PTY DELETE

RDS DISPLAY

TIMER/CLOCK SLEEP

USB REC

DISC SKIP

FUNCTION

DISPLAY

A-B

+10

MIC VOL

CD REC

SPEED

DISC SKIP

FUNCTION

Press the 1 PARTY button.

Each time you press the PARTY button on the main unit, the party mode will change as follows:

OFF ➝ PARTY 1 ➝ PARTY 2

You can choose a desired party mode.

Party Function

Page 19

ENG

You can also insert microphone to sing along with your favorite CDs.

Plug a microphone with a 3.5ø MIC jack into the MIC terminal.

Press the ◆MIC +,- button on the remote control to adjust the Microphone Volume.

If you use the Microphone, GIGA SOUND will automatically turn off.

◆

Even if you remove the microphone, it will not turn on.

This Microphone function is available only when using the MP3/CD or

◆

USB function.

Connecting Microphone

The following diagrams illustrate the precautions to be taken when using or moving your mini-compact system.

Ambient operating conditions: Ambient temperature 5°C-35°C Humidity 10-75%

Do not expose the unit to direct sun radiation or other heat sources. This could lead to overheating and malfunction of the unit.

Do not place potted plants or vases on top of the unit. Moisture entering the unit could lead to dangerous electric shock and can cause equipment damage. In such events immediately disconnect the main plug from the socket.

During thunderstorms, disconnect the main plug from the socket. Main voltage peaks due to lightning could damage the unit.

VOLUME

DOWN

Remove the batteries from the remote control, if not used for any extended period. Leaking batteries can cause serious damage to the remote control.

When using headphones, take care not to listen at excessive volumes. Extended use of headphones at high volumes will lead to hearing damage.

Do not place heavy items on the main lead. Main cable damage can lead to damage of the equipment (fire hazard) and can cause electric shock.

Do not disassemble, repair, or modify this unit on your own, as it may cause malfunction or a risk of electric shock.

Safety Precautions

You can connect a set of headphones to your mini-compact system so that you can listen to music or radio programme without disturbing other people in the room. The headphones must have a 3.5ø jack or an appropriate adapter.

Connect the headphones to the PHONE jack on the main unit. Result: The speakers are no longer used to output the sound.

Prolonged use of headphones at a high volume may damage your

◆

hearing.

If you use the headphones, GIGA SOUND will automatically turn off.

◆

Even if you remove the headphones, it will not turn on.

Connecting Headphones

Page 20

ENG

To obtain the best possible results from your mini-compact system, you must clean the following elements regularly:

The outer casing

◆

The compact disc player

◆

The cassette players (heads, rollers and drive capstans)

Always unplug the system from the wall outlet:

Before cleaning it

◆

If you are not going to be using it for a long time

◆

Outer Casing

Clean the outer casing regularly using a soft cloth and a light detergent. Do not use abrasive powders, liquids or aerosol cleaners. Never let any liquids get into the system.

Compact Disc Player

Before playing a compact disc, clean it with a special CD cleaning

agent. Do not use the same cleaning agents as for vinyl LP records. Carefully wipe the disc from the centre outward.

Regularly clean the player with a special cleaning disc (available from

your local dealer).

If you will not be using the remote control for a long time, remove

◆

the batteries to prevent corrosion. Although your system is very hard-wearing, it should not be used in

◆

an excessively dusty environment or subjected to shocks or extreme heat (close to heating appliances or in direct sunlight, etc.). If the unit emits an unpleasant odor when in use, unplug it from the

◆

main supply and contact the after-sales service.

Cleaning Your Mini-Compact System

Precautions When Using Compact Discs

Handle your compact discs with care. Always

◆

hold them by the edges to avoid leaving fingerprints on the shiny surface.

When you have finished playing a compac

◆

disc, always put it back in its case.

Do not fix paper or adhesive tape to the

◆

discs and do not write on the label.

Clean them with a special-purpose cloth.

◆

Store your compact discs in a clean place,

◆

out of direct sunlight, where they will not be exposed to high temperatures.

Always use compact discs marked

◆

COMPACT

DIGITAL AUDIO

It always takes a little time to become familiar with a new appliance. If you have any of the problems listed below, try the solutions given. They may save you the time and inconvenience of an unnecessary service call.

If the above guidelines do not allow you to solve the problem, take a note of:

The model and serial numbers, normally printed on the rear of the system

◆

Your warranty details

◆

A clear description of the problem

◆

Then contact your local dealer or SAMSUNG after-sales service.

Before Contacting the After-Sales Service

Problem

The system does not work

There is no sound

The Timer does not work

In case it does not work, even the action is taken as above.

The compact disc player does not start playing

Reception is poor or no radio stations are received at all

G E N E R A L

C D

/ M P

I C D

R A D

I O

Checks/Explanation

• The main lead is not correctly plugged into a wall socket or the wall socket is not switched on.

• The remote control batteries need replacing or the polarity has not been respected.

• The POWER button has not been pressed.

• The volume has been completely turned down.

• The correct function (TUNER, MP3/CD, USB, AUX) has not been selected.

• You have connected a set of earphones.

• The loudspeaker wires have been disconnected.

• The MUTE button has been pressed.

• The timer has been stopped by pressing TIMER ON/OFF.

• Press the STOP button for 5 seconds in "NO DISC" mode, then it is returned the original position (RESET)

• The CD function has not been selected.

• The disc has been inserted face down or is either dirty or scratched.

• The laser sensor is dirty or dusty.

• The system has not been installed on a flat, horizontal surface.

• Condensation has formed in the player; leave the system in a warm, airy room for at least one hour.

• The TUNER function has not been selected.

• The radio frequency has not been correctly selected.

• The aerial has been disconnected or is not facing the right way. Turn it until you find the best orientation.

• You are in a building that blocks radio waves; you must use an outside aerial.

Page 21

ENG

RADIO FM

Signal/noise ratio 55 dB Usable sensitivity 12 dB Total harmonic distortion 0.5 %

AM (Optional)

Signal/noise ratio 35 dB Usable sensitivity 70 dB Total harmonic distortion 4 %

COMPACT DISC PLAYER

Capacity 1 disc Frequency range 20 Hz - 20 KHz (± 2 dB) Signal/noise ratio 70dB (at 1kHz, with filter, 2V) Distortion 0.1 % (at 1 KHz) Channel separation 70 dB Disc sizes Diameter: 120 or 80 mm. Thickness: 1.2 mm

AMPLIFIER

Output power

MX-D730-

200 Watts (10% THD)

Front Speaker 100W/CH (6 Ω/100Hz)

MX-D730-

240 Watts (MAX. THD)

Front Speaker 120W/CH (6 Ω/100Hz)

MX-D750-

400 Watts (10% THD)

Front Speaker 120W/CH (6 Ω/100Hz)

Subwoofer 160W/CH (4 Ω/100Hz)

MX-D750-

460 Watts (MAX. THD)

Front Speaker 140W/CH (6 Ω/100Hz)

Subwoofer 180W/CH (4 Ω/100Hz)

Channel separation 60 dB Signal/noise ratio 70 dB

GENERAL

Dimensions 230 (W) x 317 (H) x 313 (D) mm Weight 3.5 Kg

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Technical Specifications

*: Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- Design and speciﬁcations are subject to change without prior notice.

- For information on the power supply and power consumption, refer to the label attached to the product.

Page 22

ENG

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.



North America

Canada 1-800-SAMSUNG (726-7864) www.samsung.com Mexico 01-800-SAMSUNG (726-7864) www.samsung.com U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com

Latin America

Argentine 0800-333-3733 www.samsung.com Brazil 0800-124-421 / 4004-0000 www.samsung.com Chile 800-SAMSUNG (726-7864) www.samsung.com Colombia 01-8000112112 www.samsung.com Costa Rica 0-800-507-7267 www.samsung.com Dominica 1-800-751-2676 www.samsung.com Ecuador 1-800-10-7267 www.samsung.com El Salvador 800-6225 www.samsung.com Guatemala 1-800-299-0013 www.samsung.com Honduras 800-7919267 www.samsung.com Jamaica 1-800-234-7267 www.samsung.com Nicaragua 00-1800-5077267 www.samsung.com Panama 800-7267 www.samsung.com Peru 0-800-777-08 www.samsung.com Puerto Rico 1-800-682-3180 www.samsung.com Trinidad &

Tobago

1-800-SAMSUNG (726-7864) www.samsung.com

Venezuela 0-800-100-5303 www.samsung.com

Europe

Albania 42 27 5755 -

Austria

0810 - SAMSUNG (7267864, € 0.07/min)

www.samsung.com

Belgium 02-201-24-18

www.samsung.com/ be (Dutch) www.samsung.com/

be_fr (French) Bosnia 05 133 1999 Bulgaria 07001 33 11 www.samsung.com Croatia 062 SAMSUNG (062 726 7864) www.samsung.com

Czech

800-SAMSUNG (800-726786)

www.samsung.com

Samsung Zrt., česká organizační složka, Oasis Florenc, Soko-

lovská394/17, 180 00, Praha 8 Denmark 70 70 19 70 www.samsung.com Finland 030 - 6227 515 www.samsung.com France 01 48 63 00 00 www.samsung.com

Germany

01805 - SAMSUNG (726-7864

€ 0,14/Min)

www.samsung.com

Hungary 06-80-SAMSUNG (726-7864) www.samsung.com Italia 800-SAMSUNG (726-7864) www.samsung.com Kosovo +381 0113216899 Luxemburg 261 03 710 www.samsung.com Macedonia 023 207 777 Montenegro 020 405 888 -

Netherlands

0900-SAMSUNG

(0900-7267864) (€ 0,10/Min)

www.samsung.com

Norway 815-56 480 www.samsung.com

Poland

0 801 1SAMSUNG (172678)

/ 022-607-93-33

www.samsung.com

Portugal 80820-SAMSUNG (726-7864) www.samsung.com

Rumania

08010 SAMSUNG (72678) doar din reţeaua Romtelecom, tarif local

021.206.01.10 - din orice reţea, tarif normal

www.samsung.com



Serbia

0700 Samsung (0700 726

7864)

www.samsung.com

Slovakia 0800-SAMSUNG (726-7864) www.samsung.com Spain 902-1-SAMSUNG (902 172 678) www.samsung.com Sweden 0771 726 7864 (SAMSUNG) www.samsung.com

Switzerland

0848-SAMSUNG (7267864, CHF 0.08/min)

www.samsung.com/ch www.samsung.com/ ch_fr/(French)

0330 SAMSUNG (7267864) www.samsung.com Eire 0818 717100 www.samsung.com Lithuania 8-800-77777 www.samsung.com Latvia 8000-7267 www.samsung.com Estonia 800-7267 www.samsung.com

CIS

Russia 8-800-555-55-55 www.samsung.com Georgia 8-800-555-555 Armenia 0-800-05-555 Azerbaijan 088-55-55-555 -

Kazakhstan

8-10-800-500-55-500

(GSM: 7799)

www.samsung.com

Uzbekistan 8-10-800-500-55-500 www.samsung.com Kyrgyzstan 00-800-500-55-500 www.samsung.com Tadjikistan 8-10-800-500-55-500 www.samsung.com

Ukraine 0-800-502-000

www.samsung.ua www.samsung.com/

ua_ru Belarus 810-800-500-55-500 Moldova 00-800-500-55-500 -

Asia Pacific

Australia 1300 362 603 www.samsung.com New Zealand

0800 SAMSUNG (0800 726 786)

www.samsung.com China

400-810-5858 / 010-6475 1880

www.samsung.com

Hong Kong (852) 3698 4698

www.samsung.com/hk

www.samsung.com/

hk_en/

India

3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282

www.samsung.com

Indonesia

0800-112-8888 / 021-5699-7777

www.samsung.com

Japan 0120-327-527 www.samsung.com Malaysia 1800-88-9999 www.samsung.com

Philippines

1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777

www.samsung.com

Singapore 1800-SAMSUNG (726-7864) www.samsung.com Thailand 1800-29-3232 / 02-689-3232 www.samsung.com Taiwan 0800-329-999 www.samsung.com Vietnam 1 800 588 889 www.samsung.com

Middle East

Bahrain 8000-4726 www.samsung.com Egypt 08000-726786 www.samsung.com Jordan 800-22273 www.samsung.com Morocco 080 100 2255 www.samsung.com Oman 800-SAMSUNG (726-7864) www.samsung.com Saudi Arabia 9200-21230 www.samsung.com Turkey 444 77 11 www.samsung.com U.A.E 800-SAMSUNG (726-7864) www.samsung.com

Africa

Nigeria 0800-SAMSUNG (726-7864) www.samsung.com South Africa 0860-SAMSUNG (726-7864 ) www.samsung.com

Area AreaContact Center Contact CenterWeb Site Web Site

Page 23

AH68-02350B

Samsung MX-D730, MX-D750 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
