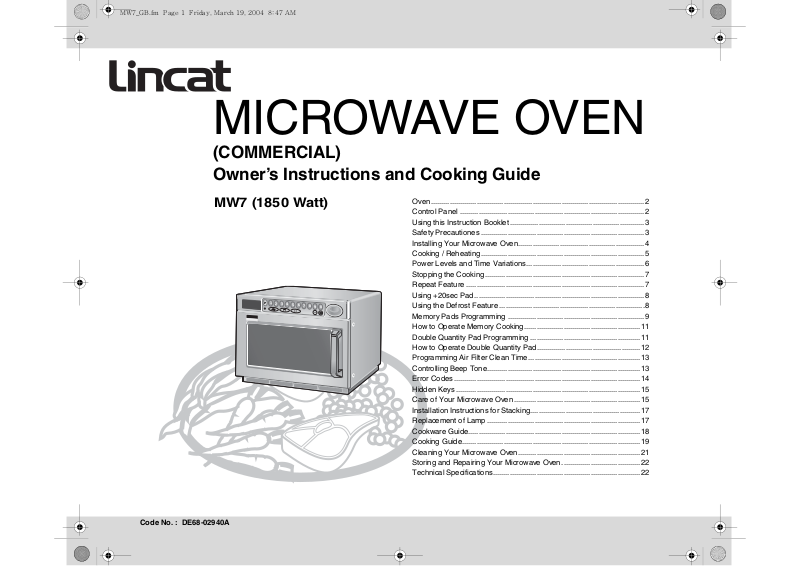

Samsung MW7 User Manual

MICROWAVE OVEN

(COMMERCIAL)

Owner’s Instructions and Cooking Guide

MW7 (1850 Watt)

P	1	2	3	4	5	6	7	8	9	0

Oven.......................................................................................................	2
Control Panel .........................................................................................	2
Using this Instruction Booklet.................................................................	3
Safety Precautiones ...............................................................................	3
Installing Your Microwave Oven.............................................................	4
Cooking / Reheating...............................................................................	5
Power Levels and Time Variations.........................................................	6
Stopping the Cooking.............................................................................	7
Repeat Feature ......................................................................................	7
Using +20sec Pad ..................................................................................	8
Using the Defrost Feature ......................................................................	8

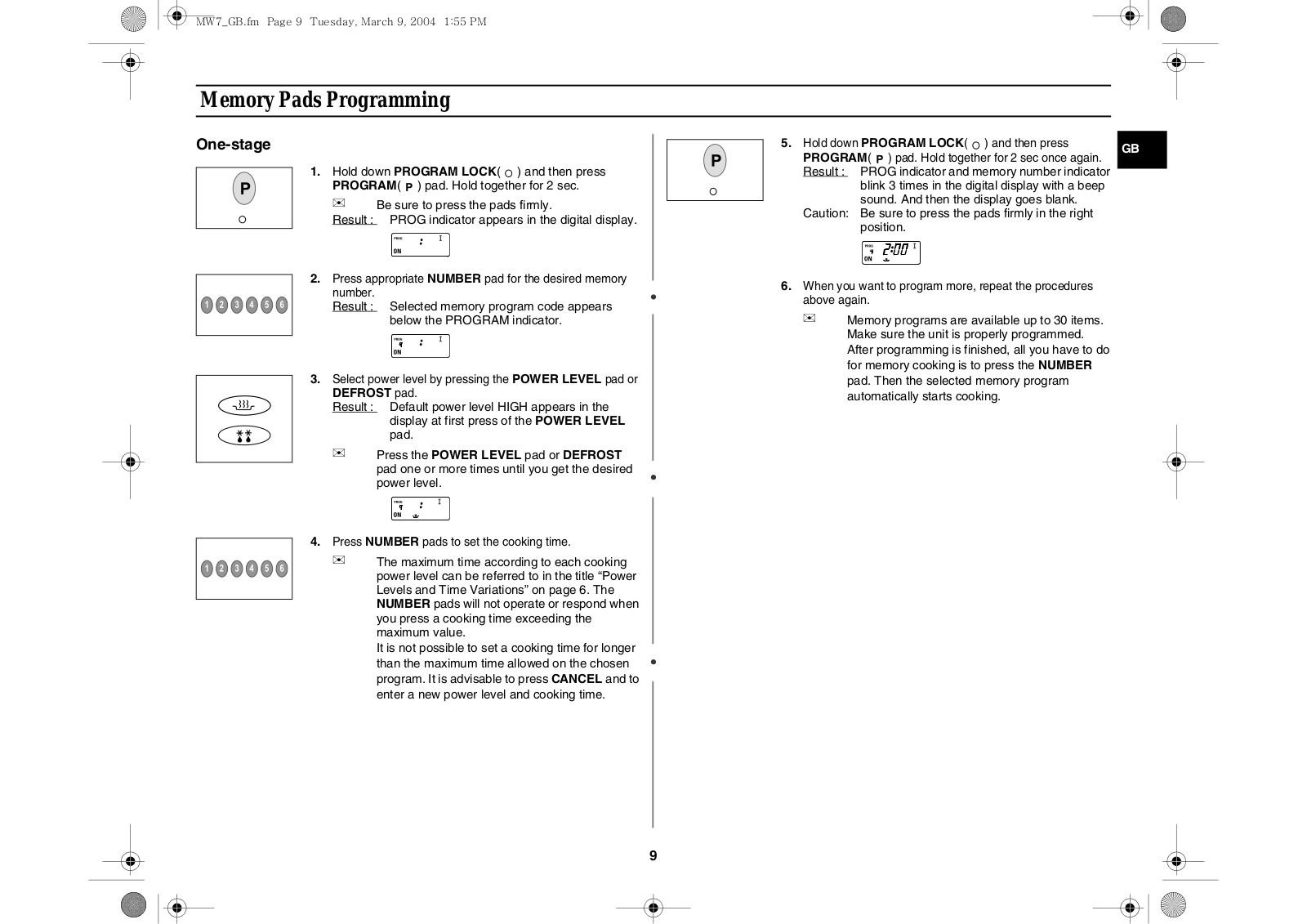

Memory Pads Programming ..................................................................	9

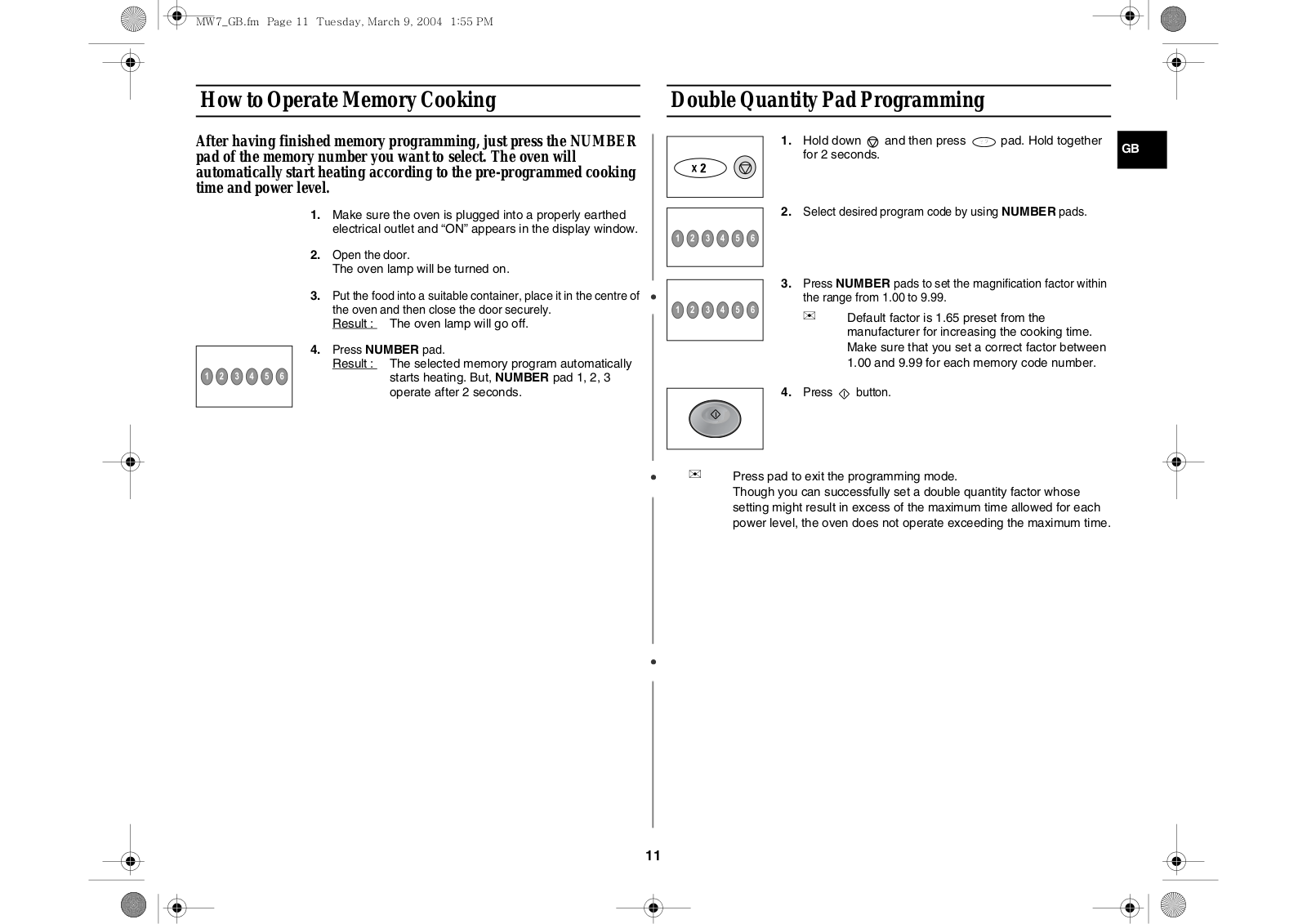

How to Operate Memory Cooking........................................................	11
Double Quantity Pad Programming .....................................................	11
How to Operate Double Quantity Pad..................................................	12

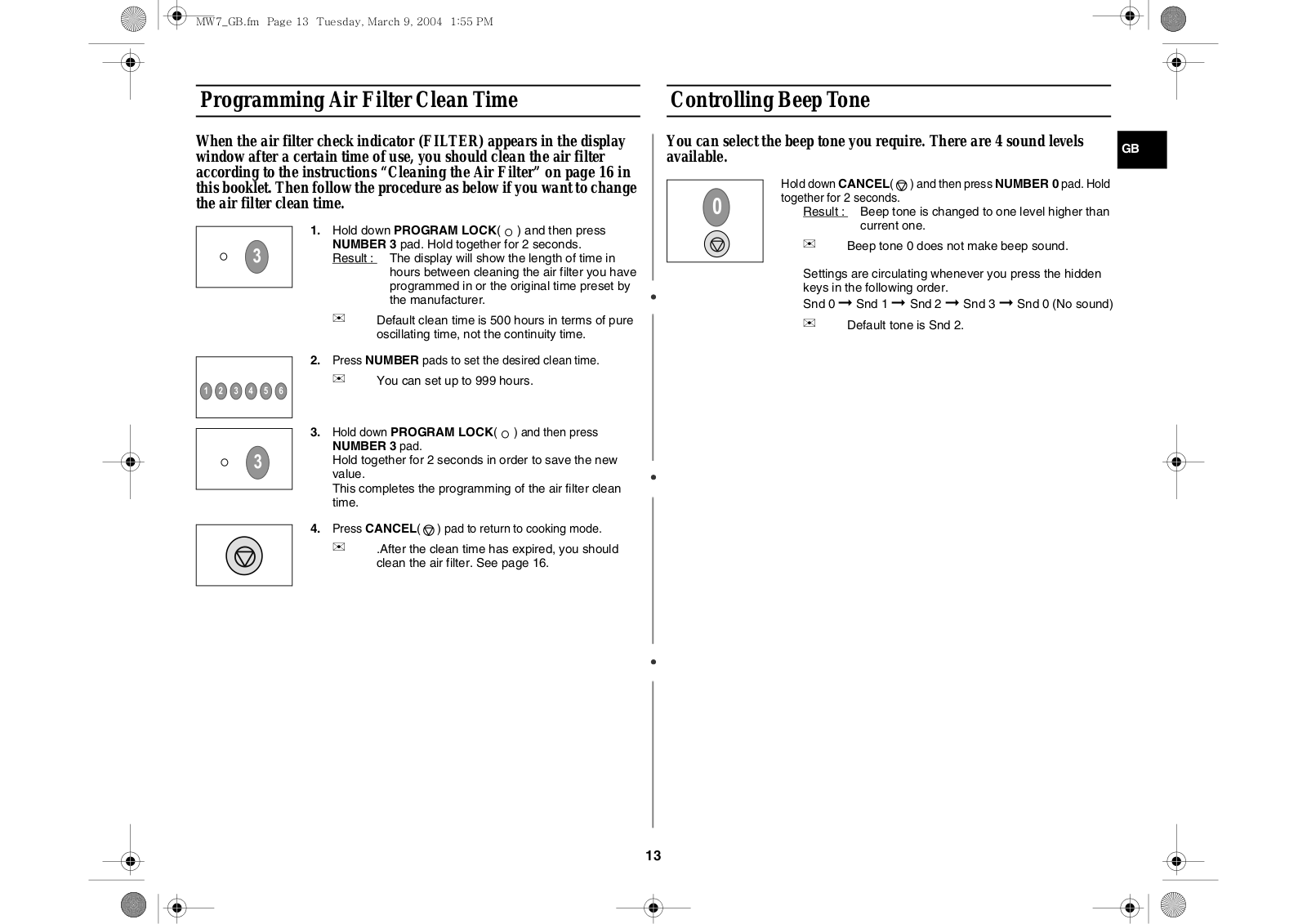

Programming Air Filter Clean Time......................................................	13
Controlling Beep Tone..........................................................................	13

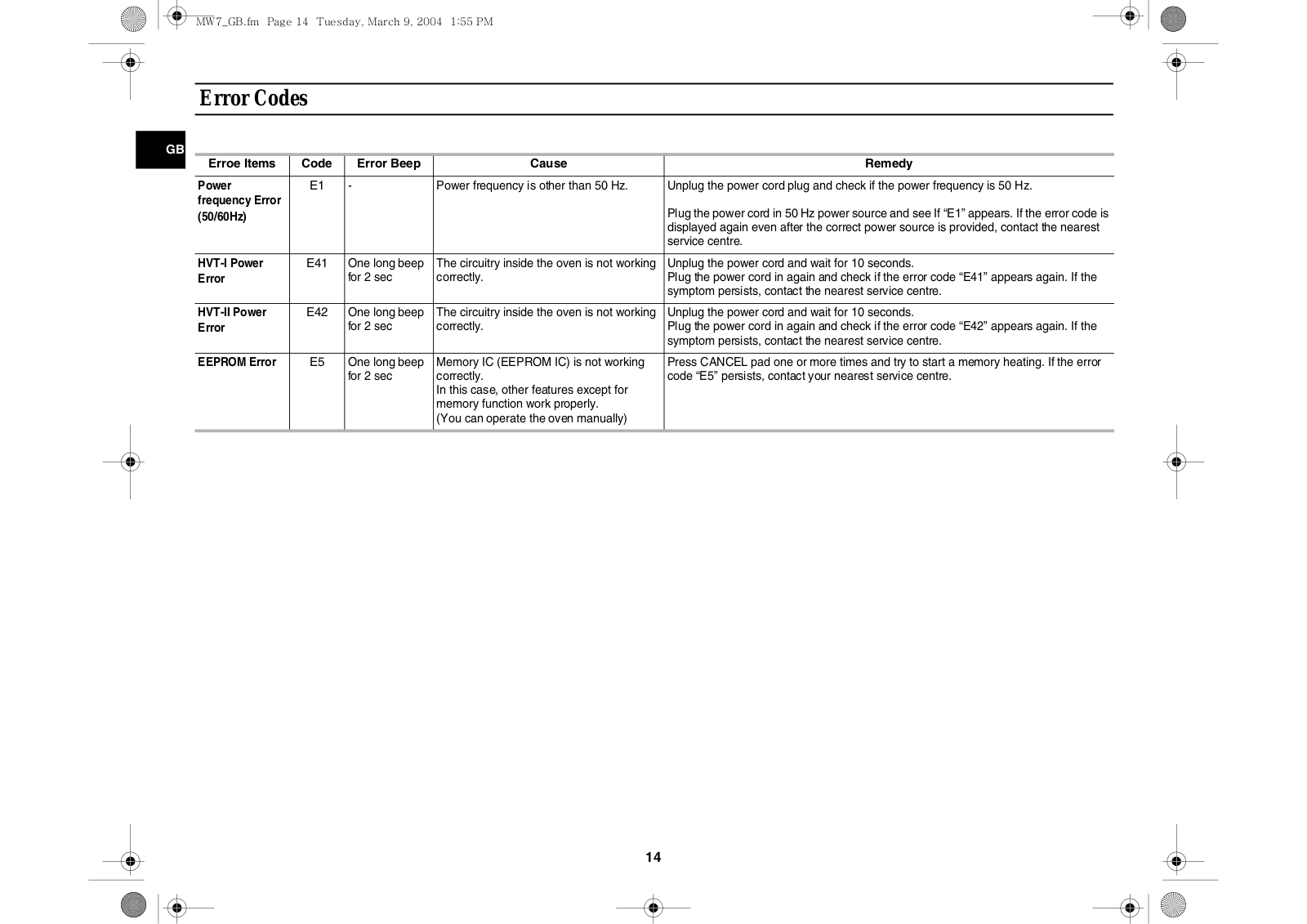

Error Codes ..........................................................................................	14
Hidden Keys .........................................................................................	15

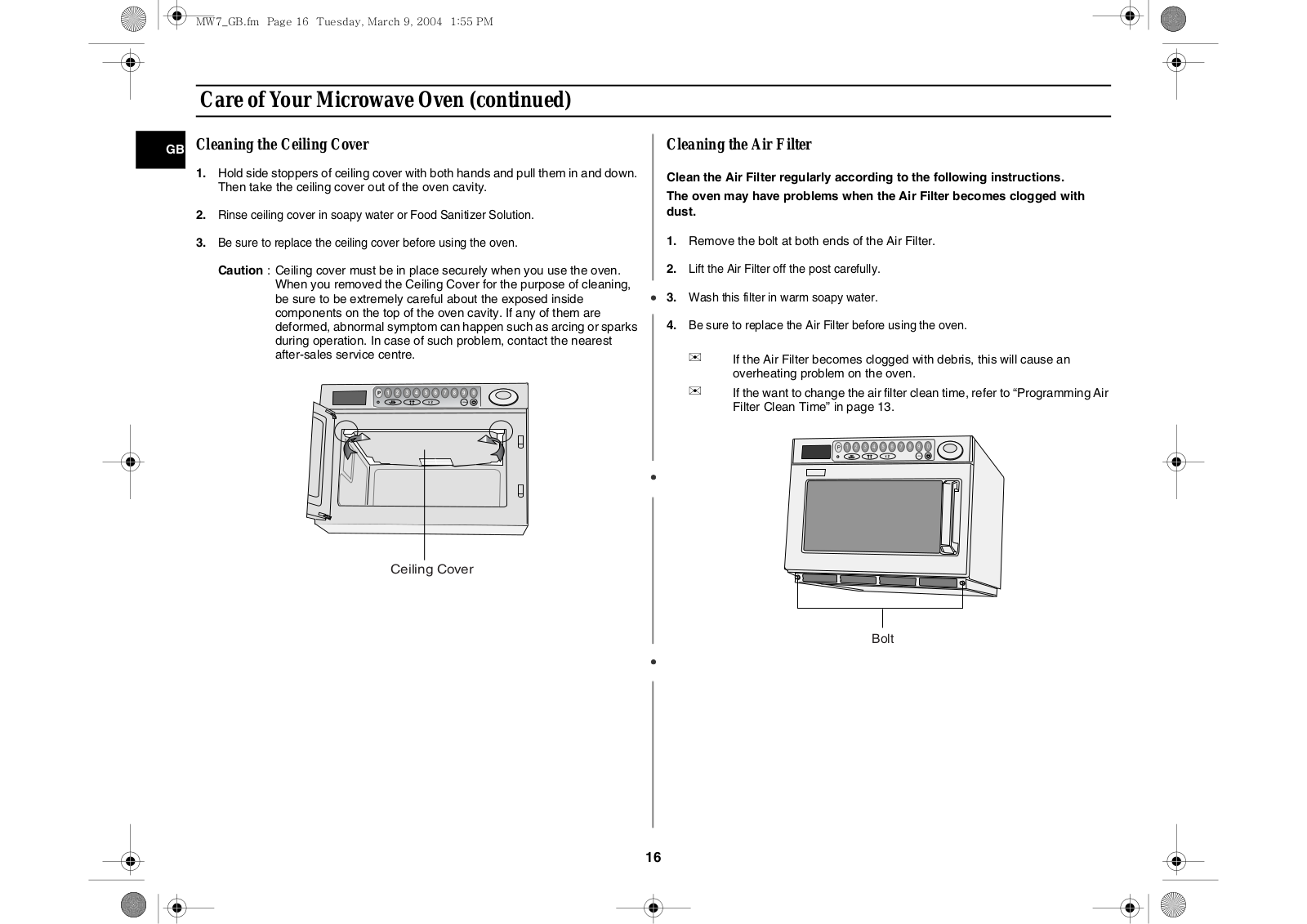

Care of Your Microwave Oven .............................................................	15
Installation Instructions for Stacking.....................................................	17
Replacement of Lamp ..........................................................................	17

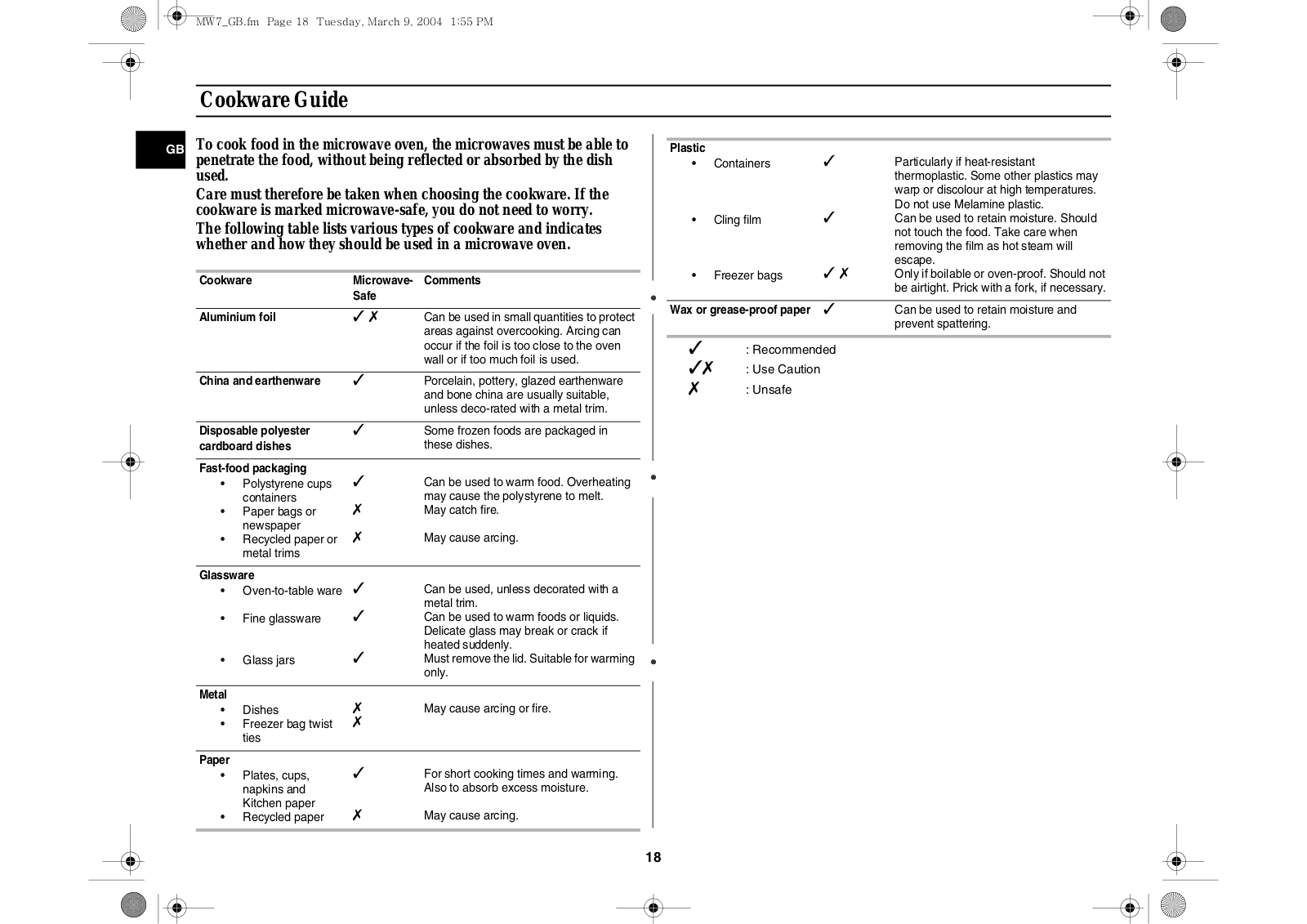

Cookware Guide...................................................................................	18

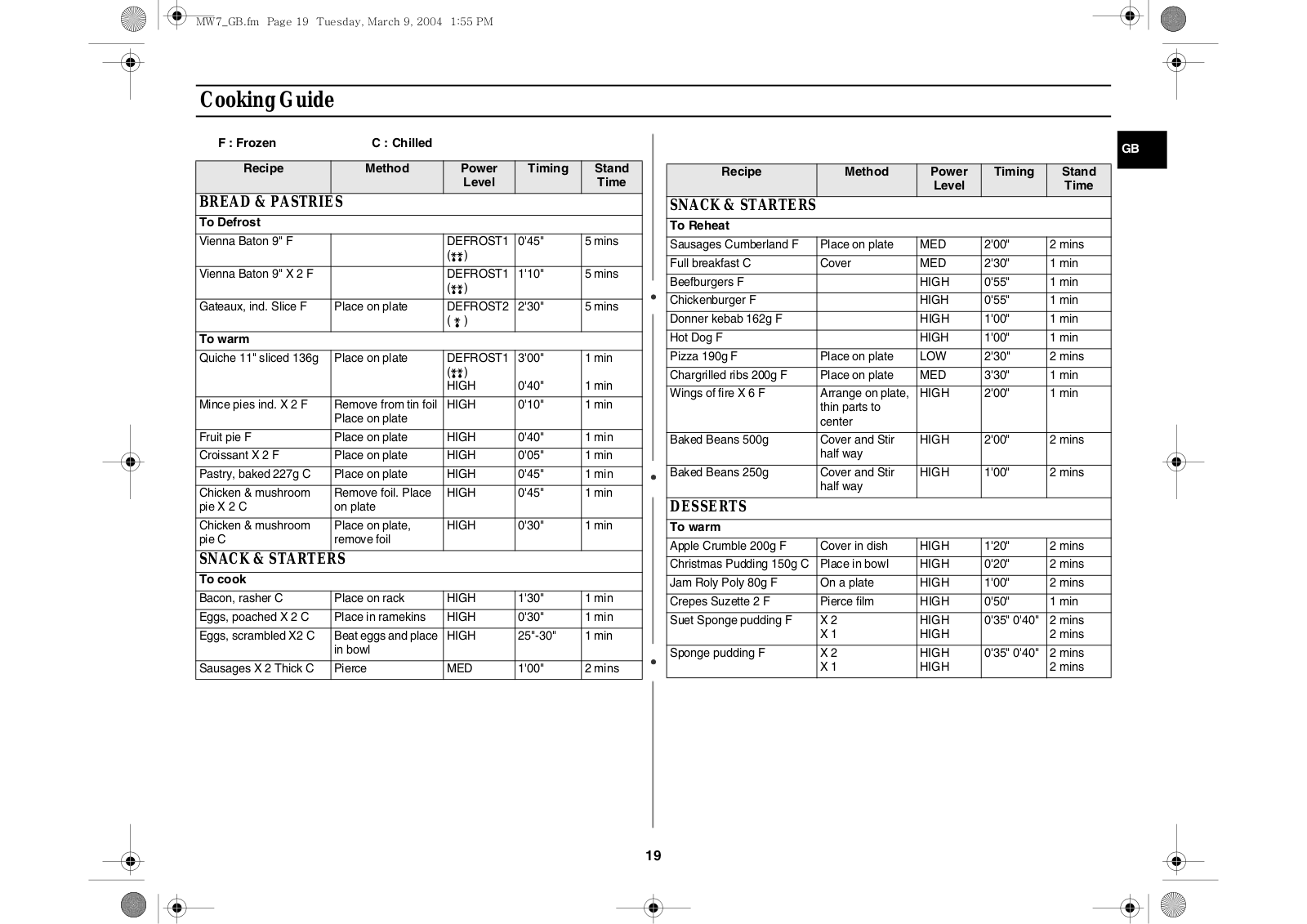

Cooking Guide......................................................................................	19
Cleaning Your Microwave Oven...........................................................	21

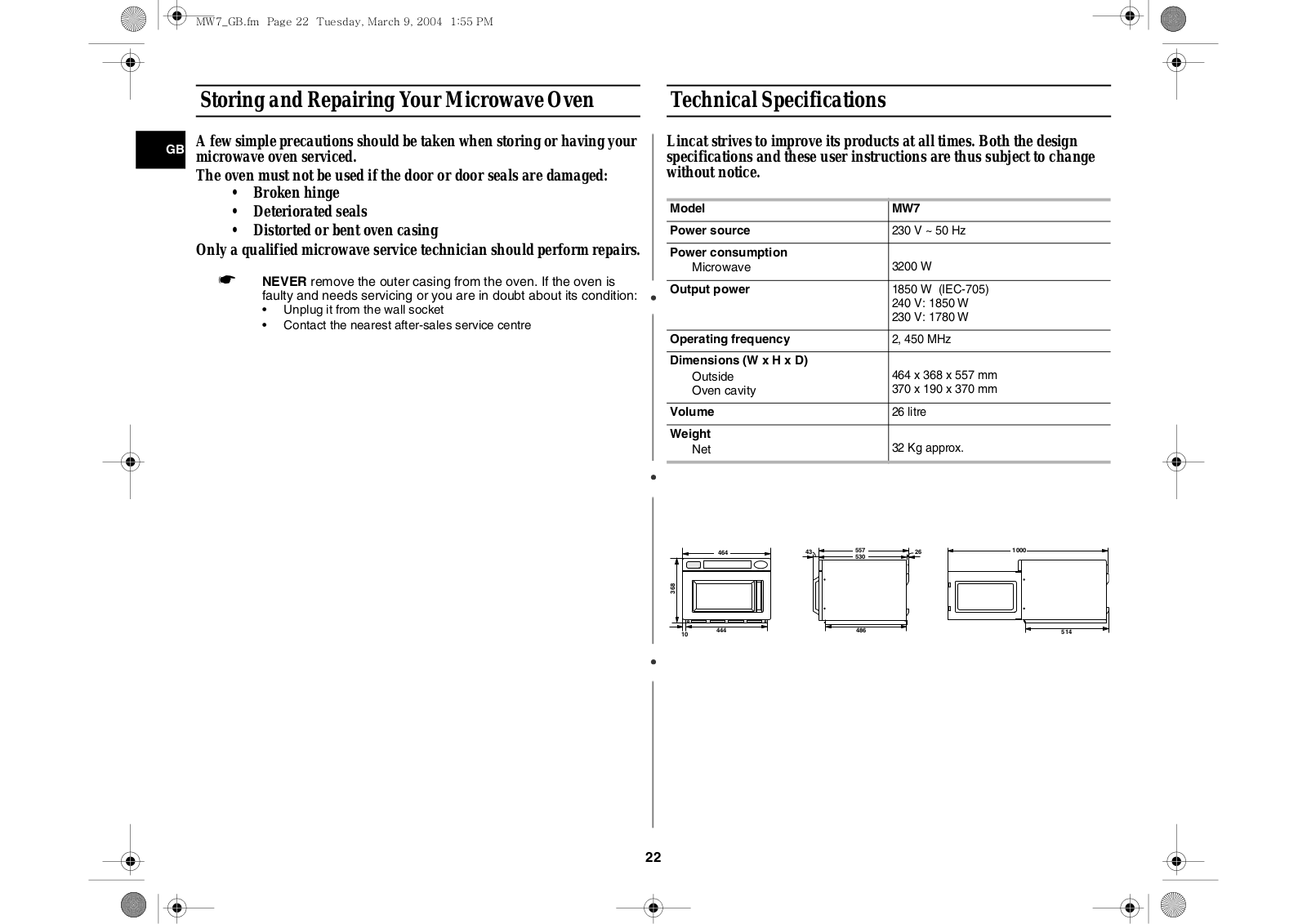

Storing and Repairing Your Microwave Oven......................................	22
Technical Specifications.......................................................................	22

Code No. : DE68-02940A

Oven

GB
	OVEN LAMP
			CONTROL
OVEN LAMP	DISPLAY		PANEL						START
									BUTTON
COVER
DOOR	P 1	2	3	4	5	6	7	8 9	0
HANDLE

CEILING

COVER

						AIR FILTER
DOOR				PLATE TRAY			SAFETY
	DOOR						INTERLOCK
							HOLES
	LATCHES

Control Panel

1	2						4
	P	1	2	3	4	5	6	7	8	9	0
										+ 20sec
	3		5		6		7			8	9	10

1.DISPLAY

2.PROGRAM PAD

3.PROGRAM LOCK PAD

4.NUMBER PADS(Time, Memory Programming)

5.POWER LEVEL SELECTOR PAD

6.DEFROST SELECTOR PAD

7.DOUBLE QUANTITY PAD

8.+20sec PAD (One Touch Cook Pad)

9.STOP/CANCEL PAD

10.10. START BUTTON

DISPLAY

PROGRAM	AIR FILTER
INDICATOR	CHECK
TIME DISPLAY	INDICATOR
MEMORY PAD	DATA CHECK
NUMBER	INDICATOR
INDICATOR
	DOUBLE
	QUANTITY
	INDICATOR

POWER SOURCE	POWER LEVEL	DEFROST
CHECK INDICATOR	INDICATORS	INDICATORS
(When it shows, heating
does not work)

2

Using this Instruction Booklet

Safety Precautiones

You have just purchased a Lincat microwave oven. Your Owner’s Instructions contain valuable information on cooking with your microwave oven:

•Safety precautions

•Suitable accessories and cookware

•Useful cooking tips

At the front of the booklet you will find illustrations of the oven, and more importantly the control panel, so that you can find the buttons more easily.

The step-by-step reocedures use two different symbols.

Important Note

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a)Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.

(b)Do not place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.

(c)Do not operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer.

It is particularly important that the oven door closes properly and that there is no damage to the:

(1)Door, door seals and sealing surfaces

(2)Door hinges (broken or loose)

(3)Power cable

(d)The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

	Before cooking food or liquids in your microwave oven, please check	GB
	that the following safety precautions are taken.

1.DO NOT use any metallic cookware in the microwave oven:

•Metallic containers

•Dinnerware with gold or silver trimmings

•Skewers, forks, etc.

Reason: Electric arcing or sparking may occur and may damage the oven.

2. DO NOT heat:

•Airtight or vacuum-sealed bottles, jars, containers Ex) Baby food jars

• Airtight food.

Ex) Eggs, nuts in shells, tomatoes

Reason: The increase in pressure may cause them to explode. Tip: Remove lids and pierce skins, bags, etc.

3.DO NOT operate the microwave oven when it is empty. Reason: The oven walls may be damaged.

Tip:	Leave a glass of water inside the oven at all times. The water will
	absorb the microwaves if you accidentally set the oven going when
	it is empty.

4.DO NOT cover the rear ventilation slots with cloths or paper.

Reason: The cloths or paper may catch fire as hot air is evacuated from the oven.

5.ALWAYS use oven gloves when removing a dish from the oven.

Reason: Some dishes absorb microwaves and heat is always transferred from the food to the dish.The dishes are therefore hot.

6.DO NOT touch heating elements or interior oven walls.

Reason: These walls may be hot enough to burn even after cooking has finished, enen though they do not appear to be so. Do not allow inflammable materials to come into contact with any interior area of the oven. Let the oven cool down first.

7.To reduce the risk of fire in the oven cavity:

•Do not store flammable materials in the oven

•Remove wire twist ties from paper or plastic bags

•Do not use your microwave oven to dry newspapers.

•If smoke is observed, keep the oven door closed and switch off or disconnect the oven from the power supply

8. Take particular care when heating liquids and baby foods.

•ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize.

•Stir during heating, if necessary, and ALWAYS stir after heating.

•Take care when handling the container after heating. You may burn yourself, if the container is too hot.

•A risk of delayed eruptive boiling exists.

•To prevent delayed boiling and possible scalding, you should put a plastic spoon or glass stick into the beverages and stir before, during and after heating.

Reason: During the heating of liquids the boiling point can be delayed; this means that eruptive boiling can start after the container is removed from the oven. You may scald yourself.

3

Safety Precautiones (continued)

Installing Your Microwave Oven

	GB	• In the event of scalding, follow these FIRST AID instructions:
		* Immerse the scalded area in cold water for at least 10 minutes.
		* Cover with a clean, dry dressing.
		* Do not apply any creams, oils or lotions.
		• NEVER fill the container to the top and choose a container that is wider at the

top than at the bottom to prevent the liquid from boiling over. Bottles with narrow necks may also explode if overheated.

• ALWAYS check the temperature of baby food or milk before giving it to the baby.

• NEVER heat a baby’s bottle with the teat on, as the bottle may explode if overheated.Tenga cuidado de no estropear el cable de alimentación.

9. Be careful not to damage the power cable.

• Do not immerse the power cable or plug in water and keep the power cable away from heated surfaces.

• Do not operate this appliance if it has a damaged power cable or plug. 10. Stand at arm’s length from the oven when opening the door.

Reason: The hot air or steam released may cause scalding. 11. Keep the inside of the oven clean.

Reason: Food particles or spattered oils stuck to oven walls or floor can cause paint damage and reduce the efficiency of the oven.

12. You may notice a “Clicking” sound during operation(especially when the oven is in defrosting).

Reason: This sound is normal when the electrical power output is changing. 13. When the microwave oven is operating without any load, the power will be cut off automatically for safety. You can operate the oven normally after letting it stand for

over 30 minutes.

IMPORTANT SAFETY INSTRUCTIONS

During cooking, you should look into the oven from time to time when food is being heated or cooked in disposable containers of plastic, paper or other combustible materials.

IMPORTANT

Young children should NEVER be allowed to use or play with the microwave oven. Nor should they be left unattended near the microwave oven when it is in use. Items of interest to children should not be stored or hidden just above the oven

WARNING:

If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING:

It is hazardous for anyone other than a comperent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

WARNING:

Liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING:

Only allow children to use the oven without supervicion when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

This microwave oven can be placed almost anywhere (kitchen work surface or shelf, movable trolley, table).

1.Install the oven on a flat, level, stable surface. Make sure there is adequate ventilation for your oven by leaving at least 10cm(four inches) of space behind, on the sides of the oven and 20cm(eight inches) of above.

(For stacking see page 17.)

2.Never block the air vents as the oven may overheat and automatically switch itself off. It will remain inoperable until it has cooled sufficiently.

3. Remove all packing materials inside the oven.

4.For your personal safety, plug the cable into a 3-pin, 230 Volt, 50Hz, AC earthed socket. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

5.This microwave oven has to be positioned so that plug is accessible.

Be sure to remove the protective film from outer case. The protective film is on the outer case to prevent scratches. When installing or before using, be sure to remove it.

Outdoor Use

This microwave oven is not designed for outdoor use.

You should use it indoors only.

During Air Cooling

Do not turn power off while the cooling fan is automatically air-cooling for 1min.

Recommendations

DO NOT install the microwave oven in hot or damp surroundings. Example: Next to a traditional oven or radiator.

The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven.

Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

4

Cooking / Reheating

One-stage cooking

This oven is preset at the factory for automatic operation.

Make sure the oven is plugged into a properly earthed electrical outlet and “ON” appears in the display window.

Open the door(The oven lamp will be turned on.).

Put the food into a suitable container, place it in the centre of the oven and then close the door securely (The oven lamp will go off.).

1.Select the desired power level by pressing the Power Level Selector pad.

Result : The selected power level will be displayed in the display window.

2.Set the desired heating time by pressing the NUMBER pads.

Result : The selected time is displayed in the display window.

The maximum time according to each cooking power level can be referred to in the title “Power Levels ans Time Variations” on page 6. The NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value. It is not possible to set a cooking time for longer than the maximum time allowed on the chosen program. It is advisable to press CANCEL and to enter a new power level and cooking time.

		3.	Press	button:			GB
			Result :	The oven lamp and cooling fan will be turned
				on. Heating will start.
				The time on digital display will count down.
				When all time is elapsed, the end of cycle Beep
				Tone will sound 4 times and all heating will stop.
				The oven lamp will go off. For 1 min, the display
				shows ‘0‘ and the cooling fan will keep working in
				order to cool down the interior parts.
				During the time, the fan will not stop even when
				you open the door. 1 min later it will stop. Food
				may be removed from oven whilst the fan is still
				running.
		4. Open the door and take the food out.
			Close the door. The oven lamp will go off.
	Whilst in a heating cycle, one press on					pad stops the oven. At this
	time, the Power Check Indicator “ON” starts blinking and goes off
	when the		pad or	button is pressed again.
	You can restart it by pressing the				button or a second press on
	pad will cancel the selected program. While NOT in a heating cycle,
	one tap on		pad cancels the selected program.
	You can press +20sec pad one or more times in order to add the
	cooking time by 20 seconds. But you can not exceed the maximum
	time per power level allowed for power level selected.

When you first plug in the power cord, the oven beeps once and all the indicators show for 5 sec in the display window.

When heating cycle is completed and you open the door, the oven lamp automatically turns on and goes off 1 min later.

When you open the door whilst in a heating cycle, the oven stops operating and the oven lamp automatically turns on for 1 min and goes off 1 min later. If you leave the oven door open for more than 1 min, the oven beeps once every minute and after 5 min the power source check indicator ‘ON’ appears in the display window.

5

Cooking / Reheating (continued)

Power Levels and Time Variations

GB Multi-stage cooking

1.Select the desired power level by pressing the POWER LEVEL Selector pad or DEFROST pad.

Result : The selected power level will be displayed in the display window.

2.Set the desired heating time by pressing the NUMBER pads.

Result : The selected time is displayed in the display window.

The maximum time according to each cooking power level can be referred to in the title “Power Levels ans Time Variations”. The NUMBER pads will not operate or respond when you press a cooking time exceeding the maximum value. It is not possible to set a cooking time for longer than the maximum time allowed on the chosen

program. It is advisable to press CANCEL and to enter a new power level and cooking time.

3.Repeat steps 1 and 2 for II or III stage memory programming.

4.Press button:

Result : The oven lamp and cooling fan will be turned on. The oven will automatically start heating according to pre-programed cooking time and power level.(I stage II stage III stage). The time on digital display will count down.

The power level function enables you to adapt the amount of energy dissipated and thus the time required to cook or reheat your food, according to its type and quantity. You can choose between the power levels below.

Power Level			Percen-tage	Output
HIGH (	)		100 %	1850 W
MEDIUM ( )			70 %3	1295 W
LOW (	)		50 %	925 W
HIGH DEFROST (		)	20 %	370 W
LOW DEFROST (		)	10 %	185 W

The cooking times given in recipes and in this booklet correspond to the specific power level indicated.

Power Level			Max. Time
HIGH (	)		25 min.
MEDIUM ( )			40 min.
LOW (	)		40 min.
HIGH DEFROST (		)	50 min.
LOW DEFROST (		)	50 min.

You can not set up the same POWER LEVEL or DEFROST. It operates as setting up sequence.

6

Stopping the Cooking

You can stop cooking at any time so that you can:

•Check the food

•Turn the food over or stir it

•Leave it to stand

To stop the cooking...		Then...
Temporarily	Open the door or press		pad once.
	Result :	Cooking stops.
	To resume cooking, close the door and press
	again.
Completely	Press the	pad twice.
	Result : The cooking settings are
		cancelled.

If you want to cancel any cooking settings before starting cooking, simply press CANCEL( ) once.

Repeat Feature

1.	You can repeat the previous cooking setting (regardless	GB
	of manual or automatic memory heating) by pressing the
	START( ) button. The oven starts with exactly the
	same heating time and power level that were used in the
	last operation.
2.	The repeat feature will be cancelled once the power source
	is cut off.

7

!

Using +20sec Pad

Using the Defrost Feature

GB This is a ONE TOUCH COOK pad.

By touching the pad once, you can start heating instantly.

You can increase the cooking time by pressing the +20sec pad while heating is being done.

A cooking time increases by 20 seconds at each press on +20sec pad. But it can not exceed the maximum time.

Like traditional cooking, you may find that, depending on the food’s characteristics or your tastes, you have to adjust the cooking times slightly. You can:

•Check how cooking is progressing at any time simply by

•opening the door

•Close the door

•Increase the remaining cooking time

Before operating the oven, times can be increased/decreased using either the time pads or +20sec button

During the operating, time may only be added by using the +20sec button.

The Defrost feature enables you to defrost meat, poultry or fish.

Use only containers that are microwave-safe.

Open the door. Place the frozen food in the centre of the plate tray. Close the door.

1. Press the Defrost selector pad to set DEFROST HIGH

( ) or DEFROST LOW ( ) as you wish.

Result : The selected DEFROST indicator appears in the display.

2.Press the NUMBER pads to set the defrosting time. (Max. 50 min)

3.Press button.

Result : Defrosting begins.

It is not possible to set a defrosting time for longer than 50min. The defrost indicator will flash and it

is advisable to press CANCEL( ) and enter a new defrost level and time.

When the oven was operating for longer than 25 min under Defrosting cycle, you can NOT change the power level from Defrosting to Heating(Cooking/Reheating) mode.

8
